Wired / Wireless
CMOS IP Camera
ICA-107
ICA-107W
User’s Manual
Version: 3.00
Copyright © 2010 by PLANET Technology Corp. All rights reserved. No part of this publication may
be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language
or computer language, in any form or by any means, electronic, mechanical, magnetic, optical,
chemical, manual or otherwise, without the prior written permission of PLANET.
PLANET makes no representations or warranties, either expressed or implied, with respect to the
contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular
purpose. Any software described in this manual is sold or licensed "as is". Should the programs prove
defective following their purchase, the buyer (and not PLANET, its distributor, or its dealer) assumes
the entire cost of all necessary servicing, repair, and any incidental or consequential damages
resulting from any defect in the software. Further, PLANET reserves the right to revise this publication
and to make changes from time to time in the contents hereof without obligation to notify any person
of such revision or changes.
All brand and product names mentioned in this manual are trademarks and/or registered trademarks of their
respective holders.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected
4. Consult the dealer or an experienced radio technician for help
FCC Caution
To assure continued compliance. (example-use only shielded interface cables when connecting to
computer or peripheral devices). Any changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the Following two
conditions: ( 1 ) This device may not cause harmful interference, and ( 2 ) this Device must accept
any interference received, including interference that may cause undesired operation.
Federal Communication Commission (FCC) Radiation Exposure Statement
This equipment complies with FCC radiation exposure set forth for an uncontrolled environment. In
order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity
to the antenna shall not be less than 20 cm (8 inches) during normal operation.
R&TTE Compliance Statement
This equipment complies with all the requirements of DIRECTIVE 1999/5/CE OF THE EUROPEAN PARLIAMENT AND
THE COUNCIL OF 9 March 1999 on radio equipment and telecommunication terminal Equipment and the mutual
recognition of their conformity (R&TTE)
The R&TTE Directive repeals and replaces in the directive 98/13/EEC (Telecommunications Terminal Equipment and
Satellite Earth Station Equipment) As of April 8,2000.
Safety
This equipment is designed with the utmost care for the safety of those who install and use it.
However, special attention must be paid to the dangers of electric shock and static electricity when
working with electrical equipment. All guidelines of this and of the computer manufacture must
therefore be allowed at all times to ensure the safe use of the equipment
.
CE Mark Warning
This is a Class B product. In a domestic environment, this product may cause radio interference, in
which case the user may be required to take adequate measures.
WEEE Regulation
To avoid the potential effects on the environment and human health as a result of the
presence of hazardous substances in electrical and electronic equipment, end users of
electrical and electronic equipment should understand the meaning of the crossed-out
wheeled bin symbol. Do not dispose of WEEE as unsorted municipal waste and have
to collect such WEEE separately.
Revision
User’s Manual for PLANET Wired / Wireless CMOS IP Camera
Model: ICA-107 / ICA-107W
Rev: 1.0 (January. 2010)
Part No. EM-ICA-107_v3
Contents
1. Introduction ................................................................................................................................... 1
1.1. Overview.................................................................................................................1
1.2. Features..................................................................................................................1
1.3. Package Content ....................................................................................................2
2. System Requirement .................................................................................................................... 3
2.1. System Requirements ............................................................................................3
2.2. Physical Description ...............................................................................................4
2.2.1. Front Panel ....................................................................................................4
2.2.2. Rear Panel.....................................................................................................5
2.3. Installation Procedure.............................................................................................6
2.3.1. Locate the IP Address of this IP Camera .......................................................6
2.4. Initial Utility Installation .........................................................................................10
2.5. Camera Admin locate IP Camera .........................................................................15
2.6. Setup ActiveX to use the IP Camera ....................................................................17
2.6.1. Internet Explorer 6 for Windows XP.............................................................17
2.6.2. Internet Explorer 7 for Windows XP.............................................................18
2.6.3. Internet Explorer 7 for Windows Vista..........................................................19
3. Web-Base Connection Management Interface ........................................................................ 20
3.1. Introduction...........................................................................................................20
3.2. Connecting to IP Camera .....................................................................................20
3.3. Camera Setting.....................................................................................................23
3.4. LAN Setting...........................................................................................................25
3.5. Video.....................................................................................................................27
3.6. WLAN (ICA-107W Only) ....................................................................................... 28
3.7. E-Mail and FTP..................................................................................................... 30
3.8. Motion Detection...................................................................................................32
3.9. System..................................................................................................................33
3.10. Status ....................................................................................................................35
3.11. Users ....................................................................................................................36
3.12. Log........................................................................................................................37
Appendix A: Router/Gateway Setup for Internet Viewing ............................................................ 38
Appendix B: Viewing via UPnP in Windows .................................................................................. 39
Windows XP.............................................................................................................39
Windows Vista..........................................................................................................44
Appendix C : Windows 2003 Server DirectX Configuration ......................................................... 45
Appendix D: Frequently Asked Questions..................................................................................... 47
Appendix E: Product Specification................................................................................................. 48
1. Introduction
For getting a powerful and economical IP Camera, PLANET introduces the next generation
ICA-107/ICA-107W. These IP Cameras have an Integrated Microcomputer and a high quality CMOS
digital-Image-Sensor with MPEG-4 compress it is the most effective solution on the bandwidth limited
networks enabling it to display high quality live streaming video over the LAN and Internet.
The motion detection in the ICA-107 series can notify users via email or ftp while detecting any
movement. With its administered software, there is no expertise required, and the surveillance network
can be easily and efficiently established in few minutes.
ICA-107W supports 802.11b/g/n wireless network that will save time and cost for wiring. And with the
Windows based utility, Cam Viewer Plus management software, the ICA-107 series, could take a
snapshot, record and playback to the video files.
1.1. Overview
This user’s manual explains how to operate the IP Camera from a computer, unless model name
specified terms “IP Camera” will be used for the two models. The user’s manual is written to be read on
the computer display. However, users might consider printing it out to access easily and read it before
you operate the Network Camera. This guide shows how to quick set up the IP camera.
1.2. Features
z
Easy configuration
The network administrators can configure and manage the camera via Windows-based utility or
web interface based on 10/100Base-TX Ethernet with Auto-MDIX or 802.11n wireless interface
(ICA-107W). Supporting TCP/IP networking, SMTP e-mail and HTTP network standards,
PLANET ICA-107 series can be applied and utilized in the mixed IP network environment.
z
Meets SOHO, business, or public facilities surveillance needs. The
Deployed in many different situations, such as libraries, train stations or factory production lines to
provide efficient human-resource, and offers flexibility, affordability, and reliability for the proper
surveillance of manufacturing facilities
z
Supports Web management & Cam Viewer Plus central management software
The IP Camera from a remote site via Intranet or Internet. They also provide users to make
function configuration including image monitoring, recording images to a hard drive, view up 64
cameras on one screen, snapshots and so on.
1
z
Simultaneous Viewing
The IP Cameras allow multiple users to login and view live video simultaneously. The advanced
video compression produces a high-quality, high-frame rate and VGA, QVGA video stream.
z
Motion Detection
Support monitors any suspicious movement in front of the cameras.
z
Supports DDNS & UPnP
The IP Cameras also support UPnP and DDNS. DDNS allows the camera to use easily and
remember naming format rather than an IP address. UPnP will allow users of Windows XP to
access the cameras by clicking of a mouse without knowing IP address of the camera.
1.3. Package Content
Í
IP Camera unit x 1
Power Adapter x 1
Quick Installation Guide x 1
User’s manual CD x 1
Accessories Package x 1
1. If any of the above items are missing, please contact your
Note
dealer immediately.
2. Using the power supply that is not the one included in unit
packet will cause damage and void the warranty for this
product.
2
2. System Requirement
This chapter provides details of installing and configuring the IP Camera
2.1. System Requirements
The IP Camera can be monitoring on all of Windows operating system that suggest with system
requirment below in order to got better video performance.
Model ICA-107 ICA-107W
Network Environment
Network Access 10/100Base-TX Ethernet
Additional Interface - IEEE 802.11b/g/n
Network bandwidth In VGA resolution, minimum upload bandwidth is 700kbps ~ 1Mbps.
Monitoring System Recommendation
• CPU: Pentium 4, 1.6GHz or above
System Hardware
• Memory Size: 256 MB (512 MB Recommended)
• VGA card resolution: 800 x 600 or above
Web Browser
NOTE:
• Internet Explorer 6.0 or above
1. The listed information is minimum system requirements only. Actual requirement
will vary depending on the nature of your environment.
2. The ICA-107 can be managed by PLANET Cam Viewer Plus if you want to
configure more detail information and settings of camera viewer plus software
please refer to the CD-ROM folder “D:\Manual\Cam Viewer Plus\”, assume D is
your CD-ROM drive.
3
2.2. Physical Description
2.2.1. Front Panel
The IP Camera head and its focus ring allow you to modify the aim and focus of the IP Camera. To
adjust the IP Camera’s focus, please rotate the focus ring.
There are LEDs indicating the IP Camera status and networking status.
y Power
When the IP Camera is power on, the LED will light on.
y Network
When the IP Camera is linking to wired or wireless interface, the LED will light on. This LED will
flash when video is transmitting or receiving.
y Antenna (ICA-107W only)
ICA-107W builds a fixed wireless antenna on its top panel for better the wireless signal.
Antenna
ICA-107W only
Power LED
Lens
Network LED
Front view of IP Camera
(Example on ICA-107W )
4
2.2.2. Rear Panel
y Power Input
The DC power input connector is located on the IP Camera's rear panel, and is labeled 5V DC
with a single jack socket to supply power to the IP Camera. Power will be generated when the
power supply is connected to a wall outlet.
y Ethernet Jack
The IP Camera's bottom panel features an RJ-45 connector for connections to 10Base-T
Ethernet cabling or 100Base-TX Fast Ethernet cabling (which should be Category 5 twisted-pair
cable). The port supports “Auto-MDIX” function, allowing the IP Camera to automatically detect
or negotiate the transmission speed of the network.
y Reset Button
Press the reset button for more than 10 seconds and the IP Camera will reset to the factory
default. The factory default settings are listed in the table below.
y WPS Button (ICA-107W only)
Press the WPS button for less than 2 seconds, machine will start WPS function to build
connection between wireless network clients and the WPS activated Access Point.
y Mounting hole
The mounting hole is provided for IP Camera stand installation.
Mounting hole
Power Input
Reset /
Ethernet Jack
WPS Button
(ICA-107W only)
Bottom View of IP Camera
(Example on ICA-107W)
5
2.3. Installation Procedure
1. Unpack the package and verify that all the items listed in the Chapter 2 are available.
2. Connect the IP Camera to your network with network cable; please connect the IP camera to your
network switch or router.
3. Connect the power adapter to IP Camera and plug the power adapter to power outlet. The IP
Camera will be powered on. When the IP Camera is ready, the Power LED will light on.
4. Make sure that you have installed the ActiveX utility.
Note: It is highly recommended to use the power adapter shipped with the IP Camera, DO NOT use
any other power adapter from other sources. It may make the IP Camera damage.
2.3.1. Locate the IP Address of this IP Camera
Default IP address of this IP camera is 192.168.0.20. If you wish to assign another IP address to this IP
camera, you have to log onto the web configuration interface of the camera first.
If the left three fields of the IP address of your computer is not 192.168.0, you’ll have to change the IP
address of your computer first:
1. Click Start Î Control Panel
6
2. Double-click Network Connections icon.
3. Right-click Local Area Connection, and click Properties.
7 7
4. Select ‘Internet Protocol (TCP/IP)’, and th en click Properties.
8
5. In IP address field, please fill in any IP address begins with 192.
reater than 2 and less than 254 (You can use the following example 192.168.0.239). In Subnet
g
mask field, please fill 255.255.255.0. Please keep all other fields empty, and click OK.
168.0, and ends with a value
If you changed the IP address of this IP Camera and you forget it, there’re 2 methods to recover it:
a. Press and hold the Reset button located at the bottom of this IP camera, to clear all settings
of the IP camera and reset the IP address back to 192.168.0.20. You’ll lose all settings in the
IP camera.
b. Ask network administrator to check the DHCP release table, if the camera was set to obtain
the IP address by DHCP, a new record will be added to DHCP release table on DHCP server
when the IP camera is connected to the local area network.
9
2.4. Initial Utility Installation
This chapter shows how to quick set up your IP Camera. The IP Camera is with the defa
wever to help you find the networked camera quickly the admin software can search the cameras in
Ho
the network that shall help you to configure some basic setting before you started advanced
management and monitoring.
Please insert the bundle CD-ROM supplied in the product package, and the CD will automatically
running a welcome page, please click your IP camera model name to next page. If the welcome page
doesn’t appear, please run this installation manually, you can find the utility in “E:\Utility\Utility\Admin
Software\Setup.exe”. Suppose “E” is your CD-ROM drive.
Then follow the following instructions to install and use camera admin software:
1. Click Next to start install camera admin software.
ult settings.
10
2. You can change the installation folder of camera setup software here, click Browse to select an
existing folder, or you can just click Next to use default installation folder.
3. If you wish to create desktop icon and / or quick launch icon for camera admin software, please
check corresponding box, and click Next to continue.
11
4. You’ll see a brief of all options you selected, click Install to install camera admin software now, or
click back to back to previous steps to change settings.
5. When you see this message, the installation of camera admin software is complete. If you wish t
launch camera admin software now, keep Launch IP Co am Admin Utility box checked, and click
Finish to close installation utility.
12
6. Please double-click the utility icon on the desktop then you will see the IP Camera utility.
A
fter the camera admin software is launched, all cameras found on your local area network will be
displayed:
All camera-related information will be displayed here. If you wish to connect to certain camera by web
browser, double-click the camera listed here.
The camera admin software also provides several functions:
13
This camera admin software supports 3 languages:
Language
English, Chinese, and Japanese. User can select the language
oneself wish to use from language dropdown menu located at
upper-right corner of camera admin software.
Search camera:
Click this button to search all cameras on local area network
again.
Browse camera via web:
Select a camera listed above first, and then click this button to
connect to the camera by web browser.
Configure camera:
Click this button to configure camera’s network and security
setting. You’ll be prompted to input camera’s password:
14
2.5. Camera Admin locate IP Camera
If you can’t connect to the ca ra admin
software to search the came k. The admin software is
also capable to locate multiple cameras on your local area network.
Input the password (default: admin nd security
etting:
s
mera by the instructions given in last chapter, you can use came
ra which is connected to your local area networ
) and click OK to configure the camera’s network a
In Lan Setting page, user can configure camera’s network settings. Select DHCP to set the camera to
obtain an IP address from DHCP server on local area network automatically, and select Manual IP to
input the IP address information manually. Click OK to save settings.
15
In Security’ page, user can change the camera’s name and password (user name is always ‘admin’
New Password and Confirm and cannot be changed). You have to input the same password in both
Password field, or you’ll be prompted to input new password again. Click OK to save settings or click
Cancel to discard changes.
16
2.6. Setup ActiveX to use the IP Camera
The IP Camera web pages communicate with the IP Camera using an ActiveX control. The ActiveX
control must be downloaded
security settings must allow for the web page to work correctly. To use the IP Camera, user must setup
his IE browser as follows:
from the IP Camera and installed on your PC. Your Internet Explorer
2.6.1. Internet Explorer 6 for Windows XP
From your IE browse Î Tools Î Internet Options… Î Security Î Custom Level…, please setup
your Settings as follow.
Set the first 3 items
• Download the signed ActiveX controls
• Download the unsigned ActiveX controls
• Initialize and script the ActiveX controls not masked as safe to Prompt
By now, you have finished your entire PC configuration for IP Camera.
17
2.6.2. Internet Explorer 7 for Windows XP
From your IE browse Î Tools Î Internet Options… Î Security Î Custom Level…, please setup
your Settings as follow.
Set the first 3 items
• Allow previously unused ActiveX control to run…
• Allows Script lets
• Automatic prompting for ActiveX controls
By now, you have finished your entire PC configuration for IP Camera.
18
2.6.3. Internet Explorer 7 for Windows Vista
From your IE browse Î Tools Î Internet Options… Î Security Î Internet Î Custom Level…,
lease setup your Settings as follow.
p
• Enable ‘Automat
• Prompt ‘Initialize and script active controls not mark
From your IE browse Î ‘Tools‘ Î ‘Internet Options…‘ Î ‘Security‘ Î ‘Trusted Sites‘ ΑCustom
Level…‘, please setup your Settings as follow.
ic prompting for ActiveX controls’
ed….’
• Enable ‘Automatic prompting for ActiveX controls’
• Prompt ‘Initialize and script active controls not marked….’
By now, you have finished your entire PC configuration for IP Camera.
19
3. Web-Base Connection Management Interface
This chapter provides setup details of the IP Camera’s Web-based Interface.
3
.1. Introduction
The ICA-107 / ICA-107W can be configured with Web Browser. Before configure, please make sure
your PC is under the same IP segment with IP Camera.
3.2. Connecting to IP Camera
z Use the following procedure to establish a connection from PC to the IP Camera.
z Once connected, user can add the IP Camera to your Browser’s Favorites or Bookmarks.
User can use the Web browser to connect the IP Camera for viewing or setting. Open the web browser
and enter the IP address of the IP Camera to establish a connection. The default IP address of the
camera is “http://192.168.0.20”.
User should be prompted to input the user name and password. Default username and password is
admin assword has entered. /admin. Click OK to continue after user name and p
If you’re rejected, maybe the password has been modified previously. This should not happen if this is a
newly-purchased camera, however, if you get the camera from someone else, the password would be
changed. Please try to obtain the correct user name / password, or you’ll have to reset the camera.
20
Í
Note
If the User name and Password have been changed with Admin
utility, please enter the new User name and Password here.
After logged on, you should see the follow
If you are viewing the IP Camera at the first time, the following dialog will appear to install the ActiveX
plug in. Please check the publisher part; you should accept it, if it is published by PLANET Technology
Corp.
Click on the message, and click Install ActiveX Control…
ing messages at the top of Internet Explorer:
When you see this message, click Install to install required ActiveX control
21
After the ActiveX control was installed and run, the first image will be displayed.
You should be able to see the images captured from the camera in the web page now. For advanced
functions, please refer to instructions given in follows chapters.
(Example on ICA-107W)
The menu options for the web control screen are as follows.
Camera – View live video and manual record menu.
LAN – Configure the LAN port.
AN – Configure the WLAN port. (ICA-107W Only)
WL
Video – Configure and adjust the video format from the menu.
E-Mail & FTP
Motion Detection – Configure the Motion Detection here.
System – Configure the system settings here.
Status – Shows the camera information and current status in this page.

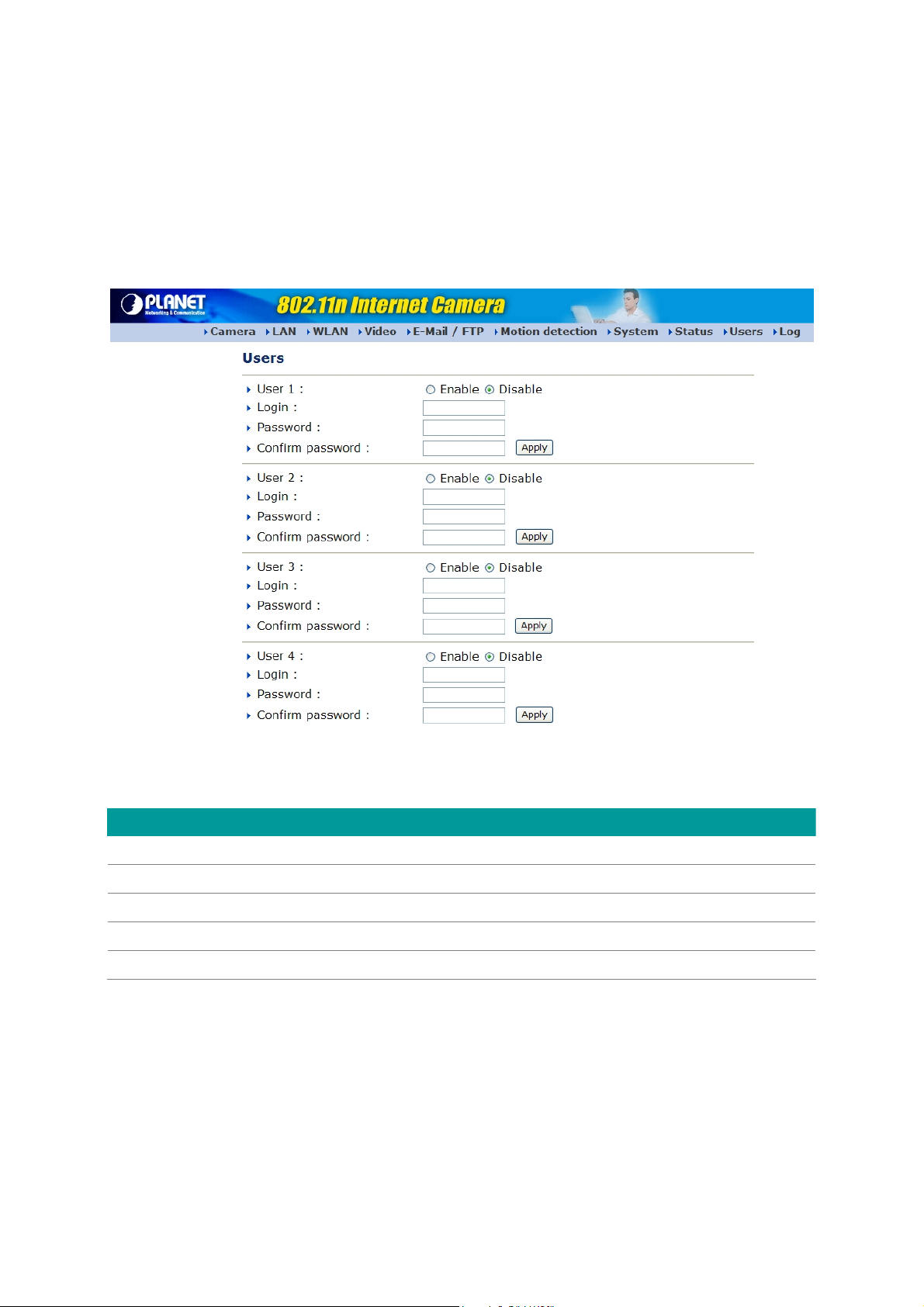

Users – The IP Camera support up to 4 user accounts. You can set those accounts here.
– Setup the E-Mail client and FTP client.
22
3.3. Camera Setting
Camera Setting
Video Format
Snapshot
(Example on ICA-107W)
Select the video encoding type. Available options are MJPEG and
MPEG4.
Click Snapshot button to save
message box will appea
filename and location
ate and time).
d
Default directory used to save im
directory by clicking the te
button:
of saved image file (default filename is current
the displaying image as an image file, a
r after you click Snapshot button, showing the
age file is C:\, you can change the
xt input box located at the right of ‘Snapshot’
Record
And you’ll be prompted to select a new directory.
Press this button to record the displaying image as a video file in AVI
format, and you can play the video file back by Windows Media Player.
To stop recording, press Stop Recording button (the same button). You
23
e directory used to save video file. can also change th
Full Screen
Digital Zoom
Click this button t
available space to display the image captured by this camera).
If you wish to enlarge certain portion of the captured image, you can
click this button to set digital zoom:
Click Enable to enable digital zoom function, then you can drag the
slide bar u can also use your mouse to drag the
zoom area (the yellow square) to reposition the zoom area.
to adjust zoom ratio. Yo
o display the image in full-screen mode (uses every
Fit to Window
Click this button and the image size will be adjusted to fit the size of
browser window.
24
3.4. LAN Setting
LAN
Network Type
IP Address
Subnet Mask
(Example on ICA-107W)
This camera can obtain the IP address from DHCP server automatically (if you
have one), or set a fixed IP address. Select DHCP to obtain IP address
automatically or Static IP Address to assign this IP camera with a fixed IP
address.
When DHCP is selected, IP address parameters below will be grayed out.
Enter an available IP Address within the range in your LAN.
The Subnet Mask field must match the subnet setting on your LAN. For
example: 255.255.255.0.
Gateway
DNS Server
Please enter the default gateway of your LAN here.
Please enter your prefer DNS server here.
25
AV Control Port
Web Port
Apply
RTSP
Enable RTSP
RTSP Port
RTSP Path
RTSP Port Rang
The Video Port is u
setting is “4321”. If
should be correct.
The IP Camera support web connection, the default web port is 80. If you
change the web port from 80 to other port, such as 8080, you must type
http://192.168.0.20:8080 to connect the camera through the web browser.
When you finish the “LAN” configuration, click this button to apply the setting.
Enable or disable RTSP function of the IP Camera.
Choose the RTSP port. The RTSP protocol allows a connecting client to start a
video stream. Enter the RTSP port number to use. The default value is 554.
Specify the path link of video stream. The default name is “ipcam”, user can be
stream by this URL: “http://192.168.0.20:554/ipcam.sdp.
Specify the range of transmission port number of video stream. The default
range is 50000 to 60000. User can specify a number between 1024 and 65535.
sed to transmit or receive the video stream. The default port
you want to view the video from the camera, the port setting
”.
Apply
Dynamic DNS
Enable DDNS
Provider
Host Name
Username
Password
Apply
UPnP
Enable UPNP
Apply
When you finish the “RTSP” configuration, click this button to apply the setting.
Enable or disable DDNS function of the camera.
Several companies provide DDNS service. The IP Camera supports the service
from DynDNS company.
The domain name given by DynDNS is “registername.dyndns.com”. Enter the
domain name that you register for the camera from DynDNS web site.
Enter the login name for the DDNS service.
Enter the passwo . rd for the DDNS service
When you finish the “Dynam DNS” configuration, click this button to apply the
setting.
Enable or disable UPnP function of the camera.
When you finish the “UPnP” configuration, click this button to apply the setting.
ic
26
3.5. Video
(Example on ICA-107W)
MPEG-4 / M-JPEG Vid
D
efault Video Format
Video Resolutio
Video Quality
Video Frame Rate
Apply
n
eo Setting
Specify the default video format for each time user login.
Select the desired video resolution. Available resolutions are: 640 x 480,
320 x 240, and 160 x 120. The default resolution is
Adjust the video quality here.
me rate. This camera can support at most 30 frames Set the video max fra
per second.
When you finish the setting, click this button to validate the setting values.
CIF.
27
A-107W Only) 3.6. WLAN (IC
WPS
Self PinCode
Configure via Push Button
Configure via PinCode
(Example on ICA-107W)
Here displays the WPS pin code used to connect to WPS-enabled
wireless access points. You have to input this number into the WPS
enabled access point to establish WPS connection.
Click the button and this camera will enter PBC-style WPS connection
state for 120 sec. Please push ‘Start PBC’ button on the wireless AP
you wish to connect within 120 sec to establish WPS connection (The
remaining time will be displayed on the button).
If connection can not be established after 120 sec, you’ll be prompted
by a message box, and you can press ‘Start PBC’ button to try again.
If you have wireless access point’s WPS PIN code, you can input it here
and press ‘Start PIN’ button to start to establish PIN-style WPS
connection.
Wireless Setting
Wireless connection
Enable or disable the wireless function of the IP Camera. By default, the
28
function is disabled.
Network Type
Available Networks
SSID
Channel
Basic Rate
Infrastructure – This opera
LAN Access Point or Router. All communication is done via the Access
Point or Router.
Ad-Hoc – Select this mode if you want to connect to another wireless
stations in the Wireless LAN network without through an
Access Point or Router.
Select the networks listed below and click apply to connect to the
specified network.
The SSID (up to 32 printable ASCII characters) is the unique name
identified in a WLAN. The ID prevents the unintentional merging of two
co-located WLANs.
You may specify a SSID for the IP Camera and then only the device with
the same SSID can interconnect to the IP Camera.
This setting is only available for Ad-Hoc mode. Select the number of the
radio channel used for the networking.
The IP Camera will force to the data rate that you selected to transmit
data.
tion mode requires the presence of a Wireless
Authentication
WPA Pre-Shared Key
WEP Key Length
WEP Key Format
Default Key
Key1 ~ Key4
Choose the security setting of your wireless network.
The ICA-107W supports: “None”, “Open System”, “Shared Key”,
“WPA-PSK” and “WPA2-PSK”. When you select “WPA-PSK” or
“WPA2-PSK” yption your wireless with TKIP
or AES.
The WPA-PSK / WPA2-PSK key can be from 8 to 64 characters and can
beth letters or numbers. This same key must be used on all of the node in
e wireless network.
Y d data. Larger key ou may select 64-bit or 128-bit to encrypt transmitte
length will provide higher level of security, but the throughput will be lower.
exdecimal – Only “A-F“, “a-f“ and “0-9“ are allowed to be set as WEP
H
y.
ke
SCII – Numerical values, characters or signs are
A allowed to be WEP key.
is more recognizable for user.
It
Select one of the keys (1~4) as the encryption key.
Enter the WEP key you want to use here.
authentication, you can encr
Apply
Wsehen you finish “WLAN” configuration, click this button to apply the
tting.
29
3.7. E-Mail and FTP
The “E-Mail & FTP” lets you setup E-Mail clie
e-mail account or FTP server whe
n Motion has been detected.
nt and FTP client that camera can sent image to your
Email and FTP
Recipient E-Mail Address
Sender E-Mail Add
SMTP Server
SMTP Port
SMTP Authentication
Username
Password
Send a Test Email
ress
(Example on ICA-107W)
The IP Camera supports “Motion Detection” function. Enter the E-Mail
Account for receiving the alert mail.
Specified the e-mail address of the e-mail sender.
Enter the SMTP Server for sending the E-Mail.
Set port number of SMTP service.
ble or Disable the SMTP Authentication function Ena
When Authentication is enabled, please input the SMTP Username
here.
When Authentication is enabled, please input the account password
here.
Press this button to send a test e-mail. You can use this function to test
setting is correct.
if your
Email and FTP
30
FTP Server
FTP Port
User Name
Password
Remote Folder
Password
Passive Mode
The IP Ca
Detection e
Enter the FTP address for uploading the pictures.
Enter the FTP port that the FTP serve
Specify the user account of ftp server.
Specify the password of your ftp account.
Specify the folder of the ftp site that you want to store the image.
When Authentication is enabled, input the account password.
If your IP Camera is behind the NAT, you usually need to enable this
feature.
mera supports “Motion Detection” function. When Motion
vent occurred, you can record the pictures to FTP server.
r uses.
31
3.8. Motion De
The “Motio users to setup the behavior of motion detection
n Detection” allows feature.
tection
Motion Detection
Motion Detection Enable
Next Event Detected
Interval
Send snapshot File to
E-Mail
E-Mail Subject
Send snapshot file to FTP
Sensitivity
(Example on ICA-107W)
Enable or Disable the Motion Detection Function.
Setup the interval between two events. For example, if you setup the
interval to 5 sec, the next event will start after this event finished + 5 sec.
Select “Yes” to send the alert email with the recorded image to the
e-mail account that you had specified in the page.
Specify the subject of motion detection alert e-mail.
Select “Yes” to send the recorded video file to your FTP server that you
had specified in the “E-Mail & FTP” page.
Move the slide bar to change the motion detection sensitivity setting:
Drag the slide to the right to increase sensitivity (camera will detect
minor changes in the image), and drag the slide to the left to decrease
sensitivity (camera will only detect major changes in the image).
32
3.9. System
The “System” allows users to setup the IP Camera’s parameters, like camera name, dat
And also p
rovide firmware upgrade and reset tools at this page.
a/time setting.
Camera Information
Camera Name
Password
Confirm Password
Date / Time Setting
Set Date/Time manually and
Synchronize to PC time
NTP Server (Radio Box)
Time Zone
NTP Server
(Example on ICA-107W)
The default camera name is “ICA-107(W)”. It is recommended to
name a meaningful name for the IP Camera.
Enter the password for the default account. The password should be 4
digits.
Enter the password again to confirm the setting.
You can set the IP Camera’s Date/Time manually. Or you can just
click on the Synchronize to PC time to let the IP Camera synchronize
its time to your PC automatically.
To enable the NTP function.
Select the time zone where your camera is located.
Specify the IP Address of the NTP Server here.
Enable Daylight Saving Time
Check this item to enable daylight saving adjustment.
33
Utilities
Upgrade Firmware
Reset to Factory Defaults
Reboot Device
LED Setting
You can upgrade the IP Camera’s firmware via this function. Press the
browse button, find the correct firmware and press upgrade.
If you want to reset all the setting
function to fulfill your task.
To reboot the IP Camera, click “Reboot”.
If you wan to secure the IP Camera from noticing, you can turn off the
LED light by clicking “LED Light OFF”. To turn on the LED light, just click
“LED Light ON”.
s to factory default, please use this
34
3.10. Stat
The “Status” shows the cu nt firmware version, uptime, system time and IP information of this
camera.
us
rre
(Example on ICA-107W)
35
3.11. Users
The “Users” allow you to add four user accounts which are able to view video from the Web
Managem
ent. These users, unlike Administrator, are not allowed to configure the IP Camera.
Users
User #
Login
Password
Confirm Password
Apply
(Example on ICA-107W)
Enable or Disable the user number #.
Enter the login name of the user account.
Enter up to 4 digits password for the new user account.
Enter the password again to confirm the setting.
Click this button to save the user account setting.
36
3.12. Log
The “Log” allows users to monitor the device event and time. If you have trouble to use this device, the
log file will help administrator to know the status of device.
Log
Log screen
Refresh
(Example on ICA-107W)
The screen will show and event time of device.
You can press this button to refresh the log screen.
event
37
Appendix A: Router/Gateway Setup for Internet Viewing
To view IP Camera across the Internet, you have to make sure Router/Gateway has configured to pass
incoming TCP/UDP connections from remote PC to the IP
p
ort forwarding or virtual server for the connections. Please see the illustration as below.
Camera. The Router/Gateway should set
Router/Gateway Port Forwarding/Virtual Server Setup
Name Protocol Port LAN IP
Setup 1 TCP 80 192.168.0.20
Setup 2 TCP 4321 192.168.0.20
Setup 3 TCP 4322 192.168.0.20
Port Definition
1 It is the port of Web port. You have to configure the protocol to “TCP”.
Setup
Setup 2 the port of AV Control port. You have to configure the p
Setup 3 It is rotocol to “TCP”. the port of AV Data port. You have to configure the p
Viewing IP Camera via Web Browser
If you want to view the video via Web Browser from Internet, you have to ensure the Router/Gateway
has configured both setup1 and setup 2. If the web port is not default port “80”, but changed to 8080.
The remote user has to enter http://210.66.155.85:8080. Without Setup 2, you will not see the video
streaming in this PC.
It is rotocol to “TCP”.
38
Appendix B: Viewing via UPnP in Windows
When the UPnP function is enabled, the camera can be detected by UPnP compliant system such as
Windows XP. The camera will be displayed in My Network Place, so you can double clic
or right click the camera and select “Invoke” to view the video through web browser.
k the camera
Windows XP
This device is an UPnP enabled device. If the operating system, Windows XP, of your PC is UPnP
enabled, the device will be very easy to configure. Use the following steps to enable UPnP settings only
if your operating system of PC is running Windows XP.
Go to Start Î Settings, and Click Control Panel
The Control Panel will display on the screen and double click Add or Remove Programs to continue
39
The Add or Remove Programs will display on the screen and click Add/Remove Widows
Components to continue.
The following screen will appear, select Networking Services and click Details to continue
40
The Networking Services will display on the screen, select Universal Plug and Play and click OK to
continue.
P
lease click Next to continue
41
The program will start installing the UPnP automatically. You will see the below pop-up screen, please
wait while
Setup configures the components.
lease click Finish to complete the UPnP installation
P
42
Double-click My Network Places on the desktop, the My Network Places will display on the screen and
double-click the UPnP icon with IP Camera to
view your device in an internet browser.
43
Windows Vista
If the operating system, Windows Vista, of your PC is UPnP enabled, the device will be very easy to
configure. Use the following steps to enable UPnP settings only if your operating system of PC is
running Windows Vista.
Go to Start Î Control Panel Î Network and Internet Î Network and Sharing Center, and turn on
Network Discovery.
Double-click My Network Places on the desktop, the My Network Places will display on the screen
and double-click the UPnP icon with IP Camera to view your device in an internet browser.
ICA-107 – 00304FA00075
44
Appendix C : Windows 2003 Server DirectX Configuration
Graphics Hardware Acceleration and DirectX are disabled by default on a Server configuration to
ensure maximum stability and uptime. But for any reason you need to enable them to use DirectX
enabl
ed applications this section will guide you through on how you can do it.
Enabling Graphics Hardware Acceleration
1. Simply right click anywhere on your desktop and select Properties -> Settings tab -> Advanced ->
and finally, the Troubleshoot tab.
2. Now move the Hardware acceleration slider across to Full
3. Click OK
4. You may experience a monitor black out for a few seconds, this is normal.
45
Enabling DirectX
5. Click on Start -> Run -> and type “dxdiag” followed by enter. You will get a dialog box asking if
you want to allow “dxdiag” to access the internet to check for valid WHQL certificates - click on
Yes.
6. Let's click on the Display tab, now click on all three boxes to enable DirectDraw, Direct3D and
AGP Texture Acceleration.
46
Appendix D: Frequently Asked Questions
Q1. How many users can access to the ICA-107 / ICA-107W simultaneously?
A:
Up to 16 users can have access to these IP cameras simultaneously at any point in
time.
Q2. What is WPS (Wi-Fi Protected Setup)?
A: Wi-Fi Protected Setup (WPS) is the simplest way to build connection between wireless
network clients and the router, and there are two types of WPS: Push-Button Configuration
(PBC), and PIN code.
You don’t have to select encryption mode and input a long encryption pass phrase every
time when you need to setup a wireless client, you only have to press a button on wireless
network client and the router, and then WPS will do the setup for you.
Q3: Internet Explorer does not seem to work well with the device
A: Make sure that your Internet Explorer is version 6.0 or later. If you are experiencing
problems, try upgrading to the latest version of Microsoft’s Internet Explorer from the
Microsoft webpage.
Q4. Why did the screen blank or very slow video after I audio is enabled.
A: Your connection to the device does not have enough bandwidth to support a higher frame
rate for the streamed image size. Try reducing the video streaming size to 320x240 or
60x120 and/or disabling audio. 1
Q5. Forgot the username and password of ICA-107 / ICA-107W.
lease follow the steps below.
A: P
1. Restore the factory default setting by pressing and holding down over 10 seconds on the
camera Reset button.
2. Reconfigure the device by search program or web management.
3. The default username and password is admin/admin.
47
Appendix E: Product Specification
Product
ICA-107
Camera Specification
Image Sensor
View Angle
L
ens
Illumination
Image Specification
V
ideo Encoder
Video Resolution
VGA / QVGA / QQVGA at 30fps for all resolution
Video Quality
Network Specification
Ethernet Interface
W
ireless Interface
W ireless Encryption -
Networking Protocol
C
onnection Type
V w System and Configuration
ie
Operating System
Browser / Software
Video Player
M
anagement
TCP/IP, HTTP, SMTP, FTP, NTP, DNS, DDNS, DHCP, UPnP, RTSP
Microsoft ® Internet Explorer 6.0 or later, Cam Viewer Plus Pro/Lite
Micron CMOS Sensor
H: 55 Degree
V: 55 Degree
Fixed focus, F=2.8
1.0 Lux
MPEG-4 / M-JPEG simultaneously
CBR / VBR
Ethernet 10 /100Base-TX
- IEEE802
Static IP, DHCP
Windows® XP, Vista and Windows 7
VLC, QuickTime, RealPlayer
Web, Utility, Cam Viewer Plus Pro/Lite
WEP 64/128-bit, WPS, WPA-PSK,
ICA-107W
WPA2-PSK
.11b / g / n
Environment Specifications
Power Requirement
Operating Temperature
D
imension (W x D x H)
Emission
5V DC external power adapter
0~45 Degree C, 10~90% (Non-Condensing)
x 25 x 93 63 x 25 x 105
63
CE, FCC
48
EC Declaration of Conformity
For the following equipment:
*Type of Product: CMOS IP Camera
*Model Number: ICA-107
* Produced by:
Manufacturer‘s Name : Planet Technology Corp.
Manufacturer‘s Address: 11F, No 96, Min Chuan Road,
Hsin Tien, Taipei, Taiwan, R.O.C.
is herewith confirmed to comply with the requirements set out in the Council Directive on the
Approximation of the Laws of the Member States relating to Electromagnetic Compatibility
(2004/108/EC,).
For the evaluation regarding the Electromagnetic Compatibility, the following standards were
applied:
EN 55022 (2006 + A1: 2007, Class B)
EN-61000-3-2 (2006)
EN 61000-3-3 (1995 + A1: 2001, A2: 2005)
EN 55024 (1998 + A1: 2001 + A2: 2003)
IEC 61000-4-2 (1995 + A1: 1998, A2: 2000)
IEC 61000-4-3 (1995 + A1: 1998, A2: 2000)
IEC 61000-4-4 (2004)
IEC 61000-4-5 (1995 + A1: 2000)
IEC 61000-4-6 (1996 + A1: 2000)
IEC 61000-4-8 (1993 + A1: 2000)
IEC 61000-4-11 (1994 + A1: 2000)
AS/NZS CISPR 22 (2006, Class B)
Responsible for marking this declaratio n i f the:
⌧
Manufacturer Authorized representative established within the EU
Authorized representative established within the EU (if applicable):
Company Name: Planet Technology Corp.
Company Address: 11F, No. 96, Min Chuan Road, Hsin Tien, Taipei, Taiwan, R.O.C
Person responsible for making this declaration
Name, Surname Jonas Yang
Position / Title : Product Manager
Taiwan
18th Mar., 2010 ________________
Place Date Legal Signature
PLANET TECHNOLOGY CORPORATION
e-mail: sales@planet.com.tw http://www.planet.com.tw
11F, No. 96, Min Chuan Road, Hsin Tien, Taipei, Taiwan, R.O.C. Tel:886-2-2219-9518 Fax:886-2-2219-9528
EC Declaration of Conformity
For the following equipment:
*Type of Product: Wireless CMOS IP camera
*Model Number: ICA-107W
* Produced by:
Manufacturer‘s Name : Planet Technology Corp.
Manufacturer‘s Address: 11F, No 96, Min Chuan Road,
Hsin Tien, Taipei, Taiwan, R.O.C.
is herewith confirmed to comply with the requirements set out in the Council Directive on the
Approximation of the Laws of the Member States relating to Electromagnetic Compatibility
(2004/108/EC,).
For the evaluation regarding the Electromagnetic Compatibility, the following standards were
applied:
EN 300 328 V1.7.1 (2006-10)
EN 50385 (2002)
AS/NZS 4268 (2008)
EN 301 489-1 V1.8.1 (2008-04)
EN 301 489-17 V1.3.2 (2008-04)
EN 55022 (2006)
EN-61000-3-2 (2006)
EN 61000-3-3 (1995 + A2: 2005)
EN 61000-4-2 (2001)
EN 61000-4-3 (2006)
EN 61000-4-4 (2004)
EN 61000-4-5 (2006)
EN 61000-4-6 (2005)
EN 61000-4-11 (2004)
Responsible for marking this declaratio n i f the:
⌧
Manufacturer Authorized representative established within the EU
Authorized representative established within the EU (if applicable):
Company Name: Planet Technology Corp.
Company Address: 11F, No. 96, Min Chuan Road, Hsin Tien, Taipei, Taiwan, R.O.C
Person responsible for making this declaration
Name, Surname Jonas Yang
Position / Title : Product Manager
Taiwan
18th Mar., 2010 ________________
Place Date Legal Signature
PLANET TECHNOLOGY CORPORATION
e-mail: sales@planet.com.tw http://www.planet.com.tw
11F, No. 96, Min Chuan Road, Hsin Tien, Taipei, Taiwan, R.O.C. Tel:886-2-2219-9518 Fax:886-2-2219-9528
Loading...
