Page 1
720p SIP Vandalproof Door Phone with PoE
HDP-1160PT
720p SIP Vandalproof Door
Phone with PoE
HDP-1160PT
1
Page 2
720p SIP Vandalproof Door Phone with PoE
HDP-1160PT
Copyright
Copyright 2019 by PLANET Technology Corp. All rights reserved. No part of this publication may be
reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer
language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or
otherwise, without the prior written permission of PLANET.
PLANET makes no representations or warranties, either expressed or implied, with respect to the contents
hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Any
software described in this manual is sold or licensed "as is". Should the programs prove defective following
their purchase, the buyer (and not PLANET, its distributor, or its dealer) assumes the entire cost of all
necessary servicing, repair, and any incidental or consequential damages resulting from any defect in the
software. Further, PLANET reserves the right to revise this publication and to make changes from time to time
in the contents hereof without obligation to notify any person of such revision or changes.
All brand and product names mentioned in this manual are trademarks and/or registered trademarks of their
respective holders.
Federal Communication Commission (FCC) Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4. Consult the dealer or an experienced radio technician for help.
FCC Caution
To assure continued compliance, use only shielded interface cables when connecting to computer or
peripheral devices. Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
2
Page 3
720p SIP Vandalproof Door Phone with PoE
HDP-1160PT
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure set forth for an uncontrolled environment. In order to
avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna
shall not be less than 20 cm (8 inches) during normal operation.
Safety
This equipment is designed with the utmost care for the safety of those who install and use it. However,
special attention must be paid to the dangers of electric shock and static electricity when working with
electrical equipment. All guidelines of this and of the computer manufacture must therefore be allowed at all
times to ensure the safe use of the equipment.
CE Mark Warning
This is a Class B product. In a domestic environment, this product may cause radio interference, in which
case the user may be required to take adequate measures.
WEEE Regulation
To avoid the potential effects on the environment and human health as a result of the presence of
hazardous substances in electrical and electronic equipment, end users of electrical and
electronic equipment should understand the meaning of the crossed-out wheeled bin symbol. Do
not dispose of WEEE as unsorted municipal waste and have to collect such WEEE separately.
Revision
User’s Manual of 720p SIP Vandalproof Door Phone with PoE
Model: HDP-1160PT
Rev: 1.00 (November, 2019)
Part No. EM-HDP-1160PT_v1.0
3
Page 4
720p SIP Vandalproof Door Phone with PoE
HDP-1160PT
Table of Contents
Chapter 1. Product Introduction ..................................................................................................................... 6
1.1 Package Contents ....................................................................................................................... 6
1.2 Overview ...................................................................................................................................... 6
1.3 Specifications ............................................................................................................................. 10
Chapter 2. Hardware Interface .................................................................................................................... 12
2.1 Physical Descriptions ................................................................................................................ 12
2.2 Hardware Installation ................................................................................................................. 15
2.3 Initial Utility Installation .............................................................................................................. 16
Chapter 3. Web-based Management ........................................................................................................... 17
3.1 Introduction ................................................................................................................................ 17
3.2 Web Configuration ..................................................................................................................... 17
3.3 SIP Configuration....................................................................................................................... 17
Chapter 4. Basic Function ........................................................................................................................... 19
4.1 Making Calls .............................................................................................................................. 19
4.2 Answering Calls ......................................................................................................................... 19
4.3 End of the Call ........................................................................................................................... 19
4.4 Auto-Answering ......................................................................................................................... 20
4.5 DND ........................................................................................................................................... 21
4.6 Call Waiting ................................................................................................................................ 22
Chapter 5. Advanced Function .................................................................................................................... 24
5.1 System ....................................................................................................................................... 24
5.1.1 Information ................................................................................................................. 24

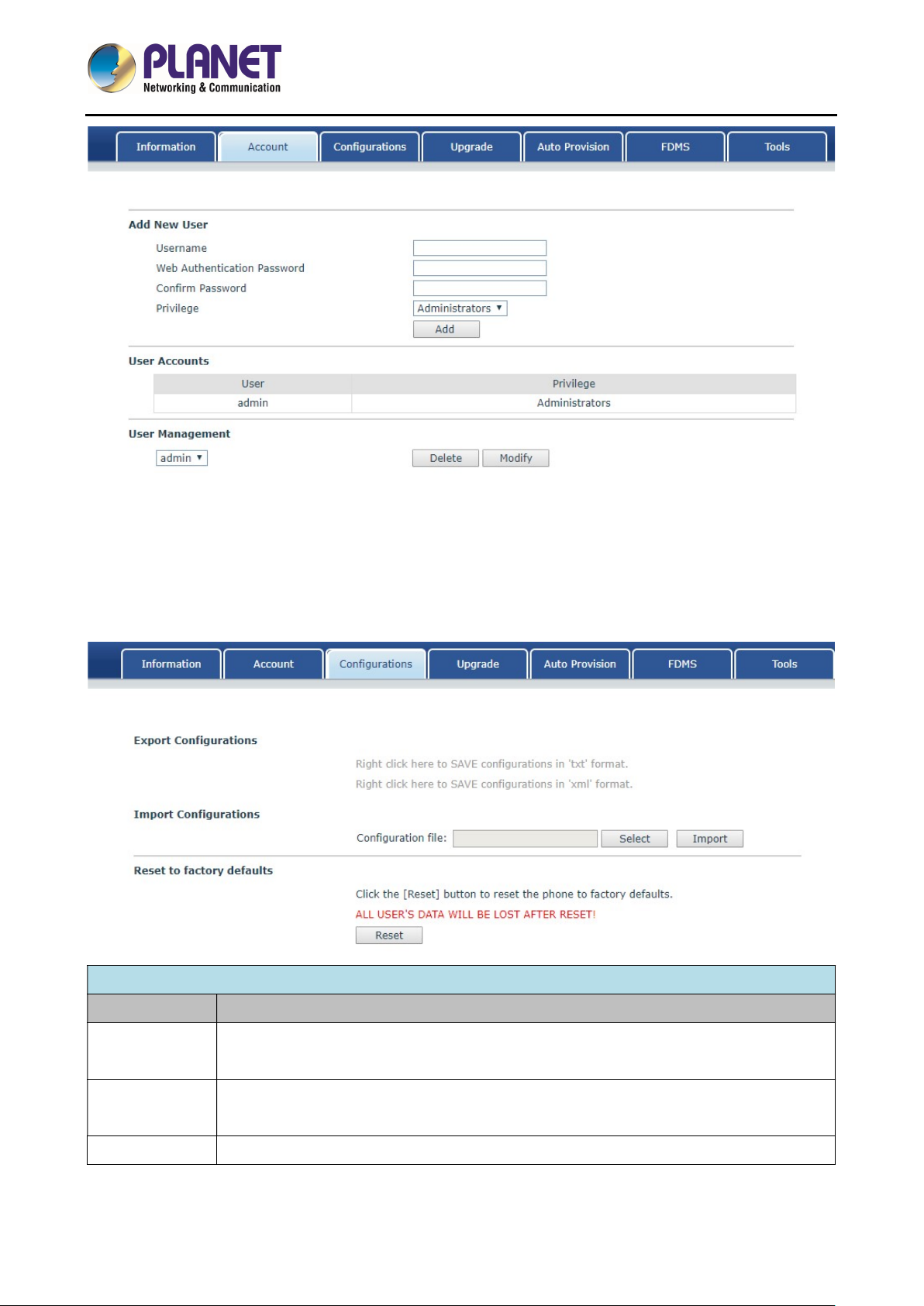

5.1.2 Account ...................................................................................................................... 25
5.1.3 Configurations ............................................................................................................ 26
5.1.4 Upgrade ...................................................................................................................... 27
5.1.5 Auto Provision ............................................................................................................ 27

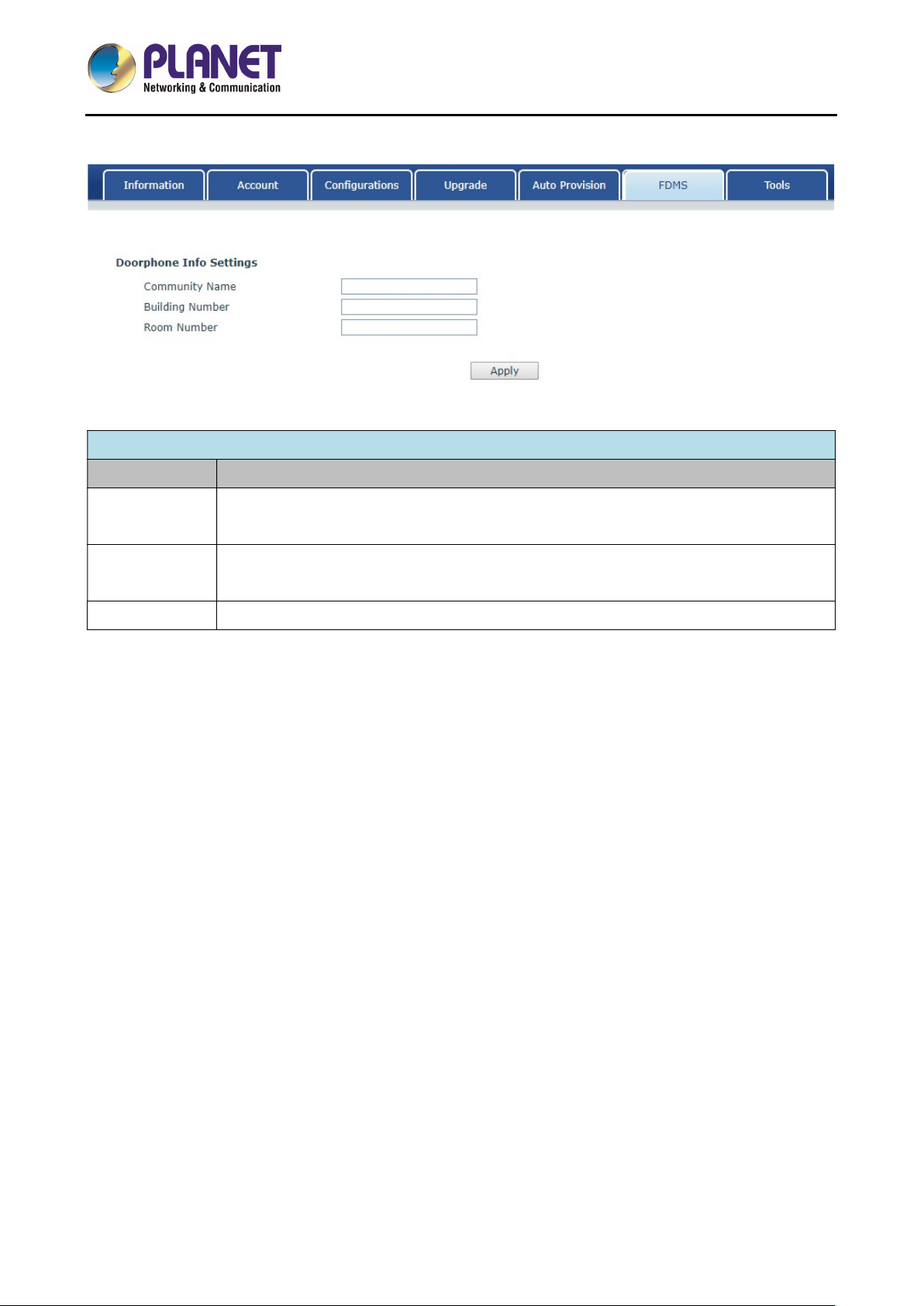

5.1.6 FDMS ......................................................................................................................... 30
5.1.7 Tools ........................................................................................................................... 30
5.2 Network ...................................................................................................................................... 31
5.2.1 Basic ........................................................................................................................... 32
5.2.2 VPN ............................................................................................................................ 33
5.2.3 Web Filter ................................................................................................................... 35
5.3 Line ............................................................................................................................................ 37
4
Page 5
720p SIP Vandalproof Door Phone with PoE
HDP-1160PT
5.3.1 SIP .............................................................................................................................. 37
5.3.2 Basic Settings............................................................................................................. 41
5.4 Intercom Settings ....................................................................................................................... 42
5.4.1 Features ..................................................................................................................... 42
5.4.2 Audio .......................................................................................................................... 44
5.4.3 Video .......................................................................................................................... 45
5.4.4 MCAST ....................................................................................................................... 49
5.4.5 Action URL ................................................................................................................. 50
5.4.6 Time/Date ................................................................................................................... 51
5.5 Security Settings ........................................................................................................................ 53
5.6 Function Keys ............................................................................................................................ 55
Appendix A: Troubleshootings........................................................................................................................ 59
Appendix B: How to use ICF-1800 to open door via DTMF code .................................................................. 61
5
Page 6
720p SIP Vandalproof Door Phone with PoE
Chapter 1. Product Introduction
1.1 Package Contents
The package should contain the following:
■ 1 x HDP-1160PT
■ 1 x Quick Installation Guide
■ 1 x Mounting Label
■ 1 x Screw Kit
■ 1 x Connector
■ 1 x Wrench
■ 1 x Screw Driver
HDP-1160PT
If any of the above items are missing, please contact your seller immediately.
1.2 Overview
Security is Ensured with PLANET Video Door Phone
PLANET HDP-1160PT Vandalproof Video Door Phone is designed for homes and other purposes that need a
visitor’s identification for the sake of security. With its high-quality audio and video, the identification and voice
of the visitor can be clearly seen and heard once the visitor press the call button of the door phone. The
HDP-1160PT works like an intercom. As its name implies, it is vandalproof and has a video feature.
It supports the standard IETF SIP protocol and ONVIF protocol for easy operation and interfaces with the
VoIP and IP surveillance world in an instant it connects you with. It delivers excellent picture quality in 720p
HD resolutions with 112-degree wide angle. The door phone has infrared night vision that can capture any
unusual activity in low light. It also supports HD voice and G.722 codec that relax bandwidth limitation and
provide clear communications. It provides the flexibility and control required for high-quality visitor
management, property protection, intercom, and message service.
6
Page 7
720p SIP Vandalproof Door Phone with PoE
HDP-1160PT
Easy Communication via Intercom
The two-way intercom function provided by the HDP-1160PT allows you to see the visitors and also
communicate with them. The HDP-1160PT includes 2 short-in detect port and 2 short-out control port for
connecting with external devices such as door lock or door sensors. When the visitors press the call button at
your door, you can press the unlock button on your mobile phone or PLANET VTS-700P 7-inch SIP Indoor
Touch Screen PoE Video Intercom to open the door for your visitors.
A Door Guard for Extreme Conditions
The HDP-1160PT is an extremely durable IP intercom that can withstand even the most demanding
conditions. Its Industrial design with -40 to 70 degrees C operating temperature and resilience to dust, water
(IP65) and vandalism (IK10) provides maximum security.
7
Page 8
720p SIP Vandalproof Door Phone with PoE
HDP-1160PT
AEC (Acoustic Echo Cancellation)
Acoustic Echo Cancellation (AEC) technology is adopted in PLANET’s HDP1160PT Door Phone and
VTS-700P 7-inch SIP Indoor Touch Screen PoE Video Intercom to enable users to minimize the voice/sound
signal distortion shown in the diagram below, thus guaranteeing the best-in-class sound quality.
Standard Protocol Compliance
The HDP-1160PT supports IETF Session Initiation Protocol 2.0 (RFC 3261) and ONVIF protocol for easy
integration with general voice over IP system and video management system. The IP PBX/NVR device is able
to broadly interoperate with equipment provided by VoIP/IP surveillance infrastructure providers, thus
enabling them to provide their customers with better multimedia exchange services.
8
Page 9
720p SIP Vandalproof Door Phone with PoE
HDP-1160PT
9
Page 10
720p SIP Vandalproof Door Phone with PoE
1.3 Specifications
HDP-1160PT
Product
Video
Image Device
Video Compression
Resolution
Viewing Angle
Minimum Illumination
IR Illuminations
Audio
Audio Streaming
Microphone
Narrowband Codec
HDP-1160PT
2 megapixels with 1/2.7” color CMOS
H.264
Main stream: 1280 × 720@25fps
Sub stream: 704 × 576(D1)@25fps
112° (H), 84° (V)
0.1lux with infrared illumination
IR LED x 2, effective up to 5 meters
*The IR distance is based on the environment.
Two-way audio
Built-in microphone and speaker input
G.711a/u, G.723.1, G.726-32K, G.729AB
Wideband Codec: G.722
DTMF
Audio Output
Audio Features
Protocol and Security
Protocols
Security
In-band, Out of Band DTMF (RFC2833) and SIP INFO
Full-duplex Acoustic Echo Canceller (AEC) – a tail length of
96ms in hands-free mode
Voice Activity Detection (VAD)
Comfort Noise Generation (CNG)
Background Noise Estimation (BNE)
Packet Loss Concealment (PLC)
Dynamic Adaptive Litter Buffer up to 300ms
IETF SIP (RFC 3261 and companion RFCs), SIP2.0 over
UDP/TCP/TLS, RTP/RTCP/SRTP, STUN, DHCP, LLDP,
PPPoE, 802.1x, L2TP, OpenVPN, SNTP, FTP/TFTP,
HTTP/HTTPS and TR-069
Network access authority authentication: 802.1x
Web Filter, Transport Layer Security (TLS)
Secure Real-time Transport Protocol (SRTP)
NAT traversal: STUN mode
10
Page 11
720p SIP Vandalproof Door Phone with PoE
Network and Provisioning
HDP-1160PT
HTTP/HTTPS web server, HTTPS certificate manager
Network Interface
IP Configuration
VPN
Deployment/Maintenance
General
Keypad
Power Requirements
Net Weight
Dimensions (W x D x H)
1 x 10/100BASE-Tx RJ45 Ethernet interface, auto-MDIX
Static/DHCP/PPPoE
L2TP / OpenVPN
Auto-provisioning via FTP/TFTP/HTTP/HTTPS/DHCP
OPT66/SIP PnP/TR-069
Web Management Portal
Web-based Packet Dump
Configuration Import and Export
Firmware Upgrade
Syslog
1 DSS button (speed dial button)
Power over Ethernet (IEEE 802.3af/at), class 2 and DC12V/
1015g
195 x 120 x 34 mm
Emission
Connectors
Installation
External Power Supply
Environments
Storage Temperature
Operating Humidity
CE, FCC
1 10/100Mbps Ethernet, RJ45
1 audio output interface
1 recording output interface
2 short-circuit input interfaces
2 relays: Max. DC30V,1A; AC125V,0.5A
2 indoor magnetic switches
1 Tamperproof protection/alarm
Active switching output: 12V/500mA DC (only 1 relay support)
Wall-mount type
12V±15%/1A DC
-40~70°C
10~90%
11
Page 12
720p SIP Vandalproof Door Phone with PoE
Chapter 2. Hardware Interface
2.1 Physical Descriptions
HDP-1160PT
Product Dimensions (W x D x H)
Net Weight
Front Panel
195 x 120 x 34 mm
1015g
Num
Interface Description
ber
1 Wall-mount Housing
2 CMOS Sensor
3 IR LED
3 Speaker
DSS Key
4
(Speed dial button)
5 Mic
IP65 and IK10 outdoor housing for rigorous environment
Video signal acquisition and transmission
Emits infrared light to provide light source in dark places
The door phone has a built-in speaker for convenient
communication and alert use
For speed dial, multicast, intercom, IP broadcast and other
functions
The door phone has a built-in microphone hidden in the
pinhole located on the front panel
12
Page 13
Function Key LED State
Type LED State
720p SIP Vandalproof Door Phone with PoE
HDP-1160PT
Successfully registered
Registration failed/network abnormal
In call
DSS Key (Speed dial button)
Normally on
Quick flashing
Slow flashing
Interface Description
Open the rear case of the device, there is a row of terminal blocks for connecting the power supply, electric
lock control, etc. The connection is as follows:
Number Description
Ethernet interface: Standard RJ45 interface, 10/100M
1
adaptive; it is recommended to use Cat 5e cable
2 Power interface: 12V,1A input
Two groups of short-circuit input detection interfaces:
3, 5
For connecting switches, infrared probes, door
magnets, vibration sensors and other input devices
Two groups of short-circuit output control interface:
4, 6
Used to control electric locks, alarms, etc.
Wiring port description
(example above)
-
Left: positive (+)
Right: grounded (-)
Left: IN
Right: OUT
Left (NC): Normally Close
Contact
Center (COM): Common Contact
13
Page 14
720p SIP Vandalproof Door Phone with PoE
HDP-1160PT
Right (NO): Normally Open
Contact
7, 8 Two groups of gate magnetic detection
Recording output interface: Mix the device and the
sound of the far-end call. One is the recording signal
9
10
line, and the other is the ground line.
(Please be sure to ground the line, otherwise there will
be noise)
External active speaker interface: External active
speakers for audio power amplification. One is the
audio signal line, and the other is the ground line.
(Please be sure to ground the line, otherwise there will
be noise)
The HDP-1160PT requires either IEEE 802.3af/at PoE or DC power from the power connector.
Left: grounded
Right: door magnetic input
Left: grounded
Right: recording output
Left: grounded
Right: external active speaker
Power Connector
The picture shows the two-pin connector that comes with system power source of 12V DC, 1A (maximum for
the two-pin connector).
1 2
+12V DC
Power Connector
GND
14
Page 15
720p SIP Vandalproof Door Phone with PoE
HDP-1160PT
2.2 Hardware Installation
Wall mounting steps:
A. Use the given screw tool to remove the cover.
B. Place the back cover on the wall and mark the four holes on the wall with a pencil.
C. Drill the marked four holes, place the back cover on the wall, and slightly hammer the plastic anchors
through the four holes.
D. Get the power cord and network cable connected, and secure it tightly with the screws.
. A B C D
Wall Mounting Steps of HDP-1160PT
While drilling or fixing the HDP-1160PT, hold it tight or else it may drop that may
Caution
accidentally hurt the installer.
15
Page 16
720p SIP Vandalproof Door Phone with PoE
seconds to report IP address by
HDP-1160PT
2.3 Initial Utility Installation
There are two methods as shown below to search the HDP-1160P.
Method 1:
Open the Planet Door Phone Finder Utility. Press the Refresh button to search the HDP-1160PT and find the
IP address.
Method 2:
Press and hold the DSS key for 10 seconds.When the speaker beeps rapidly, press the DSS key again
quickly. When the beep stops, the intercom will report the IP address by voice.
Default Setting
Default IP Address 172.16.0.1
Default Web Port
Default Login User Name admin
Default Login Password 123
Report IP address
Searching Tools
80
Hold the DSS key for 10
voice
Planet Door Phone Finder
16
Page 17
720p SIP Vandalproof Door Phone with PoE
HDP-1160PT
Chapter 3. Web-based Management
Please take a few minutes to read through this guide to familiarize with the steps required to set up your door
phone. This chapter provides setup details of the door phone Web-based Interface.
3.1 Introduction
When the device and your computer successfully connect to the network, enter the IP address of the device.
You will see the Webpage management interface login screen. Enter the user name and password and click
the button to enter the settings screen.
Door phone can be configured with your Web browser. Before configuring, please make sure your PC is in the
same IP segment as the door phone.
3.2 Web Configuration
The login username and password are admin and 123, respectively.
Enter “admin” for user name and “123” for password to access
interface.
3.3 SIP Configuration
At least one SIP line should be configured properly to enable the telephony service. The line configuration is
like a virtualized SIM card. Just like a SIM card on a mobile phone, it stores the service provider and the
account information used for registration and authentication. When the device is applied with the configuration,
it will register the device to the service provider with the server’s address and user’s authentication as stored
17
Page 18
720p SIP Vandalproof Door Phone with PoE
HDP-1160PT
in the configurations.
The SIP line configuration should be set via the Web configuration page by entering the correct information
such as phone number, authentication name/password, SIP server address, server port, etc. which are
provided by the SIP server administrator.
Web interface: After logging into the phone page, enter [Line] >> [SIP] and select SIP1/SIP2 for
configuration, click apply to complete registration after configuration, as shown below:
18
Page 19
720p SIP Vandalproof Door Phone with PoE
HDP-1160PT
Chapter 4. Basic Function
4.1 Making Calls
After setting the function key to “Hot Key” and the “Number”, press the function key to immediately call out the
set number, as shown below:
For more details on configuration, refer to 5.6 Function Key.
4.2 Answering Calls
After setting up the automatic answer and the automatic answer time, you will hear the ringing bell within the
set time and the call will be automatically answered after the timeout. When canceling automatic answering,
the call will not be automatically answered after the timeout .
4.3 End of the Call
You can hang up the call through the Release key (you can set the function key as the Release key) or turn on
the speed dial button to hang up the call. For more details on configuration, refer to 5.6 Function Key.
19
Page 20
720p SIP Vandalproof Door Phone with PoE
HDP-1160PT
4.4 Auto-Answering
The user can turn off the auto-answer function (enabled by default) on the device webpage, and the ring tone
will be heard after the shutdown, and the auto-answer will not time out.
Web interface: enter [Intercom Settings] >> [Features], Enable auto answer, set mode and auto answer
time and click submit.
Auto-Answering
Field Name Description
Auto Answer Mode
Disable Turn off the automatic answer function; the call will not time out to answer automatically.
Line 1 Line 1 has an automatic call timeout.
Line 2 Line 2 has an automatic call timeout.
Line 1 & Line 2 Line 1 and line 2 have an automatic call timeout.
Lines and IP
Call
Call will be automatically answered after the timeout.
20
Page 21
720p SIP Vandalproof Door Phone with PoE
HDP-1160PT
Auto-Answering
Field Name Description
Auto Answer Timeout (0~60)
The range can be set to 0~ 60s and the call will be answered automatically when the timeout is set.
4.5 DND
Users can turn on the do-not-disturb (DND) feature on the device's web page to reject incoming calls
(including call waiting).Do not disturb can be set by the SIP line respectively on/off.
Turn on/off all lines of the device without interruption by the following methods:
Web interface: enter [Intercom Settings] >> [Features], set the DND Mode to Phone and Enable DND.
Turn on/off the interruption for the specific line of the device as follows:
Web interface: enter [Line] >> [SIP], choose a Line and enter [Line] >> [Advanced settings], Enable
DND.
21
Page 22
720p SIP Vandalproof Door Phone with PoE
HDP-1160PT
4.6 Call Waiting
Web interface: enter [Intercom Settings] >> [Features], enable/disable call waiting, enable/disable call
waiting tone.
22
Page 23
720p SIP Vandalproof Door Phone with PoE
Call Waiting
Field Name Description
HDP-1160PT
Enable Call
Waiting
Disable Call
Waiting
Enable Call
Waiting Tone
New calls can be accepted during a call.
New calls will be automatically rejected and a busy signal will be prompted.
When you receive a new call on the line, the device will beep. Users can enable/disable
call waiting in the device interface and the web interface.
23
Page 24
720p SIP Vandalproof Door Phone with PoE
Chapter 5. Advanced Function
5.1 System
5.1.1 Information
User can get the system information of the device in this page including,
Model
Hardware Version
Software Version
Uptime
Last uptime
HDP-1160PT
MEMinfo
System Time
And summarization of network status,
Network Mode
MAC Address
IP
Subnet Mask
Default Gateway
Besides, summarization of SIP account status,
SIP User
SIP account status (Registered / Unapplied / Trying / Timeout )
24
Page 25
720p SIP Vandalproof Door Phone with PoE
HDP-1160PT
5.1.2 Account
On this page the user can change the password for the login page. Users with administrator rights can also
add or delete users, manage users, and set permissions and passwords for new users.
25
Page 26
720p SIP Vandalproof Door Phone with PoE
5.1.3 Configurations
HDP-1160PT
On this page, users with administrator privileges can view, export, or import the phone configuration, or
restore the phone to factory settings.
Configurations
Field Name Description
Export
Configurations
Import
Configurations
Reset Phone The phone data will be cleared, including configuration and database tables.
Right click to select target save as, that is, to download the device's configuration file,
suffix “.txt”. (note: profile export requires administrator privileges)
The device will restart automatically after successful import, and the configuration will
take effect after restart.
26
Page 27
720p SIP Vandalproof Door Phone with PoE
HDP-1160PT
5.1.4 Upgrade
Upgrade the software version of the device, and upgrade to the new version through the webpage. After the
upgrade, the device will automatically restart and update to the new version. Click “Select”, select the version
and then click “Upgrade”.
5.1.5 Auto Provision
The HDP-1160PT supports SIP PnP, DHCP options, static provision, and TR069. If all of the 4 methods are
enabled, the priority from high to low is shown below:
PNP>DHCP>TR069> Static Provisioning
Transferring protocols: FTP, TFTP, HTTP and HTTPS
27
Page 28
720p SIP Vandalproof Door Phone with PoE
Auto Provision
Field Name Description
Common Settings
It will show the current config file’s version. If the version of configuration
downloaded is higher than this, the configuration will be upgraded. If the
HDP-1160PT
Current Configuration Version
endpoints confirm the configuration by the Digest method, the
configuration will not be upgraded unless it differs from the current
configuration.
It will show the common config file’s version. If the configuration
downloaded and this configuration are the same, the auto provision will
General Configuration Version
stop. If the endpoints confirm the configuration by the Digest method, the
configuration will not be upgraded unless it differs from the current
configuration.
CPE Serial Number Serial number of the equipment.
Username for configuration server. Used for FTP/HTTP/HTTPS. If this is
Authentication Name
blank the phone will use anonymous.
Authentication Password Password for configuration server. Used for FTP/HTTP/HTTPS.
Configuration File Encryption
Encryption key for the configuration file.
Key
General Configuration File
Encryption key for common configuration file.
Encryption Key
Download Fail Check Times
The default value is 5. If the download configuration fails, it will be
downloaded 5 times.
When the feature is enabled and the configuration of server is changed,
Enable Get Digest From Server
phone will download and update.
DHCP Option Settings
The equipment supports configuration from Option 43, Option 66, or a
Option Value
Custom DHCP option. It may also be disabled.
Custom Option Value Custom option number. Must be from 128 to 254.
Enable DHCP Option 120 Set the SIP server address through DHCP option 120.
SIP Plug and Play (PnP) Settings
If PnP is enabled, phone will send a SIP SUBSCRIBE message with
broadcast method. Any server that supports the feature will respond and
Enable PnP
send a Notification with URL to phone. Phone gets the configuration file
with the URL.
28
Page 29
720p SIP Vandalproof Door Phone with PoE
Auto Provision
Field Name Description
Server Address Broadcast address. As default, it is 224.0.0.0.
Server port PnP port.
Transporation Protocol PnP protocol, TCP or UDP.
Update Interval PnP message interval.
Static Provisioning Server
HDP-1160PT
Server Address
Set FTP/TFTP/HTTP server IP address for auto update. The address can
be an IP address or Domain name with subdirectory.
If it is empty, phone will request the common file and device file is named
Configuration File Name
as its MAC address. The file name could be a common name, $mac.cfg,
$input.cfg. The file format supports CFG/TXT/XML.
Protocol Type FTP, TFTP, HTTP and HTTPS
Configuration file updates interval time. As default it is 1, meaning phone
Update Interval
will check the update every 1 hour.
Provision Mode
1. Disabled.
Update Mode
2. Update after reboot
3. Update after interval
TR069 Settings
Enable TR069 Enable TR069 after selection
Enable TR069 Warning Tone If TR069 is enabled, there will be a prompt tone when connecting.
ACS Server Type There are 2 options -- common and CTC
ACS Server URL ACS server address
ACS User ACS server username (up to 59 characters)
ACS Password ACS server password (up to 59 characters)
TLS Version TLS 1.0/TLS 1.1/TLS 1.2 selections
Inform Sending Period The default value is 3600 seconds.
STUN Server Address Enter the STUN address
STUN Enable Enable the STUN
29
Page 30
720p SIP Vandalproof Door Phone with PoE
5.1.6 FDMS
FDMS
Field Name Description
HDP-1160PT
Community
Name
Building
Number
Room Number Equipment installation room name.
Name of equipment installation community.
Name of equipment installation building.
5.1.7 Tools
This page gives the user the tools to solve the problem.
30
Page 31
720p SIP Vandalproof Door Phone with PoE
HDP-1160PT
Tools
Field Name Description
When enabled, set the syslog software address, and log information of the device will be
Syslog
Network
Packets
Capture
Auto Reboot
Setting
Reboot Phone Restart the HDP-1160PT manually.
recorded in the syslog software during operation. If there is any problem, log information
can be analyzed by PLANET technical support.
It generates a network packet file via start/stop automatically and the file can be
analyzed by PLANET technical support.
Reboot Mode: It will not restart at set time after disabled.
Fixed Time: In the range of 0~24 (h), restart will be conducted at the setting point every
day after the setting is completed.
Uptime: Set the maximum length to 3 bits and restart at run time.
5.2 Network
31
Page 32
720p SIP Vandalproof Door Phone with PoE
5.2.1 Basic
This page allows users to configure network connection types and parameters.
HDP-1160PT
Basic
Field Name Description
Network Status
IP The current IP address of the equipment.
Subnet Mask The current Subnet Mask.
Default Gateway The current Gateway IP address.
MAC The MAC address of the equipment.
MAC Time Stamp Get the MAC address of time.
32
Page 33
720p SIP Vandalproof Door Phone with PoE
Basic
Field Name Description
Settings
Select the appropriate network mode. The equipment supports three network modes:
HDP-1160PT
Static IP
DHCP Network parameters are provided automatically by a DHCP server.
PPPoE
If DHCP is chosen, the screen below will appear. Enter values provided by the ISP.
DNS Server Configured by Select the Configured mode of the DNS Server.
Primary DNS Server Enter the server address of the Primary DNS.
Secondary DNS Server Enter the server address of the Secondary DNS.
Attention：
1）After setting the parameters, click【submit】to take effect.
2）If you change the IP operation, the web page will no longer respond, at this time should be entered in the
Network parameters must be entered manually and will not change. All
parameters are provided by the ISP.
Account and Password must be input manually. These are provided by
your ISP.
address bar the new IP to connect to the device.
3）If the system uses DHCP to obtain IP at startup, and the network address of the DHCP Server is the same
as the network address of the system LAN, then after the system obtains the DHCP IP, it will add 1 to the last
bit of the network address of LAN and modify the IP address segment of the DHCP Server of LAN. If the
DHCP access is reconnected to the WAN after the system is started, and the network address assigned by
the DHCP server is the same as that of the LAN, then the WAN will not be able to obtain IP access to the
network.
Service Port Settings
Web Server Type Specify Web Server Type – HTTP or HTTPS
HTTP Port
HTTPS Port
Port for web browser access -- Default value is 80. To enhance security,
change this from the default. Setting this port to 0 will disable HTTP.
Port for HTTPS access -- Before using https, an https authentication
certification must be downloaded into the equipment. Default value is 443.
To enhance security, change this from the default.
5.2.2 VPN
Virtual Private Network (VPN) is a technology to allow device to create a tunneling connection to a server and
33
Page 34
720p SIP Vandalproof Door Phone with PoE
HDP-1160PT
becomes part of the server’s network. The network transmission of the device may be routed through the VPN
server.
For some users, especially enterprise users, a VPN connection might be required to be established before
activating a line registration. The device supports two VPN modes, Layer 2 Transportation Protocol (L2TP)
and OpenVPN. The VPN connection must be configured and started (or stopped) from the device web portal.
L2TP
To establish a L2TP connection, users should log in to the device web portal, open webpage [Network] >>
[VPN]. In VPN Mode, check the “Enable VPN” option and select “L2TP”, then fill in the L2TP server address,
Authentication Username, and Authentication Password in the L2TP section. Press “Apply” then the device
will try to connect to the L2TP server.
When the VPN connection is established, the VPN IP Address should be displayed in the VPN status. There
may be some delay of the connection establishment. User may need to refresh the page to update the status.
Once the VPN is configured, the device will try to connect with the VPN automatically when the device boots
34
Page 35
720p SIP Vandalproof Door Phone with PoE
HDP-1160PT
up every time until user disables it. Sometimes, if the VPN connection does not establish immediately, user
may try to reboot the device and check if VPN connection is established after rebooting.
The device only supports non-encrypted basic authentication and non-encrypted data tunneling.
For users who need data encryption, please use OpenVPN instead.
OpenVPN
To establish an OpenVPN connection, user should get the following authentication and configuration files from
the OpenVPN hosting provider and name them as follows:
OpenVPN Configuration file: client.ovpn
CA Root Certification: ca.crt
Client Certification: client.crt
Client Key: client.key
User can upload these files to the device in the web page [Network] >> [VPN], select OpenVPN Files. Then
user should check “Enable VPN” and select “OpenVPN” in VPN Mode and click “Apply” to enable OpenVPN
connection.
Like L2TP connection, the connection will be established every time when system is rebooted until user
disables it manually.
5.2.3 Web Filter
A user can set up a configuration management device that allows only machines with a certain network
segment IP to access the configuration management device.
35
Page 36
720p SIP Vandalproof Door Phone with PoE
HDP-1160PT
Add and remove IP segments that are accessible; configure the starting IP address within the start IP, end the
IP address within the end IP, and click [Add] to submit to take effect. A large network segment can be set, or it
can be divided into several network segments to add. When deleting, select the initial IP of the network
segment to be deleted from the drop-down menu, and then click [Delete] to take effect.
Enable web page filtering: Configure enable/disable web page access filtering. Click the "apply" button to take
effect.
If the device you are accessing is in the same network segment as the phone, please do not
configure the filter segment of the web page to be outside your own network segment, otherwise
you will not be able to log in the web page.
36
Page 37
720p SIP Vandalproof Door Phone with PoE
5.3 Line
5.3.1 SIP
Configure the service configuration for the wire on this page.
HDP-1160PT
37
Page 38
720p SIP Vandalproof Door Phone with PoE
HDP-1160PT
SIP
Field Name Description
Basic Settings (Choose the SIP line to be configured)
Display the current line status at page loading. To get the up to date line
Line Status
status, user has to refresh the page manually.
Username Enter the username of the service account.
Display Name Enter the display name to be sent in a call request.
Authentication Name Enter the authentication name of the service account.
Authentication Password Enter the authentication password of the service account.
Activate Whether the service of the line should be activated.
SIP Proxy Server Address Enter the IP or FQDN address of the SIP proxy server.
SIP Proxy Server Port Enter the SIP proxy server port; default is 5060.
Enter the IP or FQDN address of outbound proxy server provided by the
Outbound Proxy Address
service provider.
Outbound Proxy Port Enter the outbound proxy port; default is 5060.
Realm Enter the SIP domain if requested by the service provider.
Codecs Settings
Set the priority and availability of the codecs by adding or removing them from the list.
38
Page 39
720p SIP Vandalproof Door Phone with PoE
SIP
Field Name Description
Advanced Settings
Enable the device to subscribe a voice message waiting notification; if
HDP-1160PT
Subscribe For Voice Message
enabled, the device will receive notification from the server if there is voice
message waiting on the server.
Voice Message Number Set the number for retrieving voice message.
Voice Message Subscribe
Set the interval of voice message notification subscription.
Period
Enable DND Any incoming call to this line will be rejected automatically.
Blocking Anonymous Call Reject any incoming call without presenting caller ID.
Use 182 Response for Call
Set the device to use 182 response code at call waiting response.
waiting
Anonymous Call Standard Set the standard to be used for anonymous.
Dial without Registration Set call out by proxy without registration.
Click To Talk Set Click To Talk.
User Agent The user agent is set by default
If setting enabled, the device will use single codec in response to an
Response Single Codec
incoming call request.
Ring Type Set the ring tone type for the line.
Set the type of call conference, Local=set up call conference by the device
Conference Type
itself, maximum supports two remote parties, Server=set up call
conference by dialing to a conference room on the server.
Set the conference room number when conference type is set to be
Server Conference Number
Server.
Transfer Timeout Set the timeout of call transfer process.
Enable Long Contact Allow more parameters in contact field per RFC 3840.
Active capture package SDP is inactive, while the hold is sendrecv. Active
Enable the Inactive Hold
capture package has no response of 400, etc. Hold the hair inactive
After closing the grab packet, you can see that the DSP is sendonly and
the hold is sendrecv.
Use Quote in Display Name Whether to add quote in display name.
Specific Server Type Set the line to collaborate with specific server type.
Registration Expiration Set the SIP expiration interval.
Use VPN Set the line to use VPN restrict route.
Use STUN Set the line to use STUN for NAT traversal.
Convert URI Convert not digit and alphabet characters to %hh hex code.
DTMF Type Set the DTMF sending mode; there are four types:
39
Page 40
720p SIP Vandalproof Door Phone with PoE
SIP
Field Name Description
In-band
RFC2833
SIP_INFO
AUTO
Different service providers may offer different models
When the device's DTMF type is set to SIP_INFO
The DTMF_SIP_INFO type is configured to send */#, and when the device
HDP-1160PT
DTMF SIP INFO Mode
presses the */# key, the actual value sent is */#;
Configured to send 10/11, when the device presses the */# key, the actual
value sent is 10/11.
Transportation Protocol Set the line to use TCP or UDP for SIP transmission.
Local Port Set the Local Port.
SIP Version Set the SIP version.
Caller ID Header Set the Caller ID Header.
Enables the use of strict routing. When the phone receives packets from
Enable Strict Proxy
the server, it will use the source IP address, not the address in via field.
Enable user=phone Sets user=phone in SIP messages.
Enable SCA Enable/Disable SCA (Shared Call Appearance ).
Set the line to use DNS SRV which will resolve the FQDN in proxy server
Enable DNS SRV
into a service list.
Set the line to use dummy UDP or SIP OPTION packet to keep NAT
Keep Alive Type
pinhole opened.
Keep Alive Interval Set the keep alive packet transmitting interval.
Set the line to enable call ending by session timer refreshment. The call
Enable Session Timer
session will be ended if there is not new session timer event update
received after the timeout period.
Session Timeout Set the session timer timeout period.
Enable Rport Set the line to add rport in SIP headers.
Enable PRACK Set the line to support PRACK SIP message.
Set the line to use DNS SRV which will resolve the FQDN in proxy server
Enable DNS SRV
into a service list.
Auto Change Port Enable/Disable Auto Change Port.
Keep Authentication Keep the authentication parameters from previous authentication.
Using TCP protocol to guarantee usability of transport for SIP messages
Auto TCP
above 1500 bytes.
Enable GRUU Support Globally Routable User-Agent URI (GRUU).
40
Page 41
720p SIP Vandalproof Door Phone with PoE
HDP-1160PT
SIP
Field Name Description
RTP Encryption Set the pass phrase for RTP encryption.
With Mac field When enabled, all SIP messages strip Mac fields.
Register with the Mac field When enabled, register the message ribbon Mac field.
5.3.2 Basic Settings
A STUN server allows a phone in a private network to know its public IP and port as well as the type of NAT
being used. The equipment can then use this information to register itself to a SIP server so that it can make
and receive calls while in a private network.
41
Page 42
720p SIP Vandalproof Door Phone with PoE
Basic Settings
Field Name Description
SIP Settings
Local SIP Port Set the local SIP port used to send/receive SIP messages.
HDP-1160PT
Registration Failure Retry
Interval
Enable Strict UA Match Enable or disable Strict UA Match.
STUN Settings
Server Address STUN Server IP address.
Server Port STUN Server Port – Default is 3478.
Binding Period
SIP Waiting Time Waiting time for SIP. This will vary depending on the network.
Set the retry interval of SIP REGISTRATION when registration failed.
STUN blinding period – STUN packets are sent at this interval to keep the
NAT mapping active.
5.4 Intercom Settings
5.4.1 Features
42
Page 43
720p SIP Vandalproof Door Phone with PoE
Features
Field Name Description
HDP-1160PT
Limit Talk
If enabled, calls would be forced to end after talking time is up.
Duration
Talk Duration The call will be ended automatically when time is up. Initial Value is 120 seconds.
DND (Do Not
Disturb)
DND might be disabled phone for all SIP lines, or line for SIP individually. But the
outgoing calls will not be affected.
Ban Outgoing If enabled, no outgoing calls can be made.
Enable Call
Waiting
The default value is enabled. Allow users to answer the second call while maintaining
the call.
The default value is enabled. When enabled, the call waiting tone can be heard while
Enable Call
waiting for a call. If this function is turned off, when waiting for a call, the beep will not be
Waiting Tone
heard.
Enable Intercom
If enabled, mute incoming calls during an intercom call.
Mute
Enable Intercom
If enabled, play intercom ring tone to alert to an intercom call.
Ringing
Enable Auto
Enable Auto Answer function.
Answer
Auto Answer
Timeout
No Answer Auto
Hangup
Auto Hangup
Timeout
Voice Read IP
Set Auto Answer Timeout.
Configuration automatically hangs up when no answer occurs within the set time.
Set the time of no answer auto hangs up.
Configure IP broadcasting (press the # key for 3 seconds in standby state); the default
value is enabled.
43
Page 44
720p SIP Vandalproof Door Phone with PoE
Features
Field Name Description
HDP-1160PT
System
Language
Enable DND
5.4.2 Audio
Language for configuring voice prompts.
If this item is selected, the device will reject any incoming calls and the caller will remind
the device not to use, but the local exhalation will not be affected.
Audio
Field Name Description
Audio Settings
Select enabled or disabled audio codec:
Codec Setting
G.711A/U,G.722,G.723,G.729, G.726-16,G726-24,G726-32,G.726-40,
ILBC,AMR,AMR-WB, opus
44
Page 45
720p SIP Vandalproof Door Phone with PoE
Audio
Field Name Description
DTMF Payload Type Setting DTMF payload type, the value range must be 96~127.
HDP-1160PT
Default Ring Type
G.729AB Payload Length
G.722 Timestamps You can choose G.722 Timestamps for 160/20ms or 320/20ms.
G.723.1 Bit Rate You can choose G.723.1 Bit Rate of 5.3 kb/s or 6.3 kb/s.
Speakerphone Volume Set the hands-free volume to 1-9.
MIC Input Volume Set the microphone volume to 1~9.
Broadcast Output Volume Set the broadcast output volume to 1~9.
Signal Tone Volume Set the signal sound volume to 0~9.
Enable VAD Whether voice activity detection is enabled.
Sound Update
Sound Udate
Sound Delete
Sound Delete
Configure the default ring tone. If no special ringtone is set for the caller
number, the default ringtone will be used.
You can select the G.729AB Payload Length ,the options are 10ms、
20ms、30ms、40ms、50ms、60ms.
Can be upgraded suffix ". Wav "format of the door, door, and other custom
prompt sound.
Upgraded ringtones are displayed in the delete list, which can be
optionally deleted.
5.4.3 Video
45
Page 46
720p SIP Vandalproof Door Phone with PoE
HDP-1160PT
Video
Field Name Description
Camera status: When the device is restarted, the camera status shows
whether it is currently available.
Camera status and number of
The maximum number of accesses, the maximum number of main code
visits
streams, the maximum number of subcode streams and the number of
uses.
46
Page 47
720p SIP Vandalproof Door Phone with PoE
Video
Field Name Description
Video Capture (Local)
Auto: IRCUT switches according to the actual ambient light level of the
HDP-1160PT
IRCUT Mode
camera.
Synchronization: The switching of the IRCUT is determined by the actual
brightness of the IR lamp.
Automatic: automatically switches according to the DNC Threshold and
the brightness of the actual environment where the camera is located
Day Mode: The camera's video screen is always colored, if there is IR-cut
Day/Night Mode
will be synchronized to switch.
Night Mode: the camera's video screen is always black and white, if there
is IR-cut will be synchronized switch.
Automatic: Automatically adjusts according to the actual environment in
which the camera is located.
White Balance
Outdoor: installed in the outdoor preferred.
Indoor: installed in the room preferred.
Horizon Flip The video is flipped horizontally.
Enable the option. In a fluorescent environment can eliminate the video
Anti Flicker
horizontal scroll.
Vertical Flip The video is flipped horizontally.
IR Swap IR-cut filter switch.
In the Day / Night mode Auto option, the color switching black and white
threshold is set
DNC Threshold
Set the video color to black and white threshold in the day and night mode
selection auto mode.
Backlight Compensation In front of a very strong background light can see people or objects clearly.
In the environment changes in light and shade, the higher the sensitivity
AutoFill Sensitivity
the faster the video changes.
The wide dynamic is related to the optimization of the backlight scene.
When people are in the backlight condition, it may be because the
wide dynamic
background is too bright and the person is a piece of black, which is helpful
for optimization after opening.
Wide dynamic upper limit Range 0~100 and the default is 30.
Fill Light Provide auxiliary light when shooting in the absence of light conditions.
Time Title Video can see the time information.
Video Title Enable/disable camera titles.
47
Page 48
720p SIP Vandalproof Door Phone with PoE
Video
Field Name Description
Video Title Content When enabled, video can see the set title information.
Video Encode (Local)
Encode Format Only H.264 encoding format is supported.
HDP-1160PT
Resolution
Main stream: support 720P
Sub-stream: D1 (704 * 576)
The larger the value is, the more coherent the video would be got; not
Frame Rate
recommend adjusted.
CBR: If the code rate (bandwidth) is insufficient, it is preferred.
Bitrate Control
VBR: Image quality is preferred, not recommended.
Quality Video quality adjustment, the better the quality needs to transfer faster
Bit rate It is proportional to video file size, not recommend adjusted.
The greater the value is, the worse the video quality would be, otherwise
Frame Interval
the better video quality would be; not recommend adjusted.
Activate When you selected it, the stream is enabled, otherwise disabled.
Baseline: catch the packet for filtering H264, see H264 nal unit payload for
Baseline profile.
Encoder static setting
Main profile/High profile: see the H264 nal unit payload as Main
profile/High profile.
"Default" reverts to factory video configuration, and "submit" saves settings.
Advanced Settings
Sendonly: establish video call, and the SDP packet in the invite packet is
Sendonly;
Video Direction
Sendrecv: to create a call, the SDP package in the invite package is
Sendrecv.
RTSP Over TCP The RTSP goes over the TCP protocol.
Set the h. 264 Payload type. The range is between 96 and 127. The
H.264 Payload Type
default is 117.
Default Call Stream Optional main stream and substream.
Enable the ONVIF feature, and when enabled, discover the device via the
Enable ONVIF
video recorder that supports ONVIF.
RTSP Information
Main Stream URL Access the main address of RTSP.
Sub Stream URL Access the child address of RTSP.
48
Page 49
720p SIP Vandalproof Door Phone with PoE
HDP-1160PT
5.4.4 MCAST
This feature allows user to make some kind of broadcast call to people who are in multicast group. User can
configure a multicast DSS Key on the phone, which allows user to send a Real-time Transport Protocol (RTP)
stream to the pre-configured multicast address without involving SIP signaling. You can also configure the
phone to receive an RTP stream from pre-configured multicast listening address without involving SIP
signaling. You can specify up to 10 multicast listening addresses.
MCAST
Field Name Description
Enable Auto
Mcast
Auto Mcast
Timeout Delete
Time
Priority The priority defined in the current call, 1 is the highest priority and 10 is the lowest.
Enable Intercom
barge into
Mcast
Enable Page Regardless of which of the two multicast groups is called in first, the device will receive
Send the multicast configuration information by Sip Notify signaling, and the device will
configure the information to the system for multicast listening or cancel the multicast
listening in the system after receiving the information.
When a multicast call does not end normally, but for some reason the device can no
longer receive a multicast RTP packet, this configuration cancels the listening after a
specified time.
When enabled, intercom insertion is allowed on multicast calls.
49
Page 50
720p SIP Vandalproof Door Phone with PoE
HDP-1160PT
MCAST
Field Name Description
Priority the higher priority multicast first.
Name Listened multicast server name.
Host:port Listened multicast server’s multicast IP address and port.
Multicast Configuration Steps:
Go to web page of [Function Key] >> [Function Key Settings], select the type to multicast, set the
multicast address, and select the codec.
Click Apply.
Set up the name, host and port of the receiving multicast on the web page of [Intercom Settings] >>
[MCAST].
Press the DSSKY of Multicast Key which you set.
Receive end will receive multicast call and play multicast automatically.
5.4.5 Action URL
URL for various actions performed by the phone. These actions are recorded and sent as xml files to the
server. Sample format is http://InternalServer /FileName.xml.
The operation URL is used by the IPPBX system to submit device events.
50
Page 51
720p SIP Vandalproof Door Phone with PoE
HDP-1160PT
5.4.6 Time/Date
Users can configure the device's time settings on this page.
51
Page 52
720p SIP Vandalproof Door Phone with PoE
HDP-1160PT
Time/Date
Field Name Description
Network Time Server Settings
Time Synchronized via SNTP Enable time-sync through SNTP protocol.
Time Synchronized via DHCP Enable time-sync through DHCP protocol.
Primary Time Server Set primary time server address.
Set secondary time server address, when primary server is not reachable,
Secondary Time Server
the device will try to connect to secondary time server to get time
synchronization.
Time Zone Select the time zone.
Resync Period Time of re-synchronization with time server.
Daylight Saving Time Settings
Location Select the user's time zone specific area.
52
Page 53
720p SIP Vandalproof Door Phone with PoE
Time/Date
Field Name Description
HDP-1160PT
DST Set Type
Offset
Month Start
Week Start
Weekday Start
Hour Start
Month End
Week End
Weekday End
Hour End
Manual Time Settings
Manual Time Settings The time set by hand, need to disable SNTP service first.
Select automatic DST according to the preset rules of DST, or the
manually input rules.
The DST offset time.
The DST start month.
The DST start week.
The DST start weekday.
The DST start hour.
The DST end month.
The DST end week.
The DST end weekday.
The DST end hour.
5.5 Security Settings
53
Page 54
720p SIP Vandalproof Door Phone with PoE
Security Settings
Field Name Description
Input Settings
Input Detect Enable or disable Input Detect.
HDP-1160PT
When choosing the low level trigger (closed trigger), detect the input port
(low level) closed trigger.
Trigger Mode
When choosing the high level trigger (disconnected trigger), detect the
input port (high level) disconnected trigger.
Alert message sends to server Set the Alert message send to server
Output Settings
Output Response Enable or disable Output Response.
When choosing the low level trigger (NO: normally open), when meet the
trigger condition, trigger the NO port disconnected.
Output Level
When choosing the high level trigger (NO: normally close), when meet the
trigger condition, trigger the NO port close.
Output Duration
Changes in port, the duration of. The default is 5 seconds.
Alert Trigger Settings
Alarm Ring Duration Set the Alarm Ring Duration. The default is 5 seconds.
When the input port meets the trigger condition, the output port will be
Input trigger
triggered (The Port level time change, By < Output Duration > control).
Remote DTMF trigger
By duration
Port switch amount change time, press <output duration>
control.
By Calling
State
By call state control, after the end of the call, port to return
the default state.
Receive the DTMF password sent by the remote device. If it is correct,
trigger the corresponding output port. You can choose to enable or disable
54
Page 55
720p SIP Vandalproof Door Phone with PoE
Security Settings
Field Name Description
ringtones
During the call, the receiving terminal device sends a DTMF password,
HDP-1160PT
DTMF trigger code
Remote SMS trigger
Trigger Message Format
Call status trigger
and if it is correct, the corresponding output port is triggered. The default is
1234.
Enable or disable remote SMS triggering. You can choose to enable or
disable ringtones
Send instructions on remote devices or servers, ALERT= [set instructions],
if correct, trigger the corresponding port output.
The port outputs a continuous time trigger type, including the trigger
condition. For example, the call triggers the output port, and the output
port will be in the call state and continue to respond)
1 Talking
2 Talking and Ringing
3 Ringing
4 Calling
5 Calling and Talking
6 Calling and Ringing
7 Calling, Ringing and Talking
Tamper Alarm Settings
Alarm command
Reset command
Reset Alerting Status Reset to resume and stop ringtone playback
Ring Type Ringtone can be set to none / preset
Server Settings
Server Address
When detected someone tampering the equipment, the alarm signal will
be sent to the corresponding server
When the equipment receives the command of reset from server, the
equipment will stop alarm
Send message to the server when the alarm is triggered.
message format：Alarm Info: Description=HDP-1160PT;SIP
User=;Mac=00:30:4f:68:23:d1;IP=172.18.90.235;port=Input1
5.6 Function Keys
55
Page 56
720p SIP Vandalproof Door Phone with PoE
Key Event
The speed dial key type could be set as Key Event.
HDP-1160PT
Function Key
Type Subtype Usage
None No responding
Key Event
Release Delete password input, cancel dialing input and end call
OK
Identification key
Hot Key
When the speed dial key is set as Hot Key, the device would dial preset telephone number. This button can
also be used to set the IP address. You can press the speed dial button to directly make an IP call.
56
Page 57
720p SIP Vandalproof Door Phone with PoE
Function Key
Type Number Line Subtype Usage
Using Speed Dial mode together
with
HDP-1160PT
Speed Dial
Fill the called
party’s SIP
Hot Key
account or IP
address
Multicast
Multicast function is to deliver voice streams to configured multicast address; all equipment monitored the
multicast address can receive and play the broadcasting. Using multicast functionality would make deliver
voice one to multiple which are in the multicast group simply and conveniently.
The DSS Key multicast web configuration for calling party is as follows:
The SIP account
corresponding
lines
Intercom
can define whether this call is
allowed to be hung up by
re-pressing the speed dial key.
In Intercom mode, if the caller’s
IP phone supports Intercom
feature, the device can
automatically answer the
Intercom calls.
,
Function Key
Type Number Subtype Usage
Multicast
Set the host IP address and port
number, they must be separated by a
colon (The IP address range is
224.0.0.0 to 239.255.255.255, and
the port number is preferably set
between 1024 and 65535)
G.711A
G.711U
G.722 Wideband speech coding (7Khz)
G.723.1
G.726-32
Narrowband speech coding
(4Khz)
Narrowband speech coding
(4Khz)
G.729AB
57
Page 58
720p SIP Vandalproof Door Phone with PoE
Advanced Settings
Advanced Settings
Field Name Explanation
HDP-1160PT
Input port is multiplexed as
Enable or disable the input port to be multiplexed as speed dial button 2
function key 2
Use Function Key to Answer Enable or disable shortcuts to answer calls
Enable Speed Dial Hang up Enable or disable shortcuts to hang up calls
Number 1 call number 2 mode selection.
<Main/Secondary>: If the first number is not answered within the set time,
the second number will be automatically switched.
Hot Key Dial Mode Select
<Day/Night>：The system time is automatically detected during the call. If it
is daytime, the first number is called, otherwise the second number is
called.
Call Switched Time Set number 1 to call number 2 time, default 16 seconds
The start time of the day when the <Day/Night> mode is defined. Default
Day Start Time
"06:00"
The end time of the day when the <Day/Night> mode is defined. Default
Day End Time
"18:00
58
Page 59
720p SIP Vandalproof Door Phone with PoE
HDP-1160PT
Appendix A: Troubleshootings
If the following fixes cannot troubleshoot your problems, contact the supplier where the purchase is made or
PLANET technical support team.
Get device system information
Users can obtain information through the [System] >> [Information] option on the device webpage. The
following information will be provided:
Device information (model, software and hardware version), Internet Information, etc.
Reboot device
The user can restart the device through the webpage -- click [System] >> [Tools] >> [Reboot Phone] and
click the [Reboot] button, or directly unplug the power to restart the device.
Device factory reset
Restoring the factory settings will delete all configuration, database and configuration files on the device and
the device will be restored to the factory default state.
To restore the factory settings, you need to log in to the webpage [System] >> [Configuration], and click the
[Reset] button.
Netowork Packets Capture
In order to obtain the data packet of the device, the user needs to log in to the webpage of the device, open
the webpage [System] >> [Tools], and click the [Start] option in the "Network Packets Capture". A message
will pop up asking the user to save the captured file. At this time, the user can perform related operations,
such as starting/deactivating the line or making a call, and clicking the [Stop] button on the webpage after
completion. Network packets during the device are saved in a file.
Common Problematic Cases
Problematic Case Solution
Device could not boot up 1. If the device enters "POST mode" (the SIP/NET and function button
indicators are always on), the device system is damaged. Please contact
Device could not register
according to a service provider
your local technical support to help you restore your equipment system.
2. If the device enters "POST mode" (the SIP/NET and function button
indicators are always on), the device system is damaged. Please contact
your local technical support to help you restore your equipment system.
1. Please check if the device is connected to the network. The network
cable must be connected to the [Network] interface instead of
the [Computer] interface.
59
Page 60
720p SIP Vandalproof Door Phone with PoE
Problematic Case Solution
2. Please check if the device has an IP address. Check the system
information. If the IP address is Negotiating..., the device has not obtained
an IP address. Please check if the network configuration is correct.
3. If the network connection is good, please check your line configuration
again. If all configurations are correct, contact your service provider for
support, or follow the instructions in "5.1.7 Network Data Capture" to
obtain a registered network packet.
HDP-1160PT
60
Page 61
720p SIP Vandalproof Door Phone with PoE
HDP-1160PT
Appendix B: How to use ICF-1800 to open
door via DTMF code
Step 1. Install HDP-1160PT x 1 ICF-1800 x 1 and IPX-330 x 1 and anode lock x 1 at the client.
Step 2. Register account at HDP-1160PT and ICF-1800 to IPBPBX.
Step 3. Set up DSS key of HDP-1160PT and make sure the equipment can dial to ICF-1800 after
pressing call button.

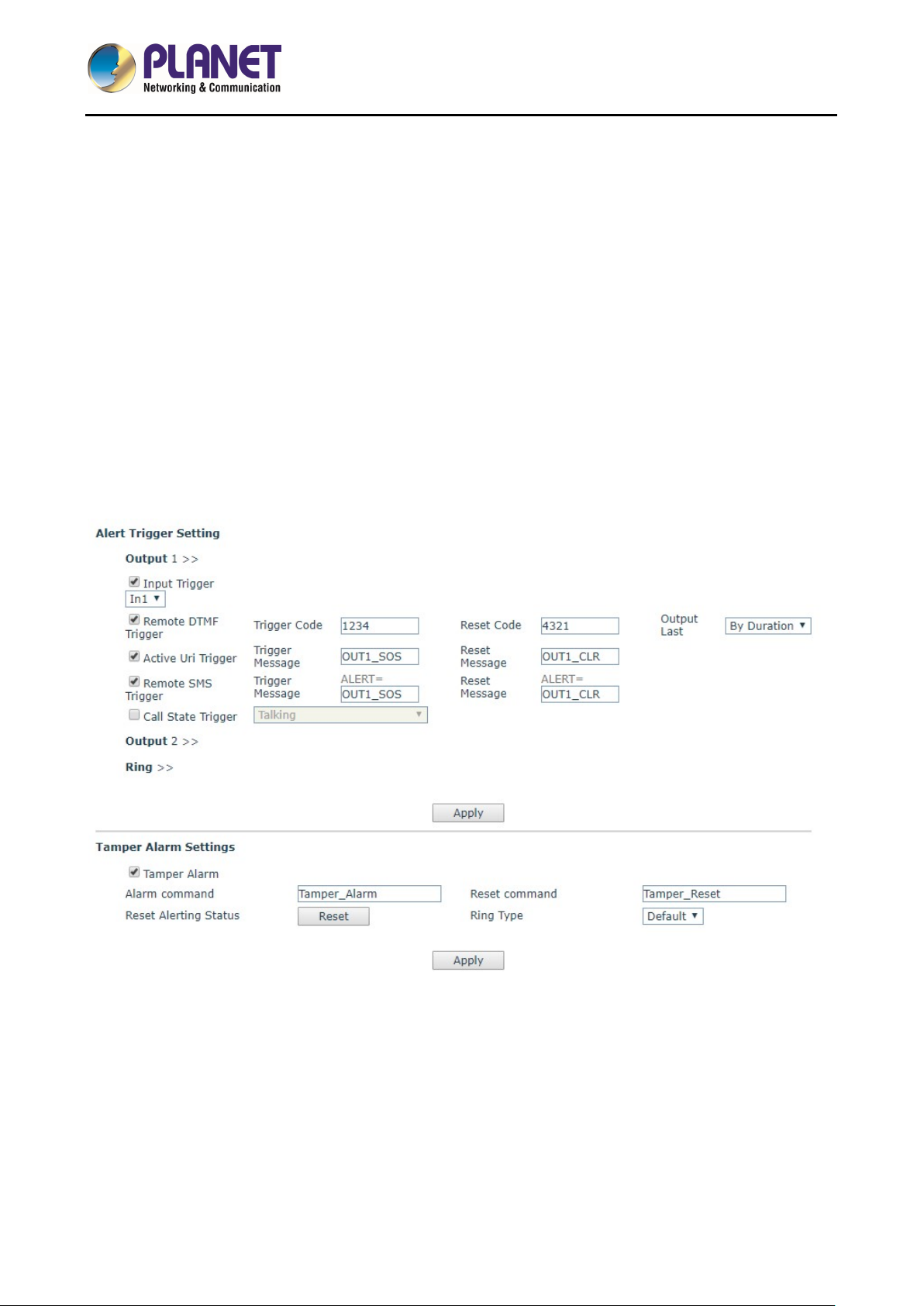

Step 4. Set up Alert Trigger Setting of HDP-1160PT and disable Call State Trigger.
Step 5. Connect HDP-1160PT with anode lock as shown below.
61
Page 62
720p SIP Vandalproof Door Phone with PoE
HDP-1160PT
Step 6. Open anode lock through remote DTMF of ICF-1800 (The default is 1234).
62
Loading...
