Wireless Router
1000BASE-T UTP
1. Verify the Contents Inside the
Package Box
The package should contain the following items plus
HAC-1000. If any item is missing or damaged, please
contact the seller immediately.
Quick Installation Guide Wall-mounted & DIN-rail Kit
Power Adapter Magnet Kit
- 1 -
Wireless Router
1000BASE-T UTP
2. PhysicalSpecications
134.00
Dimensions ( unit = mm )
Dimensions (W x D x H) 148 x 25 x 134 mm
Weight 441g (gross weight)
118.00
HAC-1000 Series
Z-wave
Control Gateway
148.00
138.00
PWR
12V DC
- 2 -
24.20
Reset
6.00
Wireless Router
1000BASE-T UTP
System
LED Color Function
PWR Green
Lights to indicate that the Switch has
power.
RJ45 port
LED Color Function
Lights to indicate the port is
LNK/
ACT
Green
successfully established.
Blinks to indicate that the switch
is actively sending or receiving data
over that port.
Lights to indicate the port is running
Speed Green
at 1000Mbps speed
Off to indicate the port is running at
10/100Mbps speed
Reset
Interface Description
This button is hidden in the pinhole. This
button is used to restore all the factory
Reset
default settings. Please hold the reset
button for about 10 seconds to load
default.
- 3 -
Wireless Router
1000BASE-T UTP
3. Wall and Magnet Installation
A. Wall-mount Installation
To install the PoE Ethernet Switch on the wall, simply
follow the following steps:
Step 1: There are 4 holes with 8mm diameter on
the wall; the distance between the 2 holes is
133mm and the line through them must keep
horizontal.
Step 2: Install a conductor pipe inside the board hole
and ush the edge of the conductor pipe with
the wall surface.
Step 3: Screw the bolts into the conductor pipe. The
HAC-1000 is between bolts and conductor pipe,
as shown below.
HAC-1000 Series
Z-wave
Control Gateway
Reset
PWR
12V DC
- 4 -
Wireless Router
1000BASE-T UTP
B. Magnet Installation
To install the HAC-1000 on a magnetic surface, simply
follow the following picture:
Z-wave
Control Gateway
Reset
HAC-1000 Series
- 5 -
PWR
12V DC
Wireless Router
1000BASE-T UTP
4. Cloud Home Registration by
Internet-connected Smart Phone
Step 1. Please refer to the following ways to download
the Cloud Home App.
A. Download Cloud Home App from App Store
or Google Play Store by your iPhone or
Android phone by searching “Cloud Home”
as the key word.
B. You can scan the following QR Codes and
Install the Cloud Home App
- 6 -
Step 2. Make sure the HAC-1000 and Z-Wave device
Wireless Router
1000BASE-T UTP
have been connected and powered up
successfully.
Door Lock Sensor
Smart Power
Z
ADSL
Internet
ADSL
3G
3G Network
- 7 -
Z
ADSL
Z
Web Browser
3G
Mobile App
ADSL
Z
Z
HAC-1000
ADSL 2/2+
Z-wave
Wireless Router
1000BASE-T UTP
Step 3. Enter a mail and password, and press Register
to register account.
Interface Description
Account
Use your existing email account to get
cloud server registered
Password Your personal private password
Auto Login
Enable it to automatically login each time
the app starts up
Register For the rst-time registration
- 8 -
Step 4. Go to Setting Inclusion/Exclusion to
include/exclude Z-Wave device.
- 9 -
Step 5. After pressing Inclusion Device, the “Add
Device” message will be displayed.
Step 6. Press the programming switch button on the
Z-Wave device for connection at the same
time.
- 10 -
The location of programming switch button
depends on the type of Z-Wave device that
Note

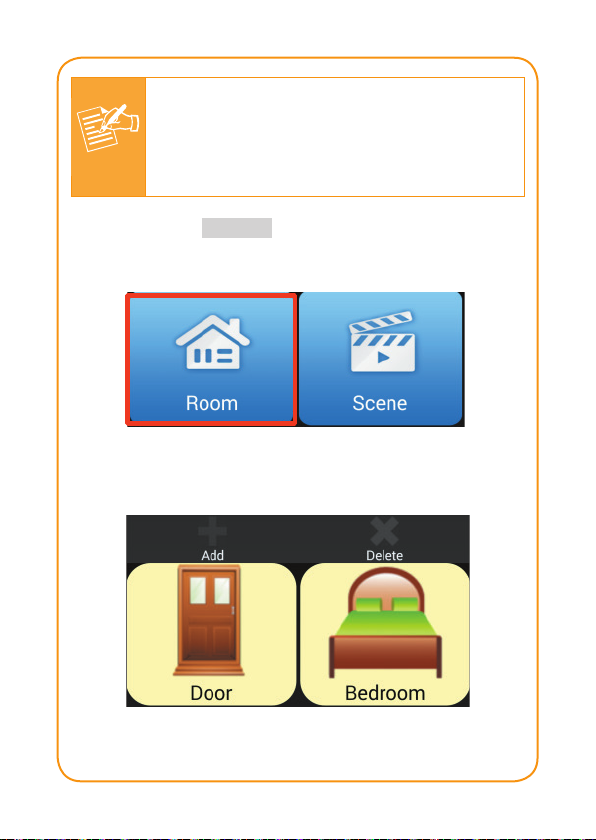

Step 7. Go to Room to create rooms to distribute
you use. Please refer to the user manual of
the Z-Wave device for details.
Z-Wave devices
- 11 -
Step 8. Go to Scene to create scene.
- 12 - - 13 - - 14 -
When almost done, you can continue to add your
Z-Wave device or start to remotely control and monitor
your home easily.
If you have any question about Z-Wave
installation, please refer to Z-Wave device
Note
configuration in the user manual.
HAC-1000 Default setting
Default DHCP Client On
192.168.0.253 – if DHCP
Default IP Address
Default Web Port 80
Default Login User Name admin
Default Login Password admin
Search Tools Smart Discovery
Server does not exist in the
network
5. Customer Support
Thank you for purchasing PLANET products. You can
browse our online FAQ resource and User’s Manual on
PLANET Web site rst to check if it could solve your
issue. If you need more support information, please
contact PLANET Home Automation support team.
PLANET online FAQ:
http://www.planet.com.tw/en/support/faq.php?key=HAC-1000
Home Automation support team mail address:
support@planet.com.tw
HAC-1000 Utility:
http://www.planet.com.tw/en/support/download.
php?model=48697&type=8184#list
HAC-1000 User’s Manual:
http://www.planet.com.tw/en/support/download.
php?model=48697&type=3#list
