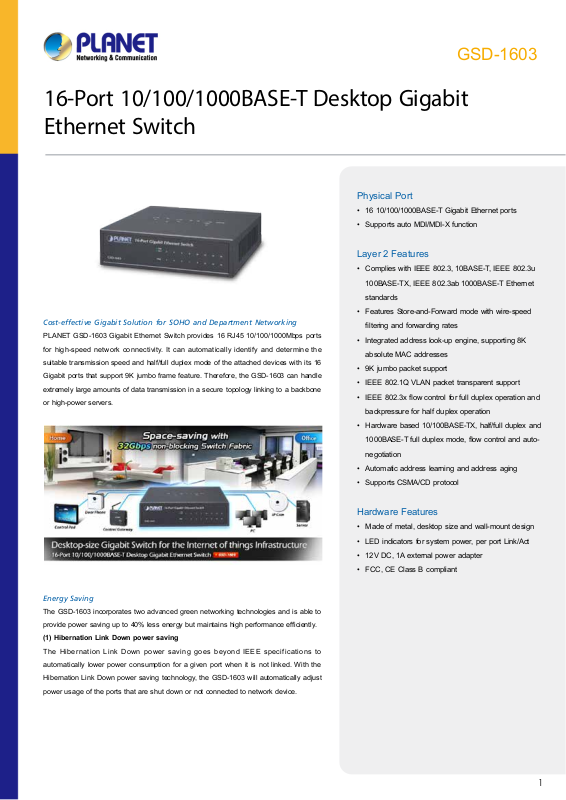

GSD-1603
16-Port 10/100/1000BASE-T Desktop Gigabit
Ethernet Switch
Physical Port
• 16 10/100/1000BASE-T Gigabit Ethernet ports
• Supports auto MDI/MDI-X function
Layer 2 Features
• Complies with IEEE 802.3, 10BASE-T, IEEE 802.3u
100BASE-TX, IEEE 802.3ab 1000BASE-T Ethernet
standards
• Features Store-and-Forward mode with wire-speed
Cost-effective Gigabit Solution for SOHO and Department Networking
PLANET GSD-1603 Gigabit Ethernet Switch provides 16 RJ45 10/100/1000Mbps ports
for high-speed network connectivity. It can automatically identify and determine the
suitable transmission speed and half/full duplex mode of the attached devices with its 16
Gigabit ports that support 9K jumbo frame feature. Therefore, the GSD-1603 can handle
extremely large amounts of data transmission in a secure topology linking to a backbone
or high-power servers.
ltering and forwarding rates
• Integrated address look-up engine, supporting 8K
absolute MAC addresses
• 9K jumbo packet support
• IEEE 802.1Q VLAN packet transparent support
• IEEE 802.3x ow control for full duplex operation and
backpressure for half duplex operation
• Hardware based 10/100BASE-TX, half/full duplex and
1000BASE-T full duplex mode, ow control and auto-
negotiation
• Automatic address learning and address aging
• Supports CSMA/CD protocol
Hardware Features
• Made of metal, desktop size and wall-mount design
• LED indicators for system power, per port Link/Act
• 12V DC, 1A external power adapter
• FCC, CE Class B compliant
Energy Saving
The GSD-1603 incorporates two advanced green networking technologies and is able to
provide power saving up to 40% less energy but maintains high performance efciently.
(1) Hibernation Link Down power saving
The Hibernation Link Down power saving goes beyond IEEE specifications to
automatically lower power consumption for a given port when it is not linked. With the
Hibernation Link Down power saving technology, the GSD-1603 will automatically adjust
power usage of the ports that are shut down or not connected to network device.
Data Sheet
1
1
GSD-1603
(2) Intelligent scales power based on cable length
Intelligent scales power, the other technology adopted, is an intelligent algorithm that actively determines the appropriate power level based on cable length.
When the GSD-1603 is connected with Ethernet cable shorter than 20m, a device can obtain maximum power saving because the GSD-1603 would
automatically detect the Ethernet cable length and diminish power usage. The connected device can substantially reduce the overall power consumption,
which makes a signicant contribution to energy saving.
Intelligent Power Savings
Intelligent Power Savings
Power Saving 40%
GSD-1603
40%
GSD-1603
PC
PC
Other 16G
Switch
*Full Port link with Cable length < 20m
Power
Consumption
PC
20m 40m 60m 80m 100m0m
Save
52,560 Watts
52,560 Watts
PC
yearly
Other Switch
Power
Consumption
PC
20m 40m 60m 80m 100m0m
Stable and High Performance Switch Architecture
The GSD-1603 has an 8K MAC address table, featuring high performance switch architecture capable of providing the non-blocking 32Gbps switch fabric
and wire-speed throughput as high as 23.8Mpps, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands.
Besides, the 802.3x full-duplex flow control function of the GSD-1603 enables routers and servers to be directly connected to the switch for wire-speed
packet transfer performance without the risk of packet loss.
PC
Flexible Desktop Size and Fanless Design
The GSD-1603 is the standard metal model to t into a space-limited environment. Designed with compact size, fanless and noiseless features, the GSD-
1603 is able to operate stably and quietly in any environment without affecting its performance.
Plug & Play
All RJ45 copper interfaces of the GSD-1603 support 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ45 Category 5, 5e or 6
cables. They support standard auto-MDI/MDI-X feature which can detect the type of connection to any Ethernet device without requiring special straight-
through or crossover cables.
16 x Gigabit Ethernet Ports 12V DC Power
2
GSD-1603

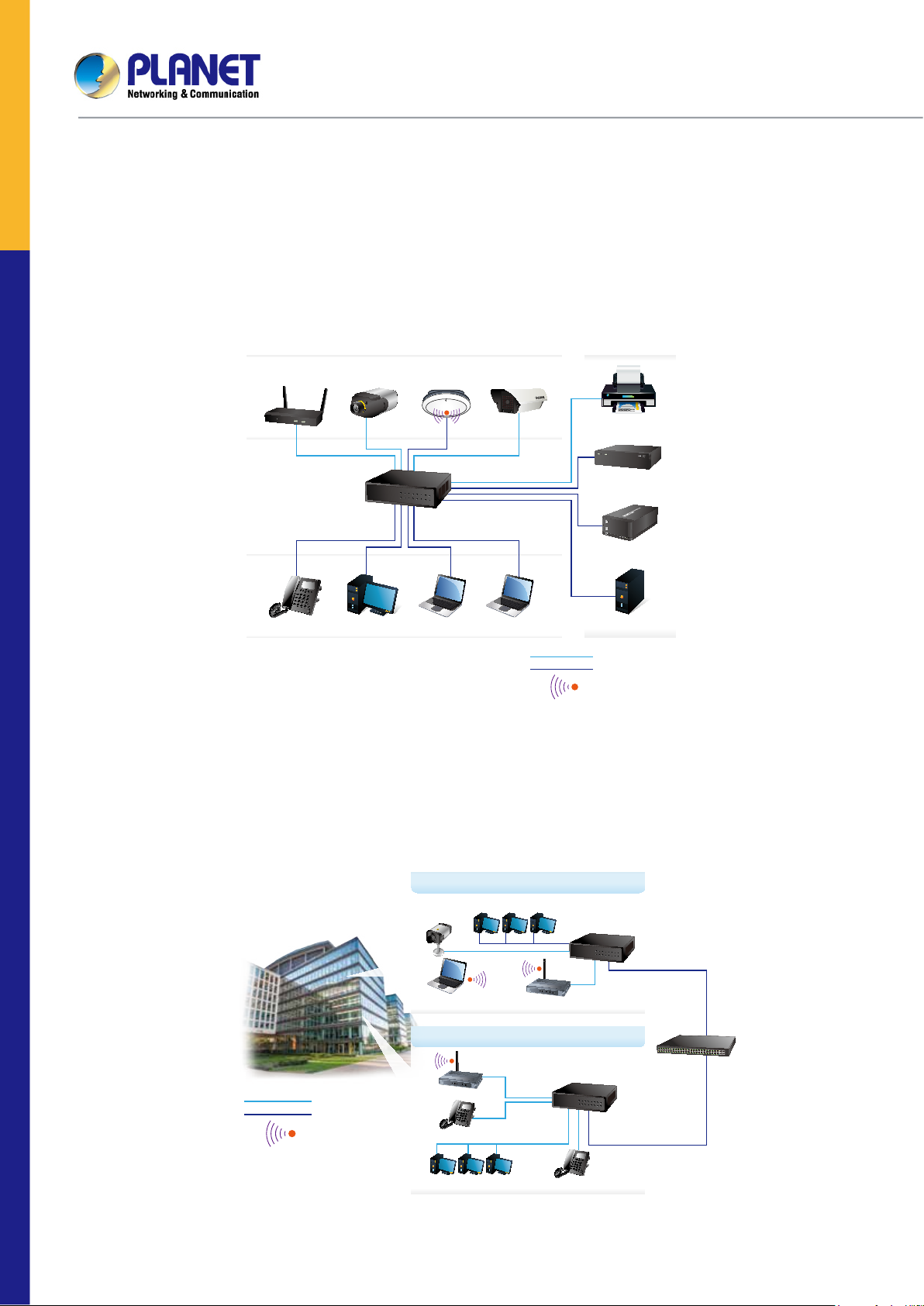

Applications
Home/SOHO Gigabit High-speed Smaller Network
With up to 32 Gigabits per second of non-blocking switch fabric, the GSD-1603 Gigabit Ethernet Switch provides 16 Gigabit Ethernet Ports and is the best
solution to the high-speed Internet environment demanded by SOHO/Home and Power users. The GSD-1603 accelerates the speed of data transmission
between various Ethernet devices without worrying about the delay of high-quality multimedia display.
Ideal for Small Networks
Presentation
Gateway
VoIP Phone PC Laptop Laptop
IP Camera
GSD-1603
Wireless AP IP Camera
N
N
Printer
NVR
NAS
Server
100BASE-TX UTP
1000BASE-T UTP
2.4GHz 802.11n
IP Office Department/Workgroup Switch
The GSD-1603 Gigabit Ethernet Switch helps enterprises or users to deploy a Gigabit Ethernet integrated data, voice network or to build a high-bandwidth
switched network quickly and easily. Based on uplink directly linked to the backbone switch over any straight-through or crossover cable, the GSD-1603
provides the connectivity to backplane yet segment the network trafc of the department to the core switch.
N
100BASE-TX UTP
1000BASE-T UTP
2.4GHz 802.11n
Sales Department
IP Camera
Laptop
PC Group
N
Engineering Department
N
Wireless AP
VoIP Phone
PC Group
GSD-1603
N
Wireless AP
Core Switch
GSD-1603
VoIP Phone
3
Product Specications
Product GSD-1603
Hardware Specications
10/100 /1000 BASE-T Ports 16 auto MDI/ MDIX RJ45 ports
LED Display One for Power, one for Link/Act per port
Enclosure Metal
Dimensions (W x D x H) 155 x 118 x 46 mm
Wei ght (g) 538g
Power Requirements
(External power adapter)
Power Consumption 10 watts/34 BTU
Switch Specications
Switch Processing Scheme Store-and-Forward
Address Table 8K
Flow Control
Switch Fabric 32Gbps
Throughput
(packet per second)
Jumbo packet size 9K
Standards Conformance
Standards Compliance
Regulatory Compliance FCC Part 15 Class B, CE
Environments
Temperature
Humidity
12V DC, 1A
Back pressure half duplex
IEEE 802.3x pause frame full duplex
23.8Mpps@64 bytes
IEEE 802.3 (Ethernet)
IEEE 802.3u (Fast Ethernet)
IEEE 802.3ab (Gigabit Ethernet)
IEEE 802.3x (Full-duplex Flow Control)
IEEE 802.3az Energy Efcient Ethernet (EEE)
Operating: 0~50 degrees C
Storage: -10 ~70 degrees C
Operating: 5~95%
Storage: 5~95% (non-condensing)
GSD-1603
Ordering Information
GSD-16 03 16-Port 10/100/100 0BASE-T Desk top Metal Gigabit Ethernet Switch (E xternal Power)
Related Products
GSD-503
GSD-504 5-Port 10/100/1000Mbps Gigabit Ethernet Switch(Plastic)
GSD-803 8-Port 10/100/1000Mbps Gigabit Ethernet Switch(Metal)
GSD-804
PLANET Technology Corporation
11F., No.96, Minquan Rd., Xindian Dist., New Taipei City
231, Taiwan (R.O.C.)
Tel: 886-2-2219-9518 Fax: 886-2-2219-9528
Email: sales@planet.com.tw www.planet.com.tw
5-Port 10/100/1000Mbps Gigabit Ethernet Switch(Metal)
8-Port 10/100/1000Mbps Gigabit Ethernet Switch(Plastic)
PLANET reserves the right to change specications without prior notice. All brand names and trademarks are property of
their respective owners. Copyright © 2015 PLANET Technology Corp. All rights reserved.
