User’s Manual of GS-5220 Series
1
User’s Manual of GS-5220 Series
Trademarks
Copyright © PLANET Technology Corp. 2015.
Contents are subject to revision without prior notice.
PLANET is a registered trademark of PLANET Technology Corp. All other trademarks belong to their respective owners.
Disclaimer
PLANET Technology does not warrant that the hardware will work properly in all environments and applications, and makes no
warranty and representation, either implied or expressed, with respect to the quality, performance, merchantability, or fitness for
a particular purpose. PLANET has made every effort to ensure that this User's Manual is accurate; PLANET disclaims liability
for any inaccuracies or omissions that may have occurred.
Information in this User's Manual is subject to change without notice and does not represent a commitment on the part of
PLANET. PLANET assumes no responsibility for any inaccuracies that may be contained in this User's Manual. PLANET makes
no commitment to update or keep current the information in this User's Manual, and reserves the right to make improvements to
this User's Manual and/or to the products described in this User's Manual, at any time without notice.
If you find information in this manual that is incorrect, misleading, or incomplete, we would appreciate your comments and
suggestions.
FCC Warning
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated
in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the Instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.
CE Mark Warning
This is a Class A product. In a domestic environment, this product may cause radio interference, in which case the user may be
required to take adequate measures.
Energy Saving Note of the Device
This power required device does not support Standby mode operation. For energy saving, please remove the power cable to
disconnect the device from the power circuit. In view of saving the energy and reducing the unnecessary power consumption, it
is strongly suggested to remove the power connection for the device if this device is not intended to be active.
WEEE Warning
To avoid the potential effects on the environment and human health as a result of the presence of
hazardous substances in electrical and electronic equipment, end users of electrical and electronic
equipment should understand the meaning of the crossed-out wheeled bin symbol. Do not dispose of
WEEE as unsorted municipal waste and have to collect such WEEE separately.
Revision
PLANET GS-5220 Series User's Manual
Model: GS-5220 Series
Revision: 1.2 (August, 2015)
Part No: EM-GS-5220-series _v1.2
2
User’s Manual of GS-5220 Series
TABLE OF CONTENTS
1. INTRODUCTION..................................................................................................................10
1.1 Packet Contents.........................................................................................................................................10
1.2 Product Description...................................................................................................................................11
1.3 How to Use This Manual............................................................................................................................13
1.4 Product Features........................................................................................................................................14
1.5 Product Specifications ..............................................................................................................................18
2. INSTALLATION ................................................................................................................... 27
2.1 Hardware Description................................................................................................................................27

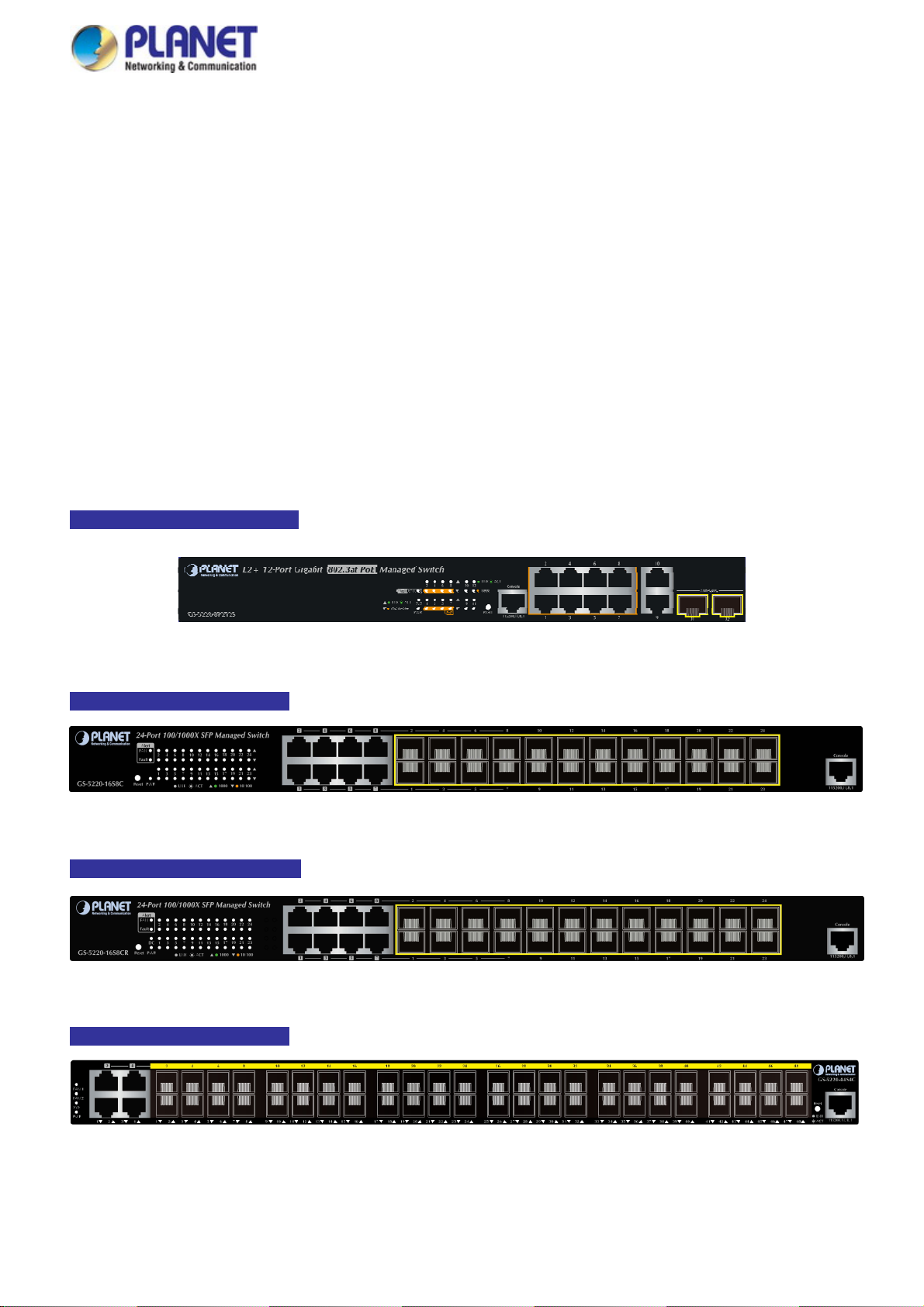

2.1.1 Switch Front Panel ..............................................................................................................................................27

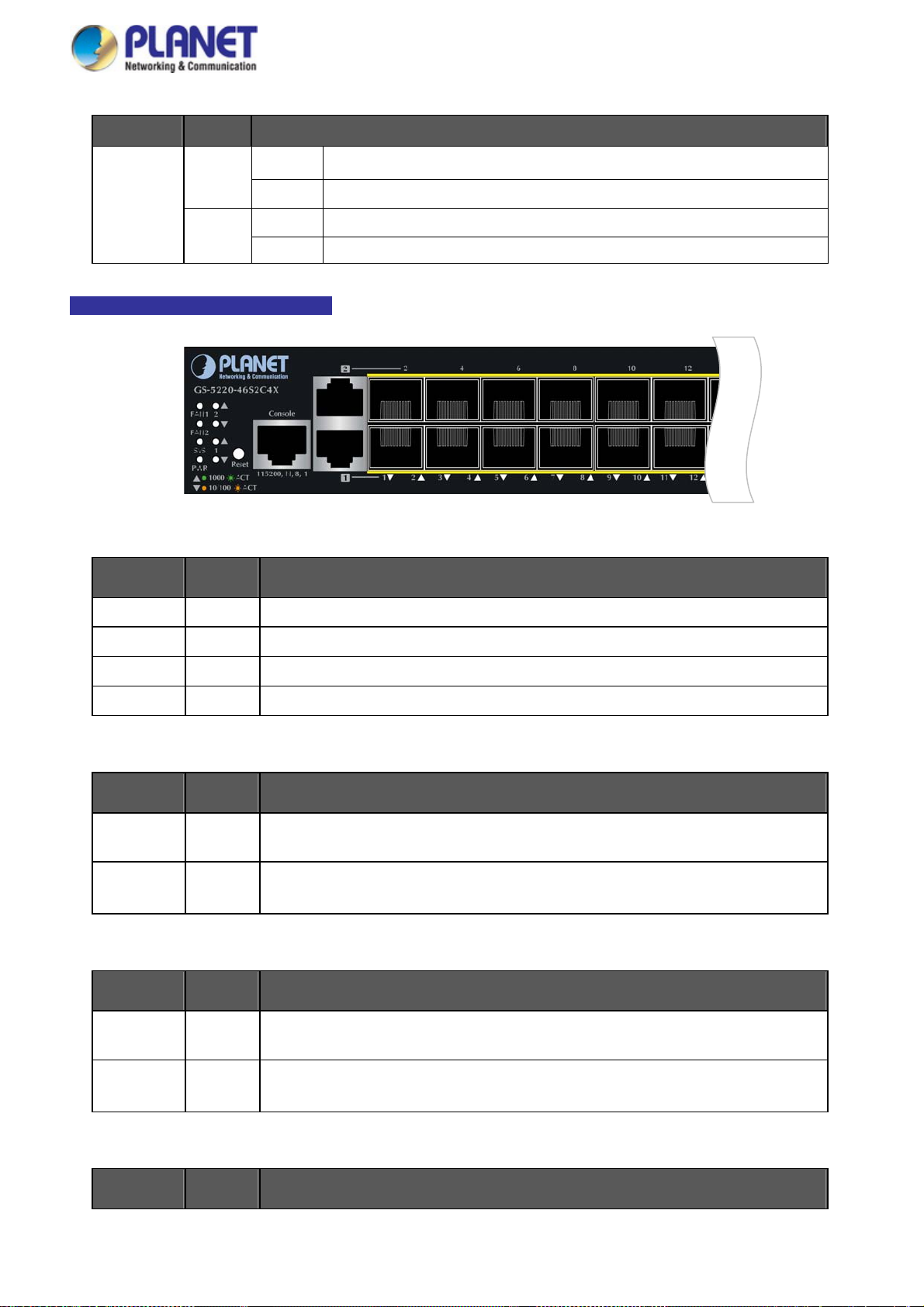

2.1.2 LED Indications ...................................................................................................................................................29

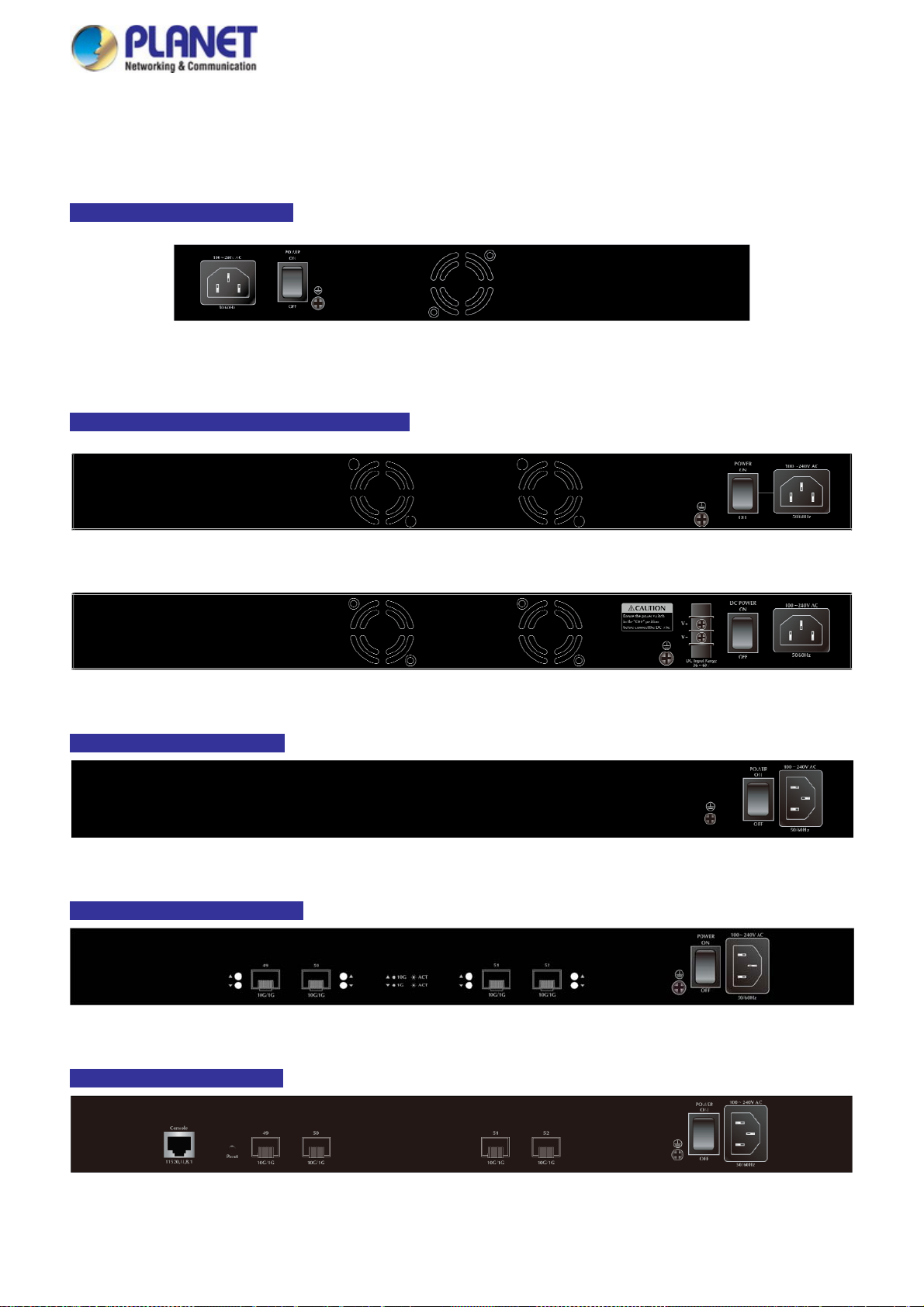

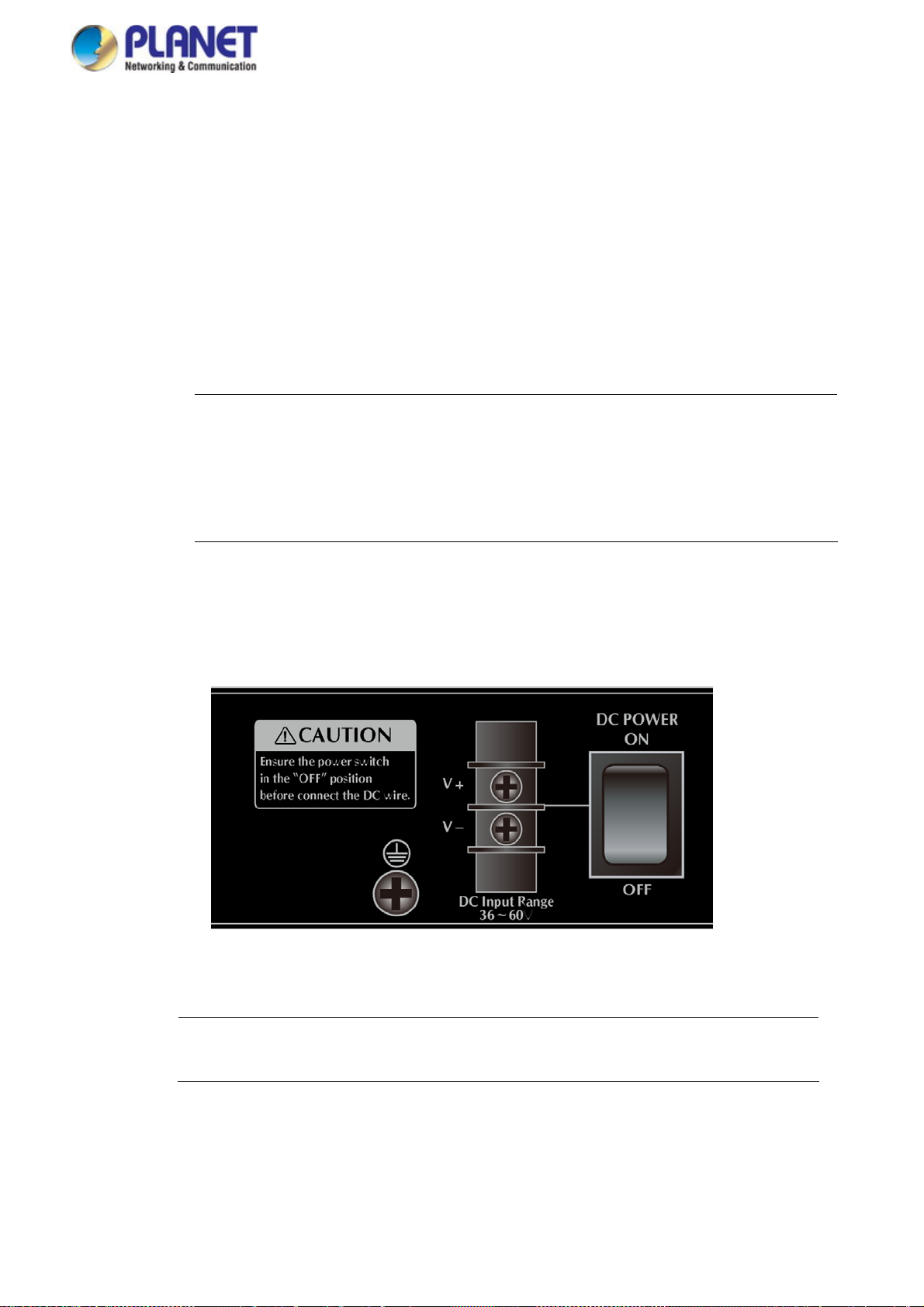

2.1.3 Switch Rear Panel ...............................................................................................................................................34
2.2 Installing the Switch...................................................................................................................................36
2.2.1 Desktop Installation .............................................................................................................................................36
2.2.2 Rack Mounting.....................................................................................................................................................37

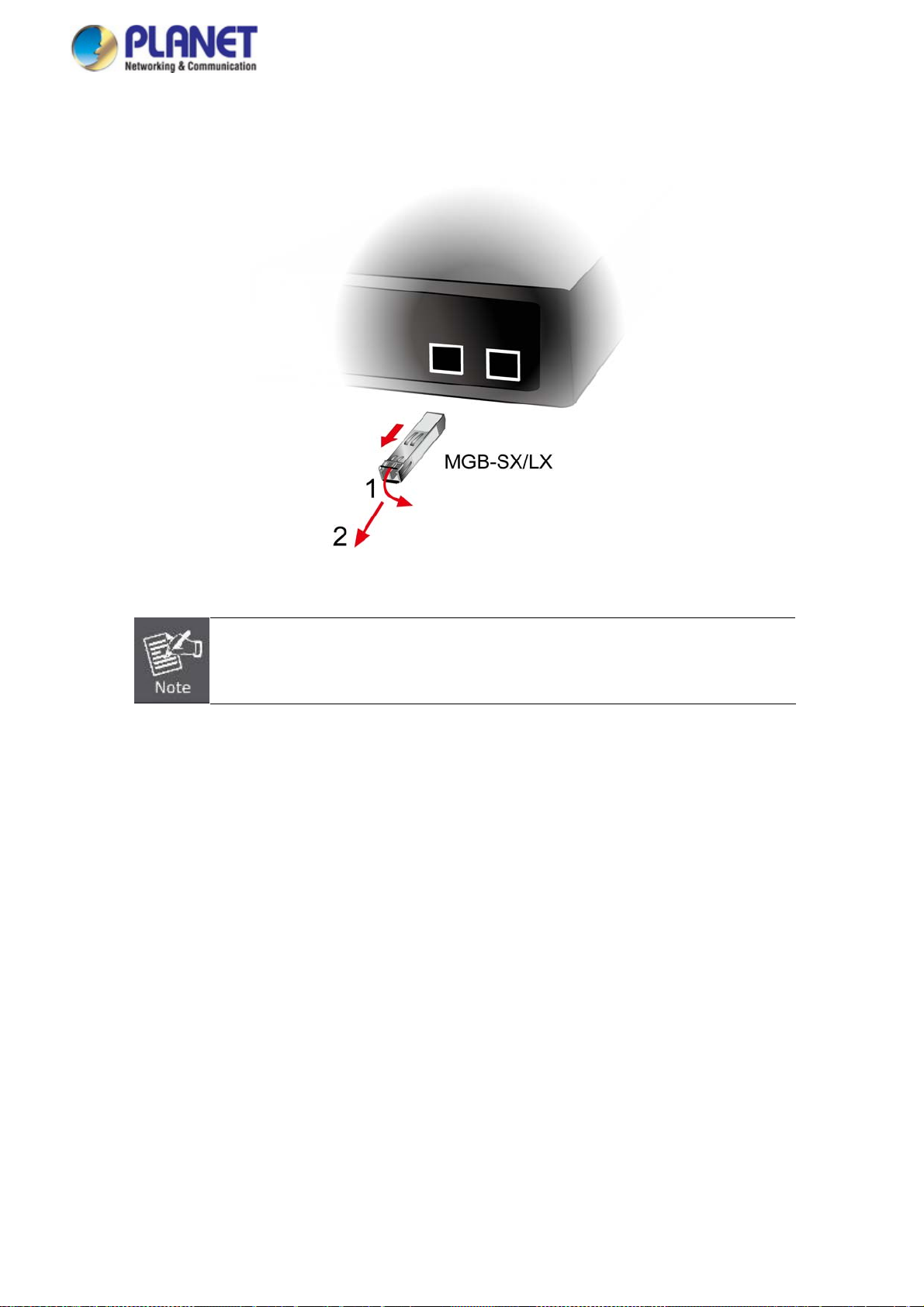

2.2.3 Installing the SFP/SFP+ Transceiver...................................................................................................................38
3. SWITCH MANAGEMENT.................................................................................................... 42
3.1 Requirements..............................................................................................................................................42
3.2 Management Access Overvi ew.................................................................................................................43
3.3 Administration Console.............................................................................................................................44

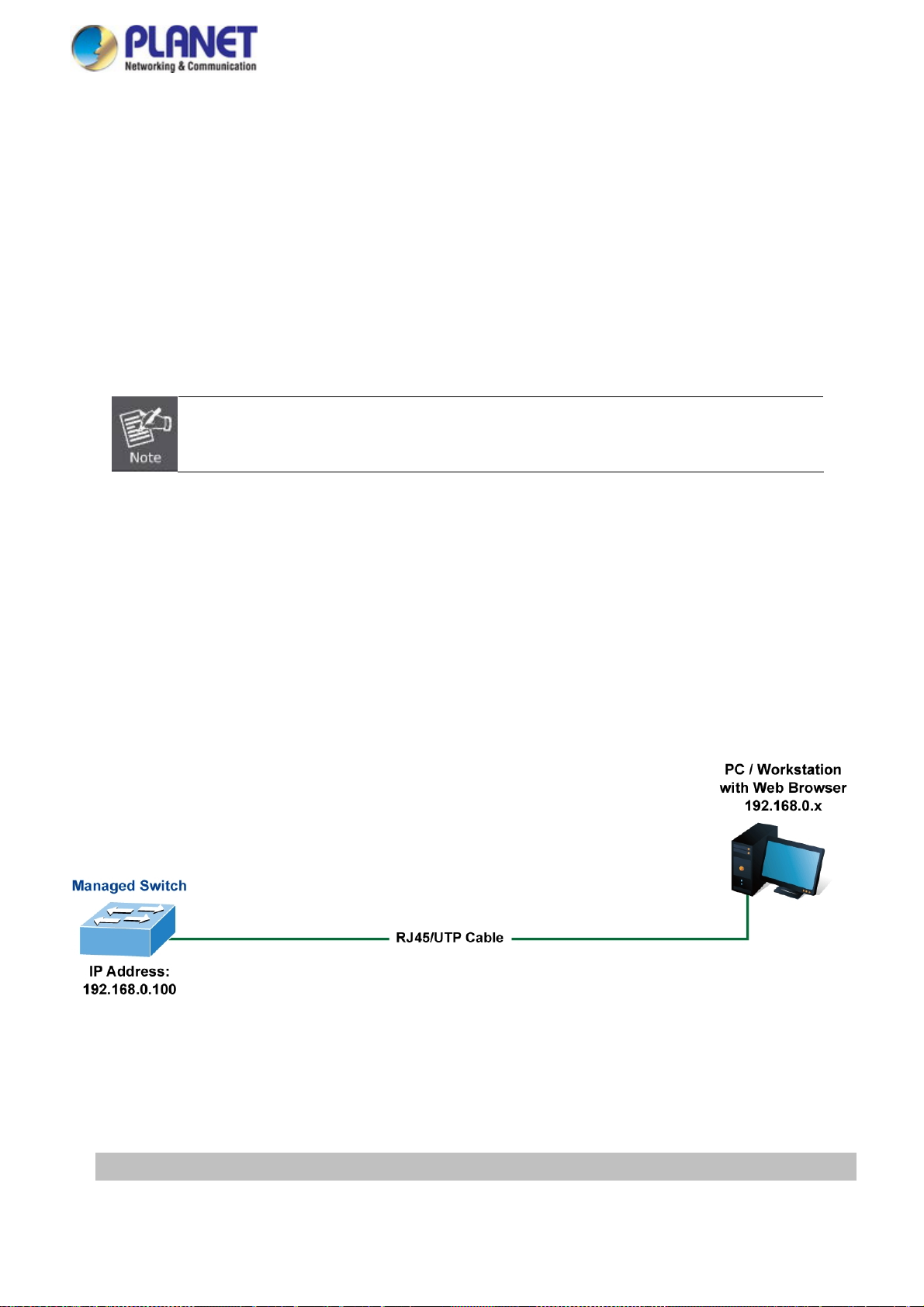

3.4 Web Management.......................................................................................................................................45
3.5 SNMP-based Network Management.........................................................................................................46
3.6 PLANET Smart Discovery Utility ..............................................................................................................46
4. WEB CONFIGURATION...................................................................................................... 48
4.1 Main Web Page...........................................................................................................................................50
4.2 System.........................................................................................................................................................52
4.2.1 System Information..............................................................................................................................................53
4.2.2 IP Configuration...................................................................................................................................................54
4.2.3 IP Status ..............................................................................................................................................................56
3
User’s Manual of GS-5220 Series
4.2.4 Users Configuration .............................................................................................................................................57
4.2.5 Privilege Levels ...................................................................................................................................................60
4.2.6 NTP Configuration ...............................................................................................................................................61
4.2.7 Time Configuration ..............................................................................................................................................62
4.2.8 UPnP ...................................................................................................................................................................64
4.2.9 DHCP Relay ........................................................................................................................................................66
4.2.10 DHCP Relay Statistics .......................................................................................................................................67
4.2.11 CPU Load ..........................................................................................................................................................69
4.2.12 System Log........................................................................................................................................................70
4.2.13 Detailed Log ......................................................................................................................................................71
4.2.14 Remote Syslog ..................................................................................................................................................72
4.2.15 SMTP Configuration ..........................................................................................................................................73
4.2.16 Web Firmware Upgrade.....................................................................................................................................74
4.2.17 TFTP Firmware Upgrade ...................................................................................................................................75
4.2.18 Save Startup Config...........................................................................................................................................76
4.2.19 Configuration Download ....................................................................................................................................76
4.2.20 Configuration Upload .........................................................................................................................................77
4.2.21 Configuration Activate........................................................................................................................................77
4.2.22 Configuration Delete ..........................................................................................................................................78
4.2.23 Image Select......................................................................................................................................................78
4.2.24 Factory Default ..................................................................................................................................................79
4.2.25 System Reboot ..................................................................................................................................................80
4.3 Simple Network Management Protocol....................................................................................................81
4.3.1 SNMP Overview ..................................................................................................................................................81
4.3.2 SNMP System Configuration ...............................................................................................................................82
4.3.3 SNMP Trap Configuration....................................................................................................................................84
4.3.4 SNMP System Information ..................................................................................................................................86
4.3.5 SNMPv3 Configuration ........................................................................................................................................87
4.3.5.1 SNMPv3 Communities ..............................................................................................................................87
4.3.5.2 SNMPv3 Users ..........................................................................................................................................88
4.3.5.3 SNMPv3 Groups........................................................................................................................................89
4.3.5.4 SNMPv3 Views..........................................................................................................................................90
4.3.5.5 SNMPv3 Access........................................................................................................................................91
4.4 Port Management.......................................................................................................................................93
4.4.1 Port Configuration................................................................................................................................................93
4.4.2 Port Statistics Overview.......................................................................................................................................95
4.4.3 Port Statistics Detail.............................................................................................................................................96
4.4.4 SFP Module Information ......................................................................................................................................98
4.4.5 Port Mirror............................................................................................................................................................99
4
User’s Manual of GS-5220 Series
4.5 Link Aggregation......................................................................................................................................102
4.5.1 Static Aggregation..............................................................................................................................................104
4.5.2 LACP Configuration ...........................................................................................................................................105
4.5.3 LACP System Status .........................................................................................................................................107
4.5.4 LACP Port Status...............................................................................................................................................108
4.5.5 LACP Port Statistics...........................................................................................................................................109
4.6 VLAN..........................................................................................................................................................110
4.6.1 VLAN Overview ................................................................................................................................................. 110
4.6.2 IEEE 802.1Q VLAN ........................................................................................................................................... 111
4.6.3 VLAN Port Configuration ...................................................................................................................................114
4.6.4 VLAN Membership Status..................................................................................................................................120
4.6.5 VLAN Port Status...............................................................................................................................................121
4.6.6 Port Isolation......................................................................................................................................................123
4.6.7 VLAN setting example: ......................................................................................................................................125
4.6.7.1 Two Separate 802.1Q VLANs..................................................................................................................125
4.6.7.2 VLAN Trunking between two 802.1Q aware switches .............................................................................127
4.6.7.3 Port Isolate ..............................................................................................................................................130
4.6.8 MAC-based VLAN .............................................................................................................................................131
4.6.9 MAC-based VLAN Status ..................................................................................................................................132
4.6.10 Protocol-based VLAN ......................................................................................................................................132
4.6.11 Protocol-based VLAN Membership..................................................................................................................134
4.7 Spanning Tree Protocol...........................................................................................................................136
4.7.1 Theory ...............................................................................................................................................................136
4.7.2 STP System Configuration ................................................................................................................................142
4.7.3 Bridge Status .....................................................................................................................................................144
4.7.4 CIST Port Configuration.....................................................................................................................................145
4.7.5 MSTI Priorities ...................................................................................................................................................148
4.7.6 MSTI Configuration............................................................................................................................................149
4.7.7 MSTI Ports Configuration ..................................................................................................................................150
4.7.8 Port Status.........................................................................................................................................................152
4.7.9 Port Statistics.....................................................................................................................................................153
4.8 Multicast....................................................................................................................................................154
4.8.1 IGMP Snooping .................................................................................................................................................154
4.8.2 Profile Table.......................................................................................................................................................158
4.8.3 Address Entry ....................................................................................................................................................159
4.8.4 IGMP Snooping Configuration ...........................................................................................................................160
4.8.5 IGMP Snooping VLAN Configuration.................................................................................................................162
4.8.6 IGMP Snooping Port Group Filtering .................................................................................................................164
4.8.7 IGMP Snooping Status ......................................................................................................................................165
5
User’s Manual of GS-5220 Series
4.8.8 IGMP Group Information....................................................................................................................................166
4.8.9 IGMPv3 Information...........................................................................................................................................167
4.8.10 MLD Snooping Configuration........................................................................................................................... 168
4.8.11 MLD Snooping VLAN Configuration.................................................................................................................169
4.8.12 MLD Snooping Port Group Filtering.................................................................................................................171
4.8.13 MLD Snooping Status......................................................................................................................................172
4.8.14 MLD Group Information ...................................................................................................................................173
4.8.15 MLDv2 Information ..........................................................................................................................................174
4.8.16 MVR (Multicaset VLAN Registration)............................................................................................................... 175
4.8.17 MVR Status......................................................................................................................................................178
4.8.18 MVR Groups Information .................................................................................................................................179
4.8.19 MVR SFM Information .....................................................................................................................................179
4.9 Quality of Service.....................................................................................................................................181
4.9.1 Understanding QoS ...........................................................................................................................................181
4.9.2 Port Policing ......................................................................................................................................................182
4.9.3 Port Classification..............................................................................................................................................182
4.9.4 Port Scheduler...................................................................................................................................................184
4.9.5 Port Shaping......................................................................................................................................................185
4.9.5.1 QoS Egress Port Schedule and Shapers ................................................................................................186
4.9.6 Port Tag Remarking...........................................................................................................................................187
4.9.6.1 QoS Egress Port Tag Remarking.............................................................................................................188
4.9.7 Port DSCP .........................................................................................................................................................189
4.9.8 DSCP-based QoS .............................................................................................................................................190
4.9.9 DSCP Translation ..............................................................................................................................................191
4.9.10 DSCP Classification.........................................................................................................................................192
4.9.11 QoS Control List...............................................................................................................................................193
4.9.11.1 QoS Control Entry Configuration ...........................................................................................................195
4.9.12 QCL Status ......................................................................................................................................................197
4.9.13 Storm Control Configuration ............................................................................................................................198
4.9.14 WRED..............................................................................................................................................................199
4.9.15 QoS Statistics ..................................................................................................................................................202
4.9.16 Voice VLAN Configuration ...............................................................................................................................202
4.9.17 Voice VLAN OUI Table.....................................................................................................................................205
4.10 Access Control Lists..............................................................................................................................206
4.10.1 Access Control List Status ...............................................................................................................................206
4.10.2 Access Control List Configuration ....................................................................................................................208
4.10.3 ACE Configuration ...........................................................................................................................................210
4.10.4 ACL Ports Configuration ..................................................................................................................................220
4.10.5 ACL Rate Limiter Configuration .......................................................................................................................222
6
User’s Manual of GS-5220 Series
4.11 Authentication.........................................................................................................................................223
4.11.1 Understanding IEEE 802.1X Port-Based Authentication..................................................................................224
4.11.2 Authentication Configuration ............................................................................................................................227
4.11.3 Network Access Server Configuration..............................................................................................................228
4.11.4 Network Access Overview ...............................................................................................................................239
4.11.5 Network Access Statistics ................................................................................................................................240
4.11.6 RADIUS ...........................................................................................................................................................247
4.11.7 TACACS+ ........................................................................................................................................................249
4.11.8 RADIUS Overview ...........................................................................................................................................250
4.11.9 RADIUS Details ...............................................................................................................................................252
4.11.10 Windows Platform RADIUS Server Configuration..........................................................................................258
4.11.11 802.1X Client Configuration ...........................................................................................................................263
4.12 Security ...................................................................................................................................................266
4.12.1 Port Limit Control.............................................................................................................................................266
4.12.2 Access Management .......................................................................................................................................270
4.12.3 Access Management Statistics ........................................................................................................................271
4.12.4 HTTPs .............................................................................................................................................................272
4.12.5 SSH .................................................................................................................................................................273
4.12.6 Port Security Status .........................................................................................................................................273
4.12.7 Port Security Detail..........................................................................................................................................276
4.12.8 DHCP Snooping ..............................................................................................................................................277
4.12.9 Snooping Table ................................................................................................................................................279
4.12.10 IP Source Guard Configuration...................................................................................................................... 279
4.12.11 IP Source Guard Static Table .........................................................................................................................281
4.12.12 ARP Inspection ..............................................................................................................................................282
4.12.13 ARP Inspection Static Table........................................................................................................................... 283
4.12.14 Dynamic ARP Inspection Table ...................................................................................................................... 284
4.13 Address Table.........................................................................................................................................286
4.13.1 MAC Table Configuration .................................................................................................................................286
4.13.2 MAC Address Table Status ..............................................................................................................................288
4.14 LLDP........................................................................................................................................................290
4.14.1 Link Layer Discovery Protocol .........................................................................................................................290
4.14.2 LLDP Configuration .........................................................................................................................................290
4.14.3 LLDP MED Configuration ................................................................................................................................293
4.14.4 LLDP-MED Neighbor .......................................................................................................................................299
4.14.5 Neighbor ..........................................................................................................................................................303
4.14.6 Port Statistics...................................................................................................................................................304
4.15 Network Diagnostics..............................................................................................................................306
7
User’s Manual of GS-5220 Series
4.15.1 Ping .................................................................................................................................................................307
4.15.2 IPv6 Ping .........................................................................................................................................................308
4.15.3 Remote IP Ping Test ........................................................................................................................................309
4.15.4 Cable Diagnostics............................................................................................................................................310
4.16 Power over Ethernet (GS-5220-8P2T2S only)......................................................................................312
4.16.1 Power over Ethernet Powered Device ............................................................................................................. 312
4.16.2 System Configuration ......................................................................................................................................314
4.16.3 Power Over Ethernet Configuration .................................................................................................................315
4.16.4 Port Sequential ................................................................................................................................................317
4.16.5 Port Configuration............................................................................................................................................318
4.16.6 PoE Status.......................................................................................................................................................320
4.16.7 PoE Schedule..................................................................................................................................................321
4.16.8 LLDP PoE Neighbours.....................................................................................................................................325
4.17 Loop Protection......................................................................................................................................326
4.17.1 Configuration ...................................................................................................................................................326
4.17.2 Loop Protection Status.....................................................................................................................................327
4.18 RMON.......................................................................................................................................................329
4.18.1 RMON Alarm Configuration .............................................................................................................................329
4.18.2 RMON Alarm Status.........................................................................................................................................331
4.18.3 RMON Event Configuration .............................................................................................................................332
4.18.4 RMON Event Status.........................................................................................................................................333
4.18.5 RMON History Configuration ...........................................................................................................................334
4.18.6 RMON History Status.......................................................................................................................................335
4.18.7 RMON Statistics Configuration ........................................................................................................................336
4.18.8 RMON Statistics Status....................................................................................................................................337
5. SWITCH OPERATION....................................................................................................... 339
5.1 Address Table...........................................................................................................................................339
5.2 Learning ....................................................................................................................................................339
5.3 Forwarding & Filtering.............................................................................................................................339
5.4 Store-and-Forward...................................................................................................................................339
5.5 Auto-Negotiation ......................................................................................................................................340
6. TROUBLESHOOTING....................................................................................................... 341
APPENDIX A: Networking Connection............................................................................... 342
8
User’s Manual of GS-5220 Series
A.1 Switch's Data RJ45 Pin Assignments - 1000Mbps, 1000BASE-T........................................................342
A.2 10/100Mbps, 10/100BASE-TX..................................................................................................................342
APPENDIX B : GLOSSARY.................................................................................................. 344
9
User’s Manual of GS-5220 Series
1. INTRODUCTION
Thanks you for purchasing PLANET GS-5220 Managed Switch series, which comes with multiple Gigabit Ethernet copper and
SFP/SFP+ fiber optic connectibility and robust layer 2 and layer 4 features. The description of this model is shown below:
Model Name Gigabit RJ45 Ports Gigabit SFP Slots PoE Ports 10G SFP+ Slots
GS-5220-8P2T2S 2 2 8 -
GS-5220-16S8C 8 combo 24 - -
GS-5220-16S8CR 8 combo 24 - -
GS-5220-44S4C 4 combo 48 - -
GS-5220-46S2C4X 2 combo 48 - 4
GS-5220-48T4X 48 4 combo - 4
“Managed Switch” is used as an alternative name in this user’s manual.
1.1 Packet Contents
Open the box of the Managed Switch and carefully unpack it. The box should contain the following items:
The Managed Switch
Quick Installation Guide
RJ45 to RS232 Cable
Rubber Feet
Two Rack-mounting Brackets with Attachment Screws
Power Cord
SFP Dust-proof Caps
Model Name SFP Dust-proof Caps
GS-5220-8P2T2S 2
GS-5220-16S8C(R) 24
GS-5220-44S4C 48
GS-5220-46S2C4X 52
GS-5220-48T4X 8
If any of these are missing or damaged, please contact your dealer immediately; if possible, retain the carton including the
original packing material, and use them again to repack the product in case there is a need to return it to us for repair.
10
User’s Manual of GS-5220 Series
1.2 Product Description
Ideal Combination of 10G Uplink, high-density, Gigabit and Layer 3 Static Routing
PLANET GS-5220 series is a Layer 2+ managed Gigabit/10 Gigabit Ethernet switch and supports static Layer 3 routing in a
1U case. The GS-5220 series can handle extremely large amounts of data in a secure topology linking to an enterprise
backbone or high capacity servers.
Layer 3 IPv4 and IPv6 VLAN Routing for Secure and Flexible Manag emen t
The GS-5220 series switch not only provides ultra high transmission performance, and excellent layer 2 and layer 4
technologies, but also layer 3 IPv4/IPv6 VLAN routing feature which allows to cross over different VLANs and different IP
addresses for the purpose of having a highly-secured, flexible management and simpler networking application.
IPv6/IPv4 Dual Stack
Supporting both IPv6 and IPv4 protocols, the GS-5220 series helps the SMBs to step in the IPv6 era with the lowest investment
as its network facilities need not to be replaced or overhauled if the IPv6 FTTx edge network is set up.
Robust Layer 2 Features
The GS-5220 series can be programmed for advanced switch management functions such as dynamic port link aggregation,
Q-in-Q VLAN, private VLAN, Multiple Spanning Tree protocol (MSTP), Layer 2 to Layer 4 QoS, bandwidth control and
IGMP/MLD Snooping. Via the link aggregation of supporting ports, the GS-5220 series allows the operation of a high-speed
trunk to combine with multiple fiber ports and supports fail-over as well.
Powerful Security
The GS-5220 series offers a comprehensive layer 2 to layer 4 Access Control List (ACL) for enforcing security to the edge. It
can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or
defined typical network applications. Its protection mechanism also comprises 802.1X Port-based and MAC-based user and
device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user
privacy. The GS-5220 series also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to
prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrators can now
construct highly secured corporate networks with considerably less time and effort than before.
Excellent Traffic Control
The GS-5220 series is loaded with powerful traffic management and QoS features to enhance connection services by SMBs.
The QoS features include wire-speed Layer 4 traffic classifiers and bandwidth limit that are particular useful for multi-tenant unit,
multi business unit, Telco, or Network Service Provider’s applications. It also empowers the enterprises to take full advantages
of the limited network resources and guarantees the best performance in VoIP and video conferencing transmission.
11
User’s Manual of GS-5220 Series
Efficient and Secure Management
The GS-5220 series Managed Switch is equipped with console, Web and SNMP management interfaces. With the built-in
Web-based management interface, the GS-5220 series offers an easy-to-use, platform-independent management and
configuration facility. The GS-5220 series supports standard Simple Network Management Protocol (SNMP) and can be
managed via any management software based on standard of SNMP protocol. For reducing product learning time, the GS-5220
series offers Cisco-like command via Telnet or console port and customer doesn’t need to learn new command from these
switches. Moreover, the GS-5220 series offers secure remote management by supporting SSH, SSL and SNMPv3 connection
which encrypt the packet content at each session.
Flexibility and Extension Solution
The multi-mini-GBIC slots built in the GS-5220 series support dual speed as it features 100BASE-FX and 1000BASE-SX/LX
SFP (Small Form-factor Pluggable) fiber-optic modules. Now the administrator can flexibly choose the suitable SFP transceiver
according to not only the transmission distance, but also the transmission speed required. The distance can be extended from
550 meters to 2km (multi-mode fiber) up to above 10/20/30/40/50/70/120 kilometers (single-mode fiber or WDM fiber). They are
well suited for applications within the enterprise data centers and distributions.
Intelligent SFP Diagnosis Mechanism
The GS-5220 series supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to
easily monitor real-time parameters of the SFP, such as optical output power, optical input power, temperature, laser bias
current, and transceiver supply voltage.
12
User’s Manual of GS-5220 Series
1.3 How to Use This Manual
This User’s Manual is structured as follows:
Section 2, INSTALLATION
The section explains the functions of the Managed Switch and how to physically install the Managed Switch.
Section 3, SWITCH MANAGEMENT
The section contains the information about the software function of the Managed Switch.
Section 4, WEB CONFIGURATION
The section explains how to manage the Managed Switch by Web interface.
Section 5, SWITCH OPERATION
The chapter explains how to do the switch operation of the Managed Switch.
Section 6, POWER over ETHERNET OVERVIEW
The chapter introduces the IEEE 802.3af / 802.3at PoE standard and PoE provision of the Managed Switch.
Section 7, TROUBLESHOOTING
The chapter explains how to do troubleshooting of the Managed Switch.
Appendix A
The section contains cable information of the Managed Switch.
13
User’s Manual of GS-5220 Series
1.4 Product Features
Physical Port
10/100/1000BASE-T Gigabit RJ45 copper
100/1000BASE-X mini-GBIC/SFP slots
1000BASE-X/10GBASE-X mini-GBIC/SFP+ slots (For GS-5220-46S2C4X, GS-5220-48T4X)
RJ45 console interface for switch basic management and setup
Power over Ethernet (GS-5220-8P2T2S)
Complies with IEEE 802.3at High Power over Ethernet end-span PSE
Complies with IEEE 802.3af Power over Ethernet end-span PSE
Up to 8 ports of IEEE 802.3af/802.3at devices powered
Supports PoE Power up to 30.8 watts for each PoE port
Auto detects powered device (PD)
Circuit protection prevents power interference between ports
Remote power feeding up to 100 meters
PoE Management
Total PoE power budget control
Per port PoE function enable/disable
PoE Port Power feeding priority
Per PoE port power limitation
PD classification detection
PD alive check
PoE schedule
PD power recycling schedule
Layer 2 Features
Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
High performance of Store-and-Forward architecture, and runt/CRC filtering eliminates erroneous packets to optimize
the network bandwidth
Storm Control support
Broadcast/Unicast/Unknown-unicast
Supports VLAN
IEEE 802.1Q tagged VLAN
Up to 255 VLANs groups, out of 4094 VLAN IDs
Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
Private VLAN Edge (PVE)
Protocol-based VLAN
MAC-based VLAN
IP Subnet-based VLAN
Voice VLAN
14
Supports Spanning Tree Protocol
STP, IEEE 802.1D Spanning Tree Protocol
RSTP, IEEE 802.1w Rapid Spanning Tree Protocol
MSTP, IEEE 802.1s Multiple Spanning Tree Protocol, spanning tree by VLAN
BPDU Guard
Supports Link Aggregation
802.3ad Link Aggregation Control Protocol (LACP)
Cisco ether-channel (Static Trunk)
Up to 8 ports per trunk group
Up to 16Gbps bandwidth (full duplex mode)
Provides port mirror (many-to-1)
Port mirroring to monitor the incoming or outgoing traffic on a particular port
Loop protection to avoid broadcast loops
Layer 3 IP Routing Features
Supports maximum 32 static routes and route summarization
User’s Manual of GS-5220 Series
Quality of Service
Ingress Shaper and Egress Rate Limit per port bandwidth control
8 priority queues on all switch ports
Traffic classification
- IEEE 802.1p CoS
- TOS/DSCP/IP Precedence of IPv4/IPv6 packets
- IP TCP/UDP port number
- Typical network application
Strict priority and Weighted Round Robin (WRR) CoS policies
Traffic-policing policies on the switch port
DSCP remarking
Multicast
Supports IGMP Snooping v1, v2 and v3
Supports MLD Snooping v1 and v2
Querier mode support
IGMP Snooping port filtering
MLD Snooping port filtering
MVR (Multicast VLAN Registration)
Security
Authentication
- IEEE 802.1x Port-based/MAC-based network access authentication
- IEEE 802.1x Authentication with Guest VLAN
15
User’s Manual of GS-5220 Series
- Built-in RADIUS client to cooperate with the RADIUS servers
- RADIUS/TACACS+ users access authentication
Access Control List
- IP-based Access Control List (ACL)
- MAC-based Access Control List (ACL)
Source MAC/IP address binding
DHCP Snooping to filter distrusted DHCP messages
Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
IP Source Guard prevents IP spoofing attacks
IP address access management to prevent unauthorized intruder
Management
IPv4 and IPv6 dual stack management
Switch Management Interfaces
- Console/Telnet Command Line Interface
- Web switch management
- SNMP v1, v2c, and v3 switch management
- SSH/SSL secure access
IPv6 Address/NTP management
Built-in Trivial File Transfer Protocol (TFTP) client
BOOTP and DHCP for IP address assignment
System Maintenance
- Firmware upload/download via HTTP/TFTP
- Reset button for system reboot or reset to factory default
- Dual Images
DHCP Relay and Option 82
User Privilege levels control
NTP (Network Time Protocol)
Link Layer Discovery Protocol (LLDP) and LLDP-MED
Network Diagnostic
- SFP-DDM (Digital Diagnostic Monitor)
- Cable Diagnostic technology provides the mechanism to detect and report potential cabling issues
- ICMPv6/ICMPv4 Remote Ping
SMTP/Syslog remote alarm
Four RMON groups (history, statistics, alarms and events)
SNMP trap for interface Link Up and Link Down notification
System Log
PLANET Smart Discovery Utility for deploy management
Redundant Power System (GS-5220-16S8CR)
■ 100~240V AC/36-60V DC Dual power redundant
16
■ Active-active redundant power failure protection
■ Backup of catastrophic power failure on one supply
■ Fault tolerance and resilience.
User’s Manual of GS-5220 Series
17
1.5 Product Specifications
GS-5220-8P2T2S
Product GS-5220-8P2T2S
Hardware Specifications
User’s Manual of GS-5220 Series
Copper Ports
SFP/mini-GBIC Slots
PoE Injector Port
Console
Switch Architecture
Switch Fabric
Throughput
Address Table
Shared Data Buffer
Flow Control
Jumbo Frame
Reset Button
LED
Power Requirements
10 10/100/1000BASE-T RJ45 Auto-MDI/MDI-X ports
2 x 100/1000BASE-X SFP interfaces with Port-11 to Port-12
Supports 100/1000Mbps dual mode and DDM
8 ports with 802.3at/af PoE injector function with Port-1 to Port-8
1 x RJ45 serial port (115200, 8, N, 1)
Store-and-Forward
24Gbps/non-blocking
17.76Mpps@64 bytes
8K entries, automatic source address learning and aging
1392KB
IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
9KB
< 5 sec: System reboot
> 5 sec: Factory default
System:
Fan Alert (Green), SYS (Green), PWR (Green)
10/100/1000T RJ45 Interfaces (Port 1 to Port 8):
10/100/1000Mbps LNK/ACT (Green)
PoE-in-Use (Orange)
10/100/1000T RJ45 Interfaces (Port 9 to Port 10):
LNK/ACT (Green)
1000Mbps (Orange)
100/1000Mbps SFP Combo Interfaces (Port 11 to Port 12):
LNK/ACT (Green)
1000Mbps (Orange)
100~240V AC, 50/60Hz
Power Consumption
(Full Loading)
ESD Protection
Dimensions (W x D x H)
Weight
Power over Ethernet
PoE Standard
PoE Power Supply Type
PoE Power Output
Power Pin Assignment
320 watts/1091.9 BTU (max.)
6KV DC
330 x 200 x 43.5 mm, 1U height
2kg
IEEE 802.3af/802.3at PoE/PSE
End-span
Per port 54V DC, max. 30.8 watts
1/2(+), 3/6(-)
18
User’s Manual of GS-5220 Series
PoE Power Budget
PD @ 7 watts
PoE Ability
Layer2 Management Functions
Basic Management Interfaces
Secure Management Interfaces
Port Configuration
Port Status
Port Mirroring
VLAN
Link Aggregation
PD @ 15.4 watts
PD @ 30.8 watts
240 watts (max.) @ 25 degrees C
200 watts (max.) @ 50 degrees C
8 units
8 units
8 units
Console, Telnet, Web browser, SNMP v1, v2c
SSH, SSL, SNMP v3
Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow Control disable/enable
Display each port’s speed duplex mode, link status, flow control status, auto
negotiation status, trunk status
TX/RX/Both
Many-to-1 monitor
802.1Q tagged based VLAN, up to 255 VLAN groups
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
MVR (Multicast VLAN Registration)
Up to 255 VLAN groups, out of 4094 VLAN IDs
IEEE 802.3ad LACP/Static Trunk
Supports 6 trunk groups with 8 ports per trunk
QoS
IGMP Snooping
MLD Snooping
Access Control List
Bandwidth Control
SNMP MIBs
Traffic classification based, strict priority and WRR
8-level priority for switching
- Port number
- 802.1p priority
- 802.1Q VLAN tag
- DSCP/TOS field in IP packet
IGMP (v1/v2/v3) Snooping, up to 255 multicast groups
IGMP Querier mode support
MLD (v1/v2) Snooping, up to 255 multicast groups
MLD Querier mode support
IP-based ACL/MAC-based ACL
Up to 256 entries
Per port bandwidth control
Ingress: 100Kbps~1000Mbps
Egress: 100Kbps~1000Mbps
RFC 1213 MIB-II
RFC 2863 IF-MIB
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2737 Entity MIB
RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)
RFC 2618 RADIUS Client MIB
RFC 3411 SNMP-Frameworks-MIB
IEEE 802.1X PAE
LLDP
MAU-MIB
Power over Ethernet MIB
19
Layer 3 Functions
User’s Manual of GS-5220 Series
IP Interfaces
Routing Table
Routing Protocols
Standards Conformance
Regulatory Compliance
Standards Compliance
Environments
Operating
Storage
Max. 8 VLAN interfaces
Max. 32 routing entries
IPv4 software static routing
IPv6 software static routing
FCC Part 15 Class A, CE
IEEE 802.3 10BASE-T
IEEE 802.3u
100BASE-TX/100BASE-FX
IEEE 802.3z 1000BASE-SX/LX
IEEE 802.3ab 1000BASE-T
IEEE 802.3x flow control and back
pressure
IEEE 802.3ad port trunk with
LACP
IEEE 802.1D Spanning Tree
Protocol
IEEE 802.1w Rapid Spanning Tree
Protocol
IEEE 802.1s Multiple Spanning
Tree Protocol
IEEE 802.1p Class of Service
Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
IEEE 802.1Q VLAN tagging
IEEE 802.1x Port Authentication Network
Control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
FRC 3810 MLD v2
20
User’s Manual of GS-5220 Series
GS-5220-16S8C/GS-5220-16S8CR
Product GS-5220-16S8C GS-5220-16S8CR
Hardware Specifications
Copper Ports
SFP/mini-GBIC Slots
Console
Switch Architecture
Switch Fabric
Throughput
Address Table
Share Data Buffer
Flow Control
Jumbo Frame
Reset Button
Dimensions (W x D x H)
Weight
Power Requirements – AC
8 10/100/1000BASE-T RJ45 Auto-MDI/MDI-X ports, shared with Port-1~Port-8
24 100/1000BASE-X Dual Speed SFP interfaces
1 x RS232-to-RJ45 serial port (115200, 8, N, 1)
Store-and-Forward
48Gbps/non-blocking
35.7Mpps@64Bytes
16K entries, automatic source address learning and ageing
16M bits
IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
10K bytes
< 5 sec: System reboot
> 5 sec: Factory default
440 x 200 x 44.5 mm, 1U height
2745g
AC 100~240V, 50/60Hz
Power Requirements – DC
Power Consumption
ESD Protection
Layer 2 Functions
Port Configuration
Port Status
Port Mirroring
VLAN
Link Aggregation
Spanning Tree Protocol
---
45 watts/153 BTU ( max.)
6KV DC
Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Display each port’s speed duplex mode, link status, flow control status,
auto-negotiation status, trunk status
TX/RX/Both
Many-to-1 monitor
802.1Q tagged based VLAN
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
IP Subnet-based VLAN
MVR (Multicast VLAN registration)
Up to 255 VLAN groups, out of 4094 VLAN IDs
IEEE 802.3ad LACP/static trunk
12 groups of 8-port trunk supported
STP, IEEE 802.1D Spanning Tree Protocol
RSTP, IEEE 802.1w Rapid Spanning Tree Protocol
MSTP, IEEE 802.1s Multiple Spanning Tree Protocol
48V DC @ 0.6A nominal voltage
Operating Range: 36 ~ 60V DC
21
QoS
IGMP Snooping
MLD Snooping
Access Control List
Bandwidth Control
Layer 3 Functions
User’s Manual of GS-5220 Series
Traffic classification based, strict priority and WRR
8-Level priority for switching
- Port Number
- 802.1p priority
- 802.1Q VLAN tag
- DSCP/TOS field in IP packet
IGMP (v1/v2/v3) snooping, up to 255 multicast groups
IGMP querier mode support
MLD (v1/v2) snooping, up to 255 multicast groups
MLD querier mode support
IP-based ACL/MAC-based ACL
Up to 256 entries
Per port bandwidth control
Ingress: 100Kbps~1000Mbps
Egress: 100Kbps~1000Mbps
IP Interfaces
Routing Table
Routing Protocols
Management
Basic Management Interfaces
Secure Management Interfaces
SNMP MIBs
Standards Conformance
Max. 128 VLAN interfaces
Max. 32 routing entries
IPv4 hardware static routing
IPv6 hardware static routing
Console/Telnet/Web browser/SNMP v1, v2c
SSH, SSL, SNMP v3
RFC-1213 MIB-II
RFC-1493 Bridge MIB
RFC-1643 Ethernet MIB
RFC-2863 Interface MIB
RFC-2665 Ether-Like MIB
RFC-2819 RMON MIB (Group 1, 2, 3 and 9)
RFC-2737 Entity MIB
RFC-2618 RADIUS Client MIB
RFC-2863 IF-MIB
RFC-2933 IGMP-STD-MIB
RFC-3411 SNMP-Frameworks-MIB
RFC-4292 IP Forward MIB
RFC-4293 IP MIB
RFC-4836 MAU-MIB
IEEE 802.1X PAE
LLDP
Regulation Compliance
Standards Compliance
FCC Part 15 Class A, CE
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
22
Environment
Operating
Storage
User’s Manual of GS-5220 Series
IEEE 802.1Q VLAN tagging
IEEE 802.1X Port Authentication Network Control
IEEE 802.1ab LLDP
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP version 1
RFC 2236 IGMP version 2
RFC 3376 IGMP version 3
RFC 2710 MLD version 1
FRC 3810 MLD version 2
Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
23
User’s Manual of GS-5220 Series
GS-5220-44S4C/GS-5220-46S2C4X/GS-5220-48T4X
Product GS-5220-44S4C GS-5220-46S2C4X GS-5220-48T4X
Hardware Specifications
2 10/100/1000BASE-T
RJ45 auto-MDI/MDI-X
ports, shared with Port-1 to
Port-2
48 100/1000BASE-X SFP
interfaces, compatible with
100BASE-FX SFP
transceiver
4 10GBASE-SR/LR SFP+ interface (Port-49 to Port-52)
Compatible with 1000BASE-SX/LX/BX SFP transceiver
48 10/100/1000BASE-T
RJ45 auto-MDI/MDI-X ports
4 100/1000BASE-X SFP
interfaces, shared with
Port-45 to Port-48,
compatible with
100BASE-FX SFP
transceiver
Copper Ports
SFP/mini-GBIC Slots
SFP+ Slots
Console
4 10/100/1000BASE-T
RJ45 auto-MDI/MDI-X
ports, shared with Port-1 to
Port-4
48 100/1000BASE-X SFP
interfaces, compatible with
100BASE-FX SFP
transceiver
---
1 x RS232-to-RJ45 serial port (115200, 8, N, 1)
Switch Architecture
Switch Fabric
Throughput
Address Table
Shared Data Buffer
Flow Control
Jumbo Frame
Reset Button
Dimensions (W x D x H)
Weight
Power Requirements
Power Consumption (max.)
ESD Protection
Layer 2 Management Functions
Port Configuration
Port Status
Port Mirroring
VLAN
Store-and-Forward
96Gbps 176Gbps 176Gbps
71.4 Mpps@64Bytes 130.95Mpps@64Bytes 130.95Mpps@64Bytes
16K entries 32K entries 32K entries
16M bits 32M bits 32M bits
IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
10K bytes
< 5 sec: System reboot
> 5 sec: Factory default
440 x 300 x 44.5 mm, 1U height
3765g 4346g 4421g
100~240V AC, 50/60Hz
45 watts/153 BTU 80 watts/272.9 BTU 58 watts/197.9 BTU
2KV DC 6KV DC 6KV DC
Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Display each port’s speed duplex mode, link status, flow control status,
auto-negotiation status, trunk status
TX/RX/Both
Many-to-1 monitor
802.1Q tagged based VLAN
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
IP Subnet-based VLAN
MVR (Multicast VLAN registration)
Up to 255 VLAN groups, out of 4094 VLAN IDs
24
Link Aggregation
Spanning Tree Protocol
QoS
IGMP Snooping
MLD Snooping
Access Control List
Bandwidth Control
Layer 3 Functions
User’s Manual of GS-5220 Series
IEEE 802.3ad LACP/static trunk
GS-5220-44S4C
24 groups of 8-port trunk supported
GS-5220-46S2C4X/GS-5220-48T4X
26 groups of 8-port trunk supported
STP, IEEE 802.1D Spanning Tree Protocol
RSTP, IEEE 802.1w Rapid Spanning Tree Protocol
MSTP, IEEE 802.1s Multiple Spanning Tree Protocol
Traffic classification based, Strict priority and WRR
8-Level priority for switching
- Port Number
- 802.1p priority
- 802.1Q VLAN tag
- DSCP/TOS field in IP packet
IGMP (v1/v2/v3) snooping, up to 255 multicast groups
IGMP querier mode support
MLD (v1/v2) snooping, up to 255 multicast groups
MLD querier mode support
IP-based ACL/MAC-based ACL
Up to 256 entries
Per port bandwidth control
Ingress: 100Kbps~1000Mbps
Egress: 100Kbps~1000Mbps
IP Interfaces
Routing Table
Routing Protocols
Management
Basic Management Interfaces
Secure Management Interfaces
SNMP MIBs
Standards Conformance
Regulation Compliance
Max. 128 VLAN interfaces
Max. 32 routing entries
IPv4 hardware static routing
IPv6 hardware static routing
Console/Telnet/Web browser/SNMP v1, v2c
SSH, SSL, SNMP v3
RFC 1213 MIB-II
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2819 RMON MIB (Group 1, 2, 3
and 9)
RFC 2737 Entity MIB
FCC Part 15 Class A, CE
RFC 2618 RADIUS Client MIB
RFC 2863 IF-MIB
RFC 2933 IGMP-STD-MIB
RFC 3411 SNMP-Frameworks-MIB
RFC 4292 IP Forward MIB
RFC 4293 IP MIB
RFC 4836 MAU-MIB
IEEE 802.1X PAE
LLDP
Standards Compliance
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3ae 10Gb/s Ethernet
IEEE 802.3x flow control and back
pressure
25
IEEE 802.1Q VLAN tagging
IEEE 802.1X Port Authentication Network
Control
IEEE 802.1ab LLDP
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
User’s Manual of GS-5220 Series
Environment
Operating
Storage
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree
Protocol
IEEE 802.1s Multiple Spanning Tree
Protocol
IEEE 802.1p Class of service
Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP version 1
RFC 2236 IGMP version 2
RFC 3376 IGMP version 3
RFC 2710 MLD version 1
FRC 3810 MLD version 2
26
User’s Manual of GS-5220 Series
2. INSTALLATION
This section describes the hardware features and installation of the Managed Switch on the desktop or rack mount. For easier
management and control of the Managed Switch, familiarize yourself with its display indicators, and ports. Front panel
illustrations in this chapter display the unit LED indicators. Before connecting any network device to the Managed Switch, please
read this chapter completely.
2.1 Hardware Description
2.1.1 Switch Front Panel
The front panel provides a simple interface monitoring the Managed Switch. Figures 2-1-1 to 2-1-6 show the front panel of the
Managed Switch.
GS-5220-8P2T2S Front Panel

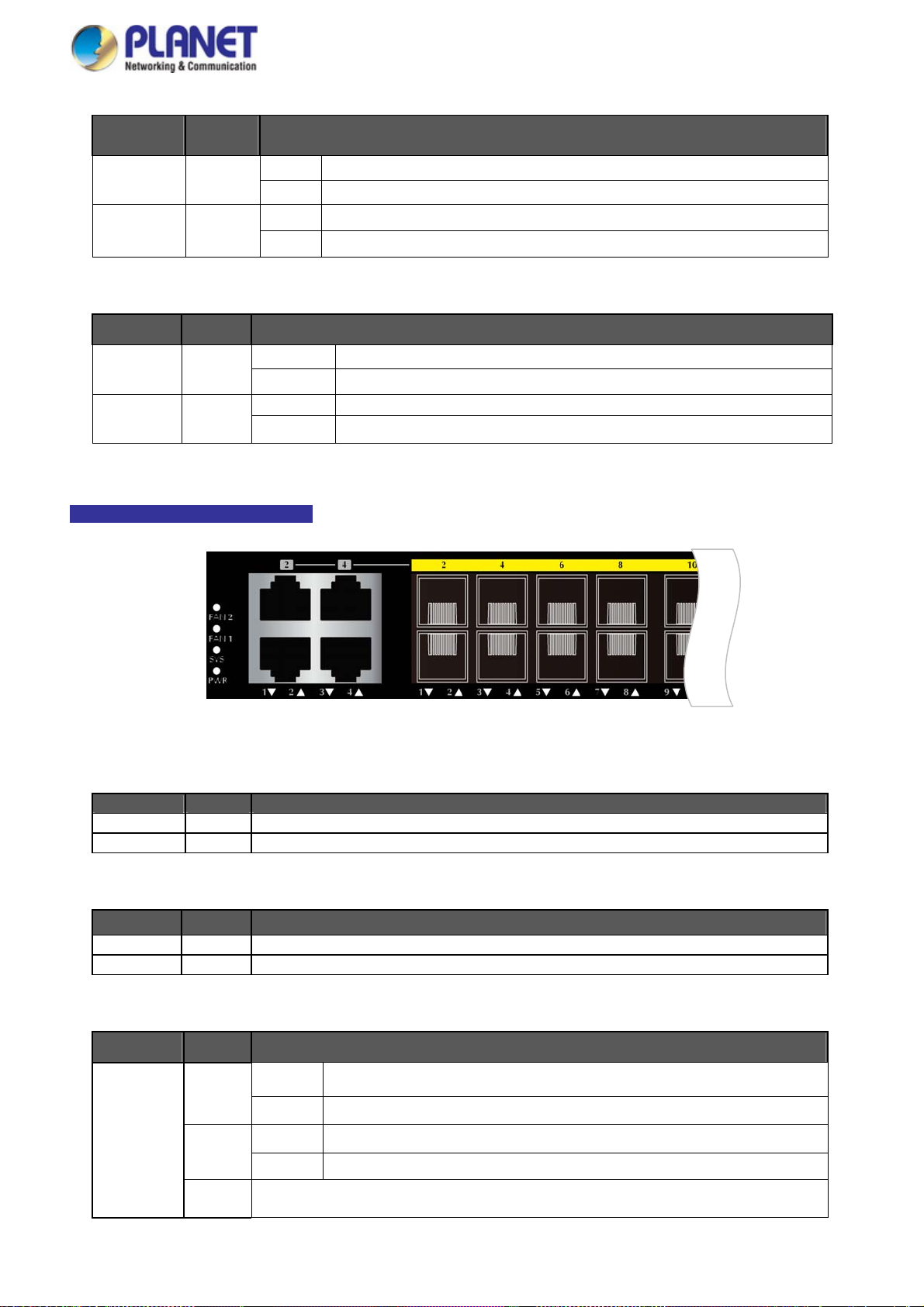

GS-5220-16S8C Front Panel
GS-5220-16S8CR Front Panel
Figure 2-1-1: Front Panel of GS-5220-8P2T2S
Figure 2-1-2: Front Panel of GS-5220-16S8C
GS-5220-44S4C Front Panel
Figure 2-1-3: Front Panel of GS-5220-16S8CR
Figure 2-1-4: Front Panel of GS-5220-44S4C
27
GS-5220-46S2C4X Front Panel
Figure 2-1-5: Front Panel of GS-5220-46S2C4X

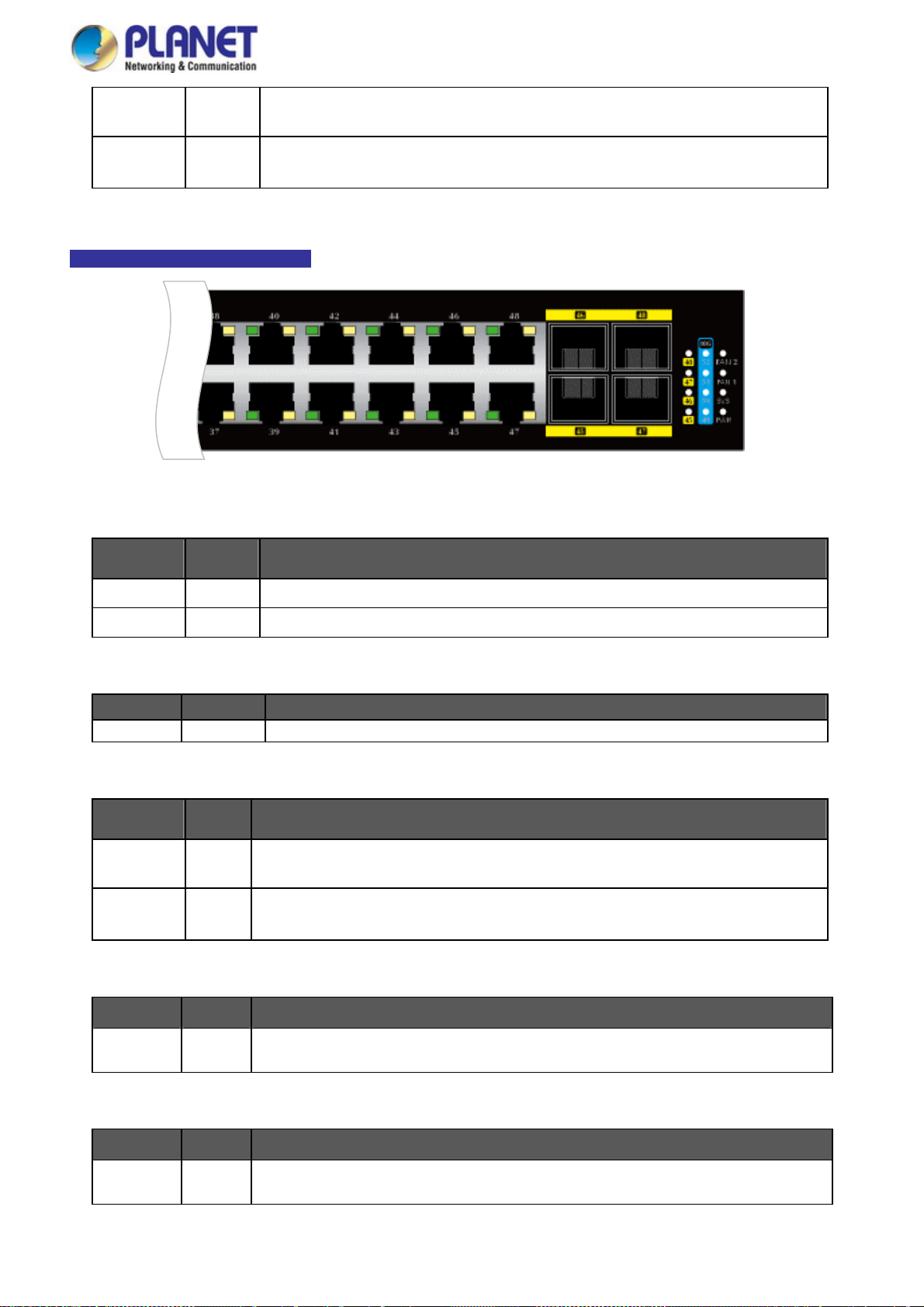

GS-5220-48T4X Front Panel
Figure 2-1-6: Front Panel of GS-5220-48T4X
■ Gigabit TP interface
10/100/1000BASE-T Copper, RJ45 twisted-pair: Up to 100 meters.
User’s Manual of GS-5220 Series
■ SFP slot
100/1000BASE-X mini-GBIC slot, SFP (Small Factor Pluggable) transceiver module: From 550 meters to 2km (multi-mode
fiber), up to above 10/20/30/40/50/70/120 kilometers (single-mode fiber).
■ 10 Gigabit SFP+ slot
10GBASE-SR/LR mini-GBIC slot, SFP+ (Small Factor Pluggable Plus) Transceiver module supports from 300 meters
(multi-mode fiber) up to 10 kilometers (single mode fiber)
■ Console port
The console port is a RJ45 port connector. It is an interface for connecting a terminal directly. Through the console port, it
provides rich diagnostic information including IP address setting, factory reset, port management, link status and system
setting. Users can use the attached DB9 to RJ45 console cable in the package and connect to the console port on the
device. After the connection, users can run any terminal emulation program (Hyper Terminal, ProComm Plus, Telix,
Winterm and so on) to enter the startup screen of the device.
■ Reset button
The front panel of the GS-5220-8P2T2S/GS-5220-16S8C(R)/GS-5220-44S4C/GS-5220-46S2C4X comes with a reset
button designed for rebooting the Managed Switch without turning off and on the power. The following is the summary table
of reset button functions:
Reset Button Pressed and Released Function
< 5 sec: System Reboot Reboot the Managed Switch.
Reset the Managed Switch to Factory Default configuration.
> 5 sec: Factory Default
The Managed Switch will then reboot and load the default
settings as shown below:
28
User’s Manual of GS-5220 Series
。 Default Username: admin
。 Default Password: admin
。 Default IP address: 192.168.0.100
。 Subnet mask: 255.255.255.0
。 Default Gateway: 192.168.0.254
The reset button of GS-5220-48T4X is located at the side of the switch.
2.1.2 LED Indications
The front panel LEDs indicate instant status of power and system status, fan status, port links / PoE-in-use and data activity;
they help monitor and troubleshoot when needed. Figures 2-1-7 to 2-1-12 show the LED indications of the Managed Switch.

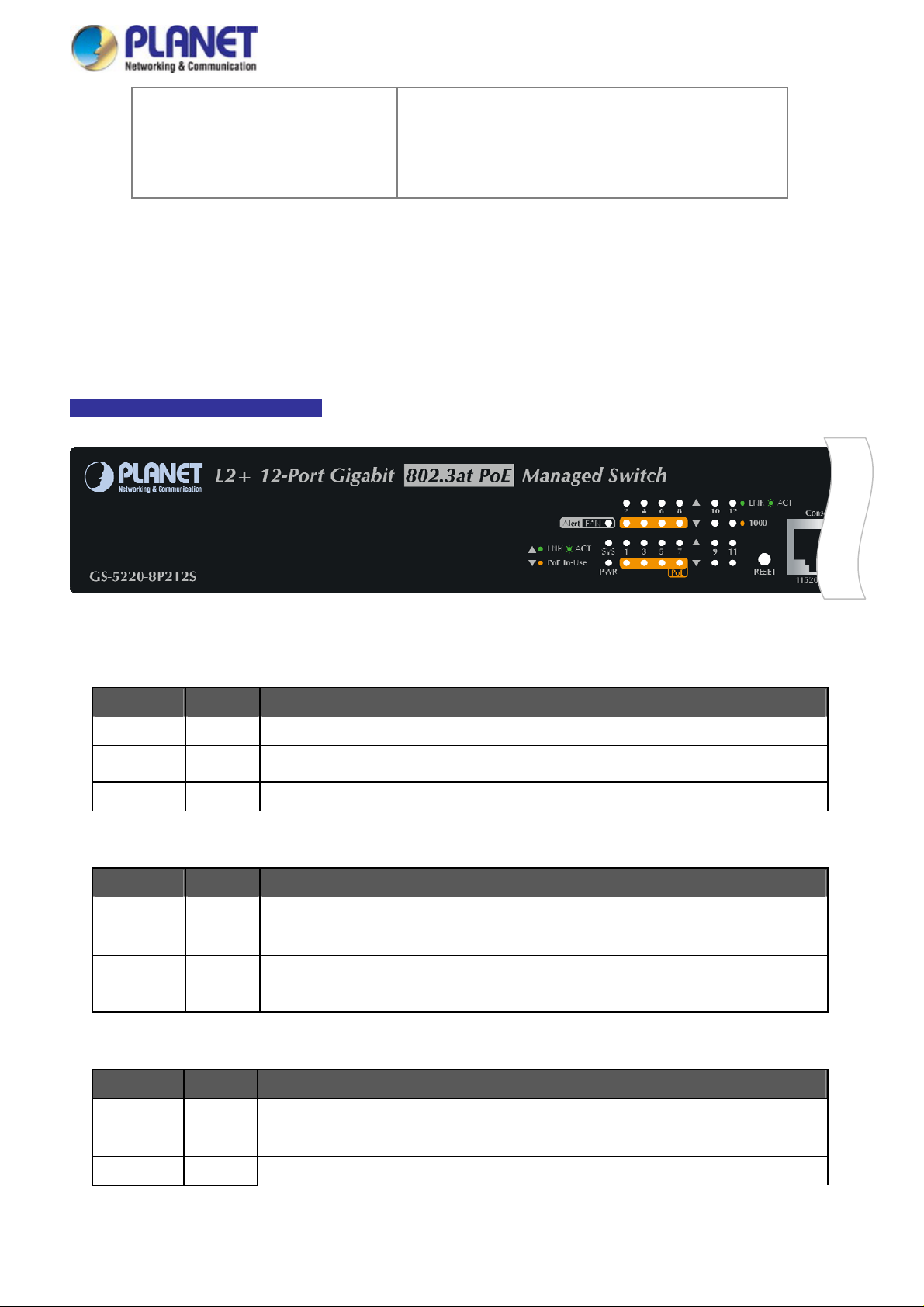

GS-5220-8P2T2S LED Indication
Figure 2-1-7: GS-5220-8P2T2S LED on Front Panel
■ System
LED Color Function
Fan Alert Green
SYS Green
PWR Green
■ Per 10/100/1000BASE-T PoE+ Port
LED Color Function
LNK/ACT Green
PoE-in-Use Orange
Lights to indicate that the fan is not working.
Lights to indicate the system is working.
Off to indicate the system is booting.
Lights to indicate the Switch has power.
Lights
Blinks
Lights to indicate the port is providing 54VDC in-line power.
Off to indicate the connected device is not a PoE Powered Device (PD).
To indicate the link through that port is successfully established.
To indicate that the switch is actively sending or receiving data over that port.
■ 10/100/1000BASE-T Interfaces (Port-9 to Port-10)
LED Color Function
LNK/ACT Green
Lights
Blinks
1000 Orange Lights To indicate that the port is operating at 1000Mbps.
To indicate the link through that port is successfully established.
To indicate that the switch is actively sending or receiving data over that port.
29
Off If LNK/ACT LED is lit, it indicates that the port is operating at 10/100Mbps.
If LNK/ACT LED is off, it indicates that the port is link-down.
■ 10/100/1000BASE-X SFP Interfaces (Port-11 to Port-12)
LED Color Function
User’s Manual of GS-5220 Series
LNK/ACT Green
1000 Orange
Lights
Blinks
Lights To indicate that the port is operating at 1000Mbps.
Off If LNK/ACT LED is lit, it indicates that the port is operating at 100Mbps.
To indicate the link through that port is successfully established.
To indicate that the switch is actively sending or receiving data over that port.
If LNK/ACT LED is off, it indicates that the port is link-down.
GS-5220-16S8C / GS-5220-16S8CR LED Indication
Figure 2-1-8: GS-5220-16S8C LED on Front Panel
System
LED Color Function
PWR Green Lights to indicate that the Switch has AC power input.
DC Green Lights to indicate that the Switch has DC power input. (GS-5220-16S8CR Only)
Alert
LED Color Function
FAN Green
Fault Green
Figure 2-1-9: GS-5220-16S8CR LED on Front Panel
Lights to indicate fan failure.
Lights to indicate ports 1~24 or power input failure.
30
Per 10/100/1000Mbps RJ45 port (Port-1 to Port-8)
LED Color Function
User’s Manual of GS-5220 Series
1000
LNK/ACT
10/100
LNK/ACT
Per 100/1000BASE-X SFP Interface (Port-1 to Port-24)
LED Color Function
1000
LNK/ACT
100
LNK/ACT
Green
Orange
Green
Orange
Lights To indicate the port is running in 1000Mbps speed and successfully established.
Blinks To indicate that the switch is actively sending or receiving data over that port.
Lights To indicate the port is running in 10/100Mbps speed and successfully established.
Blinks To indicate that the switch is actively sending or receiving data over that port.
Lights To indicate the port is successfully established at 1000Mbps.
Blinks To indicate that the Switch is actively sending or receiving data over that port.
Lights To indicate the port is successfully established at 100Mbps.
Blink To indicate that the Switch is actively sending or receiving data over that port.
GS-5220-44S4C LED Indication
Figure 2-1-10: Front Panel LEDs of GS-5220-44S4C
System
LED Color Function
PWR Green Lights to indicate that the Switch has power.
SYS Green Lights to indicate the system is working.
Alert
LED Color Function
FAN1 Red Lights to indicate that the FAN1 Group failure.
FAN2 Red Lights to indicate that the FAN2 Group failure.
Per 10/100/1000Mbps RJ45 Interfaces (Port-1 to Port-4)
LED Color Function
Lights Indicates the link through that port is successfully established at 1000Mbps.
Blinks Indicates that the Switch is actively sending or receiving data over that port.
Lights Indicates the link through that port is successfully established at 100Mbps.
Blinks Indicates that the Switch is actively sending or receiving data over that port.
LNK/ACT
Green
Orange
OFF Indicates the link through that port is successfully established at 10Mbps.
31
Per 100/1000Mbps SFP Combo Interface (Port-1 to Port-48)
LED Color Function
User’s Manual of GS-5220 Series
Green
LNK/ACT
Orange
Lights Indicates the link through that port is successfully established at 1000Mbps.
Blinks Indicates that the Switch is actively sending or receiving data over that port.
Lights Indicates the link through that port is successfully established at 100Mbps.
Blinks Indicates that the Switch is actively sending or receiving data over that port.
GS-5220-46S2C4X LED Indication
Figure 2-1-11: Front Panel LEDs of GS-5220-46S2C4X
System
LED Color Function
SYS Green
Lights up to indicate the system is working.
PWR Green Lights up to indicate that the Switch has power.
FAN1 Red Lights up to indicate fan1 has failed.
FAN2 Red Lights up to indicate fan2 has failed.
Per 10/100/1000Mbps RJ45 port (Port-1 to Port-2)
LED Color Function
1000
LNK/ACT
10/100
LNK/ACT
Per 100/1000BASE-X SFP Interface (Port-1 to Port-48)
LED Color Function
1000
LNK/ACT
100
LNK/ACT
Green
Orange
Green
Orange
Lights up to indicate the port is running at 1000Mbps speed and successfully established.
Blinks to indicate that the switch is actively sending or receiving data over that port.
Lights up to indicate the port is running at 10/100Mbps speed and successfully established.
Blinks to indicate that the switch is actively sending or receiving data over that port.
Lights up to indicate the port is running at 1000Mbps speed and successfully established.
Blinks to indicate that the switch is actively sending or receiving data over that port.
Lights up to indicate the port is running at 100Mbps speed and successfully established.
Blinks to indicate that the switch is actively sending or receiving data over that port.
Per 10G SFP+ Interface(Port-49 to Port-52)
LED Color Function
32
User’s Manual of GS-5220 Series
10G Green
1G Green
Lights up to indicate the port is running at 10Gbps speed and successfully established.
Blinks to indicate that the switch is actively sending or receiving data over that port.
Lights up to indicate the port is running at 1Gbps speed and successfully established.
Blinks to indicate that the switch is actively sending or receiving data over that port.
GS-5220-48T4X LED Indication
Figure 2-1-12: Front Panel LEDs of GS-5220-48T4X
System
LED Color Function
SYS Green
PWR Green Lights up to indicate that the Switch has power.
Alert
LED Color Function
FAN1~2 Green
Per 10/100/1000Mbps RJ45 port
LED Color Function
1000
LNK/ACT
10/100
LNK/ACT
Per 100/1000BASE-X SFP Interface (Port-45 to Port-48)
Green
Orange
Lights up to indicate the system is working.
Lights up to indicate fan1~2 has failed.
Lights up to indicate the port is running at 1000Mbps speed and successfully established.
Blinks to indicate that the switch is actively sending or receiving data over that port.
Lights up to indicate the port is running at 10/100Mbps speed and successfully established.
Blinks to indicate that the switch is actively sending or receiving data over that port.
LED Color Function
LNK/ACT Green
Per 10G SFP+ Interface
LED Color Function
LNK/ACT Green
Lights up to indicate the port is successfully established.
Blinks to indicate that the Switch is actively sending or receiving data over that port.
Lights up to indicate the port is successfully established.
Blinks to indicate that the Switch is actively sending or receiving data over that port.
33
User’s Manual of GS-5220 Series
2.1.3 Switch Rear Panel
The rear panel of the Managed Switch consists of the AC/DC inlet power socket. Figures 2-1-13 to 2-1-18 show the rear panel of
the Managed Switch.
GS-5220-8P2T2S Rear Panel
Figure 2-1-13: Rear Panel of GS-5220-8P2T2S
GS-5220-16S8C/GS-522016S8CR Rear Panel
GS-5220-44S4C Rear Panel
GS-5220-46S2C4X Rear Panel
Figure 2-1-14: Rear Panel of GS-5220-16S8C
Figure 2-1-15: Rear Panel of GS-5220-16S8CR
Figure 2-1-16: Rear Panel of GS-5220-44S4C
GS-5220-48T4X Rear Panel
Figure 2-1-17: Rear Panel of GS-5220-46S2C4X
Figure 2-1-18: Rear Panel of GS-5220-48T4X
34
User’s Manual of GS-5220 Series
■ 10 Gigabit SFP+ slot
10GBASE-SR/LR mini-GBIC slot, SFP+ Transceiver module supports from 300 meters (multi-mode fiber) to 60 kilometers
(single mode fiber).
■ AC Power Receptacle
For compatibility with electrical voltages in most areas of the world, the Managed Switch’s power supply can automatically
adjust line power in the range of 100-240V AC and 50/60 Hz.
Plug the female end of the power cord firmly into the receptacle on the rear panel of the Managed Switch and the other end
of the power cord into an electrical outlet and the power will be ready.
The device is a power-required device, which means it will not work till it is powered. If your networks
should be active all the time, please consider using UPS (Uninterrupted Power Supply) for your device.
Power Notice:
■ DC Power Connector
The rear panel of the GS-5220-16S8CR has a power switch and a DC power connector, where the latter accepts DC power
input voltage from 36V to 60V DC. Connect the power cable to the Managed Switch at the input terminal block. The size of
the two screws in the terminal block is M3.5.
It will prevent you from network data loss or network downtime. In some areas, installing a surge
suppression device may also help to protect your Managed Switch from being damaged by unregulated
surge or current to the Switch or the power adapter.
Warning:
Figure 2-1-16 Rear Panel of GS-5220-16S8CR
Before connecting the DC power cable to the input terminal block of the GS-5220-16S8CR, make sure
that the power switch is in the “OFF” position and the DC power is OFF.
35
User’s Manual of GS-5220 Series
2.2 Installing the Switch
This section describes how to install your Managed Switch and make connections to the Managed Switch. Please read the
following topics and perform the procedures in the order being presented. To install your Managed Switch on a desktop or shelf,
simply complete the following steps.
2.2.1 Desktop Installation
To install the Managed Switch on desktop or shelf, please follow these steps:
Step 1: Attach the rubber feet to the recessed areas on the bottom of the Managed Switch.
Step 2: Place the Managed Switch on the desktop or the shelf near an AC power source, as shown in Figure 2-2-1.
Figure 2-2-1: Place the Managed Switch on the Desktop
Step 3: Keep enough ventilation space between the Managed Switch and the surrounding objects.
When choosing a location, please keep in mind the environmental restrictions discussed in Chapter 1,
Section 4, and specifications.
Step 4: Connect the Managed Switch to network devices.
Connect one end of a standard network cable to the 10/100/1000 RJ45 ports on the front of the Managed Switch.
Connect the other end of the cable to the network devices such as printer server, workstation or router.
Connection to the Managed Switch requires UTP Category 5e network cabling with RJ45 tips. For more
information, please see the Cabling Specification in Appendix A.
Step 5: Supply power to the Managed Switch.
Connect one end of the power cable to the Managed Switch.
Connect the power plug of the power cable to a standard wall outlet.
When the Managed Switch receives power, the Power LED should remain solid Green.
36
User’s Manual of GS-5220 Series
2.2.2 Rack Mounting
To install the Managed Switch in a 19-inch standard rack, please follow the instructions described below.
Step 1: Place the Managed Switch on a hard flat surface, with the front panel positioned towards the front side.
Step 2: Attach the rack-mount bracket to each side of the Managed Switch with supplied screws attached to the package.
Figure 2-2-2 shows how to attach brackets to one side of the Managed Switch.
Figure 2-2-2: Attach Brackets to the Managed Switch.
You must use the screws supplied with the mounting brackets. Damage caused to the parts by
using incorrect screws would invalidate the warranty.
Step 3: Secure the brackets tightly.
Step 4: Follow the same steps to attach the second bracket to the opposite side.
Step 5: After the brackets are attached to the Managed Switch, use suitable screws to securely attach the brackets to the rack,
as shown in Figure 2-2-3.
Figure 2-2-3: Mounting Managed Switch in a Rack
37
User’s Manual of GS-5220 Series
Step 6: Proceed with Steps 4 and 5 of session 2.2.1 Desktop Installation to connect the network cabling and supply power to the
Managed Switch.
2.2.3 Installing the SFP/SFP+ Transceiver
The sections describe how to insert an SFP/SFP+ transceiver into an SFP/SFP+ slot. The SFP/SFP+ transceivers are
hot-pluggable and hot-swappable. You can plug in and out the transceiver to/from any SFP/SFP+ port without having to power
down the Managed Switch, as the Figure 2-2-4 shows..
Figure 2-2-4: Plug-in the SFP/SFP+ Transceiver
Approved PLANET SFP/SFP+ Transceivers
PLANET Managed Switch supports both single mode and multi-mode SFP/SFP+ transceivers. The following list of approved
PLANET SFP/SFP+ transceivers is correct at the time of publication:
Fast Ethernet Transceiver (100BASE-X SFP)
Model Speed (Mbps) Connector Interface Fiber Mode Distance Wavelength (nm) Operating Temp.
MFB-FX 100 LC Multi Mode 2km 1310nm 0 ~ 60 degrees C
MFB-F20 100 LC Single Mode
MFB-F40 100 LC Single Mode
MFB-F60 100 LC Single Mode
MFB-F120 100 LC Single Mode
MFB-TFX 100 LC Multi Mode 2km 1310nm -40 ~ 75 degrees C
MFB-TF20 100 LC Single Mode
20km 1310nm 0 ~ 60 degrees C
40km 1310nm 0 ~ 60 degrees C
60km 1310nm 0 ~ 60 degrees C
120km 1550nm 0 ~ 60 degrees C
20km 1550nm -40 ~ 75 degrees C
38
User’s Manual of GS-5220 Series
Fast Ethernet Transceiver (100BASE-BX, Single Fiber Bi-directional SFP)
Model Speed (Mbps) Connector Interface Fiber Mode Distance Wavelength (TX/RX) Operating Temp.
MFB-FA20 100 WDM(LC) Single Mode 20km 1310nm/1550nm 0 ~ 60 degrees C
MFB-FB20 100 WDM(LC) Single Mode 20km 1550nm/1310nm 0 ~ 60 degrees C
MFB-TFA20 100 WDM(LC) Single Mode 20km 1310nm/1550nm -40 ~ 75 degrees C
MFB-TFB20 100 WDM(LC) Single Mode 20km 1550nm/1310nm -40 ~ 75 degrees C
MFB-TFA40 100 WDM(LC) Single Mode 40km 1310nm/1550nm -40 ~ 75 degrees C
MFB-TFB40 100 WDM(LC) Single Mode 40km 1550nm/1310nm -40 ~ 75 degrees C
Gigabit Ethernet Transceiver (1000BASE-X SFP)
Model Speed (Mbps) Connector Interface Fiber Mode Distance Wavelength (nm) Operating Temp.
MGB-GT 1000 Copper -- 100m -- 0 ~ 60 degrees C
MGB-SX 1000 LC Multi Mode 550m 850nm 0 ~ 60 degrees C
MGB-SX2 1000 LC Multi Mode 2km 1310nm 0 ~ 60 degrees C
MGB-LX 1000 LC Single Mode 10km 1310nm 0 ~ 60 degrees C
MGB-L30 1000 LC Sing le Mode 30km 1310nm 0 ~ 60 degrees C
MGB-L50 1000 LC Single Mode 50km 1550nm 0 ~ 60 degrees C
MGB-L70 1000 LC Single Mode 70km 1550nm 0 ~ 60 degrees C
MGB-L120 1000 LC Single Mode 120km
MGB-TSX 1000 LC Multi Mode 550m 850nm -40 ~ 75 degrees C
MGB-TLX 1000 LC Single Mode 10km 1310nm -40 ~ 75 degrees C
MGB-TL30 1000 LC Single Mode 30km 1310nm -40 ~ 75 degrees C
MGB-TL70 1000 LC Single Mode 70km 1550nm -40 ~ 75 degrees C
1550nm 0 ~ 60 degrees C
Gigabit Ethernet Transceiver (1000BASE-BX, Single Fiber Bi-directional SFP)
Model Speed (Mbps) Connector Interface Fiber Mode Distance Wavelength (TX/RX) Operating Temp.
MGB-LA10 1000 WDM(LC) Single Mode 10km 1310nm/1550nm 0 ~ 60 degrees C
MGB-LB10 1000 WDM(LC) Single Mode 10km 1550nm/1310nm 0 ~ 60 degrees C
MGB-LA20 1000 WDM(LC) Single Mode 20km 1310nm/1550nm 0 ~ 60 degrees C
MGB-LB20 1000 WDM(LC) Single Mode 20km 1550nm/1310nm 0 ~ 60 degrees C
MGB-LA40 1000 WDM(LC) Single Mode 40km 1310nm/1550nm 0 ~ 60 degrees C
MGB-LB40 1000 WDM(LC) Single Mode 40km 1550nm/1310nm 0 ~ 60 degrees C
MGB-LA60 1000 WDM(LC) Single Mode 60km 1310nm/1550nm 0 ~ 60 degrees C
MGB-LB60 1000 WDM(LC) Single Mode 60km 1550nm/1310nm 0 ~ 60 degrees C
MGB-TLA10 1000 WDM(LC) Single Mode 10km 1310nm/1550nm -40 ~ 75 degrees C
MGB-TLB10 1000 WDM(LC) Single Mode 10km 1550nm/1310nm -40 ~ 75 degrees C
MGB-TLA20 1000 WDM(LC) Single Mode 20km 1310nm/1550nm -40 ~ 75 degrees C
MGB-TLB20 1000 WDM(LC) Single Mode 20km 1550nm/1310nm -40 ~ 75 degrees C
MGB-TLA40 1000 WDM(LC) Single Mode 40km 1310nm/1550nm -40 ~ 75 degrees C
MGB-TLB40 1000 WDM(LC) Single Mode 40km 1550nm/1310nm -40 ~ 75 degrees C
MGB-TLA60 1000 WDM(LC) Single Mode 60km 1310nm/1550nm -40 ~ 75 degrees C
39
User’s Manual of GS-5220 Series
MGB-TLB60 1000 WDM(LC) Single Mode 60km 1550nm/1310nm -40 ~ 75 degrees C
10Gbps SFP+ (10G Ethernet/10GBASE)
Model Speed (Mbp s)
MTB-SR 10G LC Multi Mode Up to 300m
MTB-LR 10G LC Single Mode 10km 1310nm 0 ~ 60 degrees C
10Gbps SFP+ (10GBASE-BX, Single Fiber Bi-directional SFP)
Model Speed (Mbps)
10G WDM(LC) Single Mode 20km 1270nm 1330nm 0 ~ 60 degrees CMTB-LA20
Connector
Interface
Connector
Interface
Fiber Mode Distance Wavelength (TX) Wavelength (RX) Operating Temp.
Fiber Mode
Distance Wavelength (nm) Operating Temp.
850nm 0 ~ 60 degrees C
MTB-LB20
MTB-LB40
MTB-LB60
10G WDM(LC) Single Mode 20km 1330nm 1270nm 0 ~ 60 degrees C
10G WDM(LC) Single Mode 40km 1270nm 1330nm 0 ~ 60 degrees CMTB-LA40
10G WDM(LC) Single Mode 40km 1330nm 1270nm 0 ~ 60 degrees C
10G WDM(LC) Single Mode 60km 1270nm 1330nm 0 ~ 60 degrees CMTB-LA60
10G WDM(LC) Single Mode 60km 1330nm 1270nm 0 ~ 60 degrees C
It is recommended to use PLANET SFP/SFP+ on the Managed Switch. If you insert an SFP/SFP+
transceiver that is not supported, the Managed Switch will not recognize it.
1. Before we connect the GS-5220 series to the other network device, we have to make sure both sides of the SFP
transceivers are with the same media type, for example: 1000BASE-SX to 1000BASE-SX, 1000Bas-LX to 1000BASE-LX.
2. Check whether the fiber-optic cable type matches with the SFP transceiver requirement.
To connect to 1000BASE-SX SFP transceiver, please use the multi-mode fiber cable with one side being the male
duplex LC connector type.
To connect to 1000BASE-LX SFP transceiver, please use the single-mode fiber cable with one side being the male
duplex LC connector type.
Connect the Fiber Cable
1. Insert the duplex LC connector into the SFP/SFP+ transceiver.
2. Connect the other end of the cable to a device with SFP/SFP+ transceiver installed.
3. Check the LNK/ACT LED of the SFP/SFP+ slot on the front of the Managed Switch. Ensure that the SFP/SFP+
transceiver is operating correctly.
4. Check the Link mode of the SFP/SFP+ port if the link fails. To function with some fiber-NICs or Media Converters, user
has to set the port Link mode to “10G Force”, “1000M Force” or “100M Force”.
Remove the Transceiver Module
1. Make sure there is no network activity anymore.
2. Remove the Fiber-Optic Cable gently.
40
3. Lift up the lever of the MGB module and turn it to a horizontal position.
4. Pull out the module gently through the lever.
User’s Manual of GS-5220 Series
Figure 2-2-5: How to Pull Out the SFP/SFP+ Transceiver
Never pull out the module without lifting up the lever of the module and turning it to a horizontal
position. Directly pulling out the module could damage the module and the SFP/SFP+ module
slot of the Managed Switch.
41
User’s Manual of GS-5220 Series
3. SWITCH MANAGEMENT
This chapter explains the methods that you can use to configure management access to the Managed Switch. It describes the
types of management applications and the communication and management protocols that deliver data between your
management device (workstation or personal computer) and the system. It also contains information about port connection
options.
This chapter covers the following topics:
Requirements
Management Access Overview
Administration Console Access
Web Management Access
SNMP Access
Standards, Protocols, and Related Reading
3.1 Requirements
Workstations running Windows 2000/XP, 2003, Vista/7/8, 2008, MAC OS9 or later, or Linux, UNIX , or other
platforms compatible with TCP/IP protocols.
Workstation is installed with Ethernet NIC (Network Interface Card)
Serial Port connect (Terminal)
The above PC with COM Port (DB9/RS-232) or USB-to-RS232 converter
Ethernet Port connect
Network cables - Use standard network (UTP) cables with RJ45 connectors.
The above workstation is installed with Web Browser and JAVA runtime environment plug-in
It is recommended to use Internet Explore 7.0 or above to access Managed Switch.
42
User’s Manual of GS-5220 Series
3.2 Management Access Overview
The Managed Switch gives you the flexibility to access and manage it using any or all of the following methods:
An administration console
Web browser interface
An external SNMP-based network management application
The administration console and Web browser interface support are embedded in the Managed Switch software and are
available for immediate use. Each of these management methods has their own advantages. Table 3-1 compares the three
management methods.
Method Advantages Disadvantages
Console
Web Browser
SNMP Agent
No IP address or subnet needed
Text-based
Telnet functionality and HyperTerminal
built into Windows
95/98/NT/2000/ME/XP operating
systems
Secure
Ideal for configuring the switch remotely
Compatible with all popular browsers
Can be accessed from any location
Most visually appealing
Communicates with switch functions at
the MIB level
Based on open standards
Must be near the switch or use dial-up
connection
Not convenient for remote users
Modem connection may prove to be unreliable
or slow
Security can be compromised (hackers need
only know the IP address and subnet mask)
May encounter lag times on poor connections
Requires SNMP manager software
Least visually appealing of all three methods
Some settings require calculations
Security can be compromised (hackers need
only know the community name)
Table 3-1 Comparison of Management Methods
43
User’s Manual of GS-5220 Series
3.3 Administration Console
The administration console is an internal, character-oriented, and command line user interface for performing system
administration such as displaying statistics or changing option settings. Using this method, you can view the administration
console from a terminal, personal computer, Apple Macintosh, or workstation connected to the Managed Switch's console
(serial) port.
Figure 3-1-1: Console Management
Direct Access
Direct access to the administration console is achieved by directly connecting a terminal or a PC equipped with a
terminal-emulation program (such as HyperTerminal) to the Managed Switch console (serial) port. When using this
management method, a straight DB9 RS232 cable is required to connect the switch to the PC. After making this connection,
configure the terminal-emulation program to use the following parameters:
The default parameters are:
115200 bps
8 data bits
No parity
1 stop bit
Figure 3-1-2: Terminal Parameter Settings
44
User’s Manual of GS-5220 Series
You can change these settings, if desired, after you log on. This management method is often preferred because you can
remain connected and monitor the system during system reboots. Also, certain error messages are sent to the serial port,
regardless of the interface through which the associated action was initiated. A Macintosh or PC attachment can use any
terminal-emulation program for connecting to the terminal serial port. A workstation attachment under UNIX can use an emulator
such as TIP.
3.4 Web Management
The Managed Switch offers management features that allow users to manage the Managed Switch from anywhere on the
network through a standard browser such as Microsoft Internet Explorer. After you set up your IP address for the switch, you can
access the Managed Switch's Web interface applications directly in your Web browser by entering the IP address of the
Managed Switch.
Figure 3-1-3: Web Management
You can then use your Web browser to list and manage the Managed Switch configuration parameters from one central location,
just as if you were directly connected to the Managed Switch's console port. Web Management requires either Microsoft
Internet Explorer 7.0 or later, Safari or Mozilla Firefox 1.5 or later.
Figure 3-1-4: Web Main Screen of Managed Switch
45
User’s Manual of GS-5220 Series
3.5 SNMP-based Network Management
You can use an external SNMP-based application to configure and manage the Managed Switch, such as SNMP Network
Manager, HP Openview Network Node Management (NNM) or What’s Up Gold. This management method requires the SNMP
agent on the switch and the SNMP Network Management Station to use the same community string. This management
method, in fact, uses two community strings: the get community string and the set community string. If the SNMP Net-work
management Station only knows the set community string, it can read and write to the MIBs. However, if it only knows the get
community string, it can only read MIBs. The default getting and setting community strings for the Managed Switch is public.
Figure 3-1-5: SNMP Management
3.6 PLANET Smart Discovery Utility
For easily listing the Managed Switch in your Ethernet environment, the Planet Smart Discovery Utility from user’s manual
CD-ROM is an ideal solution. The following installation instructions are to guide you to running the Planet Smart Discovery
Utility.
1. Deposit the Planet Smart Discovery Utility in administrator PC.
2. Run this utility as the following screen appears.
Figure 3-1-6: Planet Smart Discovery Utility Screen
46
User’s Manual of GS-5220 Series
If there are two LAN cards or above in the same administrator PC, choose a different LAN card
by using the “Select Adapter” tool.
3. Press “Refresh” button for the currently connected devices in the discovery list as the screen shows below:
Figure 3-1-7: Planet Smart Discovery Utility Screen
1. This utility shows all necessary information from the devices, such as MAC Address, Device Name, firmware version, and
Device IP Subnet address. It can also assign new password, IP Subnet address and description for the devices.
2. After setup is completed, press “Update Device”, “Update Multi” or “Update All” button to take effect. The meaning of the
3 buttons above are shown as below:
Update Device: use current setting on one single device.
Update Multi: use current setting on choose multi-devices.
Update All: use current setting on whole devices in the list.
The same functions mentioned above also can be found in “Option” tools bar.
3. To click the “Control Packet Force Broadcast” function, it can allow assign new setting value to the Web Smart Switch
under a different IP subnet address.
4. Press “Connect to Device” button and the Web login screen appears in Figure 3-1-4.
5. Press “Exit” button to shut down the Planet Smart Discovery Utility.
47
User’s Manual of GS-5220 Series
4. WEB CONFIGURATION
This section introduces the configuration and functions of the Web-based management from Managed Switch.
About Web-based Management
The Managed Switch offers management features that allow users to manage the Managed Switch from anywhere on the
network through a standard browser such as Microsoft Internet Explorer.
The Web-based Management supports Internet Explorer 7.0. It is based on Java Applets with an aim to reduce network
bandwidth consumption, enhance access speed and present an easy viewing screen.
By default, IE7.0 or later version does not allow Java Applets to open sockets. The user has to explicitly
modify the browser setting to enable Java Applets to use network ports.
The Managed Switch can be configured through an Ethernet connection, making sure the manager PC must be set on the same
IP subnet address with the Managed Switch.
For example, the default IP address of the Managed Switch is 192.168.0.100, then the manager PC should be set at
192.168.0.x (where x is a number between 1 and 254, except 100), and the default subnet mask is 255.255.255.0.
If you have changed the default IP address of the Managed Switch to 192.168.1.1 with subnet mask 255.255.255.0 via console,
then the manager PC should be set at 192.168.1.x (where x is a number between 2 and 254) to do the relative configuration on
manager PC.
Figure 4-1-1: Web Management
Logging on the Managed Switch
1. Use Internet Explorer 7.0 or above Web browser. Enter the factory-default IP address to access the Web interface. The
factory-default IP Address is shown as follows:
http://192.168.0.100
48
User’s Manual of GS-5220 Series
2. When the following login screen appears, please enter the default username "admin" with password “admin” (or the
username/password you have changed via console) to login the main screen of Managed Switch. The login screen in
Figure 4-1-2 appears.
Figure 4-1-2: Login Screen
Default User name: admin
Default Password: admin
After entering the username and password, the main screen appears as shown in Figure 4-1-3.
Figure 4-1-3: Web Main Page
49
User’s Manual of GS-5220 Series
Now, you can use the Web management interface to continue the switch management or manage the Managed Switch by Web
interface. The Switch Menu on the left of the web page lets you access all the commands and statistics the Managed Switch
provides.
1. It is recommended to use Internet Explore 7.0 or above to access Managed Switch.
2. The changed IP address takes effect immediately after clicking on the Save button. You need to
use the new IP address to access the Web interface.
3. For security reason, please change and memorize the new password after this first setup.
4. Only accept command in lowercase letter under web interface.
4.1 Main Web Page
The Managed Switch provides a Web-based browser interface for configuring and managing it. This interface allows you to
access the Managed Switch using the Web browser of your choice. This chapter describes how to use the Managed Switch’s
Web browser interface to configure and manage it.
in Functions Menu
Ma
Copper Port Link Status
SFP/SFP+ Port Link
F
Help Button
Panel Display
The web agent displays an image of the Managed Switch’s ports. The Mode can be set to display different information for the
ports, including Link up or Link down. Clicking on the image of a port opens the Port Statistics page.
The port status are illustrated as follows:
State Disabled Down Link
RJ45 Ports
SFP Ports
igure 4-1-4: Web Main Page
Main Screen
50
