GS-4210-48P4S

48-Port 10/100/1000T 802.3at PoE + 4-Port 100/1000BASE-X SFP Managed Switch

Physical Port

• 48 10/100/1000BASE-T Gigabit RJ45 copper ports with 48-

port IEEE 802.3at/af PoE injector

• 4 100/1000BASE-X mini-GBIC/SFP slots

Power over Ethernet

Cost-effective, High-density PoE Solution Perfect Managed PoE+ Switch with Advanced L2/L4 Switching and Security

PLANET GS-4210-48P4S is a cost-optimized, high-density PoE+ Managed Gigabit

Ethernet Switch featuring PLANET intelligent PoE functions to improve the availability

of critical business applications. It provides IPv6/IPv4 dual stack management and built-

in L2/L4 Gigabit switching engine along with 48 10/100/1000BASE-T ports featuring 36-

watt 802.3at PoE+ and 4 additional Gigabit SFP slots. With a total power budget of up

to 440 watts for different kinds of PoE applications, it provides a quick, safe and cost-

effective Power over Ethernet network solution for small businesses and enterprises.

440-watt

PoE Power Budget

48 x Gigabit 802.3at PoE+ Port 4 x 100/1000BASE-X

Premium VoIP Networks for Medium- to Large-scale Deployments

The GS-4210-48P4S has 48 IEEE 802.3at PoE+ ports, 104Gbps switch fabric and

advanced QoS functionality for deploying medium- to large-scale VoIP or wireless

networks at a low total cost. One GS-4210-48P4S can power up 48 PoE VoIP phones

and delivers HD (high-definition) voice to VoIP network with high priority, resulting in

higher quality voice and clearer communication. From now on, customers only need

fewer units of the GS-421048P4S than before to achieve the goal of cost-effectiveness,

thereby saving setup time and human resource.

Built-in Unique PoE Functions for Powered Devices Management

As it is the managed PoE switch for VoIP, wireless and surveillance networks, the GS-

4210-48P4S features the following special PoE management functions:

■ PoE schedule

■ PD alive check

■ Scheduled power recycling

■ PoE usage monitoring

• Complies with IEEE 802.3at Power over Ethernet Plus,

end-span PSE

• Backward compatible with IEEE 802.3af Power over

Ethernet

• Up to 48 ports of IEEE 802.3af/802.3at devices powered

• Supports PoE power up to 36 watts for each PoE port

• Auto detects powered device (PD)

• Circuit protection prevents power interference between

ports

• Remote power feeding up to 100 meters

• PoE management

–Total PoE power budget control

–Per port PoE function enable/disable

–PoE port power feeding priority

–Per PoE port power limitation

–PD classication detection

–PD alive-check

–PoE schedule

Layer 2 Features

• Prevents packet loss with back pressure (half-duplex) and

IEEE 802.3x pause frame ow control (full-duplex)

• High performance Store and Forward architecture,

broadcast storm control, runt/CRC ltering that eliminates

erroneous packets to optimize the network bandwidth

• Supports VLAN

–IEEE 802.1Q tagged VLAN

–Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)

–Protocol VLAN

–Voice VLAN

–Private VLAN

–Management VLAN

–GVRP

GS-4210-48P4S

PT PoE Camera

Ping Request

Check alive status for 3 times

Restart PoE device if without response

Ping Echo

No Response......

PD Alive!!

Step 1

Step 3

Step 2

Step 4

PoE

OFF

PD Status

Good!!

Alarm Notification

PoE Schedule for Energy Saving

Under the trend of energy saving worldwide and contributing to environmental protection,

the GS-4210-48P4S can effectively control the power supply besides its capability of

giving high watts power. The “PoE schedule” function helps you to enable or disable

PoE power feeding for each PoE port during specied time intervals and it is a powerful

function to help SMBs or enterprises save power and money. It also increases security

by powering off PDs that should not be in use during non-business hours.

5PM8AM

PoE

PoE PoE

Power

6 Watts 6 Watts 12 Watts 12 Watts

Total consumption of 36 watts/hr

PoE

Power

5PM 8AM

PoE

PoE PoE

Power

Off

Power

PoE

Power

Off

6 Watts 6 Watts 12 Watts 12 Watts

Save 24 watts/hr during off-business hours

Total Saved = 10800 Watts/month

PoE

Power

Off

1000BASE-T UTP with PoE

Intelligent Powered Device Alive-Check

The GS-4210-48P4S can be configured to monitor connected PD (Powered Device)

status in real time via ping action. Once the PD stops working and responding, the GS-

4210-48P4S will resume the PoE port power and bring the PD back to work. It will

greatly enhance the network reliability through the PoE port resetting the PD’s power

source and reducing administrator management burden.

• Supports Spanning Tree Protocol

–STP (Spanning Tree Protocol)

–RSTP (Rapid Spanning Tree Protocol)

–MSTP (Multiple Spanning Tree Protocol)

–STP BPDU Guard, BPDU ltering and BPDU forwarding

• Supports Link Aggregation

–IEEE 802.3ad Link Aggregation Control Protocol (LACP)

–Cisco ether-channel (static trunk)

• Provides port mirror (many-to-1)

• Loop protection to avoid broadcast loops

Quality of Service

• Ingress and egress rate limit per port bandwidth control

• Storm control support

–Broadcast/Unknown unicast/Unknown multicast

• Trafc classication

–IEEE 802.1p CoS

–TOS/DSCP/IP precedence of IPv4/IPv6 packets

• Strict priority and Weighted Round Robin (WRR) CoS

policies

Multicast

• Supports IPv4 IGMP snooping v2, v3

• Supports IPv6 MLD snooping v1, v2

• IGMP querier mode support

• IGMP snooping port ltering

• MLD snooping port ltering

Scheduled Power Recycling

The GS-4210-48P4S allows each of the connected PoE IP cameras or PoE wireless

access points to reboot at a specific time each week. Therefore, it will reduce the

chance of IP camera or AP crash resulting from buffer overow.

S M T W T F S

PoE

ON ONOFF

Automatically Reboot

Every Friday 23:00

PoE PT Camera

CPU/Buffer

Load 85%

CPU/Buffer

Load 10%

Security

• Authentication

–IEEE 802.1X port-based network access authentication

–Built-in RADIUS client to co-operate with the RADIUS

servers

–RADIUS/TACACS+ login user access authentication

• Access control list

–IPv4/IPv6 IP-based ACL

–MAC-based ACL

• MAC security

–Static MAC

–MAC ltering

• Port security for source MAC address entries ltering

• DHCP snooping to lter untrusted DHCP messages

• Dynamic ARP Inspection discards ARP packets with invalid

MAC address to IP address binding

GS-4210-48P4S

Environment-friendly, Smart Fan Design for Silent Operation

The GS-4210-48P4S features a low noise design and an effective ventilation system. It

supports the smart fan technology that automatically controls the speed of the built-in

fan to reduce noise and maintain the temperature of the PoE switch for optimal power

output capability. The GS-4210-48P4S is able to operate reliably, stably and quietly in

any environment without affecting its performance.

IPv6/IPv4 Dual Stack Management

Supporting both IPv6 and IPv4 protocols, the GS-4210-48P4S helps the SMBs to step in

the IPv6 era with the lowest investment as its network facilities need not be replaced or

overhauled if the IPv6 network is set up.

Robust Layer 2 Features

The GS-4210-48P4S can be programmed for advanced switch management functions

such as dynamic port link aggregation, 802.1Q VLAN and Q-in-Q VLAN, Multiple

Spanning Tree protocol (MSTP), loop and BPDU guard, IGMP snooping, and MLD

snooping. Via the link aggregation, the GS-4210-48P4S allows the operation of a

high-speed trunk to combine with multiple ports, and supports fail-over as well. Also,

the Link Layer Discovery Protocol (LLDP) is the Layer 2 protocol included to help

discover basic information about neighboring devices on the local broadcast domain.

LACPMSTP

Q-in-Q LLDPQoS

IGMP

L2/L4 Managed Switch

MLD

Efﬁcient Trafﬁc Control

The GS-4210-48P4S is loaded with robust QoS features and powerful traffic

management to enhance services to business-class data, voice, and video solutions.

The functionality includes broadcast/multicast storm control, per port bandwidth

control, IP DSCP QoS priority and remarking. It guarantees the best performance

for VoIP and video stream transmission, and empowers the enterprises to take full

advantage of the limited network resources.

• IP source guard prevents IP spoong attacks

• DoS attack prevention

• SSH/SSL

Management

• IPv4 and IPv6 dual stack management

• Switch management interface

–Web switch management

–Telnet command line interface

–SNMP v1, v2c and v3

–SSH and SSL secure access

• User privilege levels control

• Built-in Trivial File Transfer Protocol (TFTP) client

• BOOTP and DHCP for IP address assignment

• System maintenance

–Firmware upload/download via HTTP/TFTP

–Conguration upload/download through web interface

–Dual images

–Hardware reset button for system reboot or reset to

factory default

• SNTP Network Time Protocol

• Cable diagnostics

• Link Layer Discovery Protocol (LLDP) and LLDP-MED

• SNMP trap for interface link up and link down notication

• Event message logging to remote Syslog server

• Four RMON groups (history, statistics, alarms and events)

• PLANET smart discovery utility

• Smart fan with speed control

Powerful Security

PLANET GS-4210-48P4S offers comprehensive IPv4/IPv6 Layer 2 to Layer 4 Access

Control List (ACL) for enforcing security to the edge. It can be used to restrict network

access by denying packets based on source and destination IP address, TCP/UDP ports

or dened typical network applications. Its protection mechanism also comprises 802.1X

port-based user and device authentication, which can be deployed with RADIUS to

ensure the port level security and block illegal users. With the protected port function,

communication between edge ports can be prevented to guarantee user privacy.

Furthermore, port security function allows to limit the number of network devices on a

given port.

Advanced Network Security

The GS-4210-48P4S also provides DHCP snooping, IP source guard and dynamic

ARP inspection functions to prevent IP snooping from attack and discard ARP packets

with invalid MAC address. The network administrators can now construct highly-secure

corporate networks with considerably less time and effort than before.

GS-4210-48P4S

Friendly and Secure Management

For efcient management, the GS-4210-48P4S is equipped with web, Telnet and SNMP management interfaces. With the built-in web-based management

interface, the GS-4210-48P4S offers an easy-to-use, platform-independent management and configuration facility. By supporting the standard SNMP, the

switch can be managed via any standard management software. For text-based management, the switch can be accessed via Telnet. Moreover, the GS-

4210-48P4S offers secure remote management by supporting SSH, SSL and SNMP v3 connections which encrypt the packet content at each session.

Flexibility and Long-distance Extension Solution

The four mini-GBIC slots built in the GS-4210-48P4S support SFP auto-detection and dual speed as it features 100BASE-FX and 1000BASE-SX/LX SFP

(Small Form-factor Pluggable) ber transceivers to uplink to backbone switch and monitoring center in long distance. The distance can be extended from 550

meters to 2 kilometers (multi-mode ber) and up to 10/20/30/40/50/70/120 kilometers (single-mode ber or WDM ber). They are well suited for applications

within the enterprise data centers and distributions.

Intelligent SFP Diagnosis Mechanism

The GS-4210-48P4S supports SFP-DDM (Digital Diagnostic Monitor) function that can easily monitor real-time parameters of the SFP for network

administrator, such as optical output power, optical input power, temperature, laser bias current and transceiver supply voltage.

Applications

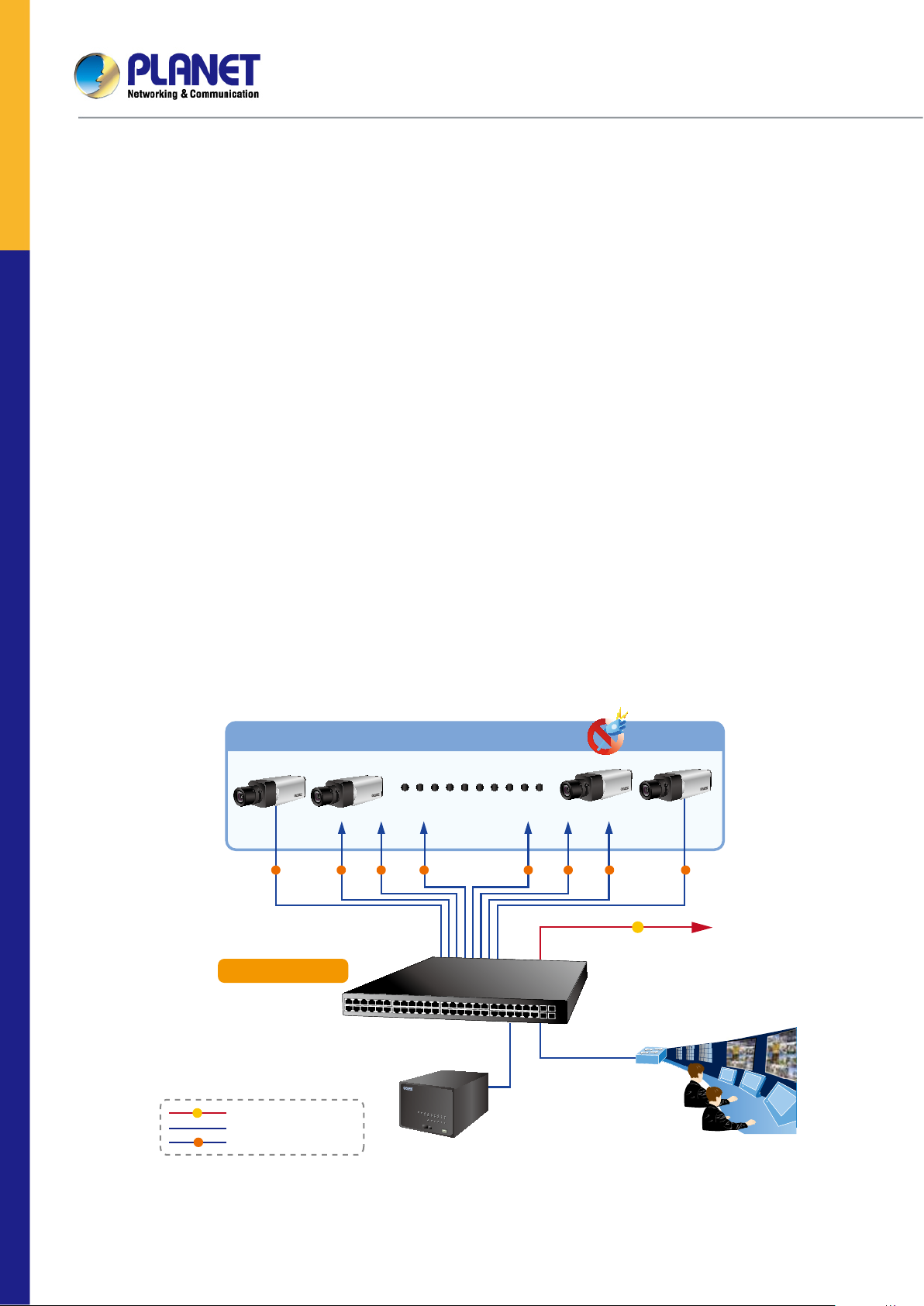

High Density of IP Surveillance Network

Providing up to 48 PoE+, in-line power interfaces and 4 100/1000BASE-X SFP interfaces, the GS-4210-48P4S can easily build an IP camera system

where power can be centrally controlled. The GS-4210-48P4S can work with 8/16/32-channel NVR and surveillance software to perform comprehensive

security monitoring. For instance, one GS-4210-48P4S can be combined with one 32-channel NVR and one 8-channel NVR, which feature real-time video

and audio, live viewing, and playback. Each of its PoE ports can be linked with a PoE IP camera in order for the administrators to centrally and efciently

manage the surveillance system in one site. Moreover, its 4 100/1000BASE-X SFP interfaces also provide flexible fiber connection for uplink to public

server groups.

Up to 48 PoE IP Cameras

PoE PoE PoE PoE PoE PoE PoE PoE

1000

GS-4210-48P4S

Uplink

1000

1000BASE-SX/LX Fiber-optic

1000BASE-T UTP

PoE

1000BASE-T UTP with PoE

NVR

Monitoring Center

GS-4210-48P4S

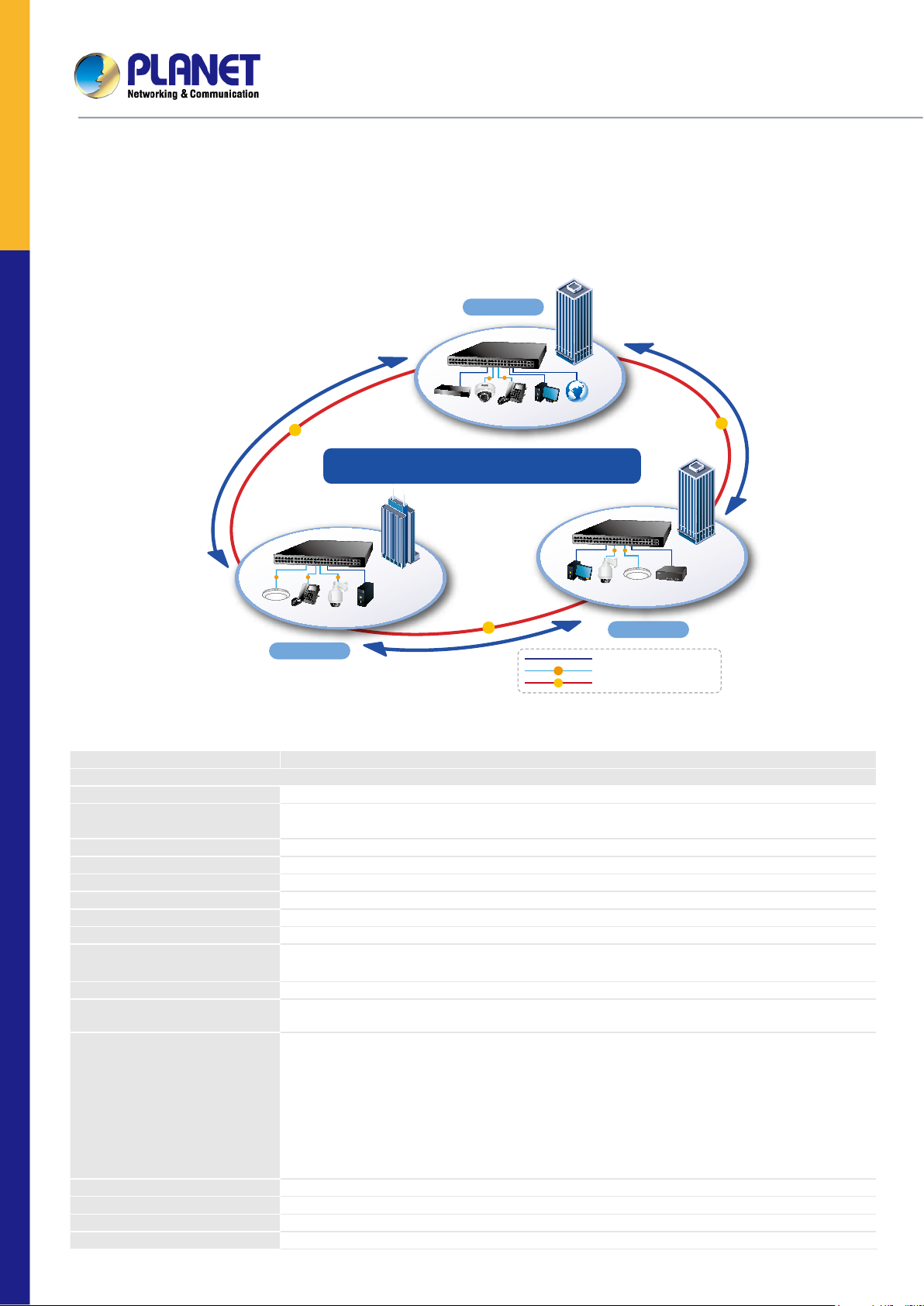

Multiple Spanning Tree Protocol Provided for Reliability

The GS-4210-48P4S features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates Multiple Spanning Tree

Protocol (802.1s MSTP) into customer’s automation network to enhance system reliability and uptime. Applying the IEEE 802.3at Power over Ethernet

standard, the GS-4210-48P4S can directly connect with any IEEE 802.3at end-nodes like PTZ (Pan, Tilt & Zoom) network cameras and speed dome

cameras. The GS-4210-48P4S can easily help enterprises build a network infrastructure of wireless AP, IP camera and VoIP systems where power can be

centrally-controlled.

Office B

GS-4210-48P4S

PoE

IP PBX

Camera PCIP Phone

1000

MSTP for Ring IP Surveillance Application

GS-4210-48P4S

Internet

GS-4210-48P4S

PoE

1000

PoEPoEPoE

IP Phone

Speed Dome

Server

1000

Office A

PoE

1000

Specications

Product

Hardware Specications

Copper Ports 48 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X port

SFP/mini-GBIC Slots

PoE Injector Port 48 ports with 802.3at/af PoE injector function with port-1 to port-48

Switch Architecture Store-and-Forward

Switch Fabric 104Gbps, non-blocking

Switch Throughput@64Bytes 77.38Mpps

Address Table 16K entries

Shared Data Buffer 12 megabits

Flow Control

Jumbo Frame 10K bytes

Reset Button

LED

Power Requirements 100~240V AC, 50/60Hz, auto-sensing

Dimensions (W x D x H) 440 x 300 x 44.5 mm, 1U height

ESD Protection 6KV DC

Enclosure Metal

GS-4210-48P4S

4 x 100/1000BASE-X SFP interface Supports 100/1000Mbps dual mode and DDM

IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex

< 5 sec: System reboot > 5 sec: Factory default

System: PWR (Power) (Green) SYS (System) (Green) 10/100/1000T RJ45 Interfaces (Port 1 to Port 48): 10/100/1000Mbps, LNK/ACT (Green) PoE-in-Use (Orange) 100/1000Mbps SFP Interfaces (Port 49 to Port 52): 1000Mbps, LNK/ACT (Green) 100Mbps, LNK/ACT (Orange)

Speed Dome

NVR

Office C

1000BASE-T UTP

100BASE-TX UTP with PoE

1000BASE-SX/LX Fiber-optic

Weight 5476g

Power Consumption 481 watts (max.)/1641 BTU

Fan 3 x smart fan

Power over Ethernet

PoE Standard IEEE 802.3af/802.3at PoE+ PSE

PoE Power Supply Type End-span

PoE Power Output Per port 52V DC, 36 watts (max.)

Power Pin Assignment 1/2(+), 3/6(-)

PoE Power Budget

PoE Ability PD @ 9 watts 48 units

PoE Ability PD @ 15 watts 29 units

PoE Ability PD @ 30 watts 14 units

Layer 2 Functions

Basic Management Interfaces

VLAN

Link Aggregation

Spanning Tree Protocol

IGMP Snooping

MLD Snooping MLD (v1/v2) snooping, up to 256 multicast groups

Access Control List IPv4/IPv6 IP-based ACL/MAC-based ACL

QoS

Security

Management Functions

Basic Management Interfaces

Secure Management Interfaces SSH, SSL, SNMP v3

SNMP MIBs

440 watts (max.) @ 25 degrees C 380 watts (max.) @ 50 degrees C

TX/RX/both Many-to-1 monitor

802.1Q tagged-based VLAN Up to 256 VLAN groups, out of 4094 VLAN IDs

802.1ad Q-in-Q tunneling Voice VLAN Protocol VLAN Private VLAN (Protected port) GVRP

IEEE 802.3ad LACP and static trunk Supports 8 groups with 8 ports per trunk

STP, IEEE 802.1D Spanning Tree Protocol RSTP, IEEE 802.1w Rapid Spanning Tree Protocol MSTP, IEEE 802.1s Multiple Spanning Tree Protocol

IGMP (v2/v3) snooping IGMP querier Up to 256 multicast groups

8 mapping ID to 8 level priority queues

- Port number

- 802.1p priority

- 802.1Q VLAN tag

- DSCP eld in IP packet Trafc classication based, strict priority and WRR

IEEE 802.1X port-based authentication Built-in RADIUS client to co-operate with RADIUS server RADIUS/TACACS+ user access authentication IP-MAC port binding

MAC ltering

Static MAC address DHCP Snooping and DHCP Option82

STP BPDU guard, BPDU ltering and BPDU forwarding

DoS attack prevention ARP inspection IP source guard

Web browser/Telnet/SNMP v1, v2c Firmware upgrade by HTTP/TFTP Protocol through Ethernet network Remote/Local Syslog System log LLDP protocol SNTP

RFC 1213 MIB-II RFC 1215 Generic Traps RFC 1493 Bridge MIB

RFC 2674 Bridge MIB Extensions RFC 2737 Entity MIB (v2)

RFC 2819 RMON (1, 2, 3, 9) RFC 2863 Interface Group MIB RFC 3635 Ethernet-like MIB

GS-4210-48P4S

Standards Conformance

Regulatory Compliance FCC Part 15 Class A, CE, LVD

IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000T

IEEE 802.3x ow control and back pressure

IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging

Standards Compliance

Environment

Operating

Storage

IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus

RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP

RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2

RFC 3376 IGMP v3 RFC 2710 MLD v1

RFC 3810 MLD v2

Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing)

Temperature: -20 ~ 70 degrees C

Relative Humidity: 5 ~ 95% (non-condensing)

GS-4210-48P4S

Ordering Information

GS-4210-48P4S 48-Port 10/100/1000T 802.3at PoE + 4-Port 100/1000BASE-X SFP Managed Switch

Planet GS-4210-48P4S User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
