PLANET FST-81x User Manual

User's Manual
FST-811 FST-812 FST-812S15/812S35/812S50 FST-815A FST-816A20/816B20
10/100Base-TX to 100Base-FX Smart Media Converter
1
Trademarks
Copyright © PLANET Technology Corp. 2009. Contents subject to revision without prior notice. PLANET is a registered trademark of PLANET Technology Corp. All other trademarks belong to their respective owners.
Disclaimer
PLANET Technology does not warrant that the hardware will work properly in all environments and applications, and makes no warranty and representation, either implied or expressed, with respect to the quality, performance, merchantability, or fitness for a particular purpose.
PLANET has made every effort to ensure that this User’s Manual is accurate; PLANET disclaims liability for any inaccuracies or omissions that may have occurred.
Information in this User’s Manual is subject to change without notice and does not represent a commitment on the part of PLANET. PLANET assumes no responsibility for any inaccuracies that may be contained in this User’s Manual. PLANET makes no commitment to update or keep current the information in this User’s Manual, and reserves the right to make improvements to this User’s Manual and/or to the products described in this User’s Manual, at any time without notice.
If you find information in this manual that is incorrect, misleading, or incomplete, we would appreciate your comments and suggestions.
FCC Warning
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the Instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
CE Mark Warning
This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.
WEEE Warning
To avoid the potential effects on the environment and human health as a result of the presence of
hazardous substances in electrical and electronic equipment, end users of electrical and electronic
equipment should understand the meaning of the crossed-out wheeled bin symbol. Do not dispose of
WEEE as unsorted municipal waste and have to collect such WEEE separately.

Revision

PLANET 10/100Base-TX to 100Base-FX Smart Media Converter User’s Manual
MULTI-MODE: FST-811/ FST-812
SINGLE-MODE: FST-812S15 / FST-812S35 / FST-812S50 / FST-816A20 / FST-816B20 REVISION: 1.0 (OCTOBER.2009) Part No.: EM-FST81x_v1.0 (2080-AA1130-001)
2
TABLE OF CONTENTS
1. INTRODUCTION ......................................................................................................................................................4
1.1 C
HECKLIST
1.2 A
BOUT THE
1.3 F
EATURES
1.4 S
PECIFICATION
1.5 P
RODUCT OUTLOOK
................................................................................................................................................................4
10/100B
ASE
-TX
TO
100B
ASE
-FX S
MART MEDIA CONVERTER
.............................................................4
.................................................................................................................................................................5
..........................................................................................................................................................6
..................................................................................................................................................7
2. HARDWARE INSTALLATION...............................................................................................................................9
2.1 S
TAND-ALONE MEDIA CONVERTER INSTALLATION
2.2 S
LIDE MEDIA CONVERTER MODULE INTO
2.3 R
EAL ETHERNET ENVIRONMENT APPLICATION
MC-1600MR / MC-1610MR
..................................................................................................9
SERIES CHASSIS INSTALLATION
...............10
........................................................................................................11
3. MANAGE THE MEDIA CONVERTER................................................................................................................12
3.1 DIP S
3.2 M
WITCH CONFIGURATION
ANAGED MEDIA CONVERTER MODULE THROUGH
.................................................................................................................................12
MC-1600MR/R48 & MC-1610MR/R48 C
HASSIS
.................13
4. LINK PASS THROUGH FUNCTION ...................................................................................................................16
4.1 L
INK LOSS CARRY FORWARD
4.2 L
INK LOSS RETURN
(LLR)......................................................................................................................................17
(LLCF)....................................................................................................................16
5. TROUBLESHOOTING............................................................................................................................................18

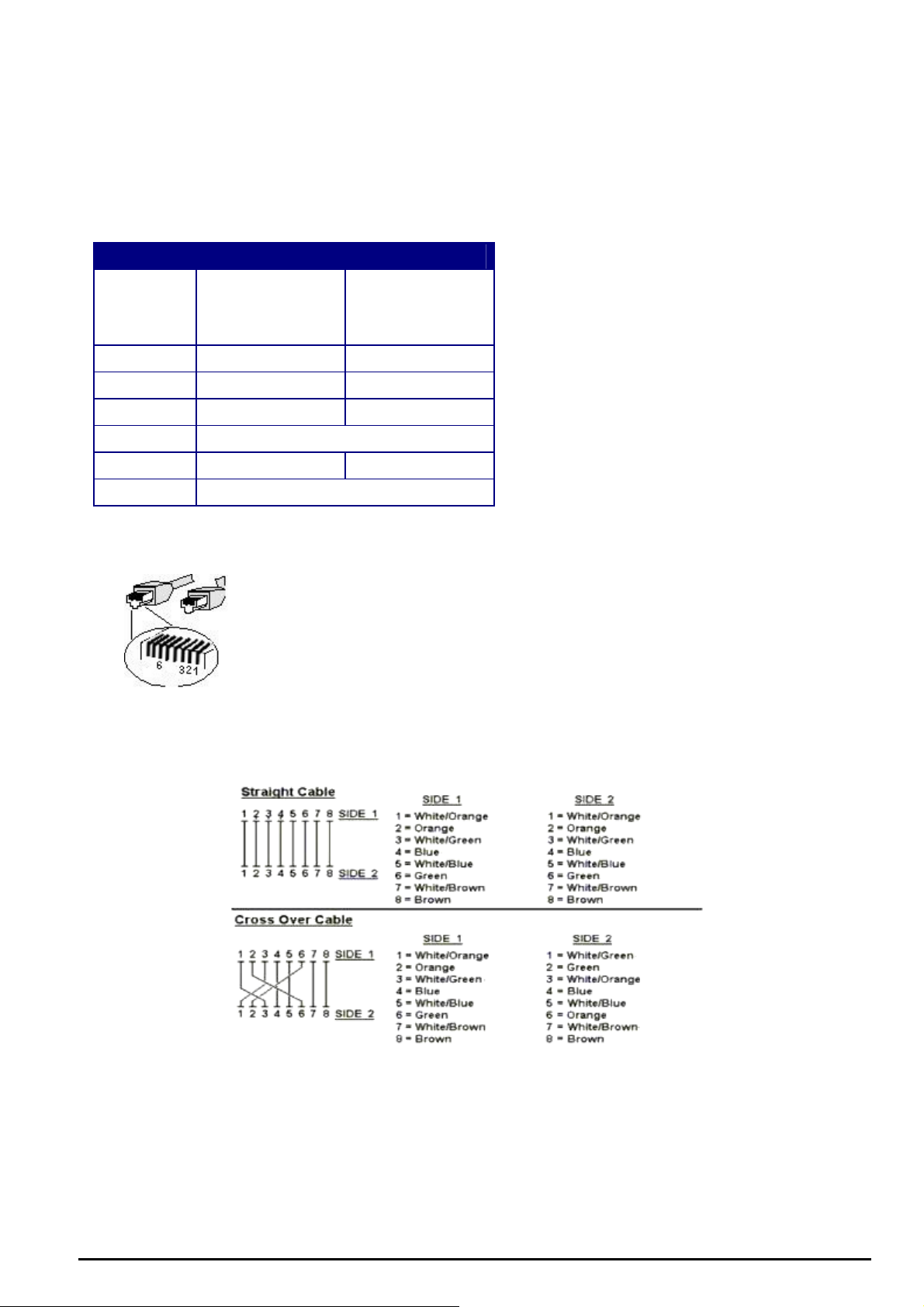

APPENDIX A NETWORKING CONNECTION.......................................................................................................19
A.1 S
WITCH‘S
A.2 RJ-45 A.3 C
ABLE CONNECTION PARAMETER
RJ-45 P
CABLE PIN ASSIGNMENT
IN ASSIGNMENTS
.......................................................................................................................19
...............................................................................................................................19
.........................................................................................................................20
3

1. INTRODUCTION

1.1 Checklist

Thank you for purchasing PLANET 10/100Base-TX to 100Base-FX Smart Media Converter, the 10/100Base-TX to 100Base-FX Smart Media Converter package shall contain following contents:
Check the contents of your package for follow i ng parts:
z
10/100Base-TX to 100Base-FX Smart Media Converter x1
z
User's Manual CD x1
z
DC 5V 2A Power Adapter x1
If any of these pieces are missing or damaged, please contact your dealer immediately, if possible, retain the carton including the original packing material, and use them against to repack the product in case there is a need to return it to us for repair.

1.2 About the 10/100Base-TX to 100Base-FX Smart Media Converter

The FST-81x series Smart Media Converter provide Media conversion between 10/100Base-TX and 100Base-FX in­terfaces, such as multi-mode ST/SC connectors (2km), single-mode SC connector (15/35/50km), single-mode LC connectors (2/20/40/60km) and single fiber connector (WDM,20km) fiber connection options for various application.
The FST-81x series Smart Media Converter provide Auto MDI/MDI-X on its TP port and store-and-forward mechanism for eliminate faulty packets. Use the DIP switch from the FST-81x to configure the available smart functions, such as the flow control / Link Pass Through function (LLCF/LLR). The Flow Control function allows FST-81x supported routers and servers to directly connect to FST-81x for fast, reliable data transfer. The Link Loss Carry Forward (LLCF) function works with Link Loss Return (LLR) to diagnose network connections. Furthermore, the LLR function can immediately alarm network ad­ministrator the media link issue and provide efficient solution to monitor the entire network.
The FST-81x series allows two easy types of connection. These Smart Media Converters can be used as a standalone unit when powered by its DC adapter or used as a slide-in module to the PLANET 19-inch Web Smart / Managed 16-Slots Media Converter Chassis (MC-1600MR/MC-1600MR48 & MC-1610MR / MC-1610MR48). When working with the Web Smart / Managed Media Converter Chassis, the FST-81x is able to be centrally managed and its status be monitored through the local RS-232 console and remote web interface.
Ingress / Egress bandwidth control function support on both TP and Fiber interface of FST-81x to enhance bandwidth utilization, Before FST-81x power outage situation appears, the new Dying Gasp feature enables network administrator to receive message from FST-81x and get information about FST-81x loss power for further check and restore.
Moreover, when FST-81x is installed into MC-1610MR / MC-1610MR48 Managed Media Converter Chassis, the TS-1000/802.3ah OAM protocol (operations, administration, and maintenance) function helps remote device be centrally managed and monitored under Managed Media Converter Chassis Web interface.
4

1.3 Features

¾ Standards:
Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3u 100Base-FX Ethernet Stan-
dard
¾ Interface:
One 10/100Base-TX port with RJ-45 connector One 100Base-FX port with LC/SC/WDM connector supporting multi-mode or single-mode fiber optic cable
Auto-Negotiation and Auto-MDI / MDI-X for 10/100Base-TX port
¾ Layer 2 Features:
Back-Pressure & IEEE 802.3x compliant flow control and full wire-speed forwarding rate
Link Loss Return (LLR) switch on each fiber optic to aid in troubleshooting remote network connections Link Loss Carry Forward (LLCF) work with LLR in diagnosing network connections
¾ Smart Management:
Provides DIP switch for Flow control (Disable / Enable) and LFP function (Disable / Enable) setting
Manageable through Web Smart / Managed Media Converter Chassis System (MC-1600MR/MC-1610MR
series)
Bandwidth control / TS-1000 OAM / IEEE 802.3ah OAM / Loop Back Test function provided with
MC-1610MR / MC-1610MR48 Managed Media Converter Chassis System
Dying Gasp feature support (FT-90x series Web Smart Fast Ethernet Converter can receive Dying Gasp
message sent out by FST-81x)
¾ Hardware:
Act as a standalone device or work with Web Smart / Managed Media Converter Chassis for up to 16 con-
verters with redundant power supply for use of optional expansion
LED indicators for converter status
Choice of fiber-connector from SC, LC, WDM, multi-mode / single-mode fiber / 100Base-FX mini GBIC
module
EMI standards complies with FCC, CE class B
5

1.4 Specification

Model FST-811 FST-812 FST-815A FST-812S15 FST-812S35 FST-812S50
Hardware Specification
Standards IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX and 100Base-FX
Ports 1 10/100Base-TX port , 1 100Base-FX port
Fiber connector ST SC SFP SC SC SC SC, WDM SC, WDM
Wavelength Deploy­ment
Cable
Maximum Cable dis­tance
LED indicator
DIP switch Flow control (Disable / Enable) , LFP function (Disable / Enable)
Speed
Power input DC 5V 2A
Power consumption 2.8 Watts / 9 BTU (maximum)
1310nm (Transmit and Receive) 1310 (TX)
10Base-T: 2-pair Cat. 3,4,5 UTP cable, up to 100 meters 100Base-TX: 2-pair Cat. 5 UTP cable, up to 100 meters 100Base-FX: 50/125μm or 62.5/125μm multi-mode fiber cable, up to 2km. 9/125μm single-mode cable, provide long distance for 2/15/20/35/40/50/60km
MM,2km MM,2km SM, 60km
(
MFB-F60)
System: PWR TP: LNK/ACT, 100 FX: LNK/ACT
Ethernet: 10/20Mbps for half / full-duplex Fast Ethernet: 100/200Mbps for half / full-duplex
SM, 15km
SM,35km SM, 50km SM, 20km
FST-816A 20
1550 (RX)
Single wire
FST-816B 20
1550 (TX) 1310 (RX)
SM, 20km Single wire
Operate environment 0~50 Degree C, 5%~90%RH
Storage environment -10~70 Degree C, 5%~90%RH
Dimension (W x D xH) 81 x 94 x 26 mm
Weight 0.22kg
Emission FCC Class B, CE mark
6

1.5 Product Outlook

Right View: there is one RJ-45 twisted-Pair jack (Auto-MDI/MDI-X), one fiber-optic connector (vary by model) and six
LED indicators.
Left View: there is one DC jack for DC 5V power adapter.
5V DC
5V DC
Fast Ethernet Bridge
10/100Base-TX to 100Base-FX
Figure 1: FST-811 Outlook
Fast Ethernet Bridge
10/100Base-TX to 100Base-FX
Figure 2: FST-812 / FST-812S15 / FST-812S35 / FST-812S50 Outlook
7
