Planet FSD-804PS User Manual
FSD-804PS
8-Port 10/100Mbps with
User's Manual
4-Port PoE
Web Smart Ethernet Switch
- 1 -
Trademarks
Copyright © PLANET Technology Corp. 2007.
Contents subject to revision without prior notice.
PLANET is a registered trademark of PLANET Technology Corp. All other trademarks belong to their respective
owners.
Disclaimer
PLANET Technology does not warrant that the hardware will work properly in all environments and applications,
and makes no warranty and representation, either implied or expressed, with respect to the quality, performance,
merchantability, or fitness for a particular purpose.
PLANET has made every effort to ensure that this User’s Manual is accurate; PLANET disclaims liability for any
inaccuracies or omissions that may have occurred.
Information in this User’s Manual is subject to change without notice and does not represent a commitment on the
part of PLANET. PLANET assumes no responsibility for any inaccuracies that may be contained in this User’s
Manual. PLANET makes no commitment to update or keep current the information in this User’s Manual, and
reserves the right to make improvements to this User’s Manual and/or to the products described in this User’s
Manual, at any time without notice.
If you find information in this manual that is incorrect, misleading, or incomplete, we would appreciate your
comments and suggestions.
FCC Warning
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the Instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.
User’s Manual of FSD-804PS
CE Mark Warning
This is a Class A product. In a domestic environment, this product may cause radio interference, in which case the
user may be required to take adequate measures.
WEEE Warning
To avoid the potential effects on the environment and human health as a result of the presence of
hazardous substances in electrical and electronic equipment, end users of electrical and electronic
equipment should understand the meaning of the crossed-out wheeled bin symbol. Do not dispose of
WEEE as unsorted municipal waste and have to collect such WEEE separately.
Revision
PLANET 8-Port 10/100Mbps with 4-Port PoE Web Smart Ethernet Switch User's Manual
FOR MODEL: FSD-804PS
REVISION: 2.0(SEPTEMBER .2007)
Part No.: 2080-A31120-003
- 2 -
User’s Manual of FSD-804PS
TABLE OF CONTENTS
1. INTRODUCTION...........................................................................................................................................................4
1.1 CHECKLIST .................................................................................................................................................................4
1.2 ABOUT THE SWITCH.....................................................................................................................................................4
1.3 FEATURES ..................................................................................................................................................................4
1.4 SPECIFICATION............................................................................................................................................................6
2. HARDWARE DESCRIPTION........................................................................................................................................7
2.1 FRONT PANEL .............................................................................................................................................................7
2.2 REAR PANEL...............................................................................................................................................................8
2.3 HARDWARE INSTALLATION............................................................................................................................................8
2.4 DESKTOP INSTALLATION...............................................................................................................................................9
2.5 RACK MOUNTING (OPTIONAL RACK KITS) ....................................................................................................................10

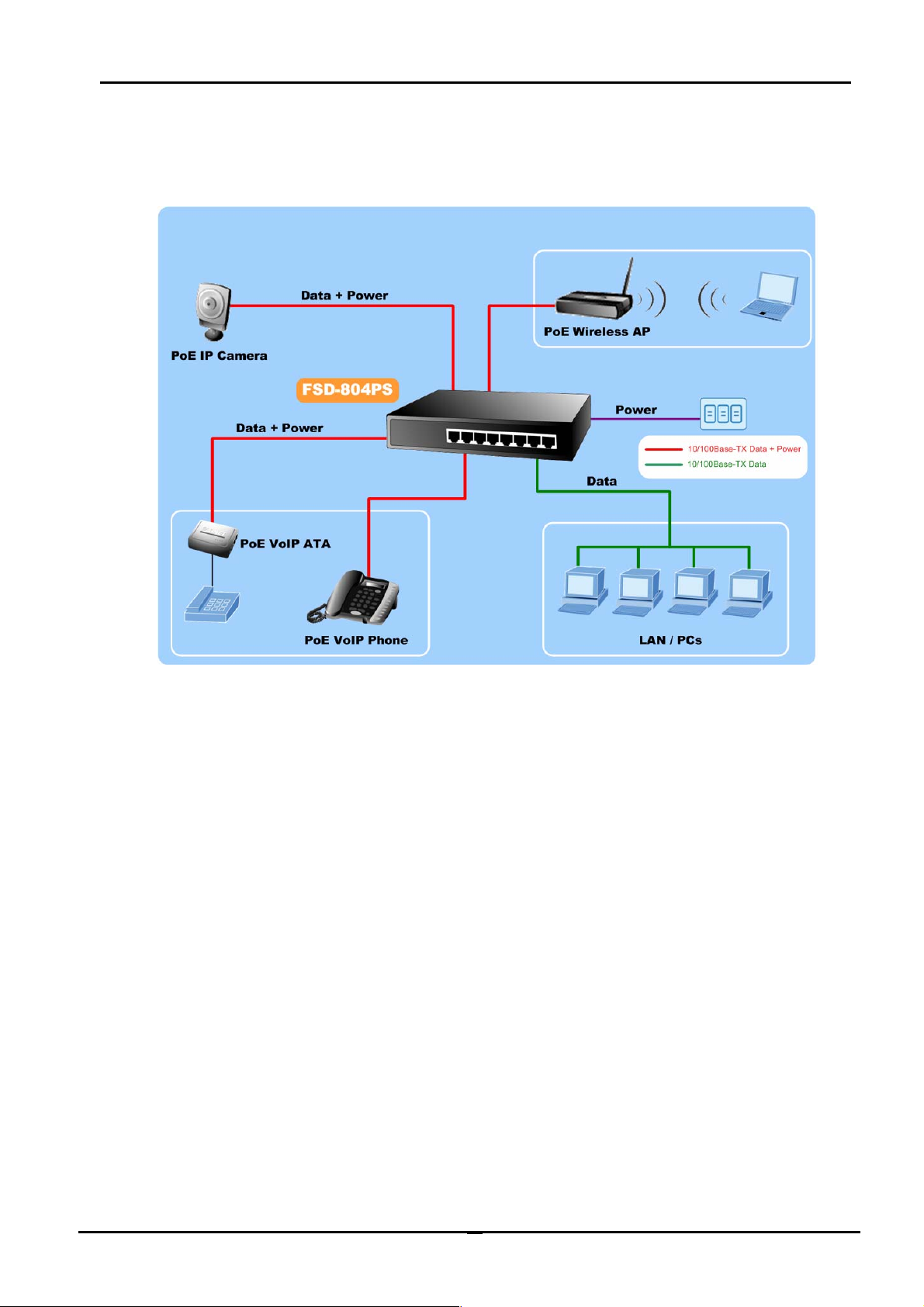

2.6 PRODUCT APPLICATION..............................................................................................................................................11
3. WEB MANAGEMENT..................................................................................................................................................13
3.1 LOGIN IN TO THE SWITCH............................................................................................................................................13
3-2 PORT STATUS...........................................................................................................................................................14
3-3 PORT SETUP.............................................................................................................................................................15
3-4 PORT STATUS COUNTERS..........................................................................................................................................16
3-5 VLAN SETUP............................................................................................................................................................17
3.5.1 Port-based VLAN setting:................................................................................................................................18
3.5.2 Port-based VLAN setting example:..................................................................................................................19
3.5.3 802.1Q VLAN setting:......................................................................................................................................20
3.5.4 802.1Q VLAN setting example:........................................................................................................................21

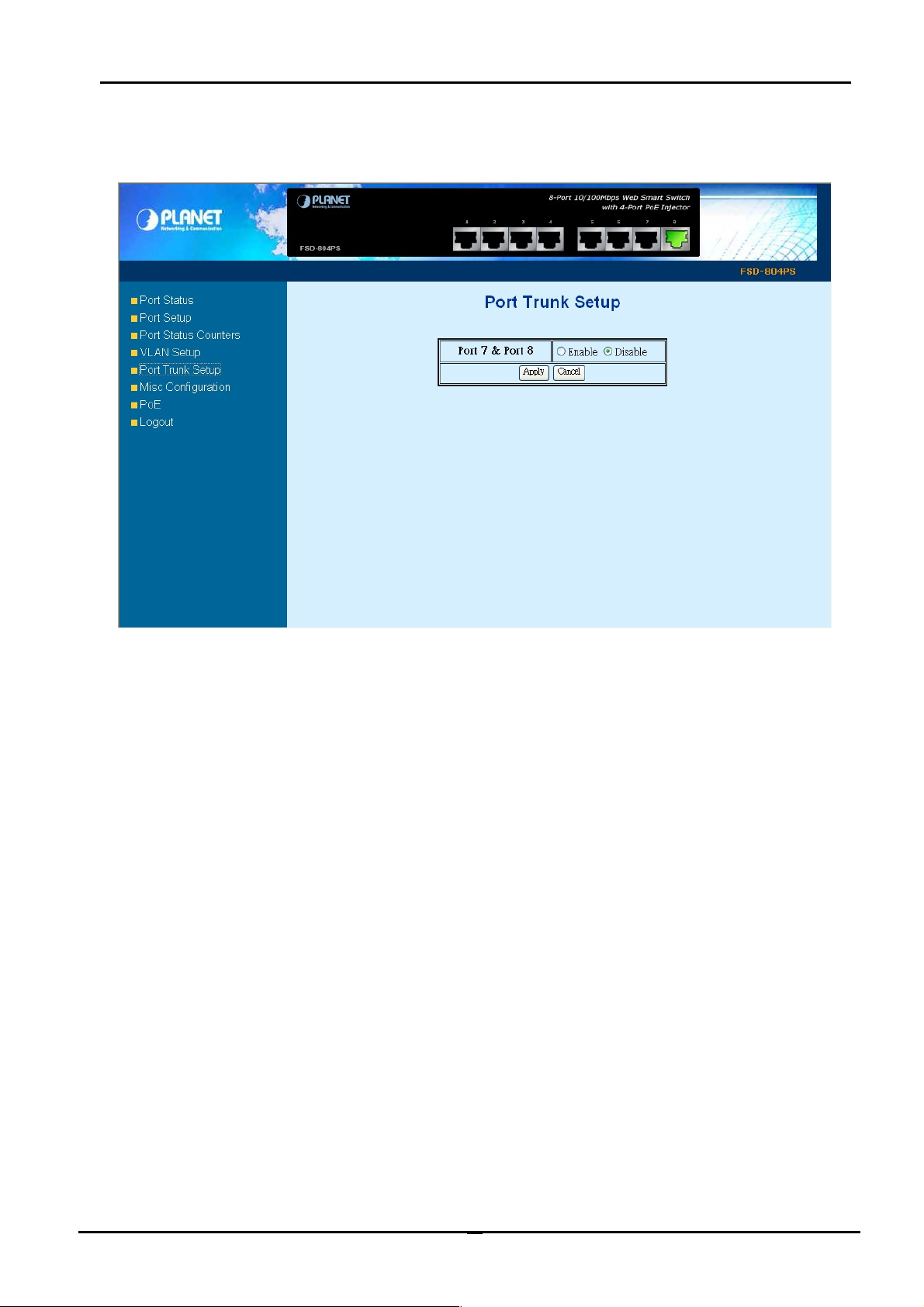

3-6 PORT TRUNK SETUP..................................................................................................................................................22
3-7 MISC CONFIGURATION ...............................................................................................................................................23

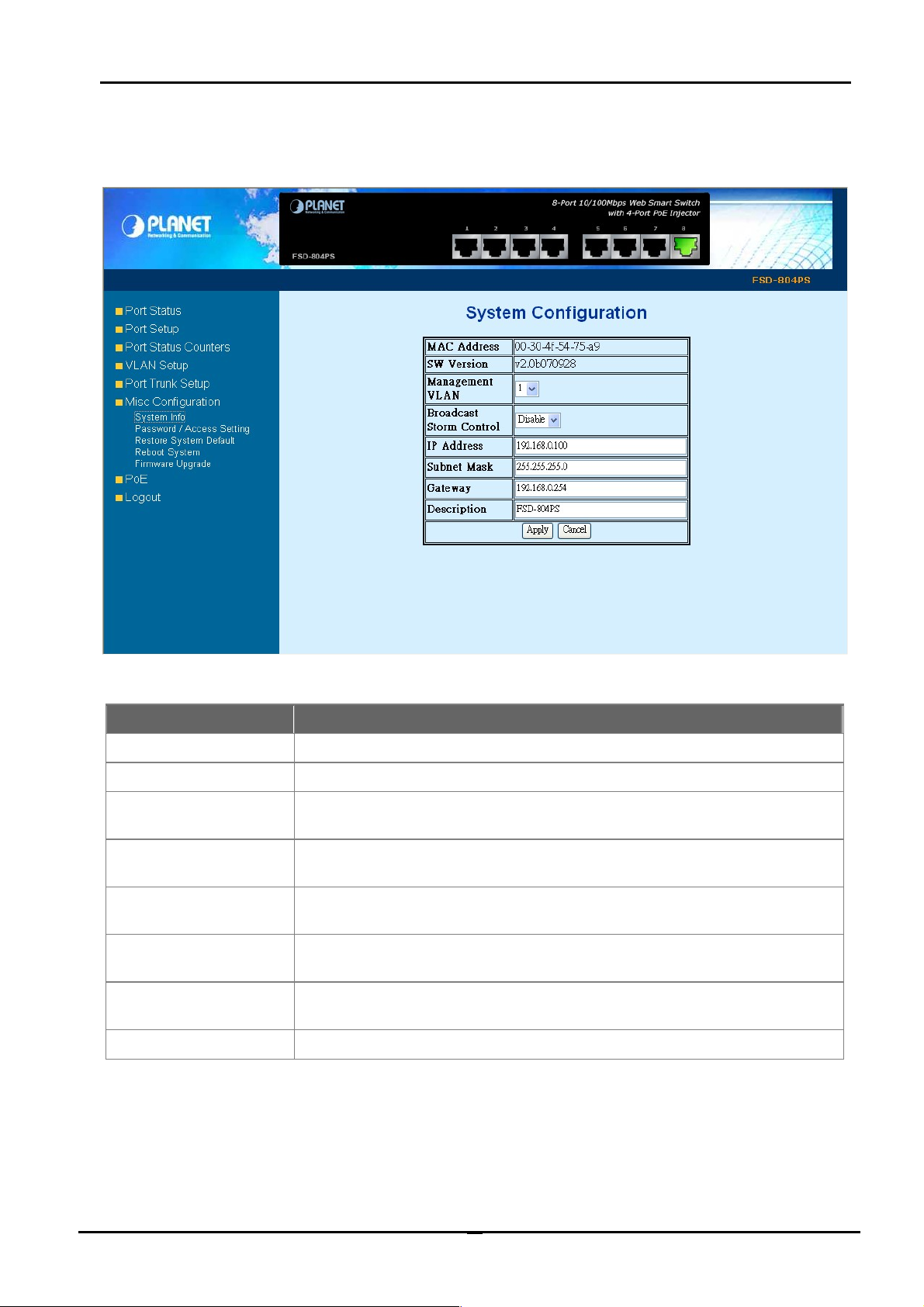

3.7.1 System Information..........................................................................................................................................24
3.7.2 Password / Access Setting..............................................................................................................................26

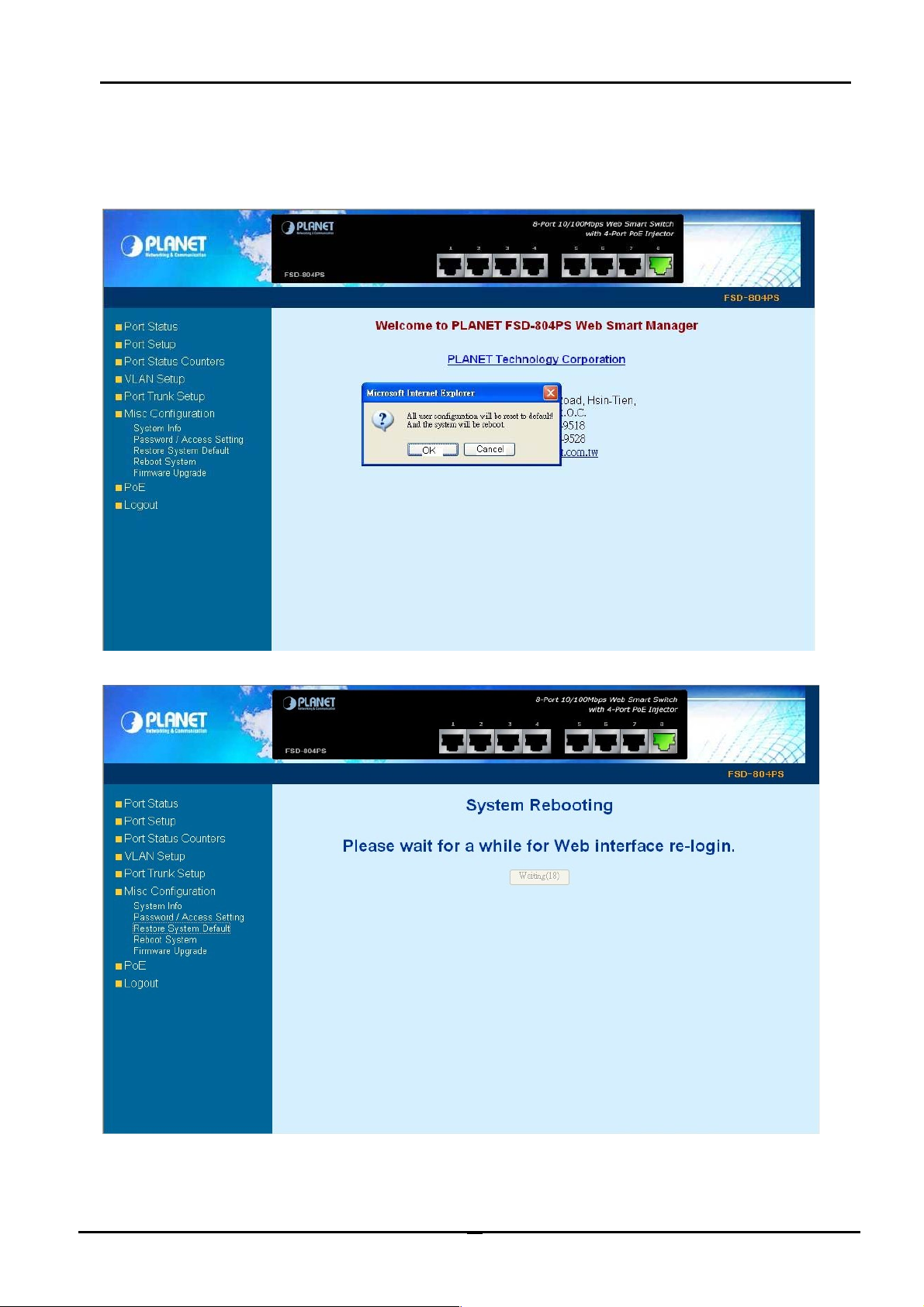

3.7.3 Restore System Default...................................................................................................................................27
3.7.4 Reboot System................................................................................................................................................28
3.7.5 Firmware Upgrade...........................................................................................................................................30
3-8 POE........................................................................................................................................................................32
3-9 LOGOUT ...................................................................................................................................................................33
4. SWITCH OPERATION.................................................................................................................................................34
4.1 ADDRESS TABLE........................................................................................................................................................34
4.2 LEARNING.................................................................................................................................................................34
4.3 FORWARDING & FILTERING.........................................................................................................................................34
4.4 STORE-AND-FORWARD ..............................................................................................................................................34
4.5 AUTO-NEGOTIATION ..................................................................................................................................................34
5.TROUBLESHOOTING..................................................................................................................................................35
APPENDIX A NETWORKING CONNECTION.................................................................................................................36
A.1 SWITCH‘S RJ-45 PIN ASSIGNMENTS...........................................................................................................................36
A.2 RJ-45 CABLE PIN ASSIGNMENT ...................................................................................................................................36
- 3 -
User’s Manual of FSD-804PS
1. INTRODUCTION
1.1 Checklist
Check the contents of your package for follow i ng parts:
z FSD-804PS x1
z User's manual CD x1
z Quick installation guide x1
z Power cord x 1
z Rubber feet x 4
If any of these pieces are missing or damaged, please contact your dealer immediately, if possible, retain the carton
including the original packing material, and use them against to repack the product in case there is a need to return it to
us for repair.
1.2 About the Switch
The FSD-804PS is equipped with unshielded twisted-pair (UTP) cable ports providing dedicated 10 or 100Mbps bandwidth. The FSD-804PS supports MDI/ MDI-X convertible on 8-10/100Mbps ports, also provide PoE inject function on
port#1, 2, 3, 4, which is able to drive 4 IEEE 802.3af compliant powered devices. The dual speed ports use standard
twisted-pair cabling and are ideal for SOHO or segmenting networks into small. Each 10/100Mbps port can supports up to
200Mbps of throughput in full-duplex mode, the FSD-804PS also provides a simple, cost-effective, and highly reliable
network connection for data as well as power. Furthermore, it is the ideal device for bridging among Ethernet, Fast Ethernet
workgroups and networks.
With 4 PoE interfaces, the FSD-804PS is ideal for small business and workgroups requiring to deploy the PoE for the
wireless access points, IP-based surveillance camera or IP phones in any places easily, efficiently and cost effective.
The front panel of FSD-804PS provides LEDs for easy recognition of the switch operation status and troubleshooting.
These LED indicators display the power status for the system, LNK/ACT and speed for each10/100M port. Also the PoE in
use LED indicates for PoE ports (port#1 to port#4).
With data and power over Ethernet from one unit, the FSD-804PS shall reduce cables and eliminates the need for dedicated electrical outlets on the wall, ceiling or any unreachable place. A wire carries both data and power lowering the
installation costs, simplifying the installation effort and eliminating the need for electricians or extension cords. We are also
proud of the key feature – energy saving. With more efficient switching power supply, the efficiency of the FSD-804PS
would be much better than four linear power adapters in a long run.
The smart functions make it easy to survey and control the PoE power provision to the devices by the Web interface. Basic
switching functions such as VLAN, Trunk, QoS are available for network management.
1.3 Features
◆ 8-Port 10/100Mbps Fast Ethernet ports
◆ 4-Port support 48VDC power to PoE Powered Device
◆ Ethernet standards comply with IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3x Flow Control and
IEEE 802.3af Power over Ethernet.
◆ Hardware based 10/100Mbps auto-negotiation
◆ Flow control for full duplex operation and back pressure for half duplex operation
◆ Integrates address look-up engine, support 2K absolute MAC addresses
◆ Automatic address learning and address aging
◆ Supports Auto MDI/MDI-X function
◆ LED indicators for easy network diagnostic
◆ Web management
◆ VLAN for network segregation
- 4 -
◆ Port trunk bandwidth aggregation
◆ Per port High/Low transmission priority configuration
◆ PoE power Disable/Enable by management interface
◆ PoE power consumption monitoring
◆ Supports PLANET Smart-DISCOVERY Utility for deploy management
◆ EMI standards comply with FCC, CE class A
User’s Manual of FSD-804PS
- 5 -
1.4 Specification
Model FSD-804PS
Hardware Specification
Network Connector 8-Port RJ-45 for 10/100TX
PoE Inject Port 4-Port with PoE injector function, Port-1 to Port-4
PoE Output power budget 55 Watts
One power,
LED Display
Switch Architecture Store and forward switch architecture
Switch Fabric 1.6Gbps
MAC Address 2K MAC address table with Auto learning function
Throughput 1.19Mbps
Remote power feeding
1-4 port PoE in-use, LNK/ACT, 100,
5-8 port LNK/ACT, 100
End-point insert type and compatible with IEEE 802.3af
Per port feeding power: 48V DC, 15.4W, 350mA (Maximum)
(Pin 1, 2, 3, 6)
User’s Manual of FSD-804PS
Power AC 100~240V, 50/60Hz,
Power Consumption Max. 65 watts / 221 BTU
Dimension (W x D x H) 217 x 135 x 43 mm
Weight 1.0 kg
Layer 2 Function
Management Web management
VLAN Port-Based VLAN and IEEE 802.1Q Tag-Based VLAN, up to 8 VLAN groups
Port priority High/Low
Storm Control Disable, 10%, 20%, 40%, 4 levels
Port Trunk Port #7 and #8, fixed
PoE power control Power provision Enable/Disable, priority configuration, Power Limit
Standard Conformance
EMI Safety FCC Class A, CE
Operating environment 0~40 degree C, 10%~95%RH
Storage environment -40 ~70 degree C, 95% RH
Operating Humidity
5% to 90% , relative humidity, non-condensing
Storage Humidity
5% to 90% , relative humidity, non-condensing
Standard Compliance IEEE 802.3 Ethernet,
IEEE 802.3u Fast Ethernet,
IEEE 802.3x Flow Control
IEEE 802.3af Power over Ethernet.
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN Tagging
- 6 -
User’s Manual of FSD-804PS
2. HARDWARE DESCRIPTION
This product provides two different running speeds – 10Mbps, 100Mbps in the same Switch and automatically distinguishes the speed of incoming connection.
This section describes the hardware features of FSD-804PS. For easier management and control of the Switch, familiarize
yourself with its display indicators, and ports. Front panel illustrations in this chapter display the unit LED indicators. Before
connecting any network device to the FSD-804PS, read this chapter carefully.
In the following section, the term “Switch” means the Switch device, ie. FSD-804PS; term of “switch” can be any third
switches.
2.1 Front Panel
The Front Panel of the FSD-804PS PoE Web Smart Ethernet Switch consists of 8x Auto-Sensing 10/100Mbps Ethernet
RJ-45 Ports. The LED Indicators are also located on the front panel of the FSD-804PS.
Figure 2-1: FSD-804PS Switch front panel
2.1.1 LED indicators
■ System
LED Color Function
PWR Green
■ Per 10/100Mbps port
LED Color Function
PoE in-use Green
LNK/ACT Green
100 Green
#Notice:
1. Press the RESET button once. The Switch will reboot automatically.
2. Press the RESET button for 5 seconds. The Switch will back to the factory default mode; the
Lights to indicate that the Switch has power.
Lights to indicate the port is providing 48VDC in-line power. (1-4 ports)
Lit: indicate the link through that port is successfully established.
Blinks to indicate that the Switch is actively sending or receiving data over that port.
Lights to indicate the port is running in 100Mbps speed.
entire configuration will be erased.
- 7 -
User’s Manual of FSD-804PS
2.2 Rear Panel
The rear panel of the FSD-804PS indicates an AC inlet power socket, which accepts input power from 100 to 240VAC,
50-60Hz, 1A max. And have a fan hole on the rear panel.
Figure 2-2: FSD-804PS Switch rear panel
1. The device is a power-required device, it means, it will not work till it is powered. If your
networks should active all the time, please consider using UPS (Uninterrupted Power
Supply) for your device. It will prevent you from network data loss or network downtime.
Power Notice:
2. In some area, installing a surge suppression device may also help to protect your
FSD-804PS from being damaged by unregulated surge or current to the FSD-804PS or
the power adapter.
2.3 Hardware Installation
2.3.1 Before start up
Before your installation, please refer to the followings for your cabling:
100Base-TX
All 100Base-TX ports come with Auto-Negotiation capability. They automatically support 100Base-TX and 10Base-T
networks. Users only need to plug a working network device into one of the 100Base-TX ports, and then turn on the
FSD-804PS. The port will automatically runs in 10Mbps, 20Mbps, 100Mbps or 200Mbps after the negotiation with the
connected device.
Cabling
Each 10/100Base-TX ports use RJ-45 sockets -- similar to phone jacks -- for connection of unshielded twisted-pair
cable (UTP). The IEEE 802.3u Fast Ethernet standard requires Category 5 UTP for 100Mbps 100Base-TX. 10Base-T
networks can use Cat.3, 4, or 5 UTP (see table below). Maximum distance is 100meters (328 feet).
Port Type Cable Type Connector
10Base-T Cat 3, 4, 5, 2-pair RJ-45
100Base-TX Cat.5 UTP, 2-pair RJ-45
Any Ethernet devices like hubs/ PCs can connect to the FSD-804PS by using straight-through wires. The
eight-10/100Mbps ports are auto-MDI/MDI-X can be used on straight-through or crossover cable.
- 8 -
User’s Manual of FSD-804PS
2.4 Desktop Installation
To install the Switch on desktop, simply follow the next steps:
Step1: Attach the rubber feet to the recessed areas on the bottom of the Switch, as shown in Figure 2-3.
Figure 2-3 Attaching the rubber feet to the Switch
Step2: Place the Switch on desktop near an AC power source.
Step3: Keep enough ventilation space between the Switch and the surrounding objects.
Notice:
When choosing a location, please keep in mind the environmental restrictions discussed in Chapter 1, Section 1.4 Product
Specification.
Step4: Connect your Switch to network devices.
A. Connect one end of a standard network cable to the 10/100 RJ-45 ports on the Back of the Switch.
B. Connect the other end of the cable to the network devices such as printer servers, workstations or routers…etc.
Notice:
Connection to the Switch requires UTP Category 5 network cabling with RJ-45 tips. For more information, please see the
Cabling Specification in Appendix A.
Step5: Supply power to the Switch.
A. Connect one end of the power cable to the Switch.
B. Connect the power plug of the power cable to a standard wall outlet.
When the Switch receives power, the Power LED should remain solid Green.
- 9 -
User’s Manual of FSD-804PS
2.5 Rack Mounting (Optional Rack Kits)
To install the Switch in a 10-inch or 19-inch standard rack, PLANET provides the optional rack mount kits RKE-10A /
RKE-10B for different need. Follow the instructions described below.
Step1: Place your Switch on a hard flat surface, with the front panel positioned towards your front side.
Step2: Attach a rack-mount bracket to each side of the Switch with supplied screws attached to the package. Figure 2-4
shows how to attach brackets to one side of the Switch.
Figure 2-4 Attaching the brackets to the Switch.
Caution:
You must use the screws supplied with the mounting brackets. Damage caused to the parts by using incorrect screws
would invalidate your warranty.
Step3: Secure the brackets tightly.
Step4: Follow the same steps to attach the second bracket to the opposite side.
Step5: After the brackets are attached to the Switch, use suitable screws to securely attach the brackets to the rack, as
shown in Figure 2-5.
Figure 2-5 Mounting the Switch in a Rack
Step6: Proceeds with the steps 4 and steps 5 of session 2.4 Desktop Installation to connect the network cabling and
supply power to your Switch.
- 10 -
User’s Manual of FSD-804PS
2.6 Product Application
2.6.1 Connecting end node or Switch
1. Place the FSD-804PS on a smooth surf ace or fasten the mounting brackets purchased separately with the provided screws in a standard 19” rack.
2. Connect the power cord to the power inlet socket of FSD-804PS and the other end into the local power source
outlet. When the Switch receives power, the Power LED should remain solid Green.
3. Connect other switch or PC to one port of the FSD-804PS using Category 3/4/5 UTP/STP cabling.
4. Connect another switch or PC to the other port of FSD-804PS by following the same process as described in Step
3.
Figure 2-6. End node or Switch connection
Cable distance for Switch
The cable distance between the FSD-804PS and PC should not exceed 100 meter for
UTP/STP cable.
#Notice:
Make sure the wiring is correct
It can be used Category 3/4/5 cable in 10 Mbps operation. To reliably operate your network at
100Mbps, you must use an Unshielded Twisted-Pair (UTP) Category 5 cable, or better Data
Grade cabling. While a Category 3 or 4 cables may initially seem to work, it will soon cause
data loss.
- 11 -
Loading...
