FSD-624SF
User's Manual
4-Port 100Base-FX POF +
2 Gigabit Web Smart Switch
- 1 -
Trademarks
Copyright © PLANET Technology Corp. 2008.
Contents subject to revision without prior notice.
PLANET is a registered trademark of PLANET Technology Corp. All other trademarks belong to their respective
owners.
Disclaimer
PLANET Technology does not warrant that the hardware will work properly in all environments and applications,
and makes no warranty and representation, either implied or expressed, with respect to the quality, performance,
merchantability, or fitness for a particular purpose.
PLANET has made every effort to ensure that this User’s Manual is accurate; PLANET disclaims liability for any
inaccuracies or omissions that may have occurred.
Information in this User’s Manual is subject to change without notice and does not represent a commitment on the
part of PLANET. PLANET assumes no responsibility for any inaccuracies that may be contained in this User’s
Manual. PLANET makes no commitment to update or keep current the information in this User’s Manual, and
reserves the right to make improvements to this User’s Manual and/or to the products described in this User’s
Manual, at any time without notice.
If you find information in this manual that is incorrect, misleading, or incomplete, we would appreciate your
comments and suggestions.
FCC Warning
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the Instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct the interference at his own expense.
CE Mark Warning
This is a Class A product. In a domestic environment, this product may cause radio interference, in which case the
user may be required to take adequate measures.
WEEE Warning
To avoid the potential effects on the environment and human health as a result of the presence of
hazardous substances in electrical and electronic equipment, end users of electrical and electronic
equipment should understand the meaning of the crossed-out wheeled bin symbol. Do not dispose of
WEEE as unsorted municipal waste and have to collect such WEEE separately.
Revision
PLANET 4-Port 100Base-FX POF + 2-Port Gigabit Web Smart Switch User's Manual
FOR MODEL: FSD-624SF
REVISION: 1.0(JULY.2008)
Part No.: 2080-A33190-000
- 2 -
TABLE OF CONTENTS
1. INTRODUCTION.......................................................................................................................................... 4
1.1 CHECKLIST ................................................................................................................................................4
1.2 ABOUT THE SWITCH ...................................................................................................................................4
1.3 FEATURES .................................................................................................................................................5
1.4 SPECIFICATION ..........................................................................................................................................6
2. HARDWARE DESCRIPTION...................................................................................................................... 8
2.1 FRONT PANEL............................................................................................................................................8
2.2 REAR PANEL.............................................................................................................................................. 9
2.3 HARDWARE INSTALLATION..........................................................................................................................9
3. SWITCH MANAGEMENT..........................................................................................................................12
3.1 OVERVIEW...............................................................................................................................................12
3.2 MANAGEMENT METHOD............................................................................................................................12
3.2.1 Web Management...........................................................................................................................12
3.2.2 PLANET Smart Discovery Utility..................................................................................................... 13
3.3 LOGGING ON TO THE FSD-624SF............................................................................................................. 14
4. WEB MANAGEMENT.................................................................................................................................15
4.1 LOGIN IN TO THE SWITCH..........................................................................................................................15
4.2 SYSTEM...................................................................................................................................................17
4.2.1 System Information.........................................................................................................................18
4.2.2 IP Configuration..............................................................................................................................19
4.2.3 Password Setting............................................................................................................................20
4.2.4 Factory Default................................................................................................................................21
4.2.5 Firmware Update ............................................................................................................................22
4.2.6 Reboot.............................................................................................................................................25
4.3 PORT MANAGEMENT ................................................................................................................................26
4.3.1 Port Configuration...........................................................................................................................27
4.3.2 Port Mirroring..................................................................................................................................29
4.3.3 Bandwidth Control...........................................................................................................................30
4.3.4 Broadcast Storm Control.................................................................................................................31
4.3.5 Port Statistics..................................................................................................................................32
4.4 VLAN SETTING........................................................................................................................................33
4.4.1 802.1Q VLAN..................................................................................................................................36
4.4.2 Port Based VLAN............................................................................................................................38
4.4.3 MTU VLAN......................................................................................................................................40
4.5 QOS SETTING..........................................................................................................................................41
4.5.1 Priority Mode...................................................................................................................................42
4.5.2 Class of Service Configuration .......................................................................................................43
4.5.3 TCP / UDP Port Based QoS........................................................................................................... 45
4.6 SECURITY FILTER.....................................................................................................................................47
4.6.1 MAC Address Filter.........................................................................................................................48
4.6.2 TCP / UDP Filter .............................................................................................................................49
4.7 MISC OPERATION.....................................................................................................................................51
4.8 LOGOUT...................................................................................................................................................52
5. SWITCH OPERATION................................................................................................................................53
5.1 ADDRESS TABLE ......................................................................................................................................53
5.2 LEARNING................................................................................................................................................53
5.3 FORWARDING & FILTERING.......................................................................................................................53
5.4 STORE-AND-FORWARD.............................................................................................................................53
5.5 AUTO-NEGOTIATION.................................................................................................................................53
6. TROUBLESHOOTING................................................................................................................................54
APPENDIX A NETWORKING CONNECTION............................................................................................... 55
A.1 SWITCH‘S RJ-45 PIN ASSIGNMENTS.........................................................................................................55
A.2 RJ-45 CABLE PIN ASSIGNMENT.................................................................................................................55
A.3 100MBPS, 100BASE-FX, SMI TYPE CONNECTOR......................................................................................56
- 3 -
1. INTRODUCTION
1.1 Checklist
Check the contents of your package for follow i ng parts:
z FSD-624SF x1
z Quick Installation Guide x1
z User's manual CD x1
z Power adapter x 1
z Rubber feet x 4
If any of these pieces are missing or damaged, please contact your dealer immediately, if possible, retain the carton
including the original packing material, and use them against to repack the product in case there is a need to return it to
us for repair.
In the following section, the term “Web Smart Switch” means the Switch device, ie. FSD-624SF; term of “switch” can
be any third switches.
1.2 About the Switch
The FSD-624SF provides 4 -Port 100Base-FX POF Fast Ethernet ports and two Gigabit Ethernet ports (one 1000Base-T
port and one Gigabit mini-GBIC interface), its fiber-optic interface in the form factor of SMI (Small Multimedia Interface)
interface, the SMI (Small Multimedia Interface) is one kind of POF (Plastic Optic Fiber) interface that can suitable for
low-cost and high-speed data transmission. The two Gigabit ports either can be 1000Base-T for 10/100/1000Mbps or
1000Base-SX/LX through SFP (Small Factor Pluggable) interfaces. The distance can be extended from 100 meters (TP),
550 meters (Multi-mode fiber), up to above 10/20/30/40/50/70/120 kilometers (Single-mode fiber).
The FSD-624SF equipped with non-blocking 4.8Gbps backplane, greatly simplifies the tasks of upgrading your LAN for
catering to increase bandwidth demands. With high performance data transmit and easy installation, the FSD-624SF can
building a fast / reliable network solution of FTTH (Fiber To The Home) and small office network environment from enterprise.
- 4 -
For efficient management, the FSD-624SF 4-Port 100Base-FX POF + 2-Port Gigabit Web Smart Switch is equipped with
remote Web interface. The FSD-624SF can be programmed for advanced switch management functions such as port
configuration, port-based / IEEE 802.1Q / MTU VLAN, port mirroring, QoS, bandwidth control, broadcast storm control,
MAC address / TCP & UDP filter and IGMP Snooping v1/v2.
The FSD-624SF provide port-based / IEEE 802.1Q / MTU VLAN (port based / IEEE 802.1Q VLAN including overlapping).
The VLAN groups allowed on the FSD-624SF, will be maximally up to 6 for port-based / 32 for IEEE 802.1Q VLAN groups.
Also the MTU VLAN divides per port as separate LAN group and only can access the public port G1 or public port G1/G2.
The 4-Port 100Base-FX POF fiber interfaces supports 100Mbps full-duplex operation mode (Auto negotiation or force
mode option). The SMI path cord meets the IEEE 1394b specification that can transmit data at S200 (250Mbps) speed for
50 meters, with its Auto-Negotiation capability, the 1000Base-T RJ-45 port of Web Smart Switch can be configured to
speeds of 10/20Mbps / 100/200Mbps (Fast Ethernet) and 1000/2000Mbps (Gigabit Ethernet) automatically. In addition,
the Web Smart Switch is equipped with the MDI/MDI-X auto detection for easily plug and play connection, regardless of
cabling types-straight through or crossover.
1.3 Features
◆ Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z Gigabit Ethernet standard
◆ 4-Port 100Base-FX POF Web Smart Switch
◆ 2 Gigabit interfaces ( One 1000Base-T port and one Gigabit mini-GBIC interface)
◆ Each Switching ports support auto-negotiation-10/20, 100/200Mbps (Fast Ethernet) , 1000/2000Mbps (Gigabit
Ethernet) supported
◆ Auto-MDI/MDI-X detection on RJ-45 port
◆ Prevents packet loss with back pressure (Half-duplex) and IEEE 802.3x PAUSE frame flow control (Full-duplex)
◆ High performance Store and Forward architecture, broadcast storm control, runt/CRC filtering eliminates erroneous
packets to optimize the network bandwidth
◆ 4K MAC address table, automatic source address learning and ageing
◆ 2.75Mb embedded memory for packet buffers
◆ Remote Web interface for Switch management and setup
◆ Broadcast Storm Control support
◆ Supports up to 6 port-based VLAN groups / 32 IEEE 802.1Q VLAN groups / MTU VLAN
◆ Supports QoS , bandwidth control and MAC address filter / TCP & UDP filter on each port
◆ Supports port mirroring function and IGMP Snooping v1 / v2
◆ Firmware upgrade through Web interface
◆ Password setting, IP setting and device description setting through Planet Smart discovery utility
◆ Desktop placement size
◆ Internal full-range power supply suitable for worldwide use
◆ EMI standards complies with FCC, CE class A
- 5 -
1.4 Specification
Model
Hardware Specification
100Base-FX POF Ports
Gigabit ports
Switch Processing Scheme
Throughput (packet per second)
Switch Fabric
Address Table
Share Data Buffer
Flow Control
Dimensions
Weight
Power Requirement
Power Consumption / Dissipation
FSD-624SF
4
One 1000BASE-T port and one Gigabit mini-GBIC SFP interface
Store-and-Forward
3.57Mpps
4.8Gbps
4K entries
2.75Mb embedded memory for packet buffers
Back pressure for half duplex, IEEE 802.3x Pause Frame for full duplex
186 x 143 x 35 mm ( W x D x H))
370g
DC 5V 2A
9.6watts / 32BTU
Temperature
Humidity Operating:
Smart function
System Configuration
Port configuration
Bandwidth Control
Broadcast Storm Control
Port Statistics
VLAN
Port Mirroring
QoS
Operating: 0~50 degree C
Storage: -40~70 degree
5% to 90%, Storage: 5% to 90% (Non-condensing)
Web interface
Port speed duplex mode selection. Flow control disable / enable. Port disable
/ enable. Port description on each port
Yes, 1 / 2 / 4 / 8 / 16 / 32 / 64Mbps
Yes, 5% / 10% / 25% / 50% / Disable
Display each port’s detail Ethernet traffic counter information
6 port-based VLAN groups / 32 IEEE 802.1Q VLAN groups / MTU VLAN
Port mirroring allows monitoring of the traffic across any port in real time
Allow to assign low / high priority on each port.
First-In-First-Out, All-High-before-Low, Weight-Round-Robin QoS policy.
MAC address / TCP & UDP filter
IGMP Snooping v1 / v2
- 6 -
Yes
Allow to disable or enable.
Standards Conformance
Regulation Compliance
Standards Compliance
FCC Part 15 Class A, CE
IEEE 802.3 (Ethernet)
IEEE 802.3u (Fast Ethernet)
IEEE 802.3ab(Gigabit Ethernet)
IEEE 802.3z(Gigabit Ethernet)
IEEE 802.3x (Full-duplex flow control)
IEEE 802.1Q VLAN
IEEE 802.1p QoS
- 7 -
2. HARDWARE DESCRIPTION
This product provides three different running speeds – 10Mbps, 100Mbps and 1000Mbps in the same Web Smart Switch
and automatically distinguishes the speed of incoming connection.
This section describes the hardware features of Web Smart Switch. For easier management and control of the Web Smart
Switch, familiarize yourself with its display indicators, and ports. Front panel illustrations in this chapter display the unit LED
indicators. Before connecting any network device to the Web Smart Switch, read this chapter carefully.
2.1 Front Panel
The Front Panel of the Web Smart Ethernet Switch consists of 4x 100Base-FX POF Ports, Also provides 2 Gigabit interfaces either can be 1000Base-T for 10/100/1000Mbps and 1000Base-SX/LX through SFP (Small Factor Pluggable)
interface.
The LED Indicators are also located on the front panel of the Web Smart Switch.
PWR
Figure 2-1 FSD-624SF Switch front panel
2.1.1 LED indicators
System
LED Color Function
PWR Green Lights to indicate that the Switch has power.
Per 100Base-FX POF port
LED Color Function
POF Green
Lights to indicate the POF connection is established.
Off to indicate the POF connection is not established.
Blink fast to indicate that the Switch is actively sending or receiving data over that port.
Per 10/100/1000Base-T port interface
LED Color Function
Lights to indicate the port is run at 1000Mbps.
100/1000 Green
LNK/ACT Green
Per mini-GBIC SFP interface
Blink Slowly to indicate the port is run at 100Mbps
Off: indicate that the port is operating at 10Mbps.
Lights to indicate the link through that port is established at 10/100/1000Mbps full duplex mode.
Blink slowly to indicate the link through that port is established at 10/100Mbps half duplex mode.
Blink fast to indicate that the Switch is actively sending or receiving data over that port.
1000/100
LNK/ACT
POF
1234G1 G2
Home Fiber Switch
4-Port POF
LED Color Function
100/1000 Green
LNK/ACT Green
Lights to indicate the port is run at 1000Mbps.
Off to indicate the Gigabit fiber connection is not established.
Lights to indicate the Gigabit fiber connection is established.
Blink fast to indicate that the Switch is actively sending or receiving data over that port.
- 8 -
#Notice:
1. Press the RESET button once. The Web Smart Switch will reboot automatically.
2. Press the RESET button for 5 seconds. The Web Smart Switch will back to the factory default
mode; the entire configuration will be erased.
2.2 Rear Panel
The rear panel of the Web Smart Switch indicates a DC power connector, which accepts input power of DC 5V 2A.
Figure 2-2 FSD-624SF Switch rear panel
Power Notice:
1. The device is a power-required device, it means, it will not work till it is powered. If your networks should active all the
time, please consider using UPS (Uninterrupted Power Supply) for your device. It will prevent you from network data
loss or network downtime.
2. In some area, installing a surge suppression device may also help to protect your Web Smart Switch from being
damaged by unregulated surge or current to the Web Smart Switch.
2.3 Hardware Installation
This part describes how to install your Web Smart Switch and make connections to the Switch. Please read the following
topics and perform the procedures in the order being presented. To install your Web Smart Switch on a desktop or shelf,
simply completed the following steps.
2.3.1 Desktop Installation
To install Web Smart Switch on a desktop or shelf, simply completed the following steps:
Step 1: Attached the rubber feet to the recessed areas on the bottom of the Web Smart Switch.
Step 2: Place the Web Smart Switch on a desktop near an DC power source.
Step 3: Keep enough ventilation space between the Web Smart Switch and the surrounding objects.
#Notice:
Step 4: Connect your Switch to POF devices / network devices
A. Connect one end of a POF cable to the 100Base-FX POF ports on the rear panel of the Web Smart Switch.
B. Connect one end of a standard network cable to 100Base-FX POF ports from other POF devices.
C. Connect one end of a standard network cable to the 1000Base-T RJ-45 port on the rear of the Web Smart Switch.
D. Connect the other end of the cable to the network devices such as printer servers, workstations or routers…etc.
#Notice:
When choosing a location, please keep in mind the environmental restrictions discussed in
Chapter 1, Section 4, Specification.
Connection to the Web Smart Switch requires Plastic of Fiber / UTP Category 5 network cabling
with RJ-45 tips. For more information, please see the Cabling Specification in Appendix A.
Step 5: Supply power to the Web Smart Switch.
A. Connect one end of the power cable to the Web Smart Switch.
B. Connect the DC 5V power adapter to the Web Smart Switch and power on the Web Smart Switch.
When the Web Smart Switch receives power, the Power LED should remain solid Green.
- 9 -
2.3.2 Installing the SFP transceiver
The sections describe how to insert an SFP transceiver into an SFP slot. The SFP transceivers are hot-pluggable and
hot-swappable. You can plug-in and out the transceiver to/from any SFP port without having to pow er down the Web Smart
Switch. As the Figure 2-3 appears.
Figure 2-3 Plug-in the SFP transceiver
Approved PLANET SFP Transceivers
PLANET Web Smart Switch supports both single mode and multi mode SFP transceiver. The following list of approved
PLANET SFP transceivers is correct at the time of publication:
■MGB-SX SFP (1000Base-SX SFP transceiver )
■MGB-LX SFP (1000Base-LX SFP transceiver )
#Notice:
It recommends using PLANET SFP transceiver on the Web Smart Switch. If you insert a SFP
transceiver that is not supported, the Web Smart Switch will not recognize it.
Before connect the other switches, workstation or Media Converter.
1. Make sure both side of the SFP transceiver are with the same media type, for example: 1000Base-SX to
1000Base-SX, 1000Base-LX to 1000Base-LX.
2. Check the fiber-optic cable type match the SFP transceiver model.
¾ To connect to 1000Base-SX SFP transceiver, use the multi-mode fiber cable- with one side must be male
duplex LC connector type.
¾ To connect to 1000Base-LX SFP transceiver, use the single-mode fiber cable-with one side must be male
duplex LC connector type.
- 10 -
Connect the fiber cable
1. Attach the duplex LC connector on the network cable into the SFP transceiver.
2. Connect the other end of the cable to a device – switches with SFP installed, fiber NIC on a workstation or a Media
Converter..
3. Check the LNK/ACT LED of the SFP slot on the front of the Web Smart Switch. Ensure that the SFP transceiver is
operating correctly.
4. Check the Link mode of the SFP port if the link failed. Co works with some fiber-NICs or Media Converters, set the Link
mode to “1000 Force” is needed.
Remove the transceiver module
1. Make sure there is no network activity by consult or check with the network administrator. Or through the management
interface of the switch/converter (if available) to disable the port in advance.
2. Remove the Fiber Optic Cable gently.
3. Turn the handle of the MGB module to horizontal.
4. Pull out the module gently through the handle.
Figure 2-4 Pull out the SFP transceiver
#Notice:
Never pull out the module without pull the handle or the push bolts on the module. Direct pull
out the module with violent could damage the module and SFP module slot of the Web Smart
Switch.
- 11 -
3. SWITCH MANAGEMENT
This chapter describes how to manage the Web Smart Switch. Topics include:
- Overview
- Management method
- Logging on to the Web Smart Switch
3.1 Overview
The Web Smart Switch provides a user-friendly, Web interface. Using this interface, you can perform various switch configuration and management activities, including:
Please refer to the following Chapter 4 for the details.
3.2 Management Method
User can manage the Web Smart Switch by Web Management via a network connection.
3.2.1 Web Management
The PLANET FSD-624SF provides a built-in browser interface. You can manage the Switch remotely by having a remote
host with Web browser, such as Microsoft Internet Explorer, Netscape Navigator or Mozilla Firefox.
The following shows how to startup the Web Management of the Switch, please note the Switch is configured through an
Ethernet connection, make sure the manager PC must be set on the same IP subnet address, for example, the default IP
address of the Switch is 192.168.0.100 (the factory-default IP address), then the manager PC should be set at 192.168.0.x
(where x is a number between 1 and 254, except 100), and the default subnet mask is 255.255.255.0.
Use Internet Explorer 5.0 or above Web browser, enter default IP address http://192.168.0.100
After entering the username and password (default user name and password is “admin”) in login screen
- 12 -
3.2.2 PLANET Smart Discovery Utility
For easily list the FSD-624SF in your Ethernet environment, the Planet Smart Discovery Utility from user’s manual
CD-ROM is an ideal solution.
The following install instructions guiding you for run the Planet Smart Discovery Utility.
1. Deposit the Planet Smart Discovery Utility in administrator PC.
2. Run this utility and the following screen appears.
Figure 3-1 Planet Smart Discovery Utility Screen
#
Notice:
3. Press “Refresh” button for list current connected devices in the discovery list, the screen is shown as follow.
If there are two LAN cards or above in the same administrator PC, choose different LAN card by
use the “Select Adapter” tool.
Figure 3-2 Planet Smart Discovery Utility Screen
- 13 -
3. This utility show all necessary information from the devices, such as MAC Address, Device Name, firmware version,
Device IP Subnet address, also can assign new password, IP Subnet address and description for the devices.
4. After setup completed, press “Update Device”, “Update Multi” or “Update All” button to take affect. The meaning of
the 3 buttons above are shown as below:
Update Device: use current setting on one single device.
Update Multi: use current setting on choose multi-devices.
Update All: use current setting on whole devices in the list.
The same functions mentioned above also can be finding in “Option” tools bar.
5. To click the “Control Packet Force Broadcast” function, it can allow assign new setting value to the Web Smart Switch
under different IP subnet address.
6. Press “Connect to Device” button then the Web login screen appears in Figure 3-3.
7. Press “Exit” button to shutdown the planet Smart Discovery Utility.
3.3 Logging on to the FSD-624SF
When you log on to the Web Smart Switch Web interface for the first time, a sign-on string appears and you are prompted
for a Web login username and password.
Figure 3-3 Web Smart Switch Web Login Screen
The factory default login username and password is admin.
#
Notice:
- 14 -
For security reason, please change and memorize the new password after this first setup.
4. WEB MANAGEMENT
To modify your PC’s IP domain to the same with Web Smart Switch then use the default IP address (192.168.0.100) to
remote configure Web Smart Switch through the Web interface.
4.1 Login in to the Switch
To access the Web-browser interface you must first enter the user name and password, the default user name and
password is "admin”. You will see the following screen comes out on the Web browser program:
Figure 4-1 Web Login Screen
After the User name and Password is entered, you will see the Web Main Menu screen.
- 15 -
The Switch Menu provide seven major management functions, the screen in Figure 4-2 appears.
Figure 4-2 Web Main Menu Screen
The seven items and it description shown as below:
◆ System: Provide System configuration of Web Smart Switch. Explained in section 4.2.
◆ Port Management: Provide Port Management configuration of Web Smart Switch. Explained in section 4.3.
◆ VLAN Setting: Provide VLAN Setting configuration of Web Smart Switch. Explained in section 4.4.
◆ QoS Setting: Provide QoS Setting configuration of Web Smart Switch. Explained in section 4.5.
◆ Security Filter: Provide Security configuration of Web Smart Switch. Explained in section 4.6.
◆ Misc Operation: Provide Misc Operation configuration of Web Smart Switch. Explained in section 4.7.
◆ Logout: Provide Logout function of Web Smart Switch. Explained in section 4.8.
- 16 -
4.2 System
This section provides System Information, IP Configuration, Password Setting, Factory Default, Firmware Update and
Reboot functions of Web Smart Switch, the screen in Figure 4-3 appears and Table 4-1 describes the System object of
Web Smart Switch.
Figure 4-3 System Web Page Screen
Object Description
System Information
IP Configuration
Password Setting
Factory Default
Firmware Update
Reboot
Display the MAC address, Hardware Version, and Software Version, Device Description. Ex-
plained in section 4.2.1.
Allow to change the IP subnet address of Web Smart Switch. Explained in section 4.2.2.
Allow to change the username and password of Web Smart Switch. Explained in section 4.2.3.
Allow reset the Web Smart Switch to factory default mode. Explained in section 4.2.4.
Allow proceed firmware upgrade process of Web Smart Switch. Explained in section 4.2.5.
Allow reboot the Web Smart Switch. Explained in section 4.2.6.
Table 4-1 Descriptions of the System Web Page Screen Objects
- 17 -
4.2.1 System Information
This section displays the MAC address, Hardware Version and Software Version, also allow define the device description
and press “Apply” button to take affect. The screen in Figure 4-4 appears.
Figure 4-4 System Information Web Page Screen
#
Notice:
Up to 16 characters is allowed for the Device Description.
- 18 -
4.2.2 IP Configuration
This section provides change the IP Address, Subnet Mask and Gateway, the screen in Figure 4-5 appears.
Figure 4-5 IP Configuration Web Page Screen
.After setup complete and press “Apply” button to take affect. The following screen in Figure 4-6 appears and then another
Web page login screen with new IP address will show up. After input correct username and password then can continue the
Web Smart Switch management.
Figure 4-6 IP Configuration Web Page Screen
- 19 -
4.2.3 Password Setting
This section provides change the Username and Password, the screen in Figure 4-7 appears.
#Notice:

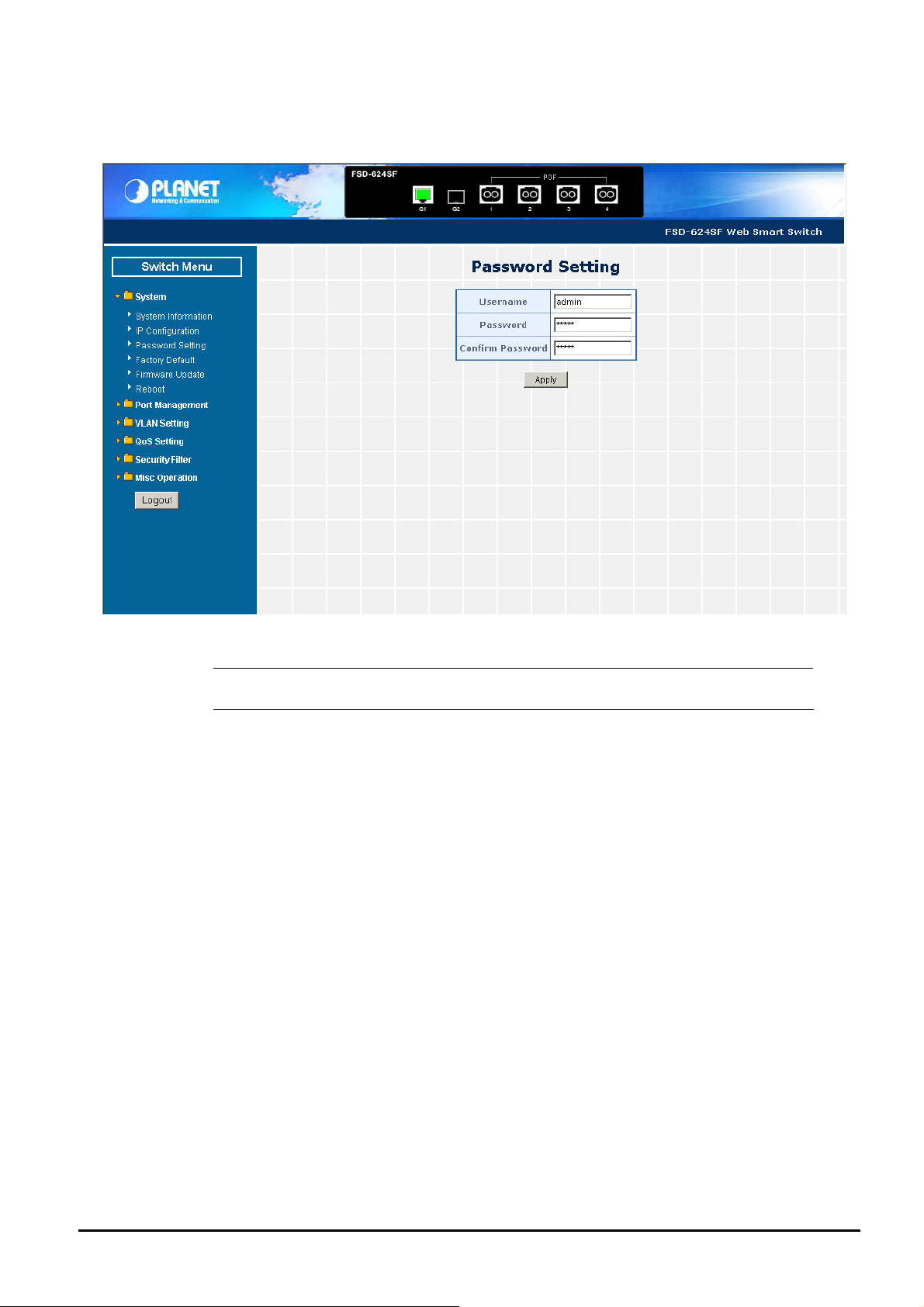

Figure 4-7 Password Setting Web Page Screen
Up to 8 characters is allowed for the username and p assword assign.
- 20 -
4.2.4 Factory Default
This section provides reset the Web Smart Switch to factory default mode, the screen in Figure 4-8 appears.
Figure 4-8 Factory Default Web Page Screen
Press “Factory Default” button to take affect. The following screen in Figure 4-9 appears and then another Web page
login screen with default setting will show up. After input default username and passw ord then can continue the Web Smart
Switch management.
Figure 4-9 Factory Default Web Page Screen
- 21 -
4.2.5 Firmware Update
This section provides firmware upgrade of the Web Smart Switch, the screen in Figure 4-10 appears.
Figure 4-10 Firmware Update Web Page Screen
Press “Update” button for start the firmware upgrade process, the screen in Figure 4-11 & 4-12 appears.
Figure 4-11 Firmware Update Web Page Screen
- 22 -
Figure 4-12 Firmware Update Web page Screen
Then the following screen appears, press “Browser” button to find the firmware location administrator PC, the screen in
Figure 4-13 appears.
Figure 4-13 Firmware Update Web Page Screen
- 23 -
After find the firmware location from administrator PC, press “Update” button to start the firmware upgrade process. The
screen in Figure 4-14 appears.
Figure 4-14 Firmware Update Web Page Screen
When firmware upgrade process is completed then the following screen appears, please wait for a while for system
reboot. After device reboot then can use the latest firmware of the Web Smart Switch.
Figure 4-15 Firmware Update Web Page Screen
#Notice:
- 24 -
Recommend to use IE 6.0 or FireFox browser tools for firmware upgrade process.
4.2.6 Reboot
This section allows reboot the Web Smart Switch, the screen in Figure 4-16 appears.
Figure 4-16 Reboot Web Page Screen
Press “Reboot” button to reboot the Web Smart Sw itch, the screen in Figure 4-17 appears. After device reboot completed,
the Web login screen appears and login for further management.
Figure 4-17 Reboot Web Page Screen
- 25 -
4.3 Port Management
This section provides Port Configuration, Port Mirroring, Bandwidth Control, Broadcast Storm Control and Port Statistics
from Web Smart Switch, the screen in Figure 4-18 appears and Table 4-2 describes the system object of Web Smart
Switch.
Figure 4-18 Port Management Web Page Screen
Object Description
Port Configuration
Port Mirroring
Bandwidth Control
Broadcast Storm Control
Port Statistics
Allow to configure each port of Web Smart Switch. Explained in section 4.3.1.
Allow to use port mirroring function of Web Smart Switch. Explained in section 4.3.2.
Allow to configure bandwidth control of each port from Web Smart Switch. Explained in
section 4.3.3.
Allow to configure broadcast storm control of each port from Web Smart Switch. Explained
in section 4.3.4.
Display each port statistics of Web Smart Switch. Explained in section 4.3.5.
Table 4-2 Descriptions of the Port Management Web Page Screen Objects
- 26 -
4.3.1 Port Configuration
This section introduces detail settings of per port on Web Smart Switch; the screen in Figure 4-19 appears and Table 4-3 &
4-4 descriptions the Port Configuration objects of Web Smart Switch.
Figure 4-19 Port Configuration Web Page Screen
Object Description
Port
Speed Mode
Flow Control
State
Port Description
Apply button
Table 4-3 Descriptions of the Port Configuration Web Page Screen Objects
Allow choosing all or one port of Web Smart Switch for further management, the available
options is 1 to 4 and G1, G2.
Allow choosing various speed duplex mode from one specific port of Web Smart Switch,
the available options are shown as below:
Auto Negotiation
1000Full(1000Mbps Port Only)
100Full
100Half
10Full
10Half
Default mode is Auto Negotiation.
Allow to configure Flow control function of each port from Web Smart Switch, the available
options are Enable and Disable. Default mode is Enable.
Allow disable or enable one specific port from Web Smart Switch, the available options are
Enable and Disable. Default mode is Enable.
Allow input per Port Description of Web Smart Switch, up to maximum 8 characters allow.
Press “Apply” button for save current configuration of each port on Web Smart Switch.
- 27 -
Object Description
Port
Current Status
Link
Speed Mode
Flow Control
Setting Status
Speed Mode
Flow Control
State
Port Description
Refresh button
Indicate port 1 to port 4 and port G1, port G2.
Display per port Current Status, such as Link, Speed Mode and Flow Control.
Display current link status from each port of the Web Smart Switch.
Display current speed mode from each port of the Web Smart Switch.
Display current flow control status from each port of the Web Smart Switch.
Display per port Current Setting Status, such as Speed Mode, Flow Control, State and Port
Description.
Display per port Speed Mode setting value.
Display per port Flow Control setting value.
Display per port State setting value.
Display per Port Description.
Press “Refresh” button to refresh current status.
Table 4-4 Descriptions of the Port Configuration Web Page Screen Objects
- 28 -
4.3.2 Port Mirroring
This section introduces detail settings of Port Mirroring function of Web Smart Switch; the screen in Figure 4-20 appears
and Table 4-5 descriptions the Port Mirroring objects of Web Smart Switch.
Figure 4-20 Port Mirroring Web Page Screen
Object Description
Monitored Packets
Destination Port
Source Port
Apply button
Provide disable and enable the Port Mirroring function, the available options are Disable, RX,
TX, TX & RX. Default mode is Disable.
The destination port can be used to see all monitor port traffic. It can connect destination port to
LAN analyzer or Netxray.
The source port that want to monitor. All monitor port traffic will be copied to destination port.
Press this button for save current configuration of Web Smart Switch.
Table 4-5 Descriptions of the Port Mirroring Screen Objects
- 29 -
4.3.3 Bandwidth Control
This section introduces detail settings of Bandwidth Control function of Web Smart Switch; the screen in Figure 4-21
appears and Table 4-6 description the Bandwidth Control objects of Web Smart Switch.
Figure 4-21 Bandwidth Control Web Page Screen
Object Description
Port
Tx Rate
Rx Rate
Apply button
Indicate port 1 to port 4.
Provide No Limit, 1Mbps, 2Mbps, 4Mbps, 8Mbps, 16Mbps, 32Mbps, 64Mbps different
transmit rate for bandwidth control function of Web Smart Switch. Default mode is “No Limit”.
Provide No Limit, 1Mbps, 2Mbps, 4Mbps, 8Mbps, 16Mbps, 32Mbps, 64Mbps different re-
ceive rate for bandwidth control function of Web Smart Switch. Default mode is “No Limit”.
Press this button for save current configuration of each port on Web Smart Switch.
Table 4-6 Descriptions of the Bandwidth Control Screen Objects
- 30 -
4.3.4 Broadcast Storm Control
This section introduces detail settings of Broadcast Storm Control function of Web Smart Switch; the screen in Figure 4-22
appears and Table 4-7 descriptions the Broadcast Storm Control objects of Web Smart Switch.
Figure 4-22 Broadcast Storm Control Web Page Screen
Object Description
Filter Mode
Apply button
Provide 5%, 10%, 25%, 50%, Disable different filter mode. Default mode is Disable.
Press this button for save current configuration of Web Smart Switch.
Table 4-7 Descriptions of the Broadcast Storm Control Screen Objects
- 31 -
4.3.5 Port Statistics
This section introduces detail information of Port Statistics function of Web Smart Switch; the screen in Figure 4-23 appears and Table 4-8 descriptions the Port Statistics objects of Web Smart Switch.
Figure 4-23 Port Statistics Web Page Screen
Object Description
Counter Mode
Selection
Port
Transmit
Receive
Refresh button
Clear button
Provide different type of Ethernet traffic counter mode, the available options are shown as below:
Receive Packet & Transmit Packet
collision Count & Transmit Packet
Drop Packet & Receive Packet
CRC error Packet & Receive Packet
Default mode is Receive Packet & Transmit Packet.
Indicate port 1 to port 4 and port G1, port G2.
Display Transmit count value from each port.
Display Receive count value from each port.
Press this button for refresh the Port Statistics value of Web Smart Switch.
Press this button for clear the Port Statistics value of Web Smart Switch.
Table 4-8 Descriptions of the Port Statistics Screen Objects
- 32 -
4.4 VLAN Setting
A Virtual LAN (VLAN) is a logical network grouping that limits the broadcast domain. It allows you to isolate network traffic
so only members of the VLAN receive traffic from the same VLAN members. Basically, creating a VLAN from a switch is
logically equivalent of reconnecting a group of network devices to another Layer 2 switch. How ever, all the netwo rk devices
are still plug into the same switch physically.
The Switch supports IEEE 802.1Q (tagged-based) and Port-Base VLAN setting in web management page. In the default
configuration, VLAN support is “No VLAN”.
Port-based VLAN
Port-based VLAN limit traffic that flows into and out of switch ports. Thus, all devices connected to a port are members of
the VLAN(s) the port belongs to, whether there is a single computer directly connected to a switch, or an entire department.
On port-based VLAN.NIC do not need to be able to identify 802.1Q tags in packet headers. NIC send and receive normal
Ethernet packets. If the packet's destination lies on the same segment, communications take place using normal Ethernet
protocols. Even though this is always the case, when the destination for a packet lies on another switch port, VLAN considerations come into play to decide if the packet is dropped by the Switch or delivered.
IEEE 802.1Q VLANs
IEEE 802.1Q (tagged) VLAN are implemented on the Switch. 802.1Q VLAN require tagging, which enables them to span
the entire network (assuming all switches on the network are IEEE 802.1Q-compliant).
VLAN allow a network to be segmented in order to reduce the size of broadcast domains. All packets entering a VLAN will
only be forwarded to the stations (over IEEE 802.1Q enabled switches) that are members of that VLAN, and this includes
broadcast, multicast and unicast packets from unknown sources.
VLAN can also provide a level of security to your network. IEEE 802.1Q VLAN will only deliver packets between stations
that are members of the VLAN. Any port can be configured as either tagging or untagging. The untagging feature of IEEE
802.1Q VLAN allows VLAN to work with legacy switches that don't recognize VLAN tags in packet headers. The tagging
feature allows VLAN to span multiple 802.1Q-compliant switches through a single physical connection and allows Spanning Tree to be enabled on all ports and work normally.
Any port can be configured as either tagging or untagging. The untagging feature of IEEE 802.1Q VLAN allows VLAN to
work with legacy switches that don’t recognize VLAN tags in packet headers. The tagging feature allows VLAN to span
multiple 802.1Q-compliant switches through a single physical connection and allows Spanning Tree to be enabled on all
ports and work normally.
Some relevant terms:
Tag - The act of putting 802.1Q VLAN information into the header of a packet.
Untag - The act of stripping 802.1Q VLAN information out of the packet header.
802.1Q VLAN Tags
The figure below shows the 802.1Q VLAN tag. There are four additional octets inserted after the source MAC address.
Their presence is indicated by a value of 0x8100 in the Ether Type field. When a packet's Ether Type field is equal to
0x8100, the packet carries the IEEE 802.1Q/802.1p tag. The tag is contained in the following two octets and consists of 3
bits of user priority, 1 bit of Canonical Format Identifier (CFI - used for encapsulating Token Ring packets so they can be
carried across Ethernet backbones), and 12 bits of VLAN ID (VID). The 3 bits of user priority are used by 802.1p. The VID
is the VLAN identifier and is used by the 802.1Q standard. Because the VID is 12 bits long, 4094 unique VLAN can be
identified.
The tag is inserted into the packet header making the entire packet longer by 4 octets. All of the information originally
contained in the packet is retained.
- 33 -

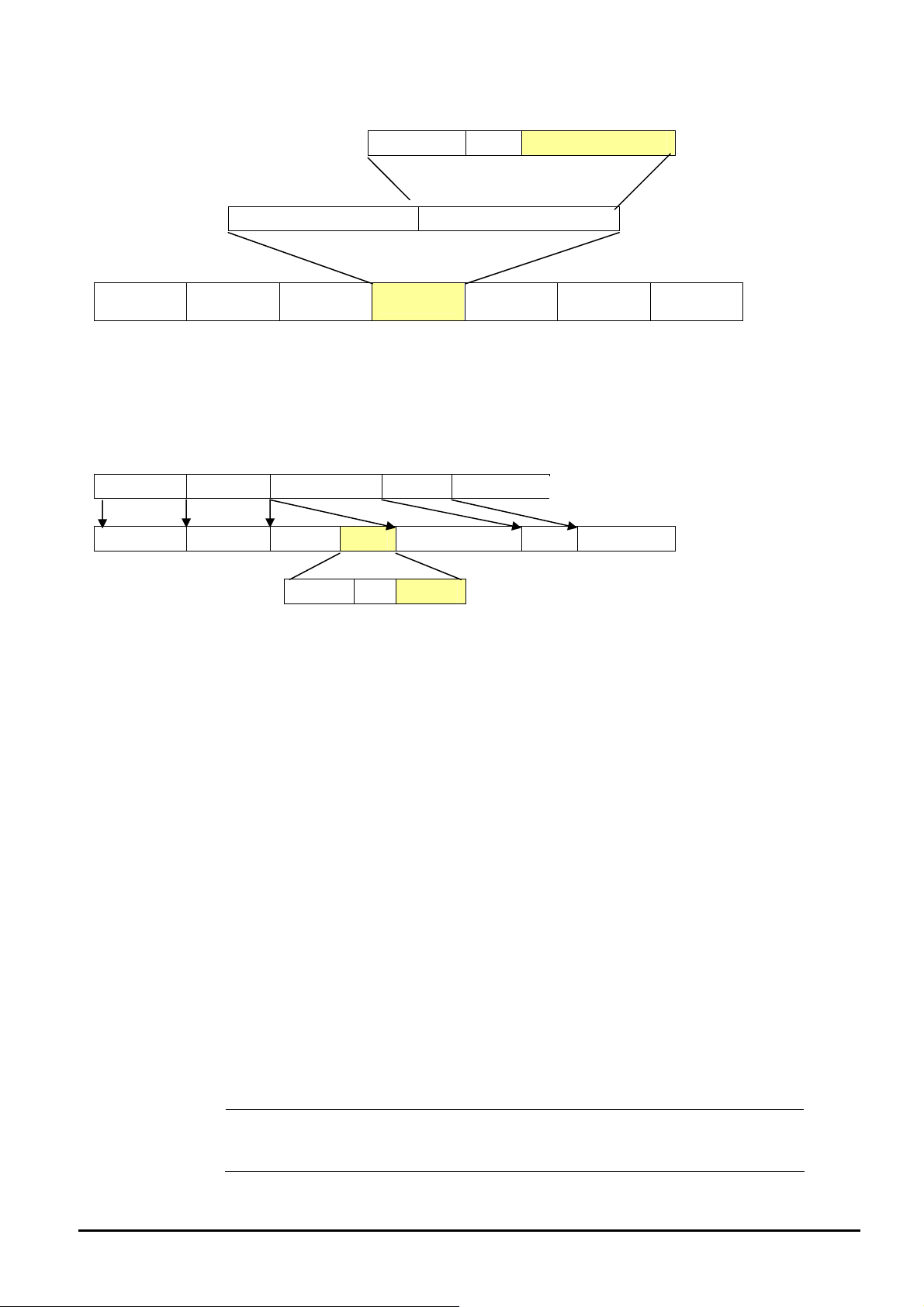

802.1Q Tag
User Priority CFI
3 bits 1 bits 12 bits
VLAN ID (VID)
TPID (Tag Protocol Identifier) TCI (Tag Control Information)
2 bytes 2 bytes
Preamble
Destination
Address
6 bytes 6 bytes 4 bytes 2 bytes 46-1517 bytes 4 bytes
Source Ad-
dress
VLAN TAG
The Ether Type and VLAN ID are inserted after the MAC source address, but before the original Ether Type/Length or
Logical Link Control. Because the packet is now a bit longer than it was originally, the Cyclic Redundancy Check (CRC)
must be recalculated.
Ethernet
Type
Data FCS
Adding an IEEE802.1Q Tag
Dest. Addr. Src. Addr. Length/E. type Data Old CRC
Original Ethernet
Dest. Addr. Src. Addr.
E. type
Priority CFI
Tag
Length/E. type Data New CRC
New Tagged Packet
VLAN ID
Port VLAN ID
Packets that are tagged (are carrying the 802.1Q VID information) can be transmitted from one 802.1Q compliant network
device to another with the VLAN information intact. This allows 802.1Q VLAN to span network devices (and indeed, the
entire network – if all network devices are 802.1Q compliant).
Every physical port on a switch has a PVID. 802.1Q ports are also assigned a PVID, for use within the switch. If no VLAN
are defined on the switch, all ports are then assigned to a default VLAN with a PVID equal to 1. Untagged packets are
assigned the PVID of the port on which they were received. Forwarding decisions are based upon this PVID, in so far as
VLAN are concerned. Tagged packets are forwarded according to the VID contained within the tag. Tagged packets are
also assigned a PVID, but the PVID is not used to make packet forwarding decisions, the VID is.
Tag-aware switches must keep a table to relate PVID within the sw itch to VID on the netw ork. The sw itch will compare the
VID of a packet to be transmitted to the VID of the port that is to transmit the packet. If the two VID are different the switch
will drop the packet. Because of the existence of the PVID for untagged packets and the VID for tagged packets, tag-aware
and tag-unaware network devices can coexist on the same network.
A switch port can have only one PVID, but can have as many VID as the switch has memory in its VLAN table to store them.
Because some devices on a network may be tag-unaware, a decision must be made at each port on a tag-aware device
before packets are transmitted – should the packet to be transmitted have a tag or not? If the transmitting port is connected
to a tag-unaware device, the packet should be untagged. If the transmitting port is connected to a tag-aware device, the
packet should be tagged.
Default VLANs
The Switch initially configures one VLAN, VID = 1, called "default." The factory default setting assigns all ports on the
Switch to the "default". As new VLAN are configured in Port-based mode, their respective member ports are removed
from the "default."
#Notice:
Base on the Switch chipset specification, the Switch supports SVL(Shared VLAN Learning) ,
all VLAN groups share the same Layer 2 learned MAC address table.
- 34 -
VLAN Settings
This section provides VLAN Configuration from Web Smart Switch, the screen in Figure 4-24 appears and Table 4-9
describes the VLAN Configuration object of Web Smart Switch.
Figure 4-24 VLAN Setting Web Page Screen
Object Description
VLAN Mode
Apply button
Provide different VLAN operation mode, the available options are shown as below:
No VLAN
802.1Q VLAN. Explained in section 4.4.1.
Port Based VLAN. Explained in section 4.4.2.
MTU. Explained in section 4.4.3.
Default mode is No VLAN.
Press this button for save current configuration of Web Smart Switch.
Table 4-9 Descriptions of the VLAN Setting Screen Objects
- 35 -
4.4.1 802.1Q VLAN
This section introduces detail information of IEEE 802.1Q VLAN function of Web Smart Switch; Choose “802.1Q VLAN”
from VLAN from the VLAN Mode and press “Apply” button to enable the 802.1Q VLAN function. The screen in Figure 4-25
& 4-26 appears and Table 4-10 description the 802.1Q VLAN objects of Web Smart Switch.
Figure 4-25 802.1Q VLAN Configuration Web Page Screen
Figure 4-26 802.1Q VLAN Configuration Web Page Screen
- 36 -
Object Description
Group
VID
VLAN Name
Port
Member
Apply button
Per Port Setting
Delete Group
Add New Group
Display the existence 802.1Q VLAN groups.
Display different VLAN ID from multi-802.1Q VLAN groups.
Assign and display different VLAN name from multi-802.1Q VLAN groups. Up to maximum 8 char-
acters allow.
Indicate port 1 to port 4 and port G1, port G2.
Allow to click specific port as member port from different 802.1Q VLAN groups.
Press this button for save current configuration of Web Smart Switch.
Allow to define per port UnTag / Tag, Uplink and PVID. The screen in Figure 4-27 appears.
Press this button for delete existence 802.1Q VLAN groups.
Press this button for create a new 802.1Q VLAN groups. Up to maximum 32 802.1Q VLAN groups
support on Web Smart Switch
Table 4-10 Descriptions of the 802.1Q VLAN Setting Screen Objects
Figure 4-27 802.1Q VLAN Per Port Setting Web Page Screen
This section introduces detail information of IEEE 802.1Q VLAN Per Port Setting of Web Smart Switch; The Table 4-11
description the 802.1Q VLAN Per Port Setting objects of Web Smart Switch.
Object Description
Port
Link Type
Uplink
PVID
Apply button
VLAN Group Setting
Table 4-11 Descriptions of the 802.1Q VLAN Per Port Setting Screen Objects
- 37 -
Indicate port 1 to port 4 and port G1, port G2.
Define UnTag or Tag on each port of Web Smart Switch. Default mode is “UnTag”.
Define No Uplink or Uplink on each port of Web Smart Switch. Default mode is “No Uplink”.
Assign PVID on each port of Web Smart Switch. Default PVID is “1”.
Press this button for save current configuration of Web Smart Switch.
Return to 802.1Q VLAN Group Setting screen.
4.4.2 Port Based VLAN
This section introduces detail information of Port Based VLAN function of Web Smart Switch; Choose “Port Based VLAN”
from VLAN from the VLAN Mode and press “Apply” button to enable the port based VLAN function. The screen in Figure
4-28 & 4-29 appears and Table 4-12 description the Port Based VLAN objects of Web Smart Switch.
Figure 4-28 Port Based VLAN Configuration Web Page Screen
Figure 4-29 Port Based VLAN Configuration Web Page Screen
- 38 -
Object Description
VID
VLAN Name
Port
Member
Apply button
Delete Group
Add New Group
Display different VLAN ID from multi-port based VLAN groups.
Assign and display different VLAN name from multi-port based VLAN groups. Up to maximum 8
characters allow.
Indicate port 1 to port 4 and port G1, port G2.
Allow to click specific port as member port from different port based VLAN groups.
Press this button for save current configuration of Web Smart Switch.
Press this button for delete existence port based VLAN groups.
Press this button for create a new port based VLAN groups. Up to maximum 6 port-based VLAN
groups can add.
Table 4-12 Descriptions of the VLAN Setting Screen Objects
- 39 -
4.4.3 MTU VLAN
This section introduces detail information of MTU VLAN function of Web Smart Switch; Choose “MTU” from VLAN from
the VLAN Mode and press “Apply” button to enable the MTU VLAN function. The screen in Figure 4-30 appears and
Table 4-13 description the MTU VLAN objects of Web Smart Switch.

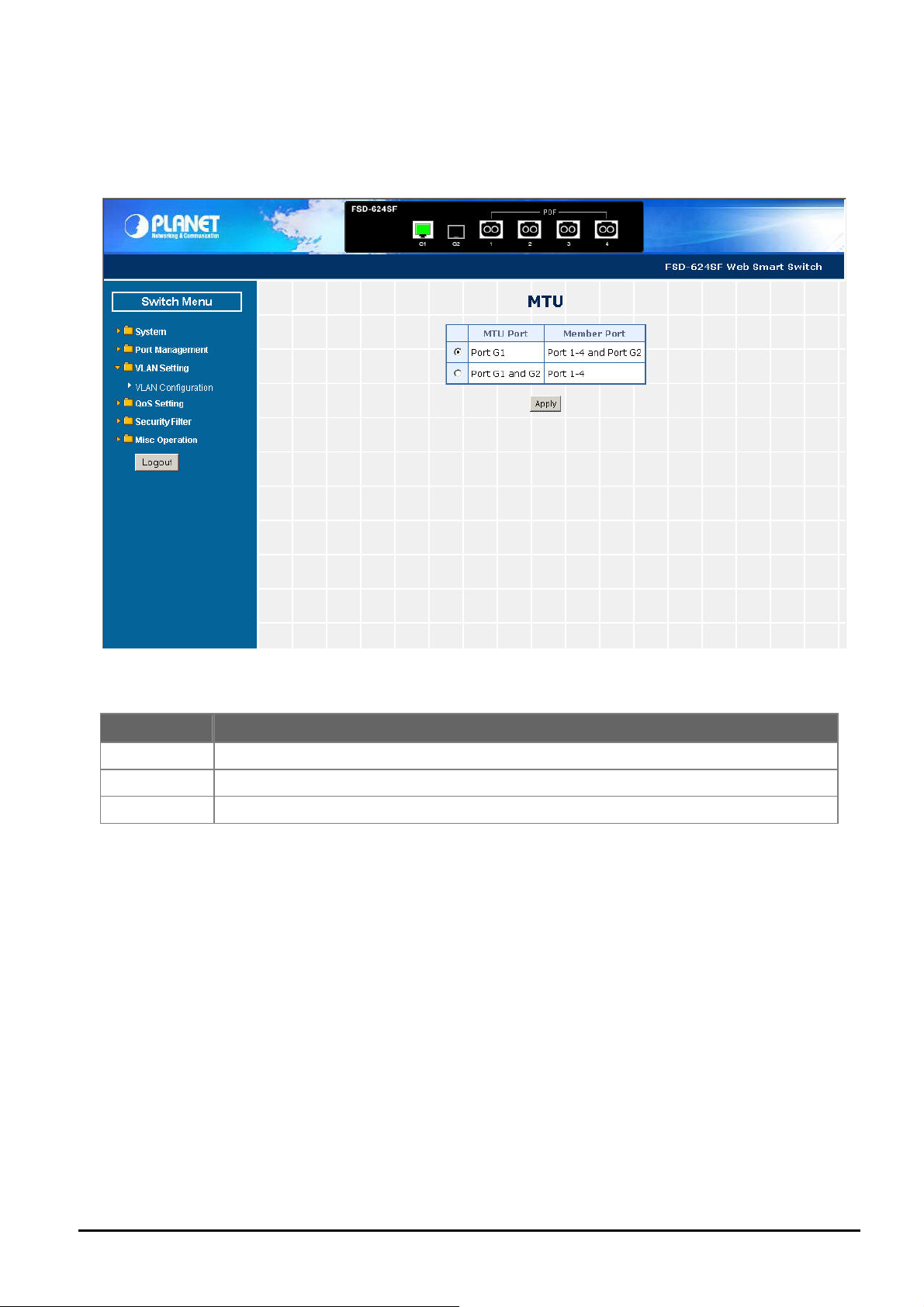

Figure 4-30 MTU VLAN Configuration Web Page Screen
Object Description
MTU Port
Member Port
Apply button
Indicate the MTU Port of Web Smart Switch.
Indicate the Member Port of Web Smart Switch.
Press this button for save current configuration of Web Smart Switch.
Table 4-13 Descriptions of the MTU VLAN Setting Screen Objects
- 40 -
4.5 QoS Setting
This function provides QoS Setting of Web Smart Switch; the screen in Figure 4-31 appears and Table 4-14 descriptions
the QoS Setting of Web Smart Switch.
Figure 4-31 QoS Setting Web Page Screen
Object Description
Priority Mode
Class of Service Con-
figuration
TCP/UDP Port Based
QoS
Provide three different Priority polices on Web Smart Switch. Explained in section 4.5.1.
Provide three different polices on each port of Web Smart Switch. Explained in section 4.5.2.
Allow to define various QoS mode on TCP / UDP port. Explained in section 4.5.3.
Table 4-14 Descriptions of the QoS Setting Screen Objects
- 41 -
4.5.1 Priority Mode
This section introduces detail information of Priority Mode of Web Smart Switch; the screen in Figure 4-32 appears and
Table 4-15 descriptions the Priority Mode of Web Smart Switch.

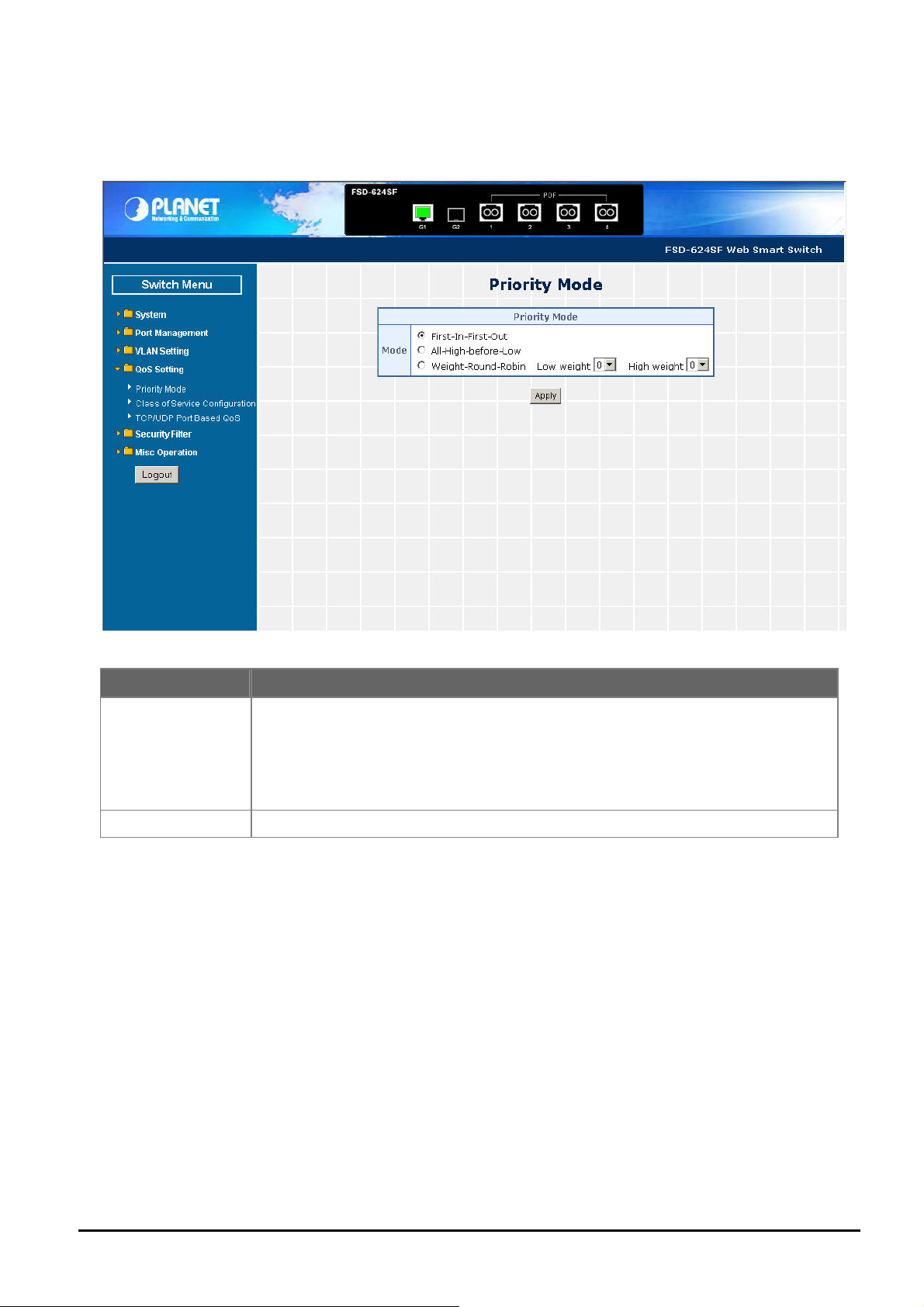

Figure 4-32 Priority Mode Web Page Screen
Object Description
Priority Mode
Apply
Provide three different Priority polices on Web Smart Switch, the available options are shown as
below:
Fist-In-First-Out
All-High-Before-Low
Weight-Round-Robin= Low weight (0-7 range) : High weight (0-7 range)
Default mode is First-In-First-Out.
Press this button for save current configuration of Web Smart Switch.
Table 4-15 Descriptions of the Priority Mode Screen Objects
- 42 -
4.5.2 Class of Service Configuration
This section introduces detail information of Class of Service Configuration of Web Smart Switch; the screen in Figure 4-33
appears and Table 4-16 descriptions the Class of Service Configuration of Web Smart Switch.
Figure 4-33 Class of Service Configuration Web Page Screen
Object Description
Enable High Priority
Port
Port Base
VLAN Tag
IP /DS
Apply
Allow to disable or enable the High Priority function. Default mode is Enable.
Indicate port 1 to port 4 and port G1, port G2.
Define per port Class of Service policy based on Port Base policy.
Define per port Class of Service policy based on VLAN Tag priority policy.
Define per port Class of Service policy based on IP / DS policy.
Press this button for save current configuration of Web Smart Switch.
Table 4-16 Descriptions of the Class of Service Configuration Screen Objects
VLAN Priority tag value define
IEEE 802.1p priority value from VLAN tag
High Priority
Low Priority
User priority values= 4~7
User priority values= 0~3
- 43 -
IP TOS/DSCP Priority value define
TOS/DSCP Value
High Priority
Low Priority
EF
DSCP 46
(101110)
Other DSCP values
DSCP: Differentiated Services Code Point
EF: Expected Forwarding
AF11
DSCP 10
(001010)
AF21
DSCP 18
(010010)
AF: Assured Forwarding
AF31
DSCP 26
(011010)
AF41
DSCP 34
(100010)
- 44 -
4.5.3 TCP / UDP Port Based QoS
This section introduces detail information of TCP / UDP Port Based QoS Configuration of Web Smart Switch; the screen in
Figure 4-34 & 4-35 appears and Table 4-17 descriptions the TCP / UDP Port Based QoS Configuration of Web Smart
Switch.

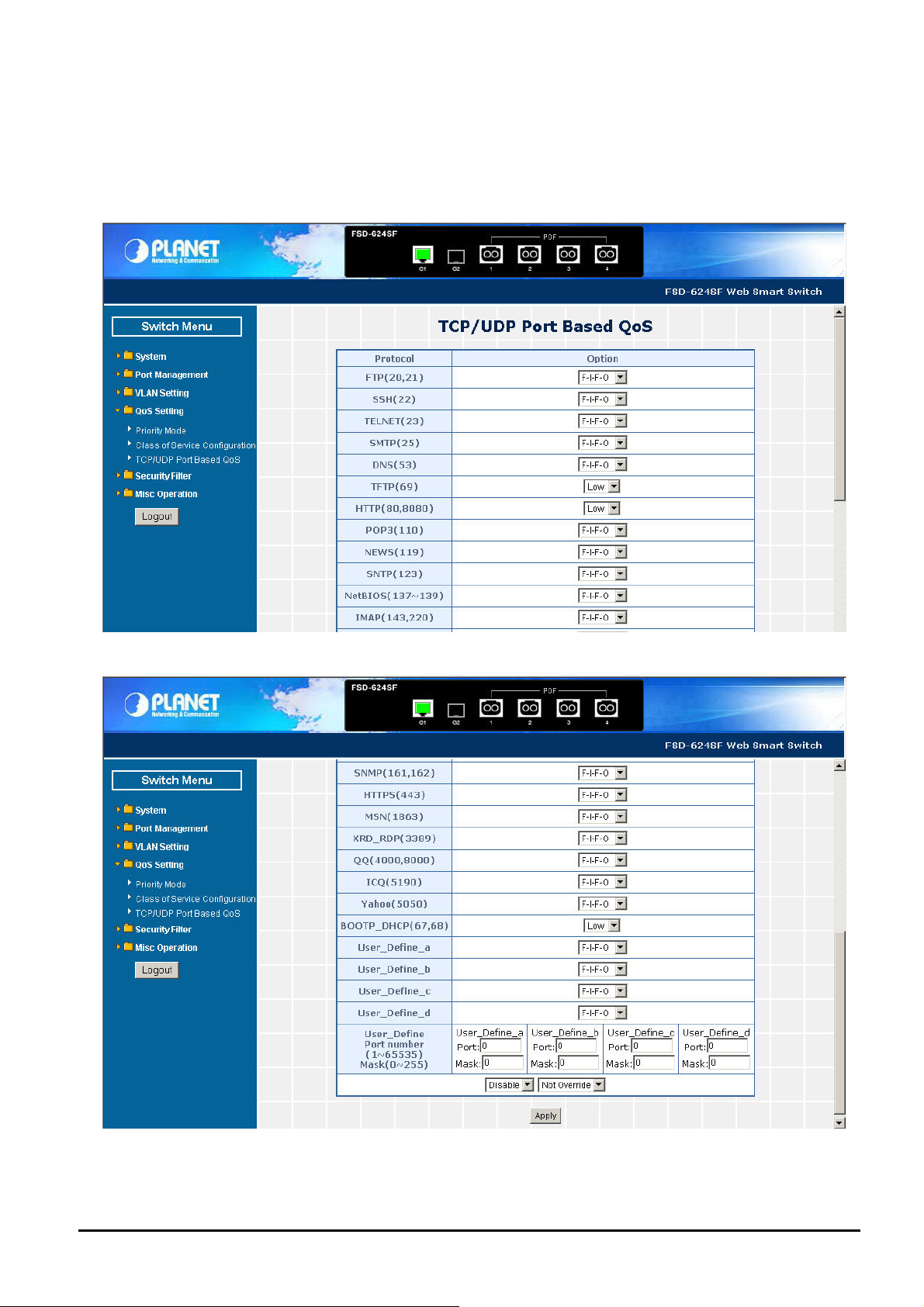

Figure 4-34 TCP / UDP Port Based QoS Configuration Web Page Screen
Figure 4-35 TCP / UDP Port Based QoS Configuration Web Page Screen
- 45 -
Object Description
Protocol
FTP(20,21)
SSH(22) Provide F-I-F-O, Discard, Low, High options.
TELNET(23) Provide F-I-F-O, Discard, Low, High options.
SMTP(25) Provide F-I-F-O, Discard, Low, High options.
DNS(53) Provide F-I-F-O, Discard, Low, High options.
TFTP(69)
HTTP(80,8080)
POP3(110)
NEWS(119)
SNTP(123)
NetBIOS(137~139)
IMAP(143,220)
SNMP(161,162)
HTTPS(443)
MSN(1863)
XRD_RDP(3389)
QQ(4000,8000)
ICQ(5190)
Yahoo(5050)
BOOTP_DHCP(67,68)
User_Define_a
User_Define_b
User_Define_c
User_Define_d
User_Define
Port number
(1~65535)
Mask(0~255)
Disable
Not Override
Apply
Display different Protocol for define the QoS policy in option
Provide F-I-F-O, Discard, Low, High options.
Provide Low, High options.
Provide Low, High options.
Provide F-I-F-O, Discard, Low, High options.
Provide F-I-F-O, Discard, Low, High options.
Provide F-I-F-O, Discard, Low, High options.
Provide F-I-F-O, Discard, Low, High options.
Provide F-I-F-O, Discard, Low, High options.
Provide F-I-F-O, Discard, Low, High options.
Provide F-I-F-O, Discard, Low, High options.
Provide F-I-F-O, Discard, Low, High options.
Provide F-I-F-O, Discard, Low, High options.
Provide F-I-F-O, Discard, Low, High options.
Provide F-I-F-O, Discard, Low, High options.
Provide F-I-F-O, Discard, Low, High options.
Provide Low, High options.
Provide F-I-F-O, Discard, Low, High options.
Provide F-I-F-O, Discard, Low, High options.
Provide F-I-F-O, Discard, Low, High options.
Provide F-I-F-O, Discard, Low, High options.
Allow to define 4 protocol port numbers, such as Port and Mask. The available options are
shown as below:
User_Define_a
User_Define_b
User_Define_c
User_Define_d
Allow to choose “Disable” or “Enable” options. Default mode is Disable.
Allow to choose “Override” or “Not Override” options. Default mode is Not Override .
Press this button for save current configuration of Web Smart Switch.
Table 4-17 Descriptions of the TCP / UDP Port Based QoS Configuration Screen Objects
- 46 -
4.6 Security Filter
This function provides Security Filter of Web Smart Switch; the screen in Figure 4-36 appears and Table 4-18 descriptions
the Security Filter of Web Smart Switch.
Figure 4-36 Security Filter Web Page Screen
Object Description
MAC Address Filter
TCP/UDP Filter
Allow define three MAC Address on per port of Web Smart Switch. Explained in section 4.6.1.
Allow define the filter policy of TCP / UDP flow on Web Smart Switch. Explained in section
4.6.2.
Table 4-18 Descriptions of the Security Filter Web Page Screen Objects
- 47 -
4.6.1 MAC Address Filter
This section introduces detail information of MAC Address Filter of Web Smart Switch; the screen in Figure 4-37 appears
and Table 4-19 & 4-20 descriptions the MAC Address Filter of Web Smart Switch.

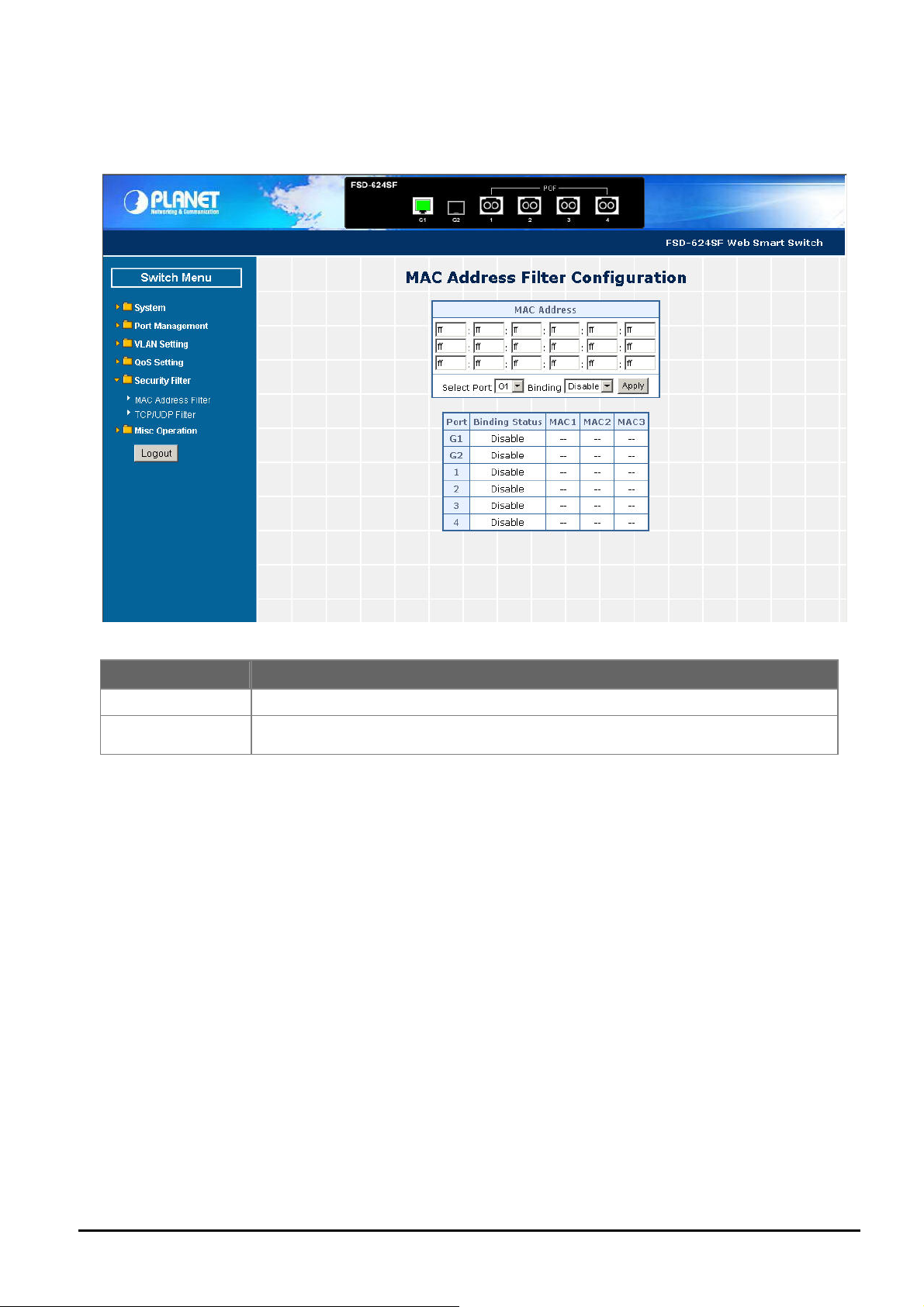

Figure 4-37 MAC Address Filter Web Page Screen
Object Description
MAC Address
Select Port
Binding
Apply
Allow to input three MAC Address on per port of Web Smart Switch.
Allow to select port 1 to port 4 and port G1, port G2.
Allow to Disable or Enable the binding function on each port of Web Smart Switch.
Press this button for save current configuration of Web Smart Switch.
Table 4-19 Descriptions of the MAC Address Filter Screen Objects
Object Description
Port
Binding Status
MAC 1
MAC 2
MAC 3
Indicate port 1 to port 4 and port G1, port G2.
Display Binding Status from each port of Web Smart Switch.
Display first assigns MAC Address on each port of Web Smart Switch.
Display second assigns MAC Address on each port of Web Smart Switch.
Display third assigns MAC Address on each port of Web Smart Switch.
Table 4-20 Descriptions of the MAC Address Filter Screen Objects
- 48 -
4.6.2 TCP / UDP Filter
This section introduces detail information of TCP / UDP Filter of Web Smart Switch; the screen in Figure 4-38 appears and
Table 4-21 descriptions the TCP / UDP Filter Configuration of Web Smart Switch.
Figure 4-38 TCP / UDP Filter Web Page Screen
- 49 -
Object Description
Function Enable
Port Filtering Rule
Protocol
FTP(20,21)
SSH(22)
TELNET(23)
SMTP(25)
DNS(53)
TFTP(69)
HTTP(80,8080)
POP3(110)
NEWS(119)
SNTP(123)
NetBIOS(137~139)
IMAP(143,220)
SNMP(161,162)
HTTPS(443)
Allow to Disable or Enable the TCP / UDP Filter function. Default mode is Disable.
Allow to Forward or Block the Port Filtering Rule. Default mode is Block.
Display different Protocol for define the TCP / UDP Filter policy.
Allow to choose list protocol for filtering
MSN(1863)
XRD_RDP(3389)
QQ(4000,8000)
ICQ(5190)
Yahoo(5050)
BOOTP_DHCP(67,68)
User_Define_a
User_Define_b
User_Define_c
User_Define_d
Secure Egress Port
Apply
Table 4-21 Descriptions of the TCP / UDP Filter Configuration Screen Objects
Indicate port 1 to port 4 and port G1, port G2.
Press this button for save current configuration of Web Smart Switch.
- 50 -
4.7 Misc Operation
This function provides Misc Operation of Web Smart Switch; the screen in Figure 4-39 appears and Table 4-22 descriptions the Misc Operation of Web Smart Switch.
Figure 4-39 Misc Operation Web Page Screen
Object Description
Output Queue Aging Time
VLAN Striding
IGMP Snooping V1 & V2
Apply
Allow define the Output Queue Aging Time of Web Smart Switch, the available options
are Disable, 200ms, 400ms, 600ms and 800ms. Default mode is Disable.
Allow Disable or Enable the VLAN Striding function of Web Smart Switch. Default mode
is Disable.
Allow Disable or Enable the IGMP Snooping V1 & V2 function of Web Smart Switch.
Default mode is Disable.
Press this button for save current configuration of Web Smart Switch.
Table 4-22 Descriptions of the Misc Operation Web Page Screen Objects
- 51 -
4.8 Logout

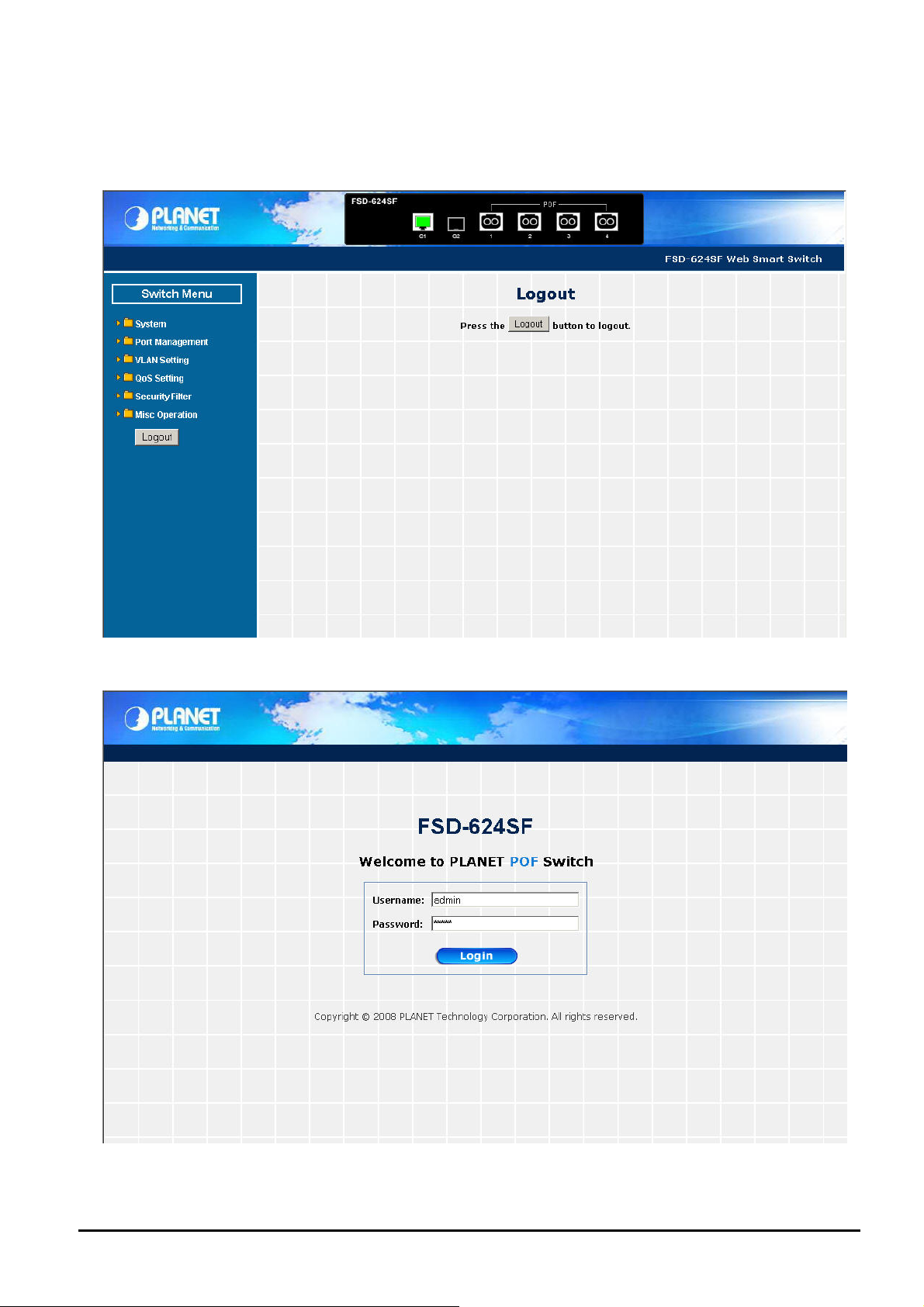

This section provide Web logout function on Web Smart Switch, after choose this function and the following screen appears
in Figure 4-40 & 4-41. Please press “Logout” button to take effect and Login Web Screen appears. Please re-login the
Web Smart Switch for further management.
Figure 4-40 Logout Web Page Screen
Figure 4-41 Login Web Page Screen
- 52 -
5. SWITCH OPERATION
5.1 Address Table
The Switch is implemented with an address table. This address table composed of many entries. Each entry is used to
store the address information of some node in network, including MAC address, port no, etc. This information comes
from the learning process of Ethernet Switch.
5.2 Learning
When one packet comes in from any port. The Switch will record the source address, port no. And the other related
information in address table. This information will be used to decide either forwarding or filtering for future packets.
5.3 Forwarding & Filtering
When one packet comes from some port of the Ethernet Switching, it will also check the destination address besides
the source address learning. The Ethernet Switching will lookup the address-table for the destination address. If not
found, this packet will be forwarded to all the other ports except the port which this packet comes in. And these ports
will transmit this packet to the network it connected. If found, and the destination address is located at different port
from this packet comes in, the Ethernet Switching will forward this packet to the port where this destination address is
located according to the information from address table. But, if the destination address is located at the same port with
this packet comes in, then this packet will be filtered. Thereby increasing the network throughput and availability.
5.4 Store-and-Forward
Store-and-Forward is one type of packet-forwarding techniques. A Store-and Forward Ethernet Switching stores the
incoming frame in an internal buffer, do the complete error checking before transmission. Therefore, no error packets
occurrence, it is the best choice when a network needs efficiency and stability.
The Ethernet Switch scans the destination address from the packet-header, searches the routing table provided for
the incoming port and forwards the packet, only if required. The fast forwarding makes the switch attractive for connecting servers directly to the network, thereby increasing throughput and availability. However, the switch is most
commonly used to segment existing hubs, which nearly always improves overall performance. An Ethernet Switching
can be easily configured in any Ethernet network environment to significantly boost bandwidth using conventional
cabling and adapters.
Due to the learning function of the Ethernet switching, the source address and corresponding port number of each
incoming and outgoing packet are stored in a routing table. This information is subsequently used to filter packets
whose destination address is on the same segment as the source address. This confines network traffic to its respective domain, reducing the overall load on the network.
The Switch performs "Store and forward" therefore, no error packets occur. More reliably, it reduces the
re-transmission rate. No packet loss will occur.
5.5 Auto-Negotiation
The STP ports on the Switch have built-in "Auto-negotiation". This technology automatically sets the best possible
bandwidth when a connection is established with another netw ork device (usually at Power On or Reset). This is done
by detect the modes and speeds at the second of both device is connected and capable of, both 10Base-T and
100Base-TX devices can connect with the port in either Half- or Full-Duplex mode. 1000Base-T can be only connected in Full-duplex mode.
- 53 -
6. TROUBLESHOOTING
This chapter contains information to help you solve problems. If the Switch is not functioning properly, make sure the
Ethernet Switch was set up according to instructions in this manual.
The Link LED from POF / 1000Base-T / mini GBIC interface is not lit
Solution:
Check the POF / UTP/ Fiber cable connection of the Web Smart Switch.
Some stations cannot talk to other stations located on the other port
Solution:
Please check the VLAN function that may introduce this kind of situation.
1000Base-T port link LED is lit, but the traffic is irregular
Solution:
Check that the attached device is not set to dedicate full duplex. Some devices use a physical or software switch to
change duplex modes. Auto-negotiation may not recognize this type of full-duplex setting.
Why the Switch doesn’t connect to the network
Solution:
Check the LNK/ACT LED of 1000Base-T port on the switch and Make sure the cable is installed properly. Also make
sure the cable is the right type, turn off the power. After a while, turn on power again.
How to deal forgotten password situation of FSD-624SF?
Solution:
Please press Reset button at front panel for 5 seconds then the Web Smart Switch will reset to
factory default mode(username and password: admin)
- 54 -

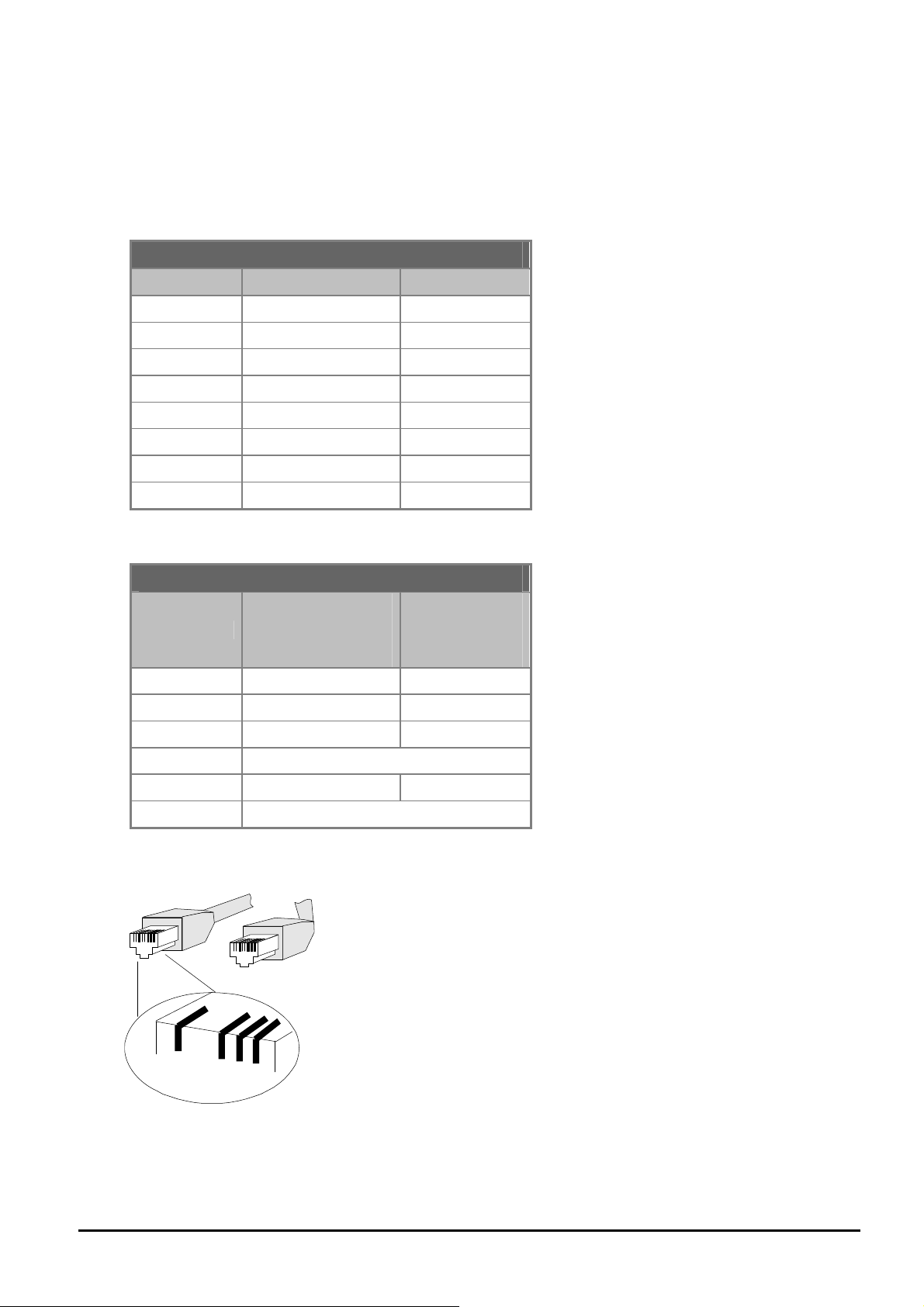

A.1 Switch‘s RJ-45 Pin Assignments
1000Mbps, 1000Base-T
RJ-45 Connector pin assignment
Contact MDI MDI-X
1 BI_DA+ BI_DB+
2 BI_DA- BI_DB3 BI_DB+ BI_DA+
4 BI_DC+ BI_DD+
5 BI_DC- BI_DD6 BI_DB- BI_DA7 BI_DD+ BI_DC+
8 BI_DD- BI_DC-
10/100Mbps, 10/100Base-TX
APPENDIX A NETWORKING CONNECTION
RJ-45 Connector pin assignment
MDI
Contact
1 Tx + (transmit) Rx + (receive)
2 Tx - (transmit) Rx - (receive)
3 Rx + (receive) Tx + (transmit)
4, 5 Not used
6 Rx - (receive) Tx - (transmit)
7, 8 Not used
Media Dependant In-
terface
A.2 RJ-45 cable pin assignment
2 1
3 6
2 1 3 6
MDI-X
Media Dependant
Interface -Cross
6
3
2
1
- 55 -

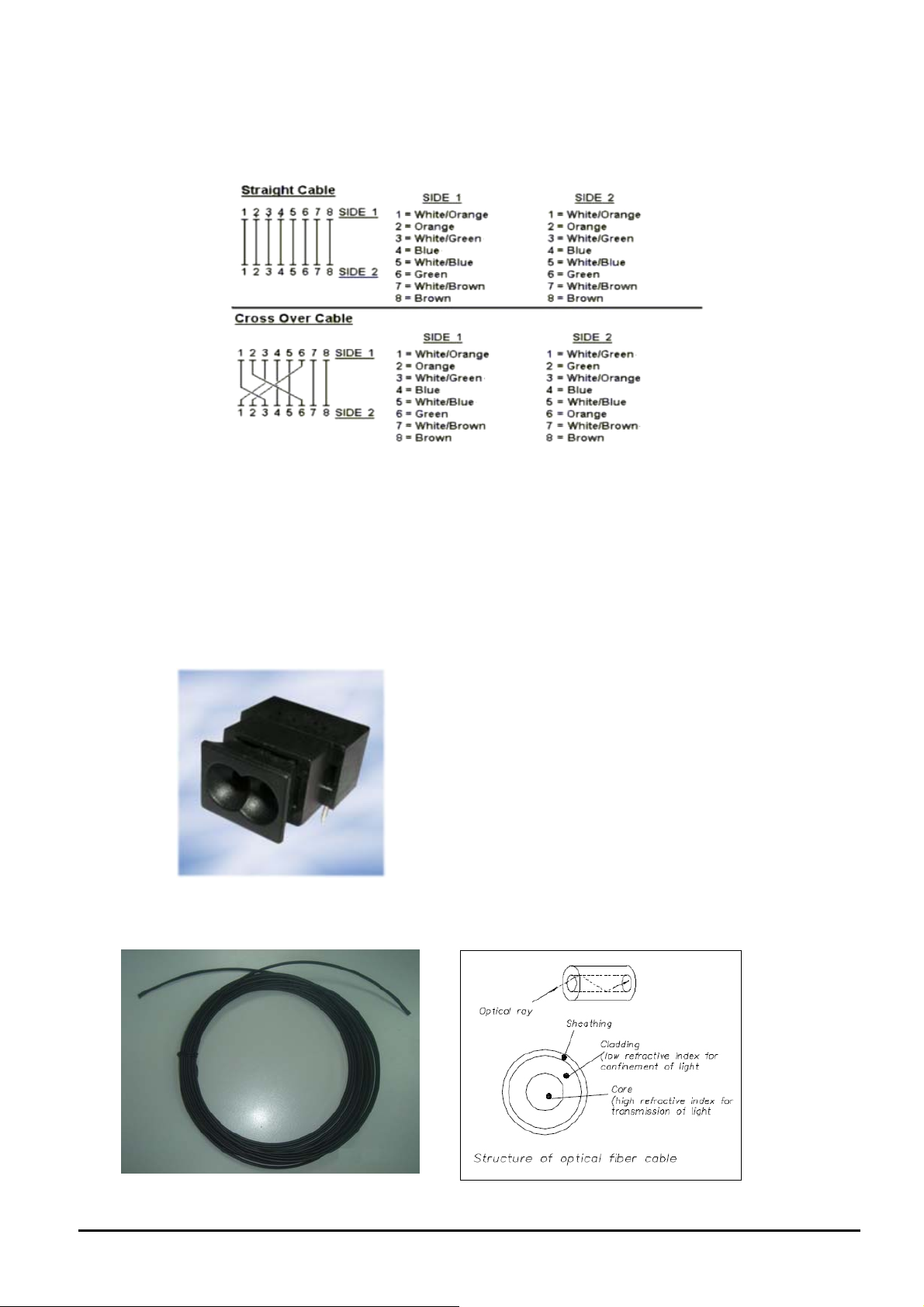

The standard RJ-45 receptacle/connector
There are 8 wires on a standard UTP/STP cable and each wire is color-coded. The following shows the pin allocation
and color of straight cable and crossover cable connection:
Figure A-1: Straight-Through and Crossover Cable
Please make sure your connected cables are with same pin assignment and color as above picture before deploying the
cables into your network.
A.3 100Mbps, 100Base-FX, SMI type connector
The FSD-624SF is using Optolock POF connector that is mostly being used for IEEE1394b transmission. The followings
show the basic information and its installation.
Basic Information:
The Optolock POF connector will as like following screen.
Figure A-2: Optolock POF connector
The POF Cable should be a dual wire cable with 0.98mm optic core with cladding diameter 1mm.
Figure A-3: Optolock POF cable
- 56 -
Installation:
Pull out the Optolock POF connector and connect the POF cable to the POF connector, the screen appears in following.
Figure A-4: Optolock POF connector installation
→
Pull in the Optolock POF connector and the screen in following screen appears.
Figure A-5: Optolock POF connector installation
2080-A33190-000
- 57 -
EC Declaration of Conformity
For the following equipment:
*Type of Product: 4-Port 100Base-FX POF + 2 Gigabit Web Smart Switch
*Model Number: FSD-624SF
* Produced by:
Manufacturer‘s Name : Planet Technology Corp.
Manufacturer‘s Address: 11F, No 96, Min Chuan Road
Hsin Tien, Taipei, Taiwan , R. O.C.
is herewith confirmed to comply with the requirements set out in the Council Directive on the
Approximation of the Laws of the Member States relating to Electromagnetic Compatibility
Directive on (89/336/EEC,92/31/EEC,93/68/EEC).
For the evaluation regarding the EMC, the following standards were applied:
Responsible for marking this declarati o n i f the:
Conducted / Radiated EN 55022 (1998+A1:2000+A2:2003)
Harmonic EN 61000-3-2 (2000)
Flicker EN 61000-3-3 (1995+A1:2001)
Immunity EN 55024 (1998+A1:2001+A2:2003)
ESD IEC 61000-4-2 (1995+A1: 1998+A2:2000)
RS IEC 61000-4-3 (2002+A1: 2000)
EFT/ Burst IEC 61000-4-4 (1995+A1: 2000+A2: 2001)
Surge IEC 61000-4-5 (1995+A1: 2000)
CS IEC 61000-4-6 (1996+A1: 2000)
Magnetic Field IEC 61000-4-8 (1993+A1: 2000)
Voltage Disp IEC 61000-4-11 (1994+A1: 2000)
⌧ Manufacturer Authorized representative established within the EU
Authorized representative established within the EU (if applicable):
Company Name: Planet Technology Corp.
Company Address: 11F, No.96, Min Chuan Road, Hsin Tien, Taipei, Taiwan, R.O.C
Person responsible for making this declaration
Name, Surname Kent Kang
Position / Title : Product Manager
Taiwan
21, July., 2008
Place Date Legal Signature
PLANET TECHNOLOGY CORPORATION
e-mail: sales@planet.com.tw http://www.planet.com.tw
11F, No. 96, Min Chuan Road, Hsin Tien, Taipei, Taiwan, R.O.C. Tel:886-2-2219-9518 Fax:886-2-2219-9528
Loading...
