User’s Manual
CV3-M1024
Central Management Software
T
able
of Conten
ts
U1.U UUser Interface OverviewU................................................................................................ 4
U2.U UInstallationU ......................................................................................................................6
U3.U UUsing the Setup WizardU ............................................................................................... 10
U4.U UAdd an NVRU.................................................................................................................. 11
U5.U UPTZ ConfigurationU....................................................................................................... 14
U6.U UIntelligent Detection SettingU ........................................................................................ 18
U7.U UUsers and GroupsU ......................................................................................................... 23
U8.U UEvent HandlingU............................................................................................................. 27
U9.U UConfigure E-MapU ......................................................................................................... 29
U10.U USet up Multiple MonitorsU ............................................................................................ 33
U11.U UEvent ServersU ................................................................................................................ 34
U12.U UUsing the Main ProgramU ............................................................................................. 40
U13.U UEvent MonitorU .............................................................................................................. 52
U14.U UPlaybackU ........................................................................................................................ 55
U15.U UE-Map MonitorU ............................................................................................................ 59
U16.U UService ModeU ................................................................................................................ 61
Minimum System Requirements
CPU
RAM
HDD
Display card
Ethernet interface
OS
Intel Core i7 or above
Minimum 2GB, 4GB or above is recommended
SATA 1TB or above is recommended
Independent display card suggested
Note: Make sure your display DPI setting is set to default at 96DPI
To set DPI value, right-click on desktop, choose “settings” tab >>
“advanced”
Gigabit Ethernet card or above
Windows 2000(SP4), Windows XP, Windows 2003, Windows
Vista, and Windows 7
Also it does strongly recommend that close the unnecessarily programs while
running CV3-M1024 (IVS Central) to monitor and record video stream from
NVR or CV3.
1. 0BUser Interface Overview

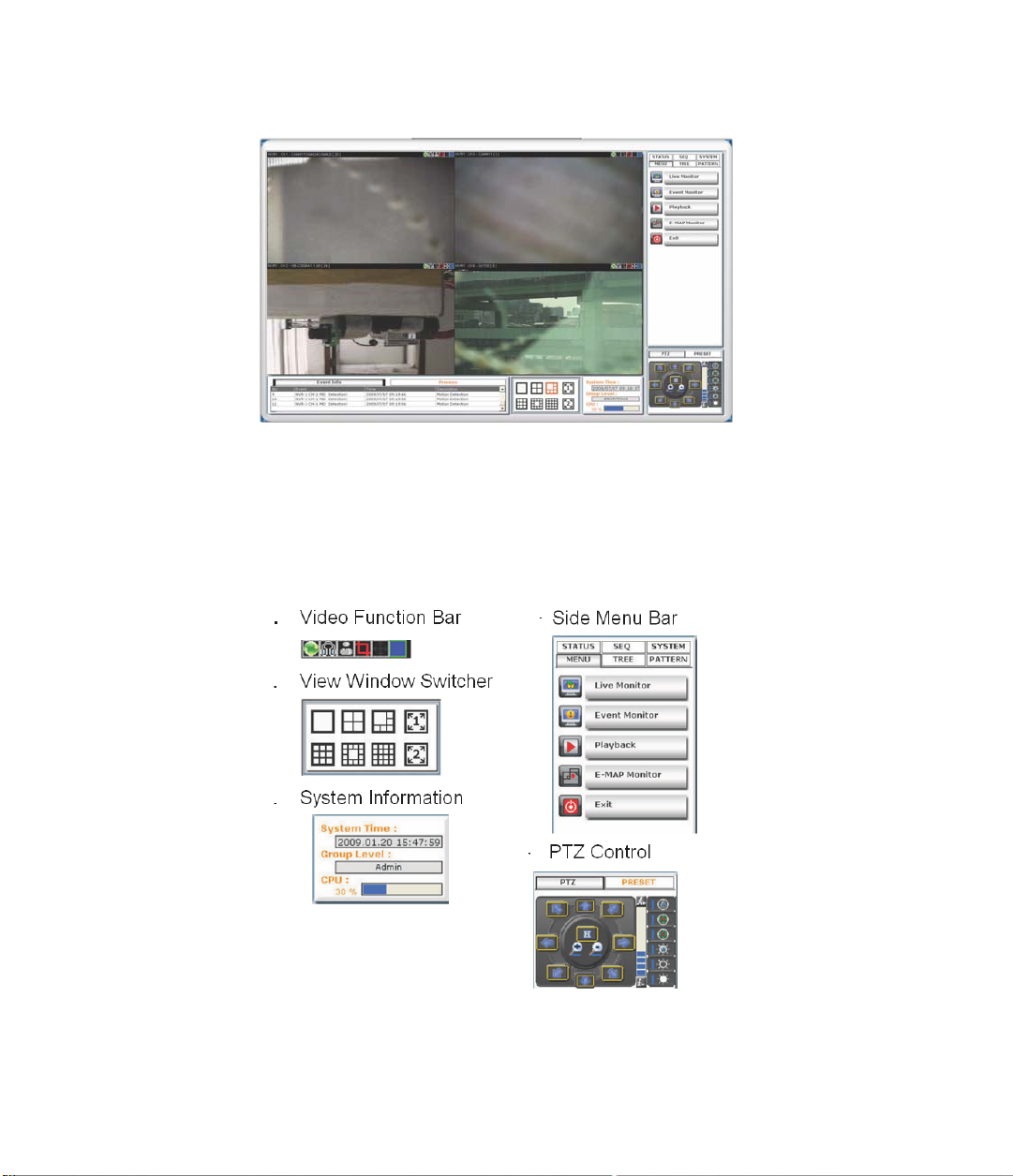

Live Video Menu Bar Quick Access
Interface Description
Live Video
Menu Bar
Quick Access
System Log Split Video
This is where all the videos are displayed. You can
decide what channels’ videos to be displayed here by
dragging cameras from the side menu bar and dropping
them anywhere in this section.
This is where you can access all functions of the
software. Camera list and device status information are
also available from the menu bar.
Each video window comes with quick access buttons
which allows you to quickly take certain actions to the
video you are viewing.
PTZ Control
System Info
System Logs
Split Video Windows
System Info
PTZ Control
System status such as motion detection, functions that
were accessed or settings that were altered are
displayed here.

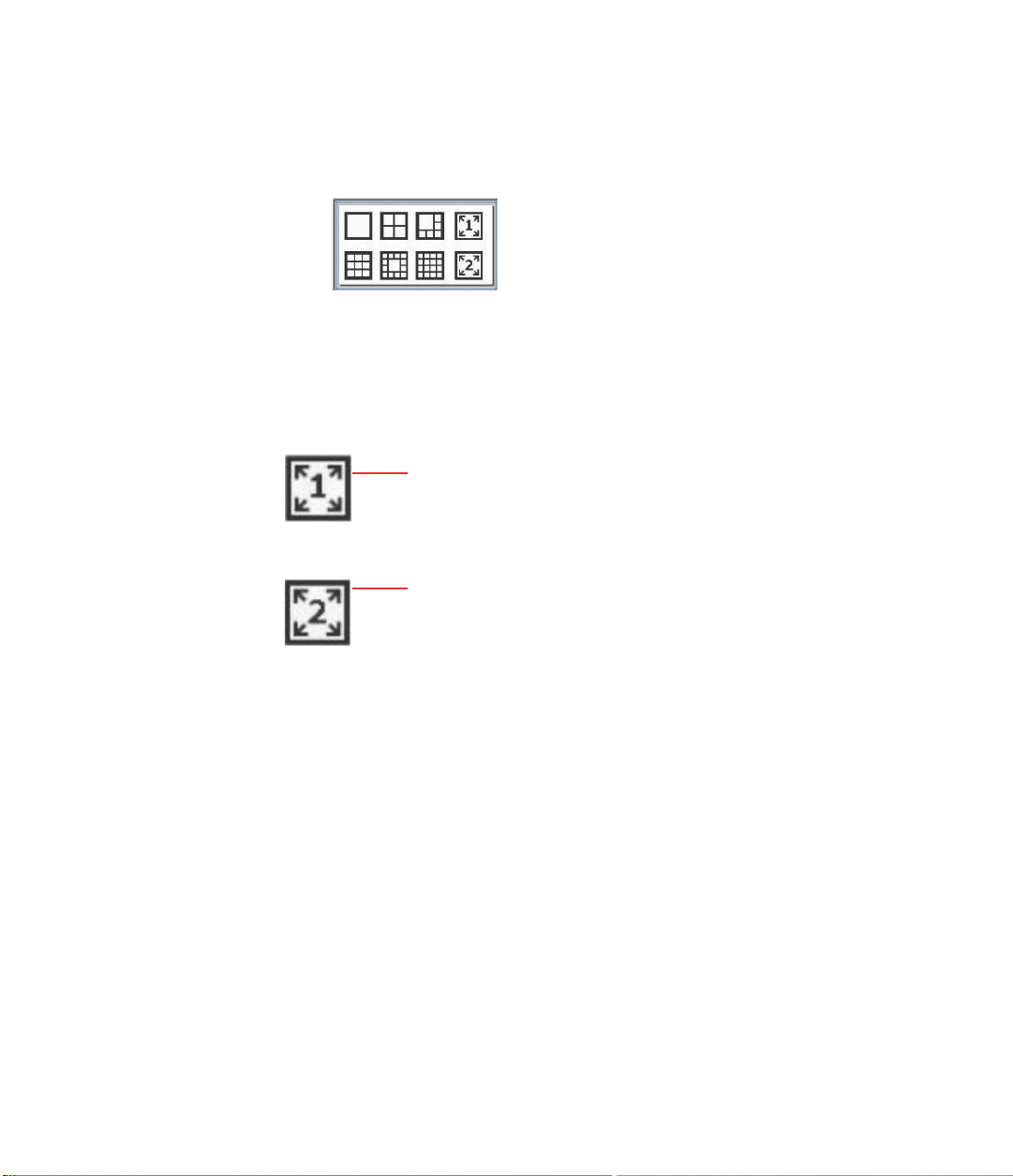

You can change the video split windows with you desire
depends on how many videos you wish to view at a time.
It provides information of current system time, which is
currently logged in and the CPU usage that the software
is currently consuming.
This is where you can pan, tilt, zoom the selected PTZ
camera. Functions such as preset point navigation and
auto pan can also be accessed here.
2. 1BInstallation
Begin Installation
The installation should launch as soon as you insert
simply double-click on your CD-ROM drive icon in “My Computer” to
launch the installer.
Once the installer is launched, it should start by checking the compatibility
with the operating system you are running this installation on.
Once the compatibility check is passed, you can begin the installation by
clicking “next”.
the CD. If not,
The installer will install the program in a pre-defined directory. You can
accept the default and click “Next” to proceed with the installation. Or you
can press “Change…” to choose which location you will install this
software.
The installer will confirm the installation directory one more time. Click
“Install” to begin installation, or click “Back” to change the installation
directory.
The installer will display the installation process.
Once the installation is completed, click “Finish” to exit the installer.
Start the CMS software
After the program is successfully installed on the PC,
start it.
Start it from the “Start” menu
Simply go to Start >> All Programs >> IVS >> IVS Central >> IVS Central.
Start it from the desktop
The program automatically creates a shortcut icon on your desktop after it’s
there are two ways to
successfully installed. Simply double-click the icon
IVS Central.lnk
to launch the
program.
You should run the “Setup Wizard” before launching the CMS software. The
Setup Wizard is a separate program which you can launch it the same way
you launch the CMS software (from Start menu or the desktop shortcut). The
purpose of the Setup Wizard is to help users with certain preliminary settings
in order for the program to work with NVR network video recorder.
3. 2BUsing the Setup Wizard
It’s necessary to use the Wizard
The majority of the settings of the CMS software rely on its Setup
Wizard. It’s necessary that you run the wizard prior to using the
CMS software.
With the Setup Wizard, you are able to:
z Add/Remove/Edit one or more NVRs
z
Configure PTZ preset points
z
Configure Motion Detection
z
Configure user privileges
z
Configure how events are handled
z
Configure E-map
z
Configure multiple monitors
z Configure event actions
4. 3BAdd an NVR
Connect the program with NVR
The main purpose of the CMS software is to manage multiple NVRs. Before it
can be done, you would need to tell the program which NVR you need it to
manage. You do that by adding one or more NVRs to the program through the
Setup Wizard.
Automatic Search:
The Setup Wizard is able to find NVR on your local network automatically.
Simply go to “NVR Settings” >> “Manual Settings” in the Setup Wizard, and
click the search button to locate NVRs that are placed on your local network.
Drag and Drop to add
Once the Setup Wizard detects NVR on the network, they will be listed in the
“Detect List”. Simply drag one from the list and drop it in the “Advance Control
List” below to add it.
You will then be prompted with its username and password which you need to
enter accordingly to complete the action.
Add NVR Manually with Setup Wizard
Simply click on the “Add NVR” button in the same page to add it manually.
You will be asked for the information shown below before successfully adding
the NVR to the program.
Remove an NVR or Edit its Settings
Once you have one or more NVR added to the program, the “Remove” and
“Edit Settings” buttons will become available. Simply click to select an NVR from
the list on the left and choose the corresponding button on the right.
Remove NVR
Edit settings
5. 4BPTZ Configuration
Select NVR
and Camera
PTZ Preset
Point List
Synchronize or Add New PTZ Preset Points
You can synchronize PTZ settings from all cameras connected to NVR on the
network or you can create and add new PTZ preset points to those cameras
through the Setup Wizard.
Simply select an NVR from the drop-down menu first and then select a camera to
synchronize or add new PTZ preset points.
Use the provided PTZ control panel to define a PTZ preset point. You may change the
speed of the PTZ movements if you will.
Point Name
PTZ Speed
Video
Preview
PTZ Preset
Video Preview
You can get a video preview of
the selected camera here.
PTZ Speed Control
Adjust the increment of the
PTZ movements.
PTZ Control Panel
Use this panel to define a new preset
point or make change to an existing
one.
You can get a list of the preset points that have been added to the
camera as well as the opening slots that are available which you can
add new preset points to later on.
Slot configured with a PTZ
preset point.
Slot that has not been
configured with a PTZ
preset point.
Configuring PTZ Preset Sequence
You can configure the PTZ preset sequence after you create and define PTZ preset
points for the cameras. To configure PTZ sequence, open the setup wizard and go to
“NVR setting” >> “PTZ Config” >> “PTZ sequence”.
You can get a list of the preset points that have been added to the camera
as well as the opening slots that are available which you can add new
preset point to later on.
Select an NVR
Select an NVR from
the drop down menu
first.
Select a PTZ Camera
Select a PTZ camera to configure PTZ sequence.
Select Preset Points
The previously configured preset points will be listed on the left.
Move the ones to the right
Move the preset points to the list on the right using the which they will be
used for PTZ sequencing.
Adjust Sequence Order
You can use the
or buttons to adjust the sequence orders.
Set Dwell Time
Finally set the dwell time for sequencing view among each point.
6. 5BIntelligent Detection Setting
Intelligent Detection Functions
The program can be configured with multiple intelligent detection
functions which can then be used to alert users when detecting
something abnormal in the scene. The functions are as below:
z Motion Detection
z Threat Detection
z Object Loss
z Tripwires
To enable and configure one of the intelligent detection functions for
one or more cameras, click and drag the camera from the “Device List”
onto the “Intelligent Detection List”:
Double click on the desired channel in the “Intelligent Detection List” to
enable configuration:

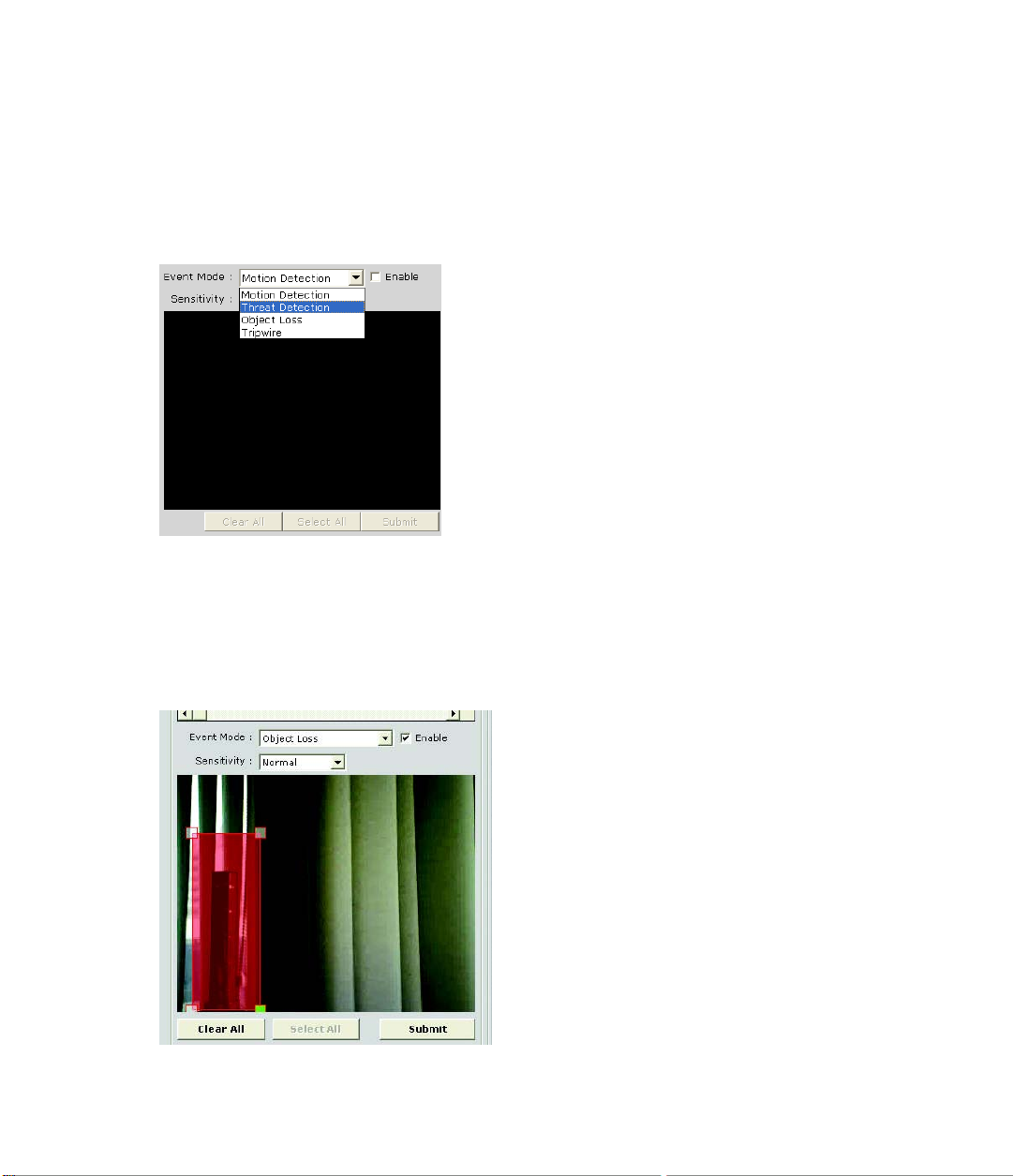

Finally, select the desired intelligent detection function from the “Event
Mode” drop-down and make sure “Enable” is ticked:
To configure a particular area for motion detection, simply click and
hold down the mouse left button and move diagonally to select a
desired area. You can do it repetitively to configure multiple areas for
motion detection:
The configured areas will then be highlighted on the video with green
cell boxes:
Finally, click “Submit” to save the configuration:
Configuring Threat Detection
This is the function that when the camera is being physically tampered
(sabotaged/or viewing area gets blocked), the CMS can detect such
behavior and send out alert to the administrator. To enable these
factions, simply select “Malicious Attack” from the “Event Mode” dropdown menu and click “Submit”:
Configuring Object Loss
To select this function, select “Object Loss” from the “Event Mode” drop-down
menu and then click and hold down the mouse left button and move diagonally
to draw an area (select the object in the scene) for object loss detection. The
selected area(s) will be highlighted in red color like shown below:
Configuring Tripwire
To configure tripwire, select “Tripwire” from the “Event Mode” dropdown menu. Click and hold down the mouse left button to draw a line
on the video:
To re-arrange the position of the line, hover the mouse cursor onto either tip
end and once you see the color of the cell box becomes green, click and
hold down the mouse and move the cell box to a desired new position:
The tripwire function can be configuring to detect traffic
coming from one way or both. Bi-directional detection is
enabled by default; to configure detection for one way only,
click the cell box in the middle of the line. Click again to
change direction.
7. 6BUsers and Groups
Users and Groups Configuration
The section allows users to add new users and customize each of their
access privilege by assigning them to different user groups. The purpose of
this function is to limit the number of people to have access to the program,
hence, having access to view live videos, playback videos or altering
settings of the program.
Once you add users to the program, you will be prompted to enter the
username and password of a valid user account.
There is no user account configured for the program by default.
NOTE:
The privileges of the “Ad min” and the “Guest” groups are not configurable and
the “Guest” account is configured with the “view only” privilege”.
*
Add a New User
To add a new user, simply click on the “add new user” button available at the
upper-right hand corner in the “User/Group config” page.
Add a new user
This opens up a new window for you to enter the detail information of the
user you are creating.
* The “Username”, “Password” and
“Confirm Password” fields are required
when creating a new user account. The
rest of the fields are optional.
* You can click the “Check” button to
check if the username you are crating for
the new account has been used by
another account.
A “+” will appear next to the group indicating a user has been added to that
particular group. Click on the “+” to expand the group and all users will be
displayed.
The “Remove” and “Edit” buttons will become avail- able once a user has
been created.
Click the “Remove” button to remove an existing user, or the “Edit” button to
edit setting of an existing user account
Remove a user
Edit setting of an existing
user account
Edit Group Privilege
To edit access privilege of a particular user group,
first then click the “Edit Group” button.
simply select a group
Edit privilege of a group
This opens up the group privilege configuration
dialog.
Select a group from the drop-down menu and check which function(s) this
group has permission to.
Select a group
Select functions to
grant access to.
8. 7BEvent Handling
Event Handling Configuration
Here you can define what constitutes an event with
and what actions to be taken when these conditions are met.
The conditions are divided into two categories:
General event conditions
Conditions such as settings being altered
NVR-specific event conditions
Conditions such as motion detection
pre-defined conditions
To enable a condition for event trigger, simply tick the checkbox of a
particular condition.

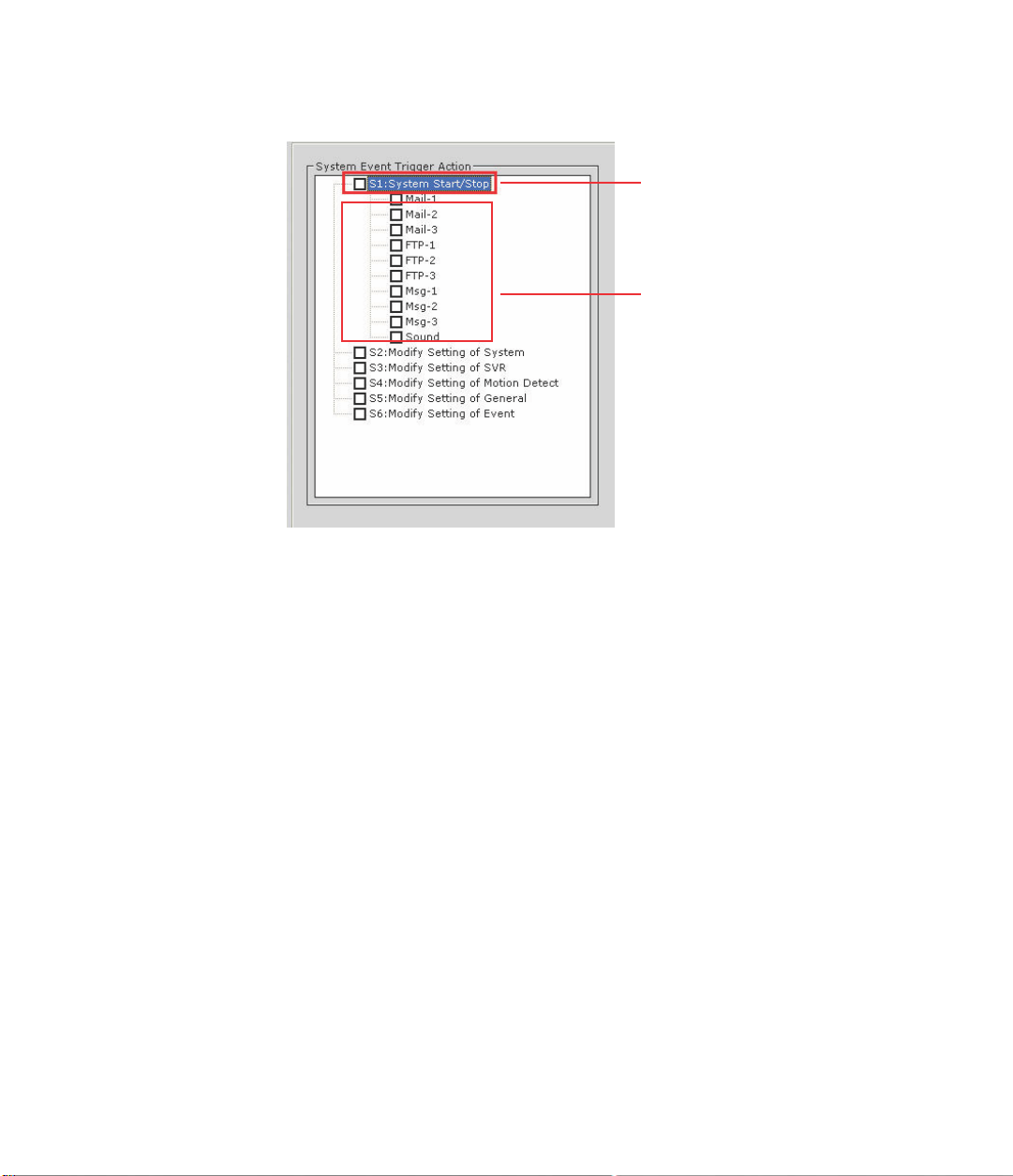

Event Condition
Tick the checkbo x to
enable Double-click
pulls down the ev ent
servers
Event Servers
Tick the checkbo x to
enable
Double-click on any condition pulls down the event servers which users can
choose to use for that particular condition.
The event servers can be considered as actions that are taken place when
events are triggered.
9. 8BConfigure E-Map
Main Map
The main map
displays locations of all
NVRs
Sub-maps
Each sub-map displays
the near-by area of a
particular NVR which
shows locations of all
cameras connected to it

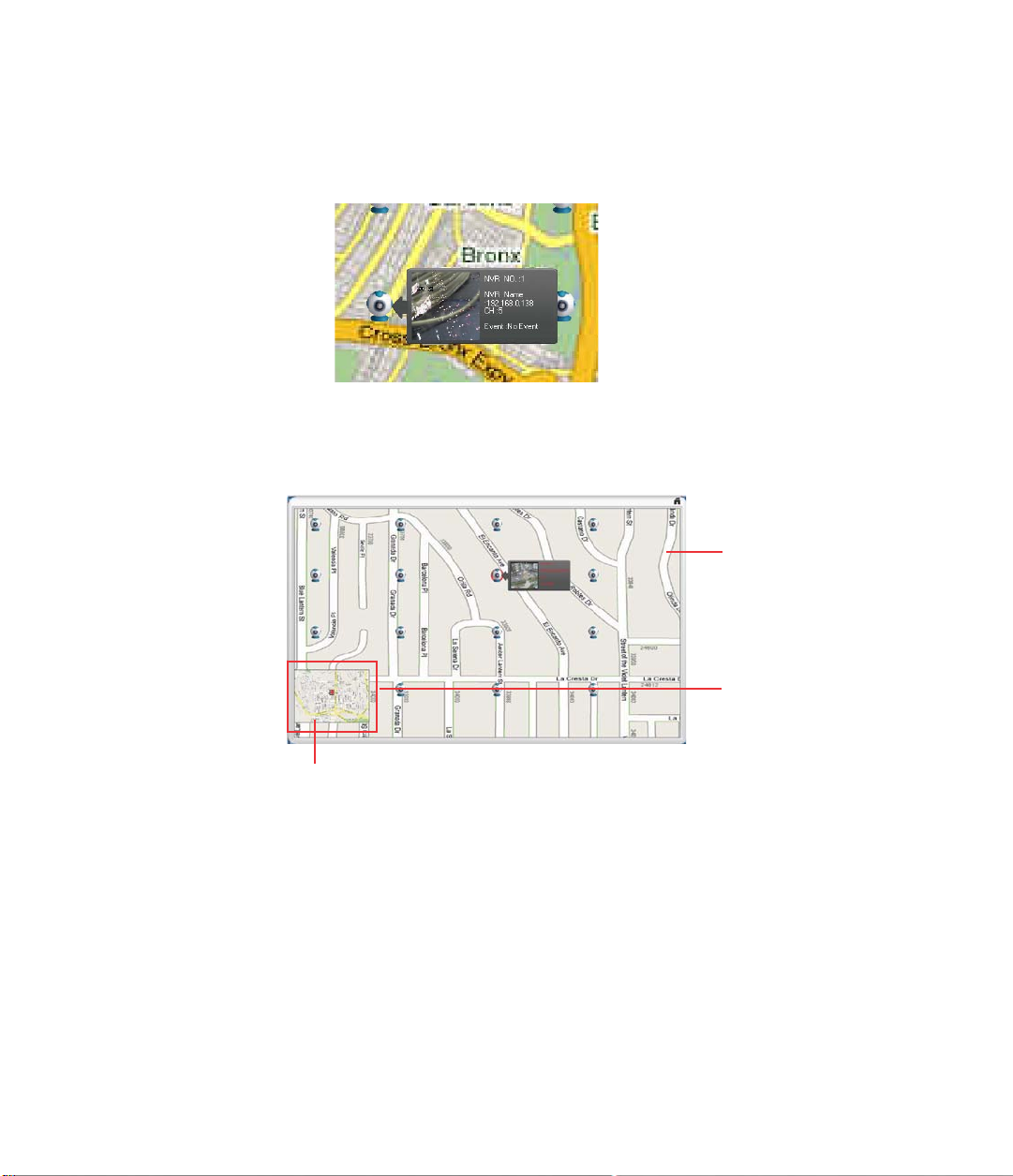

The E-Map
The program provides three-layered e-map which the top layer displays the
location of all NVRs/NVR groups and the second layer displays locations of
all NVRs that are assigned to a particular group and the third layer displays
locations of all cameras that belong to a particular NVR.
This function is particularly useful when motion detection is configured. You
can simply place the e-map on one monitor and whenever there is motion
detected, the NVR/camera will be highlighted on the map and live video will
be displayed for live event monitoring.
Configuring the E-Map
By default, all NVRs that are added to the CSM software will be assigned to
the “Main Map” group first:
which
As more NVRs are added to the CSM software over time, you can create
additional “groups” and place certain NVRs to one or more particular
groups based their geographical locations for better organization.
To add an additional group, click and highlight the “MainMap” group and
enter a name in the “Group Name” field then click “Add”:
The new group will be created and placed under the “MainMap” group first:
To place one or more NVRs to the new group, simply click and drag an NVR
in the list and drop it to a desired group:
The NVR will be re-arranged to the group you placed it into:
To change the map picture of a particular group/NVR, simply double click
on it in the list or switch to the “E-map Position Assign” tab:
Double-click takes you directly to the configuration page of that group
under “E-map Position Assign”
1. Go to E-map Position
Assign Page
To replace the default map picture, double-click anywhere on the map:
-
A new dialog should display which lets you choose the new picture for the
E-map:
10. 9BSet up Multiple Monitors

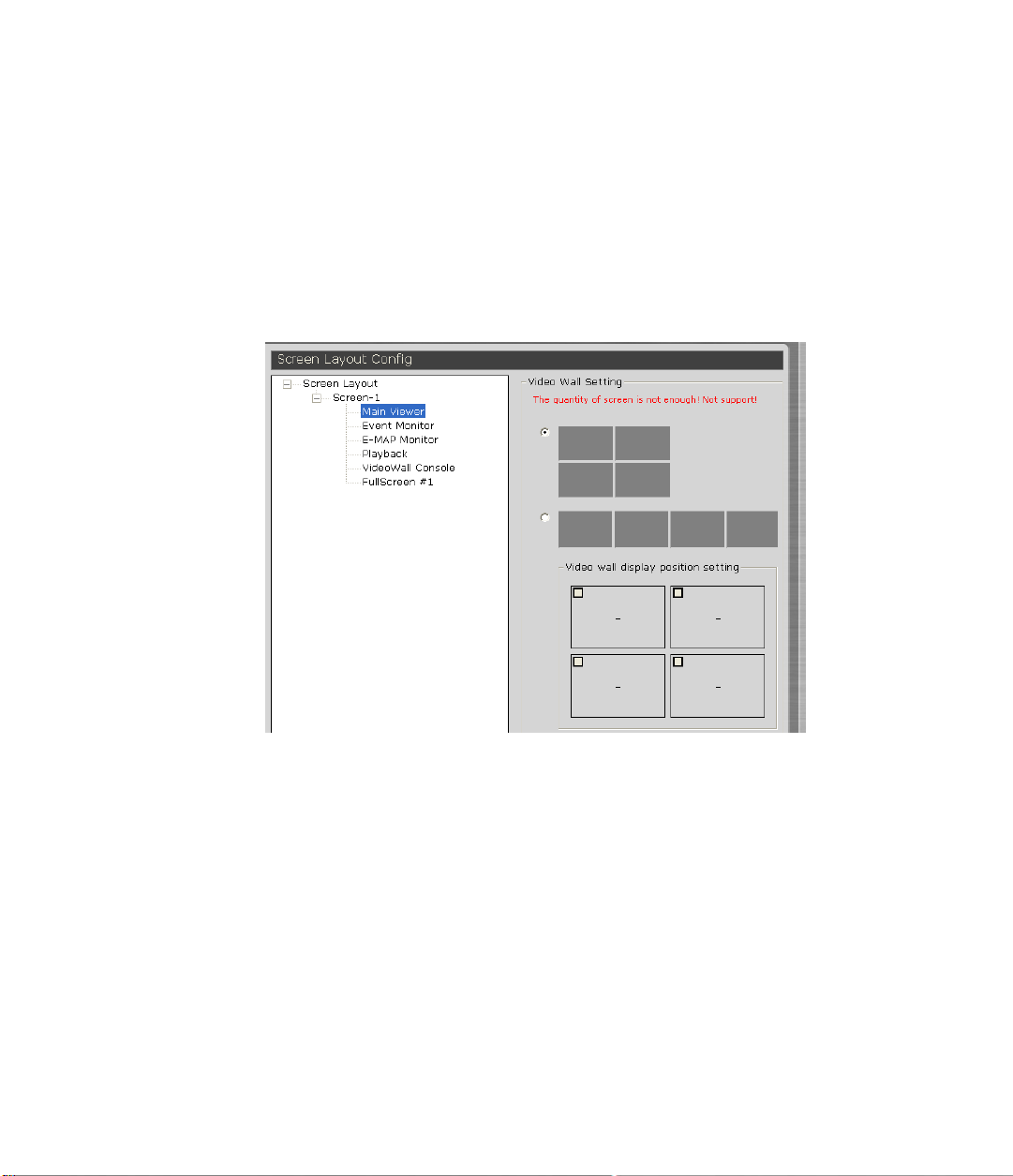

If you have multiple monitors configured in the PC, the CSM setup wizard
can automatically detect such configuration and displays the available
monitors.
You can find that in the setup wizard under “General Setting”>>”Screen
Layout Config”.
You should then see the available monitors on the right (Screen-1, Screen2…etc).
By default, all the function windows are set to display on Screen-1.
You can then drag the desired function window and drop it to the monitor
(ex. Screen-2) you wish it to be displayed on.
11. 10BEvent Servers
Event Servers are Event Actions
The program provides four different event servers that can be used when
events are triggered.
z Mail server
z FTP server
z Message server
z Sound server
You can add up to three for each server and pick the one(s) you would like
to use for particular event(s).
You can get a configuration overview of all the event servers under the
“Event Action Config” page.

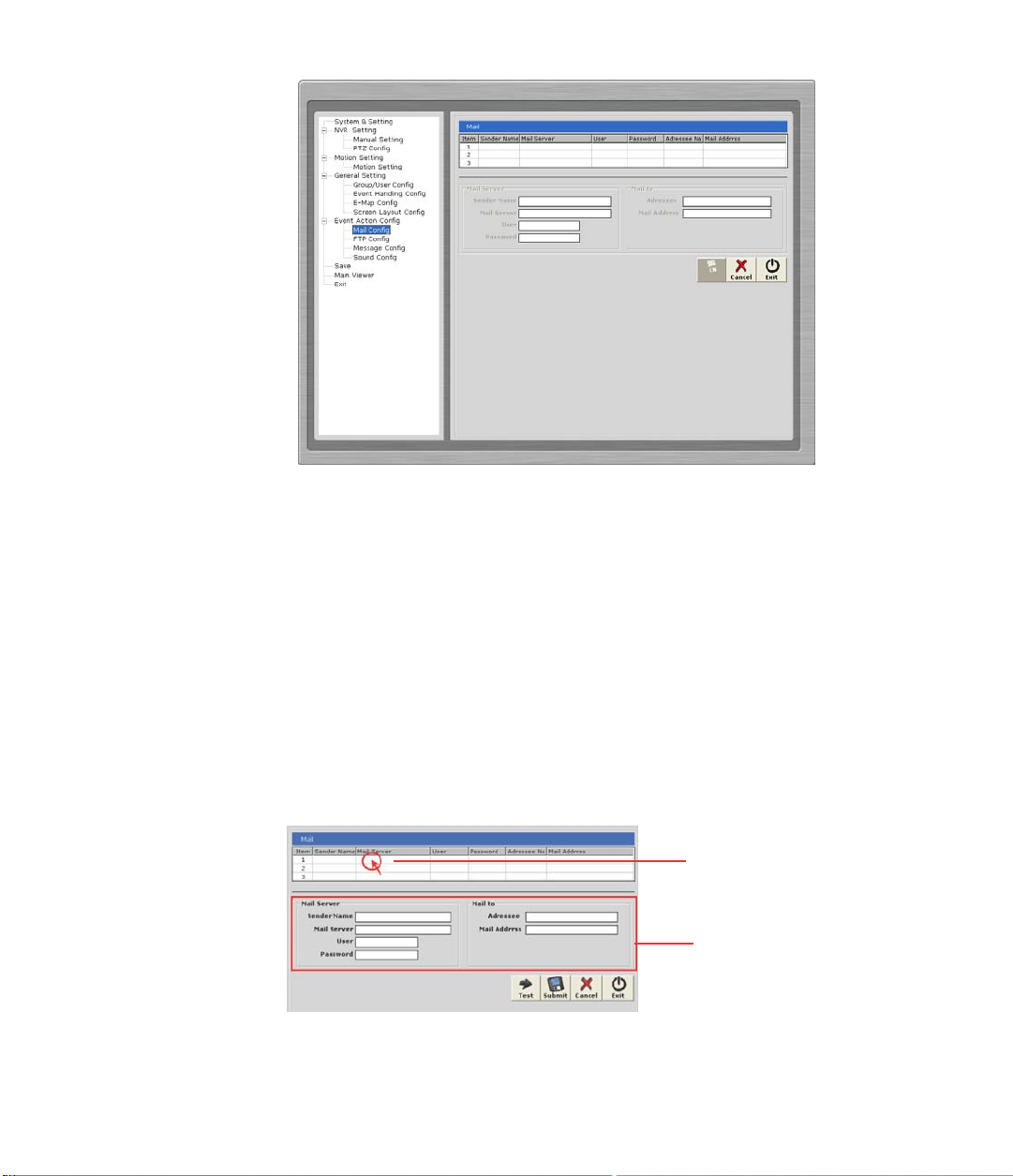

Configure Mail Server for Events
You can configure up to three mail servers in which you can select later
and use them for different event trigger conditions.
When configuring a mail server, it’s essential that you provide the following
information:
z Mail server address (IP or FQDN domain name)
z Username and password for the mail server (if required)
z Recipient’s e-mail address
To start adding a mail server, click on an item field and the setting boxes
should become available.
Enter the mail server information and click “Submit” to save the settings.
You may click “Test” to verify the settings prior to saving the configurations.
Click to add or edit
Enter mail server info

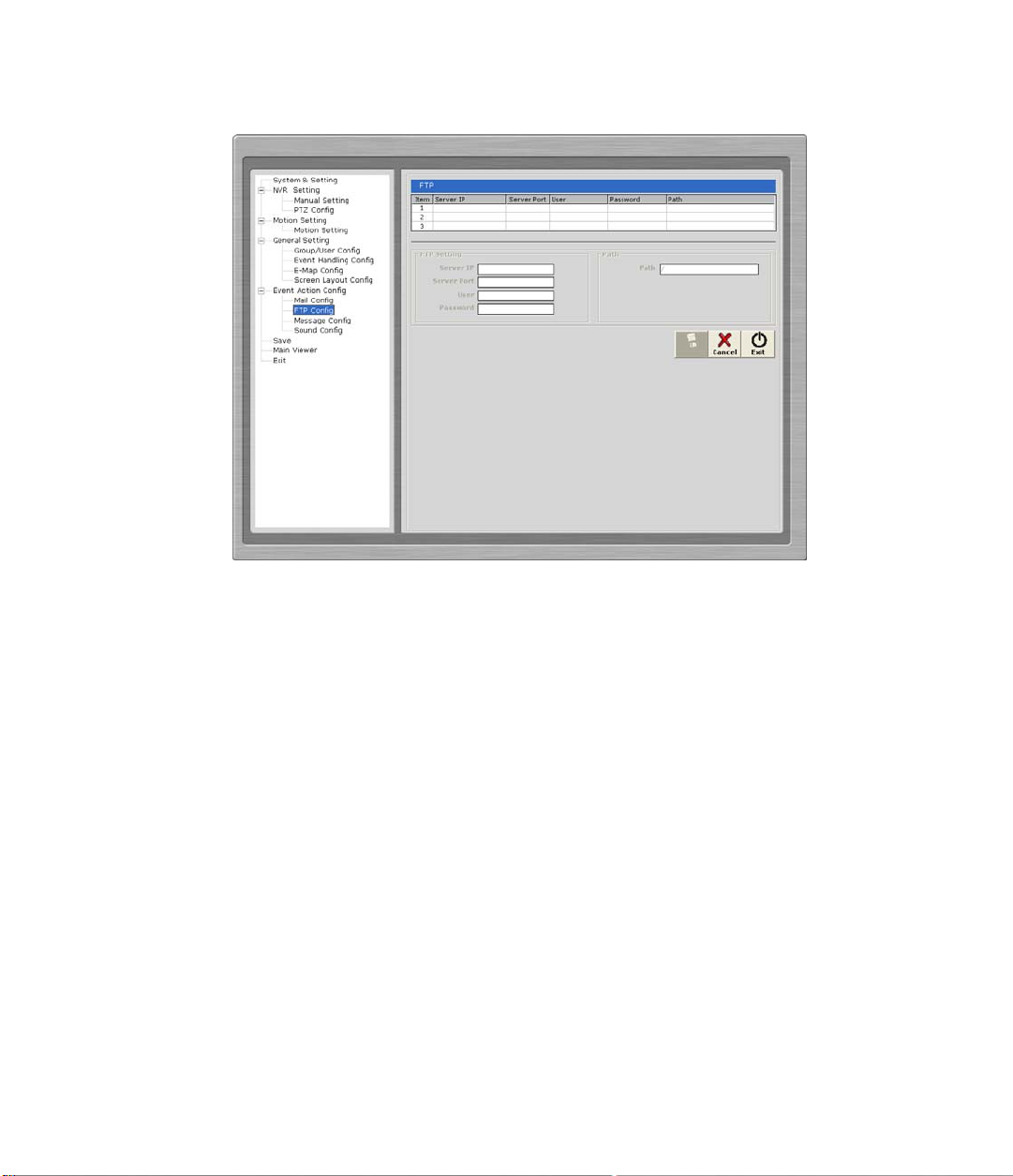

Configure FTP Server for Events
You can configure up to three FTP servers in which you can select
later and use them for different event trigger conditions.
When configuring an FTP server, it’s essential that
following information:
you provide the
FTP server address (IP or FQDN domain name)
FTP server port (such as port 21)
Username and password for the
FTP server (if required)
Path to upload the files to (if not I directory)
To start adding an FTP server, click on an item field
boxes should become available.
and the setting
Enter the FTP server information and click “Submit” to save the
settings.
You may click “Test” to verify the settings prior to saving the
configurations.
USER’S MANUAL
Configure Message Server for Events
Click to add
or edit
Enter mail
server info
You can configure up to three message servers in which you can
select later and use them for different event trigger conditions.
When configuring a message server, it’s essential
the following information:
that you provide
z Message server address (IP or FQDN domain name)
z Message server port
z
Username and password for the Message server (if required)
z
Text to be broadcasted
To start adding a message server, click on an item field and the
setting boxes should become available. Enter the message server
information and click “Submit” to save the settings.
You may click “Test” to verify the settings prior to
saving the
configurations.
USER’S MANUAL
Click to ads or edit
Enter mail Server info
Configure Sound Server for Events
You can configure the program to send warning sound from the
system’s speaker when events are triggered.
To start adding a sound server, click on an item field
setting boxes should become available.
and the
Click on the “folder” icon to locate the sound file. You may select a
sound file that is only in the WAV file format.
Click to locate
file
USER’S MANUAL
sound
Accessing the main program
Now that you have finished configuring the mail program through its
setup wizard, after saving all the settings (which you can do so by
clicking on the “Save” button on the left pane tree menu), simply
click “Exit” to close the Setup Wizard.
To access the main program, simply click on “Main Viewer” to exit
the Setup Wizard and it will be open the main program
automatically.
If the Main viewer does n’t run, yo u can start the main program by
double-clicking on the short cut icon located on the desktop.
IVS Central.lnk
Or you can access the main program by simply go to Start >> All
Programs >> IVS >> IVS Central >> IVS Central.
USER’S MANUAL
12. 11BUsing the Main Program
Working with the Live Video Page
This page basically provides you the ability to view, and manage
the video streams of each channel.
The program provides certain functions which helps users to
monitor effectively.
USER’S MANUAL
Video Function Bar
The function bar is available for each video window.
The fu
Reconnect video
Turn on/off audio
Motion Detection
Status
Turn on/off
Motion Display
Take a Snapshot
nction bar provides the following functions:
Interface Description
If you find the video is streamed at a lower frame rate
than it should or the video is simply lost, you can click
this button to re-initiate the connection with the camera
and receive the stream again.
If the camera supports audio function, you can click
this button to receive audio from the camera.
This function is turned off by default and you can only
receive audio from one channel at a time.
This icon serves the function to display whether motion
detection has been configured for this channel.
If it’s not configured, the icon is grayed out
If it’s configured, it will be in light grey
Once a channel is configured with motion detection,
click the same icon allows you to turn on motion
display which adds highlights on moving objects in the
video.
The icon will show in red when this function is
turned on.
The function allows you to take snapshots of the live
video and save them on your local computer.
USER’S MANUAL
Simply click on the icon and the snapshot of the video will be
displayed in a pop-up window.
Right-click anywhere on the pop-up window will give you the
option to save the snapshot.
The snapshot is automatically saved in a pre-defined folder under the
directory where the program is installed.
USER’S MANUAL
Right-Click
PTZ Control Indicator
You are able to control one PTZ camera at a time and this icon
tells users which camera is currently selected for PTZ action.
The video window will also be highlighted with blue color to
indicate it’s currently being selected.
PTZ icon shown
in red meaning
this is a PTZ
camera, or it
would gray out.
Blue high-light.
USER’S MANUAL
Using PTZ Control Panel
Once a video is selected for PTZ action (right-click
on a video to
select), you are able to do the PTZ with the PTZ control panel.

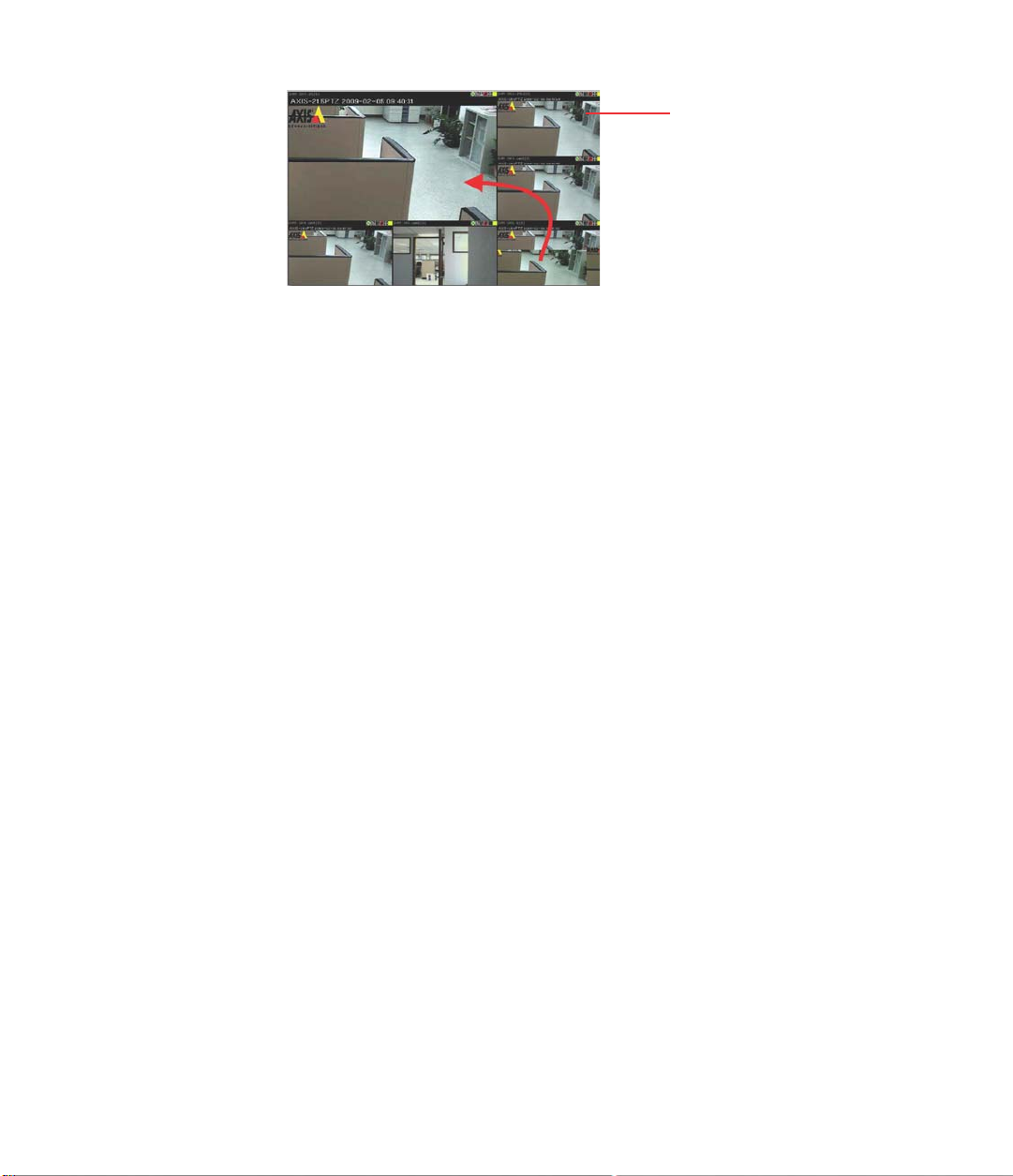

Use Mouse-over-video PTZ
You can simply move the mouse onto the video, an arrow and the
crosshair should be displayed. Simply right-click on the video to pan / tilt
the camera. Use the mouse scroll button to scroll down to zoom in and
scroll up to zoom out.
Right-click to pan
and tilt, use
mouse scroll
button to zoom
in/out
Drag and Drop to Relocate Videos
On the live view page, you can simply drag the video to re-arrange its
location or switch location with an- other video.
Drag a video and
drop it to a new
location
USER’S MANUAL
Drag a video
and switch
place with
another video
USER’S MANUAL
View Window Switcher
You can use this function to switch between different view patterns
and set up how videos are displayed on the screen.
Support Two Full Screen View
The program supports two full screen views if there are more than
one monitors connected to the PC. You can view up to 16 live video
on each full screen with configurable view patterns.
The first full screen displays videos in full
screen with its current view pattern layout
(if it’s displaying videos in a 6 split window
view, the same displays in full screen).
The second full screen displays videos in
full screen in a 16 split window by default.
You can change the layout by right-click
anywhere on the screen and make
selection from the drop-down menu.
Side Menu Bar
You can access all functions of the program from the side menu bar.
Some can be displayed onto different monitors if you enabled this
function in the Setup Wizard.
A list of the functions available from the side menu:
z Live Monitor
z
Event Monitor
z
Playback
z
E-Map Monitor
z
NVR and Camera Status
z
Camera Tree List
z
Sequence View
z
Create patterns for different split view
z
Service Mode
z
Check Program Version
z
Change Display Language
Camera Tree List

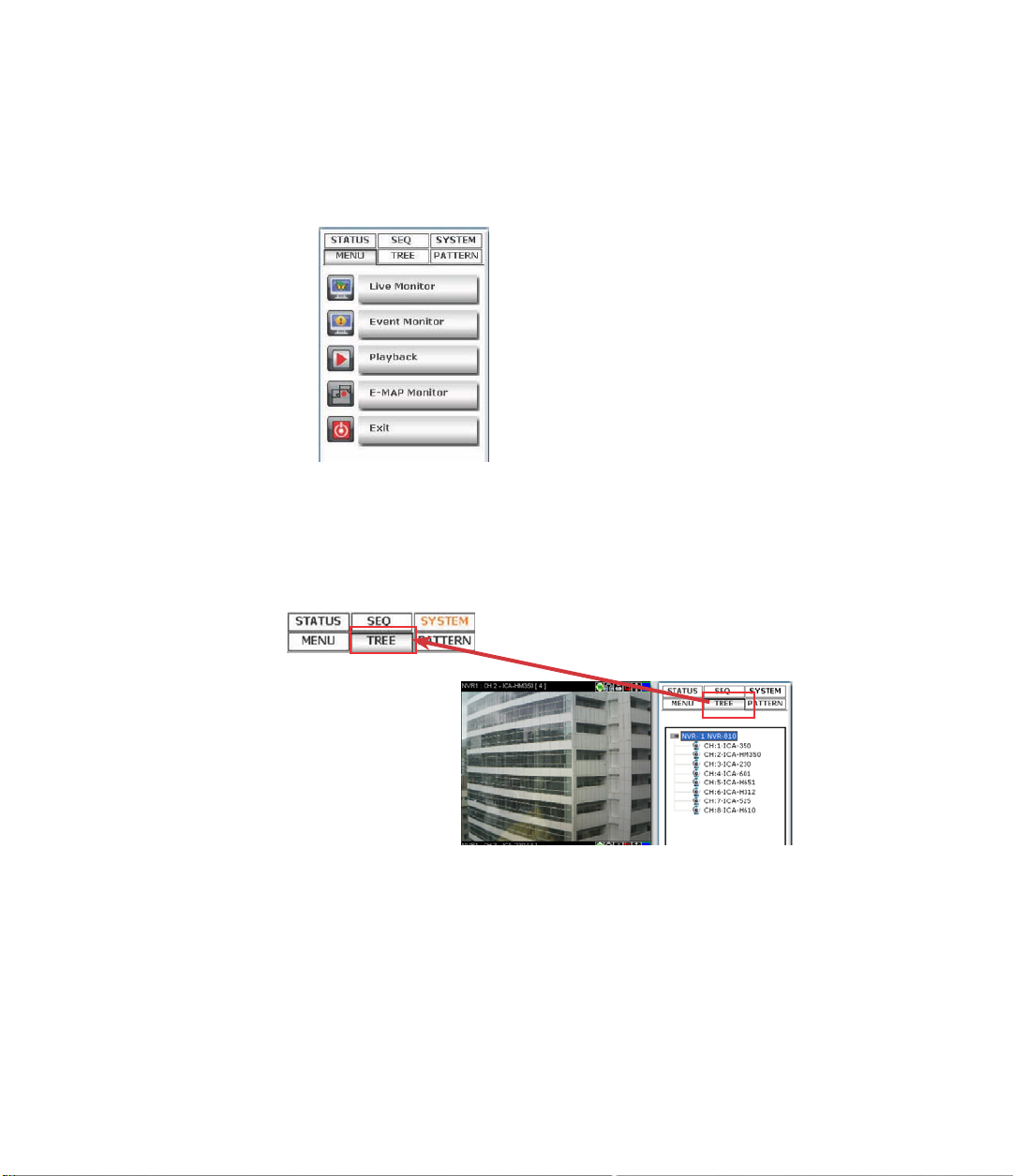

You can retrieve a list of the cameras and NVRs from the side menu
bar. Simply click on the “TREE” menu to access this function.
By default, only the NVRs are listed. You can double- click on any of them to
retrieve the camera list of that NVR.
You can then drag an NVR from the list and drop it onto the live video area, in
which all cameras’ videos will be displayed.
You can also drag one camera from the list and drop it onto any video window
to display video from that camera.
Drag and drop
an NVR
Drag and drop a
camera
Sequence View
This is a useful tool which you can simply setup the program to display
videos from certain or all cam- eras and the program will automatically
switch views for you. You can also set up the sequence interval and decide
how long you would like each video to stay on the screen.
Select how videos are
split on the live view area.
Set sequence interval.
Choose to sequence all
cameras or selected ones
The “Pattern SEQ” will not become available until you create “patterns”
under the “PATTERN” menu.
only
Live View Pattern Groups
You can create multiple profiles for different live view split layouts.
This is an extreme useful function in larger environments where you
have many cameras in place and multiple cameras setup for each
area.
After the “patterns” are created, you can head back to the “SEQ”
menu and enable the “Pattern SEQ” feature. This will ask the
program to display videos from the “pattern” groups in sequence.
To configure view pattern groups and set it for pat- tern sequence
view:
1. Select a view layout first.
2. Then, select cameras from the camera tree list.
Drag and drop videos on the screen to arrange their locations as
you desire.
3. Click the “+” sign under the “PATTERN” menu to add it.
4. Go back to the “SEQ” menu and select “Pattern
should be available.
Seq” and the patterns
Select the ones for
sequence viewing.
13. 12BEvent Monitor
This page can be displayed on another monitor

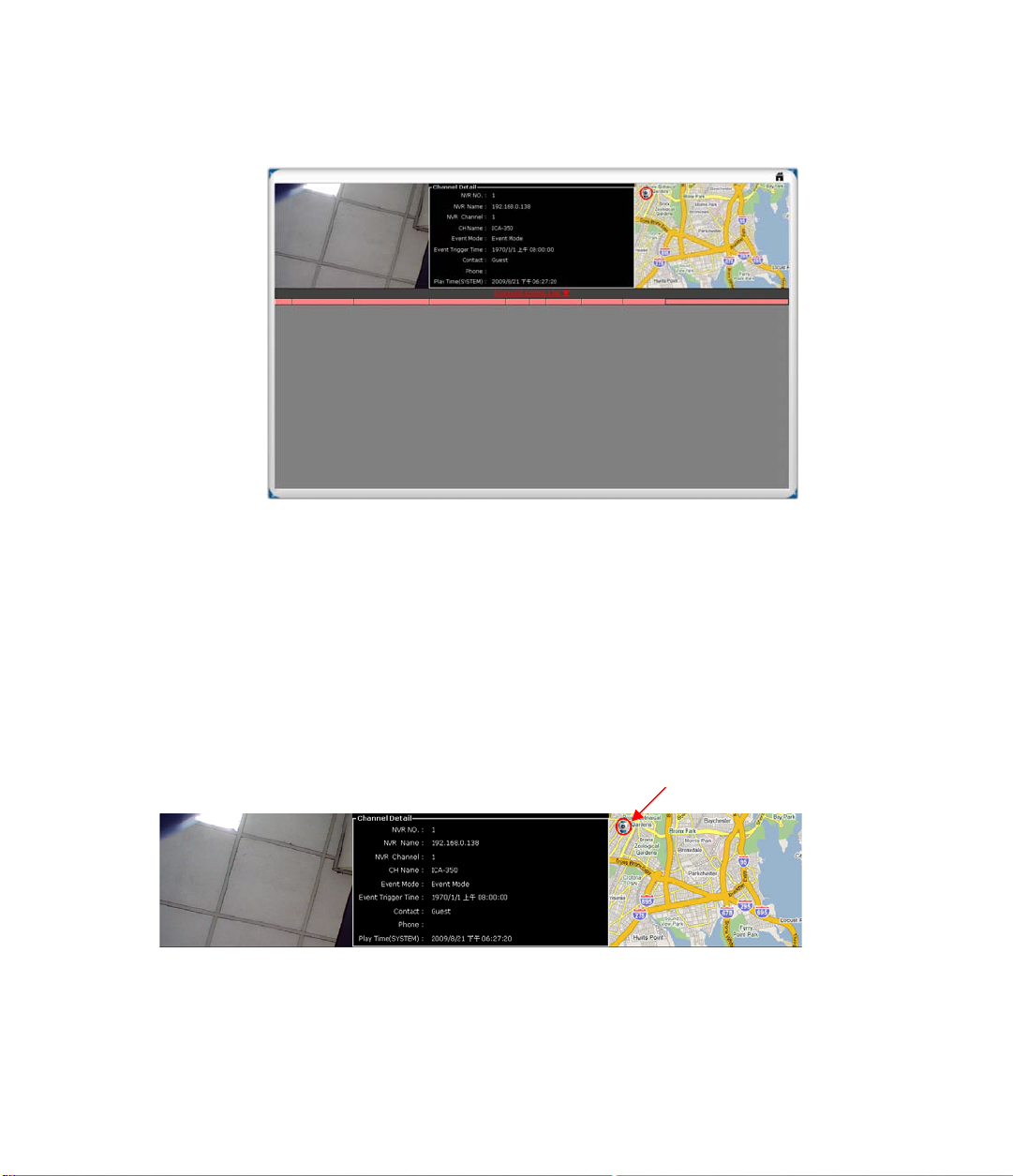

The Event Monitor is an advance live video monitor tool that
combines functions of:
.
Single live video view from camera that’s triggered with events
.
Channel configuration information.
.
Event log, search, playback.
.
E-Map displays cameras’ locations which were triggered with
events.
Video from the
camera that is
triggered with event
Detail information
of the camera,
such as channel
number, the NVR
The location of the
camera will be
displayed on the
E-Map
is connected
Playback Events from Event Monitor
The program will log continuously when new events are triggered.
Simply click on one to start playing back the video. Its
corresponding configuration and location will also be displayed
according.
Playback video Channel info Camera location
Click on
one to start
playing
back an old
event
Filter and Search Events
While the event logs keep stacking up the screen, it’s difficult to look
for a particular event for playback. You can then use the search
function and filter the search result by either search from an event
start time, search by event type or both.
Double-click to open
the search dialog.
You can also narrow the search results by performing search to a
particular NVR.
The event trigger interval is set at 10 seconds
14. 13BPlayback
NOTE:
This page can be displayed on another monitor.
The program supports 4-channel synchronous play- back in a quad
view layout. Search results that include events will be marked in blue
on the calendar and their corresponding event thumbnails will be
displayed at the bottom to reduce the search time and effort.
Searching for Playback Videos
p
To start looking for playback videos, simply select an
NVR from the
drop-down menu first and select which channels to look for
playbacks.
Select an NVR first
Select channels to
erform search
Search results will then be displayed on the calendar indicating which
days have recordings available.
Days marked in dark
gray means recording
available
Days marked in blue
means there are
events being recorded
Click on a day will shows what hours of that day recording were
performed. Click on a particular hour to start playing back videos.
If you click on an hour which event recordings were performed, the
program will display the thumbnails of the first frame from each
trigger at the bottom.
This is useful for users to help them quickly find the footage that’s
meaningful to them instead of fast- warding few times.
You can also use the time bar and go directly to a particular start time.
Capture Snapshots of a Playback Video
This is the same function that is available in the live view page. Each playback
video windows comes with function bar at the upper-right hand corner.
AVI Export
Current status of this channel
Capture snapshot of
the recorded video
Turn on/off audio
from the recorded
video
Right click
on the video
AVI Export
You can export the recorded videos to A VI files and sa ve them
onto a loc al hard dis k. Simply click on the “ AVI Export” icon
while a video is being pla yed back. Click it again to stop the
process.
.
All exported videos are automatically saved in the “AVI” folder
under the program installation directory.
“Ex.: C:\Program Files\IVS\CMS Central Basic\ AVI”
.
The program allows a maximum of one hour of video per channel
to be exported.
15. 14BE-Map Monitor
The E-Map provides a simple overview of where events are happening.
This allows users to only pay attention to what’s meaningful to them.
This function comes with two layers of maps where
represent locations of each NVR.
This is normally referred as the main map which a map with overview
of a larger scale area should be used.
Once there’s an event triggered from a particular NVR, the location of
the NVR will be circled in red to notify users an event has been
triggered.
The video and event trigger type are also displayed on the map.
the first layers
Double-click on the red dot (the location of the NVR) will take you to the sub
map where the locations of all the cameras within will be displayed.
The camera of which the event is triggered from will be circled in red to tell the
user the location of the event in a more detail manner.
The sub map provides the PIP (Picture-in-Picture) view which the main map is
embedded in the sub map so that users can still know if there are events being
triggered from other NVRs at the same time.
Sub map
Main map
Double-click to go back to main map
Simply double-clicking the embedded main map to go back to the main map
view.
16. 15BService Mode

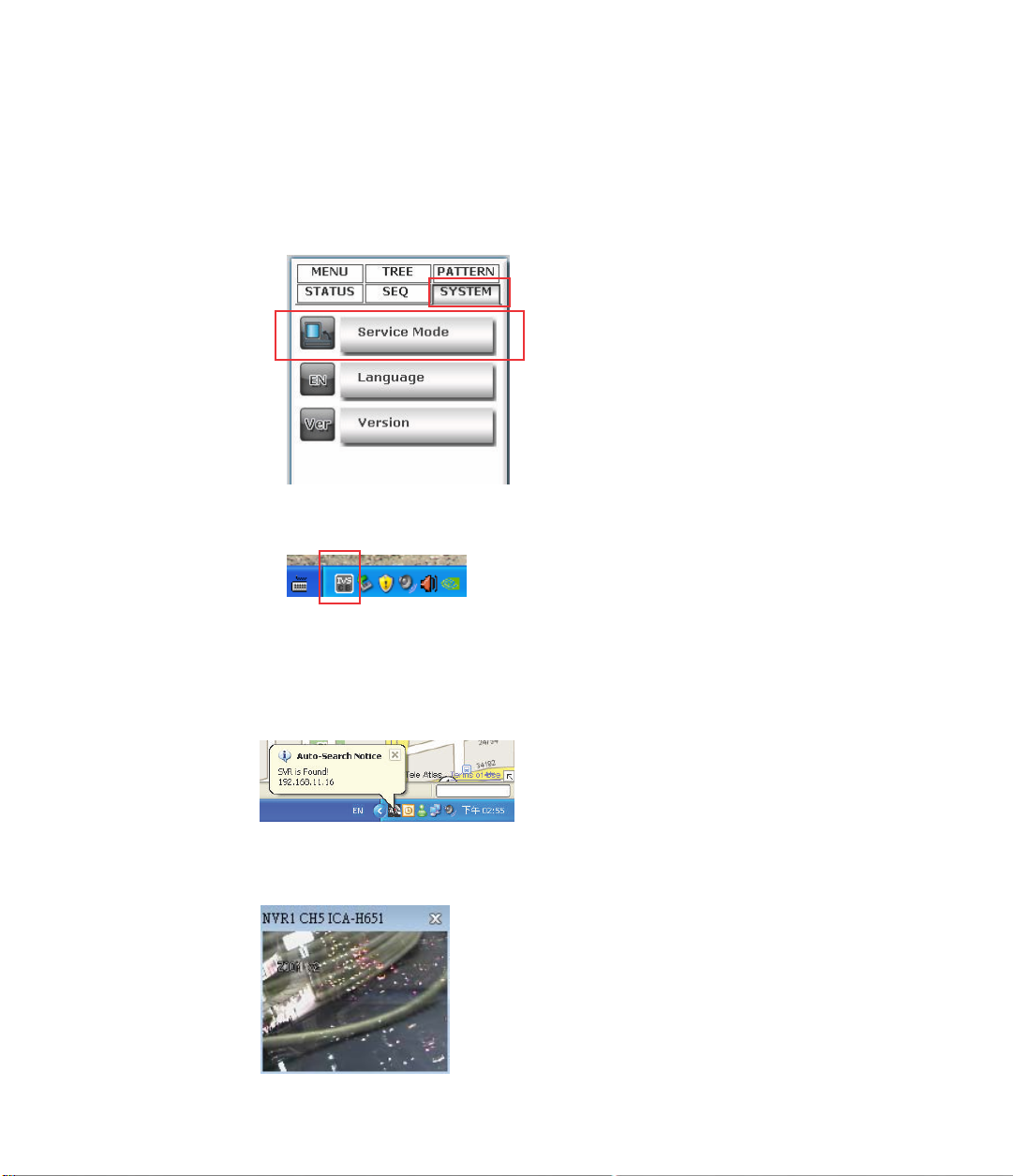

If you are using a PC that is not dedicated to run this program only (working
with some other programs at the same time). You can turn on the service
mode, which can be accessed from the side menu bar under the “SYSTEM”
menu, select “Service Mode”.
This will minimize the program to the Windows system tray.
The function to detect new NVR and event trigger notification will continually
to work in the back- ground.
You will get notification from the tray if the program has detected a new
NVR has been placed on the network.
A small video will also be pop ping out from the tr ay to notify y ou that an
abnormal motion has been detected.
Right-click on the program tray icon gets you other functions.
z Maximize the program
z Close the main program and open the Setup Wizard
z Turn on/off event notification (on by default)
z Turn on/off NVR Smart Search (on by default)
z Switch to synchronize events manually (off by default)
z About the program
z Exit the program
Change Program Display Language
The program provides multiple languages user
interface. To
change the display language, go to the side
menu and select “SYSTEM” >> “Language” and
select a desired langu age from the drop-down
menu.
Check Program Version
To check the program’s version, go to “SYSTEM” >> “Version”.
Check Camera and NVR Status
On the live view page, each camera’s current status is displayed
in the upper-right hand corner of the video window.
You can, however , obtain status of a ll NVRs and the camera s from the side
menu under “STATUS”.
Status definition
Loading...
