PLANET ADW-4401 User Manual

Wired / Wireless

ADSL 2/2+ Router

ADE-3410v4 / ADW-4401v5

User's Manual

publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or

translated into any language or computer language, in any form or by any means, electronic,

mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written

permission of PLANET.

PLANET makes no representations or warranties, either expressed or implied, with respect

to the contents hereof and specifically disclaims any warranties, merchantability or fitness

for any particular purpose. Any software described in this manual is sold or licensed "as is".

Should the programs prove defective following their purchase, the buyer (and not this

company, its distributor, or its dealer) assumes the entire cost of all necessary servicing,

repair, and any incidental or consequential damages resulting from any defect in the

software. Further, this company reserves the right to revise this publication and to make

changes from time to time in the contents hereof without obligation to notify any person of

such revision or changes.

All brand and product names mentioned in this manual are trademarks and/or registered

trademarks of their respective holders.

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment

generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television reception, which can

be determined by turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.

2. Increase the separation between the equipment and receiver.

3. Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

4. Consult the dealer or an experienced radio technician for help.

FCC Caution

To assure continued compliance (example-use only shielded interface cables when

connecting to computer or peripheral devices). Any changes or modifications not expressly

approved by the party responsible for compliance could void the user’s authority to operate

the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the Following

two conditions: (1) This device may not cause harmful interference, and (2) this Device must

accept any interference received, including interference that may cause undesired

operation.

Federal Communication Commission (FCC) Radiation Exposure Statement

This equipment complies with FCC radiation exposure set forth for an uncontrolled

environment. In order to avoid the possibility of exceeding the FCC radio frequency

exposure limits, human proximity to the antenna shall not be less than 20 cm (8 inches)

during normal operation.

R&TTE Compliance Statement

This equipment complies with all the requirements of DIRECTIVE 1999/5/EC OF THE

EUROPEAN PARLIAMENT AND THE COUNCIL OF 9 March 1999 on radio equipment and

telecommunication terminal Equipment and the mutual recognition of their conformity

(R&TTE)

The R&TTE Directive repeals and replaces in the directive 98/13/EEC (Telecommunications

Terminal Equipment and Satellite Earth Station Equipment) As of April 8, 2000.

WEEE Regulation

To avoid the potential effects on the environment and human health as a result of

the presence of hazardous substances in electrical and electronic equipment, end

users of electrical and electronic equipment should understand the meaning of the

crossed-out wheeled bin symbol. Do not dispose of WEEE as unsorted municipal waste

and have to collect such WEEE separately.

Safety

This equipment is designed with the utmost care for the safety of those who install and use it.

However, special attention must be paid to the dangers of electric shock and static electricity

when working with electrical equipment. All guidelines of this and of the computer

manufacture must therefore be allowed at all times to ensure the safe use of the equipment.

Revision

User’s Manual for Wired / Wireless ADSL 2/2+ Router

Model: ADE-3410v4 / ADW-4401v5

Rev: 1.0 (November. 2009)

Part No. EM-ADE3410v4_ADW4401v5_v1

Table of Contents

1. INTRODUCTION ........................................................................................................................................................ 7

1.1 Feature ................................................................................................................................7

1.2 Package Contents ............................................................................................................ 10

1.3 Physical Details ................................................................................................................ 11

2. INSTALLATION........................................................................................................................................................ 15

2.1 System Requirement........................................................................................................ 15

2.2 Hardware Installation ....................................................................................................... 15

2.3 Configuring the Network Properties............................................................................... 17

2.4 USB Installation (ADE-3410 only) ................................................................................... 21

3. WEB CONFIGURATION MANAGEMENT .......................................................................................................... 23

3.1 Access the Router............................................................................................................ 23

3.2 Wizard................................................................................................................................24

3.3 Status ................................................................................................................................31

3.3.1System.......................................................................................................................................................31

3.3.2 LAN......................................................................................................................................................... 32

3.3.3 WAN........................................................................................................................................................ 32

3.3.4 WLAN (ADW-4401 only) ....................................................................................................................... 33

3.3.5 Port Mapping ........................................................................................................................................... 34

3.3.6 Statistics................................................................................................................................................... 34

3.3.6.1 Traffic Statistic..............................................................................................................................34

3.3.6.2 DSL Statistic.................................................................................................................................35

3.3.7 ARP Table ...............................................................................................................................................35

3.4 Network ............................................................................................................................. 36

3.4.1 LAN......................................................................................................................................................... 36

3.4.1.1 LAN IP..........................................................................................................................................36

3.4.1.2 DHCP............................................................................................................................................ 37

3.4.1.3 DHCP Static IP ............................................................................................................................. 39

3.4.2 WAN........................................................................................................................................................ 39

3.4.2.1 WAN............................................................................................................................................. 40

3.4.2.2 ATM Setting .................................................................................................................................42

3.4.2.3 ADSL Setting................................................................................................................................43

3.4.3 WLAN (ADW-4401 only) ....................................................................................................................... 43

3.4.3.1 Basic Setting .................................................................................................................................44

3.4.3.2 Security.........................................................................................................................................45

3.4.3.3 Access Control.............................................................................................................................. 48

3.4.3.4 Multiple SSID ............................................................................................................................... 49

3.4.3.5 Advanced Setting .......................................................................................................................... 50

3.4.3.6 WPS .............................................................................................................................................. 52

3.5 Service............................................................................................................................... 53

3.5.1 DNS ......................................................................................................................................................... 53

3.5.1.1 DNS ..............................................................................................................................................53

3.5.1.2 DDNS ...........................................................................................................................................54

3.5.2 Firewall....................................................................................................................................................54

3.5.2.1 IP Port Filter.................................................................................................................................. 55

3.5.2.2 MAC Filter.................................................................................................................................... 55

3.5.2.3 URL Blocking............................................................................................................................... 56

3.5.2.4 Virtual Server................................................................................................................................56

3.5.2.5 DMZ Setting .................................................................................................................................57

3.5.2.6 DoS Setting ................................................................................................................................... 58

3.5.3 UPNP....................................................................................................................................................... 58

3.5.4 IGMP Proxy............................................................................................................................................. 59

3.5.5 TR-069..................................................................................................................................................... 59

3.5.6 ACL ......................................................................................................................................................... 60

3.6 Advance ............................................................................................................................ 62

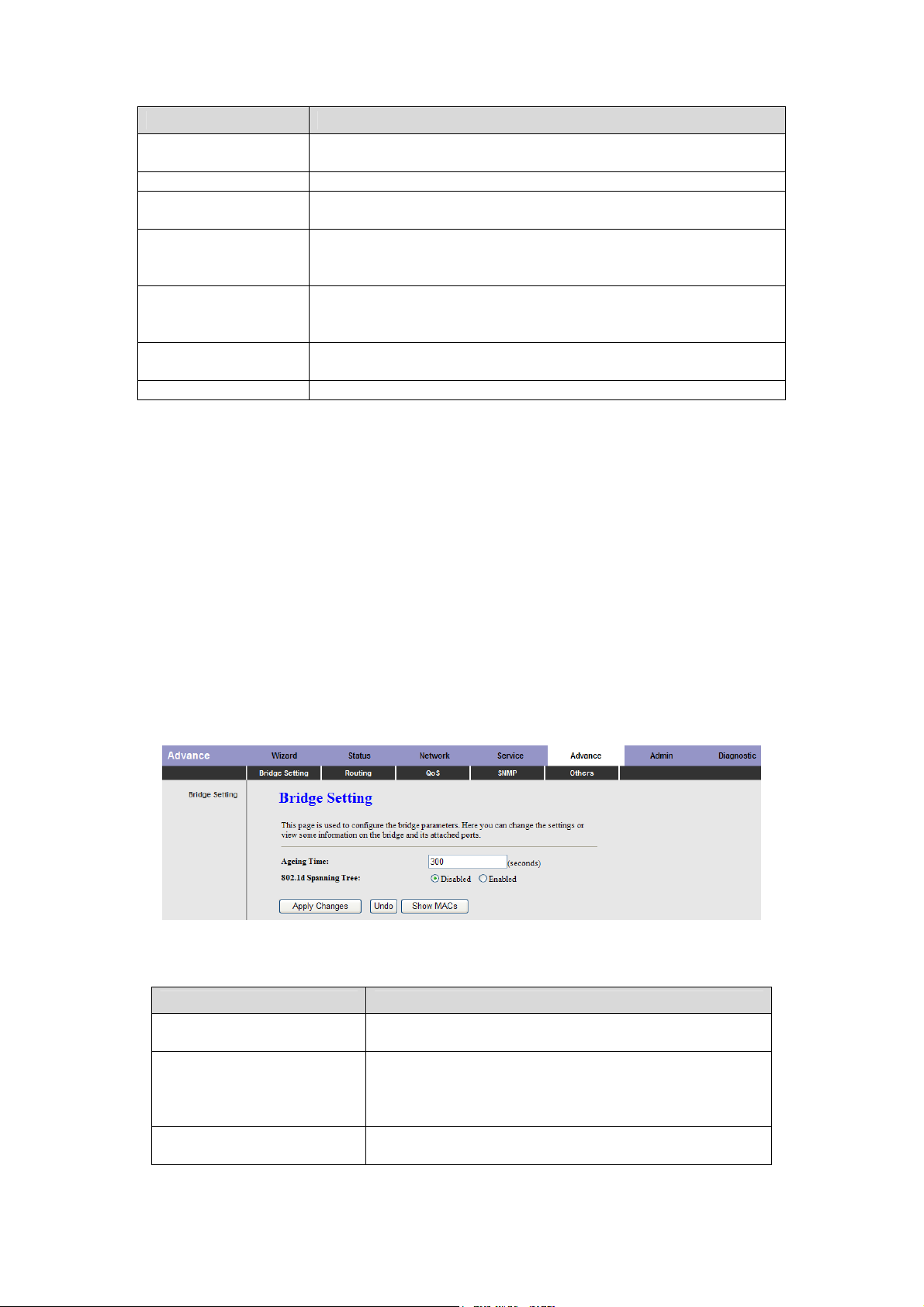

3.6.1 Bridge Setting .......................................................................................................................................... 62

3.6.2 Routing ....................................................................................................................................................63

3.6.2.1 Static Route................................................................................................................................... 63

3.6.2.2 RIP................................................................................................................................................ 64

3.6.3 Port Mapping ........................................................................................................................................... 65

3.6.4 QoS .......................................................................................................................................................... 66

3.6.5 SNMP ......................................................................................................................................................67

3.6.6 Others....................................................................................................................................................... 68

3.7 Admin ................................................................................................................................68

3.7.1 Commit/Reboot........................................................................................................................................68

3.7.2 Upgrade....................................................................................................................................................69

3.7.2.1 Upgrade Firmware ........................................................................................................................ 69

3.7.2.2 Backup/Restore............................................................................................................................. 70

3.7.3 System Log .............................................................................................................................................. 70

3.7.4 Password..................................................................................................................................................71

3.7.5 Time Zone................................................................................................................................................ 71

3.8 Diagnostic ......................................................................................................................... 72

3.8.1 Ping..........................................................................................................................................................72

3.8.2 ATM Loopback........................................................................................................................................73

3.8.3 ADSL....................................................................................................................................................... 73

3.8.4 Diagnostic Test ........................................................................................................................................ 74

APPENDIX A: GLOSSARY.......................................................................................................................................... 75

1. Introduction

The PLANET Wired / Wireless ADSL 2/2+ Router, the ADE-3410 / ADW-4401, provides

office and residential users the ideal solution for sharing a High-Speed ADSL 2/2+

broadband Internet connection on the 10/100Mbps Fast Ethernet port, USB port (ADE-3410)

and wireless interface (ADW-4401). It can support downstream transmission rates up to

24Mbps and upstream transmission rates up to 3.5Mbps. The product supports PPPoA

(RFC 2364 - PPP over ATM Adaptation Layer 5), PPP over Ethernet (RFC 2516), and RFC

1483 encapsulation over ATM (MER, bridged or routed) to establish a connection with ISP.

Via the user-friendly management interface, the ADE-3410 / ADW-4401 can be managed

by workstations running standard web browsers. Furthermore, the device provides DHCP

server, NAT, Virtual Server, DMZ, access control, IP filter, VPN Pass-Through, and UPnP

capability.

The device also serves as an Internet firewall, protecting your network from being

accessed by outside users. It provides the natural firewall function (Network Address

Translation, NAT). All incoming and outgoing IPs are monitored and filtered by this product.

In addition, it can be configured to block internal users from accessing to the Internet.

1.1 Feature

Internet Access Features



Shared Internet Access

All users on the LAN or WLAN can access the Internet through the ADE-3410 /

ADW-4401 using only a single external IP Address. The local (invalid) IP Addresses

are hidden from external sources. This process is called NAT (Network Address

Translation).



Built-in ADSL 2/2+ Modem

The device provides ADSL 2/2+ modem, and supports all common ADSL

connections.



PPPoE, PPPoA, Direct Connection Support

Various WAN connections are supported by ADE-3410 / ADW-4401.



Auto-detection of Internet Connection Method

In most situations, the device can test your ADSL and Internet connection to

determine the connection method used by your ISP.



Fixed or Dynamic IP Address

On the Internet (WAN port) connection, the device supports both Dynamic IP Address

(IP Address is allocated on connection) and Fixed IP Address.

Advanced Internet Functions



Virtual Servers

This feature allows Internet users to access Internet servers on your LAN. The

required setup is quick and easy.



DMZ Support

The device can translate public IP addresses to private IP address to allow

unrestricted 2-way communication with Servers or individual users on the Internet.

This provides the most flexibility to run programs, which could be incompatible in

NAT environment.



Firewall

Supports simple firewall with NAT technology and provides option for blocking

access from Internet, like Web, FTP, Telnet, SNMP, and ICMP. It also supports MAC

and IP filtering.



Universal Plug and Play (UPnP)

UPnP allows automatic discovery and configuration of the Broadband Router. UPnP

is supported by Windows ME, XP, or later.



Dynamic DNS Support

DDNS, when used with the Virtual Servers feature, allows users to connect to

Servers on your LAN using a Domain Name, even if you have a dynamic IP address

which changes every time you connect.



VPN Pass through Support

PCs with VPN (Virtual Private Networking) software are transparently supported - no

configuration is required.



RIP1/2 Routing

It supports RIPv1/2 routing protocol for routing capability.



Simple Network Management Protocol (SNMP)

It is an easy way to remotely manage the router via SNMP.

Wireless Features (ADW-4401 only)



Standards Compliant

The ADW-4401 complies with the IEEE802.11g (DSSS) specifications for Wireless

LANs. Maximum of 54Mbps are supported.



Supports both 802.11b and 802.11g Wireless Stations

The 802.11g standard provides for backward compatibility with the 802.11b standard,

so both 802.11b and 802.11g Wireless stations can be used simultaneously.

WEP support



Supports for WEP (Wired Equivalent Privacy) is included. Key sizes of 64 Bit and

128 Bit are supported.



WPA support

WPA_TKIP and WPA2_AES encryption are supported.



Wireless MAC Access Control

The Wireless Access Control feature can check the MAC address (hardware

address) of Wireless stations to ensure that only trusted Wireless Stations can

access your LAN.



WPS Push Button Control

The ADW-4401 supports WPS (Wi-Fi Protected Setup) to easy connect wireless

network without configuring the security.

LAN Features



Dual-Port (ADE-3410 only)

The ADE-3410 incorporates on one Ethernet port and one USB port, making it easy

to create or extend your LAN.



Ethernet Port

The ADE-3410 provides one Ethernet port, making it easy to create or extend your

LAN.



4-Port Switch (ADW-4401 only)

The ADW-4401 incorporates a 4-Port 10/100Base-TX switching hub, making it easy

to create or extend your LAN.



DHCP Server Support

Dynamic Host Configuration Protocol provides a dynamic IP address to PCs and

other devices upon request. The device can act as a DHCP Server for devices on

your local LAN and WLAN.

1.2 Package Contents

‧ ADE-3410 / ADW-4401 Unit x 1

‧ Power Adapter x 1

‧ Quick Installation Guide x 1

‧ User’s Manual CD x 1

‧ RJ-11 cable x 2

‧ RJ-45 cable x 1

‧ Splitter x 1

‧ USB cable x 1 (ADE-3410 only)

1.3 Physical Details

Front Panel of ADE-3410

Front Panel LED definition

LED State Description

ON When the router is powered on and in ready state.

PWR

Link

Data

LAN

USB

Red The devise is being turned on and booting.

OFF When the router is powered off.

Successful connection between ADSL modem and telecom's

network.

Flashing Modem is trying to establish a connection to telecom’s network.

Flashing Data is transferred between Router and Internet.

ON Link

Flashing TX or RX activity.

On When the USB port is connected to the PC and working properly.

Rear Panel of ADE-3410

Rear Panel Port and Button Definition

Connector Description

POWER Button

Power

Reset

Ethernet

USB

Line

The power button is for turn on or turns off the router.

Power connector with 12V DC, 0.5A

The reset button can restore the default settings of device. To restore

factory defaults, keep the device powered on and push a paper clip into

the hole. Press down the button over 5 seconds and then release.

Router is successfully connected to a device through the Ethernet port. If

the LED is flashing, the Router is actively sending or receiving data over

that port.

Connect the supplied USB cable to this port when connecting to the PC.

The RJ-11 connector allows data communication between the modem and

the ADSL network through a twisted-pair phone wire.

Front Panel of ADW-4401

Front Panel LED definition

LED State Description

Green When the router is powered on and in ready state

PWR

Link

Data

LAN 1-4

Red The devise is being turned on and booting

OFF When the router is powered off

ON Successful connection between ADSL modem and telecom's network

Flashing Modem is trying to establish a connection to telecom’s network

Off No Internet connection.

Green The users can access the Internet.

Red Device attempts to become IP connected but fails.

ON Link

Flashing TX or RX activity

ON The Wireless Interface is ready

WLAN

WPS

Flashing The Wireless data is transmitting

OFF The Wireless Interface is disable

Off WPS service is not during using, or WPS is setup successfully.

Flashing WPS service tries to establish.

Rear Panel of ADW-4401

Rear Panel Port and Button Definition

Connector Description

POWER Button

WPS / WLAN

Reset

Power

LAN 1-4

Line

The power button is for turn on or turns off the router.

Press 1~2 seconds can enable and disable the wireless function.

Press 5 seconds can enable WPS function of the wireless clients, the router

and clients will automatically configure the security key and connect directly.

The reset button can restore the default settings of device. To restore factory

defaults, keep the device powered on and push a paper clip into the hole.

Press down the button over 5 seconds and then release.

Power connector with 12V DC, 1.0A

Router is successfully connected to a device through the corresponding port

(1, 2, 3, or 4). If the LED is flashing, the Router is actively sending or receiving

data over that port.

The RJ-11 connector allows data communication between the modem and

the ADSL network through a twisted-pair phone wire.

2. Installation

This chapter offers information about installing your router. If you are not familiar with the

hardware or software parameters presented here, please consult your service provider for

the values needed.

2.1 System Requirement

1. Personal computer (PC)

2. Pentium III 266 MHz processor or higher

3. 128 MB RAM minimum

4. 20 MB of free disk space minimum

5. RJ45 Ethernet Port

2.2 Hardware Installation

Please connect the device to you computer as follow:

z If connecting to the splitter, connect the “Line” splitter to wall jack using one

telephone cable

z Use another telephone cable to connect “MODEM” port of the splitter and “LINE” port

of the modem. The “Phone” port of the splitter can be use to connect the telephone by a telephone cable.

z Use Ethernet cable to connect “LAN” port of the modem and “LAN” port of your

computer.

Figure1 ADE-3410 connection diagram

Connect ADE-3410 to the PC’s USB port as follow:

z Connect the USB cable to USB port of ADE-3410. The cable has two different

connectors.

z Connect the other end of the USB cable to PC’s USB port.

Figure2 ADW-4401 connection diagram

If do not need to connect to the splitter,

z Connect the modem to wall jack with a telephone cable.

z Use Ethernet cable to connect “LAN” port of the modem and network adaptor of your

computer.

Note:

1. The ADE-3410 may connect via only USB or Ethernet. The preferred connectivity method

is to use the Ethernet. If your PC doesn’t support Ethernet port, you need to use USB

port and install additional software.

2. The default SSID of the ADW-4401 is “ADW-4401”.

2.3 Configuring the Network Properties

Configuring PC in Windows XP

1. Go to Start / Control Panel (in Classic View). In the Control Panel, double-click on

Network Connections

2. Double-click Local Area Connection.

3. In the Local Area Connection Status window, click Properties.

4. Select Internet Protocol (TCP/IP) and click Properties.

5. Select the Obtain an IP address automatically and the Obtain DNS server address

automatically radio buttons.

6. Click OK to finish the configuration.

Configuring PC in Windows 2000

1. Go to Start / Settings / Control Panel. In the Control Panel, double-click on Network

and Dial-up Connections.

2. Double-click Local Area Connection.

3. In the Local Area Connection Status window click Properties.

4. Select Internet Protocol (TCP/IP) and click Properties.

5. Select the Obtain an IP address automatically and the Obtain DNS server address

automatically radio buttons.

6. Click OK to finish the configuration.

Configuring PC in Windows 98/Me

1. Go to Start / Settings / Control Panel. In the Control Panel, double-click on Network

and choose the Configuration tab.

2. Select TCP/IP Æ NE2000 Compatible, or the name of your Network Interface Card

(NIC) in your PC.

3. Select the Obtain an IP address automatically radio button.

4. Then select the DNS Configuration tab.

5. Select the Disable DNS radio button and click OK to finish the configuration.

2.4 USB Installation (ADE-3410 only)

To connect the DSL router to the PC’s USB port, perform the following:

Connect the USB cable to the USB port on the DSL router. The cable has two different

connectors; you may have to try both connectors and the connector is keyed so try different

orientations.

Connect the other end of the USB cable into the PC’s USB port. For the USB installation on

Windows XP, once the PC powers up, a message tips shows Found new hardware on the

system tray.

Then a dialog window “Found New Hardware” Wizard pop-up, Select Install the software

automatically (Recommended) and insert the Manual and Driver CD-Rom. Click <Next>,

the windows will search CD-Rom for the best USB driver.

The dialog prompted you to choose your search and installation options. You can choose

the path of USB drive installation. Click <Next >

The dialog prompted Please wait while the wizard searches, when the USB driver has be

searched by the Windows, Click <Next >

Click the button<Finish> to complete the USB driver installation.

3. Web Configuration Management

This chapter describes how to configure the router by using the Web-based configuration

utility.

3.1 Access the Router

The following is the detailed description of accessing the router for the first time.

Step 1 : Open the Internet Explorer (IE) browser and enter http://192.168.1.1

Step 2 : In the Login page that is displayed, enter the username and password.

The username and password of the super user are admin and admin.

The username and password of the common user are user and user.

If you log in as a super user, the page shown in the following figure appears. You can

check, configure and modify all the settings.

If you log in as a common user, you can check the status of the router, but can not configure

the most of the settings.

Note:

In the Web configuration page, you can click Apply Changes to save the settings

temporarily. If you want to save the settings of this page permanently, click save of

Attention that appears at the button of the Web page after the configuration.

3.2 Wizard

The Wizard page guides fast and accurate configuration of the Internet connection and

other important parameters. The following sections describe these various configuration

parameters. Whether you configure these parameters or use the default ones, click NEXT

to enable your Internet connection.

When subscribing to a broadband service, you should be aware of the method by which

you are connected to the Internet. Your physical WAN device can be either PPP, ADSL, or

both. The technical information about the properties of your Internet connection is

provided by your Internet Service Provider (ISP). For example, your ISP should inform

you whether you are connected to the Internet using a static or dynamic IP address, and

the protocol that you use to communicate on the Internet.

In the navigation bar, click Wizard. The page shown in the following figure appears.

The following table describes the parameters of this page:

Field Description

User Name

New Password

Confirmed Password Enter the new password again.

Choose the user name for accessing the router. You can choose admin or user. Enter the password to which you want to change the old password. The password can not contain space key, %, “, ? or &.

After finishing the configuration, click NEXT. The page shown in the following figure appears. In this page, you can configure the system time and Network Time Protocol (NTP) server.

The following table describes the parameters of this page:

Field Description

State

You can disable or enable NTP function. You have to enable it if you want to configure the parameters of this page.

Server IP Enter the IP address of the specified time server manually.

Set the interval that the router obtains the time from the time

Interval

server. That is, the interval that the router verifies the time with the server.

Time Zone

Choose the time zone in which area you are from the drop down list.

GMT time It displays the Greenwich Mean Time (GMT).

After finishing the configuration, click NEXT. The page shown in the following figure appears.

There are five channel modes, the following describes them respectively.

1483 Bridged

In the Setup WAN Interface page, enter the correct PVC, set the channel mode to 1483 Bridged.

Click NEXT, and the page shown in the following figure appears.

If you want to modify the configuration, click BACK to return to the previous page. If you ensure the configuration is correct, click FINISH to take the configuration effect.
