Swift S1
User guide
28 pgs4.12 Mb0

PLANEPRINT Swift S1 User guide

Download
Page 1
Ultra-lightweight indoor and park glider
www.planeprint.com
the ONLY place where you can get original Planeprint STL fi les legally!
PRINTING & ASSEMBLING MANUAL
Page 2
PLALW-PLA TPU FOAMCARBON
SWIFT S1
© PLANEPRINT
2
Page 3
RC Components
RECEIVER 4 Channel (light indoor receiver)
BATTERY Micro Receiver battery (like E-Akku Team Champion 4 Würfel 4.8/150 Graupner SJ – 18 grams)
SERVOS 4 Micro or Nano Servos (3 without Tow Function)
for example: • Hitec HS 40 Eco Servo 4,8g
• Diamond D47
• PLANET-HOBBY ECO PLUS
• Stemedu Micro 3.7g Servo GH-S37D
• PICCO 8 DIGITAL SERVO
Required accessoires
Links to recommended accessories can be found on
www.planeprint.com/swift (scroll down)
• LW-PLA (cannot be replaced by PLA!), ~100 grams
• PLA or Tough PLA, ~20 grams
• CA super glue (liquid and medium)
• CA activator
• Foam board 3 mm uncoated!* (or Foam like Depron, Styropor or EPP, you can see how much you need on the next page
– Such boards are also available separately in model shops)
• UHU POR glue (or another glue suitable for Depron)
• Carbon rod Ø1*1000mm, 3 pieces
• Carbon fi ber strip (fl at profi le) 1*5*1000mm, 1 piece
• a few short pieces of thin steel wire, approx. Ø0.6 mm (for the linkages)
• thin smooth nylon silk Ø approx. 0.2 to 0.3 mm (Fishing line)
• Adhesive tape
• Self adhesive velcro tape
– basic equipment
* These parts cannot be printed for weight reasons, LW PLA is much heavier than foam.
SWIFT S1
© PLANEPRINT
3
Page 4

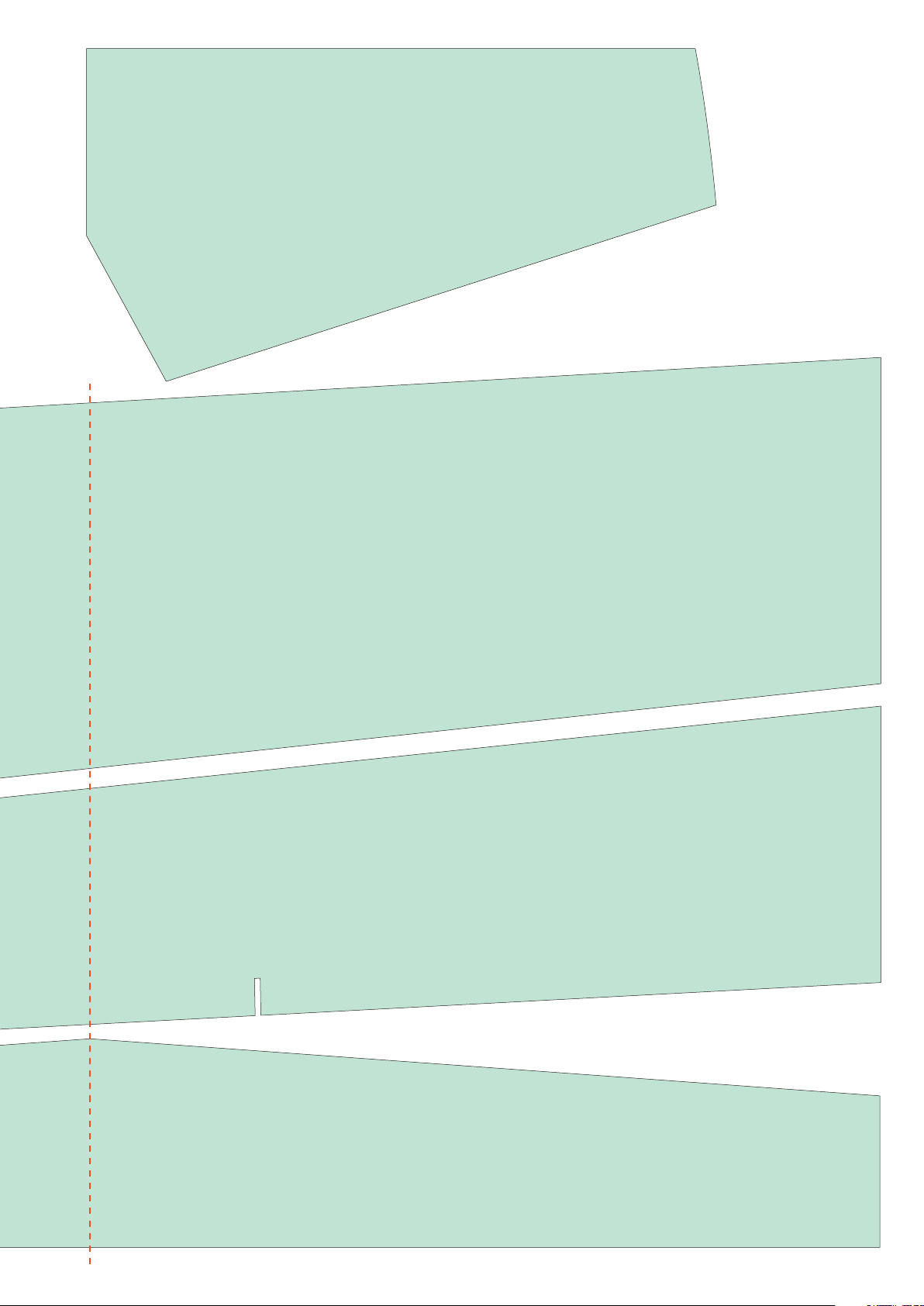

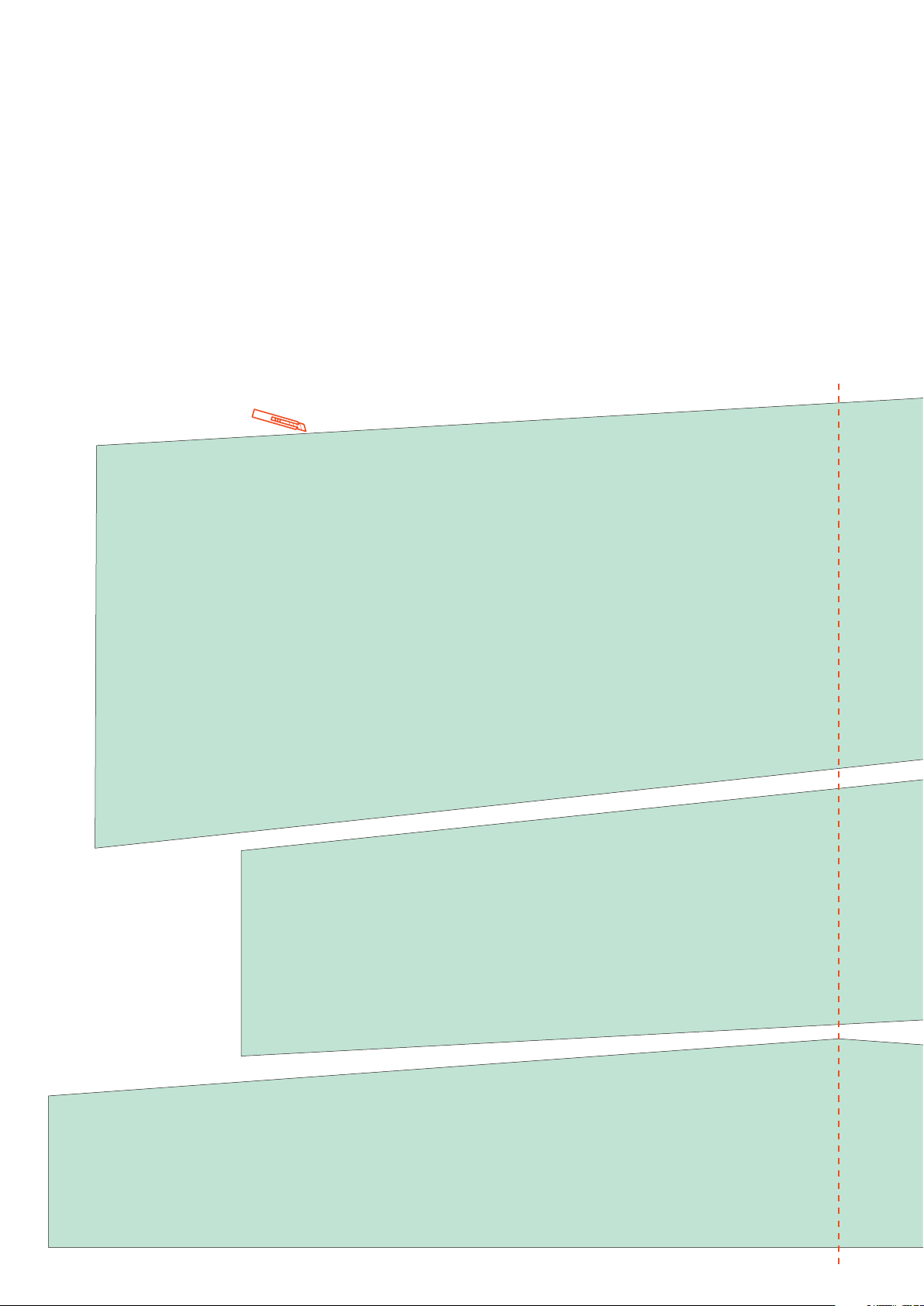

Cutting template for the Depron parts
Print out these two pages on A4 paper, cut them along the red dotted line and tape the pages together exactly. Then cut out the templates for the wing, ailerons, elevator and rudder. Fix them to the Depron board and cut two pieces from each (aileron and wing)
and one rudder and elevator.
IMPORTANT: the print must be set to 100% page size, so that the size fits exactly!
Wing part (twice)
Aileron (twice)
Elevator
Page 5
Wing part (twice)
Rudder
Aileron (twice)
Elevator
Page 6
The development of a complex, airworthy RC flight model to express on any stan­dard 3D printer is a very extensive process.
not to forward the STL data you have acquired to third parties.
Thank you for your understanding and have fun with your PLANEPRINT MODEL!
Therefore, we appeal to your fairness
Printing the parts – Printing profiles
This manual is constantly being improved and supplemented, we recommend downloading the latest version from our website before building.
To print all PLANEPRINT models you need to set some basic profiles in Cura (If you use another slicer, please set the same parameters).
You can find the description at
For this model you need the following profile:
www.planeprint.com/print
SWIFT S1
© PLANEPRINT
6
Page 7
PROFILE P2_Hollowbody PLA or Tough PLA
The information about the basic settings you can fi nd on our website at PRINT.
Please note the additional settings for the individual parts!
P2_Frame–S1.stl
MATERIAL PLA, Weight: ~ 9 g
ADDITIONAL SETTINGS
None required
P2_Parts 1–S1.stl
MATERIAL PLA, Weight: ~ 7 g
ADDITIONAL SETTINGS
None required
SWIFT S1
© PLANEPRINT
7
Page 8
PROFILE P2_Hollowbody PLA or Tough PLA
The information about the basic settings you can fi nd on our website at PRINT.
Please note the additional settings for the individual parts!
P2_Parts 2–S1.stl
MATERIAL PLA, Weight: ~ 4 g
ADDITIONAL SETTINGS
None required
P2_Servo lever.stl
MATERIAL PLA, Weight: ~ 1 g
ADDITIONAL SETTINGS
None required
SWIFT S1
© PLANEPRINT
8
Page 9
SPIRALIZE/VASE MODE
The following parts must be sliced with the Funktion Spiralize Outer Contour (Cura) or Spiral Vase (Prusa Slicer). For these parts, only the outer wall (1 line/perimeter) is printed without Z-seam, no top and bottom layers.
It is essential to print these parts with LW-PLA!
Basic settings for LW-PLA: Please follow the instructions in our WINGTEST AND CALIBRATION TOOL
on our website for correct adjustment!
– Light-Weight LW-PLA!
V_C1-2–S1.stl
MATERIAL LW-PLA, ~ 1 g*
*Weighed (approximate guideline)
SETTINGS
• Layer Height: 0.25 mm
• Wall Line Count/Perimeters: 1
• Spiralize Outer Contour (Cura)/ Spiral Vase (Prusa)
• Top and Bottom Layers: 0
• Flow, Temp and Speed suitable for LW PLA
V_C2-3–S1.stl
MATERIAL LW-PLA, ~ 1 g*
*Weighed (approximate guideline)
SETTINGS
• Layer Height: 0.25 mm
• Wall Line Count/Perimeters: 1
• Spiralize Outer Contour (Cura)/ Spiral Vase (Prusa)
• Top and Bottom Layers: 0
• Flow, Temp and Speed suitable for LW PLA
SWIFT S1
© PLANEPRINT
9
Page 10
SPIRALIZE/VASE MODE
The following parts must be sliced with the Funktion Spiralize Outer Contour (Cura) or Spiral Vase (Prusa Slicer). For these parts, only the outer wall (1 line/perimeter) is printed without Z-seam, no top and bottom layers.
It is essential to print these parts with LW-PLA!
Basic settings for LW-PLA: Please follow the instructions in our WINGTEST AND CALIBRATION TOOL
on our website for correct adjustment!
– Light-Weight LW-PLA!
V_C3-4–S1.stl
MATERIAL LW-PLA, ~ 1 g*
*Weighed (approximate guideline)
SETTINGS
• Layer Height: 0.25 mm
• Wall Line Count/Perimeters: 1
• Spiralize Outer Contour (Cura)/ Spiral Vase (Prusa)
• Top and Bottom Layers: 0
• Flow, Temp and Speed suitable for LW PLA
V_C4-5–S1.stl
MATERIAL LW-PLA, ~ 1 g*
*Weighed (approximate guideline)
SETTINGS
• Layer Height: 0.25 mm
• Wall Line Count/Perimeters: 1
• Spiralize Outer Contour (Cura)/ Spiral Vase (Prusa)
• Top and Bottom Layers: 0
• Flow, Temp and Speed suitable for LW PLA
SWIFT S1
© PLANEPRINT
10
Page 11
SPIRALIZE/VASE MODE – Light-Weight LW-PLA!
The following parts must be sliced with the Funktion Spiralize Outer Contour (Cura) or Spiral Vase (Prusa Slicer). For these parts, only the outer wall (1 line/perimeter) is printed without Z-seam, no top and bottom layers.
It is essential to print these parts with LW-PLA!
Basic settings for LW-PLA: Please follow the instructions in our WINGTEST AND CALIBRATION TOOL
on our website for correct adjustment!
V_Fuselage 1–S1.stl
MATERIAL LW-PLA, ~ 10 g*
*Weighed (approximate guideline)
SETTINGS
• Layer Height: 0.25 mm
• Wall Line Count/Perimeters: 1
• Spiralize Outer Contour (Cura)/ Spiral Vase (Prusa)
• Top and Bottom Layers: 0
• Flow, Temp and Speed suitable for LW PLA
V_Fuselage 2–S1.stl
MATERIAL LW-PLA, ~ 13 g*
*Weighed (approximate guideline)
SETTINGS
• Layer Height: 0.25 mm
• Wall Line Count/Perimeters: 1
• Spiralize Outer Contour (Cura)/ Spiral Vase (Prusa)
• Top and Bottom Layers: 0
• Flow, Temp and Speed suitable for LW PLA
SWIFT S1
© PLANEPRINT
11
Page 12
SPIRALIZE/VASE MODE – Light-Weight LW-PLA!
The following parts must be sliced with the Funktion Spiralize Outer Contour (Cura) or Spiral Vase (Prusa Slicer). For these parts, only the outer wall (1 line/perimeter) is printed without Z-seam, no top and bottom layers.
It is essential to print these parts with LW-PLA!
Basic settings for LW-PLA: Please follow the instructions in our WINGTEST AND CALIBRATION TOOL
on our website for correct adjustment!
V_Fuselage 3–S1.stl
MATERIAL LW-PLA, ~ 8 g*
*Weighed (approximate guideline)
SETTINGS
• Layer Height: 0.25 mm
• Wall Line Count/Perimeters: 1
• Spiralize Outer Contour (Cura)/ Spiral Vase (Prusa)
• Top and Bottom Layers: 0
• Flow, Temp and Speed suitable for LW PLA
V_Fuselage 4–S1.stl
MATERIAL LW-PLA, ~ 6 g*
*Weighed (approximate guideline)
SETTINGS
• Layer Height: 0.25 mm
• Wall Line Count/Perimeters: 1
• Spiralize Outer Contour (Cura)/ Spiral Vase (Prusa)
• Top and Bottom Layers: 0
• Flow, Temp and Speed suitable for LW PLA
SWIFT S1
© PLANEPRINT
12
Page 13
SPIRALIZE/VASE MODE – Light-Weight LW-PLA!
The following parts must be sliced with the Funktion Spiralize Outer Contour (Cura) or Spiral Vase (Prusa Slicer). For these parts, only the outer wall (1 line/perimeter) is printed without Z-seam, no top and bottom layers.
It is essential to print these parts with LW-PLA!
Basic settings for LW-PLA: Please follow the instructions in our WINGTEST AND CALIBRATION TOOL
on our website for correct adjustment!
V_Fuselage 5 L–S1.stl and V_Fuselage 5 R–S1.stl
MATERIAL LW-PLA, ~ 4 g*
*Weighed (approximate guideline)
SETTINGS
• Layer Height: 0.25 mm
• Wall Line Count/Perimeters: 1
• Spiralize Outer Contour (Cura)/ Spiral Vase (Prusa)
• Top and Bottom Layers: 0
• Flow, Temp and Speed suitable for LW PLA
Wingconnect–S1.stl
MATERIAL LW-PLA, ~ 1 g*
*Weighed (approximate guideline)
SETTINGS
• Layer Height: 0.25 mm
• Wall Line Count/Perimeters: 1
• Spiralize Outer Contour (Cura)/ Spiral Vase (Prusa)
• Top and Bottom Layers: 0
• Flow, Temp and Speed suitable for LW PLA
SWIFT S1
© PLANEPRINT
13
Page 14
SPIRALIZE/VASE MODE – Light-Weight LW-PLA!
The following parts must be sliced with the Funktion Spiralize Outer Contour (Cura) or Spiral Vase (Prusa Slicer). For these parts, only the outer wall (1 line/perimeter) is printed without Z-seam, no top and bottom layers.
It is essential to print these parts with LW-PLA!
Basic settings for LW-PLA: Please follow the instructions in our WINGTEST AND CALIBRATION TOOL
on our website for correct adjustment!
V_Wings 1–S1.stl
MATERIAL LW-PLA, ~ 15 g*
*Weighed (approximate guideline)
SETTINGS
• Layer Height: 0.25 mm
• Wall Line Count/Perimeters: 1
• Spiralize Outer Contour (Cura)/ Spiral Vase (Prusa)
• Top and Bottom Layers: 0
• Flow, Temp and Speed suitable for LW PLA
V_Wings 2–S1.stl
MATERIAL LW-PLA, ~ 12 g*
*Weighed (approximate guideline)
SETTINGS
• Layer Height: 0.25 mm
• Wall Line Count/Perimeters: 1
• Spiralize Outer Contour (Cura)/ Spiral Vase (Prusa)
• Top and Bottom Layers: 0
• Flow, Temp and Speed suitable for LW PLA
SWIFT S1
© PLANEPRINT
14
Page 15
SPIRALIZE/VASE MODE – Light-Weight LW-PLA!
The following parts must be sliced with the Funktion Spiralize Outer Contour (Cura) or Spiral Vase (Prusa Slicer). For these parts, only the outer wall (1 line/perimeter) is printed without Z-seam, no top and bottom layers.
It is essential to print these parts with LW-PLA!
Basic settings for LW-PLA: Please follow the instructions in our WINGTEST AND CALIBRATION TOOL
on our website for correct adjustment!
V_Wings 3–S1.stl
MATERIAL LW-PLA, ~ 11 g*
*Weighed (approximate guideline)
SETTINGS
• Layer Height: 0.25 mm
• Wall Line Count/Perimeters: 1
• Spiralize Outer Contour (Cura)/ Spiral Vase (Prusa)
• Top and Bottom Layers: 0
• Flow, Temp and Speed suitable for LW PLA
V_Wings 4–S1.stl
MATERIAL LW-PLA, ~ 8 g*
*Weighed (approximate guideline)
SETTINGS
• Layer Height: 0.25 mm
• Wall Line Count/Perimeters: 1
• Spiralize Outer Contour (Cura)/ Spiral Vase (Prusa)
• Top and Bottom Layers: 0
• Flow, Temp and Speed suitable for LW PLA
SWIFT S1
© PLANEPRINT
15
Page 16

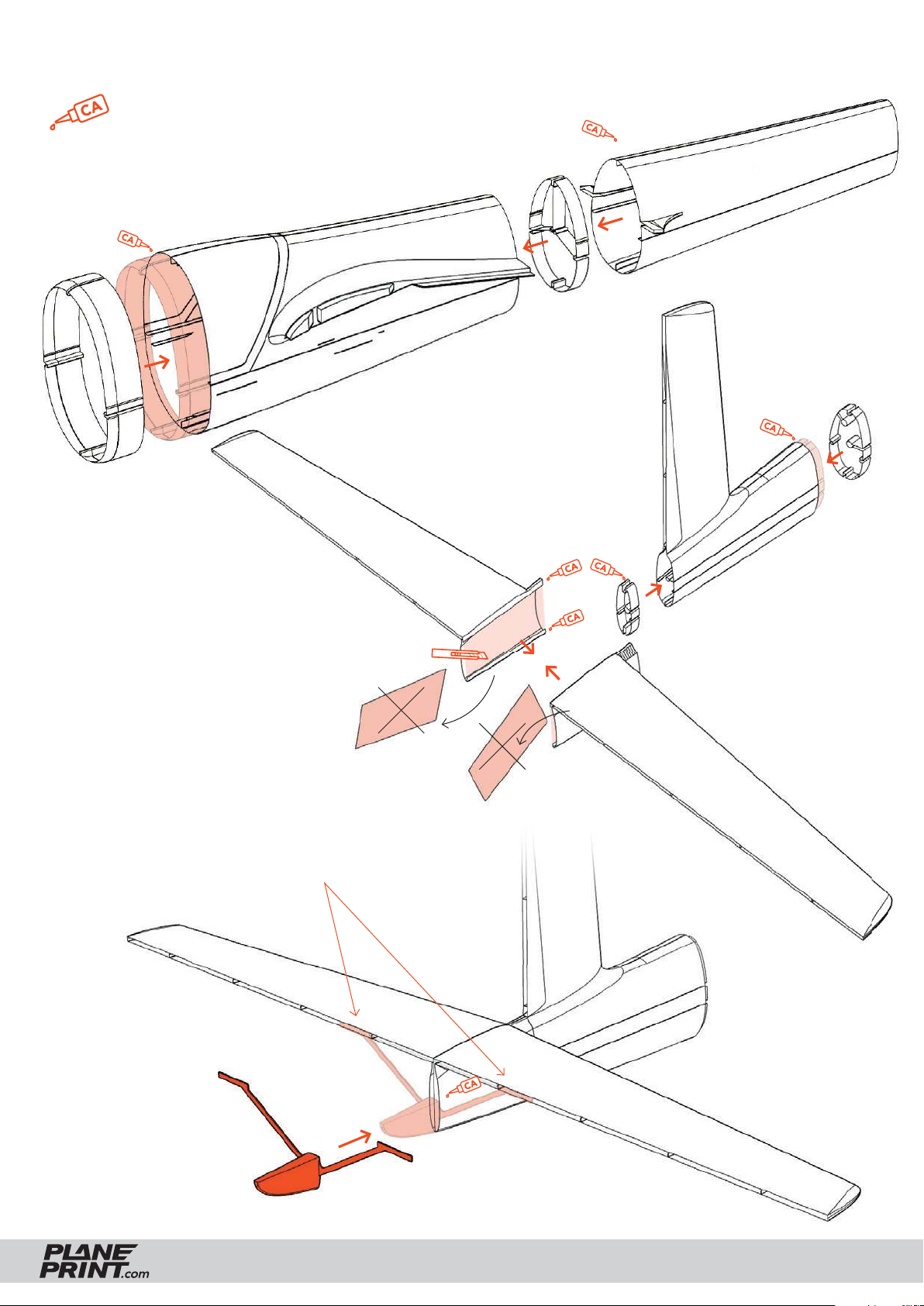

Fuselage assembly
medium liquid
First glue the positioning aids to one fuselage part, then stick the second one on top. Make sure that the parts
are not twisted so that the tailplane is exactly aligned!
V_C1-2–S1.stl
After you have removed the support, glue the two fuselage 5 parts together. Then mount it to the fuselage using the positioning aid V_C4-5–S1.stl.
V_Fuselage 2–S1.stl
V_Fuselage 5 L–S1.stl
V_C2-3–S1.stl
V_Fuselage 4–S1.stl
V_Fuselage 3–S1.stl
V_C3-4–S1.stl
V_C4-5–S1.stl
Remove support.
Please be careful with the knife!
Do NOT glue in these two places yet! Here you can fi nally align the horizontal stabilizer exactly parallel to the wing.
P2_Parts 2–S1.stl
V_Fuselage 5 R–S1.stl
SWIFT S1
© PLANEPRINT
16
Page 17
Fuselage assembly
medium liquid
P2_Parts 1–S1.stl
Insert these parts into the fuselage exactly as shown in the picture. Make sure that the openings are facing forward!
There are small bars in the fuselage that serve as a positioning aid.
When all the parts are correctly positioned, allow thin CA glue
STEP 1
to run into the gaps until everything is well connected over a large area.
P2_Frame–S1.stl
STEP 2
Carefully
open the holes
for carbon fi ber
strip and
linkage
with the
knife
STEP 3
SWIFT S1
Carbon fi ber strip 1*5*1000mm
STEP 4
Insert the carbon fi ber strip through fuselage 2, align the horizontal stabilizer parallel to it and glue the two struts in place.
© PLANEPRINT
17
Page 18
Elevator/Rudder assembly
Cut these two edges at an angle of about 40°. You can also use sandpaper for this.
Rudder
Elevator
The hinges are simply made with thin adhesive tape. To ensure that the tape holds well, you should coat the adhesive area with UHU POR beforehand. When the glue is dry, fi rst stick the tape to the elevator/ rudder, then attach it to the fuselage.
Leave a small gap so that the elevator/rudder can be moved easily.
STEP 2
STEP 1
SWIFT S1
© PLANEPRINT
18
Page 19
Elevator and rudder linkage
It is easier to insert the carbon rods into the fuselage from the front.
Make sure that the rods are guided through all eyelets!
Shrink tubing or tape
Steel wire Ø0.6 mm
Carbon rods Ø1*60 mm
Prepare two linkages as shown here
Glue the control horns to the elevator and rudder. When positioning the control horn on the elevator, make sure that it cannot get caught on the fuselage when the elevator is moved downwards!
P2_Parts 2–S1.stl
NOTE With Depron you must use UHU POR
(or another glue suitable for Depron). Coat
both sides and allow the glue to dry. Then position the control horn on the foam part.
SWIFT S1
© PLANEPRINT
19
Page 20
Servo mount
Mount the servos for the aileron, elevator and rudder as shown here.
Do not forget to zero the servos fi rst.
Set the servos, elevator and rudder to neutral, shorten the carbon rods and then glue in the steel wire for the servo horn.
Shrink tubing or tape
Steel wire Ø0.6 mm
P2_Parts 1–S1.stl
Tow coupling
View from the bottom side!
P2_Parts 2–S1.stl
Steel wire Ø0.6 mm
Double-sided tape or CA glue
Adjust the servo travel so that the wire does not block at the front!
SWIFT S1
TIP The tow rope should be about 5 meters long.
© PLANEPRINT
20
Page 21
Wing assembly
medium liquid
First remove the support of all wing parts.
Please be careful with the knife!
V_Wings 1–S1.stl
Place the wing parts on a fl at plate and glue them together using the wing connectors.
Be careful not to get any glue into the gap at the top of the wing!
V_Wings 3–S1.stl
V_Wingconnect–S1.stl
V_Wings 2–S1.stl
P2_Parts 1–S1.stl
V_Wings 4–S1.stl
SWIFT S1
Carefully open the hole on the
underside of the wing with
a knife or drill.
© PLANEPRINT
21
Page 22
Wing assembly
Insert the carbon fi ber strip into the fuselage and align it exactly in the middle. Then let some thin CA glue run into the gap so that it is fi xed to the fuselage.
Carbon fi ber strip 1*5*1000mm
Glue the carbon rod into the gap in the wing from below.
Carbon rod Ø1*215 mm
Glue the wing foam parts to the wing and fuselage as shown in the picture. For Depron use UHU POR (again, coat both sides, allow to dry! and only then glue together).
Wing part
Then attach the wing to the carbon strip and apply some medium CA glue to the tab on the fuselage. Push the wing all the way onto the fuselage. Now let thin CA glue fl ow into the gap along the entire carbon strip.
(still without glue)
Aileron
SWIFT S1
© PLANEPRINT
22
Page 23

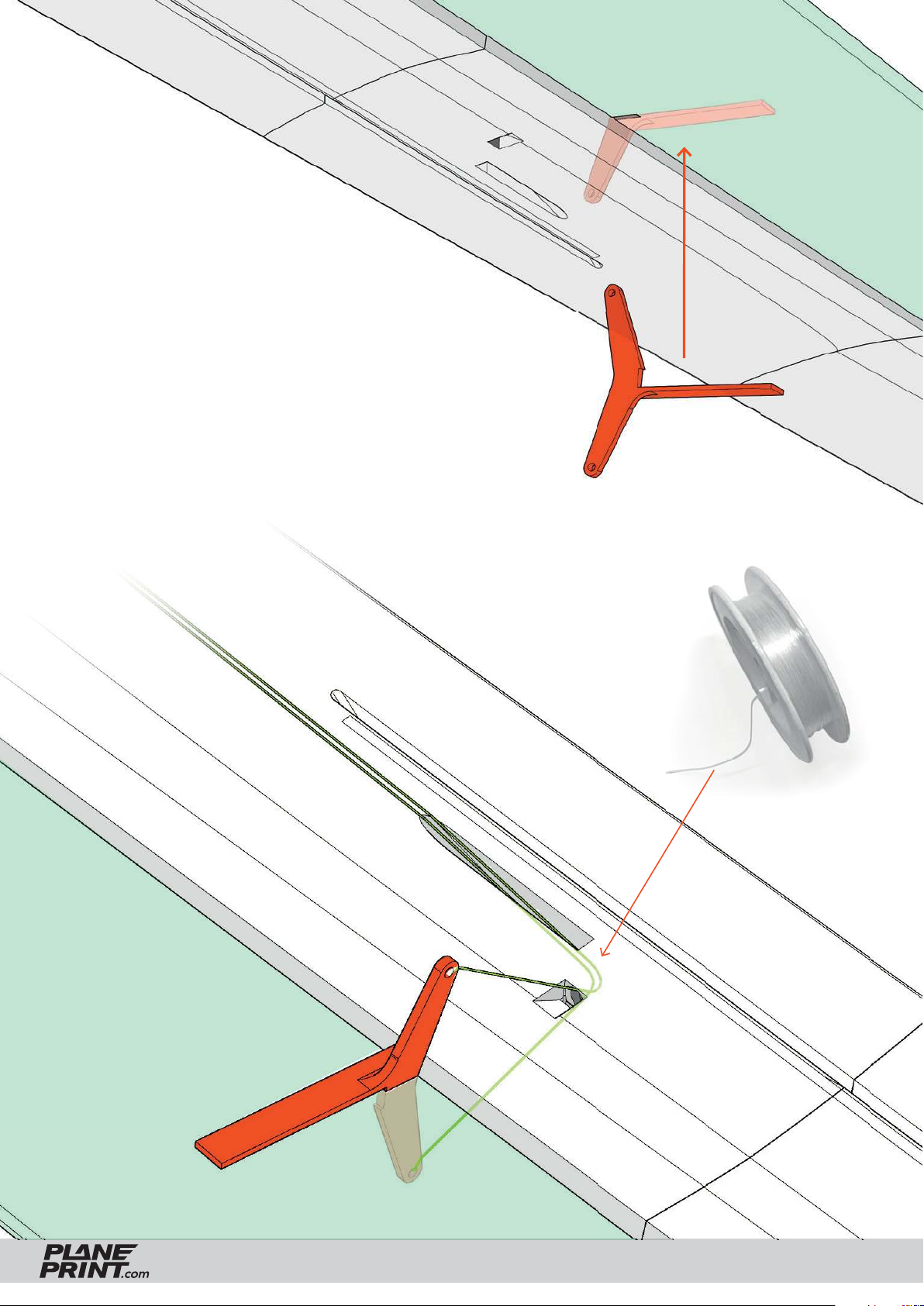

Aileron Servo mount
Glue the control horns to the underside of the ailerons so that one half sticks out at the bottom and one at the top. For Depron, use UHU POR again as described above.
Now it gets a little tricky:
Cut a 1600 mm long piece of fi shing line and tie one end to the lower horn of the Aileron. Then thread the other end into the hole so that it comes out around the bend below the wing.
Now thread the other end of the line into the wing in the opposite direction from below. This must protrude from the top and be tied to the upper horn.
P2_Parts 2–S1.stl
SWIFT S1
© PLANEPRINT
23
Page 24
Aileron Servo mount
Set the aileron to neutral and gently tension the fi shing lines. Now put a drop of UHU POR in the gap on the servo lever so that the fi shing line runs in the glue and can also be pulled when the glue is hard (therefore UHU and not CA glue). This way you can adjust the tension later if necessary.
Then do this again in reverse with the other aileron. When arranging the lines, make sure that the ailerons work in opposite directions!
This part NOT glue!This part NOT glue!
Thread the
fi shing line here
SWIFT S1
© PLANEPRINT
24
Page 25
Aileron Servo mount
If the setting of the ailerons fi ts, bend the fi shing lines downwards and clamp them between the plates. Then secure them with two short screws. You can then change the settings later.
V_Fuselage 1–S1.stl
Carbon rod Ø1*185 mm
Canopy
Glue in a piece of carbon rod for stabilization as shown in the picture.
is not pushed up or down, otherwise the canopy will no longer fi t exactly!
The canopy is simply pushed along the guide tabs on the fuselage. It does not need to be fi xed in place.
Make sure that the tip (tow coupling)
RC Components
Position the components so that the CG fi ts exactly. Secure them with self-adhesive Velcro tape.
SWIFT S1
BatteryReiceiver
© PLANEPRINT
25
Page 26
Technical specifi cations
WINGSPAN 1400 mm/55.1 inches
LENGTH 777 mm/30.6 inches
FLIGHT WEIGHT 190 grams
WING LOAD 10 g/dm
2
Center of Gravity (CG)
The aircraft must balance on these points – (42 mm/1.6 inch behind the leading edge)
see the markings on the wing.
Do not forget to check if the wings are exactly in ballance in the roll axis. If one wing is heavier, correct this with a small weight on the wingtip.correct this with a small weight on the wingtip.
SWIFT S1
© PLANEPRINT
26
Page 27
Control Direction Test
When checking the control directions, look at the aircraft from above (rudder) and behind.
ELEVATOR 15 mm up/15 mm down
AILERON 15 mm up/15 mm down
RUDDER 30 mm left/30 mm right
Program the throttle lever or a switch for the Tow function.
EXPO
ELEVATOR 30 %
AILERON 30 %
RUDDER 30 %
(for some remote controls a minus has to be in front of the number)
SWIFT S1
© PLANEPRINT
27
Page 28
AGE RECOMMENDATION 14+
NOT FOR CHILDREN UNDER 14 YEARS. THIS IS NOT A TOY!
The STL data (or data processed from it, such as G codes) must never be passed on to third parties!
The purchase of the STL does not authorize the production of models for third parties.
By using the download data, an RC model airplane, called „model“ for short, can be manufactured using a 3D printer. As a user of this model, only you are responsible for safe operation that does not endanger you or others, or that does not damage the model or property of others.
PLANEPRINT.com assumes no responsibility for damage to persons and property caused by pressure, transport or use of the product. Filaments, printing supplies, hardware or consumables that can not be used after faulty 3D printing will not be replaced by PLANEPRINT.com in any way.
When operating, always keep a safe distance from your model in all directions to avoid collisions and injuries.
This model is controlled by a radio signal. Radio signals can be disturbed from outside without being able to influence it. Interference can lead to a temporary loss of control.
Always operate your model on open terrains, far from cars, traffic and people.
Keep all chemicals, small parts and electrical components out of the reach of children.
Avoid water contact with all components that are not specially designed and protected. Moisture damages the electronics.
Never take an item of the model or accessory in your mouth as this can lead to severe injuries or even death.
Never operate your model with low batteries in the trans­mitter or model.
Always keep the model in view and under control. Use only fully charged batteries.
Always keep the transmitter switched on when the model is switched on.
Always remove the battery before disassembling the model.
Keep moving parts clean and dry at all times.
Always allow the parts to cool before touching them.
Always remove the battery after use.
Make sure that the Failsafe is properly set before the flight.
Always follow the instructions and warnings for this product and any optional accessories (servos, receivers, motors, propellers, chargers, rechargeable batteries, etc.) carefully.
We develop our models to the best of our knowledge and belief.
We accept no liability for consequential damage and injuries
caused by improper use or incorrectly printed parts. Please be
careful when handling motors, batteries and propellers and
only move your model with insurance and in approved places!
Never operate the model with damaged wiring.
Never touch moving parts.
© PLANEPRINT.com, A-6021 Innsbruck, Conradstraße 6, [email protected]
© Design STL files by René Marschall • Layout: marschall designlab, marschall.cc
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
