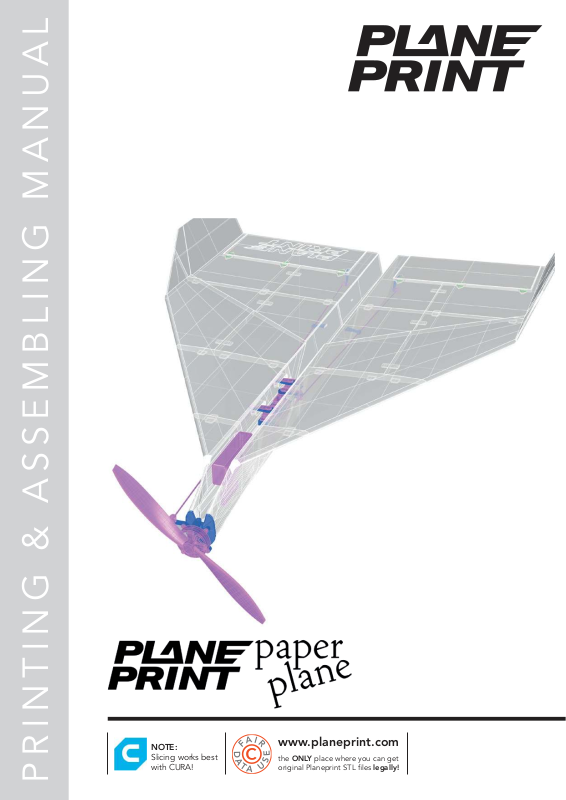

Page 1
NOTE:
Slicing works best
with CURA!
www.planeprint.com
the ONLY place where you can get
original Planeprint STL fi les legally!
PRINTING & ASSEMBLING MANUAL
Page 2

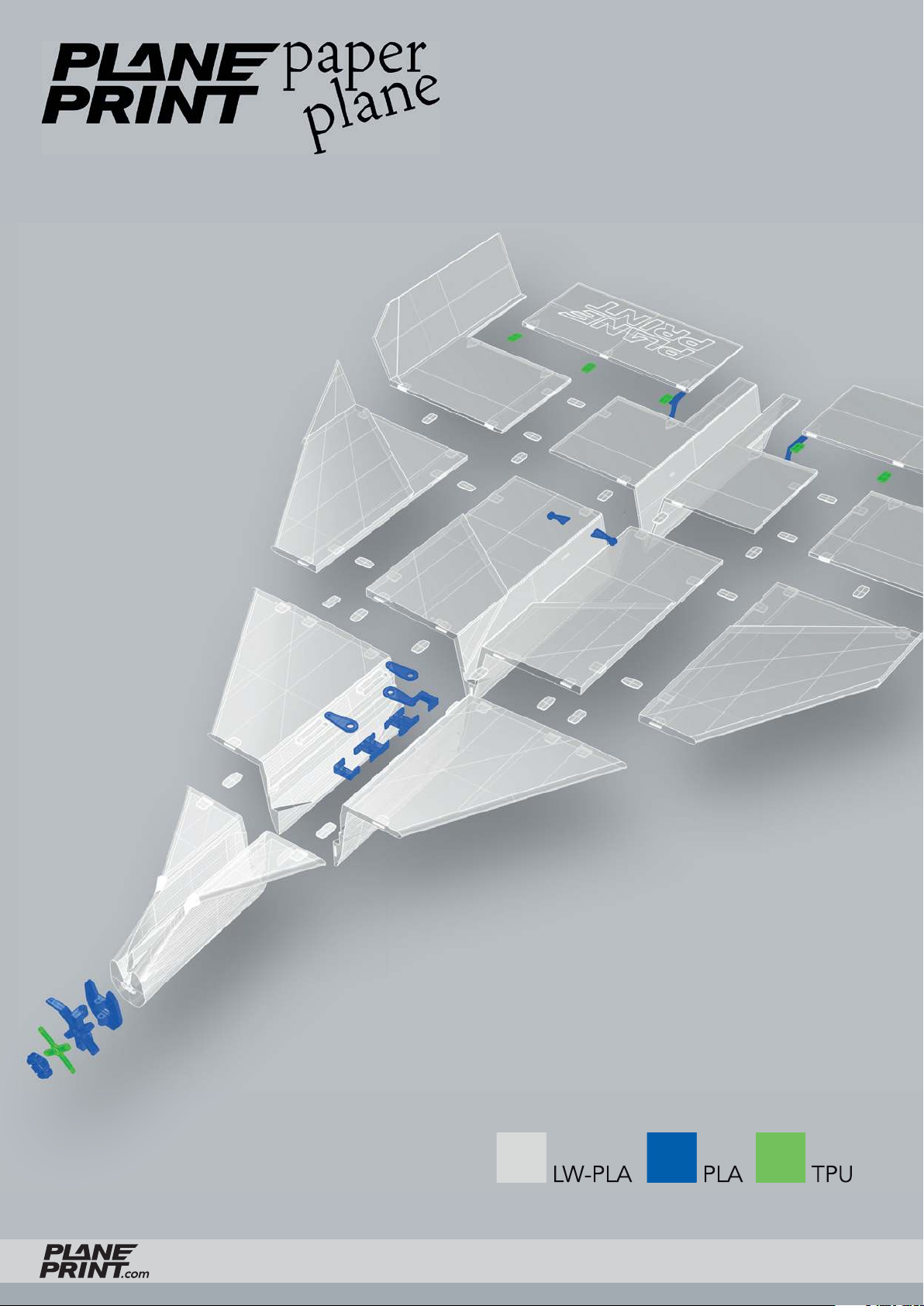

PLALW-PLA TPUPLALW-PLA TPU
PAPER PLANE
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
2
Page 3

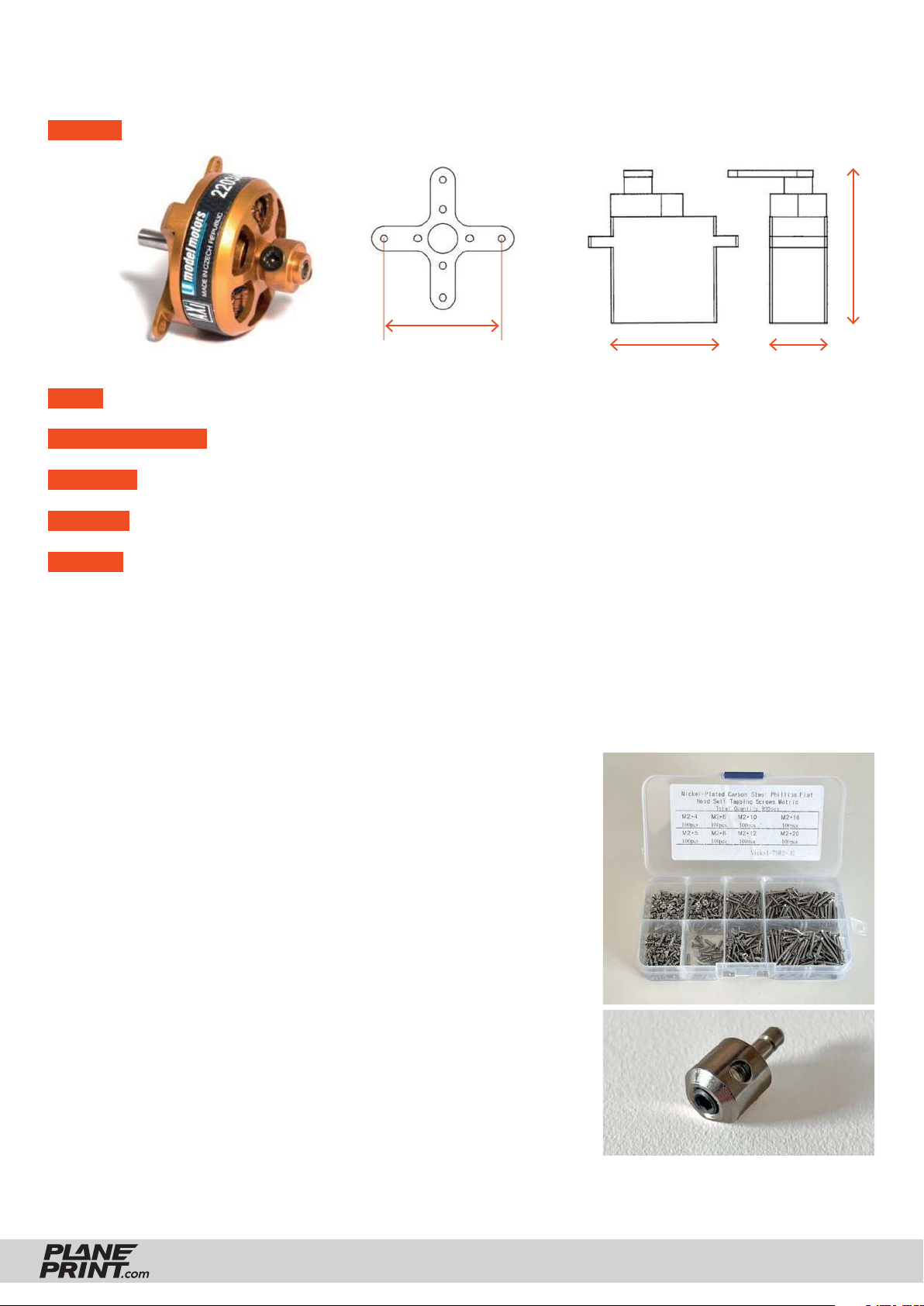

RC Components
MOTOR AXI 2203/40 VPP or comparable indoor-20 grams-motors.
31 mm
PROP 8x3.8, 8x4.3 or comparable (not the soft indoor props)
BEC-CONTROLLER 15 A (one matching the motor)
RECEIVER 4 Channel
max. 23 mm
max. 29 mm
max. 13 mm
BATTERY 2S Lipo, 900 MaH (ideal weight 45 g, maximum thickness 18 mm, maximum height 30 mm)
SERVOS Hitec HS-55 or similar, 3 pieces
Required accessoires – basic equipment
Links to recommended accessories can be found on
www.planeprint.com/paper (scroll down)
• LW-PLA (cannot be replaced by PLA!), ~220 grams
• PLA oder better Tough PLA, ~20 grams
• TPU A95, ~5 grams
• some tapping screws
• CA super glue (liquid and medium)
• CA activator
• Carbon rod Ø1.5*1000mm, 1 piece
• Rod connection 2mm, 6 pieces
• Self adhesive velcro tape
Tools
Cutter knife, small Philips screwdriver, Sandpaper,
Needle nose pliers
PAPER PLANE
Tapping screws 2mm
Rod connection hole 2mm
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
3
Page 4

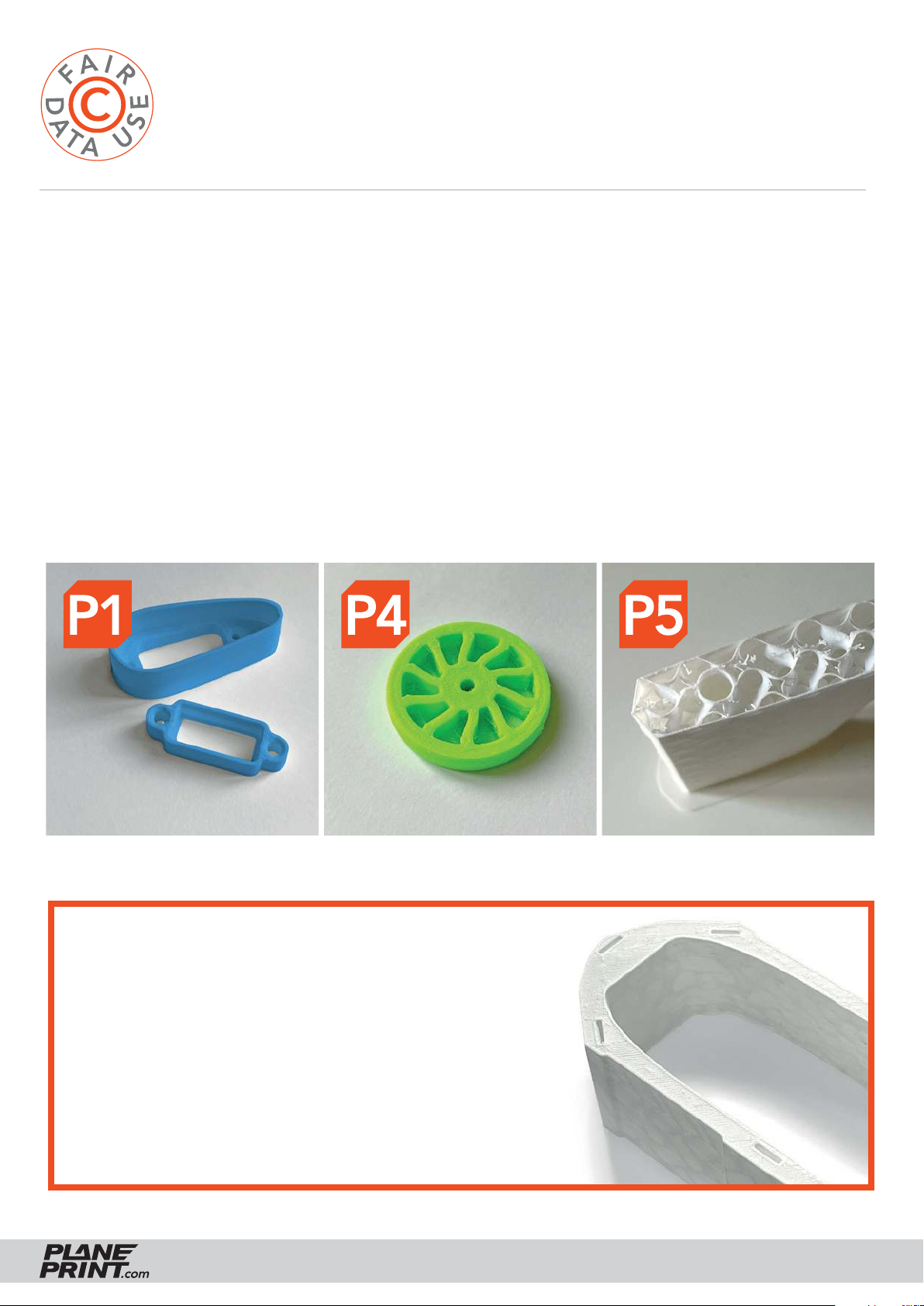

The development of a complex, airworthy RC flight model to express on any standard 3D printer is a very extensive process. Therefore, we appeal to your fairness
not to forward the STL data you have acquired to third parties.
Thank you for your understanding and have fun with your PLANEPRINT MODEL!
Printing the parts – Printing profiles
This manual is constantly being improved and supplemented, we recommend downloading
the latest version from our website before building.
To print all PLANEPRINT models you need to set some basic profiles in Cura (If you use another
slicer, please set the same parameters).
You can find the description at www.planeprint.com/print
For this model you need the following profiles:
TPU LW-PLAPLA
PROFILE P5_Gyroid
It is essential for the necessary stability of the LW parts
printed with PROFILE_5 are as stable as possible. Please
use a test part to check the strength by fracture tests. It must
not break along the layer lines under any circumstances! Also
note that the printing temperature for LW-PLA is as low as
possible to obtain a wall thickness of 0.4 to 0.6 mm at a flow
of 60 to 70 % (depending on brand).
Caution: at too high temperatures, LW-PLA becomes
brittle and breaks more easily.
PAPER PLANE
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
4
Page 5

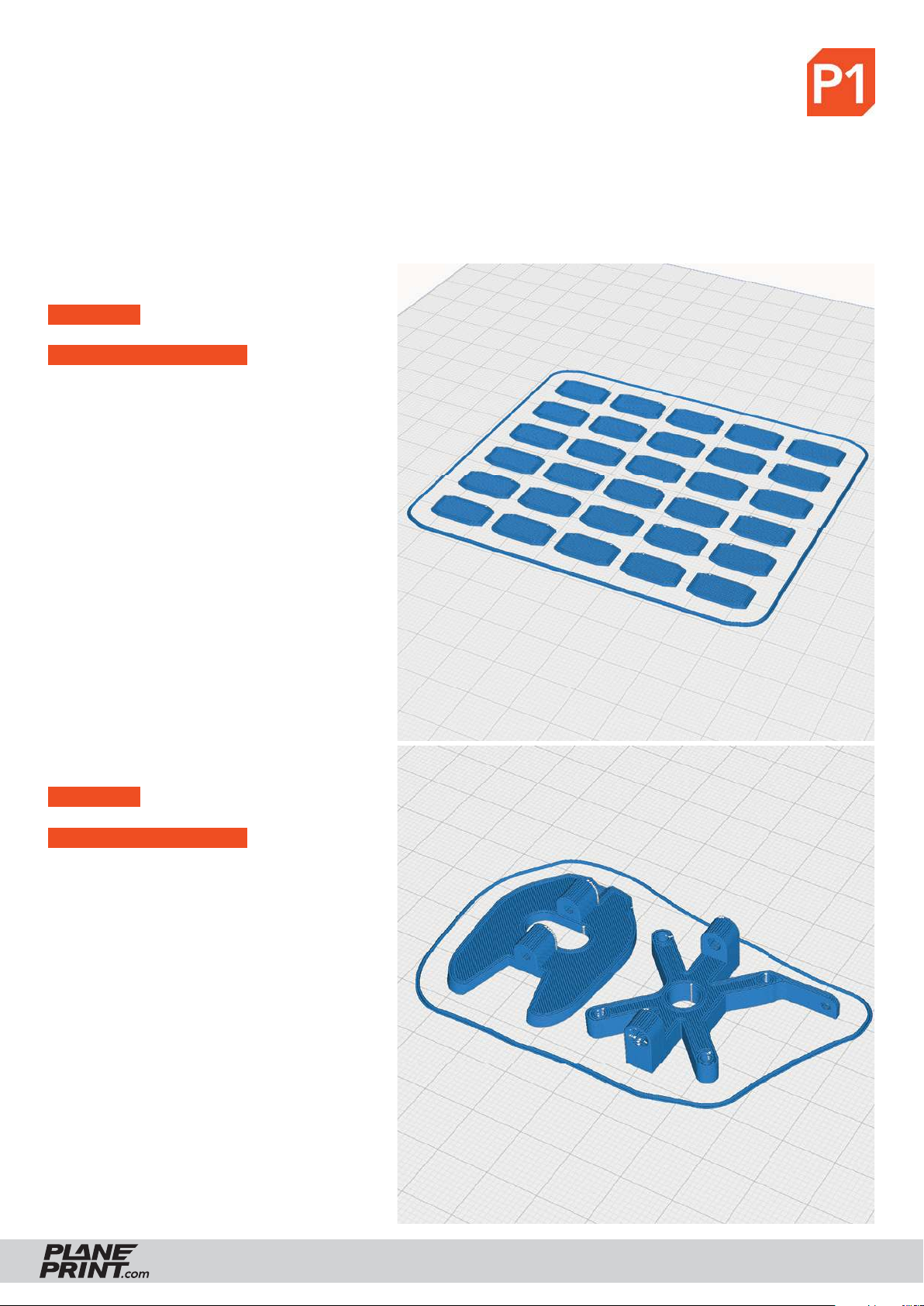

PROFILE P1_Fullbody
The following parts should be sliced with the PROFILE P1_Fullbody.
Please note the additional settings for the individual parts!
PLA or Tough PLA
P1_Interconnects_pp.stl
MATERIAL PLA, Weight: ~ 3 g
ADDITIONAL SETTINGS
None required
P1_Motor mount_pp.stl
MATERIAL PLA, Weight: ~ 5 g
ADDITIONAL SETTINGS
None required
PAPER PLANE
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
5
Page 6
PROFILE P1_Fullbody
The following parts should be sliced with the PROFILE P1_Fullbody.
Please note the additional settings for the individual parts!
PLA or Tough PLA

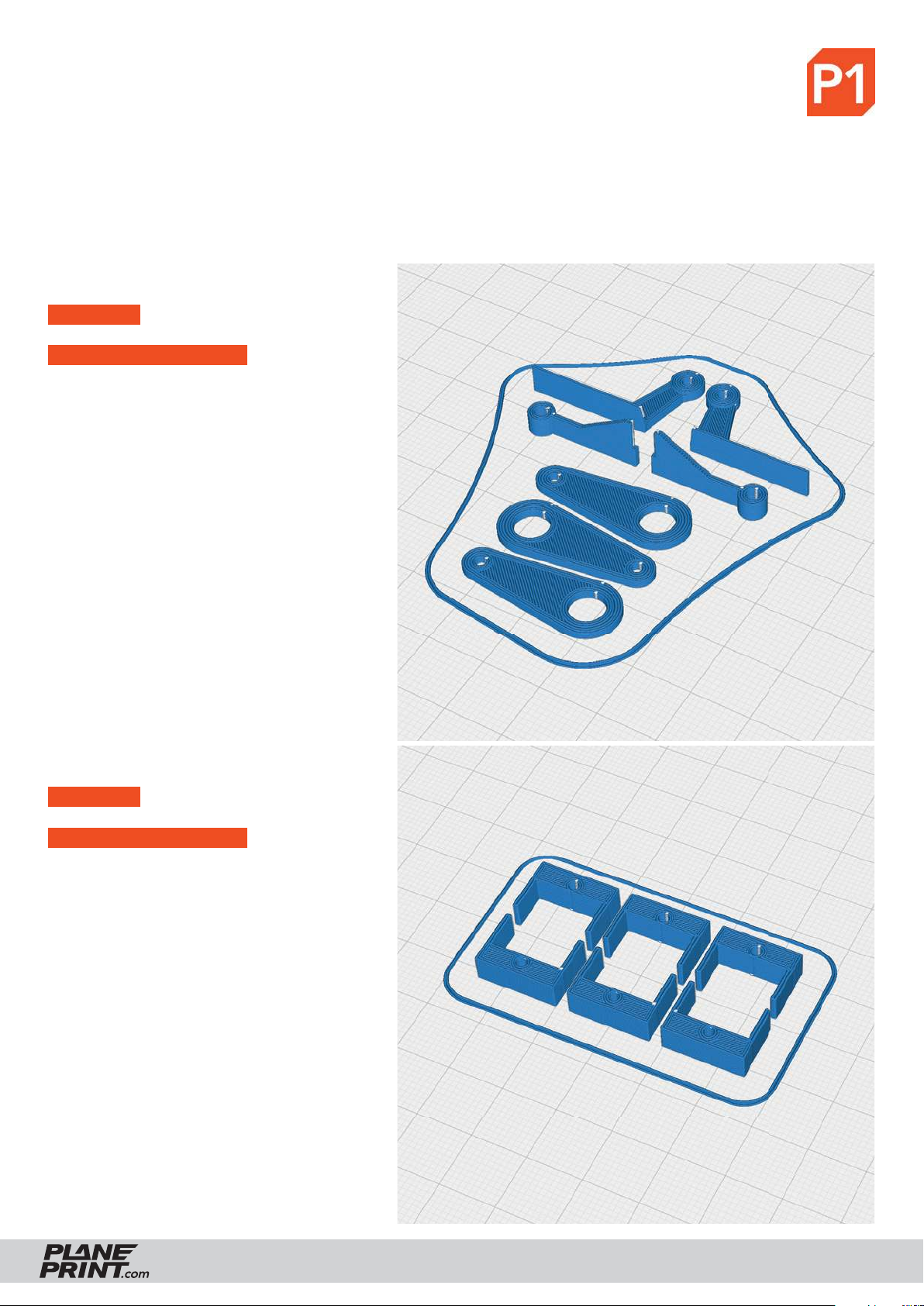

P1_Parts_pp.stl
MATERIAL PLA, Weight: ~ 2 g
ADDITIONAL SETTINGS
None required
P1_Servo mount_pp.stl
MATERIAL PLA, Weight: ~ 3 g
ADDITIONAL SETTINGS
None required
PAPER PLANE
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
6
Page 7
PROFILE P1_Fullbody PLA or Tough PLA
The following parts should be sliced with the PROFILE P1_Fullbody.
Please note the additional settings for the individual parts!

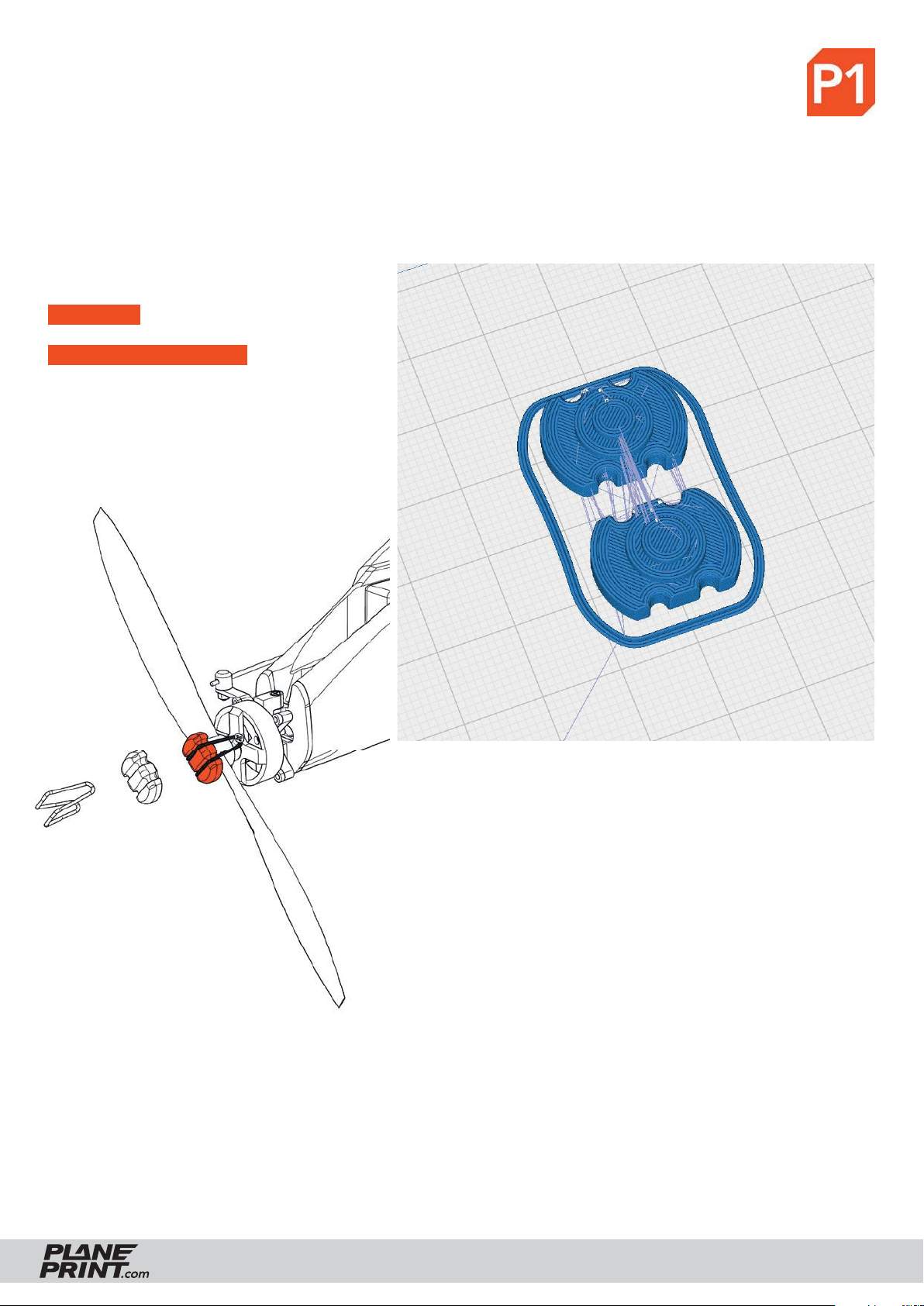

P1_Spinner_pp.stl
MATERIAL PLA, Weight: ~ 3 g
ADDITIONAL SETTINGS
None required
You can optionally use the spinner to increase
the tension of the rubber band for the prop.
Try which spinner fi ts better on your prop.
PAPER PLANE
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
7
Page 8

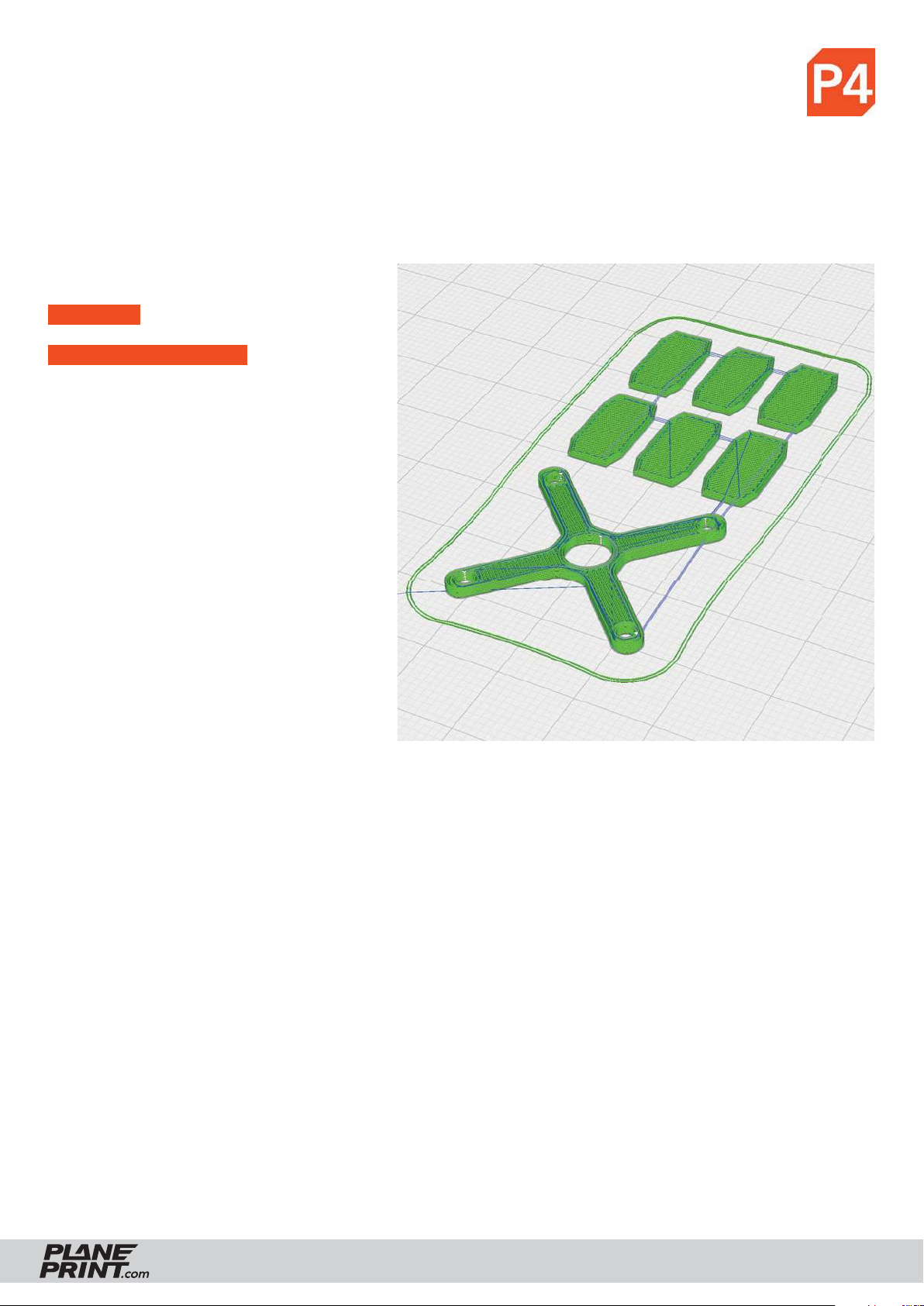

PROFILE P4_Flex
The following parts should be sliced with the PROFILE P4_Flex.
Please note the additional settings for the individual parts!
P4_TPU-Parts_pp.stl
MATERIAL TPU A95, Weight: ~ 2 g
ADDITIONAL SETTINGS
• Infi ll Density: 100 %
PAPER PLANE
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
8
Page 9

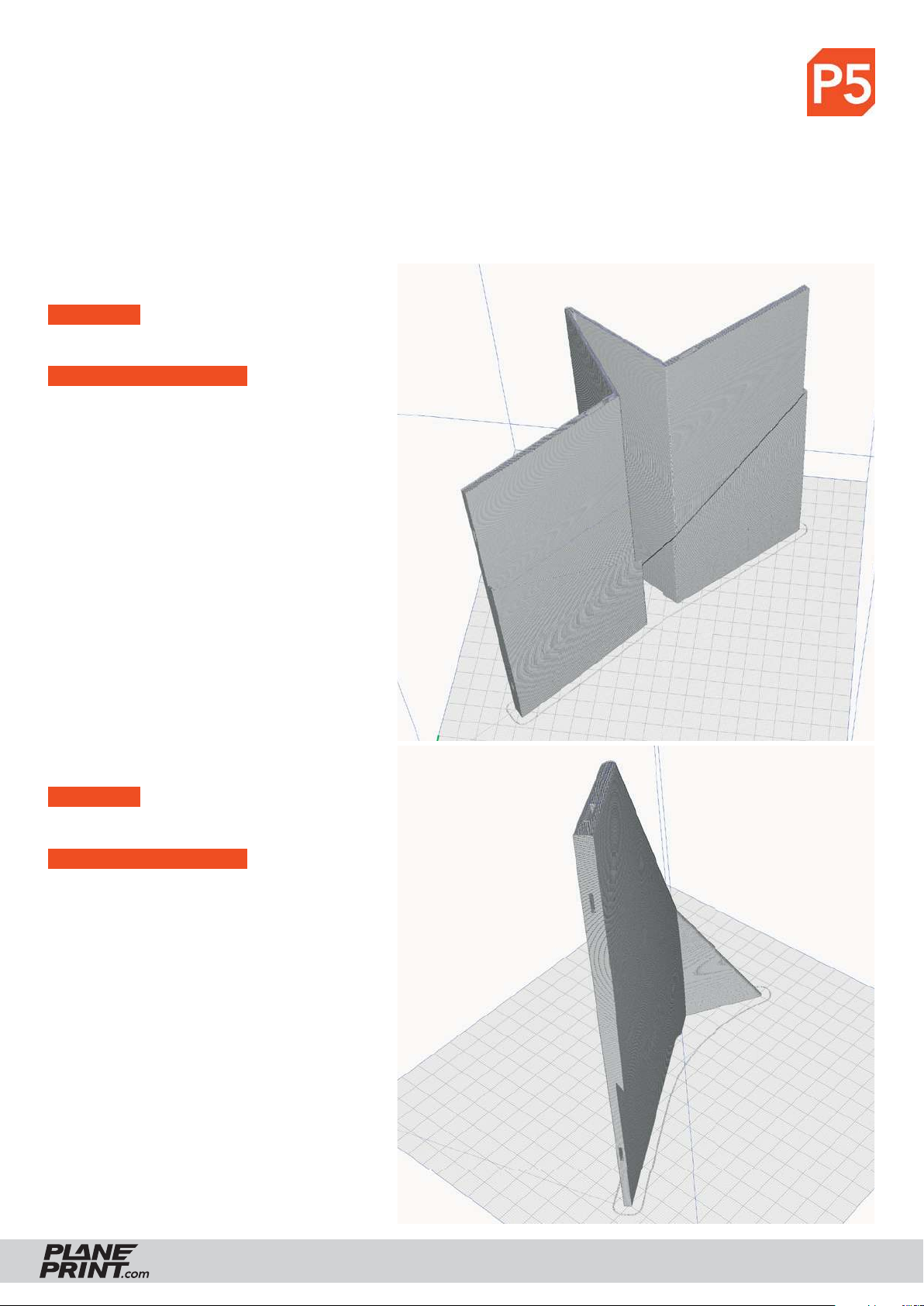

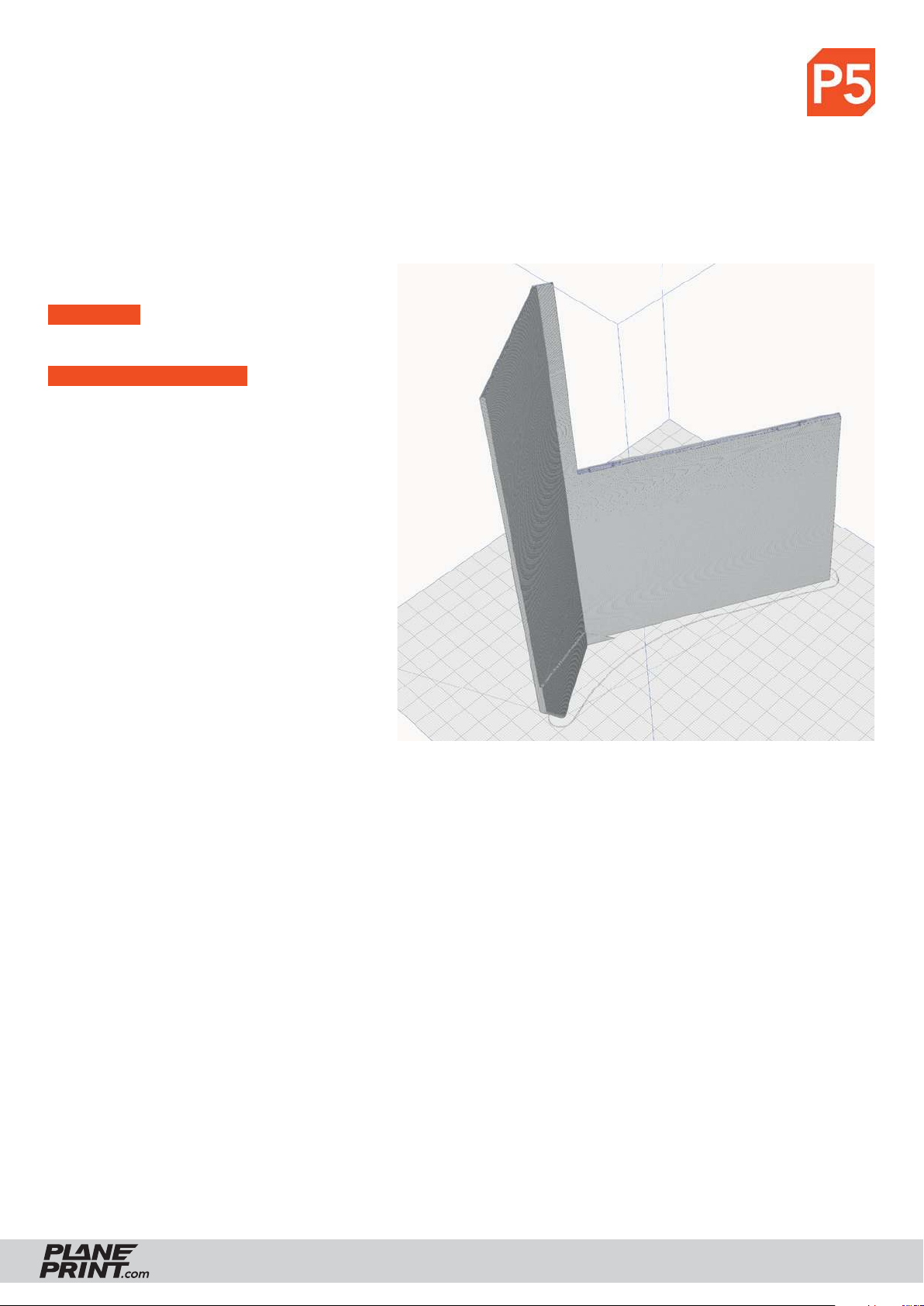

PROFILE P5_Gyroid
The following parts must be sliced with the PROFILE P5_Gyroid. Please note the additional
settings for the individual parts! It is essential to print these parts with LW-PLA!
Basic settings for LW-PLA: Please follow the instructions in our WINGTEST AND CALIBRATION TOOL
on our website for correct adjustment!
Light-Weight LW-PLA!

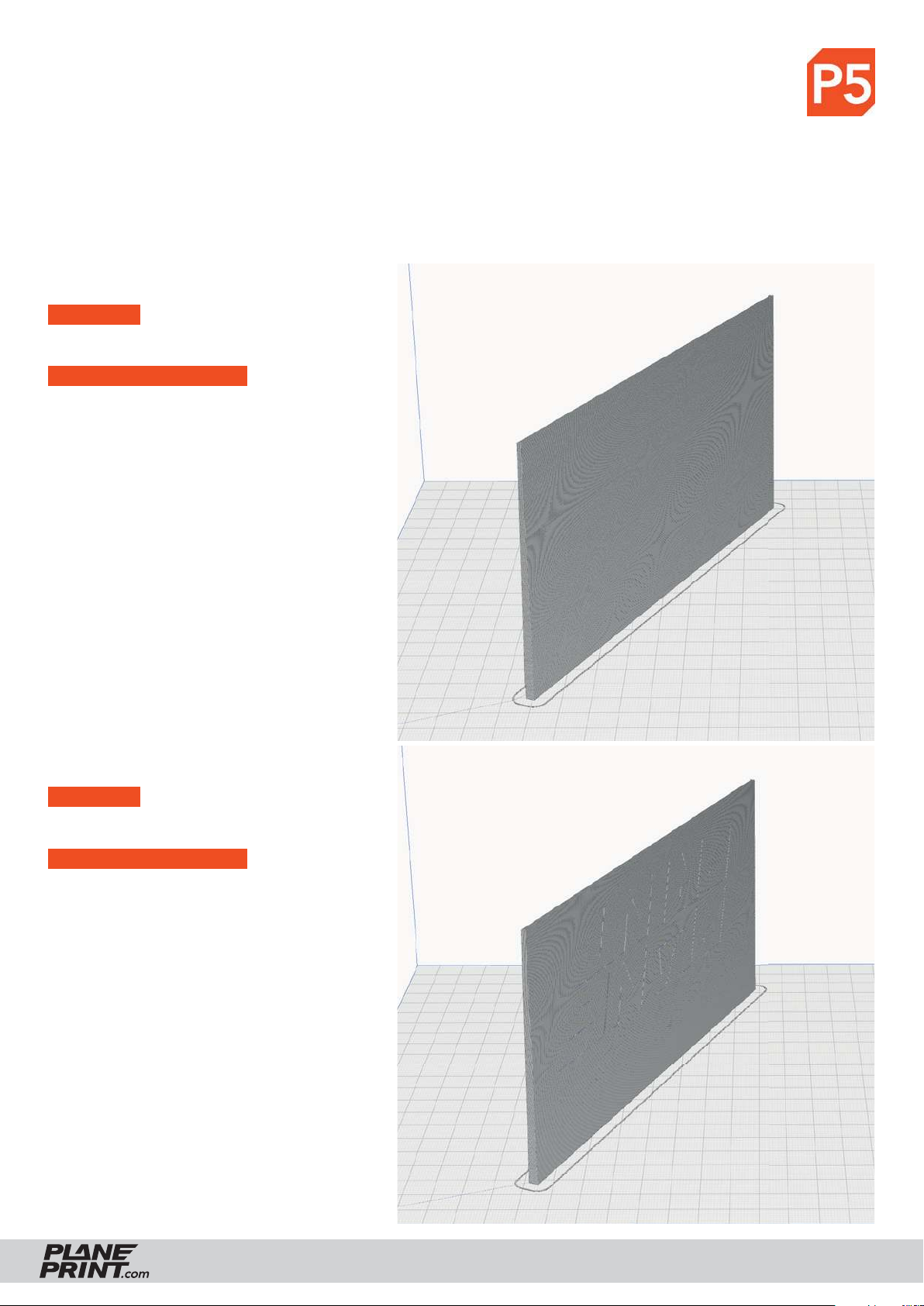

P5_Aileron L_pp.stl
MATERIAL LW-PLA, ~ 11 g*
*Weighed (approximate guideline)
ADDITIONAL SETTINGS
None required
P5_Aileron R_pp.stl
MATERIAL LW-PLA, ~ 11 g*
*Weighed (approximate guideline)
ADDITIONAL SETTINGS
None required
PAPER PLANE
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
9
Page 10

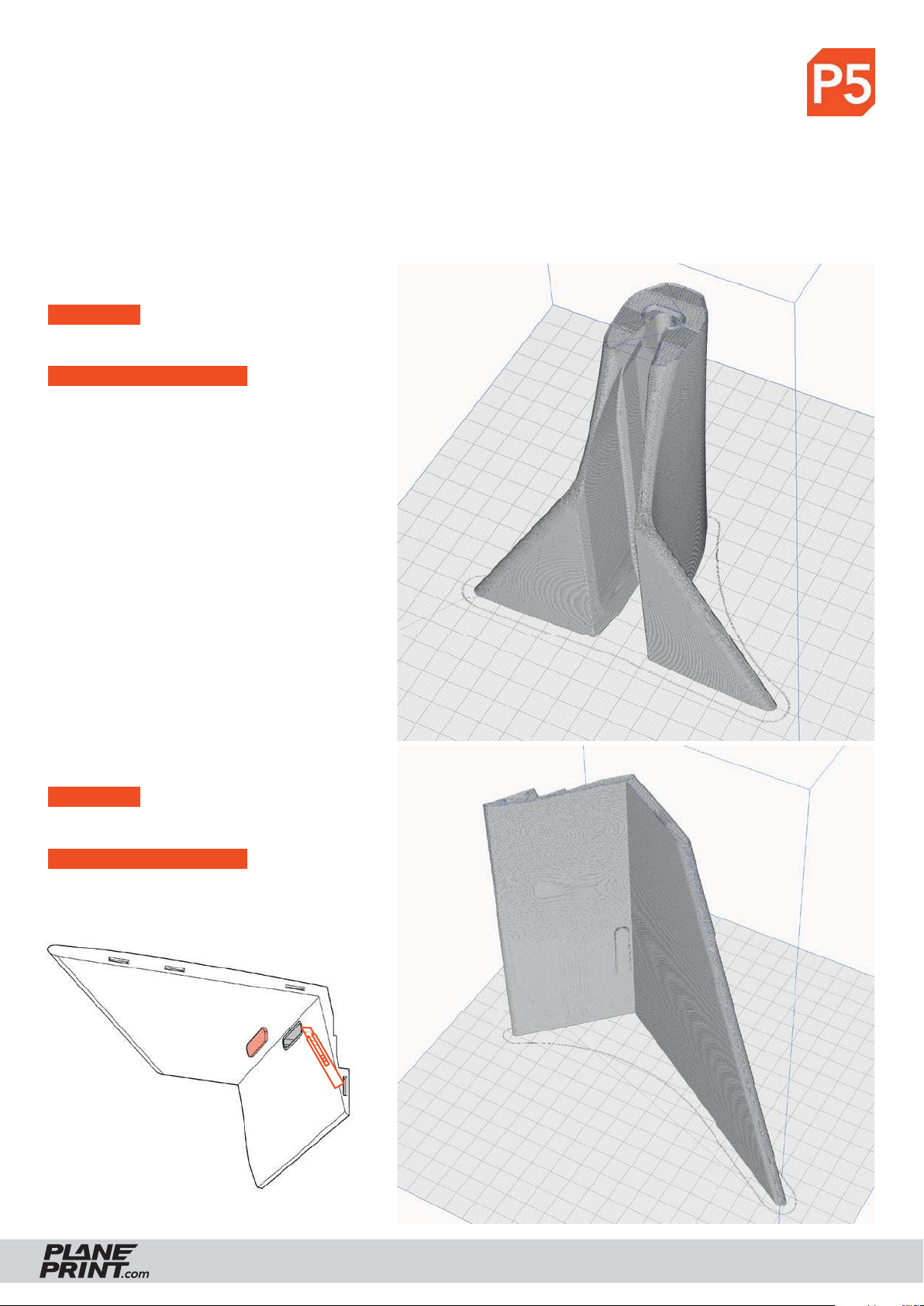

PROFILE P5_Gyroid Light-Weight LW-PLA!
The following parts must be sliced with the PROFILE P5_Gyroid. Please note the additional
settings for the individual parts! It is essential to print these parts with LW-PLA!
Basic settings for LW-PLA: Please follow the instructions in our WINGTEST AND CALIBRATION TOOL
on our website for correct adjustment!

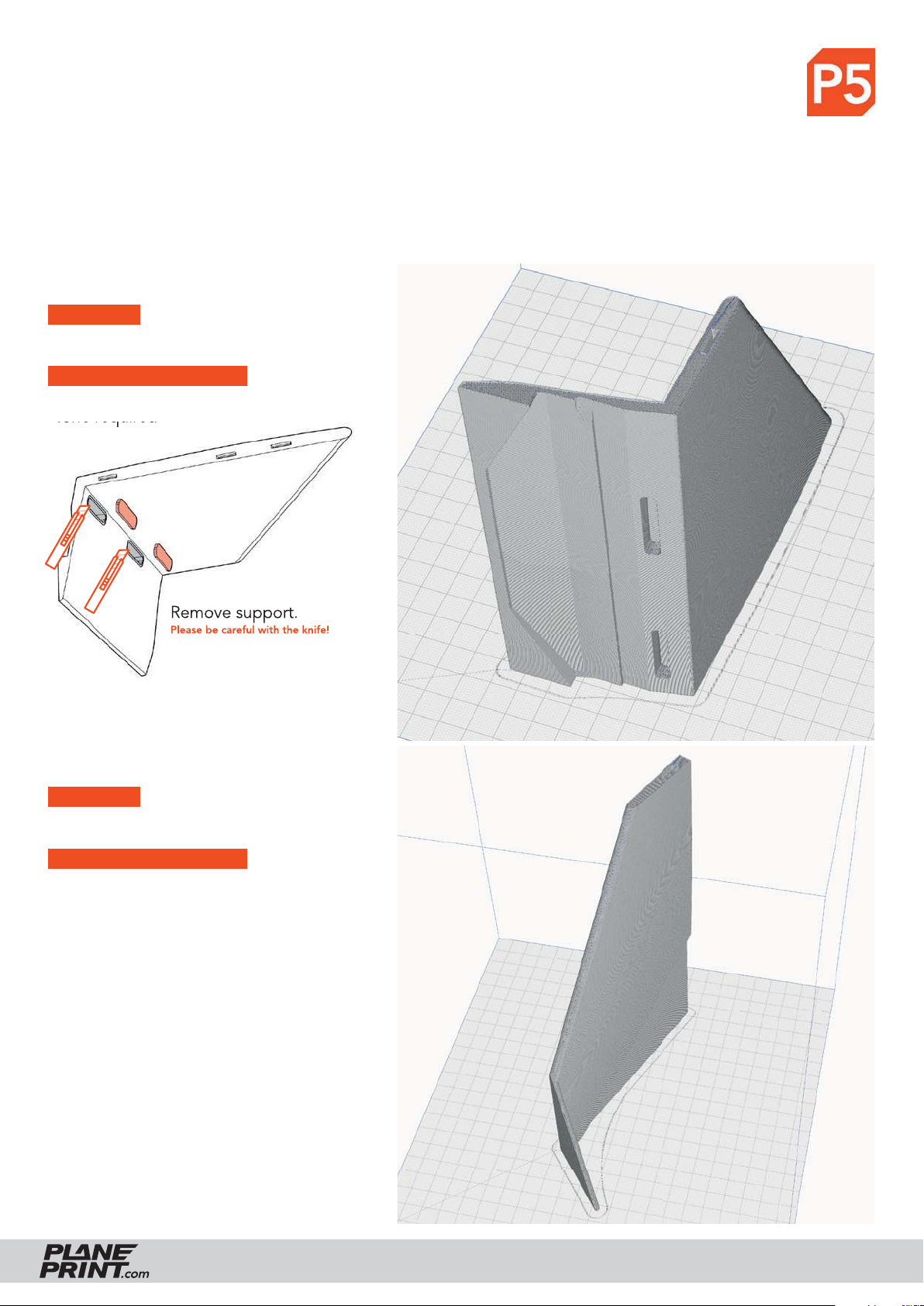

P5_Delta 1_pp.stl
MATERIAL LW-PLA, ~ 25 g*
*Weighed (approximate guideline)
ADDITIONAL SETTINGS
• Wall Line Count: 2
P5_Delta 2 L_pp.stl
MATERIAL LW-PLA, ~ 17 g*
*Weighed (approximate guideline)
ADDITIONAL SETTINGS
None required
Remove support.
Please be careful with the knife!
PAPER PLANE
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
10
Page 11
PROFILE P5_Gyroid Light-Weight LW-PLA!
The following parts must be sliced with the PROFILE P5_Gyroid. Please note the additional
settings for the individual parts! It is essential to print these parts with LW-PLA!
Basic settings for LW-PLA: Please follow the instructions in our WINGTEST AND CALIBRATION TOOL
on our website for correct adjustment!
P5_Delta 2 R_pp.stl
MATERIAL LW-PLA, ~ 17 g*
*Weighed (approximate guideline)
ADDITIONAL SETTINGS
None required
Remove support.
Please be careful with the knife!
P5_Delta 3 L_pp.stl
MATERIAL LW-PLA, ~ 18 g*
*Weighed (approximate guideline)
ADDITIONAL SETTINGS
None required
PAPER PLANE
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
11
Page 12
PROFILE P5_Gyroid
The following parts must be sliced with the PROFILE P5_Gyroid. Please note the additional
settings for the individual parts! It is essential to print these parts with LW-PLA!
Basic settings for LW-PLA: Please follow the instructions in our WINGTEST AND CALIBRATION TOOL
on our website for correct adjustment!
Light-Weight LW-PLA!

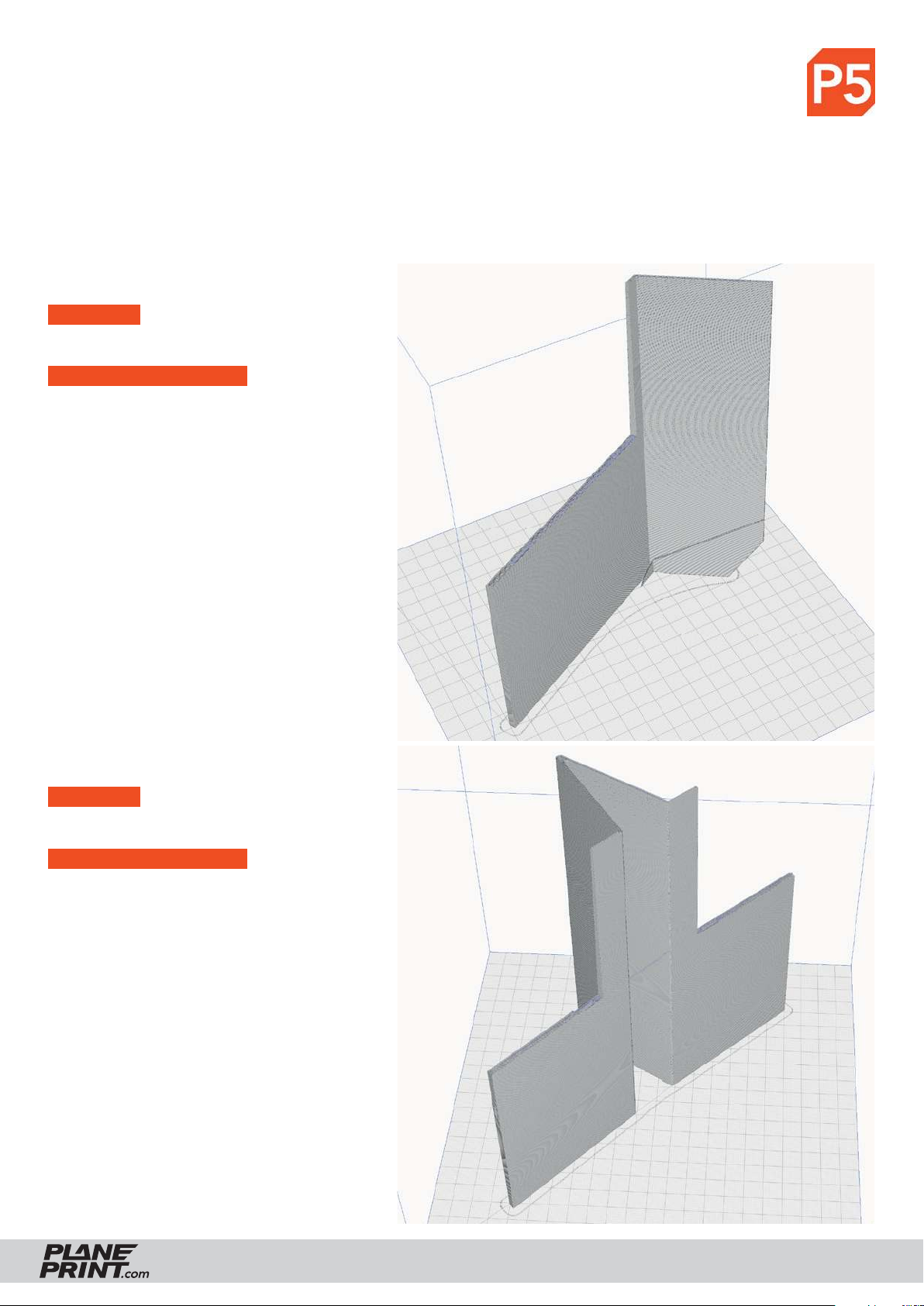

P5_Delta 3 M_pp.stl
MATERIAL LW-PLA, ~ 40 g*
*Weighed (approximate guideline)
ADDITIONAL SETTINGS
None required
P5_Delta 3 R_pp.stl
MATERIAL LW-PLA, ~ 18 g*
*Weighed (approximate guideline)
ADDITIONAL SETTINGS
None required
PAPER PLANE
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
12
Page 13
PROFILE P5_Gyroid
The following parts must be sliced with the PROFILE P5_Gyroid. Please note the additional
settings for the individual parts! It is essential to print these parts with LW-PLA!
Basic settings for LW-PLA: Please follow the instructions in our WINGTEST AND CALIBRATION TOOL
on our website for correct adjustment!
Light-Weight LW-PLA!
P5_Delta 4 L_pp.stl
MATERIAL LW-PLA, ~ 17 g*
*Weighed (approximate guideline)
ADDITIONAL SETTINGS
None required
P5_Delta 4 M_pp.stl
MATERIAL LW-PLA, ~ 29 g*
*Weighed (approximate guideline)
ADDITIONAL SETTINGS
None required
PAPER PLANE
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
13
Page 14
PROFILE P5_Gyroid Light-Weight LW-PLA!
The following parts must be sliced with the PROFILE P5_Gyroid. Please note the additional
settings for the individual parts! It is essential to print these parts with LW-PLA!
Basic settings for LW-PLA: Please follow the instructions in our WINGTEST AND CALIBRATION TOOL
on our website for correct adjustment!
P5_Delta 4 R_pp.stl
MATERIAL LW-PLA, ~ 17 g*
*Weighed (approximate guideline)
ADDITIONAL SETTINGS
None required
PAPER PLANE
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
14
Page 15

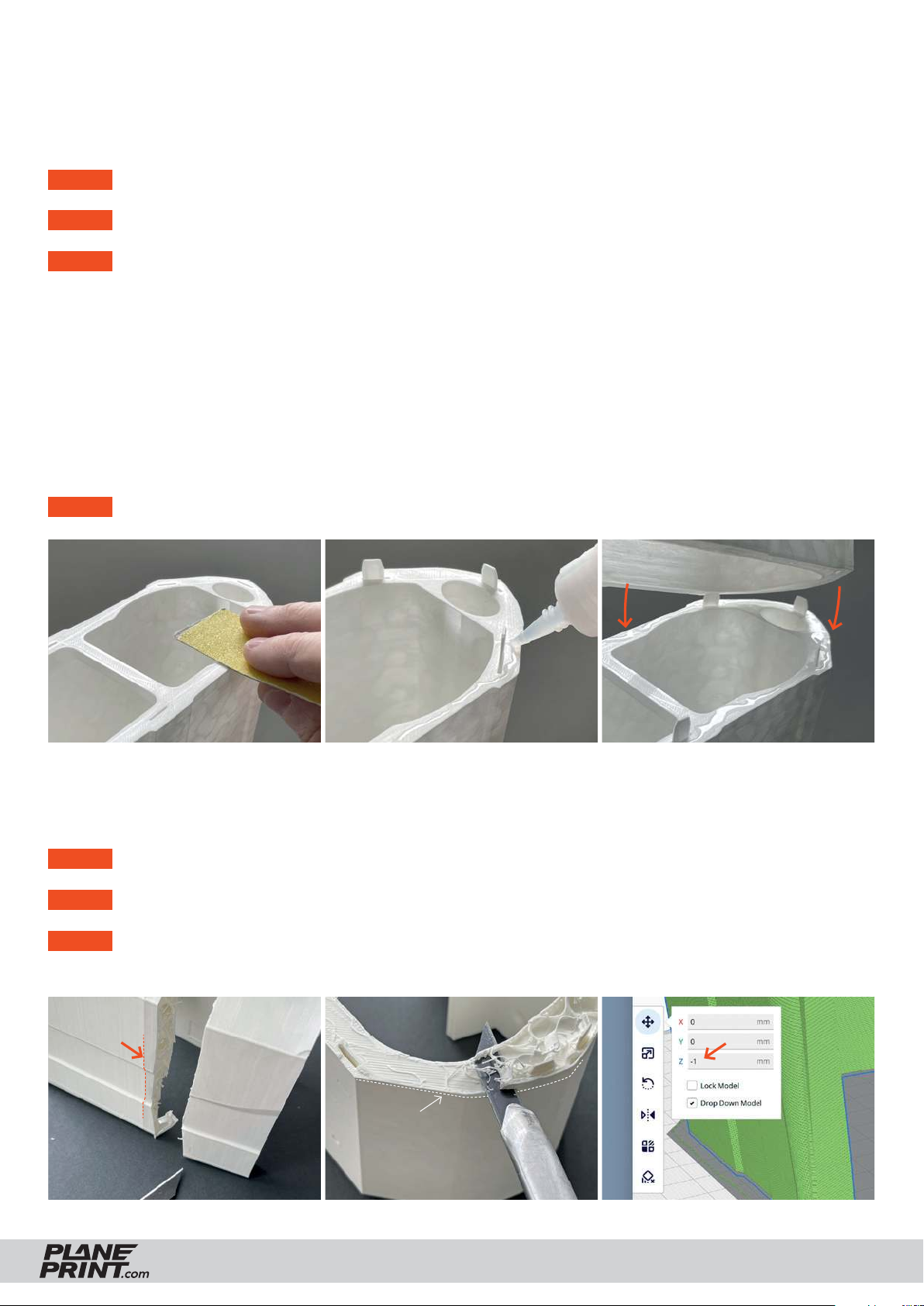

Basic Information:
Gluing the parts printed with PROFILE P5
STEP 1 As a first step, it is important to roughen and smooth the adhesive surfaces with sandpaper.
STEP 2 Insert the interconnects into the slots provided on one side.
STEP 3 Apply a lot of glue to the side with the interconnects. It is important that there is glue everywhere,
especially on the outside and inside of the wall surfaces, in order to achieve a perfect connection.
The interconnects only serve to align the parts to each other. It is better not to apply glue here,
otherwise it can happen that the glue suddenly hardens while the parts are being put together and
stops the process.
Use medium viscosity CA glue, thinner glue would run down the parts too easily.
After assembly, align the two parts exactly and wipe off the excess CA glue from the surface
with a cloth. Now spray with activator spray along the gluing surface and carefully press the parts
together.
STEP 4 Clean the glued areas slightly with a sharp-bladed cutter.
PROFILES 5 parts are easy to repair
STEP 1 Using the knife, carefully remove the damaged part about 3 mm from the glue joint between two parts.
STEP 2 Cut wall and infill and clean the surface with sandpaper. The top surface of the damaged part remains!
STEP 3 The remaining top surface is about 1 mm thick. To compensate for this, you can move the new part to
be printed down the Z axis in Cura by 1 mm.
Glue joint
Broken part
Glue joint
PAPER PLANE
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
15
Page 16

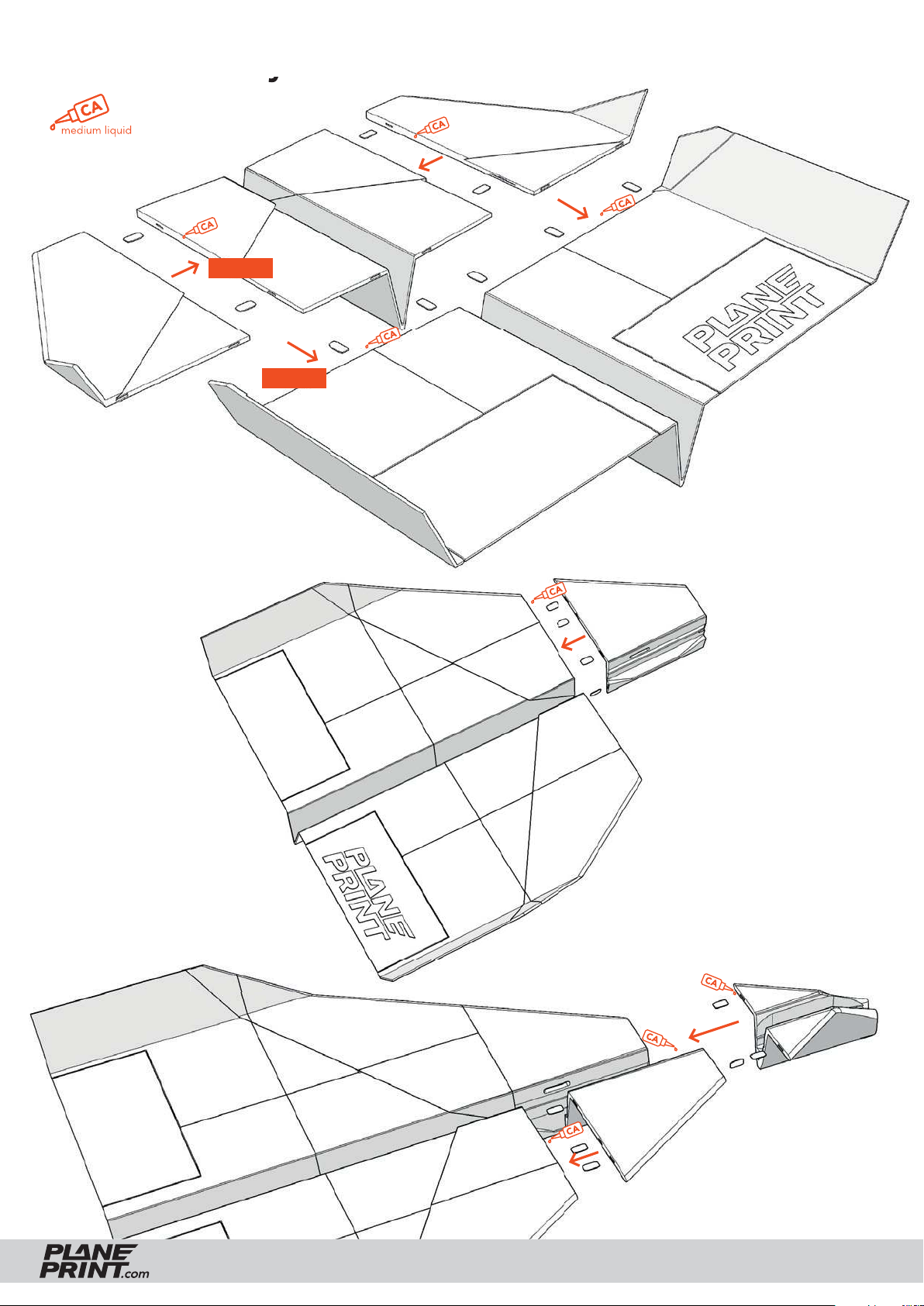

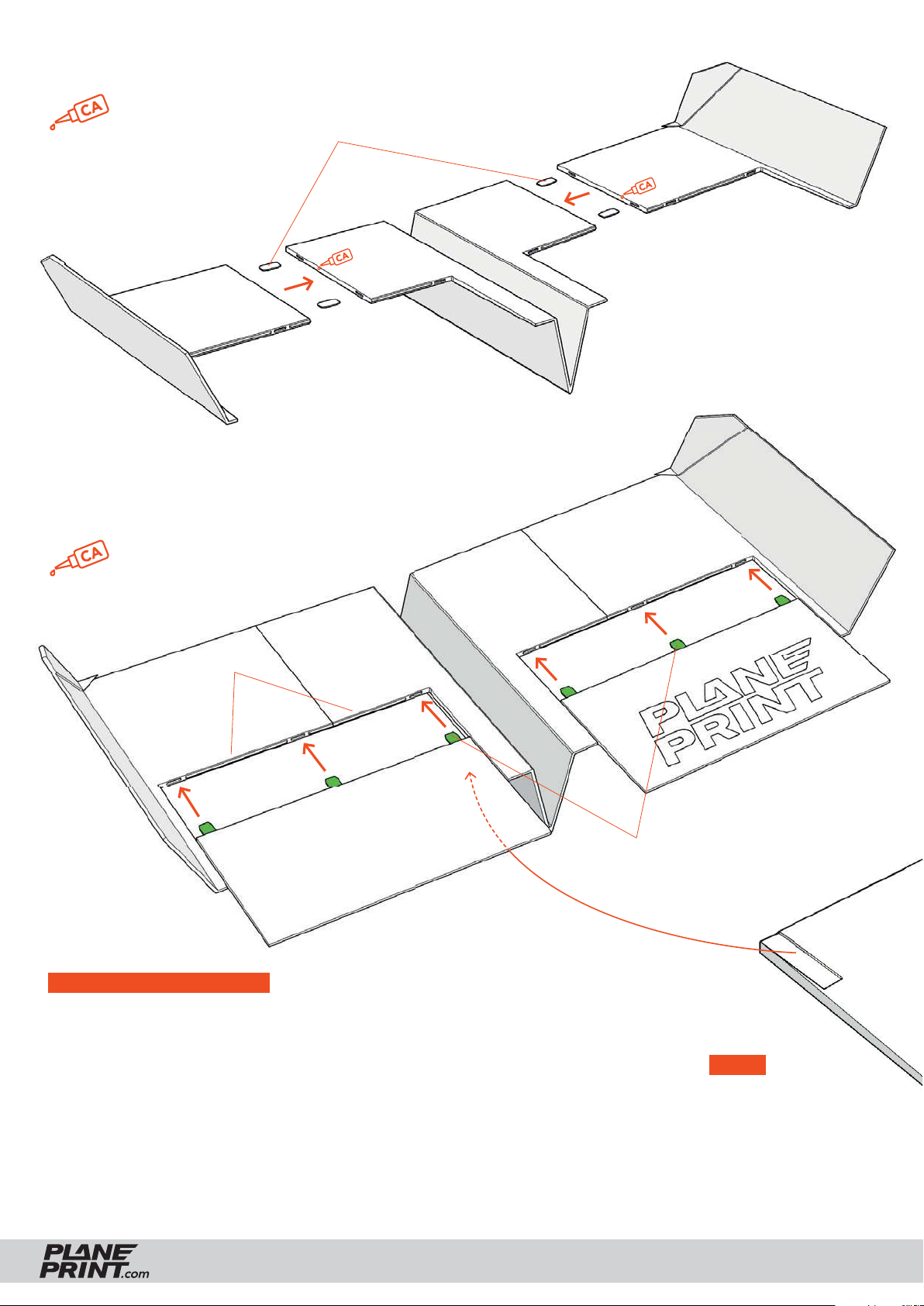

Delta assembly
medium liquid
Aileron
thin liquid
P1_Interconnects_pp.stl
P5_Delta 4 R_pp.stl
P5_Delta 4 M_pp.stl
P5_Delta 4 L_pp.stl
Spacers
P5_Aileron L_pp.stl
P4_Hinges_pp.stl
Installation the TPU Hinges
First insert the hinges into the Ailerons and add a drop of liquid CA
adhesive into the gap. Wait for the glue to drain completely, then spray the
activator on it.
Then put the Aileron in the Wing until the Aileron touches the spacers
and put a drop of CA glue on the hinge. Wait again for the glue to run in,
and then spray the activator on it.
P5_Aileron R_pp.stl
NOTE The marking
for the control horn
must be down!
Do not use too much glue, the Ailerons must move easily!
PAPER PLANE
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
16
Page 17
Delta assembly
medium liquid
P5_Delta 3 L_pp.stl
P5_Delta 3 R_pp.stl
P5_Delta 3 M_pp.stl
STEP 1
STEP 2
P5_Delta 2 L_pp.stl
P5_Delta 1_pp.stl
PAPER PLANE
P5_Delta 2 R_pp.stl
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
17
Page 18

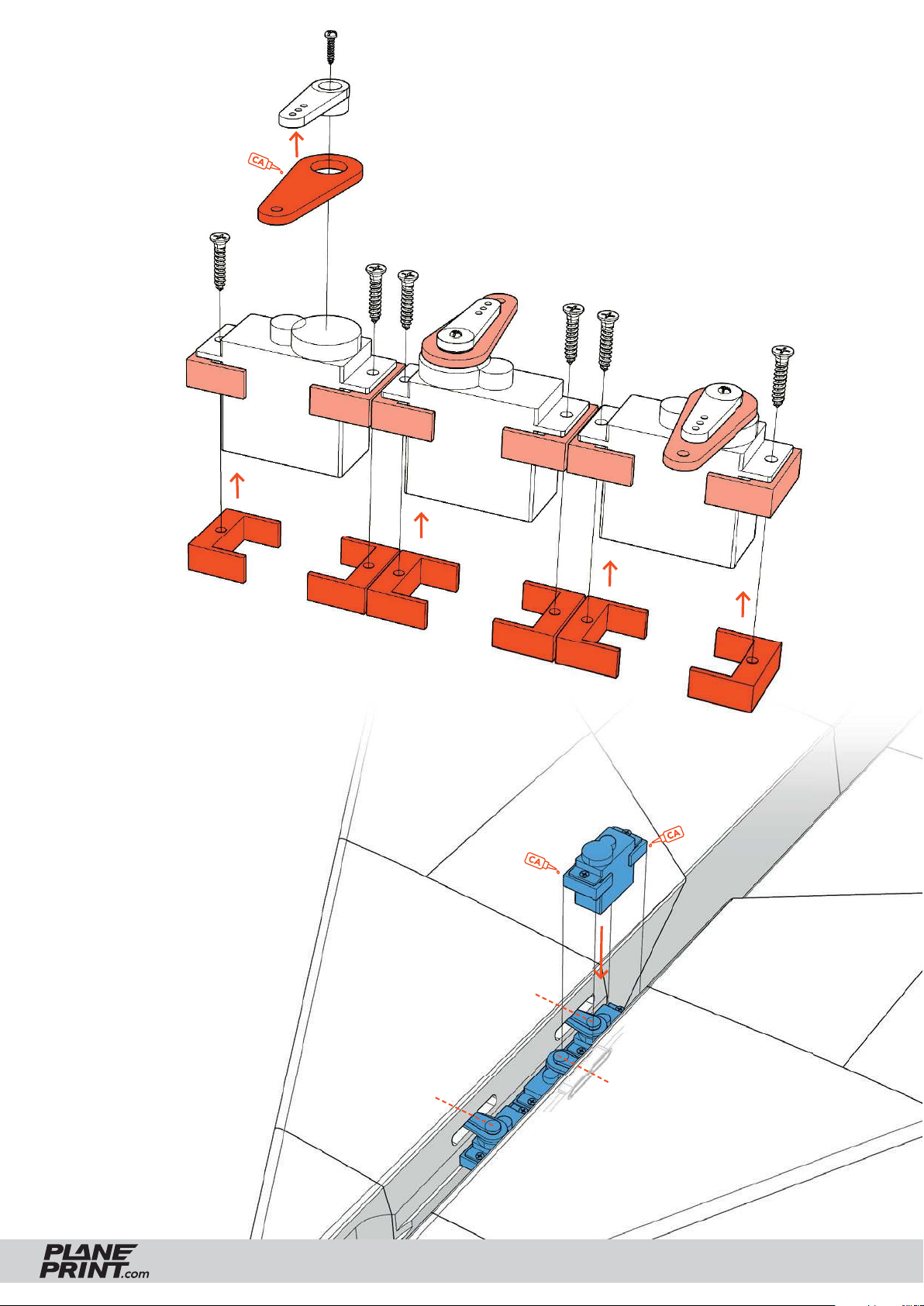

Servo mount
P1_Parts_pp.stl
Install the servo mounts and servo arm
extensions as shown here.
Do not forget to zero the servos fi rst.
Unscrew the servo arms again
and glue the servos into the
fuselage and make sure that the
axis of rotation is centered with
the openings for the servo arms
(also in height!).
If your servos have different
dimensions and the servo
brackets (P1_Servo mount_pp.stl) are
too high, you can print them in
Cura at the appropriate height
by changing the dimension for
the Z-axis.
If the servos are tight, you can
mount the servo arms.
P1_Servo mount_pp.stl
PAPER PLANE
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
18
Page 19

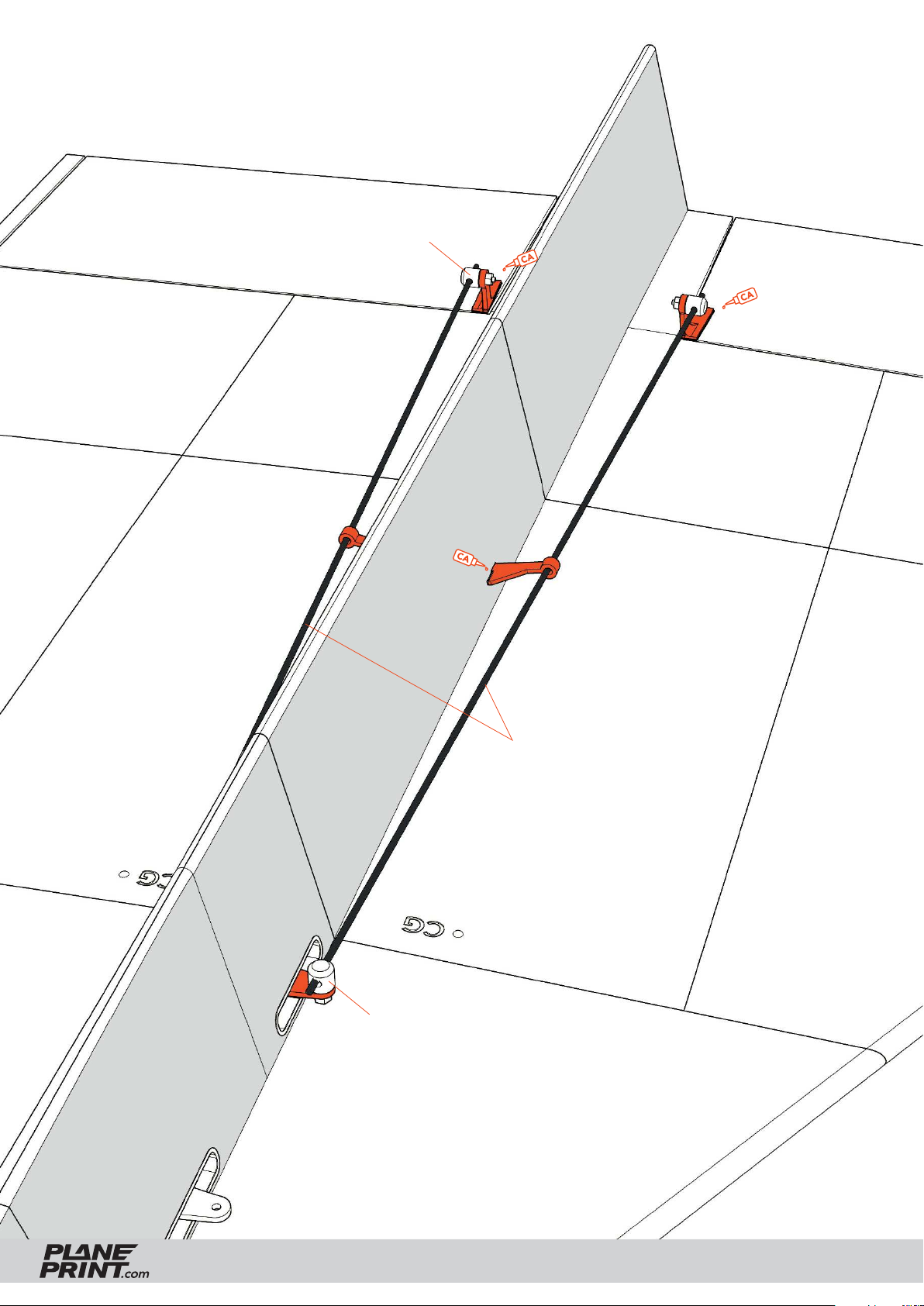

Servo mount Ailerons
Rod connection
P1_Parts_pp.stl
Rod connection
P1_Parts_pp.stl
Carbon rods Ø1.5 mm
PAPER PLANE
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
19
Page 20

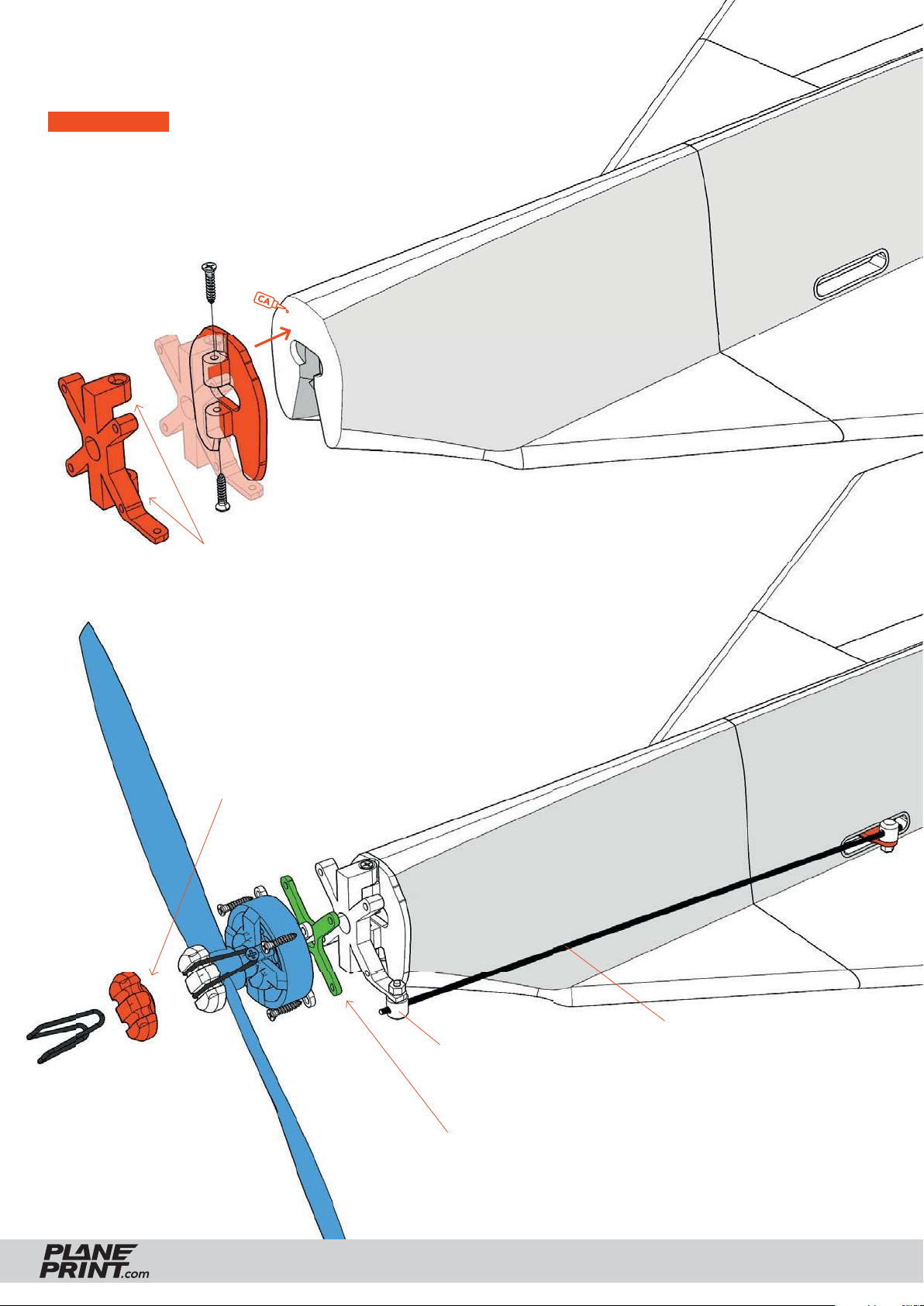

Motor mount
SAFETY FIRST Make sure the prop runs smoothly and
does not generate vibrations. Check regularly that the
motor mounting is absolutely tight!
P1_Motor mount_pp.stl
Make sure that the screws here
are smooth-running.
You only need this part if the
rubber band is too loose.
P4_TPU-Parts_pp.stl
P1_Spinner_pp.stl
PAPER PLANE
Rod connection
Carbon rod Ø1.5 mm
The TPU part comes between the motor and
motor mount to protect the PLA from heat.
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
20
Page 21

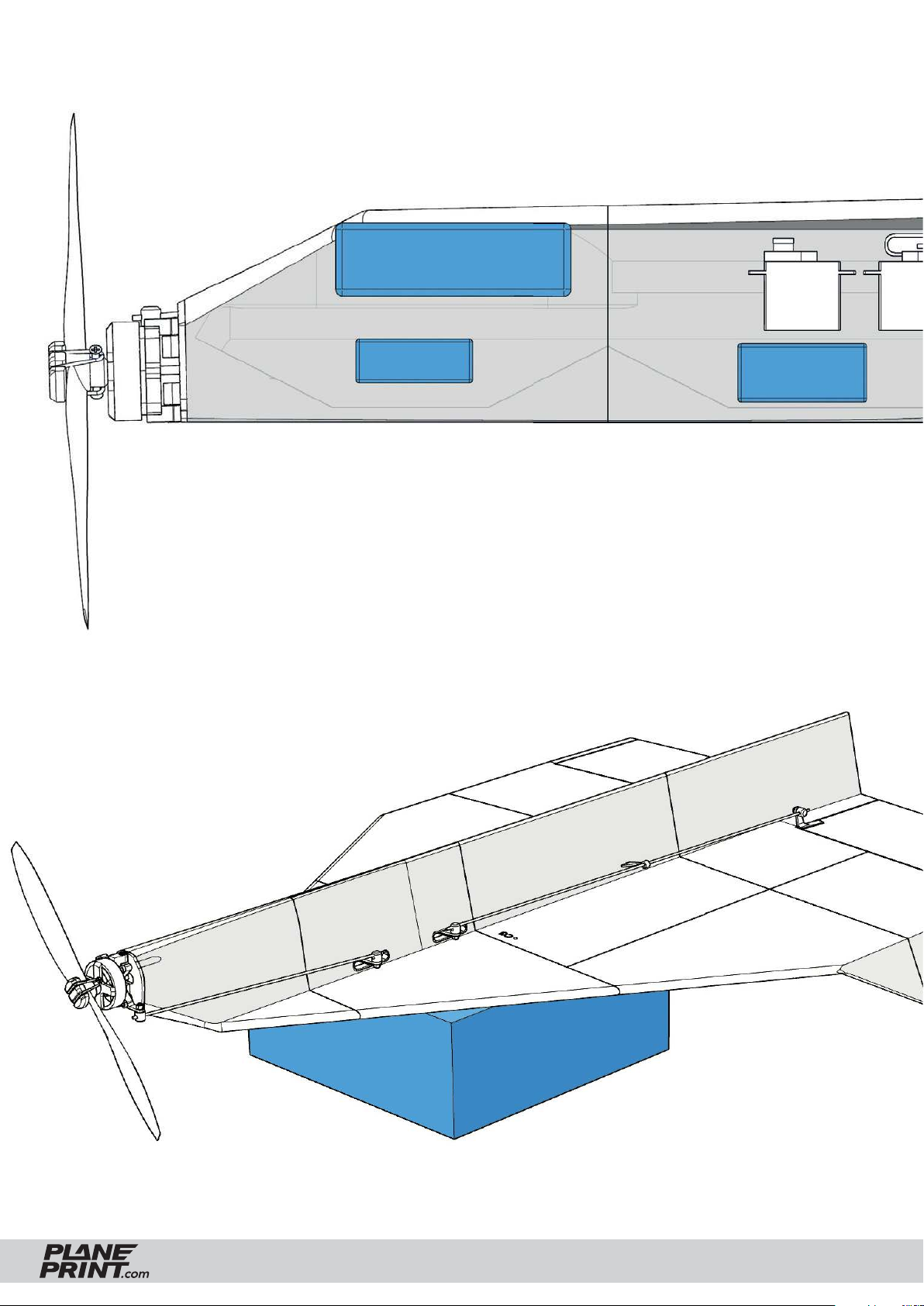

RC Components
Use self-adhesive Velcro tape to attach the battery.
Battery
Storage
To avoid deformation, we recommend
storing the model upside down on a
fi lament box or similar.
Controller
Reiceiver
PAPER PLANE
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
21
Page 22

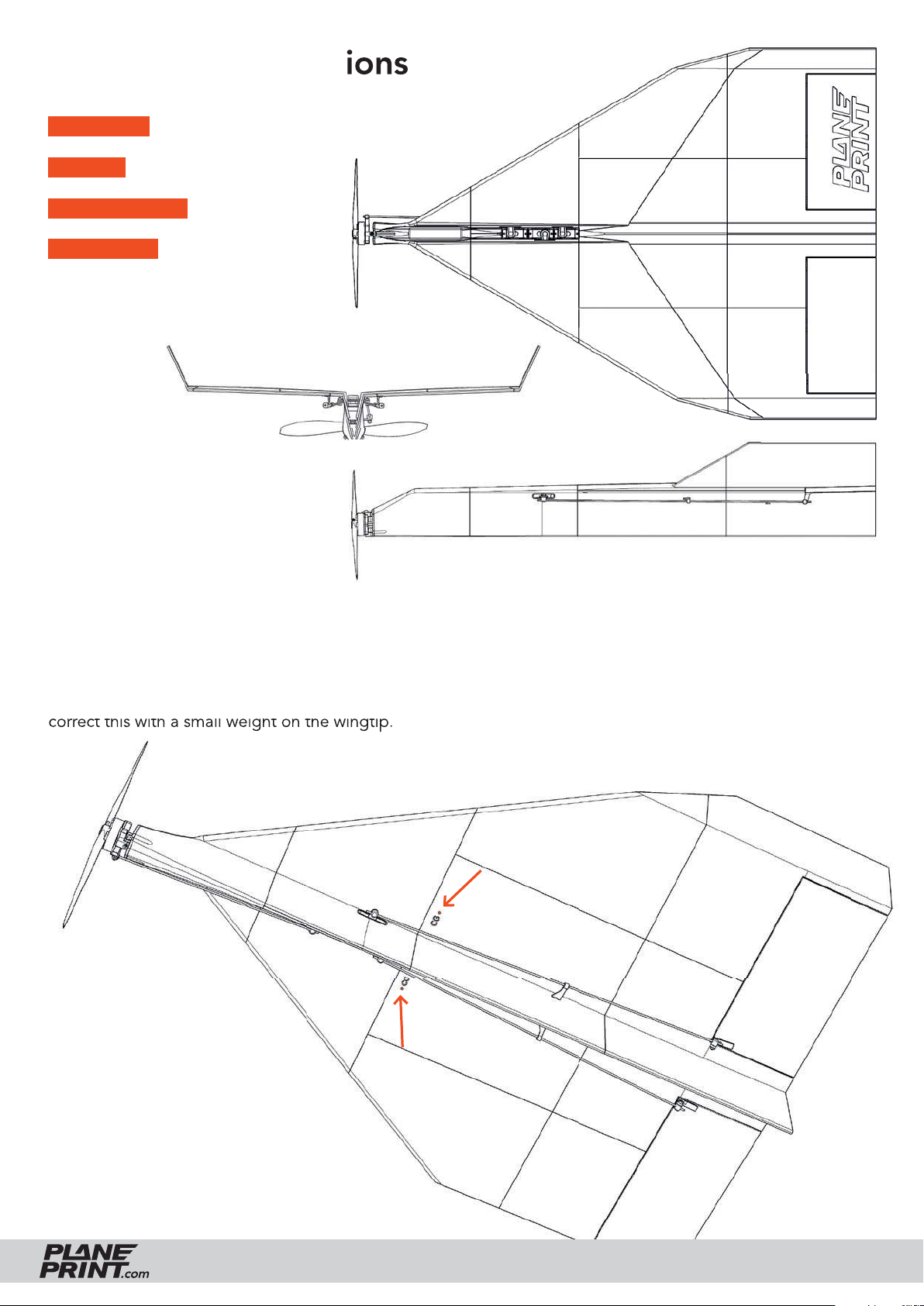

Technical specifi cations
WINGSPAN 500 mm/9.6 inches
LENGTH 700 mm/27.5 inches
FLIGHT WEIGHT 360 grams
WING LOAD 15 g/dm
2
Center of Gravity (CG)
The aircraft must balance on these points –
see the markings on the fuselage.
Do not forget to check if the wings are exactly in ballance in the roll axis. If one wing is heavier,
correct this with a small weight on the wingtip.correct this with a small weight on the wingtip.
PAPER PLANE
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
22
Page 23

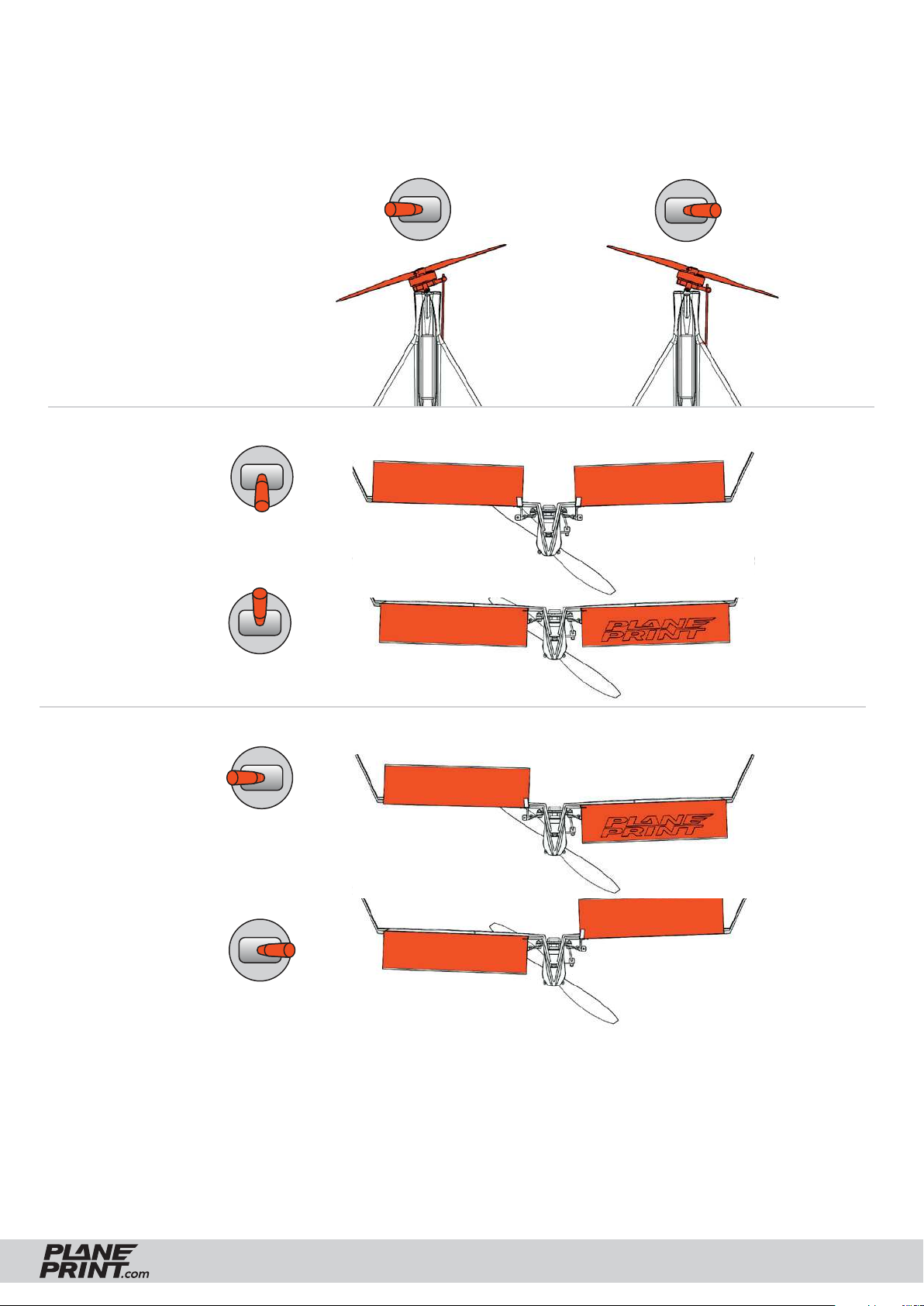

Control Direction Test
Turn on the transmitter and connect the battery. When checking the control directions, look at the aircraft f
rom above (rudder) and behind.
RUDDER
Set the maximum possible angle.
Make sure that the prop in zero
position points absolutely straight
in flight direction.
ELEVATOR
Make sure that the motor does not start! It is safer to dismount the prop.
60 mm up
60 mm down
in zero position
the ailerons/
elevators
should point one
mm upwards.
AILERON
60 mm up
60 mm down
Tips for flying
Since the model flies very stable in the longitudinal
axis, vector control (rudder) is absolutely necessary
for flying curves. You should be able to control an
airplane with the separate functions Rudder and
Aileron, mixing these functions (Combi Switch) makes
PAPER PLANE
no sense here. Always remember that vector control
only works while the motor is running.
The flight characteristics are very similar to a
real paper airplane. It is very wobbly around the
longitudinal axis, but flies stable overall.
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
23
Page 24
AGE RECOMMENDATION 14+
NOT FOR CHILDREN UNDER 14 YEARS.
THIS IS NOT A TOY!
The STL data (or data processed from it, such as G codes)
must never be passed on to third parties!
The purchase of the STL does not authorize the production
of models for third parties.
By using the download data, an RC model airplane, called
„model“ for short, can be manufactured using a 3D printer.
As a user of this model, only you are responsible for safe
operation that does not endanger you or others, or that
does not damage the model or property of others.
PLANEPRINT.com assumes no responsibility for damage to
persons and property caused by pressure, transport or use
of the product. Filaments, printing supplies, hardware or
consumables that can not be used after faulty 3D printing
will not be replaced by PLANEPRINT.com in any way.
When operating, always keep a safe distance from your
model in all directions to avoid collisions and injuries.
This model is controlled by a radio signal. Radio signals can
be disturbed from outside without being able to influence
it. Interference can lead to a temporary loss of control.
Always operate your model on open terrains, far from cars,
traffic and people.
Keep all chemicals, small parts and electrical components
out of the reach of children.
Avoid water contact with all components that are not specially
designed and protected. Moisture damages the electronics.
Never take an item of the model or accessory in your mouth
as this can lead to severe injuries or even death.
Never operate your model with low batteries in the transmitter or model.
Always keep the model in view and under control.
Use only fully charged batteries.
Always keep the transmitter switched on when the model
is switched on.
Always remove the battery before disassembling the model.
Keep moving parts clean and dry at all times.
Always allow the parts to cool before touching them.
Always remove the battery after use.
Make sure that the Failsafe is properly set before the flight.
Always follow the instructions and warnings for this product
and any optional accessories (servos, receivers, motors,
propellers, chargers, rechargeable batteries, etc.) carefully.
We develop our models to the best of our knowledge and belief.
We accept no liability for consequential damage and injuries
caused by improper use or incorrectly printed parts. Please be
careful when handling motors, batteries and propellers and
only move your model with insurance and in approved places!
Never operate the model with damaged wiring.
Never touch moving parts.
© PLANEPRINT.com, A-6021 Innsbruck, Conradstraße 6, [email protected]
© Design STL files by René Marschall • Layout: marschall designlab, marschall.cc
Loading...
