Page 1
NOTE: Slicing only
works with CURA!
You can fi nd the STL data
at www.planeprint.com
PRINTING & ASSEMBLING MANUAL
Page 2

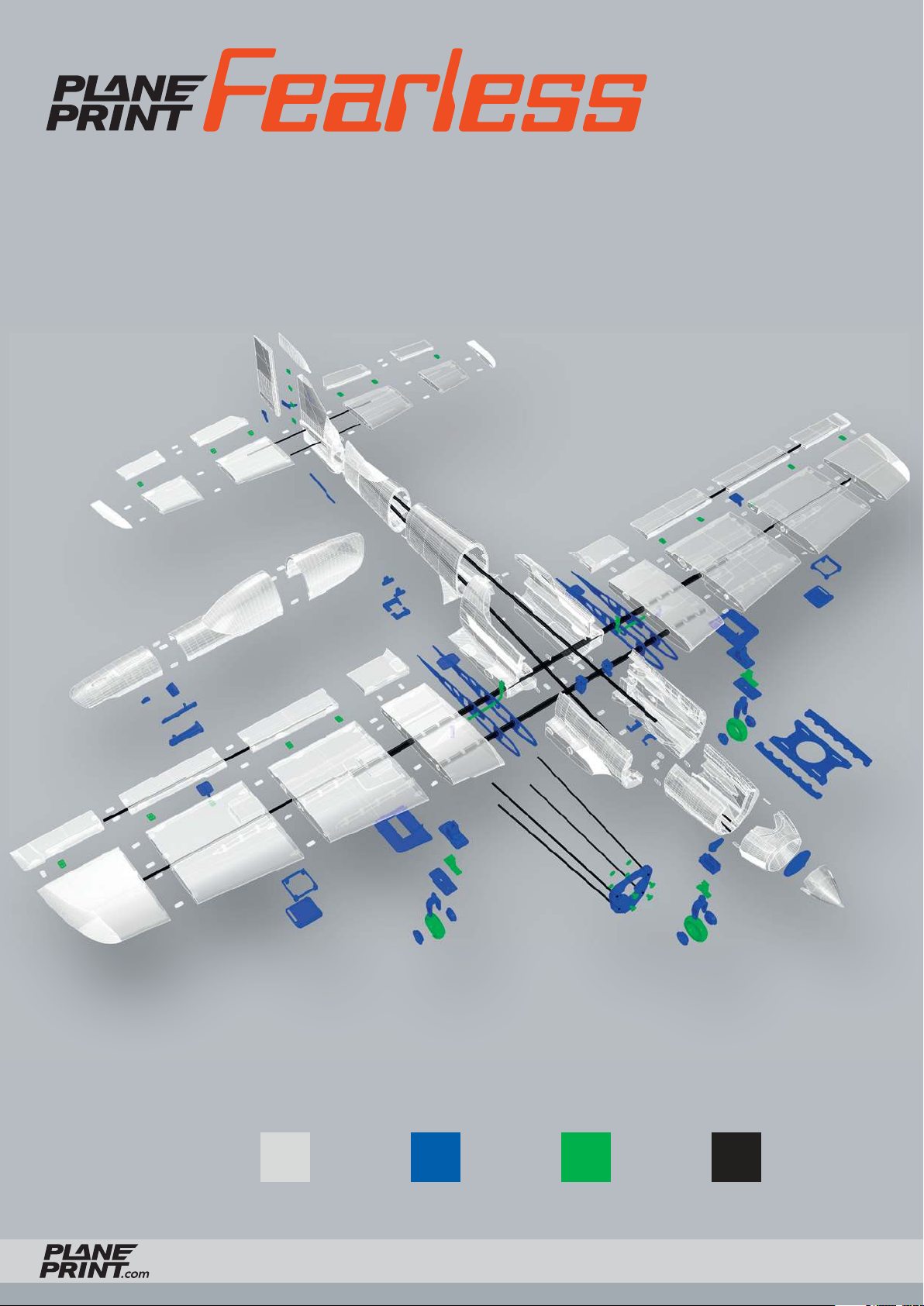

PLALW-PLA TPU CARBON
FEARLESS
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
2
Page 3

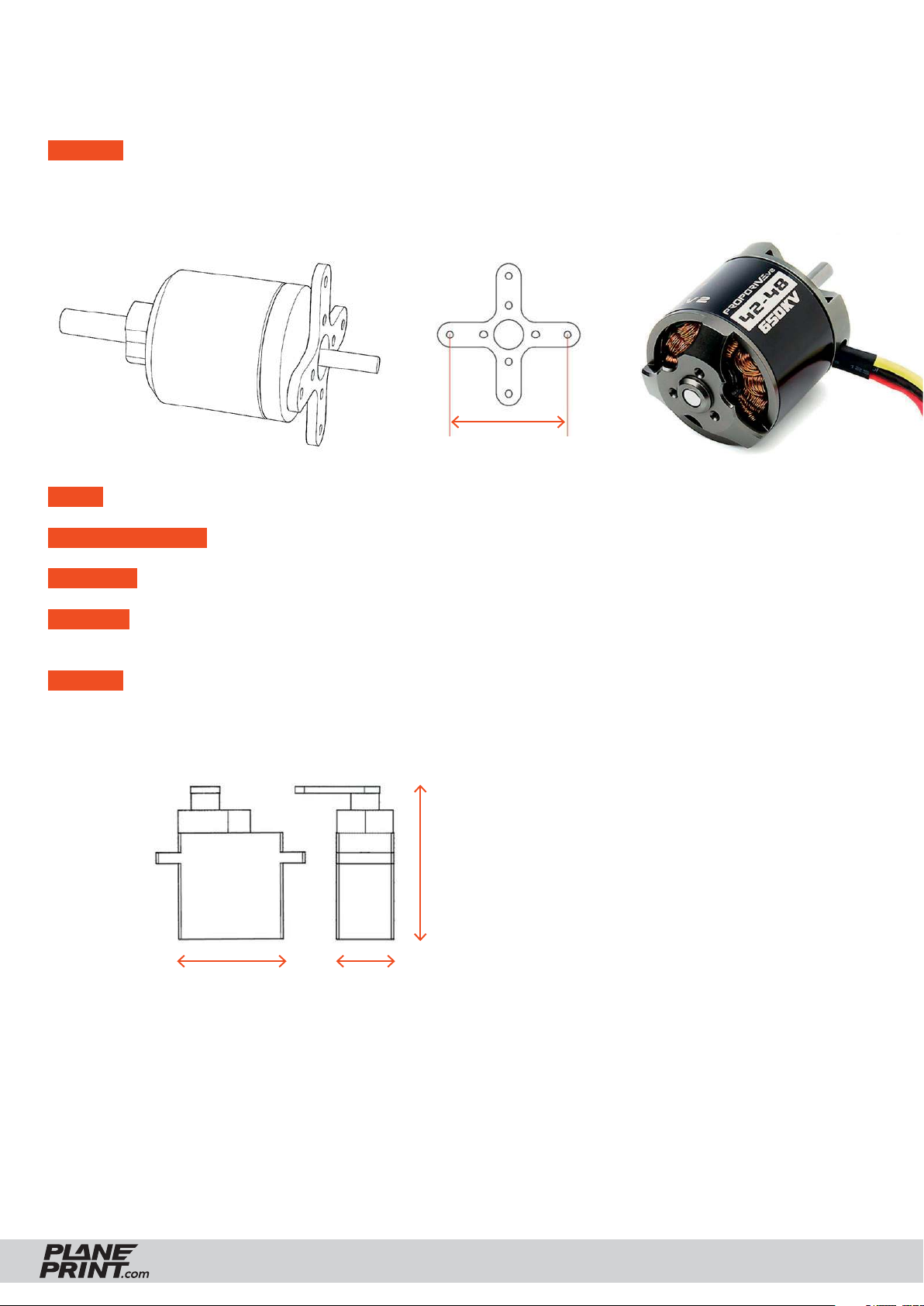

RC Components
ENGINE PROPDRIVE v2 4248 650KV/1295W Brushless Outrunner Motor (HobbyKing)
or comparable motors.
The motor must be mounted at the rear, see picture:
50 mm
PROP APC-E 11x10, also possible are 12x8, 12x9
BEC-CONTROLLER 80 A (must fi t the engine!)
RECEIVER 5 Channel
BATTERY 5S Lipo, 4000 – 5000 MaH
(The battery should have a weight of 500 to 580 grams)
SERVOS 4 pieces like Corona DS-238MG Digital, Corona DT-236MG or comparable
The servos should necessarily have metal gears and a torque of at least 2 to 4 Kg/cm!
Dimensions:
max. 35 mm
max. 32 mm max. 15 mm
FEARLESS
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
3
Page 4

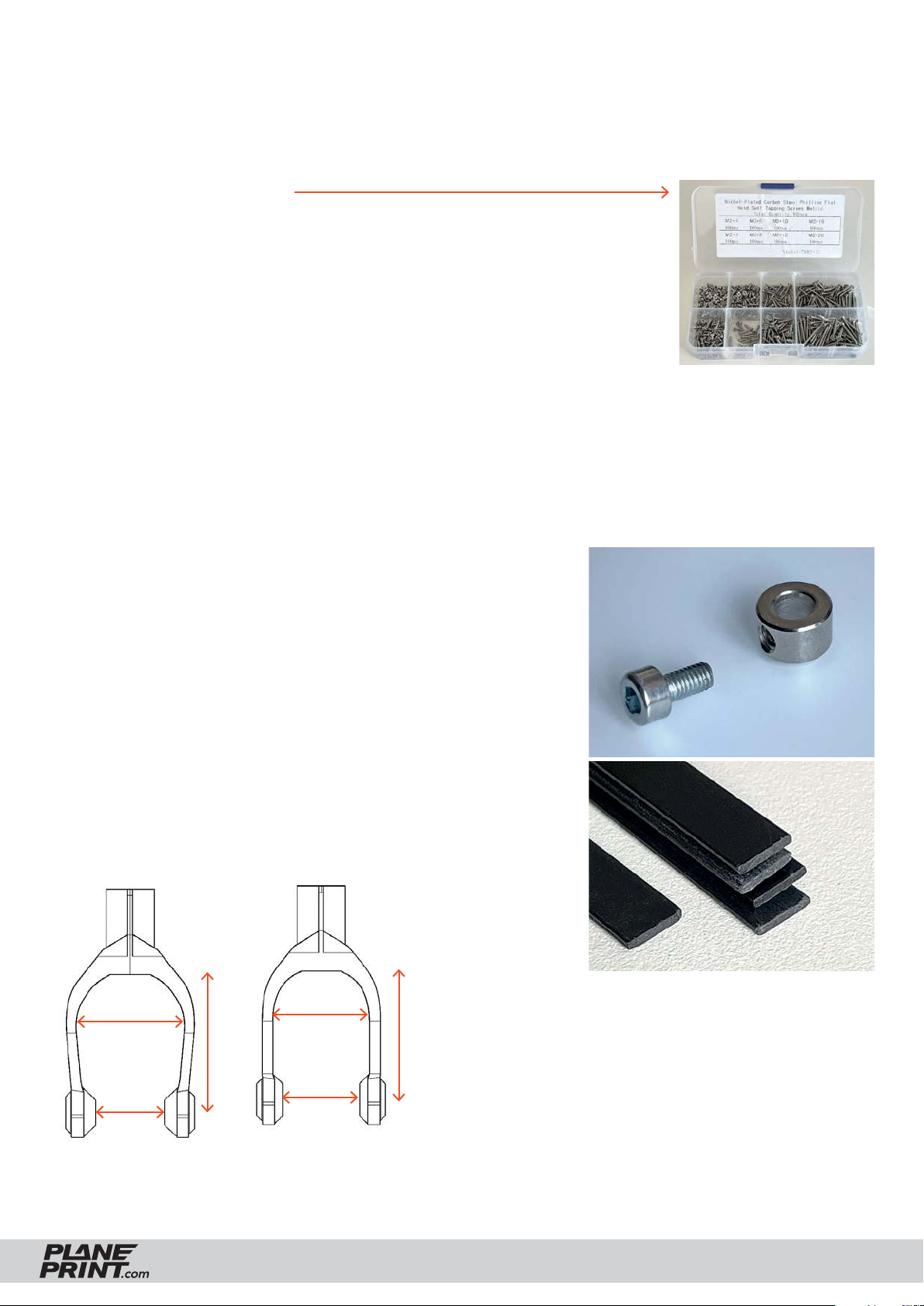

Required accessoires
• LW-PLA (cannot be replaced by PLA!), ~1200 grams
• PLA oder bether Tough PLA, ~300 grams
• TPU A95, ~100 grams
• some tapping screws Ø2 mm
• Metal screw 3*6mm, 9 pieces
• Metal screw 3*20mm, 10 pieces
• Metal screw 3*35mm, 3 pieces (Wheels axles)
• Shims for Metal screw Ø3mm, 10 pieces
• CA super glue (liquid and liquid medium)
• CA activator
• Steel wire Ø1*1000mm or Ø1.5*1000mm, 3 pieces
• Steel wire Ø4*400mm, 1 piece (or you can use ready made landing gear legs)
• Carbon tube Ø12*1000mm, 2 pieces
• Carbon rod Ø3*1000mm, 2 pieces
• Carbon fiber strips (flat profile) 1*6*1000mm*, 2 pieces (Wings)
• Carbon fiber strips (flat profile) 1*6*1000mm*, 3 pieces (Fuselage) – can also be replaced by Ø3mm carbon rods.
* If you can‘t get such profiles you can also use two 0.5*6*1000, 1*5*1000 or hardwood strips.
• Rod connection, 5 pieces
• Adjusting collar Øoutside 8mm, Øinside 4mm, height 5mm, 10 pieces
• Servo extension cable 350mm, 2 pieces (or a soldered servo cable extension)
• Neodym-Super-Magnet 5x5x5mm, 4 pieces
• Self-adhesive Velcro tape
– basic equipment
(simply search for:
M2 flat head tapping
screw assortment)
Adjusting collar
Tools
Cutter knife, Drill, small Philips screwdriver, Sandpaper,
Metal saw, Needle nose pliers
If you do not want to print the wheels,
you can buy matching ones.
Here are the dimensions of the wheel legs:
P1_Wheel leg 63x23_F.stl P1_Wheel leg 58x18_F.stl
26mm
33mm
23mm
30.7mm
Metal screw Ø3*6mm
Carbon fiber strips
16.7mm
18.7mm
FEARLESS
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
4
Page 5
Printing the parts – Printing profiles
This manual is constantly being improved and supplemented, we recommend downloading
the latest version from our website before building.
For slicing all Planeprint
Important for the
models, these profiles have
1-wall-print (P3, P5)!
to be created in Cura:
In order to print airfoils of the lowest possi-
PROFILE P1_Fullbody
PROFILE P2_Hollowbody
PROFILE P3_Surface
PROFILE P4_Flex
PROFILE P5_Gyroid
You can find the description at
www.planeprint.com/print
For the new PROFILE P5_Gyroid it is essential to use Cura Version 5 or later, It will work with
older versions, but the weight of the parts will be higher and the printing time longer.
ble weight with high stability, it is necessary to print with only one wall line (Nozzle 0.4
mm). Decisive here is the adhesion between
the layers! To achieve this, you must print at
a much higher temperature than normal. As
a guideline, 230° C is a good starting point.
The parts-cooling fan should be set to 0% or
a maximum of 20%. Since not every printer
works the same, it may be necessary to make
small adjustments to these settings.
PROFILE P5_Gyroid
It is essential for the necessary stability of the LW parts
printed with PROFILE_5 are as stable as possible. Please
use a test part to check the strength by fracture tests. It must
not break along the layer lines under any circumstances! Also
note that the printing temperature for LW-PLA is as low as
possible to obtain a wall thickness of 0.4 to 0.6 mm at a flow
of 60 to 70 % (depending on brand).
Caution: at too high temperatures, LW-PLA becomes brittle
and breaks more easily.
The development of a complex, airworthy RC flight model to express on any standard 3D printer is a very complex and extensive process. Therefore, we appeal to
your fairness not to forward the STL data you have acquired to third parties.
Thank you for your understanding and have fun with your PLANEPRINT MODEL!
FEARLESS
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
5
Page 6

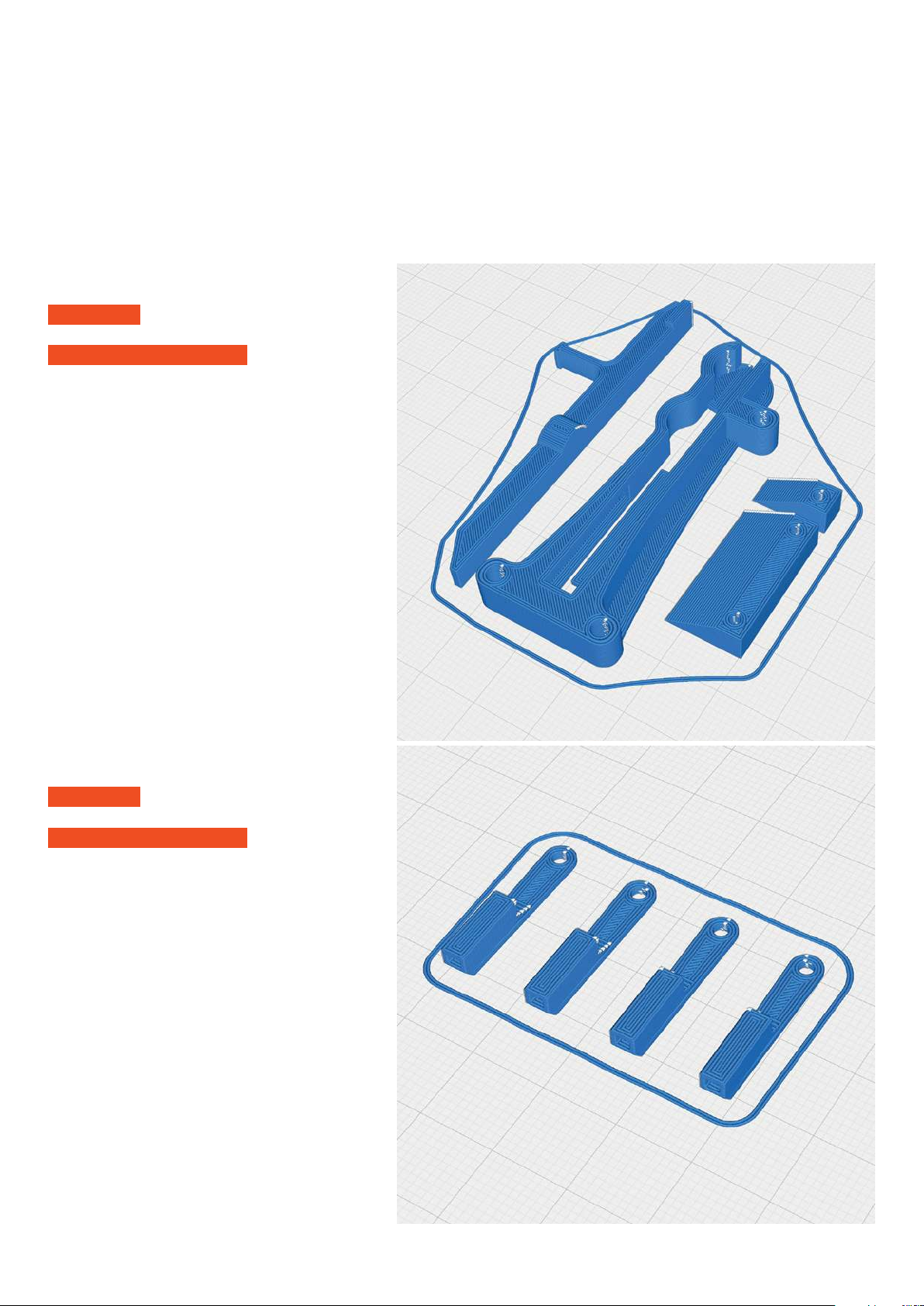

PROFILE P1_Fullbody
The following parts must be sliced with the PROFILE P1_Fullbody.
Please note the additional settings for the individual parts!
P1_Canopy lock_F.stl
MATERIAL PLA, Weight: ~ 8 g
ADDITIONAL SETTINGS
None required
PLA or Tough PLA
P1_Clips 1mm wire_F.stl
MATERIAL PLA, Weight: ~ 1 g
ADDITIONAL SETTINGS
None required
Page 7

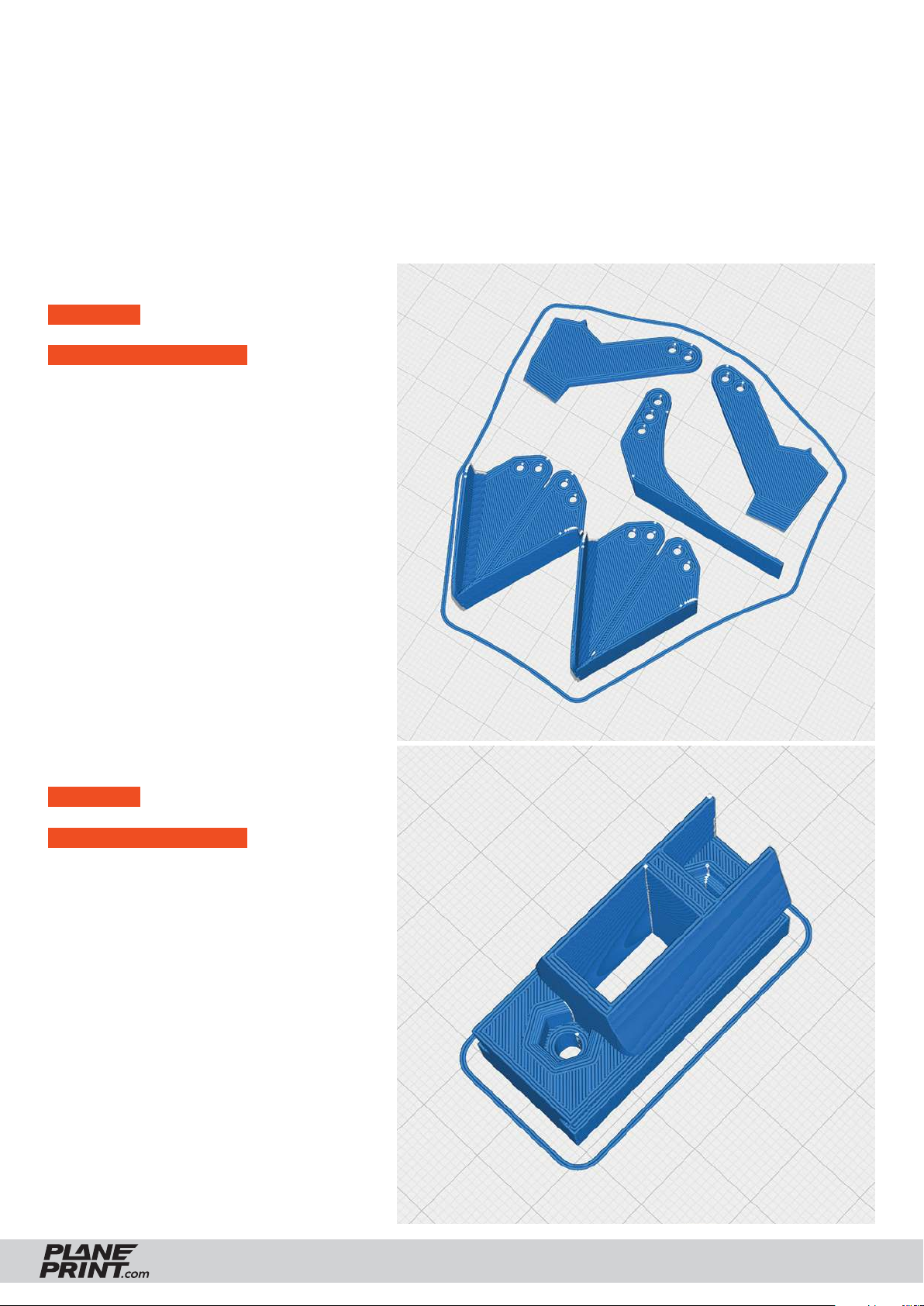

PROFILE P1_Fullbody
The following parts must be sliced with the PROFILE P1_Fullbody.
Please note the additional settings for the individual parts!
PLA or Tough PLA

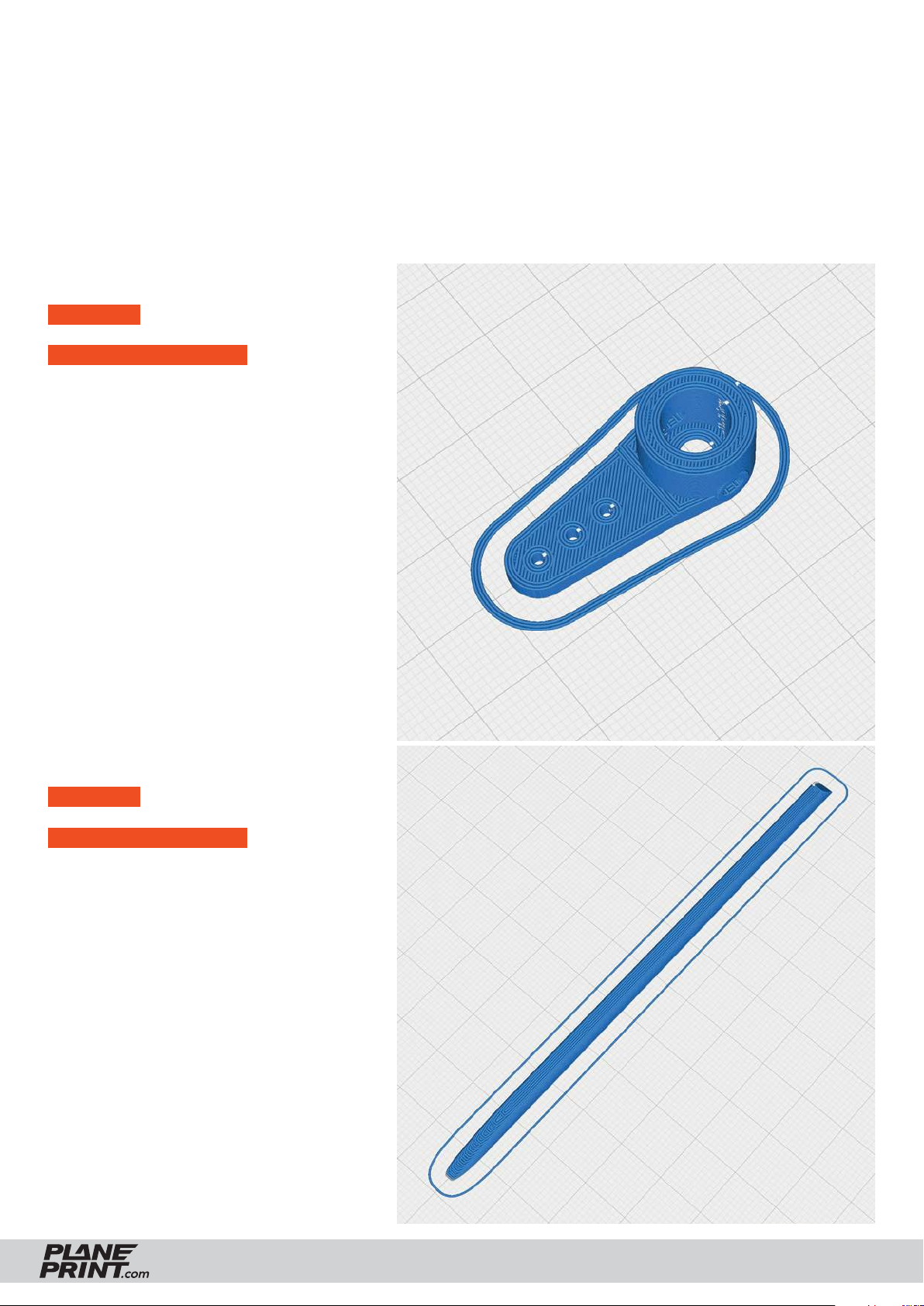

P1_Control horns_F.stl
MATERIAL PLA, Weight: ~ 5 g
ADDITIONAL SETTINGS
None required
P1_Frontgear PLA part_F.stl
MATERIAL PLA, Weight: ~ 10 g
ADDITIONAL SETTINGS
None required
FEARLESS
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
7
Page 8
PROFILE P1_Fullbody
The following parts must be sliced with the PROFILE P1_Fullbody.
Please note the additional settings for the individual parts!
PLA or Tough PLA
P1_Frontgear steering_F.stl
MATERIAL PLA, Weight: ~ 2 g
ADDITIONAL SETTINGS
None required
P1_Fuselage 6 Skid_F.stl
MATERIAL PLA, Weight: ~ 2 g
ADDITIONAL SETTINGS
None required
FEARLESS
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
8
Page 9
PROFILE P1_Fullbody
The following parts must be sliced with the PROFILE P1_Fullbody.
Please note the additional settings for the individual parts!
PLA or Tough PLA
P1_Maingear PLA-L_F.stl and
P1_Maingear PLA-R_F.stl
MATERIAL PLA, Weight: ~ 18 g
ADDITIONAL SETTINGS
• Generate Support: Checked
• Support Flow: 92 %

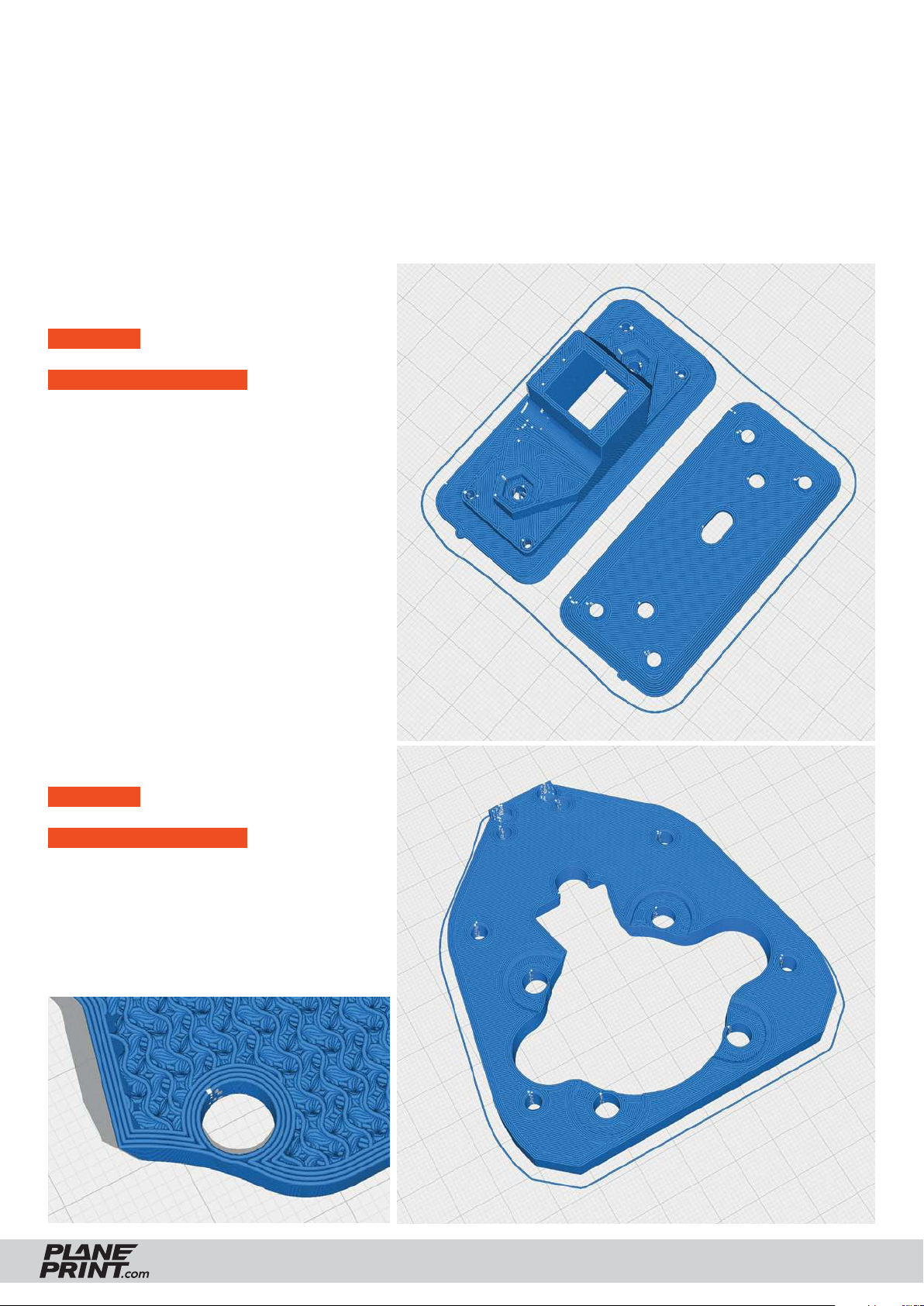

P1_Motormount_F.stl
MATERIAL PLA, Weight: ~ 22 g
ADDITIONAL SETTINGS
• Wall Line Count: 4
• Top Layers: 4
• Bottom Layers: 4
• Infill Density: 25 %
• Infill Pattern: Gyroid
FEARLESS
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
9
Page 10
PROFILE P1_Fullbody PLA or Tough PLA
The following parts must be sliced with the PROFILE P1_Fullbody.
Please note the additional settings for the individual parts!

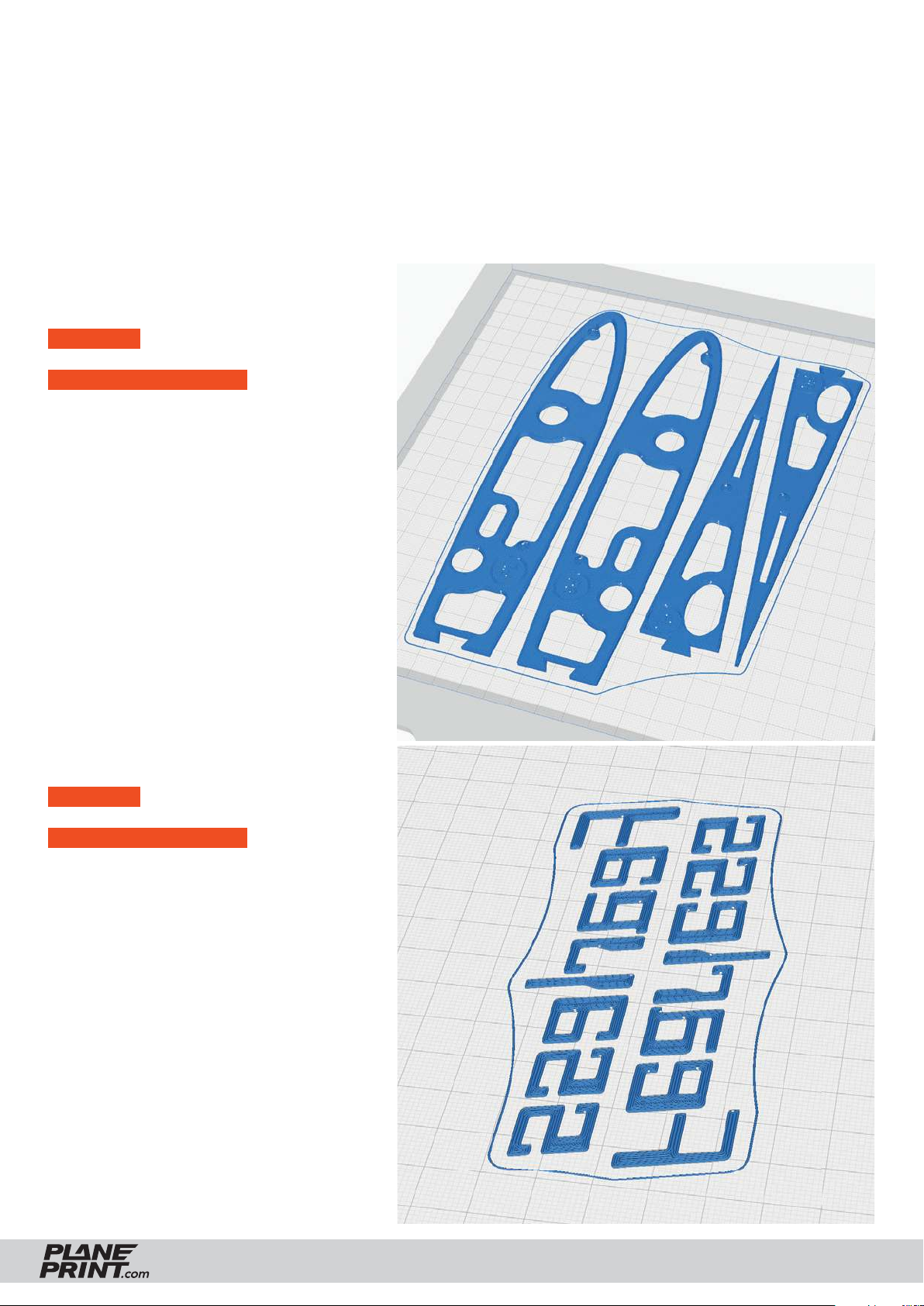

P1_Protectors fuselage_F.stl
P1_Protectors wing_F.stl
MATERIAL PLA, Weight: ~ 28/16 g
ADDITIONAL SETTINGS
None required
P1_Lettering_F.stl
MATERIAL PLA, Weight: ~ 1 g
ADDITIONAL SETTINGS
• Layer Height: 0.15
• Initial Layer Height: 0.15
• Wall Line Count: 6
Use the PLA color that you want the
lettering on the plane to have later.
FEARLESS
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
10
Page 11
PROFILE P1_Fullbody PLA or Tough PLA
The following parts must be sliced with the PROFILE P1_Fullbody.
Please note the additional settings for the individual parts!

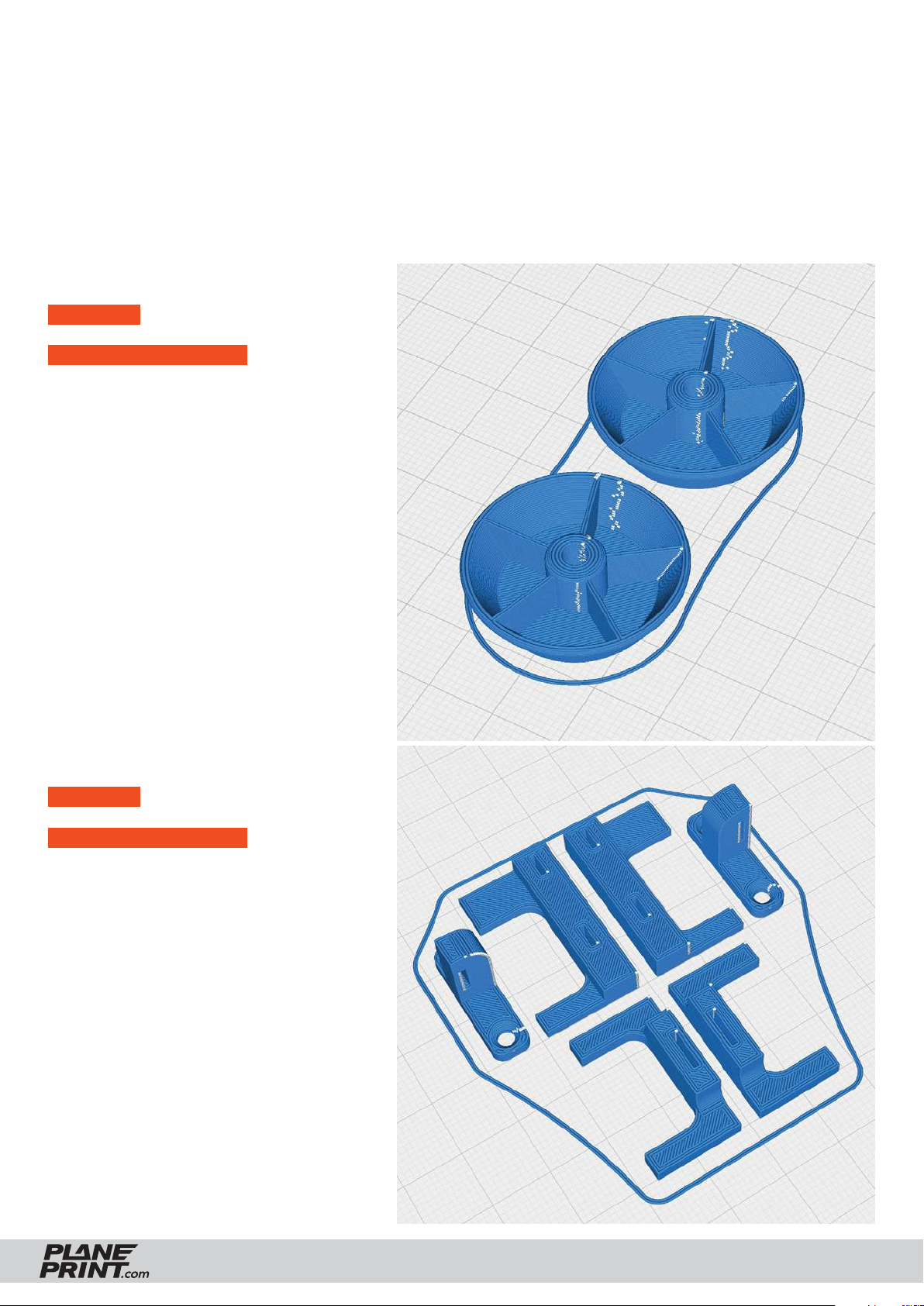

P1_Rims 58_F.stl
MATERIAL PLA, Weight: ~ 5 g
ADDITIONAL SETTINGS
• print this part three times
P1_Servobrackets fuselage_F.stl
MATERIAL PLA, Weight: ~ 7 g
ADDITIONAL SETTINGS
None required
FEARLESS
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
11
Page 12
PROFILE P1_Fullbody PLA or Tough PLA
The following parts must be sliced with the PROFILE P1_Fullbody.
Please note the additional settings for the individual parts!
P1_Servomount Aileron L_F.stl and
P1_Servomount Aileron R_F.stl
MATERIAL PLA, Weight: ~ 7 g
ADDITIONAL SETTINGS
None required
P1_Spinner plate_F.stl
MATERIAL PLA, Weight: ~ 8 g
ADDITIONAL SETTINGS
None required
FEARLESS
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
12
Page 13
PROFILE P1_Fullbody PLA or Tough PLA
The following parts must be sliced with the PROFILE P1_Fullbody.
Please note the additional settings for the individual parts!

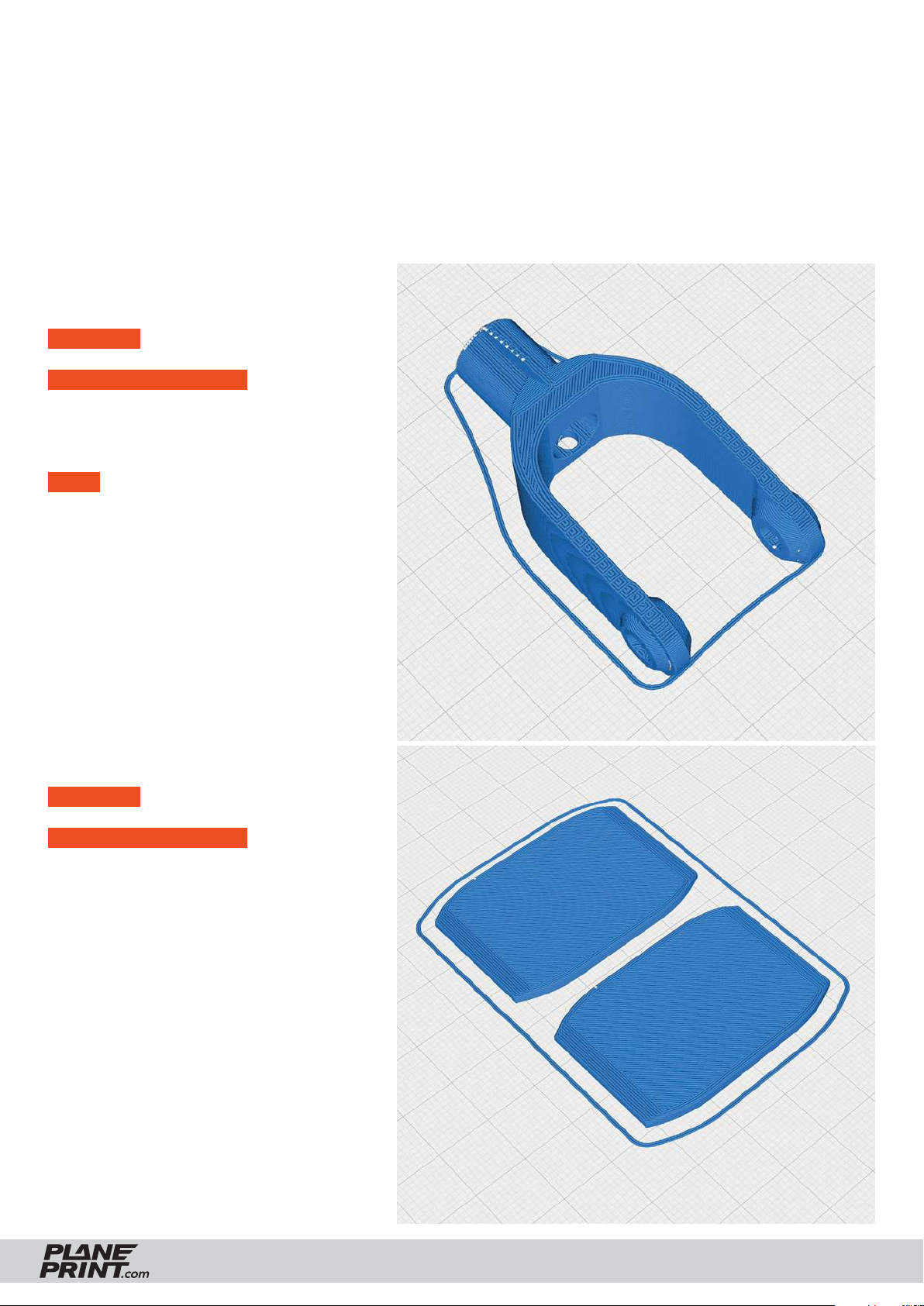

P1_Wheel leg 58x18_F.stl or
P1_Wheel leg 63x23_F.stl
MATERIAL PLA, Weight: ~ 8 g
ADDITIONAL SETTINGS
None required
INFO These wheel legs are each available
in two variants, with 3 or 4 mm bore.
P1_Wing plugging_F.stl
MATERIAL PLA, Weight: ~ 8 g
ADDITIONAL SETTINGS
None required
FEARLESS
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
13
Page 14

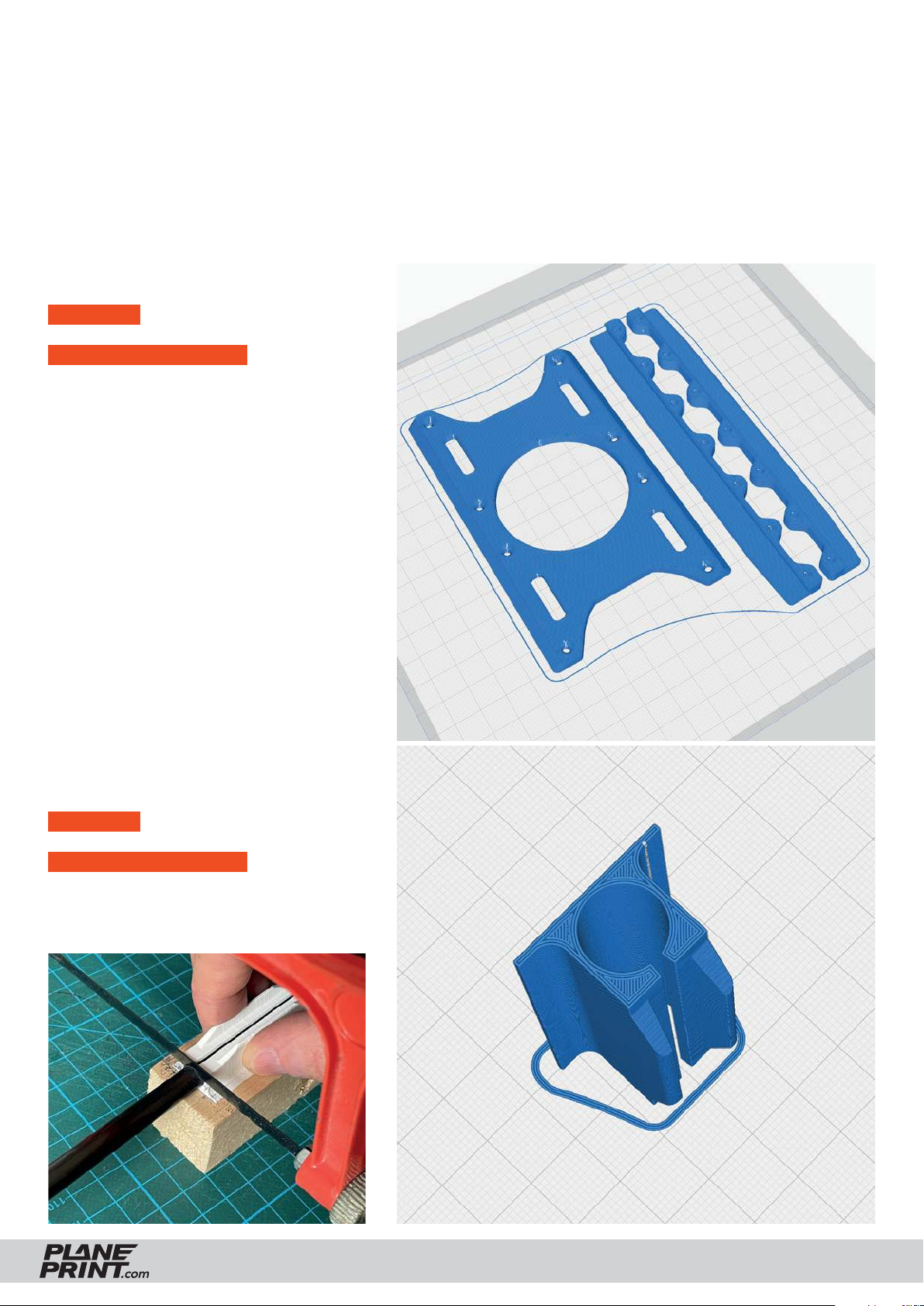

PROFILE P2_Hollowbody
The following parts must be sliced with the PROFILE P1_Hollowbody.
Please note the additional settings for the individual parts!
PLA or Tough PLA

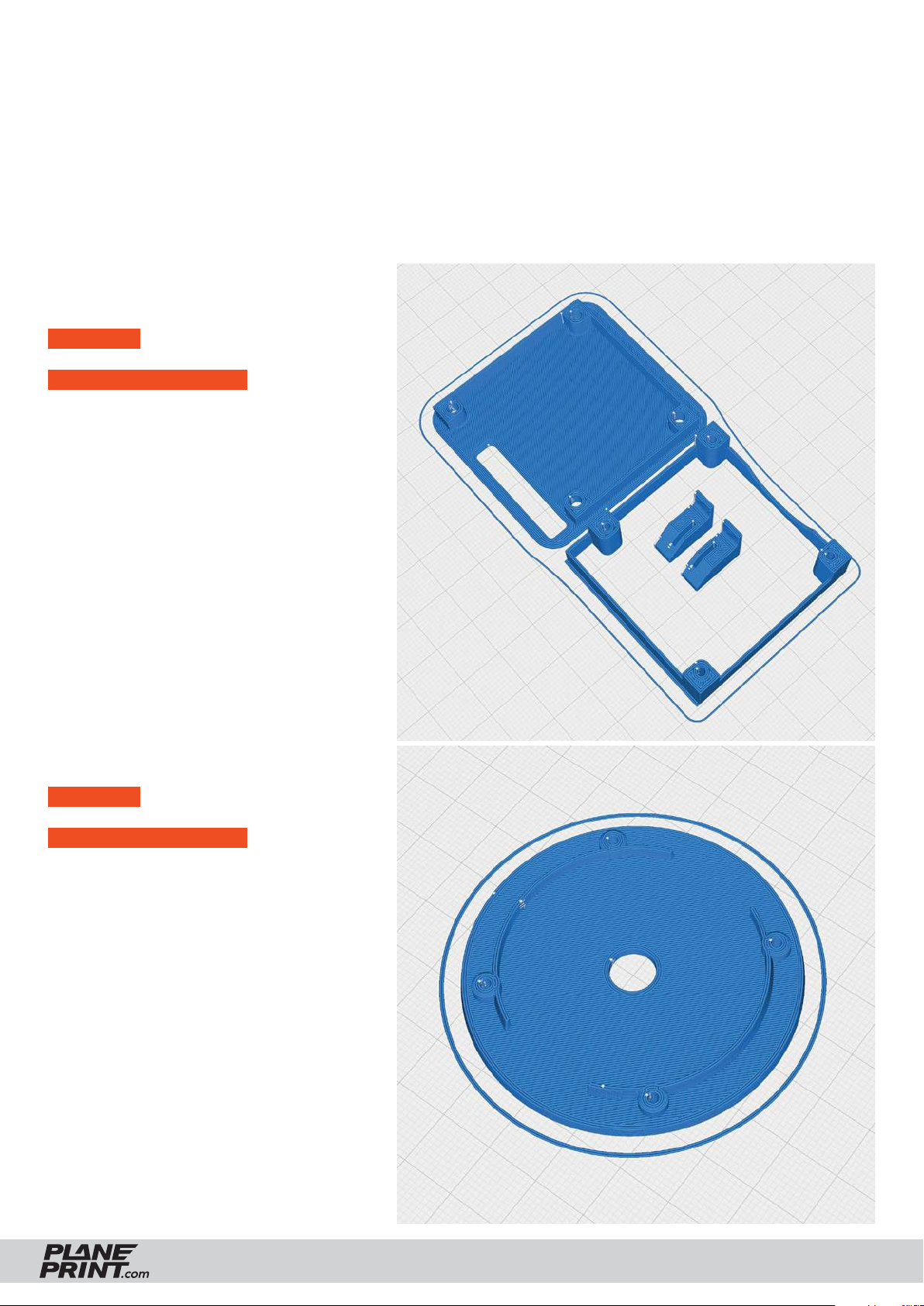

P2_Batterymount_F.stl
MATERIAL PLA, Weight: ~ 23 g
ADDITIONAL SETTINGS
None required
P2_Carbon tool 12mm.stl
MATERIAL PLA, Weight: ~ 10 g
ADDITIONAL SETTINGS
None required
FEARLESS
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
14
Page 15

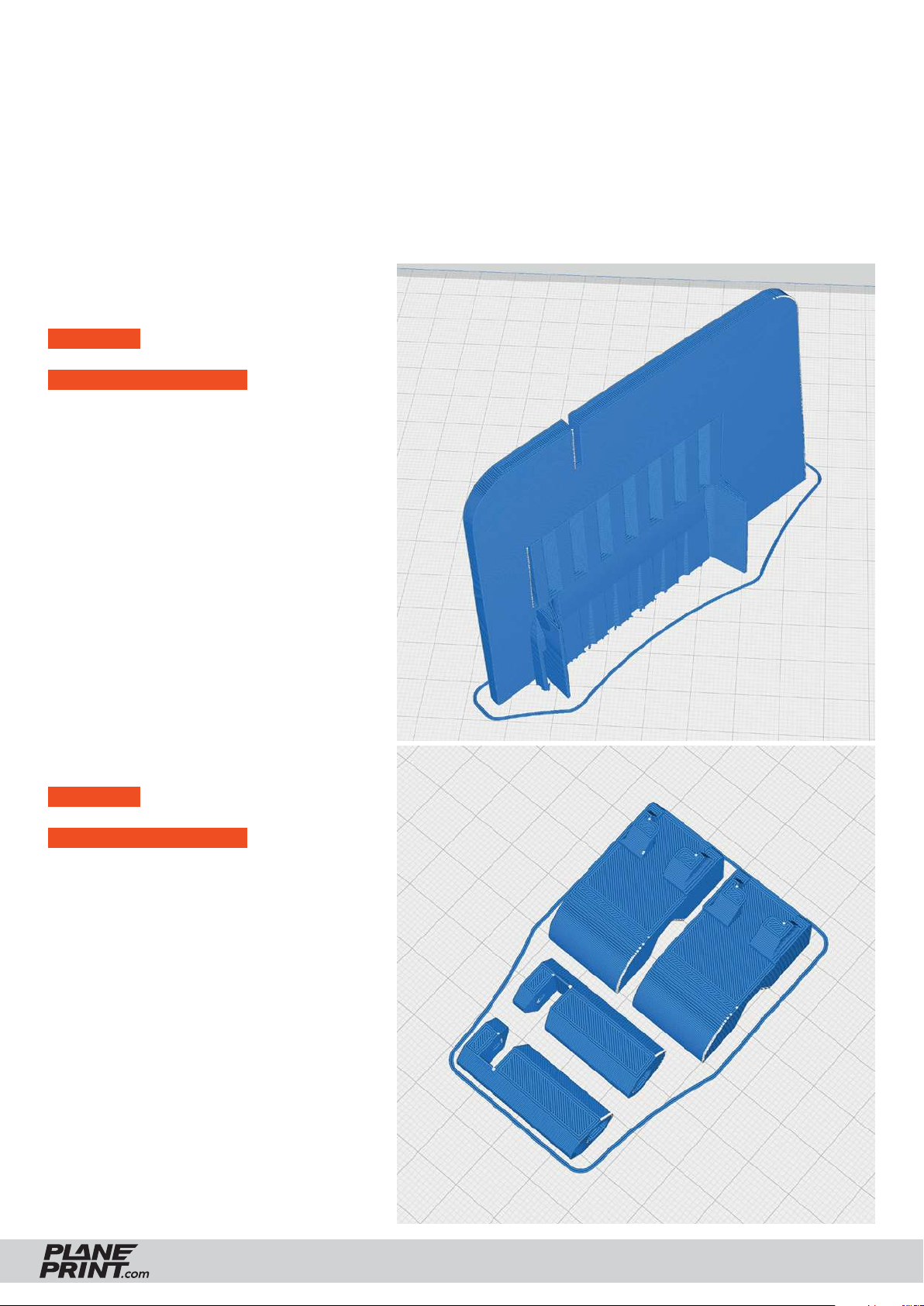

PROFILE P2_Hollowbody
The following parts must be sliced with the PROFILE P1_Hollowbody.
Please note the additional settings for the individual parts!
PLA or Tough PLA
P2_Maingear plate-L_F.stl and
P2_Maingear plate-R_F.stl
MATERIAL PLA, Weight: ~ 19 g
ADDITIONAL SETTINGS
• Generate Support: Checked
• Support Flow: 92 %
P2_Wingmount_F.stl
MATERIAL PLA, Weight: ~ 9 g
ADDITIONAL SETTINGS
• Top Layers: 3
FEARLESS
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
15
Page 16

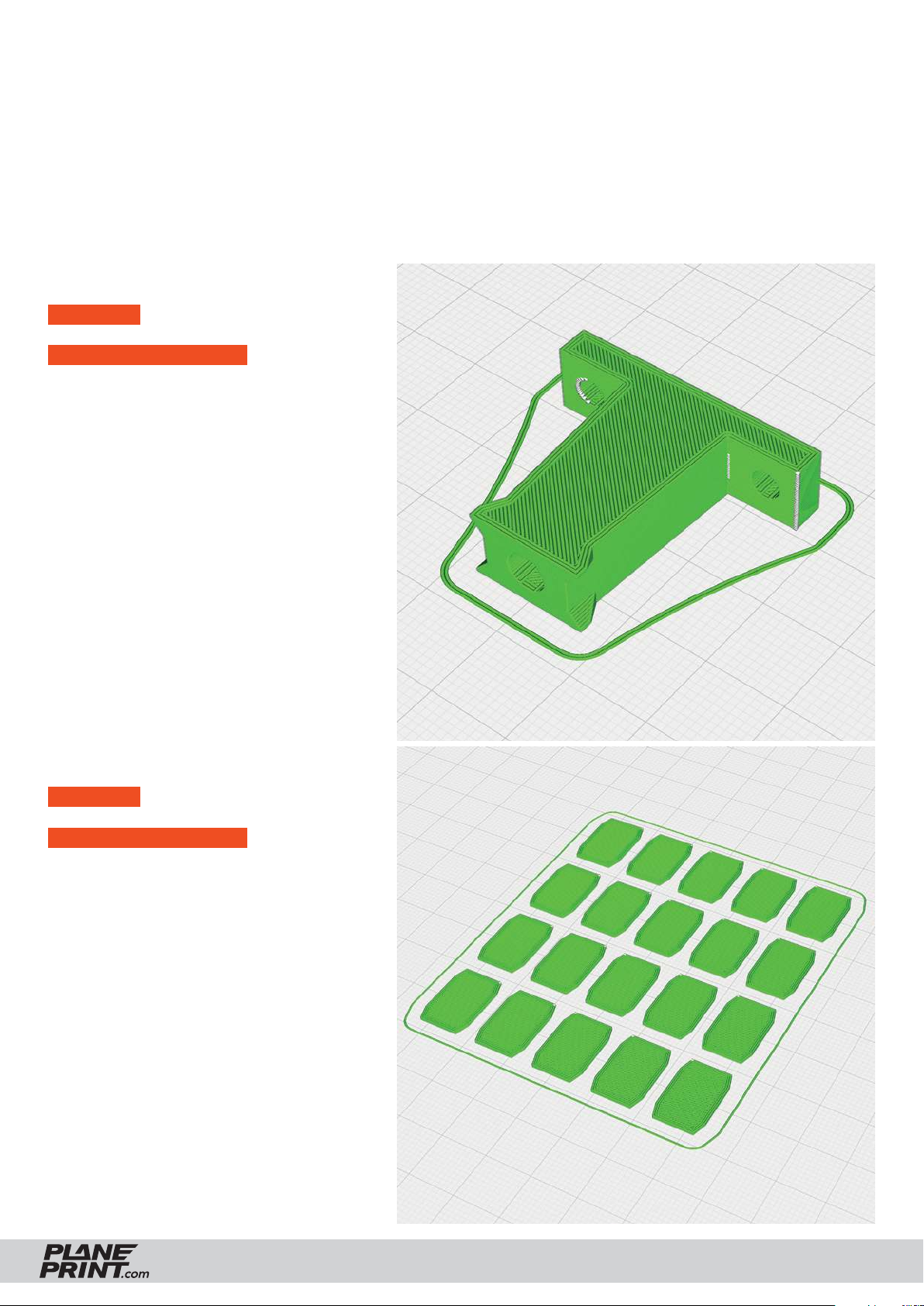

PROFILE P4_Flex
The following parts must be sliced with the PROFILE P4_Flex.
Please note the additional settings for the individual parts!
TPU A95

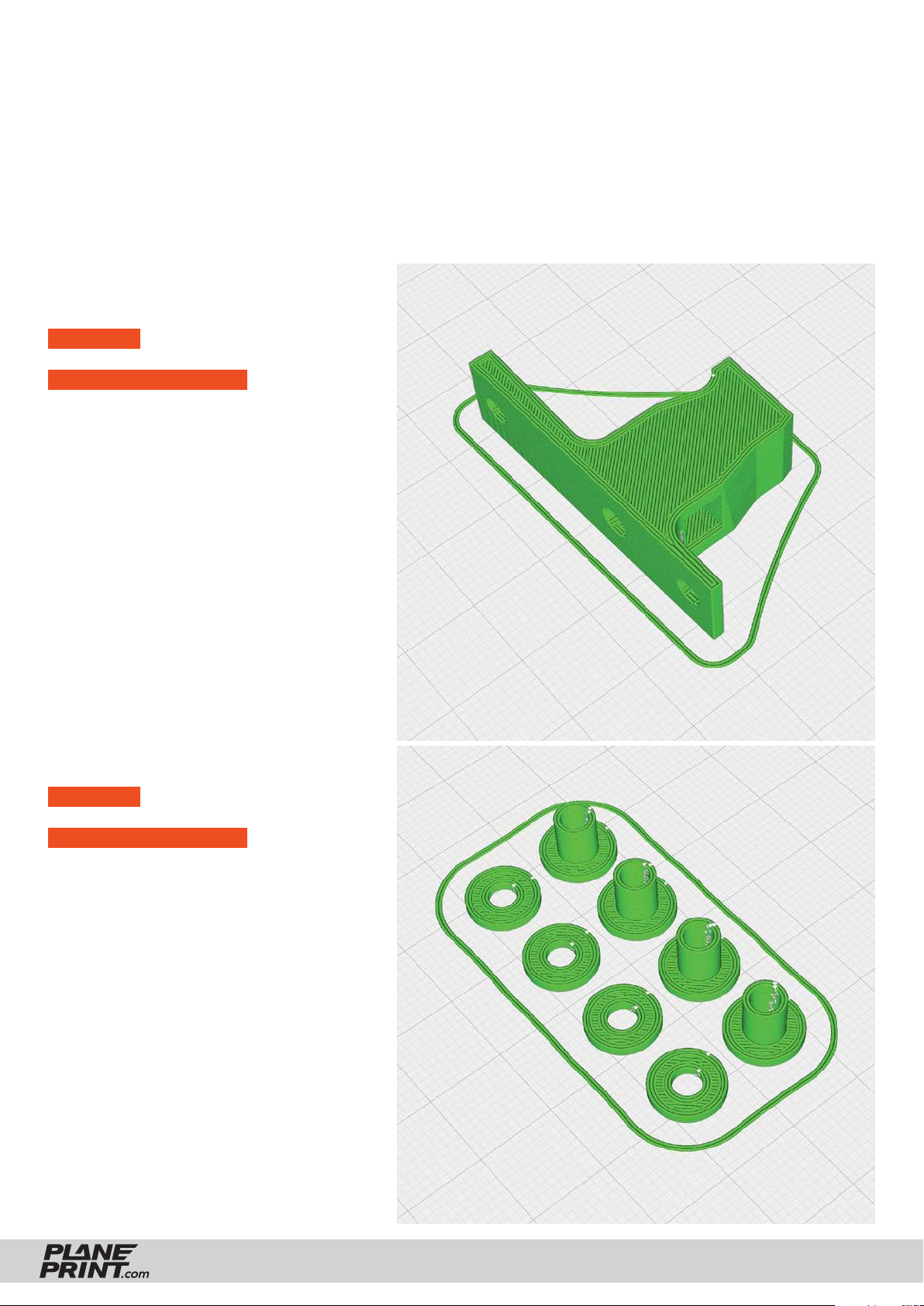

P4_Frontgear TPU_F.stl
MATERIAL TPU ~ A95, Weight: ~ 5 g
ADDITIONAL SETTINGS
• Infill Density 100 %
P4_Hinges_F.stl
MATERIAL TPU A95, Weight: ~ 3 g
ADDITIONAL SETTINGS
None required
FEARLESS
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
16
Page 17
PROFILE P4_Flex
The following parts must be sliced with the PROFILE P4_Flex.
Please note the additional settings for the individual parts!
TPU A95
P4_Maingear TPU L_F.stl and
P4_Maingear TPU R_F.stl
MATERIAL TPU ~ A95, Weight: ~ 5 g
ADDITIONAL SETTINGS
• Infill Density: 100 %
P4_Motormount TPU_F.stl
MATERIAL TPU A95, Weight: ~ 1 g
ADDITIONAL SETTINGS
None required
FEARLESS
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
17
Page 18
PROFILE P4_Flex TPU A95
The following parts must be sliced with the PROFILE P4_Flex.
Please note the additional settings for the individual parts!

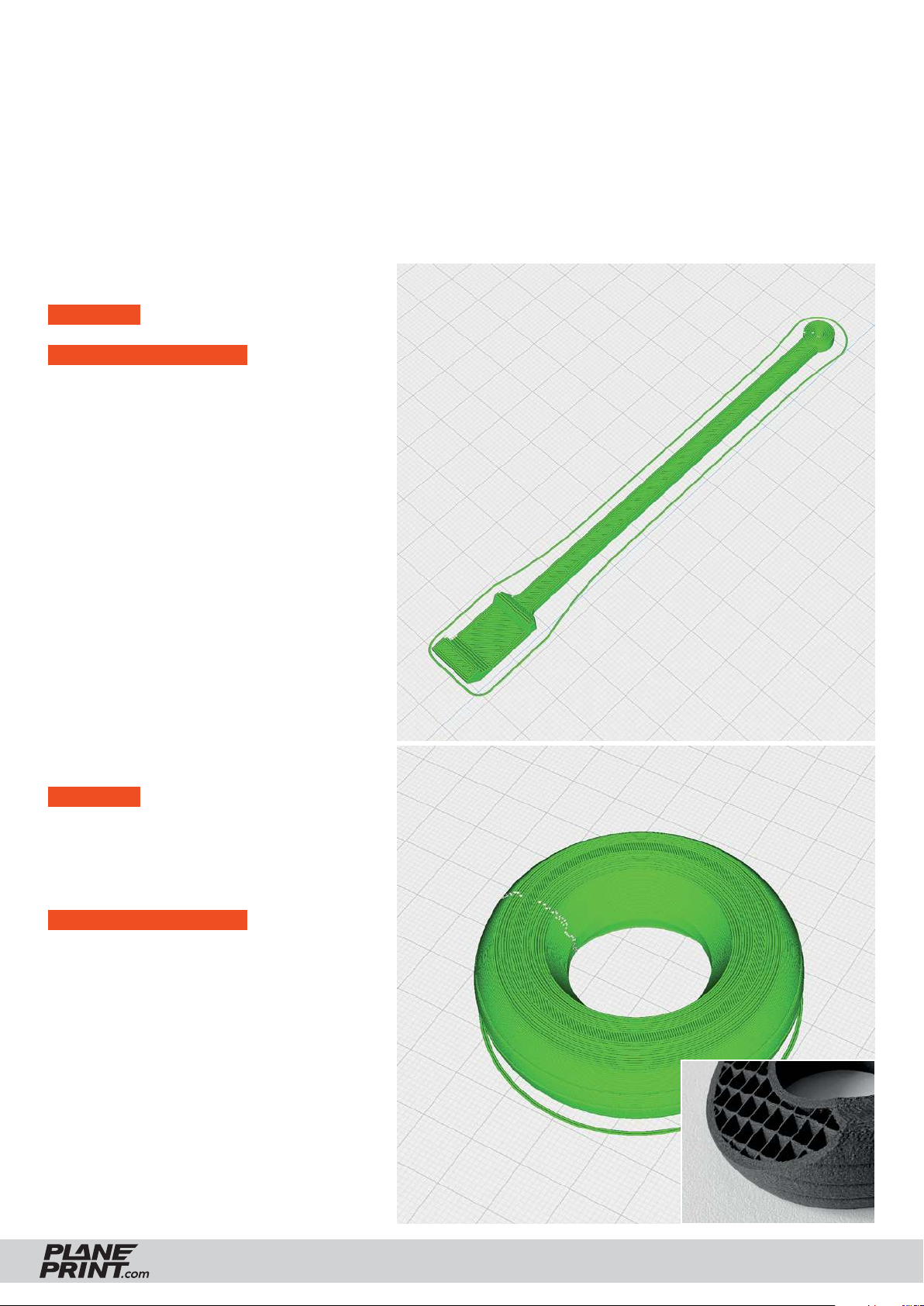

P4_Tension belt_F.stl
MATERIAL TPU ~ A95, Weight: ~ 2 g
ADDITIONAL SETTINGS
• Infill Density 100 %
• print this part twice
P4_Tire 58_F.stl
MATERIAL LW-TPU varioShore Flow 70 %
The suspension works best with Colorfabb‘s
soft varioShore. Alternatively, it can also be
printed with TPU A95.
ADDITIONAL SETTINGS
varioShore with Flow 70 %:
• Wall Line Count: 6
• Top Layers: 6
• Bottom Layers: 6
• Infill Density: 15 %
• Infill Pattern: Gyroid
• print this part three times
TPU A95:
• Wall Line Count: 3
• Top Layers: 3
• Infill Pattern: Gyroid
FEARLESS
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
18
Page 19

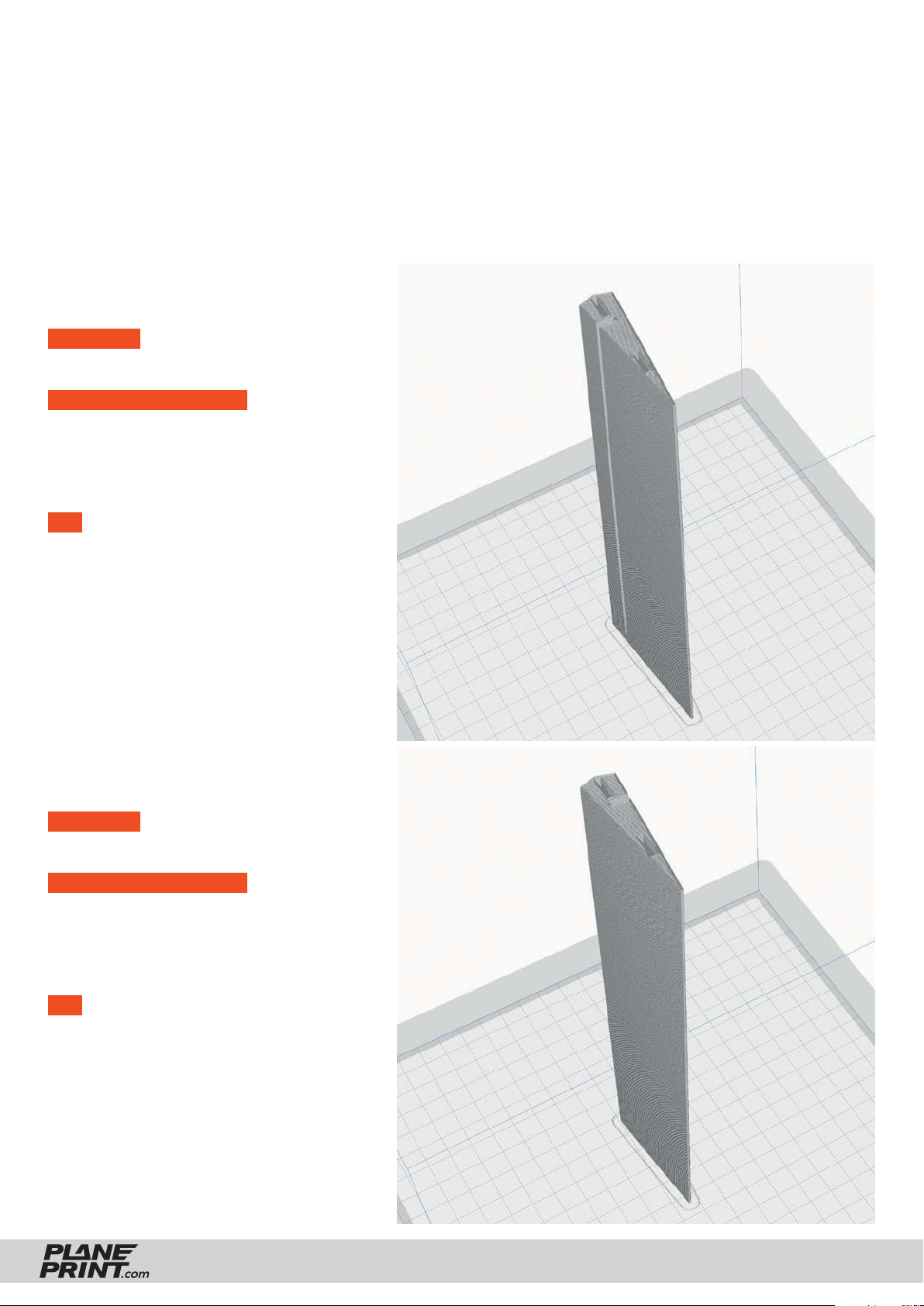

PROFILE P5_Gyroid
The following parts must be sliced with the PROFILE P5_Gyroid. Please note the additional settings
for the individual parts! It is essential to print these parts with LW-PLA!
Basic settings for LW-PLA: Please follow the instructions in our WINGTEST AND CALIBRATION TOOL
on our website for correct adjustment!
Light-Weight LW-PLA!

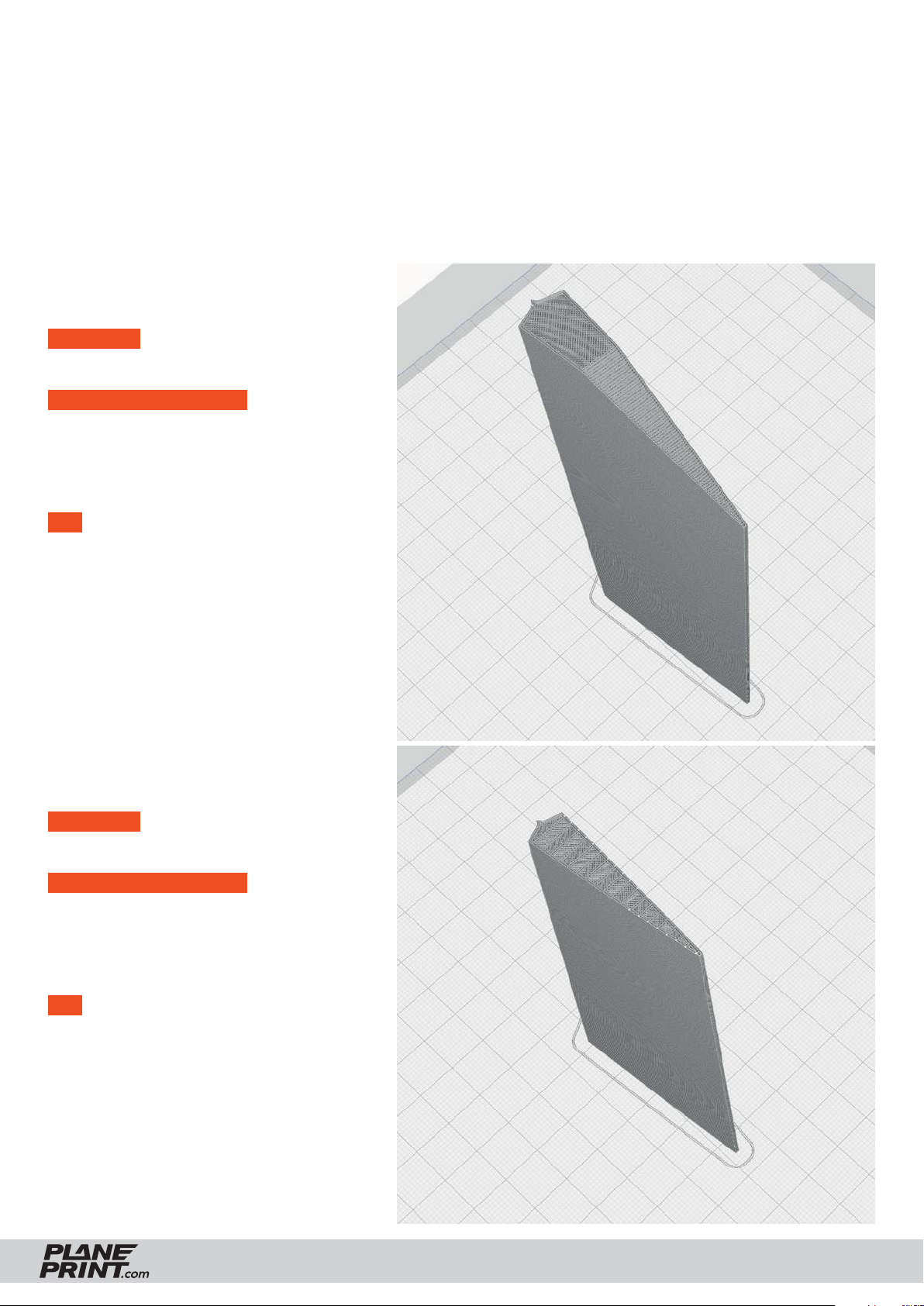

P5_Aileron 1-L_F.stl and
P5_Aileron 1-R_F.stl
MATERIAL LW-PLA, ~ 14 g*
*Weighed (approximate guideline)
ADDITIONAL SETTINGS
• set Brim
TIP to avoid a nice print image in the
upper areas, reduce the print speed by
about 50%.
P5_Aileron 2-L_F.stl and
P5_Aileron 2-R_F.stl
MATERIAL LW-PLA, ~ 12 g*
*Weighed (approximate guideline)
ADDITIONAL SETTINGS
• set Brim
TIP to avoid a nice print image in the
upper areas, reduce the print speed by
about 50%.
FEARLESS
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
19
Page 20

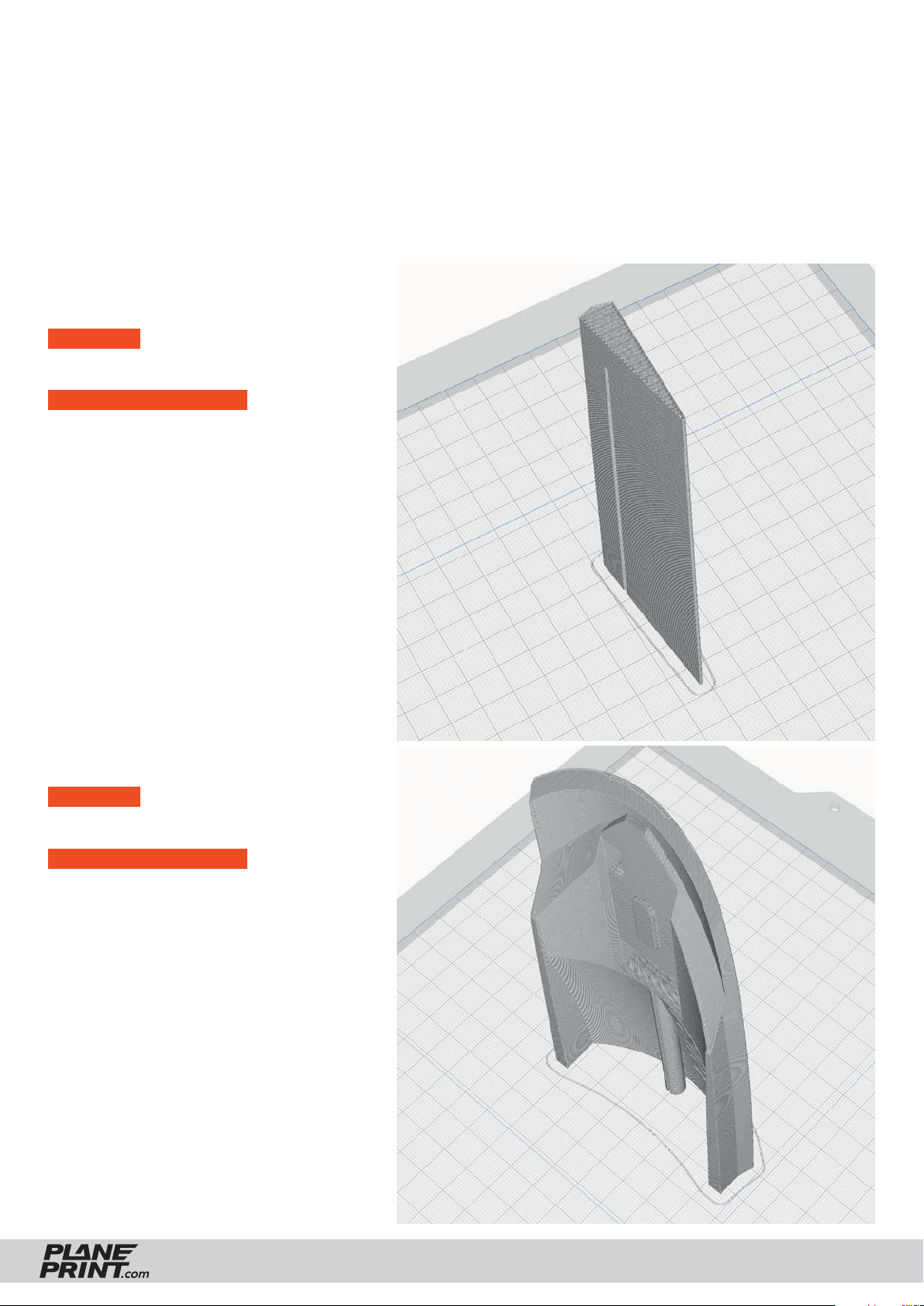

PROFILE P5_Gyroid
The following parts must be sliced with the PROFILE P5_Gyroid. Please note the additional settings
for the individual parts! It is essential to print these parts with LW-PLA!
Basic settings for LW-PLA: Please follow the instructions in our WINGTEST AND CALIBRATION TOOL
on our website for correct adjustment!
Light-Weight LW-PLA!
P5_Aileron 3-L_F.stl and
P5_Aileron 3-R_F.stl
MATERIAL LW-PLA, ~ 6 g*
*Weighed (approximate guideline)
ADDITIONAL SETTINGS
None required

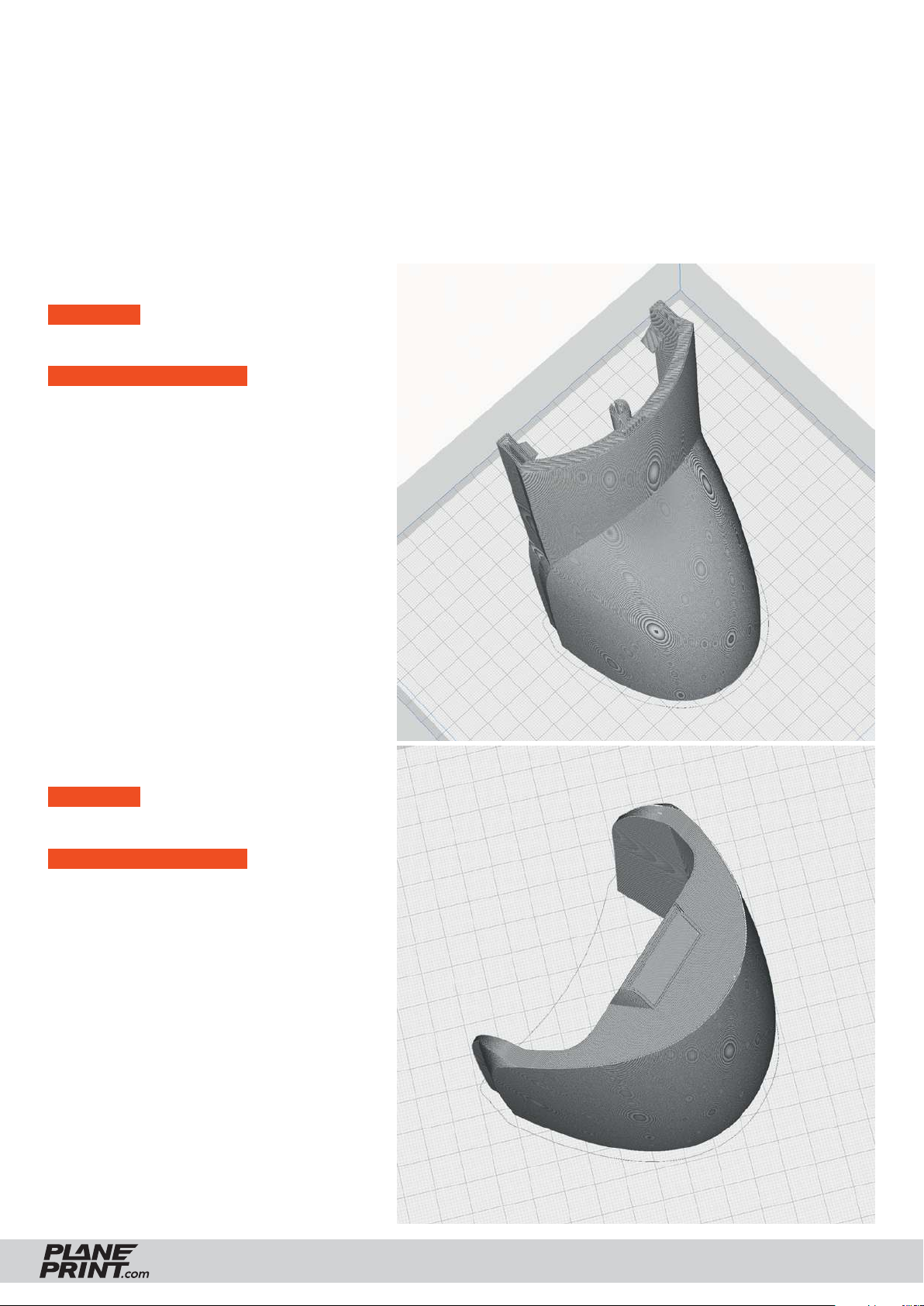

P5_Canopy 1_F.stl
MATERIAL LW-PLA, ~ 13 g*
*Weighed (approximate guideline)
ADDITIONAL SETTINGS
None required
FEARLESS
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
20
Page 21
PROFILE P5_Gyroid
The following parts must be sliced with the PROFILE P5_Gyroid. Please note the additional settings
for the individual parts! It is essential to print these parts with LW-PLA!
Basic settings for LW-PLA: Please follow the instructions in our WINGTEST AND CALIBRATION TOOL
on our website for correct adjustment!
Light-Weight LW-PLA!
P5_Canopy 2_F.stl
MATERIAL LW-PLA, ~ 24 g*
*Weighed (approximate guideline)
ADDITIONAL SETTINGS
None required
P5_Canopy 3_F.stl
MATERIAL LW-PLA, ~ 20 g*
*Weighed (approximate guideline)
ADDITIONAL SETTINGS
None required
FEARLESS
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
21
Page 22
PROFILE P5_Gyroid
The following parts must be sliced with the PROFILE P5_Gyroid. Please note the additional settings
for the individual parts! It is essential to print these parts with LW-PLA!
Basic settings for LW-PLA: Please follow the instructions in our WINGTEST AND CALIBRATION TOOL
on our website for correct adjustment!
Light-Weight LW-PLA!
P5_Elevator 1-L_F.stl and
P5_Elevator 1-R_F.stl
MATERIAL LW-PLA, ~ 7 g*
*Weighed (approximate guideline)
ADDITIONAL SETTINGS
None required
TIP to avoid a nice print image in the
upper areas, reduce the print speed by
about 50%.
P5_Elevator 2-L_F.stl and
P5_Elevator 2-R_F.stl
MATERIAL LW-PLA, ~ 5 g*
*Weighed (approximate guideline)
ADDITIONAL SETTINGS
None required
TIP to avoid a nice print image in the
upper areas, reduce the print speed by
about 50%.
FEARLESS
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
22
Page 23

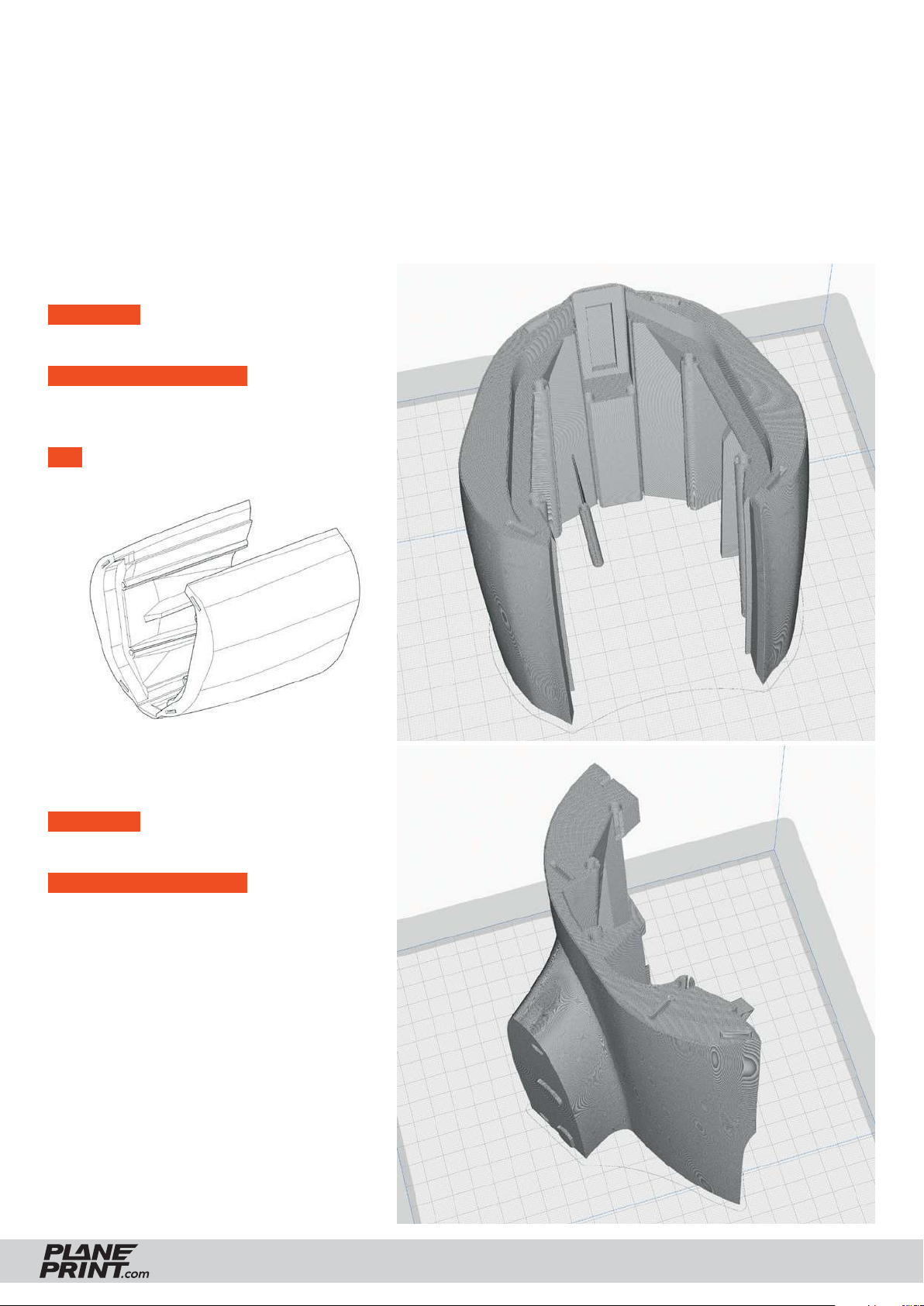

PROFILE P5_Gyroid
The following parts must be sliced with the PROFILE P5_Gyroid. Please note the additional settings
for the individual parts! It is essential to print these parts with LW-PLA!
Basic settings for LW-PLA: Please follow the instructions in our WINGTEST AND CALIBRATION TOOL
on our website for correct adjustment!
Light-Weight LW-PLA!
P5_Fuselage 1_F.stl
MATERIAL LW-PLA, ~ 46 g*
*Weighed (approximate guideline)
ADDITIONAL SETTINGS
None required
TIP in the „EXTRA FILES“ folder there
is a variant without the FEARLESS logo.
P5_Fuselage 2-L_F.stl and
P5_Fuselage 2-R_F.stl
MATERIAL LW-PLA, ~ 47 g*
*Weighed (approximate guideline)
ADDITIONAL SETTINGS
None required
FEARLESS
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
23
Page 24

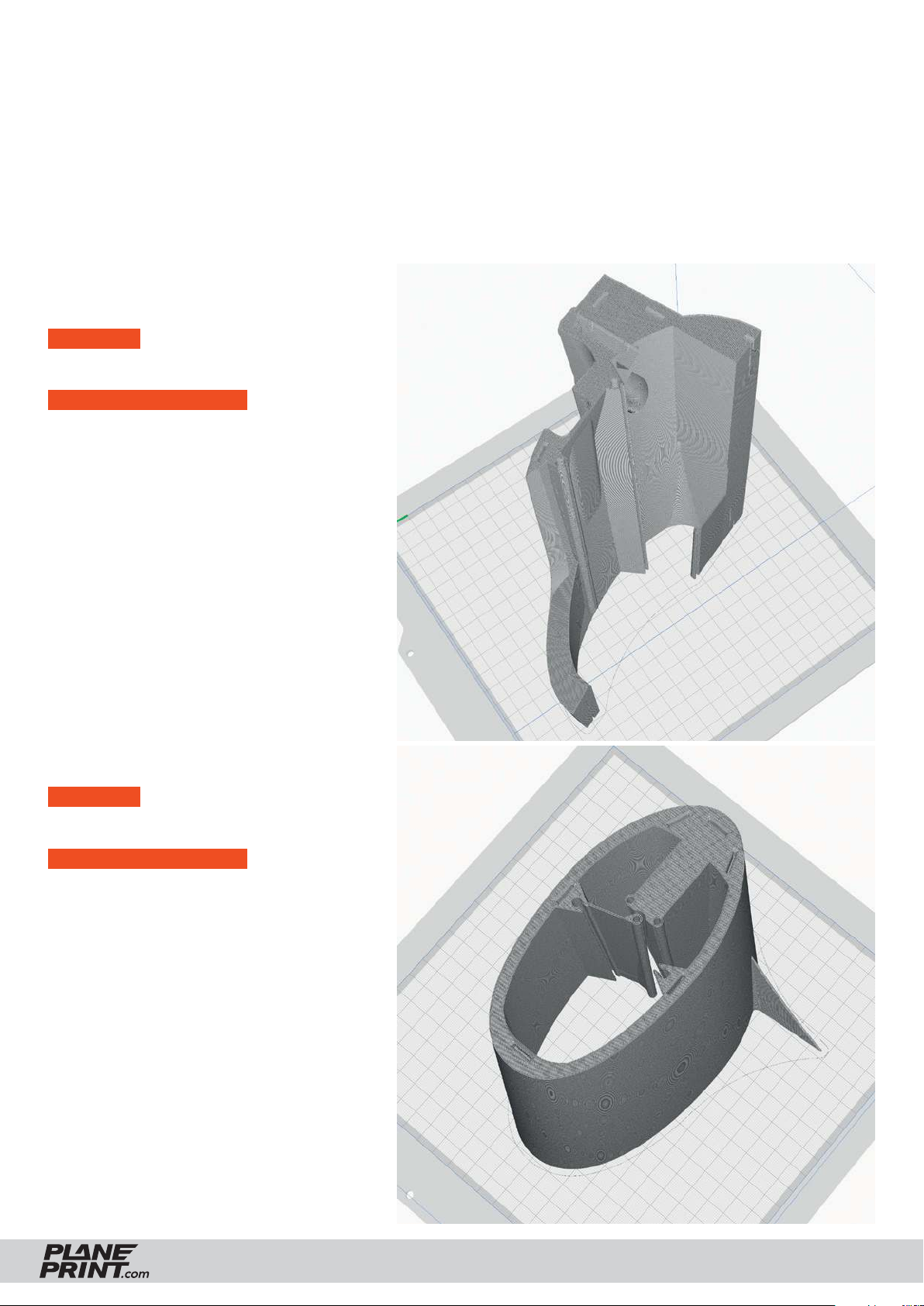

PROFILE P5_Gyroid
The following parts must be sliced with the PROFILE P5_Gyroid. Please note the additional settings
for the individual parts! It is essential to print these parts with LW-PLA!
Basic settings for LW-PLA: Please follow the instructions in our WINGTEST AND CALIBRATION TOOL
on our website for correct adjustment!
Light-Weight LW-PLA!
P5_Fuselage 3-L_F.stl and
P5_Fuselage 3-R_F.stl
MATERIAL LW-PLA, ~ 48 g*
*Weighed (approximate guideline)
ADDITIONAL SETTINGS
None required
P5_Fuselage 4_F.stl
MATERIAL LW-PLA, ~ 71 g*
*Weighed (approximate guideline)
ADDITIONAL SETTINGS
None required
FEARLESS
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
24
Page 25

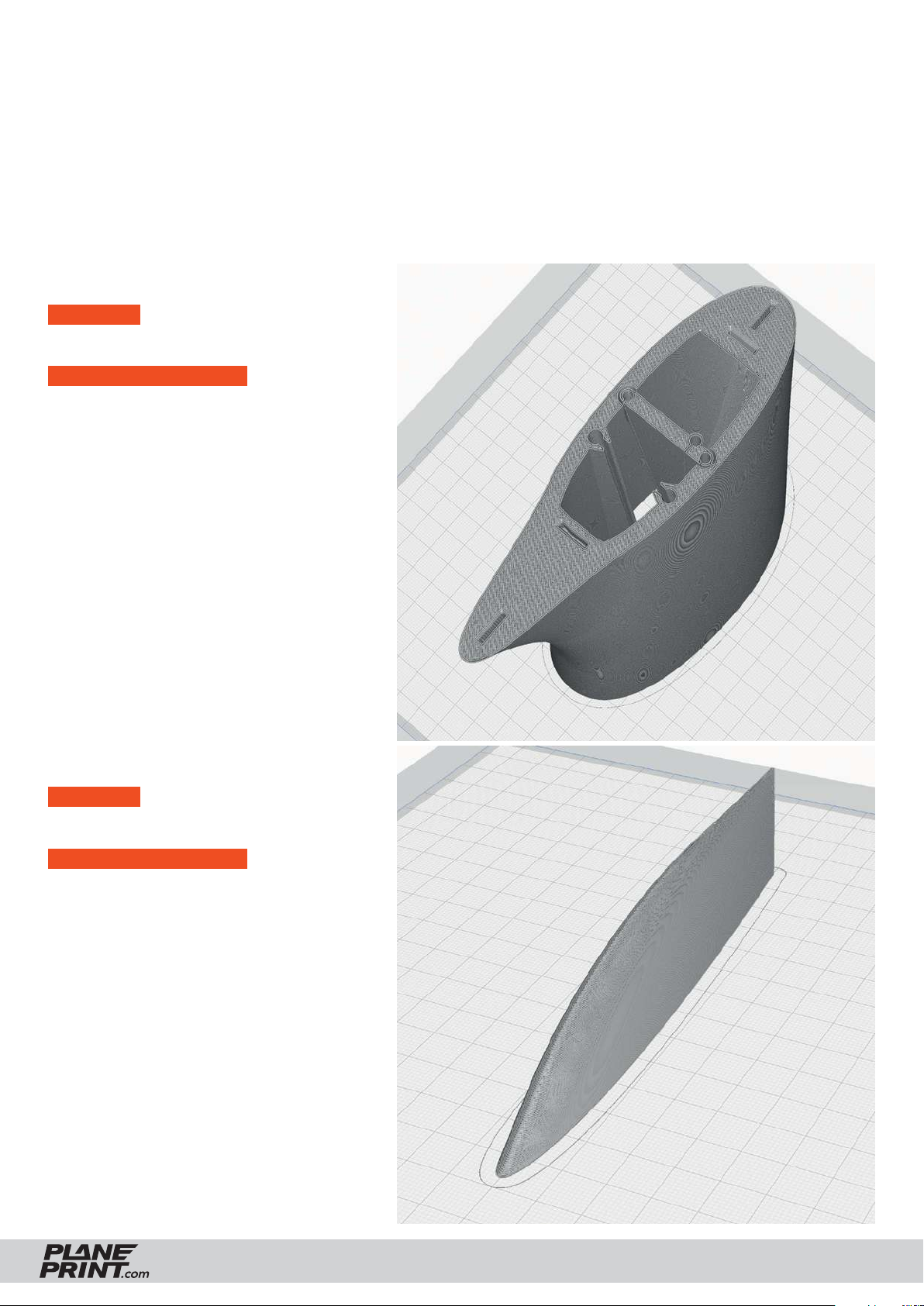

PROFILE P5_Gyroid
The following parts must be sliced with the PROFILE P5_Gyroid. Please note the additional settings
for the individual parts! It is essential to print these parts with LW-PLA!
Basic settings for LW-PLA: Please follow the instructions in our WINGTEST AND CALIBRATION TOOL
on our website for correct adjustment!
Light-Weight LW-PLA!
P5_Fuselage 5_F.stl
MATERIAL LW-PLA, ~ 49 g*
*Weighed (approximate guideline)
ADDITIONAL SETTINGS
None required
P5_Fuselage 6 top_F.stl
MATERIAL LW-PLA, ~ 4 g*
*Weighed (approximate guideline)
ADDITIONAL SETTINGS
None required
FEARLESS
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
25
Page 26

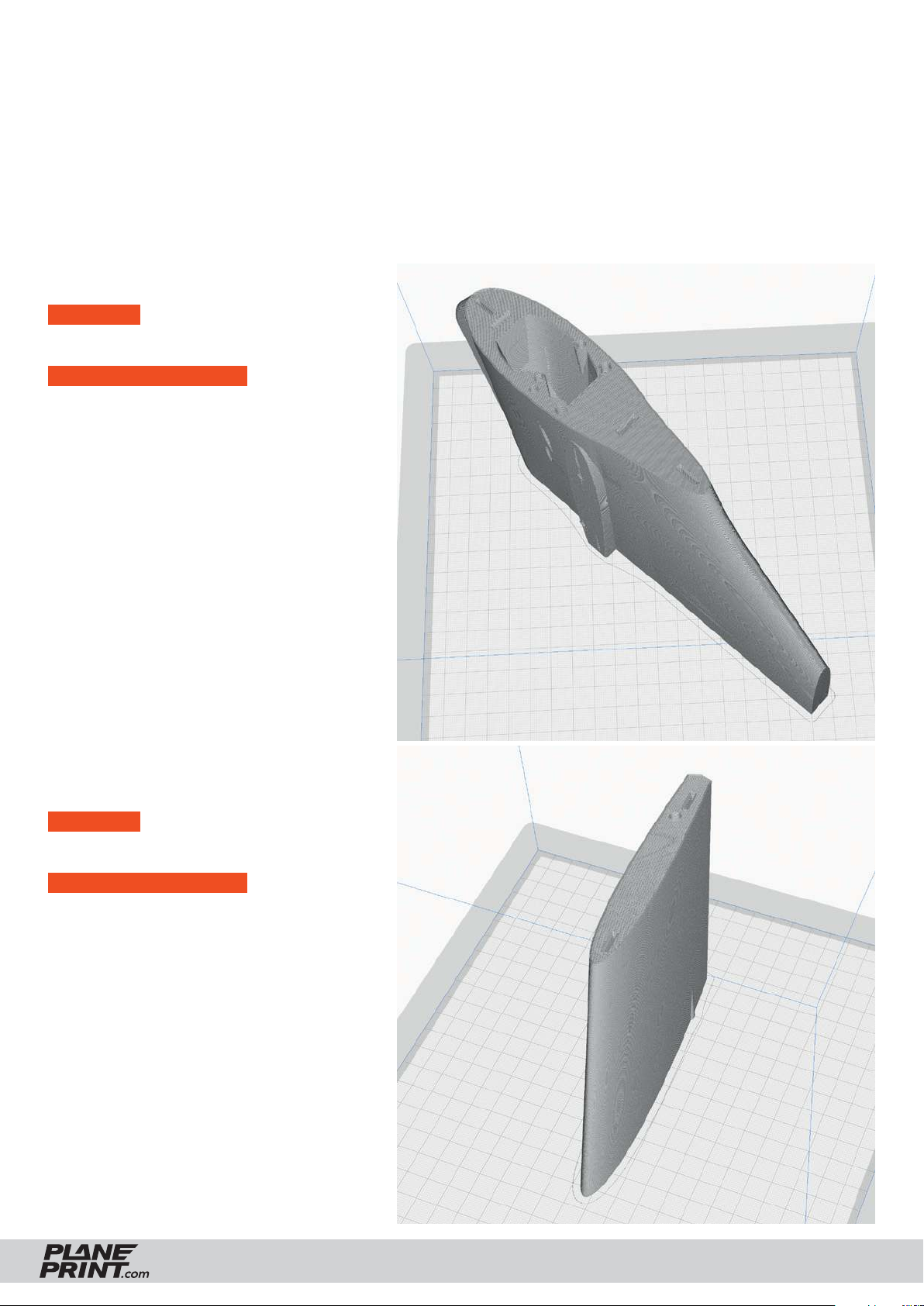

PROFILE P5_Gyroid
The following parts must be sliced with the PROFILE P5_Gyroid. Please note the additional settings
for the individual parts! It is essential to print these parts with LW-PLA!
Basic settings for LW-PLA: Please follow the instructions in our WINGTEST AND CALIBRATION TOOL
on our website for correct adjustment!
Light-Weight LW-PLA!
P5_Fuselage 6_F.stl
MATERIAL LW-PLA, ~ 41 g*
*Weighed (approximate guideline)
ADDITIONAL SETTINGS
• Z Seam Position: Back Left
P5_HS 1-L_F.stl and
P5_HS 1-R_F.stl
MATERIAL LW-PLA, ~ 22 g*
*Weighed (approximate guideline)
ADDITIONAL SETTINGS
None required
FEARLESS
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
26
Page 27

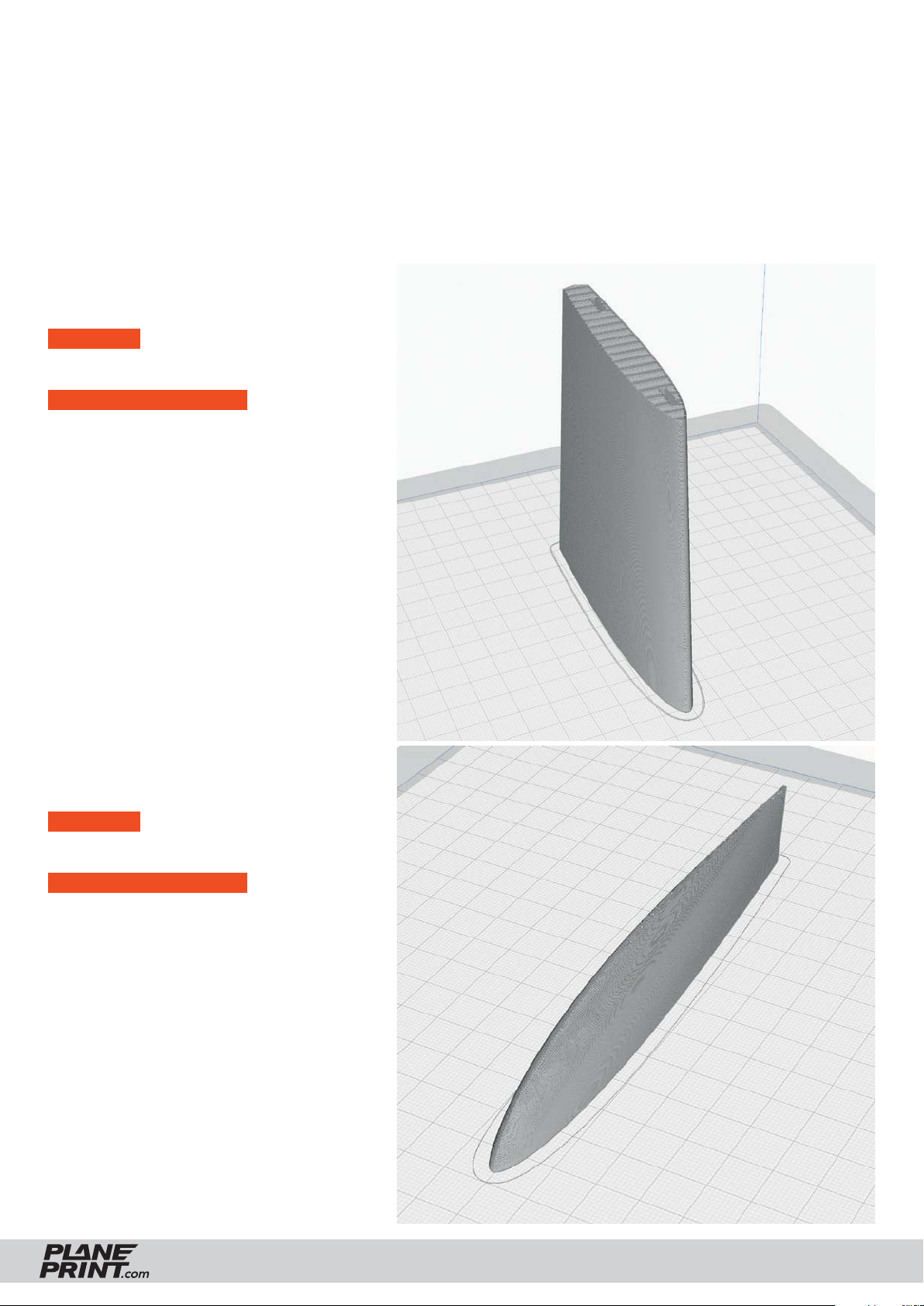

PROFILE P5_Gyroid
The following parts must be sliced with the PROFILE P5_Gyroid. Please note the additional settings
for the individual parts! It is essential to print these parts with LW-PLA!
Basic settings for LW-PLA: Please follow the instructions in our WINGTEST AND CALIBRATION TOOL
on our website for correct adjustment!
Light-Weight LW-PLA!
P5_HS 2-L_F.stl and
P5_HS 2-R_F.stl
MATERIAL LW-PLA, ~ 12 g*
*Weighed (approximate guideline)
ADDITIONAL SETTINGS
None required
P5_HS-tip-L_F.stl and
P5_HS-tip-R_F.stl
MATERIAL LW-PLA, ~ 4 g*
*Weighed (approximate guideline)
ADDITIONAL SETTINGS
None required
FEARLESS
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
27
Page 28
PROFILE P5_Gyroid
The following parts must be sliced with the PROFILE P5_Gyroid. Please note the additional settings
for the individual parts! It is essential to print these parts with LW-PLA!
Basic settings for LW-PLA: Please follow the instructions in our WINGTEST AND CALIBRATION TOOL
on our website for correct adjustment!
Light-Weight LW-PLA!

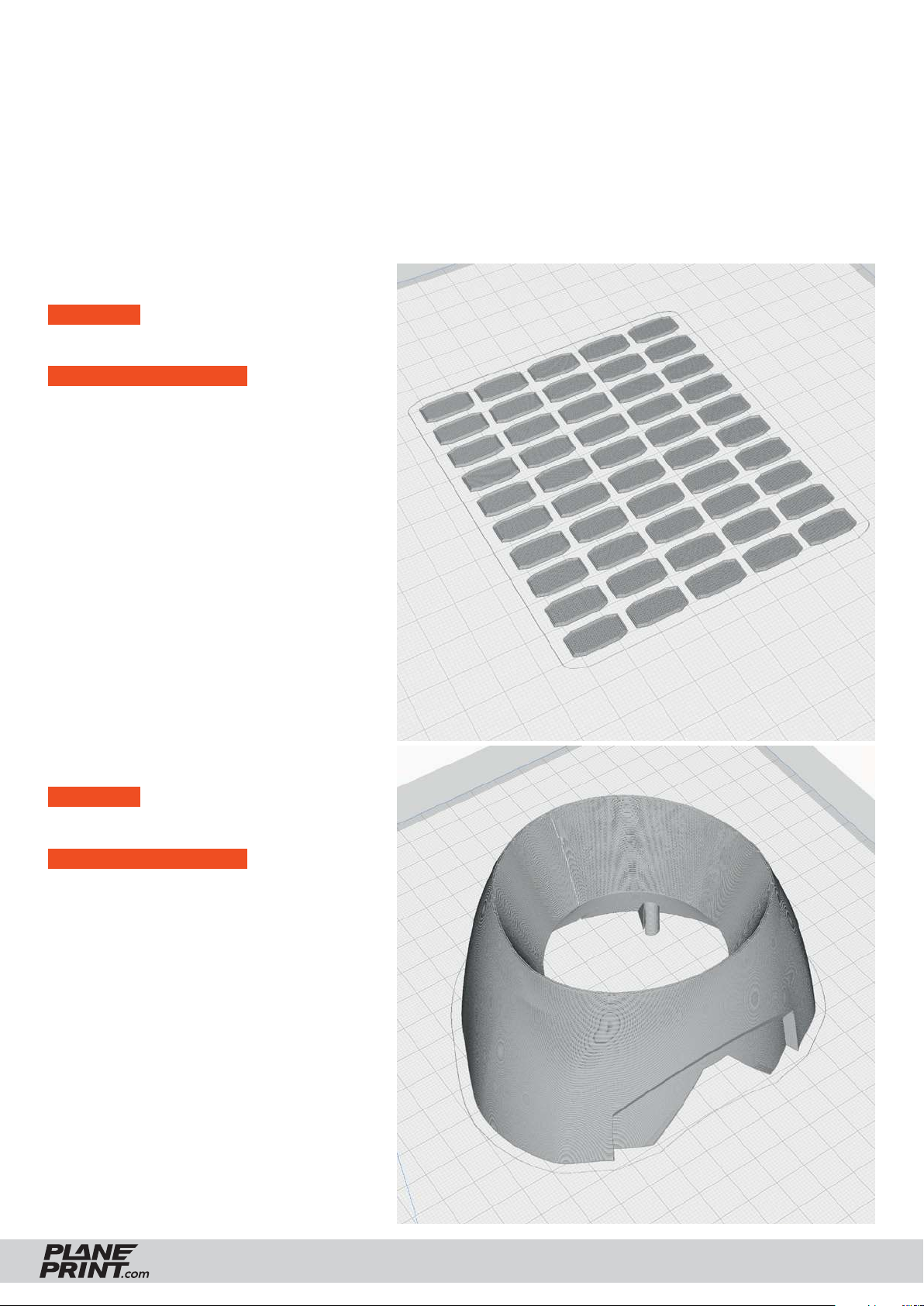

P5_Interconnects50_F.stl
MATERIAL LW-PLA, ~ 3 g*
*Weighed (approximate guideline)
ADDITIONAL SETTINGS
• print this part twice
P5_Nose_F.stl
MATERIAL LW-PLA, ~ 20 g*
*Weighed (approximate guideline)
ADDITIONAL SETTINGS
None required
FEARLESS
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
28
Page 29
PROFILE P5_Gyroid
The following parts must be sliced with the PROFILE P5_Gyroid. Please note the additional settings
for the individual parts! It is essential to print these parts with LW-PLA!
Basic settings for LW-PLA: Please follow the instructions in our WINGTEST AND CALIBRATION TOOL
on our website for correct adjustment!
Light-Weight LW-PLA!

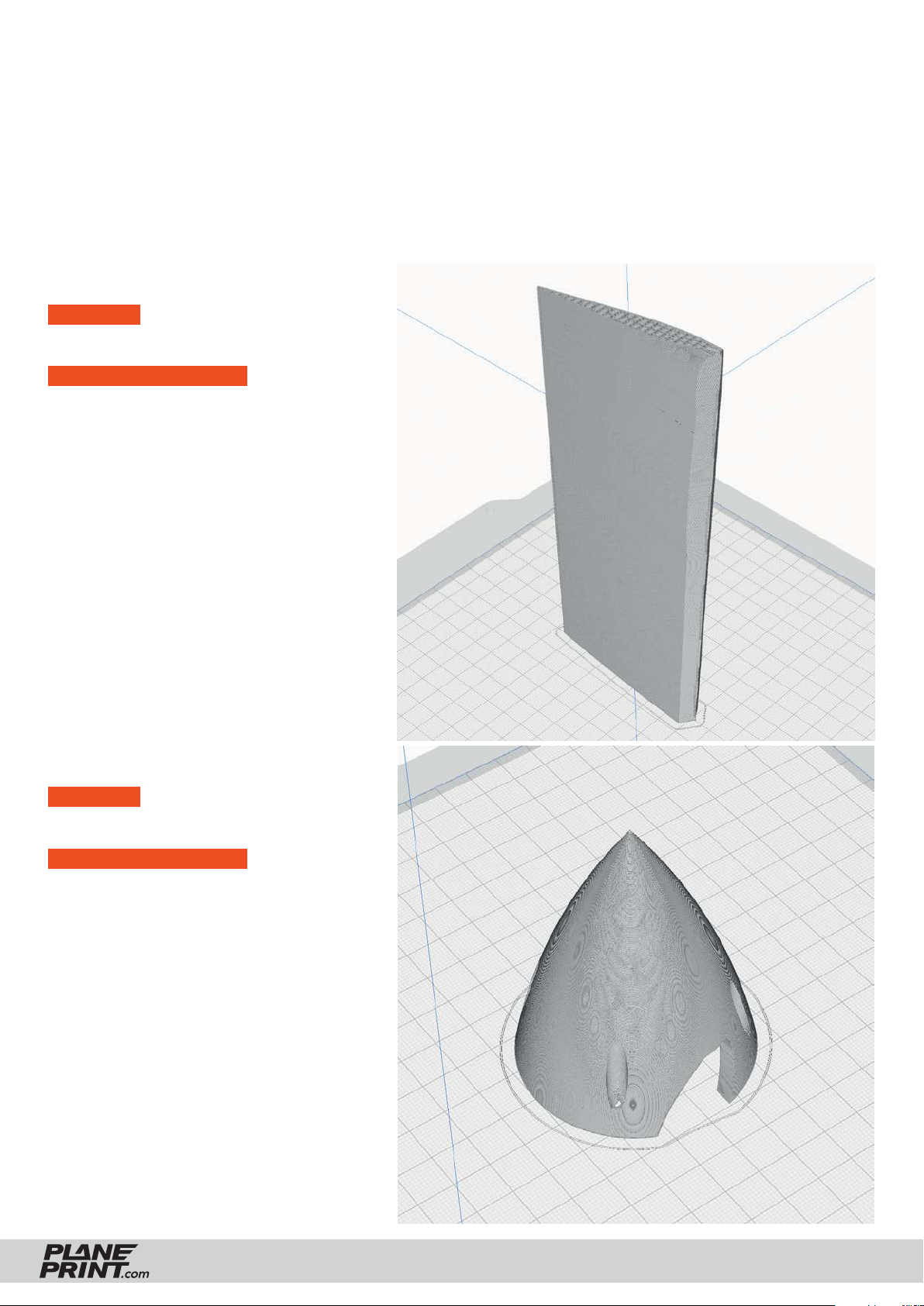

P5_Rudder_F.stl
MATERIAL LW-PLA, ~ 15 g*
*Weighed (approximate guideline)
ADDITIONAL SETTINGS
None required
P5_Spinner_F.stl
MATERIAL LW-PLA, ~ 8 g*
*Weighed (approximate guideline)
ADDITIONAL SETTINGS
• Infill Density: 12 %
FEARLESS
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
29
Page 30

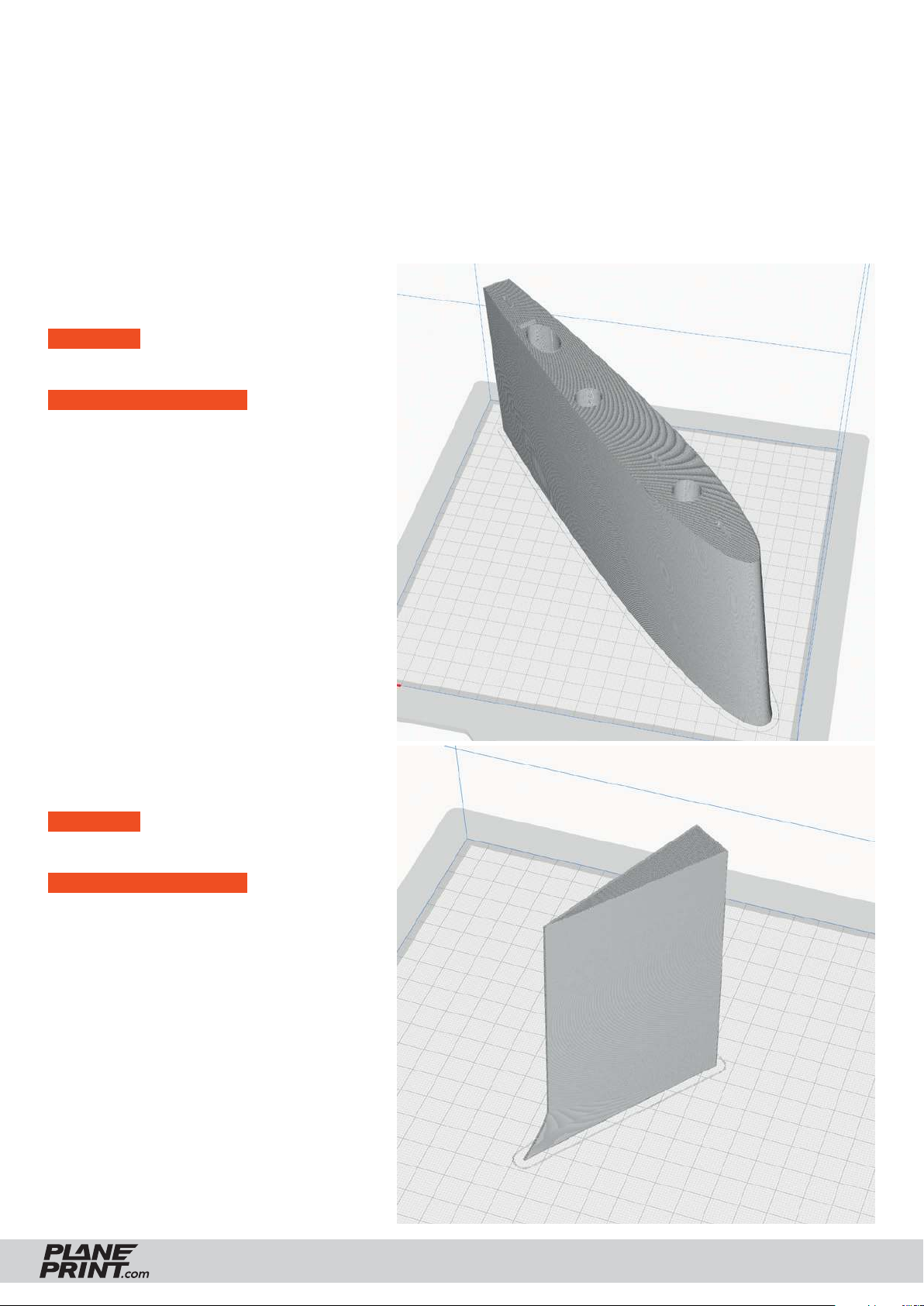

PROFILE P5_Gyroid
The following parts must be sliced with the PROFILE P5_Gyroid. Please note the additional settings
for the individual parts! It is essential to print these parts with LW-PLA!
Basic settings for LW-PLA: Please follow the instructions in our WINGTEST AND CALIBRATION TOOL
on our website for correct adjustment!
Light-Weight LW-PLA!
P5_Wing 1A-L_F.stl and
P5_Wing 1A-R_F.stl
MATERIAL LW-PLA, ~ 57 g*
*Weighed (approximate guideline)
ADDITIONAL SETTINGS
• Z Seam Position:
L: Back Left/R: Back Right
P5_Wing 1B-L_F.stl and
P5_Wing 1B-R_F.stl
MATERIAL LW-PLA, ~ 9 g*
*Weighed (approximate guideline)
ADDITIONAL SETTINGS
None required
FEARLESS
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
30
Page 31

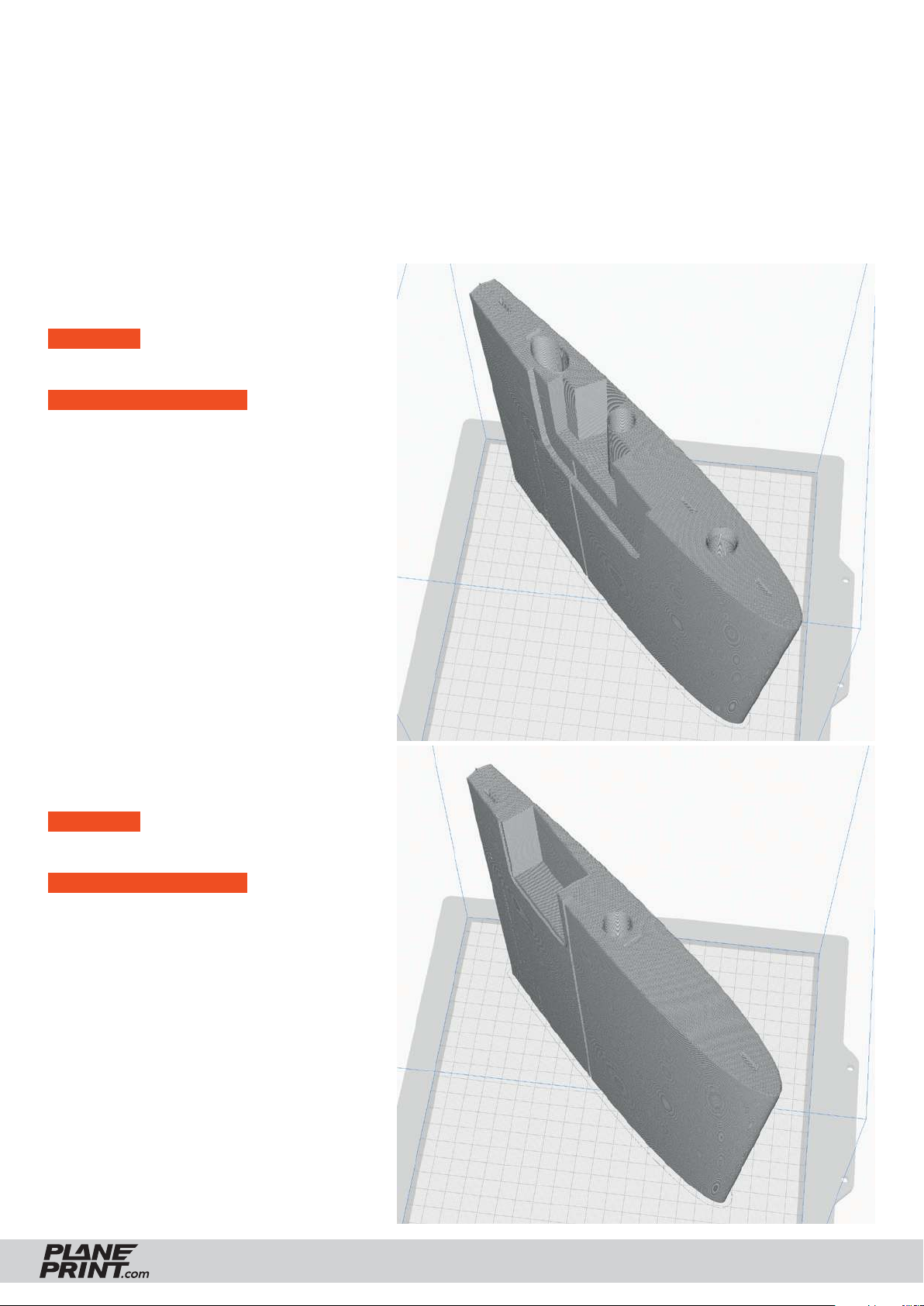

PROFILE P5_Gyroid
The following parts must be sliced with the PROFILE P5_Gyroid. Please note the additional settings
for the individual parts! It is essential to print these parts with LW-PLA!
Basic settings for LW-PLA: Please follow the instructions in our WINGTEST AND CALIBRATION TOOL
on our website for correct adjustment!
Light-Weight LW-PLA!
P5_Wing 2-L_F.stl and
P5_Wing 2-R_F.stl
MATERIAL LW-PLA, ~ 83 g*
*Weighed (approximate guideline)
ADDITIONAL SETTINGS
• Z Seam Position:
L: Back Left/R: Back Right
P5_Wing 3-L_F.stl and
P5_Wing 3-R_F.stl
MATERIAL LW-PLA, ~ 64 g*
*Weighed (approximate guideline)
ADDITIONAL SETTINGS
• Z Seam Position:
L: Back Left/R: Back Right
FEARLESS
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
31
Page 32

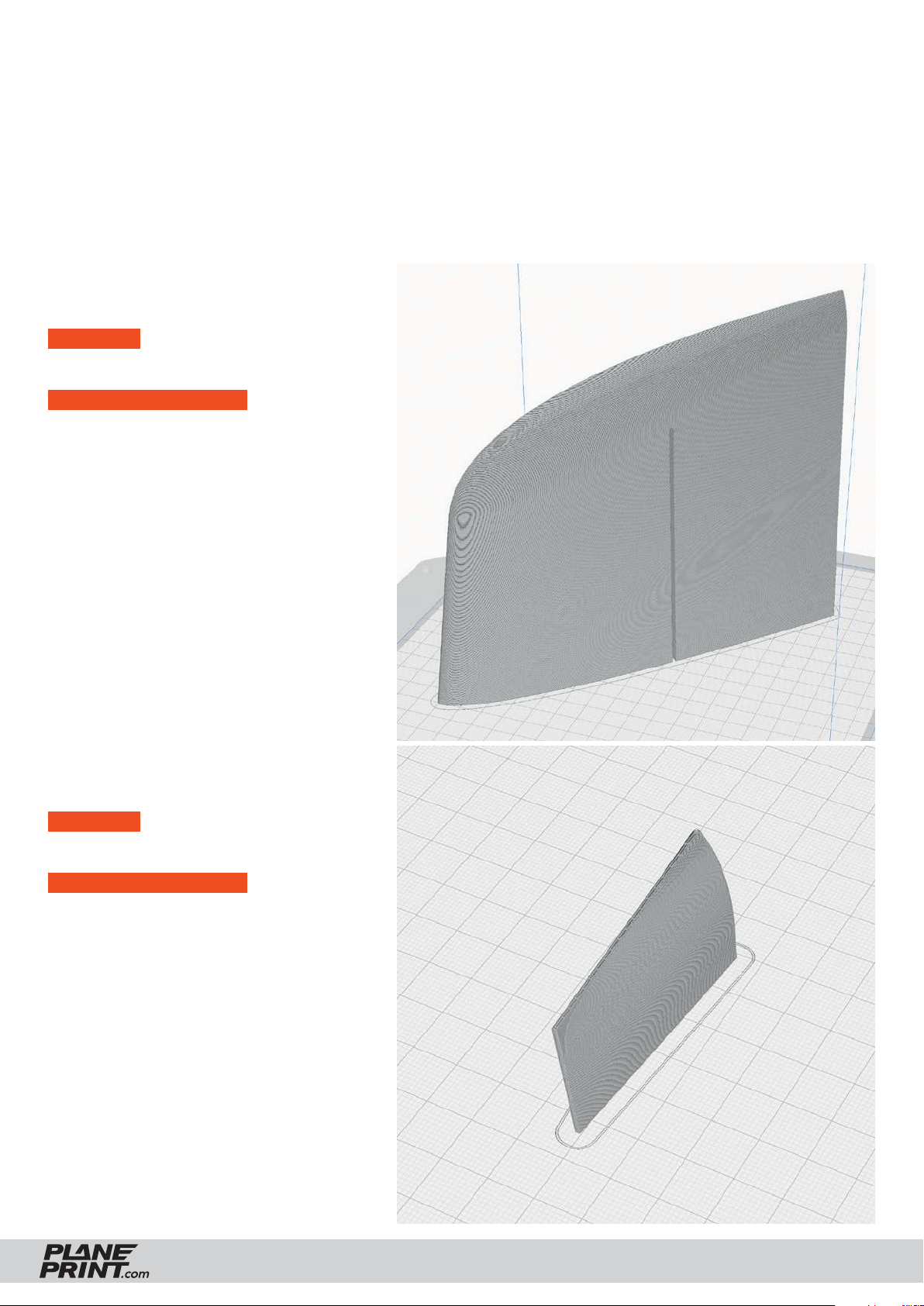

PROFILE P5_Gyroid
The following parts must be sliced with the PROFILE P5_Gyroid. Please note the additional settings
for the individual parts! It is essential to print these parts with LW-PLA!
Basic settings for LW-PLA: Please follow the instructions in our WINGTEST AND CALIBRATION TOOL
on our website for correct adjustment!
Light-Weight LW-PLA!
P5_Wing 4A-L_F.stl and
P5_Wing 4A-R_F.stl
MATERIAL LW-PLA, ~ 35 g*
*Weighed (approximate guideline)
ADDITIONAL SETTINGS
• Z Seam Position:
L: Back Right/R: Back Left
P5_Wing 4B-L_F.stl and
P5_Wing 4B-R_F.stl
MATERIAL LW-PLA, ~ 2 g*
*Weighed (approximate guideline)
ADDITIONAL SETTINGS
None required
FEARLESS
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
32
Page 33

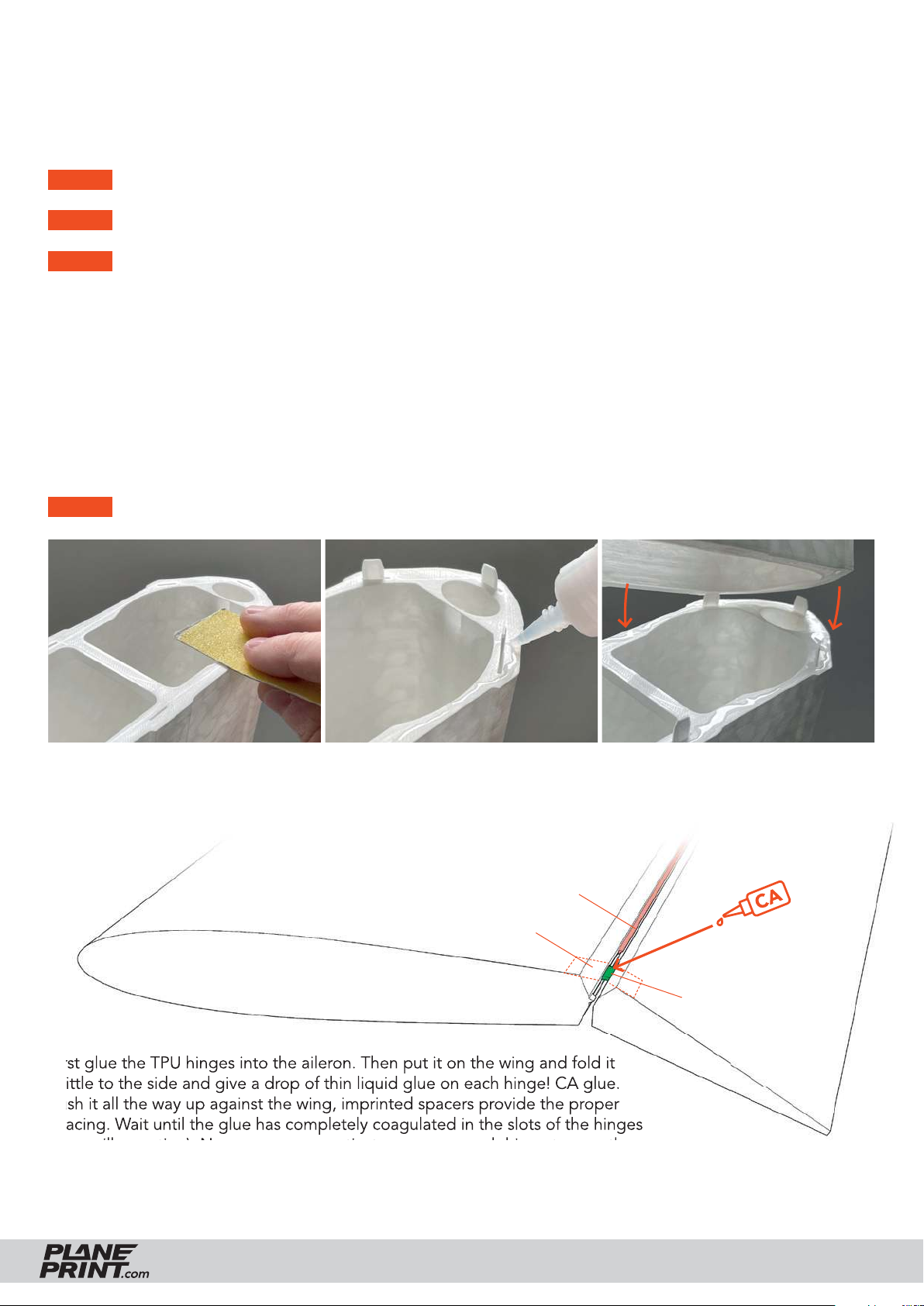

Basic Information:
Gluing the parts printed with PROFILE P5
STEP 1 As a fi rst step, it is important to roughen and smooth the adhesive surfaces with sandpaper.
STEP 2 Insert the interconnects into the slots provided on one side.
STEP 3 Apply a lot of glue to the side with the interconnects. It is important that there is glue everywhere,
especially on the outside and inside of the wall surfaces, in order to achieve a perfect connection.
The interconnects only serve to align the parts to each other. It is better not to apply glue here,
otherwise it can happen that the glue suddenly hardens while the parts are being put together and
stops the process.
Use medium viscosity CA glue, thinner glue would run down the parts too easily.
After assembly, align the two parts exactly and wipe off the excess CA glue from the surface
with a cloth. Now spray with activator spray along the gluing surface and carefully press the parts
together.
STEP 4 Clean the glued areas slightly with a sharp-bladed cutter.
Installing the hinges – rudder/elevator/ailerons/fl aps
Spacer
Slots
First glue the TPU hinges into the aileron. Then put it on the wing and fold it
a little to the side and give a drop of thin liquid glue on each hinge! CA glue.
Push it all the way up against the wing, imprinted spacers provide the proper
spacing. Wait until the glue has completely coagulated in the slots of the hinges
(by capillary action). Now spray some activator spray on each hinge to cure the
CA glue. Repeat the process on the other side of the hinges.
much glue and test if each hinge holds well.
Do not use too
FEARLESS
TPU hinge
PRINTING & ASSEMBLING MANUAL
thin
© PLANEPRINT
33
Page 34

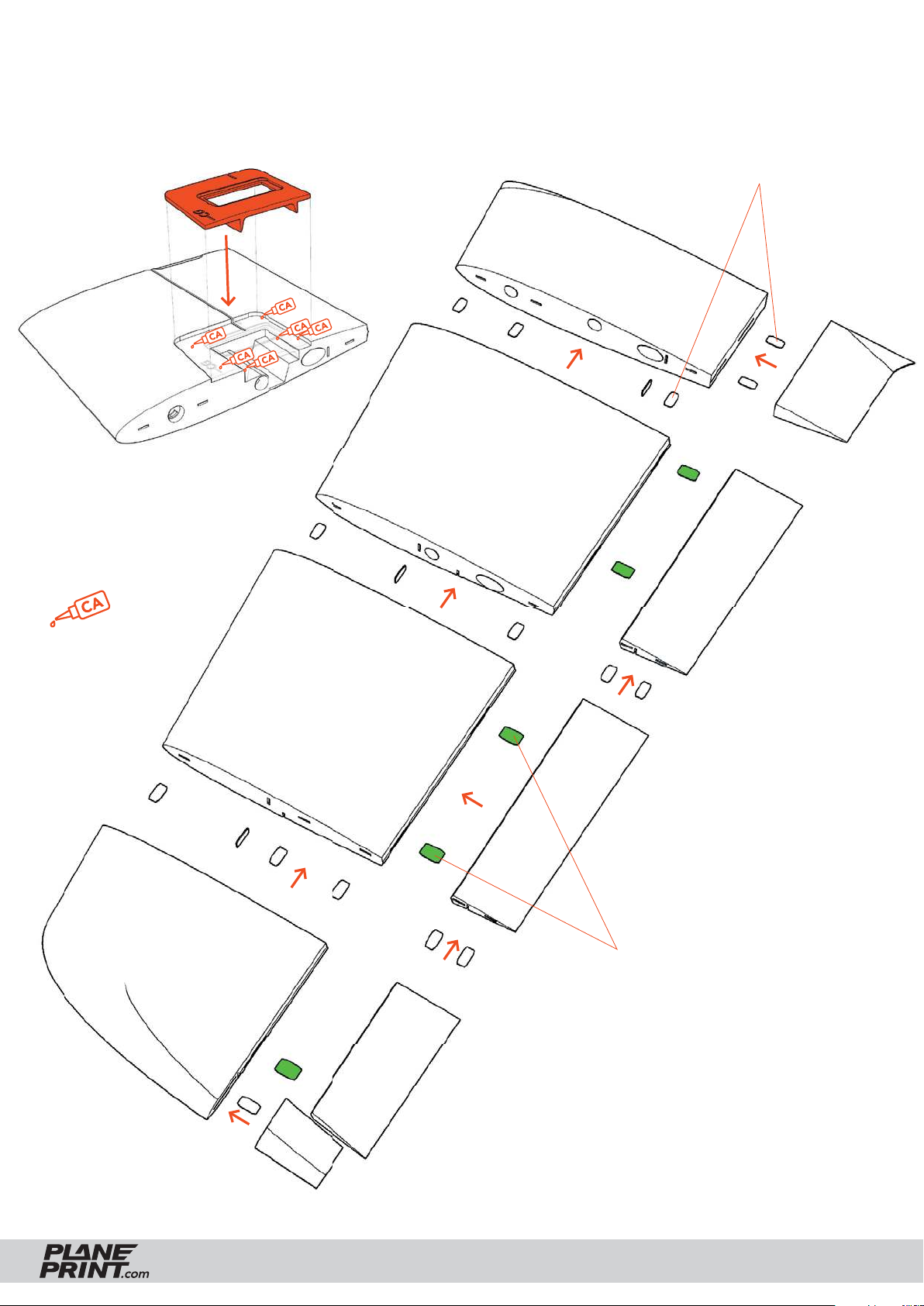

Wings assembly
First glue the Maingear plate in wing 2. Spread the
CA glue over the entire surface to create a stable
connection!
P2_Maingear plate-L_F.stl
P5_Wing 2-L_F.stl
Assemble the wing and
the aileron separately
and then add the aileron
to the wing.
P5_Interconnects50_F.stl
P5_Wing 1A-L_F.stl
P5_Wing 1B-L_F.stl
P5_Wing 2-L_F.stl
medium l.
P5_Wing 4A-L_F.stl
P5_Aileron 1-L_F.stl
P5_Wing 3-L_F.stl
P5_Aileron 2-L_F.stl
Follow the instructions
„Installing the hinges“
on page 33.
P4_Hinges_F.stl
P5_Wing 4B-L_F.stl
FEARLESS
P5_Aileron 3-L_F.stl
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
34
Page 35

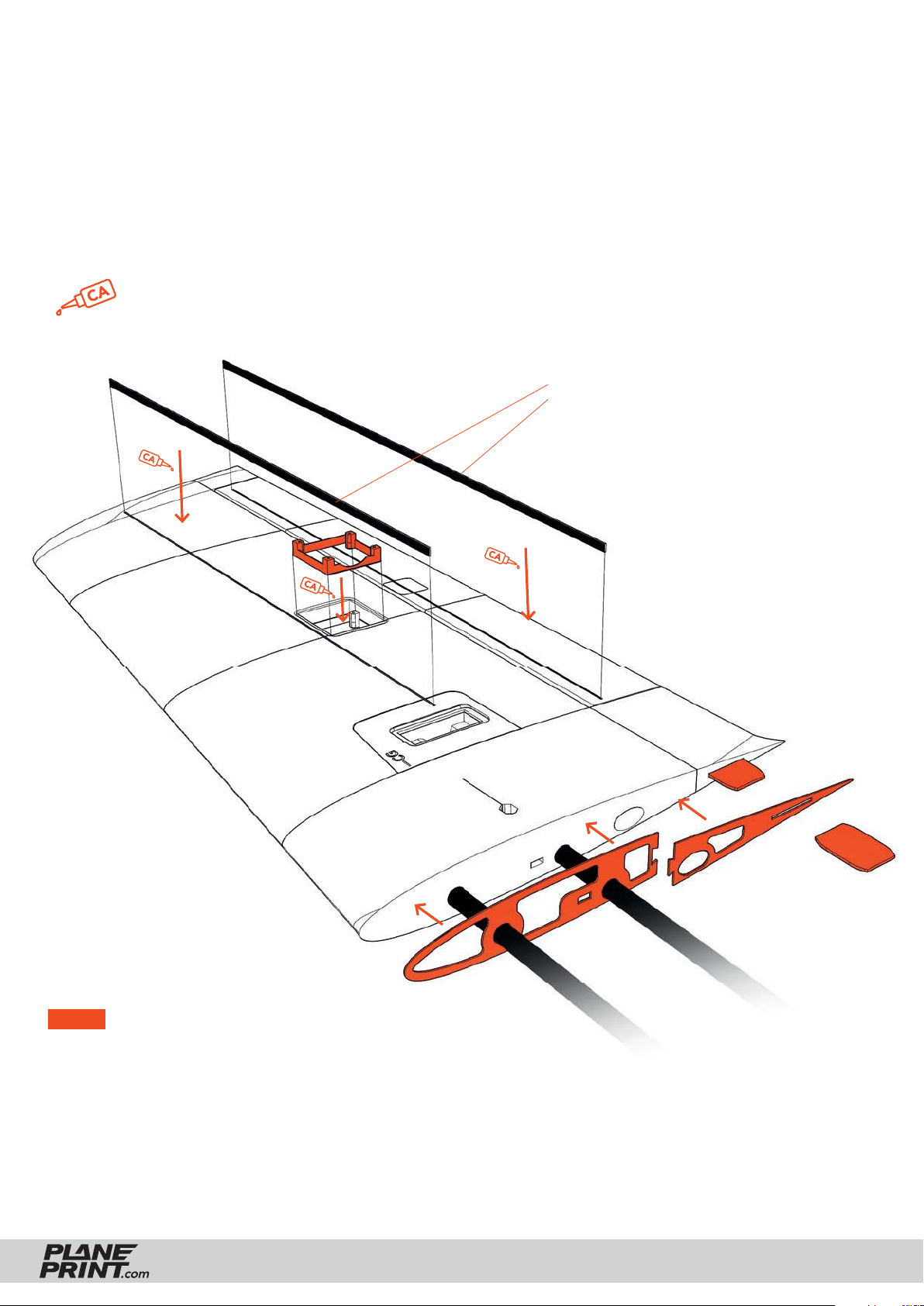

Wings assembly
Shorten and insert the carbon strips fi rst into the gaps on the wing. Make sure that they do not protrude above
the surface of the wing, if they are a little lower, that‘s okay. Then apply a generous amount of thin CA glue
along the entire length. The glue spreads through the capillary effect and bonds the strips to the wing over a
large area.
If you don‘t have carbon strips or similar materials available, print the STL Spar_p1_F.stl from PLA or
better Tough PLA several times and glue it as described.
thin liquid
The carbon strips should be degreased and roughened with sandpaper!
Carbon fi ber strip (fl at profi le) 450mm*
Carbon fi ber strip (fl at profi le) 500mm*
* If you can‘t get such profi les you can also use
two 0.5*6*1000, two 0.5*5*1000, 1*5*1000,
several carbon rods Ø1mm or hardwood strips.
Wing protector:
Glue the front part fi rst. Use
the carbon tube for exact
alignment. Make sure that no
glue gets on the tube!
NOTE
FL = Fuselage left
FR = Fuselage right
WL = Wing left
WR = Wing right
Tape the aileron to the wing
on both sides before gluing in
the carbon fi ber strip.
P1_Wing plugging_F.stl
P1_Protectors wing_F.stl
Carbon tubes Ø12mm
(Do not glue!)
The inscription is the side of the adhesive surface!
FEARLESS
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
35
Page 36

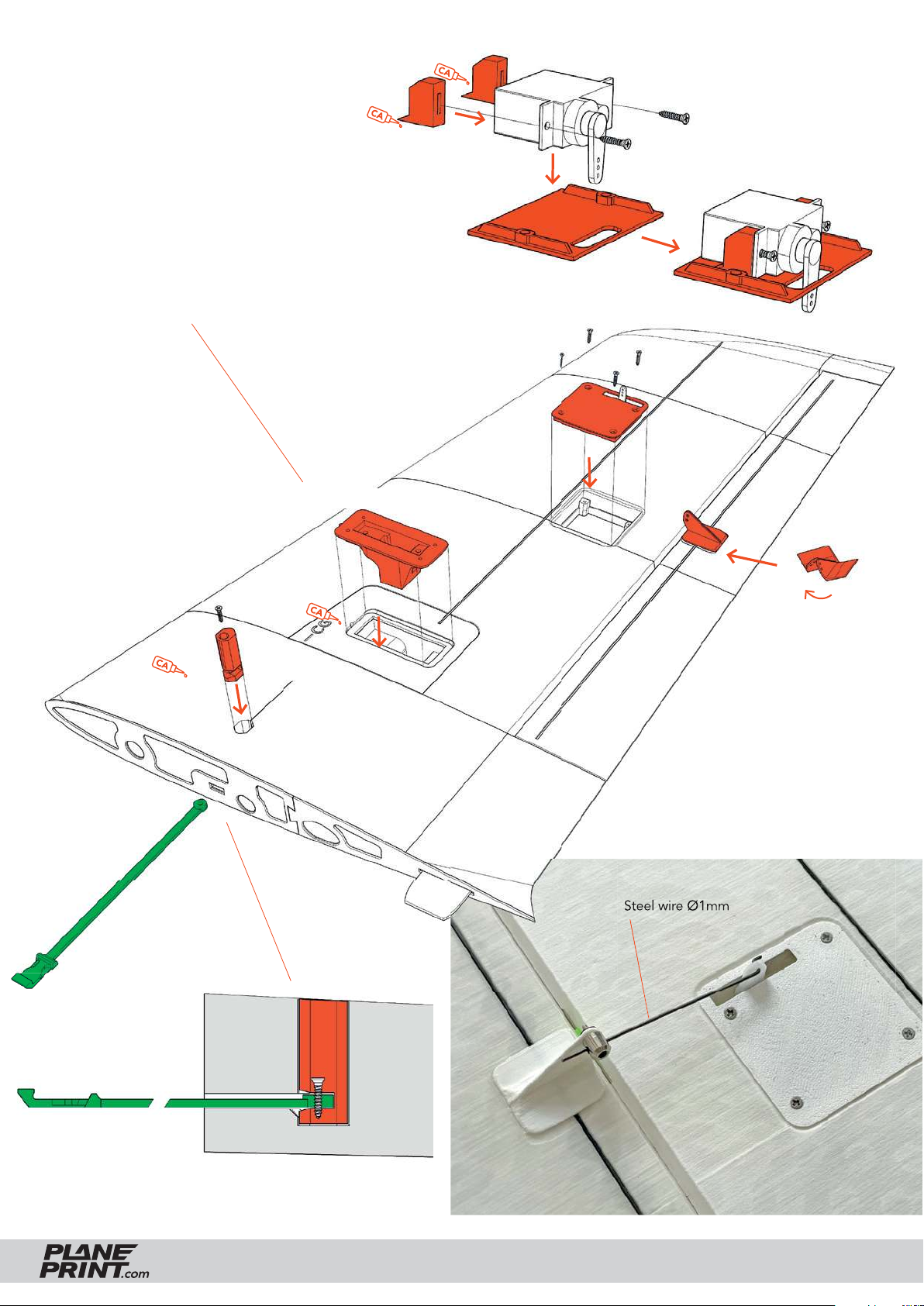

Aileron Servo
Assemble the parts as shown here.
Align the servo so that the lever
protrudes exactly in the center of
the slot.
Tighten the servo cover with four
tapping screws.
The part
Maingear PLA must be
glued very stable.
P1_Servomount Aileron_F.stl
P1_Maingear PLA-L_F.stl
P1_Control horns_F.stl
Cable duct
P4_Tension belt_F.stl
P2_Wingmount_F.stl
Steel wire Ø1mmSteel wire Ø1mm
FEARLESS
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
36
Page 37

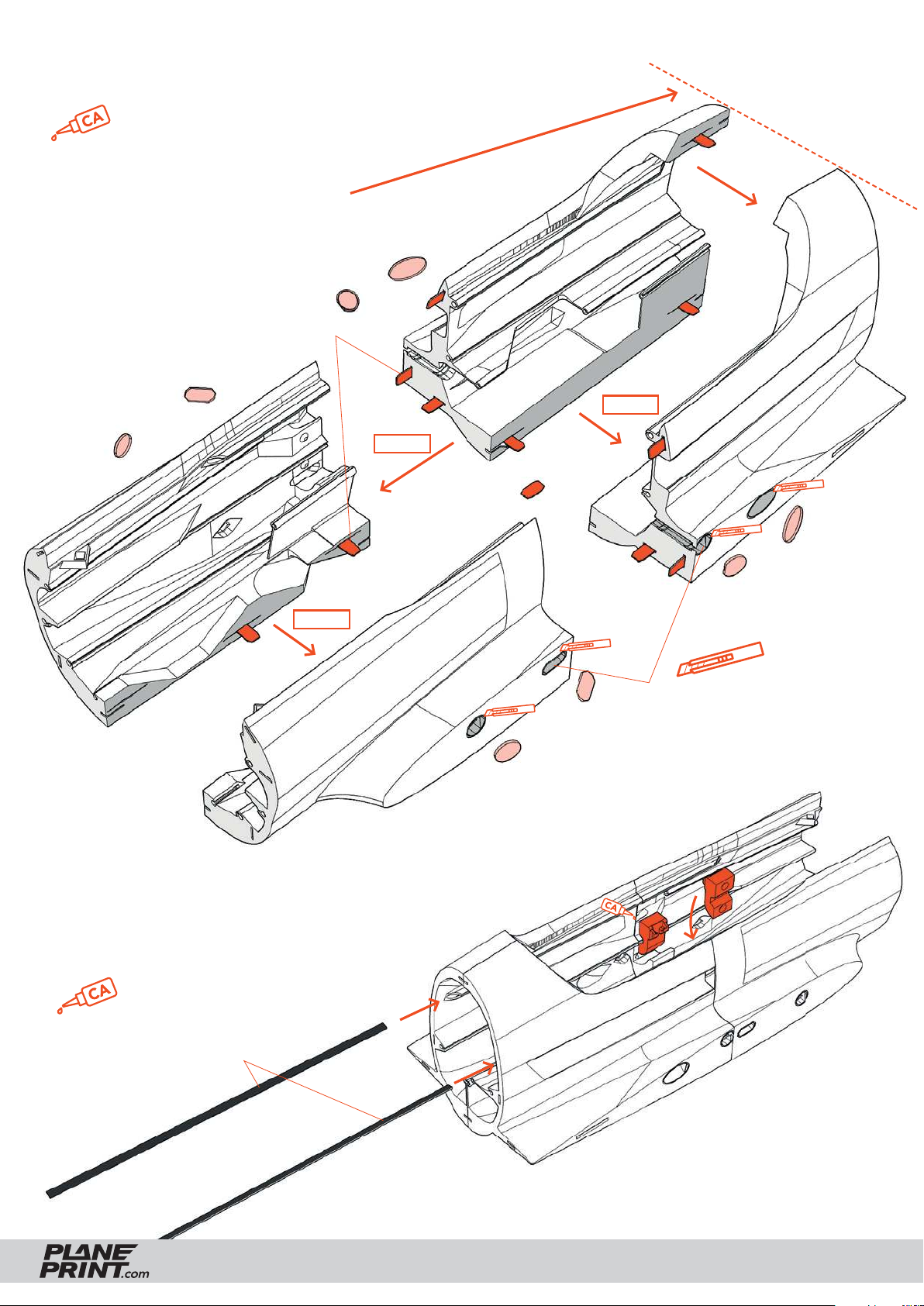

Fuselage assembly
medium l.
First assemble these four parts.
Pay attention to the exact alignment!
Interconnects_p1_so.stl
P5_Fuselage 2-R_F.stl
STEP 1
STEP 2
P5_Fuselage 3-R_F.stl
STEP 1
P5_Fuselage 3-L_F.stl
P5_Fuselage 2-L_F.stl
Push the carbon fi ber strips all the way
forward into the gap and then let thin
CA glue trickle in.
thin liquid
Carbon fi ber strips 270mm
(You can also use a Carbon rod Ø3mm)
Remove support.
Please be careful with the knife!
You can also use a saw blade.
P2_Wingmount_F.stl
FEARLESS
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
37
Page 38

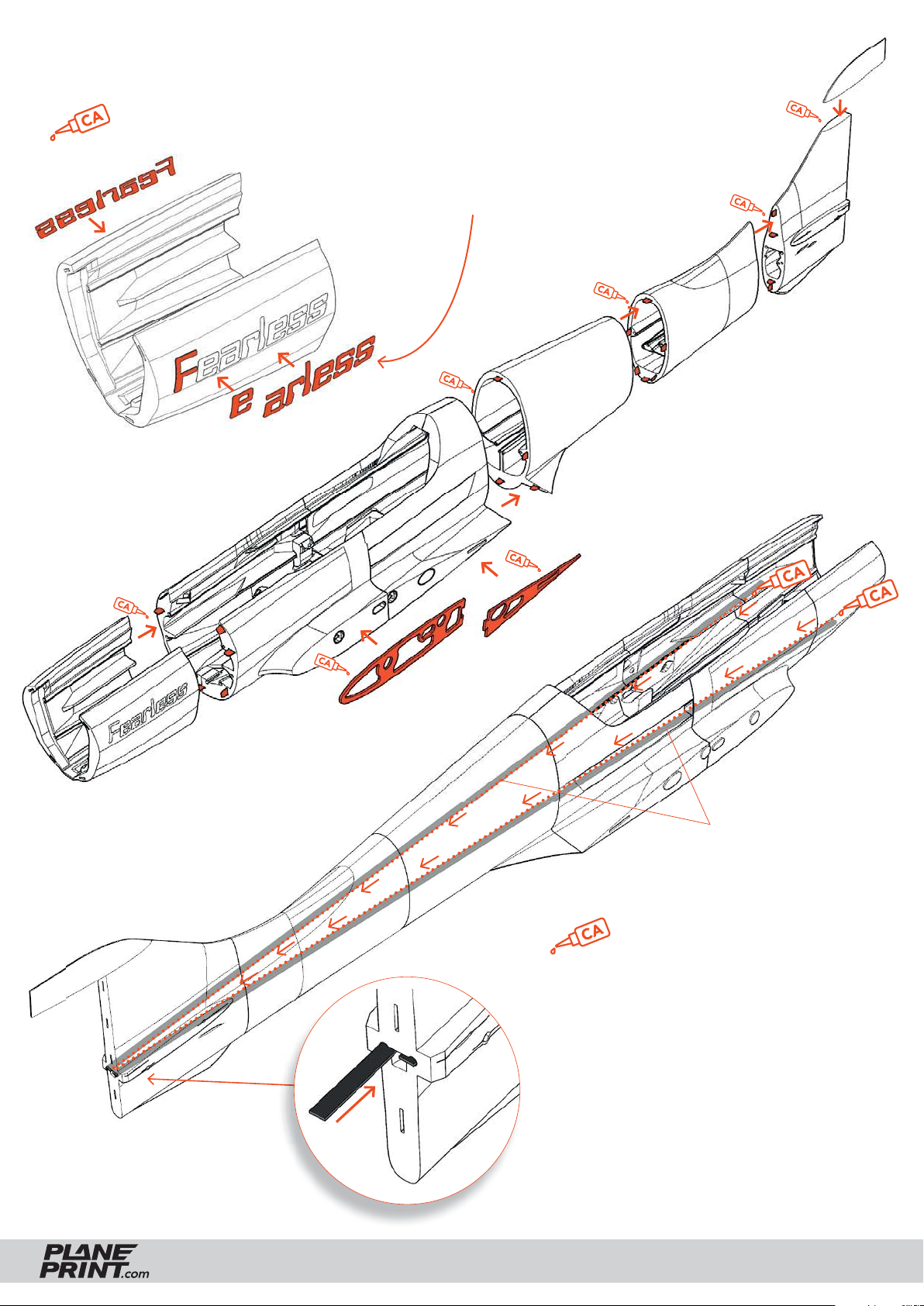

Fuselage assembly
medium l.
The smooth side that was at the bottom
of the print bed is the outside.
P1_Lettering_F.stl
P5_Fuselage 6 top_F.stl
P5_Fuselage 6_F.stl
P5_Fuselage 5_F.stl
P5_Fuselage 4_F.stl
P5_Fuselage 1_F.stl
P1_Protectors fuselage_F.stl
Carbon fi ber strips 1000mm
(You can also use a Carbon rod Ø3mm)
thin liquid
Push the carbon fi ber strips all the way forward
into the gap.
Place the fuselage with the tail down on a
piece of cardboard and let thin CA glue run
from the front into the gap between LW-PLA
and carbon. Wait until the glue trickles out of
the bottom! Spray activator spray on the glue.
FEARLESS
This ensures that the carbon is bonded to the
fuselage over the entire length.
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
38
Page 39

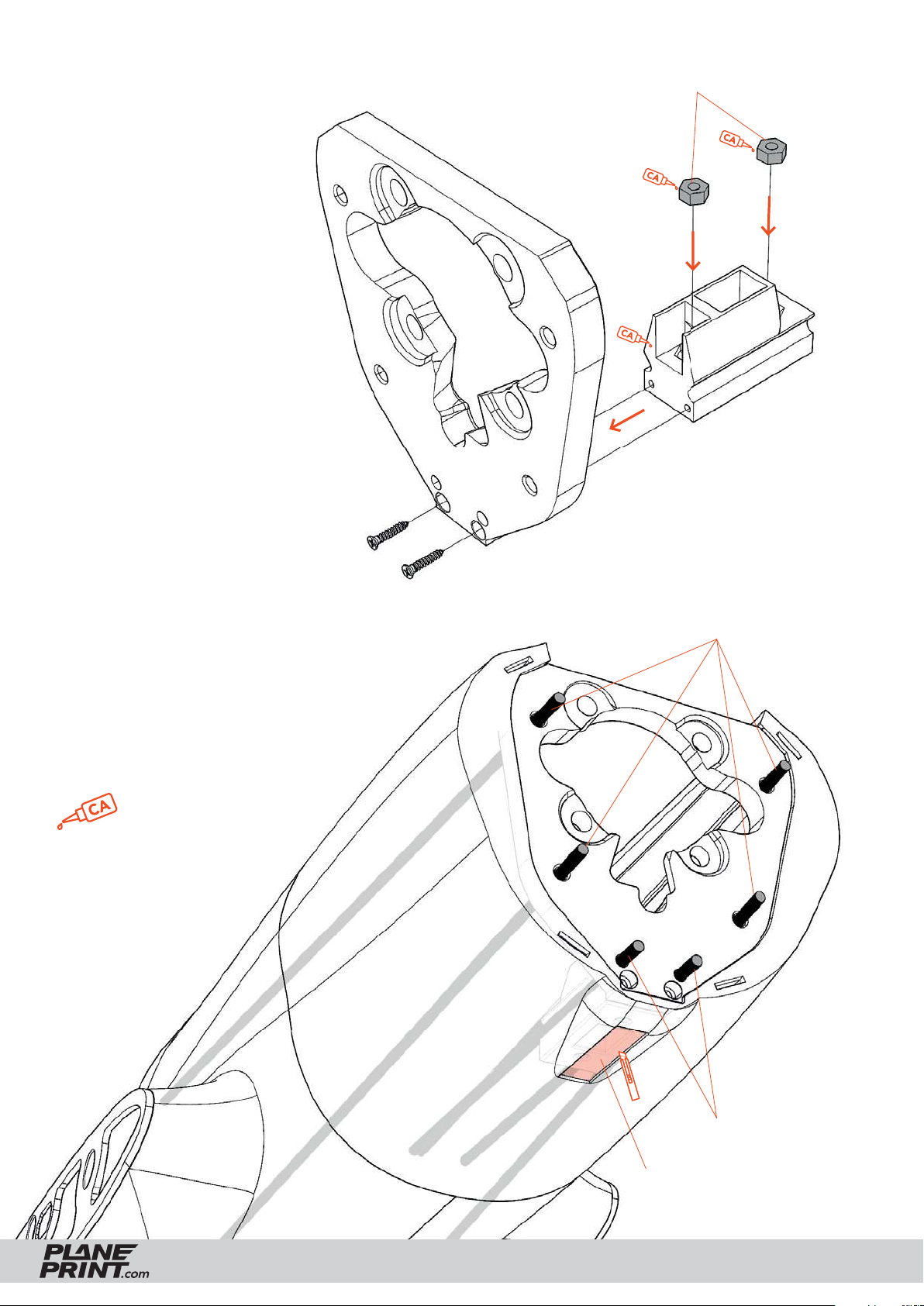

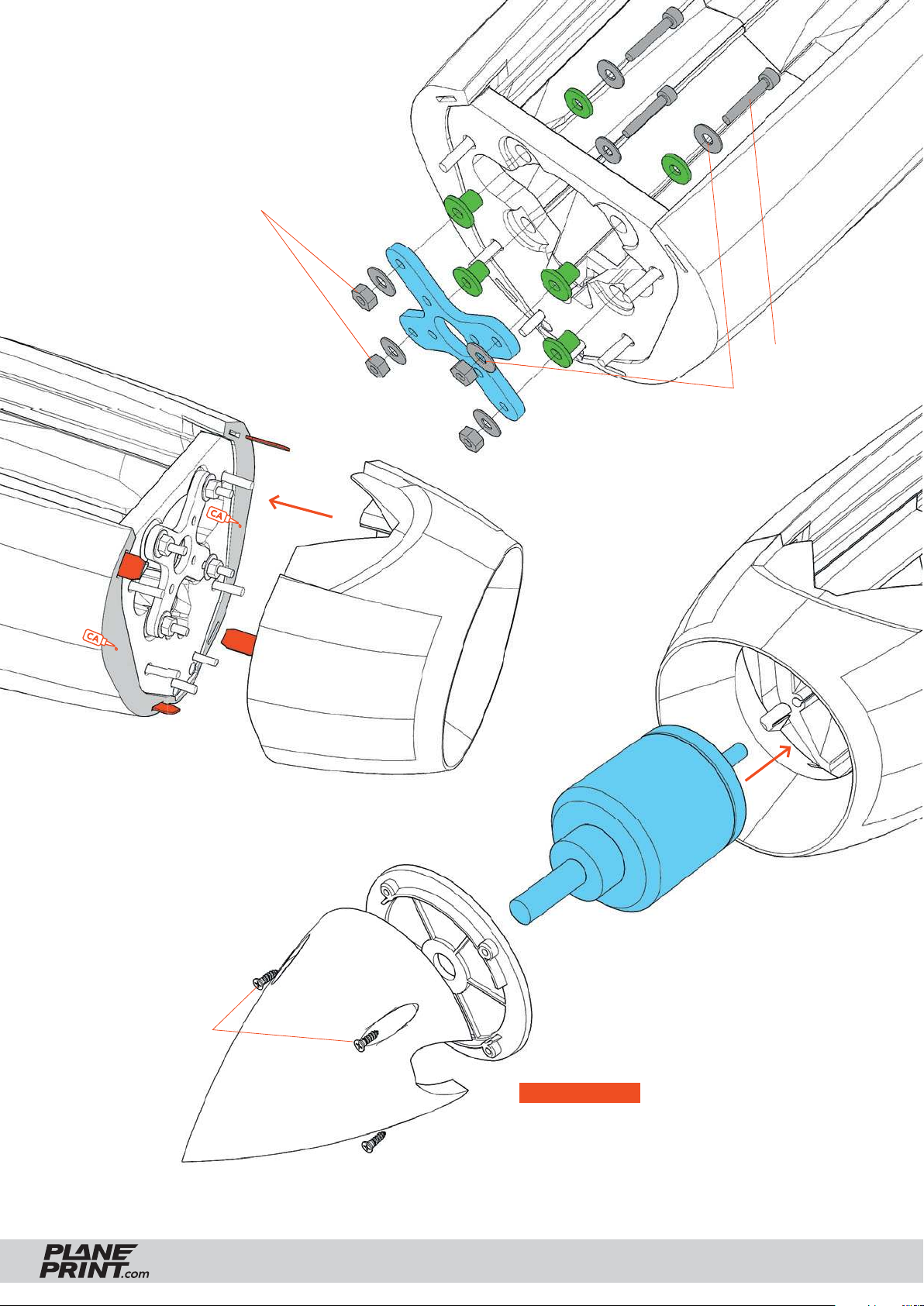

Motor mount
Self locking nuts
P1_Motormount_F.stl
P1_Frontgear PLA part_F.stl
Insert the motor mount into the fuselage
and the carbon rods into the slots as
shown in the picture. Then glue everything
well with thin CA glue. Due to the capillary
effect, the glue runs along the entire rods
and the motor mount. This connection
must be absolutely stable!
thin liquid
Carbon rods Ø3*300mm
FEARLESS
Carbon rods Ø3*150mm
Remove support.
Please be careful with the knife!
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
39
Page 40
Motor mount
Self locking nuts
P4_Motormount TPU_F.stl
P4_Motormount TPU_F.stl
Metal screws Ø3*20mm
Shims
You can also insert the screws
through the cross from the front.
P5_Nose_F.stl
Mount the motor on the cross. The correct
angle to the right and down is already set.
Tapping srews 2*6mm
P5_Spinner_F.stl
P1_Spinner plate_F.stl
SAFETY FIRST Use appropriate screws for
motor mounting to ensure safe operation!
Make sure the prop runs smoothly and does
not generate vibrations. Check regularly that
the motor mounting is absolutely tight!
FEARLESS
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
40
Page 41

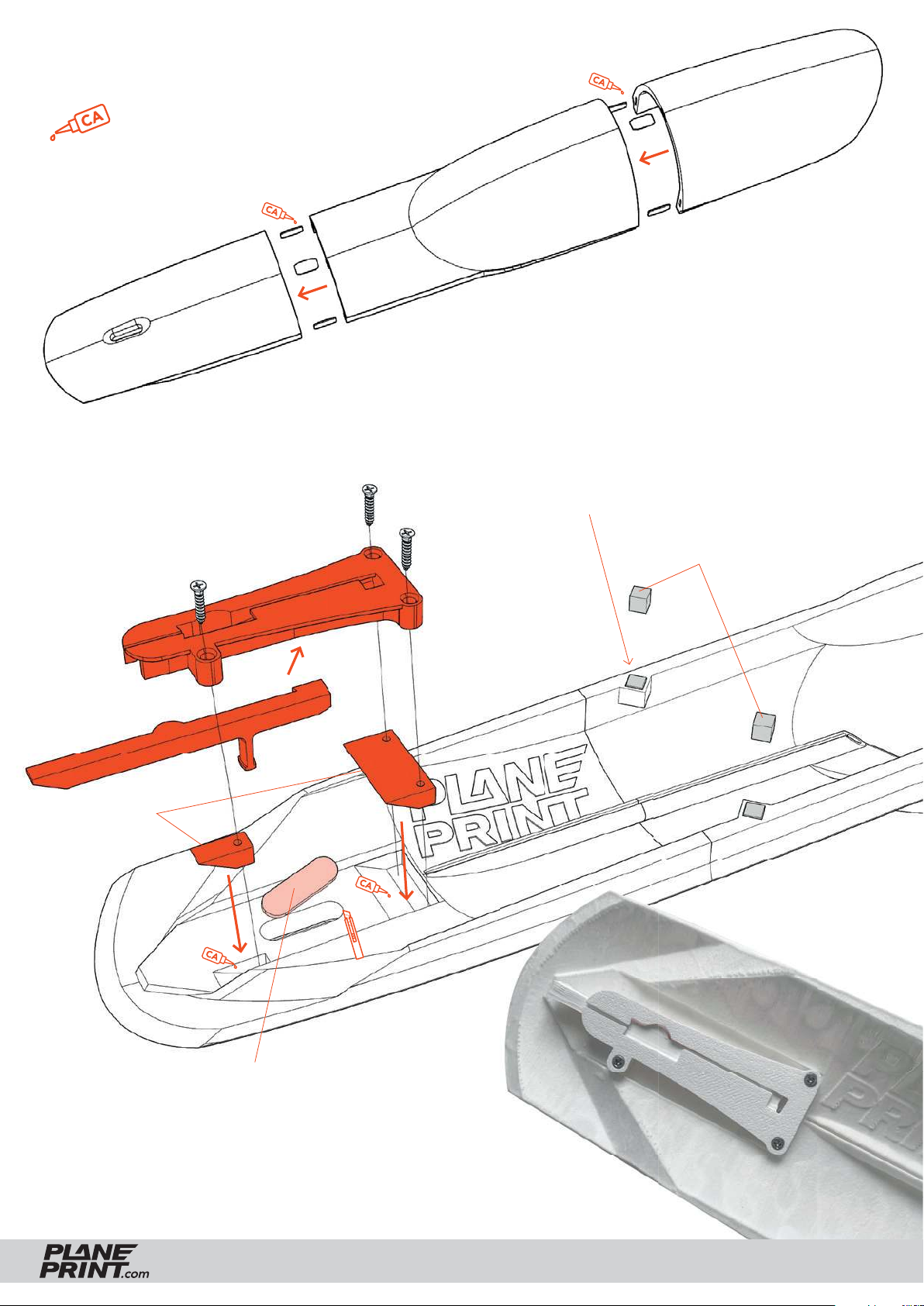

Canopy assembly
medium l.
P5_Canopy 1_F.stl
P5_Canopy 3_F.stl
P5_Canopy 2_F.stl
Glue the bases into the recesses in Canopy 1.
Insert the latch into the Canopy lock and screw
it onto the bases.
P1_Canopy lock_F.stl
Latch
Bases
Glue the four magnets into the gaps
and the counterparts into the fuselage.
Pay attention to the alignment of the
magnets to each other!
Neodym Super
Magnets 5x5x5 mm
Remove support.
Please be careful with the knife!
FEARLESS
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
41
Page 42

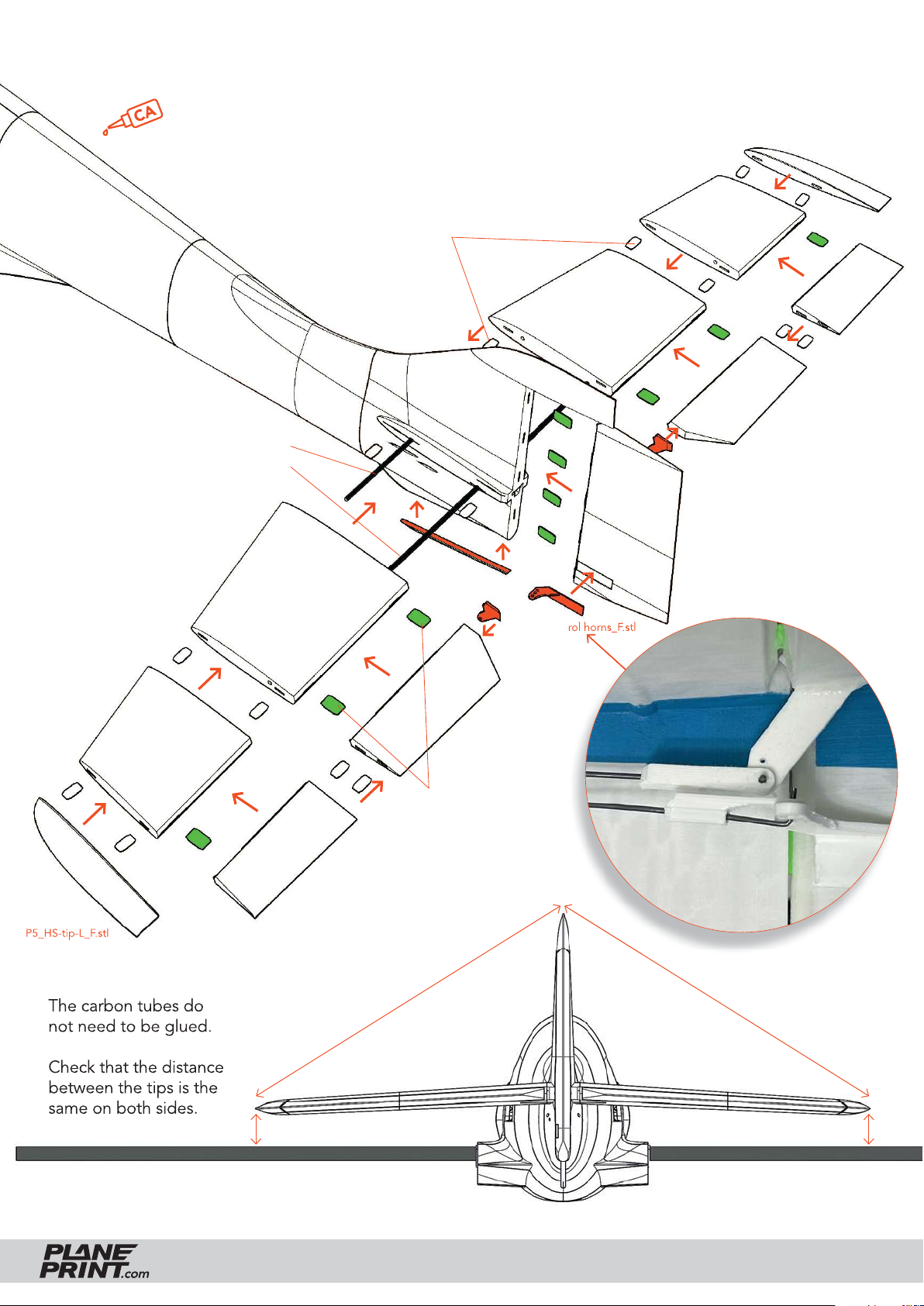

Tailplane assembly
medium l.
Carbon rod Ø3*200mm
Carbon rod Ø3*350mm
Follow the instructions
„Installing the hinges“
on page 33.
P5_HS-tip-R_F.stl
P5_HS2-R_F.stl
P5_Interconnects50_F.stl
P5_HS 1-R_F.stl
P5_Elevator 2-R_F.stl
P5_Elevator 1-R_F.stl
P5_Rudder_F.stl
P1_Fuselage 6 Skid_F.stl
P5_HS 1-L_F.stl
P5_HS2-L_F.stl
P5_HS-tip-L_F.stl
The carbon tubes do
not need to be glued.
Check that the distance
between the tips is the
same on both sides.
P1_Control horns_F.stl
P5_Elevator 1-L_F.stl
P4_Hinges_F.stl
P1_Clips 1mm wire_F.stl
P5_Elevator 2-L_F.stl
333 mm
333 mm
FEARLESS
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
42
Page 43

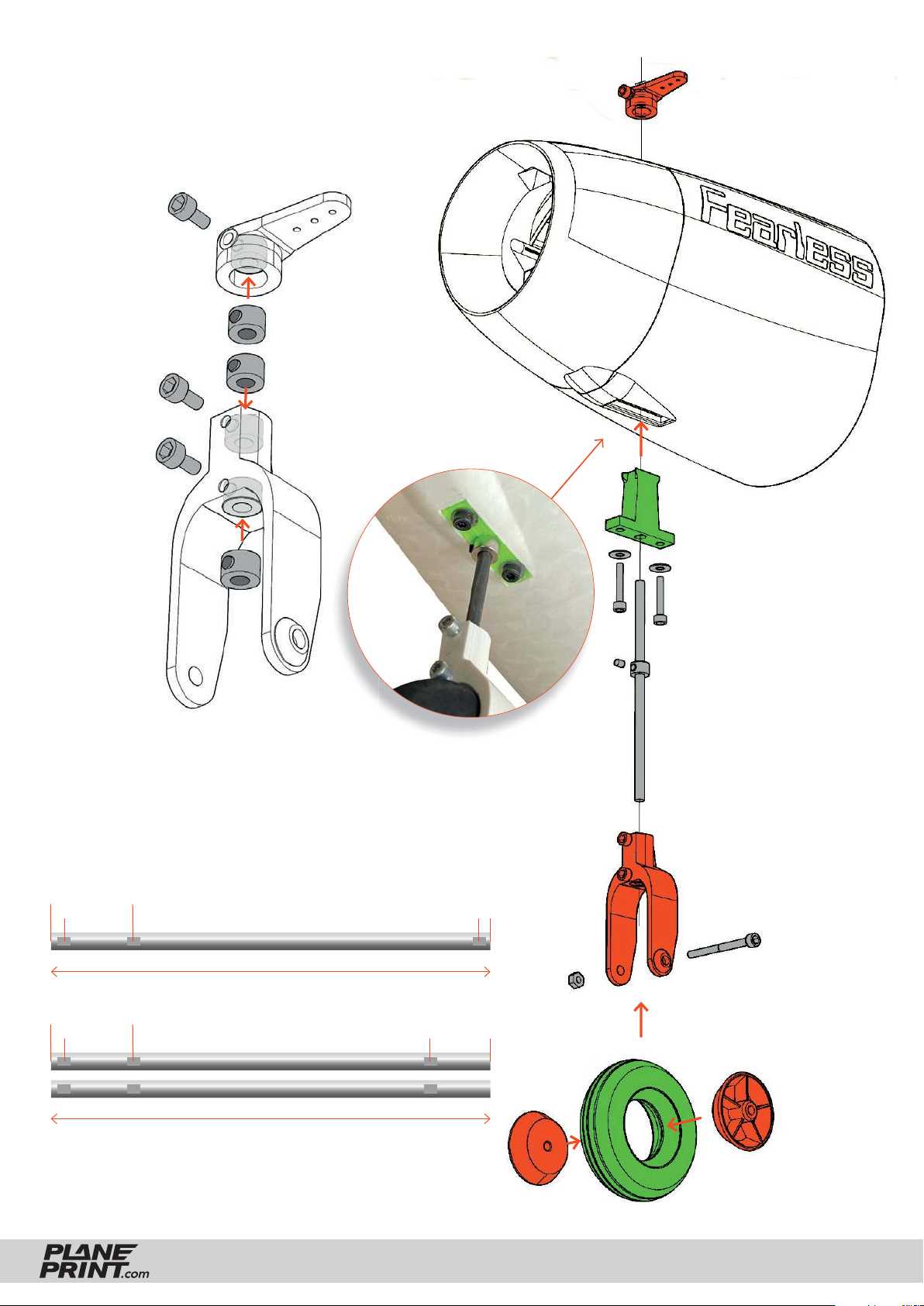

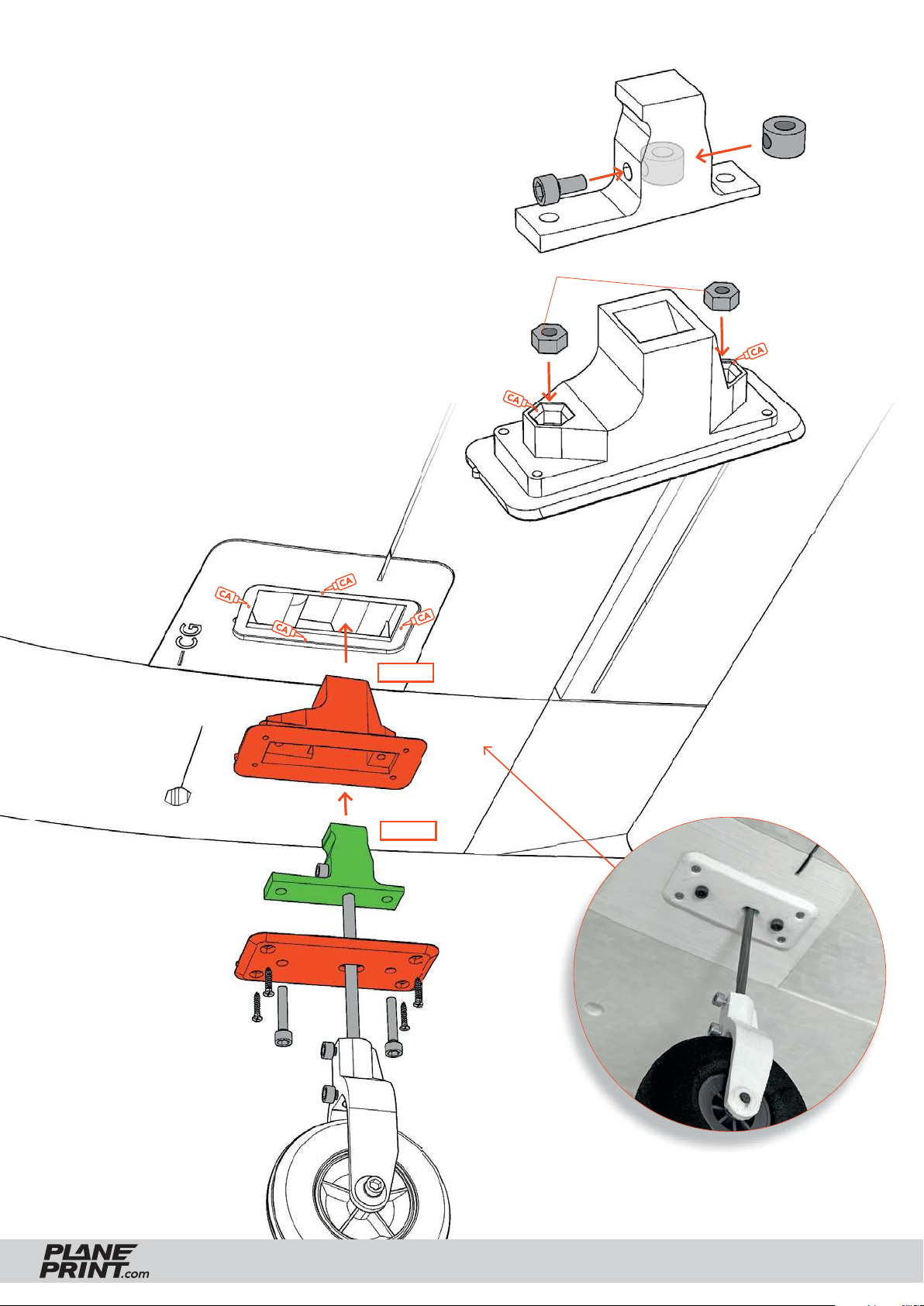

Gear mount – front gear
P1_Frontgear steering_F.stl
Adjusting collars
Metal screws
Ø3*6mm
P1_Frontgear steering_F.stl
P1_Wheel leg_F.stl
Prepare these three pieces of steel wire Ø4*100mm
(picture in original size). File the steel fl at in these areas.
Note: the surfaces must be aligned exactly the same!
19
3 3
Front gear
100 mm
P4_Frontgear TPU_F.stl
Metal screws Ø3*20mm
Steel wire
Front gear
Metal screw Ø3*35mm
19
Main gear
3 14
100 mm
FEARLESS
P1_Rims 58_F.stl
P4_Tire 58_F.stl
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
43
Page 44
Gear mount – Main gear
Tape the nuts well and make sure
that no glue gets into the thread.
Adjusting collar
P4_Maingear TPU L_F.stl
Metal screw Ø3*6mm
Self locking nuts
Glue the PLA part well into the wing
and screw the gear tight.
P1_Maingear PLA-L_F.stl
STEP 1
P1_Maingear PLA-L_F.stl
STEP 2
P1_Maingear PLA-L_F.stl
Metal screws Ø3*20mm
Metal screws Ø3*6mm
FEARLESS
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
44
Page 45

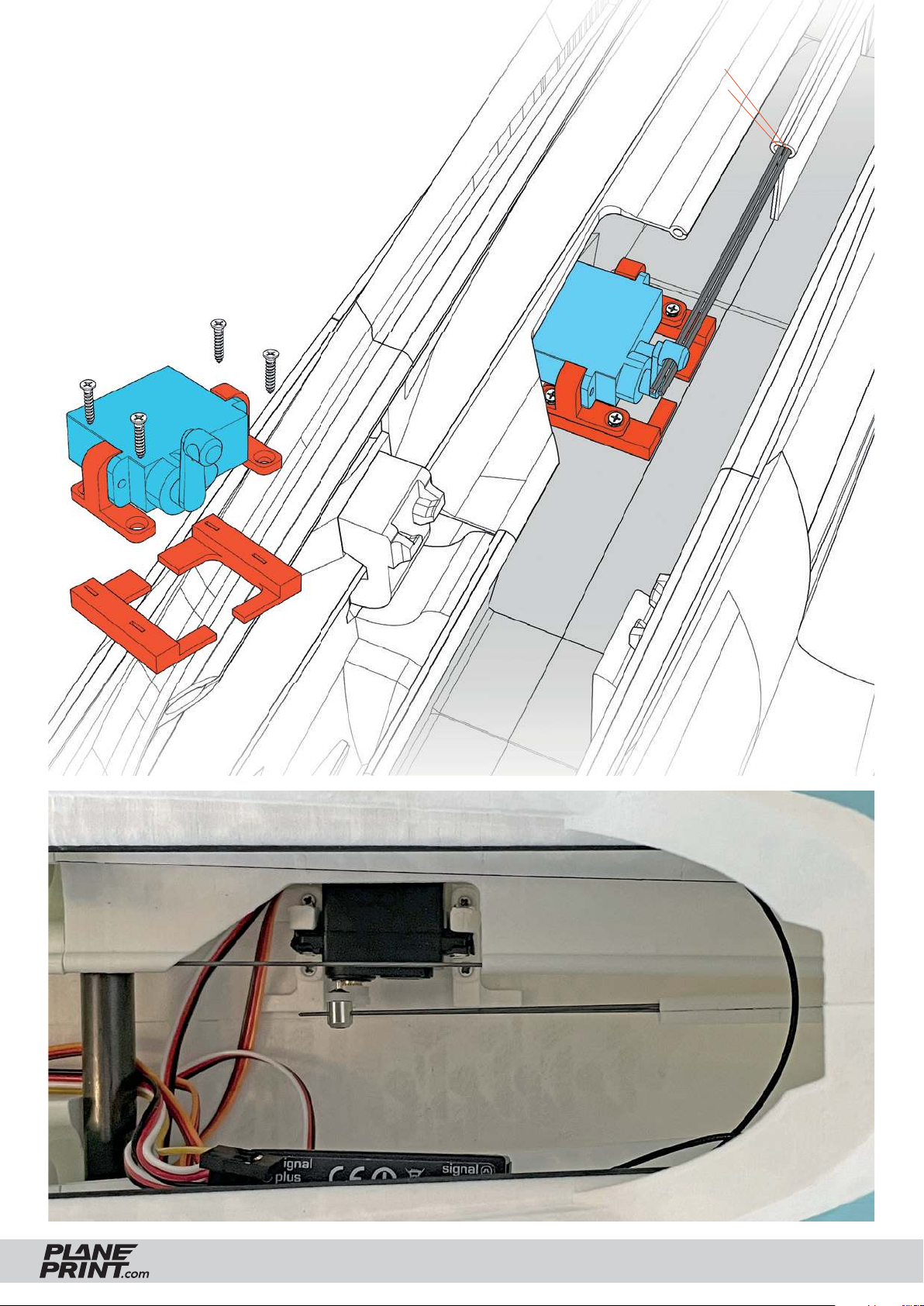

Servo mount – Elevator
Mount the servo horizontally as shown in the
picture and make sure that the bowden is
exactly centered.
Fix the elevators in parallel before
tightening the steel wires.
P1_Servobrackets fuselage_F.stl
Steel wire Ø1mm Elevator left
Steel wire Ø1mm Elevator right
FEARLESS
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
45
Page 46

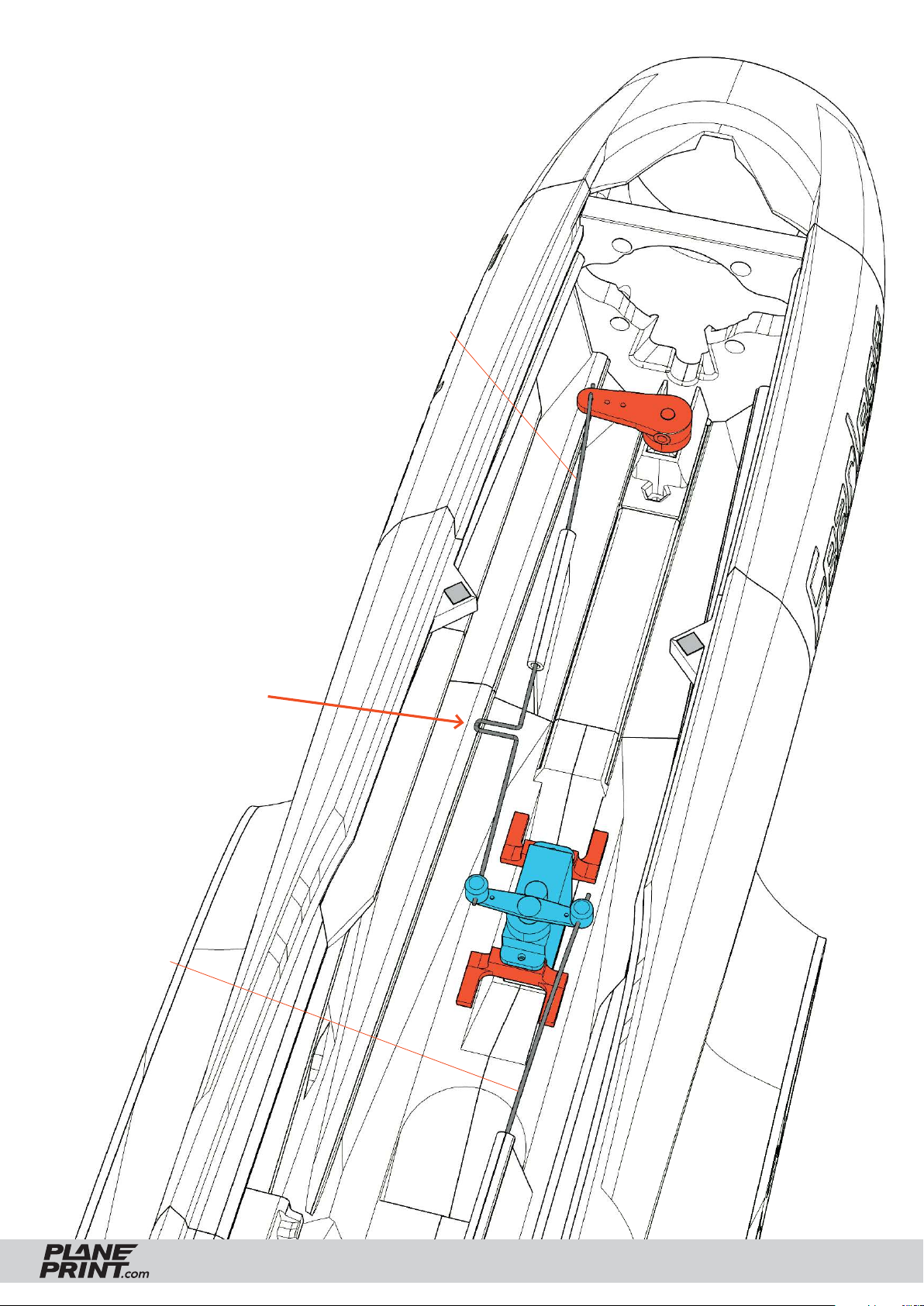

Servo mount – Rudder
Mount the servo as shown in the picture.
Steel wire Ø1mm
gear front
Bend a bend in the wire with
the pliers to relieve the servo
before the front gear strikes.
Steel wire Ø1mm
rudder
P1_Servobrackets fuselage_F.stl
FEARLESS
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
46
Page 47

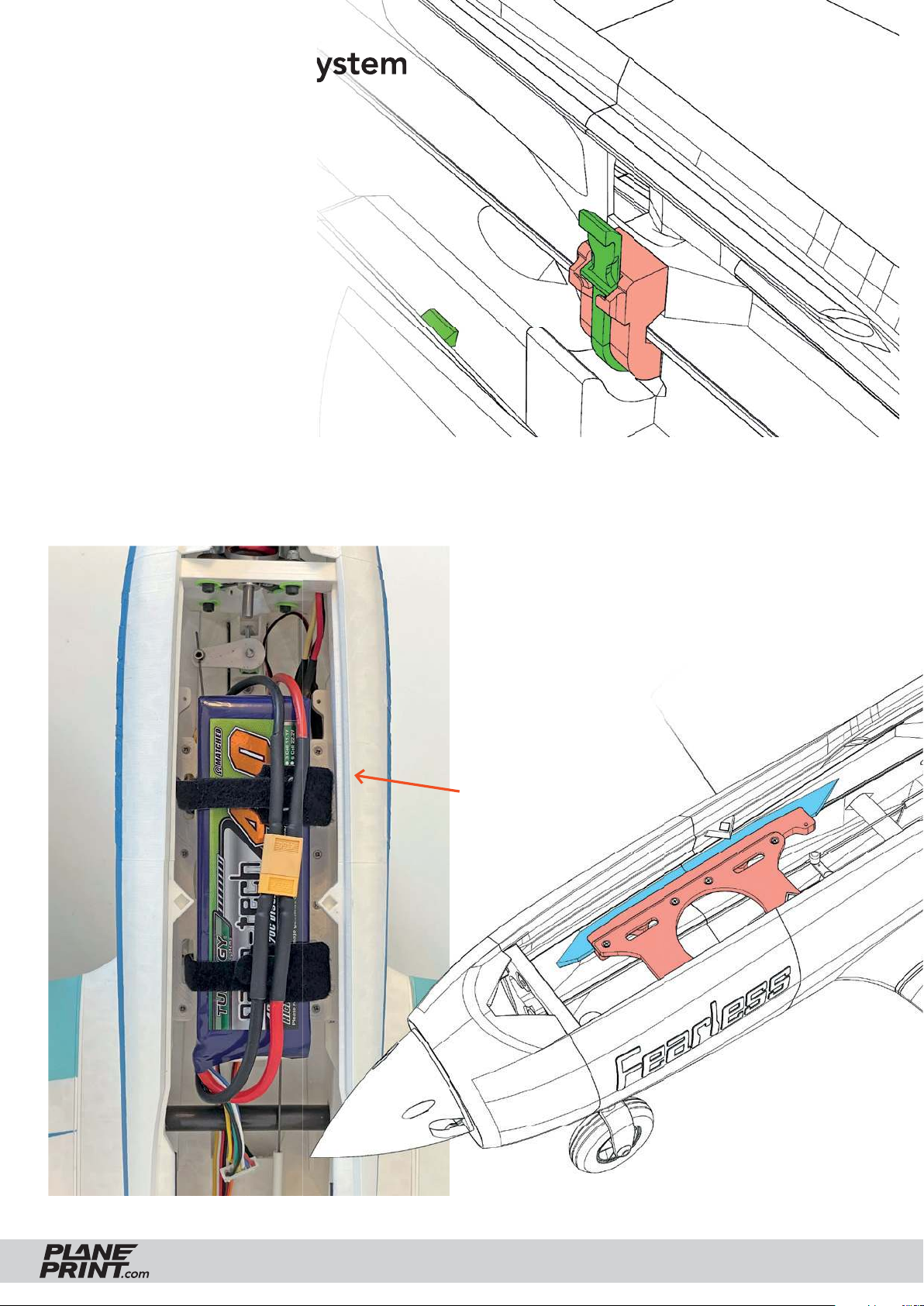

Wing mounting system
To secure the wings, pull the handles
of the tension belts inward and hook
them into the PLA holders.
The tension belts should normally
be relaxed so that they do not
overstretch.
Battery mount
Screw the battery mount together with the holders
with 2 screws each and glue them into the fuselage
(marked blue) as shown in the picture. Remove the
battery mount again and let thin CA glue run into
all edges of the holders, these must be very well
connected to the fuselage! Then screw the plate back
in place with all 8 screws. you can mount it in two
positions depending on the weight of your battery.
The controller fi ts
under the battery plate.
FEARLESS
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
47
Page 48

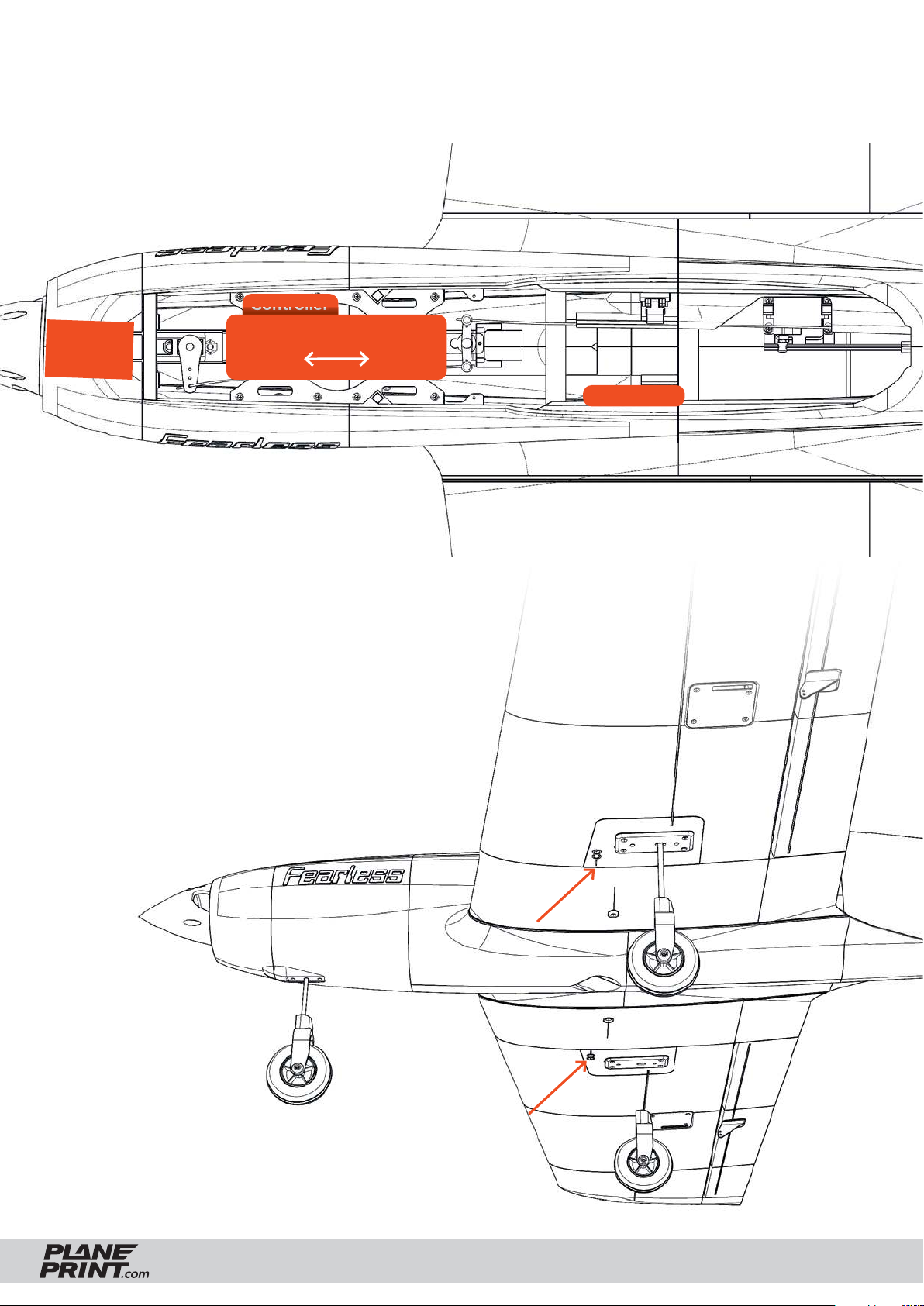

RC components
Use self-adhesive Velcro tape
to attach the RC components.
Set the exact CG by positioning
the battery.
Controller
Motor
Battery
Center of Gravity (CG)
The aircraft must balance precisely on these points.
Do not forget to check if the wings are exactly
in ballance in the roll axis. If one wing is heavier,
correct this with a small weight on the wingtip.
Receiver
FEARLESS
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
48
Page 49

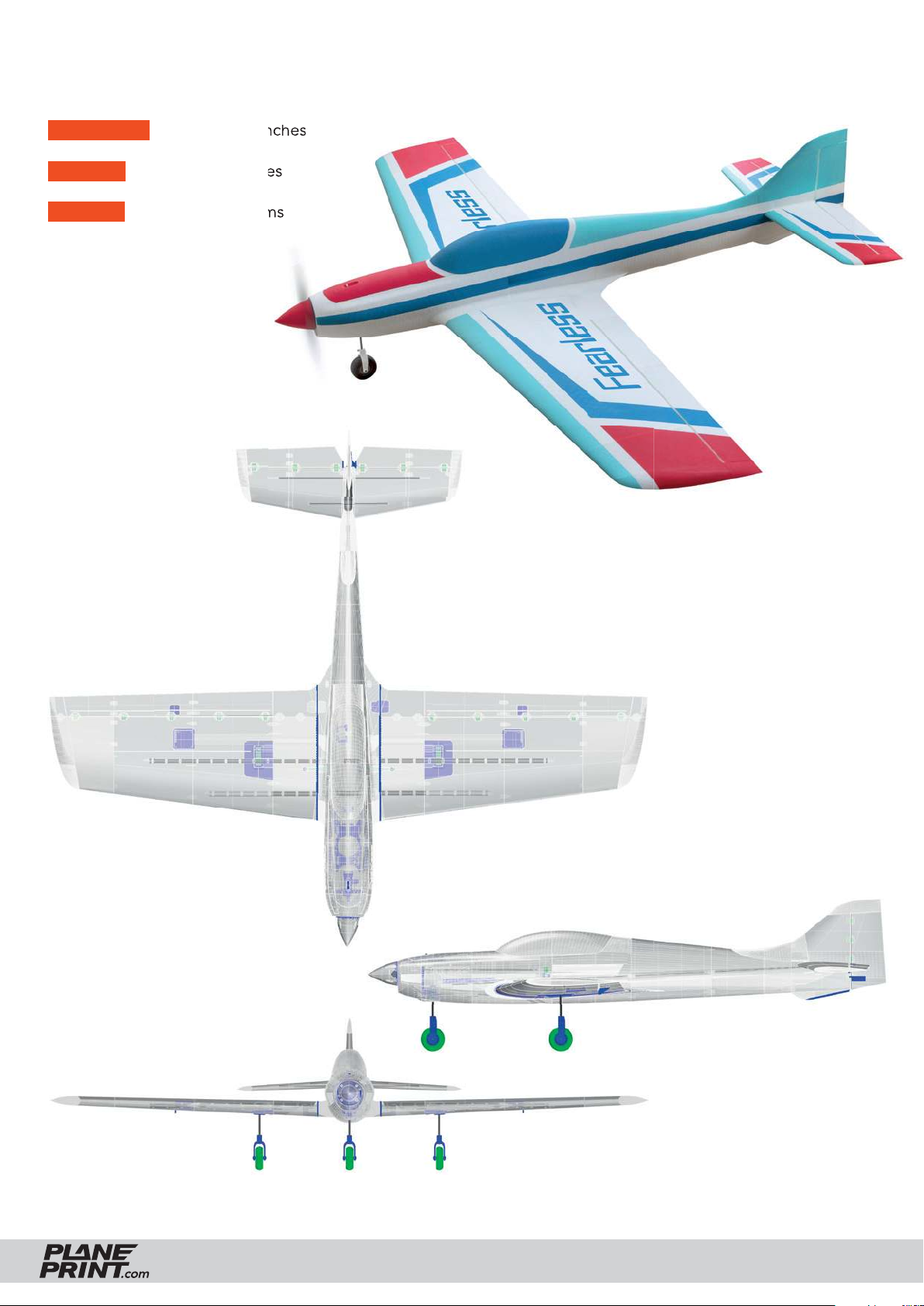

Technical specifi cations
WINGSPAN 1500 mm/59 inches
LENGTH 1300 mm/51 inches
WEIGHT 2700 to 3100 grams
FEARLESS
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
49
Page 50

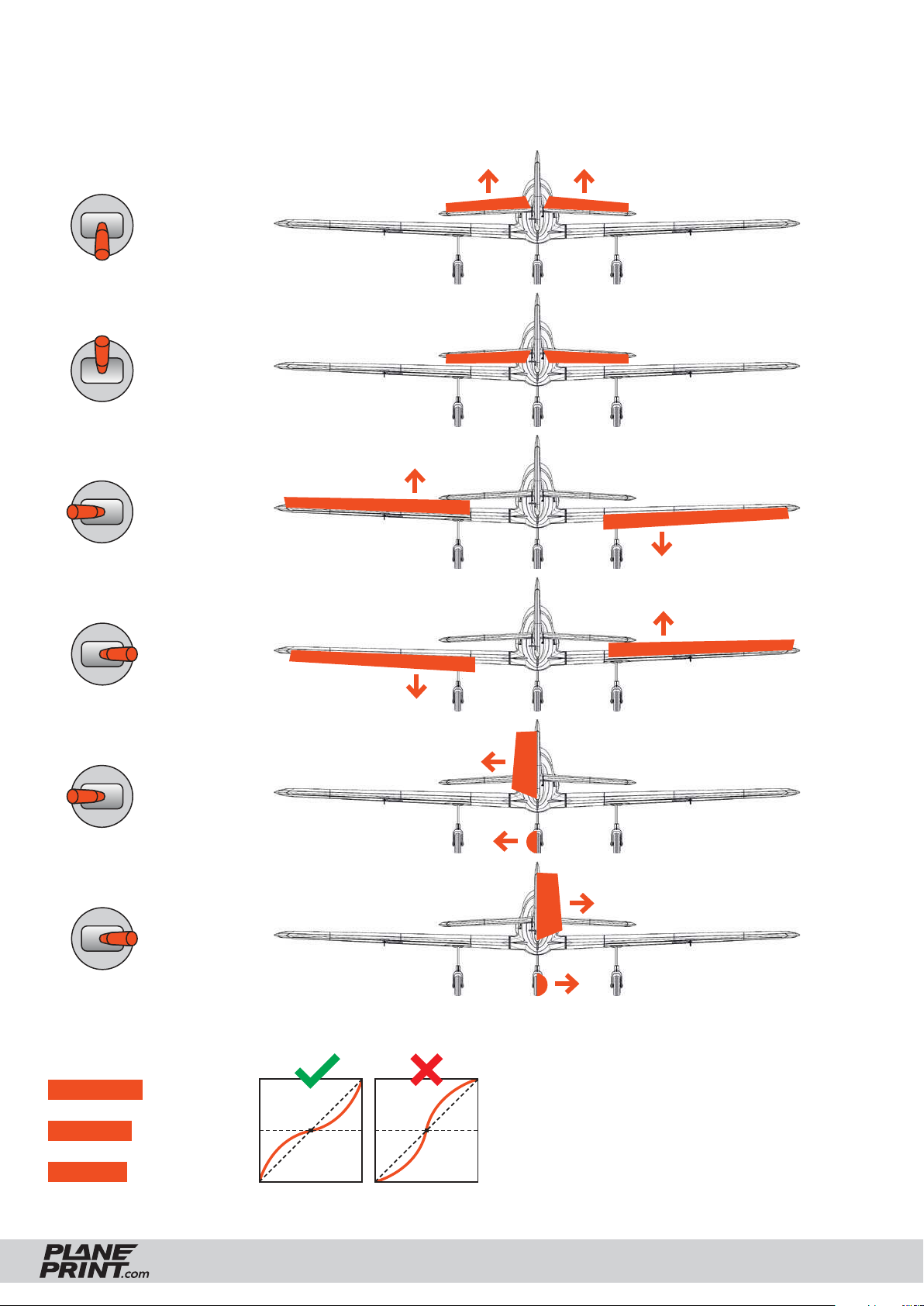

Settings for fl ying
When checking the control directions, look at the aircraft from behind.
Elevator up
Elevator down
Aileron left
Aileron right
+ 18 mm up + 18 mm up
+ 16 mm up
+ 16 mm down
+ 16 mm up
Rudder left
Rudder right
Expo setting
ELEVATOR 30 %
AILERON 30 %
RUDDER 20 %
+ 16 mm down
+ 40 mm left
+ 40 mm right
(for some remote
controls a minus
has to be in front
of the number)
FEARLESS
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
50
Page 51
AGE RECOMMENDATION 14+
NOT FOR CHILDREN UNDER 14 YEARS.
THIS IS NOT A TOY!
The STL data (or data processed from it, such as G codes)
must never be passed on to third parties!
The purchase of the STL does not authorize the production
of models for third parties.
By using the download data, an RC model airplane, called
„model“ for short, can be manufactured using a 3D printer.
As a user of this model, only you are responsible for safe
operation that does not endanger you or others, or that
does not damage the model or property of others.
PLANEPRINT.com assumes no responsibility for damage to
persons and property caused by pressure, transport or use
of the product. Filaments, printing supplies, hardware or
consumables that can not be used after faulty 3D printing
will not be replaced by PLANEPRINT.com in any way.
When operating, always keep a safe distance from your
model in all directions to avoid collisions and injuries.
This model is controlled by a radio signal. Radio signals can
be disturbed from outside without being able to influence
it. Interference can lead to a temporary loss of control.
Always operate your model on open terrains, far from cars,
traffic and people.
Keep all chemicals, small parts and electrical components
out of the reach of children.
Avoid water contact with all components that are not specially
designed and protected. Moisture damages the electronics.
Never take an item of the model or accessory in your mouth
as this can lead to severe injuries or even death.
Never operate your model with low batteries in the transmitter or model.
Always keep the model in view and under control.
Use only fully charged batteries.
Always keep the transmitter switched on when the model
is switched on.
Always remove the battery before disassembling the model.
Keep moving parts clean and dry at all times.
Always allow the parts to cool before touching them.
Always remove the battery after use.
Make sure that the Failsafe is properly set before the flight.
Always follow the instructions and warnings for this product
and any optional accessories (servos, receivers, motors,
propellers, chargers, rechargeable batteries, etc.) carefully.
We develop our models to the best of our knowledge and belief.
We accept no liability for consequential damage and injuries
caused by improper use or incorrectly printed parts. Please be
careful when handling motors, batteries and propellers and
only move your model with insurance and in approved places!
Never operate the model with damaged wiring.
Never touch moving parts.
© PLANEPRINT.com, A-6021 Innsbruck, Conradstraße 6, [email protected]
© Design STL files by René Marschall • Layout: marschall designlab, marschall.cc
Loading...
