Single-engine, acro-capable RC plane with towing function
NOTE:
Slicing works best
with CURA!
www.planeprint.com
the ONLY place where you can get
original Planeprint STL fi les legally!
PRINTING & ASSEMBLING MANUAL
Page 2

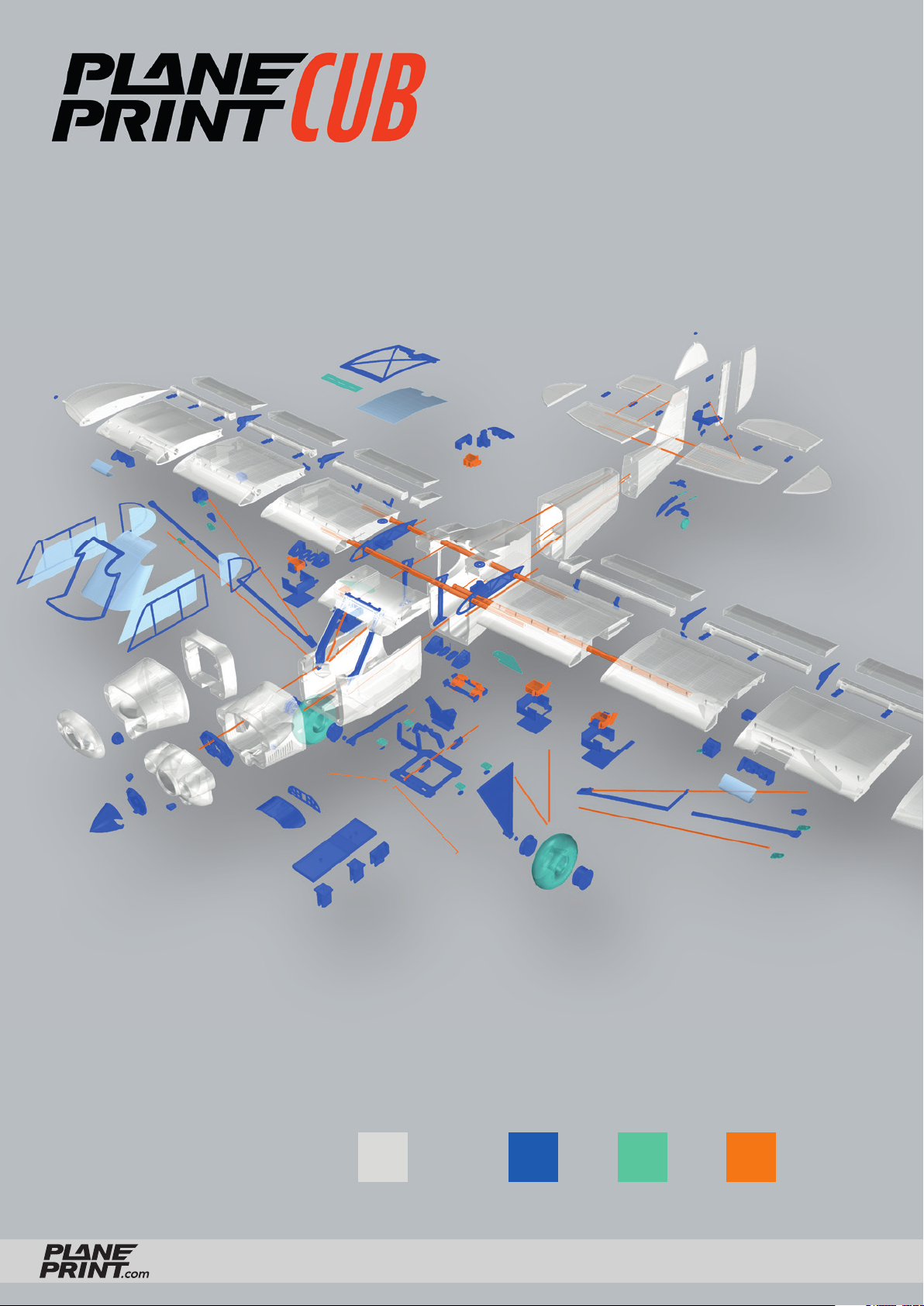

PLALW-PLA OTHERTPU
PLANEPRINT CUB
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
2
Page 3
RC Components

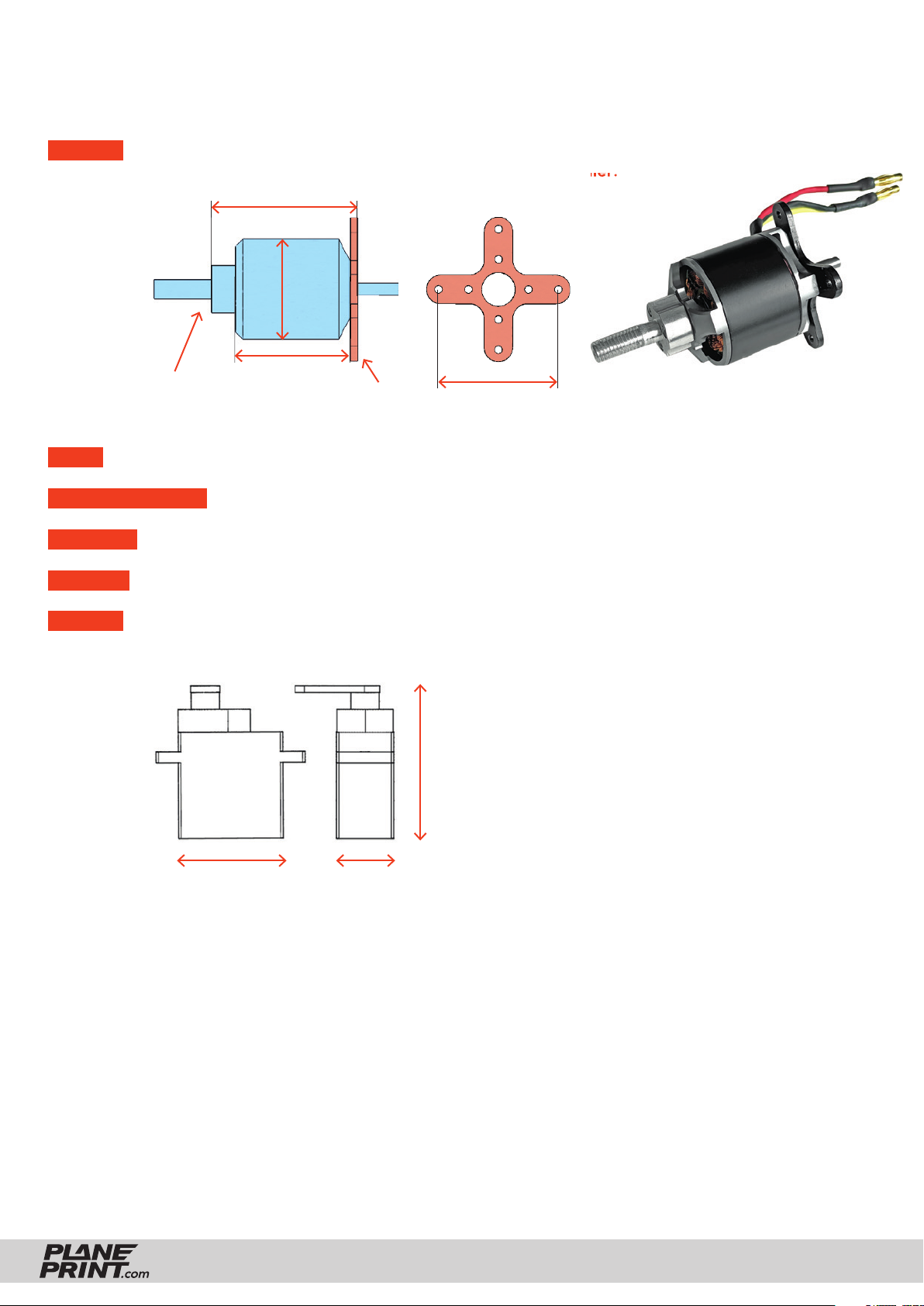

ENGINE PROPDRIVE V2 3548 900KV (HobbyKing) or comparable motors.
You can also use any other motor that fi ts a 12x6 propeller!
61 mm
max Ø42 mm
48 mm
Rear mountingProp
PROP 12x6, 12x7
BEC-CONTROLLER min 70 A (must fi t the engine!)
42 to 50 mm
RECEIVER 7 Channel (8 with towing function)
BATTERY 4S Lipo, 2600 – 3500 MaH (The battery should have a weight of 270 to 310 grams)
SERVOS 6 pieces like Hitec HS-5055 MG Digi or KST Clubman CM509MG or comparable
Dimensions:
max. 35 mm
23 mm max. 15 mm
PLANEPRINT CUB
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
3
Page 4
Required accessoires – basic equipment
Links to recommended accessories can be found on
www.planeprint.com/cub (scroll down)
• LW-PLA foaming! (cannot be replaced by PLA!), ~900 grams
• PLA oder better Tough PLA, ~350 grams
• TPU A95 and LW-TPU Colorfabb VarioShore, ~100 grams
Materials
• CA super glue (liquid and liquid medium)
• CA activator
• Contact adhesive like UHU POR
• Sortiment of Tapping screws Ø2mm
• Sortiment of Metal Screws Ø3mm and 4 Washers
• Metal screw Ø4*50mm, 2 pieces
• Carbon tube Ø10mm*1000mm (inside 8mm), 3 pieces strong wing
Cut the tubes to the following lengths (mm):
1 tube = 500, 500
1 tube = 650
1 tube = 650
or Carbon tube Ø10mm*1000mm (inside 8mm), 2 pieces light wing
Cut the tubes to the following lengths (mm):
1 tube = 500, 500
1 tube = 500, 500
• Carbon rod Ø3*1000mm, 7 pieces
Cut the rods to the following lengths (mm):
1 rod = 815, 103
1 rod = 440, 372, 100
1 rod = 438, 438, 103
1 rod = 438, 438, 103
1 rod = 200, 200, 200, 200, 134
1 rod = 322, 216, 216, 134
1 rod = 153, 153, 135, 135
• Steel wire Ø1*1000mm, 3 pieces
• Rod connection Hole for Ø1mm steel wire, 2 pieces
• Ball bearings 4x9x4mm, 4 pieces
• Servo extension cable 400mm, 4 pieces and 200mm, 2 pieces
• Neodym Super Magnets 5x5x5 mm, 4 pieces
• Self-adhesive Velcro tape
• Overhead foils or binding covers of scripts
(~0,2mm, offi ce trade) in DIN A4 format.

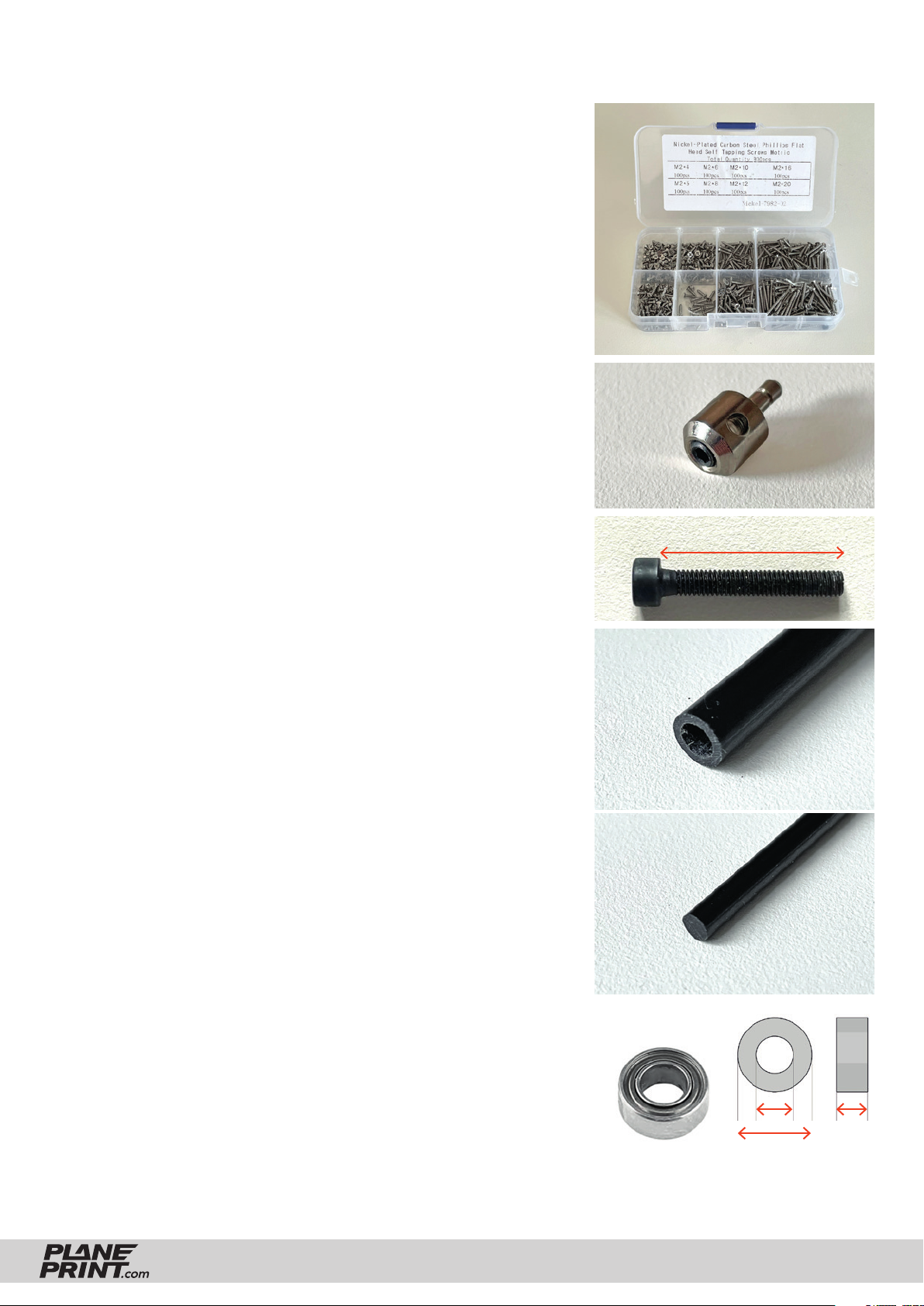

Tapping screws Ø2mm
Rod connection hole Ø 1 to 2mm
Metal screw
Carbon tube
Tools
Cutter knife, small Philips screwdriver, Sandpaper grain ~150,
Metal saw, Needle nose pliers, Soldering tool
PLANEPRINT CUB
Carbon rod
Ball bearings
PRINTING & ASSEMBLING MANUAL
4 4
9 mm
© PLANEPRINT
4
Page 5
The development of a complex, airworthy RC flight model to express on any standard 3D printer is a very extensive process. Therefore, we appeal to your fairness
not to forward the STL data you have acquired to third parties.
Thank you for your understanding and have fun with your PLANEPRINT MODEL!
Printing the parts – Printing profiles
This manual is constantly being improved and supplemented, we recommend
downloading the latest version from our website before building.
To print all PLANEPRINT models you need to set some basic profiles in Cura
(If you use another slicer, please set the same parameters).
You can find the description at www.planeprint.com/print
For this model you need the following profiles:
NOTE When printing the PLANEPRINT CUB you should pay particular attention to a light weight
of each individual part.

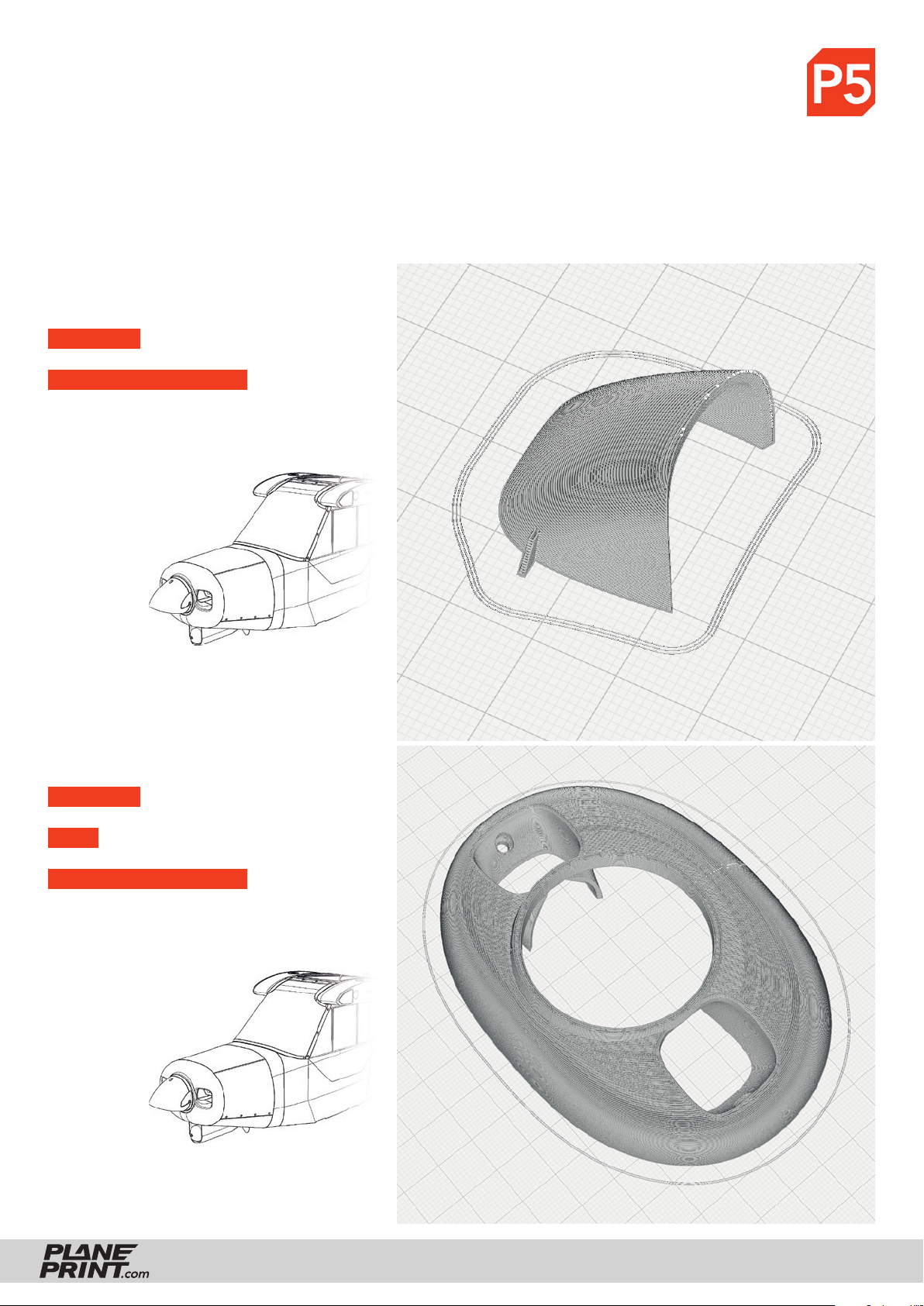

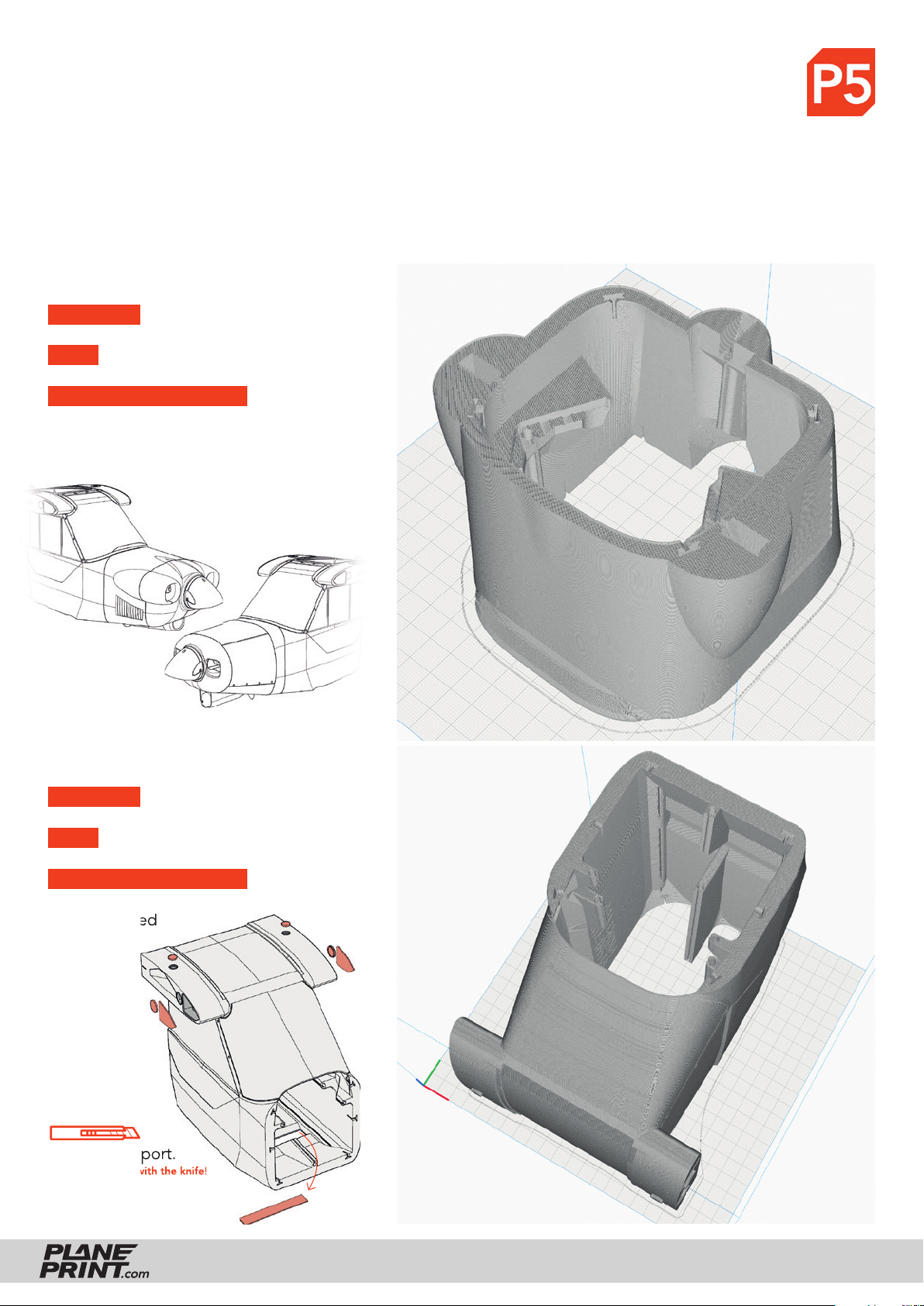

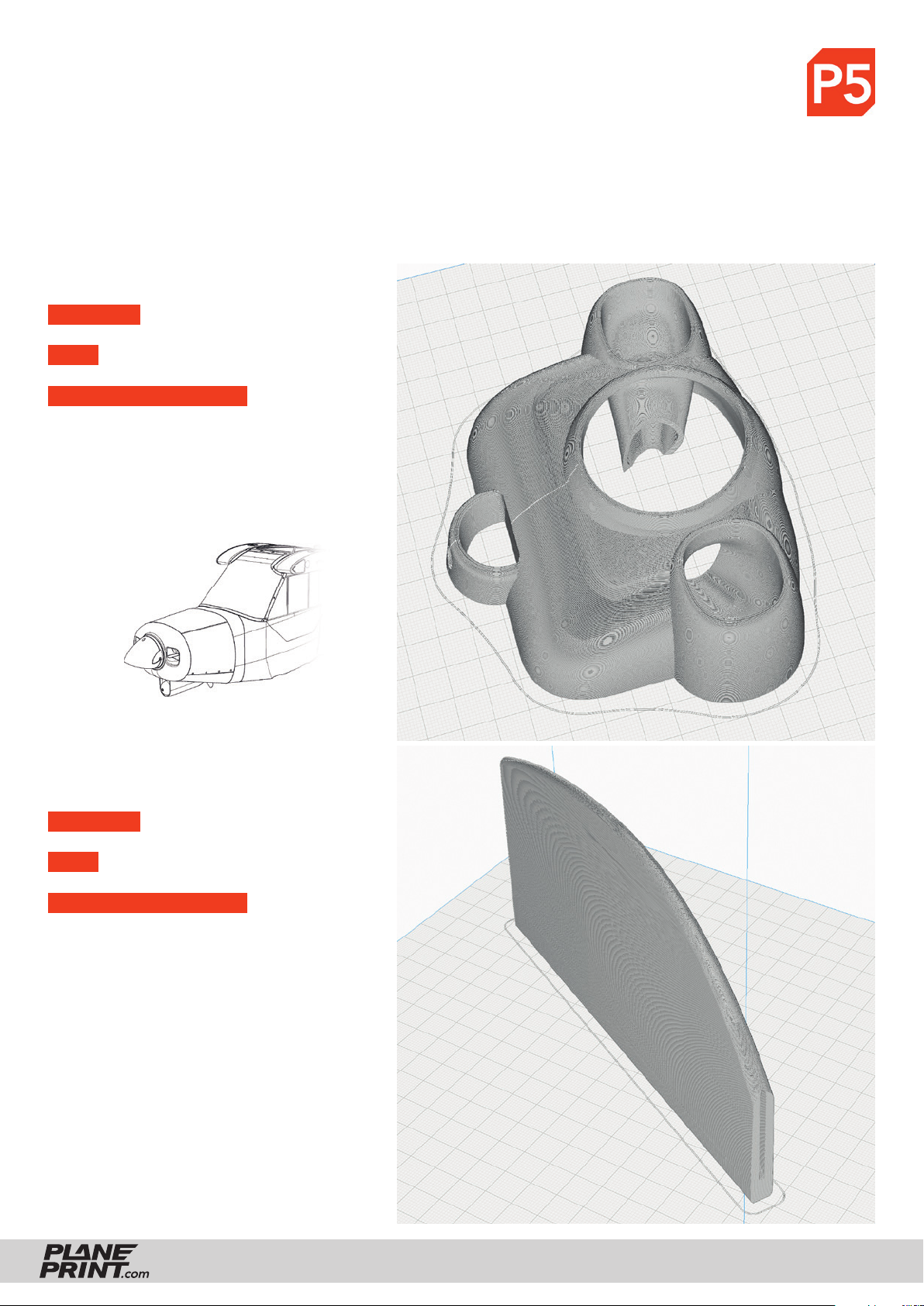

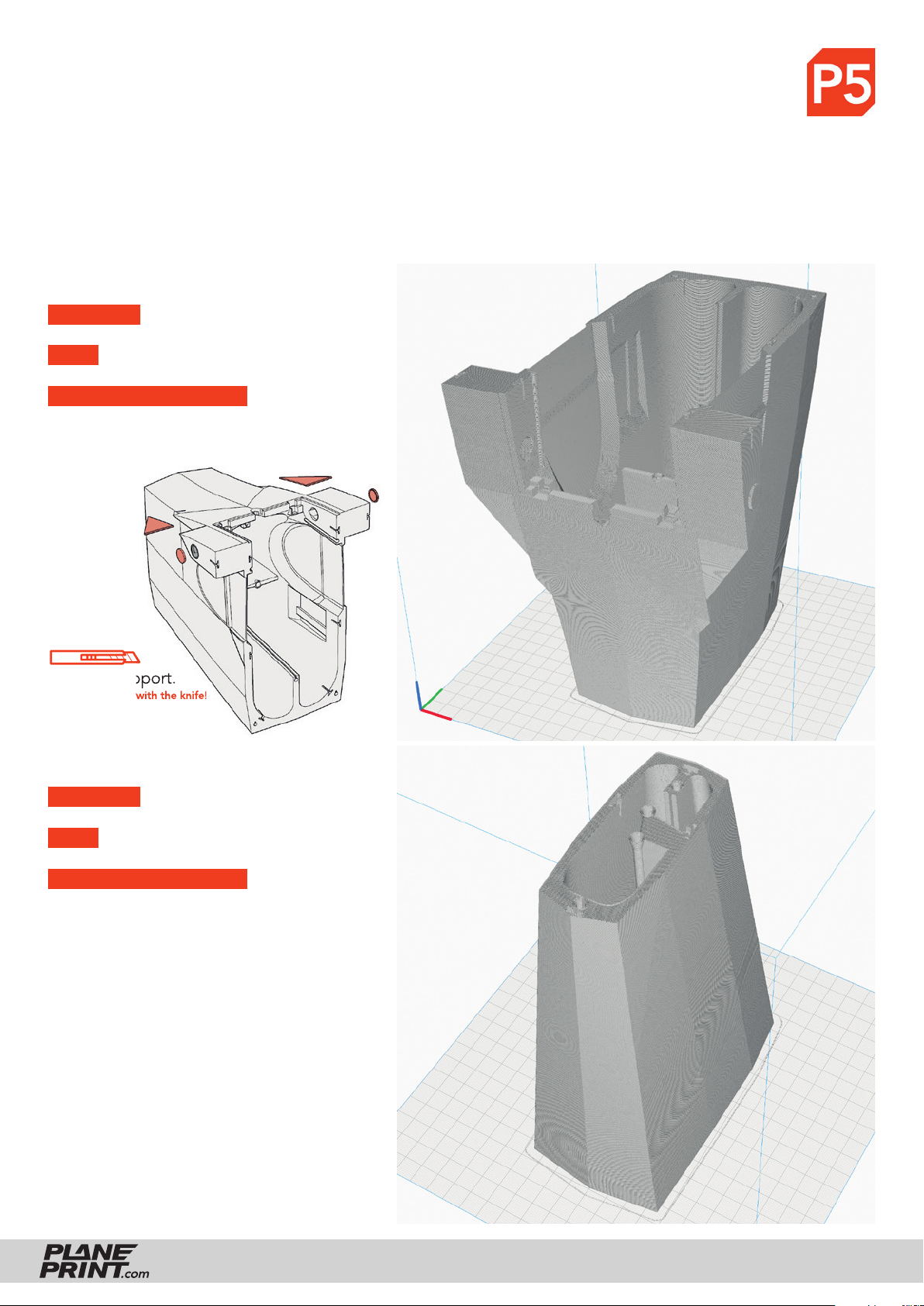

PROFILE P5_Gyroid
It is essential for the necessary stability of the LW parts
printed with PROFILE_5 are as stable as possible. Please
use a test part to check the strength by fracture tests. It must
not break along the layer lines under any circumstances! Also
note that the printing temperature for LW-PLA is as low as
possible to obtain a wall thickness of 0.4 to 0.6 mm at a flow
of 60 to 70 % (depending on brand).
Caution: at too high temperatures, LW-PLA becomes
brittle and breaks more easily.
PLANEPRINT CUB
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
5
Page 6

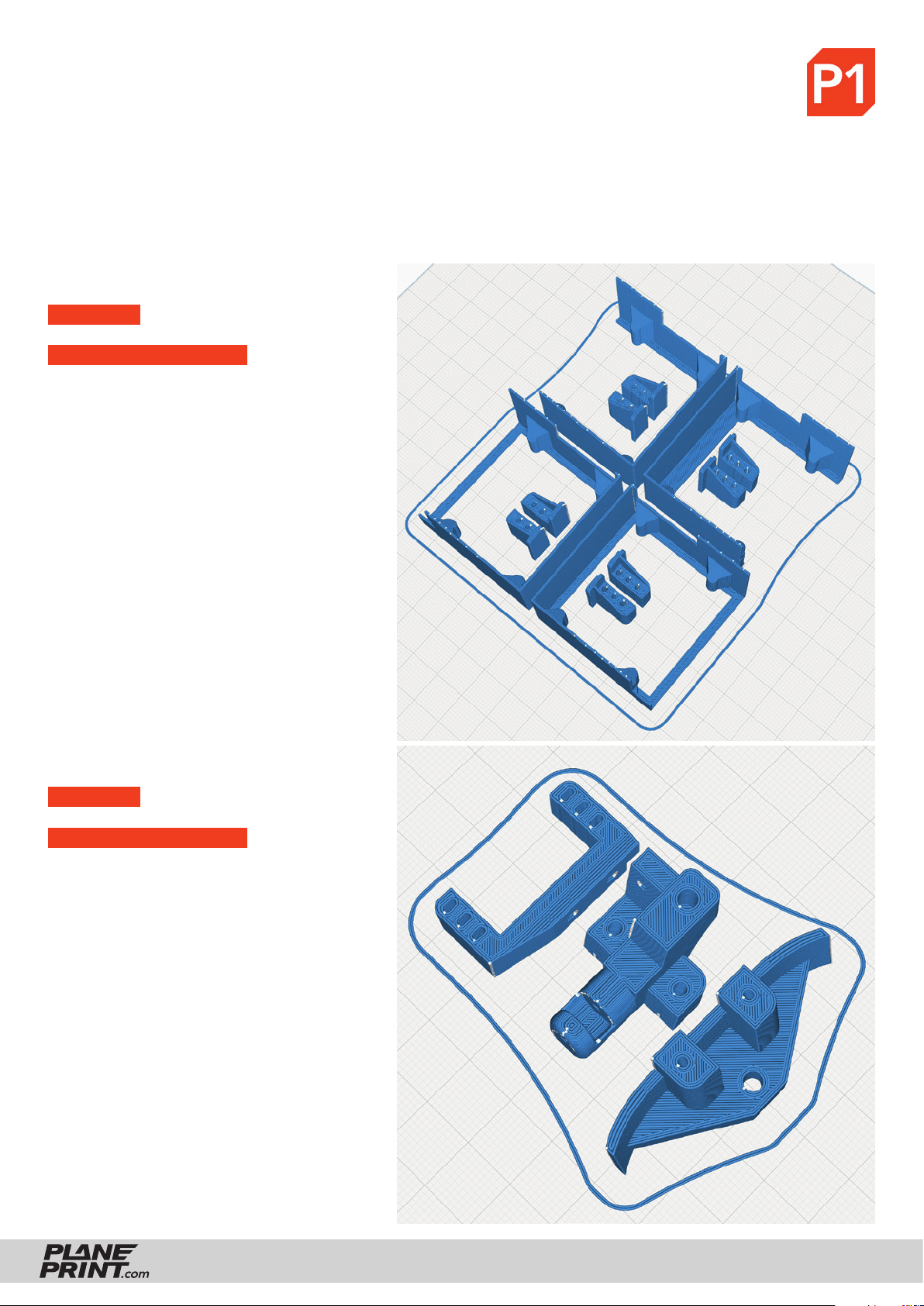

PROFILE P1_Fullbody Tough PLA or PLA
The information about the basic settings you can fi nd on our website at PRINT.
Please note the additional settings for the individual parts!

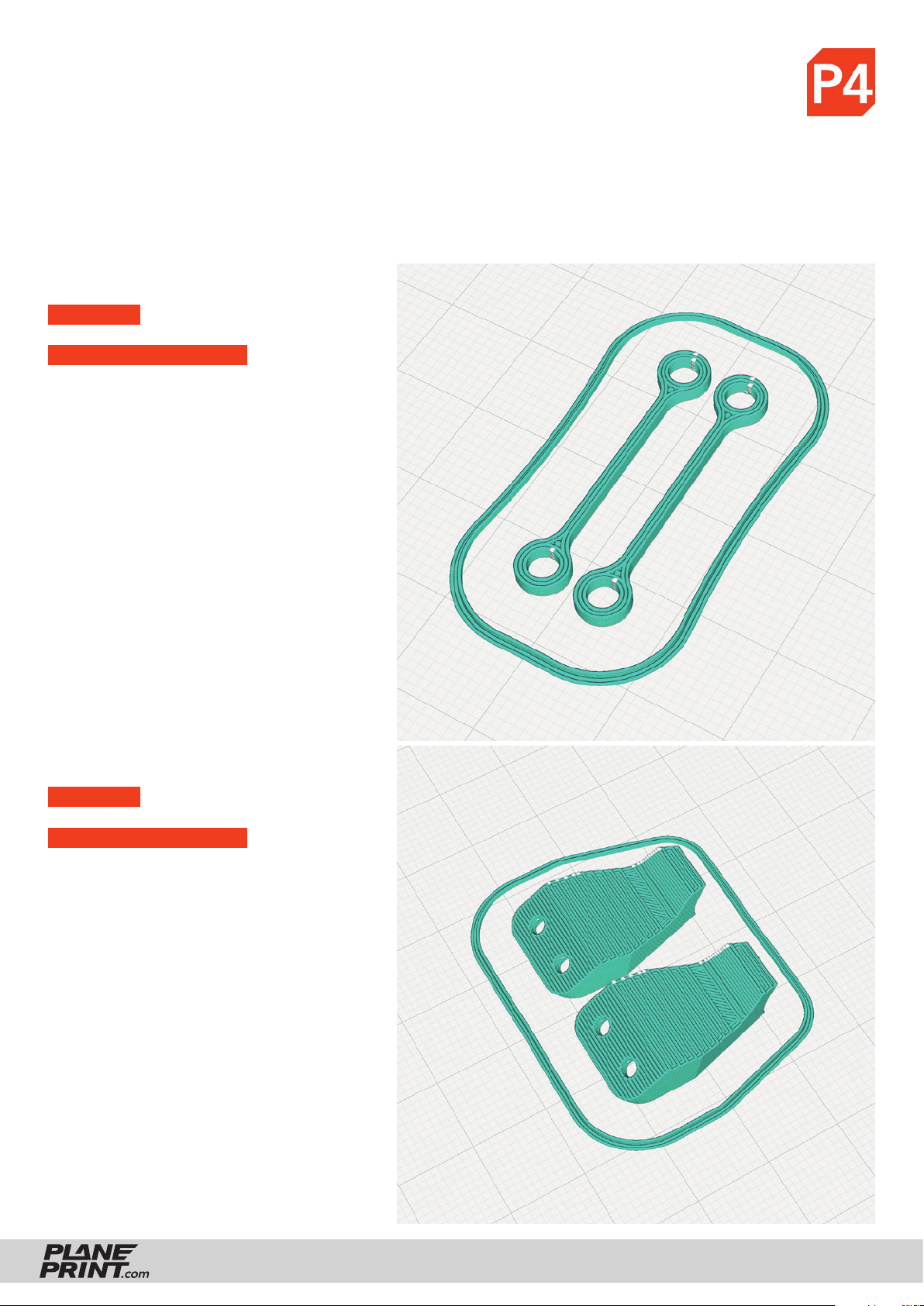

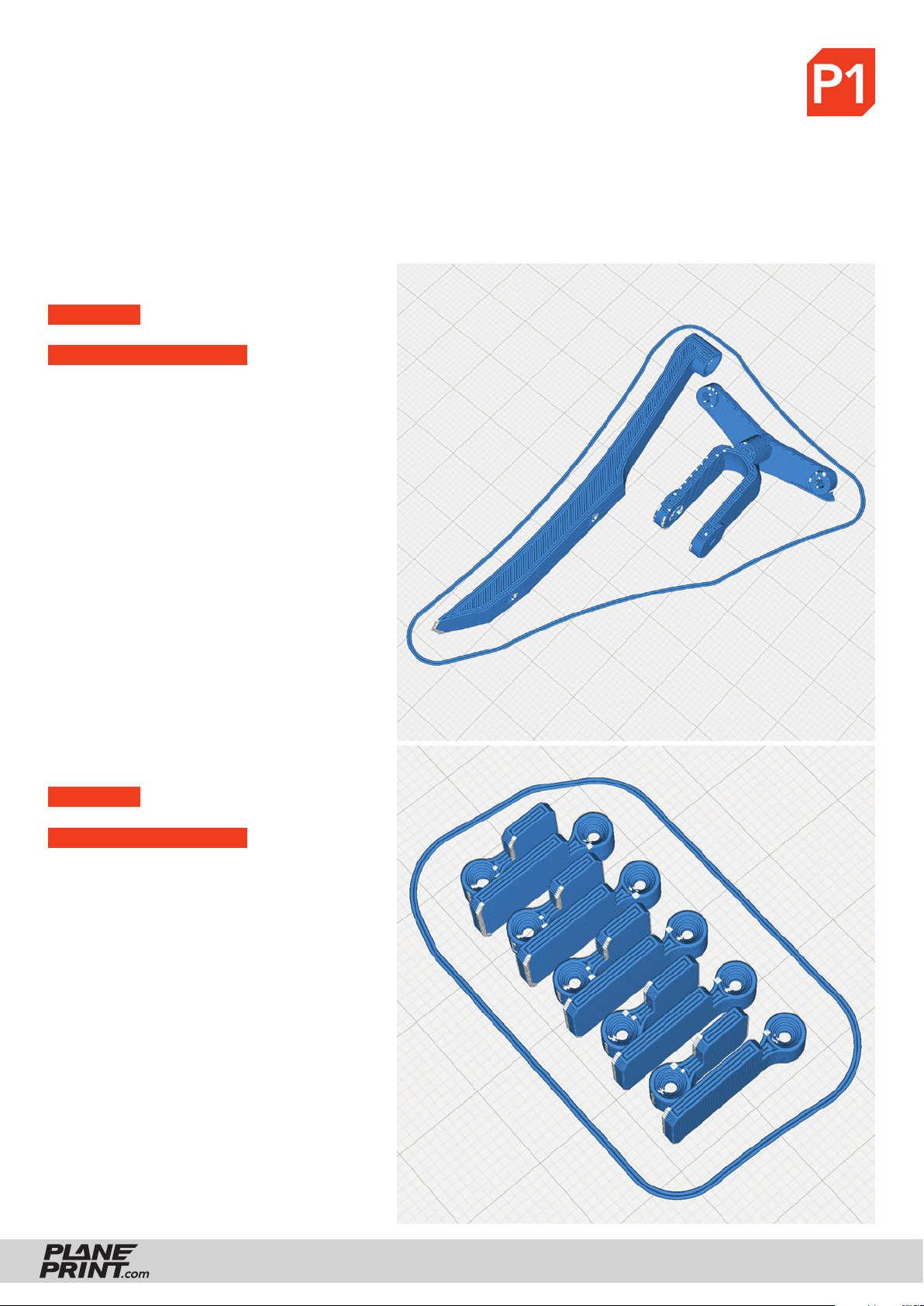

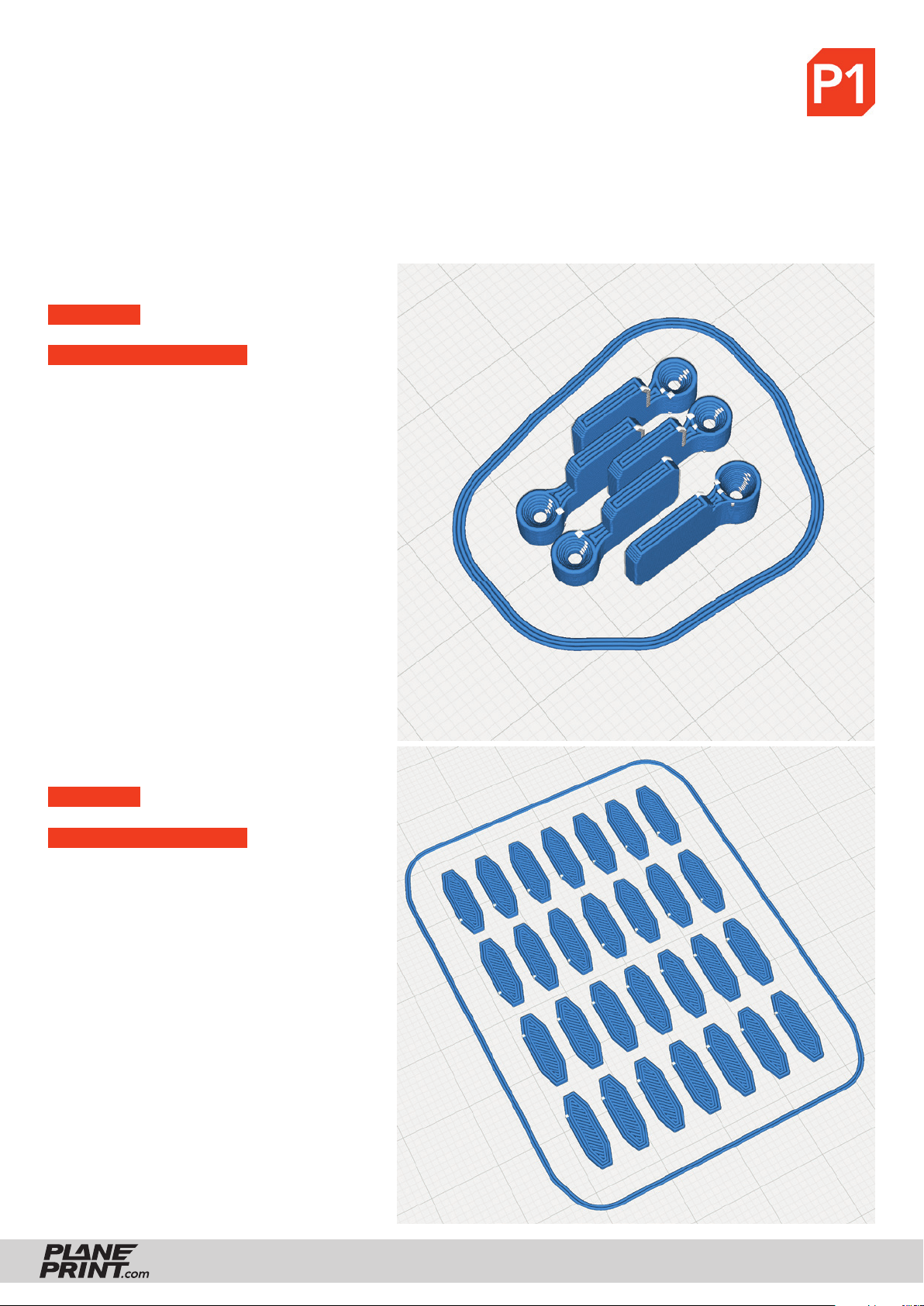

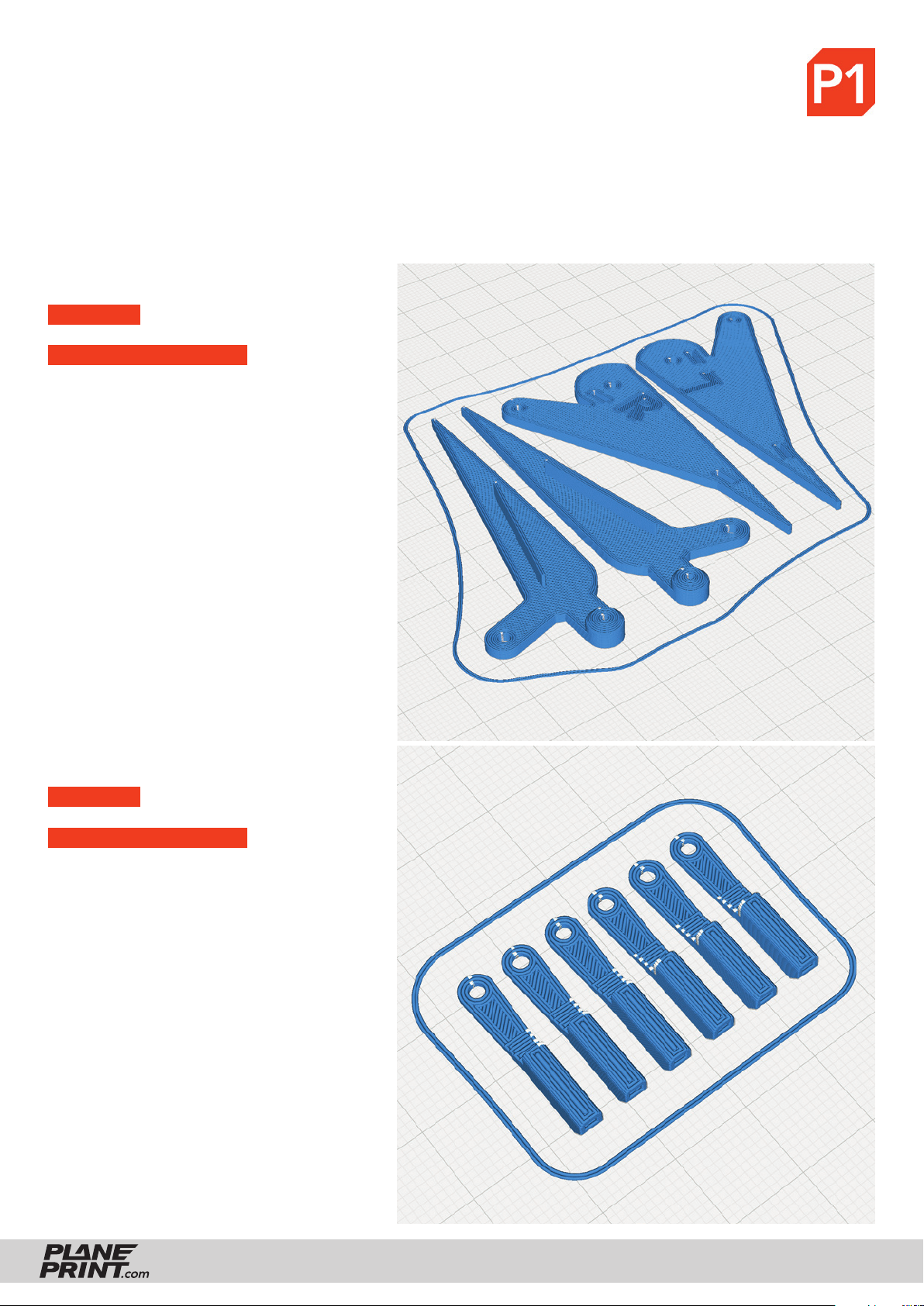

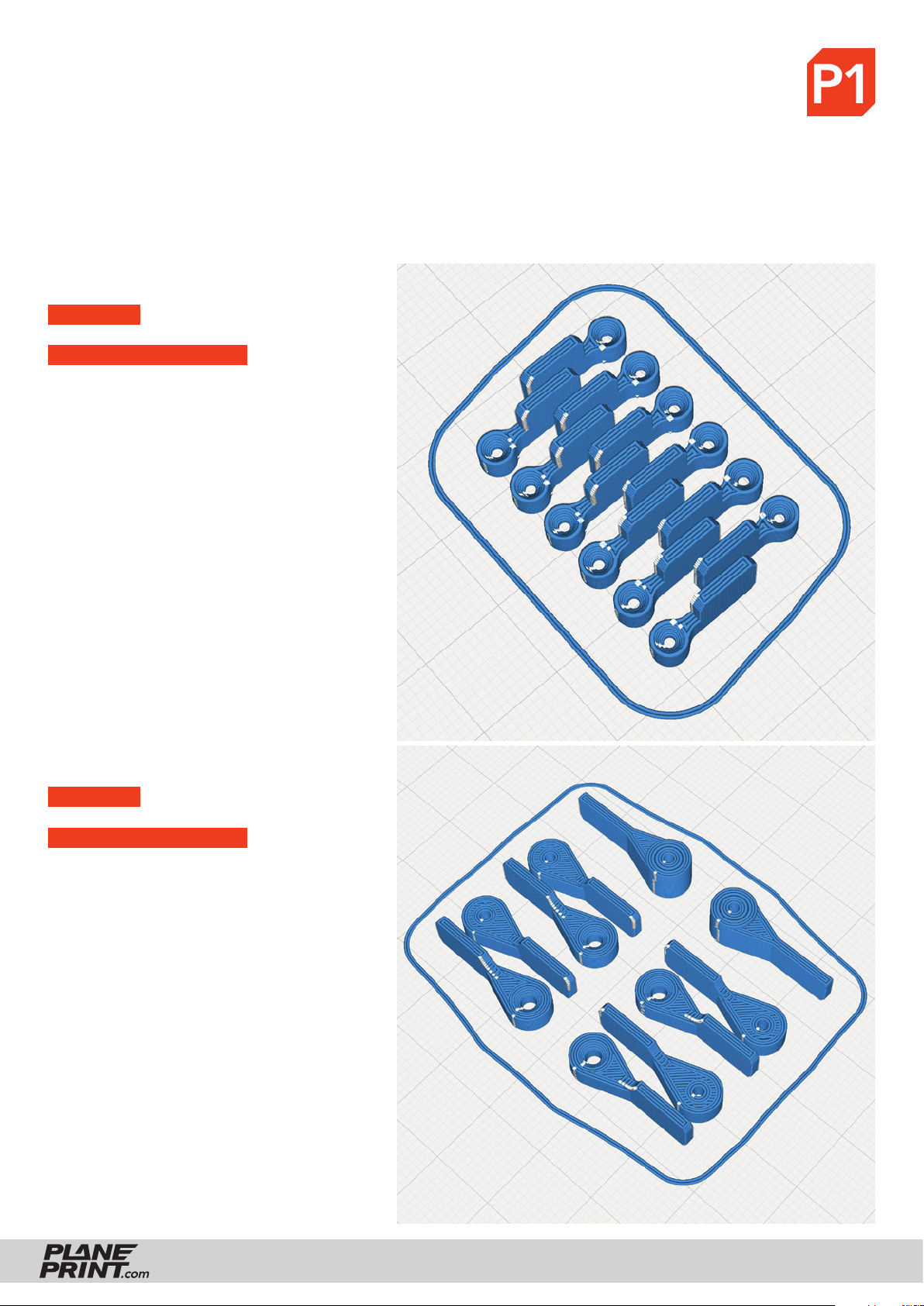

P1_AIL Horns_cub.stl
MATERIAL PLA, Weight: ~ 9 g
ADDITIONAL SETTINGS
None required
P1_Clips 1mm_cub.stl
MATERIAL PLA, Weight: ~ 1 g
ADDITIONAL SETTINGS
None required
PLANEPRINT CUB
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
6
Page 7
PROFILE P1_Fullbody Tough PLA or PLA
The information about the basic settings you can find on our website at PRINT.
Please note the additional settings for the individual parts!

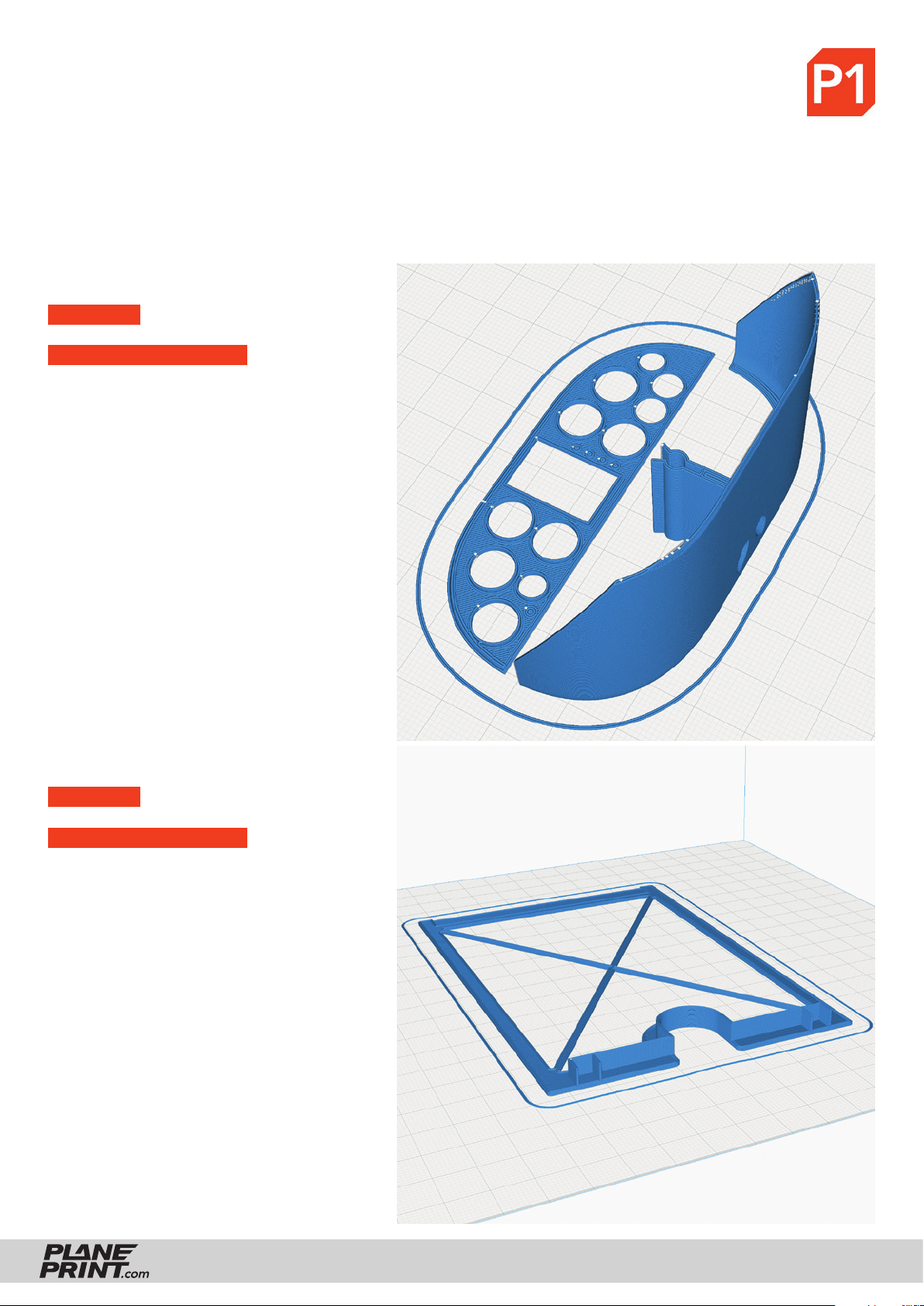

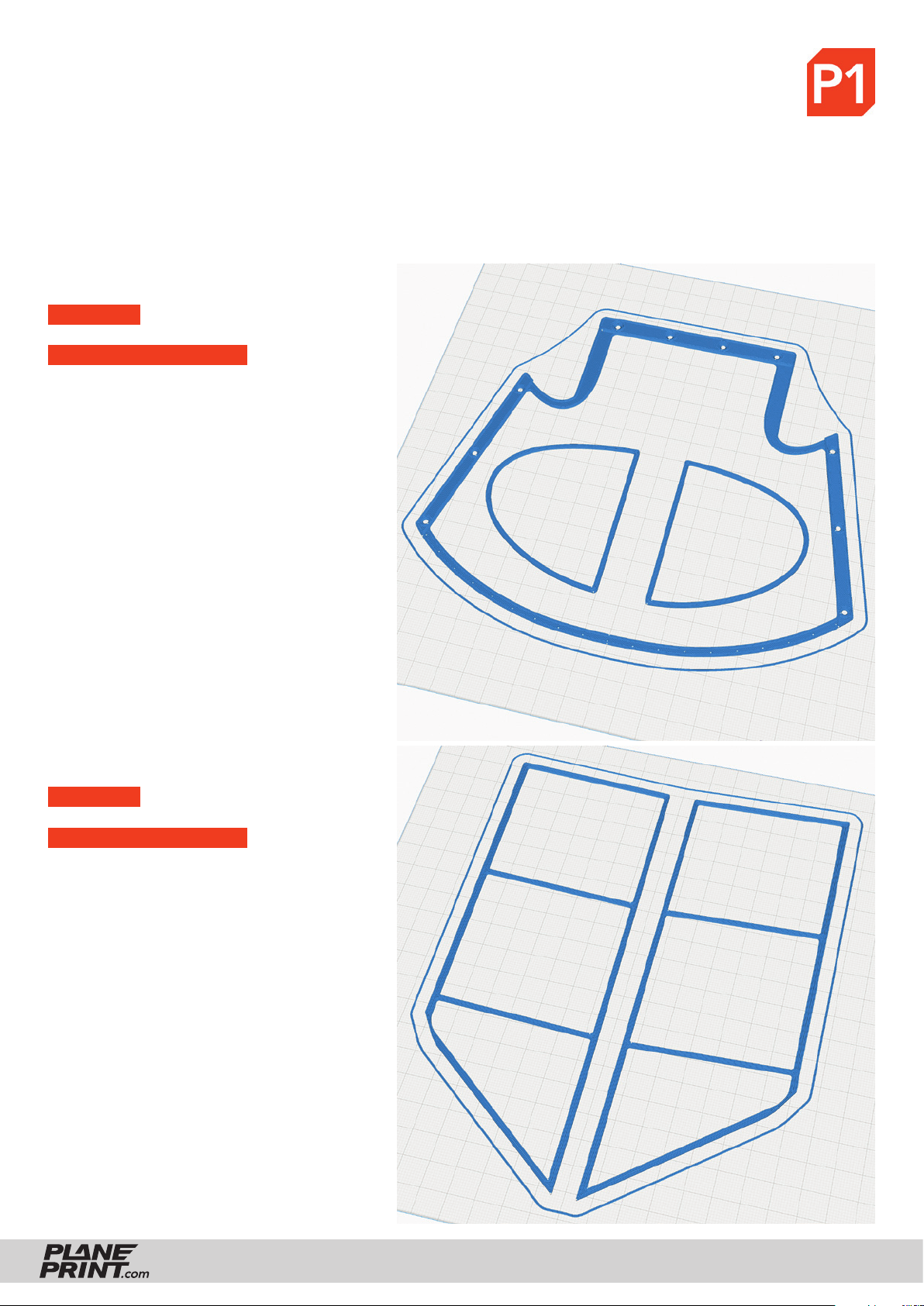

P1_Cockpit_cub.stl
MATERIAL PLA, Weight: ~ 6 g
ADDITIONAL SETTINGS
None required
P1_Cover_cub.stl
MATERIAL PLA, Weight: ~ 5 g
ADDITIONAL SETTINGS
None required
PLANEPRINT CUB
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
7
Page 8
PROFILE P1_Fullbody Tough PLA or PLA
The information about the basic settings you can find on our website at PRINT.
Please note the additional settings for the individual parts!

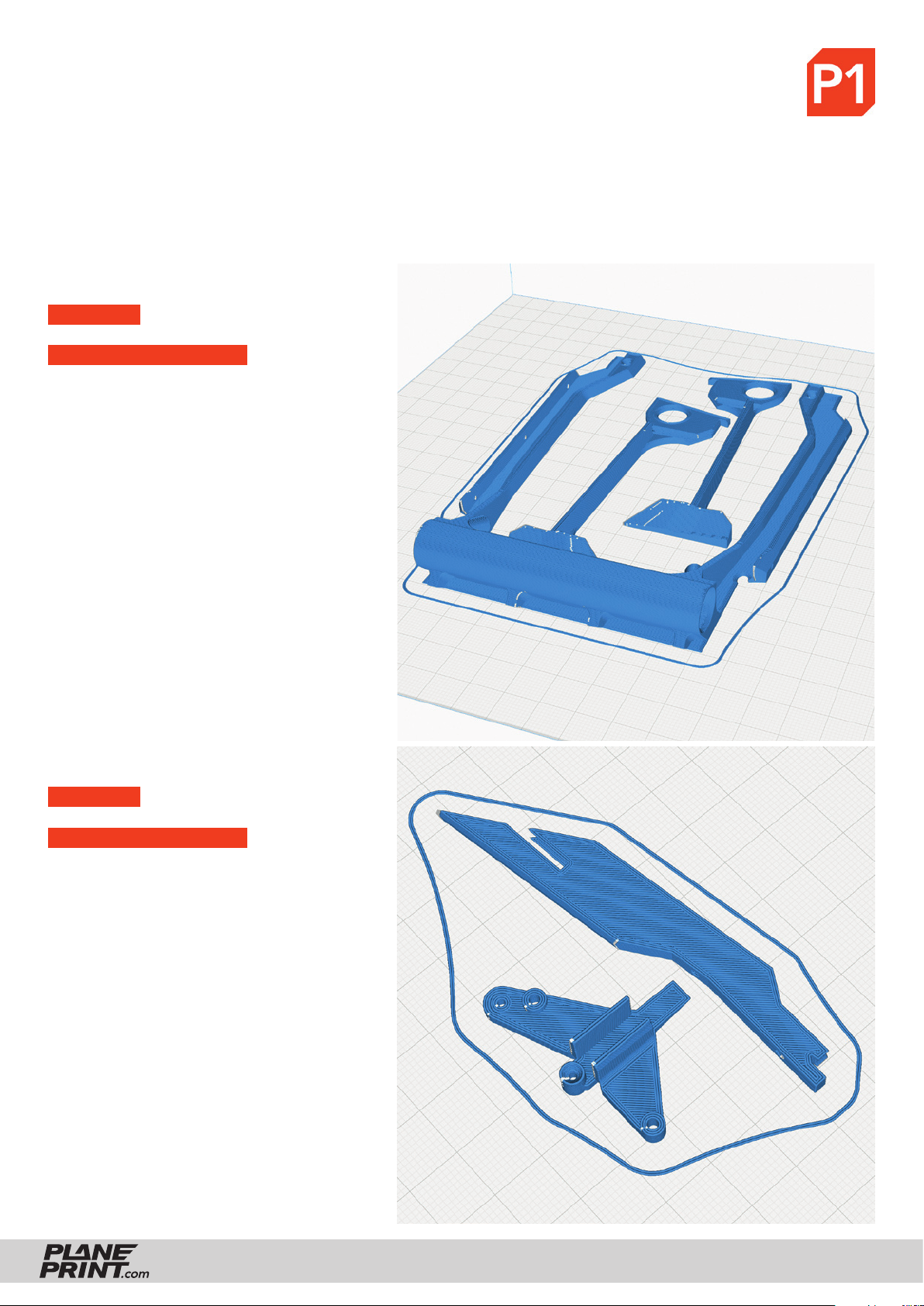

P1_Frame_cub.stl
MATERIAL PLA, Weight: ~ 27 g
ADDITIONAL SETTINGS
None required
P1_Gear back 1_cub.stl
MATERIAL PLA, Weight: ~ 4 g
ADDITIONAL SETTINGS
None required
PLANEPRINT CUB
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
8
Page 9
PROFILE P1_Fullbody Tough PLA or PLA
The information about the basic settings you can find on our website at PRINT.
Please note the additional settings for the individual parts!
P1_Gear back 2_cub.stl
MATERIAL PLA, Weight: ~ 4 g
ADDITIONAL SETTINGS
None required

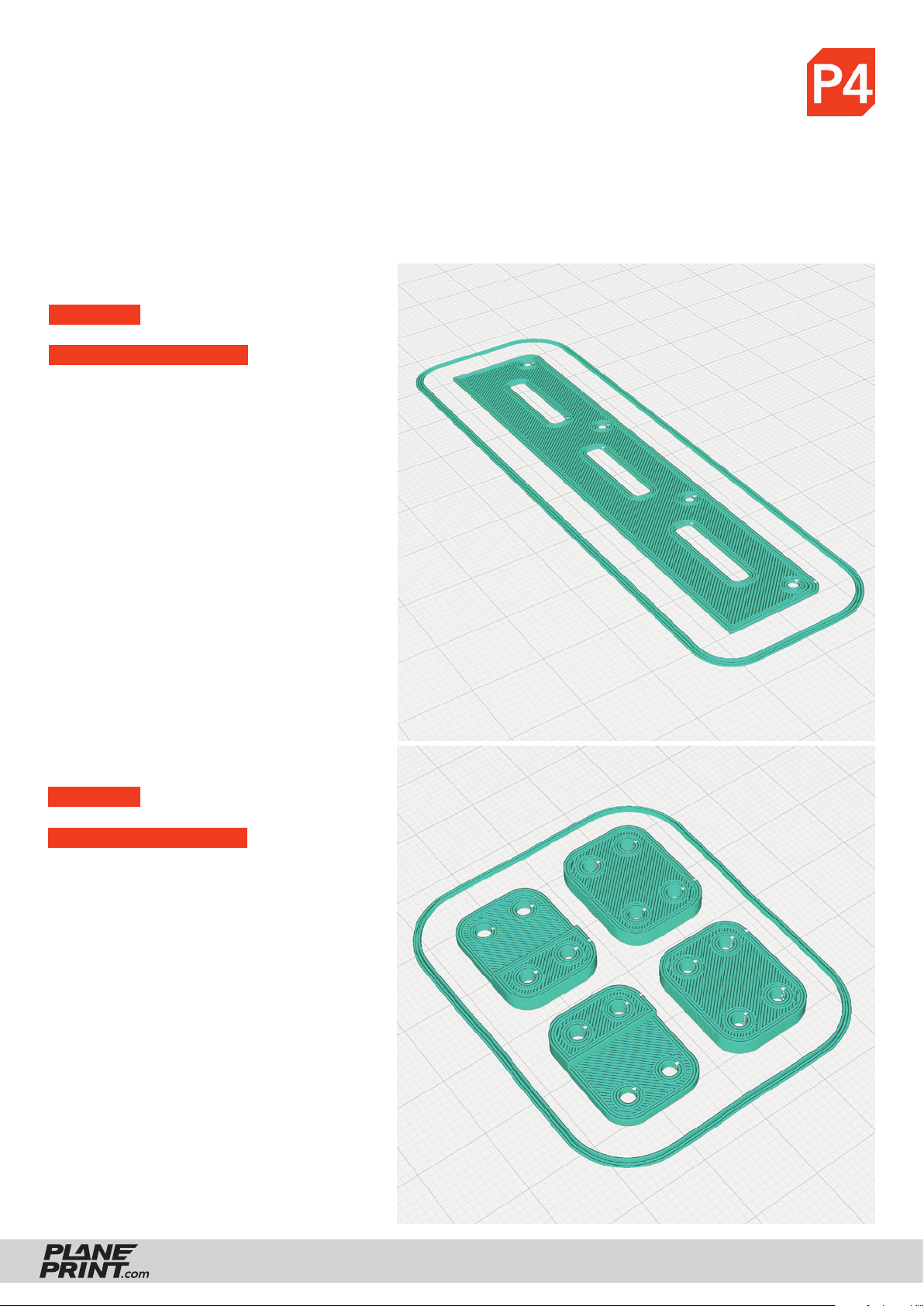

P1_Hinges AIL_cub.stl
MATERIAL PLA, Weight: ~ 2 g
ADDITIONAL SETTINGS
• Print twice
PLANEPRINT CUB
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
9
Page 10
PROFILE P1_Fullbody Tough PLA or PLA
The information about the basic settings you can find on our website at PRINT.
Please note the additional settings for the individual parts!
P1_Hinges ELE_cub.stl
MATERIAL PLA, Weight: ~ 2 g
ADDITIONAL SETTINGS
None required
P1_Hinges Flap_cub.stl
MATERIAL PLA, Weight: ~ 4 g
ADDITIONAL SETTINGS
None required
PLANEPRINT CUB
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
10
Page 11
PROFILE P1_Fullbody Tough PLA or PLA
The information about the basic settings you can fi nd on our website at PRINT.
Please note the additional settings for the individual parts!
P1_Hinges RUD_cub.stl
MATERIAL PLA, Weight: ~ 1 g
ADDITIONAL SETTINGS
None required
P1_Interconnects small_cub.stl
MATERIAL PLA, Weight: ~ 1 g
ADDITIONAL SETTINGS
• Print twice
PLANEPRINT CUB
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
11
Page 12
PROFILE P1_Fullbody Tough PLA or PLA
The information about the basic settings you can find on our website at PRINT.
Please note the additional settings for the individual parts!

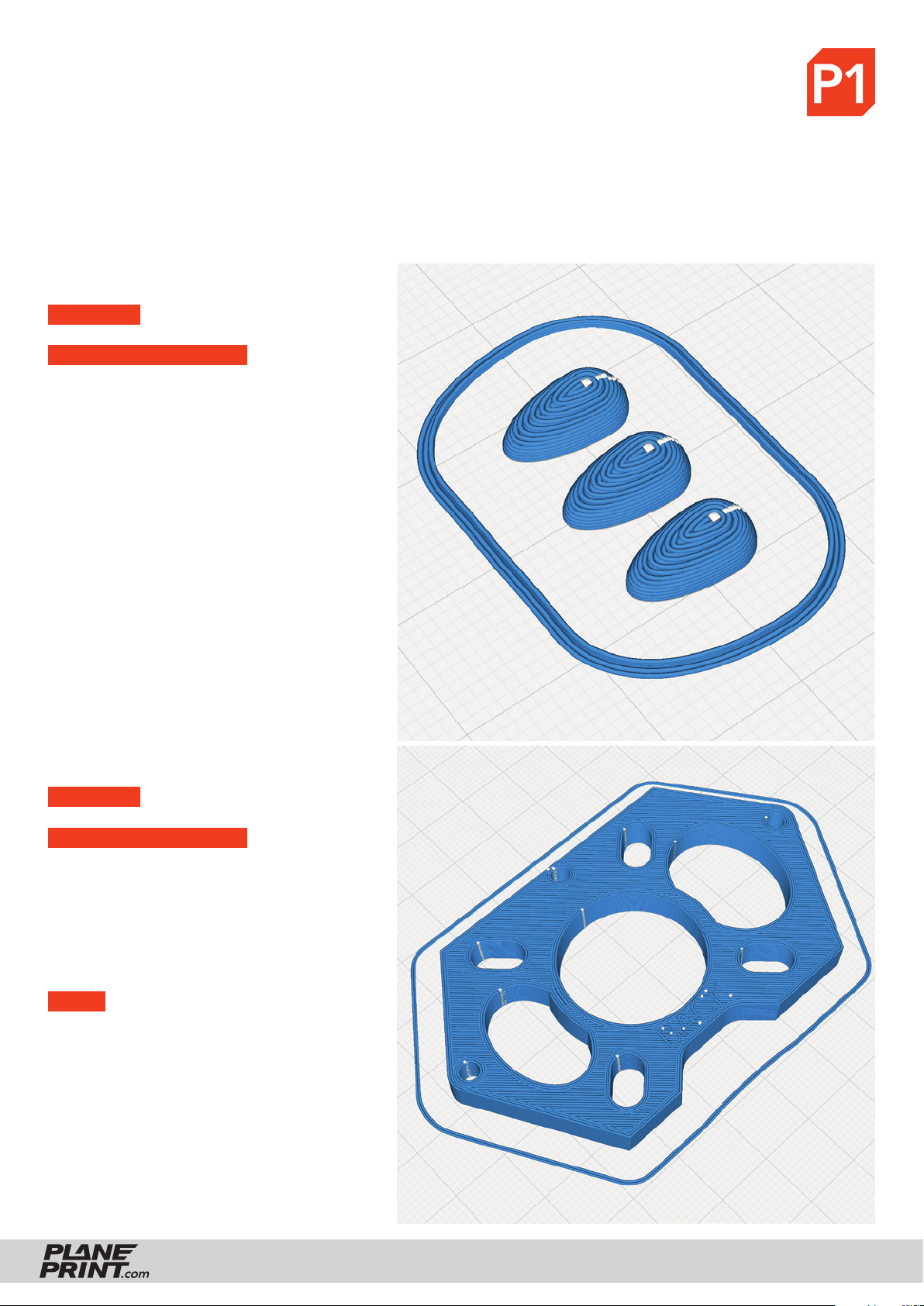

P1_Lights_cub.stl
MATERIAL PLA, Weight: ~ 1 g
ADDITIONAL SETTINGS
• Transparent filament recommended
P1_Motor plate_cub.stl
MATERIAL PLA, Weight: ~ 13 g
ADDITIONAL SETTINGS
None required
NOTE These part hold the motor and
must be absolutely stable! Ensure good
layer adhesion.
PLANEPRINT CUB
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
12
Page 13
PROFILE P1_Fullbody Tough PLA or PLA
The information about the basic settings you can find on our website at PRINT.
Please note the additional settings for the individual parts!

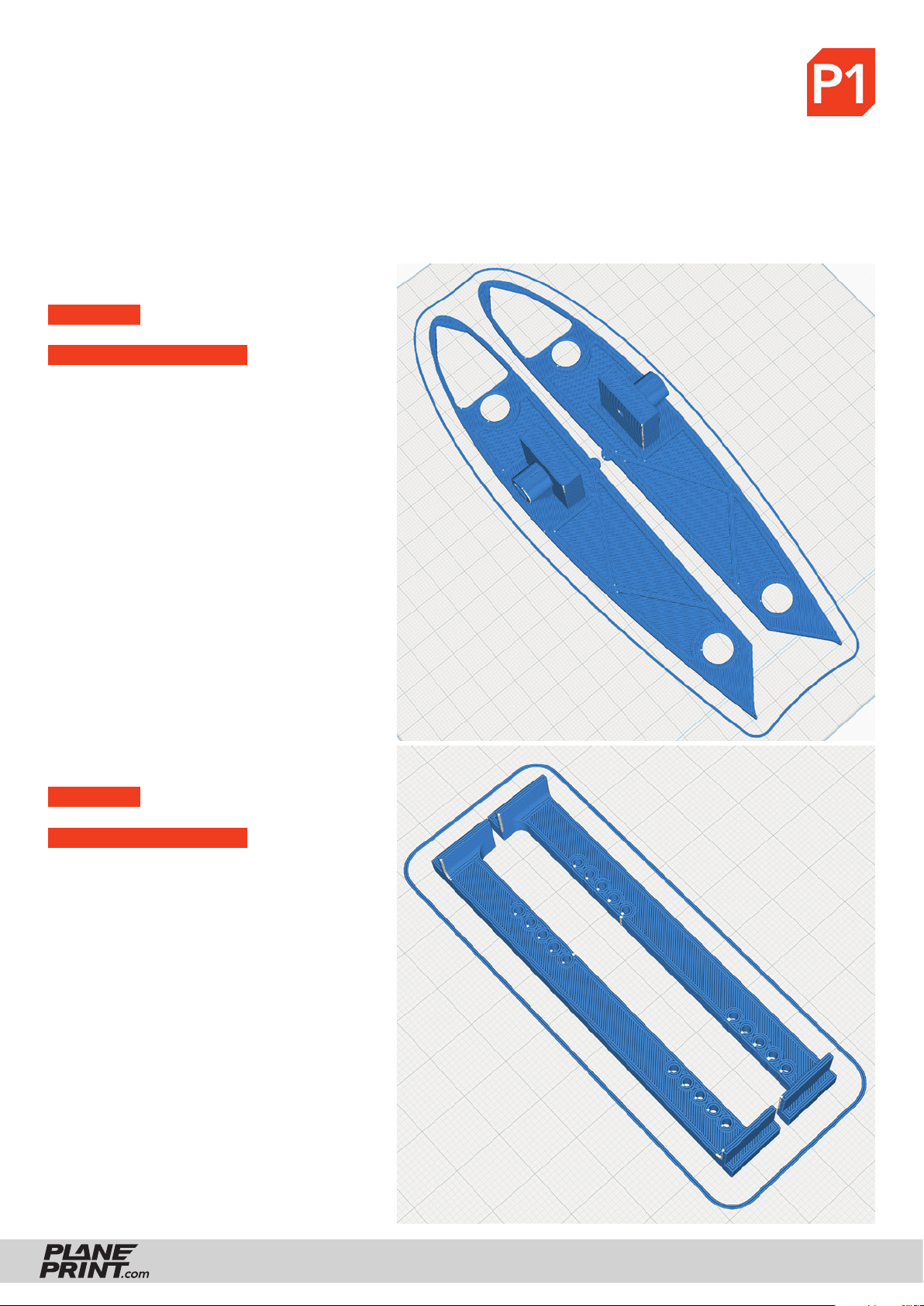

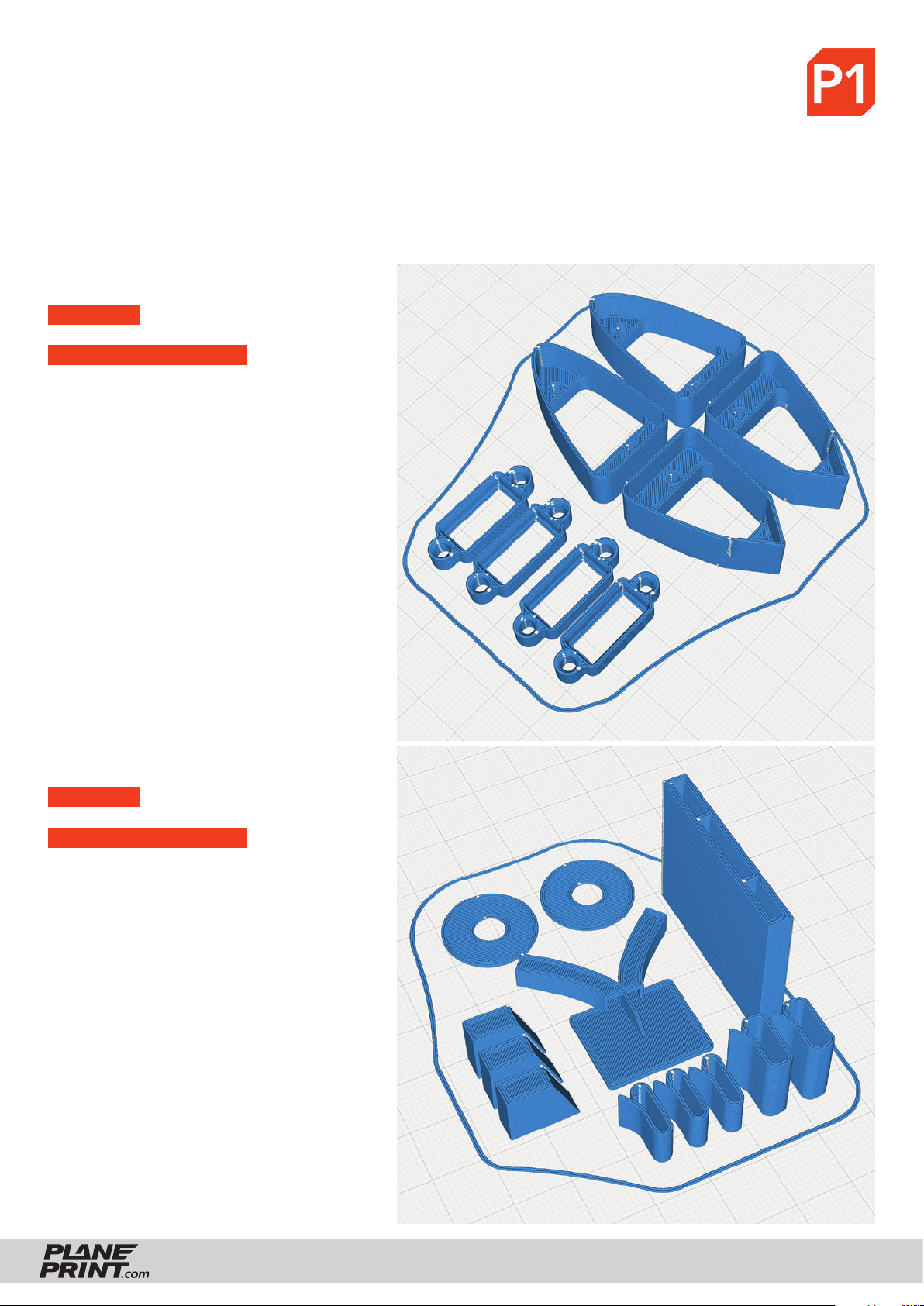

P1_MPX plug_cub.stl
MATERIAL PLA, Weight: ~ 10 g
ADDITIONAL SETTINGS
None required
P1_Parts_cub.stl
MATERIAL PLA, Weight: ~ 8 g
ADDITIONAL SETTINGS
None required
PLANEPRINT CUB
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
13
Page 14
PROFILE P1_Fullbody Tough PLA or PLA
The information about the basic settings you can find on our website at PRINT.
Please note the additional settings for the individual parts!
P1_Protectors_cub.stl
MATERIAL PLA, Weight: ~ 22 g
ADDITIONAL SETTINGS
None required
P1_Servo mount_cub.stl
MATERIAL PLA, Weight: ~ 6 g
ADDITIONAL SETTINGS
None required
PLANEPRINT CUB
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
14
Page 15
PROFILE P1_Fullbody Tough PLA or PLA
The information about the basic settings you can fi nd on our website at PRINT.
Please note the additional settings for the individual parts!

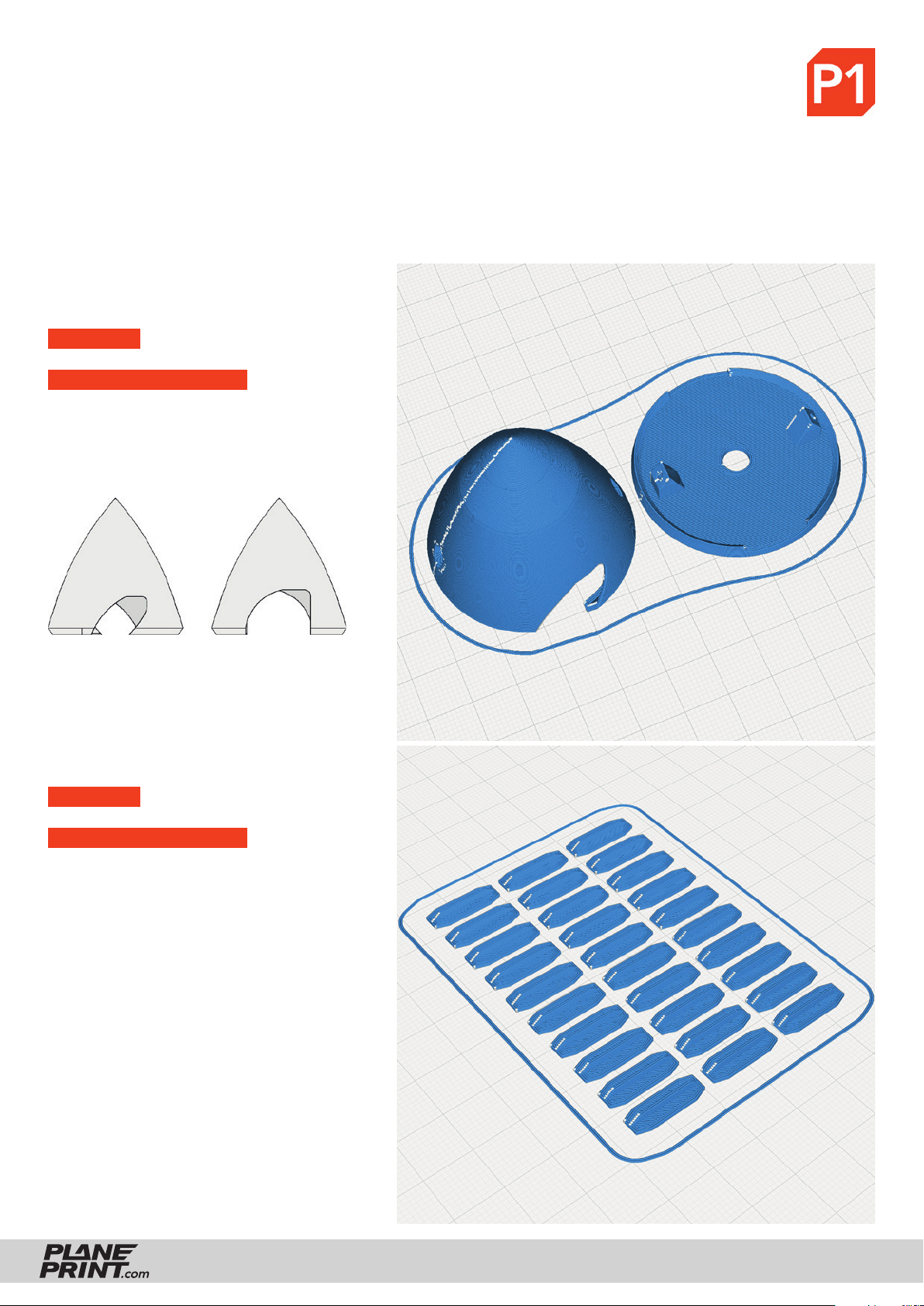

P1_Spinner small *Xmm_cub.stl or
P1_Spinner wide *Xmm_cub.stl
MATERIAL PLA, Weight: ~ 10 g
ADDITIONAL SETTINGS
None required
* for 6 or 8 mm motor shaft
small wide
P1_T-connects_cub.stl
MATERIAL PLA, Weight: ~ 3 g
ADDITIONAL SETTINGS
• Print twice
PLANEPRINT CUB
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
15
Page 16
PROFILE P1_Fullbody Tough PLA or PLA
The information about the basic settings you can find on our website at PRINT.
Please note the additional settings for the individual parts!
P1_Window frame 1_cub.stl
MATERIAL PLA, Weight: ~ 5 g
ADDITIONAL SETTINGS
None required
P1_Window frame 2_cub.stl
MATERIAL PLA, Weight: ~ 3 g
ADDITIONAL SETTINGS
None required
PLANEPRINT CUB
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
16
Page 17
PROFILE P1_Fullbody Tough PLA or PLA
The information about the basic settings you can find on our website at PRINT.
Please note the additional settings for the individual parts!
P1_WINGservo mount_cub.stl
MATERIAL PLA, Weight: ~ 26 g
ADDITIONAL SETTINGS
None required
P1_Tow coupling 23mm_cub.stl
MATERIAL PLA, Weight: ~ 13 g
ADDITIONAL SETTINGS
None required
PLANEPRINT CUB
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
17
Page 18

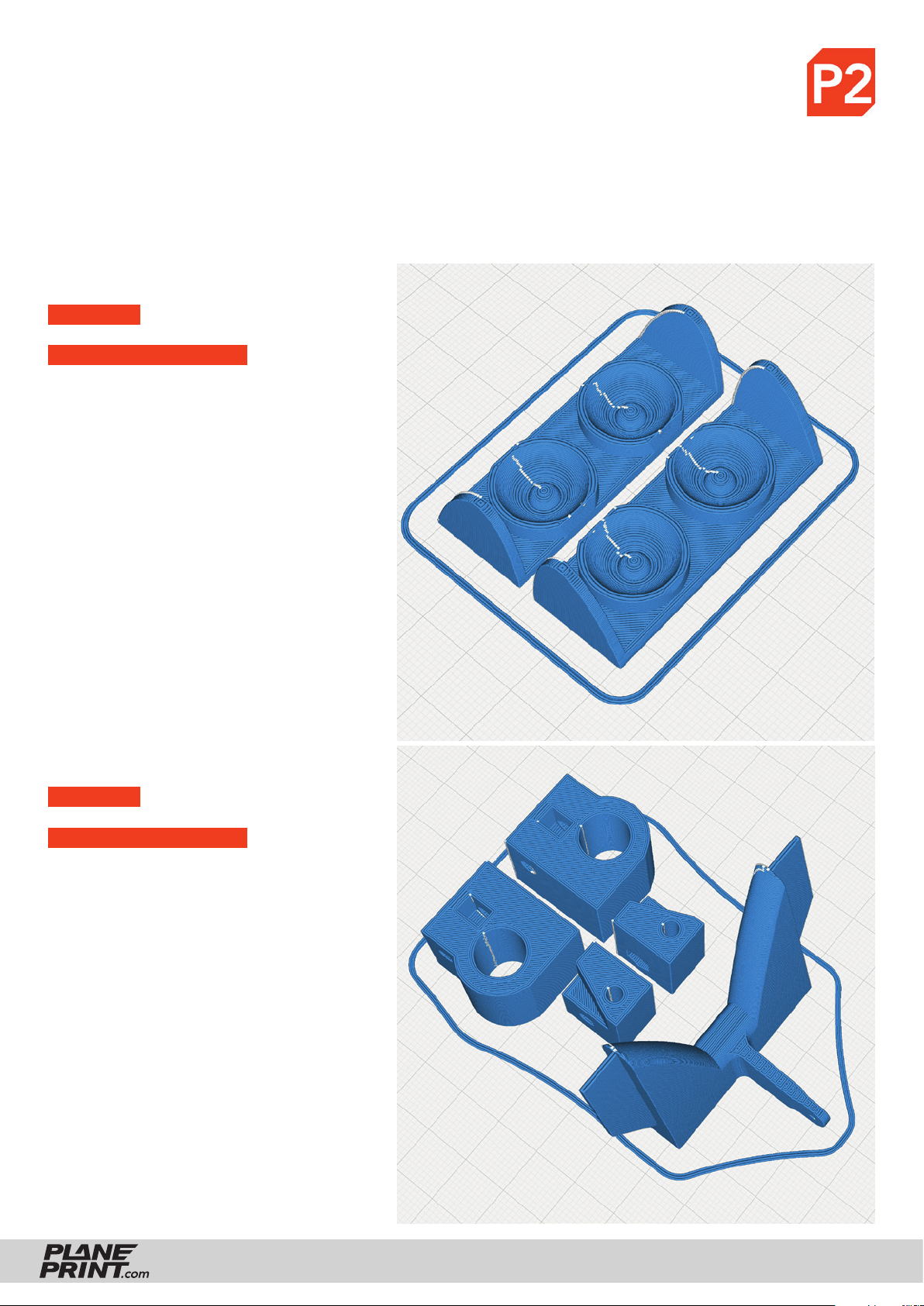

PROFILE P2_Hollowbody Tough PLA or PLA
The information about the basic settings you can find on our website at PRINT.
Please note the additional settings for the individual parts!

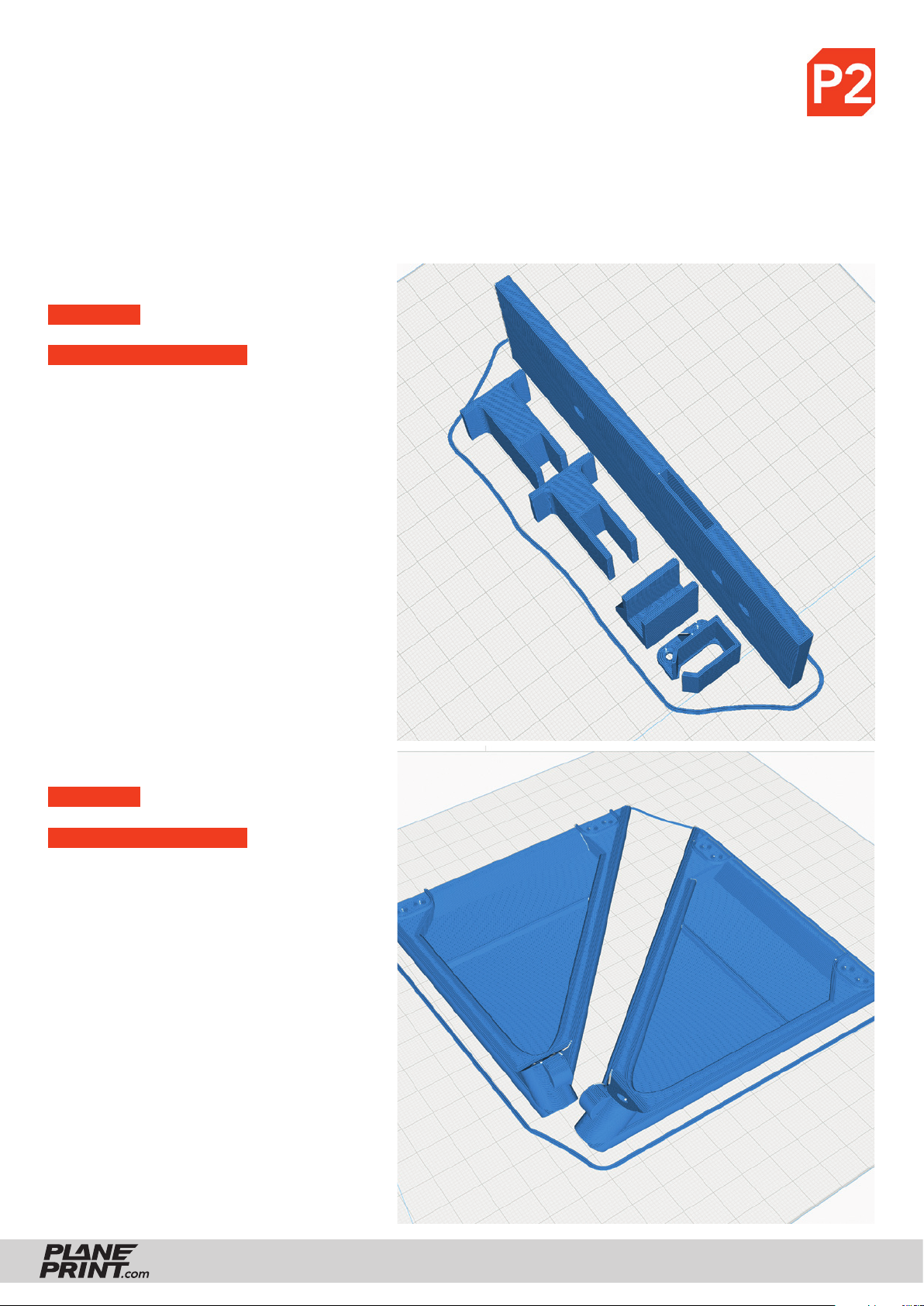

P2_Battery plate_cub.stl
MATERIAL PLA, Weight: ~ 27 g
ADDITIONAL SETTINGS
None required
P2_Gear legs_cub.stl
MATERIAL PLA, Weight: ~ 27 g
ADDITIONAL SETTINGS
• Wall Line Count/Perimeters: 3
• Top Layers: 3
• Bottom Layers: 3
PLANEPRINT CUB
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
18
Page 19
PROFILE P2_Hollowbody Tough PLA or PLA
The information about the basic settings you can fi nd on our website at PRINT.
Please note the additional settings for the individual parts!

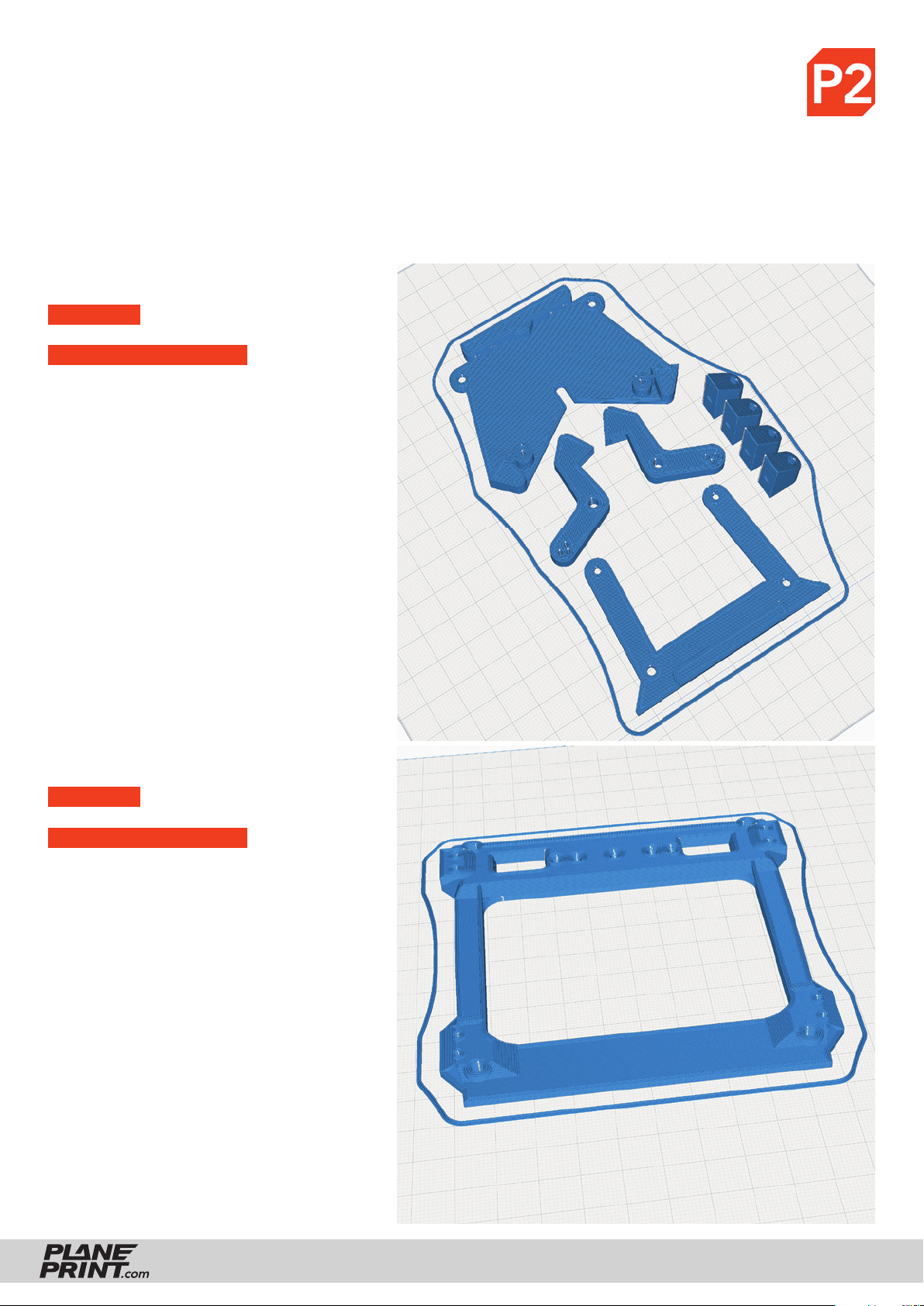

P2_Gear parts_cub.stl
MATERIAL PLA, Weight: ~ 21 g
ADDITIONAL SETTINGS
• Wall Line Count/Perimeters: 3
• Top Layers: 3
• Bottom Layers: 3
P2_Gear plate_cub.stl
MATERIAL PLA, Weight: ~ 15 g
ADDITIONAL SETTINGS
• Wall Line Count/Perimeters: 3
• Top Layers: 3
• Bottom Layers: 3
PLANEPRINT CUB
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
19
Page 20
PROFILE P2_Hollowbody Tough PLA or PLA
The information about the basic settings you can find on our website at PRINT.
Please note the additional settings for the individual parts!
P2_Landing Lights_cub.stl
MATERIAL PLA, Weight: ~ 7 g
ADDITIONAL SETTINGS
None required
P2_Parts_cub.stl
MATERIAL PLA, Weight: ~ 16 g
ADDITIONAL SETTINGS
None required
PLANEPRINT CUB
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
20
Page 21
PROFILE P2_Hollowbody Tough PLA or PLA
The information about the basic settings you can find on our website at PRINT.
Please note the additional settings for the individual parts!

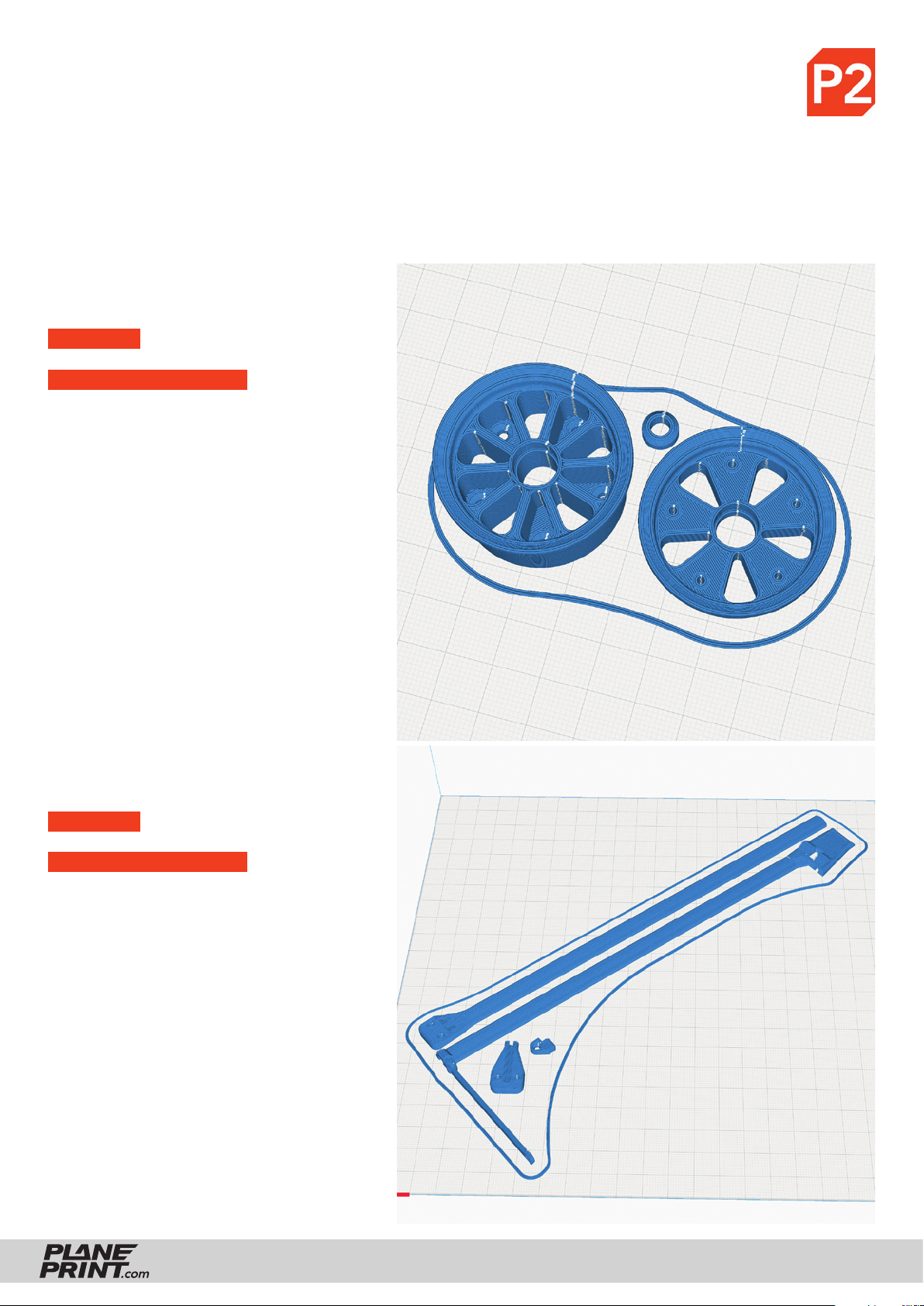

P2_Rim ball bearing_cub.stl or
P2_Rim 4mm_cub.stl
MATERIAL PLA, Weight: ~ 13 g
ADDITIONAL SETTINGS
• Print twice
P2_Strut L_cub.stl and
P2_Strut R_cub.stl
MATERIAL PLA, Weight: ~ 10 g
ADDITIONAL SETTINGS
None required
PLANEPRINT CUB
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
21
Page 22
PROFILE P2_Hollowbody Tough PLA or PLA
The information about the basic settings you can find on our website at PRINT.
Please note the additional settings for the individual parts!

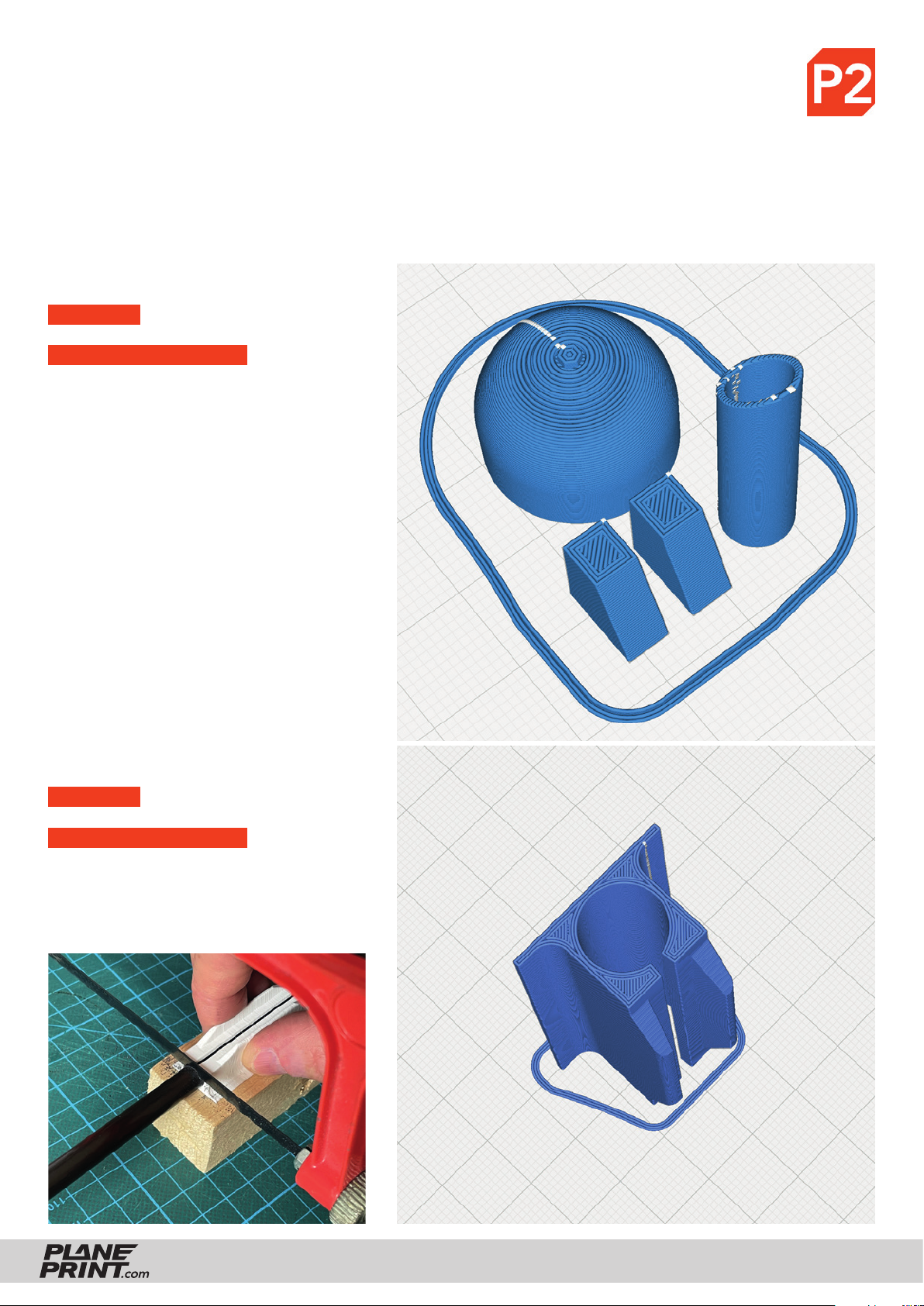

V-super P2_Parts_cub.stl
MATERIAL PLA, Weight: ~ 3 g
ADDITIONAL SETTINGS
• Only required for the Super Cub version
P2_Carbon tool 10mm.stl and
MATERIAL PLA, Weight: ~ 10 g
ADDITIONAL SETTINGS
None required
PLANEPRINT CUB
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
22
Page 23

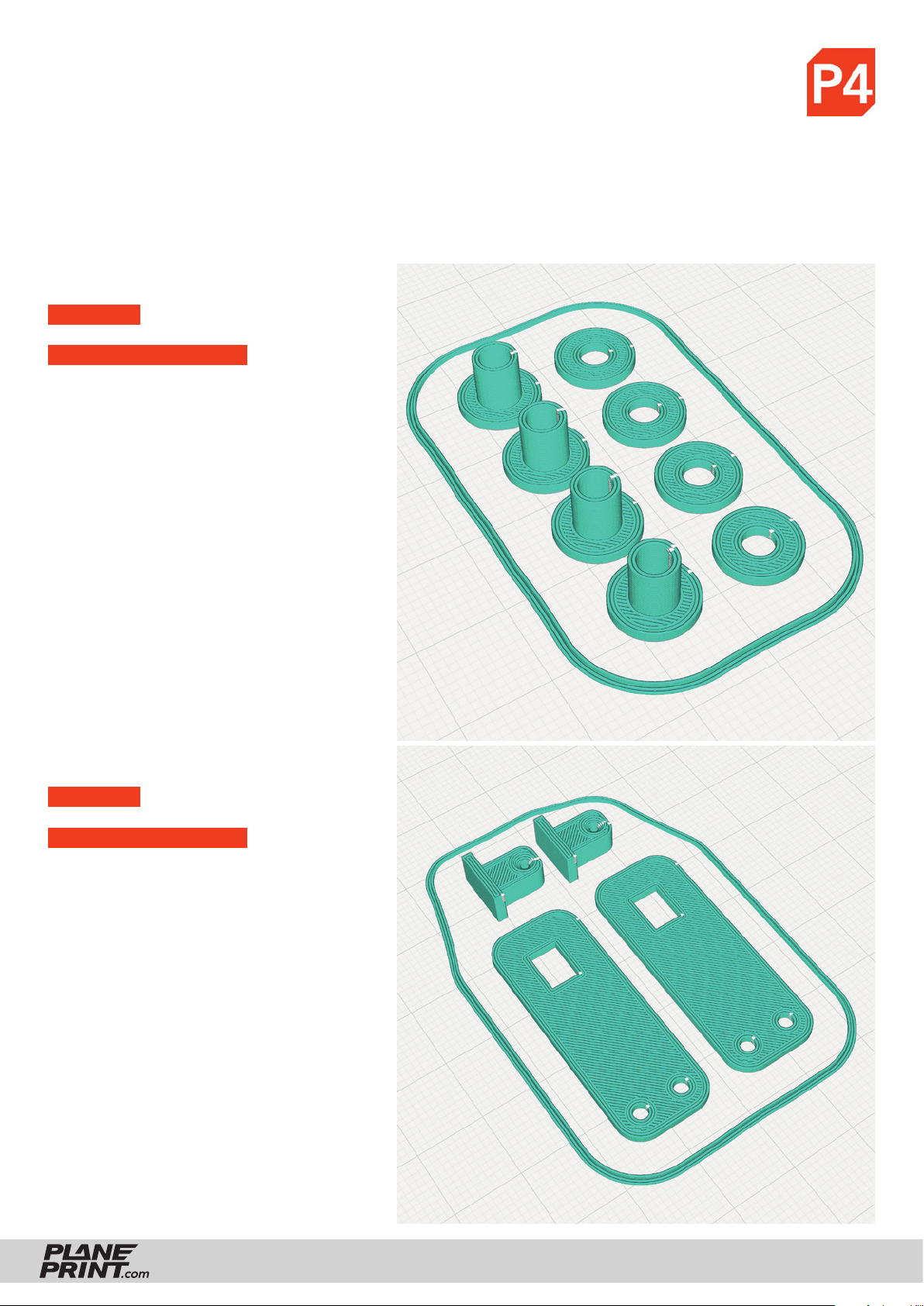

PROFILE P4_Flex LW TPU (A95/VarioShore)
The information about the basic settings you can find on our website at PRINT.
Please note the additional settings for the individual parts!
P4_Gear belts_cub.stl
MATERIAL TPU A95, Weight: ~ 0 g
ADDITIONAL SETTINGS
None required
P4_Gear stop.stl
MATERIAL TPU A95, Weight: ~ 2 g
ADDITIONAL SETTINGS
• Infill/Fill: 100 %
PLANEPRINT CUB
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
23
Page 24
PROFILE P4_Flex LW TPU (A95/VarioShore)
The information about the basic settings you can find on our website at PRINT.
Please note the additional settings for the individual parts!
P4_Hinge Cover_cub.stl
MATERIAL TPU A95, Weight: ~ 1 g
ADDITIONAL SETTINGS
None required
P4_Hinges Gear_cub.stl
MATERIAL TPU A95, Weight: ~ 2 g
ADDITIONAL SETTINGS
• Infill/Fill: 100 %
PLANEPRINT CUB
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
24
Page 25
PROFILE P4_Flex LW TPU (A95/VarioShore)
The information about the basic settings you can find on our website at PRINT.
Please note the additional settings for the individual parts!
P4_Motor mount_cub.stl
MATERIAL TPU A95, Weight: ~ 1 g
ADDITIONAL SETTINGS
None required
P4_Strut mount 1_cub.stl
MATERIAL TPU A95, Weight: ~ 2 g
ADDITIONAL SETTINGS
• Infill/Fill: 100 %
PLANEPRINT CUB
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
25
Page 26
PROFILE P4_Flex LW TPU (A95/VarioShore)
The information about the basic settings you can find on our website at PRINT.
Please note the additional settings for the individual parts!

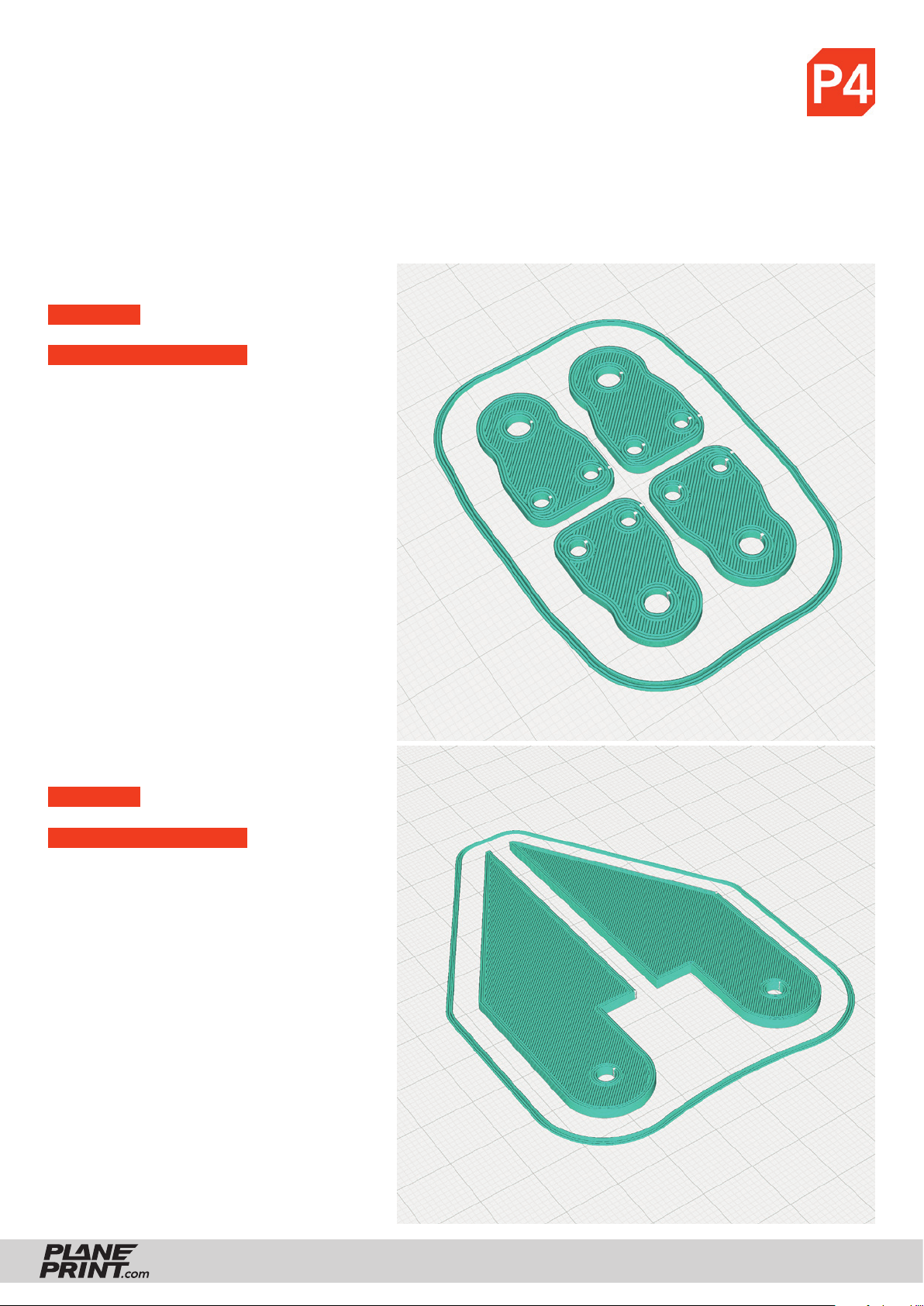

P4_Strut mount 2_cub.stl
MATERIAL TPU A95, Weight: ~ 2 g
ADDITIONAL SETTINGS
• Infill/Fill: 100 %
P4_WING mount_cub.stl
MATERIAL TPU A95, Weight: ~ 6 g
ADDITIONAL SETTINGS
• Infill/Fill: 100 %
PLANEPRINT CUB
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
26
Page 27
PROFILE P4_Flex LW TPU (A95/VarioShore)
The information about the basic settings you can find on our website at PRINT.
Please note the additional settings for the individual parts!

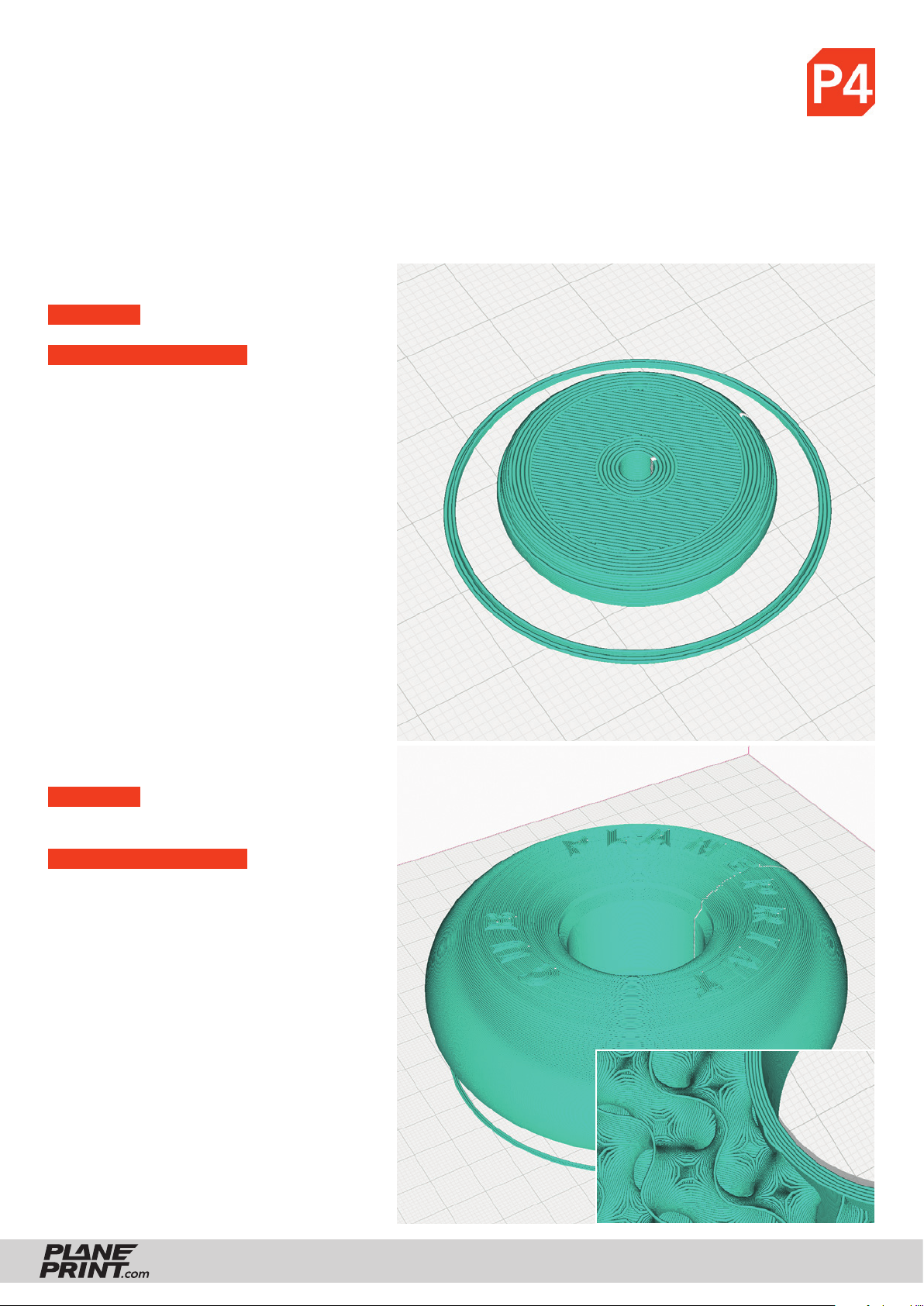

P4_Tire back_cub.stl
MATERIAL VarioShore or TPU A95
ADDITIONAL SETTINGS
VarioShore with Flow 70 %:
• Wall Line Count: 5
• Top Layers: 5
• Bottom Layers: 5
• Infill Density: 6 %
• Infill Pattern: Gyroid
TPU A95:
• Wall Line Count: 3
• Top Layers: 3
• Infill Density: 6 %
• Infill Pattern: Gyroid
P4_Tire_cub.stl
MATERIAL LW-TPU (recommended),
Weight: ~ 30 g (VarioShore)
ADDITIONAL SETTINGS
• Print twice
VarioShore with Flow 70 %:
• Wall Line Count: 5
• Top Layers: 5
• Bottom Layers: 5
• Infill Density: 6 %
• Infill Pattern: Gyroid
TPU A95:
• Wall Line Count: 3
• Top Layers: 3
• Infill Density: 6 %
• Infill Pattern: Gyroid
PLANEPRINT CUB
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
27
Page 28
PROFILE P5_Gyroid LW-PLA (foaming)!
The information about the basic settings you can find on our website at PRINT.
Please note the additional settings for the individual parts!
It is essential to print these parts with foaming LW-PLA (pre-foamed is heavier)!

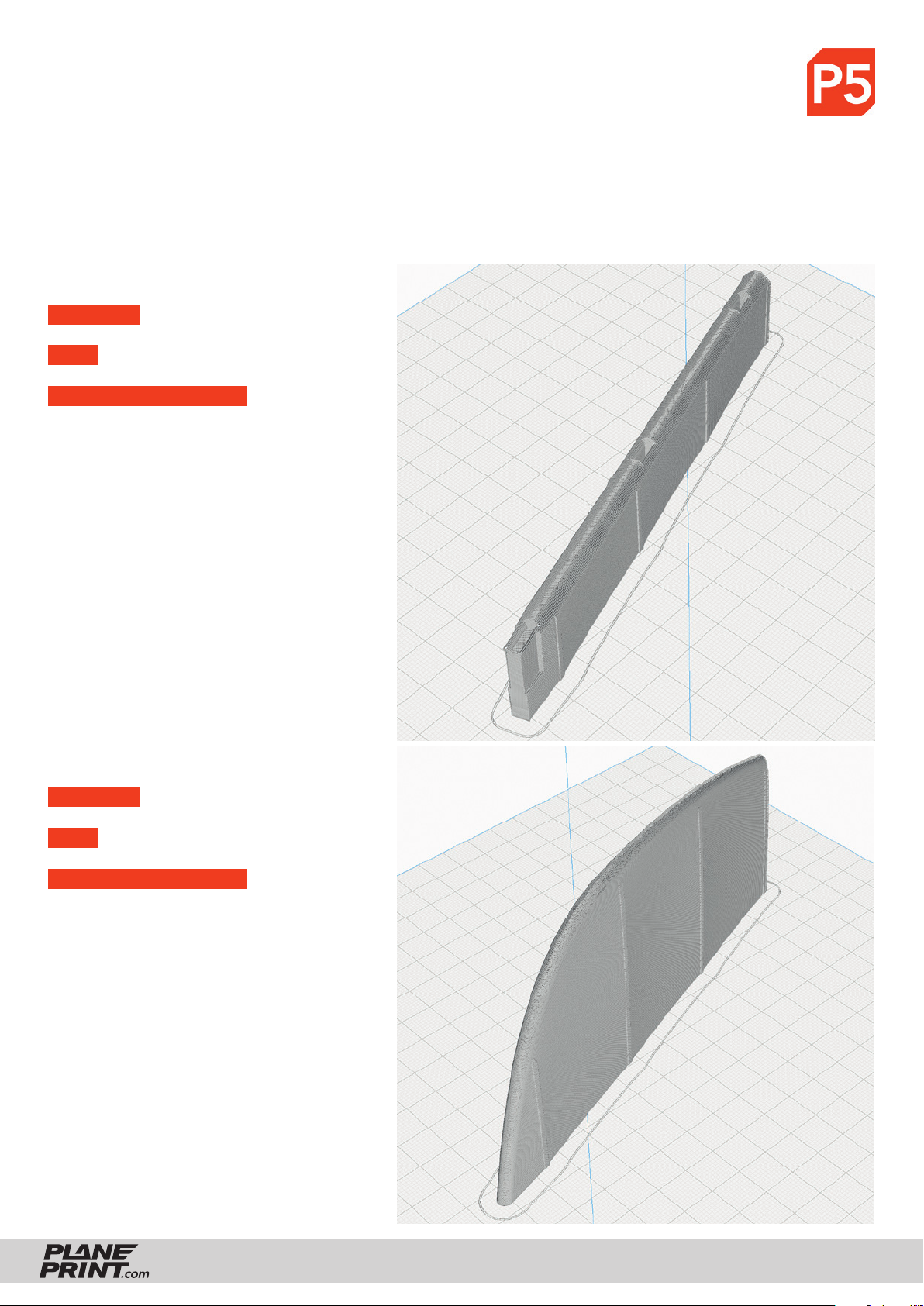

Basic settings for LW-PLA: Please follow the instructions in our WINGTEST AND CALIBRATION TOOL
on our website for correct adjustment! Print only one STL at a time!
P5_Ail L 1_cub.stl and
P5_Ail R 1_cub.stl
MATERIAL LW PLA, Weight: ~ 7 g
TIME ~ 1 hour
ADDITIONAL SETTINGS
None required
TIP Label the Aileron parts so that you
don‘t mix them up later!
P5_Ail L 2_cub.stl and
P5_Ail R 2_cub.stl
MATERIAL LW PLA, Weight: ~ 7 g
TIME ~ 1 hour
ADDITIONAL SETTINGS
None required
PLANEPRINT CUB
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
28

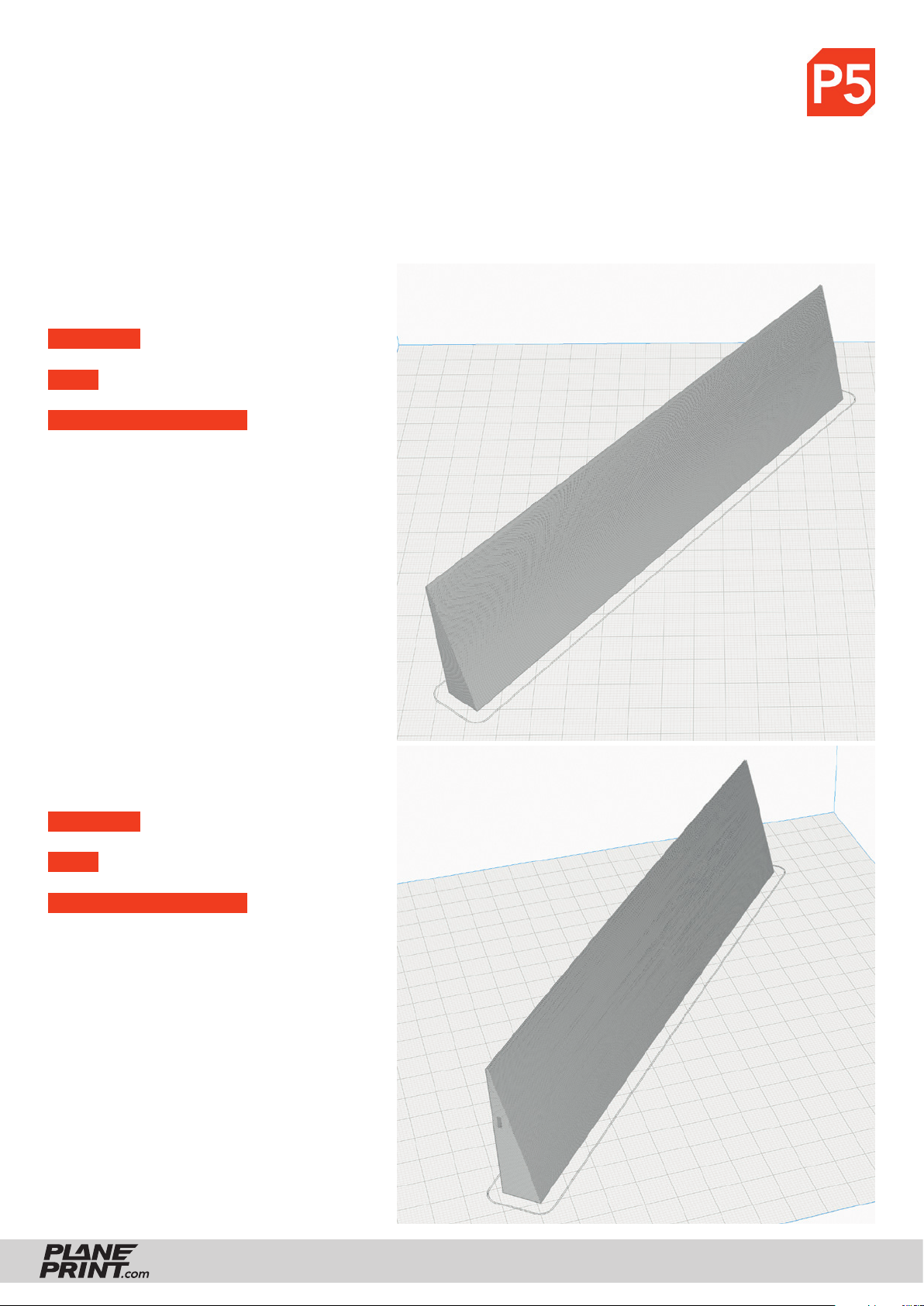

Page 29
PROFILE P5_Gyroid LW-PLA (foaming)!
The information about the basic settings you can find on our website at PRINT.
Please note the additional settings for the individual parts!
It is essential to print these parts with foaming LW-PLA (pre-foamed is heavier)!
Basic settings for LW-PLA: Please follow the instructions in our WINGTEST AND CALIBRATION TOOL
on our website for correct adjustment! Print only one STL at a time!
P5_Ail L 3_cub.stl and
P5_Ail R 3_cub.stl
MATERIAL LW PLA, Weight: ~ 8 g
TIME ~ 1 hour 20 minutes
ADDITIONAL SETTINGS
None required
P5_Ail L 4_cub.stl and
P5_Ail R 4_cub.stl
MATERIAL LW PLA, Weight: ~ 9 g
TIME ~ 1 hour 30 minutes
ADDITIONAL SETTINGS
None required
PLANEPRINT CUB
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
29

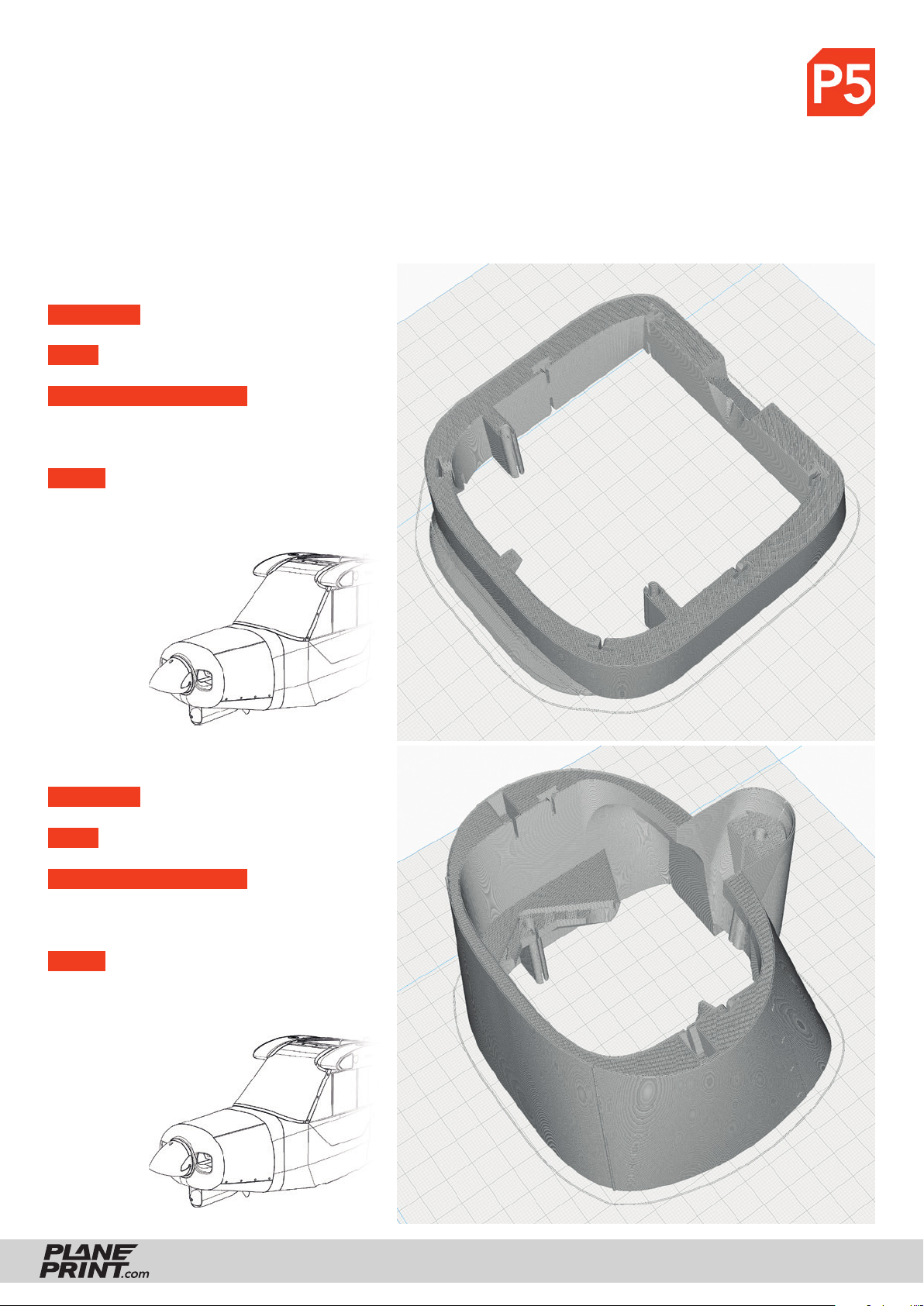

Page 30
PROFILE P5_Gyroid LW-PLA (foaming)!
The information about the basic settings you can fi nd on our website at PRINT.
Please note the additional settings for the individual parts!
It is essential to print these parts with foaming LW-PLA (pre-foamed is heavier)!
Basic settings for LW-PLA: Please follow the instructions in our WINGTEST AND CALIBRATION TOOL
on our website for correct adjustment! Print only one STL at a time!

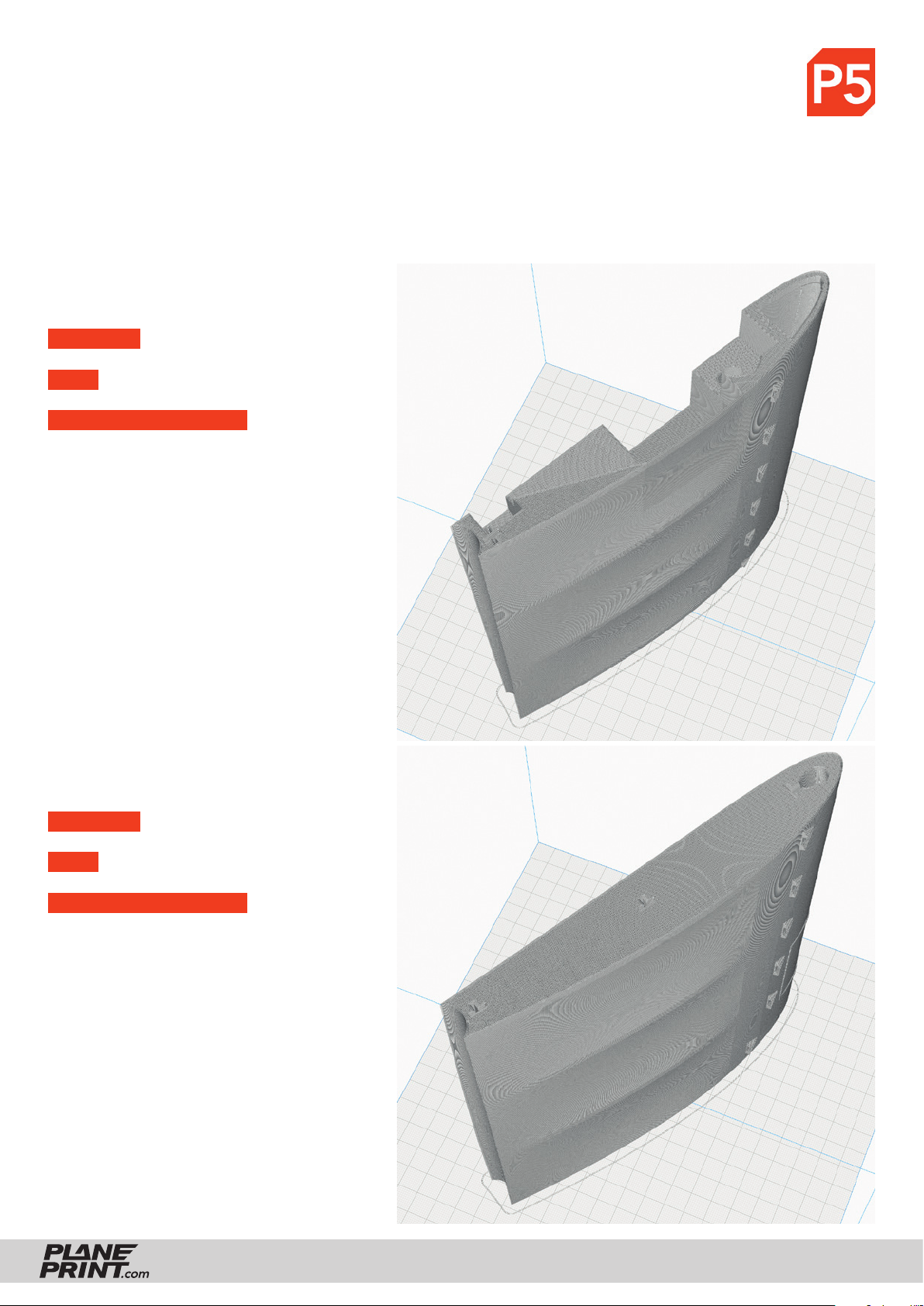

P5_Cowling_cub.stl
MATERIAL LW PLA, Weight: ~ 19 g
TIME ~ 3 hours 40 minutes
ADDITIONAL SETTINGS
• Layer Height: 0.2mm
• This part is not required if you want
to build the Super Cub version!
Super Cub version
P5_ELE 1 L_cub.stl and
P5_ELE 1 R_cub.stl
MATERIAL LW PLA, Weight: ~ 12 g
TIME ~ 2 hours 10 minutes
ADDITIONAL SETTINGS
None required
PLANEPRINT CUB
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
30
Page 31
PROFILE P5_Gyroid LW-PLA (foaming)!
The information about the basic settings you can find on our website at PRINT.
Please note the additional settings for the individual parts!
It is essential to print these parts with foaming LW-PLA (pre-foamed is heavier)!
Basic settings for LW-PLA: Please follow the instructions in our WINGTEST AND CALIBRATION TOOL
on our website for correct adjustment! Print only one STL at a time!

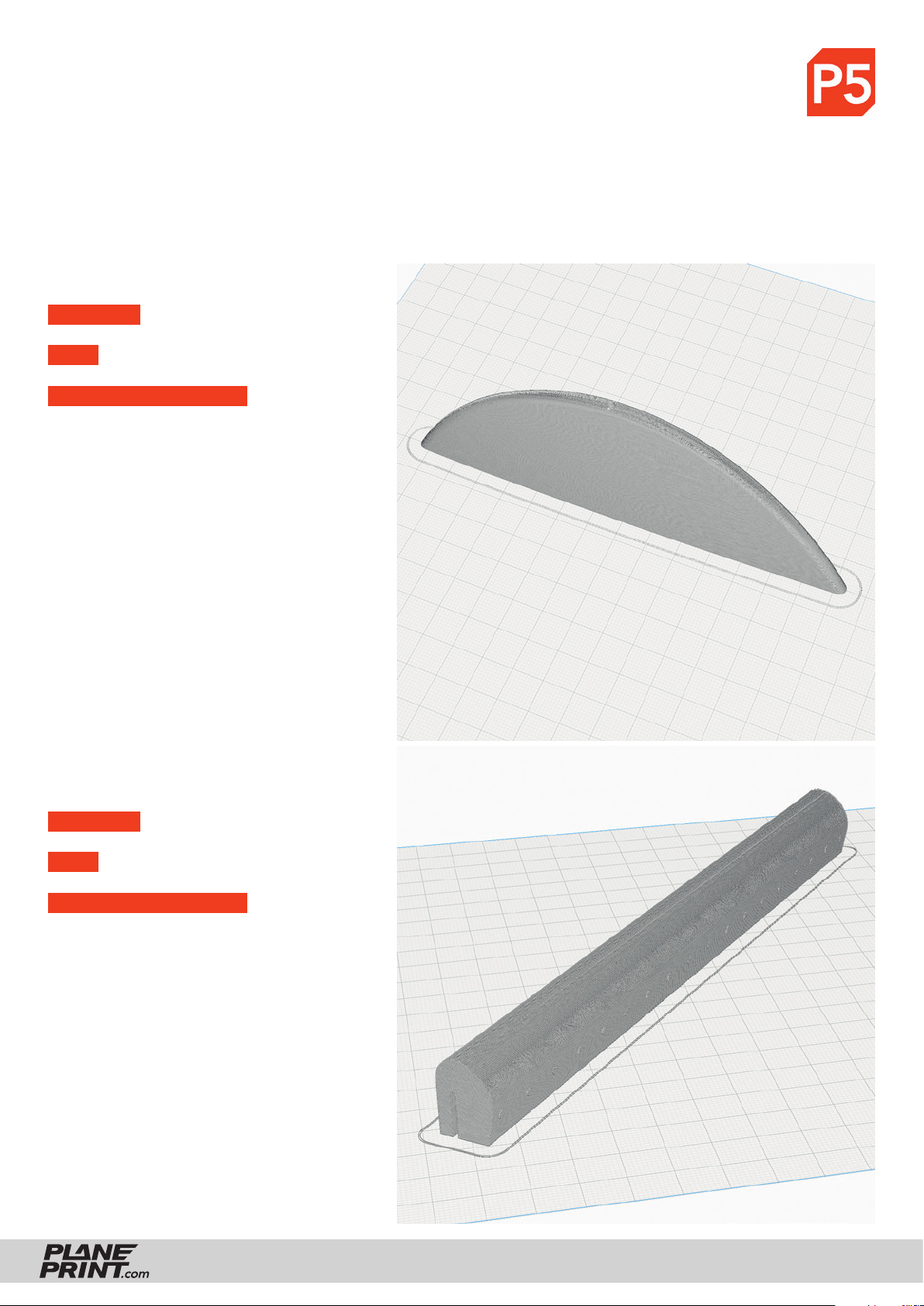

P5_ELE 2_cub.stl
MATERIAL LW PLA, Weight: ~ 6 g
TIME ~ 1 hour
ADDITIONAL SETTINGS
• Print twice
P5_Flap L 1_cub.stl and
P5_Flap R 1_cub.stl
MATERIAL LW PLA, Weight: ~ 6 g
TIME ~ 1 hour
ADDITIONAL SETTINGS
None required
PLANEPRINT CUB
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
31
Page 32
PROFILE P5_Gyroid LW-PLA (foaming)!
The information about the basic settings you can find on our website at PRINT.
Please note the additional settings for the individual parts!
It is essential to print these parts with foaming LW-PLA (pre-foamed is heavier)!
Basic settings for LW-PLA: Please follow the instructions in our WINGTEST AND CALIBRATION TOOL
on our website for correct adjustment! Print only one STL at a time!
P5_Flap L 2_cub.stl and
P5_Flap R 2_cub.stl
MATERIAL LW PLA, Weight: ~ 8 g
TIME ~ 1 hour 20 minutes
ADDITIONAL SETTINGS
None required
P5_Flap L 3_cub.stl and
P5_Flap R 3_cub.stl
MATERIAL LW PLA, Weight: ~ 2 g
TIME ~ 20 minutes
ADDITIONAL SETTINGS
None required
PLANEPRINT CUB
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
32
Page 33
PROFILE P5_Gyroid LW-PLA (foaming)!
The information about the basic settings you can fi nd on our website at PRINT.
Please note the additional settings for the individual parts!
It is essential to print these parts with foaming LW-PLA (pre-foamed is heavier)!
Basic settings for LW-PLA: Please follow the instructions in our WINGTEST AND CALIBRATION TOOL
on our website for correct adjustment! Print only one STL at a time!
P5_FUS 1_cub.stl
MATERIAL LW PLA, Weight: ~ 35 g
TIME ~ 6 hours
ADDITIONAL SETTINGS
• This part is not required if you want
to build the Super Cub version!
Standard version
Super Cub version
P5_FUS 2_cub.stl
MATERIAL LW PLA, Weight: ~ 100 g
TIME ~ 20 hours
ADDITIONAL SETTINGS
None required

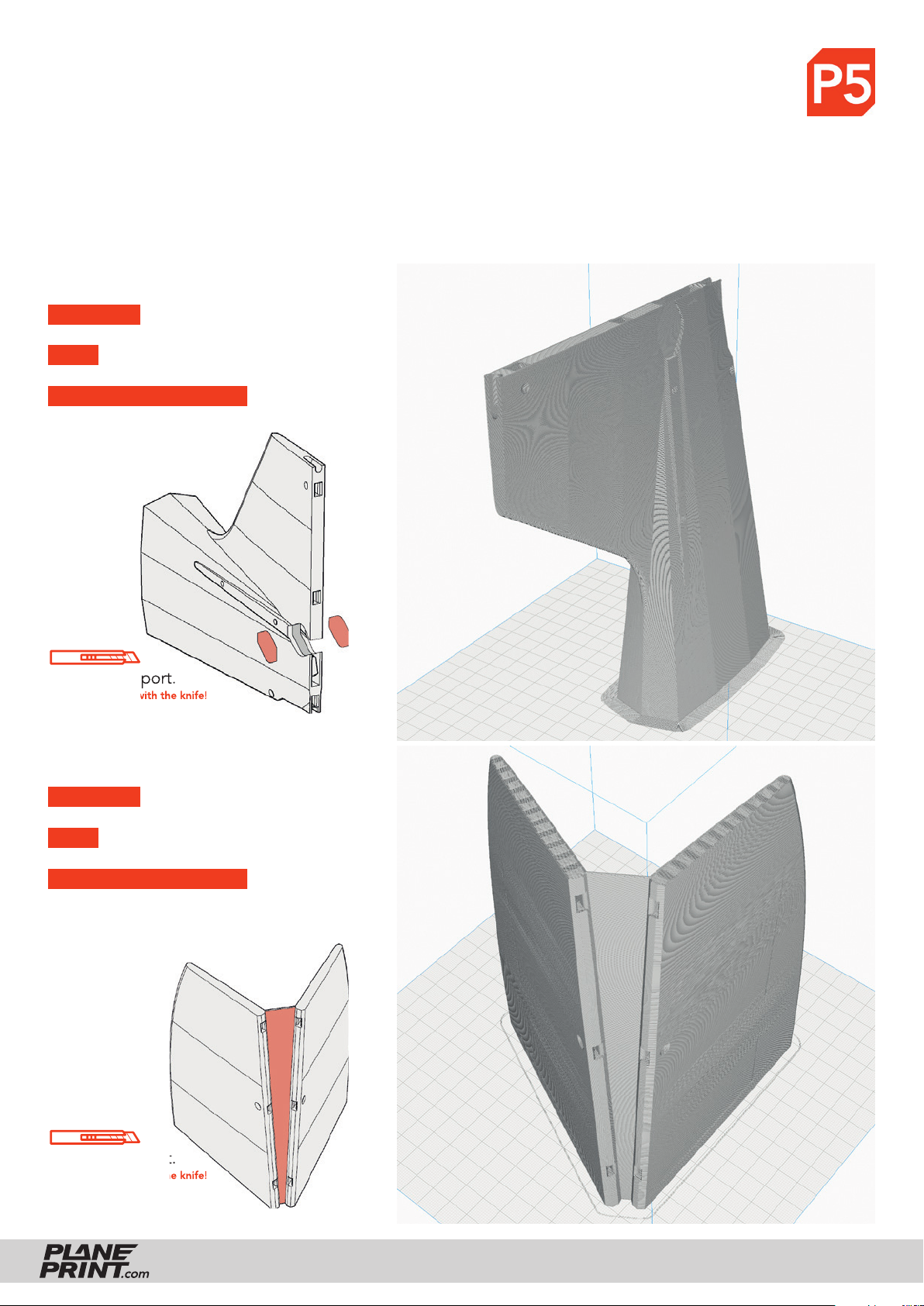

Remove support.
Please be careful with the knife!
PLANEPRINT CUB
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
33
Page 34
PROFILE P5_Gyroid LW-PLA (foaming)!
The information about the basic settings you can fi nd on our website at PRINT.
Please note the additional settings for the individual parts!
It is essential to print these parts with foaming LW-PLA (pre-foamed is heavier)!
Basic settings for LW-PLA: Please follow the instructions in our WINGTEST AND CALIBRATION TOOL
on our website for correct adjustment! Print only one STL at a time!
P5_FUS 3_cub.stl
MATERIAL LW PLA, Weight: ~ 90 g
TIME ~ 18 hours
ADDITIONAL SETTINGS
None required
Remove support.
Please be careful with the knife!
P5_FUS 4_cub.stl
MATERIAL LW PLA, Weight: ~ 60 g
TIME ~ 11 hours
ADDITIONAL SETTINGS
None required
PLANEPRINT CUB
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
34

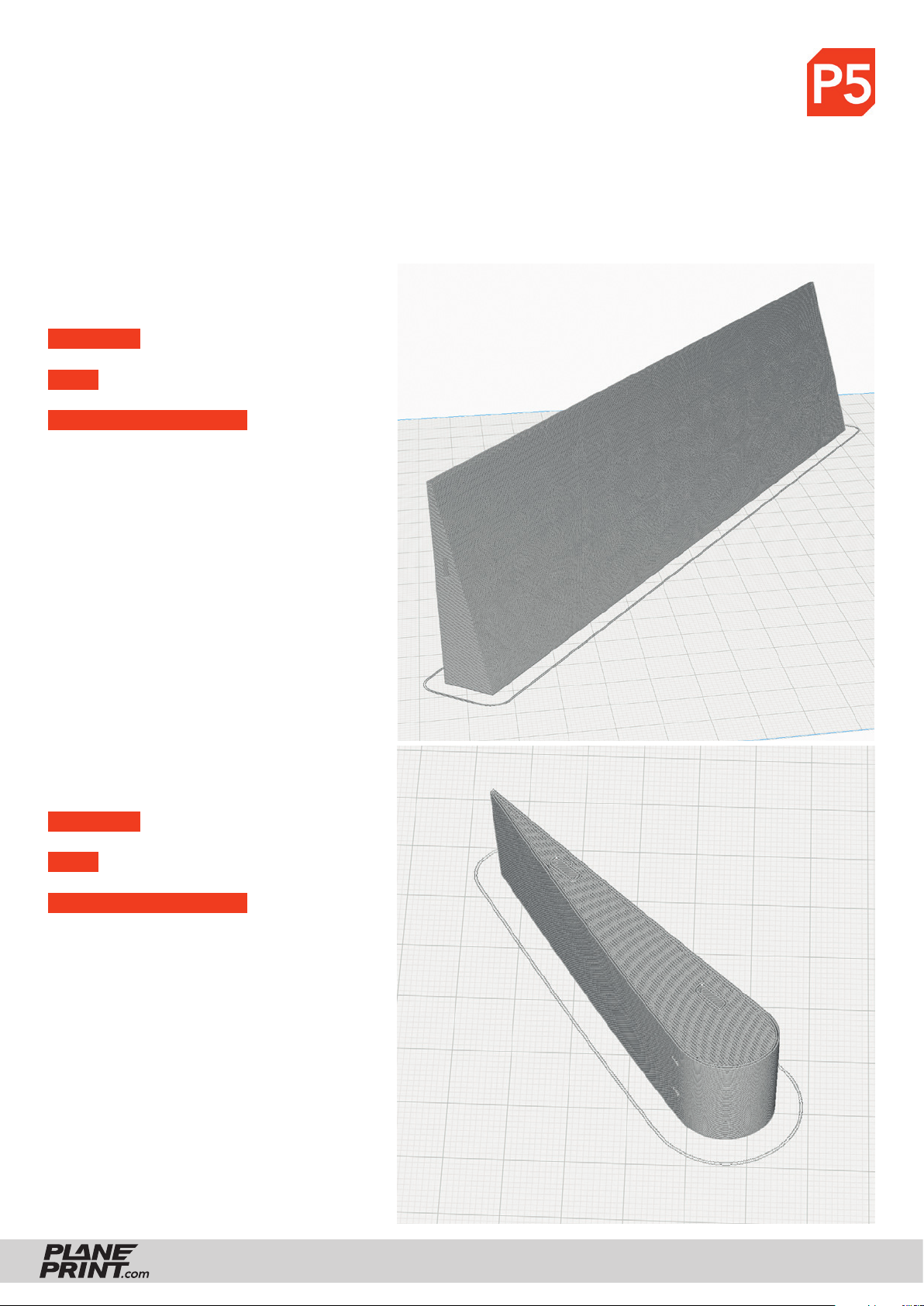

Page 35
PROFILE P5_Gyroid LW-PLA (foaming)!
The information about the basic settings you can fi nd on our website at PRINT.
Please note the additional settings for the individual parts!
It is essential to print these parts with foaming LW-PLA (pre-foamed is heavier)!
Basic settings for LW-PLA: Please follow the instructions in our WINGTEST AND CALIBRATION TOOL
on our website for correct adjustment! Print only one STL at a time!
P5_FUS 5_cub.stl
MATERIAL LW PLA, Weight: ~ 30 g
TIME ~ 7 hours
ADDITIONAL SETTINGS
• Set brim
Remove support.
Please be careful with the knife!
P5_HS_cub.stl
MATERIAL LW PLA, Weight: ~ 32 g
TIME ~ 7 hours
ADDITIONAL SETTINGS
None required
Remove support.
Please be careful with the knife!
PLANEPRINT CUB
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
35
Page 36
PROFILE P5_Gyroid LW-PLA (foaming)!
The information about the basic settings you can find on our website at PRINT.
Please note the additional settings for the individual parts!
It is essential to print these parts with foaming LW-PLA (pre-foamed is heavier)!
Basic settings for LW-PLA: Please follow the instructions in our WINGTEST AND CALIBRATION TOOL
on our website for correct adjustment! Print only one STL at a time!
P5_RUD 1_cub.stl
MATERIAL LW PLA, Weight: ~ 4 g
TIME ~ 40 minutes
ADDITIONAL SETTINGS
None required
P5_RUD 2_cub.stl
MATERIAL LW PLA, Weight: ~ 8 g
TIME ~ 1 hour 20 minutes
ADDITIONAL SETTINGS
None required
PLANEPRINT CUB
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
36
Page 37
PROFILE P5_Gyroid LW-PLA (foaming)!
The information about the basic settings you can find on our website at PRINT.
Please note the additional settings for the individual parts!
It is essential to print these parts with foaming LW-PLA (pre-foamed is heavier)!
Basic settings for LW-PLA: Please follow the instructions in our WINGTEST AND CALIBRATION TOOL
on our website for correct adjustment! Print only one STL at a time!

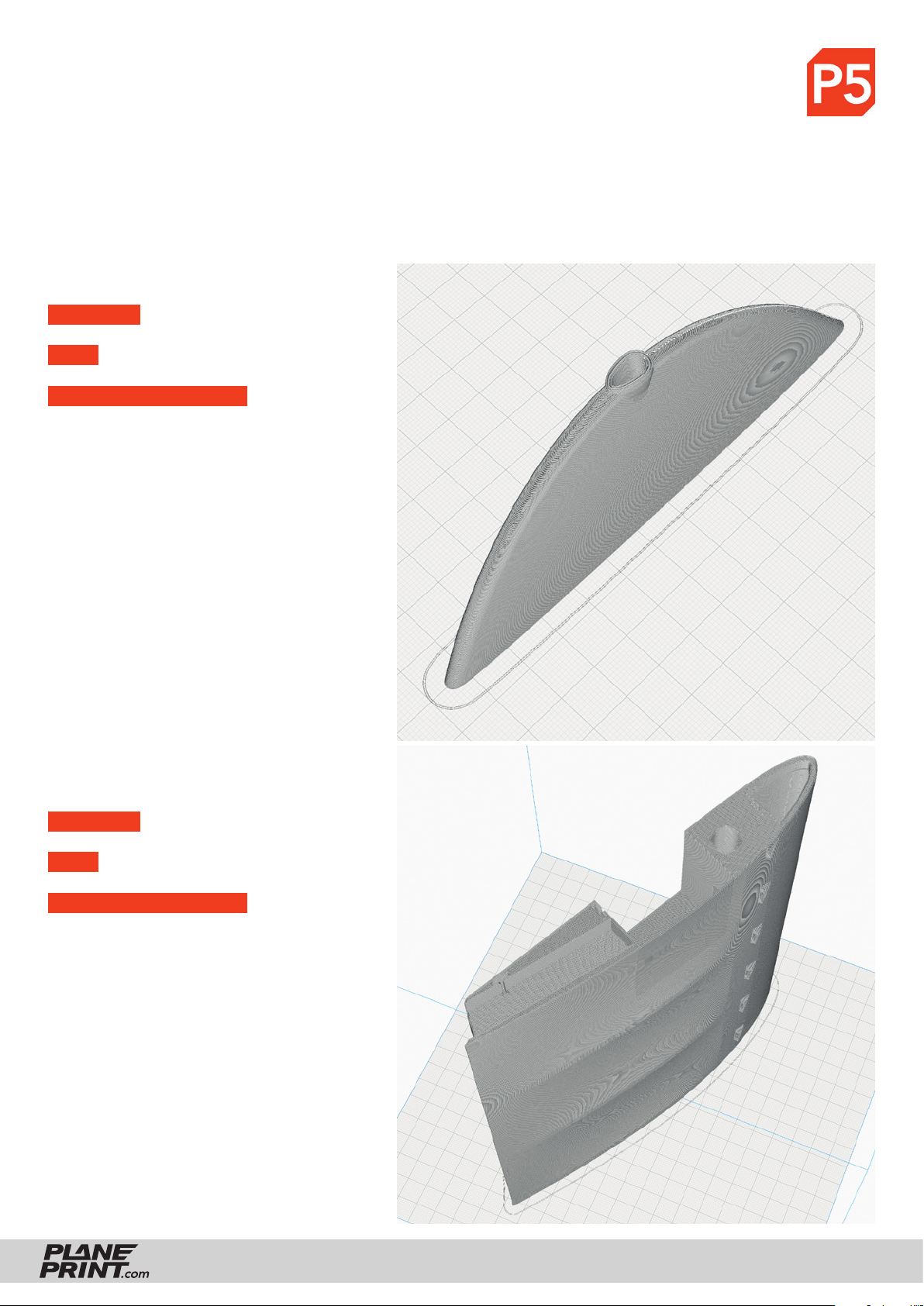

P5_RUD top_cub.stl
MATERIAL LW PLA, Weight: ~ 4 g
TIME ~ 1 hour
ADDITIONAL SETTINGS
None required

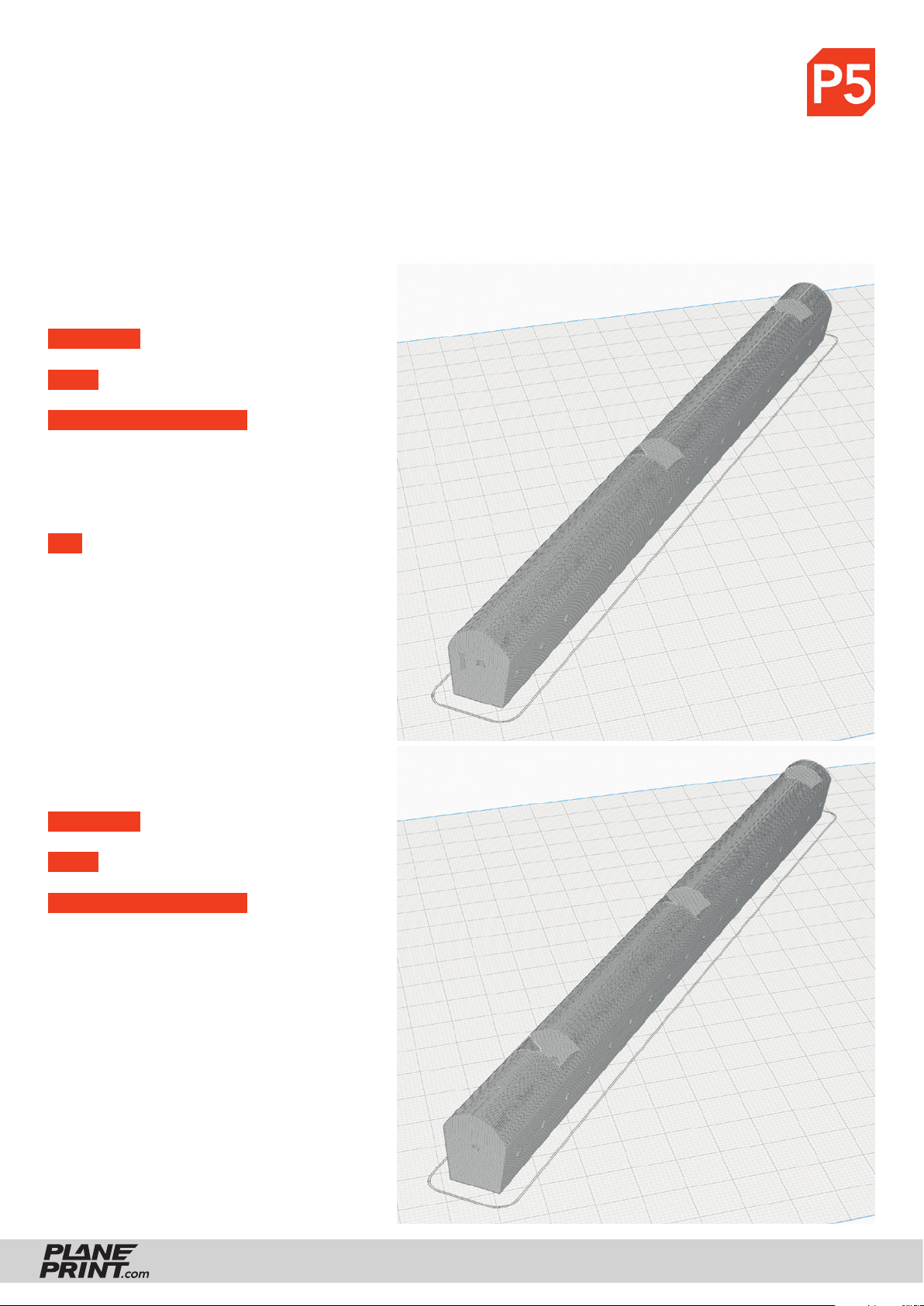

P5_WING L 1_cub.stl and
P5_WING R 1_cub.stl
MATERIAL LW PLA, Weight: ~ 60 g
TIME ~ 9 hours 30 minutes
ADDITIONAL SETTINGS
None required
PLANEPRINT CUB
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
37
Page 38
PROFILE P5_Gyroid LW-PLA (foaming)!
The information about the basic settings you can find on our website at PRINT.
Please note the additional settings for the individual parts!
It is essential to print these parts with foaming LW-PLA (pre-foamed is heavier)!
Basic settings for LW-PLA: Please follow the instructions in our WINGTEST AND CALIBRATION TOOL
on our website for correct adjustment! Print only one STL at a time!
P5_WING L 2_cub.stl and
P5_WING R 2_cub.stl
MATERIAL LW PLA, Weight: ~ 55 g
TIME ~ 8 hours 30 minutes
ADDITIONAL SETTINGS
None required
P5_WING L 3_cub.stl and
P5_WING R 3_cub.stl
MATERIAL LW PLA, Weight: ~ 57 g
TIME ~ 8 hours 30 minutes
ADDITIONAL SETTINGS
None required
PLANEPRINT CUB
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
38
Page 39
PROFILE P5_Gyroid LW-PLA (foaming)!
The information about the basic settings you can find on our website at PRINT.
Please note the additional settings for the individual parts!
It is essential to print these parts with foaming LW-PLA (pre-foamed is heavier)!
Basic settings for LW-PLA: Please follow the instructions in our WINGTEST AND CALIBRATION TOOL
on our website for correct adjustment! Print only one STL at a time!

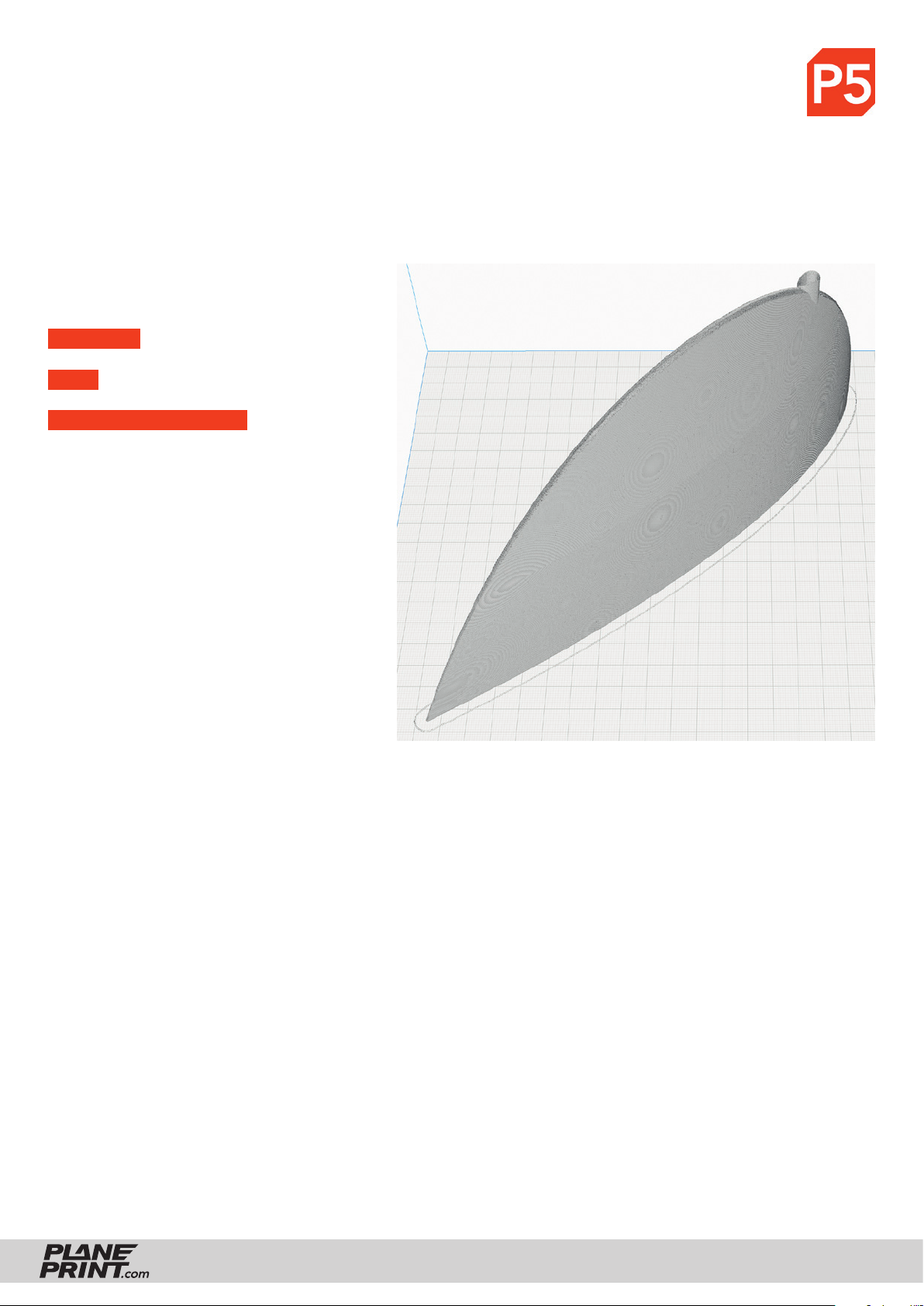

P5_WINGtip L_cub.stl and
P5_WINGtip R_cub.stl
MATERIAL LW PLA, Weight: ~ 25 g
TIME ~ 4 hours
ADDITIONAL SETTINGS
None required
PLANEPRINT CUB
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
39
Page 40
PROFILE P5_Gyroid LW-PLA (foaming)!
The information about the basic settings you can fi nd on our website at PRINT.
Please note the additional settings for the individual parts!
It is essential to print these parts with foaming LW-PLA (pre-foamed is heavier)!
Basic settings for LW-PLA: Please follow the instructions in our WINGTEST AND CALIBRATION TOOL
on our website for correct adjustment! Print only one STL at a time!
V-super P5_cooling L_cub.stl and
V-super P5_cooling R_cub.stl
MATERIAL LW PLA, Weight: ~ 1 g
ADDITIONAL SETTINGS
None required
These parts are
only required for the
Super Cub version.
V-super P5_Cowling_cub.stl
MATERIAL LW PLA, Weight: ~ 9 g
TIME ~ 1 hour
ADDITIONAL SETTINGS
• Layer Height: 0.2mm
These parts are
only required for the
Super Cub version.
PLANEPRINT CUB
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
40
Page 41
PROFILE P5_Gyroid LW-PLA (foaming)!
The information about the basic settings you can fi nd on our website at PRINT.
Please note the additional settings for the individual parts!
It is essential to print these parts with foaming LW-PLA (pre-foamed is heavier)!
Basic settings for LW-PLA: Please follow the instructions in our WINGTEST AND CALIBRATION TOOL
on our website for correct adjustment! Print only one STL at a time!
V-super P5_FUS 1a_cub.stl
MATERIAL LW PLA, Weight: ~ 10 g
TIME ~ 2 hours
ADDITIONAL SETTINGS
None required
NOTE If your printer has a larger build
space, there is a combined STL:
V-super P5_FUS 1a+2_cub.stl
These parts are
only required for the
Super Cub version.
V-super P5_FUS 1b_cub.stl
MATERIAL LW PLA, Weight: ~ 30 g
TIME ~ 6 hours
ADDITIONAL SETTINGS
None required
NOTE If your printer has a larger build
space, there is a combined STL:
V-super P5_FUS 1a+2_cub.stl
These parts are
only required for the
Super Cub version.
PLANEPRINT CUB
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
41
Page 42
Basic Information:
Gluing the parts printed with PROFILE P5
STEP 1 As a first step, it is important to roughen and smooth the adhesive surfaces with sandpaper.
STEP 2 Insert the interconnects into the slots provided on one side.
STEP 3 Apply a lot of glue to the side with the interconnects. It is important that there is glue everywhere,
especially on the outside and inside of the wall surfaces, in order to achieve a perfect connection.
The interconnects only serve to align the parts to each other. It is better not to apply glue here,
otherwise it can happen that the glue suddenly hardens while the parts are being put together and
stops the process.
Use medium viscosity CA glue, thinner glue would run down the parts too easily.
After assembly, align the two parts exactly and wipe off the excess CA glue from the surface
with a cloth. Now spray with activator spray along the gluing surface and carefully press the parts
together.
STEP 4 Clean the glued areas slightly with a sharp-bladed cutter.
PROFILES 5 parts are easy to repair
STEP 1 Using the knife, carefully remove the damaged part about 3 mm from the glue joint between two parts.
STEP 2 Cut wall and infill and clean the surface with sandpaper. The top surface of the damaged part remains!
STEP 3 The remaining top surface is about 1 mm thick. To compensate for this, you can move the new part to
be printed down the Z axis in Cura by 1 mm.
Glue joint
Broken part
Glue joint
PLANEPRINT CUB
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
42
Page 43

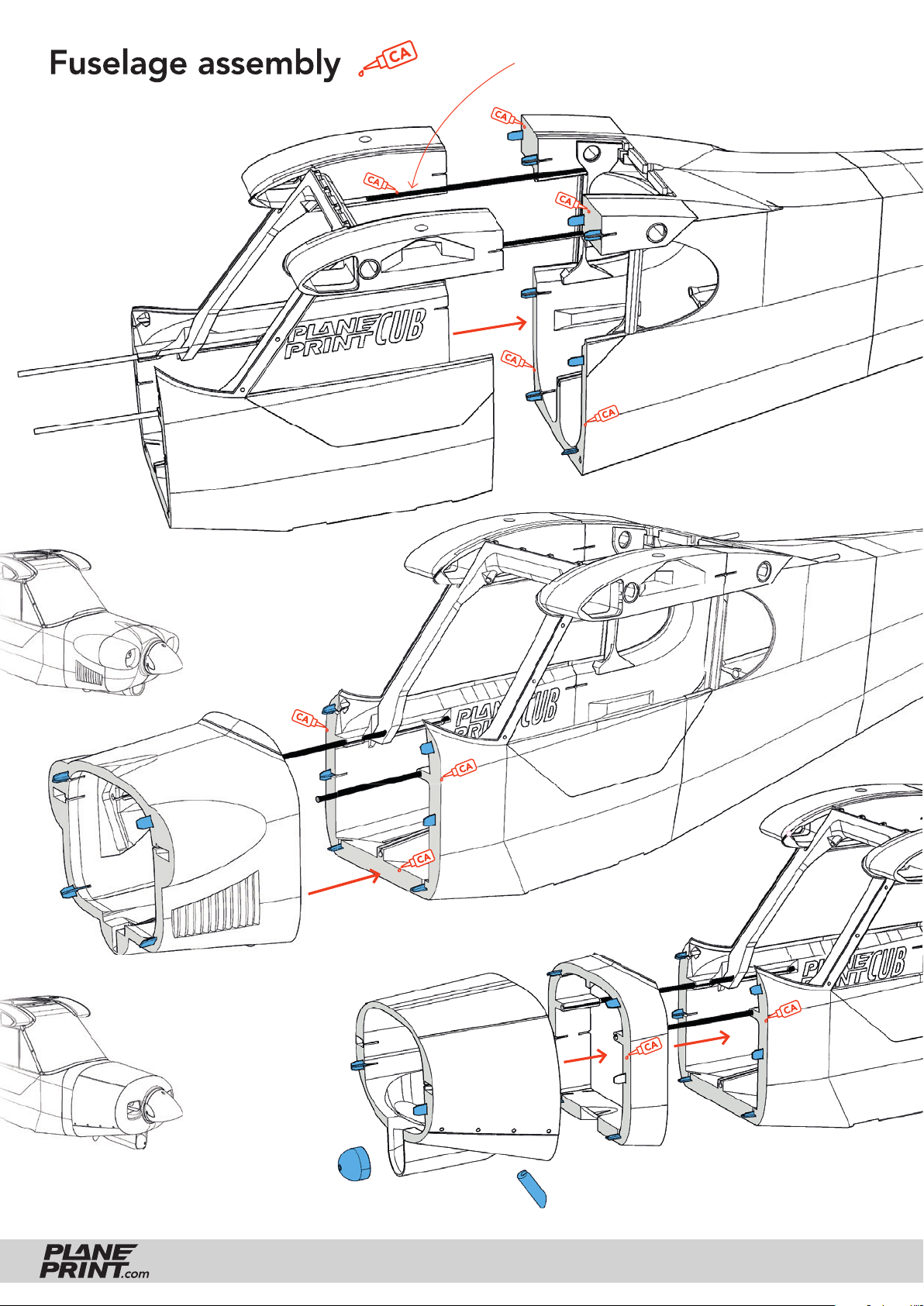

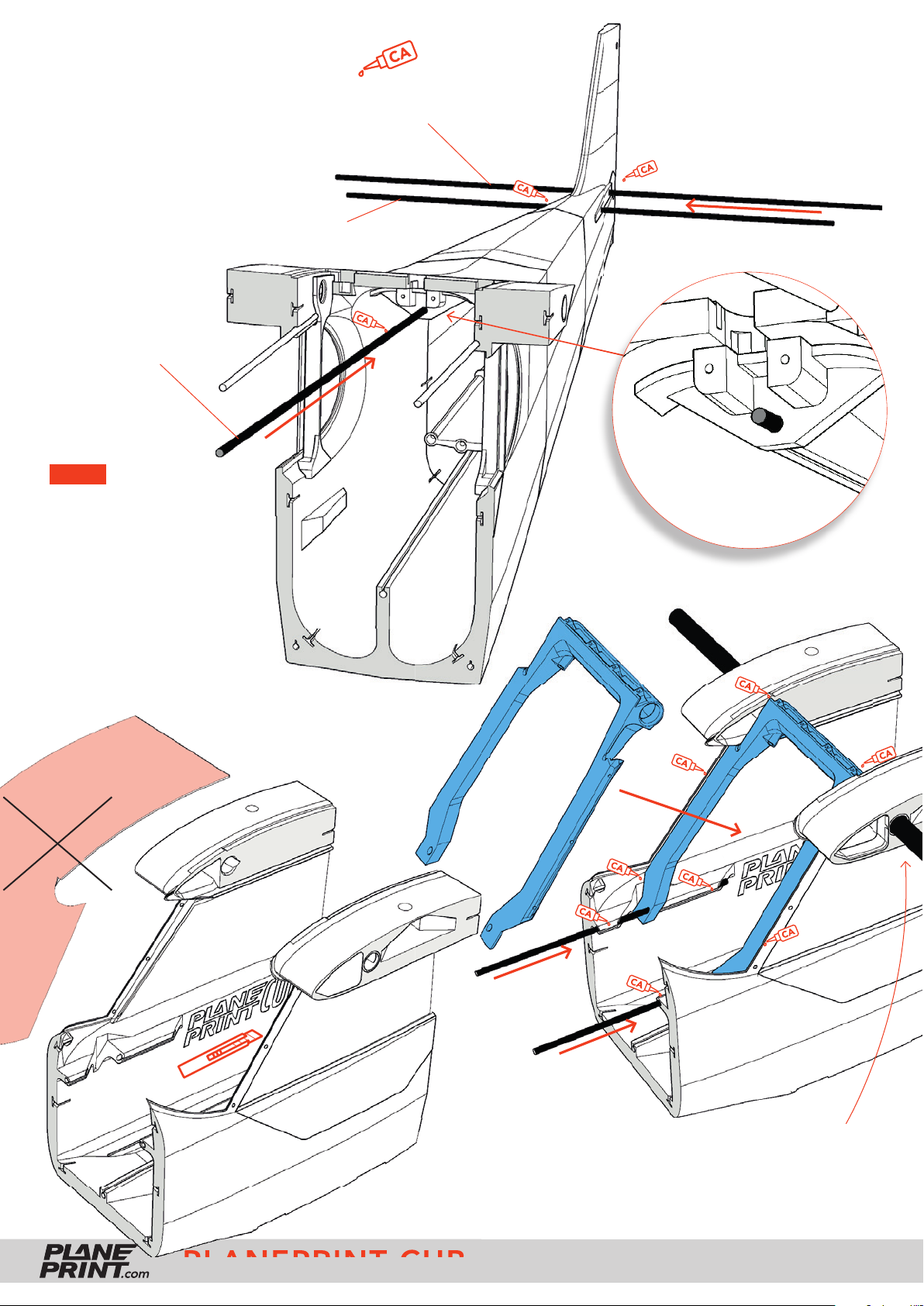

Fuselage assembly
medium liquid
If you want to build the PLANEPRINT Cub with transparent foil
windows, fi rst carefully cut out the windows at FUS 3 with a sharp
pointed knife. This works best if you cut over the same edge very
often with little pressure until the window falls out.
You can also leave the windows closed and paint them blue.
P1_Tow coupling 23mm_cub.stl
P5_FUS 3_cub.stl
Carbon rods Ø3*200mm
P1_Frame_cub.stl
Glue the PLA
parts well, they
are important for
the stability of the
fuselage!
Glue the parts
FUS 4 and 5 as
shown here:
NOTE The carbon rods
must be well connected to
the fuselage over the entire
length. Allow some thin CA
glue to run into the joint.
P5_FUS 3_cub.stl
P5_FUS 5_cub.stl
P5_FUS 3_cub.stl
PLANEPRINT CUB
P5_FUS 4_cub.stl
P1_T-connects_cub.stl
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
43
Page 44

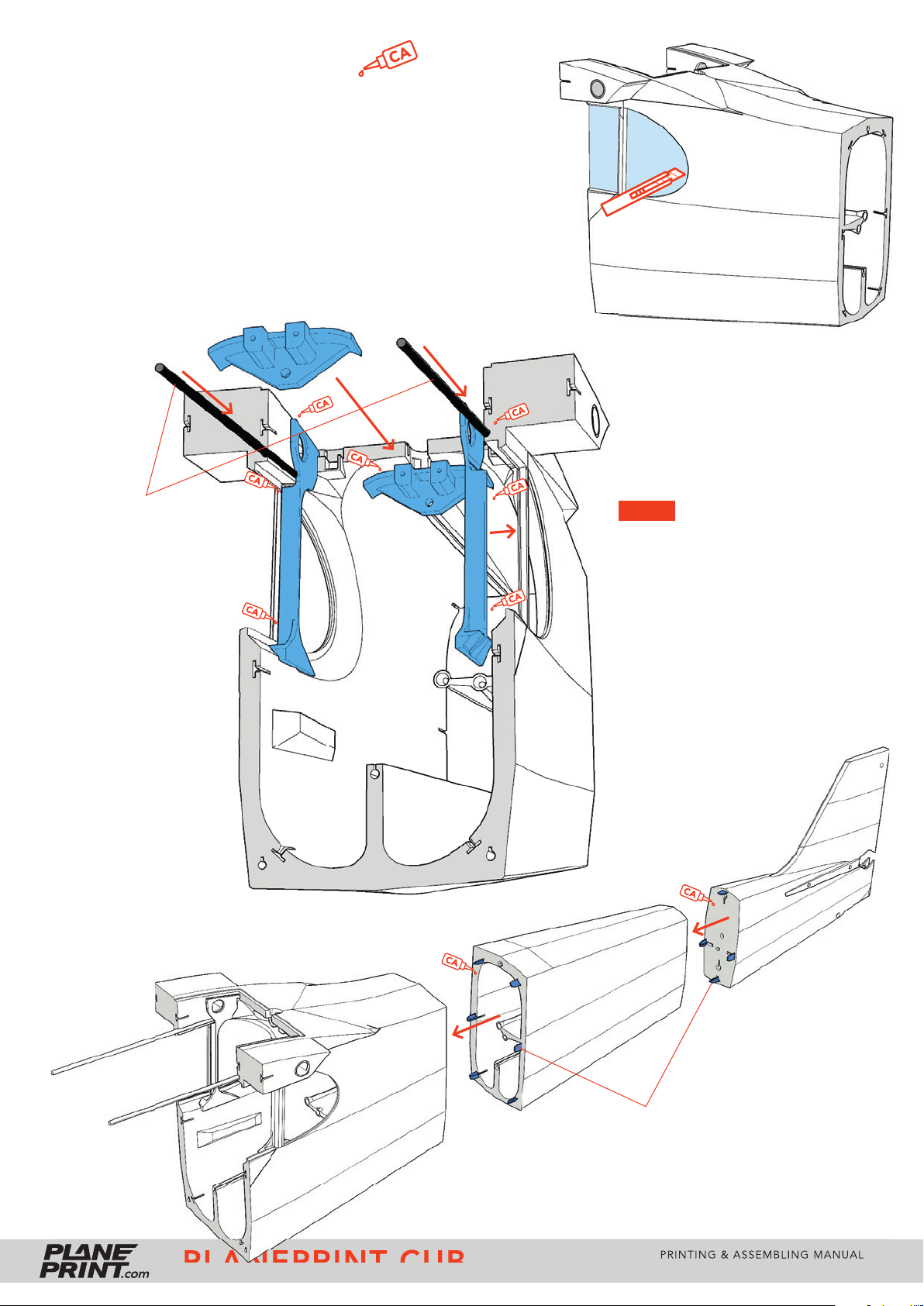

Fuselage assembly
Carbon rod Ø3*372mm
Carbon rod Ø3*322mm
Carbon rod Ø3*440mm
thin liquid
The rods must be precisely
centred and aligned
horizontally to the fuselage!
NOTE First insert
the carbon rod into the
fuselage and allow some
thin CA glue to fl ow into
the joint.
Carefully remove the
windscreen and the
upper glass area.
The carbon rod
must protrude
exactly 7 mm!
P1_Frame_cub.stl
P5_FUS 2_cub.stl
PLANEPRINT CUB
Carbon rods
Ø3*153mm
P5_FUS 2_cub.stl
Glue the frame into the fuselage and use the Ø10mm
carbon tube for alignment (do not glue the tube!)
Now also remove the side windows.
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
44
Page 45
Fuselage assembly
medium liquid
P5_FUS 2_cub.stl
After assembling the fuselage parts, glue the
carbon rods well with F2 using thin CA glue.
Standard version
P5_FUS 1_cub.stl
Super Cub version
V-super P2_Parts_cub.stl
V-super P5_FUS 1b_cub.stl
PLANEPRINT CUB
V-super P5_FUS 1a_cub.stl or V-super P5_FUS 1a+2_cub.stl
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
45
Page 46
The carbon rod
must protrude into
the PLA part
LIGHTING If you want to
equip your Cub with lighting,
there are cable ducts.
Do not glue the
carbon tube yet!
P5_HS_cub.stl
Carbon rod Ø3*815mm
P1_Hinges RUD_cub.stl
P5_RUD top_cub.stl
P1_Interconnects small_cub.stl
P5_RUD 2_cub.stl
P5_RUD 1_cub.stl
Steel Wire Ø1*150mm
Put all the parts together beforehand, especially
the hinge, and check that everything works. Only
then should you work with glue.
P5_ELE 1 L_cub.stl
P5_ELE 2_cub.stl
P1_Gear back 1_cub.stl
P2_Parts_cub.stl
P1_Gear back 1_cub.stl
P5_ELE 1 R_cub.stl
P1_Hinges RUD_cub.stl
P5_ELE 2_cub.stl
PLANEPRINT CUB
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
46
Page 47

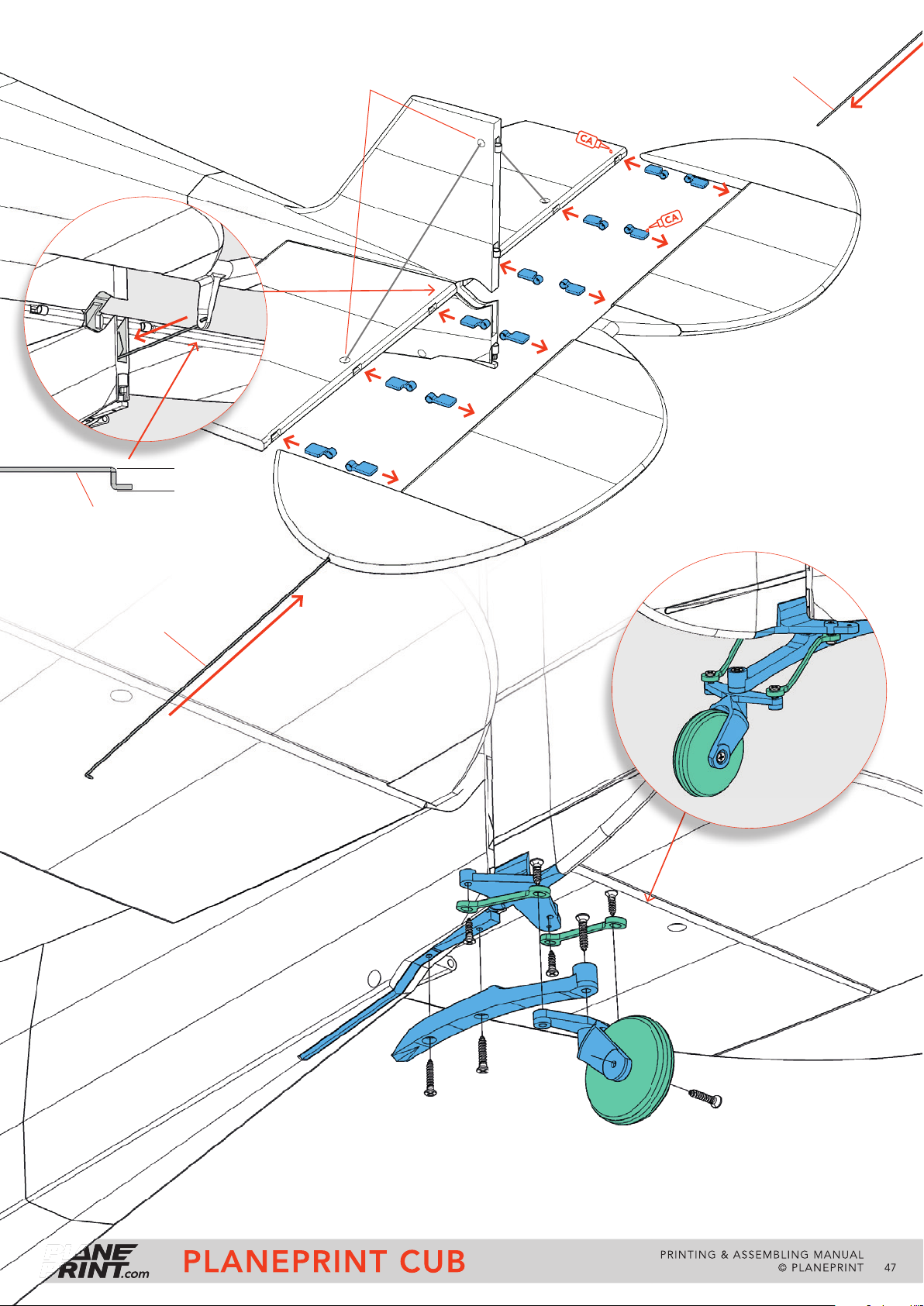

Elevator hinge
5 mm
You can drill holes here and pull a line
through or glue on thin carbon rods.
P1_Hinges ELE_cub.stl
Steel Wire Ø1*240mm
Put all the parts together
beforehand, especially
the hinge, and check that
everything works. Only then
should you work with glue.
Steel Wire Ø1*560mm
Steel Wire Ø1*240mm
Gear back
P4_Gear belts_cub.stl
P1_Gear back 2_cub.stl
PLANEPRINT CUB
P4_Tire back_cub.stl
Do not tighten the Tapping screws too tightly,
everything should move easily.
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
47
Page 48

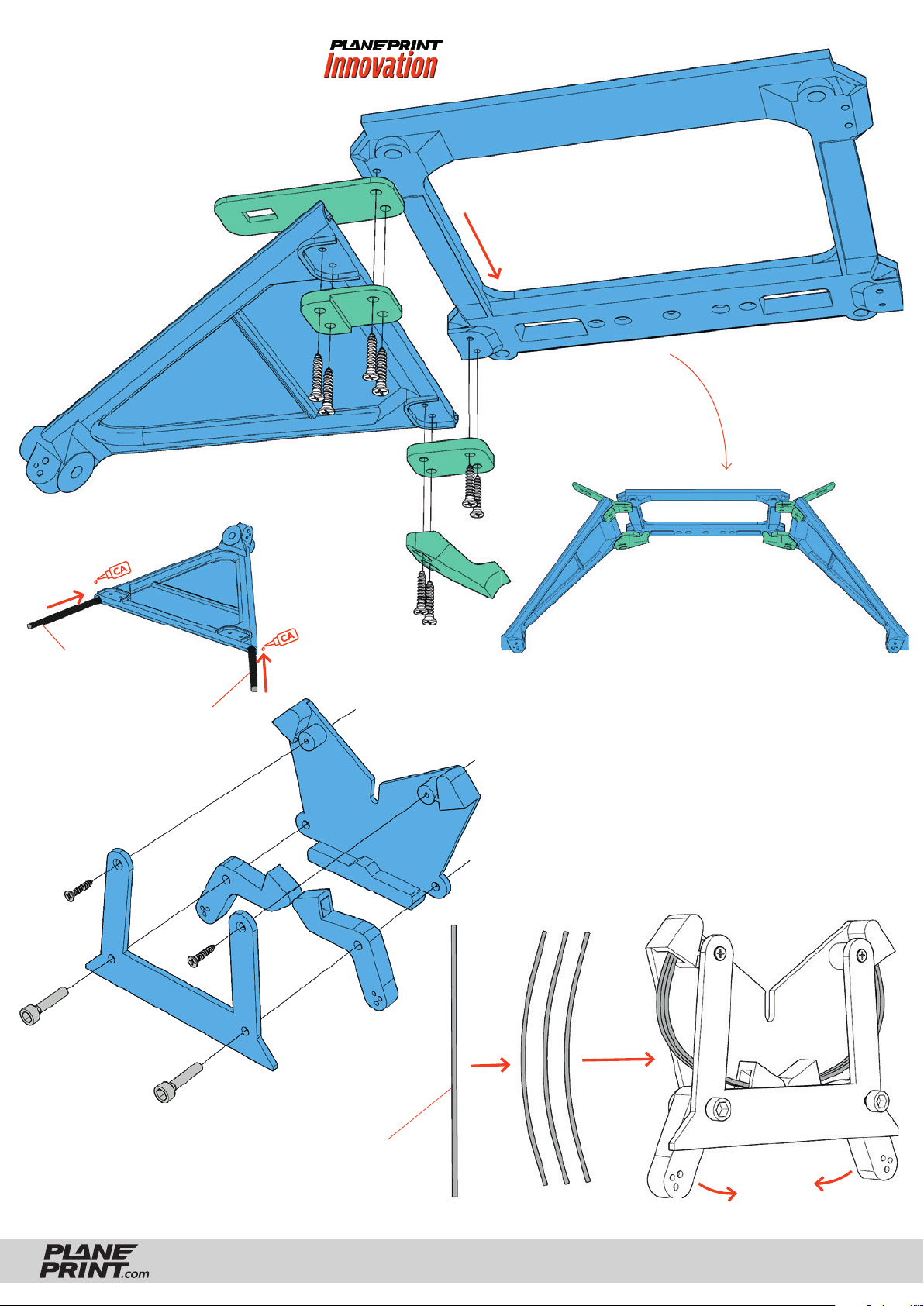

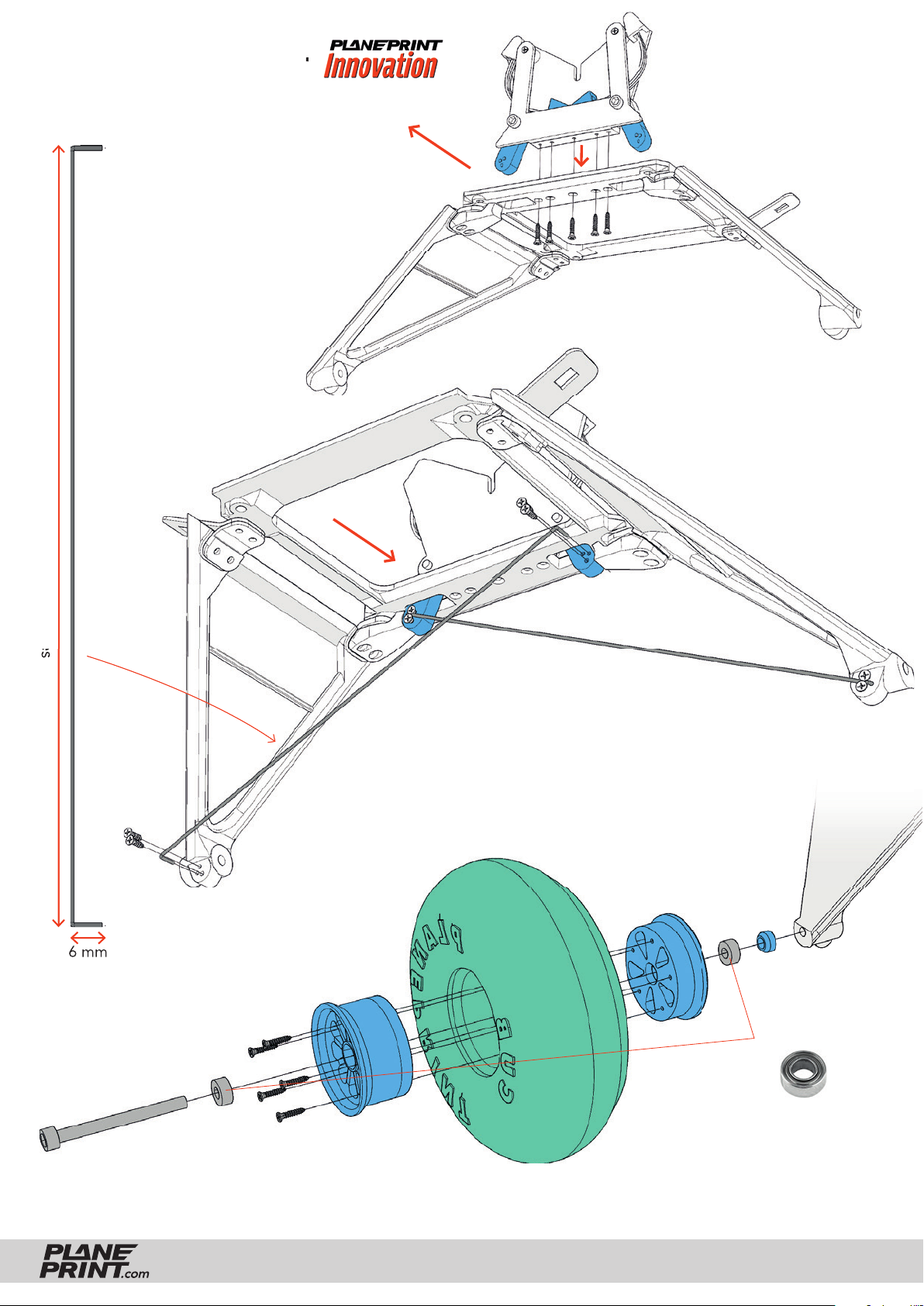

Suspended Gear
P4_Strut mount 1_cub.stl
P2_Gear legs_cub.stl
P2_Gear plate_cub.stl
front
P4_Hinges Gear_cub.stl
Carbon rod Ø3*103mm
Carbon rod Ø3*134mm
P2_Gear parts_cub.stl
P4_Gear stop.stl
Mount the spring box as shown here on
the left. Bend 6 steel wires as shown in the
picture and tension 3 on each side in the
box. If you want to spring the gear harder,
you can use 4 wires each.
3 pieces 3 pieces
Steel Wire Ø1*60mm
6 pieces
PLANEPRINT CUB
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
48
Page 49
Suspended Gear
Steel Wire Ø1* 178 mm, 2 pieces
front
Tapping screws Ø2*8mm
6 mm
front
There is also a rim for the wheel without ball
bearings, but here the PLA can get too hot. You
can secure the metal screw on the inside of the
leg with some CA glue or a nut.
Gear leg
P2_Rim ball bearing_cub.stl
Metal screw Ø4*50mm
PLANEPRINT CUB
P2_Rim ball bearing_cub.stl
Ball bearings
P4_Tire_cub.stl
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
49
Page 50

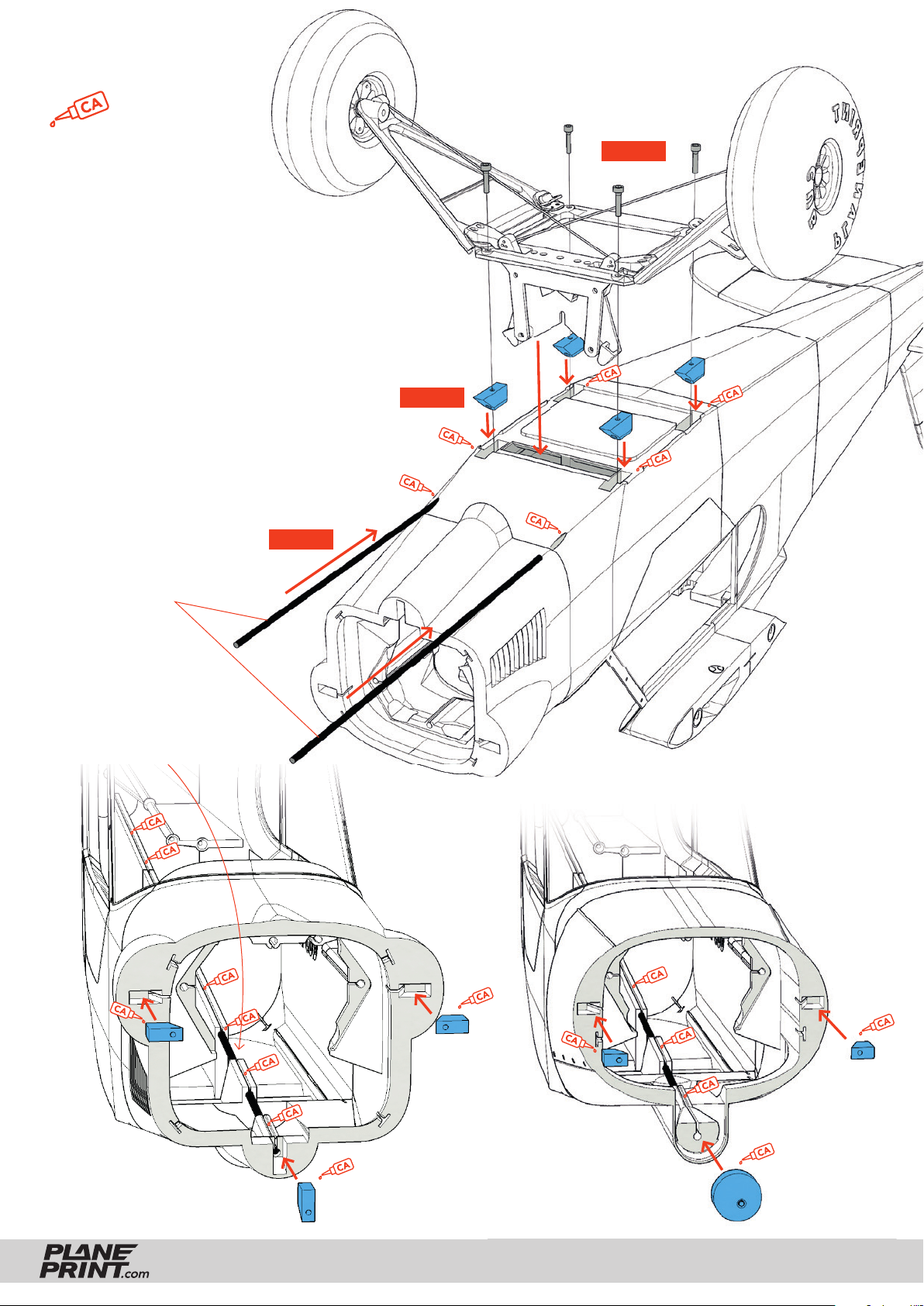

Gear mount
thin liquid
Insert the 4 brackets into the fuselage
and then the two carbon rods from the
front. The rods must be guided through
the brackets. When everything is correctly
seated, let thin CA glue run into all gaps.
Metal screws Ø3*12mm
STEP 3
This glue joint must be very good!
STEP 2
Carbon rods Ø3*216mm
Now glue the lower carbon
rod in place with thin CA glue.
P2_Gear parts_cub.stl
STEP 1
P1_Parts_cub.stl
PLANEPRINT CUB
Super Cub version
V-super P2_Parts_cub.stl
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
50
Page 51

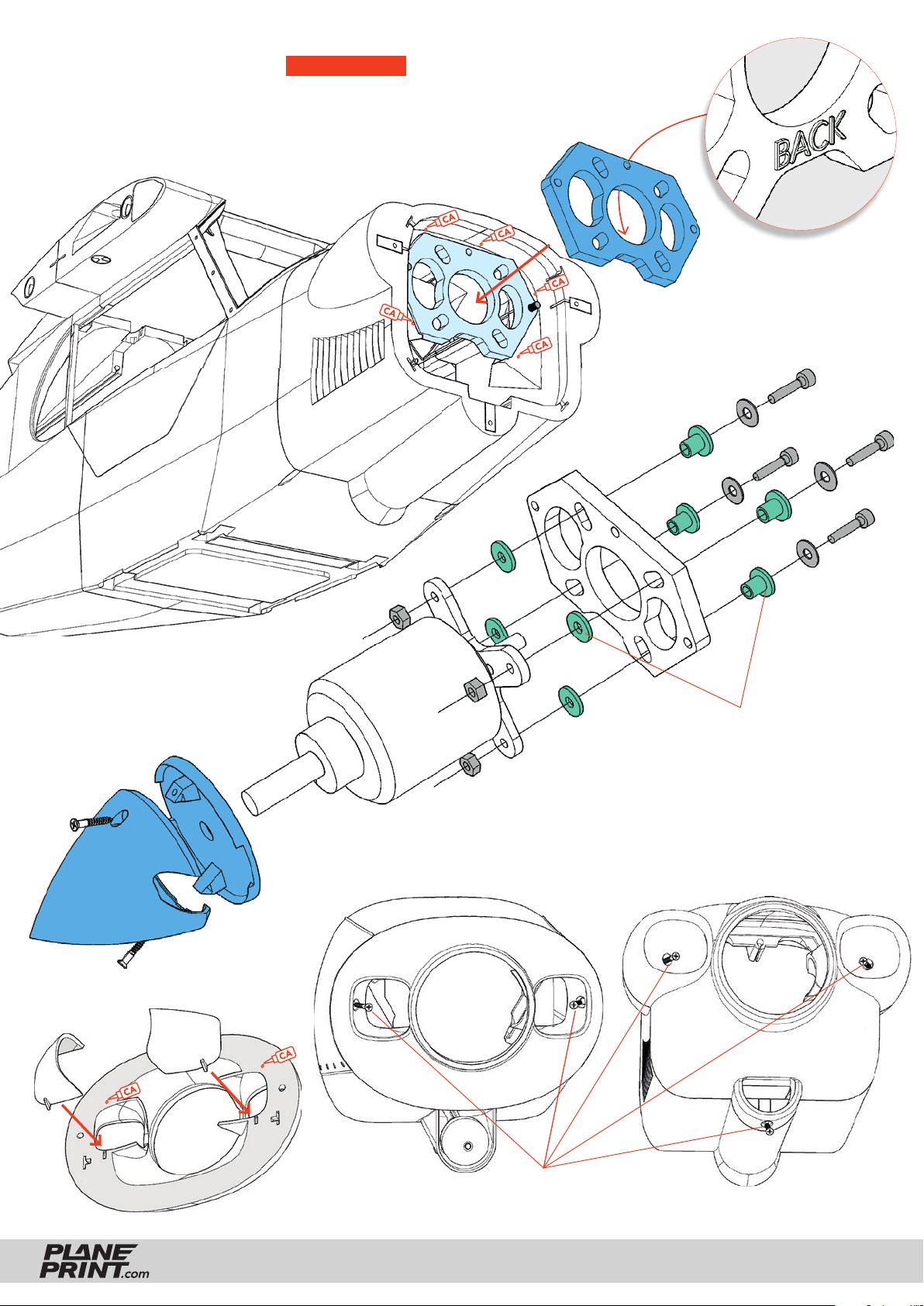

Motor mount
SAFETY FIRST Make sure the
prop does not generate vibrations.
Check regularly that the motor
mounting is tight!
Pay attention to the
correct alignment!
P1_Motor plate_cub.stl
Metal screws Ø3*20mm
Shims
P1_Spinner small 6mm_cub.stl
V-super P5_cooling R_cub.stl
V-super P5_cooling L_cub.stl
TPU parts P4_Motor mount_cub.stl
The TPU parts and shims are very important for
engine assembly. The TPU shims better isolate
the heat of the engine from the motor plate.
V-super P5_Cowling_cub.stl
P5_Cowling_cub.stl
Super Cub version
V-super P5_Cowling_cub.stl
PLANEPRINT CUB
Tapping screws
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
51
Page 52
Carbon rod
Ø3*200mm
P2_Parts_cub.stl
STEP 2
P1_WINGservo mount_cub.stl
LIGHTING If you want to equip
your Cub with lighting, there are
cable ducts.

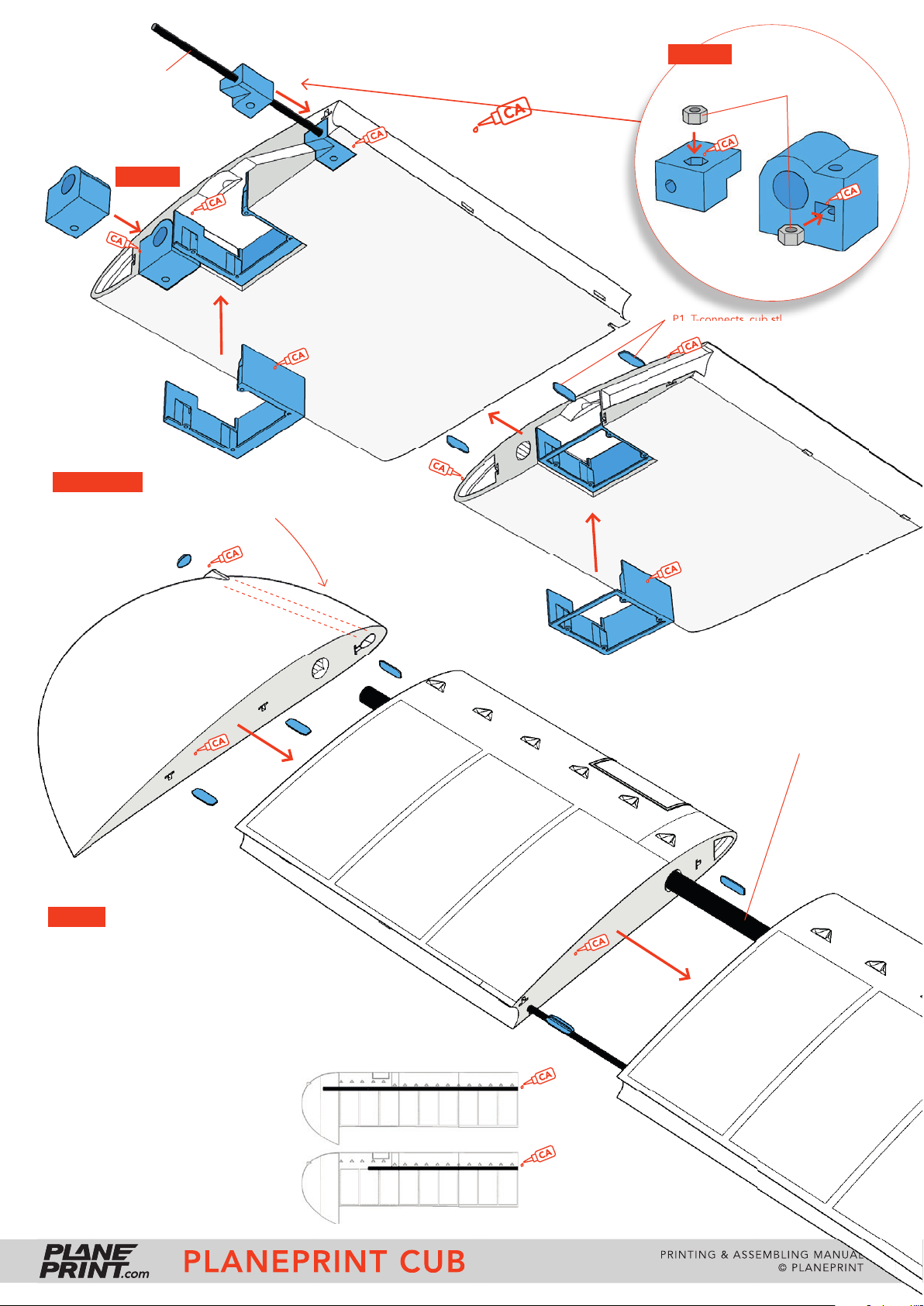

Wing assembly
STEP 1
Nuts Ø3mm
medium liquid
P2_Parts_cub.stl
P5_WING L 2_cub.stl
P1_T-connects_cub.stl
P5_WING L 1_cub.stl
P1_Lights_cub.stl
P5_WINGtip L_cub.stl
NOTE Carbon tube Ø10mm:
We recommend the version with a
650 mm long tube to reinforce the wing.
However, three tubes must be purchased for this.
You can also build the Cub with just two tubes by
sawing one into two 500 mm long pieces. Position
and glue the tubes so that they start at Wing 1.
P1_WINGservo mount_cub.stl
Carbon tube Ø10*650mm or
Carbon tube Ø10*500mm
P5_WING L 3_cub.stl
P5_WING L 2_cub.stl
Glue the tube only at the end
by letting thin CA glue run into
the gap.
PLANEPRINT CUB
650 mm
500 mm
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
52
Page 53

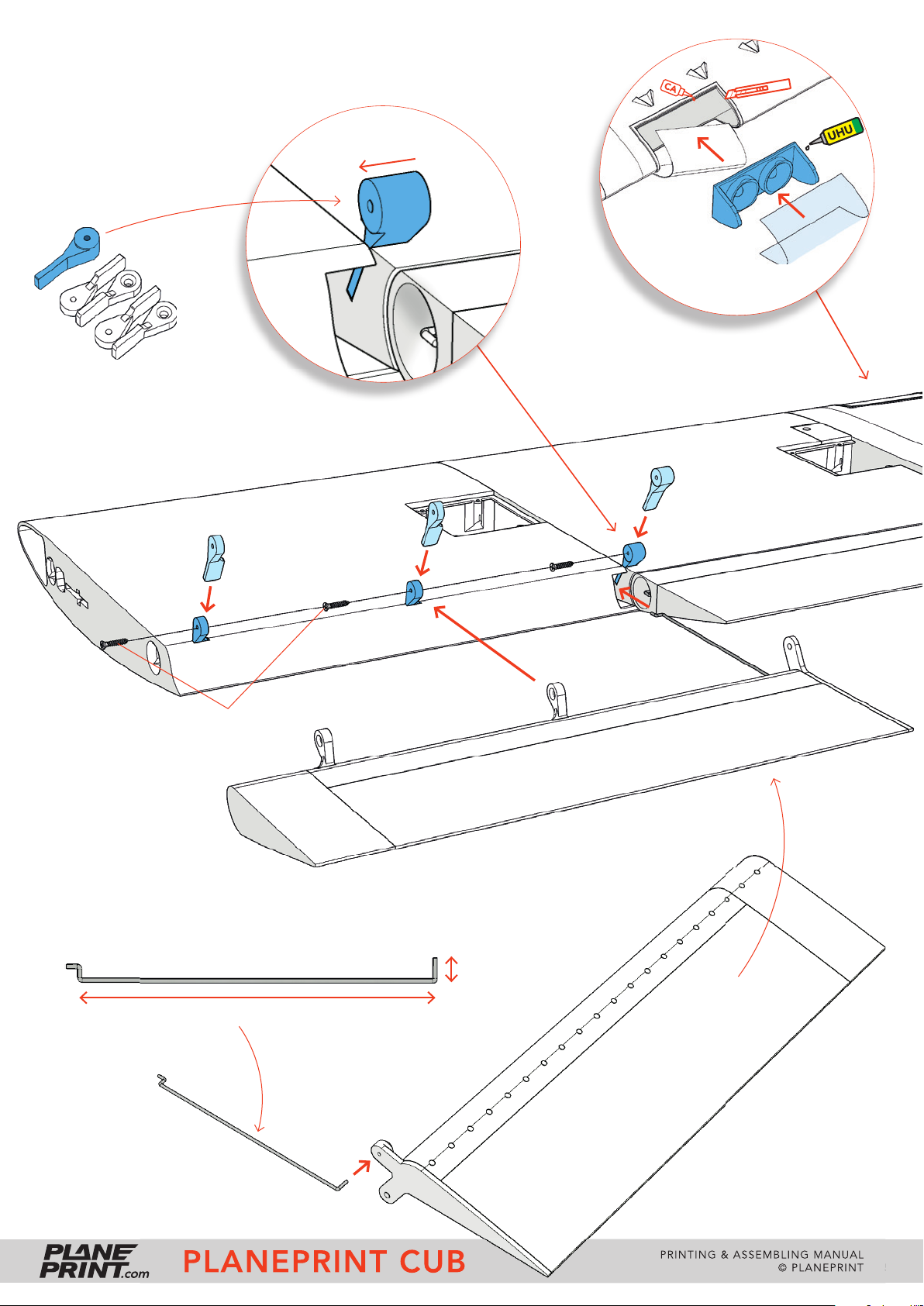

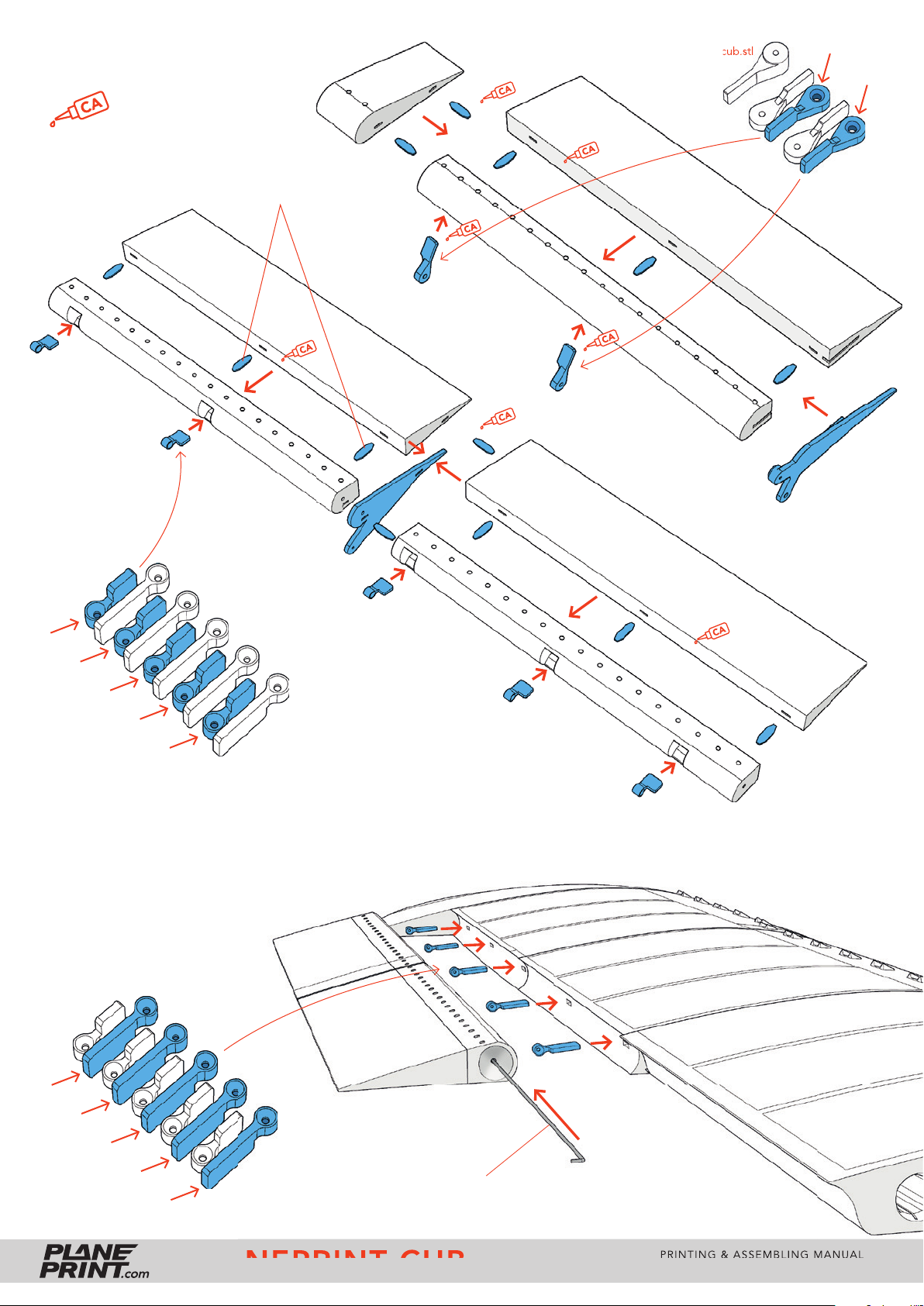

Ailerons/Flaps
medium liquid
P1_Hinges Flap_cub.stl
P5_Flap L 3_cub.stl
P5_Ail L 1_cub.stl
P1_Hinges AIL_cub.stl
P1_Interconnects small_cub.stl
P5_Ail L 3_cub.stl
P1_AIL Horns_cub.stl
P5_Flap L 2_cub.stl
P5_Flap L 1_cub.stl
P1_Hinges Flap_cub.stl
P1_AIL Horns_cub.stl
P5_Ail L 4_cub.stl
P5_Ail L 2_cub.stl
P1_Hinges AIL_cub.stl

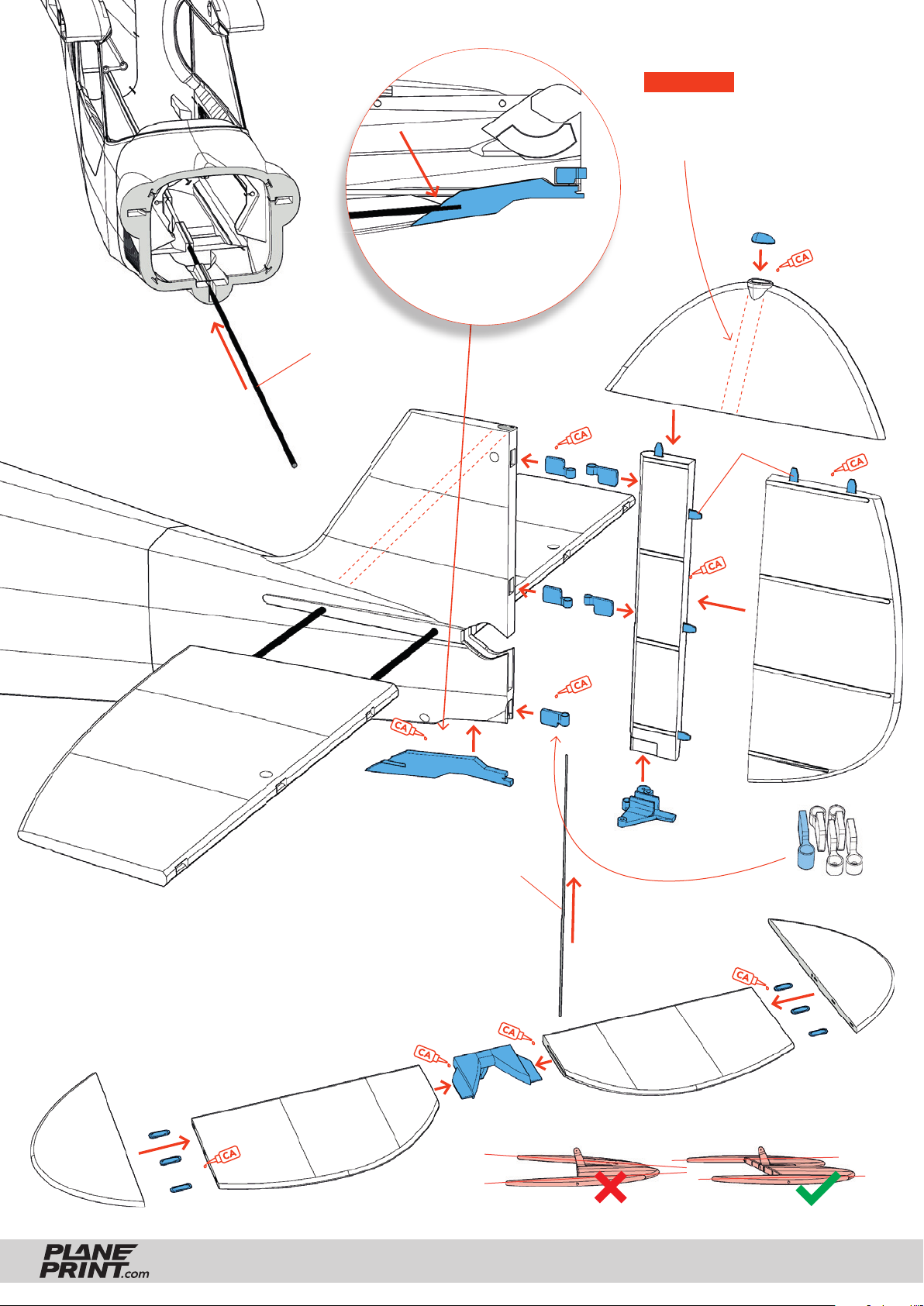

Before gluing the hinges, put everything together and insert the steel wire
into the side of the aileron. When everything fi ts and can be moved easily,
pull the wire out again and put a small drop of thin CA glue on each hinge.
Make sure that the holes for the wire remain open!
P1_Hinges AIL_cub.stl
Steel Wire Ø1*385mm
PLANEPRINT CUB
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
53
Page 54
Flaps
P1_Hinges Flap_cub.stl
P2_Landing Lights_cub.stl
Piece of foil
Pay attention
to the exact
alignment of
the hinges!
Do not tighten the
Tapping screws too
tightly, the fl ap must
be easy to move.
Steel Wire Ø1* 81 mm, 2 pieces
Tapping screws
5 mm
PLANEPRINT CUB
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
54
Page 55

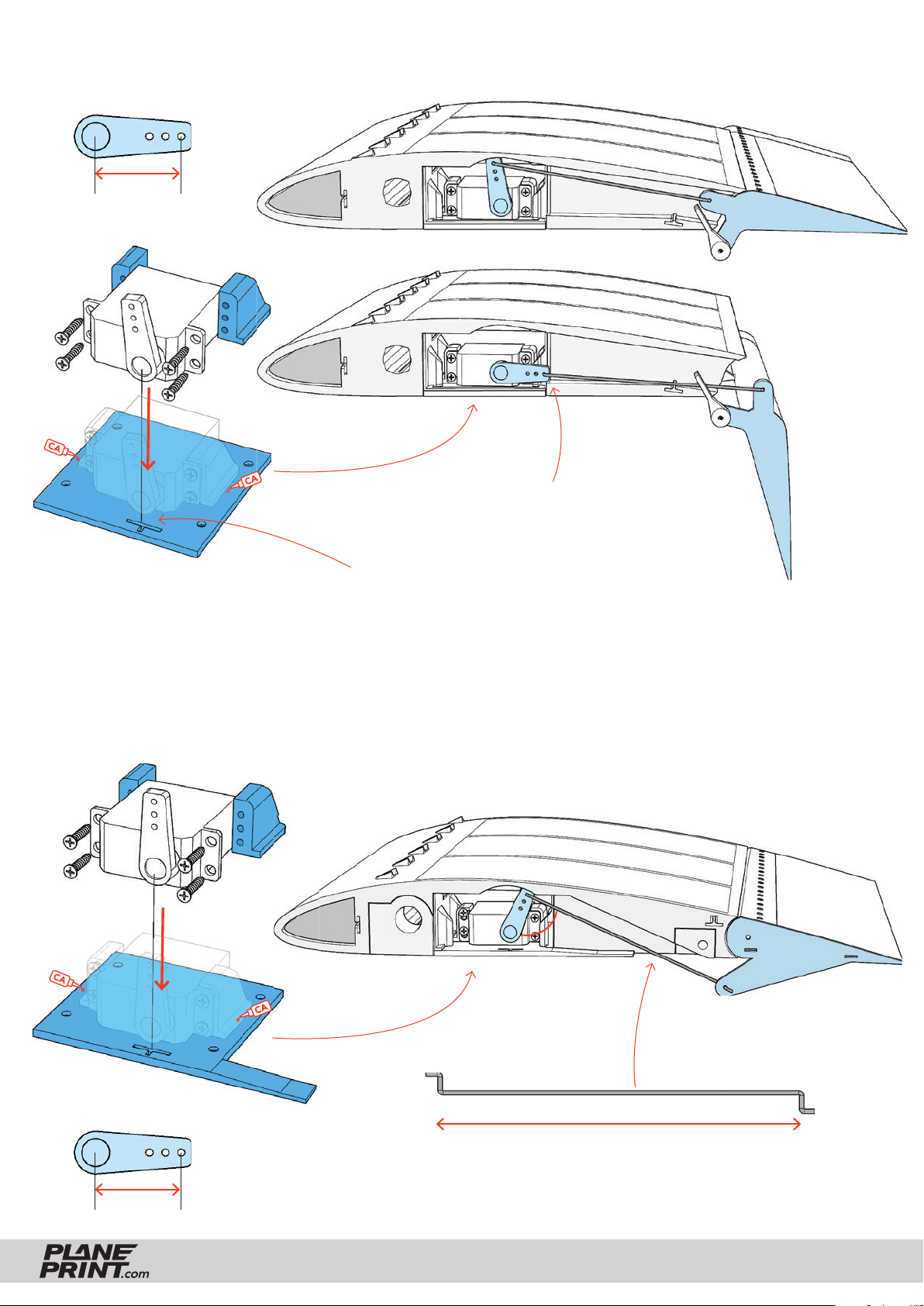

Servo Flap
16 mm
P1_WINGservo mount_cub.stl
Mount the servo lever so that it is in line with
the steel wire when the fl ap is fully extended.
This relieves the load on the servo.
P2_WINGservo covers_cub.stl
Servo Aileron
P1_WINGservo mount_cub.stl
Position the servo lever exactly at this mark
(seen from above)
90°
P2_WINGservo covers_cub.stl
16 mm
PLANEPRINT CUB
Steel Wire Ø1* 83 mm, 2 pieces
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
55
Page 56
MPX Plugs – Ailerons and Flaps

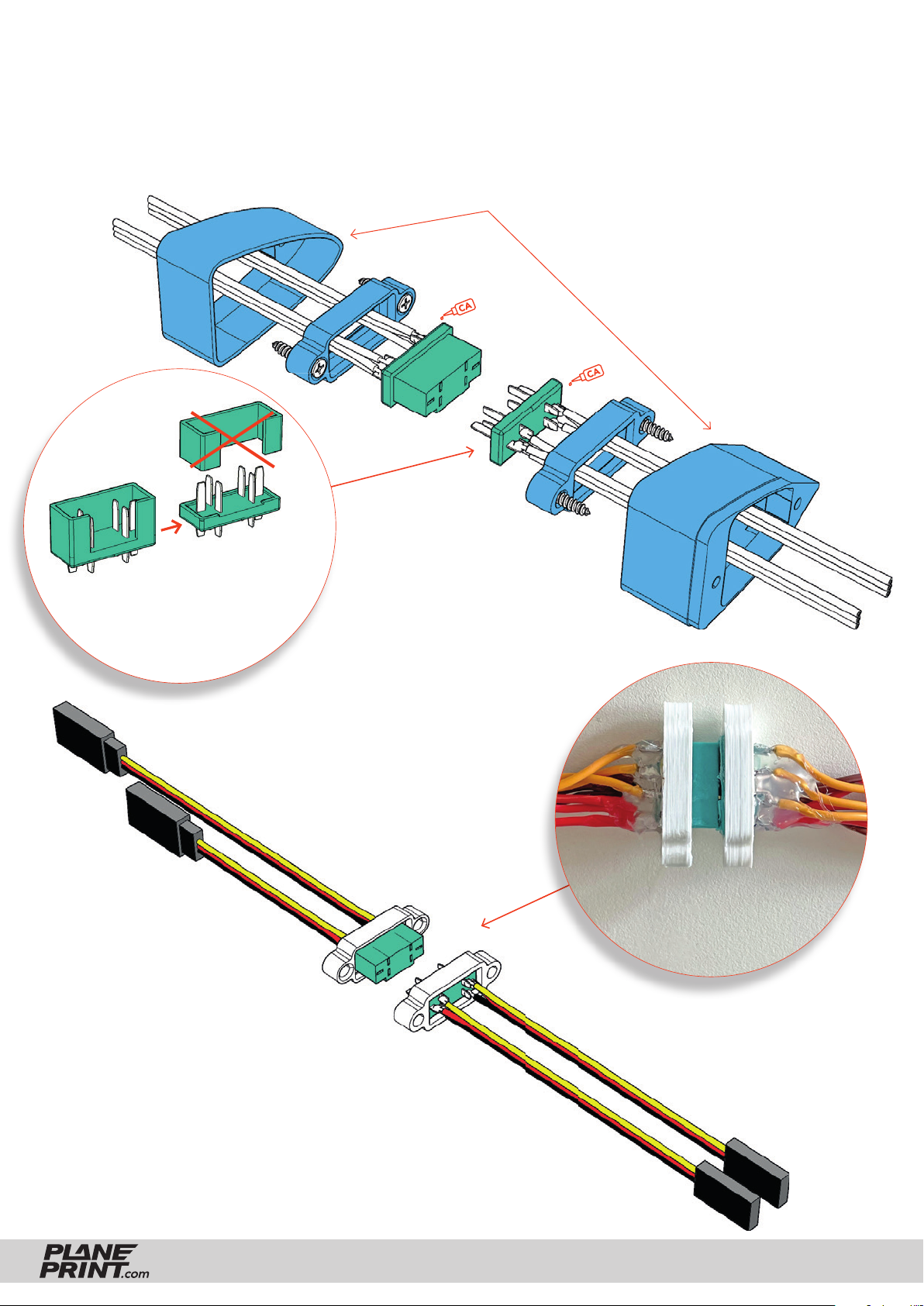

If you want to use MPX plugs as a quick
connector for the wingservos, you have to
solder the wiring as shown here:
Wing
side
Glue these two brackets into the fuselage and
the wing so that they are fl ush with the outer
edge. Check that the screwed-in connectors
have suffi cient contact when the wing is
assembled before you glue everything in place!
P1_MPX plug_cub.stl
Fuselage
side
Remove this part with
a saw. Insert and remove the plugs
several times before fi tting so
that they move smoothly.
Socket with 400 mm cable
Socket with
200 mm cable
Wing side
(Servos)
Prepare this wiring harness twice.
Secure the solder joints with a
hot glue gun or epoxy resin.
Then feed the cables into the cable ducts of
the wings and connect them to the servos (fi x
them with tape).
The cables for the fuselage are routed down
the inside of the front window pillars and fi xed
with a piece of tape.
PLANEPRINT CUB
Fuselage side
(Receiver)
2 Plugs with
400 mm cable each
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
56
Page 57

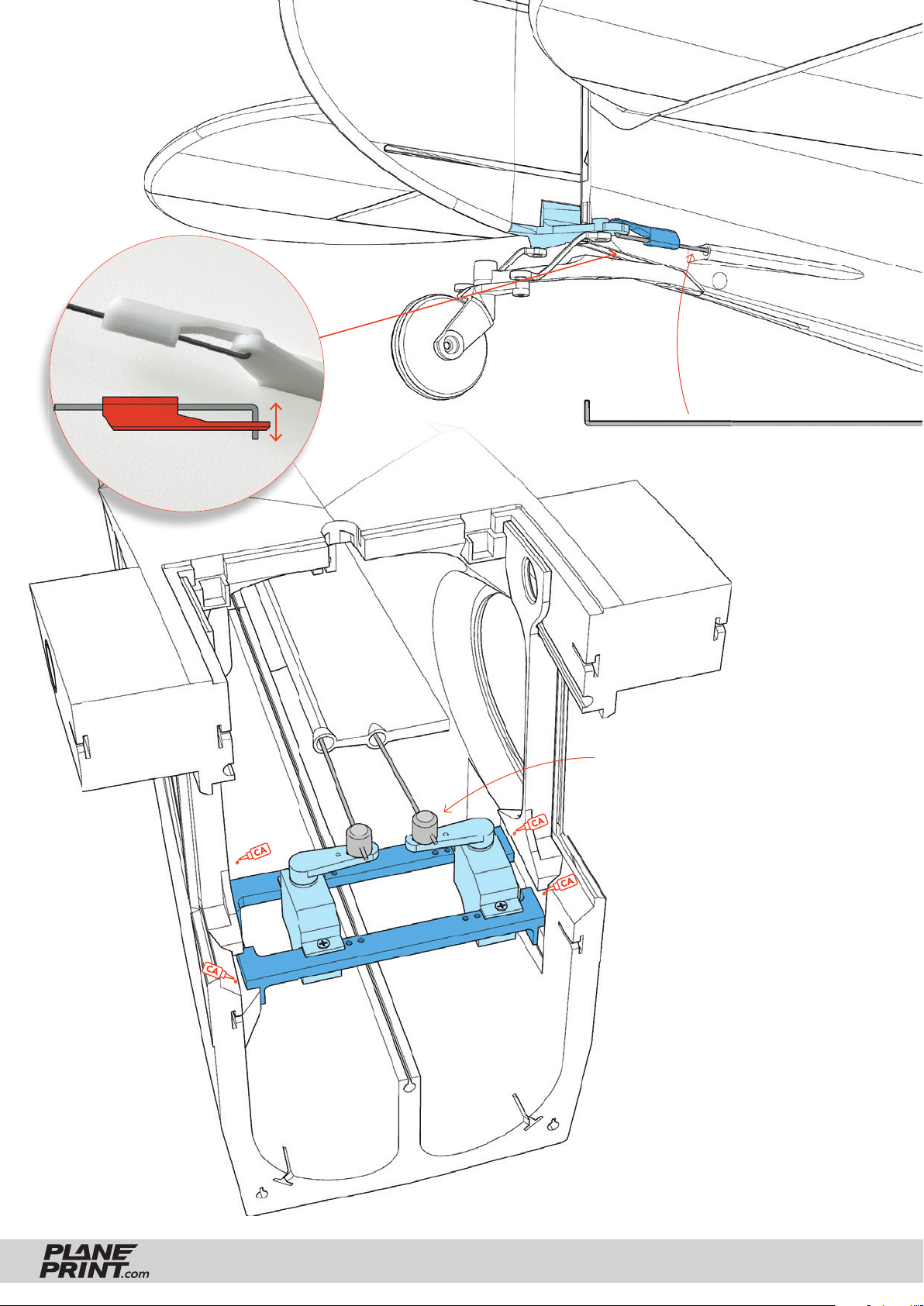

Servo Elevator and Rudder
Steel Wire Ø1mm
P1_Clips 1mm_cub.stl
P1_Clips 1mm_cub.stl
5 mm
Elevator
Rudder
Steel Wire Ø1*560mm
Rod connection
P1_Servo mount_cub.stl
PLANEPRINT CUB
Mount the servos on the beams,
there are several holes for
optimum positioning.
If everything fi ts, glue them to
the brackets in Fuselage 3.
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
57
Page 58

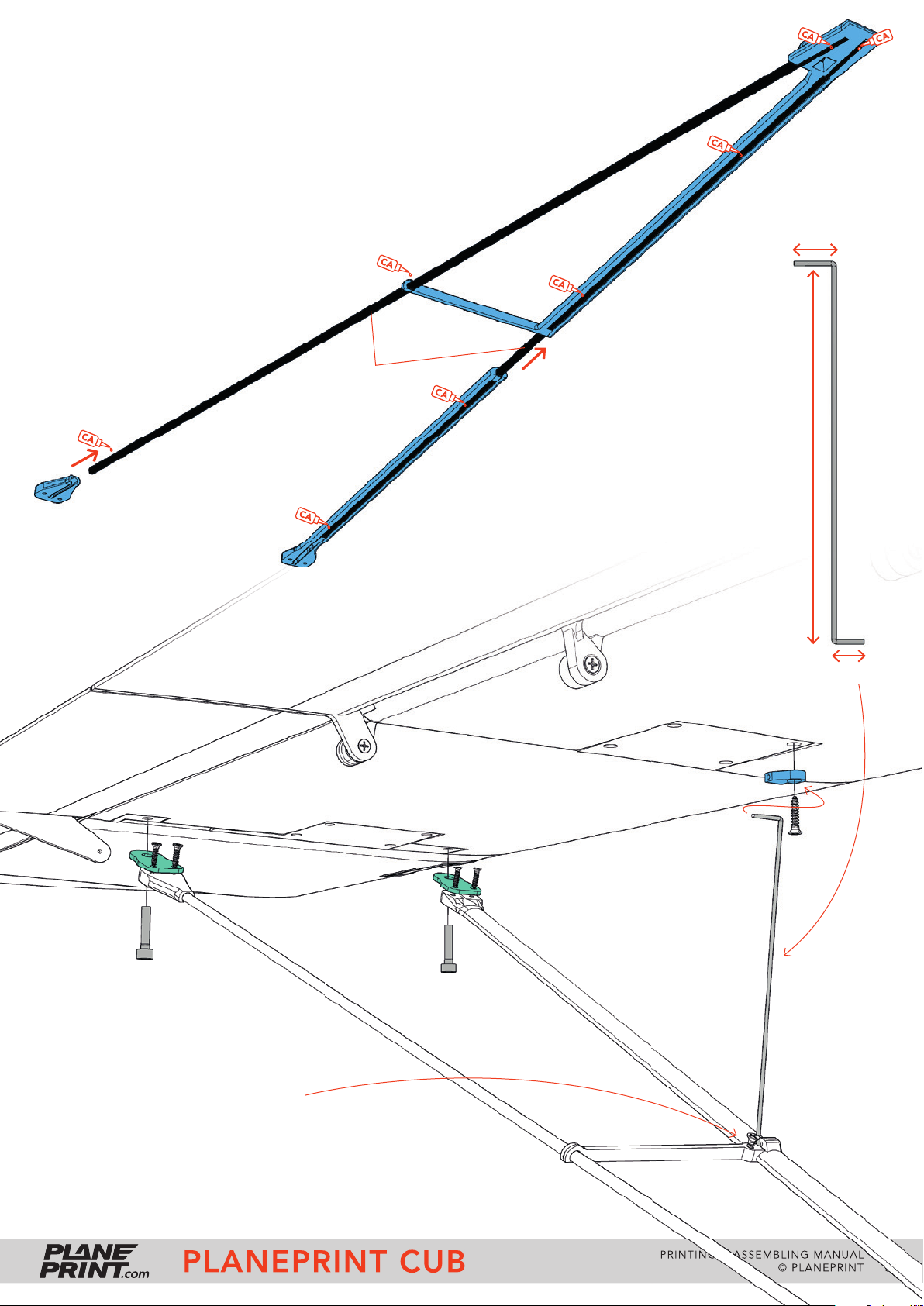

Wing struts
9 mm
P2_Strut L_cub.stl
Carbon rods
Ø3*438mm
P4_Strut mount 2_cub.stl
Metal screws Ø3*16mm
Steel Wire Ø1* 87 mm, 2 pieces
7 mm
P2_Strut L_cub.stl
When the wing is
later attached to the
fuselage, the wire is
hooked in here.
Insert the wire into the hole from
the inside and secure it with a
small tapping screw. The wire is
loose and can be moved.
PLANEPRINT CUB
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
58
Page 59

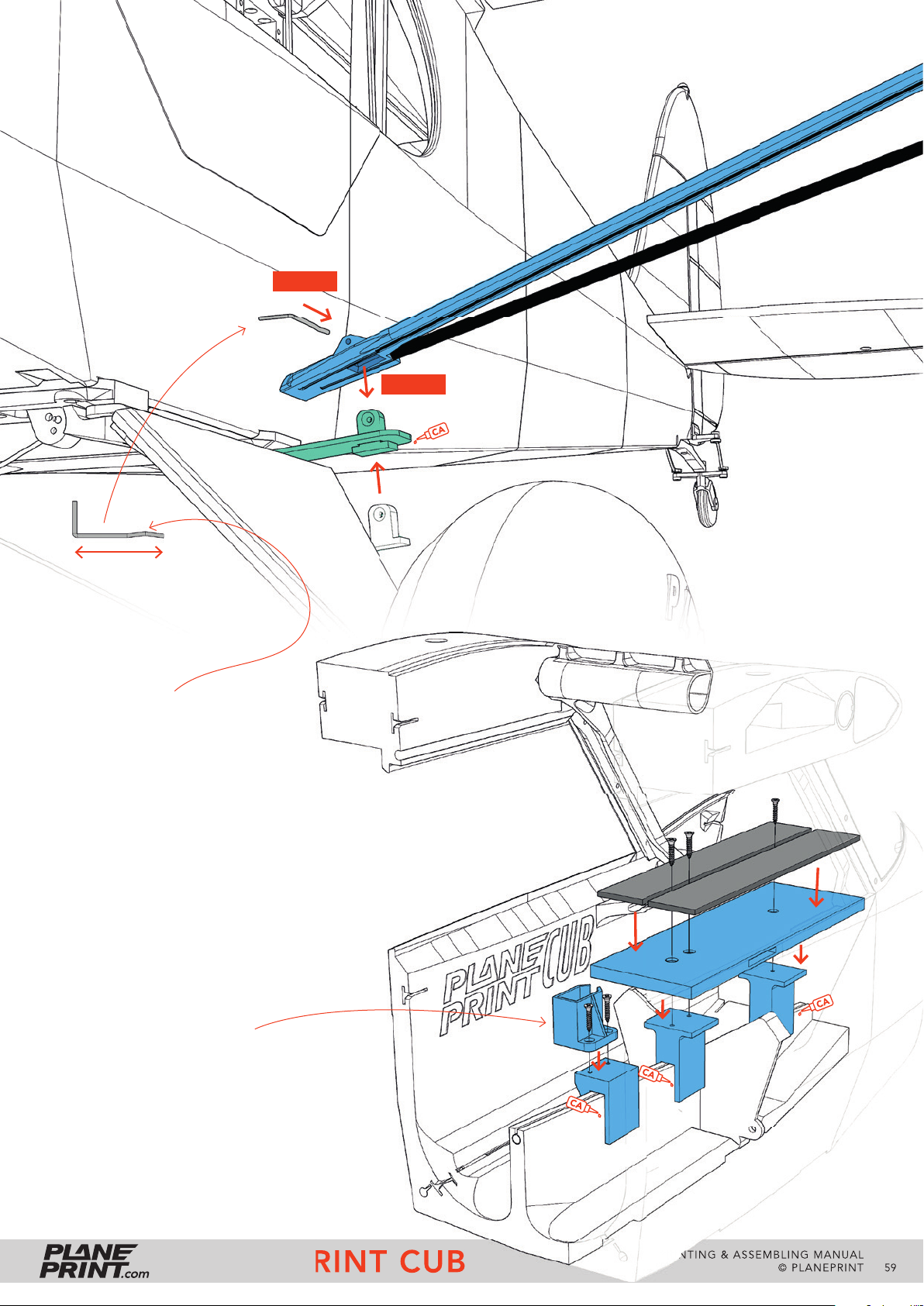

Strut fastening
Battery plate
Velcro tape
STEP 2
STEP 1
P4_Strut mount 1_cub.stl
20 mm
When you attach the wings to
the fuselage, secure the struts
at the bottom with an L-shaped
piece of steel wire.
Bend a small wave into the wire
so that it does not fall out.
Battery fastening
Stick two strips of velcro tape on the
battery plate and screw on the base.
Then glue the sockets into FUS 2 as
shown in the picture. Remove the
battery plate again to install the motor
and controller (located at the front
under the plate).
The socket with the plug holder is for
the T-60 plug of the controller. Glue
this into the holder and the socket
on FUS 2 so that you can connect the
battery with one hand.
PLANEPRINT CUB
P2_Battery plate_cub.stl
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
59
Page 60

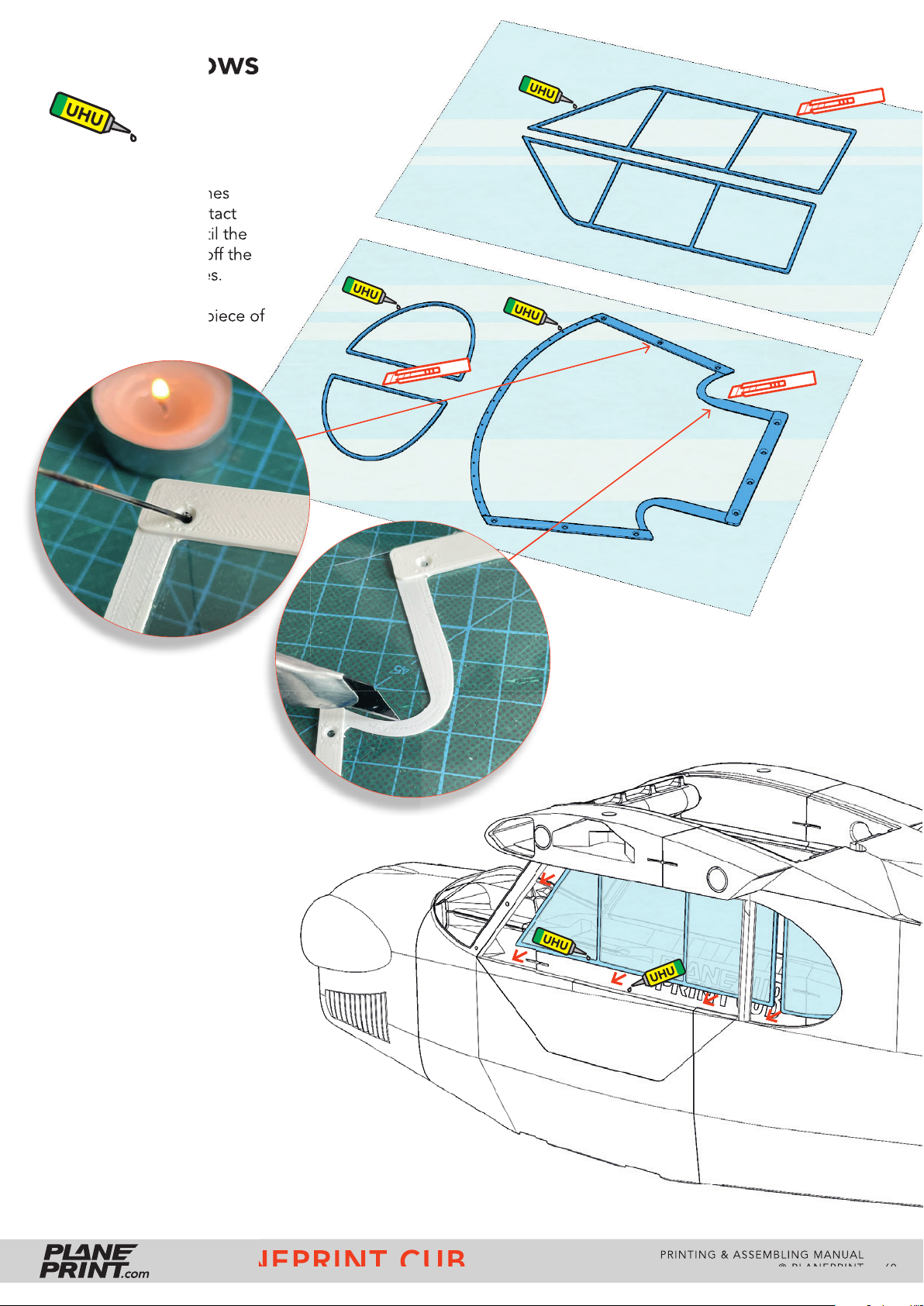

Foil Windows
Glue the window frames
to the fi lm with a Contact
adhesive and wait until the
glue is dry. Then cut off the
fi lm at the outer edges.
Drill the holes with a piece of
hot steel wire.
The windows are glued into
the window frames of the
fuselage from the inside
with the fi lm side facing
outwards. This works best
with a contact adhesive.
Coat both sides (fuselage
and fi lm) beforehand and
allow the adhesive to dry.
Then insert the windows
exactly from the inside.
PLANEPRINT CUB
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
60
Page 61

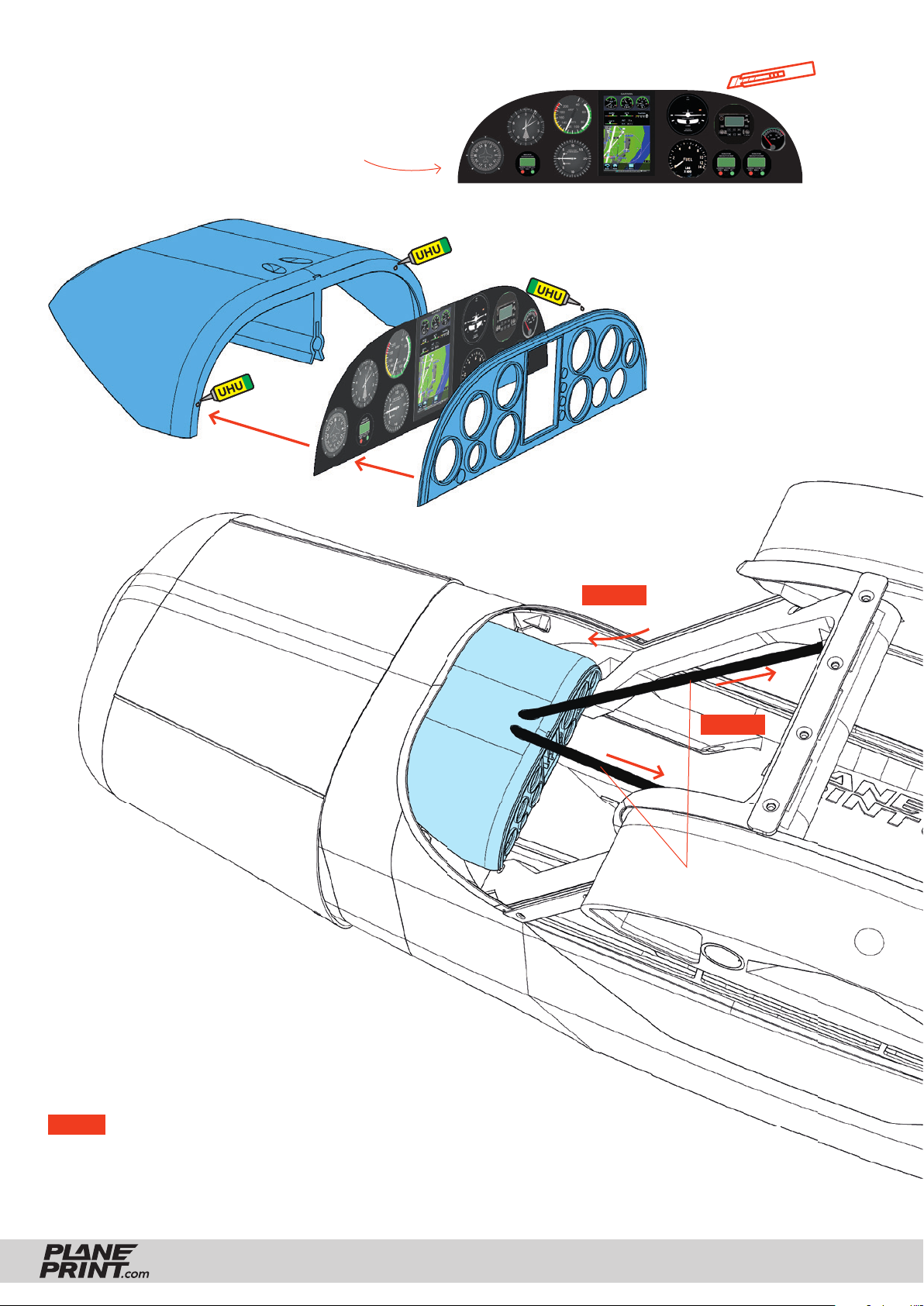

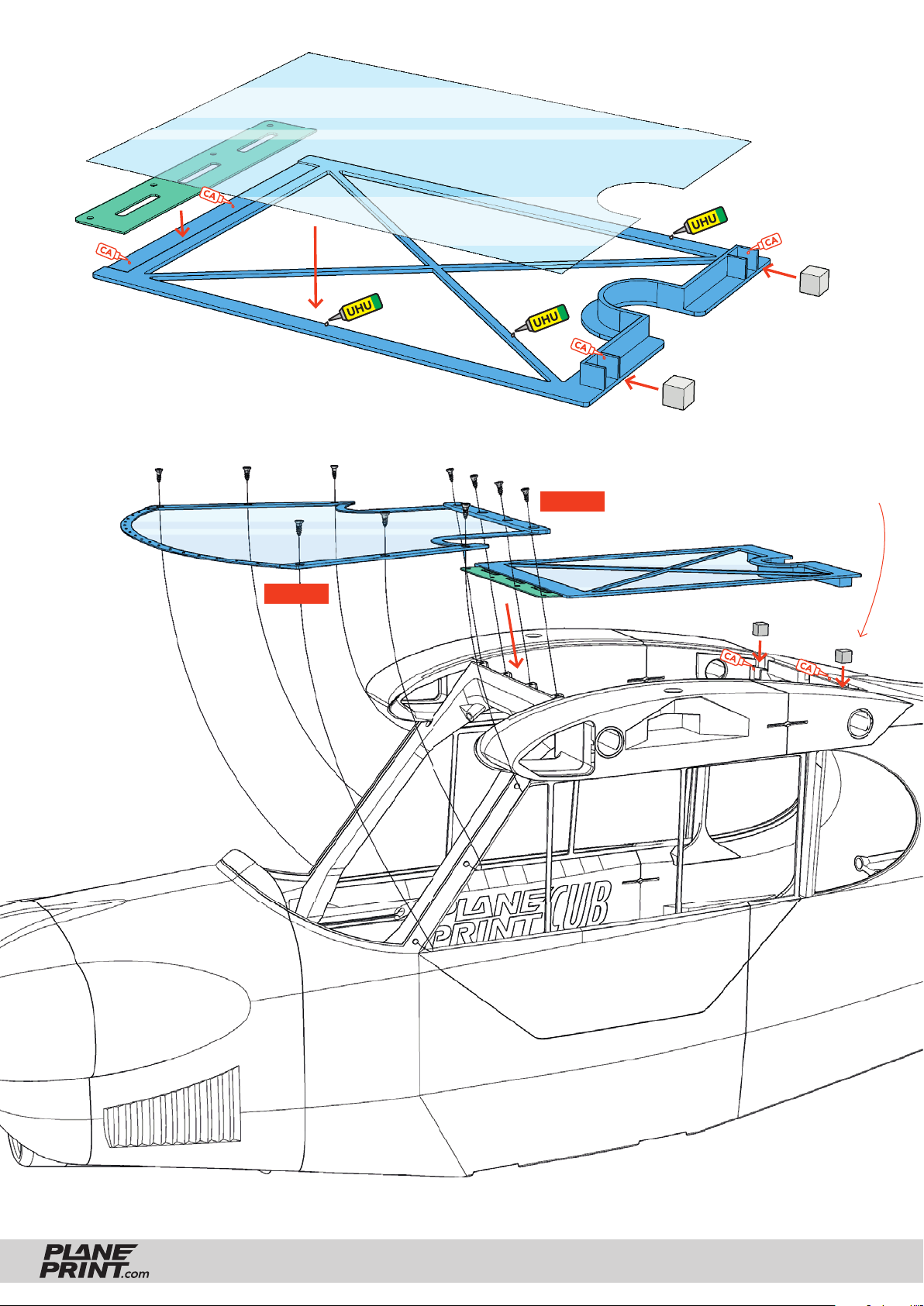

Cover
P1_Cover_cub.stl
STEP 2
STEP 1: Screw the upper edge
of the windscreen to the cover
hinge.
STEP 2: Then bend the
windshield downwards and
the sides towards the fuselage
and screw it tight with short
screws (watch out for the cables
running behind it!).
STEP 1
Neodym Super
Magnets 5x5x5 mm
Before gluing, check that the
magnets are correctly aligned
and do not repel each other!
Neodym
Magnets
PLANEPRINT CUB
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
61
Page 62
Tow coupling
P1_Tow coupling 23mm_cub.stl
Steel Wire Ø1* 38 mm
openclosed
23mm
10mm

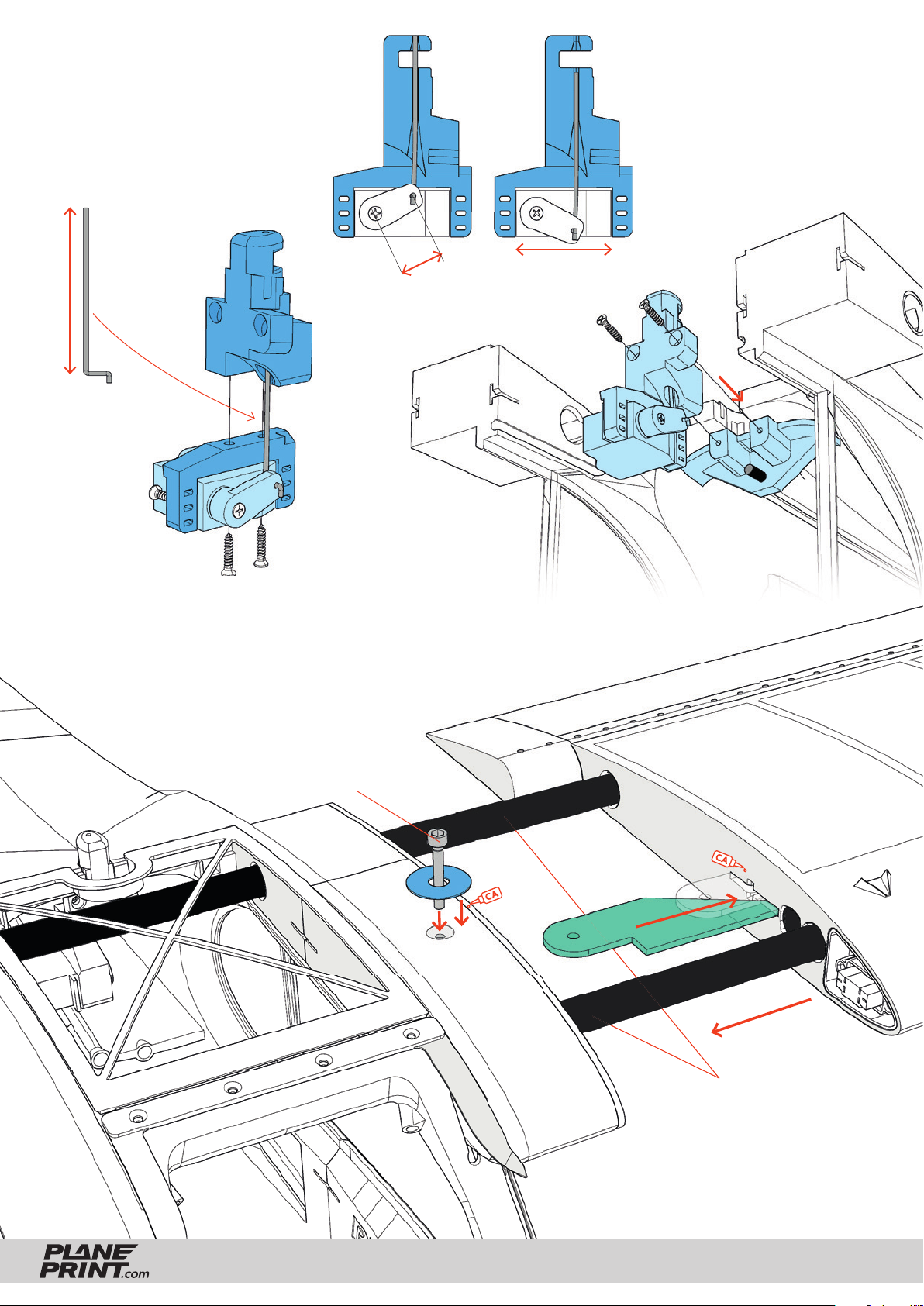

Wing fastening
Metal screw Ø3*20mm
P1_Parts_cub.stl
P5_FUS 3_cub.stl
P4_WING mount_cub.stl
PLANEPRINT CUB
Carbon tubes Ø10*500mm
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
62
Page 63
Cockpit
Print this page at 100% size
and cut out the image.
P1_Cockpit_cub.stl
The cockpit and the carbon tubes are only plugged
in, not glued. They have no load-bearing function.
You can also leave it out completely if you need
more space for the battery.
STEP 2
„click“
STEP 1
Carbon rods Ø3*115mm
NOTE Be aware that if the cockpit is printed in
black or dark grey, it can quickly deform in the heat
of the sun.
PLANEPRINT CUB
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
63
Page 64

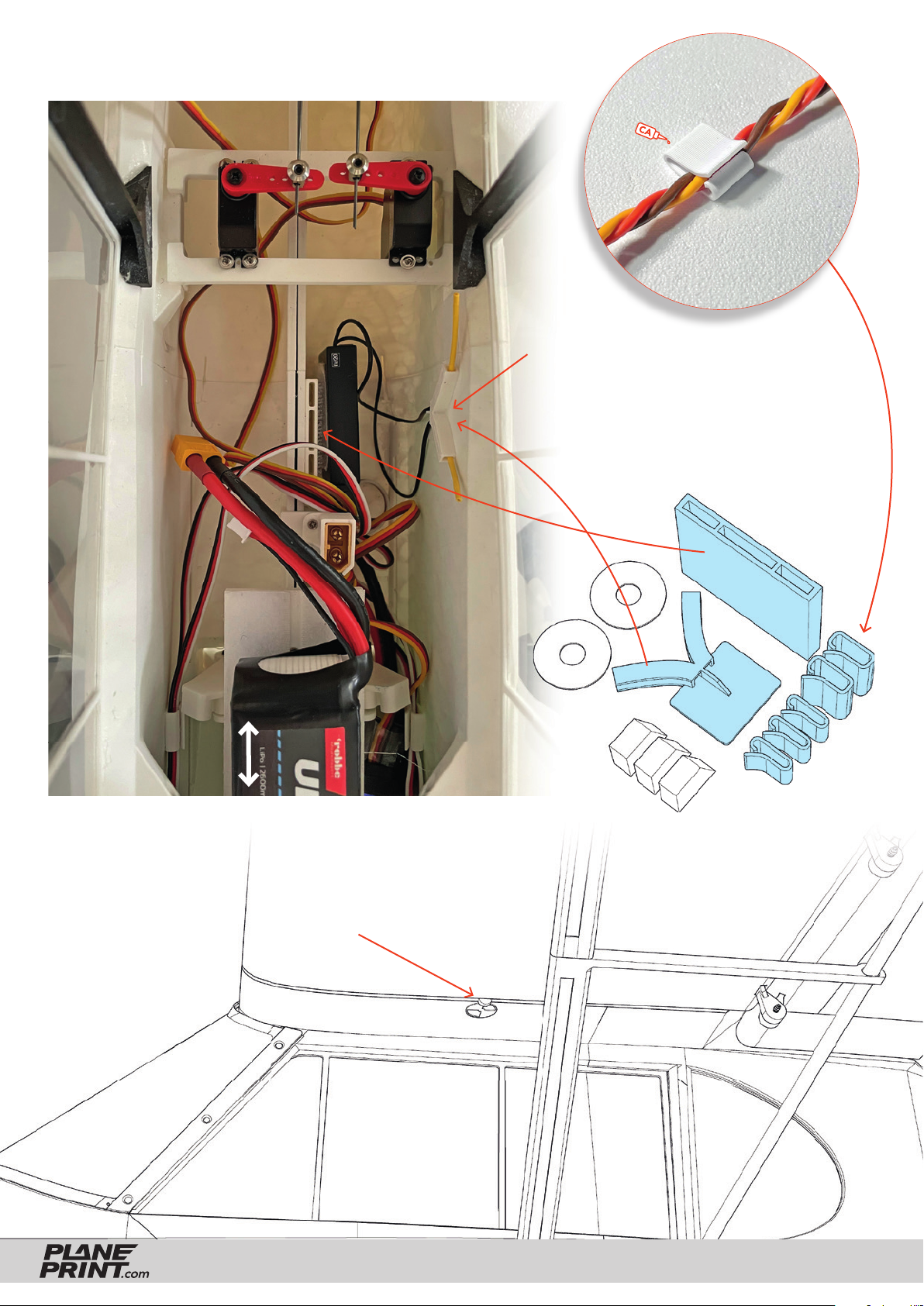

RC Components
Receiver
Use these clips to
secure the cables.
Insert the two antennas of the receiver into
this bracket to fi x them in an optimal 90°
position. Attach the part to the inside of the
fuselage with Velcro or CA glue (not near
carbon!).
You set the correct CG with the position of the battery.
Center of Gravity (CG)
The aircraft must balance on these points
(80mm behind the leading edge).
P1_Parts_cub.stl
PLANEPRINT CUB
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
64
Page 65

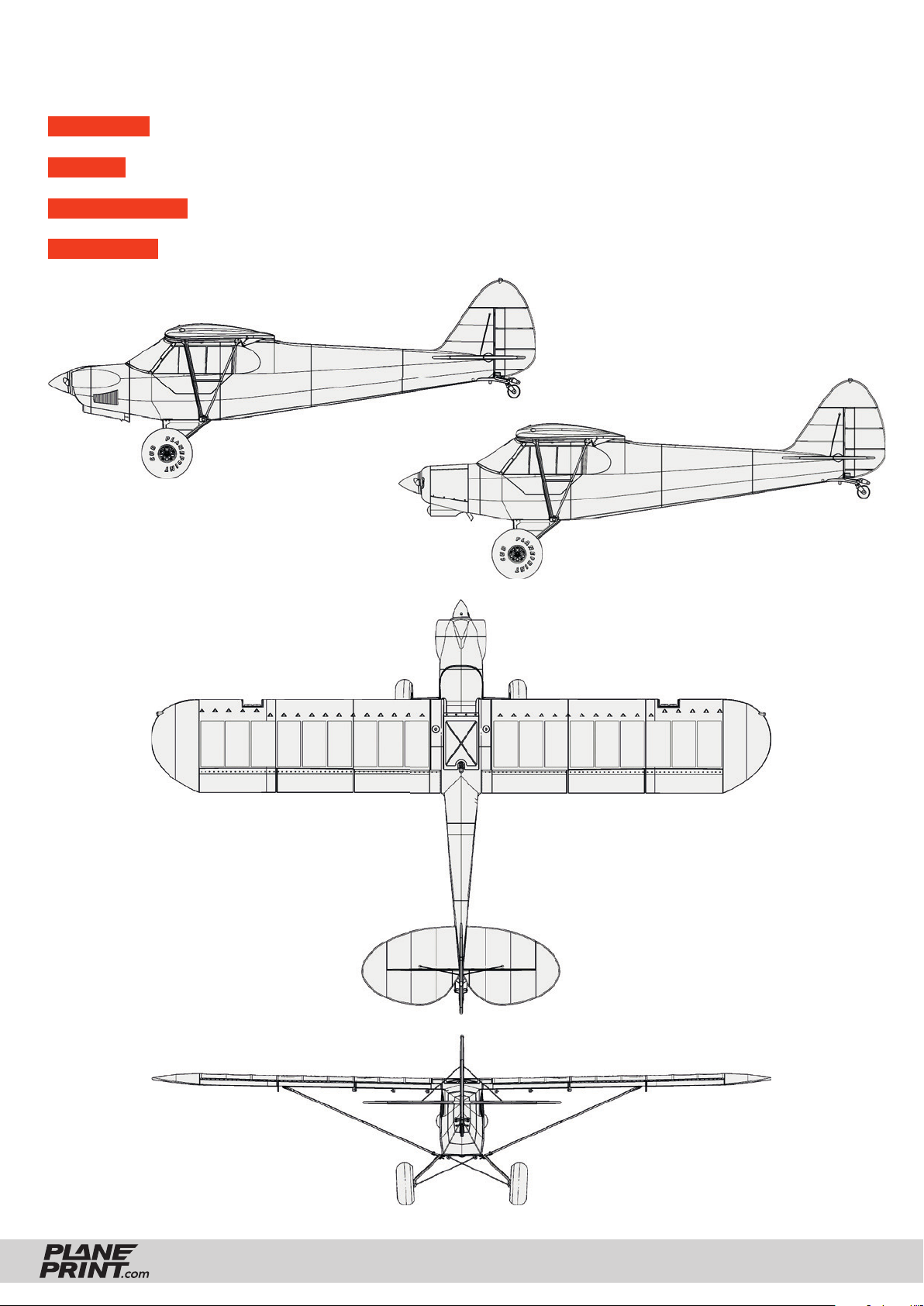

Technical specifi cations
WINGSPAN 1600 mm/63 inches
LENGTH 110 mm/4.3 inches
FLIGHT WEIGHT 2400 grams
WING LOAD 56 g/dm
Version Super Cub (classic nose)
2
PLANEPRINT CUB
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
65
Page 66

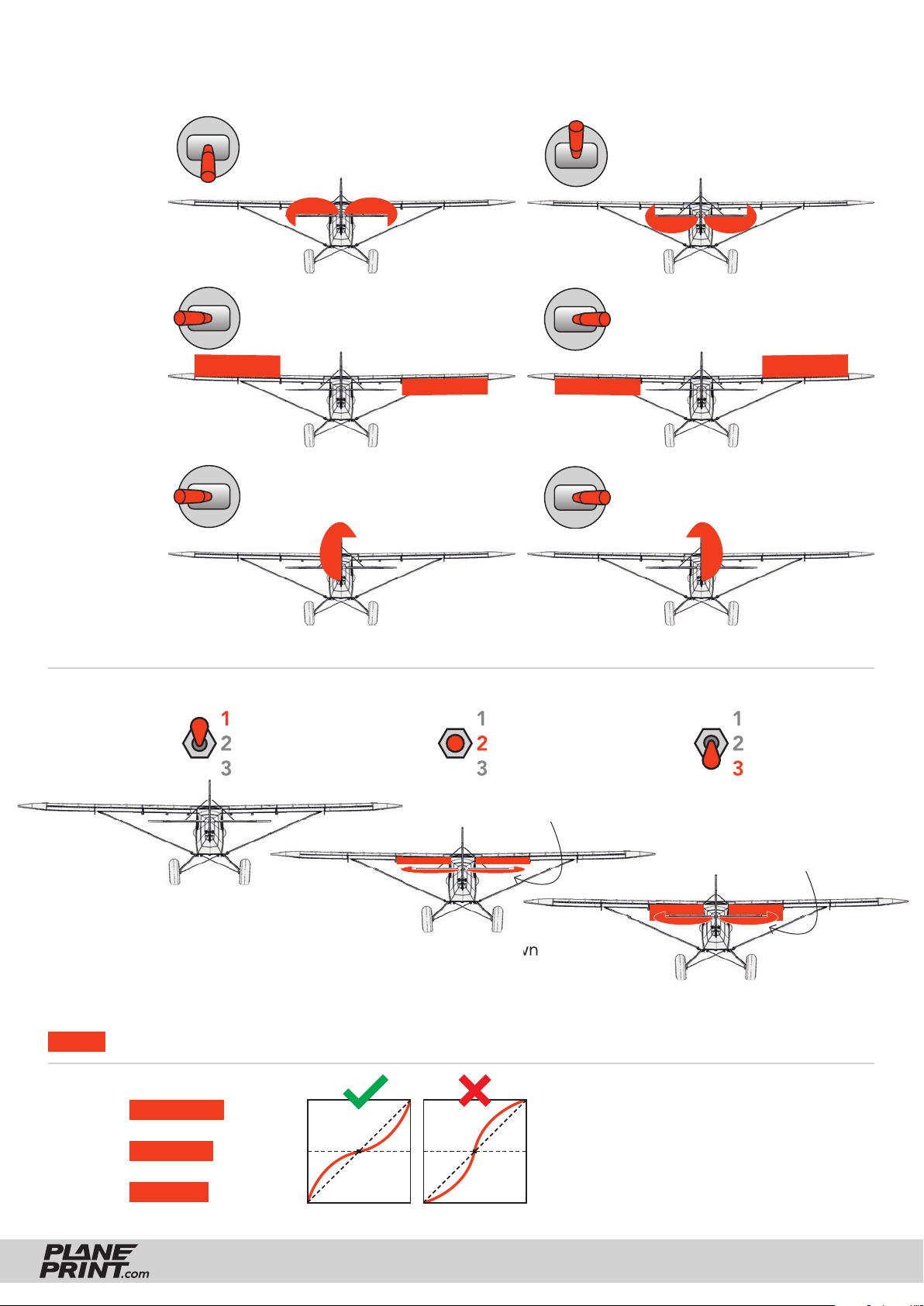

Control Direction Test Look at the aircraft from behind
ELEVATOR
40 mm up
40 mm down
AILERON
27 mm up
18 mm down
RUDDER
50 mm left
50 mm right
FLAPS Normal Start, slow fl ight Landing
Mix the elevator
2 mm downwards
Aileron and elevator at zero
Flap 15 mm down
Mix the elevator
10 mm downwards
Flap 55 mm down
NOTE The fl aps must be aligned exactly the same in every position, otherwise the aircraft will not fl y straight!
EXPO
ELEVATOR 25 %
AILERON 40 %
RUDDER 50 %
PLANEPRINT CUB
(for some remote
controls a minus
has to be in front
of the number)
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
66
Page 67
AGE RECOMMENDATION 14+
NOT FOR CHILDREN UNDER 14 YEARS.
THIS IS NOT A TOY!
The STL data (or data processed from it, such as G codes)
must never be passed on to third parties!
The purchase of the STL does not authorize the production
of models for third parties.
By using the download data, an RC model airplane, called
„model“ for short, can be manufactured using a 3D printer.
As a user of this model, only you are responsible for safe
operation that does not endanger you or others, or that
does not damage the model or property of others.
PLANEPRINT.com assumes no responsibility for damage to
persons and property caused by pressure, transport or use
of the product. Filaments, printing supplies, hardware or
consumables that can not be used after faulty 3D printing
will not be replaced by PLANEPRINT.com in any way.
When operating, always keep a safe distance from your
model in all directions to avoid collisions and injuries.
This model is controlled by a radio signal. Radio signals can
be disturbed from outside without being able to influence
it. Interference can lead to a temporary loss of control.
Always operate your model on open terrains, far from cars,
traffic and people.
Keep all chemicals, small parts and electrical components
out of the reach of children.
Avoid water contact with all components that are not specially
designed and protected. Moisture damages the electronics.
Never take an item of the model or accessory in your mouth
as this can lead to severe injuries or even death.
Never operate your model with low batteries in the transmitter or model.
Always keep the model in view and under control.
Use only fully charged batteries.
Always keep the transmitter switched on when the model
is switched on.
Always remove the battery before disassembling the model.
Keep moving parts clean and dry at all times.
Always allow the parts to cool before touching them.
Always remove the battery after use.
Make sure that the Failsafe is properly set before the flight.
Always follow the instructions and warnings for this product
and any optional accessories (servos, receivers, motors,
propellers, chargers, rechargeable batteries, etc.) carefully.
We develop our models to the best of our knowledge and belief.
We accept no liability for consequential damage and injuries
caused by improper use or incorrectly printed parts. Please be
careful when handling motors, batteries and propellers and
only move your model with insurance and in approved places!
Never operate the model with damaged wiring.
Never touch moving parts.
© PLANEPRINT.com, A-6021 Innsbruck, Conradstraße 6, [email protected]
© Design STL files by René Marschall • Layout: marschall designlab, marschall.cc
Loading...
