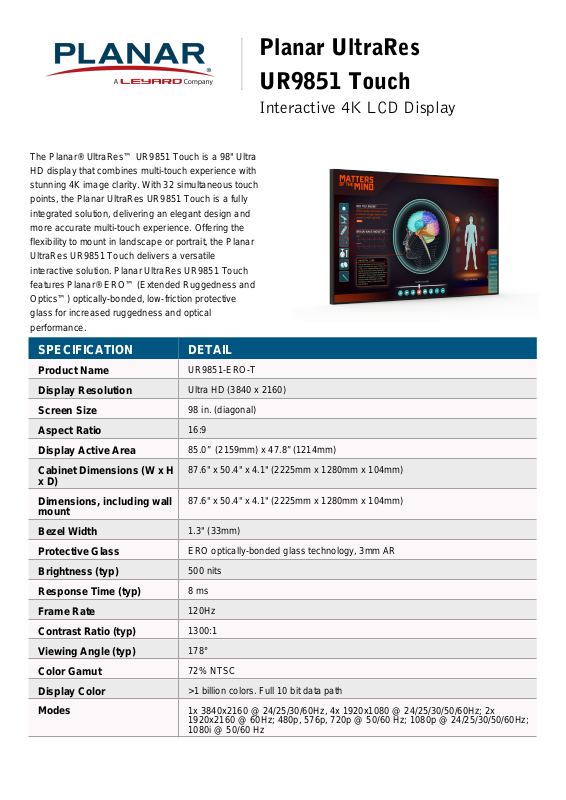

Planar UR9851 Touch Specifications

The Planar® UltraRes™ UR9851 Touch is a 98" Ultra HD display that combines multi-touch experience with stunning 4K image clarity. With 32 simultaneous touch points, the Planar UltraRes UR9851 Touch is a fully integrated solution, delivering an elegant design and more accurate multi-touch experience. Offering the flexibility to mount in landscape or portrait, the Planar UltraRes UR9851 Touch delivers a versatile interactive solution. Planar UltraRes UR9851 Touch features Planar® ERO™ (Extended Ruggedness and Optics™) optically-bonded, low-friction protective glass for increased ruggedness and optical performance.

Planar UltraRes UR9851 Touch

Interactive 4K LCD Display

SPECIFICATION DETAIL

Product Name Display Resolution Screen Size Aspect Ratio Display Active Area Cabinet Dimensions (W x H

x D) Dimensions, including wall

mount Bezel Width Protective Glass Brightness (typ) Response Time (typ) Frame Rate

UR9851-ERO-T Ultra HD (3840 x 2160) 98 in. (diagonal) 16:9

85.0” (2159mm) x 47.8” (1214mm)

87.6" x 50.4" x 4.1" (2225mm x 1280mm x 104mm)

1.3" (33mm) ERO optically-bonded glass technology, 3mm AR 500 nits 8 ms 120Hz

Contrast Ratio (typ) Viewing Angle (typ) Color Gamut Display Color Modes

1300:1 178° 72% NTSC >1 billion colors. Full 10 bit data path 1x 3840x2160 @ 24/25/30/60Hz, 4x 1920x1080 @ 24/25/30/50/60Hz; 2x

1920x2160 @ 60Hz; 480p, 576p, 720p @ 50/60 Hz; 1080p @ 24/25/30/50/60Hz; 1080i @ 50/60 Hz

Pixel Pitch

0.562mm

Weight Weight (Shipping) Backlight Line Voltage Power Consumption (typ) Operating Temperature

Humidity Approvals External Connections

Audio Output Multi-Source Views Display Control Speakers

330 lb (150 kg) TBD LED 100-240V; 50/60Hz 410W 0° to +35°C (32° to 95°F) at up to 1500m, 0° to +30°C (32° to 86°F) at up to

3000m 20 - 85% RH (non-condensing)

FCC Class A, CE, cTUVus, CCC DisplayPort 1.2 x 1, HDMI 2.0 x 2 (HDCP 2.2), HDMI 1.4 x 2, OPS x 1, OPS USB

2.0 x 2, OPS USB 3.0 X 1 PC Line Out, S/PDIF

PiP, Dual, Triple, Quad IR, RS-232, LAN, Keypad, Mobile app 10W x 2 built-in

Orientation Mounting Fanless HD format Display Technology Touch Technology OS Compatibility Options / Features

Warranty Planar Part Number UPC

Landscape only Planar Profile Mounting System or VESA: 600 x 400 mm Yes 4K UHD 2160p Direct-lit LED LCD IR 32 point touch Windows 7, 8, 10, Vista, XP, Mac OSX and Linux MediaPlex Plus Processing, Scheduling, Presets, Redundant power supply, TAA

compliant 3 years Advance Exchange

997-8092-00 8 10689 00263 5

For more information, please visit www.planar.com
