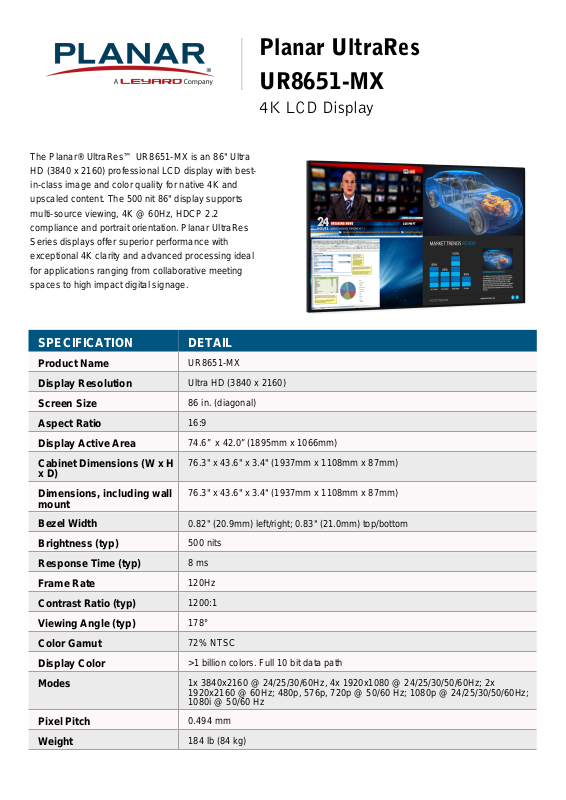

Planar UR8651-MX Specifications

The Planar® UltraRes™ UR8651-MX is an 86" Ultra HD (3840 x 2160) professional LCD display with bestin-class image and color quality for native 4K and upscaled content. The 500 nit 86" display supports multi-source viewing, 4K @ 60Hz, HDCP 2.2 compliance and portrait orientation. Planar UltraRes Series displays offer superior performance with exceptional 4K clarity and advanced processing ideal for applications ranging from collaborative meeting spaces to high impact digital signage.

Planar UltraRes UR8651-MX

4K LCD Display

SPECIFICATION DETAIL

Product Name Display Resolution Screen Size Aspect Ratio Display Active Area Cabinet Dimensions (W x H

x D) Dimensions, including wall

mount Bezel Width Brightness (typ) Response Time (typ) Frame Rate Contrast Ratio (typ)

UR8651-MX Ultra HD (3840 x 2160) 86 in. (diagonal) 16:9

74.6” x 42.0” (1895mm x 1066mm)

76.3" x 43.6" x 3.4" (1937mm x 1108mm x 87mm)

0.82" (20.9mm) left/right; 0.83" (21.0mm) top/bottom 500 nits 8 ms 120Hz 1200:1

Viewing Angle (typ) Color Gamut Display Color Modes

Pixel Pitch Weight

178° 72% NTSC >1 billion colors. Full 10 bit data path 1x 3840x2160 @ 24/25/30/60Hz, 4x 1920x1080 @ 24/25/30/50/60Hz; 2x

1920x2160 @ 60Hz; 480p, 576p, 720p @ 50/60 Hz; 1080p @ 24/25/30/50/60Hz; 1080i @ 50/60 Hz

0.494 mm 184 lb (84 kg)

Weight (Shipping)

TBD

Backlight Line Voltage Power Consumption (typ) Operating Temperature

Humidity Approvals External Connections

Audio Output Multi-Source Views Display Control Speakers Orientation Mounting

LED 100-240V; 50/60Hz 230W (standby: <1.2W) 0° to +35°C (32° to 95°F) at up to 1500m, 0° to +30°C (32° to 86°F) at up to

3000m 20 - 85% RH (non-condensing)

FCC Class A, CE, cTUVus DisplayPort 1.2 x 1, HDMI 2.0 x 2 (HDCP 2.2), HDMI 1.4 x 2, OPS x 1, OPS USB

2.0 x 2, OPS USB 3.0 X 1 PC Line Out, S/PDIF

PiP, Dual, Triple, Quad IR, RS-232, LAN, Keypad, Mobile app 10W x 2 built-in Landscape/Portrait Planar Profile Mounting System or VESA: 600 x 400 mm

Fanless Recommended Usage HD format Display Technology Options / Features

Warranty Recommended Usage Planar Part Number UPC

Yes Up to 24x7 4K UHD 2160p Edge-lit LED LCD MediaPlex Plus Processing, Scheduling, Presets, Redundant power supply, TAA

compliant 3 years Advance Exchange

Up to 24x7 operation 997-8520-00 8 10689 00365 6

For more information, please visit www.planar.com
