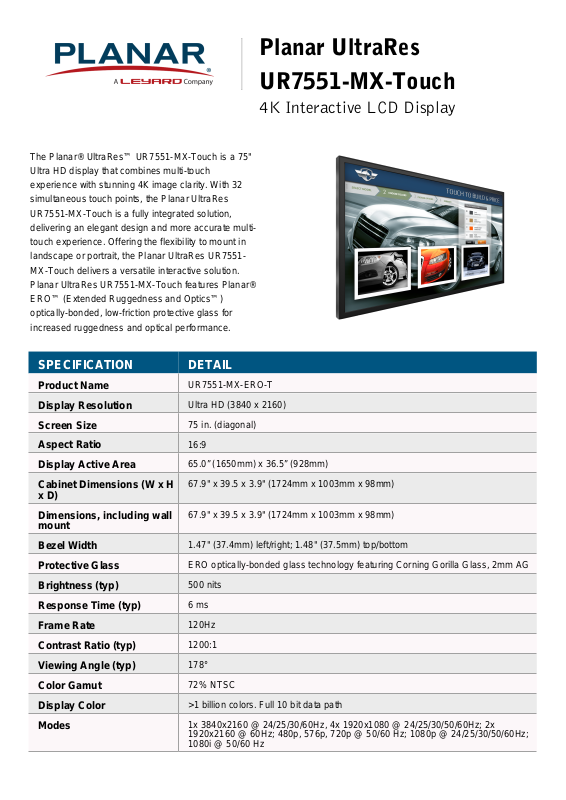

Planar UR7551-MX-Touch Specifications

The Planar® UltraRes™ UR7551-MX-Touch is a 75"
Ultra HD display that combines multi-touch
experience with stunning 4K image clarity. With 32
simultaneous touch points, the Planar UltraRes
UR7551-MX-Touch is a fully integrated solution,
delivering an elegant design and more accurate multi­touch experience. Offering the flexibility to mount in
landscape or portrait, the Planar UltraRes UR7551­MX-Touch delivers a versatile interactive solution.
Planar UltraRes UR7551-MX-Touch features Planar®
ERO™ (Extended Ruggedness and Optics™)
optically-bonded, low-friction protective glass for
increased ruggedness and optical performance.

Planar UltraRes
UR7551-MX-Touch

4K Interactive LCD Display

SPECIFICATION DETAIL

Product Name
Display Resolution
Screen Size
Aspect Ratio
Display Active Area
Cabinet Dimensions (W x H

x D)
Dimensions, including wall

mount
Bezel Width
Protective Glass
Brightness (typ)
Response Time (typ)
Frame Rate

UR7551-MX-ERO-T
Ultra HD (3840 x 2160)
75 in. (diagonal)
16:9

65.0” (1650mm) x 36.5” (928mm)

67.9" x 39.5 x 3.9" (1724mm x 1003mm x 98mm)

67.9" x 39.5 x 3.9" (1724mm x 1003mm x 98mm)

1.47" (37.4mm) left/right; 1.48" (37.5mm) top/bottom
ERO optically-bonded glass technology featuring Corning Gorilla Glass, 2mm AG
500 nits
6 ms
120Hz

Contrast Ratio (typ)
Viewing Angle (typ)
Color Gamut
Display Color
Modes

1200:1
178°
72% NTSC
>1 billion colors. Full 10 bit data path
1x 3840x2160 @ 24/25/30/60Hz, 4x 1920x1080 @ 24/25/30/50/60Hz; 2x

1920x2160 @ 60Hz; 480p, 576p, 720p @ 50/60 Hz; 1080p @ 24/25/30/50/60Hz;
1080i @ 50/60 Hz

Pixel Pitch

0.429 mm

Weight
Weight (Shipping)
Backlight
Line Voltage
Power Consumption (typ)
Operating Temperature

Humidity
Approvals
External Connections

Audio Output
Multi-Source Views
Display Control
Speakers

207 lb (94 kg)
TBD
LED
100-240V; 50/60Hz
200W (standby: <1.2W)
0° to +40°C (32° to 104°F) at up to 1500m, 0° to +35°C (32° to 95°F) at up to

3000m
20 - 85% RH (non-condensing)

FCC Class A, CE, cTUVus
DisplayPort 1.2 x 1, HDMI 2.0 x 2 (HDCP 2.2), HDMI 1.4 x 2, OPS x 1, OPS USB

2.0 x 2, OPS USB 3.0 X 1
PC Line Out, S/PDIF

PiP, Dual, Triple, Quad
IR, RS-232, LAN, Keypad, Mobile app
10W x 2 built-in

Orientation
Mounting
Fanless
HD format
Display Technology
Touch Technology
OS Compatibility
Options / Features

Warranty
Recommended Usage
Planar Part Number
UPC

Landscape/Portrait
Planar Profile Mounting System or VESA: 400 x 400 mm
Yes
4K UHD 2160p
Edge-lit LED LCD
IR 32 point touch
Windows 7, 8, 10, Vista, XP, Mac OSX and Linux
MediaPlex Plus Processing, Scheduling, Presets, Redundant power supply, TAA

compliant
3 years Advance Exchange

Up to 24x7 operation
997-8452-00
8 10689 00364 9

For more information, please visit www.planar.com

Specifications are subject to change without notice.
Specification Report Date: 11/30/2017
© Copyright 2017 Planar Systems, Inc. All rights reserved
