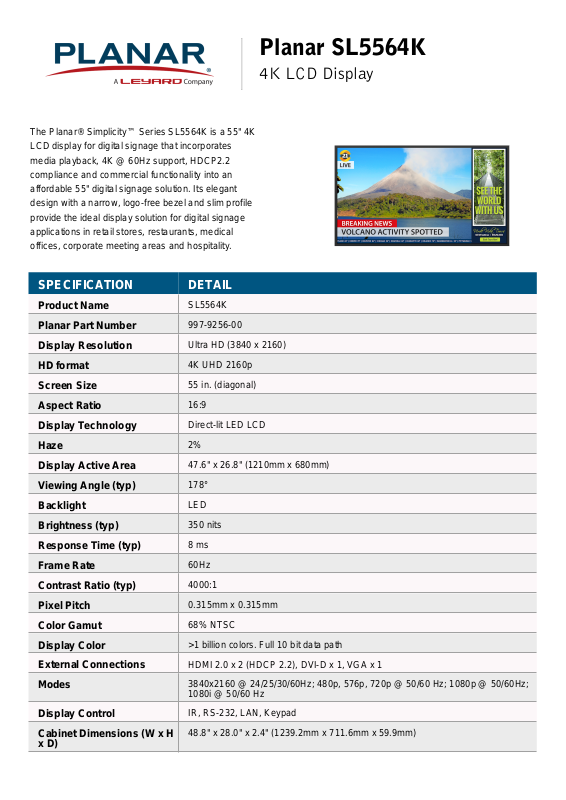

Planar SL5564K Datasheet

The Planar® Simplicity™ Series SL5564K is a 55" 4K
LCD display for digital signage that incorporates
media playback, 4K @ 60Hz support, HDCP2.2
compliance and commercial functionality into an
affordable 55" digital signage solution. Its elegant
design with a narrow, logo-free bezel and slim profile
provide the ideal display solution for digital signage
applications in retail stores, restaurants, medical
offices, corporate meeting areas and hospitality.

SPECIFICATION DETAIL

Planar SL5564K

4K LCD Display

Product Name
Planar Part Number
Display Resolution
HD format
Screen Size
Aspect Ratio
Display Technology
Haze
Display Active Area
Viewing Angle (typ)
Backlight
Brightness (typ)
Response Time (typ)
Frame Rate

SL5564K
997-9256-00
Ultra HD (3840 x 2160)
4K UHD 2160p
55 in. (diagonal)
16:9
Direct-lit LED LCD
2%

47.6" x 26.8" (1210mm x 680mm)
178°
LED
350 nits
8 ms
60Hz

Contrast Ratio (typ)
Pixel Pitch
Color Gamut
Display Color
External Connections
Modes

Display Control
Cabinet Dimensions (W x H

x D)

4000:1

0.315mm x 0.315mm
68% NTSC
>1 billion colors. Full 10 bit data path
HDMI 2.0 x 2 (HDCP 2.2), DVI-D x 1, VGA x 1
3840x2160 @ 24/25/30/60Hz; 480p, 576p, 720p @ 50/60 Hz; 1080p @ 50/60Hz;

1080i @ 50/60 Hz
IR, RS-232, LAN, Keypad

48.8" x 28.0" x 2.4" (1239.2mm x 711.6mm x 59.9mm)

Cabinet Dimensions with
Handles (W x H x D)

Not Applicable

Orientation
Bezel Width
Weight
Weight (Shipping)
Audio
Speakers
Mounting
Fanless
Line Voltage
Power Consumption (typ)
Operating Temperature
Humidity
Options / Features

Approvals

Landscape only

0.5" (12.9mm) top, left and right, 0.6" (14.7mm) bottom
36 lb (17 kg)
50 lbs (23 kg)
PC Line in, RCA L/R out
10W x 2 built-in
VESA: 400mm x 200mm
Yes
100-240V; 50/60Hz
130W (standby: <0.5W)
0° to +40°C (32° to 104°F) up to 3000m
20 - 85% RH (non-condensing)
USB playback with scheduling, logo-free bezel, Kensington security slot, lockable

rear keypad
FCC Class A, CE, cTUVus, CCC

Warranty
Recommended Usage
In the Box

UPC

2 years
Up to 16 hours per day
SL5564K display, C8 connector power cord, HDMI cable, RS-232 cable, IR cable,

remote control, and cable clamps
8 10689 00461 5

For more information, please visit www.planar.com

Specifications are subject to change without notice.
Specification Report Date: 10/1/2019
