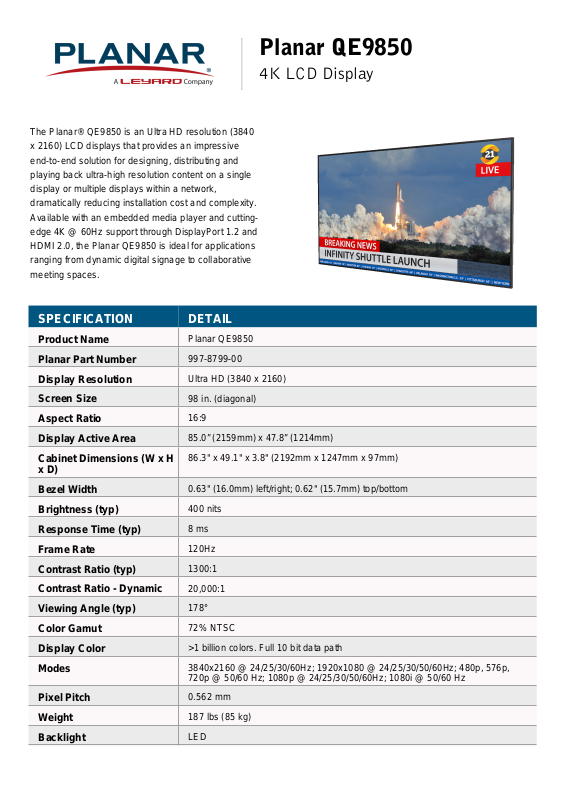

Planar QE9850 Datasheet

The Planar® QE9850 is an Ultra HD resolution (3840
x 2160) LCD displays that provides an impressive
end-to-end solution for designing, distributing and
playing back ultra-high resolution content on a single
display or multiple displays within a network,
dramatically reducing installation cost and complexity.
Available with an embedded media player and cutting­edge 4K @ 60Hz support through DisplayPort 1.2 and
HDMI 2.0, the Planar QE9850 is ideal for applications
ranging from dynamic digital signage to collaborative
meeting spaces.

SPECIFICATION DETAIL

Planar QE9850

4K LCD Display

Product Name
Planar Part Number
Display Resolution
Screen Size
Aspect Ratio
Display Active Area
Cabinet Dimensions (W x H

x D)
Bezel Width
Brightness (typ)
Response Time (typ)
Frame Rate
Contrast Ratio (typ)
Contrast Ratio - Dynamic
Viewing Angle (typ)

Planar QE9850
997-8799-00
Ultra HD (3840 x 2160)
98 in. (diagonal)
16:9

85.0” (2159mm) x 47.8” (1214mm)

86.3" x 49.1" x 3.8" (2192mm x 1247mm x 97mm)

0.63" (16.0mm) left/right; 0.62" (15.7mm) top/bottom
400 nits
8 ms
120Hz
1300:1
20,000:1
178°

Color Gamut
Display Color
Modes

Pixel Pitch
Weight
Backlight

72% NTSC
>1 billion colors. Full 10 bit data path
3840x2160 @ 24/25/30/60Hz; 1920x1080 @ 24/25/30/50/60Hz; 480p, 576p,

720p @ 50/60 Hz; 1080p @ 24/25/30/50/60Hz; 1080i @ 50/60 Hz

0.562 mm
187 lbs (85 kg)
LED

Line Voltage

100-240V; 50/60Hz

Power Consumption (typ)
Operating Temperature

Humidity
Approvals
External Connections
Audio Output
Multi-Source Views
Display Control
Speakers
Orientation
Mounting
Installed Depth with

Optional Wall Mount
Fanless

410W (standby: <1W)
0° to +35°C (32° to 95°F) at up to 1500m, 0° to +30°C (32° to 86°F) at up to

3000m
20 - 85% RH (non-condensing)

FCC Class A, CE, cTUVus
DisplayPort 1.2 x 1, HDMI 2.0 x 2 (HDCP 2.2), HDMI 1.4 x 2
PC Line Out, S/PDIF
Quad only
IR, RS-232, LAN, Keypad
10W x 2 built-in
Landscape/Portrait
VESA: 600 x 400 mm

7.3” (186mm)

Yes

HD format
Display Technology
Haze
Surface Treatment
Recommended Usage
Warranty
Options / Features

Embedded Media Player:
Resolution

Embedded Media Player:
Local Storage

Embedded Media Player:
Connections

Embedded Media Player:
Software

Embedded Media Player:
Operating System

4K UHD 2160p
Edge-lit LED LCD
1%
AG
Up to 24x7 operation
3 years Advance Exchange
Embedded Planar ContentSmart Media Player and software (Compatible with

only Microsoft® Windows® Vista, 7, 8 and 10), Scheduling, TAA compliant
UHD 4K (3840x2160) @ 60Hz

16 GB flash memory

Ethernet, USB x2

Planar ContentSmart Digital Signage Software (included). Compatible with only
Microsoft® Windows® Vista, 7, 8 and 10.

Android

Embedded Media Player:
Supported Video Codec

Embedded Media Player:
Supported Image Formats

In the Box

UPC

MPEG-1, MPEG-2, MPEG-4, VC-1, H.264 (AVC), H.265 (HEVC), HTML5, SMIL

JPEG, PNG

QE9850 display, power cord, IR sensor, USB (A to B) cable, remote control, and
USB drive containing User Manual and USB-to-serial driver

8 10689 00392 2
