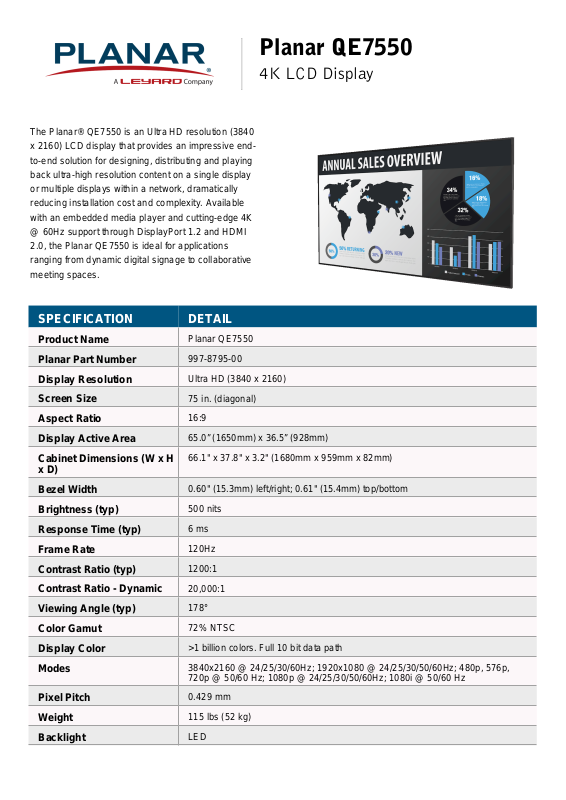

Planar QE7550 Datasheet

The Planar® QE7550 is an Ultra HD resolution (3840
x 2160) LCD display that provides an impressive end­to-end solution for designing, distributing and playing
back ultra-high resolution content on a single display
or multiple displays within a network, dramatically
reducing installation cost and complexity. Available
with an embedded media player and cutting-edge 4K
@ 60Hz support through DisplayPort 1.2 and HDMI

2.0, the Planar QE7550 is ideal for applications
ranging from dynamic digital signage to collaborative
meeting spaces.

SPECIFICATION DETAIL

Planar QE7550

4K LCD Display

Product Name
Planar Part Number
Display Resolution
Screen Size
Aspect Ratio
Display Active Area
Cabinet Dimensions (W x H

x D)
Bezel Width
Brightness (typ)
Response Time (typ)
Frame Rate
Contrast Ratio (typ)
Contrast Ratio - Dynamic
Viewing Angle (typ)

Planar QE7550
997-8795-00
Ultra HD (3840 x 2160)
75 in. (diagonal)
16:9

65.0” (1650mm) x 36.5” (928mm)

66.1" x 37.8" x 3.2" (1680mm x 959mm x 82mm)

0.60" (15.3mm) left/right; 0.61" (15.4mm) top/bottom
500 nits
6 ms
120Hz
1200:1
20,000:1
178°

Color Gamut
Display Color
Modes

Pixel Pitch
Weight
Backlight

72% NTSC
>1 billion colors. Full 10 bit data path
3840x2160 @ 24/25/30/60Hz; 1920x1080 @ 24/25/30/50/60Hz; 480p, 576p,

720p @ 50/60 Hz; 1080p @ 24/25/30/50/60Hz; 1080i @ 50/60 Hz

0.429 mm
115 lbs (52 kg)
LED

Line Voltage

100-240V; 50/60Hz

Power Consumption (typ)
Operating Temperature

Humidity
Approvals
External Connections
Audio Output
Multi-Source Views
Display Control
Speakers
Orientation
Mounting
Installed Depth with

Optional Wall Mount
Fanless

195W (standby: <1W)
0° to +35°C (32° to 95°F) at up to 1500m, 0° to +30°C (32° to 86°F) at up to

3000m
20 - 85% RH (non-condensing)

FCC Class A, CE, cTUVus
DisplayPort 1.2 x 1, HDMI 2.0 x 2 (HDCP 2.2), HDMI 1.4 x 2
PC Line Out, S/PDIF
Quad only
IR, RS-232, LAN, Keypad
10W x 2 built-in
Landscape/Portrait
VESA: 600 x 400 mm

6.7” (171mm)

Yes

HD format
Display Technology
Haze
Surface Treatment
Recommended Usage
Warranty
Options / Features

Embedded Media Player:
Resolution

Embedded Media Player:
Local Storage

Embedded Media Player:
Connections

Embedded Media Player:
Software

Embedded Media Player:
Operating System

4K UHD 2160p
Edge-lit LED LCD
3%
AG
Up to 24x7 operation
3 years Advance Exchange
Embedded Planar ContentSmart Media Player and software (Compatible with

only Microsoft® Windows® Vista, 7, 8 and 10), Scheduling, TAA compliant
UHD 4K (3840x2160) @ 60Hz

16 GB flash memory

Ethernet, USB x2

Planar ContentSmart Digital Signage Software (included). Compatible with only
Microsoft® Windows® Vista, 7, 8 and 10.

Android

Embedded Media Player:
Supported Video Codec

Embedded Media Player:
Supported Image Formats

In the Box

UPC

MPEG-1, MPEG-2, MPEG-4, VC-1, H.264 (AVC), H.265 (HEVC), HTML5, SMIL

JPEG, PNG

QE7550 display, power cord, IR sensor, USB (A to B) cable, remote control, and
USB drive containing User Manual and USB-to-serial driver

8 10689 00388 5
