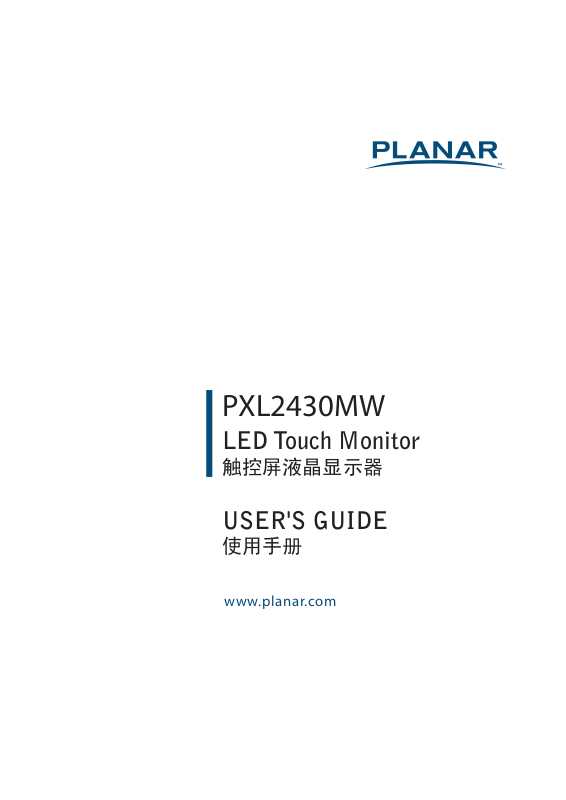

Planar PXL2430MW User Manual
www.planar.com
USER'S GUIDE
使用手册
LED Touch Monitor
触控屏液晶显示器
PXL2430MW
Content
Operation Instructions...................................................................................................................................................1
Unpacking Instructions .................................................................................................................................................2
Safety Precautions...........................................................................................................................................................2
Front View of the Product ............................................................................................................................................3
Rear View of the Product ..............................................................................................................................................4
Quick Installation .............................................................................................................................................................5
Basic Operation and Calibration/Reset Instructions...........................................................................................6
Advanced Operation—OSD Menu............................................................................................................................8
Supporting Timing Modes ........................................................................................................................................11
Technical Information................................................................................................................................................. 12
Wall-Mount Installation Instructions..................................................................................................................... 13
Troubleshooting............................................................................................................................................................ 14
Product Registration and Technical Support..................................................................................................... 15
English
Operation Instructions
Thank you for purchasing the PXL2430MW multi-touch LED monitor. Please read this guide
thoroughly before installation.
FCC RADIO FREQUENCY INTERFERENCE STATEMENT
WARNING: (FOR FCC CERTIFIED MODELS)
This
pursuant to part 15 of the FCC Rules. These limits are designed to provide proper protection
against harmful interference to a residential installation. This
generates, uses, and can radiate radio frequency energy. Harmful interference to radio
communication may be the result if it‘s not properly installed and used. However, there is no
guarantee that interference will not occur in a particular installation. If this
Monitor
Moreover, users are encouraged to reduce interference by doing one or more of the following:
English
FCC Warning:
To assure a continued FCC compliance, a user must use a grounded power supply cord and the
provided shielded video interface cable with bonded ferrite cores. Also, any unauthorized
changes or modifications to this
operate this device.
Note: If necessary, shielded interface cables and AC power cord must be used to meet the
emission level limits.
LED Monitor
has been tested and found compliant with the limits for a Class B digital device,
Touchscreen LED Monitor
Touchscreen LED
does cause serious interference to radio or television reception, resetting may correct it.
Reorient or relocate the receiving antenna.
Move the
Touchscreen LED Monitor
Connect the
Touchscreen LED Monitor
and the receiver further away from each other.
into an outlet on a circuit different from that to
which the receiver is connected.
Consult your local dealer or a qualified technician.
Touchscreen LED Monitor
would void the user‘s authority to
According to WEEE regulation, this Touchscreen LED Monitor can't be handled as normal trash in Europe
when it is out of usage. Please refer to the recycle information on Planar’s website to handle it.
For more information on how to recycle your product, please visit
1
WWW.PLANARSYSTEMS.COM/GREEN
Unpacking Instructions
Move the LED Monitor out of the package and take off the plastic bag and Polystyrene Foam.
Pull the base from Parallel versus Panel to Vertical.
Adjust the Panel between 0° leaning forward and 20° leaning backward.
Safety Precautions
Follow all warnings, precautions and maintenance as recommended in this user’s manual to
maximize the life of your unit.
Do:
Turn off the product before cleaning.
Touch screen surface may be cleaned using a soft clean cloth moistened with mild window
glass commercial cleaners or 50/50 mixture of water and isopropyl alcohol.
Use a soft cloth moistened with mild detergent to clean the display housing.
Disconnect the power plug from AC outlet if the product is not going to be used for an
extended period of time.
Don’t:
English
Do not touch the LED Display screen surface with sharp or hard objects.
Do not use abrasive cleaners, waxes or solvents for your cleaning.
Do not operate the product under the following conditions:
o Extremely hot, cold or humid environment.
o Areas susceptible to excessive dust and dirt.
o Near any appliance generating a strong magnetic field.
o In direct sunlight.
If smoke, abnormal noise or odor emits from your Touchscreen LED Monitor, remove the
power cord immediately and call your service center.
Never remove the rear cover of your Touchscreen LED Monitor. The display unit inside
contains high-voltage parts and may cause electric shock.
Never try to repair your
qualified technician to fix it.
Touchscreen LED Monitor
yourself. Always call your service center or a
2
Front View of the Product
English
①
①
②
③
④
⑤
⑥
⑦
Touch Pen Slot
OSD Turn On/ Off
Volume Adjust/ Scroll Down/ Adjust Decrease
Preset Mode/ Scroll UP/ Adjust Increase
Input select/ Confirm Selection
LED Indicator
Power On/ Off
② ③ ④ ⑤⑥⑦
3
Rear View of the Product
English
⑧
⑨
⑩
⑪
⑫
⑬
⑭
Power Input
USB - Type A to B
Headphone Jack
Audio Input
HDMI input (HDMI 19 pin)
DVI Input (DVI 24 pin)
VGA Input (D-Sub 15 pin)
⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭
4
Quick Installation
Connect either VGA, DVI or HDMI Video Source from the monitor to the computer. Make
1.
sure both monitor and computer are powered OFF.
2. Connect the audio cable from audio output of computer to the audio input of the monitor.
3. Connect the USB cable from the computer to the monitor.
4. Connect power cord to a properly grounded AC outlet, and then to the monitor.
5. Power-ON computer and then POWER-ON the monitor.
6. Set the timing mode on your computer. Recommended resolution and refresh rate is 1920 x
1080 @ 60Hz.
Figure 1:
PC
English
Power cable
Audio cable
USB 2.0 cable
DVI cable
VGA cable
HDMI cable
(not supplied)
5
Basic Operation and Calibration/Reset Instructions
Before using the Touchscreen LED Monitor:
Connect external equipment properly.
Insert the power plug, and the power LED indicator will light orange.
Power On/Off
To turn the Touchscreen LED Monitor on/off:
Press POWER button on the front. The power LED indicator light will be blue when the
Touchscreen LED Monitor is on.
Using the OSD Menu
Use OSD menus to adjust settings by using the menu button on the front of the Touchscreen
LED Monitor.
1
Displays main menu
Exits from OSD menu
2 Selects between VGA, DVI, HDMI or Auto mode
Select the desired item when in OSD menu
▼
When not in OSD menu, directly enters Volume adjust
Select the desired item when in OSD menu
▲
When not in OSD menu, directly enters Preset Mode
▼ + ▲ Recalls both Contrast and Brightness (when not in OSD menu)
OSD Lock Out Function
When Touchscreen LED Monitor is in normal mode, the “OSD Lock Out” function can be enabled.
Option 1: OSD lock – all 4 buttons are locked except the “POWER” button.
Press and hold the 1 button and the ▲ button for 10 seconds to lock the OSD buttons.
The Touchscreen LED Monitor will show an “OSD Lock Out” message for 3 seconds and the
message will disappear automatically.
English
Repeat this step to unlock.
6
Option 2: OSD & Power button lock – all 5 buttons including the “POWER” button are locked.
Press and hold the 1 button and the ▼ button for 10 seconds to lock all 5 buttons.
The Touchscreen LED Monitor will show a “Lock Out” message for 3 seconds and the message
will disappear automatically.
Repeat this step to unlock.
PX2430MW Calibration/Reset Instructions:
The PX2430MW is available with USB connection. It is Microsoft® Windows® 7 HID (Human
English
Interface Device) compatible if you use the USB touch screen interface. No additional software
driver is required.
Settings from Control Panel and clicking the Calibrate button.
Click the Reset button to reset the touchscreen to the factory calibration settings. To reset the
existing calibration data, click "Reset" in the Tablet PC Settings window.
Calibration is a simple process and can be invoked by running Tablet PC
7
Advanced Operation—OSD Menu
You can use the OSD menu to adjust various settings for your Touchscreen LED Monitor.
Press the 1 button to display the OSD Menu, and use ▲▼ to select the desired OSD menu.
English
Short Cuts Function from the button(s)
Auto Image Adjust: To auto adjust Horizontal Position, Vertical Position, Phase (Fine
Tune) and Clock (H. Size) of the screen.
Contrast: To adjust the foreground white level of screen image.
▲: increase contrast, ▼: decrease contrast.
Brightness: To adjust the luminance of the video.
▲: increase brightness, ▼: decrease brightness.
ECO Mode: Allows the user to turn the ECO On or Off. Contrast and Brightness
adjustment disabled when ECO is active.
Input Select: When Input Select is pressed, change Input signal to VGA, DVI, HDMI or
Auto.
Audio Adjust: To adjust the audio functions.
Volume: To adjust the volume of speaker output.
Mute: To turn the Mute ON/OFF.
8
English
Color Adjust: To select the color for improving brightness and color saturation
between 9300K, 6500K, 5400K, and User Color.
9300K: Adds blue to screen image for cooler white.
6500K: Adds red to screen image for warmer white and richer red.
5400K: Adds green to screen image for a darker color.
User Color: Individual adjustments for red (R), green (G), blue (B).
1. Press button 2 to select the desired color.
2. Press ▼ or ▲ button to adjust selected color.
Information: To display the information, regarding the current input signal coming
from the graphic card in your computer.
Note: See your graphic card user guide for more information about changing the
resolution and refresh rate.
Manual Image Adjust: To manually adjust the Horizontal Size, H. /V. position, Fine
Tune, Sharpness, Video Mode adjust and Preset Mode.
Horizontal Size: To adjust the width of the screen image.
▼: decrease the width of screen image, ▲: increase the width of screen image.
H./V. Position: To adjust the horizontal and vertical position of the video.
H. Position: ▲: move screen to the right, ▼: move screen to the left.
V. Position: ▲: move screen up, ▼: move screen down.
Fine Tune: To adjust the delay time of data and clock.
Press ▼ or ▲ to adjust to your preference.
Sharpness: To adjust the clarity of a non-Full HD Resolution (1920x1080) signal with ▼
or ▲ button.
Video Mode Adjust: To select the video mode from Full Screen, Over Screen or Aspect
Ratio.
Full Screen: To select full-screen size image.
Over Screen: To select over-screen size image.
Warning: “Over Screen” may cause deviation in touch accuracy. If this occurs, we recommend using “Full screen”.
Aspect Ratio: To select input timing image size.
Preset Mode: Provides an optimum display environment depending on the contents
displayed. It contains 5 user-selectable presets.
Standard is for general windows environment and monitor default setting.
Game optimized for PC game environment.
Cinema optimized for movie and video environment.
Scenery optimized for displaying outdoor scenery images.
Text optimized for text editing and viewing in a word processing environment.
9
Setup Menu: To set up Language, OSD Position, OSD Time Out and OSD Background.
Language Select: To allow users to choose from available languages.
OSD Position: Press ▼ or ▲ button to select between horizontal and vertical OSD
Position adjustment.
H. Position: To horizontally adjust the OSD position.
▲: move OSD to the right, ▼: move OSD to the left.
V. Position: To vertically adjust the OSD position.
▲: move OSD up, ▼: move OSD down.
OSD Time Out: To automatically turn off On Screen Display (OSD) after a preset period
of time.
OSD Background: Allows the user to turn the OSD background On or Off.
Memory Recall: To recall factory settings for Video & Audio controls.
Press button 2 to select the Memory Recall menu option.
English
10
