Planar PT1503NT User Manual
PT1503NT
i
PREFACE
About this manual
This manual is designed to assist you in setting up and using your New Planar
LCD Monitor. Information in this document has been carefully checked for
accuracy; however, no guarantee is given to the correctness of the contents. The
information in this document is subject to change without notice. This document
contains proprietary information protected by copyright. All rights are reserved.
No part of this manual may be reproduced by any mechanical, electronic or other
means, in any form, without prior written permission of the manufacturer.
FCC Compliance Statement
This device complies with part 15 of the FCC Rules. Opeartion is subject to the
following two conditions:
1. this device may not cause harmful interference, and
2. this device must accept any interference received, including interference that
may cause undesired operation.
FCC WARNING
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation.
This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful
inerference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
Planar User’s Manual
i
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution:
To comply with the limits for an FCC Class B computing device, always use the
shielded signal cord supplied with this unit.
The Federal Communications Commission warns that changes or modifications
of the unit not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
CE mark for Class B ITE (Following European standard EN55022/1998; EN61000-
3-2/1995; EN61000-3-3/1995, EN55024/1998, EN60950/1992+A1+A2+A3+A4+A11)
Radio Frequency Interference Statement
Warning:
This is a Class B product. In a domestic environment, this product may cause
radio interference in which case the user may be required to take adequate
measures.
Canadian Doc Notice
For Class B Computing Devices
This digital apparatus does not exceed the Class B limits for radio noise
emissions from digital apparatus as set out in the Radio Interference Regulation
of the Canadian Department of Communications.
“Le présent appareil numérique n’èmet pas de bruits radioélectriques dépassant
les limites applicables aux appareils numériques de la class B prescrites dans le
Règlement sur le brouillage radioélectrique édicté par le ministère des
Communications du Canada”
i
i
Important Safety Instructions
Please read the following instructions carefully. This manual should be retained
for future use.
1. To clean the LCD monitor screen, first, make sure the monitor is in the
power off mode. Unplug the monitor from its power source before cleaning
it. Do not spray liquid cleaners directly onto the unit. Without applying
excessive pressure, clean the screen with a slightly dampened rag.
2. Do not place your LCD monitor near a window. Exposing the monitor to
rain, water, moisture, or sunlight can severely damage it.
3. Do not place anything on top of the monitor-to-PC signal cord. Make sure
the cord is placed in an area where it will not be stepped on.
4. Do not apply pressure to the LCD screen. Excessive pressure may cause
permanent damage to the display.
5. Do not remove the cover or attempt to service this unit by yourself. You
may void the warranty. Servicing of any nature should be performed only by
an authorized technician.
6. Safe storage of the LCD monitor is in a range of minus 20 to plus 60
degrees Celsius. Storing your LCD monitor outside this range could result
in permanent damage.
7. Immediately unplug your monitor and call an authorized technician when:
• The power or monitor-to-PC signal cord is frayed or damaged.
• Liquid has been spilled into the monitor, or it has been exposed to rain.
• The monitor has been dropped or the case has been damaged.
8. Only with use of supplied adaptor, in case of loss or replacement contact the
retailer or service center.
9. If you lost the power cord that we given, you must to purchase a same
configuration/type of power cord (with ground-connection)
Japan： VCTF type, 3 wires or with ground-wire, T-mark approval is
required.
U.S.：VW-1; 18AWG X 3C; SVT with national approval as UL
and/or CSA approval/number(s)
Europe：VDE/ÖVE and/or KEMA approval; H05VV-F, 3G,
0.75mm
2
, or equivalent.
10. Above power cord should bear with the type and manufacturer name on..
ii
Planar User’s Manual
TABLE OF CONTENTS
PREFACE ..................................................................................................................I
TABLE OF CONTENTS.......................................................................................IV
CHAPTER 1 ............................................................................................................. 1
Unpacking...................................................................................................... 1
Identifying Components............................................................................... 2
The LCD Monitor — Front View................................................................................ 2
The LCD Monitor — Rear View................................................................................. 3
Adjusting the Tilting Angle .......................................................................... 3

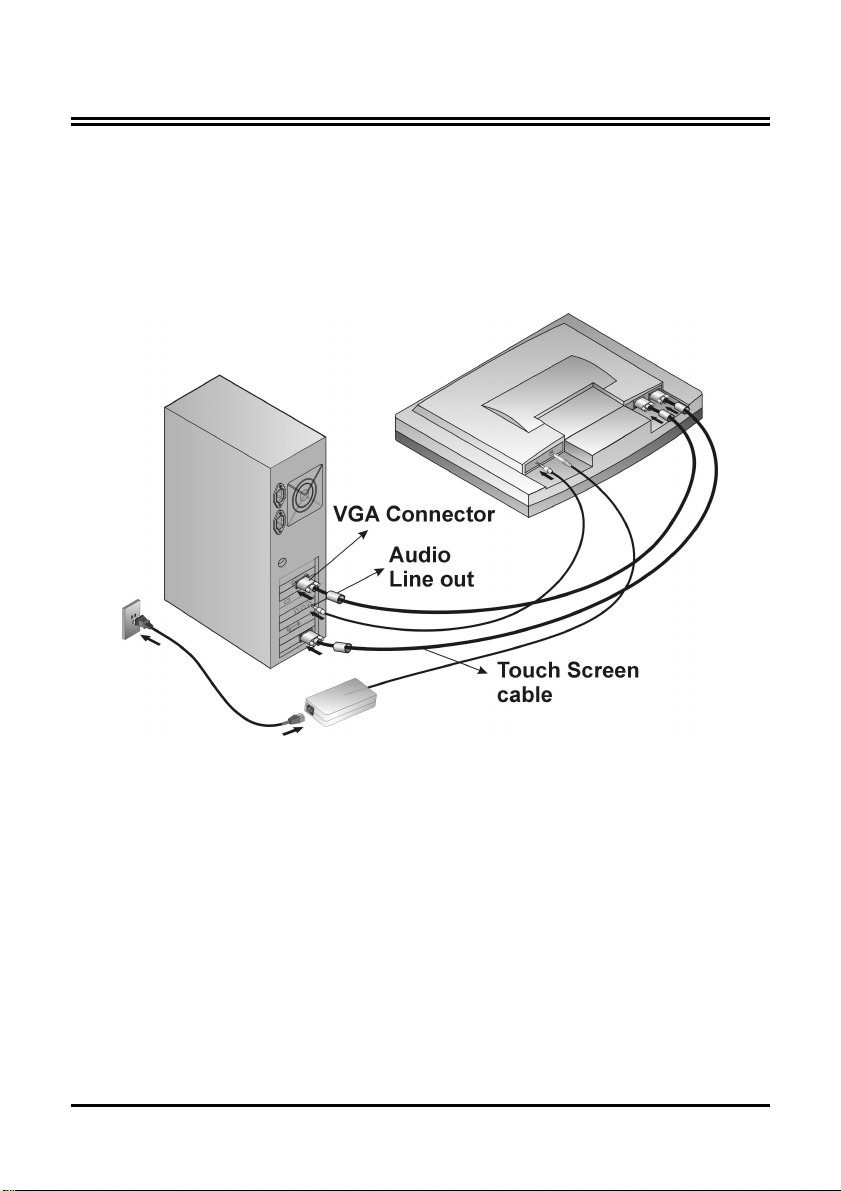

Connecting AC Power, Video, Audio Cable and Touch Screen Cable
(optional)........................................................................................................ 4
Power Management System ........................................................................4
CHAPTER 2 ............................................................................................................. 5
LCD Monitor Control Panel..........................................................................5
Adjusting the Monitor’s Display..................................................................6

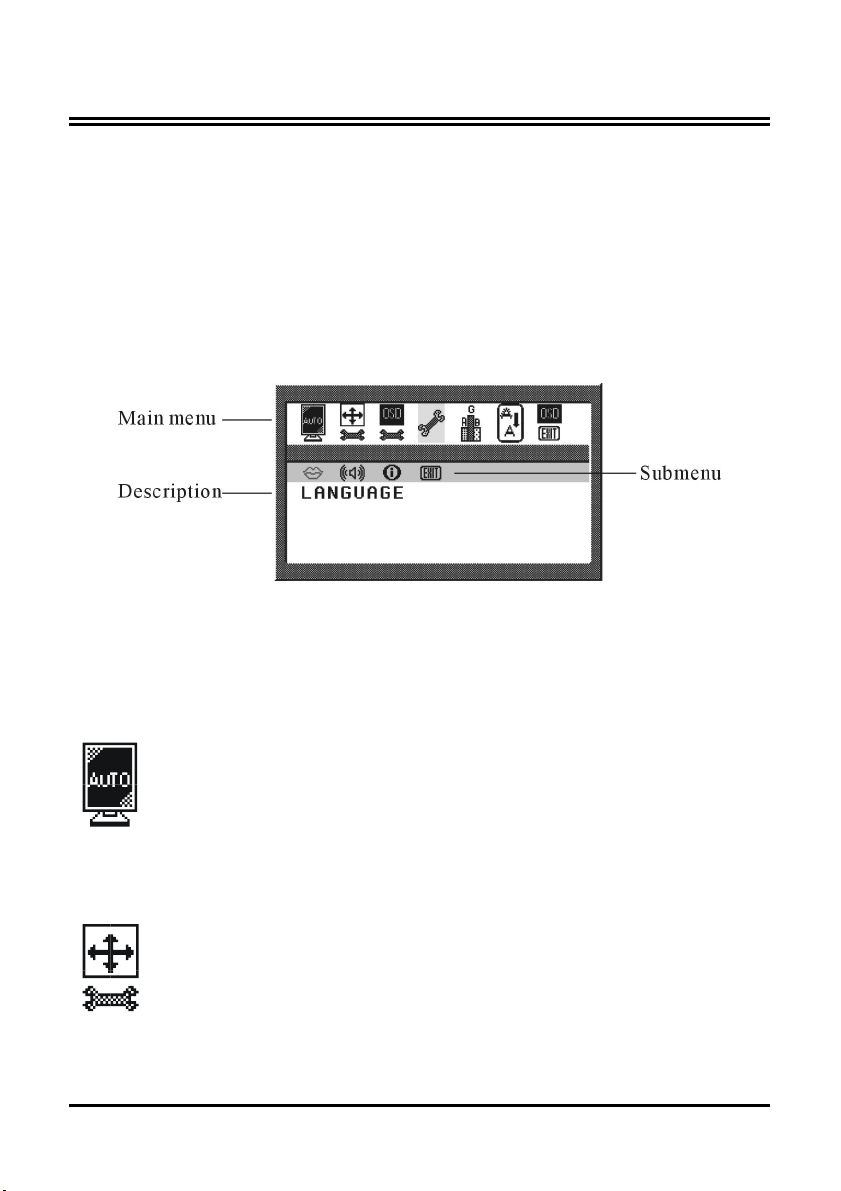

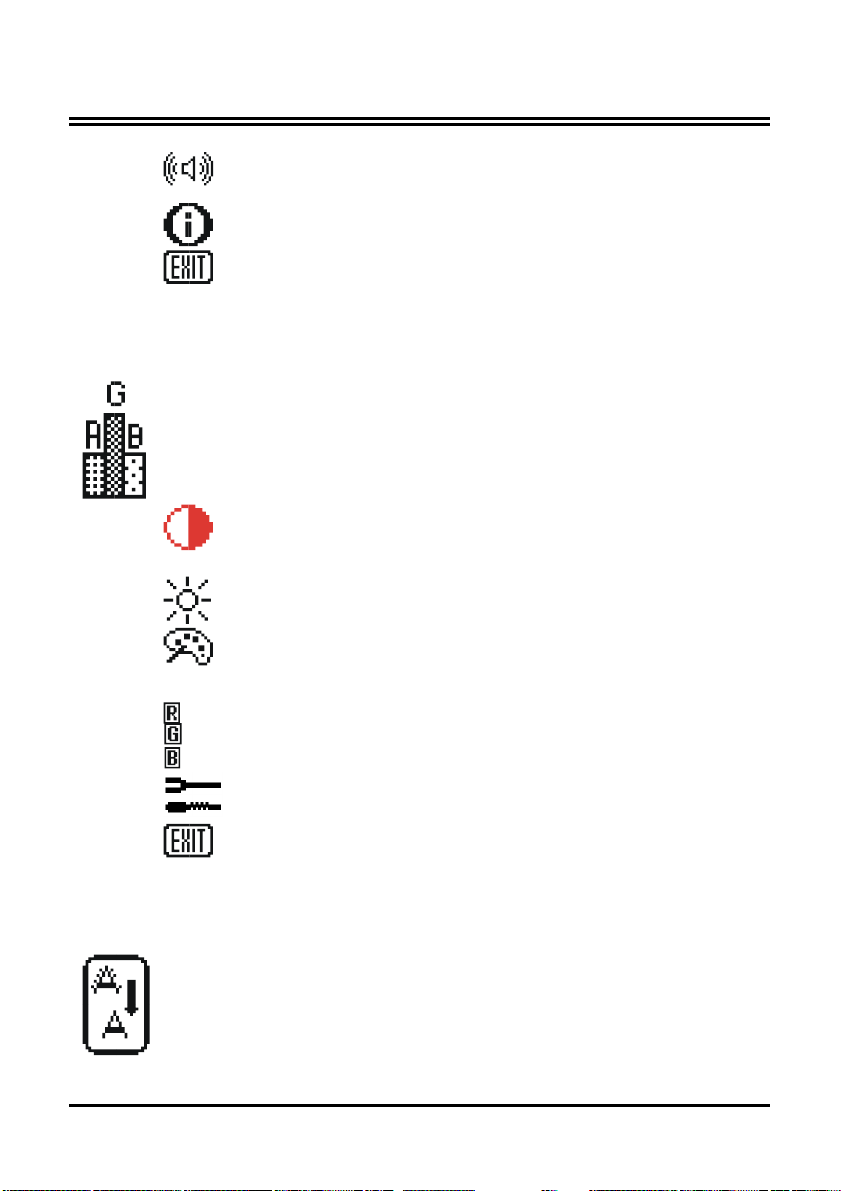

OSD Main Menu......................................................................................................... 6
Hot-Key Buttons for Quick Adjustment of Monitor Settings.................. 10
APPENDIX A ......................................................................................................... 11
Planar TFT LCD Monitor Specifications ................................................... 11
APPENDIX B.......................................................................................................... 13
Timing for Model PT1503NT (XGA Resolution) .......................................13
APPENDIX C ......................................................................................................... 14
Troubleshooting Procedures..................................................................... 14
iv
The LCD Monitor
Unpacking
After you unpack your LCD monitor, make sure the
following items are included in the box and in good
condition:
Standard Item
• LCD monitor
• AC/DC adapter
• Monitor to PC signal cable
• Power cord
• Landing Strip
• This user’s manual
• CD Manual
Optional Items
• 1.5M Stereo Jack audio cable
CHAPTER 1
• 1.5M Touch Panel cable with RS232 connector
If you find that any of these items are missing or appear damaged, contact your
dealer immediately. Do not throw away the packing material or shipping
carton in case you need to ship or store the LCD monitor in the future.
1
Planar User’s Manual
Identifying Components
The LCD Monitor — Front View
Figure 1-1: The LCD Monitor Front View
1. Power-On Indicator
This LED indicator stays lit when the power is on and blinks
when the LCD monitor is in power saving mode.
2. Monitor Stand
3. LCD Screen
The LCD monitor screen is a 15-inch TFT 1024 x 768 screen.
4. LCD Monitor Control Panel
Refer to Chapter 2 for a detailed.
5. Stereo Speakers(optional)
2
