Usage Notice
WARNING - To prevent the risk of fire or shock hazards, do not
expose this product to rain or moisture.
WARNING - Please do not open or disassemble the product as this
may cause electric shock.
Safety and Use Precautions
Follow all warnings, precautions and maintenance as recommended in this User’s
Guide to maximize the life of your unit.
Do:
Turn off the product before cleaning.
Use only a dry soft cloth or clean room wiper when cleaning the LCD panel
surface.
Use only high quality and safety approved AC/DC power adapter.
Disconnect the power plug from AC outlet if the product is not used for a long
period of time.
Don’t:
Do not touch the LCD panel surface with sharp or hard objects.
Do not use abrasive cleaners, waxes or solvents for cleaning.
Do not operate the product under the following conditions:
- Extremely hot, cold or humid environment.
- Areas susceptible to excessive dust and dirt.
- Near any appliance generating a strong magnetic field.
- Place in direct sunlight.
1
Page 5
Introduction
About Planar’s PT1500M(U), PT1501M(U)
The PT15” products all have a 15” flat panel screen with an active matrix, thin-flim
transistor (TFT), liquid crystal display (LCD).
Features include:
Direct analog signal input
Active matrix TFT LCD technology
1024 x 768 XGA resolution
15” viewable display area
31.5 ~ 60 kHz horizontal scan
56 ~ 75 Hz refresh rate
Auto-adjustment function
Multilingual OSD user controls
VESA DPMS power saving
Kensingston security lock slot
75 mm VESA mount
Durable touchscreen
2
Page 6
Touch Screen for PT1500M(U)
Resistive for finger and pen interface
Surface : Anti-glare treatment
Interface : Serial (PT1500M), USB (PT1500MU)
Durability : 1,000,000 activations at a single point
Hardness of surface : 4H per ASTM D3363-92
Operating force : Stylus - <25 g (average)
Finger - <50 g (average)
Transmissivity : 85% + / - 2% (typical)
Haze : 5%
Clarity : 80%
Driver : Windows 95/98/Me/NT/2000/XP,
Linux
3
Page 7
Touch Screen for PT1501M(U)
Capacitive for finger interface
Surface : Anti-glare treatment
Interface : Serial (PT1501M), USB (PT1501MU)
Durability : 225,000,000 touches in a single location
Hardness : Cannot be scratched using any stylus with Mohs' rating of less
than 6.5
Transmissivity : up to 88% at 550 nm
Driver : Windows 95/98/Me/NT/2000/XP,
Linux
MS HID compatible pointing device
4
Page 8
Package Overview
LCD Display
VGA Signal Cable
User’s Guide Landing Strip
Touchscreen Driver
Installation CD-ROM
Power Adapter
Audio-In Cable
Power Cord
RS-232 Serial Cable
(for PT1500M, PT1501M)
USB Cable
(for PT1500MU, PT1501MU)
5
Page 9
Installation
Product Overview
Front View
Panel
Controls
Stand
Rear View
LCD
Display
Speakers
Connector Ports “A”
(Inside the back cover)
Connector
Ports “B”
6
Page 10
Connector Ports “A”
Power-In
Connector Ports “B”
RS-232
(For PT1500M, PT1501M)
Touch Function
DC
VGA
input
(For PT1500MU, PT1501MU)
Audio
input
USB
7
Page 11

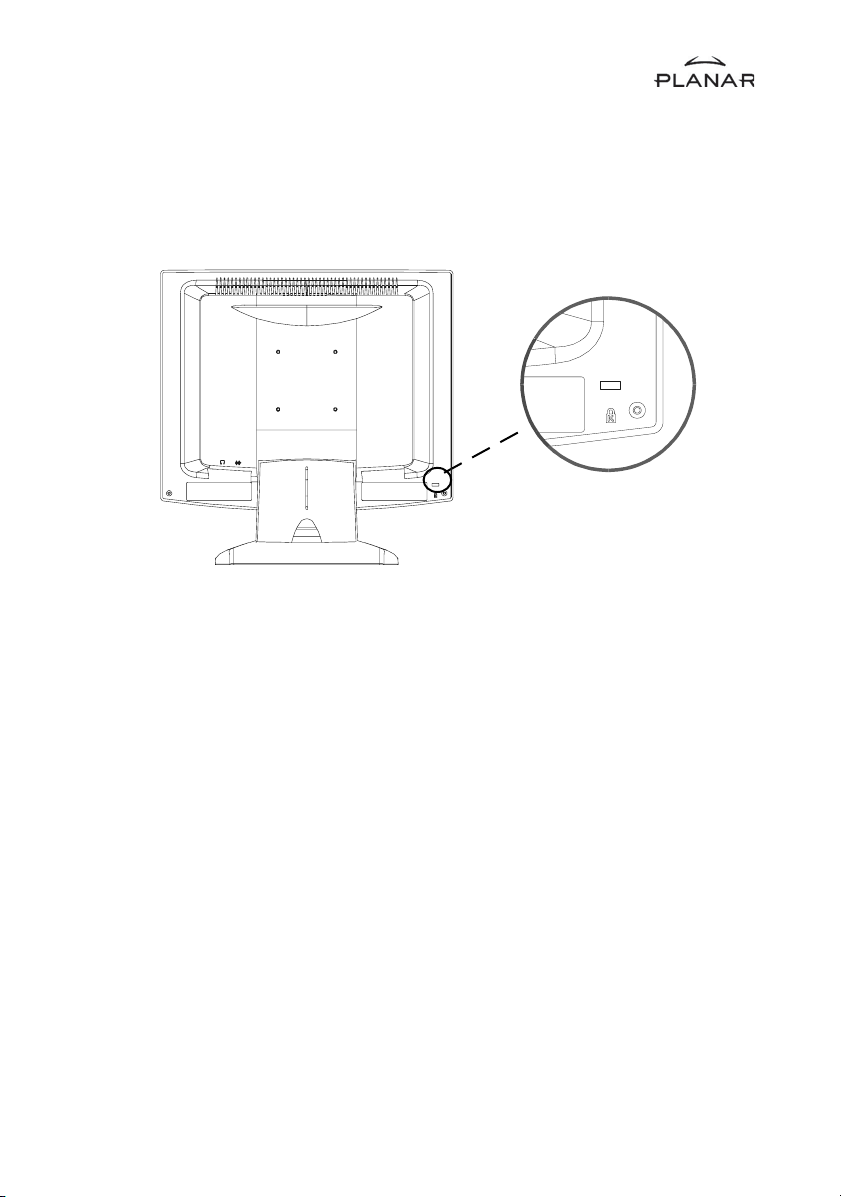

Kensington Security Slot
The monitor can be secured to your desk or any other fixed object with Kensington
lock security products. The kensington lock is not included.
Kensington Security Slot
8
Page 12

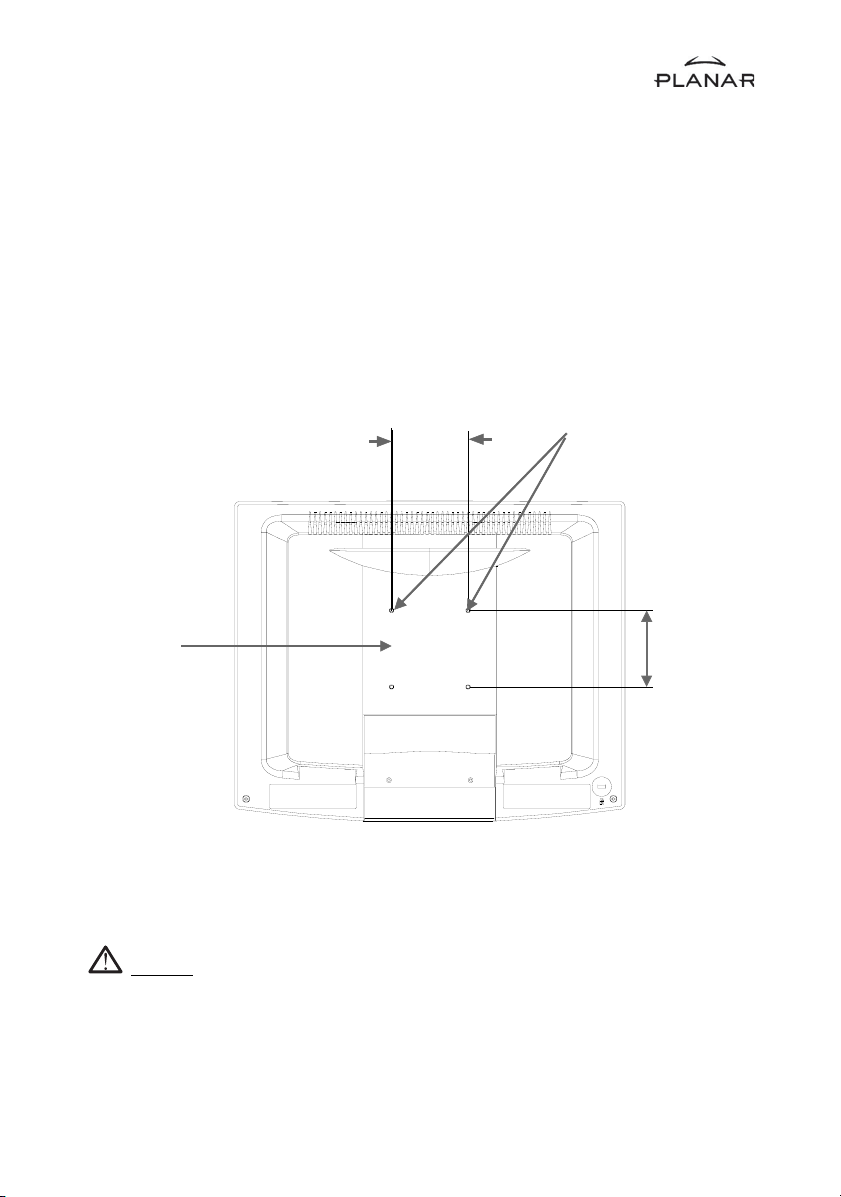

VESA Mount your monitor
This monitor conforms to the VESA Flat Panel Mounting Physical Mounting Interface Standard which defines a physical mounting interface for flat panel monitors,
and corresponding standards for flat panel monitor mounting devices, such as wall
and table arms.The VESA mounting interface is located on the back
of your monitor.
To mount the monitor on a swing arm or other mounting fixture, follow the instruction included with the mounting fixture to be used.
Slots
75mm
VESA
Mounting
Interface
75mm
Note!
Please select the proper screws!
The distance between the back cover surface and the bottom of the screw
hole is 8mm. Please use a M4 screw.
9
Page 13
Start your Installation

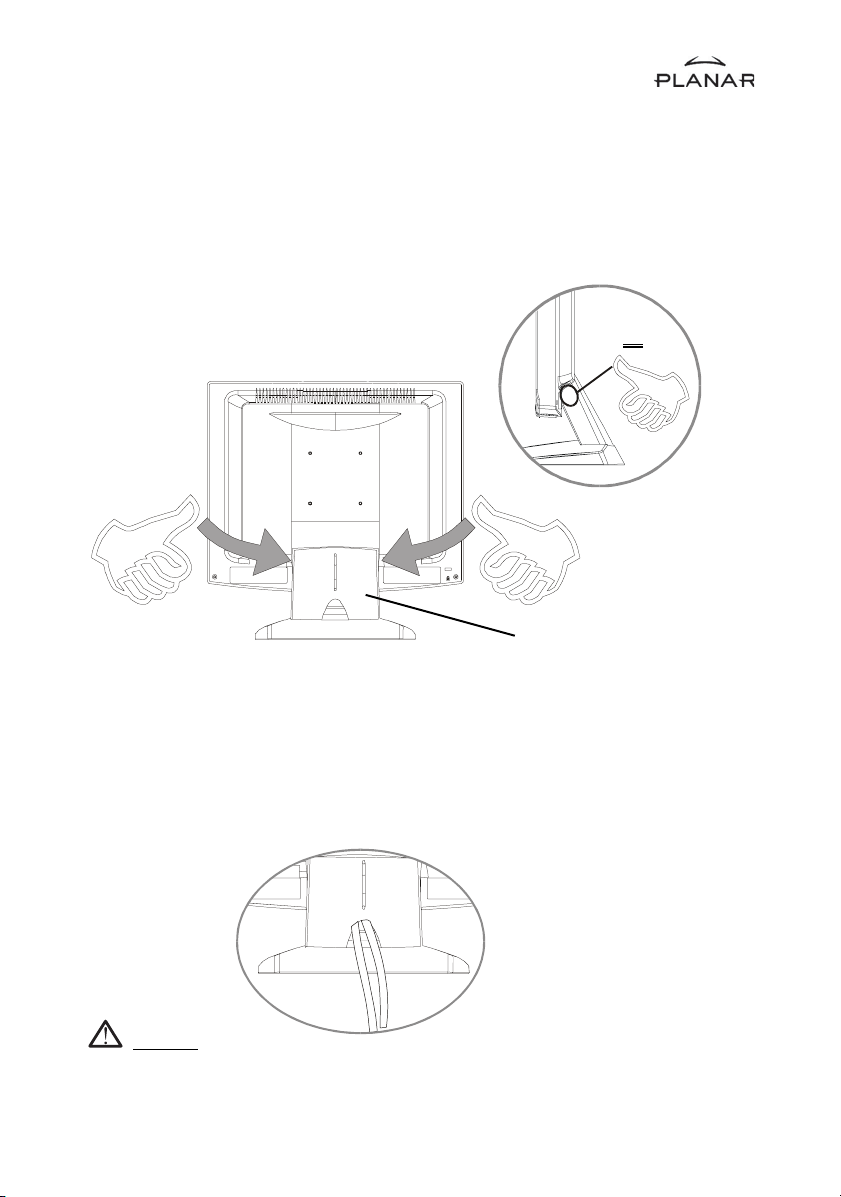

Remove the Back Cover
Please follow these instructions to remove the cover on the back panel of the LCD
so that you can connect the cables in ”Connector Ports B.”
A
Back Cover
1. To remove the back cover, follow the arrows in Figure A and press with both
your thumbs. The cover should be removed by pressing firmly.
2. Follow the instruction on P.12 (Figure 11.1) to connect the cables in
”Connector Ports B.”
3. Fix the cover back to the LCD. You may also keep the cables in order with the
included cable organizer.
Included Cable
Organizer
Note!
You can place the LCD flat horizontally to make it easier to connect the
cables. Please make sure that you place it on an even surface lest the
LCD should be damaged by scratches or collision.
10
Page 14
Connecting the Display (Figure 11.1, 11.2)
Figure 11.2 needs to added for the USB port connection.
To setup this display, please refer to the following figure and procedures.
1. Be sure the computer and monitor are turned off.
2. Connect the DC power cord to the power connector; plug one end of the AC
power cord into the power adapter, and then the other end into an electrical
outlet (11.1
3. Connect the VGA signal cable from the display’s VGA input connector to the
15-pin connector of your host computer and tighten the screws (11.1
4. Connect the Audio-In cable from the audio input port of your display to the
Audio-out port of your computer (11.1
5. For the PT1500M and the PT1501M, connect the RS-232 cable from the
RS-232 port of your display to the RS-232 port of your computer (11.1
6. For the PT1500MU and the PT1501MU, connect the USB cable from the USB
port of your display to the USB port of your computer (11.2
)
).
).
).
).
Notice!
To ensure the LCD display works well with your computer, please configure
the display mode of your graphic card to make it less than or equal to 1024 x
768 resolution and make sure the timing of the display mode is compatible
with the LCD display.
We have listed the “Video Modes” of this LCD display in the appendix for your
reference.
11
Page 15

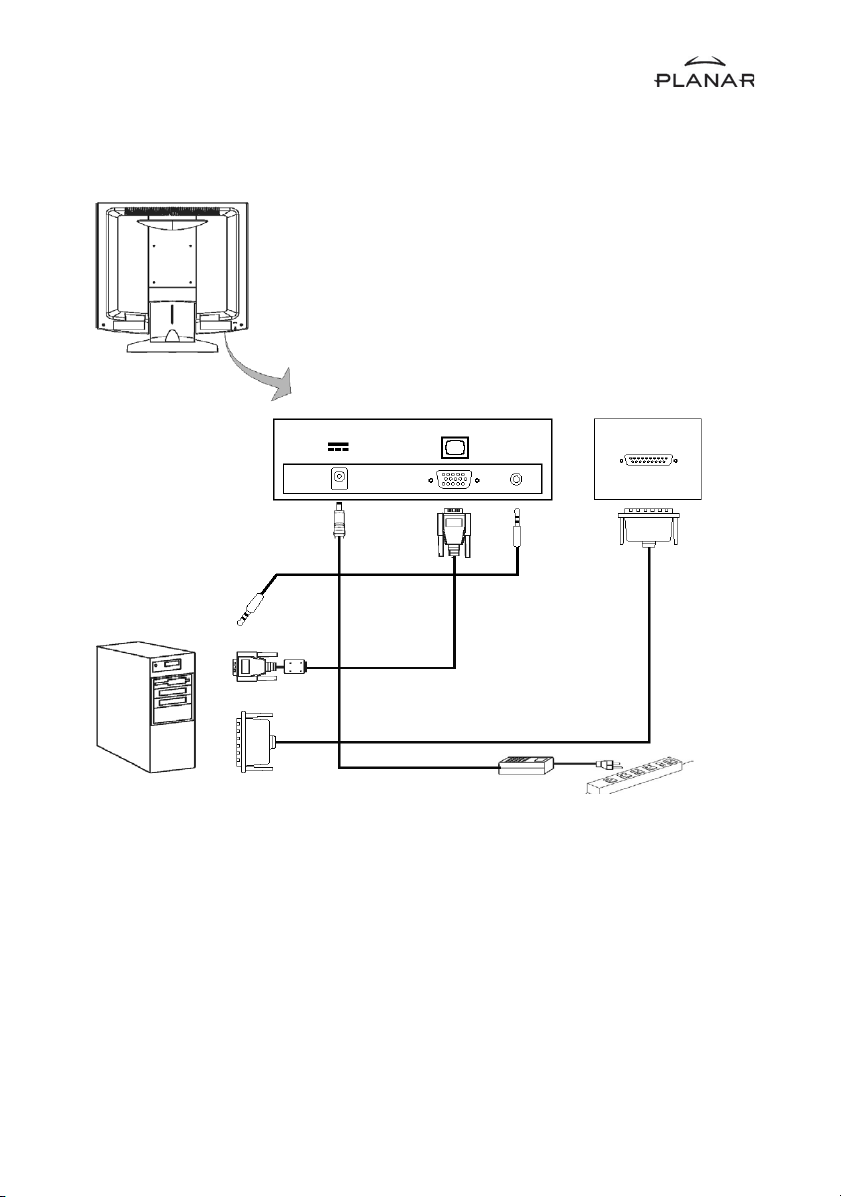

Figure 11.1
Audio-In
Cable
Power Adapter
& Power Cord
12
VGA
Cable
RS-232
Cable
Page 16

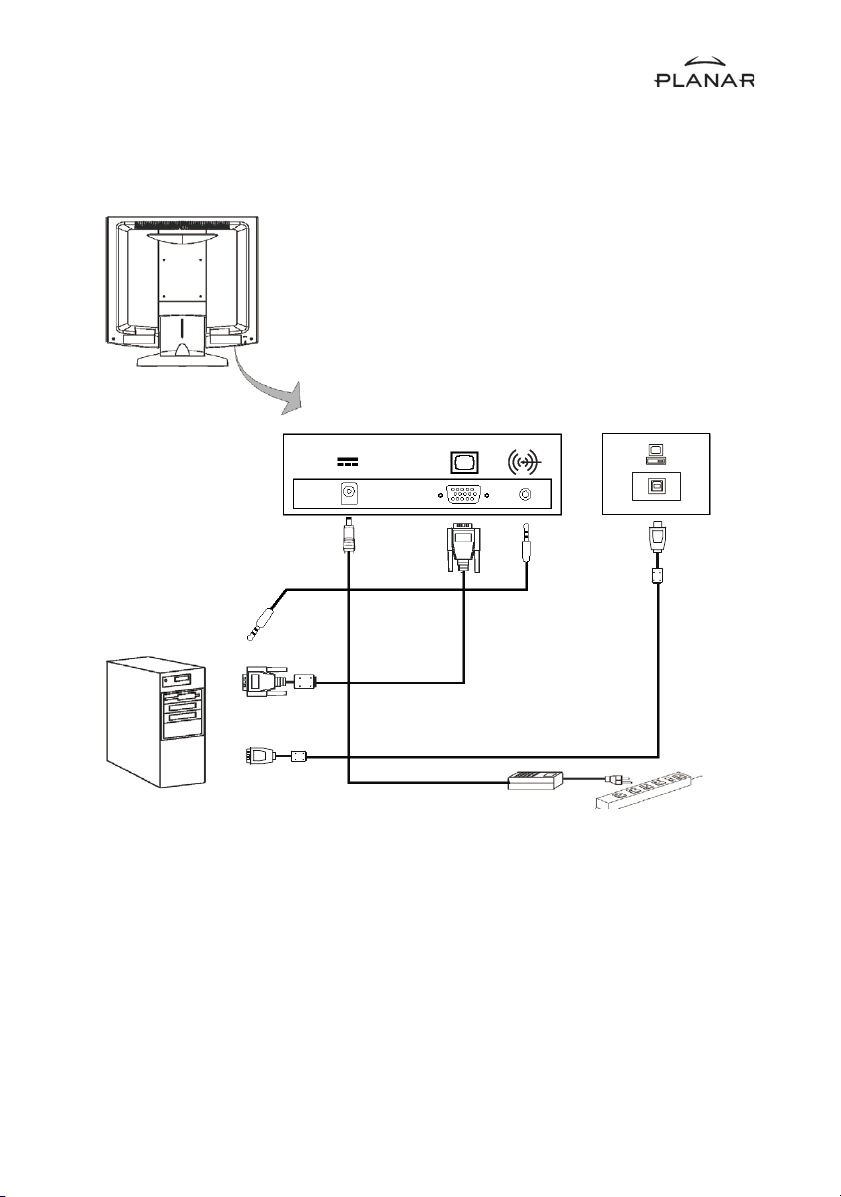

Figure 11.2
Audio-In
Cable
Power Adapter
& Power Cord
13
VGA
Cable
USB
Cable
Page 17
User Controls

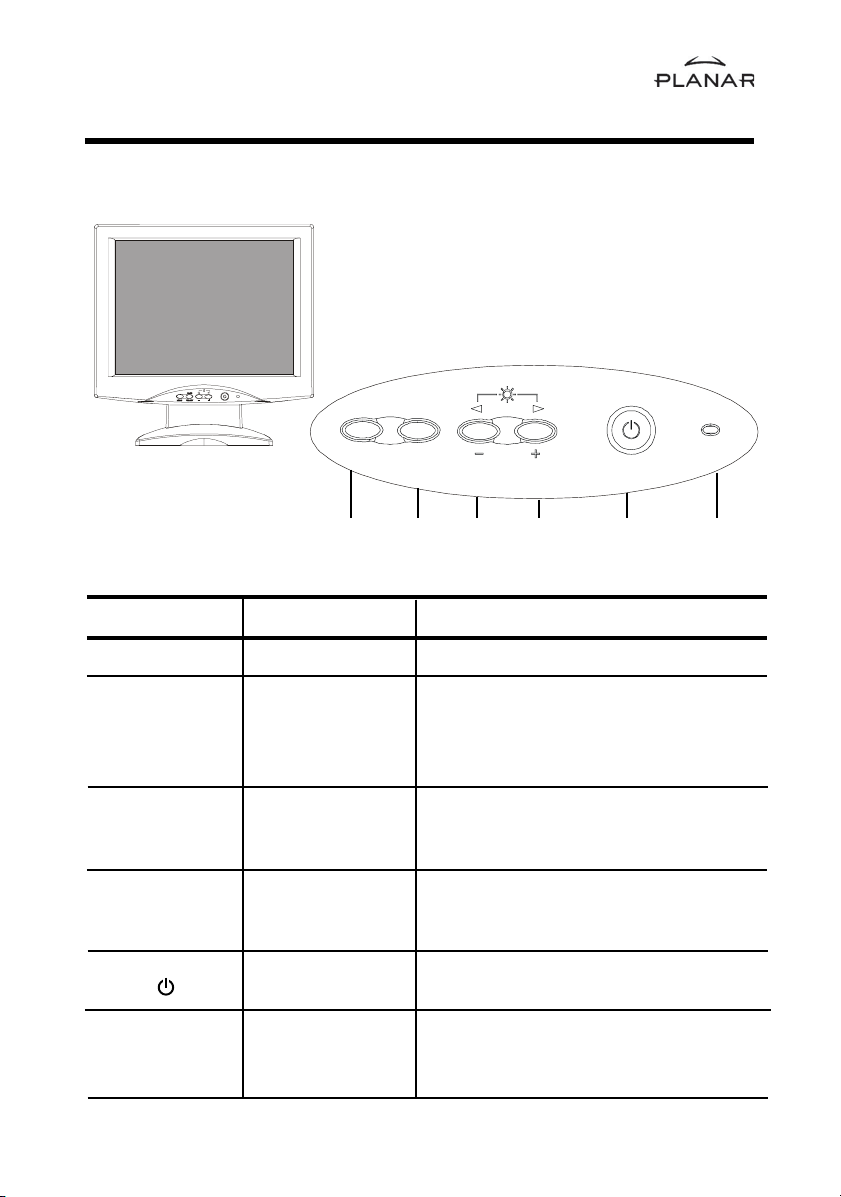

Front Panel Controls
AUTO
SELECT
MENU
No./ Icon Control Function
MENU Menu button Display the OSD menus
SELECT/AUTO Select/Auto Select- To select the adjustment items
from OSD menus.
Auto- To activate the “Auto Adjustment”
function to obtain an optimum image.
3
4
Brightness Minus/ 1.Decreases the brightness of the display
Minus image.
2.Decreases value of the adjustment items.
Brightness Plus/ 1.Increases the brightness of the display
Plus image.
2.Increases value of the adjustment items.
Power Switch Switches on/off the power of the LCD
display.
Power LED 1.Green indicates the display is turned on.
2. Amber indicates the display is in
power-saving mode.
14
Page 18
How to Use the OSD Menus
1. Press the “Menu” button to pop up the on-screen menu and to select
between the four Main Menus.
2. Choose the adjustment items by pressing the “Select/Auto” button.
3. Adjust the value of the adjustment items by pressing the “
button.
4. The OSD menu will automatically close, if you have left it idle for a pre-set
time.
” or “4”
3
15
Page 19
On-Screen Display Menus

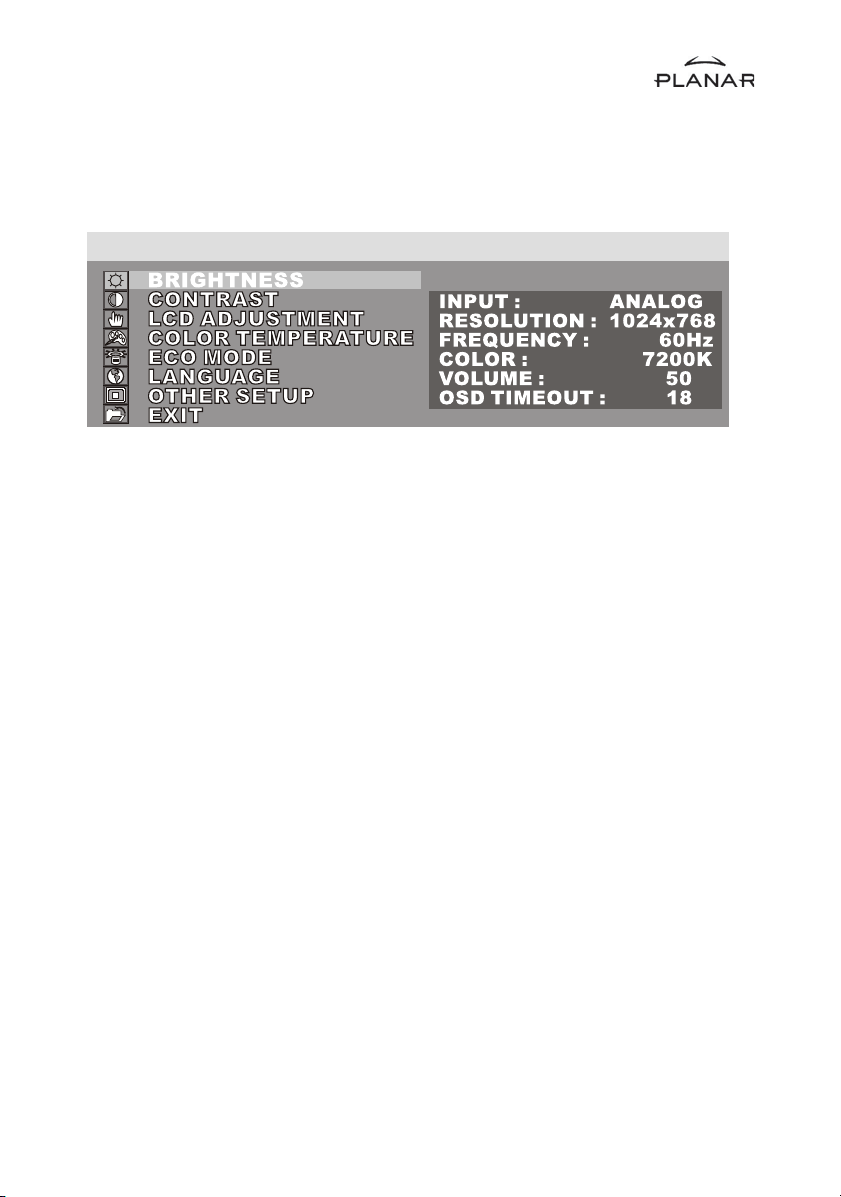

Main OSD Menu:
Brightness
4
Choose this function to adjust the brightness of the image.
Contrast
4
Choose this function to adjust the contrast ofthe image.
LCD Adjustment
4
Opens the LCD Adjustment sub-menu where you can adjust the Clock, Phase,
Horizontal Position and Vertical Position parameters.
Color Temperature
4
Opens the Color Temperature sub-menu where you can select the desired Color
Temperature of the image.
ECO Mode
4
Enables or disables the power savings mode.
Language
4
Opens the Language sub-menu where you can select the desired language of the
OSD.
Other Setup
4
Opens the Other Setup sub-menu where you can adjust the Smooth, OSD
Position, OSD Transparency, OSD Time Out, Volume and Mode Message
parameters.
16
Page 20

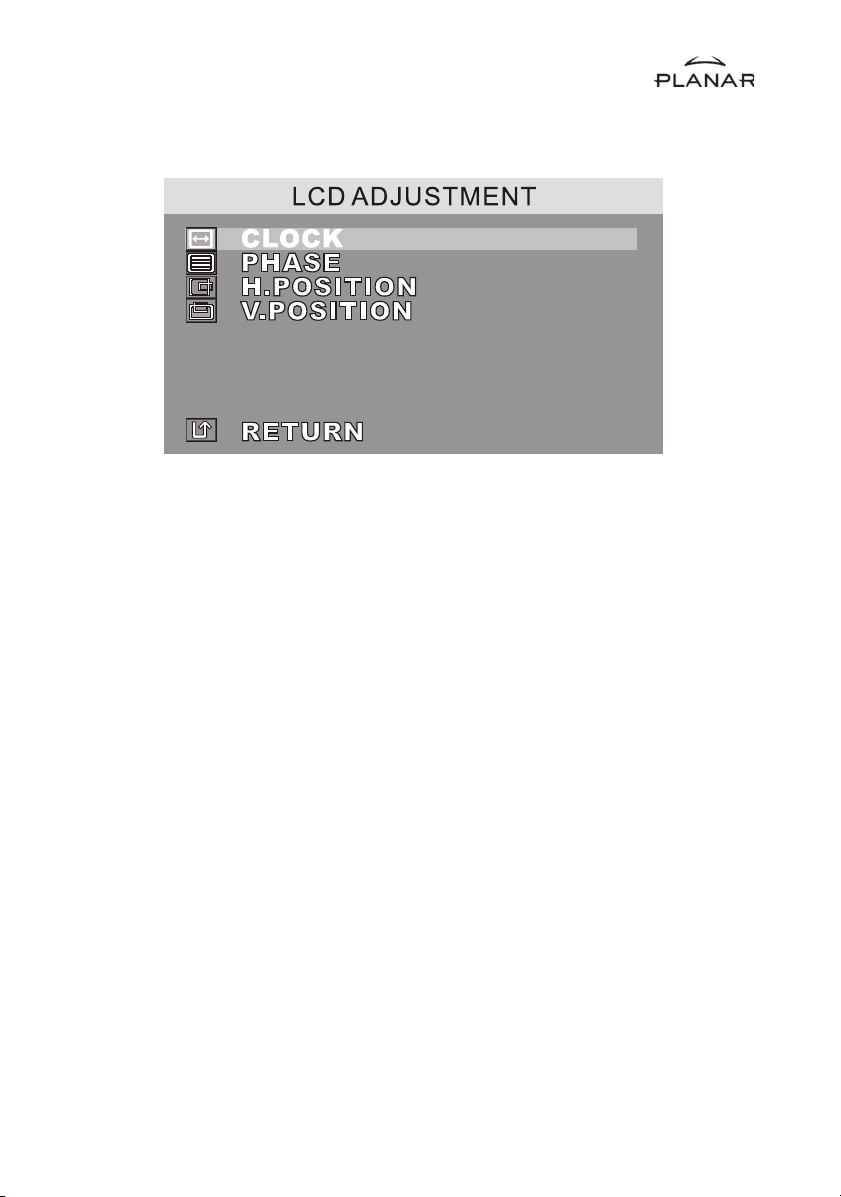

LCD Adjustment Sub-Menu:
Clock
4
Minimizes any vertical bars or stripes visible on the screen.
Phase
4
Minimizes any horizontal distortion and clears or sharpens the displayed
characters.
H. Position
4
Changes the horizontal position of the image.
V. Position
4
Changes the vertical position of the image.
17
Page 21

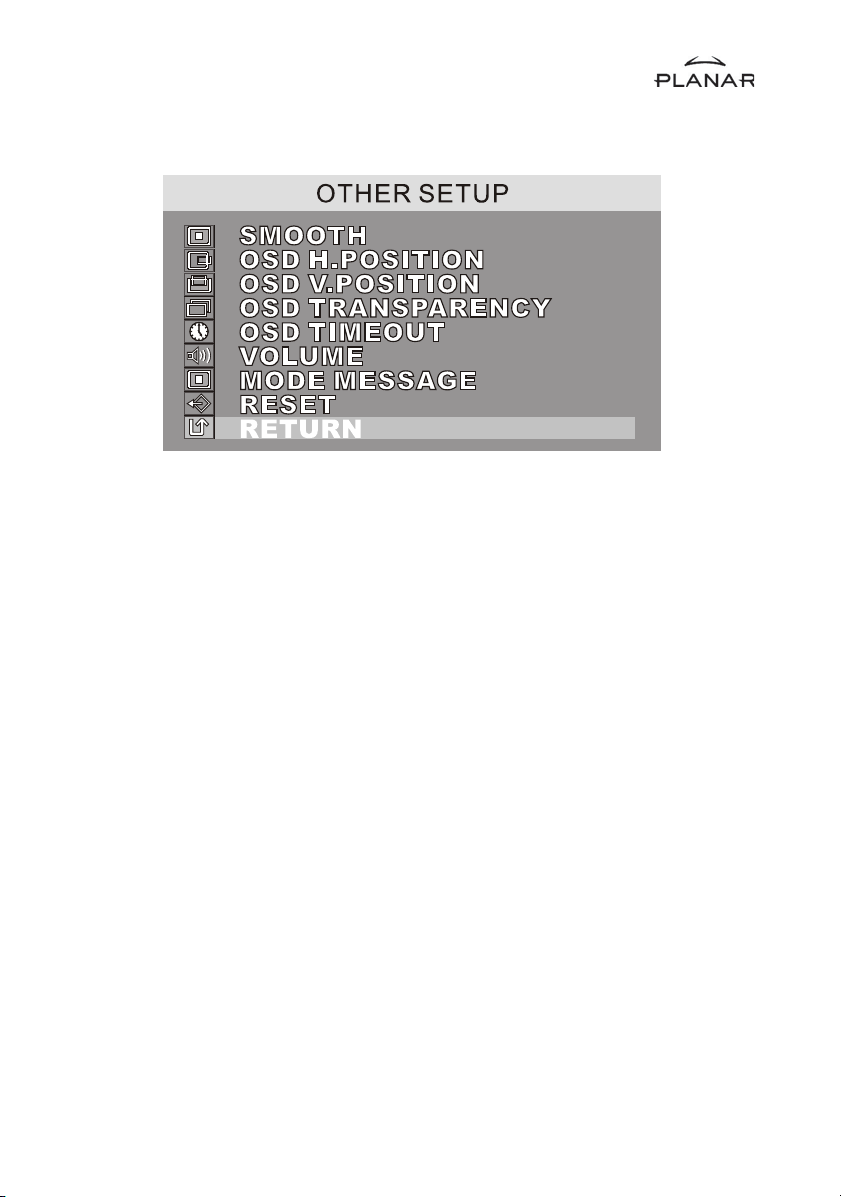

Other Setup Sub-Menu:
Smooth
4
Adjusts the smoothness of the image.
OSD H. Position
4
Changes the horizontal position of the OSD.
OSD V. Position
4
Changes the vertical position of the OSD.
OSD Transparency
4
Changes the opaqueness of the OSD background.
OSD Time out
4
Adjusts the amount of time the OSD menu will be displayed for after inactivity.
Volume
4
Adjusts the sound volume.
Mode Message
4
Enables or disables the display of information.
Reset
4
Resets the display parameters back to its factory default settings.
18
Page 22
Appendix
Troubleshooting
If you are experiencing trouble with the LCD display, refer to the following. If the problem persists, please contact your local dealer or our service center.
Problem: No image appears on screen.
Check that all the I/O and power connectors are correctly and well connected as
4
described in the “ Installation ” section.
Make sure the pins of the connectors are not crooked or broken.
4
Problem: Partial image or incorrectly displayed the image.
Check to see if the resolution of your computer is higher than that of the LCD
4
display.
Reconfigure the resolution of your computer to make it less than or equal to
4
1024 x 768.
Problem: Image has flickering vertical line bars.
Use “ Clock ” to make an adjustment.
4
Check and reconfigure the display mode of the vertical refresh rate of your graphic
4
card to make it compatible with the LCD display.
Problem: Image is unstable and flickering
Use “ Phase ” to make an adjustment.
4
Problem: Image is scrolling
Check and make sure the VGA signal cable (or adapter) is well connected.
4
Check and reconfigure the display mode of the vertical refresh rate of your graphic
4
card to make it compatible with the LCD display.
Problem: Vague image (characters and graphics)
Use “ Clock ” to make an adjustment. If this problem still exists, use “Phase” to
4
make an adjustment.
19
Page 23
Warning Signal
If you see warning messages on your LCD screen, this means that the LCD display
cannot receive a clean signal from the computer graphics card.
There may be two sources for this problem. Please check the cable connections or
contact Planar for more information.
No Signal
4
This message means that the LCD display has been powered on but it cannot
receive any signal from the computer graphic card. Check all the power switches,
power cables, and VGA signal cable.
Out of Range
4
This message means that the signal of the computer graphic card is not compatible
with the LCD display. When the signal is not included in the “Video Modes” list we
have listed in the Appendices of this manual, the LCD display will display this
message.
20
Page 24

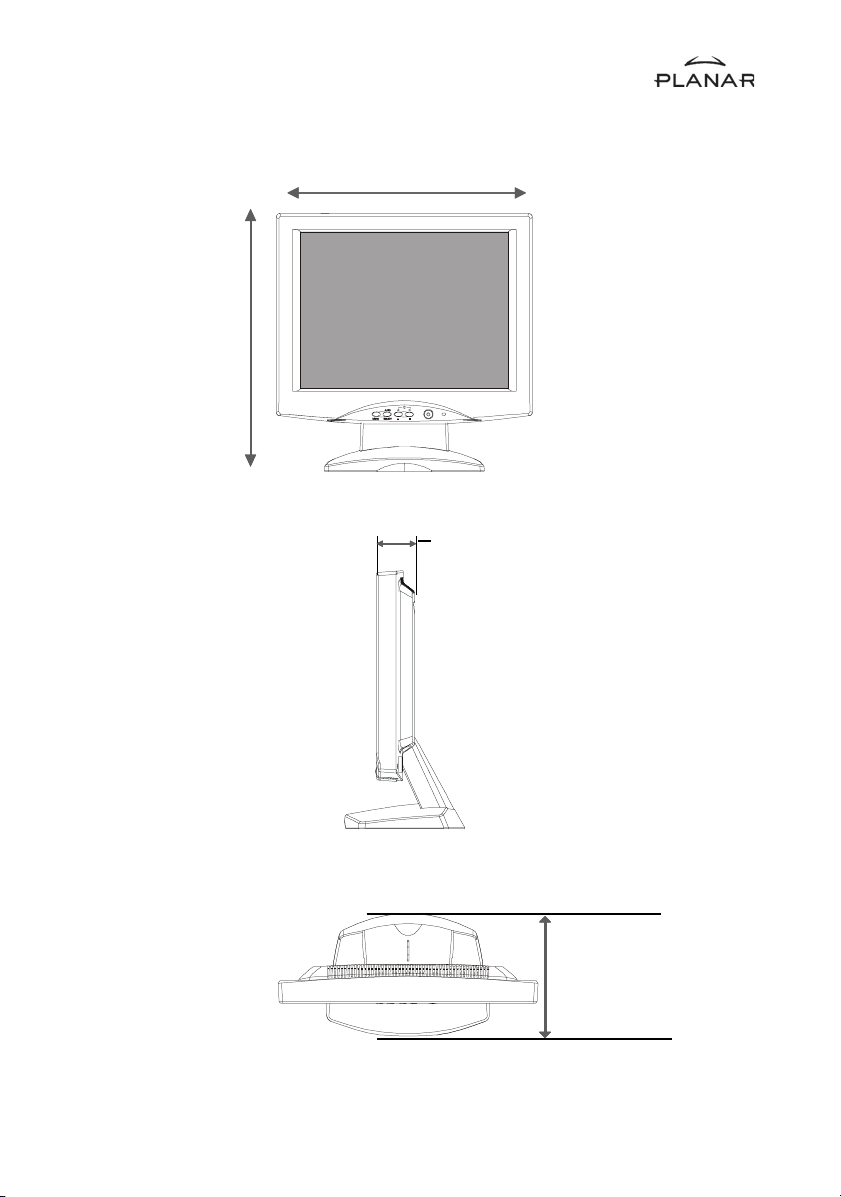

Product Dimensions
384.3mm/15.1”
382.5mm/15.06”
Front View
56.8mm/2.23”
Side View
Top View
21
180.1mm/7.1”
Page 25
Monitor Specifications
Item
LCD Module
Display Size
Viewing Angle
Left/Right
Up/Down
Display Colors
Power Input
Maximum power consumption
Signal Input
Video Signal
Sync signals
Line (horizontal) frequency
Raster (vertical) frequency
Pixel dot clock
Recommended mode
Pedestal tilt
Dimensions (W x H x D)
Weight
Operating Conditions
Temperature
Humidity
Altitude
Storage Conditions
Temperature
Humidity
Altitude
Specification
15-in, active matrix TFT, anti-glare coating,
0.297 mm pixel pitch
304 mm x 228 mm
60/60 left/right
40/60 up/down
16,777,216 (8bits/color) with FRC
100 ~ 240 VAC Full Range, 50/60 Hz
(External AC adapter)
<30W (5W Standby)
RGB positive 0.7VPP, 75ohm
Separate, TTL Level
31.5 kHz to 60kHz
56 Hz ~ 75 Hz
78.75MHz
1024 x 768 @ 60 Hz
-5 ~ 25 degress
382.5 x 384.3 x 180.1 mm
5.1 kgs
0
~ 350 C / 410 ~ 950F
5
80% maximum
3658m
0
~ 600C / -40 ~ 1400F
-20
80% maximum
12,193m
22
Page 26
Video Modes
The monitor supports the following industry-standard combinations of screen resolution and refresh rates. Other combinations are possible, but may require adjustments
to the image.
For the optimal performance, set your computer to a screen resolution of 1024 x 768
at a 60 Hz refresh rate.
Display Mode
640 x 350
640 x 400
VGA
640 x 480
SVGA 800 x 600
XGA 1024 x 768
US TEXT 720 x 400
Apple
MAC
832 x 624
1024 x 768
640 x 480
Hsync (kHz)
31.5
31.5
31.5
37.9
37.5
35.2
37.9
48.1
46.9
48.4
56.5
60
31.5
34.9
35
49.7
60.2
Vsync (Hz)
70
70
60
72
75
56
60
72
75
60
70
75
70
67
67
75
75
23
Page 27
Touch Screen Driver Installation
Driver Installation for PT1500M: Resistive Touch Screen with RS-232
Serial Connection
Touch driver information is located on the enclosed CD-ROM for the following operating systems: Microsoft Windows
Me, and Windows 9X.
1. Open the CD-Rom.
2. Select the link for your monitor model.
3. The driver file will automatically open.
4. Select the "TW564SR4.exe file.
5. Select "unzip"
6. Double click the "setup.exe" file.
7. Follow the installation instructions.
8. If the touch screen driver does not automatically load, restart the computer
operating system.
Please read "Readme.txt" located in the unzipped file folder for additional information and assistance.
R
XP, Windows 2000, Windows NT 4.0, Windows
Driver Installation for PT1500MU: Resistive Touch Screen with USB Connection
Please note: These monitors are Microsoft Windows R HID (Human Interface Device)
compatible. No additional software driver is required for general operation of the touch
screen.
A special calibration tool can be installed for improved touch position accuracy. See
Optional MicroTouch
cess
TM
USB HID Calibration Tool version 7.00 Installation Pro-
24
Page 28
Optional Driver MicroTouchTM USB HID Calibration Tool Version 7.00 Installation Process for PT1500MU: Resistive Touch Screen with USB
Connection
Please note: These monitors are Microsoft HID (Human Interface Device) compatible.
The calibration driver is not required for general operation of the touch screen.
This calibration tool is for optimization of touch performance for the touch screen to
meet the 1% TPE accuracy specification.
The following Microsoft Windows
driver: Microsoft Windows
R
operating systems are supported by this software
R
98SE, Me, 2000, and XP.
1. Open the CD-Rom.
2. Select the PT1500MU Calibration Option link.
3. The driver file will automatically open.
4. Follow the installation instructions for the MicroTouch HID Calibration
procedure.
Please read "Readme.txt" located in the unzipped file folder for additional information and assistance.
Driver Installation for PT1501M: Capacitive Touch Screen with RS-232
Serial Connection
Touch driver information is located on the enclosed CD-ROM for the following operating systems: Microsoft Windows
Me, and Windows 9X.
1. Open the CD-Rom.
R
XP, Windows 2000, Windows NT 4.0, Windows
2. Select the link for your monitor model.
3. The driver file will automatically open.
4. Select the "TW564SR4.exe" file.
5. Select "unzip"
6. Double click the "setup.exe" file.
25
Page 29
7. Follow the installation instructions.
8. Reconnect the USB cable
9. If the touch screen driver does not automatically load, restart the computer
operating system.
Please read "Readme.txt" located in the unzipped file folder for additional information and assistance.
Driver Installation for PT1501MU: Capacitive Touch Screen with USB
Connection
Touch driver information is located on the enclosed CD-ROM for the following operating systems: Microsoft Windows
R
XP, Windows 2000, Windows NT 4.0, Windows
Me, and Windows 9X.
If you have a USB cable connection disconnect the cable from the monitor or the
PC before installing the driver.
1. Open the CD-Rom.
2. Select the link for your monitor model.
3. The driver will automatically open.
4. Select the "TW564SR4.exe file.
5. Select "unzip"
6. Double click the "setup.exe" file.
7. Follow the installation instructions.
8. Reconnect the USB cable
9. If the touch screen driver does not automatically load, restart the computer
operating system.
Please read "Readme.txt" located in the unzipped file folder for additional information and assistance.
26
Page 30
Linux Driver Installation for PT1501MU: Capacitive Touch Screen with
USB Connection
Touch driver information is located on the enclosed CD-ROM. Supported platforms
include: Red Hat
R
Linux 9.0 on Pentium R -compatible CPUs. The following Xfree86 versions are
R
Linux 8.0, Red Hat R Linux 9.0, and SuSE R Linux 8.2 and SuSE
supported: 4.0.3 and 4.1.0.
1. Open the CD-Rom.
2. Select the "TwLinux5.62.1" folder.
3. Double click the "Readme.txt" file.
4. Follow the driver selection and installation instructions.
Please read "Readme.txt" located in the unzipped file folder for additional information and assistance.
27
Page 31
Planar Systems, Inc.
Customer Service
Online Support：http://planar.custhelp.com
Email：desktopmonitors@planar.com
Tel：1-866-PLANAR-1 (1-866-752-6271)
Hours：m-f, 8am-9pm, Eastern Time
©2004 Planar Systems, Inc. Planar is a registered trademark of Planar
Systems, Inc.
Other brands and names are the property of their respective owners.
Technical information in this document is subject to change without notice.
P/N: 36.57709.003 Rev. A
Loading...
