Planar PR Line PR5030 User Manual

— i —

c.

Beaverton, OR 97006-1992

stomer Support

2-6271

: http://www.planar.com/support

24/7 Technical Support

Planar Systems, In

Corporate Headquarters
1195 NW Compton Drive

Planar Cu

Telephone:
US: 1-866-PLANAR1 (866) 75
Outside US: [phone]
E-mail: [e-mail]
Online Technical Library

User’s Manual

— ii —

Copyright

This publication, including all photographs, illustrations and software, is protected under international copy­right laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be
reproduced without written consent of the author.

© Copyright February, 2008

Disclaimer

The information in this document is subject to change without notice. The manufacturer makes no repre­sentations or warranties with respect to the contents hereof and specifically disclaims any implied
warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to
revise this publication and to make changes from time to time in the content hereof without obligation of
the manufacturer to notify any person of such revision or changes.

Trademark Recognition

Kensington is a U.S. registered trademark of ACCO Brand Corporation with issued registrations and pend­ing applications in other countries throughout the world.

All other product names used in this manual are the properties of their respective owners and are ac­knowledged.

Preface

— iii —

Important Safety Information

Congratulations on purchasing the Planar DLP® projector!

Important:

It is strongly recommended that you read this section carefully before using the projector. These
safety and usage instructions will ensure that you enjoy many years of safe use of the projector.
Keep this manual for future reference.

Symbols Used

Warning symbols are used on the unit and in this manual to alert you of hazardous situations.

The following styles are used in this manual to alert you to important information.

Note:

Provides additional information on the topic at hand.

Important:

Provides additional information that should not be overlooked.

Caution:

Alerts you to situations that may damage the unit.

Warning:

Alerts you to situations that may damage the unit, create a hazardous environment, or cause per­sonal injury.

Throughout this manual, component parts and items in the OSD menus are denoted in bold font as in this
example:
“Push the Menu button on the remote control to open the Main menu.”

Remote Control

Some remote controls have a laser for pointing out items on a screen.

DANGER: Do not point the laser in the eyes. Doing so can damage the eyes permanently.

General Safety Information

 Do not open the unit case. Aside from the projection lamp, there are no user-serviceable parts in

the unit. For servicing, contact qualified service personnel.

 Follow all warnings and cautions in this manual and on the unit case.

 The projection lamp is extremely bright by design. To avoid damage to eyes, do not look into the

lens when the lamp is on.

 Do not place the unit on an unstable surface, cart, or stand.

 Avoid using the system near water, in direct sunlight, or near a heating device.

 Do not place heavy objects such as books or bags on the unit.

DLP® Projector – User’s Manual

Power Safety

 Only use the supplied power cord.

 Do not place anything on the power cord. Place the power cord where it will not be in the way of

foot traffic.

 Remove the batteries from the remote control when storing or not in use for a prolonged period.

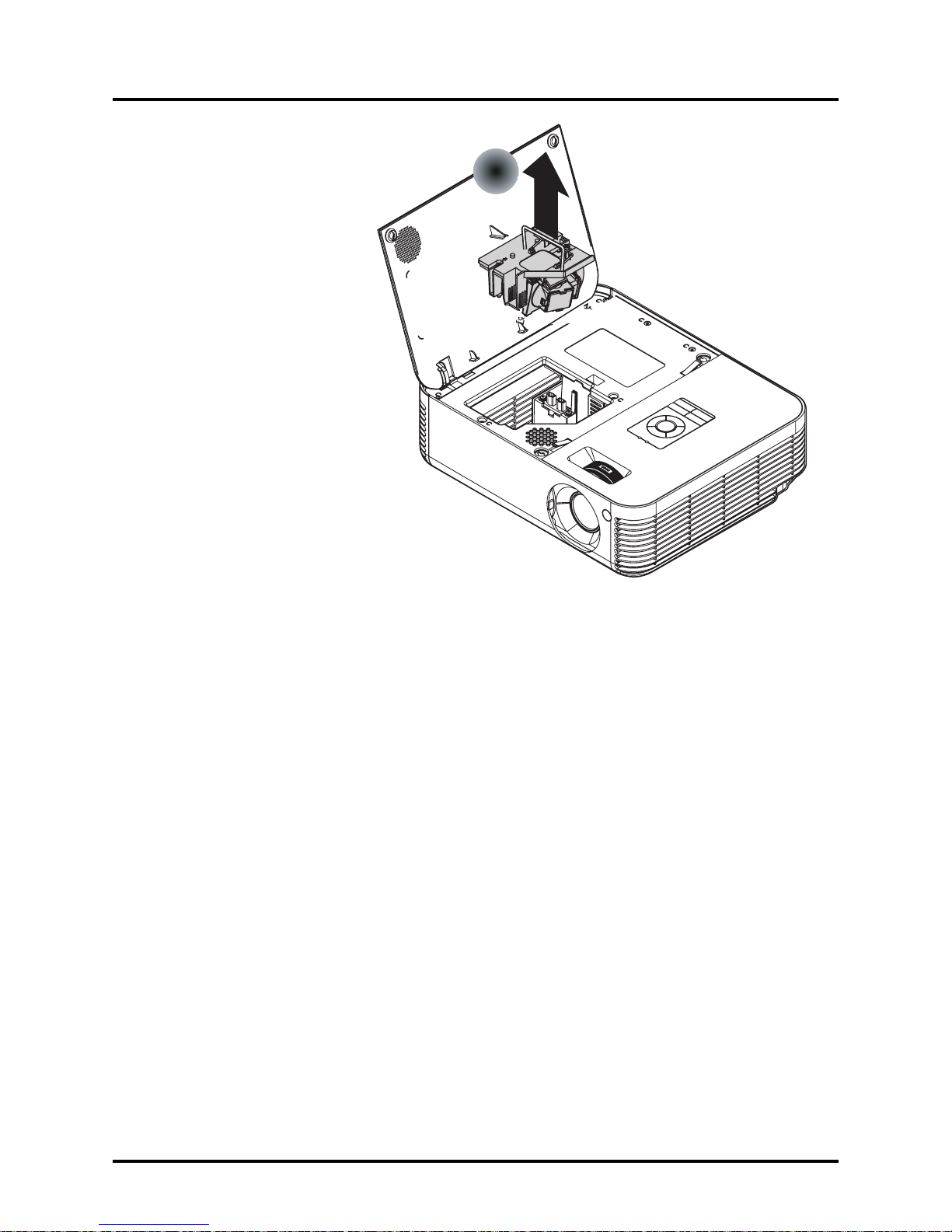

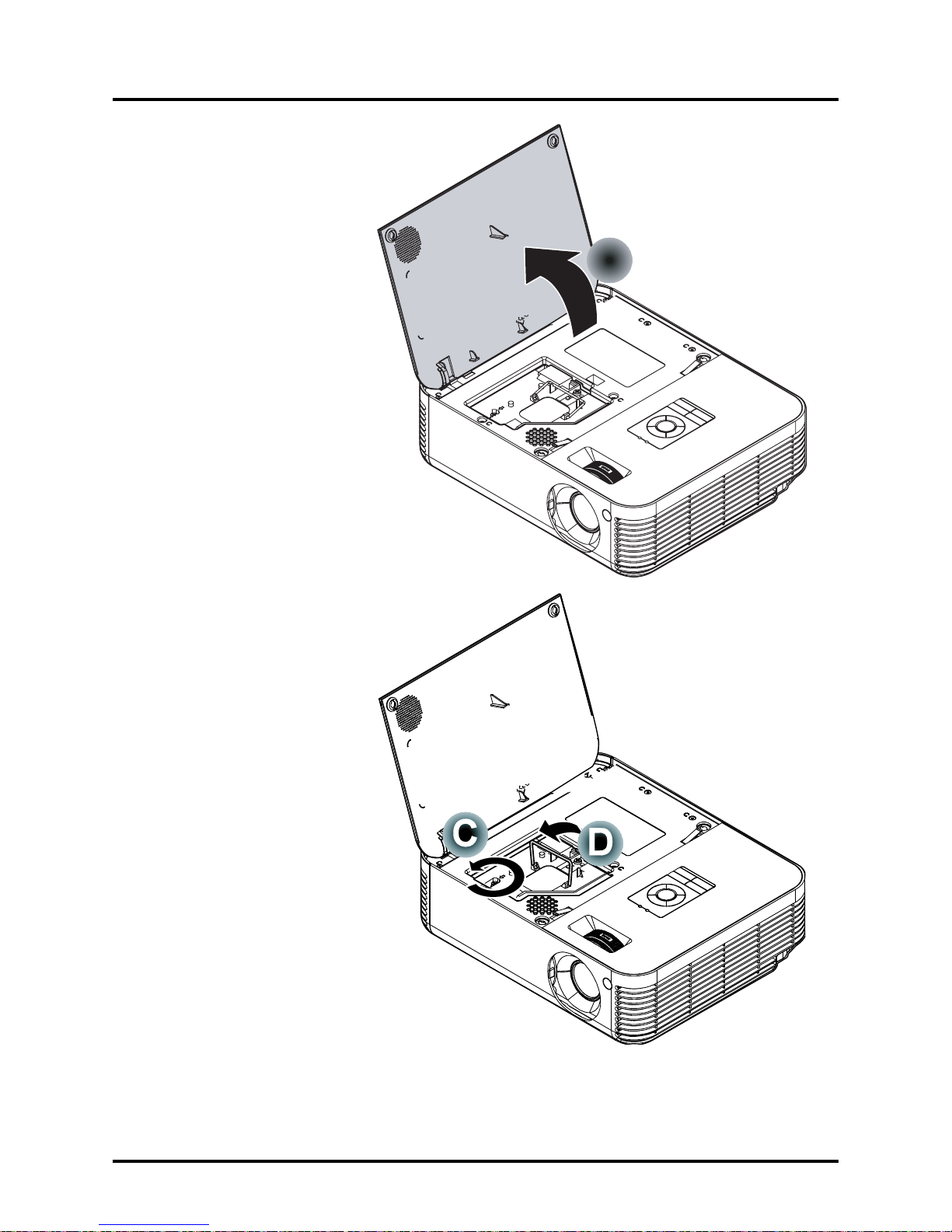

Replacing the Lamp

Replacing the lamp can be hazardous if done incorrectly. Refer to Replacing the Projection Lamp on page
35 for clear and safe instructions for this procedure. Before replacing the lamp:

 Unplug the power cord.

 Allow the lamp to cool for about one hour.

Important Recycle Instructions:

Lamp(s) inside this product contain mercury. This product may contain other electronic waste that
can be hazardous if not disposed of properly. Recycle or dispose in accordance with local, state, or federal
Laws. For more information, contact the Electronic Industries Alliance at WWW.EIAE.ORG

. For lamp

specific disposal information check WWW.LAMPRECYCLE.ORG.

Cleaning the Projector

 Unplug the power cord before cleaning. Refer to “Cleaning the Projector” on page 39.

 Allow the lamp to cool for about one hour.

Regulatory Warnings

Before installing and using the projector, read the regulatory notices in the “Regulatory Compliance” sec­tion on page 49.

Symbol Explanations

DISPOSAL: Do not use household or municipal waste collection services for
disposal of electrical and electronic equipment. EU countries require the use
of separate recycling collection services.

— iv —

Preface

— v —

Main Features

• Lightweight unit, easy to pack away and transport

• Compatible with all major video standards including NTSC, PAL, and SECAM

• A high brightness rating allows for presentations in daylight or in lit rooms

• Supports resolutions up to WXGA at 16.7 million colors to deliver crisp, clear images

• Flexible setup allows for front, rear & ceiling mounted projections

• Line-of-vision projections remain square, with advanced keystone correction for angled projections

• Input source automatically detected

Register Your Planar Products Today

Thank you for choosing Planar. To assure you receive all the benefits of your Planar product and services, reg­ister your Planar product today. Visit our website to register your product at

http://www.planar.com/support/product_registration.html

Cables, Replacement Lamps and Accessories

To find cables, replacement lamps and accessories for your Planar projector, LCD monitor, touchscreen or
other Planar products visit our online store at www.PlanarOnline.com or find other stores who carry Planar
products at http://www.planar.com/howtobuy

About this manual

This manual is intended for end users and describes how to install and operate the DLP® projector. Wher­ever possible, relevant information—such as an illustration and its description—has been kept on one
page. This printer-friendly format is both for your convenience and to help save paper, thereby protecting
the environment. It is suggested that you only print sections that are relevant to your needs.

DLP® Projector – User’s Manual

— vi —

Table of Contents

GETTING STARTED........................................................................................................................................................... 1

PACKING CHECKLIST ........................................................................................................................................................... 1

VIEWS OF PROJECTOR PARTS............................................................................................................................................... 2

Front-right View ............................................................................................................................................................ 2

Top view—On-screen Display (OSD) buttons and LEDs....................................................................................... 3

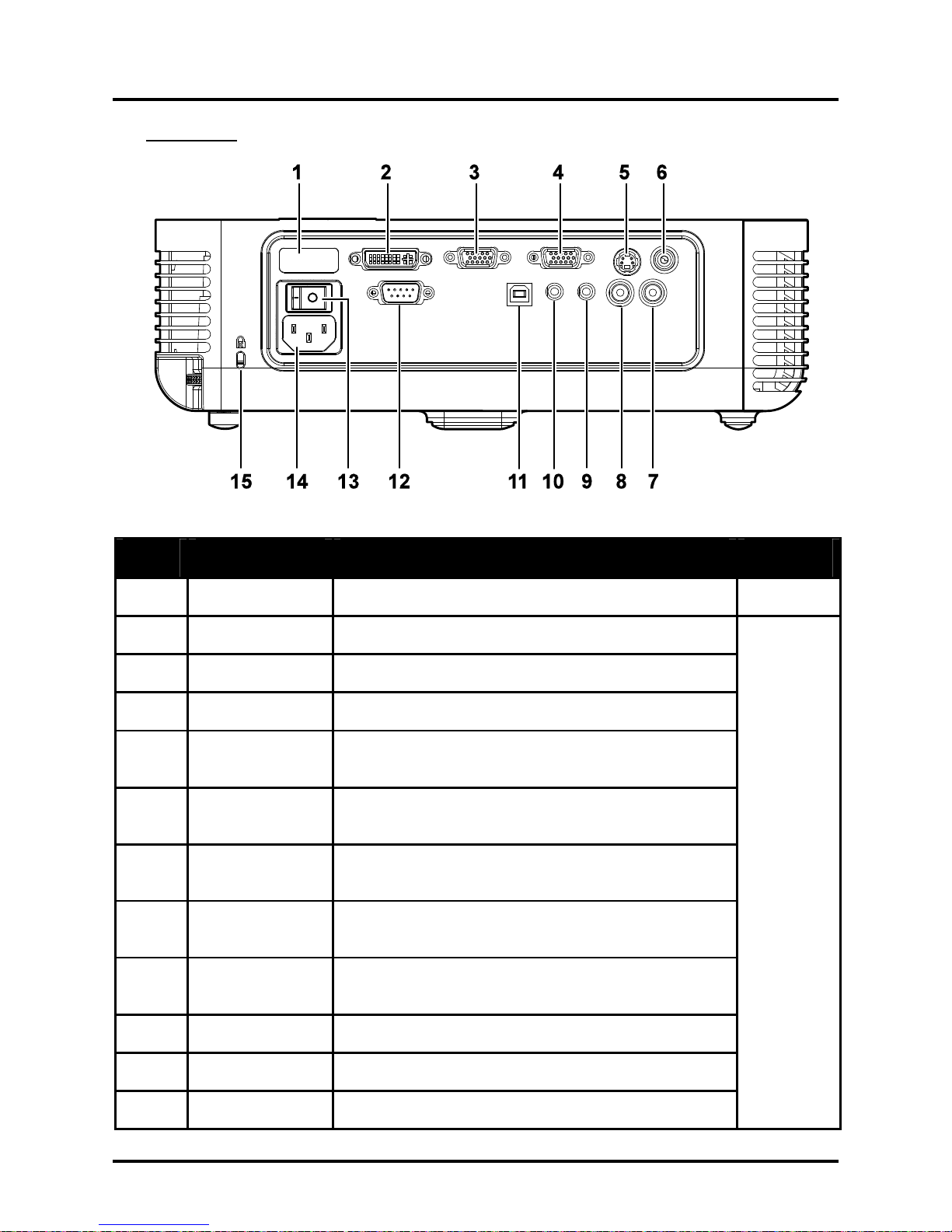

Rear view....................................................................................................................................................................... 4

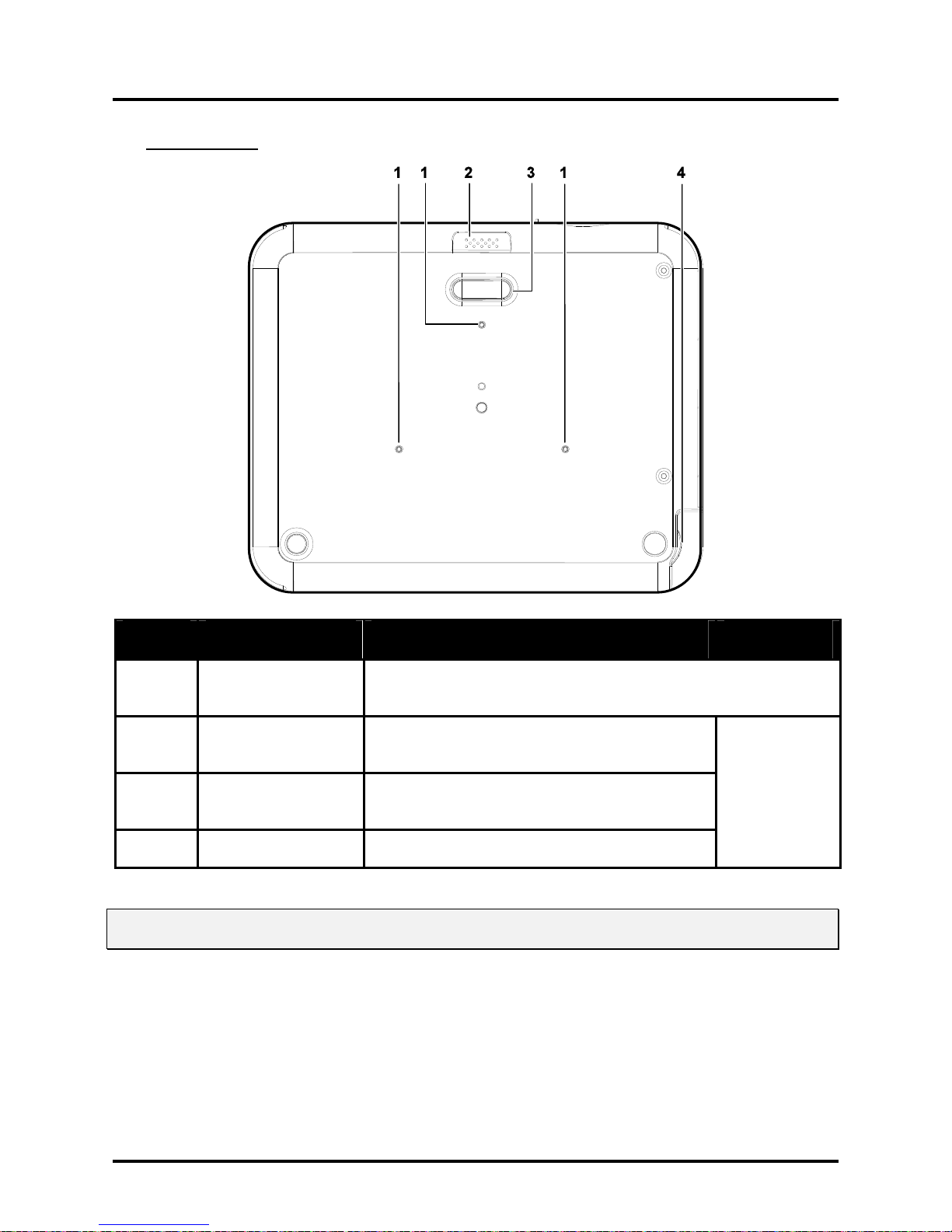

Bottom view................................................................................................................................................................... 6

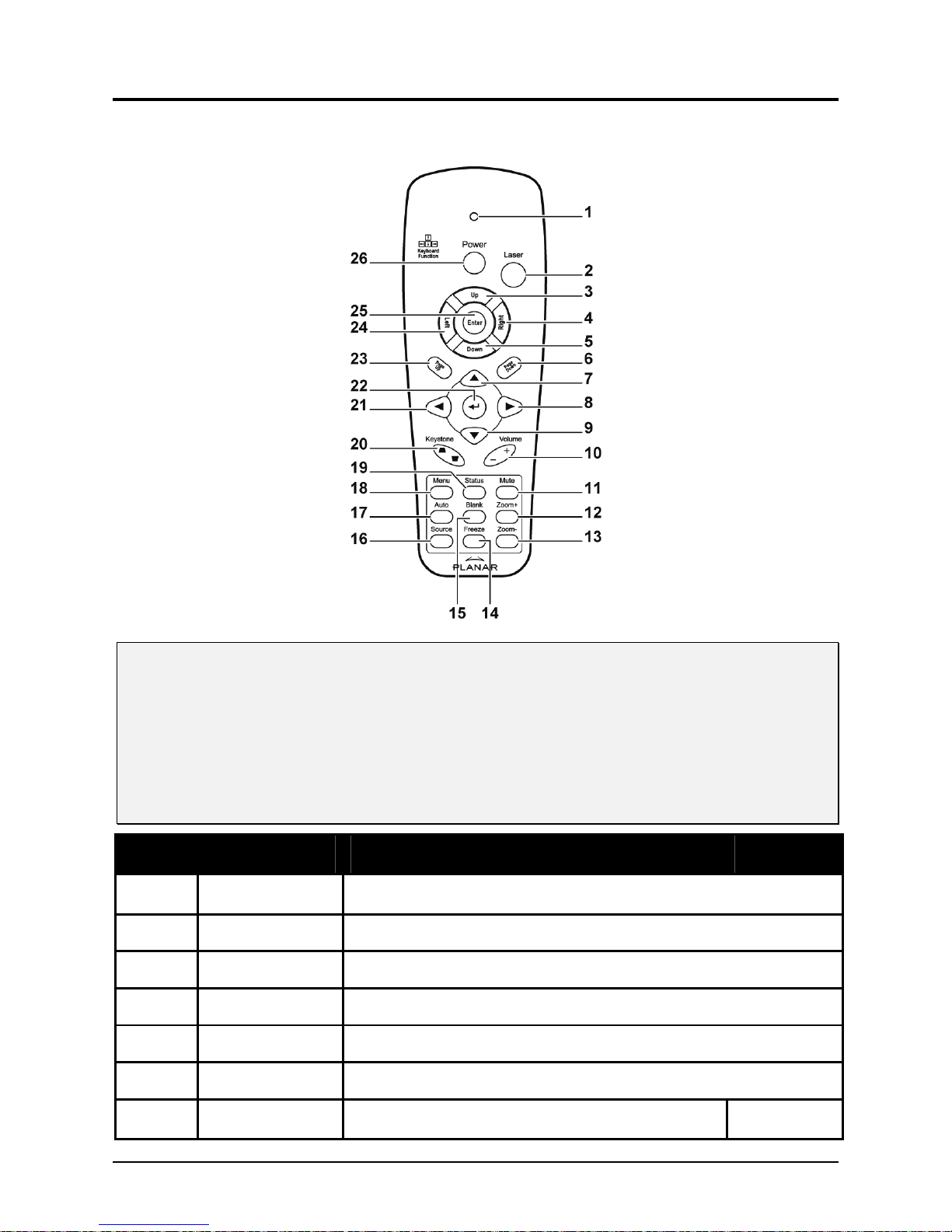

REMOTE CONTROL PARTS ................................................................................................................................................... 7

REMOTE CONTROL OPERATING RANGE ............................................................................................................................... 9

PROJECTOR AND REMOTE CONTROL BUTTONS.................................................................................................................... 9

SETUP AND OPERATION............................................................................................................................................... 10

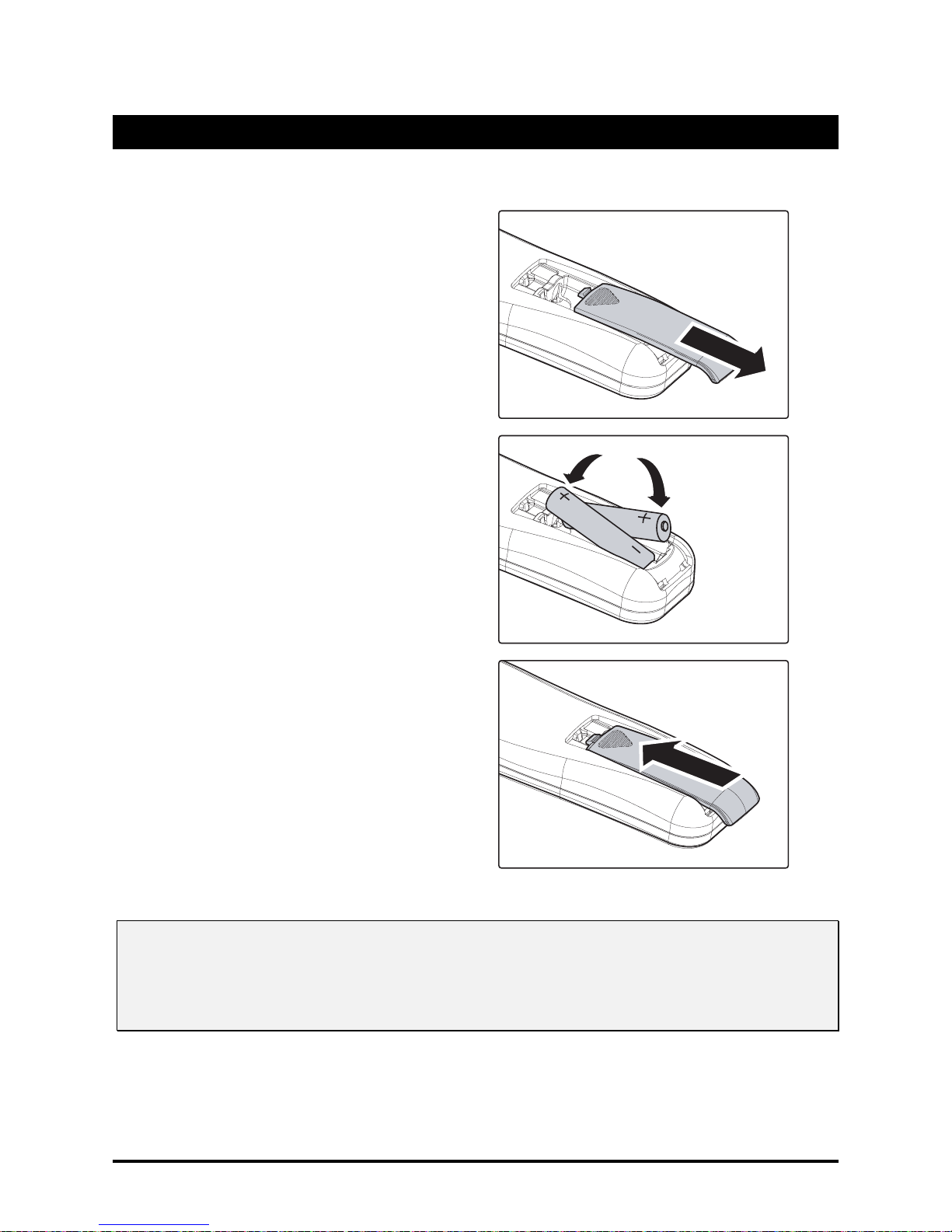

INSERTING THE REMOTE CONTROL BATTERIES ................................................................................................................. 10

CONNECTING INPUT DEVICES ............................................................................................................................................ 11

STARTING AND SHUTTING DOWN THE PROJECTOR............................................................................................................. 13

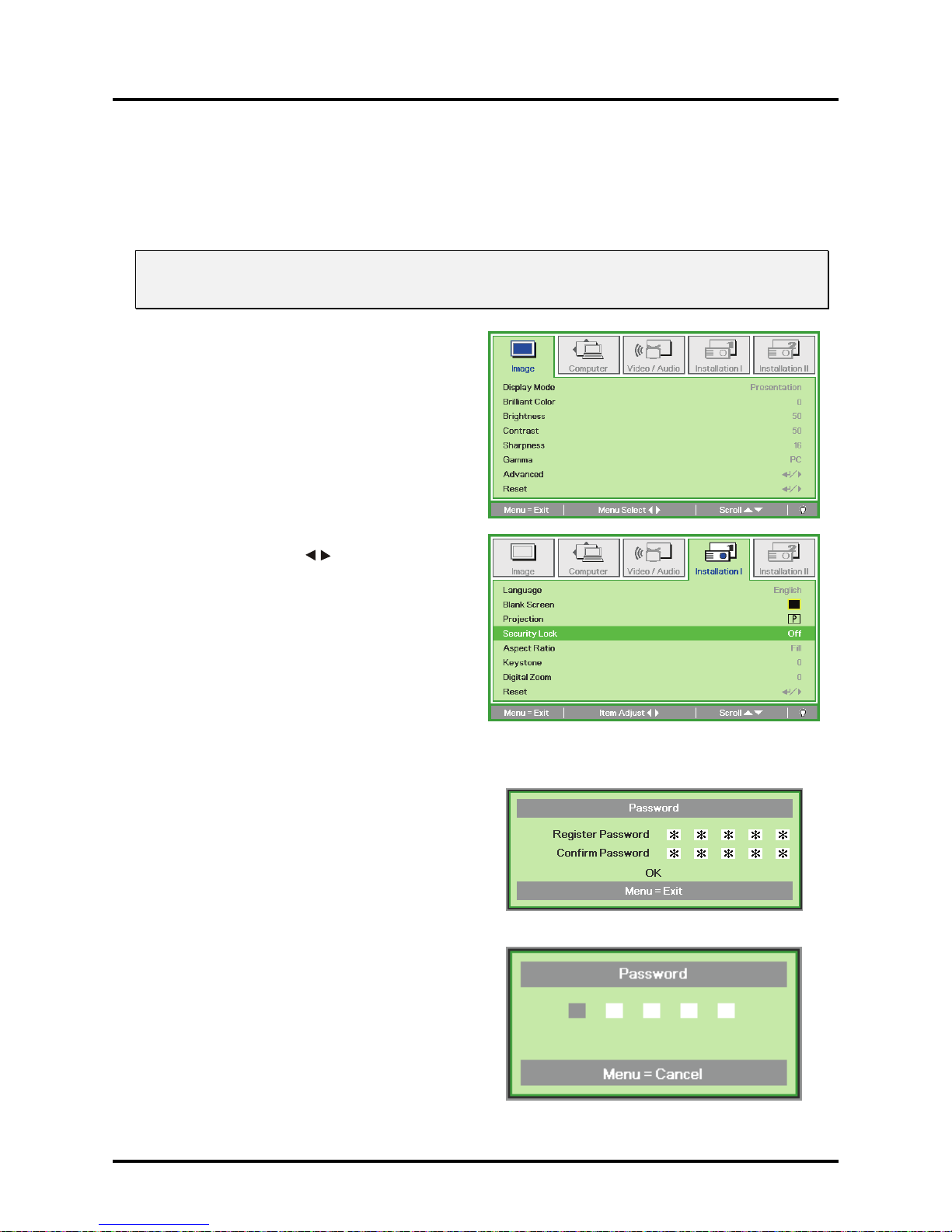

SETTING AN ACCESS PASSWORD (SECURITY LOCK) .......................................................................................................... 15

ADJUSTING THE PROJECTOR LEVEL ................................................................................................................................... 16

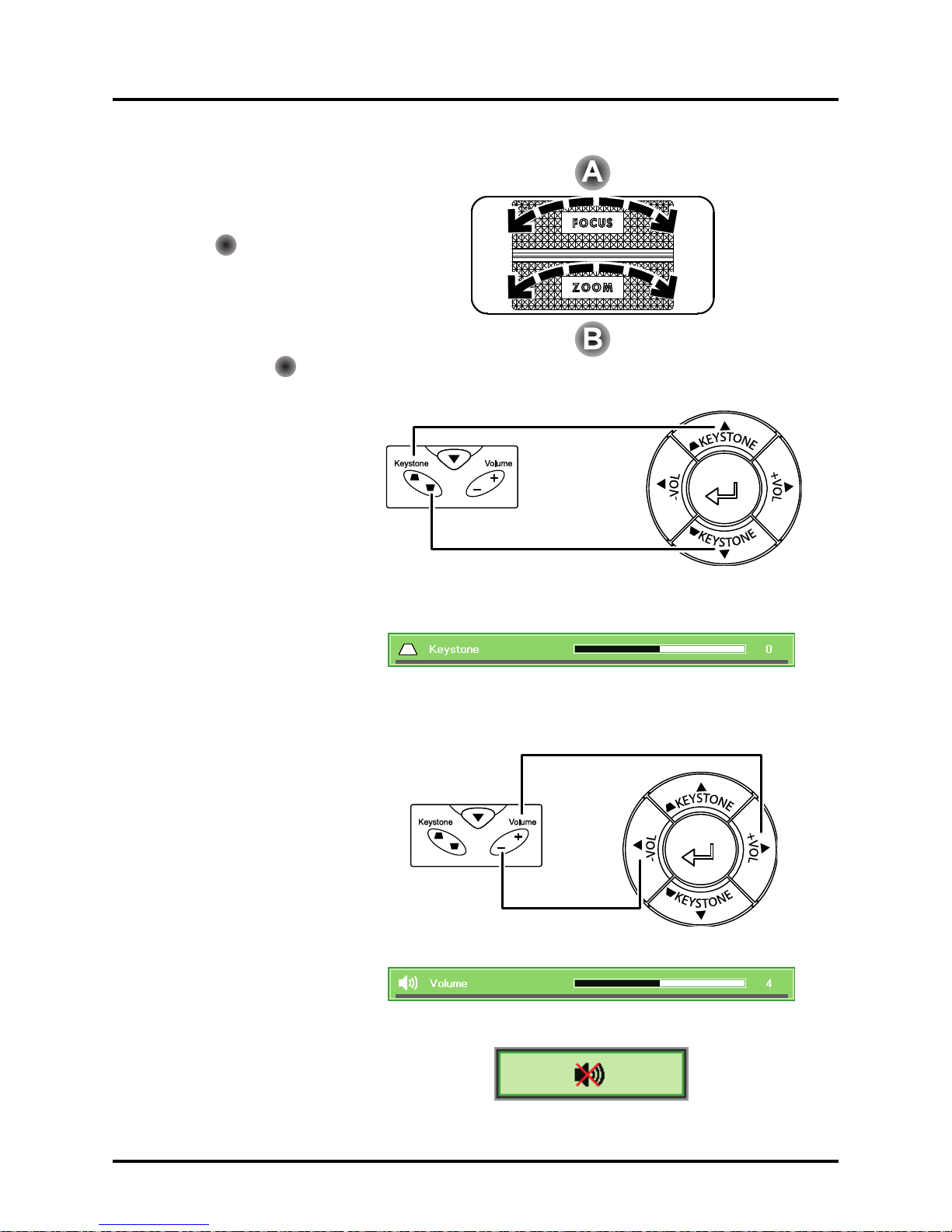

ADJUSTING THE ZOOM, FOCUS AND KEYSTONE ................................................................................................................ 17

ADJUSTING THE VOLUME .................................................................................................................................................. 17

ON-SCREEN DISPLAY (OSD) MENU SETTINGS ...................................................................................................... 18

OSD MENU CONTROLS ..................................................................................................................................................... 18

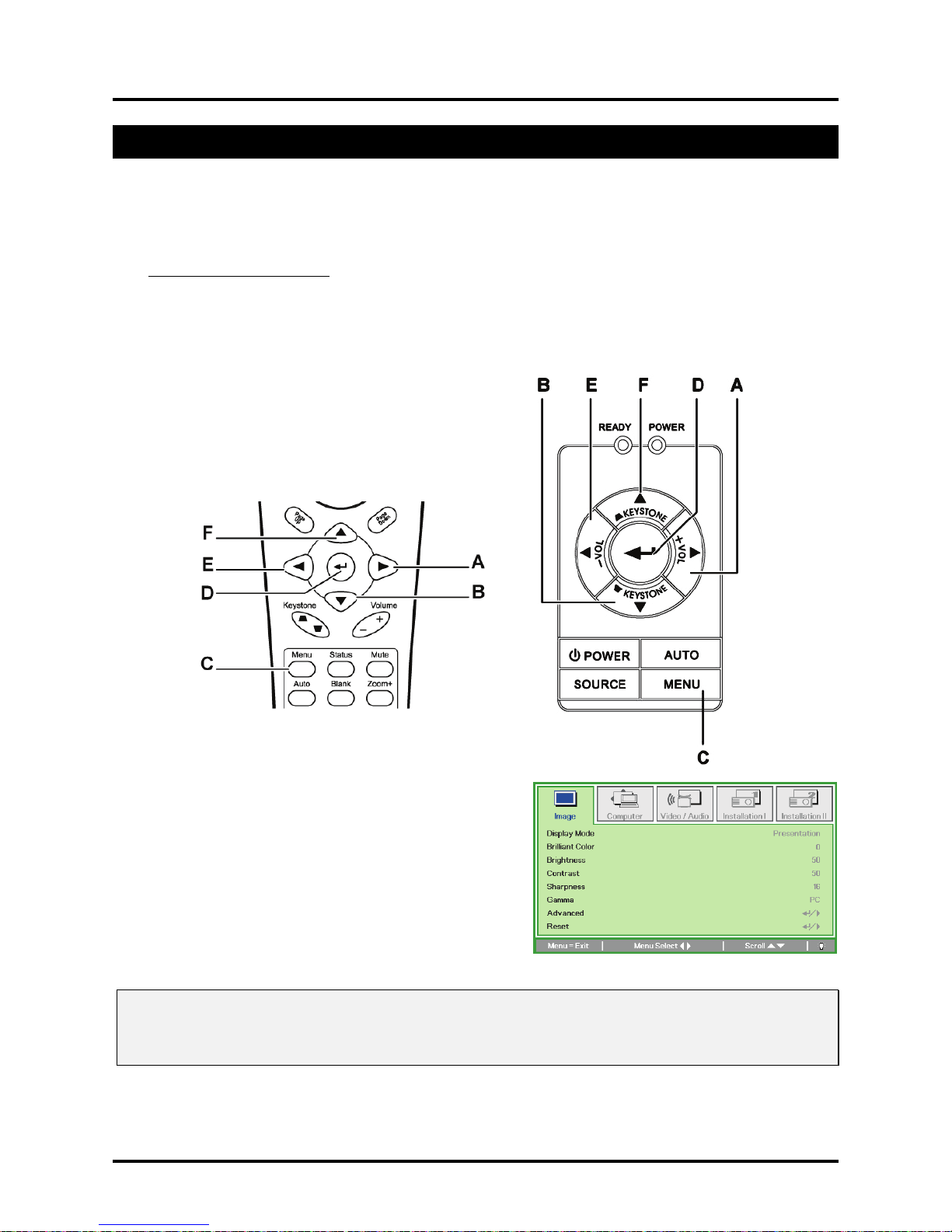

Navigating the OSD ................................................................................................................................................... 18

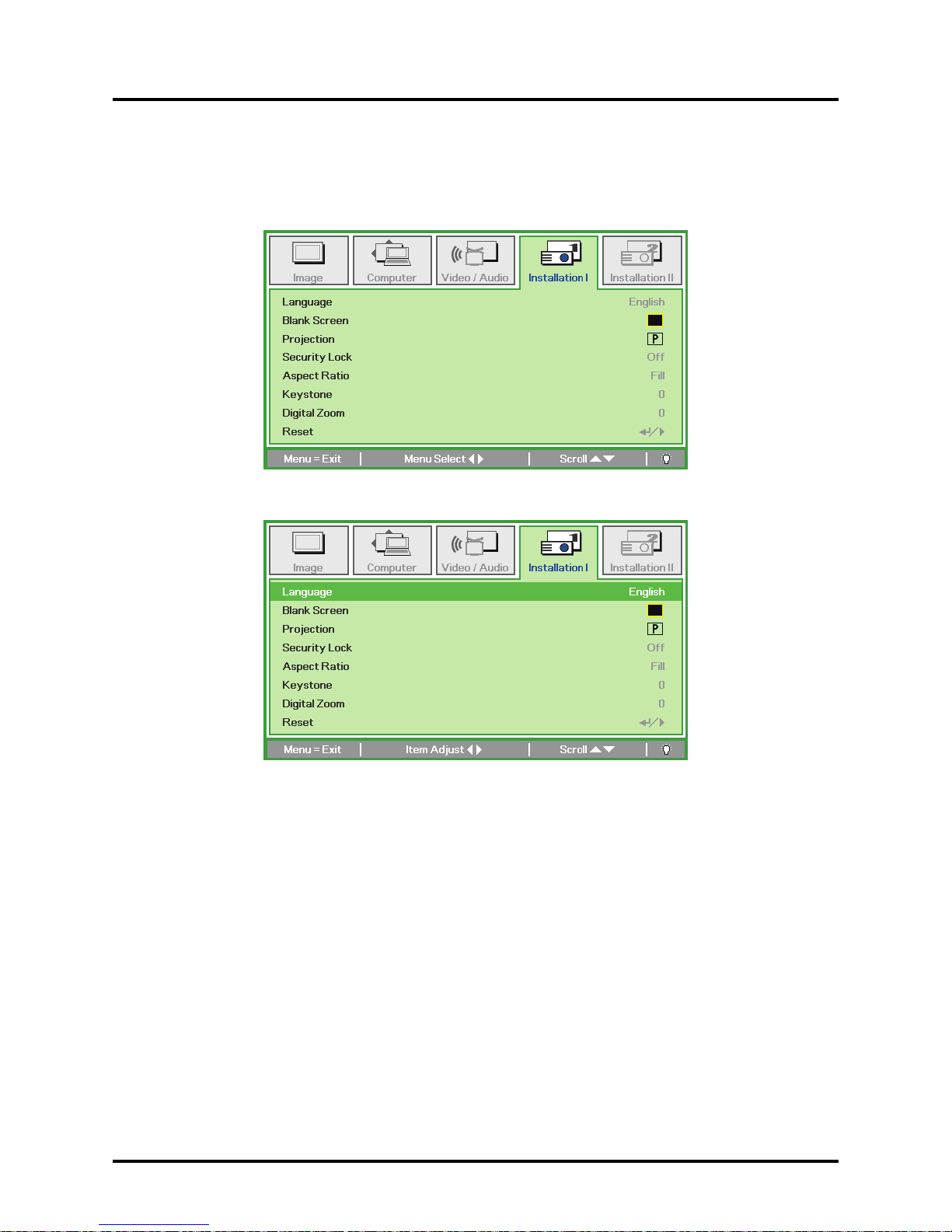

SETTING THE OSD LANGUAGE.......................................................................................................................................... 19

OSD MENU OVERVIEW ..................................................................................................................................................... 20

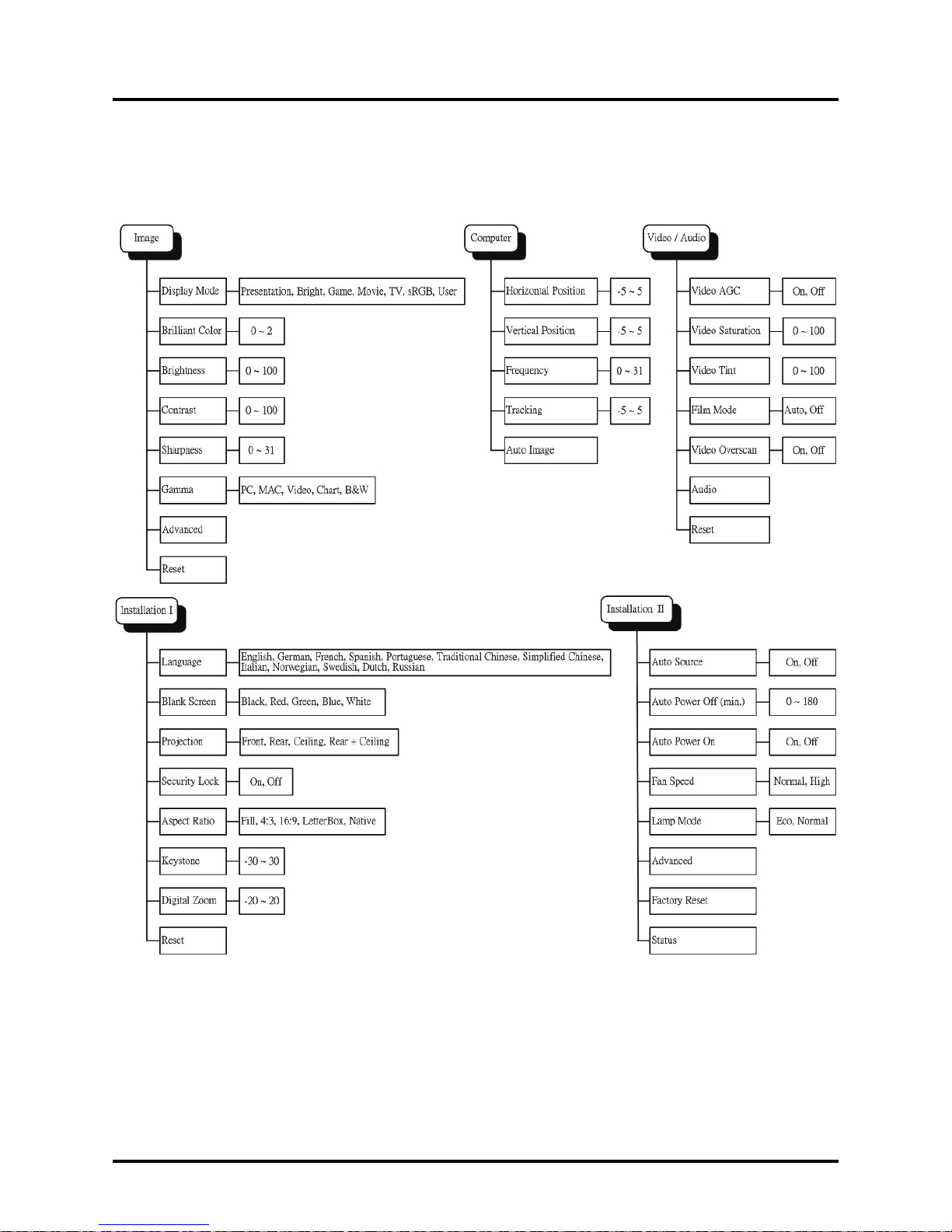

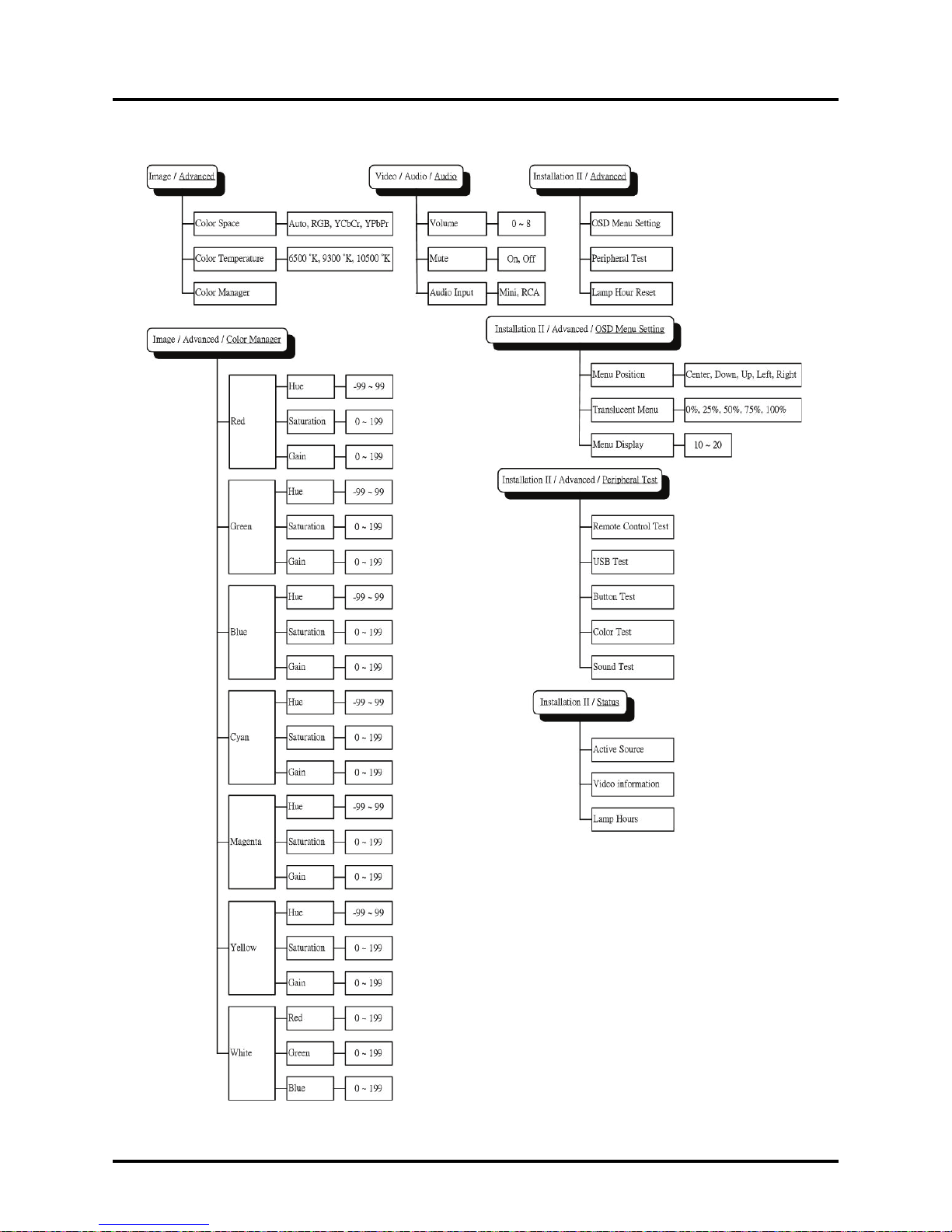

OSD SUB-MENU OVERVIEW ............................................................................................................................................. 21

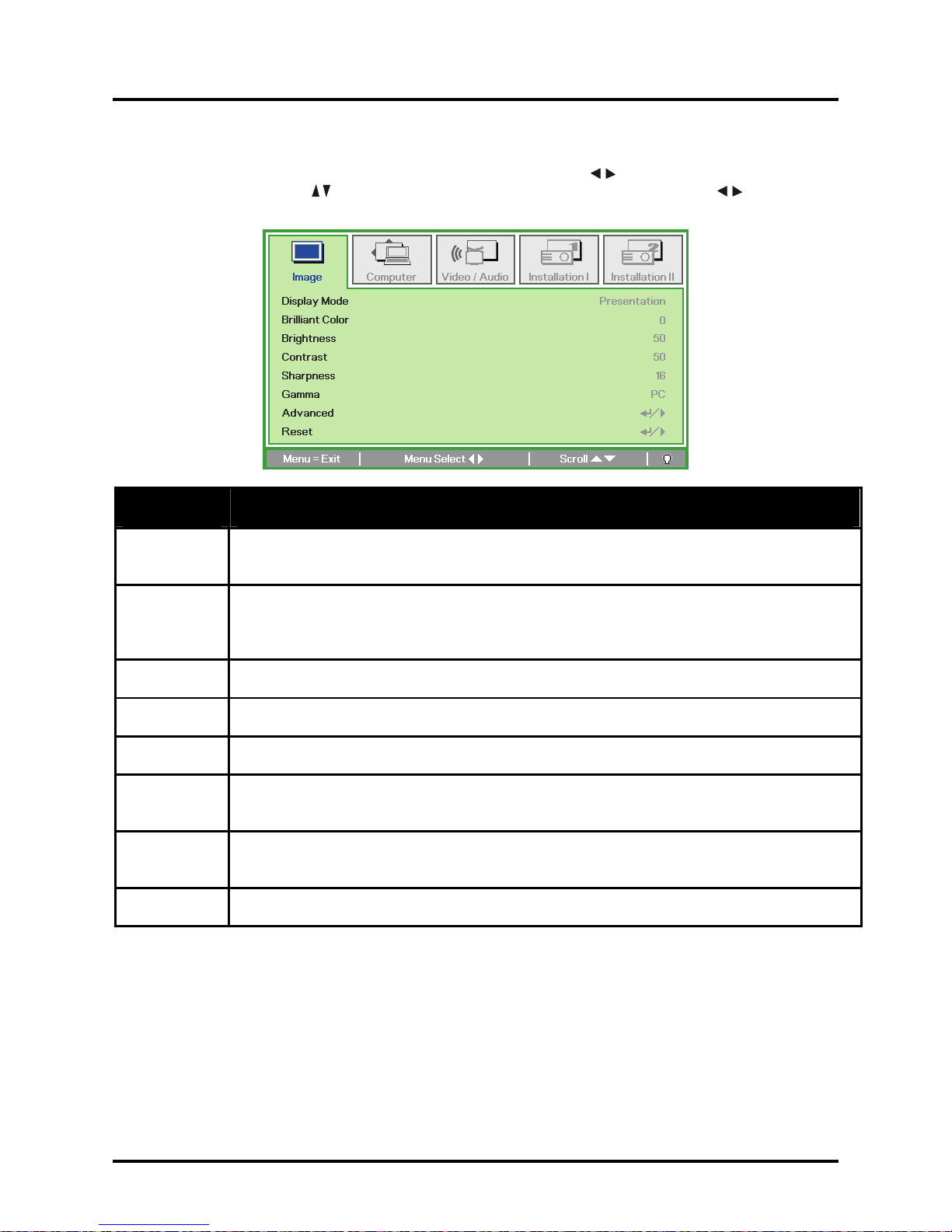

IMAGE MENU..................................................................................................................................................................... 22

Image Menu Functions Available for Connected Source..................................................................................... 23

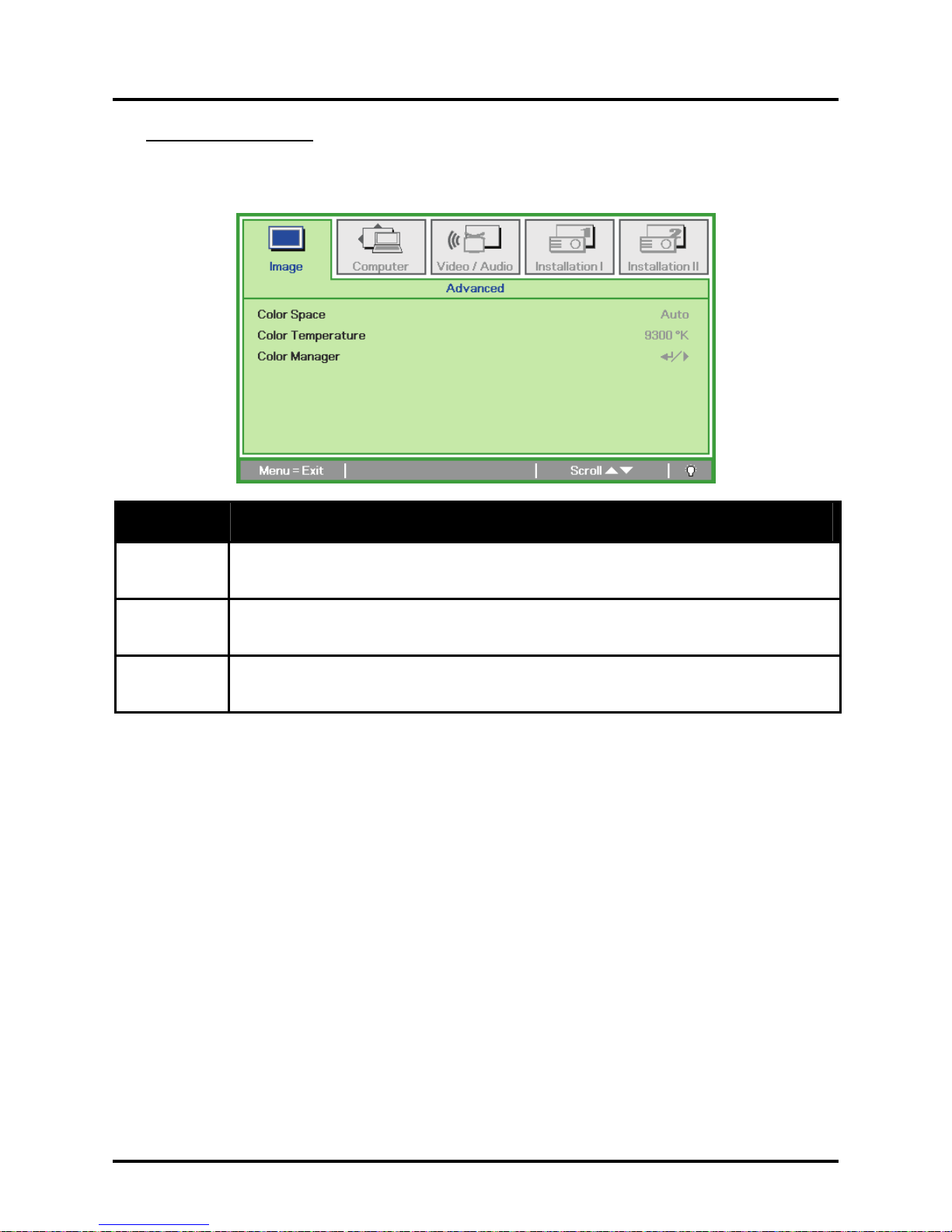

Advanced Feature...................................................................................................................................................... 24

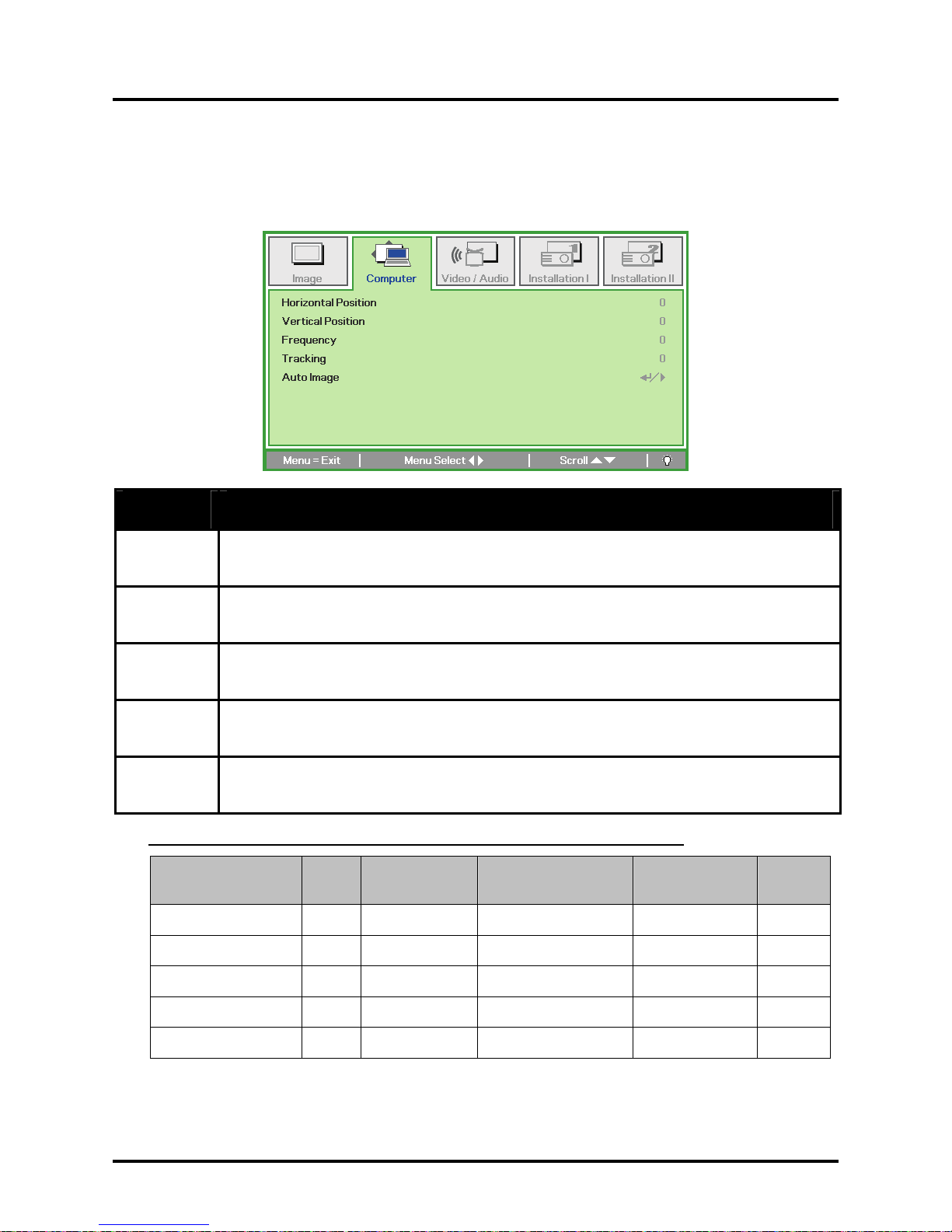

COMPUTER MENU.............................................................................................................................................................. 26 U

Computer Menu Functions Available for Connected Source............................................................................... 26

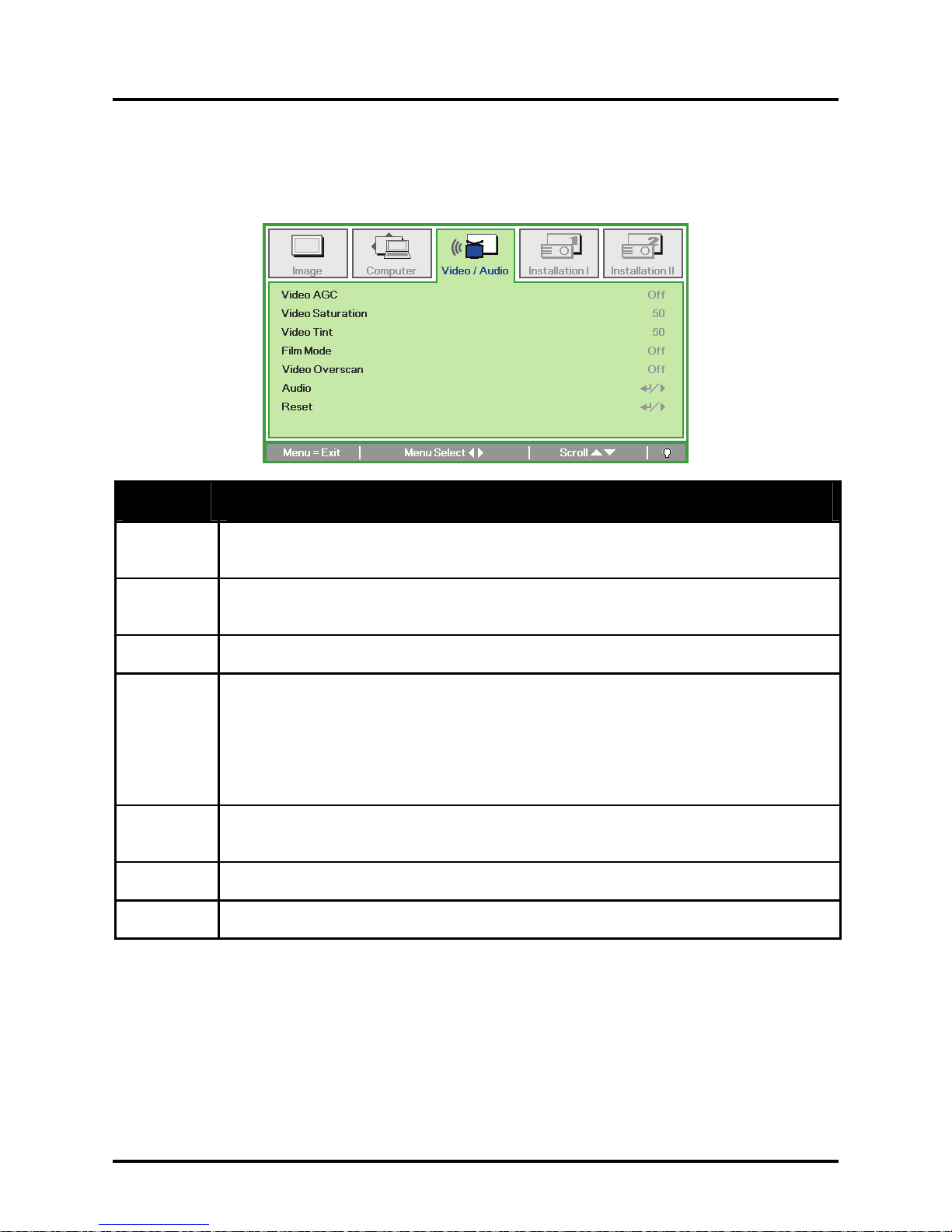

VIDEO/AUDIO MENU ......................................................................................................................................................... 27

Video/Audio Menu Functions Available for Connected Sources......................................................................... 28

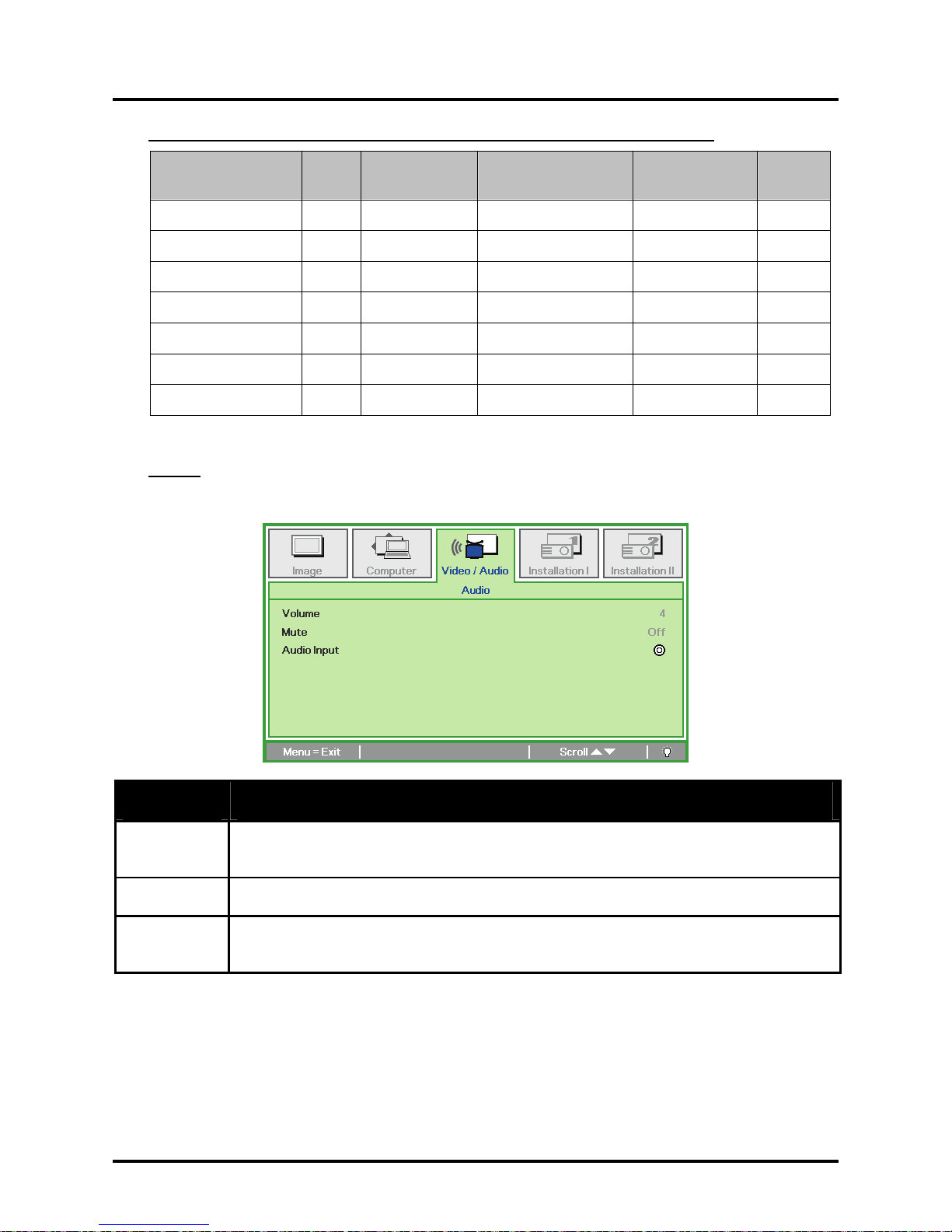

Audio ............................................................................................................................................................................ 28

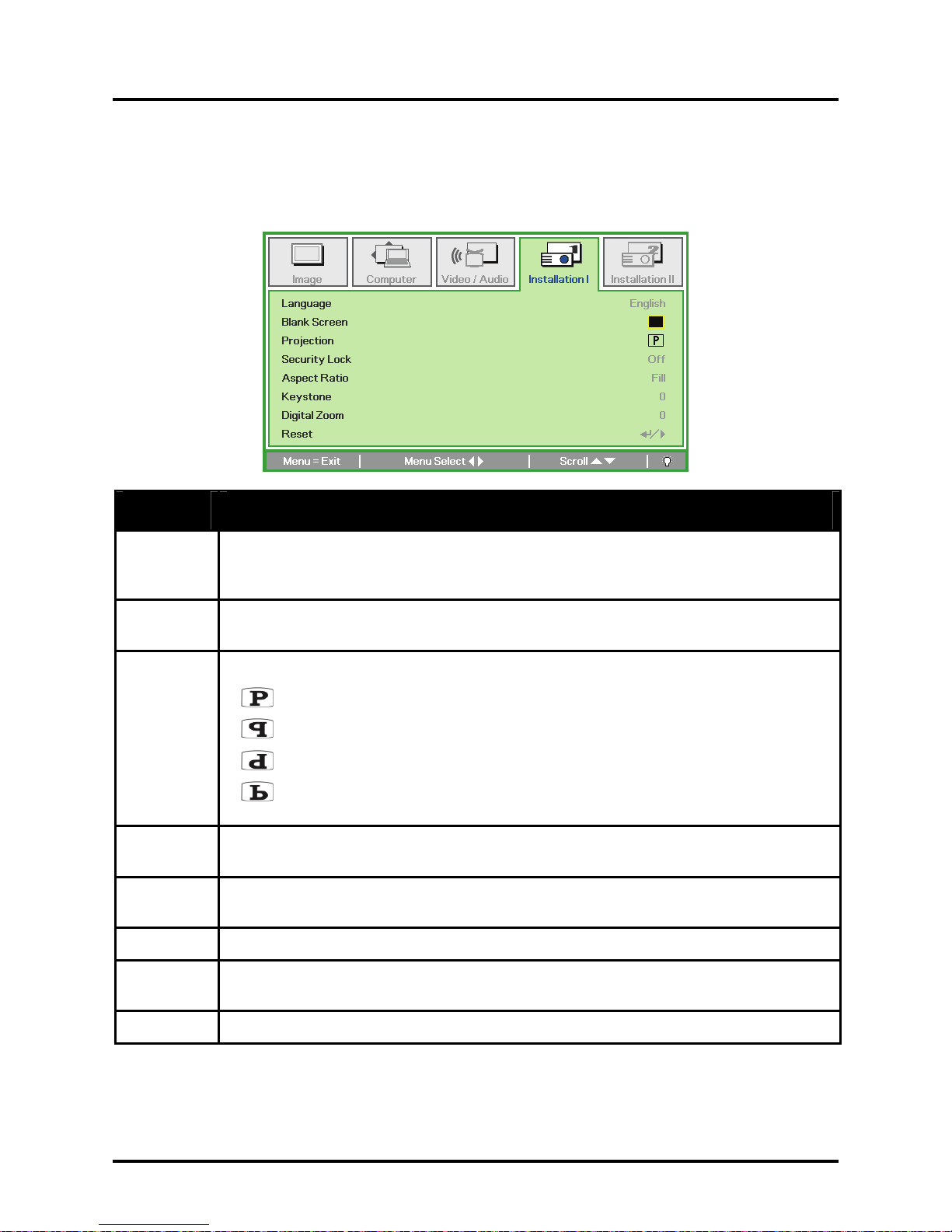

INSTALLATION I MENU...................................................................................................................................................... 29

Installation I Menu Functions Available for Connected Sources......................................................................... 30

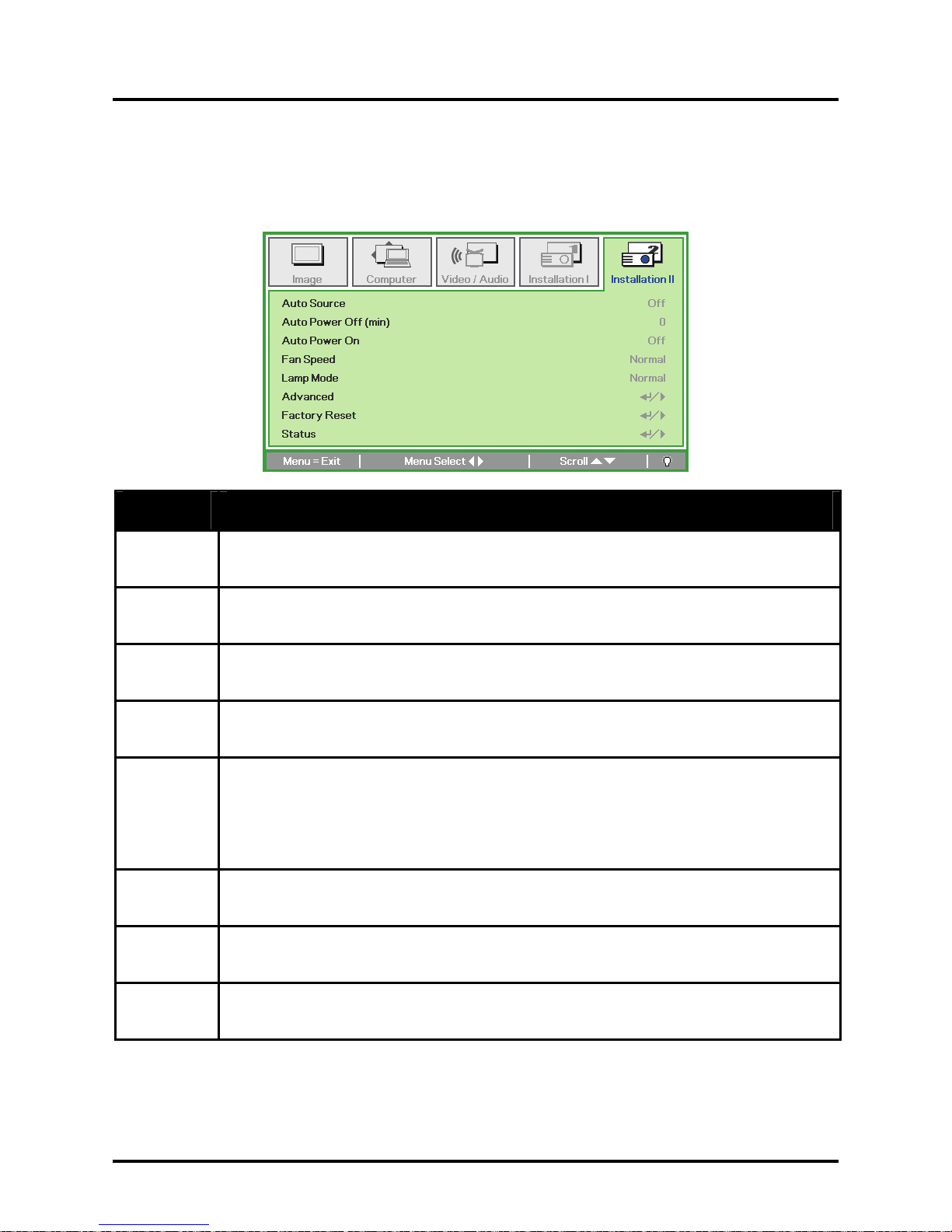

INSTALLATION II MENU .................................................................................................................................................... 31

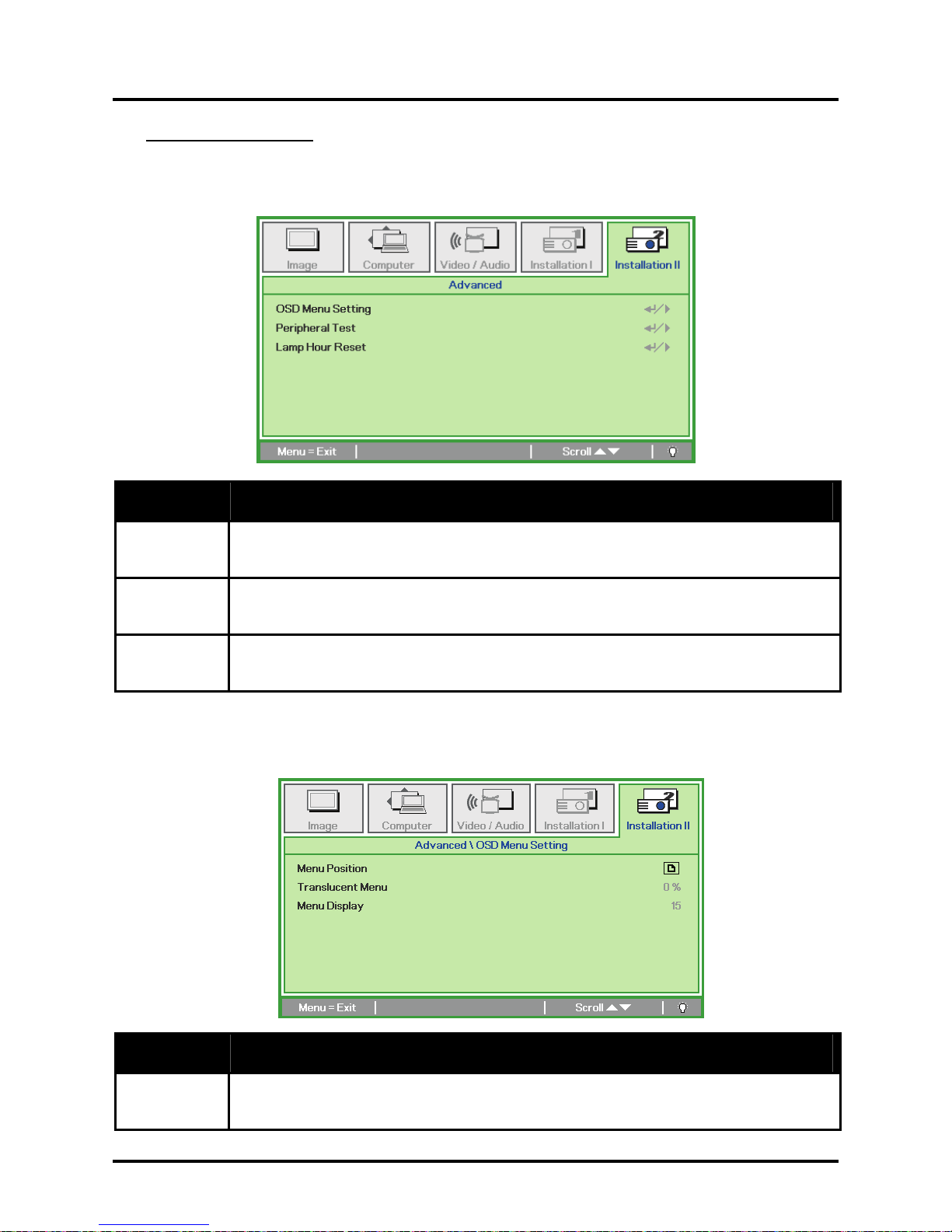

Advanced Feature...................................................................................................................................................... 32

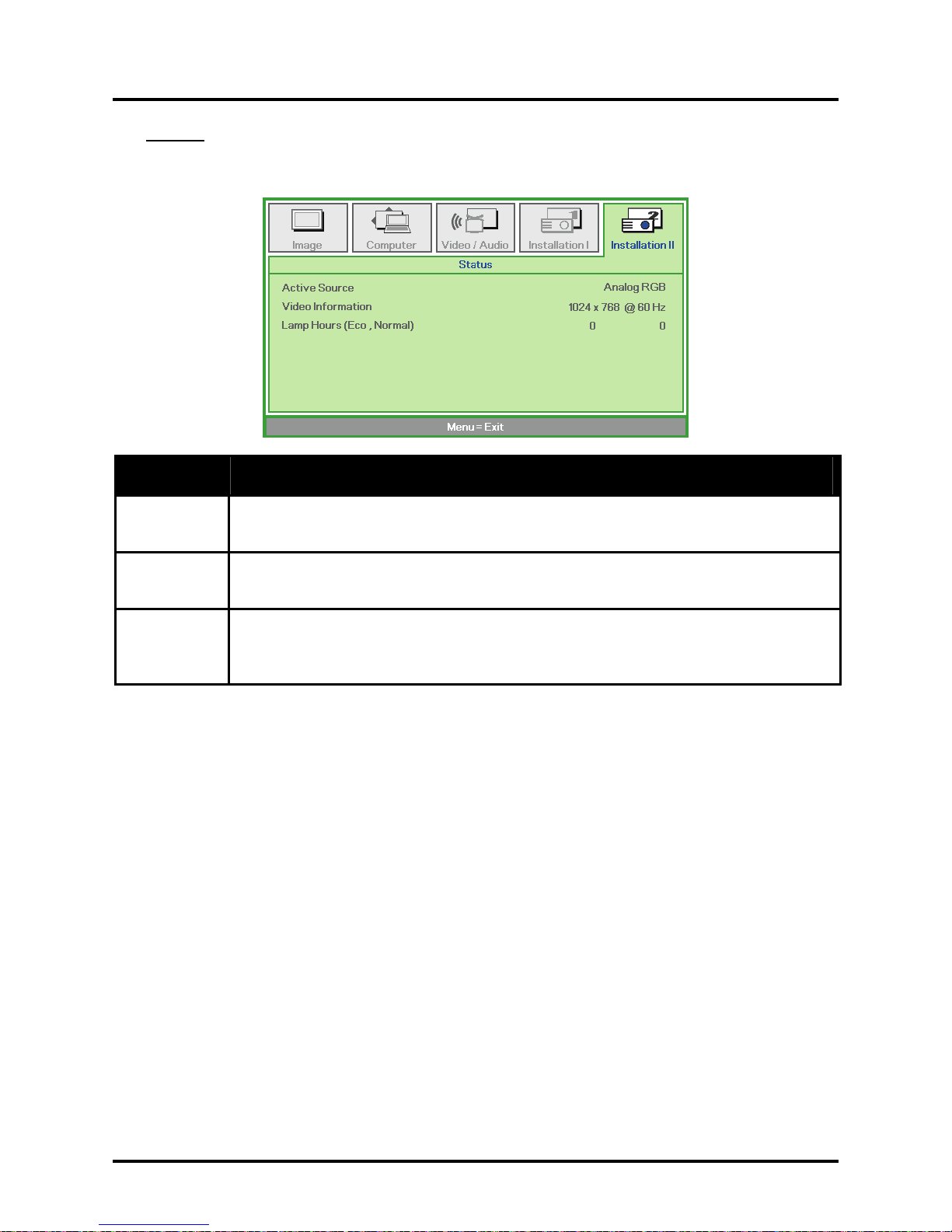

Status ........................................................................................................................................................................... 34

MAINTENANCE AND SECURITY.................................................................................................................................. 35

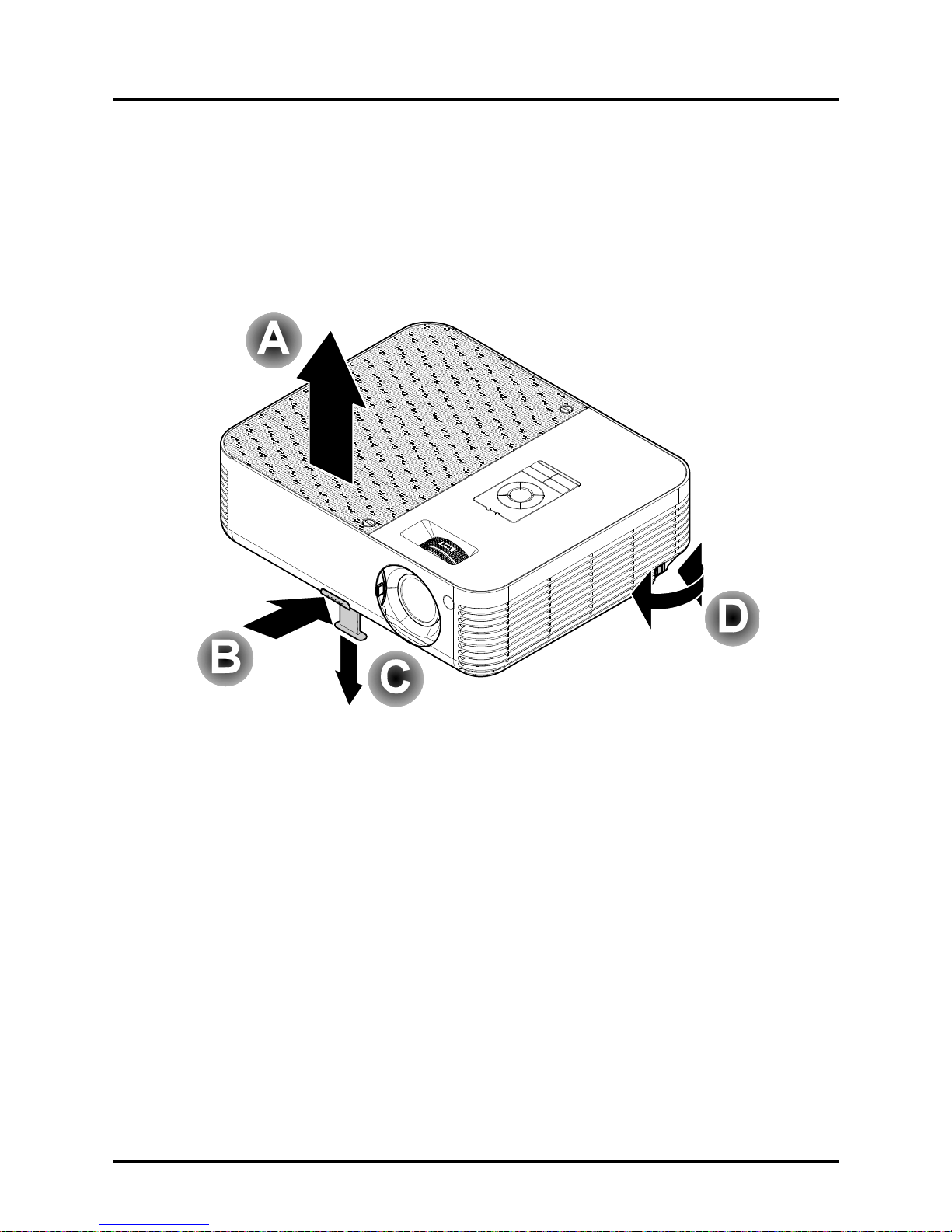

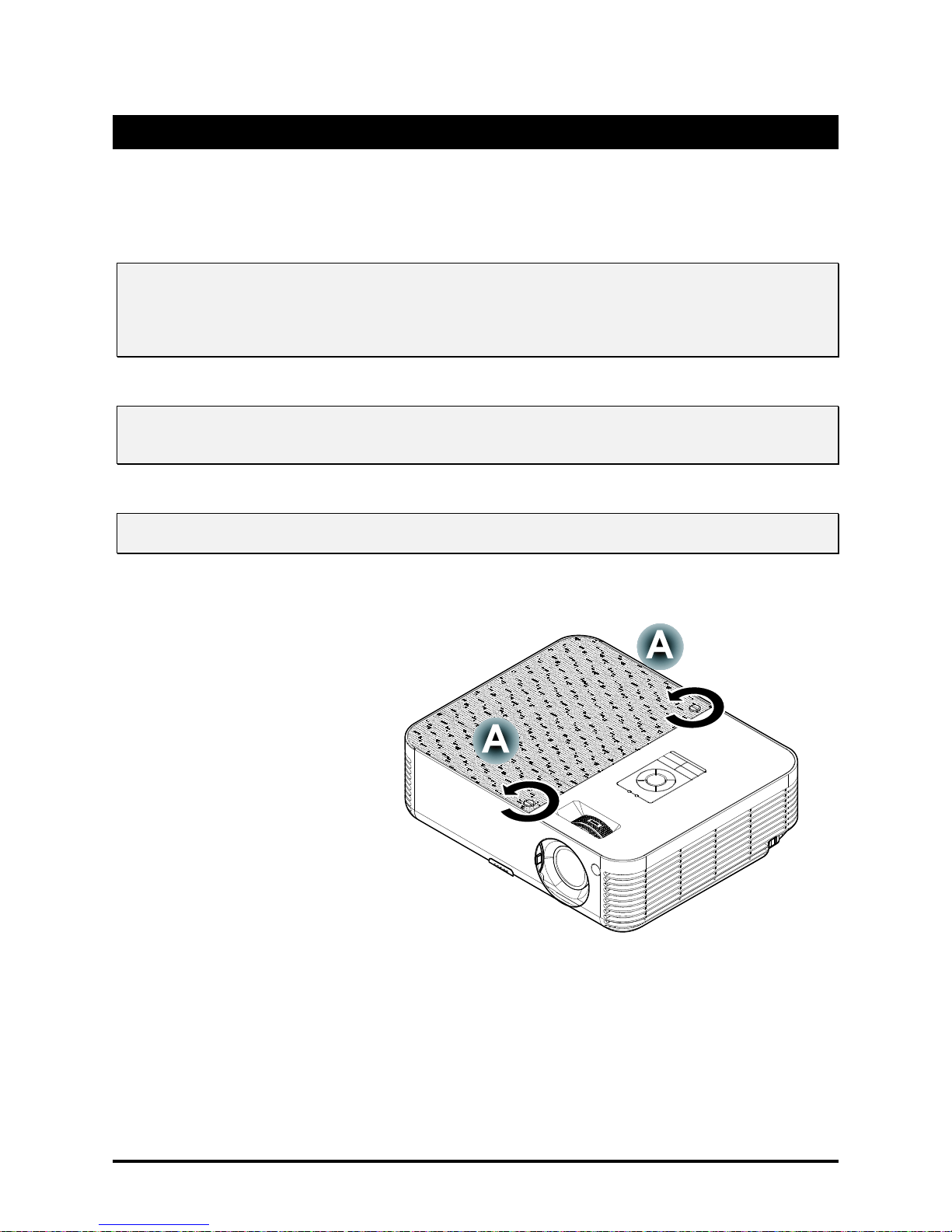

REPLACING THE PROJECTION LAMP................................................................................................................................... 35

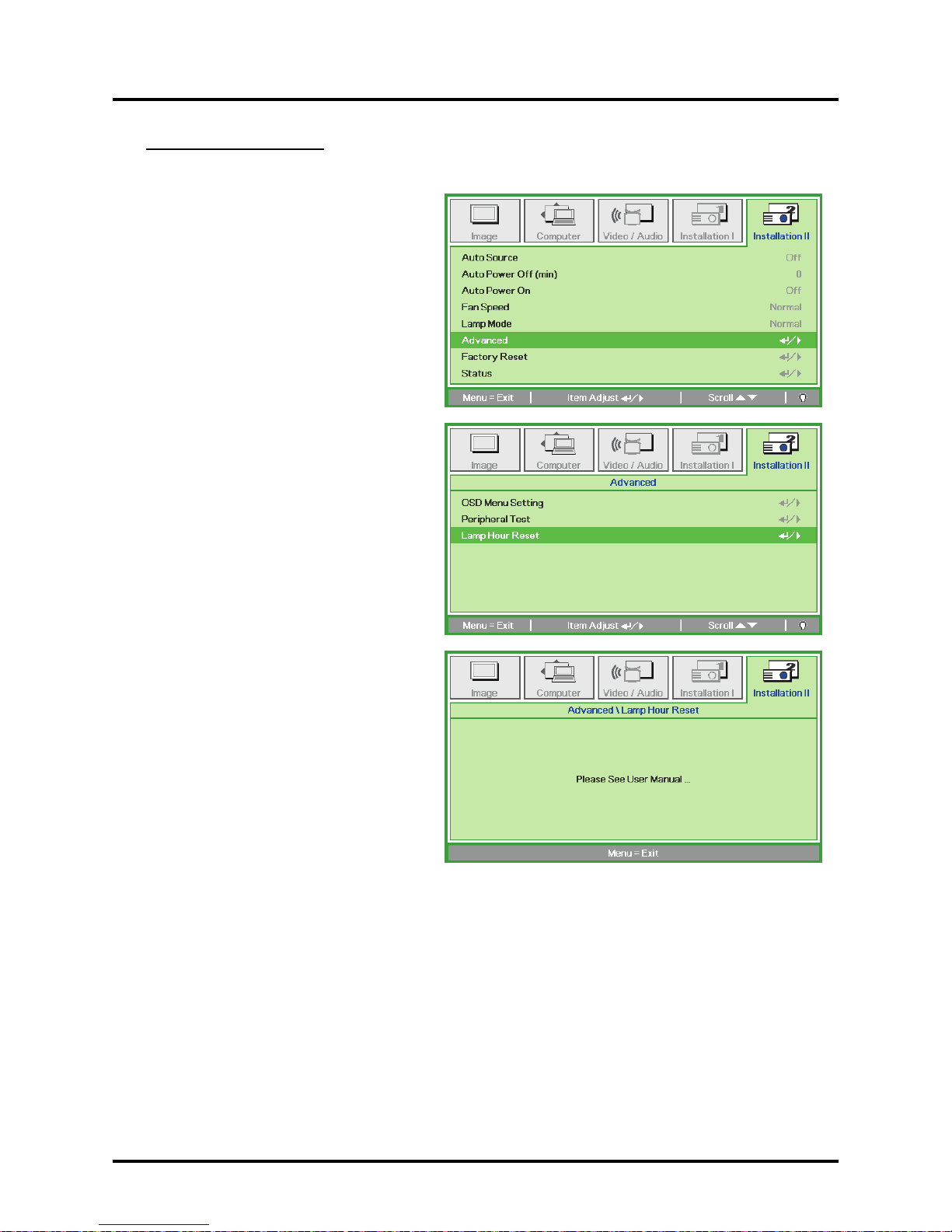

Resetting the Lamp.................................................................................................................................................... 38

CLEANING THE PROJECTOR................................................................................................................................................ 39

Cleaning the Lens ...................................................................................................................................................... 39

Cleaning the Case...................................................................................................................................................... 39

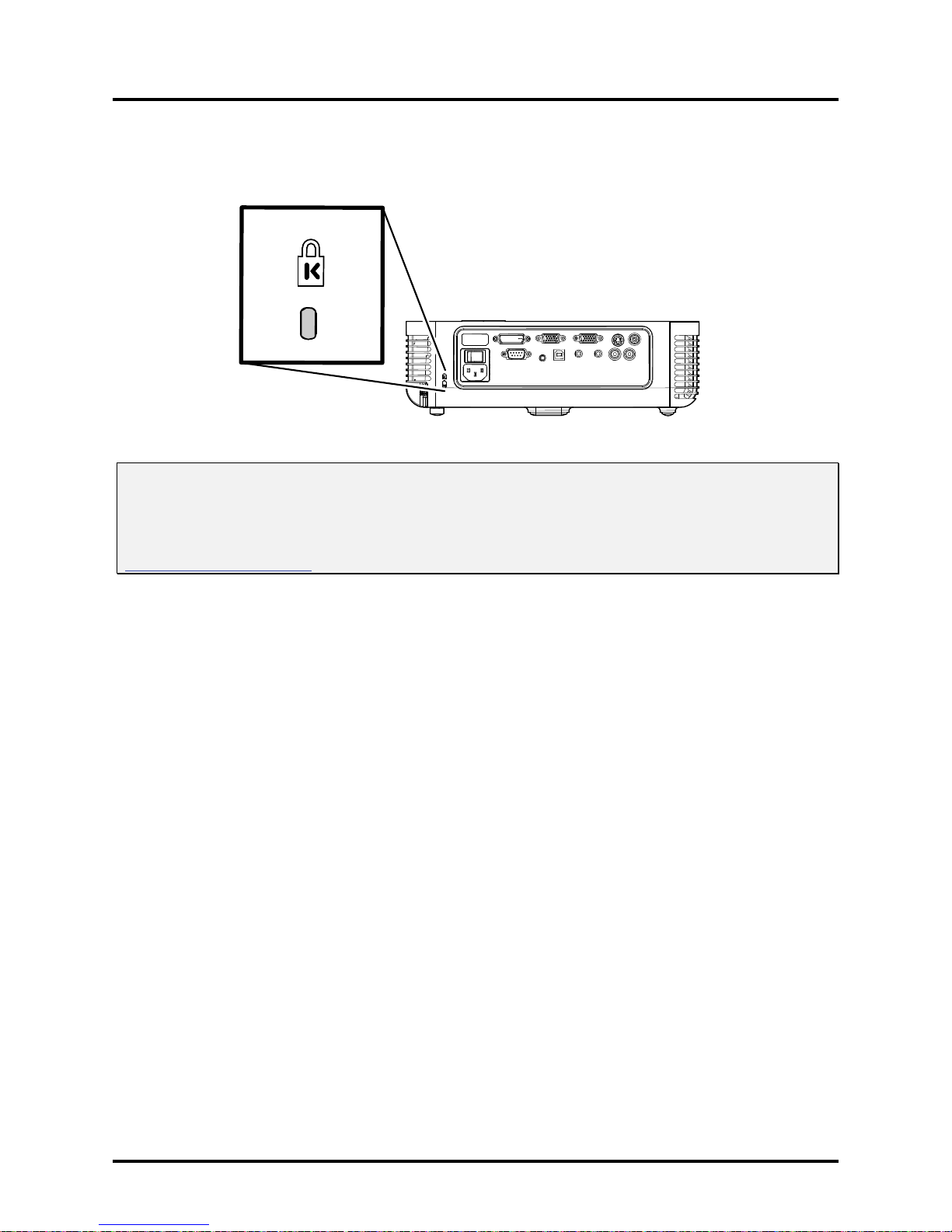

USING THE KENSINGTON® LOCK ...................................................................................................................................... 40

TROUBLESHOOTING...................................................................................................................................................... 41

COMMON PROBLEMS AND SOLUTIONS ............................................................................................................................... 41

TIPS FOR TROUBLESHOOTING ............................................................................................................................................ 41

LED ERROR MESSAGES .................................................................................................................................................... 42

IMAGE PROBLEMS.............................................................................................................................................................. 42

LAMP PROBLEMS ............................................................................................................................................................... 43

REMOTE CONTROL PROBLEMS .......................................................................................................................................... 43

AUDIO PROBLEMS ............................................................................................................................................................. 43

SPECIFICATIONS............................................................................................................................................................. 44

Preface

— vii —

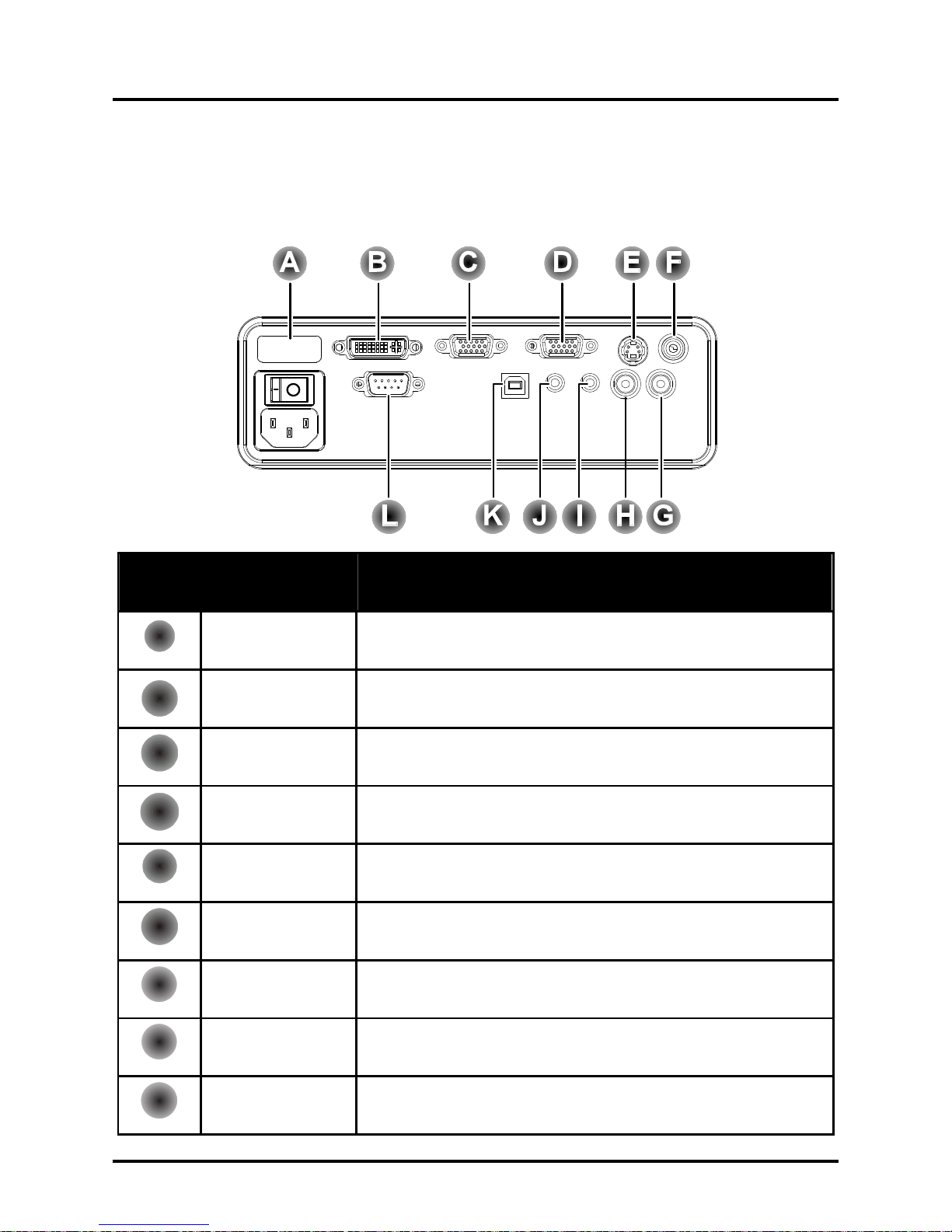

INPUT/OUTPUT CONNECTORS ............................................................................................................................................. 44

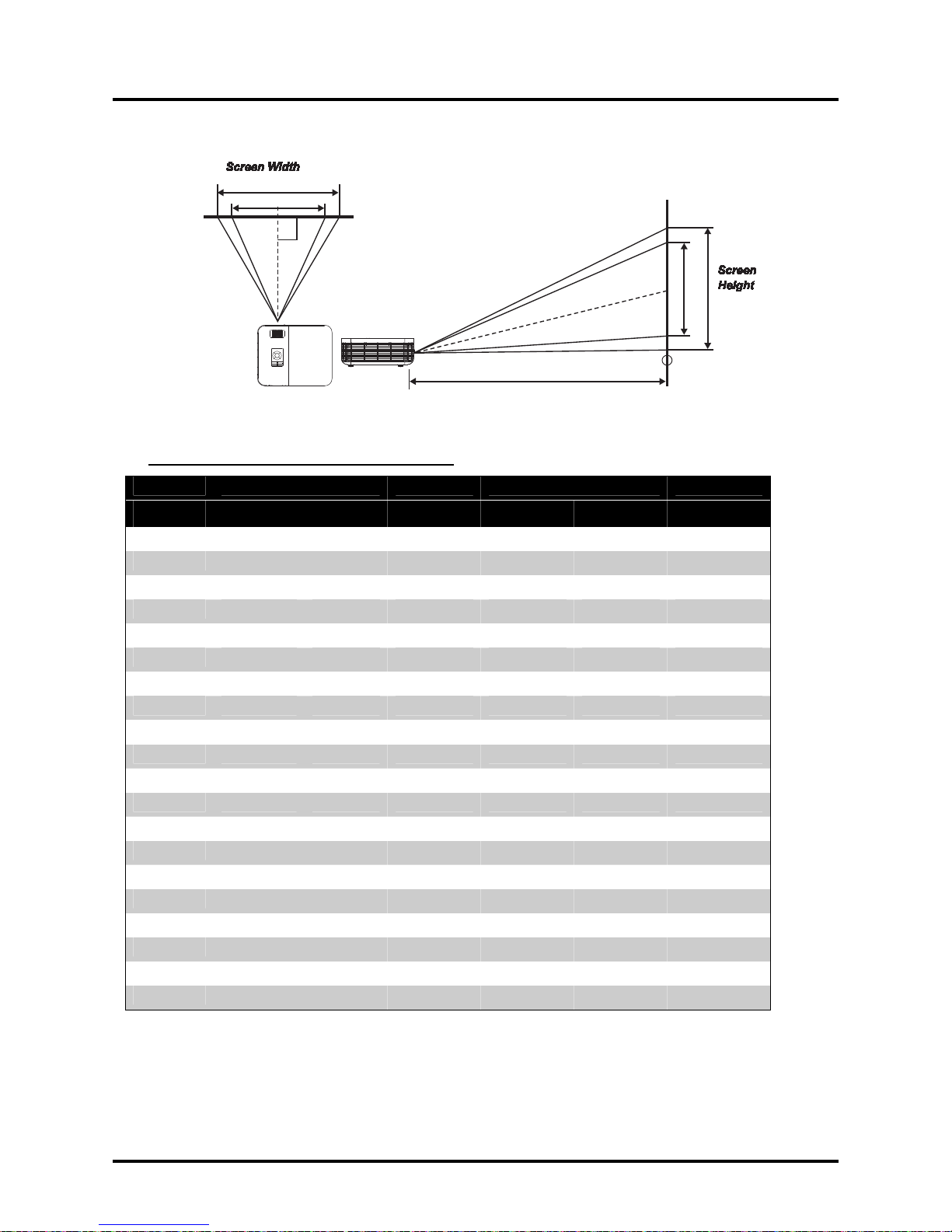

PROJECTION DISTANCE VS. PROJECTION SIZE ................................................................................................................... 45

Projection distance and size table ........................................................................................................................... 45

TIMING MODE TABLE ........................................................................................................................................................ 46

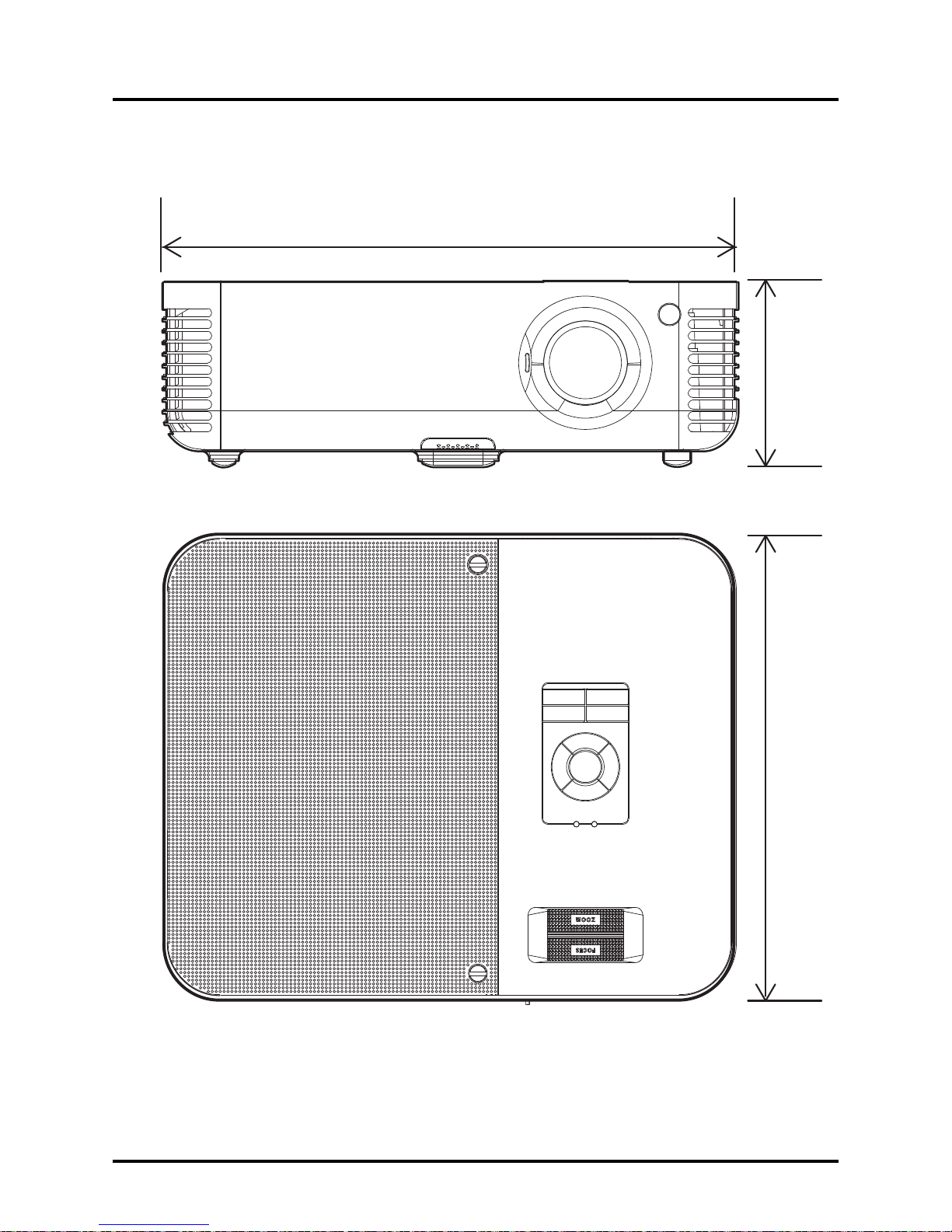

PROJECTOR DIMENSIONS ................................................................................................................................................... 48

REGULATORY COMPLIANCE....................................................................................................................................... 49

FCC WARNING.................................................................................................................................................................. 49

CANADA ............................................................................................................................................................................ 49

SAFETY CERTIFICATIONS ................................................................................................................................................... 49

EN 55022 WARNING ......................................................................................................................................................... 49

– 1 –

Getting Started

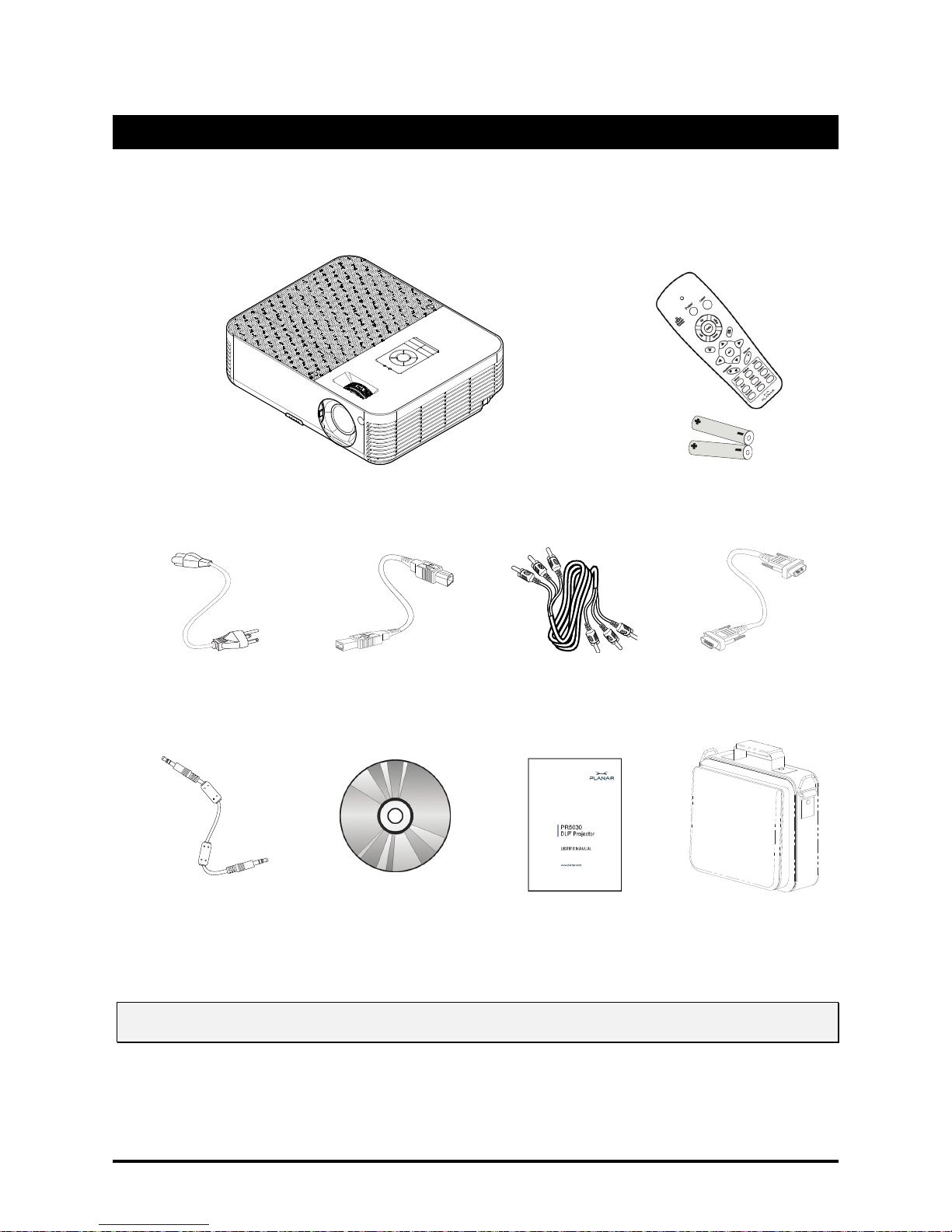

Packing Checklist

Carefully unpack the projector and check that the following items are included:

DLP® projector Remote control

(with two AAA batteries)

Power cord USB cable

(USB type A-to-B USB)

Composite video cable

(RCA 3-to-RCA 3)

Computer cable

(VGA-VGA)

Audio cable

(mini jack-to-mini jack)

CD-ROM (This User’s

manual)

Users Guide Carrying case

Contact your dealer immediately if any items are missing, appear damaged, or if the unit does not work.

Caution:

Avoid using the projector in dusty environments.

DLP® Projector – User’s Manual

Views of Projector Parts

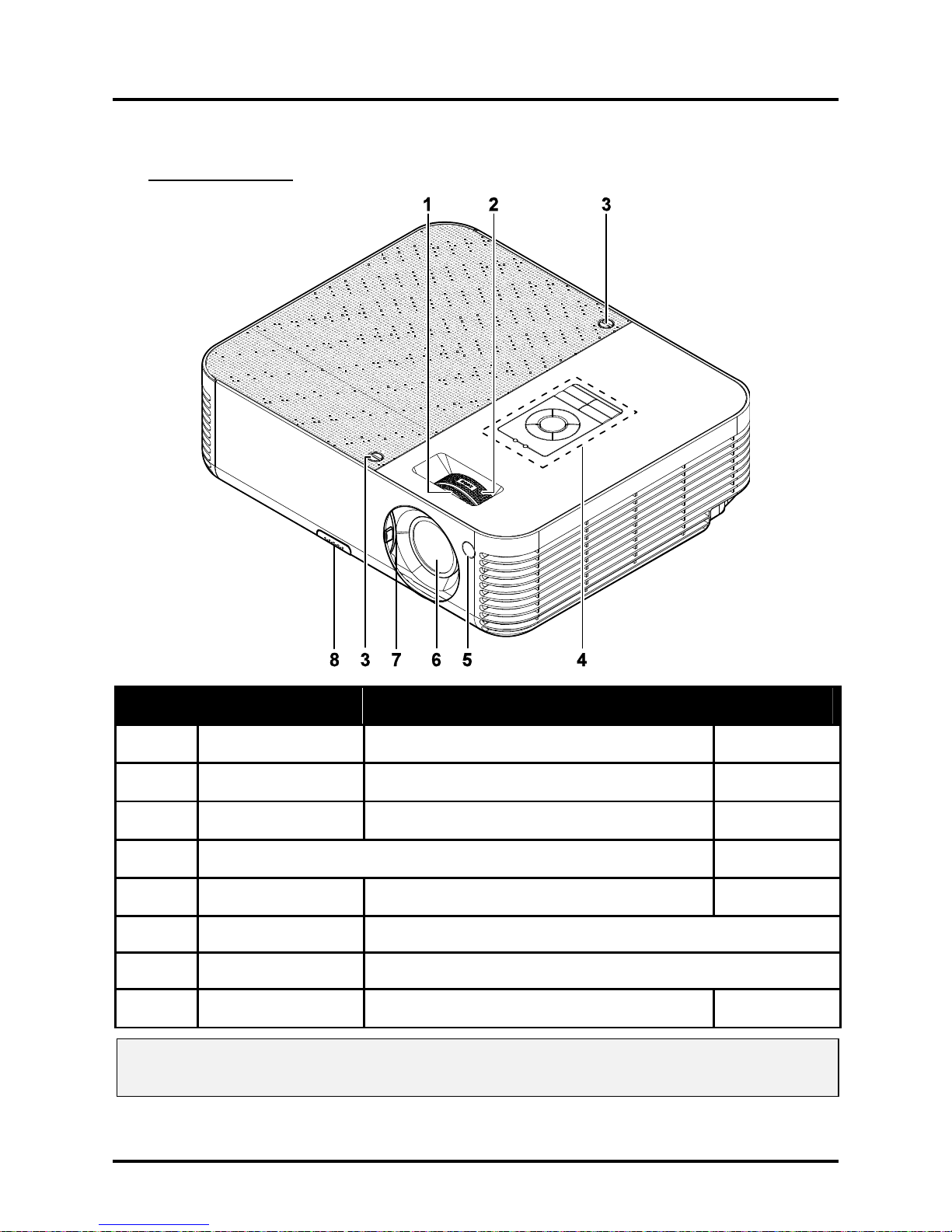

Front-right View

Item Label Description See page:

1.

Focus Focuses the projected image

17

2.

Lens zoom Enlarges the projected image

17

3.

Screws Holds lamp to projector

35

4.

See “Top view—OSD buttons and LEDs”

3

5.

Front IR receiver Receiver for IR signal from remote control

7

6.

Lens Slide lens cap before use.

7.

Lens cover Slide across to protect lens when not in use

8.

Height-adjuster button Push to release height adjuster

16

Important:

Ventilation openings on the projector allow for good air circulation, which keeps the projector lamp cool.
Do not obstruct any of the ventilation openings.

– 2 –

DLP® Projector – User’s Manual

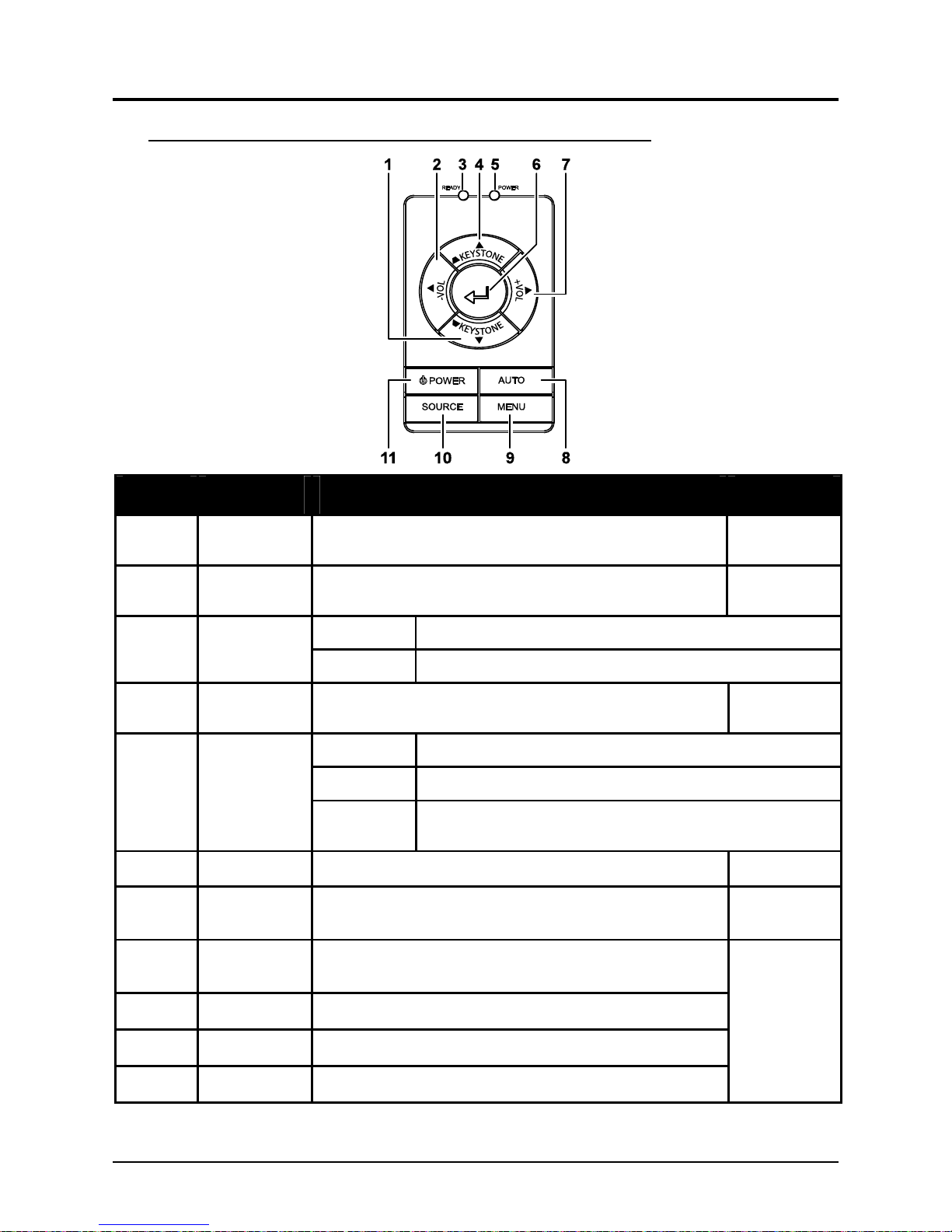

Top view—On-screen Display (OSD) buttons and LEDs

Item Label Description See page:

1.

Keystone/
Down cursor

Corrects image-trapezoid (wider top) effect
Navigates and changes settings in the OSD

17, 18

2.

VOL-/
Left cursor

Decreases volume
Navigates and changes settings in the OSD

17, 18

Orange Lamp ready—you can safely turn on or off the projector

3.

Ready LED

Flashing Lamp not ready—do not press the power button

4.

Keystone/
UP cursor

Corrects image-trapezoid (wider bottom) effect
Navigates and changes settings in the OSD

17, 18

Green Unit is powered on and working correctly

Off Unit is powered off

5.

Power LED

Flashing

Operational error code
(refer to “LED Error Messages” on page 42)

6.

Enter Changes settings in the OSD

18

7.

VOL+/
Right cursor

Increases volume
Navigates and changes settings in the OSD

17, 18

8.

Auto

Optimizes image size, position, and resolution
Navigates and changes settings in the OSD

9.

Menu Opens and exits the OSD

10.

Source Detects the input device

11.

Power Turns the projector on or off

13

— 3 —

DLP® Projector – User’s Manual

Rear view

Item Label Description See page:

1.

Rear IR receiver Receiver for IR signal from remote control

7

2.

DVI-I Connect a DVI-I cable (not supplied) from a computer

3.

VGA IN Connect a VGA cable (supplied) from a computer

4.

VGA OUT Connect to a monitor (not supplied)

5.

S-video

Connect the S-video cable (not supplied) from a video
device

6.

Video

Connect a composite video cable (supplied) from a
video device.

7.

Audio in-R

Connect the audio cable (supplied) from an audio i
put device.

n-

8.

Audio in-L

Connect the audio cable (supplied) from an audio i
put device.

n-

9.

Audio-in

Connect an audio cable (supplied) from the com­puter’s audio-out connector.

10.

Audio-out Audio loop-thru

11.

USB Connect the USB cable (supplied) from a computer

12.

RS-232 Installation control

11

– 4 –

DLP® Projector – User’s Manual

— 5 —

Item Label Description See page:

13.

Power Switch Turns the power on and off

13

14.

Power Connect the power cord (supplied)

13

15.

Security Lock

Secure to permanent object with a Kensington® Lock
system

40

Note:

If your video equipment has both S-video and RCA jacks (composite video) connect to the S-video
connector.
S-video provides a better quality signal.

DLP® Projector – User’s Manual

Bottom view

Item Label Description See page:

1.

Ceiling support
holes

Contact your dealer for information on mounting the projector
on a ceiling.

2.

Height adjuster but­ton

Push to release height adjuster

3.

Height adjuster

Adjuster drops down when adjuster button is
pushed

4.

Tilt adjuster Adjust angle of the picture

16

Note:

When installing, ensure that you use only UL Listed ceiling mounts.

– 6 –

DLP® Projector – User’s Manual

Remote Control Parts

Important:

1. Avoid using the projector with bright fluorescent lighting turned on. Certain high-frequency fluores-

cent lights can disrupt remote control operation.

2. Be sure nothing obstructs the path between the remote control and the projector. If the path between
the remote control and the projector is obstructed, you can bounce the signal off certain reflective sur­faces such as projector screens.

3. The buttons and keys on the projector have the same functions as the corresponding buttons on the
remote control. This user’s manual describes the functions based on the remote control.

Item Label Description See page:

1.

Status LED

Lights when the remote control is used

2.

Laser

Use as on screen pointer. DO NOT POINT IN EYES.

3.

Up

Up arrow when connected through USB to a PC

4.

Right

Right arrow when connected through USB to a PC

5.

Down

Down arrow when connected through USB to a PC

6.

Page Down

Page down when connected through USB to a PC

7.

Up cursor Navigates and changes settings in the OSD

18

— 7 —

DLP® Projector – User’s Manual

– 8 –

Item Label Description See page:

8.

Right cursor

9.

Down cursor

Navigates and changes settings in the OSD

18

10.

Volume +/-

Adjusts volume

17

11.

Mute

Mutes the built-in speaker

12.

Zoom+

Zoom in

13.

Zoom-

Zoom out

14.

Freeze

Freeze/unfreezes the on-screen picture

15.

Blank

Makes the screen blank

16.

Source

Detects the input device

17.

Auto

Auto adjustment for phase, tracking, size, position

18.

Menu

Opens the OSD

18

19.

Status

Opens the OSD Status menu (the menu only opens when an input
device is detected)

20.

Keystone
top/bottom

Corrects image-trapezoid (wider top/bottom) effect

17

21.

Left cursor

Navigates and changes settings in the OSD

22.

Enter

Changes settings in the OSD

18

23.

Page Up

Page up when connected through USB to a PC

24.

Left

Left arrow when connected through USB to a PC

25.

Enter

Enter key when connected through USB to a PC

26.

Power

Turns the projector on or off

13

Note:

The remote control can only interface with a computer when connected to the computer through a USB
cable connection. The computer cable connects a computer to the projector for display purposes only.

DLP® Projector – User’s Manual

Remote Control Operating Range

The remote control uses infrared transmission to control the projector. It is not necessary to point the
remote directly at the projector. Provided you are not holding the remote perpendicular to the sides or
the rear of the projector, the remote will function well within a radius of about 10 meters (33 feet) and
30 degrees above or below the projector level. If the projector does not respond to the remote control,
move a little closer.

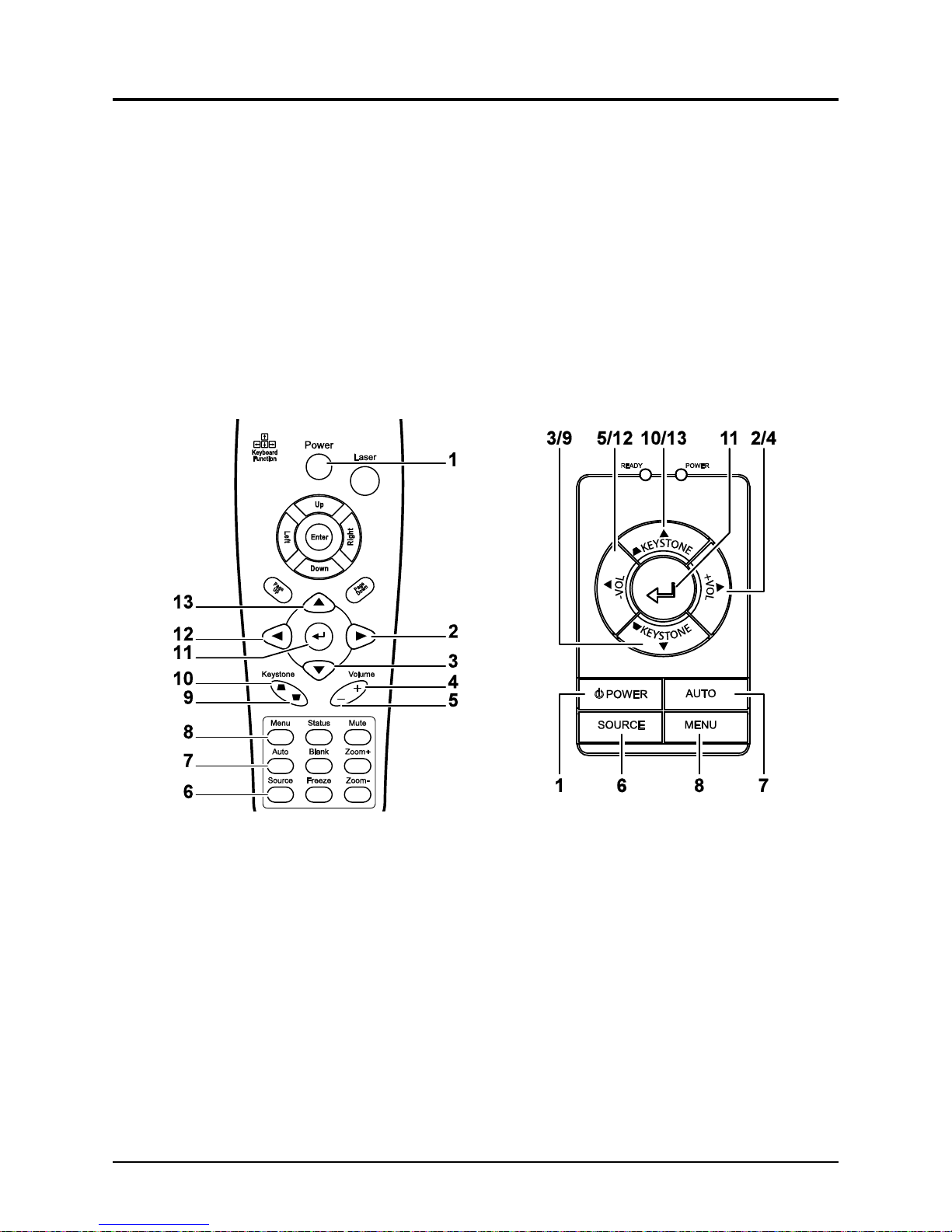

Projector and Remote Control Buttons

The projector can be operated using the remote control or the buttons on the top of the projector. All
operations can be carried out with the remote control; however the buttons on the projector are lim­ited in use. The following illustration shows the corresponding buttons on the remote control and on
the projector.

Some buttons on the projector have two functions. For example, item 10/13 on the projector functions
both keystone button and as the up cursor key in OSD menus.

— 9 —

– 10 –

Setup and Operation

Inserting the Remote Control Batteries

1.

Remove the battery compartment
cover by sliding the cover in the di­rection of the arrow.

2.

Insert the supplied batteries taking
note of the polarity (+/-) as shown
here.

3.

Replace the cover.

Caution:

1. Only use AAA batteries. (Alkaline is better)

2. Dispose of used batteries according to local ordinance regulations.

3. Remove the batteries when not using the projector for prolonged periods.

DLP® Projector – User’s Manual

Connecting Input Devices

A PC or notebook computer as well as video devices can be connected to the projector at the same
time. Video devices include DVD, VCD, and VHS players, as well as movie camcorders and digital
still cameras. Check the user manual of the connecting device to confirm it has the appropriate output
connector.

Item Label Description

A

Rear IR Receiver for IR signal from remote control.

B

DVI-I Connect DVI-I cable (not supplied) from a computer.

C

VGA in Connect a VGA cable (supplied) from a computer.

D

VGA out Connect a VGA cable (not supplied) to a monitor.

E

S-video Connect S-video cable (not supplied) from a video device.

F

Video

Connect a composite video cable (supplied) from a video de­vice.

G

Audio in-R Connect the audio cable (supplied) from an audio input device.

H

Audio in-L Connect the audio cable (supplied) from an audio input device.

I

Audio-in

Connect an audio cable (supplied) from the computer’s audio-out
connector.

– 11 –

DLP® Projector – User’s Manual

– 12 –

Item Label Description

Audio-out Audio loop-thru

USB

Connect the supplied USB cable (supplied) from a computer for
USB mouse function and firmware upgrades.

RS-232 Reserved for installation control.

Warning:

As a safety precaution, disconnect all power to the projector and connecting devices before making
connections.

DLP® Projector – User’s Manual

Starting and Shutting down the Projector

1.

Slide the lens cover.

2.

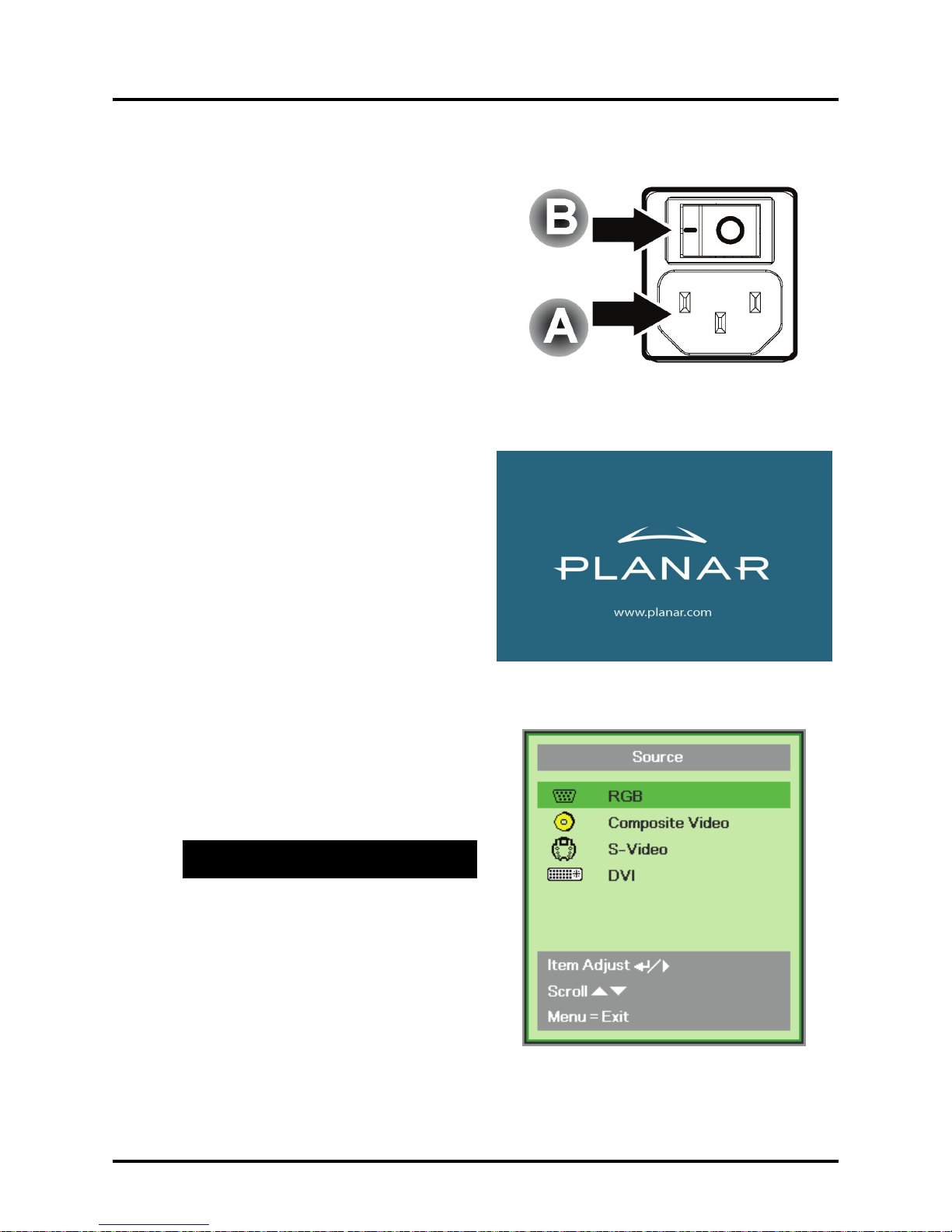

Connect the power cord to the projector
[A] Connect the other end to a wall outlet.
Switch [B] from off (O) to on (

— )

3.

The POWER and READY LEDs on the
projector turn on.
Turn on the connected devices.

4.

Ensure the Ready LED is on a steady
(not flashing) orange and then press the
Power button to turn on the projector.

The projector splash screen displays and
connected devices are detected.
If the connected device is a PC, press the
appropriate keys on the computer key­board to switch the display output to the
projector. (Check the user manual of the
PC to determine the appropriate Fn key
combination to change display output.)

See “Setting an Access Password (Secu­rity Lock)” on page 15 if Security Lock is
enabled.

5.

If more than one input device is con­nected, press the Source button to
switch among devices
(DVD and HDTV are supported through
the VGA connector).

Source Description

RGB: Analog RGB

Component: DVD input YCbCr
/ YPbPr , or HDTV input YPbPr
via HD15 connector

Composite

Video:

Traditional composite video

S-Video: Super video (Y/C separated)

DVI: Analog RGB , DVI

– 13 –

DLP® Projector – User’s Manual

6.

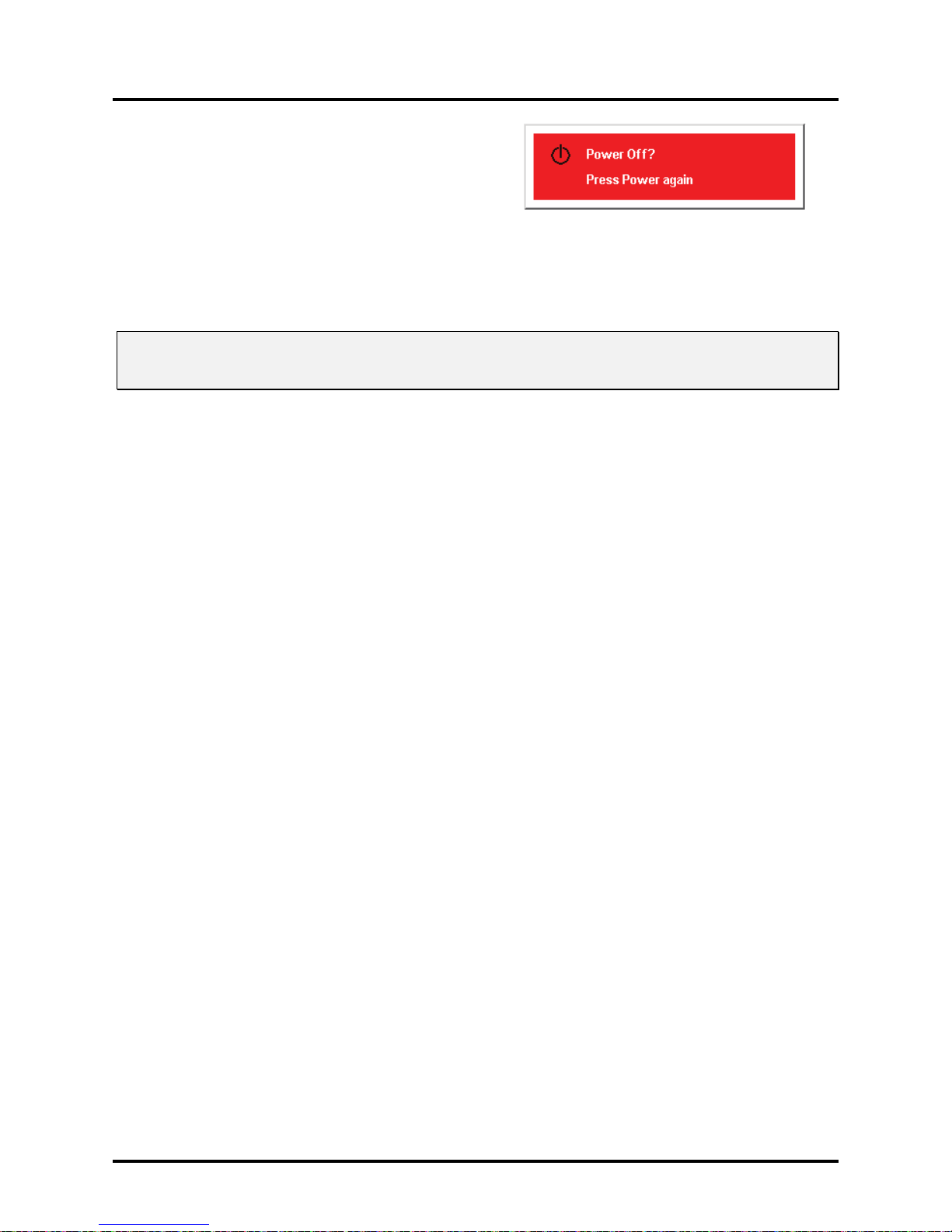

When the “Power Off?/Press Power
again” message appears, press the

Power button. The projector turns off.

7.

Turn off the main Power switch when the
Ready LED stops flashing.

Caution:

Do not unplug the power cord until the Ready LED stops flashing, indicating the projector has cooled
down.

– 14 –

DLP® Projector – User’s Manual

Setting an Access Password (Security Lock)

You can use the cursor (arrow) buttons to set a password and prevent unauthorized use of the pro­jector. When enabled, the password must be entered after you power on the projector. (See
“Navigating the OSD” on page 18 and “Setting the OSD Language” on page 19 for help on using
OSD menus.)

Important:

Keep the password in a safe place. Without the password, you will not be able to use the projector.
If you lose the password, contact your reseller for information on clearing the password.

1.

Press the Menu button to open the
OSD menu.

2.

Press the cursor button to move
to the Installation I menu. Press the
cursor ▼▲ button to move to the Se­curity Lock.

3.

Press the cursor ◄► button to enable
or disable security lock function.
A password dialog box automatically
appears.

4.

You can only use the following four
cursor buttons: ▼▲◄►
in the password fields. You can use
any combination including the same
arrow five times, but not less than five.
Press the cursor buttons in any order
to set the password. When you
confirm the password, OK appears.

Every time you start the projector, a
password dialog box appears.

Enter the password in the order you
set it on step 4. (Press the Menu
button to cancel if you enter the wrong
password.)

– 15 –

DLP® Projector – User’s Manual

Adjusting the Projector Level

Take note of the following when setting up the projector:

• The projector table or stand should be level and sturdy.

• Position the projector so that it is perpendicular to the screen.

• Be sure cables are not in the way or can cause the projector to be knocked over.

1.

To raise the level of the projector, lift the projector [A] and press the height­adjuster button [B].

The height adjuster drops down [C].

2.

To lower the level of the projector, press the height-adjuster button and push
down on the top of the projector.

3.

To adjust the angle of the picture, turn the tilt adjuster [D] right or left until
desired angle has been achieved.

– 16 –

DLP® Projector – User’s Manual

Adjusting the Zoom, Focus and Keystone

1.

Use the Image-zoom
control (on the projector
only) to resize the pro­jected image and screen

size

B

.

2.

Use the Image-focus
control (on the projector
only) to sharpen the pro-

jected image

A

.

3.

Press the Keystone but­ton on the remote control
or keypad.
The keystone control
appears on the display.

Note: When using the
keypad, the OSD menu
must be off.

4.

Use the Keystone but­ton to correct image
distortion.

Adjusting the Volume

1.

Press the Volume +/-
button on the remote
control or keypad.
The volume control ap­pears on the display.

Note: When using the
keypad, the OSD menu
must be off.

2.

Use the Volume +/- but­ton to adjust the level.

3.

Press the Mute button to
turn off the volume. (For
remote only)

– 17 –

DLP® Projector – User’s Manual

– 18 –

On-Screen Display (OSD) Menu Settings

OSD Menu Controls

The projector has an OSD that lets you make image adjustments and change various settings.

Navigating the OSD

You can use the remote control cursor buttons or the buttons on the top of the projector to navigate
and make changes to the OSD. The following illustration shows the corresponding buttons on the re­mote control and on the projector.

1. To open the OSD, press the Menu button.

2. There are five menus. Press the cursor ◄►
button to move through the menus.

3. Press the cursor ▼▲ button to move up and
down in a menu.

4. Press ◄► to change values for settings.

5. Press Menu to close the OSD or leave a
submenu.

Note:

Depending on the video source not all items in the OSD are available. For example, the Horizon­tal/Vertical Position items in the Computer menu can be modified when connected to a PC. Items that

are not available cannot be accessed and are grayed out.

DLP® Projector – User’s Manual

Setting the OSD Language

You may want to reference the OSD on your projector while reading this section. Set the OSD lan­guage to your preference before continuing. (The default language is English.)

1. Press the Menu button. Press the cursor ◄► button to navigate to Installation I.

2. Press the cursor ▼▲ button until Language is highlighted.

3. Press the ◄► button until your language is displayed.

4. Press the Menu button to close the OSD.

– 19 –

DLP® Projector – User’s Manual

OSD Menu Overview

Use the following illustration to quickly find a setting or determine the range for a setting.

– 20 –

DLP® Projector – User’s Manual

OSD Sub-Menu Overview

– 21 –

DLP® Projector – User’s Manual

Image Menu

Press the Menu button to open the OSD menu. Press the cursor button to move to the Image
menu. Press the cursor

button to move up and down in the Image menu. Press to change

values for settings.

Item Description

Display
Mode

Press the cursor ◄► button to set the display mode.
Source: Presentation, Bright, Game, Movie, TV, sRGB, User

Brilliant
Color

Press the cursor ◄► button to adjust the Brilliant Color value. (Range: 0-2)
Brilliant Color provides brighter, truer and more vibrant color. A higher setting
provides a stronger enhanced image. (Range: 0 ~ 2)

Brightness Press the cursor ◄► button to adjust the brightness. (Range: 0 – 100)

Contrast Press the cursor ◄►button to adjust the contrast. (Range: 0 – 100)

Sharpness Press the cursor ◄► button to adjust the display sharpness (Range: 0-31)

Gamma Press the cursor ◄► button to adjust the gamma correction of the display.

Range: PC, MAC, Video, Chart, B&W

Advanced Press Enter / ► to enter the Advanced menu.

See “Advanced Feature” on page 24.

Reset Resets all Image settings to default values

– 22 –

DLP® Projector – User’s Manual

– 23 –

Image Menu Functions Available for Connected Source

Function RGB

Component

Video

Composite Video S-video DVI

Display Mode

x x x x x

Brilliant Color

x x x x x

Brightness

x x x x x

Contrast

x x x x x

Sharpness

x x x x x

Gamma

x x x x x

Advanced

x x x x x

Reset

x x x x x

x = available to video source

DLP® Projector – User’s Manual

Advanced Feature

Press the Menu button to open the OSD menu. Press ◄► to move to the Image menu. Press ▼▲
to move to the Advanced menu and then press Enter or ►. Press ▼▲ to move up and down in the

Advanced menu. Press ◄► to change values for settings.

Item Description

Color Space Press the cursor ◄► button to adjust the color space.

(Range: Auto – RGB – YPbPr- YCbCr)

Color
Temperature

Press the cursor ◄► button to adjust the color temperature.
(Range: 6500 °K ~ 10500 °K)

Color
Manager

Press Enter / ► to enter the color manager menu. (Range: Red-Green-Blue-Cyan­Magenta-Yellow-White). See page 25 for more information on Color Manager.

– 24 –

DLP® Projector – User’s Manual

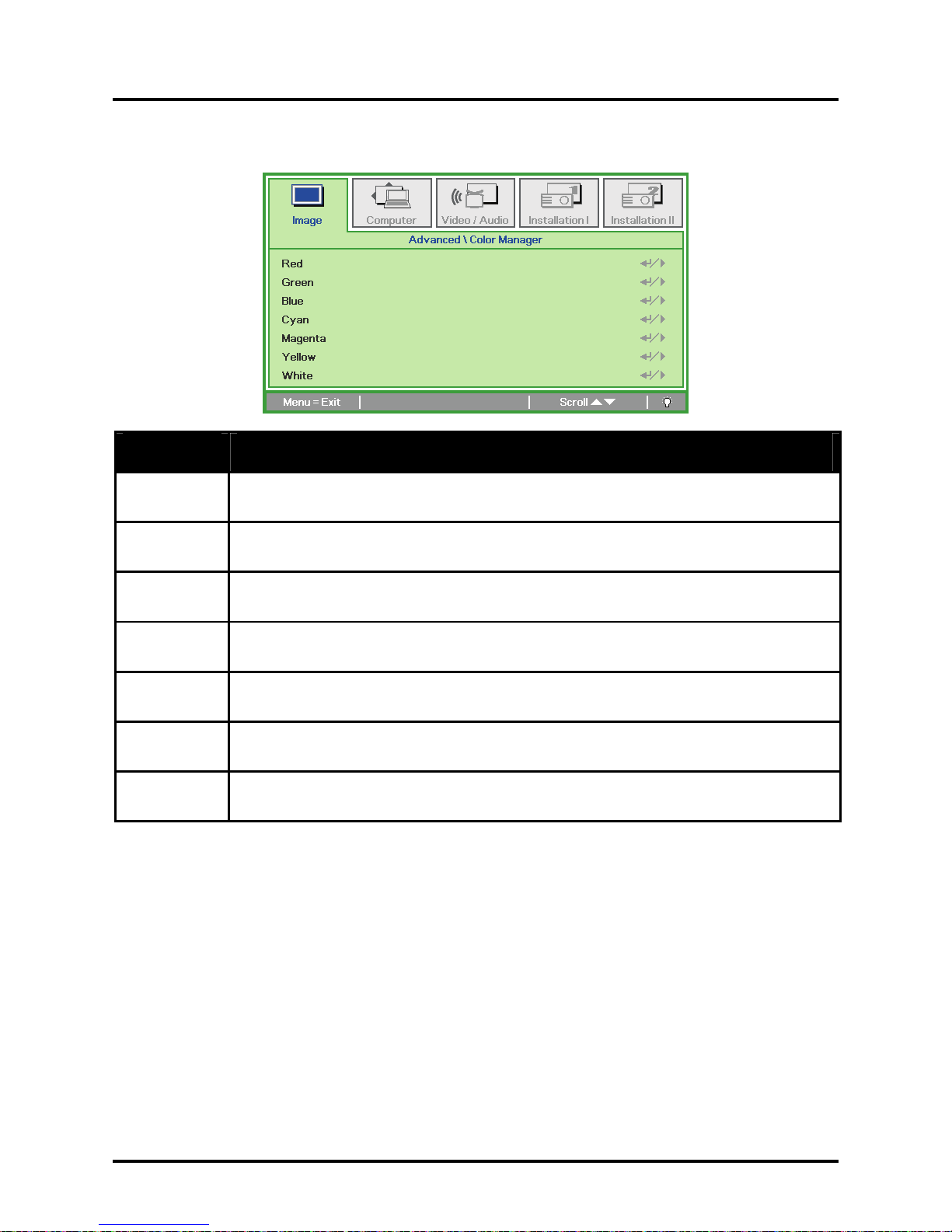

Color Manager

Press Enter / ► to enter the color manager submenu.

Item Description

Red

Press Enter / ► button to adjust the red color level.
Range: Hue (-99 ~ 99), Saturation (0 ~ 199), Gain (0 ~ 199)

Green

Press Enter / ► button to adjust the green color level.
Range: Hue (-99 ~ 99), Saturation (0 ~ 199), Gain (0 ~ 199)

Blue

Press Enter / ► button to adjust the blue color level.
Range: Hue (-99 ~ 99), Saturation (0 ~ 199), Gain (0 ~ 199)

Cyan

Press Enter / ► button to adjust the cyan color level.
Range: Hue (-99 ~ 99), Saturation (0 ~ 199), Gain (0 ~ 199)

Magenta

Press Enter / ► button to adjust the magenta color level.
Range: Hue (-99 ~ 99), Saturation (0 ~ 199), Gain (0 ~ 199)

Yellow

Press Enter / ► button to adjust the yellow color level.
Range: Hue (-99 ~ 99), Saturation (0 ~ 199), Gain (0 ~ 199)

White

Press Enter / ► button to adjust the white color level.
Range: Red (0 ~ 199), Green (0 ~ 199), Blue (0 ~ 199)

– 25 –

DLP® Projector – User’s Manual

Computer Menu

Press the Menu button to open the OSD menu. Press the cursor ◄► button to move to the Com­puter menu. Press the cursor ▲▼ button to move up and down in the Computer menu. Press ◄►

to change values for settings.

Item Description

Horizontal
Position

Press the cursor ◄► button to move the image left or right.
(Range: -5 ~ +5)

Vertical
Position

Press the cursor ◄► button to move the image up or down.
(Range: -5 ~ +5)

Frequency Press the cursor ◄► button to adjust the A/D sampling clock.

(Range: Clock 0 ~ 31)

Tracking Press the cursor ◄► button to adjust the A/D sampling number.

(Range: -5 ~ +5)

Auto Image Press Enter/ ► to Re-Sync source, adjustment for phase, tracking, size and

position.

Computer Menu Functions Available for Connected Source

Function RGB

Component

Video

Composite Video S-video DVI

H Position x x

V Position x x

Frequency x x

Tracking x x

Auto Image x x x x x

x = available to video source

– 26 –

DLP® Projector – User’s Manual

Video/Audio Menu

Press the Menu button to open the OSD menu. Press the cursor ◄► button to move to the
Video/Audio menu. Press the cursor ▲▼ button to move up and down in the Video/Audio menu.

Press

◄► to change values for settings.

Item Description

Video AGC

Press the cursor ◄► button to enable or disable automatic gain control for the
video source. (Range: On – Off)

Video
Saturation

Press the cursor ◄► button to adjust the video saturation. (Range: 0 – 100)

Video Tint Press the cursor ◄► button to adjust the video tint/hue. (Range: 0 – 100)

Film Mode

Press the cursor ◄► button select different film mode.

• Off – Film mode is turned off.

• Auto Automatic 2:2/3:2 pull-down detection.·

o 2:2 Uses 2:2 pull-down correction methods.·
o 3:2 Uses 3:2 pull-down correction methods.

Video
Overscan

Press the cursor ◄► button to enable or disable video over scan. (Range: On – Off)

Audio Press Enter / ► to enter the Audio menu. See “Audio” on page 28.

Reset Resets all Video/Audio settings to default values

– 27 –

DLP® Projector – User’s Manual

Video/Audio Menu Functions Available for Connected Sources

Function RGB

Component

Video

Composite Video S-video DVI

Video AGC x x

Video Saturation x x x

Video Tint x x x

Film Mode x x x

Video Overscan x x x

Audio x x x x x

Reset x x x x x

x = available to video source

Audio

Press Enter / ► to enter the audio submenu.

Item Description

Volume Press the cursor ◄► button to adjust the audio volume.

(Range: 0 – 8)

Mute Press the cursor ◄► button to turn on or off the speaker.

Audio Input Press the cursor ◄► button to select audio input.

(Range: Mini jack – RCA)

– 28 –

DLP® Projector – User’s Manual

Installation I Menu

Press the Menu button to open the OSD menu. Press the cursor ◄► button to move to the Installa­tion I menu. Press the cursor ▲▼ button to move up and down in the Installation I menu. Press

◄► to change values for settings.

Item Description

Language Press the cursor ◄► to select the desired language. (Range: English, French,

Dutch, German, Italian, Portuguese, Norwegian, Spanish, Swedish, Simplified Chi­nese, Traditional Chinese, Russian)

Blank
Screen

Press the cursor ◄► button to select a background color for the blank screen.
(Range: Black – Red – Green – Blue – White)

Projection

Press the cursor ◄► button to choose from four projection methods:

Desktop mount, front of screen

Desktop mount, rear of screen

Ceiling mount, front of screen

Ceiling mount, rear of screen

Security
Lock

Press the cursor ◄► button to enable or disable security lock function.

Aspect
Ratio

Press the cursor ◄► button to adjust the video aspect ratio.
(Range: Fill, 4:3, 16:9, Letter Box, Native)

Keystone Press the cursor ◄► button to adjust the keystone display. (Range: -30 ~ +30)

Digital
Zoom

Press the cursor ◄► button to adjust the Digital Zoom menu. (Range: -20 ~ +20)

Reset Resets all Installation I settings to default values

– 29 –

DLP® Projector – User’s Manual

– 30 –

Installation I Menu Functions Available for Connected Sources

Function RGB

Component

Video

Composite Video S-video DVI

Language x x x x x

Blank Screen x x x x x

Projection x x x x x

Security Lock x x x x x

Aspect Ratio x x x x x

Keystone x x x x x

Digital Zoom x x x x x

Reset x x x x x

x = available to video source

DLP® Projector – User’s Manual

Installation II Menu

Press the Menu button to open the OSD menu. Press the cursor ◄► button to move to the Installa­tion II menu. Press the cursor ▲▼ button to move up and down in the Installation II menu. Press

◄► to change values for settings.

Item Description

Auto
Source

Press the cursor ◄► button to enable or disable automatic source detection.
(Range: On – Off)

Auto Power
Off (min)

Press the cursor ◄► button to enable or disable automatic shutdown of lamp after
a set number of minutes. (Range: 0 ~ 180)

Auto Power
On

Press the cursor ◄► button to enable or disable automatic power on when AC
power is supplied. (Range: On ~ Off)

Fan Speed

Press the cursor ◄► button to toggle between normal and high fan speed.
Set Fan Speed to High in altitudes over 1500 meters (5000 feet).

Lamp
Mode

Press the cursor ◄►button to choose the lamp mode.
Range: Eco and Normal.
Eco mode uses less power and extends lamp life, but decreases lamp brightness.
Normal mode uses more power and reduces lamp life, but increases lamp bright­ness.

Advanced

Press Enter / ► to enter the Advanced menu.
See “Advanced Feature” on page 32.

Factory
Reset

Press Enter / ► to reset all items to factory preset values.

Status

Press Enter / ► to view the current display status (these items are display only).
See “Status” on page 34.

– 31 –

DLP® Projector – User’s Manual

Advanced Feature

Press the Menu button to open the OSD menu. Press ◄►

to move to the Installation II menu.

Press

▲▼

to move to the Advanced menu and then press Enter or

►. Press ▲▼

to move up and

down in the Advanced menu. Press

◄► to change values for settings.

Item Description

OSD Menu
Setting

Press Enter / ► to enter the OSD setting menu.

Peripheral
Test

Press Enter/ ► to enter the Peripheral Test menu.
(Range: Remote Control, USB, Button, Color and Sound test)

Lamp Hour
Reset

After replacing the lamp, this item should be reset.
See “Resetting the Lamp” on page 38.

OSD Menu Setting

Press Enter or ►

to enter the OSD Menu Setting menu.

Item Description

Menu Posi­tion

Press to position the OSD on screen (Range: Center, Down, Up, Left, Right)

– 32 –

DLP® Projector – User’s Manual

– 33 –

Item Description

Translucent
Menu

Press ◄► to set menu screen translucency (Range: 0%, 25%, 50%, 75%, 100%)

Menu Dis­play

Press ◄► to determine timeout delay of OSD (Range: 10 - 20 sec.)

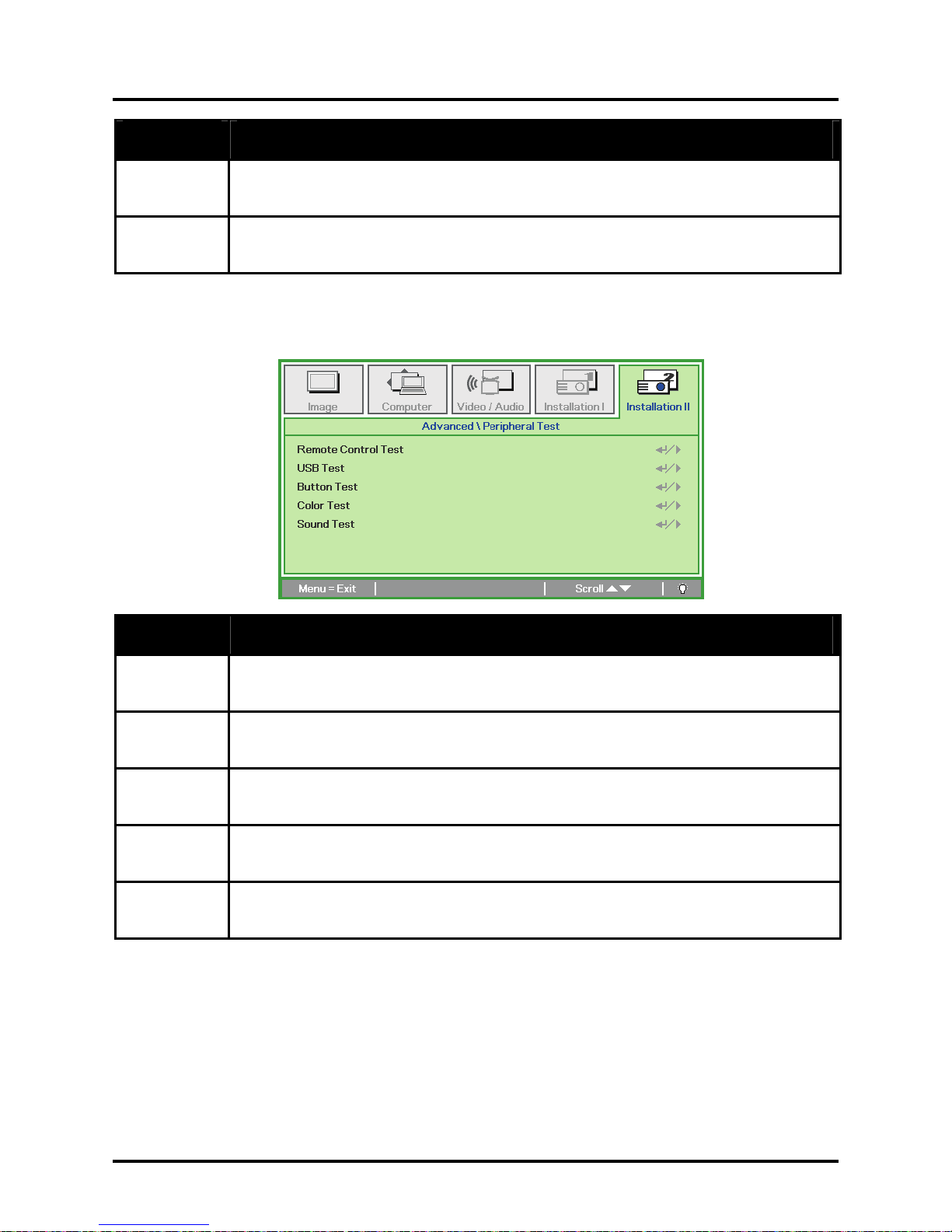

Peripheral Test

Press Enter or ►

to enter the Peripheral Test menu.

Item Description

Remote
Control Test

Press Enter or ► and follow the on-screen prompts to carry out the Remote Con-
trol Test. Press the Menu button twice to return to the Peripheral Test menu.

USB Test Press Enter or ► and follow on-screen prompts to carry out the USB Test.

Press the Menu button to return to the Peripheral Test menu.

Button Test Press Enter or ► and follow the on-screen prompts to carry out the Button (display

panel) Test. Press the Menu button twice to return to the Peripheral Test menu.

Color Test Press Enter or ► and follow on-screen prompts to carry out the Color Test.

Press the Menu button to return to the Peripheral Test menu.

Sound Test Press Enter or ► and follow on-screen prompts to carry out the Sound Test.

Press the Menu button to return to the Peripheral Test menu.

DLP® Projector – User’s Manual

Status

Press the Menu button to open the OSD menu. Press ◄►

to move to the Installation II menu.

Press

▲▼

to move to the Status menu and then press Enter or

►.

Item Description

Active
Source

Displays the active source.

Video Infor­mation

Displays the resolution and refresh rate for RGB mode.
Displays the color standard for video mode.

Lamp Hours
(Eco, Nor­mal)

Shows the number of hours the lamp has been in use for Eco and Normal modes.

– 34 –

– 35 –

Maintenance and Security

Replacing the Projection Lamp

The projection lamp should be replaced when it burns out. It should only be replaced with a certified
replacement part, which you can order from your local dealer.

Important:

1. The lamp contains a certain amount of mercury and should be disposed of according to local ordi-

nance regulations.

2. Avoid touching the glass surface of the new lamp: Doing so may shorten its operation life.

Warning:

Be sure to turn off and unplug the projector at least an hour before replacing the lamp. Failure to do so
could result in a severe burn.

Note:

Safety glasses should be worn when replacing the lamp while the projector is ceiling mounted.

1.

Loosen the two cap­tive screws on the
lamp compartment
cover (A).

DLP® Projector – User’s Manual

2.

Open the lamp com­partment cover (B).

B

3.

Remove the two
screws from the lamp
module (C).

4.

Lift the module handle
up (D).

– 36 –

DLP® Projector – User’s Manual

5.

Pull firmly on the
module handle to re­move the lamp module
(D)

D

6.

Reverse steps 1 to 5
to install the new lamp
module.

– 37 –

DLP® Projector – User’s Manual

Resetting the Lamp

After replacing the lamp, you should reset the lamp hour counter to zero. Refer to the following:

1.

Press the Menu button to open
the Image menu.

2.

Press the cursor ◄► button to
move to the Installation II menu.
Press the cursor ▲▼ button to

move down to Advanced.

3.

Press the cursor ▼▲ button to
move down to Lamp Hour Reset.

4.

Press the cursor ► or Enter
button.

A message screen appears.

5.

Press the cursor buttons in this
order: ▼▲◄►.
The Lamp Hours reset to zero.

– 38 –

DLP® Projector – User’s Manual

– 39 –

Cleaning the Projector

Cleaning the projector to remove dust and grime will help ensure trouble-free operation.

Warning:

1. Be sure to turn off and unplug the projector at least an hour before cleaning. Failure to do so could

result in a severe burn.

2. Use only a dampened cloth when cleaning. Do not allow water to enter the ventilation openings on
the projector.

3. If a little water gets into the projector interior while cleaning, leave unplugged in a well-ventilated
room for several hours before using.

4. If a lot of water gets into the projector interior when cleaning, have the projector serviced.

Cleaning the Lens

You can purchase optic lens cleaner from most camera stores. Refer to the following to clean the pro­jector lens.

1. Apply a little optic lens cleaner to a clean soft cloth. (Do not apply the cleaner directly to

the lens.)

2. Lightly wipe the lens in a circular motion.

Caution:

1. Do not use abrasive cleaners or solvents.

2. To prevent discoloration or fading, avoid getting cleaner on the projector case.

Cleaning the Case

Refer to the following to clean the projector case.

1. Wipe off dust with a clean dampened cloth.

2. Moisten the cloth with warm water and mild detergent (such as used to wash dishes), and

then wipe the case.

3. Rinse all detergent from the cloth and wipe the projector again.

Caution:

To prevent discoloration or fading of the case, do not use abrasive alcohol-based cleaners.

DLP® Projector – User’s Manual

Using the Kensington® Lock

If you are concerned about security, attach the projector to a permanent object with the Kensington
slot and a security cable.

Note:

Contact your vendor for details on purchasing a suitable Kensington security cable.

The security lock corresponds to Kensington’s MicroSaver Security System. If you have any comment,
contact: Kensington, 2853 Campus Drive, San Mateo, CA94403, U.S.A. Tel: [phone],

http://www.Kensington.com.

– 40 –

– 41 –

Troubleshooting

Common problems and solutions

These guidelines provide tips to deal with problems you may encounter while using the projector. If
the problem remains unsolved, contact your dealer for assistance.

Often after time spent troubleshooting, the problem is traced to something as simple as a loose con­nection. Check the following before proceeding to the problem-specific solutions.

• Use some other electrical device to confirm that the electrical outlet is working.

• Ensure the projector is turned on.

• Ensure all connections are securely attached.

• Ensure the attached device is turned on.

• Ensure a connected PC is not in suspend mode.

• Ensure a connected notebook computer is configured for an external display. (This is usu-

ally done by pressing an Fn-key combination on the notebook.)

Tips for Troubleshooting

In each problem-specific section, try the steps in the order suggested. This may help you to solve the
problem more quickly.

Try to pin point the problem and thus avoid replacing non-defective parts.
For example, if you replace batteries and the problem remains, put the original batteries back and go
to the next step.

Keep a record of the steps you take when troubleshooting: The information may be useful when call­ing for technical support or for passing on to service personnel.

DLP® Projector – User’s Manual

– 42 –

LED Error Messages

Error code message Power

LED/flashes

Ready

LED/flashes

Over temperature 3 0

Thermal Break 4 0

G794 fail 4 4

T1 fail 4 5

Lamp error 5 0

Ballast Over Temperature 5 1

Ballast short circuit in output detected 5 2

End of lamp lift detected 5 3

Ballast lamp did not ignite 5 4

Lamp extinguished during normal operation 5 5

Lamp extinguished during run-up phase 5 6

Fan1 error (Lamp Fan) 6 1

Fan2 error (Ballast Fan) 6 2

Fan3 error (Burner Fan) 6 3

Fan4 error (Power Fan) 6 4

Lamp door open 7 0

DMD error 8 0

Color wheel error 9 0

Image Problems

Problem: No image appears on the screen

1. Verify the settings on your notebook or desktop PC.

2. Turn off all equipment and power up again in the correct order.

Problem: The image is blurred

1. Adjust the Focus on the projector.

2. Press the Auto button on the remote control or projector.

3. Ensure the projector-to-screen distance is within the 10-meter (33-feet) specified range.

4. Check that the projector lens is clean.

Problem: The image is wider at the top or bottom (trapezoid effect)

1. Position the projector so it is as perpendicular to the screen as possible.

2. Use the Keystone button on the remote control or projector to correct the problem.

Problem: The image is reversed or upside down

Check the Projection setting on the Utility menu of the OSD.

Problem: The image is streaked

1. Set the Frequency and Tracking settings on the Utility menu of the OSD to the default

settings.

DLP® Projector – User’s Manual

– 43 –

2. To ensure the problem is not caused by a connected PC’s video card, connect to another

computer.

Problem: The image is flat with no contrast

Adjust the Contrast setting on the Main menu of the OSD.

Problem: The color of the projected image does not match the source image.

Adjust the Color Temperature and Gamma settings on the Main menu of the OSD.

Lamp Problems

Problem: There is no light from the projector

1. Check that the power cable is securely connected.

2. Ensure the power source is good by testing with another electrical device.

3. Restart the projector in the correct order and check that the Power LED is green.

4. If you have replaced the lamp recently, try resetting the lamp connections.

5. Replace the lamp module.

6. Put the old lamp back in the projector and have the projector serviced.

Problem: The lamp goes off

1. Power surges can cause the lamp to turn off. Press the power button twice to turn off the

projector. When the Ready LED is on, press the power button.

2. Replace the lamp module.

3. Put the old lamp back in the projector and have the projector serviced.

Remote Control Problems

Problem: The projector does not respond to the remote control

1. Direct the remote control towards remote sensor on the projector.

2. Ensure the path between remote and sensor is not obstructed.

3. Turn off any fluorescent lights in the room.

4. Check the battery polarity.

5. Replace the batteries.

6. Turn off other Infrared-enabled devices in the vicinity.

7. Have the remote control serviced.

Audio Problems

Problem: There is no sound

1. Adjust the volume on the remote control.

2. Adjust the volume of the audio source.

3. Check the audio cable connection.

4. Test the source audio output with other speakers.

5. Have the projector serviced.

Problem: The sound is distorted

1. Check the audio cable connection.

2. Test the source audio output with other speakers.

3. Have the projector serviced.

DLP® Projector – User’s Manual

– 44 –

Specifications

Input/output connectors

Connector Description

DVI-I Data in

RGB HD-15

Data out RGB HD-15

Composite video (RCAx1) Video

S-video

Stereo RCAx2 (L+R) Audio in

Stereo Mini-jack

Audio out Stereo Mini-jack

RS-232 Control

USB

Security Kensington lock

DLP® Projector – User’s Manual

Projection Distance vs. Projection Size

A
B

C

D

L Projection Distance

Projection distance and size table

Max. Screen Size (Wide) Max. Screen Size (Tele)

Projection
Distance L

Diagonal

Width

A

Height

C

Diagonal

Width

B

Height

D

1.5m 1.16m 0.99m 0.62m 1.01m 0.86m 0.54m

4.92’ 46” 38.97” 24.4” 40'' 33.85” 21.25”

2m 1.55m 1.32m 0.83m 1.35m 1.15m 0.72m

6.56’ 61.4” 51.96” 32.67” 53.3” 45.27” 28.34”

3m 2.33m 1.99m 1.24m 2.032 1.72m 1.08m

9.84’ 92” 78.34” 48.81” 80” 67.71” 42.51”

4m 3.12m 2.65m 1.66m 2.71m 2.3m 1.44m

13.12’ 122.9'' 104.33” 65.35” 106.73” 90.55” 56.69”

5m 3.9m 3.31m 2.07m 3.38m 2.87m 1.8m

16.4’ 153.7'' 130.31” 81.49” 133.4” 112.99” 70.86”

6m 4.68m 3.97m 2.48m 4.06m 3.45m 2.16m

19.68’ 184.4'' 156.29” 97.63” 160” 135.82” 85.03”

7m 5.46m 4.64m 2.9m 4.74m 4.02m 2.51m

22.96’ 215.2'' 182.67” 114.17” 186.78” 158.26” 98.81”

8m 6.24m 5.3m 3.31m 5.42m 4.6m 2.87m

26.24’ 245.9” 208.66” 130.31” 213.4” 181.1” 112.99”

9m 7.02m 5.96m 3.73m 6.09m 5.17m 3.23m

29.52’ 276.7” 234.64” 146.85” 240.1” 203.54” 127.16”

10m 7.8m 6.62m 4.14m 6.77m 5.75m 3.59m

32.8’ 307.4” 260.62” 162.99” 266.8” 226.37” 141.33”

Shaded rows are equivalent measurement in feet and inches

– 45 –

DLP® Projector – User’s Manual

– 46 –

Timing Mode Table

The projector can display several resolutions. The following table outlines the resolutions that can be
displayed by the projector.

Signal Resolution

Frequency H.

(KHz)

Frequency V.

(Hz)

Video Digital Analog

NTSC

－

15.73 60.0 Ο

－ －

PAL/SECAM

－

15.62 50.0

Ο

－ －

640 x 350 37.9 85.1

－

Ο Ο

640 x 400 37.9 85.1

－

Ο Ο

720 x 400 37.9 85.0

－

Ο Ο

640 x 480 31.5 60.0

－

Ο Ο

640 x 480 37.9 72.8

－

Ο Ο

640 x 480 37.5 75.0

－

Ο Ο

640 x 480 43.3 85.0

－

Ο Ο

800 x 600 35.2 56.3

－

Ο Ο

800 x 600 37.9 60.3

－

Ο Ο

800 x 600 48.1 72.2

－

Ο Ο

800 x 600 46.9 75.0

－

Ο Ο

800 x 600 53.7 85.1

－

Ο Ο

1024 x 768 48.4 60.0

－

Ο Ο

1024 x 768 56.5 70.1

－

Ο Ο

1024 x 768 60.0 75.0

－

Ο Ο

1024 x 768 68.8 85.0

－

Ο Ο

1280 x 800 49.7 59.8

－

Ο Ο

1280 x 800 62.8 74.9

－

Ο Ο

1280 x 800 71.6 84.8

－

Ο Ο

1280 x 1024 64 60

－

Ο Ο

1280 x 1024 80 75

－

Ο Ο

1280 x 1024 91.1 85

－

Ο

－

1400 x 1050 65.3 60

－

Ο Ο

1400 x 900 55.9 60

－

Ο Ο

VESA

1600 x 1200 75 60

－

Ο

－

640 x 480 35.0 66.7

－

Ο Ο

832 x 624 49.7 74.5

－

Ο Ο

1024 x 768 60.2 74.9

－

Ο Ο

Apple Macintosh

1152 x 870 68.7 75.1

－

Ο

－

DLP® Projector – User’s Manual

– 47 –

720 x 576 31.3 50.0

Ο

－ －

SDTV

720 x 480 31.5 60.0

Ο

－ －

1920 x 1080 33.8 30.0

Ο

－ －

1920 x 1080 28.1 25.0

Ο

－ －

HDTV

1280 x 720 45.0 60.0

Ο

－ －

Ο: Frequency supported - : Frequency not supported

The native resolution is 1280X800. Resolution other than native mode may be displayed with uneven
size of text or lines.

DLP® Projector – User’s Manual

Projector Dimensions

300 mm(11.8")

96 mm(3.8")

244 mm(9.6")

– 48 –

– 49 –

Regulatory Compliance

FCC Warning

This equipment has been tested and found to comply with the limits for a Class B digital device pur­suant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause harmful interference to radio communica­tions. Operation of this equipment in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own expense.

Changes or modifications not expressly approved by the parties responsible for compliance could
void the user’s authority to operate the equipment.

Canada

This class B digital apparatus complies with Canadian ICES-003.

Safety Certifications

FCC Class B, UL, C-UL, CE, CB, CCC, C-Tick, PSB, PCT, ICES-003 (Class B).

EN 55022 Warning

This is a Class B product. In a domestic environment, it may cause radio interference, in which case
the user may be required to take adequate measures. The typical use is in a conference room, meet­ing room, or auditorium.

Planar Systems, Inc.

Corporate Headquarters
1195 NW Compton Drive
Beaverton, OR 97006-1992

Planar Customer Support

Telephone:
US: 1-866-PLANAR1 [phone]
Outside US: [phone]
E-mail: [e-mail]
Online Technical Library: http://www.planar.com/support
24/7 Technical Support

© 2008 Planar Systems, Inc. Planar is a registered trademark of Planar Systems, Inc.
Other brands and names are the property of their respective owners.
Technical information in this document is subject to change without notice

P/N: 020-0648-00A
