Thank you for purchasing this projector.

This projector has the network function that brings you the following main features.

ü Web control

The projector can be controlled and monitored by a web browser software on your PC, which can help you to setup and maintain the projector.

ü e-SHOT (Still Image Transfer) Display

The projector can display still images that are transferred via the network.

This manual is only intended to explain Network function only.

For safety, operations or any other issues, refer to the USER'S GUIDE and User’s

Manual.

WARNING

►Before using this product, be sure to read all manuals for this

product. After reading them, store them in a safe place for future reference.

NOTE

• The information in this manual is subject to change without notice.

• The manufacturer assumes no responsibility for any errors that may appear in this manual.

• The reproduction, transfer or copy of all or any part of this document is not permitted without express written consent.

Trademark acknowledgment

• Windows is a registered trademark of Microsoft Corporation.

• HDMI, the HDMI logo and High-Denition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

All other trademarks are the properties of their respective owners.

Content



About this manual ..........................................................................1

Content .......................................................................................... 2

1. Main functions ...........................................................................3

1.1 Conguring and controlling via a web browser ........................................... 3

1.2 e-SHOT (Still image Transfer) Display ........................................................ 3

2. Equipment connection and network setting .............................4

2.1 Required equipment preparation ................................................................4

2.2 Manual network connection setting ............................................................. 5

2.2.1 Equipments connection ......................................................................... 5

2.2.2 Network settings ....................................................................................5

2.2.3 “Internet Option” setting ......................................................................... 8

2.2.4 Check connection ..................................................................................9

3. Management with Web browser software .............................. 10

3.1 Conguring and controlling the projector via a web browser .................... 11

3.1.1 Logon ..................................................................................................13

3.1.2 Network Information ............................................................................ 14

3.1.3 Network Settings ................................................................................. 15

3.1.4 Port Settings ........................................................................................17

3.1.5 Mail Settings ........................................................................................18

3.1.6 Alert Settings ....................................................................................... 19

3.1.7 Schedule Settings ...............................................................................21

3.1.8 Date/Time Settings ..............................................................................23

3.1.9 Security Settings .................................................................................25

3.1.10 Projector Control ...............................................................................27

3.1.11 Projector Status ................................................................................. 30

3.1.12 Network Restart ................................................................................. 31

3.1.13 Logoff ................................................................................................31

3.2 E-mail Alerts .............................................................................................. 32

3.3 Projector Management using SNMP ......................................................... 34

3.4 Event Scheduling ...................................................................................... 35

3.5 e-SHOT (Still Image Transfer) Display ...................................................... 38

3.6 Command Control via the Network ........................................................... 40

1. Main functions

1.1 Conguring and controlling via a web browser

You can adjust or control the projector via a network from a web browser on a PC

that is connected to the same network.

Logon the network from the web browser and it offers the menus to congure the network settings, monitor the projector and so on.

1.2 e-SHOT (Still image Transfer) Display

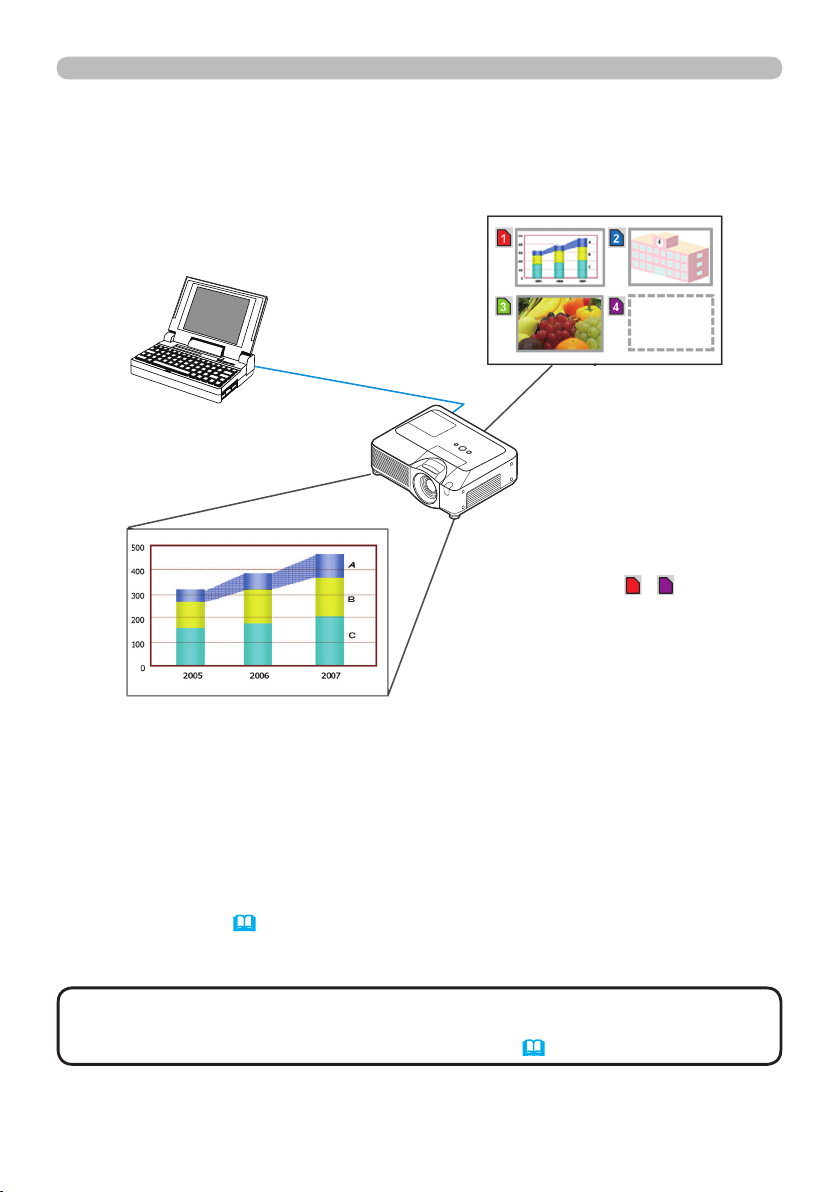

Image les can be sent via the network, and up to 4 image data can be stored in the projector and displayed on screen one by one. (38)

Transfer image data

Display image data (1 - 4)

2. Equipment connection and network setting

2.1 Required equipment preparation

The following equipments are required to connect the projector to your PC through

the network.

PC : 1) equipped with the network feature

2) installed a web browser software (11)

LAN cable : CAT-5 or greater

2. Equipment connection and network setting

2.2 Manual network connection setting

2.2.1 Equipments connection

Connect the projector and PC with a LAN cable. * Before connecting with an existing network, contact the network administrator.

Next, please check the PC setting as explained below.

2.2.2 Network settings

This is the explanation of network connection settings for Windows XP and Internet Explorer.

1) Log on to Windows XP as administrator authority. (*)

2) Open “Control Panel” from “Start” menu.

3) Open “Network and Internet Connections” in “Control Panel”. (Fig. 2.2.2.a)

* Administrator authority is the account, which can access to all functions.

Fig. 2.2.2.a “Network and Internet Connections” window

4) Open “Network Connections”. (Fig.2.2.2.b)

Fig. 2.2.2.b “Network Connections” window

2. Equipment connection and network setting

2.2 Manual network connection setting (continued)

5) Open “Local Area Connection Properties” window you use for network device.

(Fig. 2.2.2.c)

Fig. 2.2.2.c “Local Area Connection Properties” window

6) Set used protocol as “TCP/IP” and open “Internet Protocol (TCP/IP) Properties”

window.

Fig. 2.2.2.d “Internet Protocol (TCP/IP) Properties” window

7) Set IP address, subnet mask and default gateway for PC.

2. Equipment connection and network setting

2.2 Manual network connection setting (continued)

[About IP address]

■ Setting manually

The Network address portion included in the IP address set into your PC should

be common with projector’s one. And the entire IP address in the PC should not be overlapped with other equipments in the same network, including the projector.

For example

The projector’s initial settings are as follows.

IP address: 192.168.1.10 Subnet mask: 255.255.255.0 (Network address: 192.168.1 in this case)

Therefore, specify PC’s IP address as follows.

IP address: 192.168.1.xxx (xxx shows decimal number.) Subnet mask: 255.255.255.0 (Network address: 192.168.1 in this case)

Select from 1 to 254 for “xxx” not duplicating with any other equipments.

In this case, projector has “192.168.1.10” IP address, specify from 1 to 254

except 10 for PC.

NOTE

• “0.0.0.0” cannot be set to the IP address.

• The projector’s IP address can be changed by using the conguration utility

via a web browser. (11)

• If the projector and PC exist in the same network (i.e. network address is

common), default gateway can be blank.

• When the projector and PC exist in different networks, default gateway setting

is necessary. Contact the network administrator in detail.

■ Setting automatically

When DHCP server exists in network, it is possible to assign IP address to the projector and PC automatically. * DHCP is abbreviation for “Dynamic Host Conguration Protocol” and has the

function to provide necessary setting for network like IP address from server to

client. A server that has DHCP function is called DHCP server.

2. Equipment connection and network setting

2.2 Manual network connection setting (continued)

2.2.3 “Internet Option” setting

1) Click “Internet Options” in “Network and Internet Connections” window

(Fig. 2.2.3.a) to open “Internet Properties” window. (Fig.2.2.3.b)

Click

Fig. 2.2.3.a “Network and Internet Connections” window

Click

Fig. 2.2.3.b “Internet Properties” window

2) Click “Connections” tab and then click [LAN Settings] button to open “Local

Area Network (LAN) settings”. (Fig. 2.2.3.c)

2. Equipment connection and network setting

2.2 Manual network connection setting (continued)

Fig. 2.2.3.c “Local Area Network (LAN) Settings” window

3) Uncheck all boxes in “Local Area Network (LAN) Settings” window. (Fig. 2.2.3.c)

2.2.4 Check connection

Check PC and projector are connected properly here. If it is not connected, check

cable connections and settings are properly or not.

1) Start browser in PC and specify following URL, then click “Go” button.

URL: http://(Projector IP address)/

For example, if projector IP address is 192.168.1.10, specify

URL: http://192.168.1.10/

2) If Fig. 2.2.4 appears, it succeeds.

Fig. 2.2.4 “Logon Menu”

3. Management with Web browser software

This projector is equipped with the following network functions by using a web

browser software.

Conguring and Controlling the Projector via a Web Browser

You can change the settings of or control the projector via a network by using a

web browser from a PC that is connected to the same network. (11)

E-mail Alerts

The projector can automatically send an alert to specied e-mail addresses when the projector requires maintenance or has encountered an error.

(32)

Projector Management using SNMP

This projector is SNMP (Simple Network Management Protocol) compliant,

allowing you to monitor it from a remote location using SNMP software. In

addition, the projector is able to send failure & warning alerts to a specied PC.

(34)

Event Scheduling

You can schedule the projector to perform various functions according to the date

and time. (35)

e-SHOT (Still Image Transfer) Display

The projector can display still images that are transferred via the network.

(38)

Command Control via the Network

The projector can be controlled using RS-232C commands over a network.

(40)

3. Management with Web browser software

3.1 Conguring and controlling the projector via a web

browser

You can adjust or control the projector via a network from a web browser on a PC

that is connected to the same network.

NOTE

• If JavaScript is disabled in your web browser conguration, you must enable JavaScript in order to use the projector web pages properly. See the Help les

for your web browser for details on how to enable JavaScript.

• You can communicate using SSL (Secure Socket Layer) if you are using Windows XP Service Pack 2 or earlier versions of Microsoft Windows. Please

specify “https://” when you enter the IP address of the projector on the web browser. You can't communicate the projector using SSL on Windows Vista.

• It is recommended that all web browser updates are installed. It is especially recommended that all users running Internet Explorer on a Microsoft Windows version prior to Windows XP Service Pack 2 install security update Q832894 (MS04-004) or the web browser interface may not be displayed correctly. And when using an earlier version of Internet Explorer, during operations the browser will log out after 50 seconds.

• Internet Explorer 5.5 or later is required.

3. Management with Web browser software

3.1 Conguring and controlling the projector via a web browser (continued)

When conguring or controlling the projector via a web browser, an ID and password are required. There are two types of IDs, Administrator ID and User ID. The following chart describes the differences between Administrator and User IDs.

Item Description Administrator User

Network Information

Network Settings

Port Settings

Mail Settings

Alert Settings

Schedule Settings

Date/Time Settings

Security Settings

Projector Control Controls the projector. √ √

Projector Status

Network Restart

Displays the projector’s current network conguration settings.

Displays and congures network

settings.

Displays and congures

communication port settings.

Displays and congures e-mail

addressing settings.

Displays and congures failure &

warning alerts.

Displays and congures schedule

settings.

Displays and congures the date and

time settings.

Displays and congures passwords

and other security settings.

Displays and congures the current projector status.

Restarts the projector’s network

connection.

√ √

√ N/A

√ √

√ N/A

3. Management with Web browser software

3.1 Conguring and controlling the projector via a web browser (continued)

3.1.1 Logon

Refer to the following for conguring or controlling the projector via a web browser.

Example: If the IP address of the projector is set to 192.168.1.10:

1) Enter

“http://192.168.1.10/” into the address bar of the web browser and press “Enter” key or click “Go” button. The screen in Fig.

3.1.1a will be displayed.

2) Enter your ID and password and click

[Logon].

Fig. 3.1.1 a “Logon Menu”

Below are the factory default settings for administrator ID, user ID and passwords.

Item ID Password

Administrator Administrator <blank>

User User <blank>

If the logon is successful, either the Fig. 3.1.1 b or Fig. 3.1.1 c screen will be displayed.

Main menu

Fig. 3.1.1 b “Logon with Administrator ID”

Fig. 3.1.1 c “Logon with User ID”

3) Click the desired operation or conguration item on the main menu located on

the left-hand side of the screen.

+ 32 hidden pages
