Planar PR5021 User Manual
Planar Systems, Inc.
Corporate Headquarters
1195 NW Compton Drive
Beaverton, OR 97006-1992
Planar Customer Support
Telephone:
US: 1-866-PLANAR1 (866) 752-6271
Outside US: (503) 748-5799
E-mail: PlanarSupport@planar.com
Online Technical Library: http://www.planar.com/support
24/7 Technical Support
— i —
User’s Manual
Copyright
This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be
reproduced without written consent of the author.
© Copyright 2009
Disclaimer
The information in this document is subject to change without notice. The manufacturer makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied
warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to
revise this publication and to make changes from time to time in the content hereof without obligation of
the manufacturer to notify any person of such revision or changes.
Trademark Recognition
Kensington is a U.S. registered trademark of ACCO Brand Corporation with issued registrations and pending applications in other countries throughout the world.
All other product names used in this manual are the properties of their respective owners and are acknowledged.
— ii —
Important Safety Information
Congratulations on purchasing the Planar DLP® projector!
Important:
It is strongly recommended that you read this section carefully before using the projector. These
safety and usage instructions will ensure that you enjoy many years of safe use of the projector.
Keep this manual for future reference.
Symbols Used
Warning symbols are used on the unit and in this manual to alert you of hazardous situations.
The following styles are used in this manual to alert you to important information.
Note:
Provides additional information on the topic at hand.
Important:
Provides additional information that should not be overlooked.
Preface
Caution:
Alerts you to situations that may damage the unit.
Warning:
Alerts you to situations that may damage the unit, create a hazardous environment, or cause personal injury.
Throughout this manual, component parts and items in the OSD menus are denoted in bold font as in this
example:
“Push the Menu button on the remote control to open the Main menu.”
General Safety Information
¾ Do not open the unit case. Aside from the projection lamp, there are no user-serviceable parts in
the unit. For servicing, contact qualified service personnel.
¾ Follow all warnings and cautions in this manual and on the unit case.
¾ The projection lamp is extremely bright by design. To avoid damage to eyes, do not look into the
lens when the lamp is on.
¾ Do not place the unit on an unstable surface, cart, or stand.
¾ Avoid using the system near water, in direct sunlight, or near a heating device.
¾ Do not place heavy objects such as books or bags on the unit.
— iii —
DLP® Projector – User’s Manual
Power Safety
¾ Only use the supplied power cord.
¾ Do not place anything on the power cord. Place the power cord where it will not be in the way of
foot traffic.
¾ Remove the batteries from the remote control when storing or not in use for a prolonged period.
Replacing the Lamp
Replacing the lamp can be hazardous if done incorrectly. See Replacing the Projection Lamp on page 34
for clear and safe instructions for this procedure. Before replacing the lamp:
¾ Unplug the power cord.
¾ Allow the lamp to cool for about one hour.
Important Recycle Instructions:
Lamp(s) inside this product contain mercury. This product may contain other electronic waste that
can be hazardous if not disposed of properly. Recycle or dispose in accordance with local, state, or federal
Laws. For more information, contact the Electronic Industries Alliance at
specific disposal information check WWW.LAMPRECYCLE.ORG.
WWW.EIAE.ORG. For lamp
Cleaning the Projector
¾ Unplug the power cord before cleaning. See Cleaning the Projector on page 37.
¾ Allow the lamp to cool for about one hour.
Regulatory Warnings
Before installing and using the projector, read the regulatory notices in the Regulatory Compliance section
on page
46.
Symbol Explanations
DISPOSAL: Do not use household or municipal waste collection services for
disposal of electrical and electronic equipment. EU countries require the use
of separate recycling collection services.
— iv —
Preface
Main Features
• Lightweight unit, easy to pack away and transport.
• Compatible with all major video standards including NTSC, PAL, and SECAM.
• A high brightness rating allows for presentations in daylight or in lit rooms.
• Supports resolutions up to SXGA+ at 16.7 million colors to deliver crisp, clear images.
• Flexible setup allows for front, rear projections.
• Line-of-vision projections remain square, with advanced keystone correction for angled
projections.
• Input source automatically detected.
Register Your Planar Products Today
Thank you for choosing Planar. To assure you receive all the benefits of your Planar product and services, register your Planar product today. Visit our website to register your product at
http://www.planar.com/support/product_registration.html
Cables, Replacement Lamps and Accessories
To find cables, replacement lamps and accessories for your Planar projector, LCD monitor, touchscreen or
other Planar products visit our online store at www.PlanarOnline.com or find other stores who carry Planar
products at
http://www.planar.com/howtobuy
About this manual
This manual is intended for end users and describes how to install and operate the DLP projector. Wherever possible, relevant information—such as an illustration and its description—has been kept on one
page. This printer-friendly format is both for your convenience and to help save paper, thereby protecting
the environment. It is suggested that you only print sections that are relevant to your needs.
— v —
DLP® Projector – User’s Manual
Table of Contents
GETTING STARTED........................................................................................................................................................... 1
PACKING CHECKLIST ........................................................................................................................................................... 1
VIEWS OF PROJECTOR PARTS............................................................................................................................................... 2
Front-right View ............................................................................................................................................................ 2
Top view—On-screen Display (OSD) buttons and LEDs....................................................................................... 3

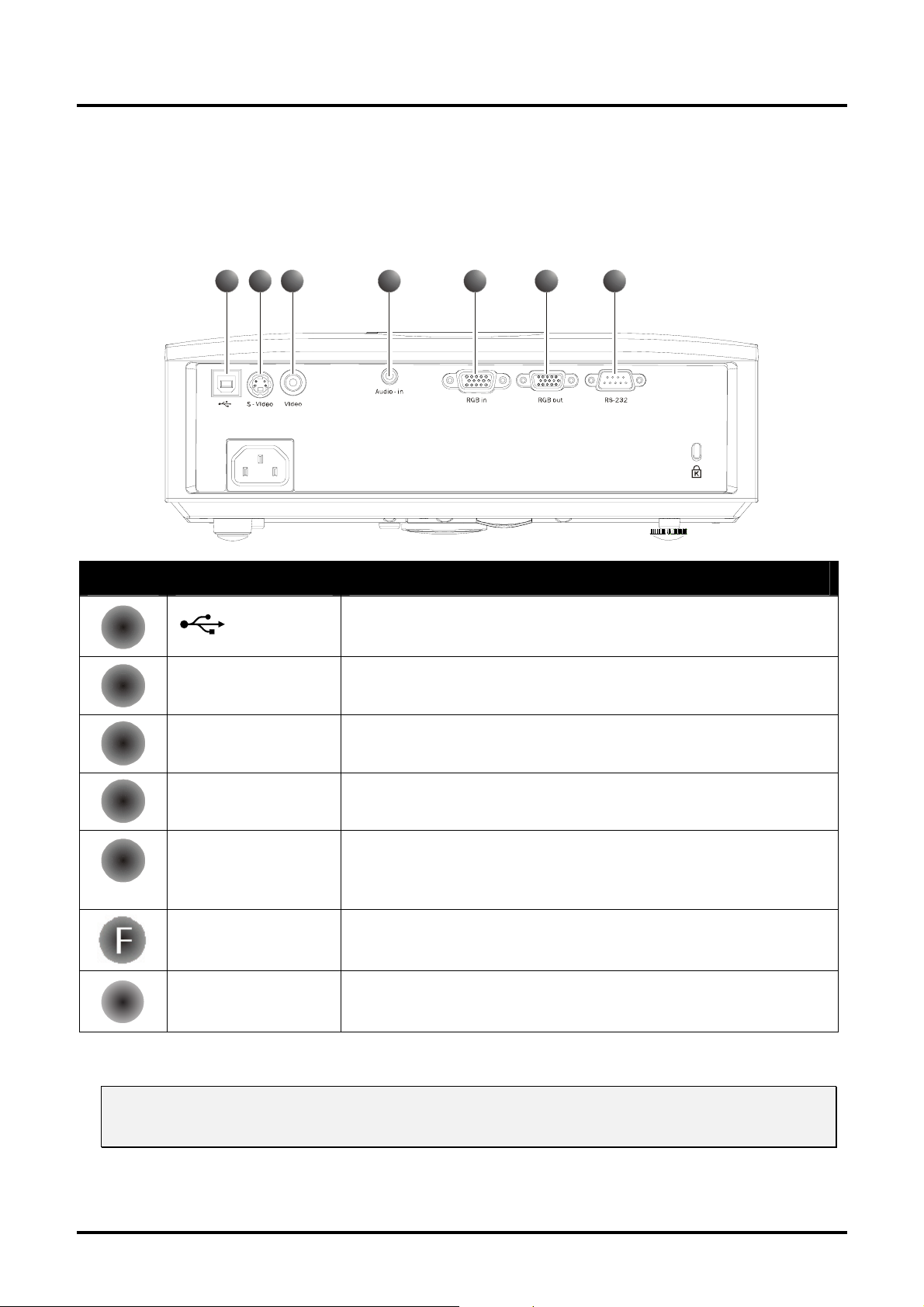

Rear view....................................................................................................................................................................... 4
Bottom view................................................................................................................................................................... 5
REMOTE CONTROL PARTS ................................................................................................................................................... 6
REMOTE CONTROL OPERATING RANGE ............................................................................................................................... 9
PROJECTOR AND REMOTE CONTROL BUTTONS.................................................................................................................... 9
Remote Control............................................................................................................................................................. 9
SETUP AND OPERATION............................................................................................................................................... 10

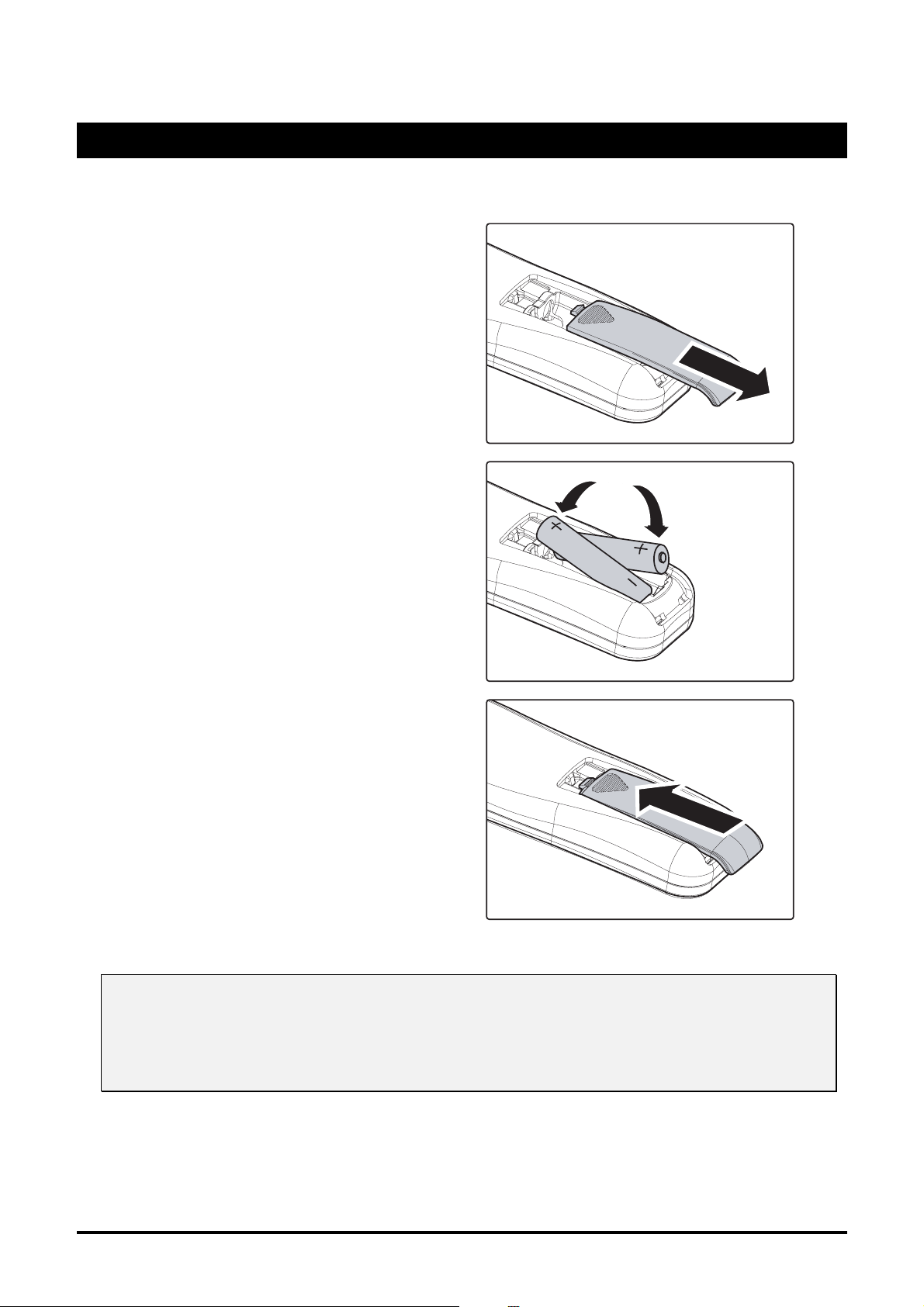

INSERTING THE REMOTE CONTROL BATTERIES ................................................................................................................. 10
CONNECTING INPUT DEVICES ............................................................................................................................................ 11

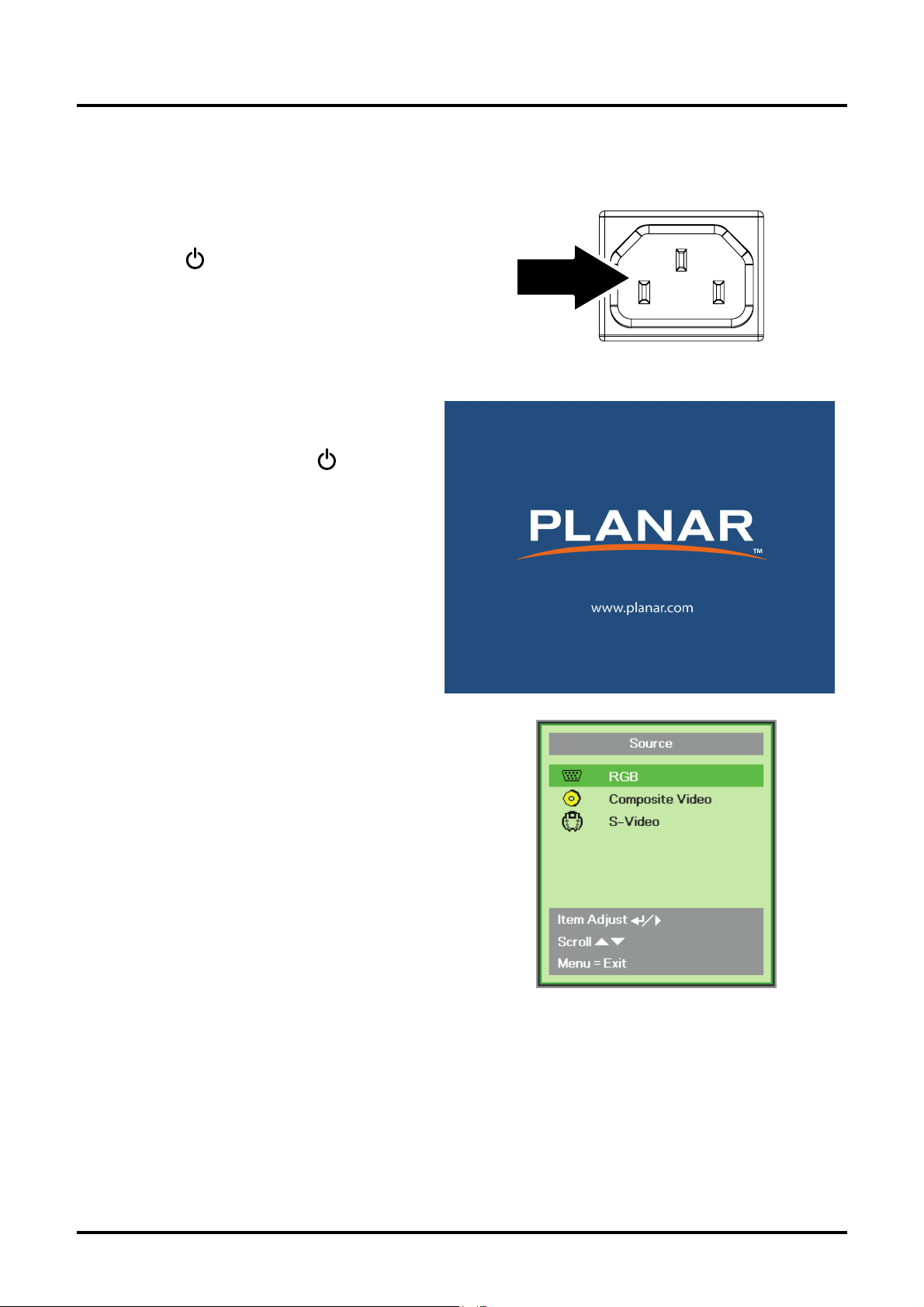

STARTING AND SHUTTING DOWN THE PROJECTOR............................................................................................................. 12

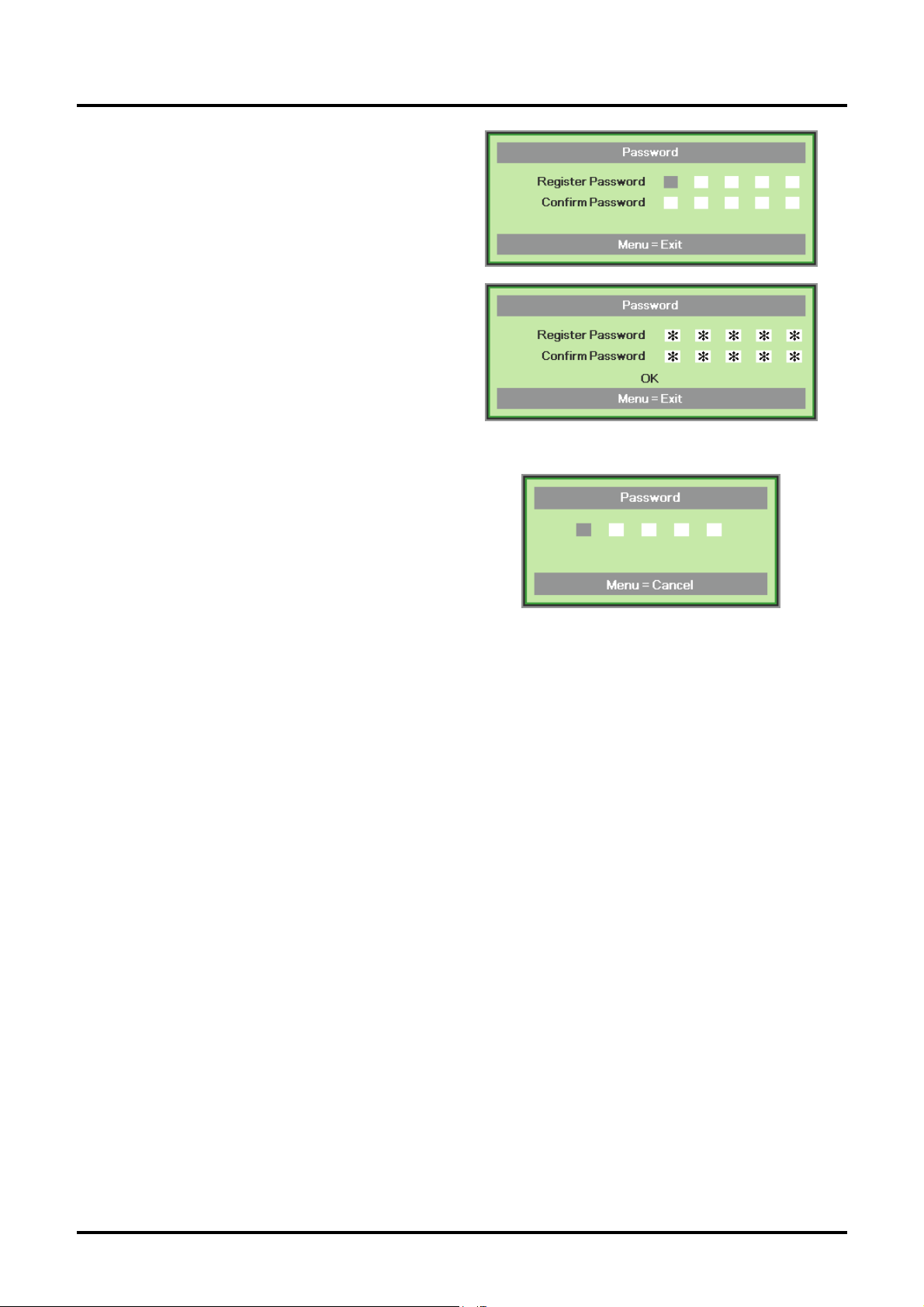

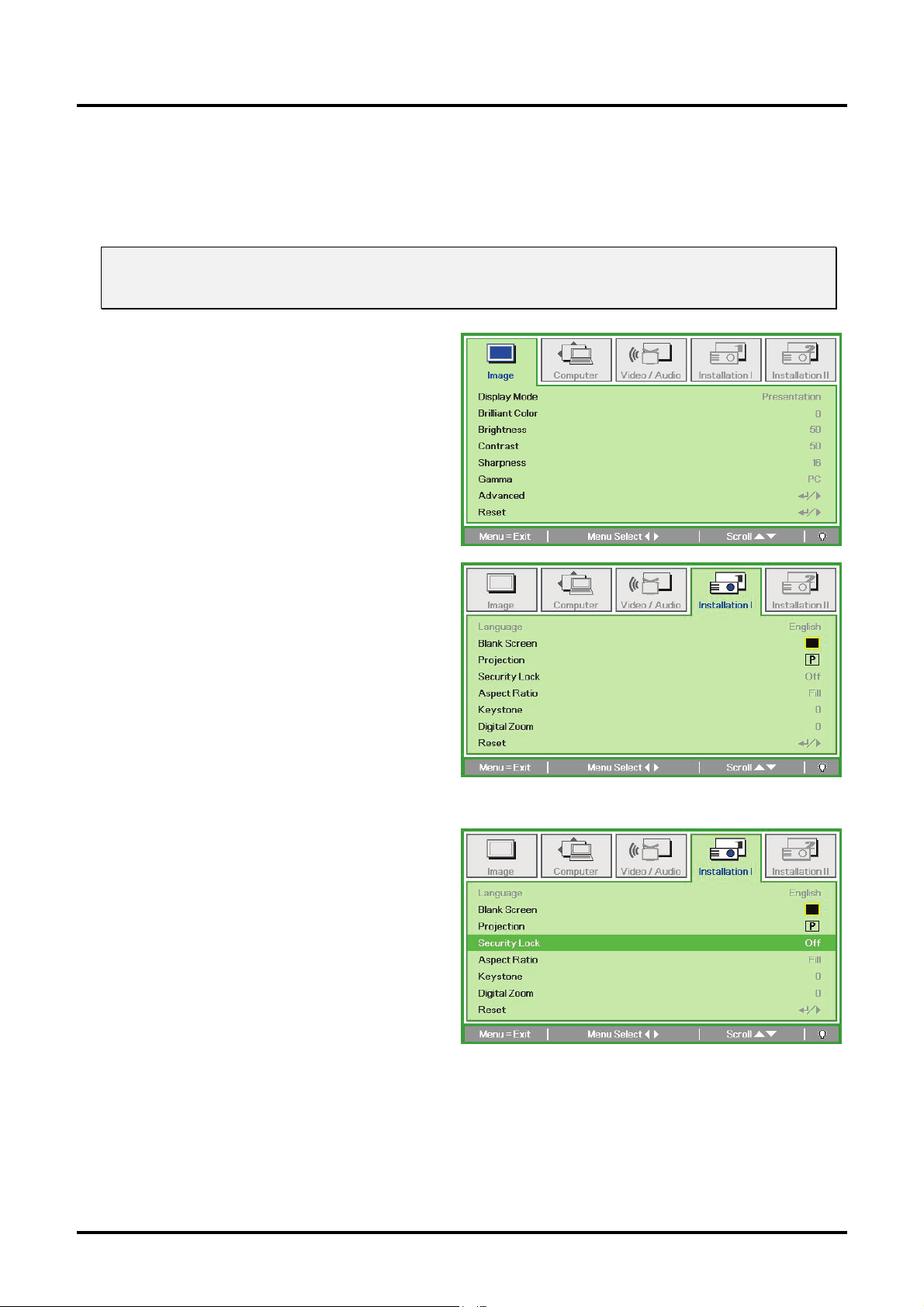

SETTING AN ACCESS PASSWORD (SECURITY LOCK) .......................................................................................................... 14

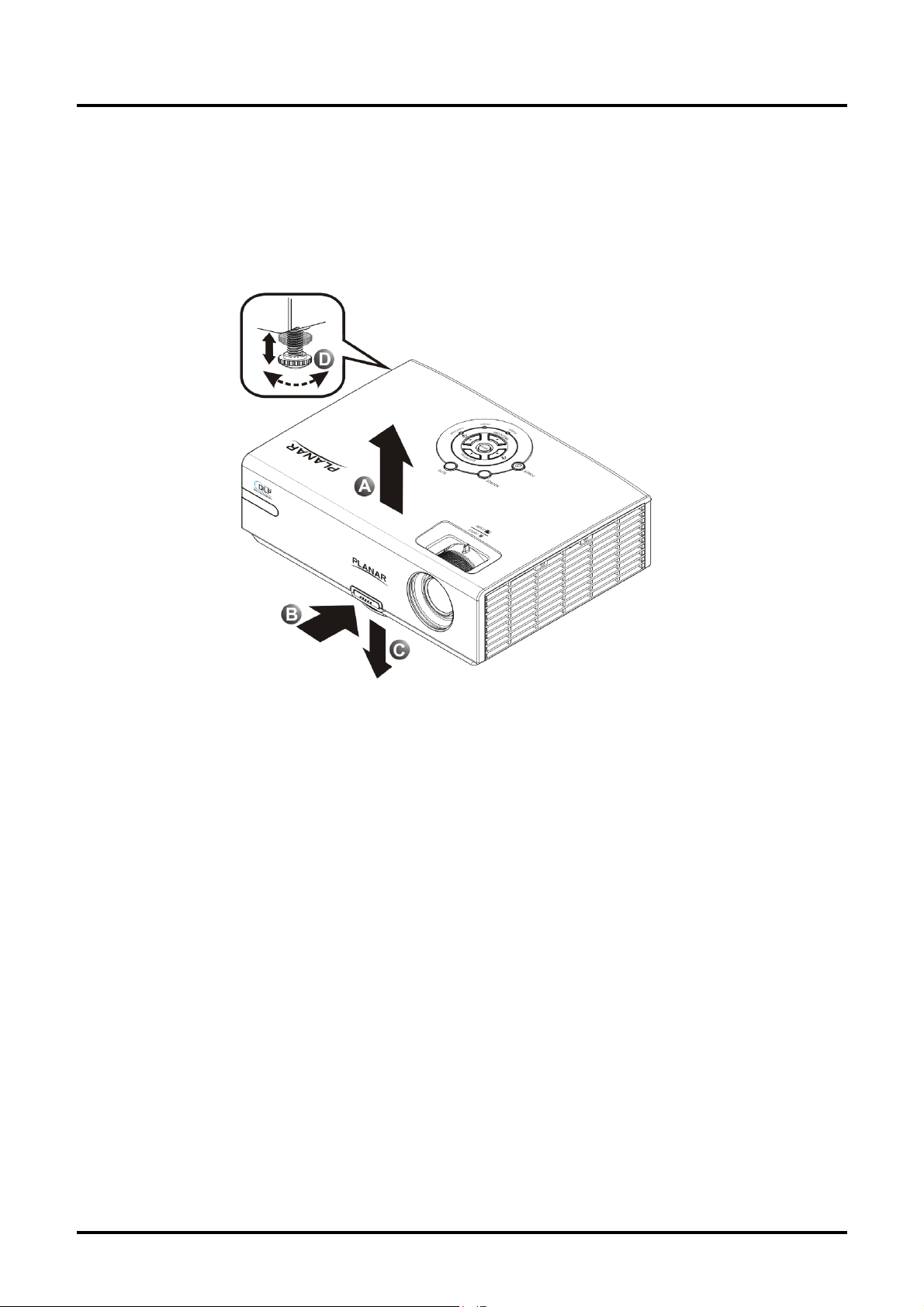

ADJUSTING THE PROJECTOR LEVEL ................................................................................................................................... 16

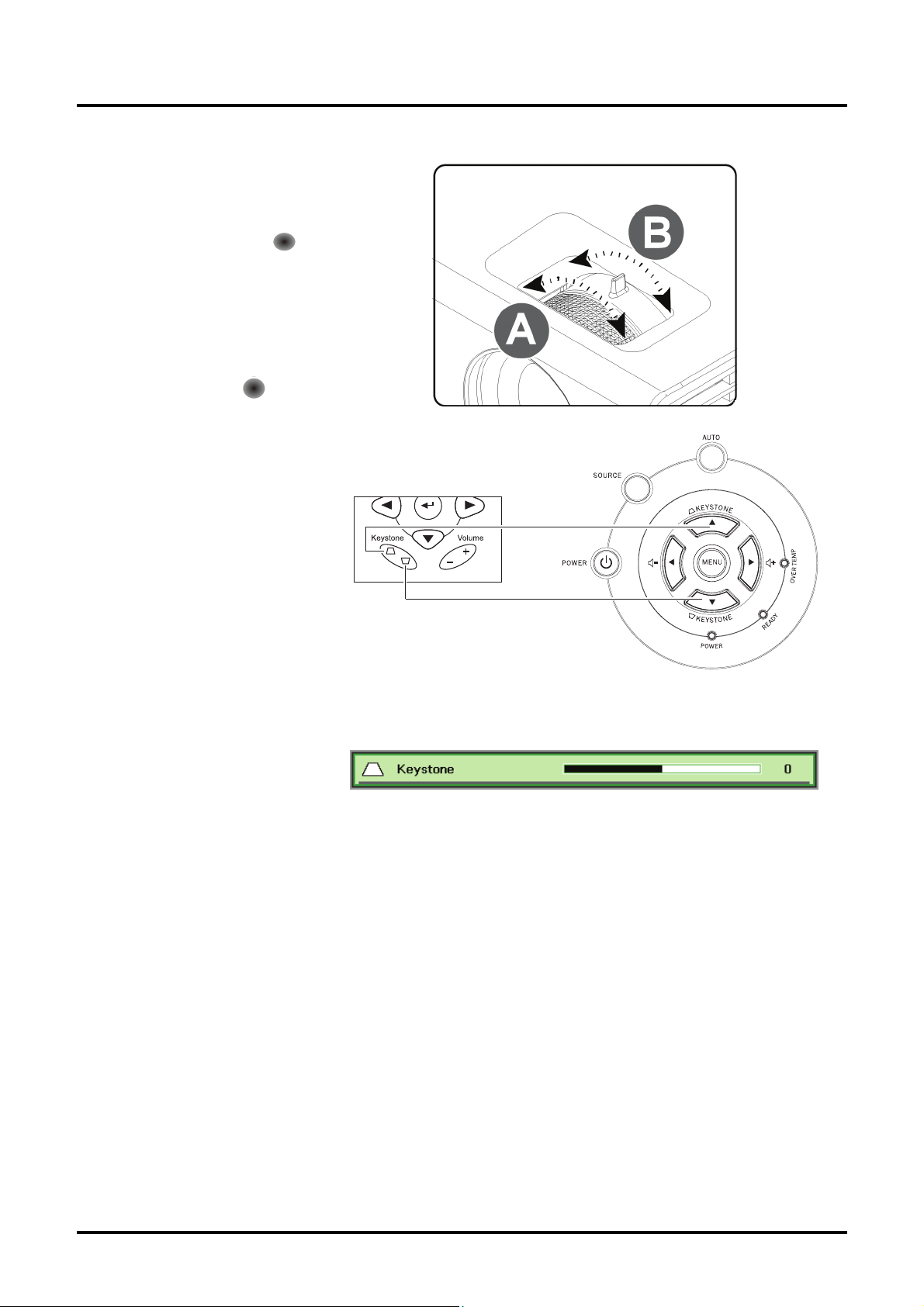

ADJUSTING THE ZOOM, FOCUS AND KEYSTONE ................................................................................................................ 17

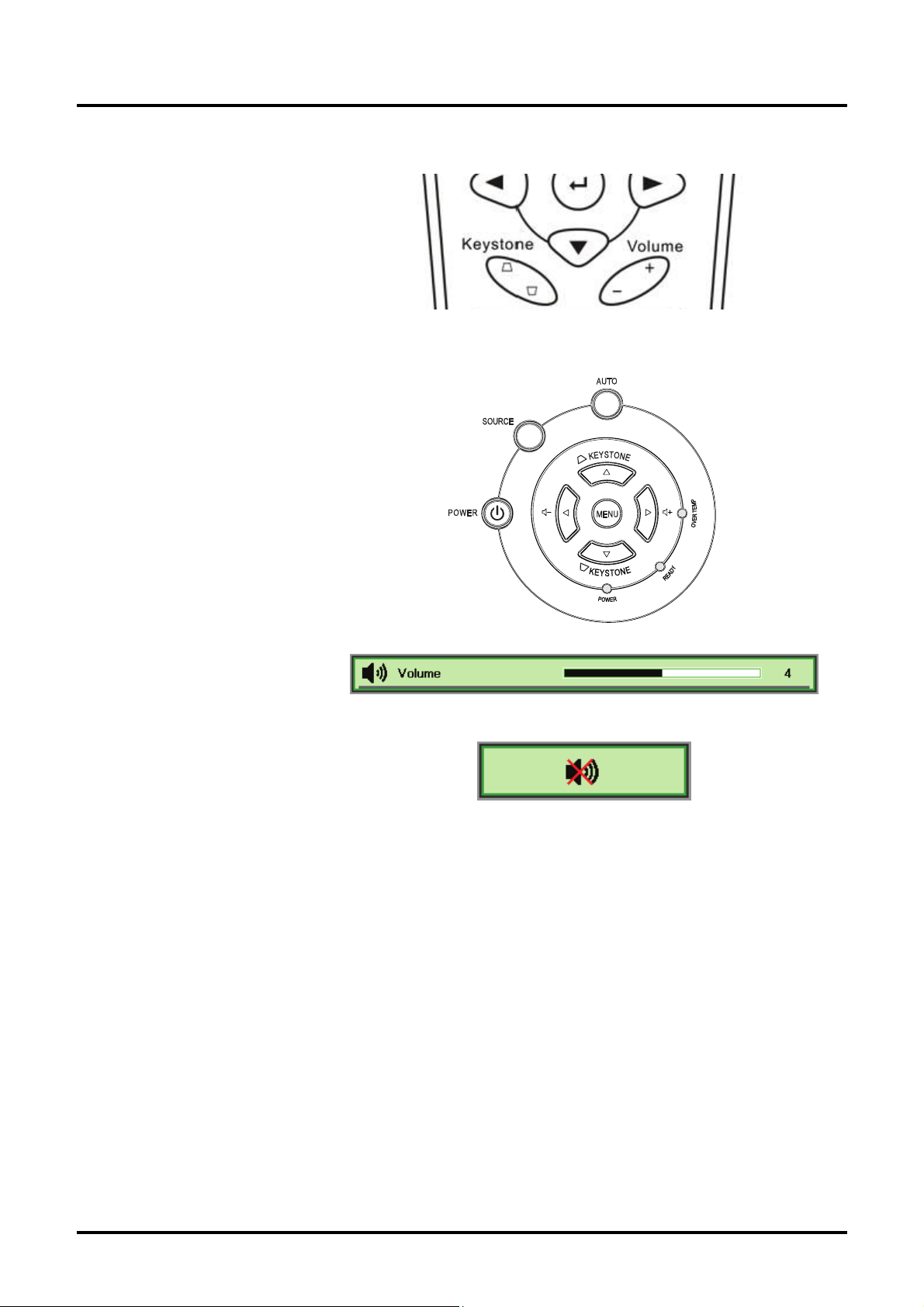

ADJUSTING THE VOLUME .................................................................................................................................................. 18
ON-SCREEN DISPLAY (OSD) MENU SETTINGS ...................................................................................................... 19

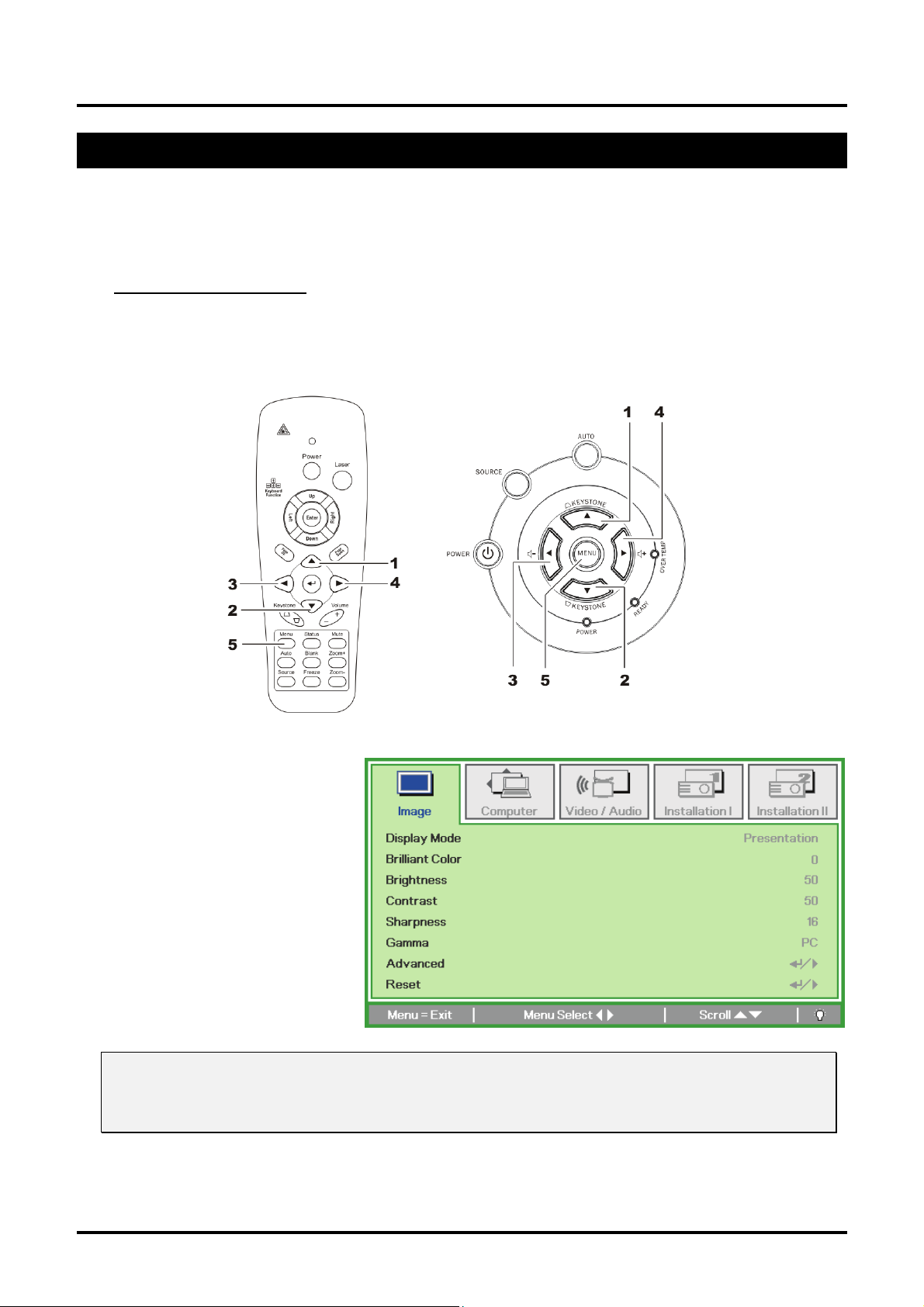

OSD MENU CONTROLS ..................................................................................................................................................... 19
Navigating the OSD ................................................................................................................................................... 19

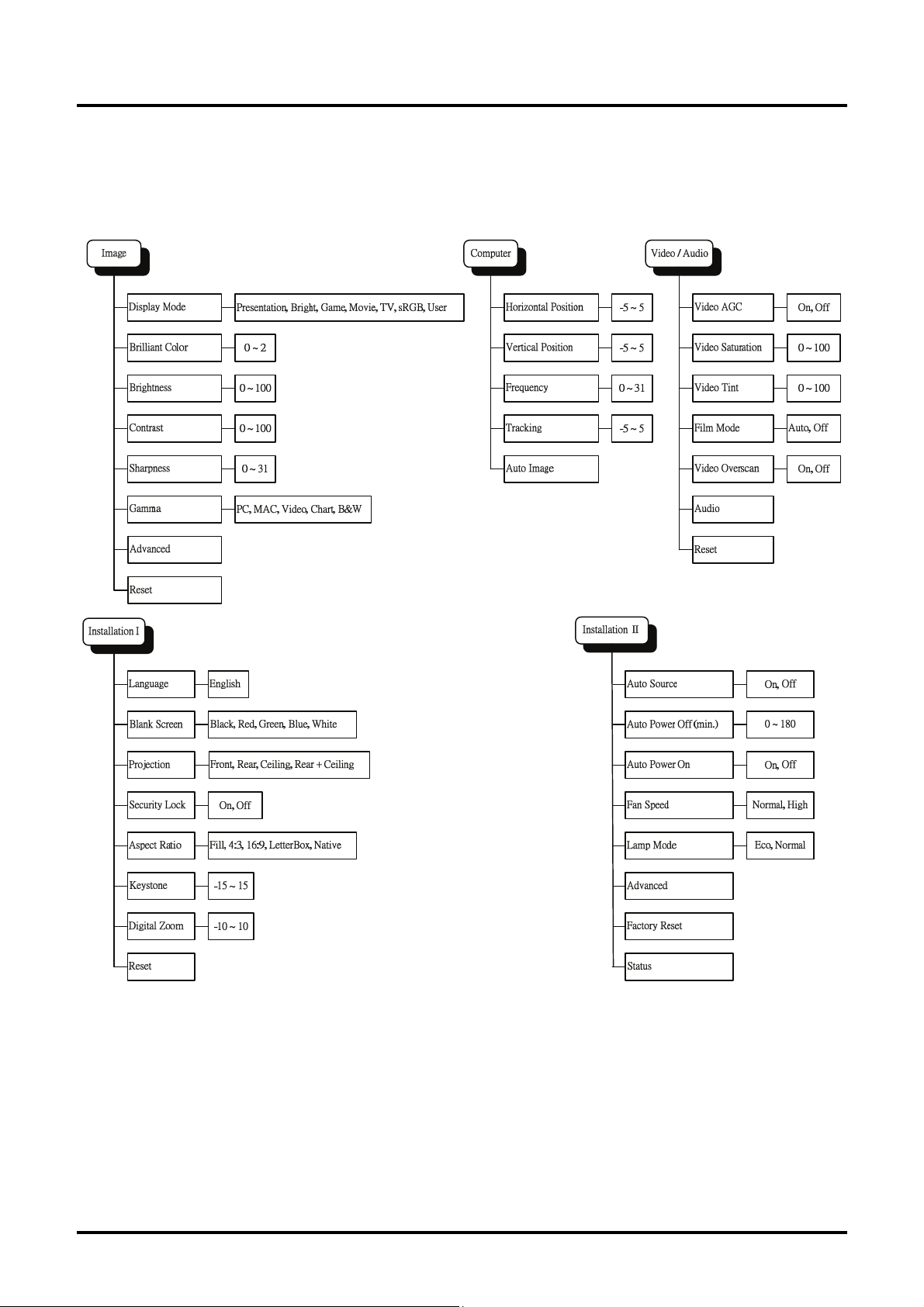

OSD MENU OVERVIEW ..................................................................................................................................................... 20

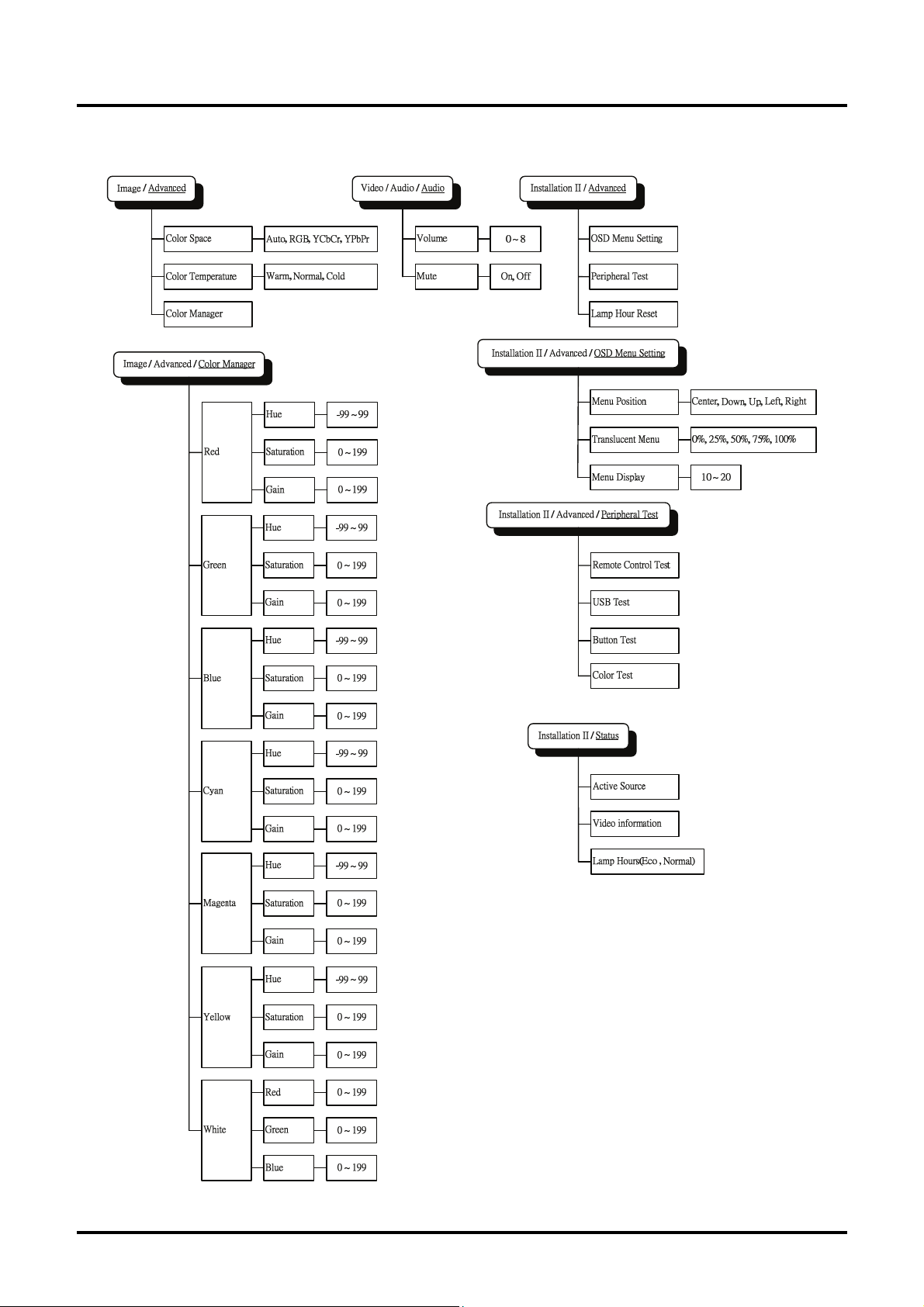

OSD SUB-MENU OVERVIEW ............................................................................................................................................. 21

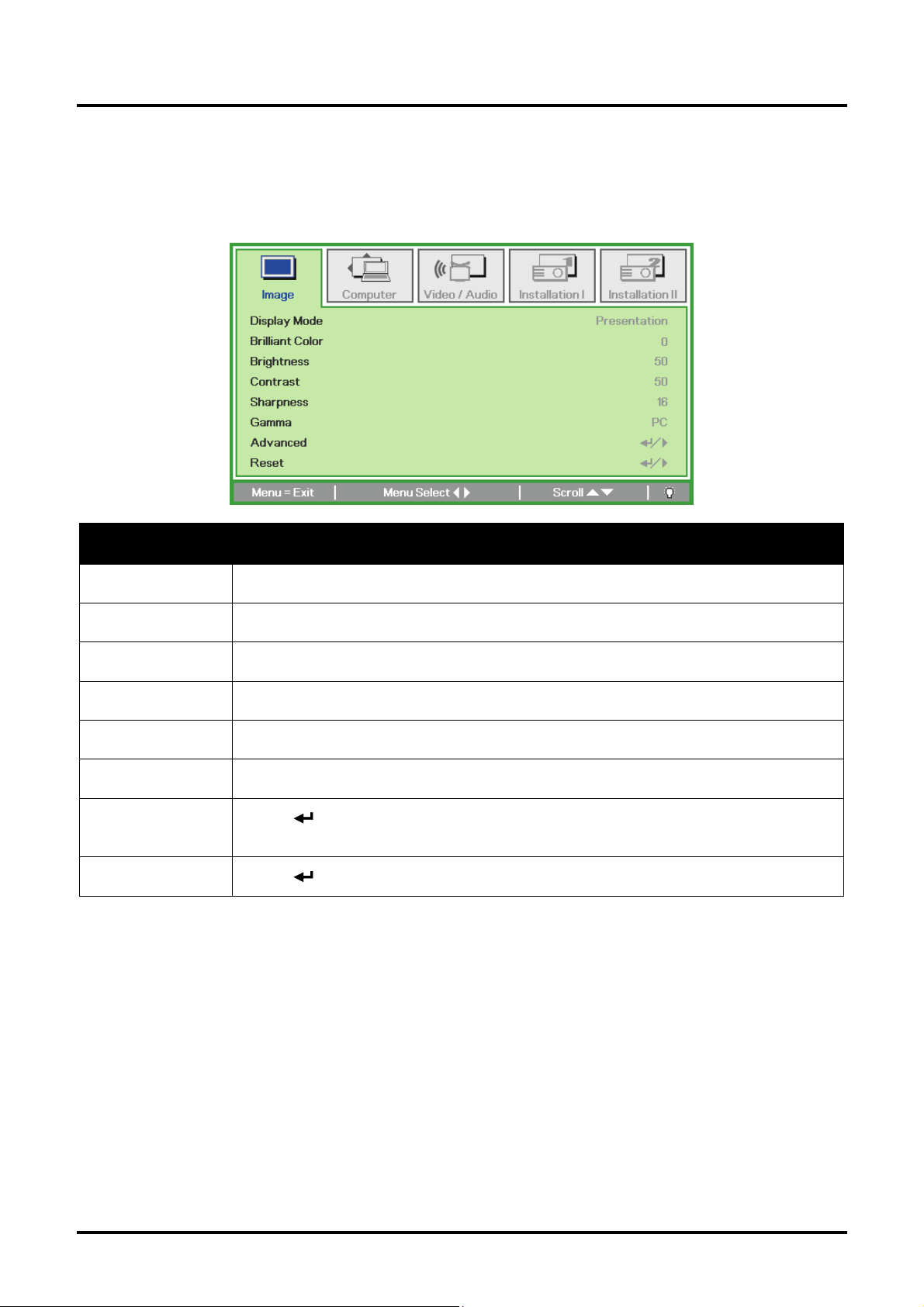

IMAGE MENU..................................................................................................................................................................... 22

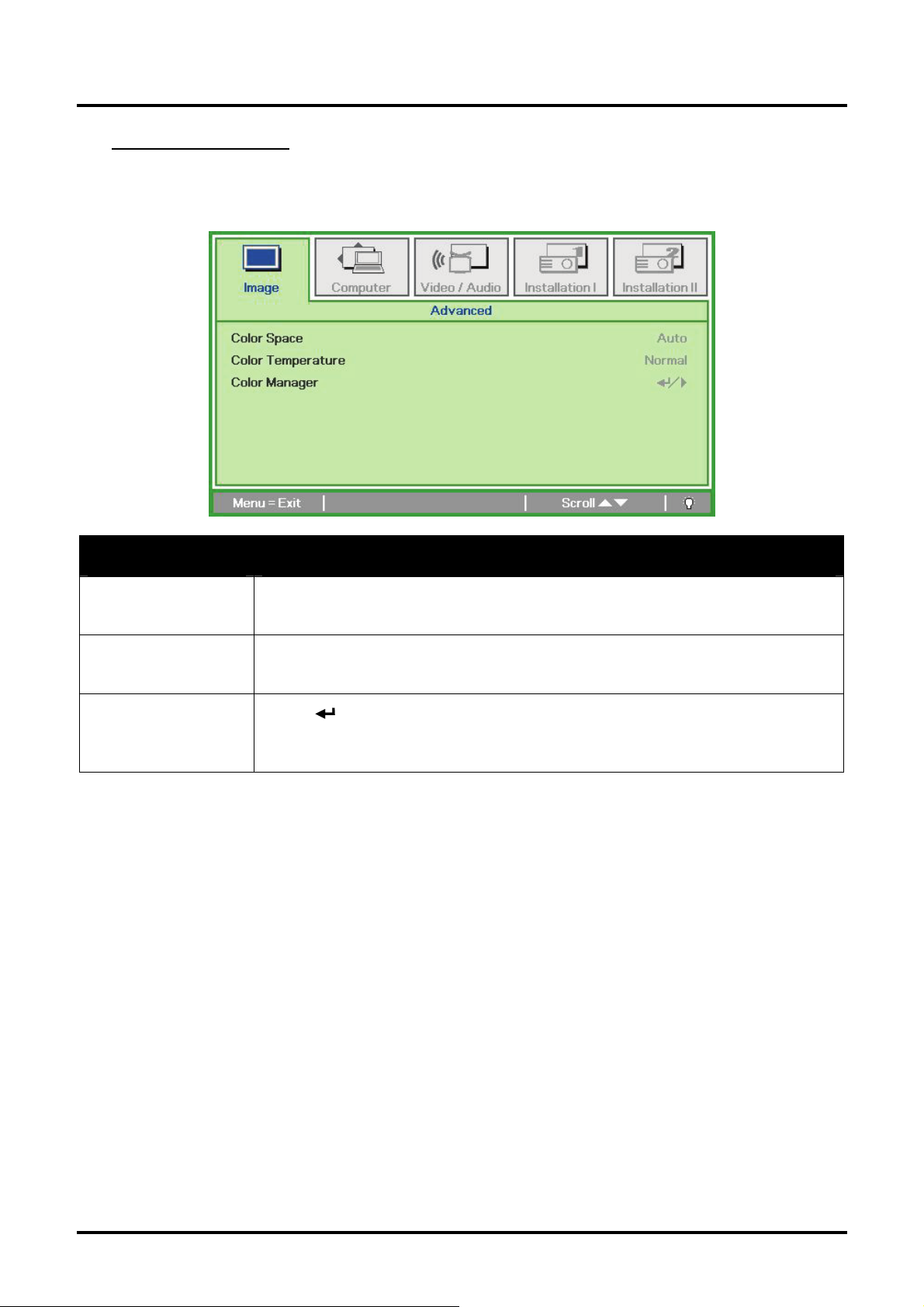

Advanced Feature...................................................................................................................................................... 23

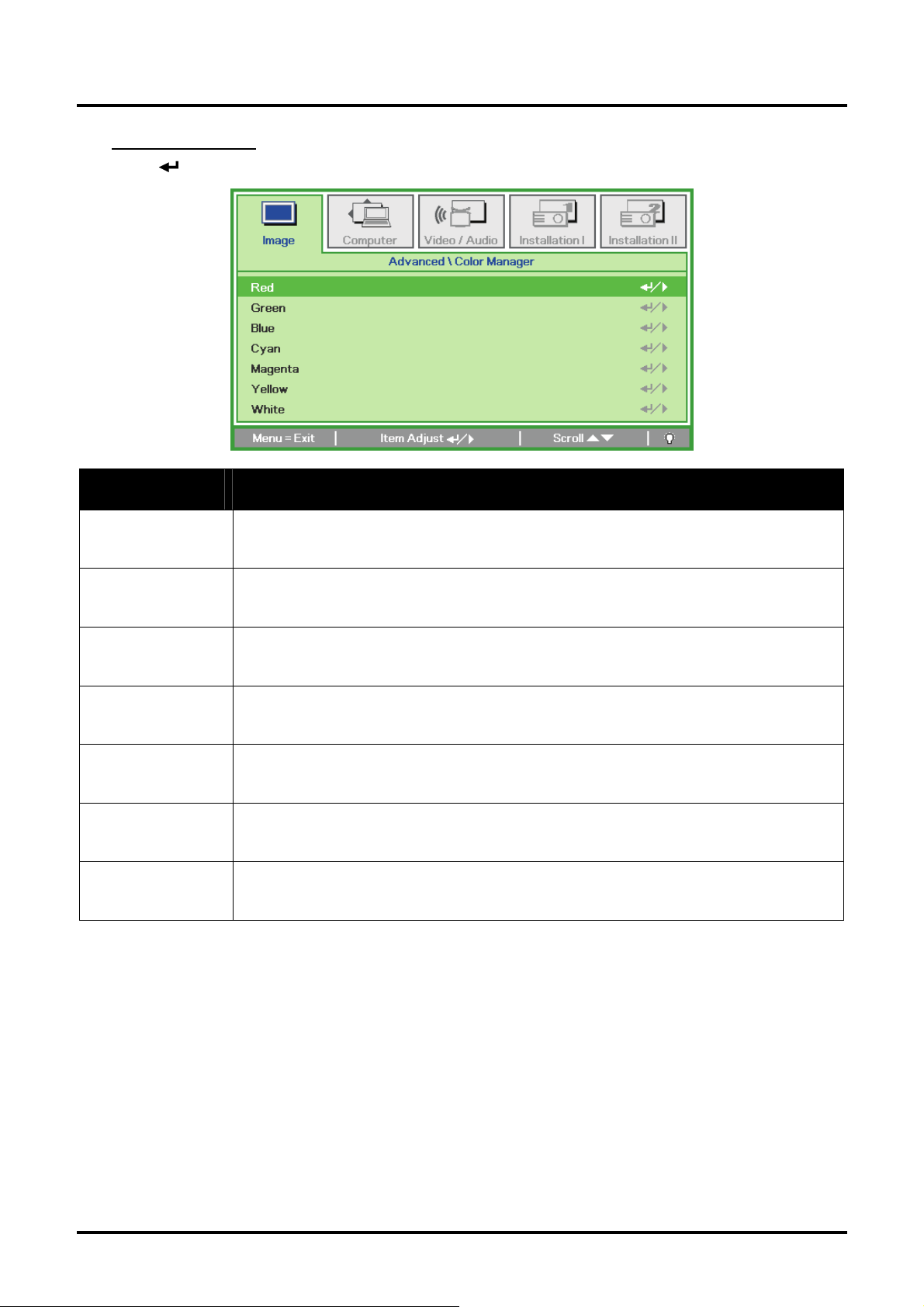

Color Manager ............................................................................................................................................................ 24

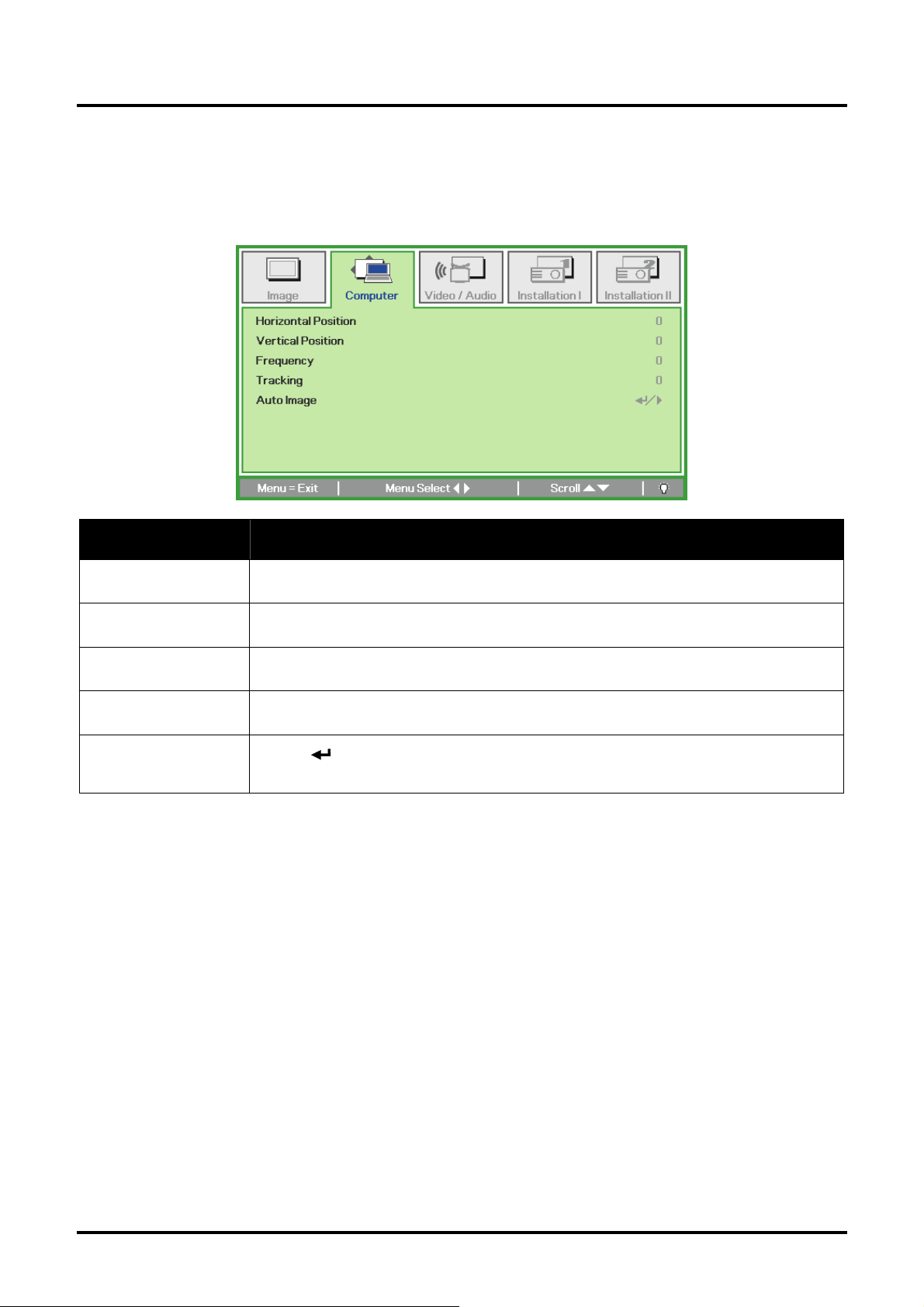

COMPUTER MENU.............................................................................................................................................................. 25 U

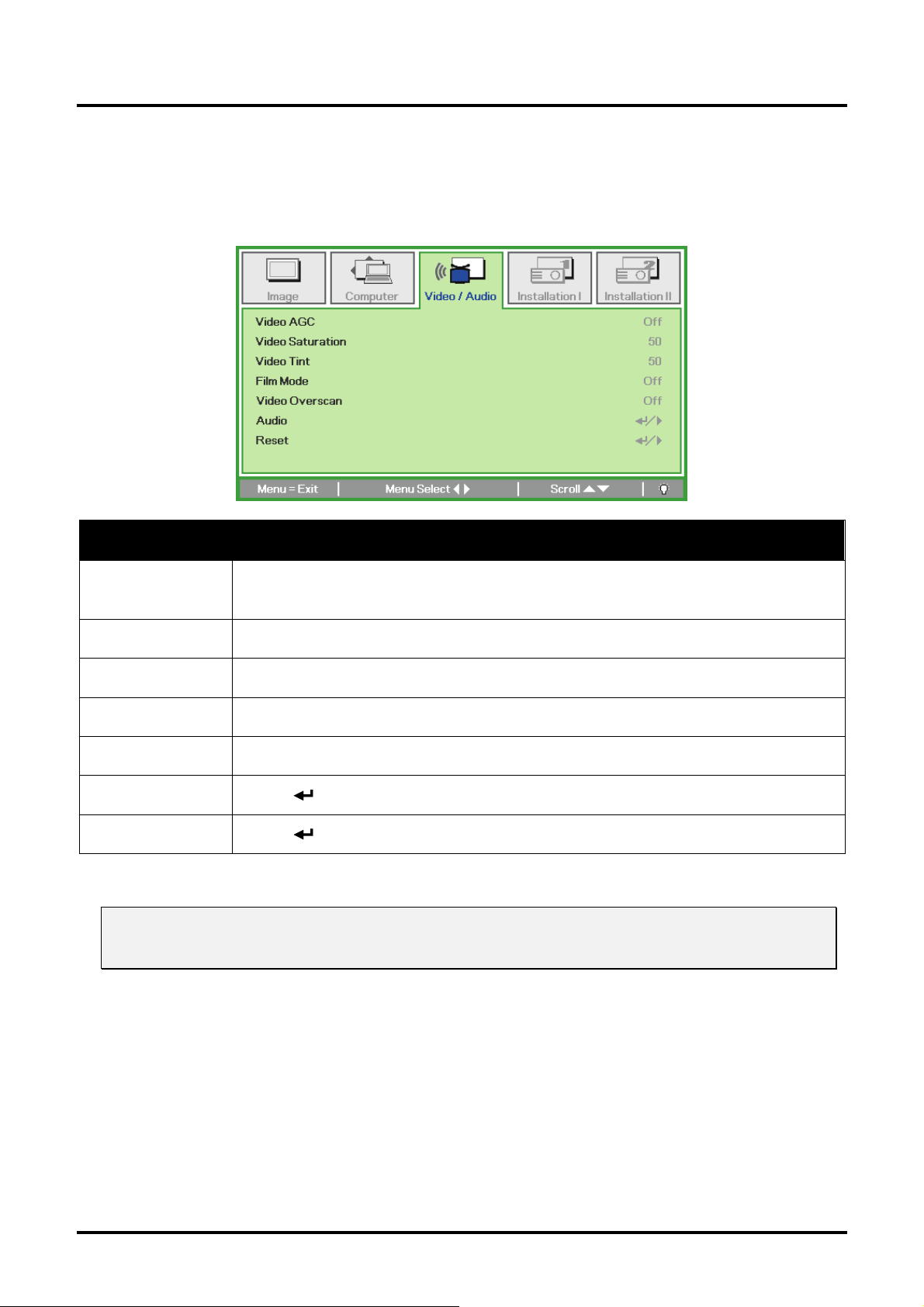

VIDEO/AUDIO MENU ......................................................................................................................................................... 26

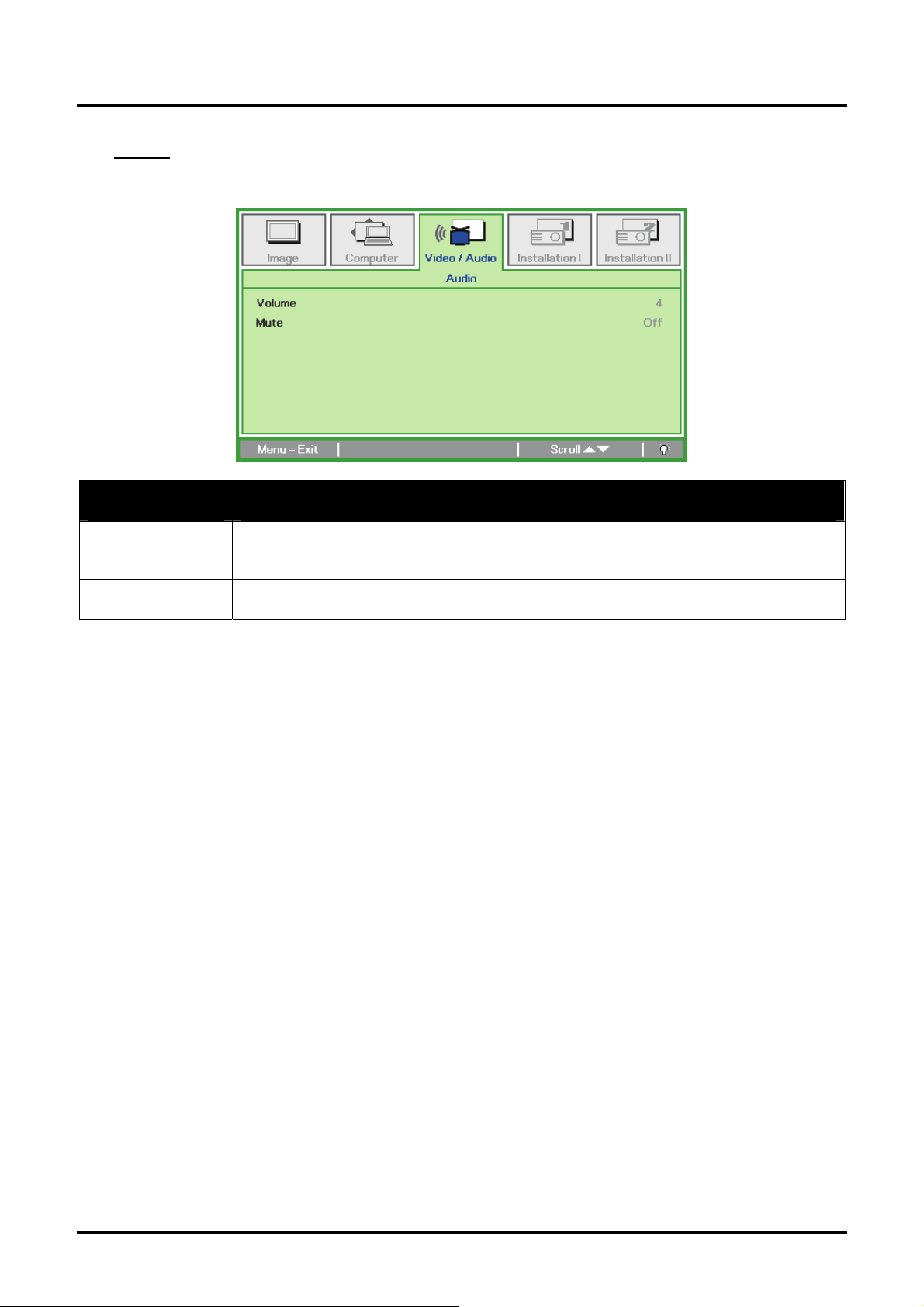

Audio ............................................................................................................................................................................ 27

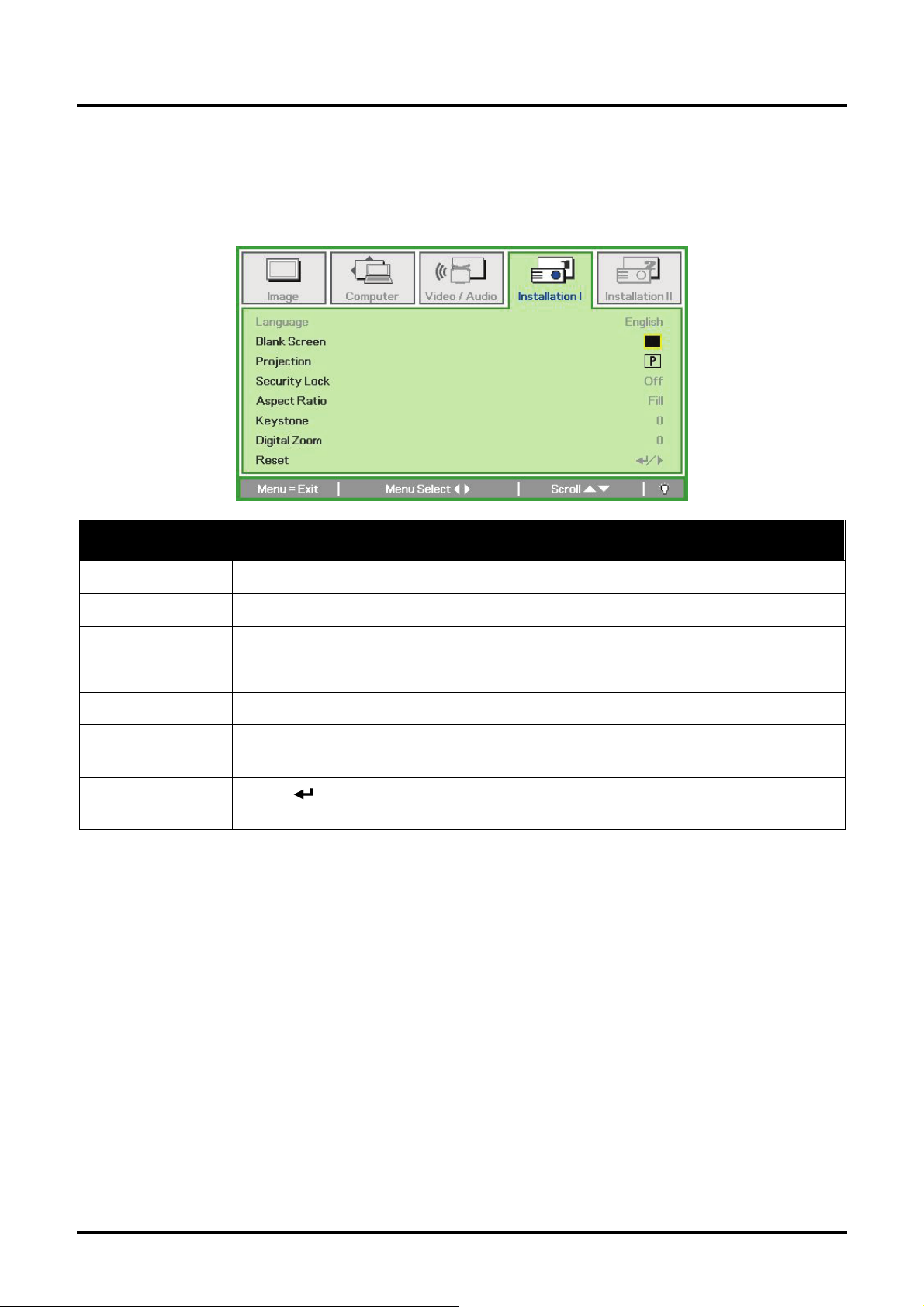

INSTALLATION I MENU ...................................................................................................................................................... 28

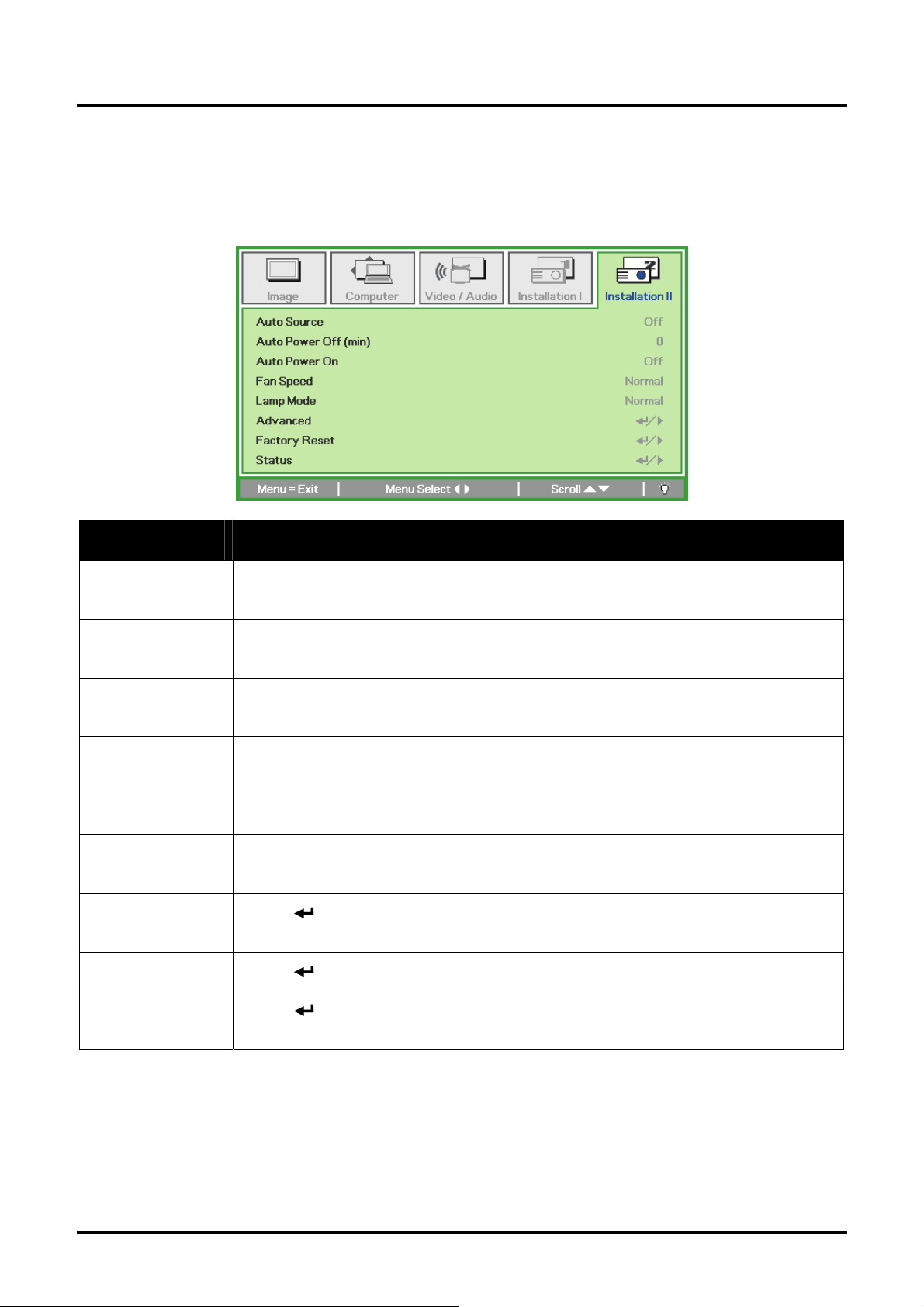

INSTALLATION II MENU..................................................................................................................................................... 29

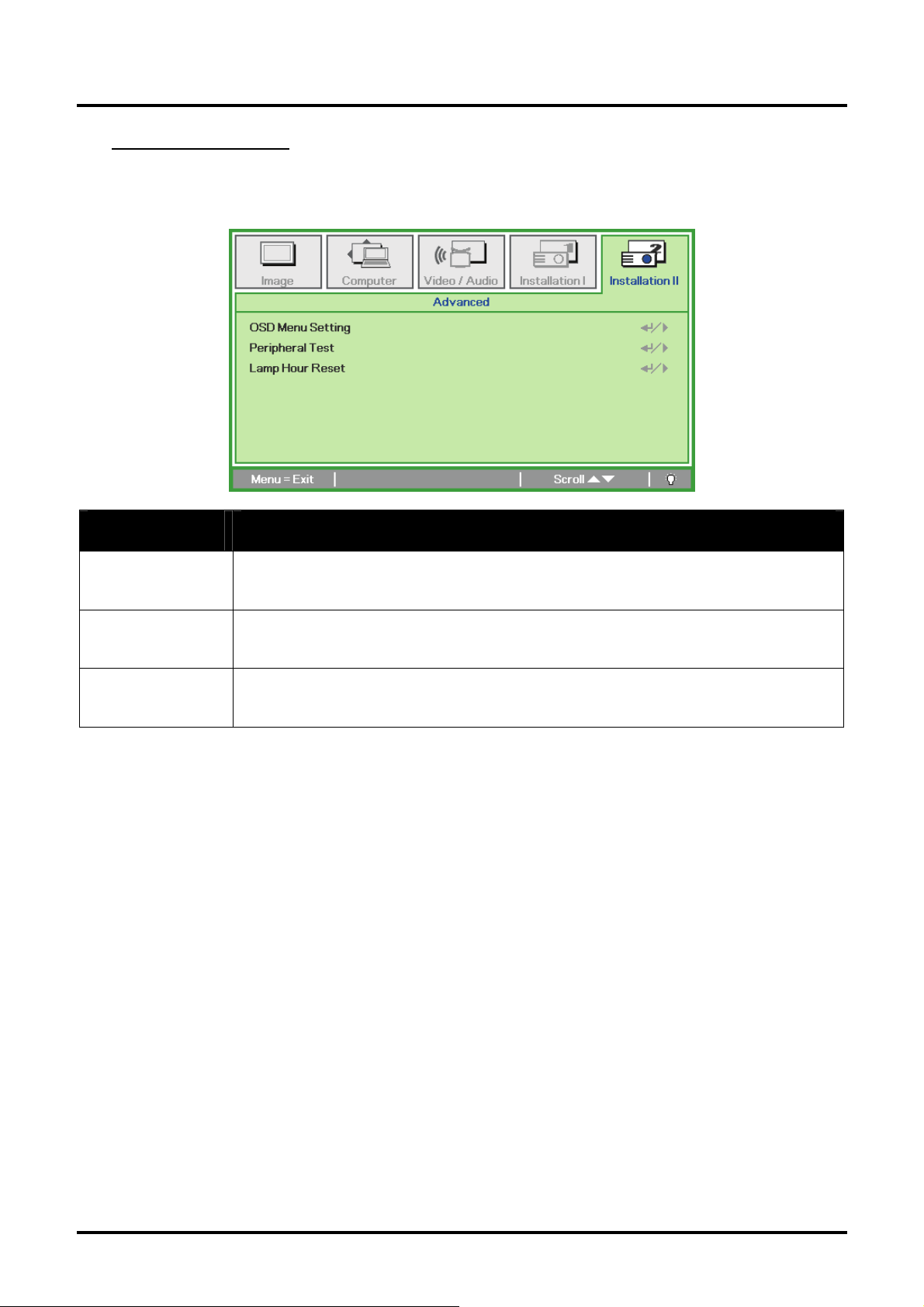

Advanced Feature...................................................................................................................................................... 30

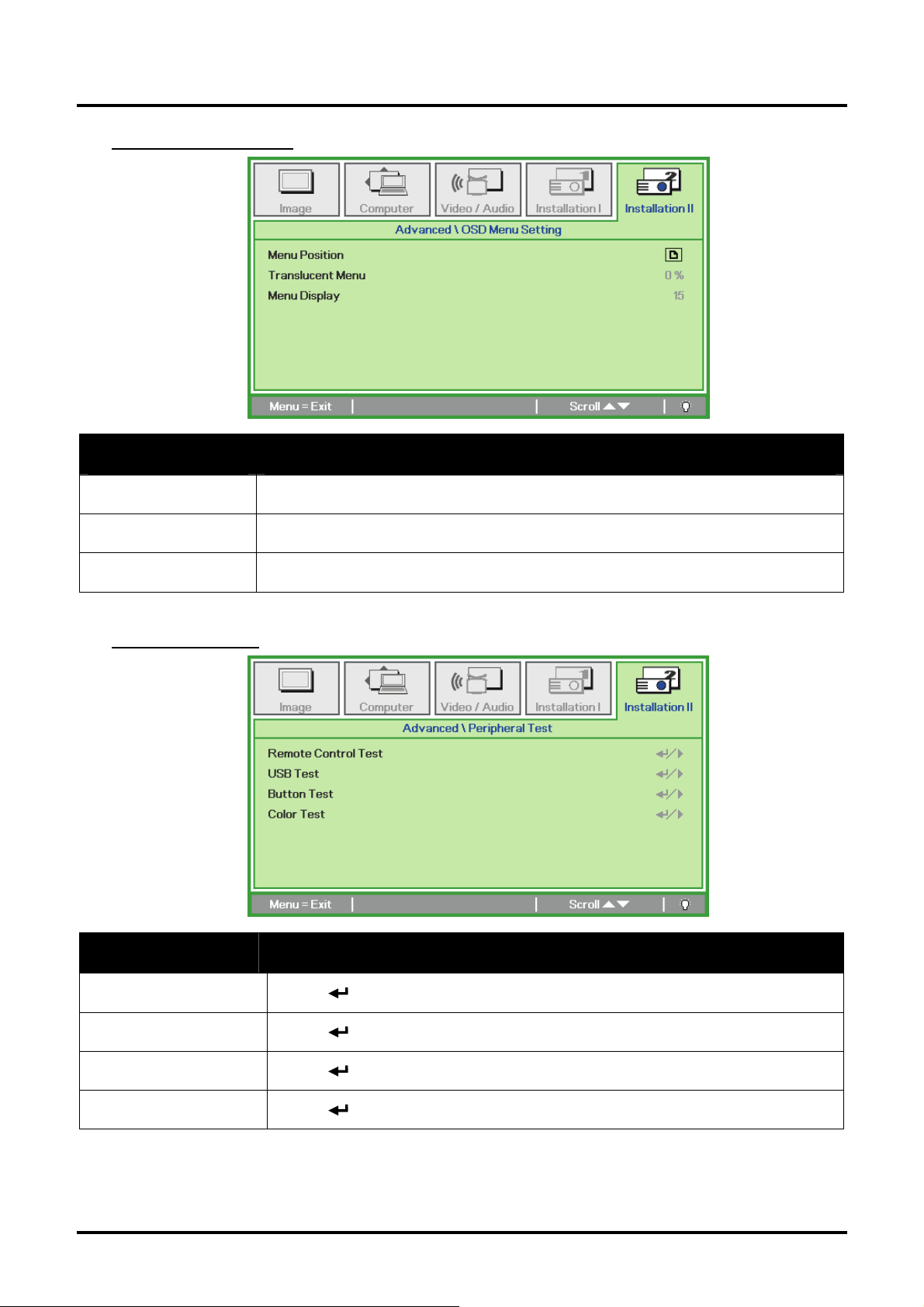

OSD Menu Setting ..................................................................................................................................................... 31
Peripheral Test ........................................................................................................................................................... 31

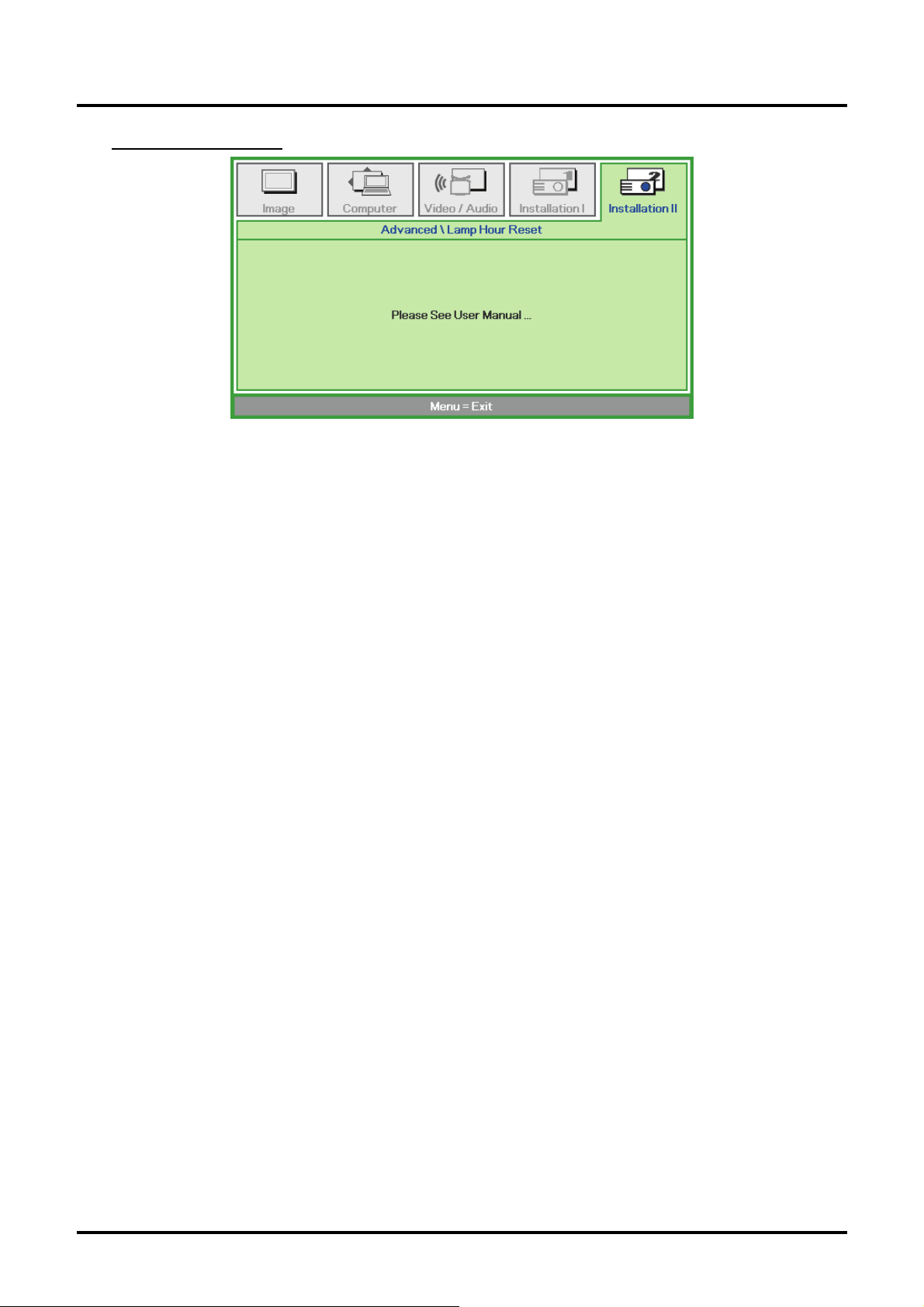

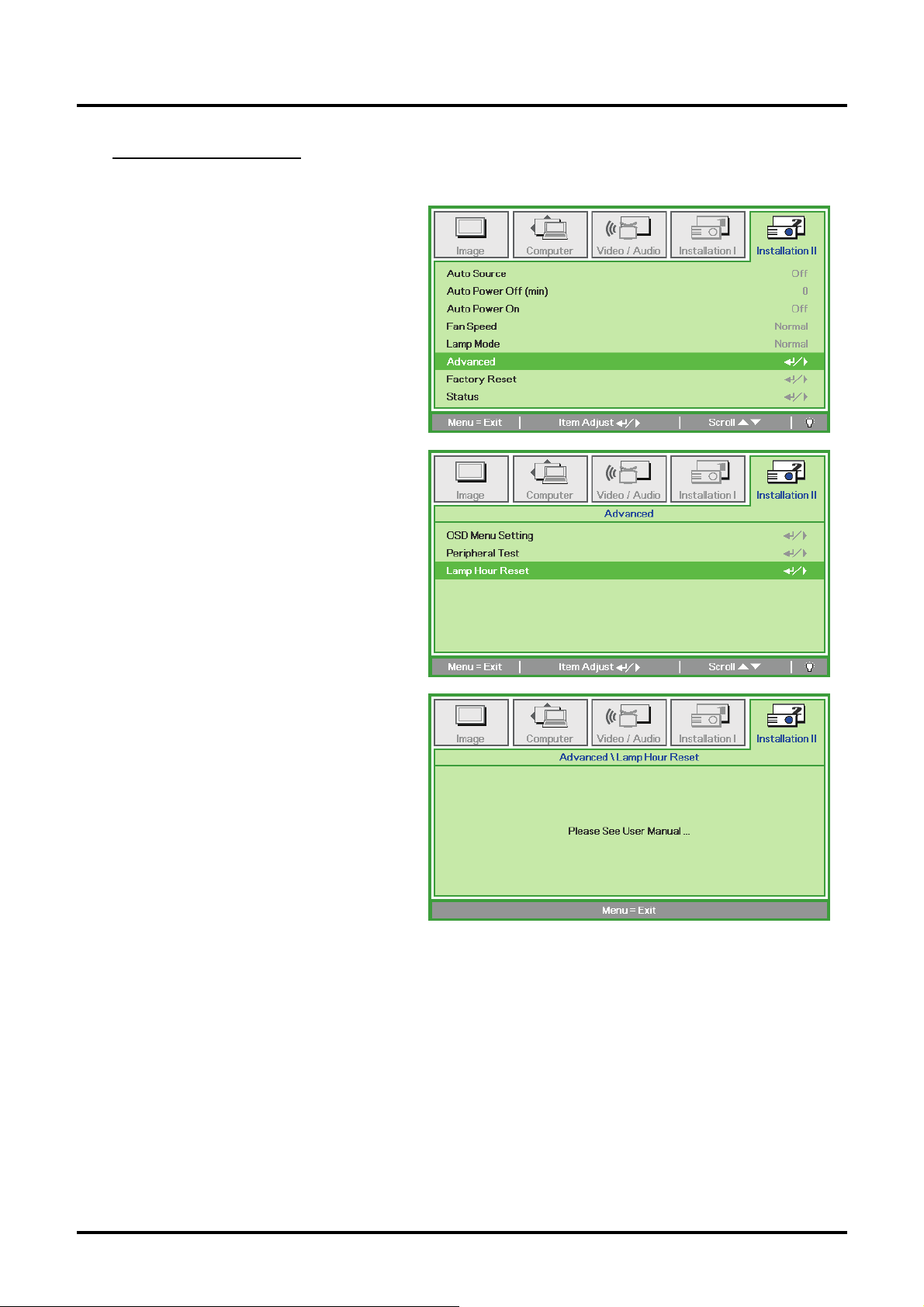

Lamp Hour Reset ....................................................................................................................................................... 32

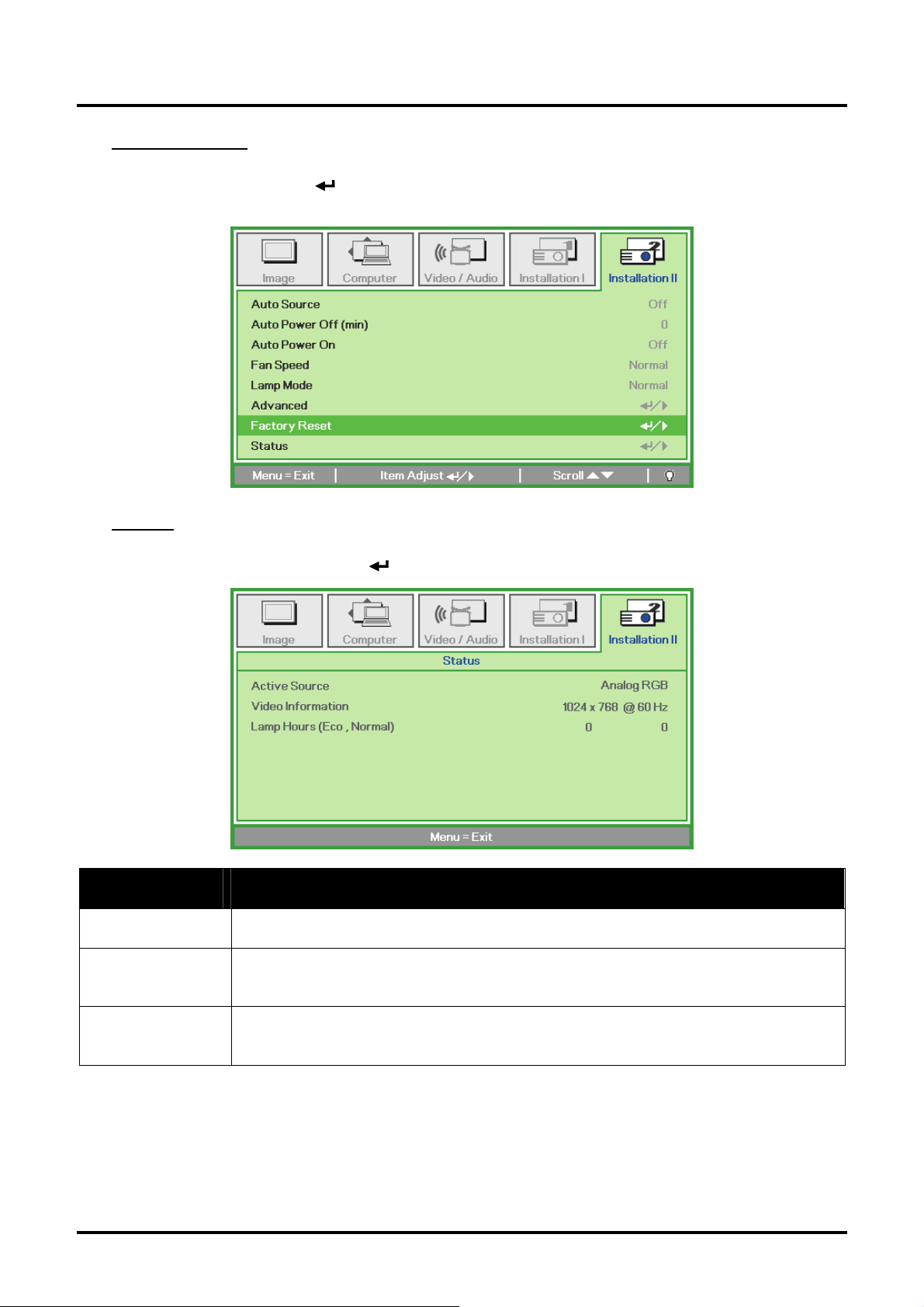

Factory Reset.............................................................................................................................................................. 33
Status ........................................................................................................................................................................... 33
MAINTENANCE AND SECURITY.................................................................................................................................. 34

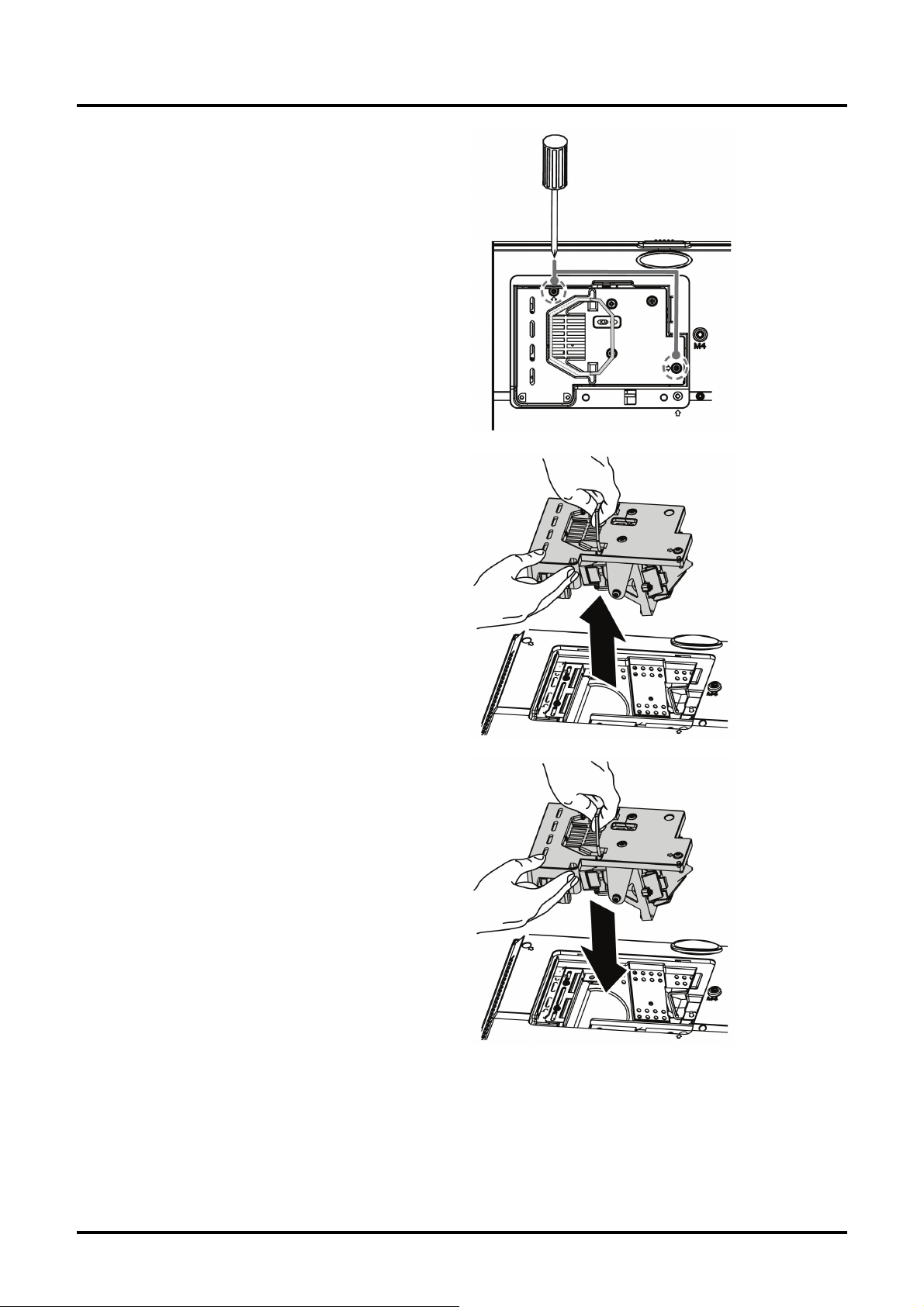

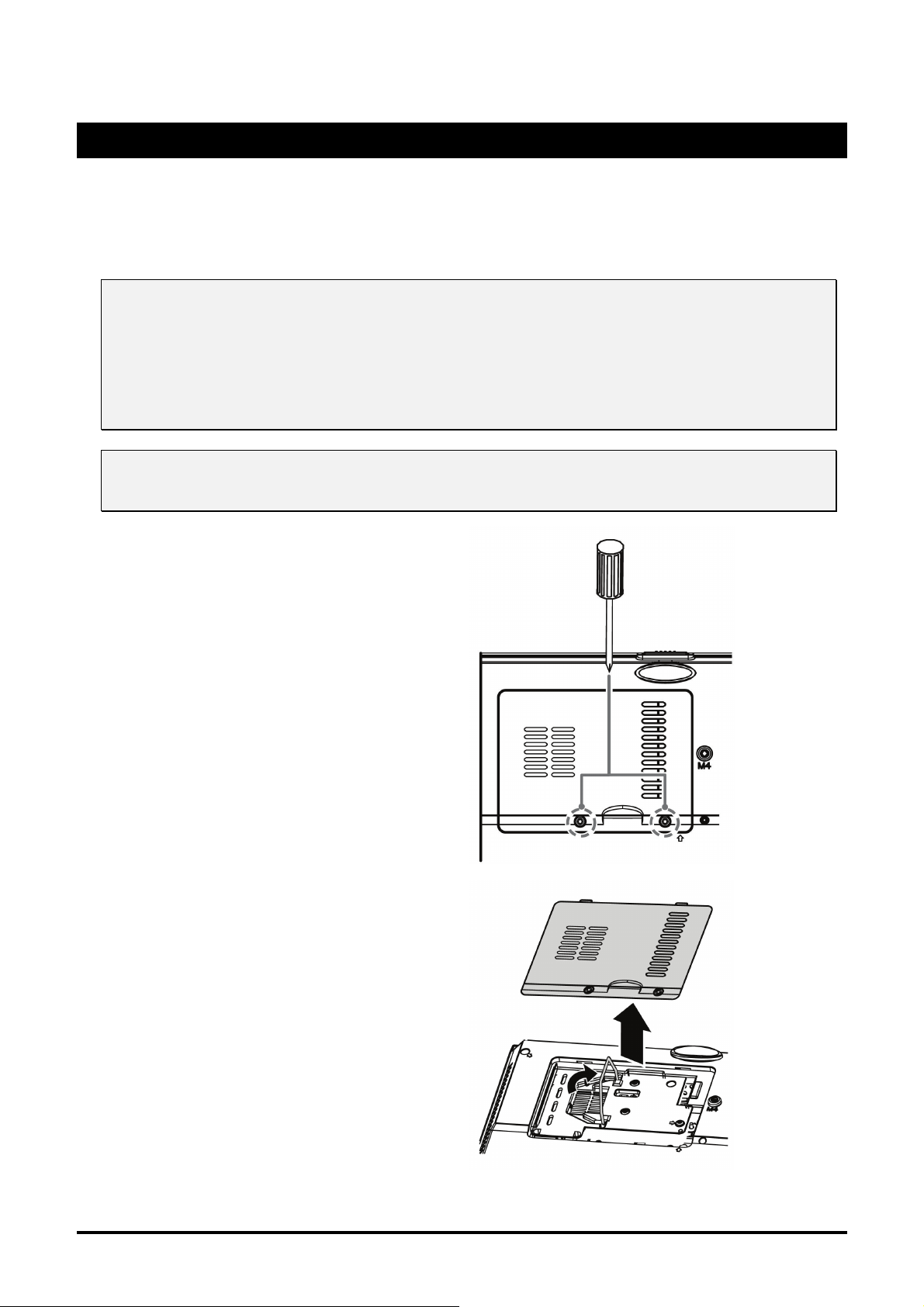

REPLACING THE PROJECTION LAMP................................................................................................................................... 34
Resetting the Lamp.................................................................................................................................................... 36
CLEANING THE PROJECTOR................................................................................................................................................ 37
Cleaning the Lens ...................................................................................................................................................... 37
Cleaning the Case...................................................................................................................................................... 37

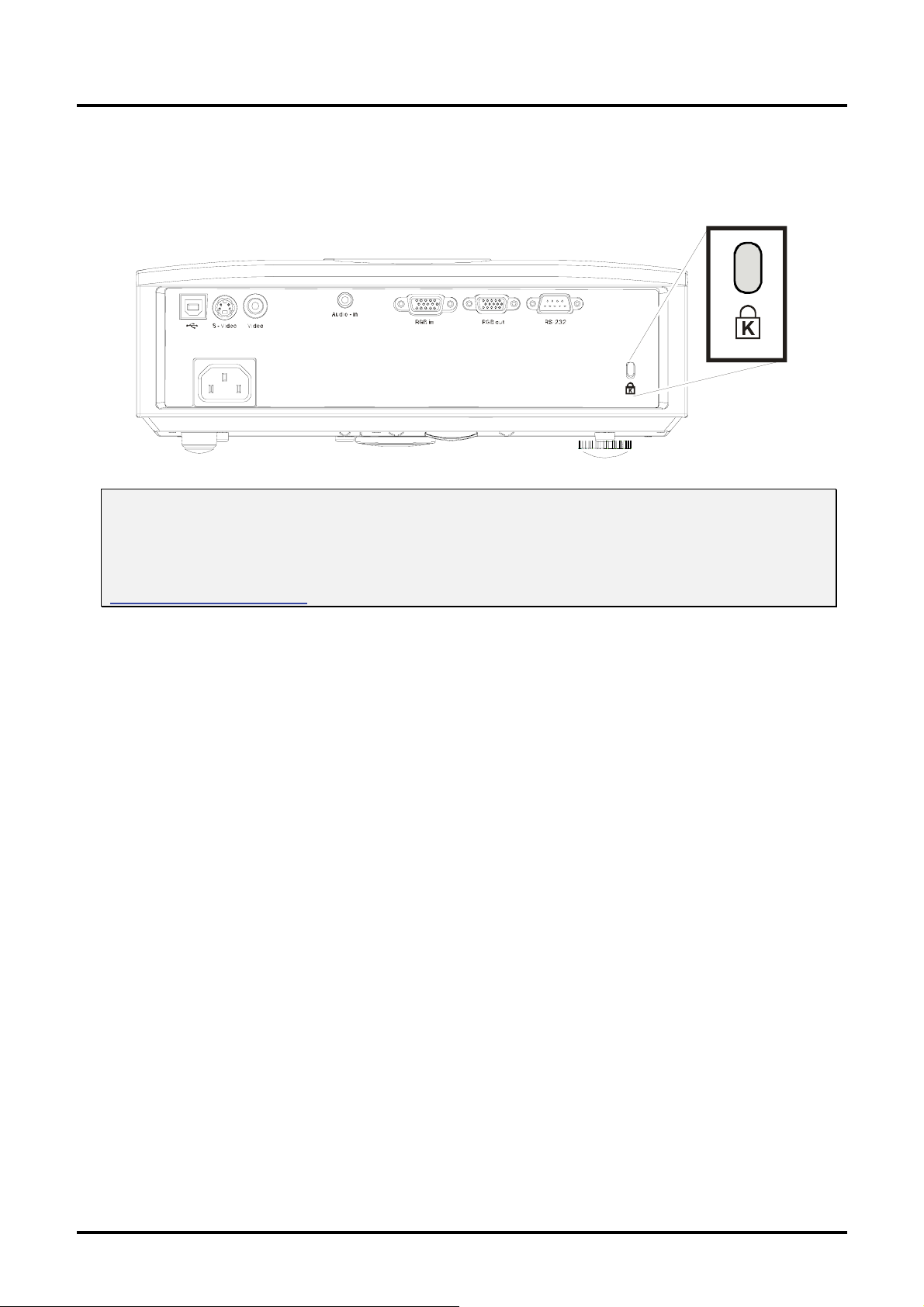

USING THE KENSINGTON® LOCK ...................................................................................................................................... 38
TROUBLESHOOTING...................................................................................................................................................... 39
COMMON PROBLEMS AND SOLUTIONS ............................................................................................................................... 39
TIPS FOR TROUBLESHOOTING ............................................................................................................................................ 39
LED ERROR MESSAGES..................................................................................................................................................... 40
IMAGE PROBLEMS.............................................................................................................................................................. 40
LAMP PROBLEMS ............................................................................................................................................................... 41
REMOTE CONTROL PROBLEMS .......................................................................................................................................... 41
AUDIO PROBLEMS ............................................................................................................................................................. 41
Check the audio cable connection.................................................................................................................................41
— vi —
Preface
HAVING THE PROJECTOR SERVICED .................................................................................................................................. 41
SPECIFICATIONS............................................................................................................................................................. 42
Input Connectors ........................................................................................................................................................ 42

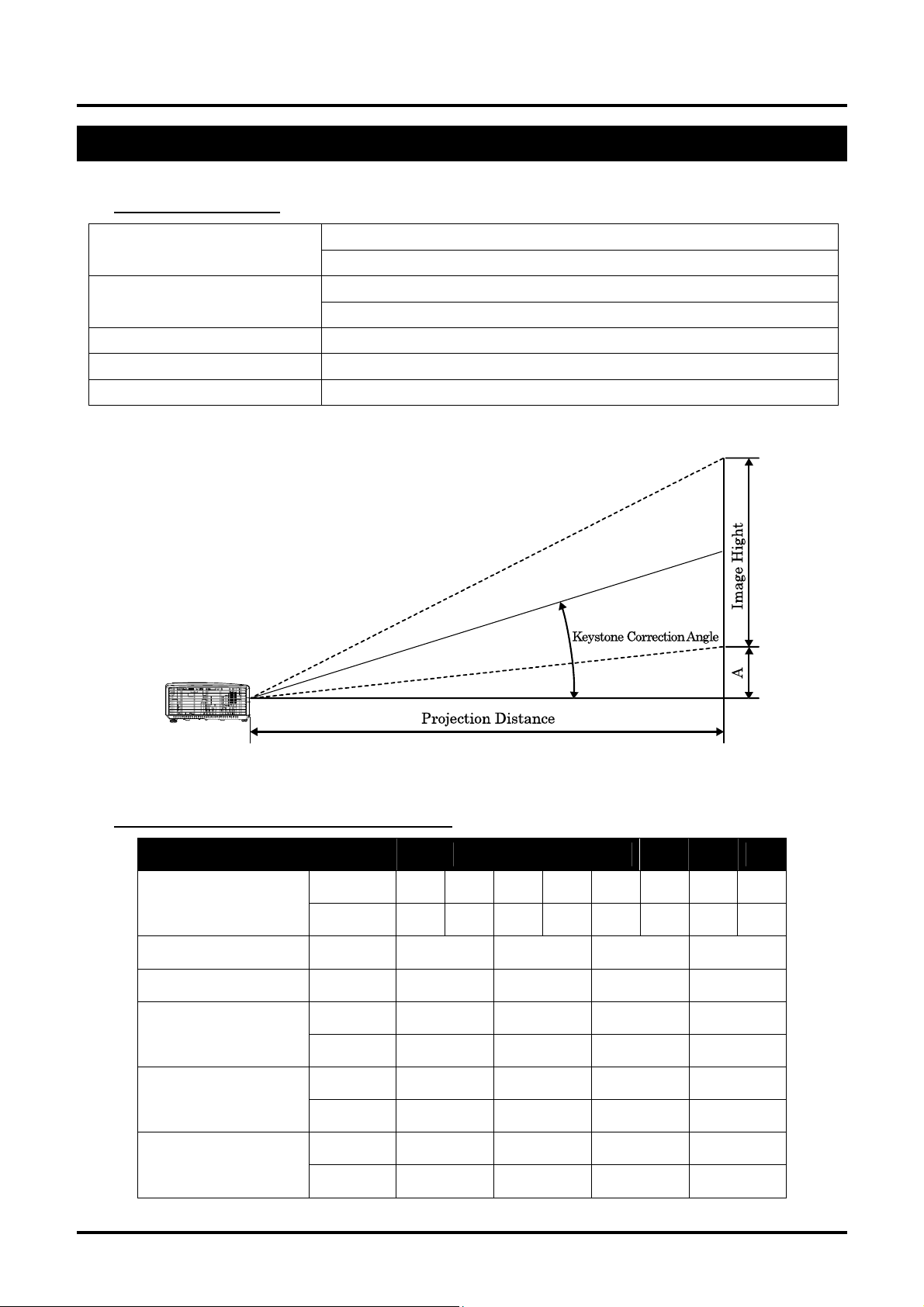

PROJECTION DISTANCE VS. PROJECTION SIZE.................................................................................................................... 42
Projection Distance and Size Table......................................................................................................................... 42
TIMING MODE TABLE ........................................................................................................................................................ 43

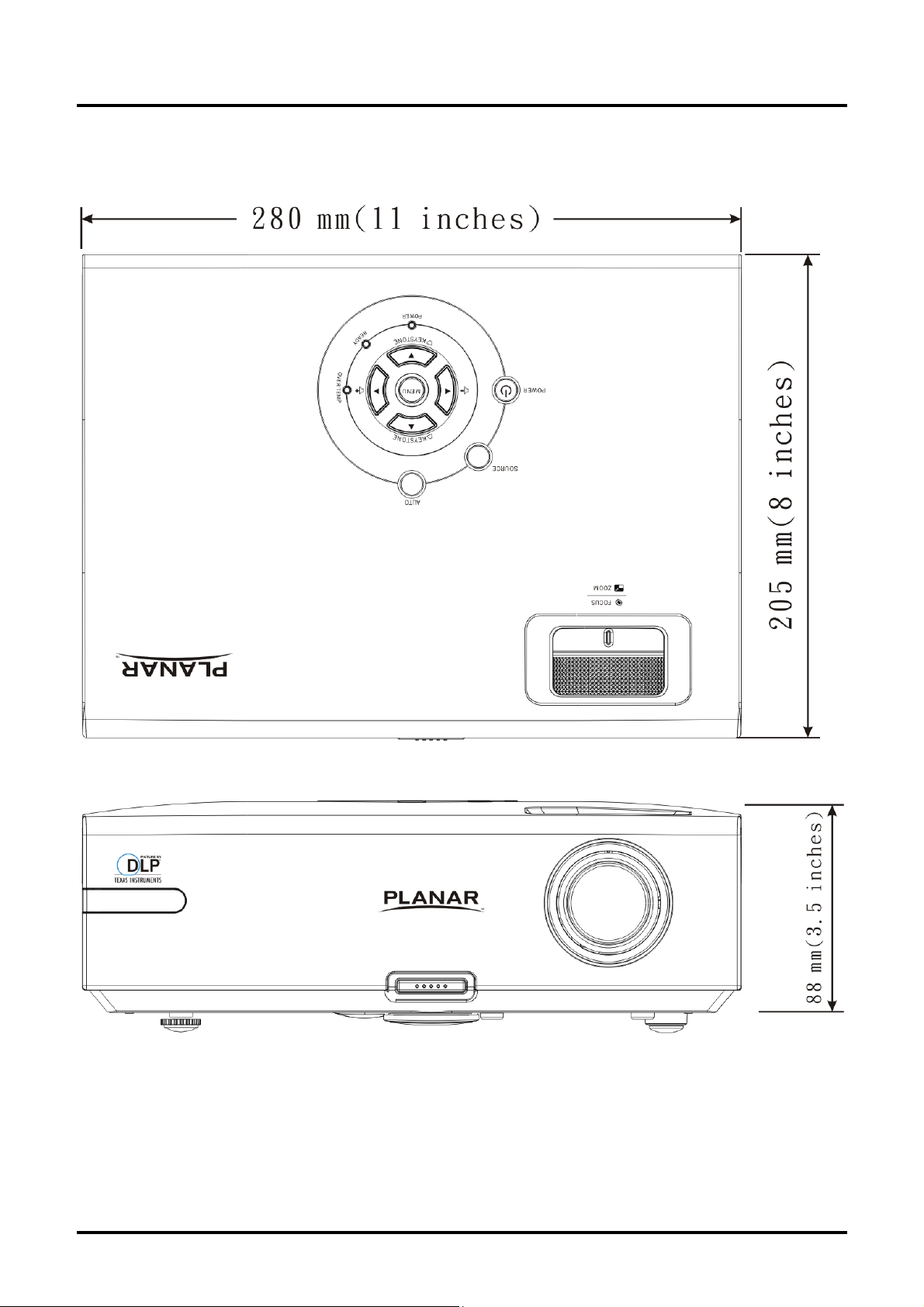

PROJECTOR DIMENSIONS ................................................................................................................................................... 45
REGULATORY COMPLIANCE....................................................................................................................................... 46
FCC WARNING .................................................................................................................................................................. 46
SAFETY CERTIFICATIONS ................................................................................................................................................... 46
EN 55022 WARNING ......................................................................................................................................................... 46
— vii —
Packing Checklist
Carefully unpack the projector and check that the following items are included:
Getting Started
PR5021 DLP projector Remote control
(with one AAA battery)
RGB cable Power cord RGB to Component
Adapter (Optional)
Contact your dealer immediately if any items are missing, appear damaged, or if the unit does not work. It
is recommend that you keep the original packing material should you ever need to return the equipment
for warranty service.
CD-ROM
(This User’s manual)
Caution:
Avoid using the projector in dusty environments.
– 1 –
DLP® Projector – User’s Manual
Views of Projector Parts
Front-right View
Item Label Description See page:
1.
2.
3.
4.
5.
6.
7.
8.
Important:
Ventilation openings on the projector allow for good air circulation, which keeps the projector lamp
cool. Do not obstruct any of the ventilation openings.
IR receiver Receiver for IR signal from remote control
Height-adjuster button Push to release height adjuster
Height adjuster Adjusts level of projector
Lens cap Covers lens to protect when not in use
Lens Remove lens cap before use
Focus ring Focuses the projected image
Zoom ring Enlarges the projected image
Top view—On-screen Display (OSD) but-
Function keys
See
tons and LEDs
.
6
16
17
17
3
– 2 –
DLP® Projector – User’s Manual
Top view—On-screen Display (OSD) buttons and LEDs
Item Label Description See page:
1.
2.
3.
4.
5.
6.
7.
8.
(POWER)
SOURCE Detects the input device
AUTO Optimizes image size, position, and resolution
▲ (Up cursor) /
KEYSTONE
► (Right cursor) / VOL.
OVER TEMP LED
READY LED
POWER LED
Turns the projector On or Off
Navigates and changes settings in the OSD
Quick Menu – For Keystone
Navigates and changes settings in the OSD
Quick Menu – For Volume
On System over temperature
Off Normal State
Orange Lamp is ready to be powered-on.
Flashing
Green Power On
Off Power Off (AC Off)
Flashing Error code
Lamp not ready (Warm-up/shutting down/cooling)
LED Error Messages on page 40)
(see
12
11
19
9.
10.
11.
▼ (Down cursor) /
KEYSTONE
MENU Open and exits the OSD buttons
◄ (Left cursor) / VOL
Navigates and changes settings in the OSD
Quick Menu – For Keystone
Navigates and changes settings in the OSD
Quick Menu – For Volume
— 3 —
19
DLP® Projector – User’s Manual
3
789
Rear view
12
456
Item Label Description See page:
1.
2.
AC IN Connect the power cable
(USB)
Connect the USB cable from a computer
(service only)
12
3.
4.
5.
6.
7.
8.
9.
S-video Connect the S-Video cable from a video device
Video Connect the video cable from a video device
Audio-in Connect the audio cable from the input device
RGB IN
RGB OUT Connect the RGB cable to a display
RS-232
(Security Lock)
Connect the RGB cable from a computer and
components
Connect RS-232 serial port cable for remote
control
Secure to permanent object with a Kensington®
Lock system
Note:
If your video equipment has both S-VIDEO and RCA jacks (composite video) connect to the
S-VIDEO connector. S-VIDEO provides a better quality signal.
11
38
– 4 –
Bottom view
DLP® Projector – User’s Manual
Item Label Description See page:
1.
2.
3.
4.
5.
Note:
When installing, ensure that you use only UL Listed ceiling mounts.
Ceiling support holes
Tilt adjustor Rotate adjuster lever to adjust angle position.
Lamp cover Remove when changing the lamp.
Height adjustor
Height adjustor button Push to release adjustor.
Contact your dealer for information on mounting the projector on a
ceiling
16
34
Adjuster drops down when adjuster button is
pushed.
16
— 5 —
DLP® Projector – User’s Manual
Remote Control Parts
Important:
1. Avoid using the projector with bright fluorescent lighting turned on. Certain high-frequency fluores-
cent lights can disrupt remote control operation.
2. Be sure nothing obstructs the path between the remote control and the projector. If the path between
the remote control and the projector is obstructed, you can bounce the signal off certain reflective surfaces such as projector screens.
3. The buttons and keys on the projector have the same functions as the corresponding buttons on the
remote control. This user’s manual describes the functions based on the remote control.
– 6 –
DLP® Projector – User’s Manual
Item Label Description See page:
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
IR transmitter Transmits signals to projector
Status LED Lights when the remote control is used
Laser Press to operate the on-screen pointer
Up Up arrow when connected through USB to a PC
Right Right arrow when connected through USB to a PC
Down Down arrow when connected through USB to a PC
Page Down Page down when connected through USB to a PC
Up cursor
Right cursor
Down cursor
Volume +/- Adjusts volume
Mute Mutes the built-in speaker
Navigates and changes settings in the OSD
19
18
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
Zoom+ Zoom in
Zoom- Zoom out
Freeze Freeze/unfreezes the on-screen picture
Blank Makes the screen blank
Source Detects the input device
Auto Auto adjustment for phase, tracking, size, position
Menu Opens the OSD
Status
Keystone top/bottom Corrects image-trapezoid (wider top/bottom) effect
Left cursor Navigates and changes settings in the OSD
Enter Changes settings in the OSD
Opens the OSD Status menu (the menu only opens
when an input device is detected)
19
29
17
19
24.
Page Up Page up when connected through USB to a PC
— 7 —
DLP® Projector – User’s Manual
Item Label Description See page:
25.
26.
27.
28.
Left Left arrow when connected through USB to a PC
Enter Enter key when connected through USB to a PC
Power Turns the projector on or off
Laser Use as on-screen pointer. DO NOT POINT IN EYES.
19
12
– 8 –
DLP® Projector – User’s Manual
Remote Control Operating Range
The remote control uses infrared transmission to control the projector. It is not necessary to point the
remote directly at the projector. Provided you are not holding the remote perpendicular to the sides or
the rear of the projector, the remote will function well within a radius of about 7 meters (23 feet) and
15 degrees above or below the projector level. If the projector does not respond to the remote control,
move a little closer.
Projector and Remote Control Buttons
The projector can be operated using the remote control or the buttons on the top of the projector. All
operations can be carried out with the remote control; however, the buttons on the projector are limited in use. The following illustration shows the corresponding buttons on the remote control and on
the projector.
Remote Control
1
8
7
6
9
5
4
10
2
3
14
3/8
5
9
6/7
2/36/10
Some buttons on the projector have multiple functions. For example, item 6/7 on the projector functions as the keystone button and as the down cursor key.
— 9 —
Loading...
