Important Safety Information

Congratulations on purchasing the Planar DLP® projector!

Important:

It is strongly recommended that you read this section carefully before using the projector. These
safety and usage instructions will ensure that you enjoy many years of safe use of the projector.
Keep this manual for future reference.

Symbols Used

Warning symbols are used on the unit and in this manual to alert you of hazardous situations.
The following styles are used in this manual to alert you to important information.

Note:

Provides additional information on the topic at hand.

Important:

Provides additional information that should not be overlooked.

Preface

Caution:

Alerts you to situations that may damage the unit.

Warning:

Alerts you to situations that may damage the unit, create a hazardous environment, or cause
personal injury.

Throughout this manual, component parts and items in the OSD menus are denoted in bold font as in this
example:
“Push the Menu button on the remote control to open the Main menu.”

Remote Control

Some remote controls have a laser for pointing out items on a screen.

DANGER: Do not point the laser in the eyes. Doing so can damage the eyes permanently.

General Safety Information

¾ Do not open the unit case. Aside from the projection lamp, there are no user-serviceable parts in

the unit. For servicing, contact qualified service personnel.

¾ Follow all warnings and cautions in this manual and on the unit case.
¾ The projection lamp is extremely bright by design. To avoid damage to eyes, do not look into the

lens when the lamp is on.

¾ Do not place the unit on an unstable surface, cart, or stand.
¾ Avoid using the system near water, in direct sunlight, or near a heating device.
¾ Do not place heavy objects such as books or bags on the unit.

— ii —

– iii –

User’s Manual

Power Safety

¾ Only use the supplied power cord.
¾ Do not place anything on the power cord. Place the power cord where it will not be in the way of

foot traffic.

¾ Remove the batteries from the remote control when storing or not in use for a prolonged period.

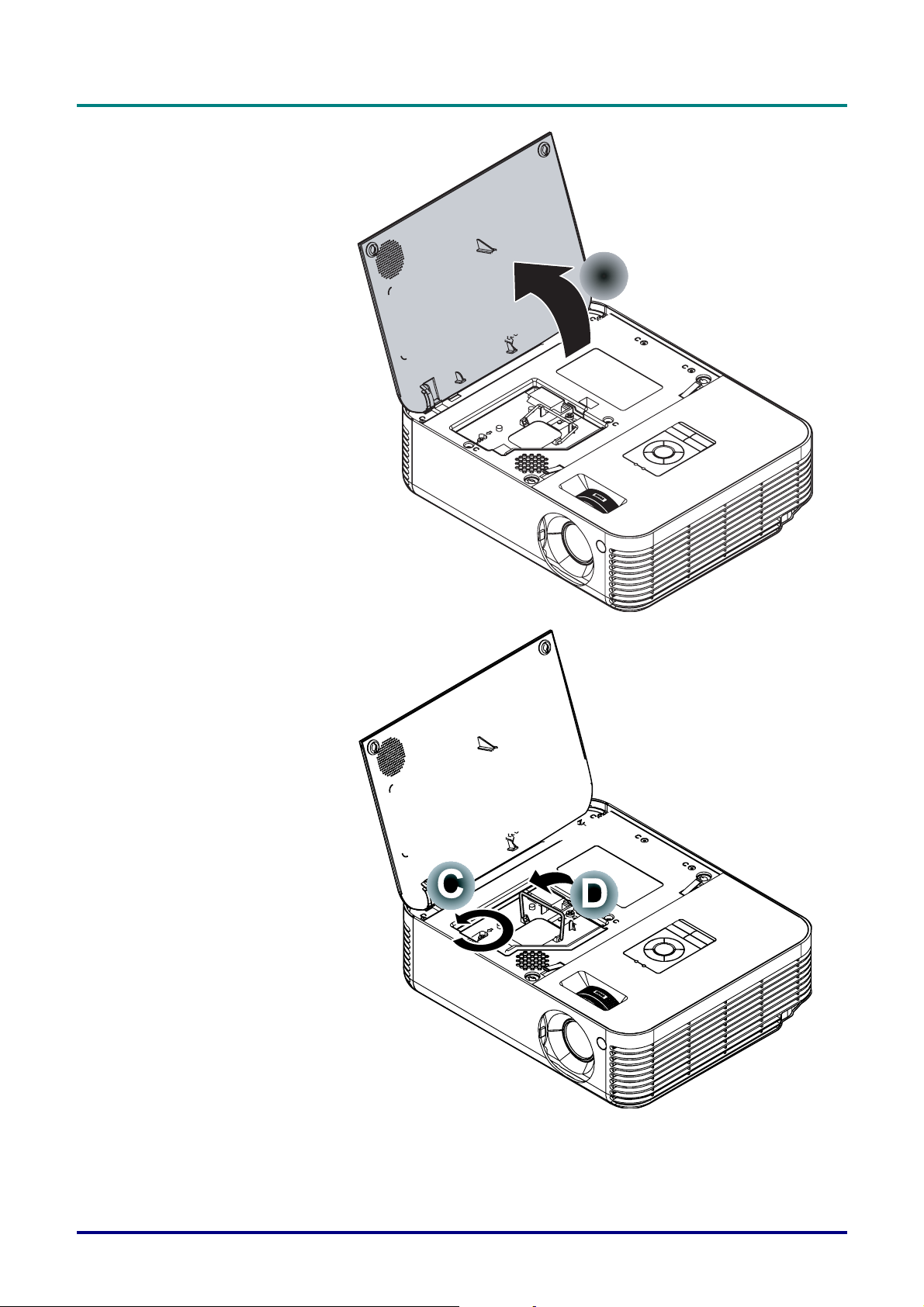

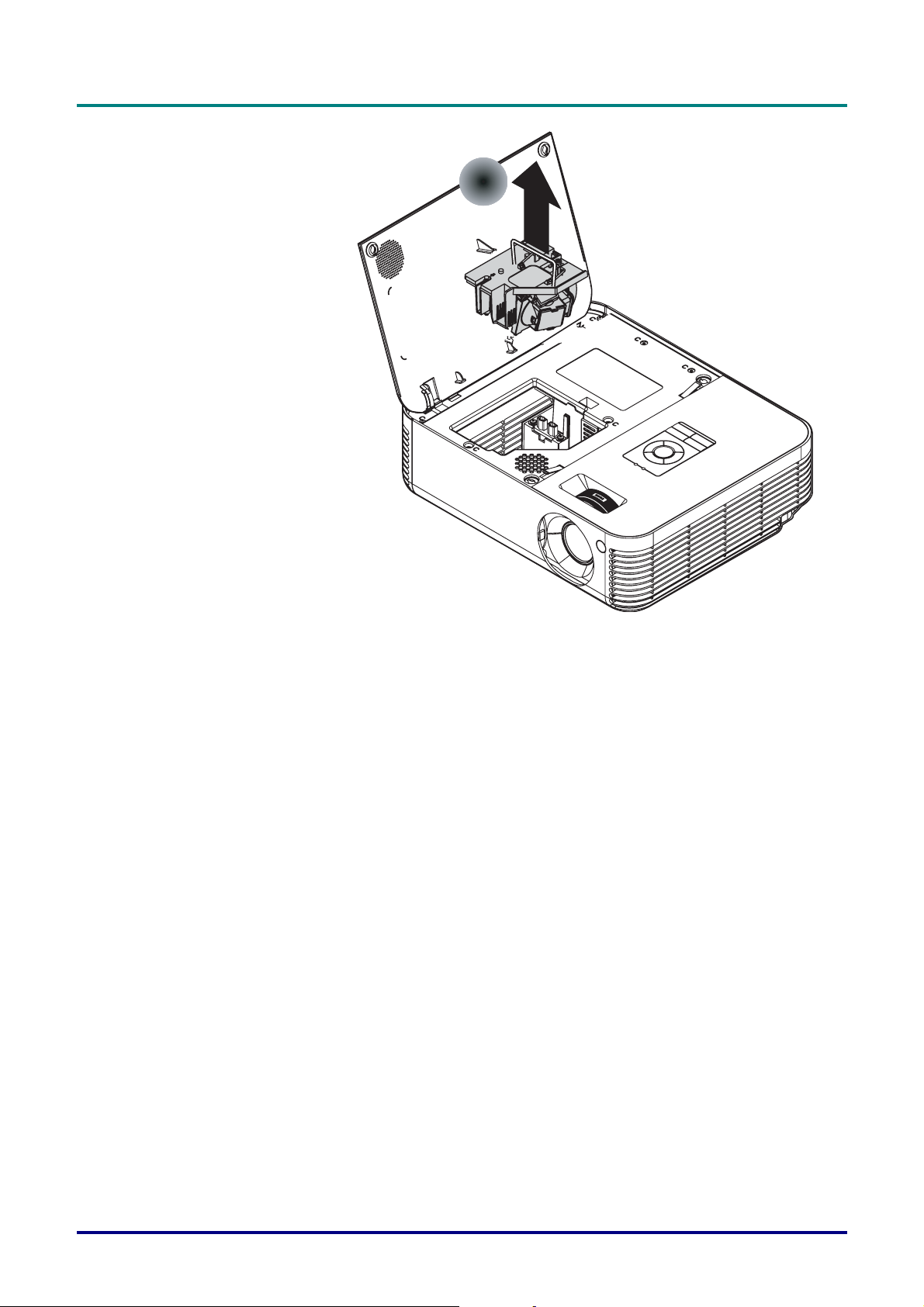

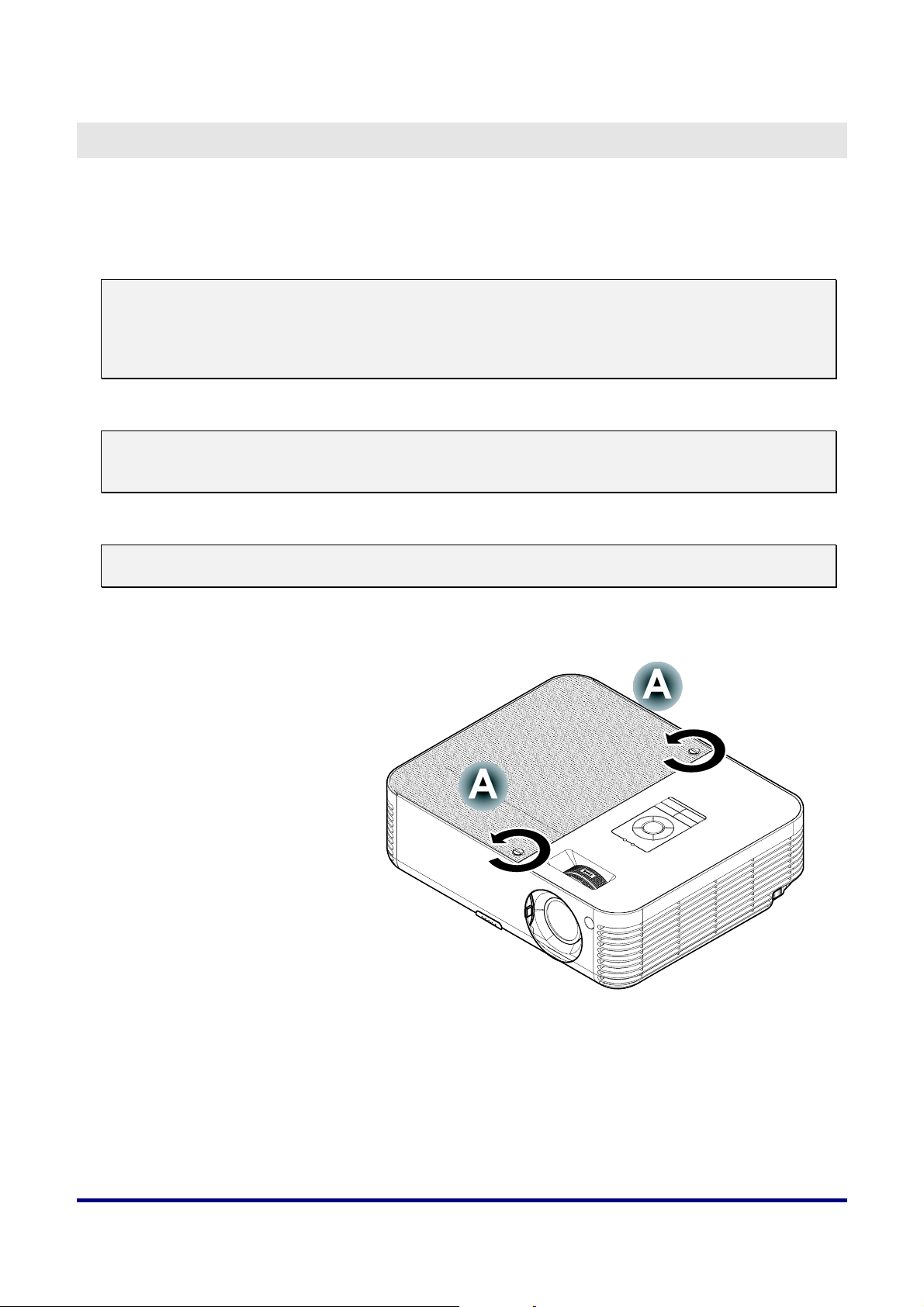

Replacing the Lamp

Replacing the lamp can be hazardous if done incorrectly. Refer to “Replacing the Projection Lamp” on
page 33 for clear and safe instructions for this procedure. Before replacing the lamp:

¾ Unplug the power cord.
¾ Allow the lamp to cool for about one hour.

Important Recycle Instructions:

Lamp(s) inside this product contain mercury. This product may contain other electronic waste that
can be hazardous if not disposed of properly. Recycle or dispose in accordance with local, state, or federal
Laws. For more information, contact the Electronic Industries Alliance at WWW.EIAE.ORG

. For lamp

specific disposal information check WWW.LAMPRECYCLE.ORG.

Cleaning the Projector

¾ Unplug the power cord before cleaning. Refer to “Cleaning the Projector” on p age 36.
¾ Allow the lamp to cool for about one hour.

Regulatory Warnings

Before installing and using the projector, read the regulatory notices in the “Regulatory Compliance”
section on page 46.

Symbol Explanations

DISPOSAL: Do not use household or municipal waste collection services for
disposal of electrical and electronic equipment. EU countries require the use
of seperate recycling collection services.

— iv —

— iii —

Preface

Main Features

• Lightweight unit, easy to pack away and transport

• Compatible with all major video standards including NTSC, PAL, and SECAM

• A high brightness rating allows for presentations in daylight or in lit rooms

• Supports resolutions up to SXGA+ at 16.7 million colors to deliver crisp, clear images

• Flexible setup allows for front , rear & ceiling mounted projections

• Line-of-vision projections remain square, with advanced keystone correction for angled

projections

• Input source automatically detected

Register Your Planar Products Today

Thank you for choosing Planar. To assure you receive all the benefits of your Planar product and services,
registeryour Planar product today. Visit our website to register your product at

http://www.planar.com/support/product_registration.html

Cables, Replacement Lamps and Accessories

To find cables, replacement lamps and accessories for your Planar projector, LCD monitor, touchscreen or
other Planar products visit our online store at www.PlanarOnline.com or find other stores who carry Planar
products at http://www.planar.com/howtobuy

About this manual

This manual is intended for end users and describes how to install and operate the DLP® projector.
Wherever possible, relevant information—such as an illustration and its description—has been kept on
one page. This printer-friendly format is both for your convenience and to help save paper, thereby
protecting the environment. It is suggested that you only print sections that are relevant to your needs.

— iv —

– v –

User’s Manual

Table of contents

GETTING STARTED.......................................................................................................................................................... 1

P

ACKING CHECKLIST

V

IEWS OF PROJECTOR PARTS

Front-right View ............................................................................................................................................................. 2

Top view—On-screen Display (OSD) buttons and LEDs ............................................................................................... 3

Rear view ........................................................................................................................................................................ 5

Bottom view..................................................................................................................................................................... 6

R

EMOTE CONTROL PARTS

R

EMOTE CONTROL OPERATING RANGE

P

ROJECTOR AND REMOTE CONTROL BUTTONS

SETUP AND OPERATION...............................................................................................................................................10

I

NSERTING THE REMOTE CONTROL BATTERIES

C

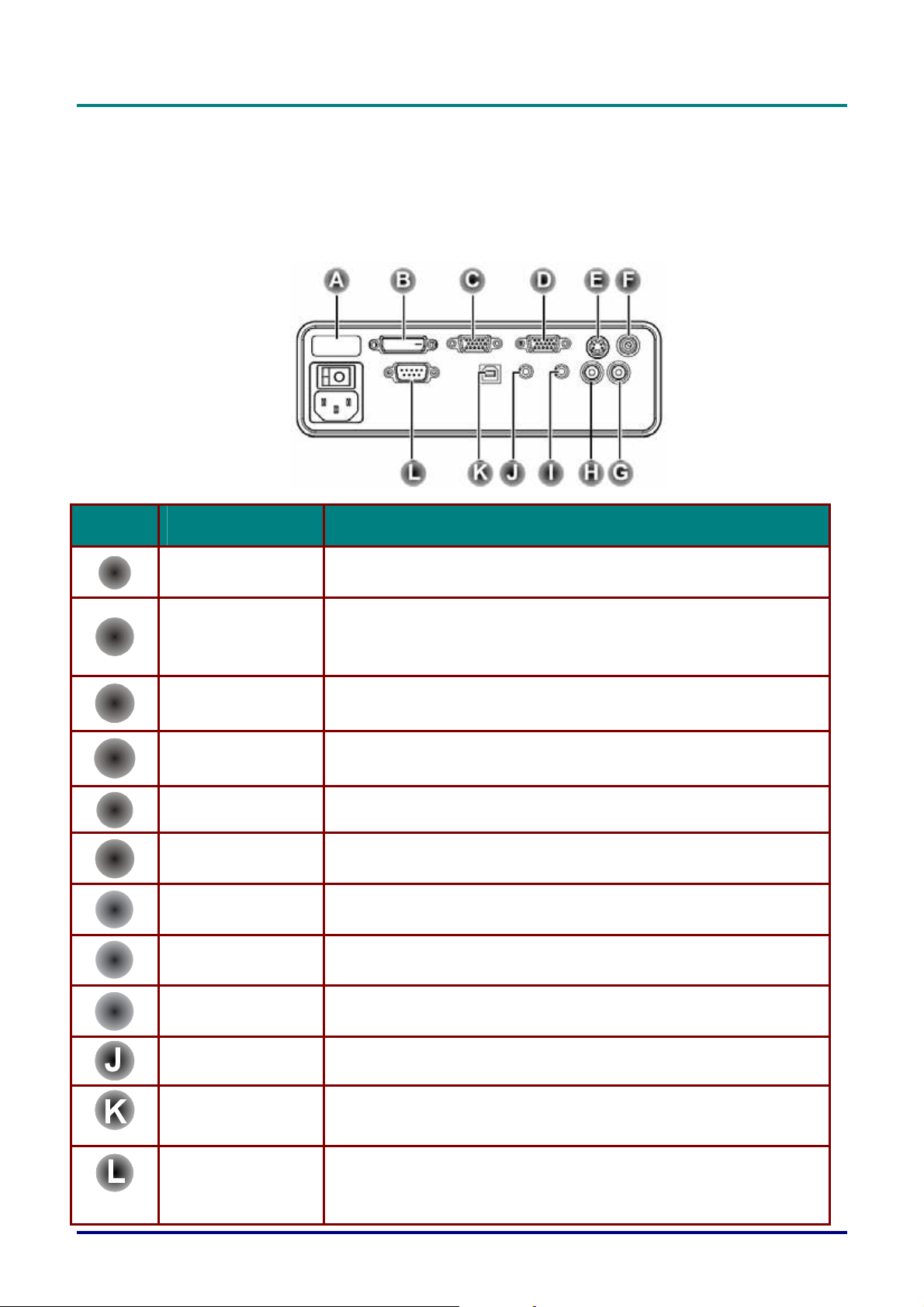

ONNECTING INPUT DEVICES

S

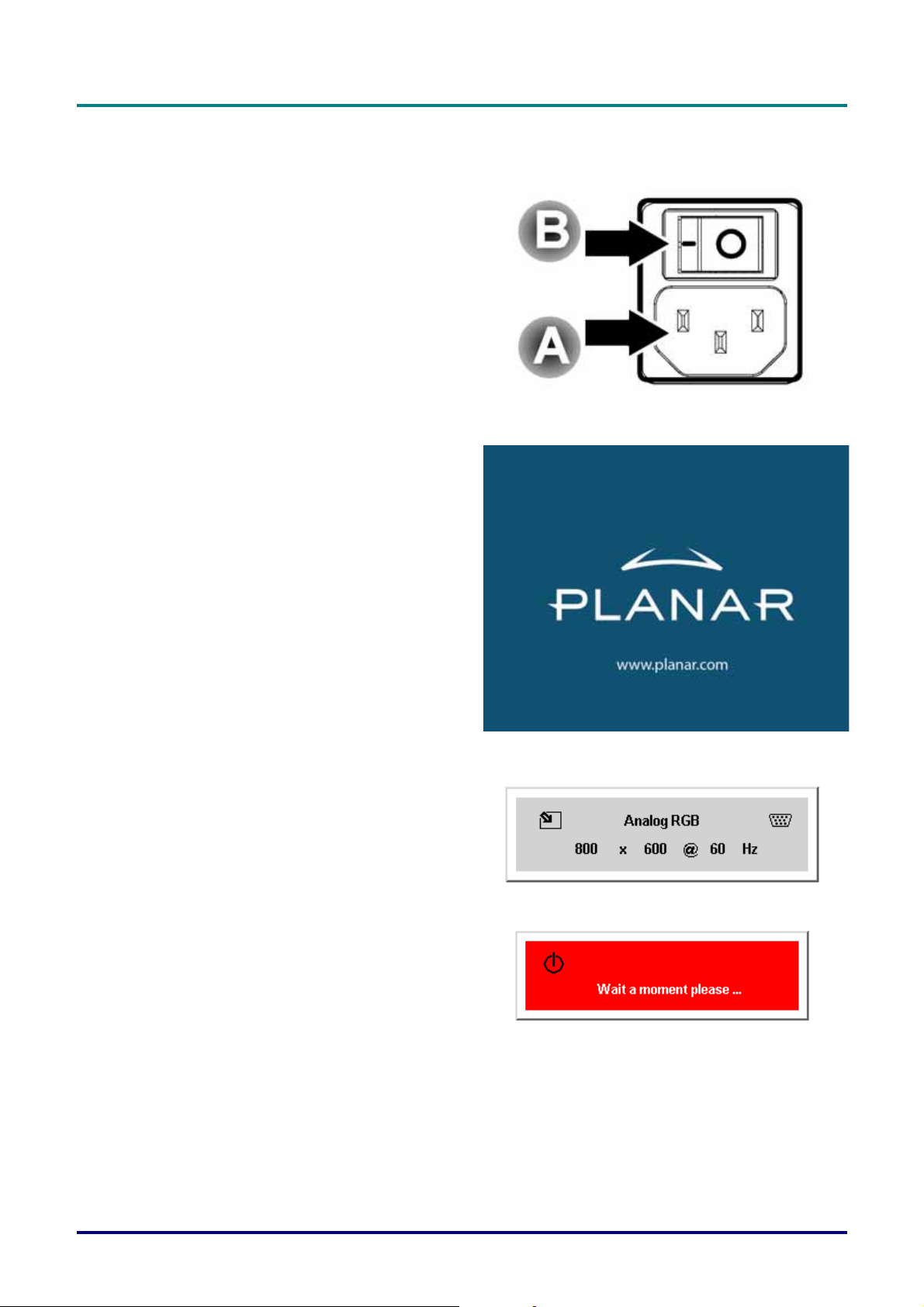

TARTING AND SHUTTING DOWN THE PROJECTOR

S

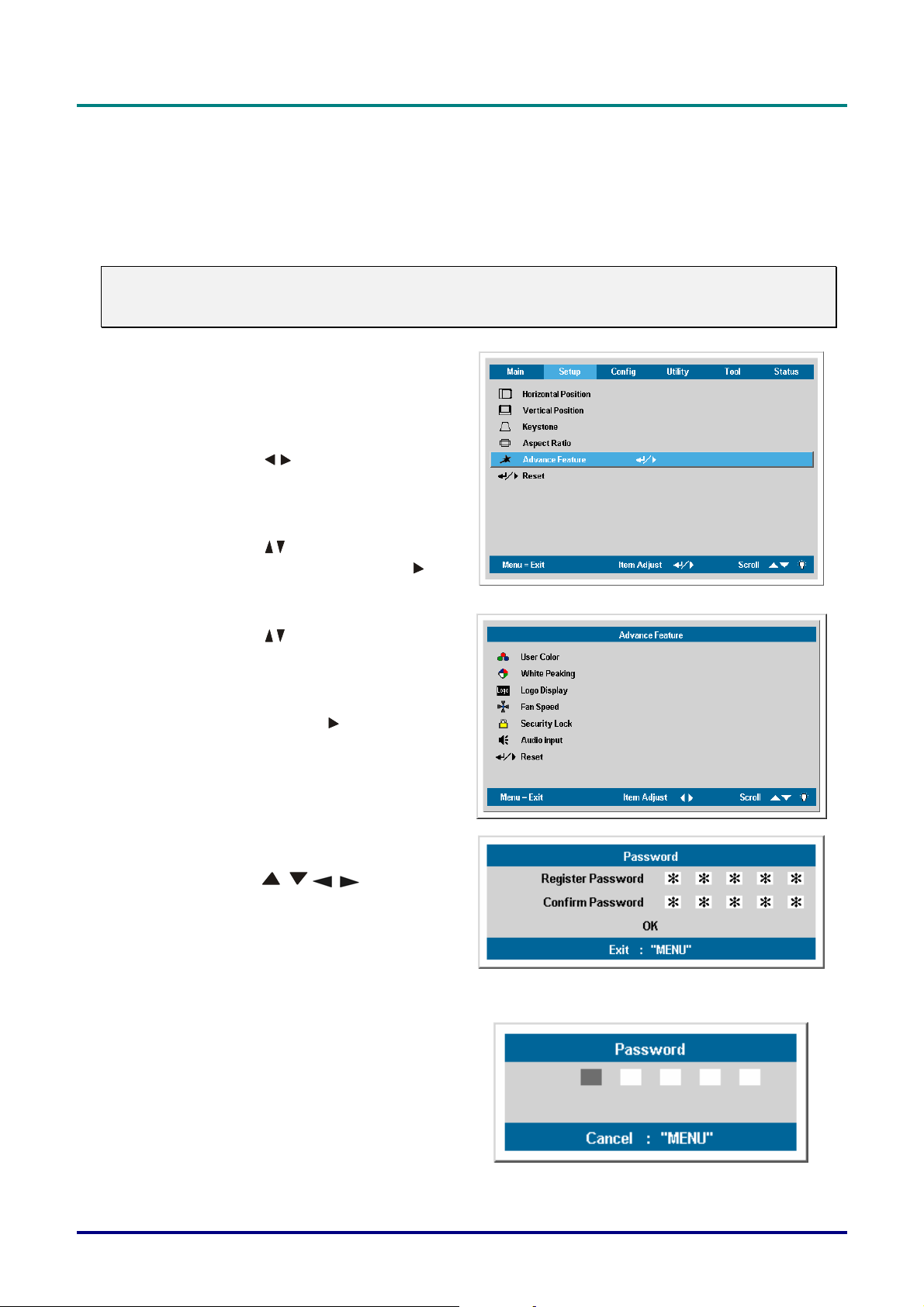

ETTING AN ACCESS PASSWORD (SECURITY LOCK

A

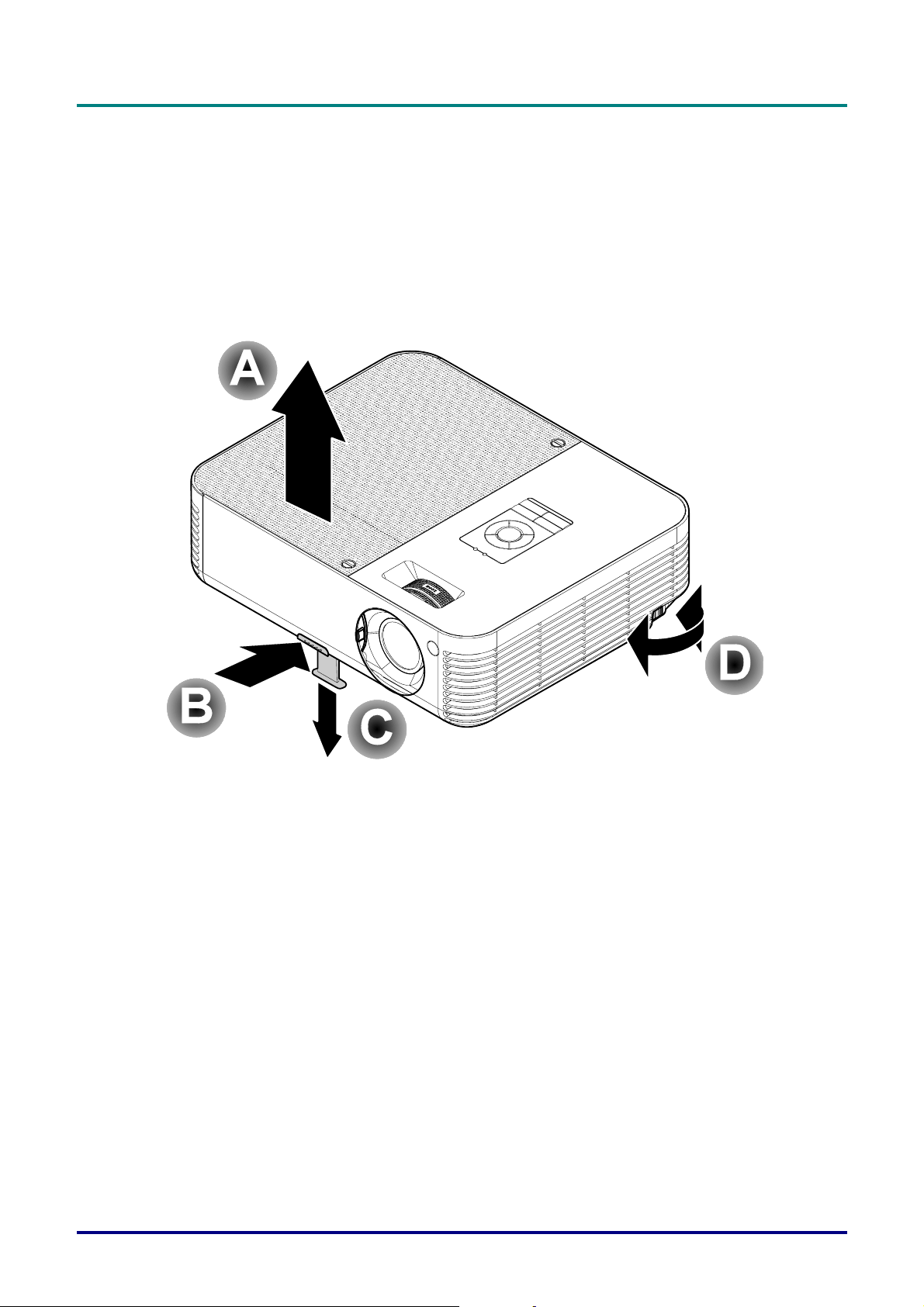

DJUSTING THE PROJECTOR LEVEL

A

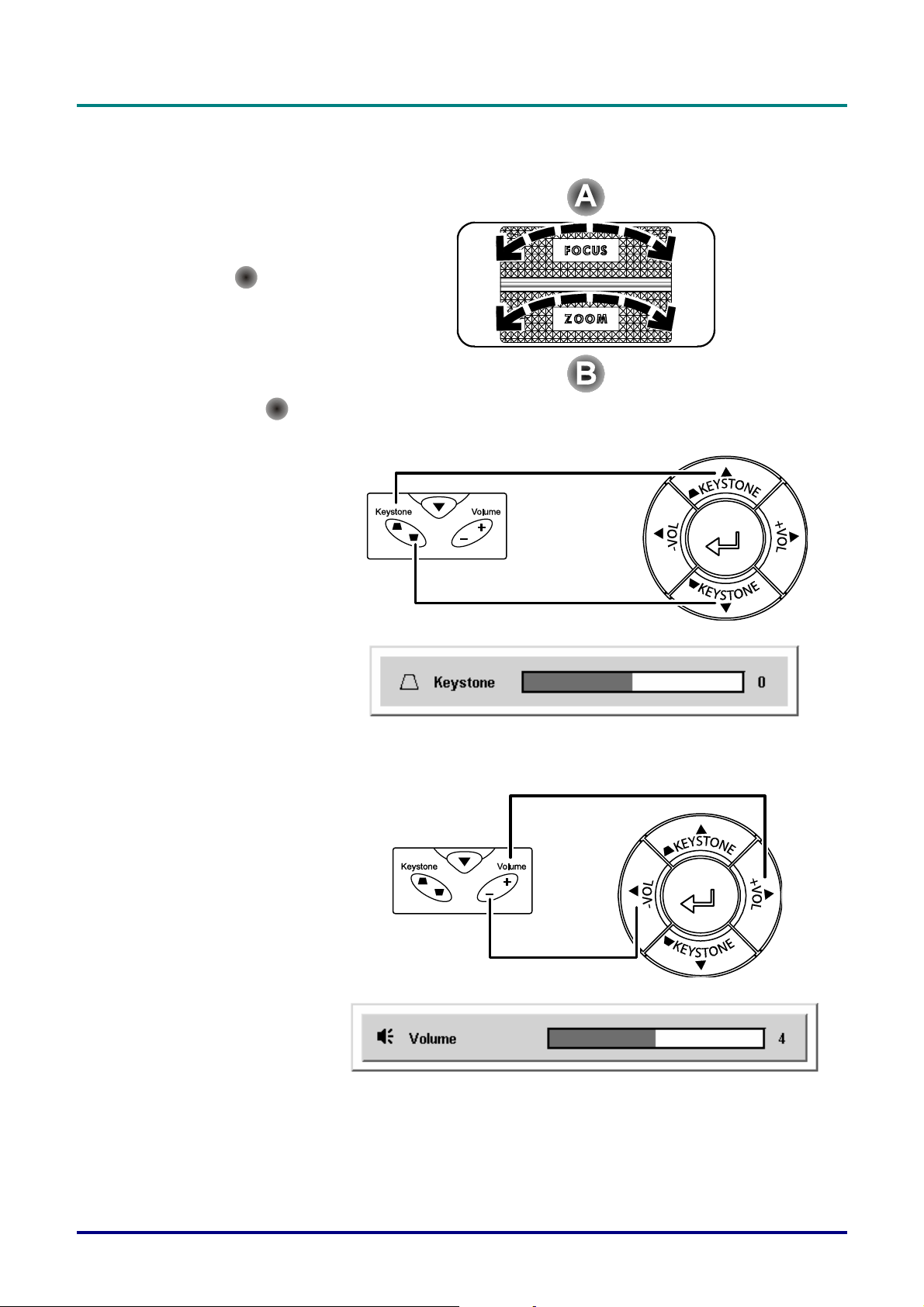

DJUSTING THE ZOOM, FOCUS AND KEYSTONE

A

DJUSTING THE VOLUME

ON-SCREEN DISPLAY (OSD) MENU SETTINGS....................................................................................................... 19

OSD M

S
M

S

C
U

T
S

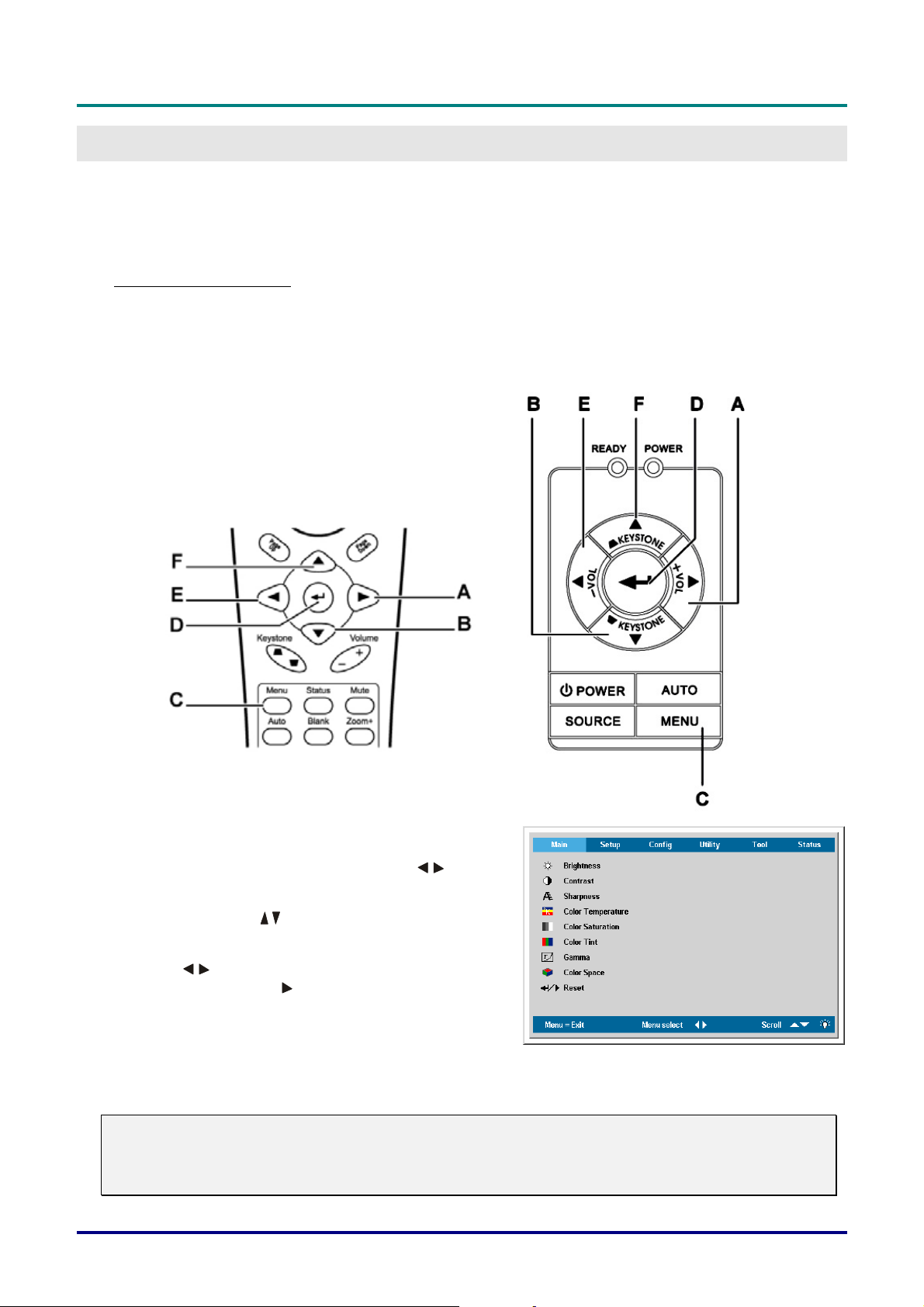

ENU CONTROLS

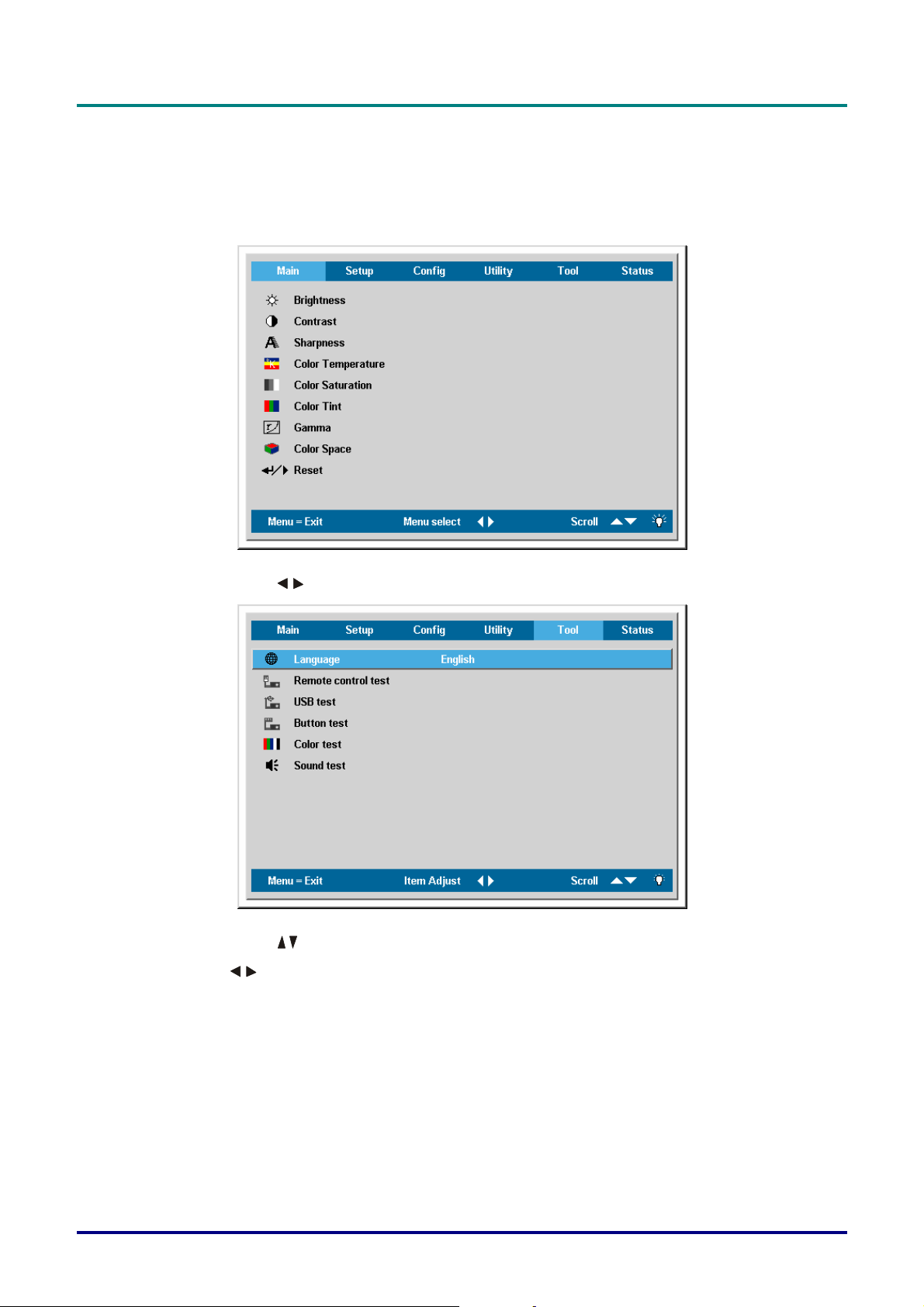

Navigating the OSD...................................................................................................................................................... 19

ETTING THE

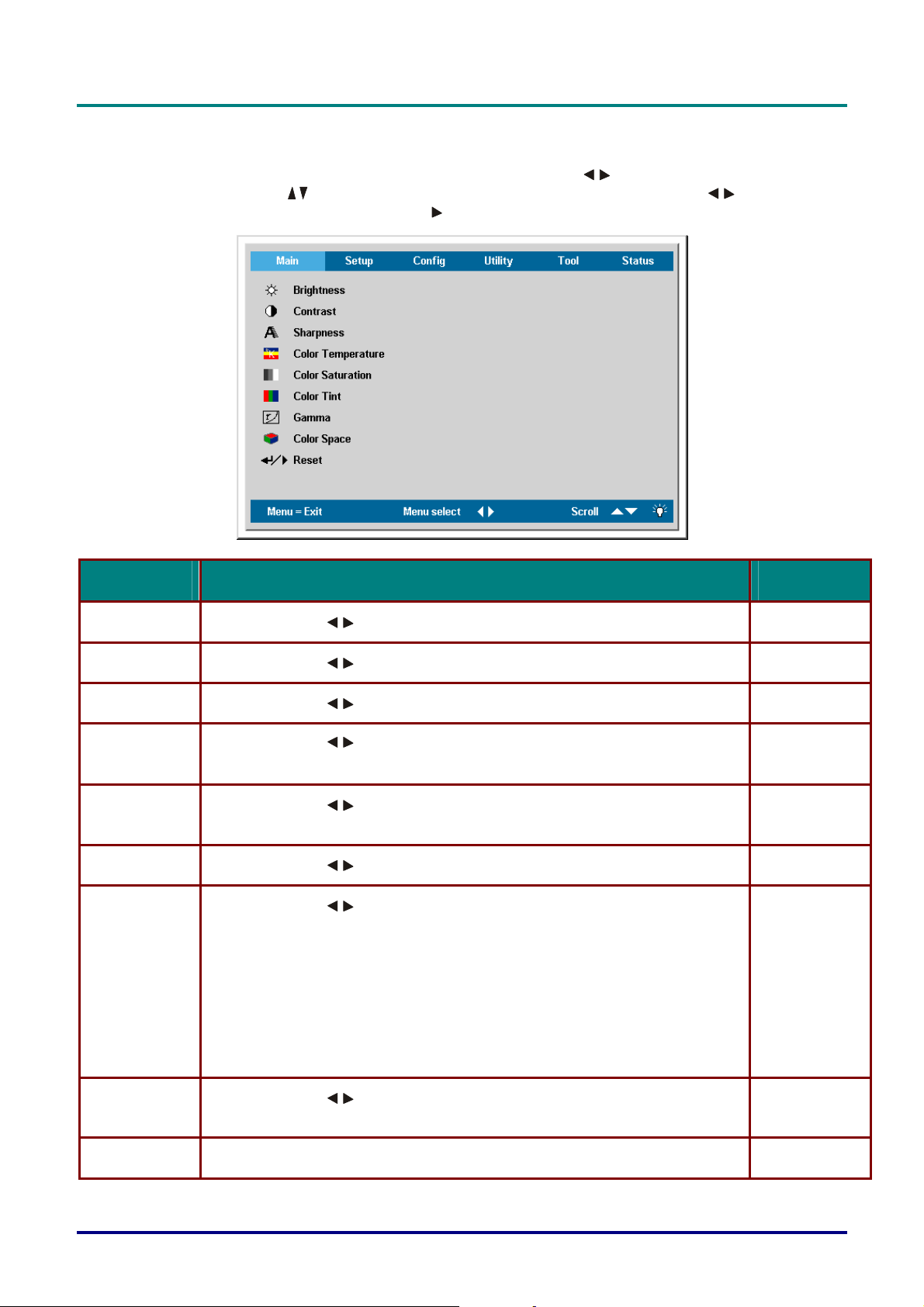

AIN MENU

Main Menu Functions Available for Connected Source............................................................................................... 23

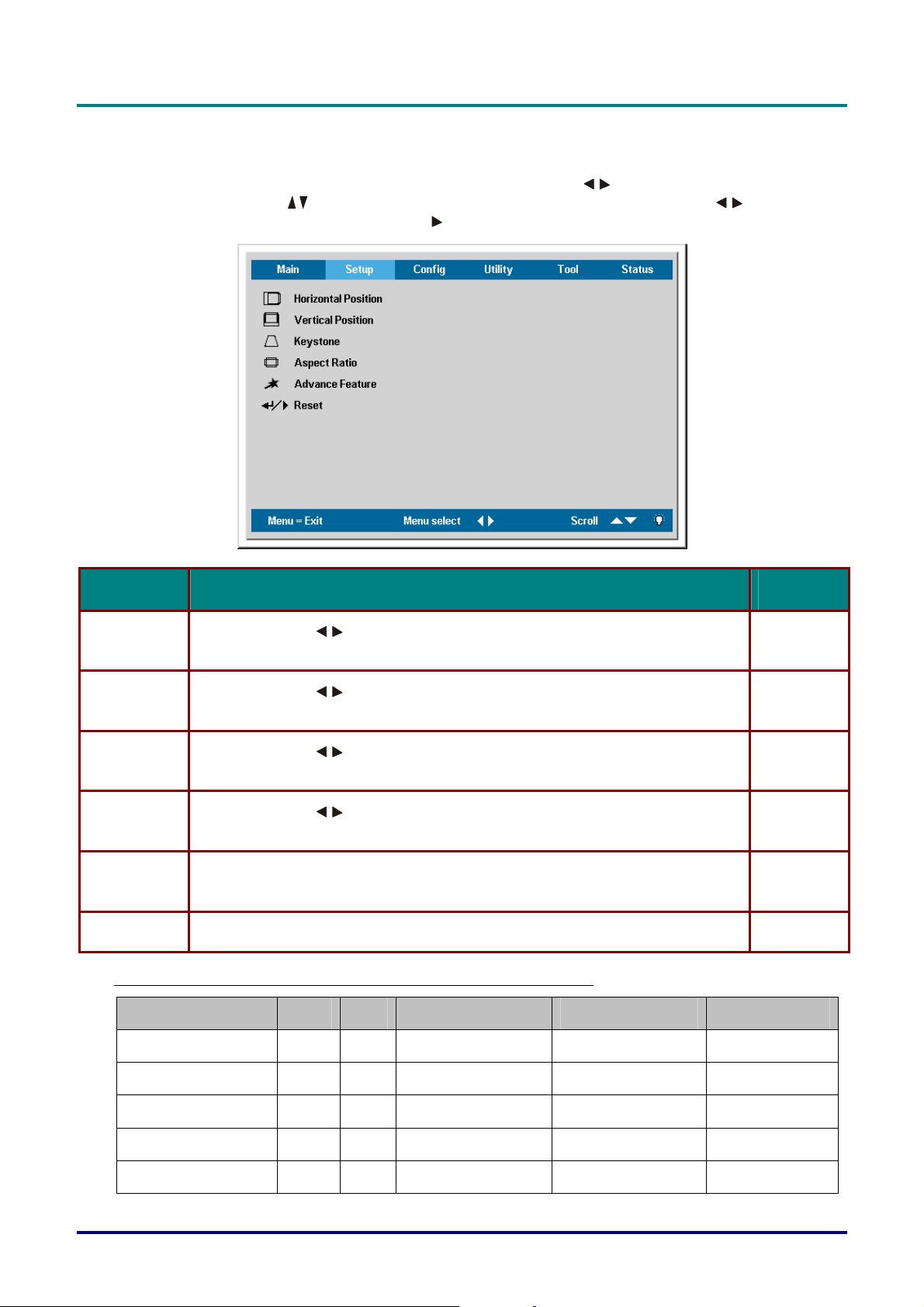

ETUP MENU

Setup Menu Functions Available for Connected Source............................................................................................... 24

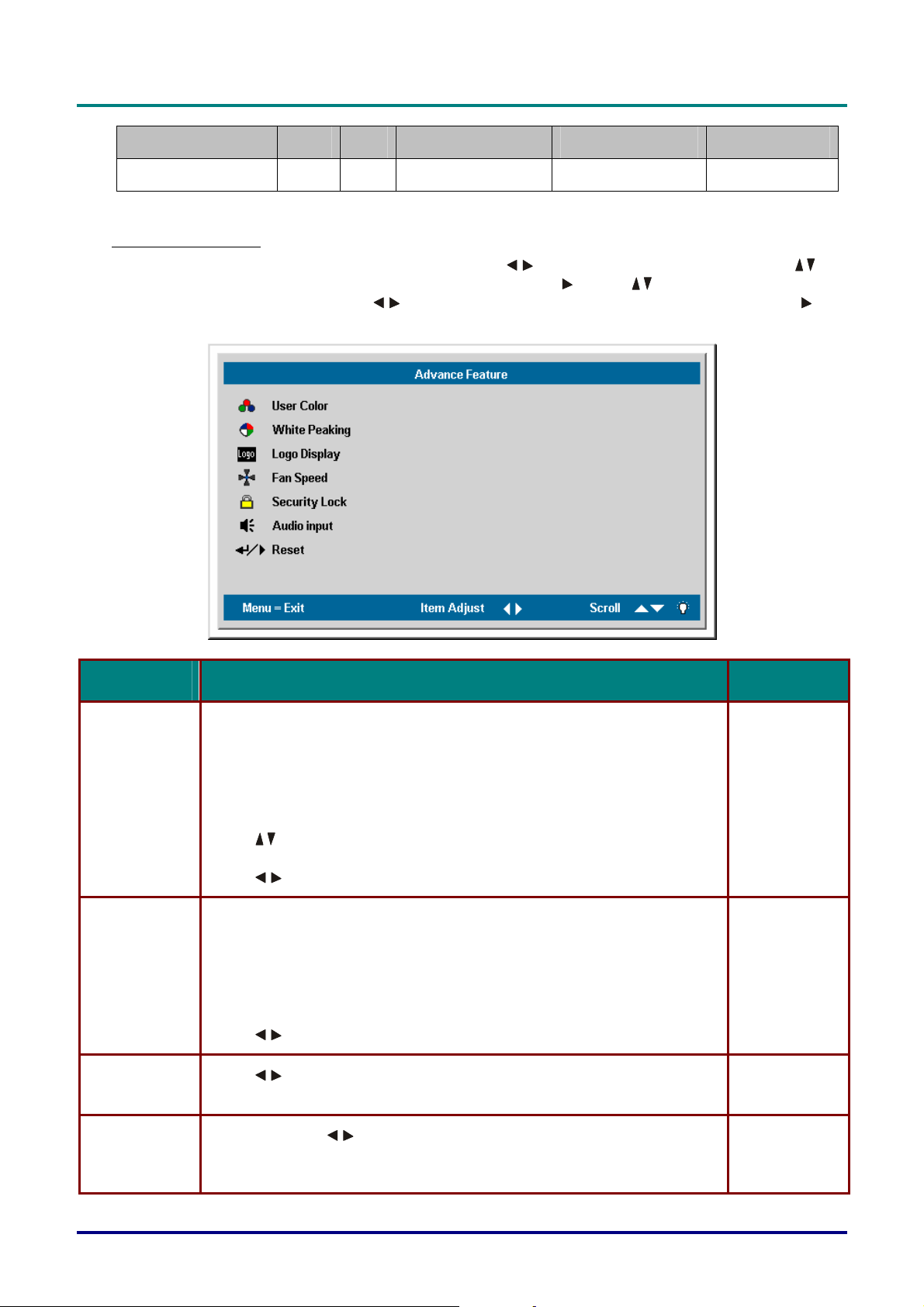

Advance Feature........................................................................................................................................................... 25

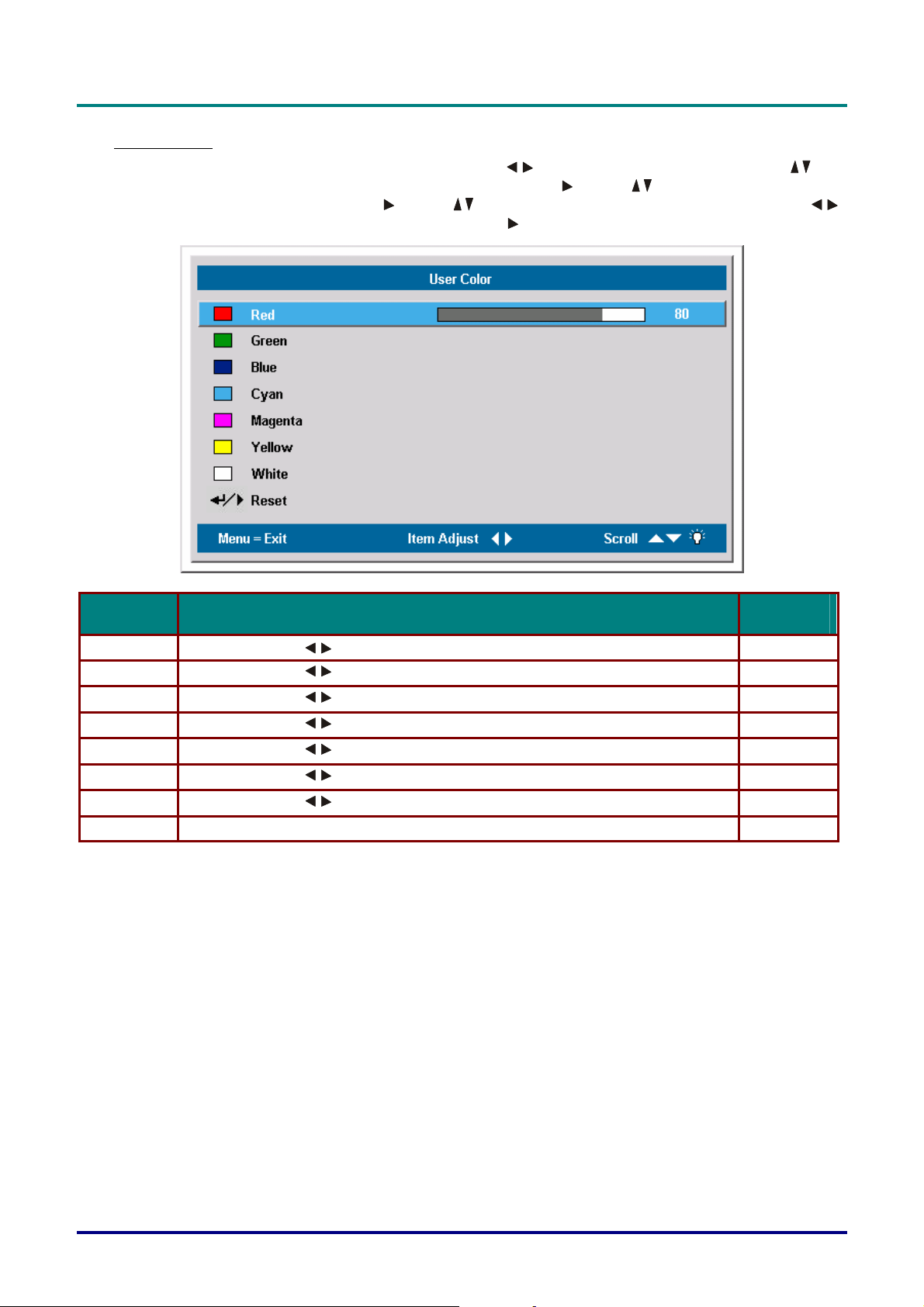

User Color .................................................................................................................................................................... 27

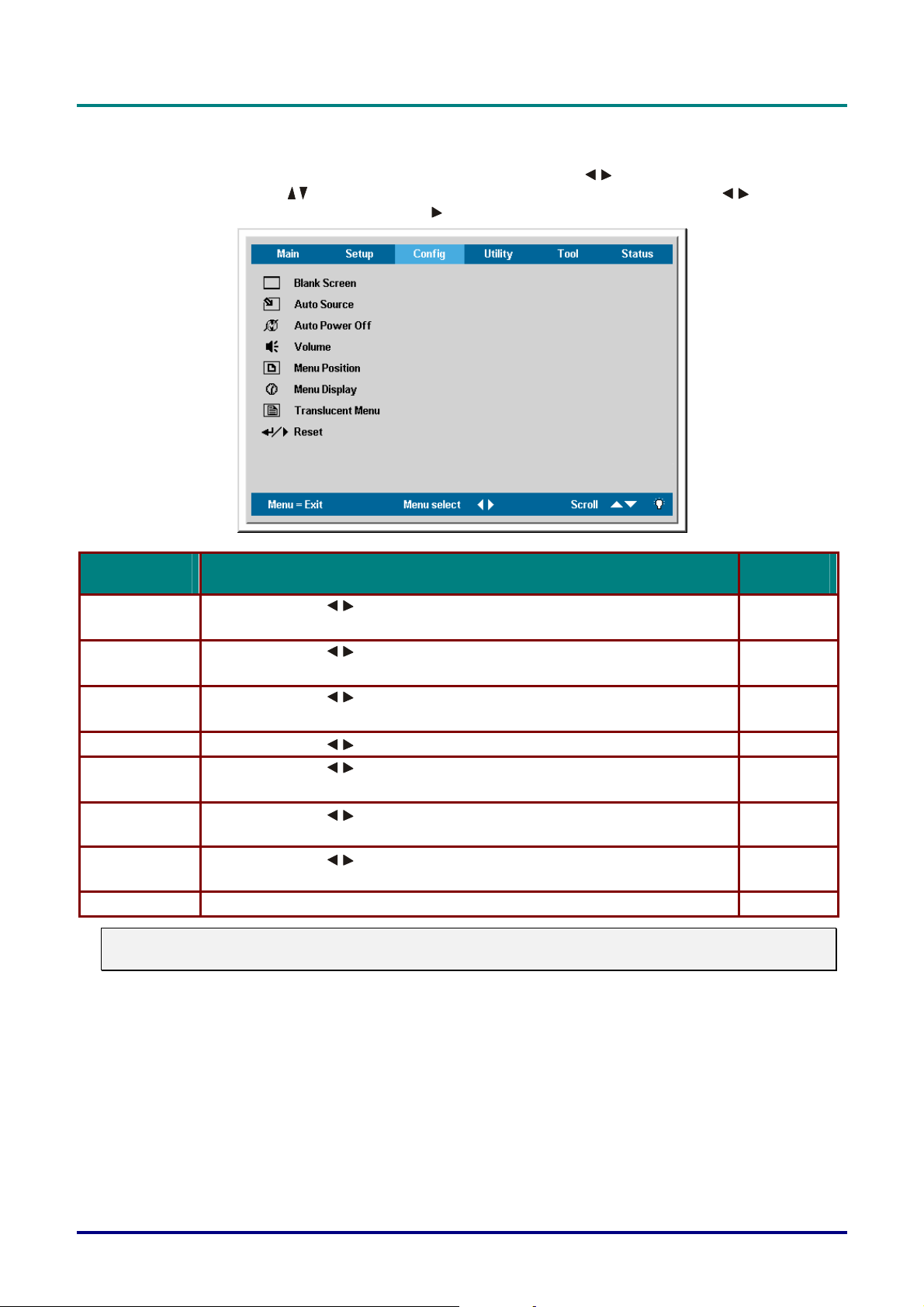

ONFIG MENU

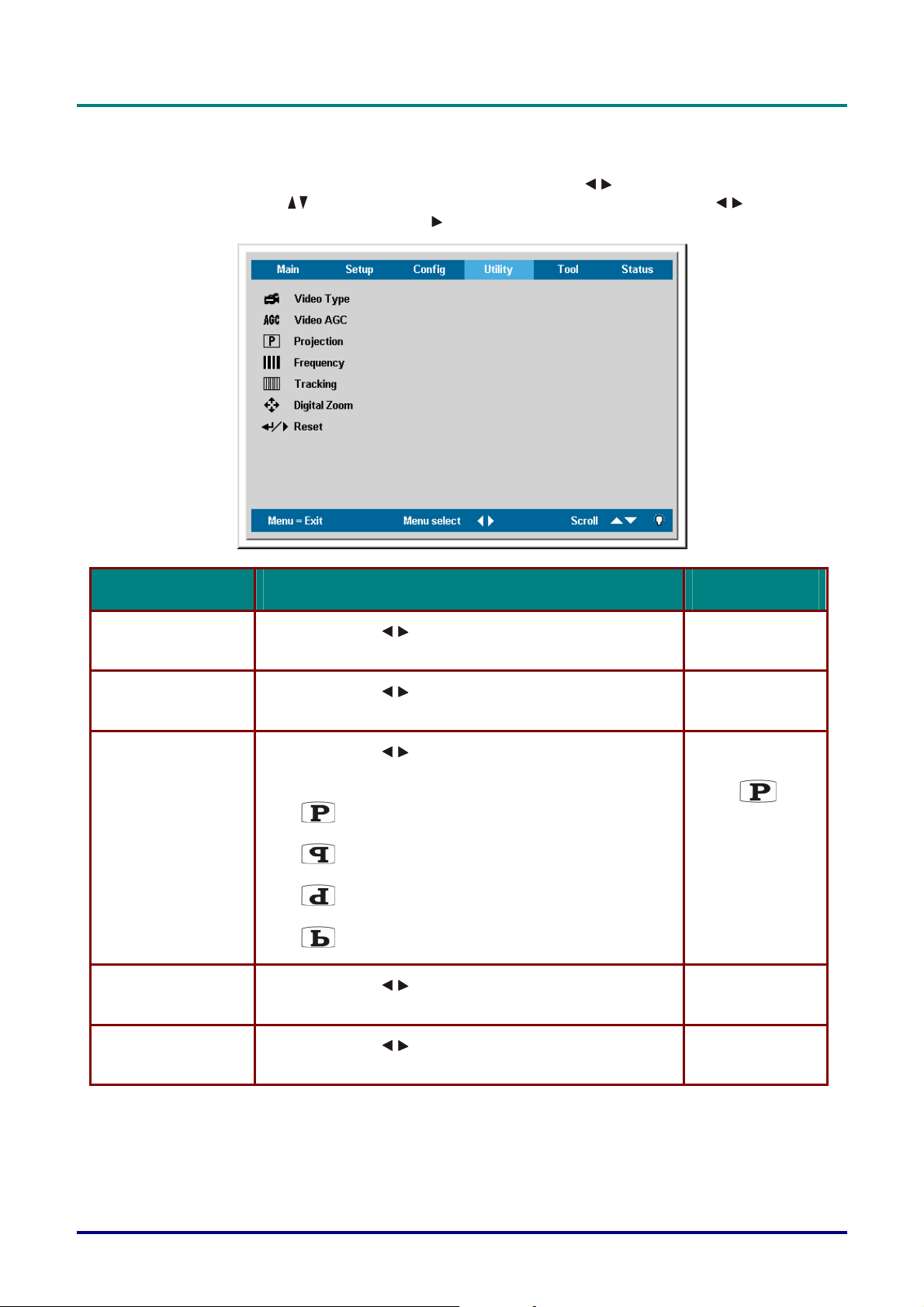

TILITY MENU

Utility Menu Functions Available for Connected Source ............................................................................................. 30

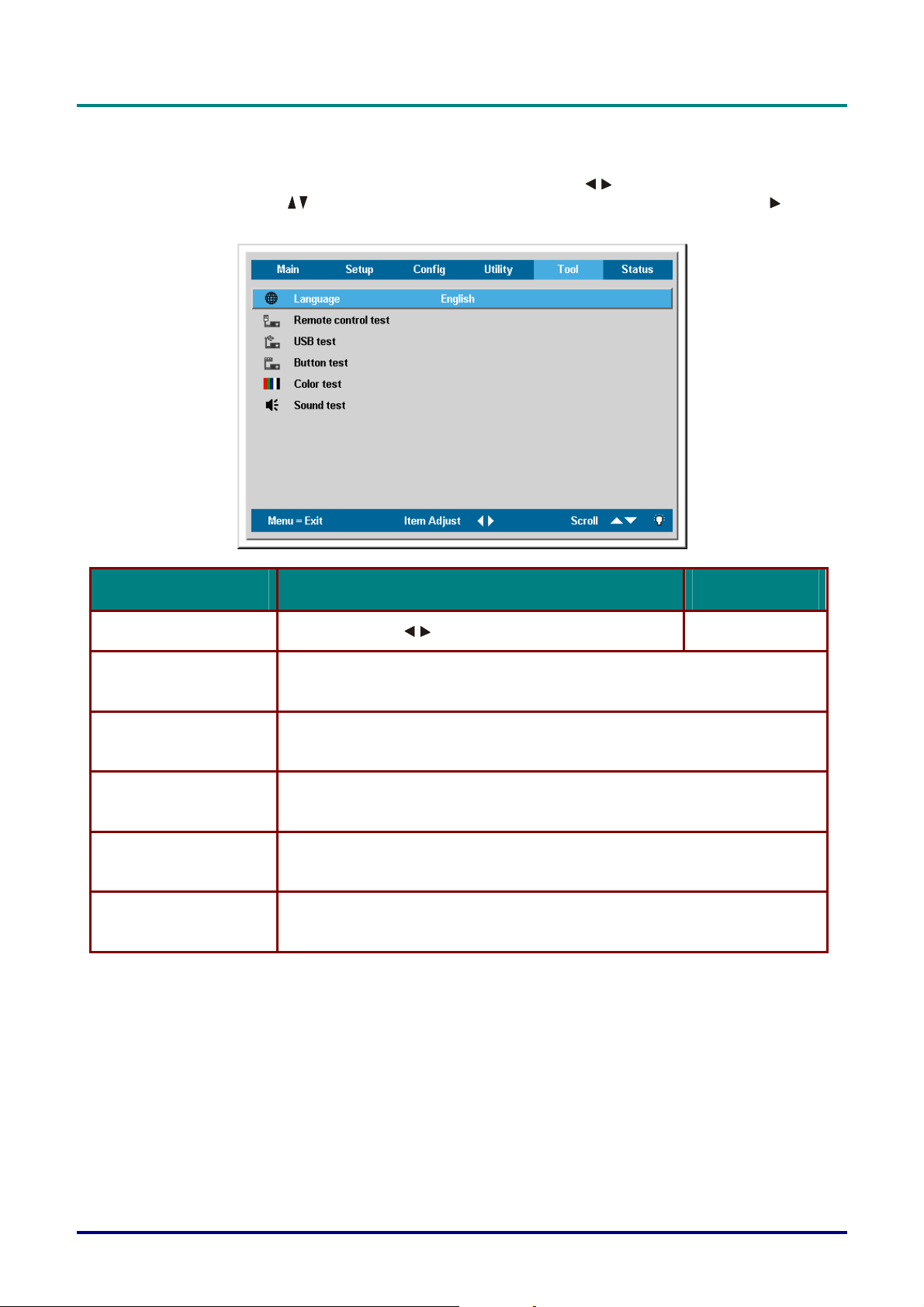

OOL MENU

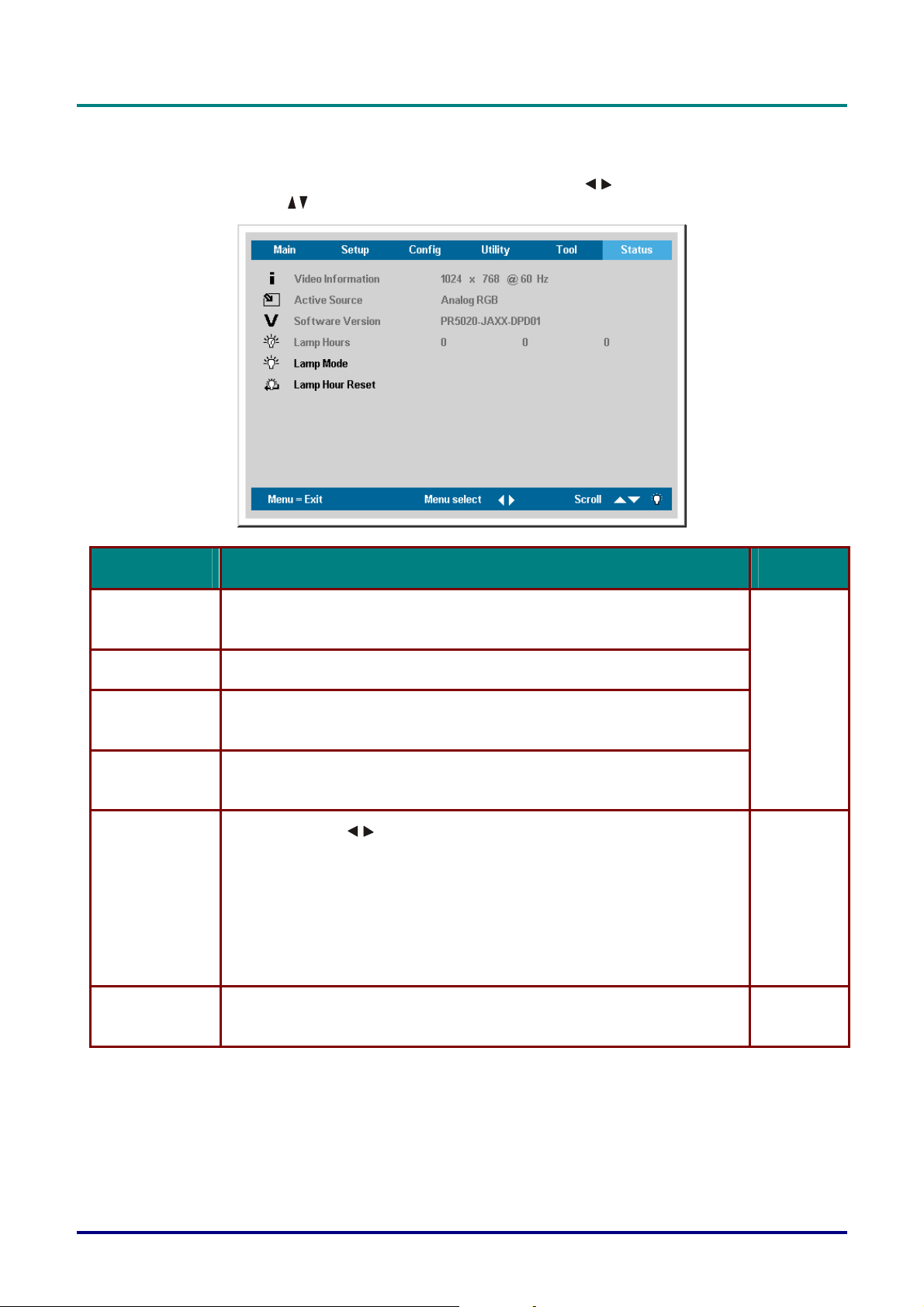

TATUS MENU

OSD L

...................................................................................................................................................................... 22

...................................................................................................................................................................... 31

........................................................................................................................................................... 1

............................................................................................................................................... 2

................................................................................................................................................... 7

............................................................................................................................... 9

.................................................................................................................... 9

................................................................................................................. 10

............................................................................................................................................ 11

............................................................................................................. 13

).......................................................................................................... 15

................................................................................................................................... 16

................................................................................................................ 17

.................................................................................................................................................. 17

..................................................................................................................................................... 19

ANGUAGE

..................................................................................................................................................................... 24

................................................................................................................................................................... 28

.................................................................................................................................................................. 29

................................................................................................................................................................... 32

.......................................................................................................................................... 20

MAINTENANCE AND SECURITY................................................................................................................................. 33

R

EPLACING THE PROJECTION LAMP

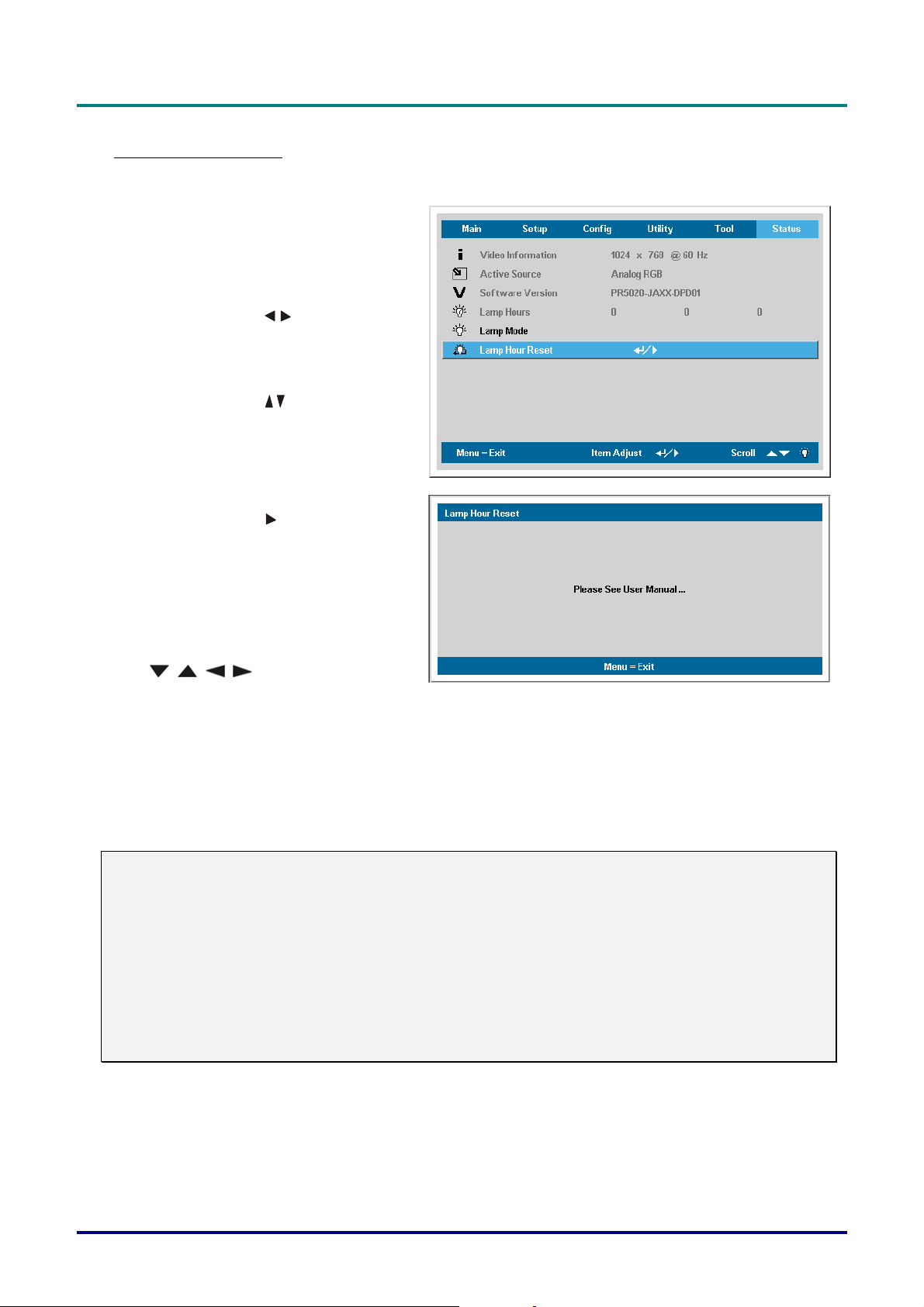

Resetting the Lamp........................................................................................................................................................ 36

C

LEANING THE PROJECTOR

Cleaning the Lens ......................................................................................................................................................... 37

Cleaning the Case......................................................................................................................................................... 37

U

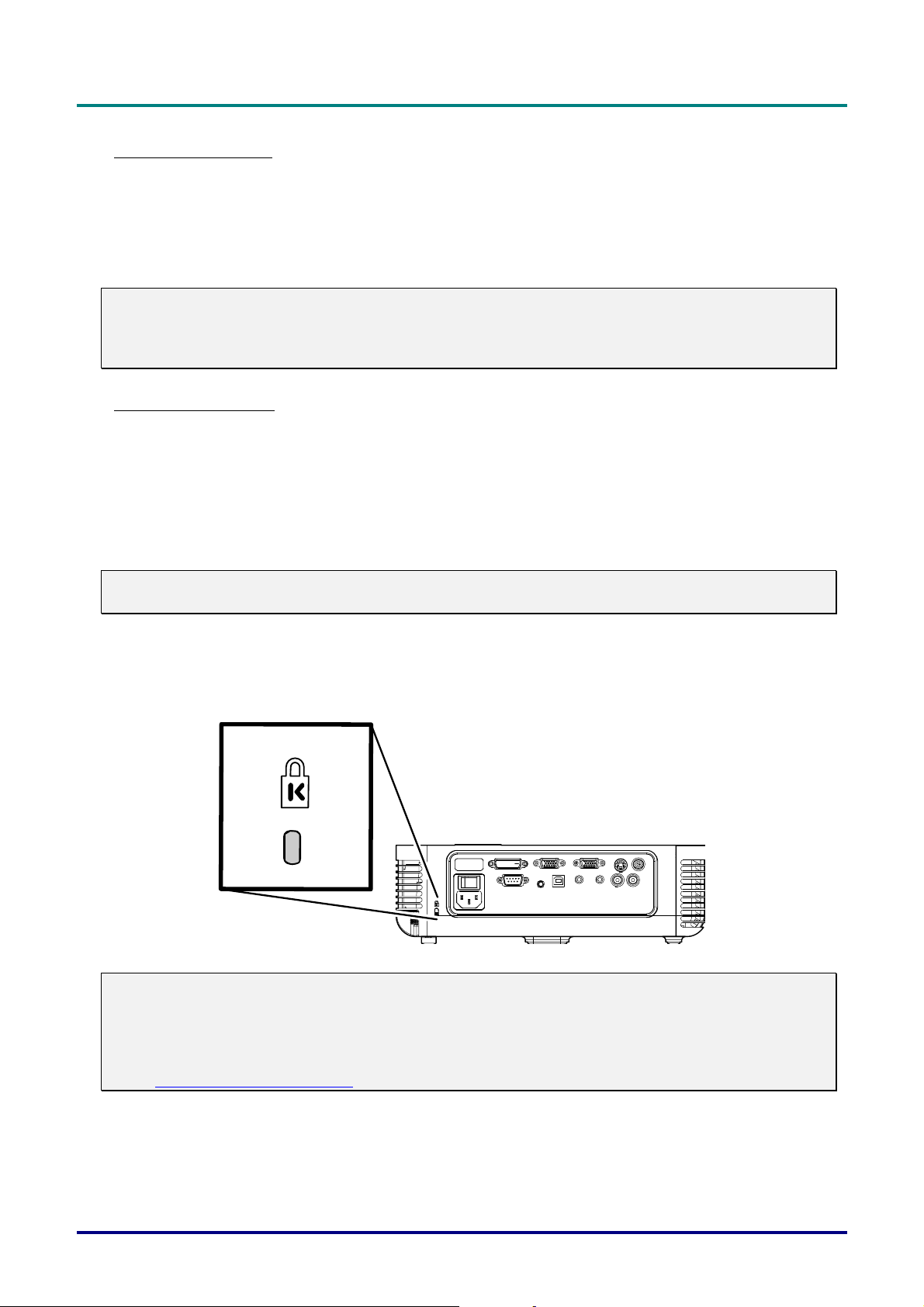

SING THE KENSINGTON® LOCK

TROUBLESHOOTING..................................................................................................................................................... 38

C

OMMON PROBLEMS AND SOLUTIONS

T

IPS FOR TROUBLESHOOTING

LED E

RROR MESSAGES

I

MAGE PROBLEMS

L

AMP PROBLEMS

R

EMOTE CONTROL PROBLEMS

A

UDIO PROBLEMS

SPECIFICATIONS.............................................................................................................................................................41

Input/output connectors................................................................................................................................................ 41

P

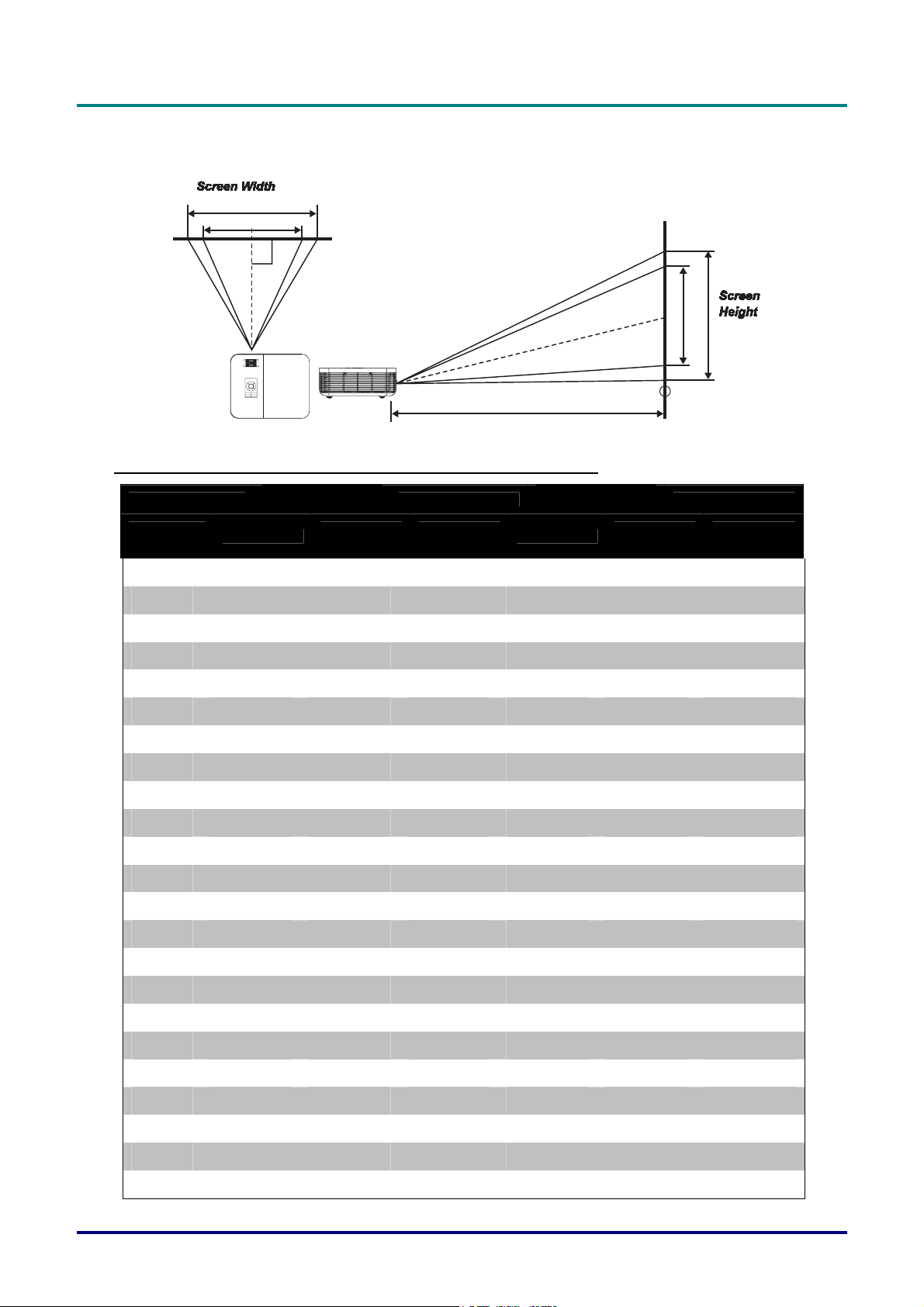

ROJECTION DISTANCE

PR3020 and PR3010 Projection distance and size table..............................................................................................42

PR5020 Projection distance and size table................................................................................................................... 43

T

IMING MODE TABLE

.............................................................................................................................................................. 39

............................................................................................................................................................... 40

............................................................................................................................................................. 40

................................................................................................................................................ 36

..................................................................................................................................................... 39

V.S. P

........................................................................................................................................................ 44

................................................................................................................................... 33

...................................................................................................................................... 37

............................................................................................................................... 38

............................................................................................................................................ 38

.......................................................................................................................................... 40

ROJECTION SIZE

.................................................................................................................. 42

— vi —

— v —

Preface

REGULATORY COMPLIANCE.....................................................................................................................................46

FCC W
C
S
FCC C
EN 55022 W

ARNING

ANADA

AFETY CERTIFICATIONS

LASS B,

.................................................................................................................................................................. 46

............................................................................................................................................................................ 46

UL, C-UL, CE, CB, TUV-GS, CCC , ICES-003(C

ARNING

......................................................................................................................................................... 46

................................................................................................................................................... 46

LASS

B)....................................................................... 46

— vi —

– vii –

G

Packing Checklist

Carefully unpack the projector and check that the following items are included:

ETTING STARTED

OWER CORD

P

USB

.

A

UDIO CABLE

(

MINI JACK-TO-MINI JACK

PROJECTOR

DLP®

(USB

TYPE A-TO-B

R

CABLE

USB)

OMPOSITE VIDEO CABLE

C

(RCA

3-TO

-RCA 3)

EMOTE CONTROL

(

WITH TWO

AAA

C

BATTERIES

OMPUTER CABLE

(VGA-VGA)

)

CD-ROM

)

(THIS USER’S

MANUAL

)

SERS

GUIDE C

U

ARRYING CASE

Contact your dealer immediately if any items are missing, appear d amaged, or if the u nit does not work.

Caution:

Avoid using the projector in dusty environments.

– 1 –

User’s Manual

Views of Projector Parts

Front-right View

I

TEM

L

1.

2.

3.

4.

5.

6.

7.

ABEL

D

Focus Focuses the projected image

Lens zoom Enlarges the projected image

Screws Holds lamp to projector

See “Top view—OSD buttons and LEDs”

Front IR receiver Receiver for IR signal from remote control

Lens Slide lens cap before use.

Lens cover Slide across to protect lens when not in use

– 2 –

ESCRIPTION

S

EE PAGE

17
17

3
7

:

DLP® Projector – User’s Manual

8.

Important:

Ventilation openings on the projector allow for good air circulation, which keeps the projector lamp
cool. Do not obstruct any of the ventilation openings.

Height-adjuster button Push to release height adjuster

16

Top view—On-screen Display (OSD) buttons and LEDs

I

TEM

L

1.

2.

3.

4.

5.

ABEL

D

Keystone/
Down cursor

VOL-/
Left cursor

Ready LED

Keystone/
UP cursor

Power LED

ESCRIPTION

Corrects image-trapezoid (wider bottom) effect
Navigates and changes settings in the OSD

Decreases volume
Navigates and changes settings in the OSD

Orange Lamp ready—you can safely turn on or off the projector

Flashing Lamp not ready—do not press the power button

Corrects image-trapezoid (wider top) effect
Navigates and changes settings in the OSD

Green Unit is powered on and working correctly

Off Unit is powered off

Flashing Operational error code

(refer to “LED Error Messages” on page 39)

S

EE PAGE

19

19

19

:

6.

Enter Changes settings in the OSD

– 3 –

19

User’s Manual

7.

8.

9.

10.

11.

VOL+/
Right cursor

Auto Optimizes image size, position, and resolution

Menu Opens and exits the OSD

Source Detects the input device

Power Turns the projector on or off

Increases volume
Navigates and changes settings in the OSD

Navigates and changes settings in the OSD

19

13

– 4 –

Rear view

I

TEM

L

ABEL

D

DLP® Projector – User’s Manual

ESCRIPTION

S

PAGE

EE

:

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

Rear IR receiver Receiver for IR signal from remote control

DVI-D

Connect a DVI-D cable (not supplied) from a computer

(For PR5020 only)

VGA IN Connect a VGA cable (supplied) from a computer

VGA OUT Connect to a monitor (not supplied)

S-video Connect the S-video cable (not supplied) from a video device

Video Connect a composite video cable (supplied) from a video

device.

Audio in-R Connect the audio cable (supplied) from an audio input device.

Audio in-L Connect the audio cable (supplied) from an audio input device.

Audio-in Connect an audio cable(supplied) from the com puter ’s audio- out

connector.

Audio-out Audio loop-thru

7

11

11.

12.

13.

USB Connect the USB cable (supplied) from a computer

RS-232

Installation control

(For PR5020 only)

Power Connect the power cord (supplied)

– 5 –

13

User’s Manual

14.

Note:

If your video equipment has both S-video and RCA jacks (composite video) connect to the S-video
connector.
S-video provides a better quality signal.

Security Lock Secure to permanent object with a Kensington® Lock

system

Bottom view

37

I

TEM

L

1.

2.

3.

4.

ABEL

D

Ceiling support holes Contact your dealer for information on mounting

the projector on a ceiling.

Height adjuster button Push to release height adjuster

Height adjuster Adjuster drops down when adjuster button is

pushed

Tilt adjuster Adjust angle of the picture

– 6 –

ESCRIPTION

S

EE PAGE

16

:

Remote Control Parts

DLP® Projector – User’s Manual

Important:

1. Avoid using the projector with bright fluorescent lighting turned on. Certain high-frequency

fluorescent lights can disrupt remote control operation.

2. Be sure nothing obstructs the path between the remote control and the projector. If the path
between the remote control and the projector is obstructed, you can bounce the signal off certain
reflective surfaces such as projector screens.

3. The buttons and keys on the projector have the same functions as the corresponding buttons on
the remote control. This user’s manual describes the functions based on the remote control.

I

TEM

L

1.

2.

3.

4.

IR transmitter Transmits signals to projector

Status LED Lights when the remote control is used

Laser Press to operate the on-screen pointer

Up Up arrow when connected through USB to a PC

ABEL

D

ESCRIPTION

S

EE PAGE

:

5.

6.

Right Right arrow when connected through USB to a PC

Down Down arrow when connected through USB to a PC

– 7 –

User’s Manual

I

TEM

L

ABEL

D

ESCRIPTION

S

EE PAGE

:

7.

8.

9.

10.

11.

12.

13.

14.

15.

16.

17.

18.

Page Down Page down when connected through USB to a PC

Up cursor

Right cursor

Down cursor

Volume +/- Adjusts volume

Mute Mutes the built-in speaker

Zoom+ Zoom in

Zoom- Zoom out

Freeze Freeze/unfreezes the on-screen picture

Blank Makes the screen blank

Source Detects the input device

Auto Auto adjustment for phase, tracking, size, position

Navigates and changes settings in the OSD

19

17

19.

20.

21.

22.

Menu Opens the OSD

Status

Keystone
top/bottom

Left cursor Navigates and changes settings in the OSD

Opens the OSD Status menu (the menu only opens
when an input device is detected)

Corrects image-trapezoid (wider top/bottom) effect

19
32

17

19

23.

24.

25.

26.

27.

28.

Note:

The remote control can only interface with a computer when connected to the computer through a
USB cable connection. The computer cable connects a computer to the projector for display
purposes only.

Enter Changes settings in the OSD

Page Up Page up when connected through USB to a PC

Left Left arrow when connected through USB to a PC

Enter Enter key when connected through USB to a PC

Power Turns the projector on or off

Laser Use as on-screen pointer. DO NOT POINT IN EYES.

13

– 8 –

DLP® Projector – User’s Manual

Remote Control Operating Range

The remote control uses infrared transmission to control the projector. It is not necessary to point the
remote directly at the projector. Provided you are not holding the remote perpendicular to the sides or
the rear of the projector, the remote will function well within a radius of about 10 meters (33 feet) and
30 degrees above or below the projector level. If the projector does not respond to the remote control,
move a little closer.

Projector and Remote Control Buttons

The projector can be operated using the remote control or the buttons on the top of the projector. All
operations can be carried out with the remote control; however the buttons on the projector are
limited in use. The following illustration shows the corresponding buttons on the remote control and
on the projector.

Some buttons on the projector have two functions. For example, item 10/13 on the projector functions
both keystone button and as the up cursor key in OSD menus.

– 9 –

Inserting the Remote Control Batteries

Remove the battery compartment cover

1.

by sliding the cover in the direction of
the arrow.

Insert the supplied batteries taking note

2.

of the polarity (+/-) as shown here.

S

ETUP AND OPERATION

Replace the cover.

3.

Caution:

1. Only use AAA alkaline batteries.

2. Dispose of used batteries according to local ordinance regulations.

3. Remove the batteries when not using the projector for prolonged periods.

– 10 –

DLP® Projector – User’s Manual

Connecting Input Devices

A PC or notebook computer as well as video devices can be connected to the projector at the same
time. Video devices include DVD, VCD, and VHS players, as well as movie camcorders and digital
still cameras. Check the user manual of the connecting device to confirm it has the appropriate output
connector.

I

TEM

L

ABEL

D

ESCRIPTION

A

B

C

D

E

F

G

H

I

Rear IR Receiver for IR signal from remote control.

DVI-D

(For PR5020 only)

VGA in Connect a VGA cable (supplied) from a computer.

VGA out Connect a VGA cable (not supplied) to a monitor.

S-video Connect S-video cable (not supplied) from a video device.

Video Connect a composite video cable (supplied) from a video device.

Audio in-R Connect the audio cable (supplied) from an audio input device.

Audio in-L Connect the audio cable (supplied) from an audio input device.

Audio-in Connect an audio cable (supplied) from the compute r’s audio -out

Connect DVI-D cable (not supplied) from a computer.

connector.

Audio-out Audio loop-thru

USB Connect the supplied USB cable (supplied) from a computer for USB

RS-232

(For PR5020 only)

mouse function and firmware upgrades.

Reserved for installation control.

– 11 –

User’s Manual

Warning:

As a safety precaution, disconnect all power to the projector and connecting devices before making
connections.

– 12 –

Starting and Shutting down the Projector

Slide the lens cover.

1.

Connect the power cord to the projector [A]

2.

Connect the other end to a wall outlet.

—

Switch [B] from on (O) to off (

The POWER and READY LEDs on the

3.

projector turn on.
Turn on the connected devices.

Ensure the Ready LED is on a steady (not

4.

flashing) orange and then press the Power
button to turn on the projector.

The projector splash screen displays and
connected devices are detected.
If the connected device is a PC, press the
appropriate keys on the computer keyboard to
switch the display output to the projector.
(Check the user manual of the PC to
determine the appropriate Fn key combination
to change display output.)

See “Setting an Access Password (Security
Lock)” on page 15 if Security Lock is
enabled.

)

DLP® Projector – User’s Manual

If more than one input device is connected,

5.

press the Source button repeatedly to switch
among devices.
(DVD and HDTV are supported through the
VGA connector.)

To turn off the projector, press the Power

6.

button. The projector prepares for shutdown
and a “Wait a moment please…” message
appears.

– 13 –

User’s Manual

When the “Power Off?/Press Power again”

7.

message appears, press the Power button.
The projector turns off.

Turn off the main Power switch when the

8.

Ready LED stops flashing.

Caution:

Do not unplug the power cord until the Ready LED stops flashing, indicating the projector has
cooled down.

– 14 –

DLP® Projector – User’s Manual

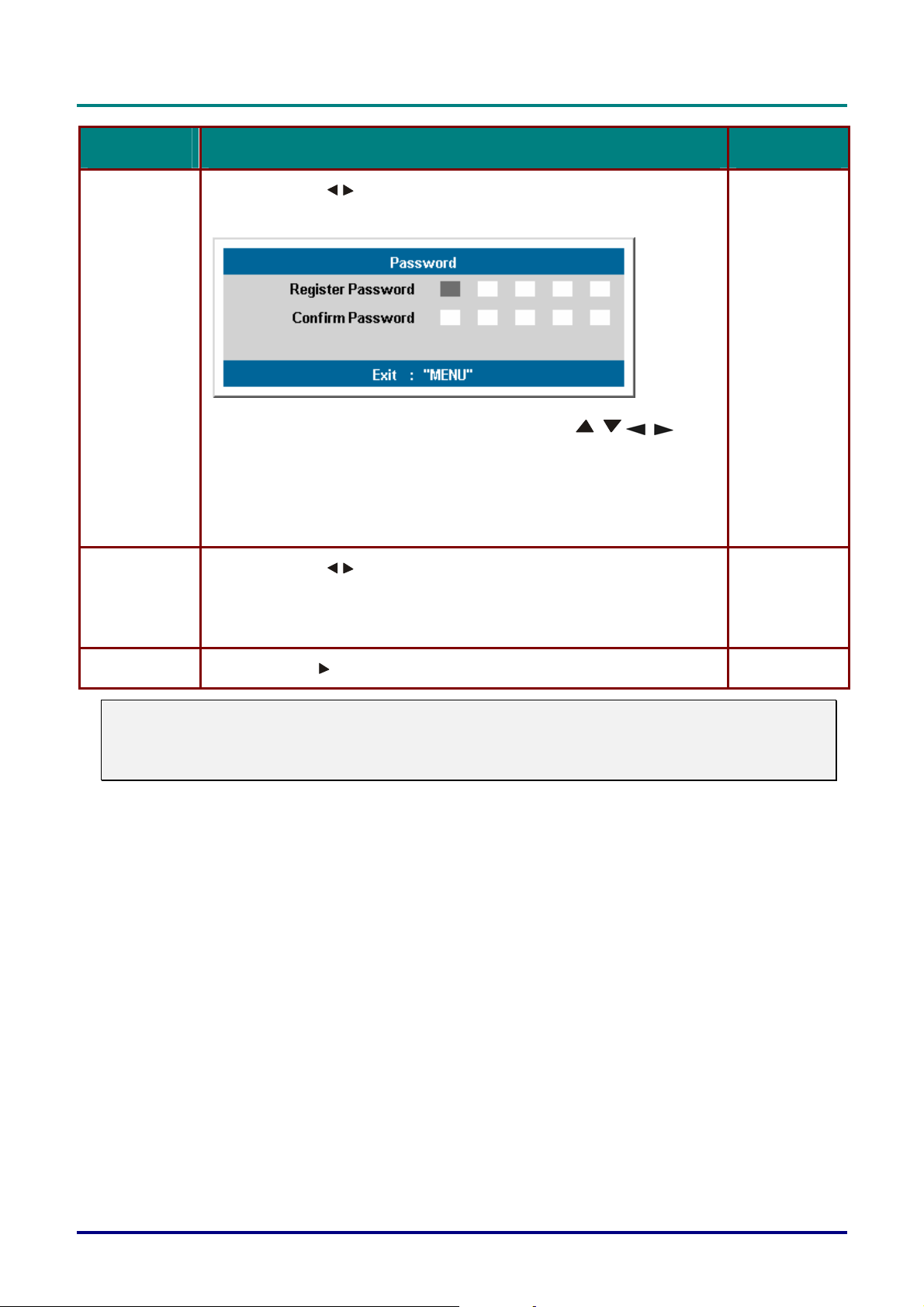

Setting an Access Password (Security Lock)

You can use the cursor (arrow) buttons to set a password and prevent unauthorized use of the
projector. When enabled, the password must be entered after you power on the projector. (See
“Navigating the OSD” on page 32 and “Setting the OSD Language” on page 32 for help on using
OSD menus.)

Important:

Keep the password in a safe place. Without the password, you will not be able to use the projector.
If you lose the password, contact your reseller for information on clearing the password.

Press the Menu button to open the OSD

1.

menu.

Press the cursor button to move to the

2.

Setup menu.

Press the cursor button to select

3.

Advance Feature and press Enter or

Press the cursor button to select

4.

Security Lock.

Press the cursor Enter or button to

5.

select Enable. (White text is selected.)
A password dialog box automatically
appears.

You can only use the following four

6.

cursor buttons:
in the password fields. You can use any
combination including the same arrow five
times, but not less than six.
Press the cursor buttons in any order to set
the password. When you confirm the
password, OK appears.

.

Every time you start the projector, a
password dialog box appears.

Enter the password in the order you set it
at step 6. (Press the Menu button to cancel
if you enter the wrong password.)

– 15 –

User’s Manual

Adjusting the Projector Level

Take note of the following when setting up the projector:

• The projector table or stand should be level and sturdy.

• Position the projector so that it is perpendicular to the screen.

• Be sure cables are not in the way or can cause the projector to be knocked over.

6.

7.

8.

To raise the level of the projector, lift the projector [A] and press the height-adjuster
button [B].

The height adjuster drops down [C].

To lower the level of the projector , press the height-adjuster button and push down
on the top of the projector.

To adjust the angle of the picture, turn the tilt adjuster [D] right or left until desired
angle has been achieved.

– 16 –

Adjusting the Zoom, Focus and Keystone

Use the Image-zoom

1.

control (on the projector
only) to resize the
projected image and

screen size.

Use the Image-focus

2.

control (on the projector
only) to sharpen the

projected image

Press the Keystone button

3.

on the remote control.
The keystone control
appears on the display.

B

A

.

DLP® Projector – User’s Manual

Use the Keystone button

4.

to correct image
distortion.

Adjusting the Volume

Press the Volume +/-

1.

button on the remote
control.
The volume control
appears on the display.

Use the Volume +/-

2.

button to adjust the level.

– 17 –

User’s Manual

Press the Mute button to

3.

turn off the volume. (For
remote only)

– 18 –

DLP® Projector – User’s Manual

ON-S

CREEN DISPLAY

(OSD) M

ENU SETTINGS

OSD Menu Controls

The projector has an OSD that lets you make image adjustments and change various settings.

Navigating the OSD

You can use the remote control cursor buttons or the buttons on the top of the projector to navigate
and make changes to the OSD. The following illustration shows the corresponding buttons on the
remote control and on the projector.

1. To open the OSD, press the Menu button.

2. There are six menus. Press the cursor
button to move through the menus.

3. Press the cursor
down in a menu.

4. Press
then press Enter or
setting.

5. Press Menu to close the OSD or leave a
submenu.

Note:

Depending on the video source not all items in the OSD are available. For example, the
Horizontal/Vertical Position items in the Setup menu can only be modified when connected to a
PC. Items that are not available cannot be accessed and are grayed out.

to change values for settings, and

button to move up and

to confirm the new

– 19 –

User’s Manual

Setting the OSD Language

You may want to reference the OSD on your projector while reading this section. Set the OSD
language to your preference before continuing. (The default language is English.)

1. Press the Menu button. The Main menu appears.

2. Press the cursor button until Tool is highlighted.

3. Press the cursor button until Tool is highlighted.

4. Press the

button until your language is displayed.

5. Press the Menu button twice to close the OSD.

– 20 –

DLP® Projector – User’s Manual

Setting the OSD Language

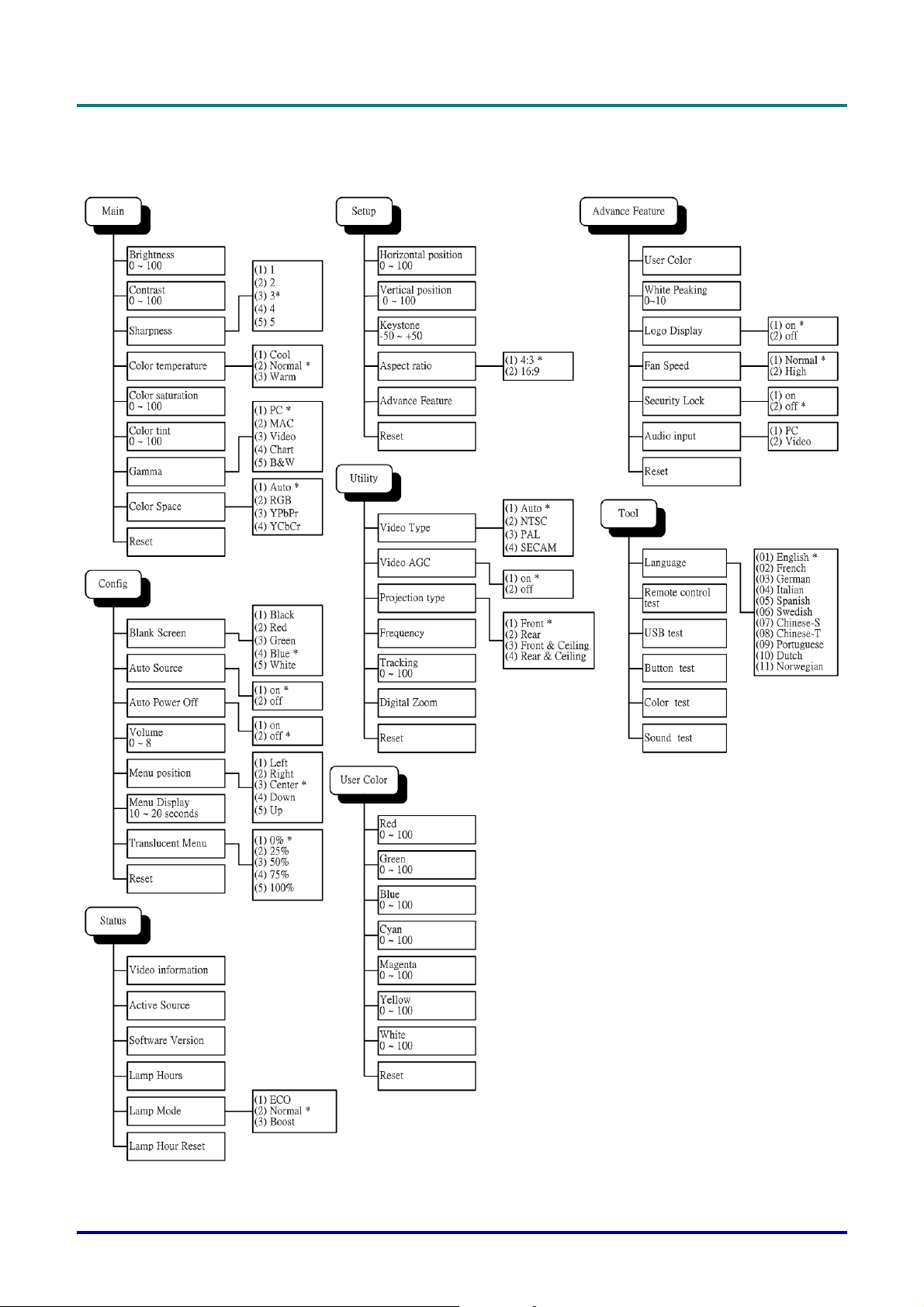

Use the following illustration to quickly find a setting or determine the range for a setting.

– 21 –

User’s Manual

Main Menu

Press the Menu button to open the OSD menu. Press the cursor button to move to the Main
menu. Press the cursor
values for settings, and then press Enter or

button to move up and down in the Main menu. Press to change

to confirm the new setting.

I

TEM

D

ESCRIPTION

D

EFAULT

Brightness Press the cursor button to adjust the brightness. (Range: 0 – 100) 50

Contrast Press the cursor button to adjust the contrast. (Range: 0 – 100) 50

Sharpness Press the cursor button to adjust the display sharpness (Range: 1-5) 3

Color
Temperature

Color

Press the cursor

button to adjust the color temperature.

(Range: Cool/Normal/Warm)

Press the cursor button to adjust the video saturation. (Range: 0 – 100) 50

Normal

Saturation

Color Tint Press the cursor button to adjust the video tint/hue. (Range: 0 – 100)

Gamma Press the cursor button to adjust the gamma correction of the display.

Input Gamma

PC 2.2
MAC 1.8
Video 2.4

50

Data source:
PC

Video source:
Video

Chart 2.2
B&W 2.4

Color Space Press the cursor button to adjust the color space.

Auto

(Range: Auto – RGB – YPbPr- YCbCr)

Reset Resets all Main settings to default values —

– 22 –

DLP® Projector – User’s Manual

Main Menu Functions Available for Connected Source

Function RGB DVI Component Video Composite Video S-video

Brightness x x x x x
Contrast x x x x x
Sharpness x x x x x
Color Temp x x x x x
Color Saturation x x x
Color Tint x x x
Gamma x x x x x
Color Space x x x x x
Reset x x x x x

x = available to video source

– 23 –

User’s Manual

Setup Menu

Press the Menu button to open the OSD menu. Press the cursor button to move to the Setup
menu. Press the cursor
values for settings, and then press Enter or

button to move up and down in the Setup menu. Press to change

to confirm the new setting.

I

TEM

D

Horizontal

Press the cursor button to move the image left or right. (Range: 0 – 100) 50

ESCRIPTION

D

EFAULT

Position

Vertical

Press the cursor button to move the image up or down. (Range: 0 – 100) 50

Position

Keystone Press the cursor button to correct distortion of the projected image.

0

(Range: -50 – +50)

Aspect Ratio Press the cursor button to toggle between the 4:3 standard format and the

4:3

16:9 High Definition TV (HDTV) format.

Advance

See “Advance Feature” on page 25. —

Feature

Reset Resets Keystone and Aspect Ratio to default values —

Setup Menu Functions Available for Connected Source

Function RGB DVI Component Video Composite Video S-video

H Position x
V Position x
Keystone correction x x x x x
Aspect Ratio x x x x x
Advance Feature x x x x x

– 24 –

DLP® Projector – User’s Manual

Function RGB DVI Component Video Composite Video S-video

Reset x x x x x

x = available to video source

Advance Feature

Press the Menu button to open the OSD menu. Press
move to the Advance Feature menu and then press Enter or . Press
the Advance Feature menu. Press
confirm the new setting.

I

TEM

D

to change values for settings, and then press Enter or

ESCRIPTION

to move to the Setup menu. Press to

D

to move up and down in

EFAULT

to

User Color This feature adjusts the color balance in each color of RGB (red, green,

blue), and their neutral colors (cyan, magenta, yellow, white) by using
color correction adjustment. Increasing a color’s setting heightens the
intensity of that color on the screen, while a lower setting makes the color
less intense.

White
Peaking

Press

Press

White Peaking increases the output in the brightest whites without
changing the blacks and dark grays. It crushes the whites slightly, but it

to select a color.

to adjust the selected color. (Range: 0 – 100)

does not appear to clip them or seriously obscure white detail. If you
prefer a stronger image, adjust toward the maximum setting. For a
smoother, more natural image, adjust toward the minimum setting.

Logo
Display

Press

Press
starts, and when no source is detected. (Range: On – Off)

to adjust the value of white peaking. (Range: 0 – 10)

to enable or disable if the logo displays when the projector

Fan Speed Press the cursor button to toggle between normal and high fan speed

80

Data source:

10

Video source:

2

On

Normal

Set Fan Speed to High in altitudes over 1500 meters (5000 feet).

– 25 –

User’s Manual

I

TEM

D

ESCRIPTION

D

EFAULT

Security Lock Press the cursor button to enable or disable Security Lock. When

you enable Security Lock a Register Password dialog box appears:

You can only use the following four cursor buttons,

in the
password fields. Press the cursor buttons five times in any order and
confirm to set the password. When the password is enabled, it must be
entered every time after you power on the projector. See “Setting an
Access Password (Security Lock)” on page 15 for steps on setting the
password.

Audio Input Press the cursor button to toggle between PC and Video input

channels.

—

Data Source:
PC

Video source:
Video

Reset Press Enter or

to reset advance feature settings to default values —

Note:

If Security Lock is enabled, you must enter the password every time the projector is turned on.
However, if the projector is already turned on, Security Lock can be disabled without knowing the
current password.

– 26 –

User Color

DLP® Projector – User’s Manual

Press the Menu button to open the OSD menu. Press to move to the Setup menu. Press
move to the Advance Feature menu and then press Enter or . Press
Color menu and then press Enter or . Press
to change values for settings, and then press Enter or

I

TEM

D

ESCRIPTION

to move up and down to select a color. Press

to confirm the new setting.

D

to move to the User

EFAULT

to

Red Press the cursor button to adjust the red color level. (Range: 0-100) 80
Green
Blue
Cyan
Magenta
Yellow
White

Press the cursor
Press the cursor
Press the cursor
Press the cursor
Press the cursor

button to adjust the green color level. (Range: 0-100)
button to adjust the blue color level. (Range: 0-100)
button to adjust the cyan color level. (Range: 0-100)
button to adjust the magenta color level. (Range:0-100)
button to adjust the yellow color level. (Range: 0-100)

Press the cursor button to adjust the white color level. (Range: 0-100)

80
80
80
80
80
80

Reset Resets all User Color settings to default values —

– 27 –

User’s Manual

Config Menu

Press the Menu button to open the Main menu. Press the cursor button to move to the Config
menu. Press the cursor
values for settings, and then press Enter or

button to move up and down in the Config menu. Press to change

to confirm the new setting.

I

TEM

D

Blank Screen

Press the cursor

button to select a background color for the blank

ESCRIPTION

D

EFAULT

Blue

screen. (Range: Black – Red – Green – Blue – White)

Auto Source

Press the cursor

button to enable or disable automatic source

On

detection. (Range: On – Off)

Auto Power
Off

Press the cursor

button to enable or disable automatic shut-down of

lamp after 10 minutes of inactivity. (Range: On – Off)

Off

Volume Press the cursor button to adjust the audio volume level. (Range: 0 - 8) 4
Menu

Position
Menu Display

Press the cursor

button to position the OSD on screen.

(Range: Left – Right – Center – Down – Up)
Press the cursor

button to determine the timeout delay of the OSD.

Center

15

(Range: 10 – 20 sec.)

Translucent
Menu

Press the cursor button to set menu screen translucency.
(Range: 0% – 100%)

0%

Reset Resets all Config items to default values

Note:
The Config menu functions are available to all video sources.

– 28 –

DLP® Projector – User’s Manual

Utility Menu

Press the Menu button to open the Main menu. Press the cursor button to move to the Utility
menu. Press the cursor
values for settings, and then press Enter or

button to move up and down in the Utility menu. Press to change

to confirm the new setting.

I

TEM

D

ESCRIPTION

D

Video Type Press the cursor button to select the video standard

(Range: Auto – NTSC – PAL – SECAM)

Video AGC Press the cursor button to enable or disable automatic

gain control for the video source. (Range: On – Off)

Projection

Press the cursor button to choose from four projection
methods:

Desktop mount, front of screen

Desktop mount, rear of screen

Ceiling mount, front of screen

Ceiling mount, rear of screen

Frequency Press the cursor button to adjust the A/D sampling

clock. (Range: 0° - 180°)

EFAULT

Auto

On

Desktop front

Auto detected

Tracking Press the cursor button to adjust the A/D sampling

number. (Range: 1 - 100)

– 29 –

Auto detected

User’s Manual

I

TEM

D

ESCRIPTION

D

EFAULT

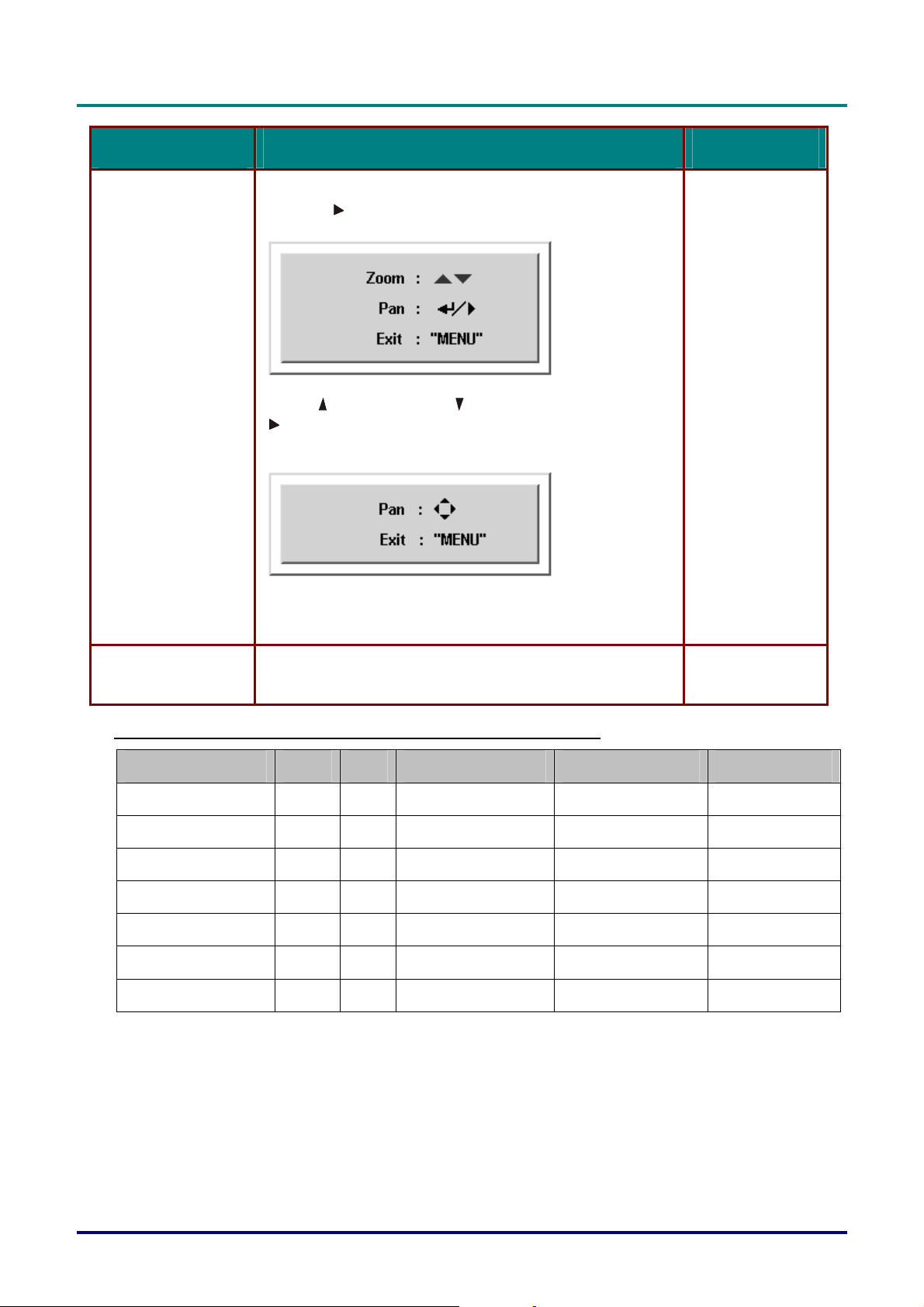

Digital Zoom Digital operation for zoom and pan adjustment. Press

Enter or

The Zoom menu appears.

.

Press

to zoom in; press to zoom out. Press Enter or

to open the Pan menu. (You must zoom in before you

can open the Pan menu.)

Use the cursor buttons to pan the zoomed image. Press the
Menu button to exit.

—

Reset Resets Video Type, Video AGC, Projection, and Digital

—

Zoom to default values

Utility Menu Functions Available for Connected Source

Function RGB DVI Component Video Composite Video S-video

Video Type x x
Video AGC x x
Projection X x x x x
Frequency x x
Tracking x
Digital Zoom x x x x
Reset x x x x x

x = available to video source

– 30 –

DLP® Projector – User’s Manual

Tool Menu

Press the Menu button to open the Main menu. Press the cursor button to move to the Tool
menu. Press the cursor
confirm the new setting.

button to move up and down in the Tool menu. Press Enter or

to

I

TEM

D

Language

Remote control test

USB test

Button test

Color test

Sound test

Press the cursor

ESCRIPTION

to select the desired language English

D

EFAULT

Follow on-screen prompts to carry out the remote control test. You are
returned to the Tool menu at the end or by pressing the Menu button.

Follow on-screen prompts to carry out the USB test. You are returned to the
Tool menu at the end or by pressing the Menu button.

Follow on-screen prompts to carry out the button test. You are returned to
the Tool menu at the end or by pressing the Menu button.

Follow on-screen prompts to carry out the color test. You are returned to the
Tool menu at the end or by pressing the Menu button.

Follow on-screen prompts to carry out the sound test. You are returned to the
Tool menu at the end or by pressing the Menu button.

– 31 –

User’s Manual

Status Menu

Press the Menu button to open the Main menu. Press the cursor button to move to the Status
menu. Press the cursor

button to move up and down in the Status menu.

I

TEM

D

Video
Information

Displays the resolution and refresh rate for RGB/DVI mode.
Displays the color standard for video mode.

ESCRIPTION

D

Active Source Displays the active source.

Software

Displays information about the software version.

Version

Lamp Hours Shows the number of hours lamp has been in use for Eco , Normal and

Boost modes.

Lamp Mode Press the cursor button to choose the lamp mode.

Range: Eco , Normal and Boost.

Eco mode uses less power and extends lamp life, but decreases lamp
brightness.

Boost mode uses more power and reduces lamp life, but increases lamp
brightness.

Lamp Hour
Reset

After replacing the lamp, this item should be reset. Refer to “Replacing the
Projection Lamp” on page 36.

EFAULT

These

items are

display

only.

Normal

—

– 32 –

M

AINTENANCE AND SECURITY

Replacing the Projection Lamp

The projection lamp should be replaced when it burns out. It should only be replaced with a certified
replacement part, which you can order from your local dealer.

Important:

1. The lamp contains a certain amount of mercury and should be disposed of according to local

ordinance regulations.

2. Avoid touching the glass surface of the new lamp: Doing so may shorten its operation life.

Warning:

Be sure to turn off and unplug the projector at least an hour before replacing the lamp. Failure to do
so could result in a severe burn.

Note:

Safety glasses should be worn when replacing the lamp while the projector is ceiling mounted.

Loosen the two captive

1.

screws on the lamp
compartment cover (A).

– 33 –

User’s Manual

Open the lamp

2.

compartment cover (B).

B

Remove the two screws

3.

from the lamp module
(C).

Lift the module handle

4.

up (D).

– 34 –

Pull firmly on the

5.

module handle to
remove the lamp module
(D)

DLP® Projector – User’s Manual

D

Reverse steps 1 to 5 to

6.

install the new lamp
module.

– 35 –

User’s Manual

Resetting the Lamp

After replacing the lamp, you should reset the lamp hour counter to zero. Refer to the following:

Press the Menu button to open the

1.

Main menu.

Press the cursor button to move

2.

to the Status menu.

Press the cursor button to move

3.

down to Lamp Hour Reset.

Press the cursor or Enter button.

4.

A message screen appears.

Press the cursor buttons in this order:

5.

; ; ; .

The Status menu appears again
showing the Lamp Hours reset to
zero.

Cleaning the Projector

Cleaning the projector to remove dust and grime will help ensure trouble-free operation.

Warning:

1. Be sure to turn off and unplug the projector at least an hour before cleaning. Failure to do so

could result in a severe burn.

2. Use only a dampened cloth when cleaning. Do not allow water to enter the ventilation openings
on the projector.

3. If a little water gets into the projector interior while cleaning, leave unplugged in a well-ventilated
room for several hours before using.

4. If a lot of water gets into the projector interior when cleaning, have the projector serviced.

– 36 –

DLP® Projector – User’s Manual

Cleaning the Lens

You can purchase optic lens cleaner from most camera stores. Refer to the following to clean the
projector lens.

1. Apply a little optic lens cleaner to a clean soft cloth. (Do not apply the cleaner directly to the lens.)

2. Lightly wipe the lens in a circular motion.

Caution:

1. Do not use abrasive cleaners or solvents.

2. To prevent discoloration or fading, avoid getting cleaner on the projector case.

Cleaning the Case

Refer to the following to clean the projector case.

1. Wipe off dust with a clean dampened cloth.

2. Moisten the cloth with warm water and mild detergent (such as used to wash dishes), and then wipe

the case.

3. Rinse all detergent from the cloth and wipe the projector again.

Caution:

To prevent discoloration or fading of the case, do not use abrasive alcohol-based cleaners.

Using the Kensington® Lock

If you are concerned about security, attach the projector to a permanent object with the Kensington
slot and a security cable.

Note:

Contact your vendor for details on purchasing a suitable Kensington security cable.
The security lock corresponds to Kensington’s MicroSaver Security System. If you have any

comment, contact: Kensington, 2853 Campus Drive, San Mateo, CA94403, U.S.A. Tel: 800-535­4242, http://www.Kensington.com.

– 37 –

T

ROUBLESHOOTING

Common problems and solutions

These guidelines provide tips to deal with problems you may encounter while using the projector. If
the problem remains unsolved, contact your dealer for assistance.

Often after time spent troubleshooting, the problem is traced to something as simple as a loose
connection. Check the following before proceeding to the problem-specific solutions.

• Use some other electrical device to confirm that the electrical outlet is working.

• Ensure the projector is turned on.

• Ensure all connections are securely attached.

• Ensure the attached device is turned on.

• Ensure a connected PC is not in suspend mode.

• Ensure a connected notebook computer is configured for an external display. (This is

usually done by pressing an Fn-key combination on the notebook.)

Tips for Troubleshooting

In each problem-specific section, try the steps in the order suggested. This may help you to solve the
problem more quickly.

Try to pin point the problem and thus avoid replacing non-defective parts.
For example, if you replace batteries and the problem remains, put the original batteries back and go
to the next step.

Keep a record of the steps you take when troubleshooting: The information may be useful when
calling for technical support or for passing on to service personnel.

– 38 –

DLP® Projector – User’s Manual

LED Error Messages

E

RROR CODE MESSAGE

Lamp usage task created error 2 1
Environment usage task created error 2 2
Thermal break status error 3 0
T1 temperature over temperature 3 1
T1 sensor status fail 4 1
Lamp lit error 5 1
Ballast SCI error 5 2
Ballast UART error 5 3
Fan1 error (Lamp) 6 1
Fan2 error (Ballast) 6 2

P

OWER

LED/

FLASHES

R

EADY

LED/

FLASHES

Fan3 error (Burner) 6 3
Fan4 error (Power) 6 4
Lamp door sensor detect high 7 0
DMD error 8 0
Color wheel error 9 0

Image Problems

Problem: No image appears on the screen

1. Verify the settings on your notebook or desktop PC.

2. Turn off all equipment and power up again in the correct order.

Problem: The image is blurred

1. Adjust the Focus on the projector.

2. Press the Auto button on the remote control or projector.

3. Ensure the projector-to-screen distance is within the 10-meter (33-feet) specified range.

4. Check that the projector lens is clean.

Problem: The image is wider at the top or bottom (trapezoid effect)

1. Position the projector so it is as perpendicular to the screen as possible.

2. Use the Keystone button on the remote control or projector to correct the problem.

Problem: The image is reversed or upside down

Check the Projection setting on the Utility menu of the OSD.

Problem: The image is streaked

1. Set the Frequency and Tracking settings on the Utility menu of the OSD to the default
settings.

– 39 –

User’s Manual

2. To ensure the problem is not caused by a connected PC’s video card, connect to another
computer.

Problem: The image is flat with no contrast

Adjust the Contrast setting on the Main menu of the OSD.

Problem: The color of the projected image does not match the source image.

Adjust the Color Temperature and Gamma settings on the Main menu of the OSD.

Lamp Problems

Problem: There is no light from the projector

1. Check that the power cable is securely connected.

2. Ensure the power source is good by testing with another electrical device.

3. Restart the projector in the correct order and check that the Power LED is green.

4. If you have replaced the lamp recently, try resetting the lamp connections.

5. Replace the lamp module.

6. Put the old lamp back in the projector and have the projector serviced.

Problem: The lamp goes off

1. Power surges can cause the lamp to turn off. Press the power button twice to turn off the
projector. When the Ready LED is on, press the power button.

2. Replace the lamp module.

3. Put the old lamp back in the projector and have the projector serviced.

Remote Control Problems

Problem: The projector does not respond to the remote control

1. Direct the remote control towards remote sensor on the projector.

2. Ensure the path between remote and sensor is not obstructed.

3. Turn off any fluorescent lights in the room.

4. Check the battery polarity.

5. Replace the batteries.

6. Turn off other Infrared-enabled devices in the vicinity.

7. Have the remote control serviced.

Audio Problems

Problem: There is no sound

1. Adjust the volume on the remote control.

2. Adjust the volume of the audio source.

3. Check the audio cable connection.

4. Test the source audio output with other speakers.

5. Have the projector serviced.

Problem: The sound is distorted

1. Check the audio cable connection.

2. Test the source audio output with other speakers.

3. Have the projector serviced.

– 40 –

Input/output connectors

S

PECIFICATIONS

Data out RGB HD-15

Audio out Stereo Mini-jack

Security Kensington lock

PR3010 PR3020 PR5020

× × DVI-D Data in

RGB HD-15

composite video (RCAx1) Video

S-video

Stereo RCAx2 (L+R) Audio in

Stereo Mini-jack

× × RS-232 Control

USB

– 41 –

User’s Manual

Projection Distance V.S. Projection Size

A
B

L Projection Distance

PR3020 and PR3010 Projection distance and size table

Projection

Distance L

Max. Screen Size

Diagonal

(Wide)

Width

A

1.8

Height

C

Max. Screen Size

(Tele)

Diagonal

Width

B

C

D

2.1

Height

D

1.00 m 0.66 m 0.53 m 0.40 m 0.57 m 0.46 m 0.34 m

3.28 ' 26.04 '' 20.83 '' 15.62 '' 22.57 '' 18.06 '' 13.54 ''

1.50 m 0.99 m 0.79 m 0.60 m 0.86 m 0.69 m 0.52 m

4.92 ' 39.06 '' 31.25 '' 23.43 '' 33.86 '' 27.09 '' 20.32 ''

2.40 m 1.59 m 1.27 m 0.95 m 1.38 m 1.10 m 0.83 m

7.87 ' 62.49 '' 49.99 '' 37.50 '' 54.18 '' 43.34 '' 32.51 ''

2.80 m 1.85 m 1.48 m 1.11 m 1.61 m 1.28 m 0.96 m

9.18 ' 72.91 '' 58.33 '' 43.74 '' 63.21 '' 50.57 '' 37.93 ''

3.20 m 2.12 m 1.69 m 1.27 m 1.83 m 1.47 m 1.10 m

10.50 ' 83.32 '' 66.66 '' 49.99 '' 72.24 '' 57.79 '' 43.34 ''

3.60 m 2.38 m 1.90 m 1.43 m 2.06 m 1.65 m 1.24 m

11.81 ' 93.74 '' 74.99 '' 56.24 '' 81.27 '' 65.01 '' 48.76 ''

4.00 m 2.65 m 2.12 m 1.59 m 2.29 m 1.83 m 1.38 m

13.12 ' 104.15 '' 83.32 '' 62.49 '' 90.30 '' 72.24 '' 54.18 ''

4.40 m 2.91 m 2.33 m 1.75 m 2.52 m 2.02 m 1.51 m

14.43 ' 114.57 '' 91.66 '' 68.74 '' 99.33 '' 79.46 '' 59.60 ''

4.80 m 3.17 m 2.54 m 1.90 m 2.75 m 2.20 m 1.65 m

15.74 ' 124.98 '' 99.99 '' 74.99 '' 108.36 '' 86.69 '' 65.01 ''

5.20 m 3.44 m 2.75 m 2.06 m 2.98 m 2.39 m 1.79 m

17.06 ' 135.40 '' 108.32 '' 81.24 '' 117.39 '' 93.91 '' 70.43 ''

5.60 m 3.70 m 2.96 m 2.22 m 3.21 m 2.57 m 1.93 m

18.37 ' 145.82 '' 116.65 '' 87.49 '' 126.42 '' 101.13 '' 75.85 ''

7.00 m 4.63 m 3.70 m 2.78 m 4.01 m 3.21 m 2.41 m

– 42 –

DLP® Projector – User’s Manual

22.96 ' 182.27 '' 145.82 '' 109.36 '' 158.02 '' 126.42 '' 94.81 ''

10.00 m 6.61 m 5.29 m 3.97 m 5.73 m 4.59 m 3.44 m

32.80 ' 260.38 '' 208.31 '' 156.23 '' 225.75 '' 180.60 '' 135.45 ''

PR5020 Projection distance and size table

Projection

Distance L

1.00 m 0.69 m 0.56 m 0.42 m 0.60 m 0.48 m 0.36 m

3.28 ' 27.34 '' 21.87 '' 16.40 '' 23.43 '' 18.75 '' 14.06 ''

1.50 m 1.04 m 0.83 m 0.63 m 0.89 m 0.71 m 0.54 m

4.92 ' 41.01 '' 32.81 '' 24.61 '' 35.15 '' 28.12 '' 21.09 ''

2.40 m 1.67 m 1.33 m 1.00 m 1.43 m 1.14 m 0.86 m

7.87 ' 65.62 '' 52.49 '' 39.37 '' 56.24 '' 44.99 '' 33.75 ''

2.80 m 1.94 m 1.56 m 1.17 m 1.67 m 1.33 m 1.00 m

Max. Screen Size

Diagonal

(Wide)

Width

A

1.8

Height

C

Max. Screen Size

(Tele)

Diagonal

Width

B

2.1

Height

D

9.18 ' 76.55 '' 61.24 '' 45.93 '' 65.62 '' 52.49 '' 39.37 ''

3.20 m 2.22 m 1.78 m 1.33 m 1.90 m 1.52 m 1.14 m

10.50 ' 87.49 '' 69.99 '' 52.49 '' 74.99 '' 59.99 '' 44.99 ''

3.60 m 2.50 m 2.00 m 1.50 m 2.14 m 1.71 m 1.29 m

11.81 ' 98.43 '' 78.74 '' 59.06 '' 84.36 '' 67.49 '' 50.62 ''

4.00 m 2.78 m 2.22 m 1.67 m 2.38 m 1.90 m 1.43 m

13.12 ' 109.36 '' 87.49 '' 65.62 '' 93.74 '' 74.99 '' 56.24 ''

4.40 m 3.06 m 2.44 m 1.83 m 2.62 m 2.10 m 1.57 m

14.43 ' 120.30 '' 96.24 '' 72.18 '' 103.11 '' 82.49 '' 61.87 ''

4.80 m 3.33 m 2.67 m 2.00 m 2.86 m 2.29 m 1.71 m

15.74 ' 131.23 '' 104.99 '' 78.74 '' 112.49 '' 89.99 '' 67.49 ''

5.20 m 3.61 m 2.89 m 2.17 m 3.10 m 2.48 m 1.86 m

17.06 ' 142.17 '' 113.74 '' 85.30 '' 121.86 '' 97.49 '' 73.12 ''

5.60 m 3.89 m 3.11 m 2.33 m 3.33 m 2.67 m 2.00 m

18.37 ' 153.11 '' 122.48 '' 91.86 '' 131.23 '' 104.99 '' 78.74 ''

7.00 m 4.86 m 3.89 m 2.92 m 4.17 m 3.33 m 2.50 m

22.96 ' 191.38 '' 153.11 '' 114.83 '' 164.04 '' 131.23 '' 98.43 ''

10.00 m 6.94 m 5.56 m 4.17 m 5.95 m 4.76 m 3.57 m

32.80 ' 273.40 '' 218.72 '' 164.04 '' 234.35 '' 187.48 '' 140.61 ''

Shaded rows are equivalent measurement in feet and inches

– 43 –

User’s Manual

Timing Mode Table

The projector can display several resolutions. The following table outlines the resolutions that can be
displayed by the projector.

Signal Resolution

Frequency H.

(KHz)

NTSC － 15.734 60.0 Ο － －

PAL/SECAM － 15.625 50.0 Ο － －

VESA

640 x 350 37.9 85.1 － Ο Ο

720 x 400 31.5 70.0 － Ο Ο

720 x 400 37.9 85.0 － Ο Ο

640 x 480 31.5 60.0 － Ο Ο

640 x 480 37.9 72.8 － Ο Ο

640 x 480 37.5 75.0 － Ο Ο

640 x 480 43.3 85.0 － Ο Ο

800 x 600 37.9 60.3 － Ο Ο

800 x 600 46.9 75.0 － Ο Ο

800 x 600 48.1 72.2 － Ο Ο

800 x 600 53.7 85.1 － Ο Ο

1024 x 768 48.4 60.0 － Ο Ο

Frequency V.

Video Digital Analog

(Hz)

1024 x 768 56.5 70.1 － Ο Ο

1024 x 768 60.0 75.0 － Ο Ο

1024 x 768 68.7 85.0 － Ο Ο

1280 x 1024 64.0 60.0 － Ο Ο

1600 x 1200** 75.0 60.0 － － Ο

Apple Macintosh

SDTV

HDTV

640 x 480 35.0 66.7 － Ο Ο

832 x 624 49.7 74.5 － Ο Ο

1024 x 768 60.2 74.9 － Ο Ο

1152 x 870 68.7 75.1 － Ο Ο

480i 31.5 30.0 － － －

576i 31.3 25.0 － － －

480p 31.5 60.0 － － －

576p 31.3 50.0 － － －

720p 45.0 60.0 － － －

Ο: Frequency supported - : Frequency not supported

The native resolution for the PR5020 and PR3020 is 1024 x 768. The native resolution for the PR3010

is 800 x 600. Resolution other than native mode may be displayed with uneven size of text or lines.
UXGA resolution with half-sampling
Digital Timing is only for PR5020

– 44 –

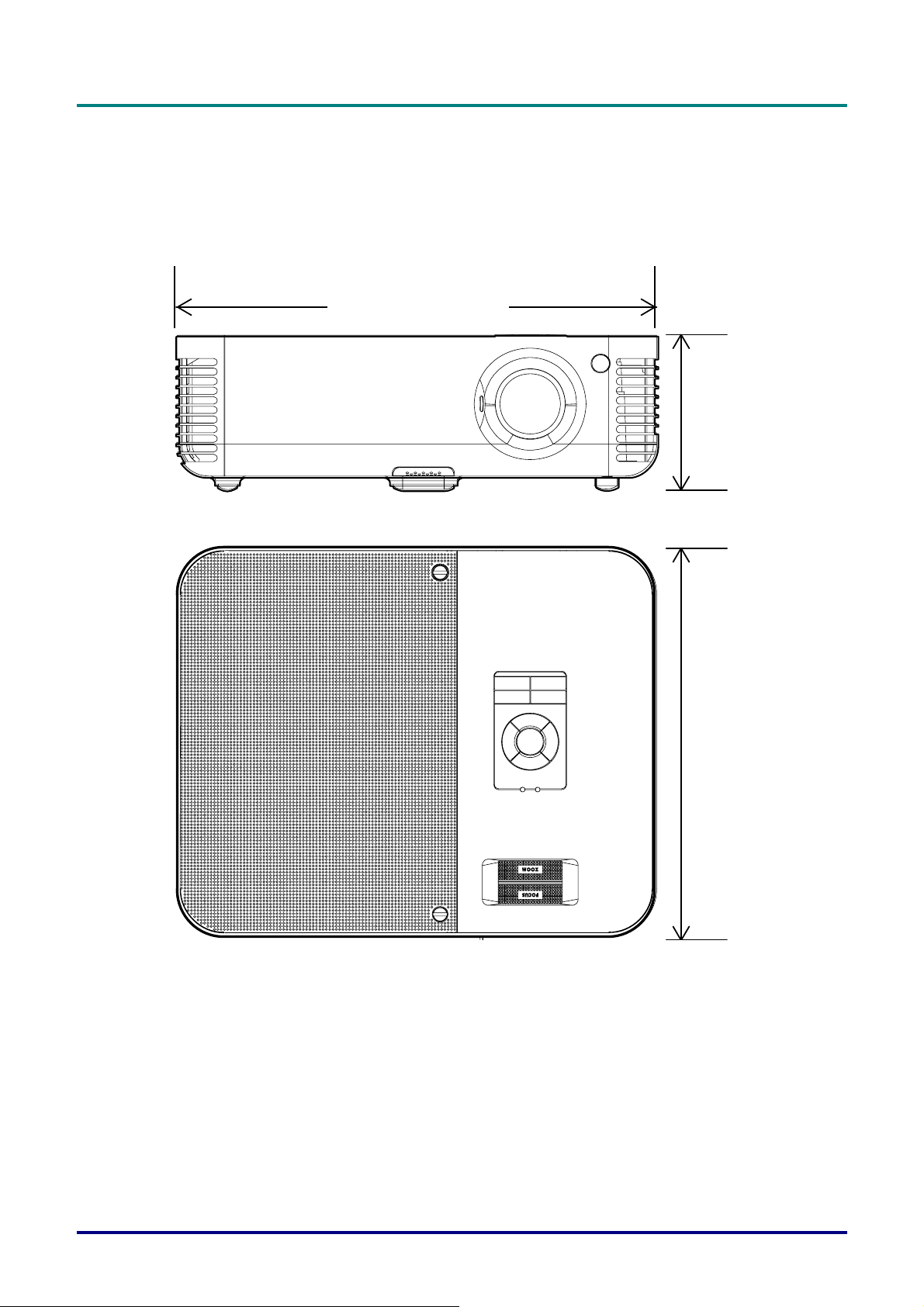

Projector Dimensions

DLP® Projector – User’s Manual

300 mm (11.8”)

96 mm (3.8”)

”

– 45 –

R

EGULATORY COMPLIANCE

FCC Warning

This equipment has been tested and found to comply with the limits for a Class B digital device
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.

Changes or modifications not expressly approved by the parties responsible for compliance could
void the user’s authority to operate the equipment.

Canada

This class B digital apparatus complies with Canadian ICES-003.

Safety Certifications

FCC Class B, UL, C-UL, CE, CB, TUV-GS, CCC , ICES-003(Class B)

EN 55022 Warning

This is a Class B product. In a domestic environment, it may cause radio interference, in which case
the user may be required to take adequate measures. The typical use is in a conference room,
meeting room, or auditorium.

– 46 –

DLP® Projector – User’s Manual

Planar System, Inc.

Customer Service
Online Support: http://www.planar.com/support
E-mail: [email protected]
Tel: US/Canada 1-866-PLANAR-1 (1-866-752-6271 or 1-503-748-5953), Europe [phone]
Hours: M-F, 8am-8pm Eastern Time, or 8am-4pm EET

© 2006 Planar Systems, Inc. Planar is a registered trademark of Planar Systems, Inc.
Other brands and names are the property of their respective owners.
Technical information in this document is subject to change without notice

– 47 –
