Planar PL2210W User Manual
PL2210W
LCD Monitor
USER'S GUIDE
www.planar.com
Content
Operation Instructions ............................................................................................................2
Safety Precautions ....................................................................................................................3
First Setup ....................................................................................................................................4
Front View of the Product ......................................................................................................5
Rear View of the Product ........................................................................................................6

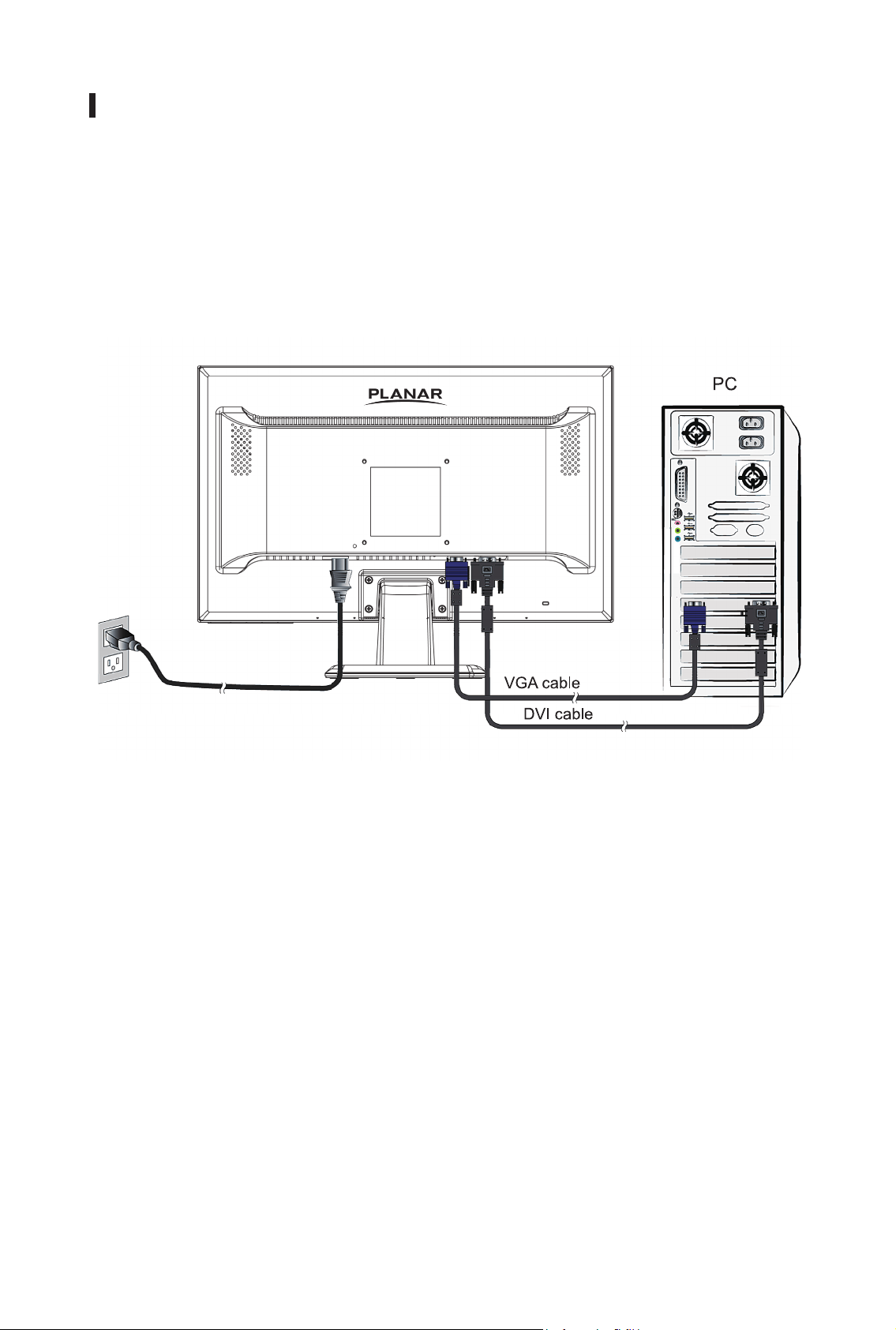

Quick Installation ......................................................................................................................7
Basic Operation .........................................................................................................................8
Advanced Operation—OSD Menu ..................................................................................10
Supporting Timing Modes ..................................................................................................12
Technical Information ...........................................................................................................13
Wall-mount instruction ........................................................................................................14
Care and Maintenance ..........................................................................................................15
Troubleshooting .....................................................................................................................15
Product Registration and Technical Support ................................................................16
1
Operation Instructions
Thank you for purchasing this TFT LCD Monitor, a high-resolution multi-scan color TFT LCD
Monitor.
Please read this guide thoroughly before installation.
FCC RADIO FREQUENCY INTERFERENCE STATEMENT
WARNING: (FOR FCC CERTIFIED MODELS)
This TFT LCD Monitor has been tested and found compliant with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
proper protection against harmful interference to a residential installation. This TFT LCD
Monitor generates, uses, and can radiate radio frequency energy. Harmful interference to
radio communication may be led as a result if it‘s not properly installed and used. However,
there is no guarantee that interference will not occur in a particular installation. If this TFT
LCD Monitor does cause serious interference to radio or television reception, resetting the
TFT LCD Monitor may determine it. Moreover, users are encouraged to correct interference
by doing one or more of the following:
●
Reorient or relocate the receiving antenna.
●
Move the TFT LCD Monitor and the receiver further away from each other.
●
Connect the TFT LCD Monitor into an outlet on a circuit dierent from that to which
the receiver is connected.
●
Consult your local dealer or an qualied technician.
FCC Warning:
To assure a continued FCC compliance, a user must use a grounded power supply cord
and the provided shielded video interface cable with bonded ferrite cores. Also, any
unauthorized changes or modifications to this TFT LCD Monitor would void the user‘s
authority to operate this device.
Note: If necessary, shielded interface cables and AC power cord must be used to meet the
emission level limits.
Important Recycle Instruction:
Lamp(s) inside this product contain mercury. This product may contain other
electronic waste that can be hazardous if not disposed of properly. Recycle or dispose in
accordance with local, state, or federal Laws . For more information, contact the Electronic
Industries Alliance at WWW.EIAE.ORG . For lamp specic disposal information check
WWW.LAMPRECYCLE.ORG.
According to WEEE regulation, this TFT LCD Monitor can't be handled as normal
trash in Europe when it is out of usage. Please refer to the recycle information
from our website to handle it.
2
Safety Precautions
This TFT LCD Monitor is manufactured and tested on a ground principle that a user’s
safety comes rst. However, improper use or installation may result danger to the TFT LCD
Monitor as well as to the user. Carefully go over the following WARNINGS before installation
and keep this guide handy.
WARNINGS:
This TFT LCD Monitor should be operated only at the correct power sources indicated
on the label on the rear end of the TFT LCD Monitor. If you’re unsure of the power
supply in your residence, consult your local dealer or power company.
Do not try to repair the TFT LCD Monitor yourself as it contains no user-serviceable
parts. The TFT LCD Monitor should only be repaired by a qualied technician.
Do not remove the TFT LCD Monitor cabinet. There is high-voltage parts inside that
may cause electric shock to human bodies, even when the power cord is disconnected.
Stop using the TFT LCD Monitor if the cabinet is damaged. Have it checked by a service
technician.
Put your TFT LCD Monitor only in a clean, dry environment. Unplug the TFT LCD
Monitor immediately if gets wet and consult your service technician.
Always unplug the TFT LCD Monitor before cleaning it. Clean the cabinet with a clean,
dry cloth. Apply non-ammonia based cleaner onto the cloth, not directly onto the
glass screen.
Keep the TFT LCD Monitor away from magnetic objects, motors, TV sets, and
transformer.
Do not place heavy objects on the cable or power cord.
For pluggable equipment the socket-outlet shall be installed near the equipment and
shall be easily accessible.
3
First Setup
Congratulations on your purchase of this high performance TFT LCD monitor.
This TFT LCD Monitor comes with the following accessories :
●
●
LCD Monitor
●
Power Cable
●
VGA Cable (15 pin)
Install the stand base
1. Lay the TFT LCD Monitor at on a table with the LCD screen face down. To prevent the
monitor from being scratched, put a piece of soft cloth on the table on which the screen
will be set.
2. Unpack the base, one hand hold the monitor, the other hand attach the base to the
stand.
3. Stand the TFT LCD Monitor up.
User's Guide
●
Base
Uninstall the stand base
1. Lay the TFT LCD Monitor at on a table with the LCD screen face down. To prevent the
TFT LCD Monitor from being scratched, put a piece of soft cloth on the table on which
the screen will be set.
2. Hold the monitor down with one hand. With the other hand, use two ngers to press
the hooks down as directed below.
3. Remove the base from the stand.
4
Front View of the Product
21 3 4 5 6
1 Auto Image Adjust/ OSD Exits
2 OSD Turn On/ Conrm Selection
3 Scroll Down/ Adjust Decrease
4 Scroll UP/ Adjust Increase/ Source select
5 Power On/ O
6 LED Indicator
5
