Chapter 1 Installation
Unpacking
Before unpacking the LCD Monitor, prepare a suitable workspace for your Monitor and computer. You need a stable and clean surface near
a wall power outlet. Make sure that LCD Monitor has enough space around it for sufficient airflow. Though the LCD Monitor uses very
little power, some ventilation is needed to ensure that the Monitor does not become too hot.
After you unpack the LCD Monitor, make sure that the following items were included in the box:
* LCD Monitor * User's Manual
* Monitor-to-PC VGA Cable * Power Cord
* Monitor-to-PC DVI-D Cable * Stereo Jack Audio Cable
* Planar Connections CD-ROM
If you find that any of these items is missing or appears damaged, contact your dealer immediately.
Reference Information
For future reference, write the following information about your monitor in the space
below. The serial number is on the back of the product or on the bottom of its stand.
Monitor Information
Product Name:
Serial Number:
Date of Purchase:
Reseller Information
Reseller:
Telephone Number:
Address:
1
Page 5
Connecting the LCD Monitor and Base

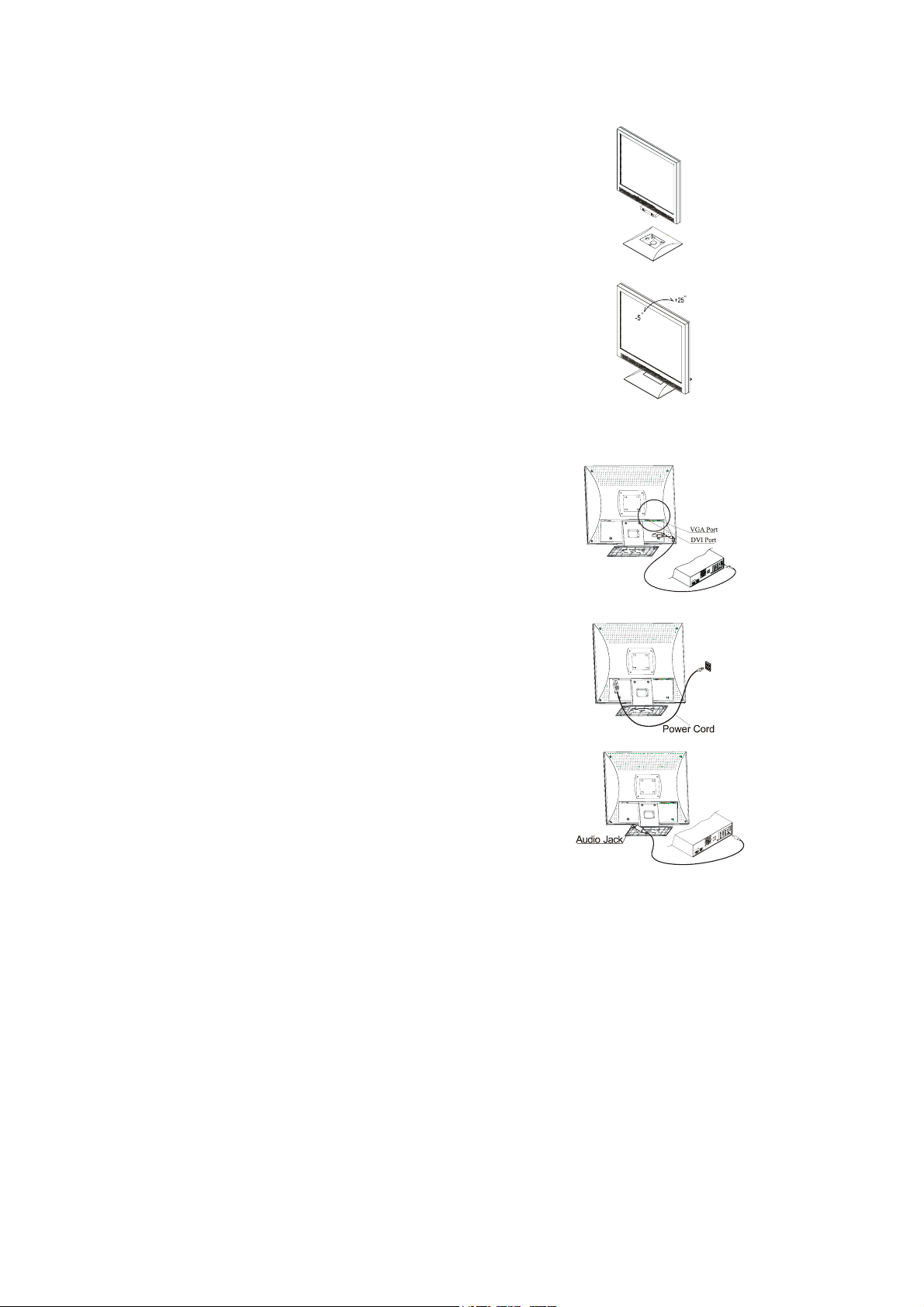

When you open the box to take the base and put on the desk first. Then
connect the LCD Monitor and base.
Viewing Angle Adjustment
The LCD Monitor is designed to allow users to have a
comfortable viewing angle. The viewing angle can be adjusted
from -5°to +25°.
Warning: Do not force the LCD Monitor over its maximum viewing angle settings as stated above. Attempting this will result in damaging
the Monitor and Monitor stand.
Connecting the Display to your Computer
1. Power off your computer.
2. Connect one end of the signal cable to the LCD Monitor’s VGA port
or DVI port.
3. Connect the other end of the signal cable to the VGA port or DVI port
on your PC.
4. Make sure the connections are secure.
Connecting the AC Power
1. Connect the power cord to the AC socket.
2. Connect the power cord to an AC power source.
Connecting the Audio Cable
1. Connect the audio cable to the "LINE OUT " jack on your PC's
audio card or to the front panel's “AUDIO OUT” jack of your CD
ROM drive.
2. Connect the other end of the audio cable to the LCD Monitor's
"LINE IN" jack.
2
Page 6
Multi-Mount Ready ™ Optional Mounting
I
Alternatives
Detaching LCD Monitor from Its Stand
Unscrew screws n the swivel base support column and pull downo the
second.
nterface for Wall Mount, Arm, or Alternate
Deskstand Applications

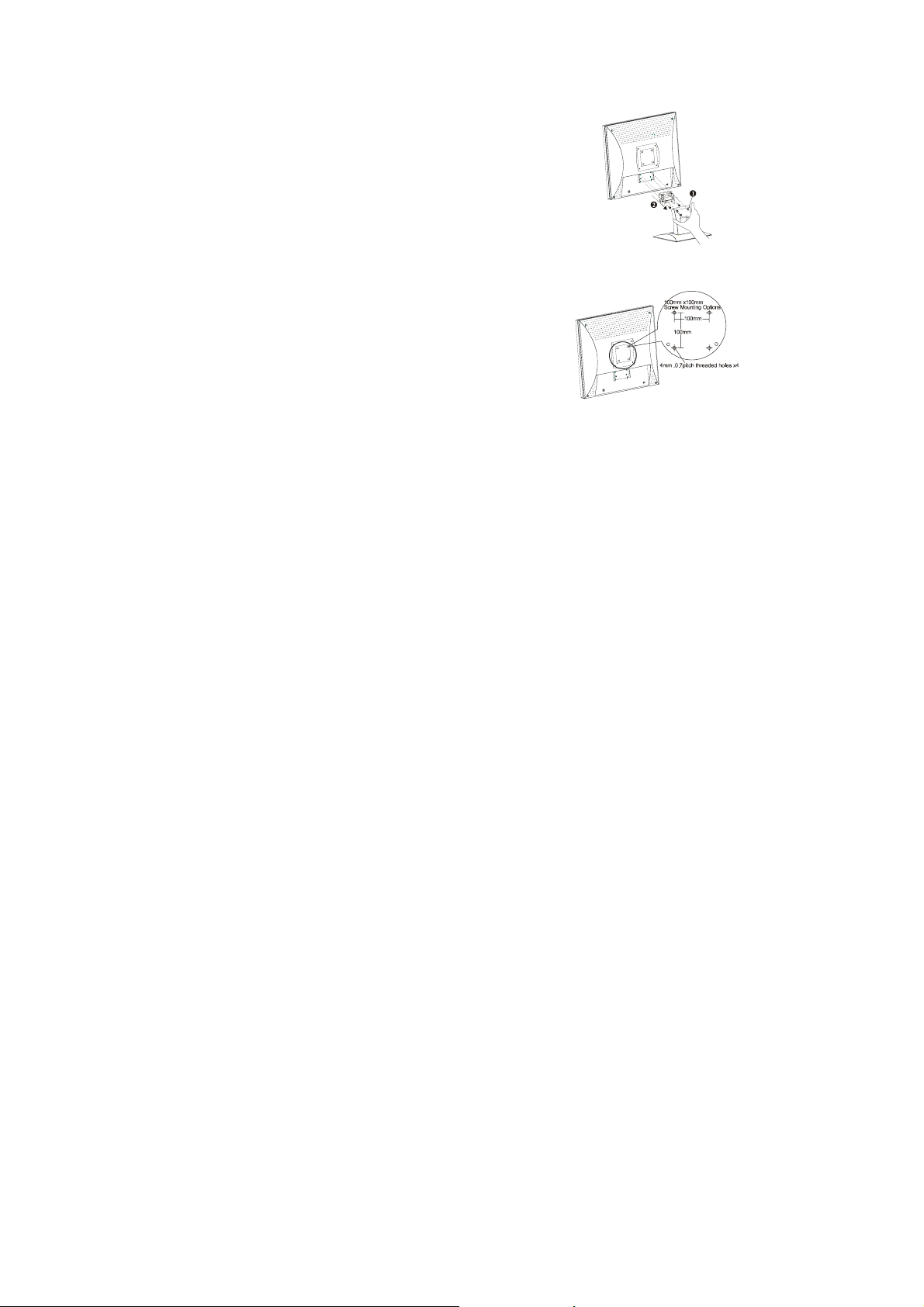

The rear of this LCD display has four integrated 4 mm, 0.7 pitches
threaded nuts, as well as four 5 mm access holes in the plastic covering
as illustrated in Figure 1-4. These specifications meet the
VESA Flat Panel Monitor Physical Mounting Interface Standard
(paragraphs 2.1 and 2.1.3, version 1, dated 13 November 1997).
Note :Please using Ø 4mm x 8mm (L) screw for this application.
Power Management System
This LCD Monitor complies with the VESA DPMS (version 1.0) Power Management guidelines. The VESA DPMS
provides four power saving modes through detecting a horizontal or vertical sync. signal. When the LCD Monitor is in
power saving mode, the monitor screen will be blank and the power LED indicator will light yellow.
3
Page 7
Chapter 2 Display Controls
User Controls
A brief description and the location of all LCD Monitor functions control and indicator:

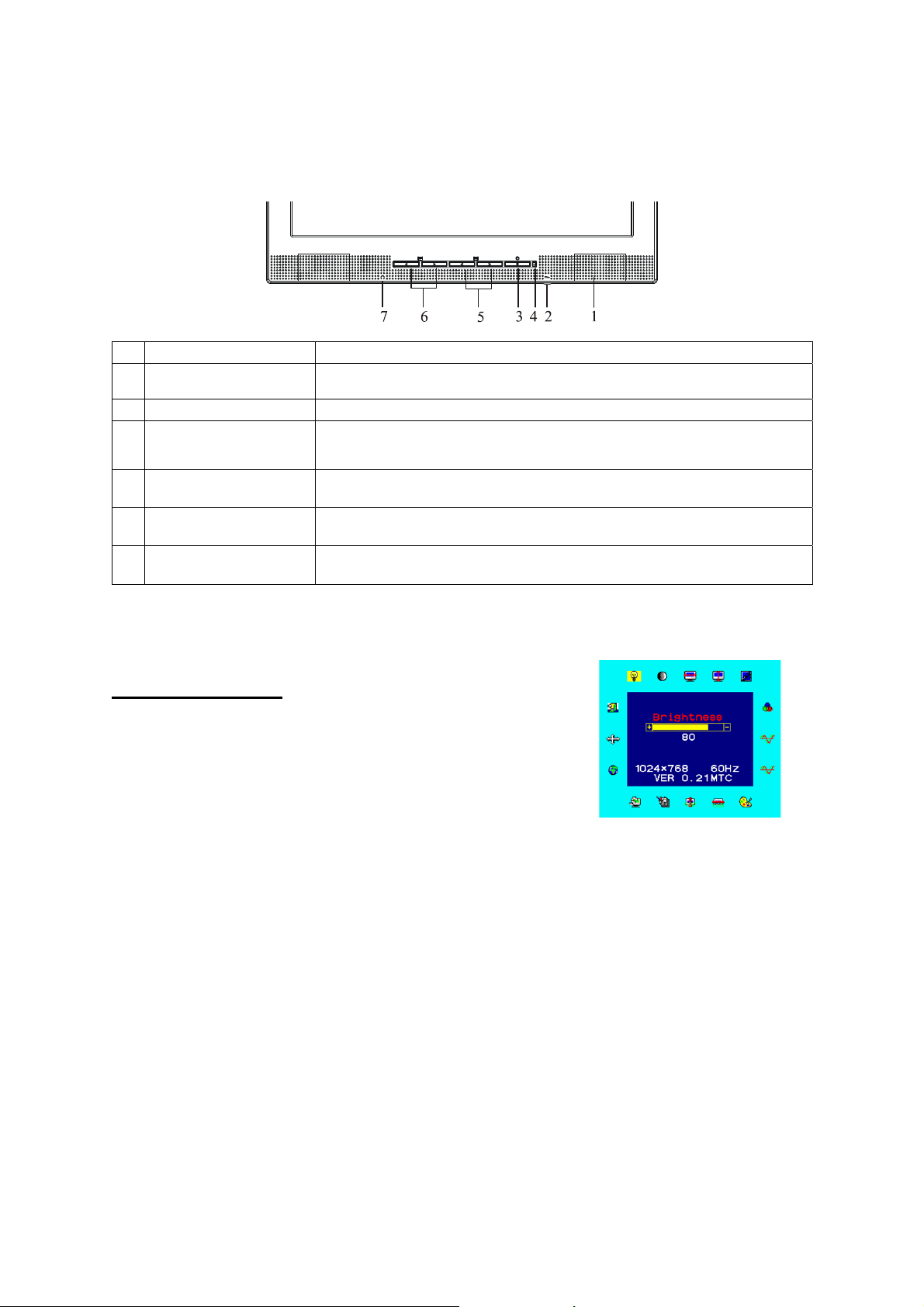

Figure 2-1
1 Stereo Speakers PC Audio Stereo output.
2 Speaker Volume Control
3 Soft Power Switch Press the soft power switch to switch the monitor ON/OFF.
4 Power-On Indicator
5 Function Select Buttons Press either left or right control button for OSD (On Screen Display) menu selection.
Increase Volume - Turn the knob clock wise.
Decrease Volume - Turn the knob counter clock wise.
LED lights Green color --- Power is ON.
LED lights Yellow --- Monitor is in "Power Saving Mode".
LED is off --- Power is OFF.
Adjustment Control
6
Buttons
7 External Headphone Jack
Press the left button to decrease the OSD setting and press the right button to increase the
OSD setting.
The monitor speakers will be disabled when using an external headphone or external
speakers.
Adjusting the Monitor's Display
The monitor has four function control buttons to select among functions shown on OSD menu, designed for easy
user-viewing environments.
OSD Function Menu
To access OSD Main menu, simply press one of the Function Select control buttons,
and the menu diagram will pop up on the screen as shown on Fig. 2-2:
Continue pressing the Function Select buttons to scroll through the entire menu
items, then press Adjustment Control buttons to adjust content of selected item.
Attention: Firmware revision may have been updated in your monitor. However, the version number shown on all OSD menus in
this manual are listed Ver. 1.00.
Figure 2-2
4
Page 8

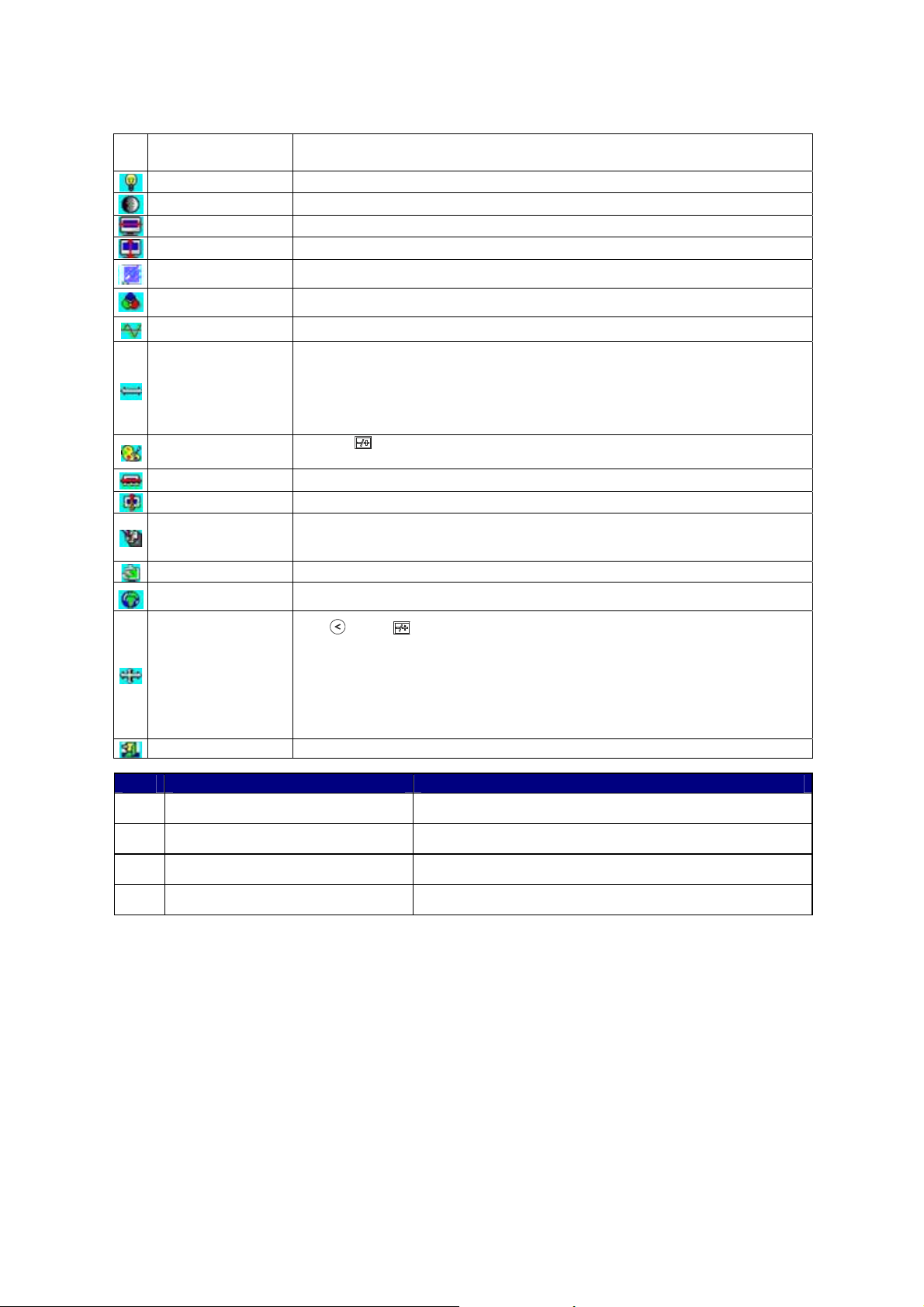

Function Description
Ico
n
Function Function Description
Brightness
Contrast 101 scales of contrast are available to choose from (0 to 100).
H. Position
V. Position
Sharpness
OSD Transparency
Phase
Clock
101 scales of brightness are available to choose from (0 to 100).
This function adjusts the display's horizontal position
This function adjusts the display's vertical position.
This function lets you select the images sharpness. Five selections are available. A smoother
setting is more suitable for pictures, while a sharper setting is more suitable for text.
This function sets the transparency of the OSD menu. The transparency is adjustable from 0 to 3.
4 scales are available.
A total of 101 scales (0 to 100) are available to adjust the focus and clarity of the display.
This function carries a frequency-tracking feature that offers users better stability and clarity. 101
scales (from -50 to +50) are available on the mode that is currently running. The adjustable range
can be variable in different modes. This function records the deviated number of clock period
between input timing and supported timing. The clock value may not be”0” after Auto
Adjustment when the input timing is different from supported timing.
Color Temperature
OSD H. Position
OSD V. Position
Graph / Text
Recall
Language
Auto and Input Select
Exit
Push the (
function and description.
This function moves the OSD menu window horizontally.
This function moves the OSD menu window vertically.
Because the H and V-Frequencies of both 640 x 400 70Hz, and 720 x 400 70Hz, are the same,
this function let's you manually select either 640 x 400 (graphics mode), or 720 x 400 (text
mode).
The recall function will return all adjusted parameters to factory preset values.
Five OSD language options are available: English, German, French, Spanish, and Italian. Press
the left or right adjustment control button to select other language.
Press
Use Digital Input.
The Auto Adjustment function let you adjust the display size, clock and phase to obtain the best
viewing settings. This process will take 3 ~ 5 seconds to complete. Attention : After Auto
Adjustment, the display might display wrong position or size, if it has received a pattern which
has no screen border. You may select either Analog or Digital Input video when VGA input
or/and DVI Input is/are available.
Saves the values of this setting and exits the OSD menu function.
) button to select a different color temperature. Please see the diagram below for
button ( ) to activate the selected function, Auto Adjustment, Use Analog Input or
Icon Function Description
9300
7500
6500
User
CIE coordinated Color Temperature of
9300°K
CIE coordinated Color Temperature of
7500°K
CIE coordinated Color Temperature of
6500°K
Three colors (Red, Green, Blue) can be
adjusted from the OSD menu
Sets the CIE coordinate color temperature to 9300°K
Sets the CIE coordinate color temperature to 7500°K
Sets the CIE coordinate color temperature to 6500°K
Sets the settings to a by user defined CIE Temperature.
5
Page 9
Chapter 3 Technical Information
Specifications
LCD Panel PL1910M
Size 19" (48 cm)
Display Type Active matrix color TFT LCD
Resolution 1280 x 1024
Display Dot 1280 x (RGB) x 1024
Display Area (mm) 376.32 x 301.056 (H x V)
Display Color 16.7M
Brightness 300 cd/m
Contrast Ratio 700:1 (typical)
Response Time Ta=25°C Tr=15ms Tf=10ms
Lamp Voltage 750 Vrms (typical)
Lamp Current 7.0 mA rms. (typical)
Viewing Angle
Video
Input Signal
Input Impedance
Polarity
Amplitude
Multi-mode Supported
Analog RGB 0.7Vp-p
75 Ohm ± 2%
Positive, Negative
0 - 0.7 ± 0.05 Vp
Horizontal Frequency: 24 ~ 80 KHz
Vertical Frequency: 49 ~ 75 Hz
Audio
Input 500mVrms
Output 1W+1W
Control
Power switch (hard and soft types) On/Off switch with LED indicator
OSD
Brightness
Contrast
Horizontal Position
Vertical Position
Phase
Clock
Display Mode Setup
OSD Format
Digital
Digital
Digital
Digital
Digital
Digital
Use EEPROM to save settings in memory
26 characters x 15 rows
Power Management
Mode Power Consumption* AC Input LED Color
On 55W maximum 240 VAC Green
Off 3W maximum 240 VAC Yellow
Soft switch off 3W maximum 240 VAC Dark
Disconnected 3W maximum 240 VAC
* Meeting VESA DPMS requirements measured from AC Input.
2
(typical) / 240 cd/m2 (minimum)
Vertical: -85° ~ +85°
Horizontal: -85° ~ +85°
Digital TMDS
TMDS
24~80KHz
49~75 Hz
Yellow: Standby, Suspend, Off
Dark: Power off
6
Page 10
Sync Input
)
m
(W)
m
Signal Separate TTL compatible horizontal and vertical synchronization
Digital TMDS
Polarity Positive and negative
Plug & Play
Supports VESA DDC2B functions
External Connection
Power Input (AC input) Power cord
Video Cable 15-pin D-sub connector, 24-pin DVI-D
Audio Cable Stereo Jack
Environment
Operating Condition:
Relative Humidity20% to 80%
Storage Condition:
Relative Humidity5% to 85%
Temperature 5°C to 40°C/41°F to 104°F
Temperature -20°C to 60° C/-4°F to140° F
Power Supply (AC Input
Input Voltage Single phase, 100 ~ 240VAC, 50 / 60 Hz
Input Current 1.2 A maximu
Size and Weight
Dimensions 422
Net Weight
Gross Weight
x 418.5 (H) x 210 (D) m
5.5 ± 0.3 kg
7.5 ± 0.3 kg
7
Page 11
Standard Timing Table
If the selected timing is NOT included in table below, this LCD monitor will use the most suitable available timing.
TIMING FH(KHZ) SYNC TOTAL ACTIVE SYNC FRONT BACK PIXEL
FV(HZ) WIDTH PORCH PORCH
640x350 31.469 + 800 640 96 16 48 25.175
VGA-350 70.087 – 449 350 2 37 60
640x400 24.83 – 848 640 64 64 80 21.05
NEC PC9801 56.42 – 440 400 8 7 25
640x400 31.469 – 800 640 96 16 48 25.175
VGA-GRAPH 70.087 + 449 400 2 12 35
640x400 31.5 – 800 640 64 16 80 25.197
NEC PC9821 70.15 – 449 400 2 13 34
640X480 31.469 - 800 640 96 16 48 25.175
VESA-PAL 50.030 - 629 480 2 62 85
640x480 31.469 – 800 640 96 16 48 25.175
VGA-480 59.94 – 525 480 2 10 33
640x480 35.00 – 864 640 64 64 96 30.24
APPLE MAC-480 66.67 – 525 480 3 3 39
640x480 37.861 – 832 640 40 16 120 31.5
VESA-480-72Hz 72.809 – 520 480 3 1 20
640x480 37.5 – 840 640 64 16 120 31.5
VESA-480-75Hz 75 – 500 480 3 1 16
720x400 31.469 – 900 720 108 18 54 28.322
VGA-400-TEXT 70.087 + 449 400 2 12 35
832x624 APPLE 49.725 – 1152 832 64 32 224 57.2832
MAC-800 74.55 – 667 624 3 1 39
800x600 35.156 + 1024 800 72 24 128 36
SVGA 56.25 + 625 600 2 1 22
800x600 37.879 + 1056 800 128 40 88 40
VESA-600-60Hz 60.317 + 628 600 4 1 23
800x600 48.077 + 1040 800 120 56 64 50
VESA-600-72Hz 72.188 + 666 600 6 37 23
800x600 46.875 + 1056 800 80 16 160 49.5
VESA-600-75Hz 75 + 625 600 3 1 21
1024x768 48.363 – 1344 1024 136 24 160 65
XGA 60.004 – 806 768 6 3 29
1024x768 53.964 + 1328 1024 176 16 112 71.664
COMPAQ-XGA 66.132 + 816 768 4 8 36
1024x768 56.476 – 1328 1024 136 24 144 75
VESA-768-70Hz 70.069 – 806 768 6 3 29
1024x768 60.023 + 1312 1024 96 16 176 78.75
VESA-768-75Hz 75.029 + 800 768 3 1 28
1024x768 60.24 – 1328 1024 96 32 176 80
APPLE MAC-768 75.02 – 803 768 3 3 29
1152x864 54.054 + 1480 1152 96 40 192 80
(60Hz) 59.270 + 912 864 3 13 32
1152x864 63.851 + 1480 1152 96 32 200 94.499
(70Hz) 70.012 + 912 864 3 1 44
1152x864 67.50 + 1600 1152 128 64 256 108.00
(75Hz) 75.00 + 900 864 2 2 32
1280x960 60.00 + 1800 1280 112 96 312 108.00
(60Hz) 60.00 + 1000 960 3 1 36
1280x960 70.00 + 1800 1280 112 96 312 126.00
(70Hz) 70.00 + 1000 960 3 1 36
1280x960 75.00 + 1800 1280 112 96 312 135.00
(75Hz) 75.00 + 1000 960 3 1 36
1024-60Hz
1024-75Hz
Note: Mode 640x350, 640x400 and 720x400 will locate on middle position but cannot be expanded to full screen on vertical direction.
POLARITY (DOT/
64 + 1688 1280 112 48 248 108 1280x1024VESA60 + 1066 1024 3 1 38
80 + 1688 1280 144 16 248 135 1280x1024VESA75 + 1066 1024 3 1 38
LINE)
(DOT/
LINE) (DOT/LINE) (DOT/LINE) (DOT/LINE)
FOREQ (MHZ)
8
Page 12
Troubleshooting
This LCD Monitor has pre-adjusted using factory standard VGA timings. Due to the output timing differences among various VGA cards in the market,
users may initially experience an unstable or unclear display whenever a new display mode or new VGA card is selected.
Attention
This LCD Monitor Supports Multiple VGA Modes. Refer to the Standard Timing Table for a listing of modes supported by this LCD Monitor.
PROBLEM Picture is unclear and unstable
The picture is unclear and unstable, please perform the following steps:
1. Enter PC to “Shut down Windows” status while you’re in MS-Windows environment.
2. Check the screen to see if there’s any black vertical stripes appear. If there are, take advantage of the “Clock” function in OSD menu and adjust
(by increment or decrement numbers) until those bars disappear.
3. Move to “Phase” function in OSD menu again and adjust the monitor screen to its most clear display.
4. Click “No” on “Shut down Windows” and back to the normal PC operating environment.
PROBLEM There is no picture on LCD Monitor
If there’s no picture on the LCD Monitor, please perform the following steps:
1. Make sure the power indicator on the LCD Monitor is ON, all connections are secured, and the system is running on the correct timing. Refer to
Chapter 3 for information on timing.
2. Turn off the LCD Monitor and then turn it back on again. If there is still no picture, press the Adjustment Control button several times.
3. If step 2 doesn’t work, connect your PC system to another external CRT. If your PC system Functions properly with a CRT Monitor but it does
not function with the LCD Monitor, the output timing of the VGA card may be out of the LCD’s synchronous range. Please change to an
alternative mode listed in the Standard Timing Table or replace the VGA card, and then repeat steps 1 and 2.
PROBLEM There is no picture on LCD Monitor
If you have chosen an output timing that is outside of the LCD Monitor’s synchronous range (Horizontal: 24 ~ 80 KHz and Vertical: 56 ~ 75
Hz), the OSD will display an “Out of Range” message. Choose a mode that is supported by your LCD Monitor. Also, if the signal cable is
not connected to LCD monitor at all or properly, the monitor screen will display a message “No Input Signal
9
Page 13
10
Loading...
