Planar PE1900 User Manual

PE1900

Contents

Introduction ...........................................................................................2

Features .........................................................................................................................................2

Safety Precautions.........................................................................................................................2

Installation..............................................................................................4

Unpacking the Display..................................................................................................................4

Locations and Functions of Controls …………………………… ...............................................4

Connections ………………………………………......................................................................5

Using Your Display ……………………………………… ...................7

Turning the Display On and Off ……..……...………………….. ...............................................7

Tilting the Display ………………………………………………................................................8

Setting the Video Mode ................................................................................................................8

Setting the Refresh Rate ...............................................................................................................8

Minimizing Power Consumption ..................................................................................................9

Caring for and Cleaning the Display.............................................................................................9

Adjusting Your Display ........................................................................ 11

Summary of Control Buttons ......................................................................................................11

Displaying the OSD “Main Menu” .............................................................................................11

Selecting Items in the OSD Menu ..............................................................................................12

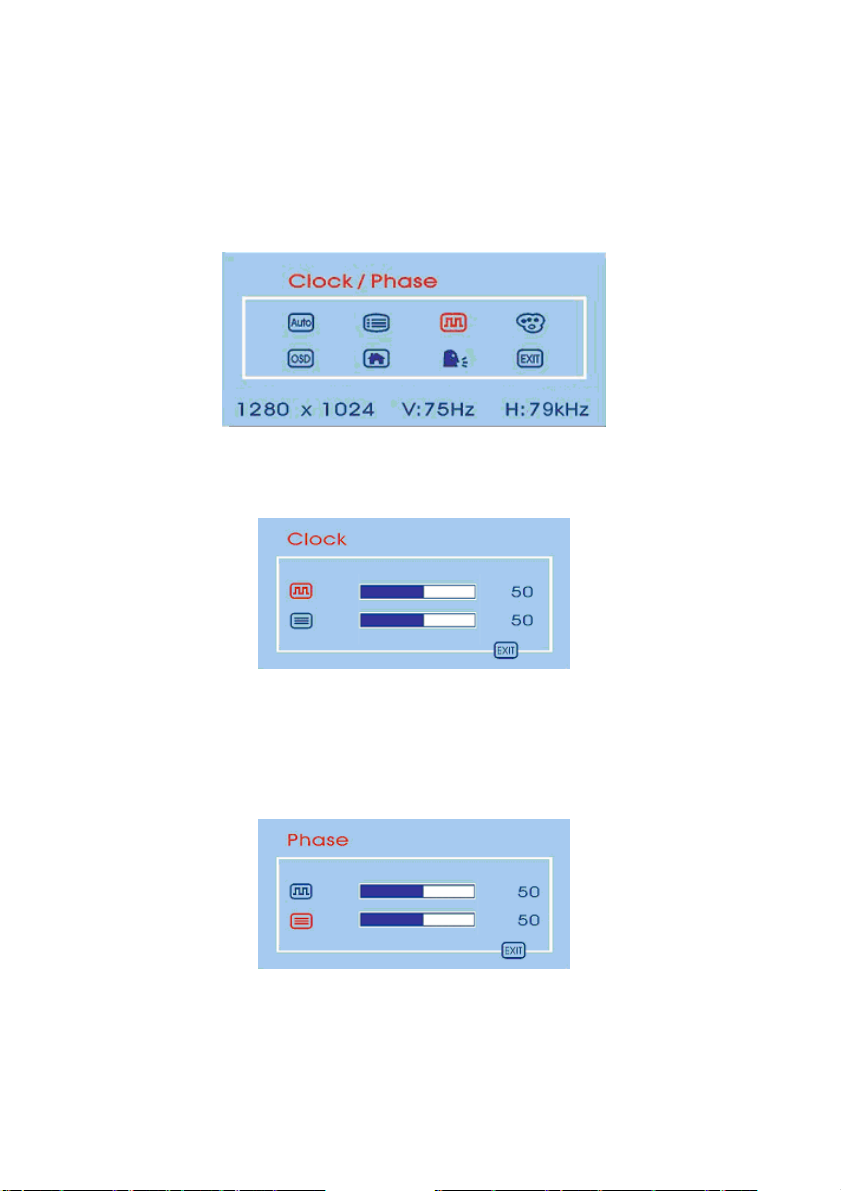

Adjusting the OSD Menu……………………………................................................................12

Using the Direct Keys .................................................................................................................22

Troubleshooting....................................................................................24

Technical Information .........................................................................26

Display Information ....................................................................................................................26

Video Modes ...............................................................................................................................27

Unknown Video Modes...............................................................................................................27

Regulatory Information...................................................................….28

Agency Approval ………………………………………………………………………………28

FCC Statement ...........................................................................................................................28

Introduction

The PE1900 LCD monitor has a 19-inch active matrix TFT (thin film transistor) liquid crystal display module. It is designed for use with any Windows

-based PC.

Features

Ö Automatic configuration to the PC video settings with maximum SXGA resolution.

Ö Three control buttons plus OSD (on-screen display) for monitor settings adjustment and

configuration with ease and instant feedback.

Ö Support analog video input for direct and immediate replacement of CRT displays.

Ö A tilt feature to optimize viewing position.

Ö Flicker-free performance across all recommended video modes.

Ö Support for high refresh rates up to 75 Hz.

Ö VESA DDC2B Plug-and-Display compliant.

Ö A Power-saving feature that is compatible with Microsoft

Windows

For Your Safety

War ning

To completely disconnect power from your display, you must

remove the power cord from the wall outlet and then remove

the power cable from the display.

For your safety and the protection of your monitor, follow these precautions:

Ö Use only the factory-supplied power cord that shipped with your monitor.

Ö To prevent electrical shock, do not disassemble the display. The cover should be removed only

by qualified service personnel.

Ö Do not cover the air vents.

Ö To avoid the risk of damage to the display and electrical shock to yourself, do not expose the

display to rain or moisture.

If any of the following conditions occur, unplug the display and contact qualified service personnel:

Ö The power cord or plug is frayed or damaged.

Ö You have spilled liquid into the display.

Ö The display has been exposed to rain or water.

Ö The display does not operate correctly when the operating instructions are followed.

Ö The display has been dropped or the cabinet has been damaged.

*Only for use with supplied adapter, in case of loss or damage contact Planar for replacement

details

*European countries use only with certified power cord 3G , 0.75 mm

, H05 VV-F

Installation

Please follow the instructions in this chapter to install your LCD Monitor.

Note: Before connecting your display, first read through the instructions in this chapter and

the safety precautions in the previous chapter.

Unpacking the Display

When you are unpacking the display, make sure that you have the following items:

Ö The LCD monitor

Ö AC power adapter with attached power cable

Ö A power cord

Ö Analog video signal cable

Ö User’s Manual

Ö Planar Landing strip

Ö Planar Connection CD-ROM

Note: Place the display on a flat, sturdy surface. Choose an area free from excessive heat,

moisture, and sunlight.

Locations and Functions of Controls

There are three control buttons and one power button on the front panel of the display, as well as a LED for power status indication.

You will use the power button located at the lower right side of the front panel of your display to turn on and off the display.

The functions of the three control buttons which are located at the lower left side of the front panel of your display are described as below:

Button

Select

Up (△)

Down (▽)

(1) Turn on OSD menu while it is off. (2) Execute the function selected in the OSD menu. (3) Hold down for

(1) Move item selection upward or increase

user-adjustable value.(in Main Menu)

(2) Activate Brightness Menu (Direct-key function).

(1) Move item selection downward or reduce

user-adjustable value (in Main Menu)

(2) Auto Setup (Direct-key function).

Function Description

3 sec will clear OSD menu

Making the Connections

Before connecting any cables, make sure that the computer and display are turned off.

To connect the power and video signal cables:

1. Locate the AC power adapter with attached power cable.

2. Connect the power cable to the power jack on the back of the display (as shown below).

3. Plug the two-prong power cord into a power outlet, and plug the other end into the AC power adapter.

4. Plug the analog video signal cable into the Analog Video Input port on the back of the display (as shown above).

5. Connect the other end of the video cable into your computer’s video port. (Please check your computer’s documentation if you’re not sure where the port is located.)

Note: For best display performance, it is strongly recommended that you use Auto Setup to

automatically configure your display’s settings.

Using Your Display

This chapter contains information about using your LCD Monitor.

Turning the Display On and Off

Use the power button located at the lower right side of the front panel of the display to turn the display on and off. When the display is on, the light (LED) near the Power button is illuminated. The light is green when both the display and PC are active and amber when the display is in power-saving mode.

If your PC supplies power saving signals to the display, the display’s power management features reduce power consumption to low levels when your PC goes into its power-saving mode. See “Minimizing Power Consumption” on page 9 for more information.

If your PC doesn’t use industry standard power-saving techniques, you can reduce power consumption by turning off the display when it won’t be used for an extended period. You can turn the display off even if you leave your PC in running.

Note:

Because of the technology used in LCD panels, screen savers will not prolong the life of your display. Be sure to turn off the display if it will not be used for an extended period.

War ning

To completely disconnect power from your display, you must

remove the power cord from the wall outlet and then remove

the power cable from the display.

Tilting the Display

The monitors have a tilt feature that allows you to tilt the display back and forth to find the most comfortable viewing position. To tilt the display, grasp the sides and push the display back or pull it toward you, or turn it left or right until it is in the desired position. The display can be tilted 20º backward and 5º forward.

Note: Do not tilt the display by grasping the top edge.

Setting the Video Mode

Since the inherent format of this display is 1280 pixels by 1024 lines, the display will perform best when your PC is set to a screen resolution of 1280 x 1024. If you use a lower resolution (such as 640 x 480), the image is expanded to fill the screen.

Your display supports many common video modes, as shown in “Video Modes” on page 27. Check the documentation supplied with your PC and video adapter card to find out which modes they support.

To see what the video mode in your Microsoft Windows, please check Windows’ settings in your PC.

Setting the Refresh Rate

The image refresh rate is the number of times per second that the image is refreshed; it is also known as the vertical frequency.

On standard CRT displays, you should use the highest possible refresh rate supported by your PC at the current screen resolution. This is necessary to avoid screen flickering and to minimize eyestrain. However, with your LCD Monitor, flicker is not an issue. It is flick-free at all supported refresh rates.
