Preface
This manual is designed to assist users in setting up and using the LCD Monitor. Information in this document has
been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The
information in this document is subject to change without notice. This document contains proprietary information
protected by copyright. All rights are reserved. No part of this manual may be reproduced by any mechanical,
electronic or other means, in any form, without prior written permission of the manufacturer.
FCC Statement Warning
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to pr ovide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed
and used in accordance with the instruction, may cause harmful interference to radio communications. However,
there is no guarantee t hat int er ference will not oc cur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and th e r eceiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Warning
Use only shielded signal cables to connect I/O devices to this equipment. You are cautioned that changes or
modifications not expressly approved by the party responsible for compliance could void your authority to
operate the equipment.
Canadian DOC Notice
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing
Equipment Regulations.
Cet appareil numérique de la classe B repecte toutes les exigences du Règlement sur le matériel
brouilleur du Canada.
1
Page 3
Important Safety Instructions
Please read the following instructions carefully. This manual should be retained for future use.
1. To clean LCD Monitor screen;
-- Power off LCD Monitor and unplug the AC Cord.
-- Spray a non-solvent cleaning solution onto a rag.
-- Gently clean t he screen with dampened rag.
2. Do not place the LCD Monitor near a window. Exposing the monitor to rain water, moisture or sunlight can
severely damage it.
3. Do not apply pressure to the LCD screen. Excess pressure may cause permanent damage to the display.
4. Do not remove the cover or attempt to service this unit by yourself. Servicing of any nature should be
performed by an authorized technician.
5. Store LCD Monitor in a room with a room temperature of -20° ~ 60°C (or -4° ~ 140°F). Storing the LCD
Monitor outside this range could result in permanent damage.
6. If any of the following occurs, immediately unplug your monitor and call an authorized technician.
* Monitor to PC si gnal cable is frayed or damaged.
* Liquid spilled into LCD Monitor or the monitor has been exposed to rain.
* LCD Monitor or the case is damaged .
7. A certified line is required to connect this device to a power outlet. For a nominal current up to 6A and a device
weight above 3 kg, a line not lighter than H05VV-F, 3G, 0.75 mm
2
must be used.
Chapter 1 Installation
Unpacking
Before unpacking the LCD Monitor, prepare a suitable workspace for your Monitor and computer. You need a
stable and clean surface near a wall power outlet. Make sure that LCD Monitor has enough space around it for
sufficient airflow. Though the LCD Monitor uses very little power, some ventilation is needed to ensure that the
Monitor does not become too hot.
After you unpack the LCD Monitor, make sure that the following items were included in the box:
* LCD Monitor * User's Manual
* Monitor-to-PC VGA Cable * Power Cord
If you find that any of these items is missing or appears damaged, contact your dealer immediately.
Viewing Angle Adjustment
The LCD Monitor is desi gned to allow user s to have a
comfortable viewi ng angle. The viewing a ngle can be
adjusted from -5°to +25°.(See fig. 1-1)& Left / Right
-45° to +45°
Warning
Do not force the LCD Monitor over its maximum viewing angle settings as stated above. Attem pting this will r esult in
damaging the Monitor and Monitor stand.
Detaching LCD Monitor from Its Stand
Unscrew screws n the swivel base support column and pull
downo the second.
Figure 1-2
2
Figure 1-1
Page 4
Interface for Arm Applications

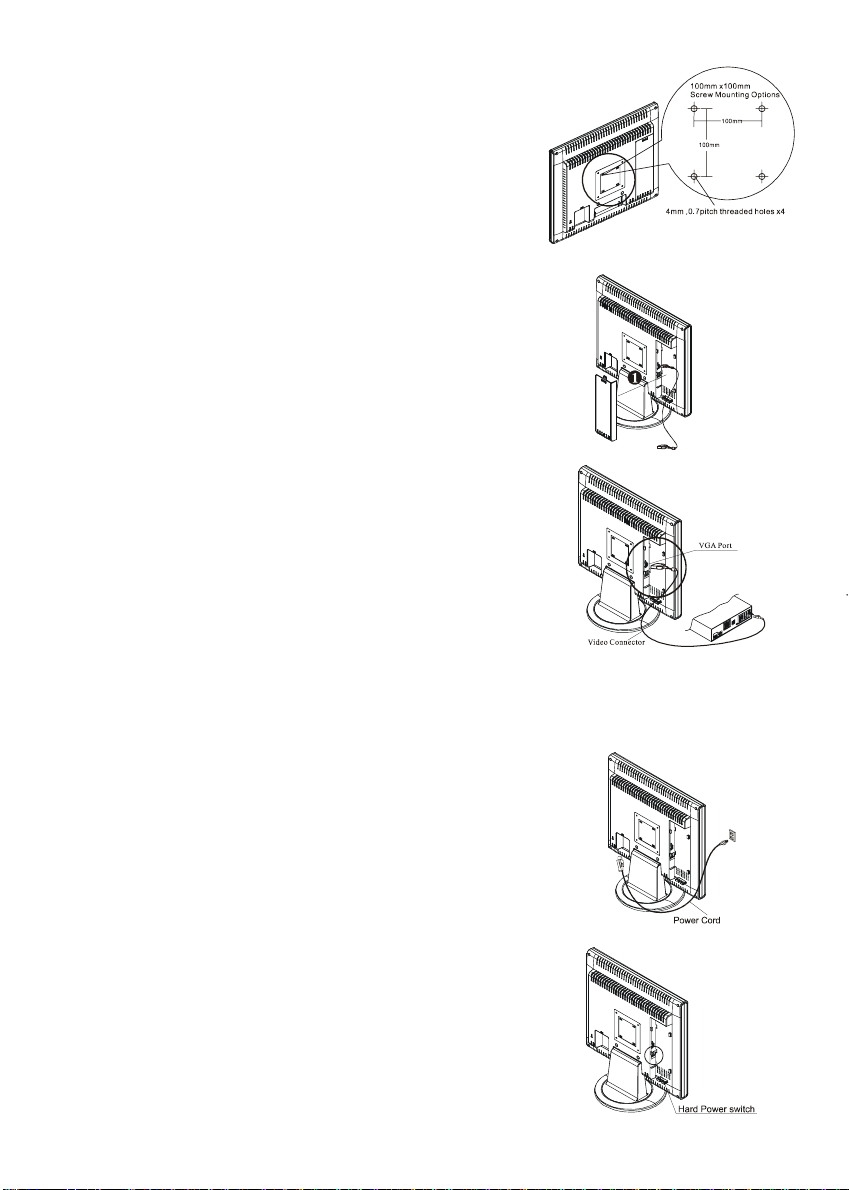

Before installing to mounting device, please refer to Fig.1-2.
The rear of this LCD display has four integrated 4 mm, 0.7 pitches
threaded nuts, as well as four 5 mm access holes in the plastic covering
as illustrated in Figure 1-3. These specifications meet the VESA Flat
Panel Monitor Physical Mounting Interface Standa rd (paragraphs
2.1 and 2.1.3, version 1, dated 13 November 1997).
Note :Please using Ø 4mm x 8mm (L) screw for this application.
Cable Installation
Please follow these instructions to install the cables.
1. Remove the back panel n from the rear of the monitor.(See Fig.
1-4)
2. Place the signal cable, the AC power cable into their correct
Socket.
Connecting the Display to your Computer
Power off your computer.
1.
2. Connect one end of the signal cable to the LCD Monitor’s VGA port
(See Fig 1-5)
3. Connect the other end of the signal cable to the VGA port on your
PC.
4. Make sure connection are secur e.
Figure 1-3
Figure 1-4
Attention
This device must be connected to an off-the-shelf video cable in order to comply with FCC regulations. A ferrite-core
interface cable is included in the LCD Monitor package.
This device will not be in compliance with FCC regulations w hen a non-ferrite-core video cable is used.
Connecting the AC Power
Connect the power cord to the AC socket.(See Fig. 1-6)
1.
2. Connect the p ower cord to an AC power s ource.
Setting Up the LCD Monitor
1. Turn on the LCD monitor’s hard power switch, located on the
back of t he monitor (See Fig. 1-7)
2. Turn on the LCD Monitor's soft power switch, located on the
bezel of the monitor.
3
Figure 1-5
Figure 1-6
Figure 1-7
Page 5
Power Management System
This LCD Monitor complies with the VESA DPMS (version 1.0) Power Management guidelines. The
VESA DPMS provides four power saving modes through detecting a horizontal or vertical sync. signal.
When the LCD Monitor is in power saving mode, the monitor screen will be blank and the power LED
indicator will light yellow.
Chapter 2 Display Controls
User Controls

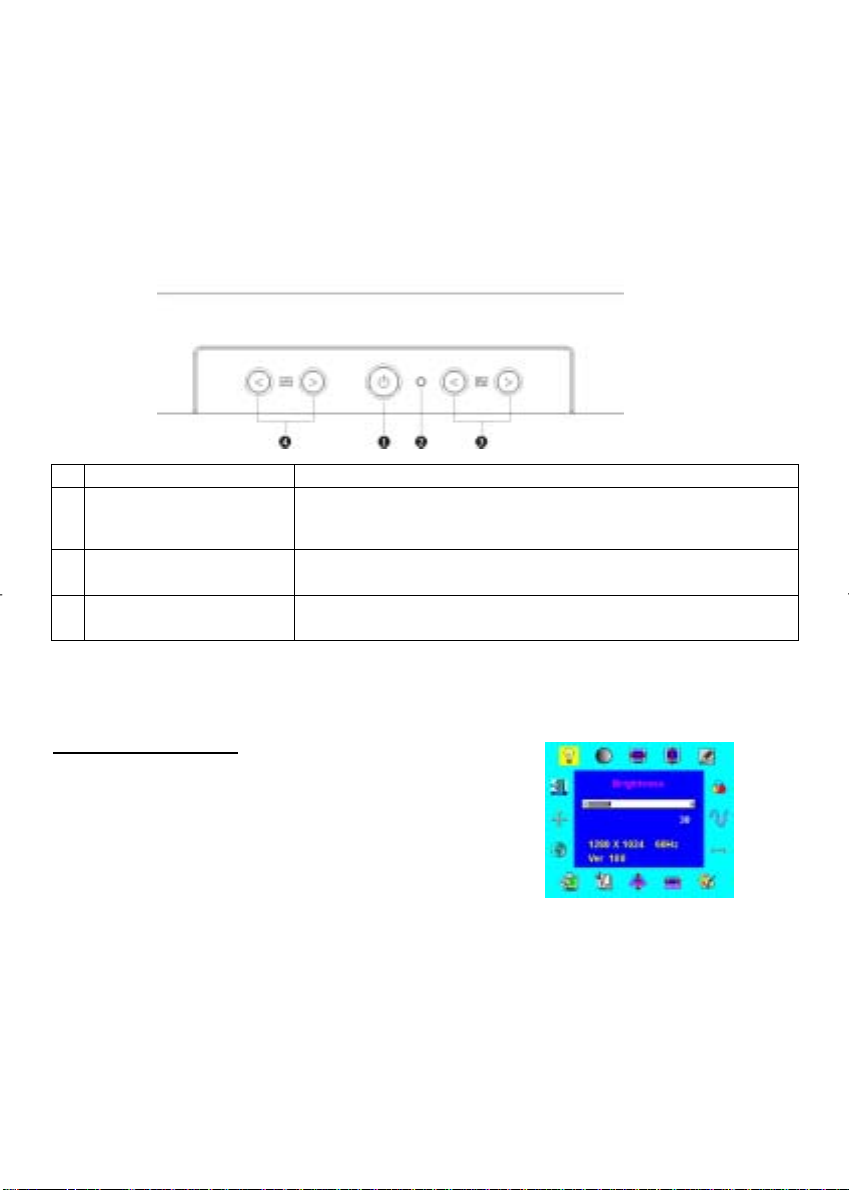

A brief description and the location of all LCD M onitor function c ontrols and indic ators:
Figure 2-1
1 Soft Power Switch
2 Power-On Indicator
3 Function Select Buttons
Adjustment Control
4
Buttons
Press the Soft power switch to switch the monitor ON/OFF.
LED lights Green color --- Power is ON.
LED lights Yellow --- Monitor is in "Power Saving Mode".
LED is off --- Power is OFF.
Press either left or right control button for OSD (On Screen Display) menu
selection.
Press the left button to decrease the OSD setting and press the right
button to increase the OSD setting.
Adjusting the Monitor's Display
The monitor has four function control buttons to selec t among functions shown on OSD menu, designed for
easy user-viewing environments.
OSD Function Menu
To access OSD Main menu, simply press one of the Function
Select control buttons, and the menu diagram will pop up on
the screen as shown on Fig. 2-2:
Continue pressing the Function Select buttons to scroll
through the entire menu items ,then press Adjus tment Control
buttons to adjust content of selected item.
Attention
Firmware revisi on may have be en updated into a lates t vers ion while the ve rsion numbe r shown on all OSD
menus in this manual will stay as Ver . 1.00.
Figure 2-2
4
Page 6
Function Description

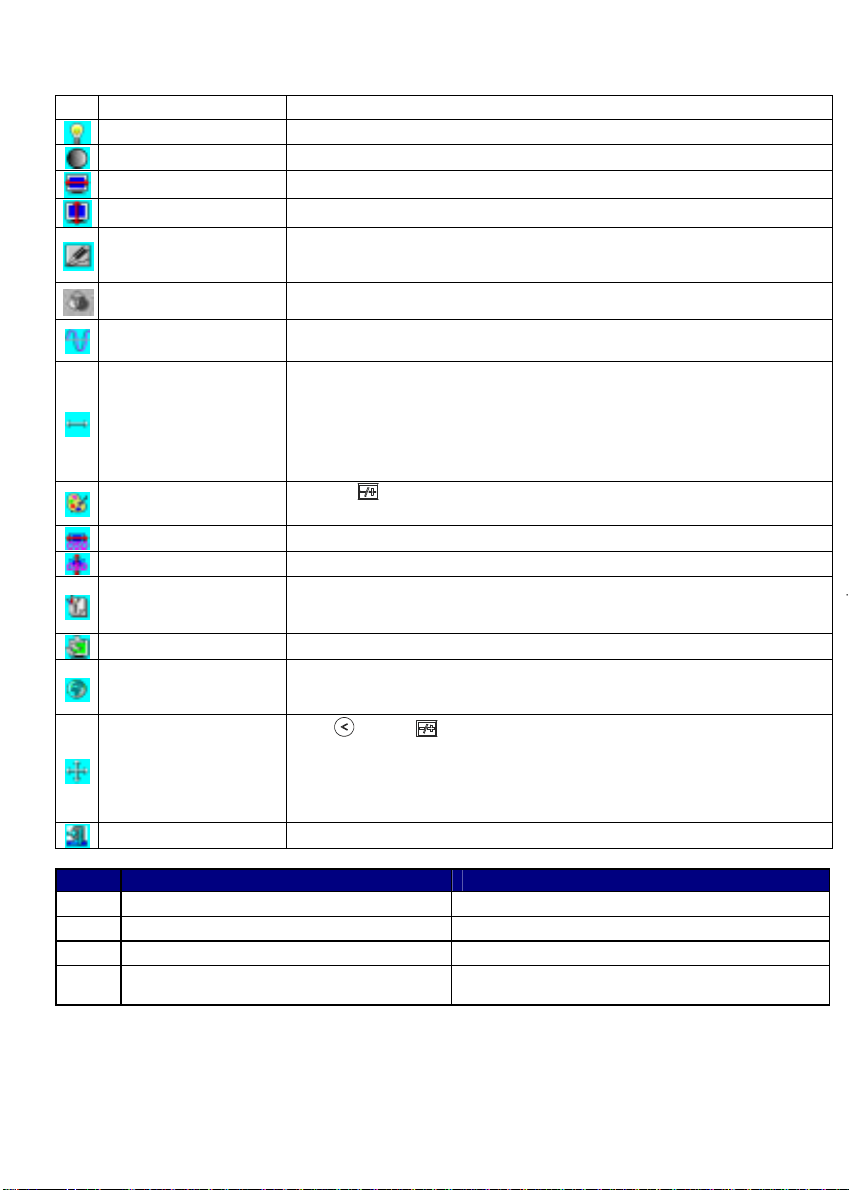

Icon Function Function Description
Brightness
Contrast 101 scales of contrast are available to choose from (0 to 100).
H. Position
V. Position
Sharpness
OSD Transparency
Phase
Clock
Color Temperature
OSD H. Position
OSD V. Position
Graph / Text
Recall
Language
Auto
Exit
Icon Function Description
9300
7500
6500
User
CIE coordinated Color Temperature of 9300°K
CIE coordinated Color Temperature of 7500°K
CIE coordinated Color Temperature of 6500°K
Three colors (Red, Green, Blu e) can be
adjusted from the OSD menu
101 scales of brightness are available to choose from (0 to 100).
This function l et's you adjust the display's horiz ontal position
This function let's you adjust the display's vertical position.
This function let's you select the images sharpness. Five selections are
available. A smoother setting is more suitable for pictures, while a sharper
setting is more suitable for text.
This function let's you set the transparency of the OSD menu. The
transparency is adjustable from 0% to 100%. 11 scales are available.
A total of 256 scales (0 to 255) are av ailable to adjust th e focu s and clarity of the
display.
This function carries a frequency-tracking feature that offers users better
stability and clarity. 101 scales (from -50 to +50) are available on the mode
that is currently running. The adjustable range can be variable in different
modes. This function records the deviated numb er of clock p eriod between
input timing and supported timing. The clock value may not be”0” after Auto
Adjustment when the input timing is different from supported timing.
Push the (
diagram below for function and description.
This function moves the OSD menu window hori zontally.
This function moves the OSD menu window vertically.
Because the H and V-Frequencies of both 640 x 400 70Hz, and 720 x 400
70Hz, are the same, this function let's you manually select either 640 x 400
(graphics mode), or 720 x 400 (text mode).
The recall function will return all adjusted parameters to factory preset values.
Five OSD language options are available: English, German, French, Spanish,
and Italian. Press the left or right adjustment control button to select ot her
language.
Press
The Auto Adjustment funct ion let you adjust the display size, c lock and phase
to obtain the best viewing settings. This process will take 3 ~ 5 seconds to
complete. Attention : After Auto Adjustment, the display might display
wrong position or size, if it has received a pattern which has no screen border.
Saves the values of this setting and exits the OSD menu function.
) button to select a different color temperature. Please see the
button ( ) to activate the Auto Adjustment function.
Sets the CIE coordinate color temperature to 9300°K
Sets the CIE coordinate color temperature to 7500°K
Sets the CIE coordinate color temperature to 6500°K
Sets the settings to a by user defined CIE Temperature.
5
Page 7
m
m
m
Chapter 3 Technical Information
Specifications
LCD Panel
Size 19" (48 cm)
Display Type Active matrix color TFT LCD
Resolution 1280 x 1024
Display Dot 1280 x (RGB) x 1024
Display Area (mm) 376.32 x 301.056 (H x V)
Display Color 16.7M
Brightness 300 cd/m2 (typical)
Contrast Ratio 700:1 (typical)
Response Time Ta=25°C Tr=15ms Tf=10ms
Lamp Voltage 750 Vrms (typical)
Lamp Current 7.0 mA rms. (typical)
Viewing Angle
Video
Input Signal
Input Impedance
Polarity
Amplitude
Multi-mode Supported
Control
Power switch (hard and soft t ypes) On/Off switch with LED indicator
OSD
Brightness
Contrast
Horizontal Position
Vertical Position
Phase
Clock
Display Mode Setup
OSD Format
Power Management
Mode Power Cons umptio n* AC Input LED Color
On 50W maximu
Off 3W maximu
Soft switch off 3W maximu
Disconnected 3W maximum 240 VAC
Hard switch off
* Meeting VESA DPMS requirements meas ured from AC Input.
1W maximum
1W maximum
Fujitsu
Vertical: -85° ~ +85°
Horizontal: -85° ~ +85°
Analog RGB 0.7Vp-p
75 Ohm ± 2%
Positive, Negative
0 - 0.7 ± 0.05 Vp
Horizontal Fr equency: 24 ~ 80 KHz
Vertical Frequency: 56 ~ 75 Hz
Digital
Digital
Digital
Digital
Digital
Digital
Use EEPROM to save settings in memory
20 characters x 9 rows
240 VAC Green
240 VAC Yellow
240 VAC Dark
Yellow: Standby, Suspend, Off
100 VAC
240 VAC
Dark: Power off
DARK
6
Page 8
p
r
y
y
m
Sync Input
Signal Separate TTL comp atible horizontal and vertical synchronization
Polarity Positive and negative
Plug & Play
External Connection
Power Input (AC input) Power cord
Video Cable 15-
Environment
Operating Condition:
Relative Humidit
Storage Condition:
Relative Humidit
Power Supply (AC Input)
Input Voltage Single phase, 100 ~ 240VAC, 50 / 60 Hz
Input Current 1.2 A maximu
Size and Weig ht
Dimensions 433 (W) x 447 (H) x 235 (D) mm
Net Weight
Gross Weight
Pin Assignment
6
1
5
11
15
10
Supports VESA DDC2B functions
in D-sub connect o
Temperature 5°C to 40°C/41°F to 104°F
20% to 80%
Temperature -20°C to 60° C/-4°F to140° F
5% to 85%
7.0 ± 0.3 kg
9.0 ± 0.3 kg
Signal Signal
PIN Description PIN Description
1
2
3
4
5
6
7
8
Red
Green
Blue
Digital GND
Digital GND
Red Rtn
Green Rtn
Blue Rtn
9
10
11
12
13
14
15
+5V
Hot Plug Detect
NC
SDA
H. Sync.
V. Sync.
SCL
7
Page 9
Standard Timing Table
If the selected tim ing is NOT inclu de d in table belo w, th is LC D m on itor w ill use th e m o st suitable av ailable tim in g.
Resolution
640 x 350 31.469 70.087 25.175 +/- VGA-350
640 x 400 24.830 56.420 21.050 -/- NEC PC9801
640 x 400 31.469 70.087 25.175 -/+ VGA-400-GRAPH
640 x 400 31.50 70.15 25.197 -/- NEC PC9821
640 x 480 31.469 59.940 25.175 -/- VGA-480
640 x 480 35.00 66.67 30.24 -/- APPLE MAC-480
640 x 480 37.861 72.809 31.500 -/- VESA - 480 - 72Hz
640 x 480 37.500 75.000 31.500 -/- VESA - 480 - 75Hz
720 x 400 31.469 70.087 28.322 -/+ VESA-400-TEXT
800 x 600 35.156 56.250 36.000 +/+ SVGA
800 x 600 37.879 60.317 40.000 +/+ VESA-600-60 Hz
800 x 600 48.077 72.188 50.000 +/+ VESA-600-72 Hz
800 x 600 46.875 75.000 49.500 +/+ VESA-600-75 Hz
832 x 624 49.725 74.55 57.2832 -/- APPLE MAC-800
1024 x 768 48.363 60.004 65.000 -/- XGA
1024 x 768 53.964 66.132 71.664 +/+ COMPAQ-XGA
1024 x 768 56.476 70.069 75.000 -/- VESA-768-70 Hz
1024 x 768 60.023 75.029 78.750 +/+ VESA-768-75 Hz
1024 x 768 60.04 75.02 80.00 -/- APPLE MAC-768
1280 x 1024 63.981 60.020 108 +/+ SXGA
1280 x 1024 79.976 75.025 135 +/+ SXGA
Note: .When the in put display mode is not 1280 x 1024, the image is smoothly expande d to 1280 x 1024 dots with the gm2120 sc aling
engine. After expansion from 650x350, 640x400, 640x480, 720x400, 832x624, 800x 600, and 1024x768 resolution, the text m ay
look not so sharp, and the Graphics may look not so proportional.
H. Freq.
(KHz)
V. Freq.
(Hz)
Pixel Freq.
(MHz)
H/V Sync.
Polarity
Mode
Troubleshooting
This LCD Monitor has pre-adjusted using factory standard VGA timings. Due to the output timing differences among various
VGA cards in the market, users may initially experience an unstable or unclear display whenever a new display mode or new
VGA card is sel ected.
Attention
This LCD Monitor Supports Multiple VGA Modes.
Refer to the Standard Timing Table for a listing of modes supported by this LCD Monitor.
PROBLEM Picture is unclear and unstable
The picture is unclear and unstable, please perform the following steps :
1. Enter PC to “Shut Down Windows” status while you’re in MS-Windows environment.
2. Check the screen to see if there’s any black vertical stripes appear. If there are, take advantage of the “Clock”
function in OSD menu and adjust (by increment or decrement numbers) until those bars disappear.
3. Move to “Phase” function in OSD menu again and adjust the monitor screen to its most clear display.
4. Click “No” on “Shut Down Windows” and back to the normal PC operating environment.
PROBLEM There is no picture on LCD Monitor
If there’s no picture on the LCD Monitor, please perform the following steps:
1. Make sure the power indicator on the LCD Monitor is ON, all connections are secured, and the system is running on
the correct timing. Refer to Chapter 3 for information on timing.
2. Turn off the LCD Monitor and then turn it back on again. If there is still no picture, press the Adjustment Control
button several times.
3. If step 2 doesn’t work, connect your PC system to another external CRT. If your PC system Functions properly with
a CRT Monitor but it does not function with the LCD Monitor, the output timing of the VGA card may be out of the
LCD’s synchronous range. Please change to an alternative mode listed in the Standard Timing Table or replace the
VGA card, and then repeat steps 1 and 2.
PROBLEM There is no picture on LCD Monitor
If you have chosen an output timing that is outside of the LCD Monitor’s synchronous range (Horizontal: 24 ~ 80 KHz
and Vertical: 56 ~ 75 Hz), the OSD will display a “Out of Range” message. Choose a mode that is supported by your
LCD Monitor.
Also, if the signal cable is not connected to LCD monitor at all or properly, the monitor screen will display a message
“No Input Signal”.
8
Loading...
