LX1200TI
Touch Monitor
USER’S GUIDE
www.planar.com
The information contained in this document is subject to change without notice. This document
contains proprietary information that is protected by copyright. All rights are reserved. No part of
this document may be reproduced, translated to another language or stored in a retrieval system,
or transmitted by any means, electronic, mechanical, photocopying, recording, or otherwise, without prior written permission.
Windows® is a registered trademark of Microsoft, Inc.
Other brands or product names are trademarks of their respective holders.
Important Recycle Instruction:
LCD Lamp(s) inside this product contain mercury. This product may contain other
electronic waste that can be hazardous if not disposed of properly. Recycle or dispose
in accordance with local, state, or federal Laws. For more information, contact the
Electronic Industries Alliance at HYPERLINK “http://WWW.EIAE.ORG”
For lamp speci c disposal information check WWW.LAMPRECYCLE.ORG.
2 LX1200TI User’s Guide (020-0512-01A)
Table of Contents
Usage Notice
Precautions .................................................................................................................................5
In a Vehicle ..............................................................................................................................5
Cleaning the Monitor ..........................................................................................................5
Introduction
About the Product ...................................................................................................................6
Front View ...............................................................................................................................6
Bottom View ...........................................................................................................................8
Features ....................................................................................................................................9
Package Overview ................................................................................................................. 10
Installation
Before Installing .....................................................................................................................11
Step 1 - Mounting the Monitor ..................................................................................... 12
Step 2 - IRtouch Install ..................................................................................................... 13
Step 3 - Connecting the Monitor ................................................................................. 17
User Controls
Front Panel Controls .............................................................................................................19
Turning the Monitor On and O ......................................................................................20
Using the Touchscreen ........................................................................................................20
Navigating the Touchscreen .............................................................................................. 20
Cleaning the Monitor ...........................................................................................................21
Appendix
Troubleshooting the Monitor ........................................................................................... 22
Speci cations ........................................................................................................................ 23
Product Dimensions .........................................................................................................23
LX1200TI User’s Guide (020-0512-01A) 3
Video Speci cations .........................................................................................................23
Electrical Speci cations ...................................................................................................23
Electromagnetic Compatibility (EMC) .......................................................................24
Immunity Characteristics ................................................................................................ 24
Safety ..................................................................................................................................... 24
Environmental Speci cations .......................................................................................25
Connectors ...........................................................................................................................25
Addendum A ........................................................................................................................... 27
Support and Service .............................................................................................................29
4 LX1200TI User’s Guide (020-0512-01A)
Usage Notice
WARNING – To prevent the risk of re or shock hazards, do not expose
!
this product to rain or moisture.
WARNING – Please do not open or disassemble the product as this may
!
cause electric shock. Doing so will void the warranty.
ATTENTION – Do not plug the touchscreen in yet! Install the touch-
!
screen driver rst!
Precautions
To maximize the life and safe use of your unit, always be sure to follow the
warnings, precautions and maintenance recommendations in this user’s guide.
In a Vehicle:
• The monitor should be visible to the driver only if it is used for
navigation, system control or vehicle information. If the monitor
will be used for other purposes, it should be installed in a such a
way that it will only operate while the vehicle is not moving (such
as when the parking brake is in use), or so that its display is not
visible to the driver. Review all applicable state and local laws and
regulations to make sure the monitor is used properly and safely.
• Avoid using the monitor for extended times while the vehicle is
not running, or the monitor could drain the vehicle’s battery.
Cleaning the Monitor:
• Always turn o the unit before cleaning.
• Use a soft cloth moistened with mild detergent, isopropyl alcohol, or
window cleaners to clean the display housing.
• Never use abrasive cleaners, waxes or solvents to clean the unit.
LX1200TI User’s Guide (020-0512-01A) 5
Introduction
About Planar’s LX1200TI Touch Monitor
The LX1200TI, is a high-performance, rugged touch monitor intended for
demanding environments, such as those inside motor vehicles. The monitor
features a 12.1-inch diagonal liquid crystal display, with XGA resolution, bright
enough to be read in full sunlight. The monitor also includes stereo speakers
and a sturdy magnesium enclosure that can withstand shock and vibration.
Front View:
2
3
6 LX1200TI User’s Guide (020-0512-01A)
1
456
7
10
9
8
Front View (Descriptions):
1. 12.1-inch diagonal XGA screen size.
2. Programmable SoftKeys
3. Volume control
4. “All in one” power button - controls power to the remote computer
5. USB port (Type A, accessible from the front) for connecting a peripheral
device (a second connection is on the back)
6. Brightness control - allows you to easily adjust the screen to the light
condition and to quickly hide the information on the screen
(“screen blanking”)
7. Remote PC Shutdown/Start Button
8. Autosync
9. Power Indicator LED:
• Green: Power on, all systems OK
• Amber: Screen brightness turned fully down (“blanked”)
• Red: No video input
• O : DC power o
10. Touchscreen provides an intuitive software interface
LX1200TI User’s Guide (020-0512-01A) 7

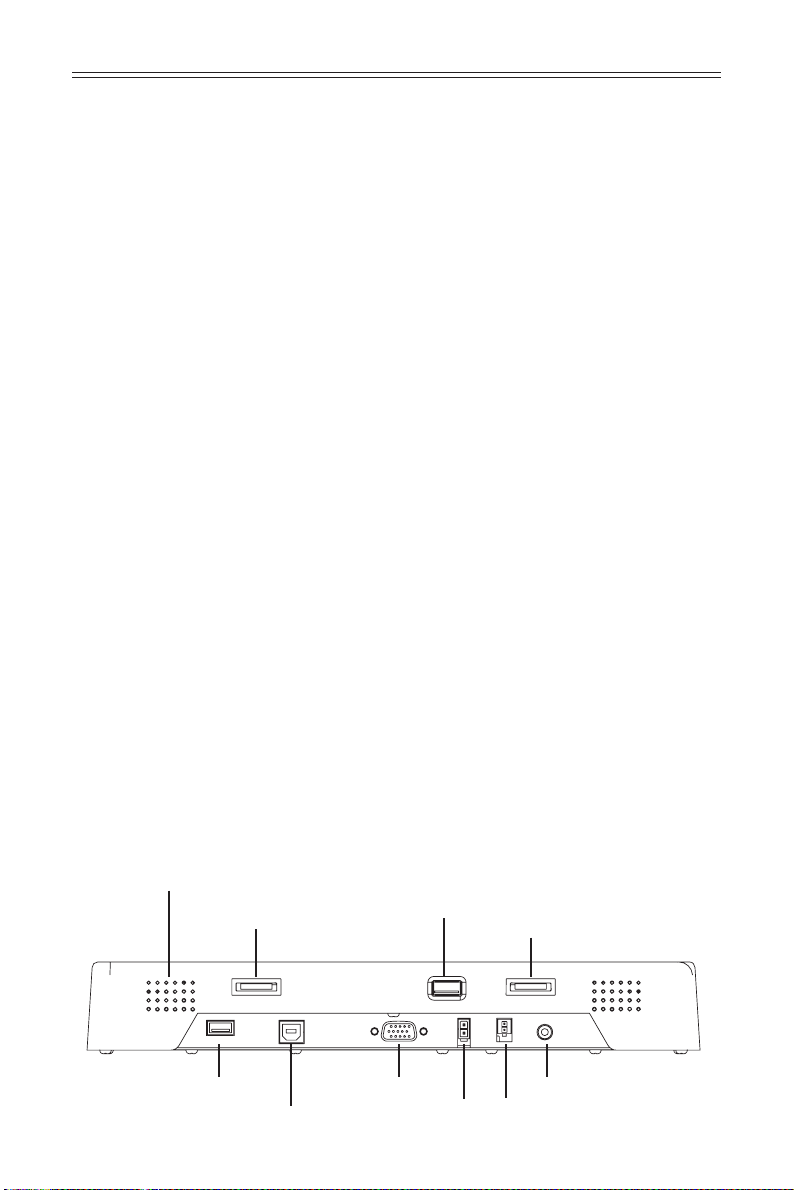

Bottom View:
1234
5 6 87 9 10
Bottom View (Descriptions):
1. Brightness control dial
2. USB port (Type A, accessible from the front) for connecting a peripheral
device
3. Volume control dial
4. Speaker (on each side)
5. USB port (Type A, accessible from the front) for connecting a peripheral
device
6. USB port (Type B) for connecting the touchscreen to the remote
computer
7. VGA Signal Input
8. 12 VDC Power Input
9. Power Interrupt Connector
10. Audio Input (3.5mm jack plug)
8 LX1200TI User’s Guide (020-0512-01A)
Features
• The brightness control allows you to easily adjust the display to match
the ambient light, from full sunlight to night, even while wearing
gloves. Its convenient dial design also enables you to quickly adjust the
brightness.
• The monitor’s trans ective display uses re ected light from the
environment - even direct sunlight - to provide a bright image that can
be easily viewed under any lighting conditions.
• The monitor’s autosync function eliminates the need for adjusting the
monitor for the best image - the monitor automatically makes any
needed adjustments whenever it is powered up or the display mode is
changed.
• Two Type A USB connections are available for connecting peripheral
devices such as a keyboard, mouse or USB drive.
• The monitor supports standard VGA signal input - native 1024 x 768
XGA resolution - as well as 800 x 600 SVGA and 640 x 480 VGA.
• The monitor’s magnesium enclosure is waterproof and designed
to withstand shock and vibration for greater endurance and reliability.
LX1200TI User’s Guide (020-0512-01A) 9
Package Overview
The following items are shipped with the display. If any of these items are not in
the shipping container, please contact Planar.
LX1200 Touch Monitor
SoftKey Software and
Touchscreen Driver
Installation CD
Note: Mounting hardware (4 M4 x .7mm Screws), power supply and
connecting cables are sold separately.
Power Input Cable
Quick Start Guide
10 LX1200TI User’s Guide (020-0512-01A)
Installation
Before Installing
Keep the following in mind while installing the monitor.
• The monitor should be visible to the driver only if it is used for
navigation, system control or vehicle information. If the monitor will be
used for other purposes, it should be installed in such a way that it will
only operate while the vehicle is not moving (such as when the parking
brake is in use). Review all applicable state and local laws and
regulations to make sure the monitor is used properly and safely.
• The installed monitor must not interfere with the driver’s vision.
Installing the LX1200TI monitor consists of three steps:
1. Mounting the monitor using the mounting interface built into the
monitor’s back cover - see page 12.
2. Installing the touchscreen driver software - see page 13
3. Connecting the monitor to the computer and power source - see page 17
Note: Installing the SoftKey Macro Software - see page 26
LX1200TI User’s Guide (020-0512-01A) 11
Step 1 - Mounting the Monitor
The back of the LX1200TI includes a mounting interface that you can use to
mount the monitor on a swing arm or other LCD monitor xture, as follows.
IMPORTANT – For optimal results, use the M4 mounting holes around
!
the edges of the monitor.
1. Mount the xture in its planned location according to the instructions
included with the xture.
2. Attach the monitor to the xture using the attachments on the back of
the monitor, shown in the following diagram.
Note: Use only a Planar-approved mounting bracket for in-vehicle use.
Mounting bracket and hardware are not included with the monitor,
and must be obtained separately.
Use the proper M4 x 0.7 screws for attaching the monitor to the
mounting xture.
For low-vibration environments, the back of the monitor includes a
VESA Standard 100mm mounting pattern.
12 LX1200TI User’s Guide (020-0512-01A)
Step 2 - IRtouch Install
Do not plug in the touchscreen yet! Install the driver rst.
1. Run IRtouch driver setup from the LX1200TI CD
2. Accept user agreement
3. Install in default location
LX1200TI User’s Guide (020-0512-01A) 13
4. Click Install
5. Click continue, you can trust Planar and IRtouch
6. Click on Finish
Attach the Planar monitor to the system or install the computer to a
docking station. After the USB cable from the Planar LX1200TI is
attached to the computer it will recognize the touchscreen for the rst
time.
14 LX1200TI User’s Guide (020-0512-01A)

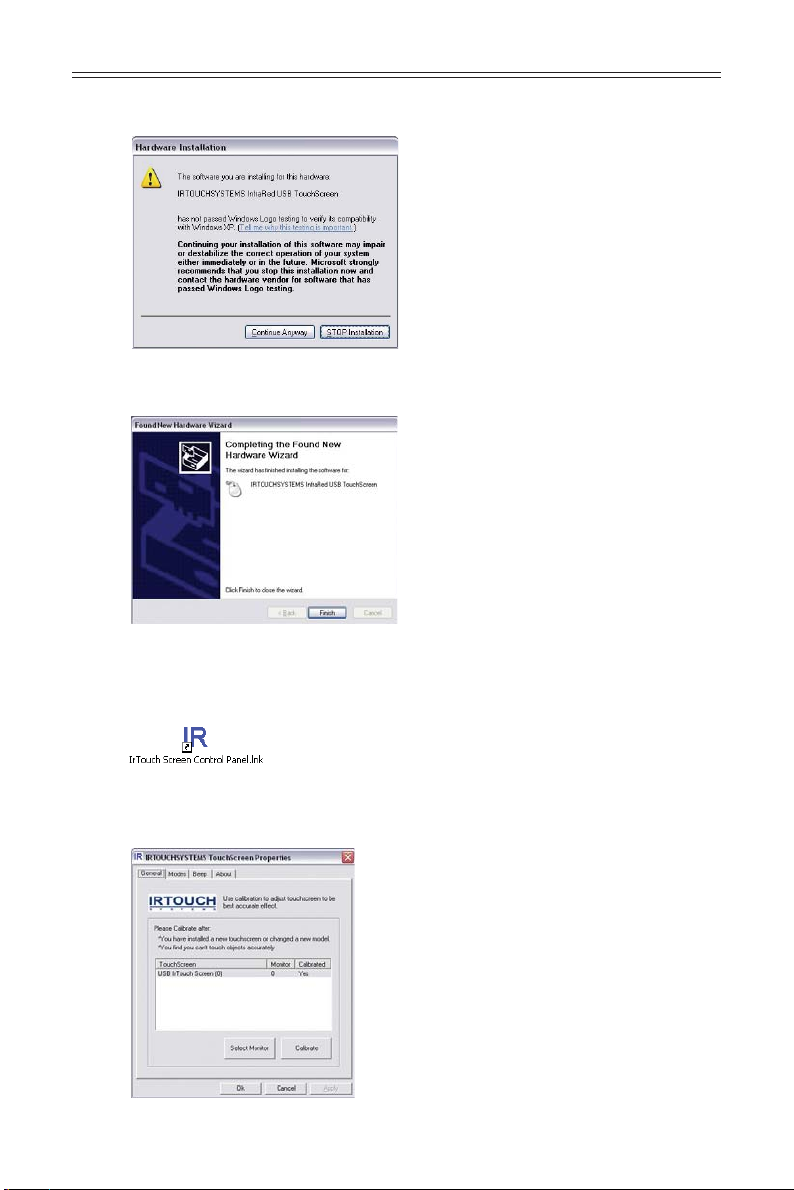

7. Continue
8. Click Finish
9. Click the IRtouch icon located on your desktop to calibrate the touch
monitor.
10. Click Calibrate
LX1200TI User’s Guide (020-0512-01A) 15

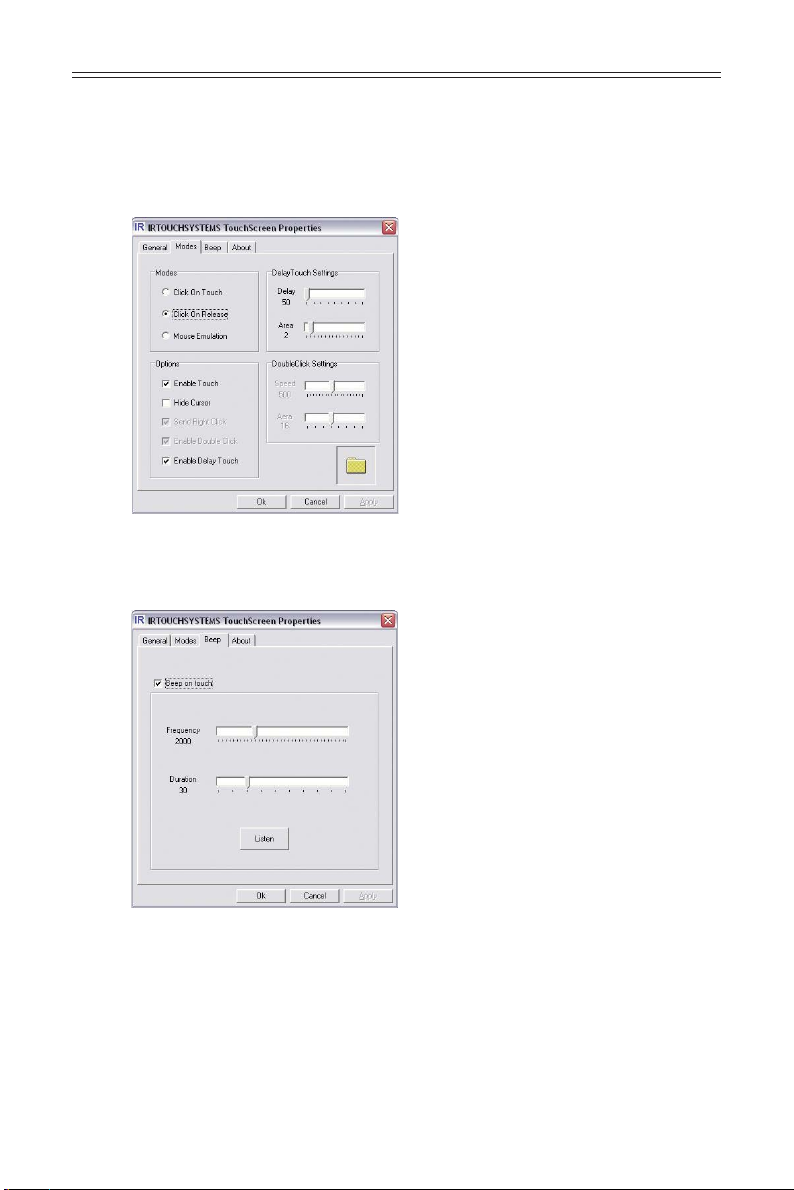

11. Set Modes
When used in rugged environments with software written for
touchscreens, you may nd it easier to use the ‘click on release’ radio
button.
12. Beep
You can set the computer to beep on touch activation if needed.
16 LX1200TI User’s Guide (020-0512-01A)

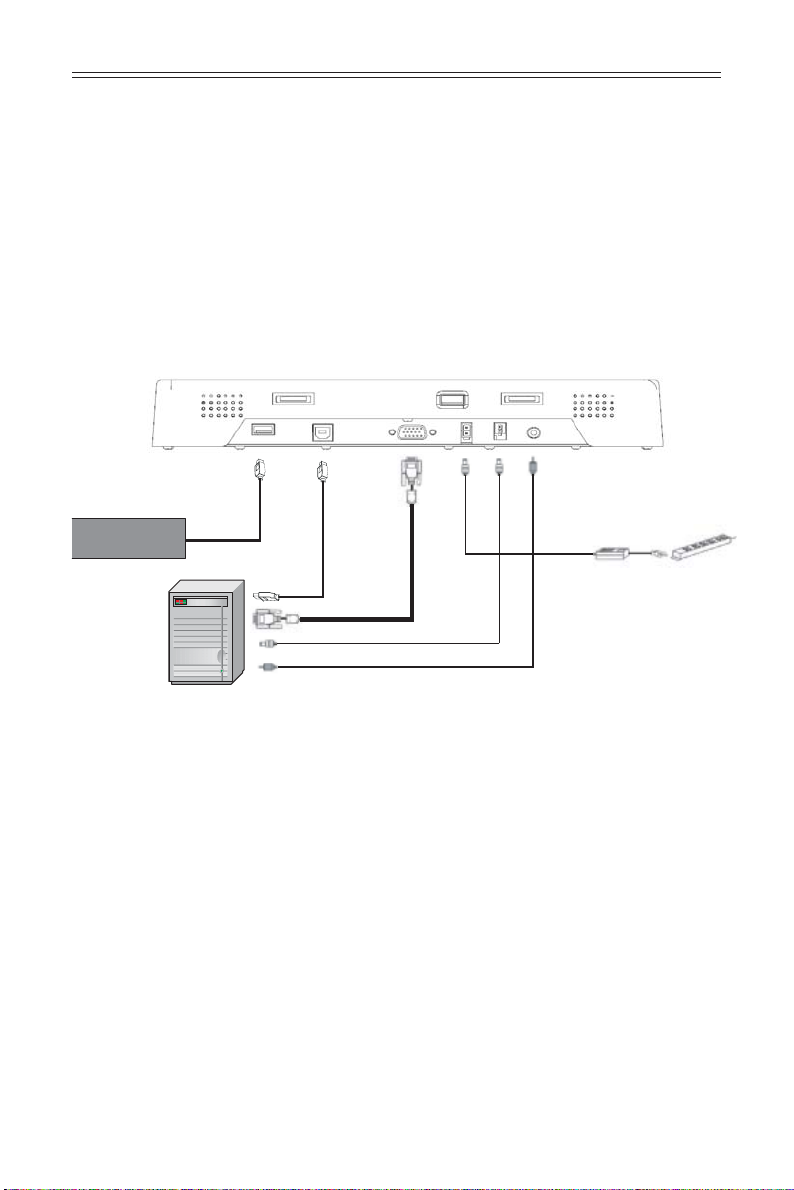

Step 3 - Connecting the Monitor
Once the LX1200TI is mounted in place, connect it to the computer (or other
video source) and the 12 VDC power supply as follows.
Note: This procedure refers to connections to and from the computer.
However, depending on your particular hardware con guration, these
connections may be to a dock or other device rather than directly to
the computer.
1. As needed, route any data and power cables from the computer to the
monitor.
2. Make sure the computer is turned o .
3. Connect the 12 VDC power supply cable to the monitor’s power supply.
Note: Use a 5-Amp fuse in line to the power source.
Also, to prevent vehicle battery from draining, you should install a
device that shuts o power to the monitor while the monitor is
inactive. (An example is Lind Electronic’s Vehicle Battery Voltage
Shutdown Timer - www.lindeletronic.com).
4. Connect the power supply and power interrupt cables (for the
All-in-One power switch, if your computer or docking station is so
equipped) to the connectors on the bottom of the monitor. See the
following diagram for connector locations.
Speaker Vent
USB Type A
Dimming Dial
Audio
Power 12 V
LX1200TI User’s Guide (020-0512-01A) 17
Remote PC Shutdown
USB Type A
USB Type B Upstream
Volume Dial
VGA
Note: If needed, connect an audio cable to the audio port on the monitor, and
to the headphone or audio line output connector on the computer.
If an external keyboard or other USB device will be used with the
monitor, plug it into either of the monitor’s Type A USB connectors.
Two USB devices can be connected to the monitor.
The following gure shows typical connections.
Keyboard
(optional)
12V
USB
VGA
Remote PC Shutdown
Audio
Computer
Power Source
5. Turn on power to the computer. The monitor then turns on as soon as it
receives a video signal from the computer, and its LED turns green.
Also, the rst time the monitor is powered up, it automatically displays
a test pattern of repeating colored screens (black, white, red, green, and
blue) until a video signal is detected.
6. Install the monitor’s driver software and con gure the monitor’s touch
screen as needed.
Note: For best results, adjust the display mode of the computer to a
resolution of 1024 x 768 and a refresh rate of 60 Hz.
18 LX1200TI User’s Guide (020-0512-01A)
User Controls
Front Panel Controls
Power Indicator LED
Softkeys
Volume Control
Power Button
Brightness/Backlight Control
Remote PC Shutdown/Start Button
Display On/O Button
Autosync
CONTROL FUNCTION
Volume Control Dial Increases and decreases the volume of the display
Power Button Turns the connected computer on and o - see page
20 for details.
Power Indicator LED Shows the power state of the monitor:
Brightness Control Dial Increases and decreases the brightness of the display.
Display On/O Button Allows the screen to be shut o for stealthy darkness
Autosync Auto calibration of video mode
Remote PC Shutdown/
Start Button
Softkey Button Allows macro keyboard command entry
• Green: power is on, all systems OK
• Amber: display brightness is fully turned down (“blanked”)
• Red: the monitor is receiving no video input
• O : DC power is o
Turning the dial all the way clockwise will “blank” the
display to hide information if needed.
Allows the PC to be shutdown prior to removing from
docking station. Easy way to reboot PC.
LX1200TI User’s Guide (020-0512-01A) 19
Turning the Monitor On and Off
The monitor’s power button controls power to the computer. The monitor
itself turns its display on and o according to whether it is receiving a video
signal.
• To turn on the computer, press the remote PC shutdown/start button
on the front of the monitor. The monitor then turns on when it receives
a good video signal from the computer (and the monitor’s power
indicator turns from red to green).
• To turn o the computer, press the remote PC shutdown/start button
again.
Note: Be sure to con gure the computer’s power options, including how the
computer responds when the button is pressed. See Windows on-line
help for details.
The monitor goes into standby whenever the computer is put into
sleep or into hibernation.
Using the Touchscreen
The LX1200TI touchscreen allows you to operate the computer by touching
the screen with a nger or stylus, rather than using a mouse or keyboard.
Navigating the Touchscreen
• To click an item, tap the item once.
• To double-click an item, tap the item twice rapidly.
• To drag an item, touch the item, and then drag it along the screen to the
new location.
• To move the cursor, touch the screen and move the cursor as needed.
20 LX1200TI User’s Guide (020-0512-01A)
Cleaning the Monitor
Clean the monitor’s touchscreen periodically to keep the display image bright
and sharp, and to keep the touchscreen functions working properly.
• Always turn o the monitor before cleaning.
• Clean the touchscreen only with a dry soft cloth. If this does not clean
the screen adequately, use water or mild glass or window cleaner
(that does not contain ammonia) applied to the cloth and not to the
display.
CAUTION – Do not apply liquids to the display.
!
• Clean the monitor housing with a soft cloth moistened with mild
detergent, 70% isopropyl alcohol, 1.6% aqueous ammonia, or
household window cleaners.
• Never apply abrasive cleaners, waxes or solvents to the monitor.
LX1200TI User’s Guide (020-0512-01A) 21
Appendix
Troubleshooting the Monitor
If you are experiencing trouble with the LX1200TI monitor, refer to the
following. If the problem persists, please contact your local dealer or our
service center.
Problem: No image appears on screen
• Make sure the brightness is not turned all the way down.
• Make sure all data and power cables are properly connected to the
monitor and to the computer and power supply - see page17 for details.
• Make sure the pins on the cables and connectors are not crooked or
broken.
• Make sure the computer is functioning properly, and has not entered
power-saving mode. (You may also want to disable the computer’s
power-saving feature.)
Problem: Partial image or incorrectly displayed image
• Make sure the computer’s image resolution is set to one of these
resolutions: 1024 x 768 (XGA), 800 x 600 (SVGA) or 640 x 480 (VGA).
Problem: Image is scrolling
• Check and make sure the VGA signal cable (or adapter) is securely
connected at both ends.
Problem: No sound
• Make sure the volume is not turned completely down.
• Make sure the audio cable is securely connected at both ends.
• Make sure the computer’s audio is not muted.
Problem: The monitor does not appear to respond to the touchscreen
• Make sure the USB cable to the computer is securely connected at both
ends.
22 LX1200TI User’s Guide (020-0512-01A)
Specifi cations
Dimensions
• Size: 313mm (12.3”) width x 267mm (10.5”) height x 46mm (1.8”) thickness
• Screen Size: 12.1-inch Diagonal
• We ight : 5 kg maximum
Video Specifi cations
• Input: Standard VGA (15-pin Analog)
• Resolution: XGA (1024 x 768), supports SVGA (800 x 600) and VGA
(640 x 480)
• Response Time: <35 ms (typical)
• Viewing Angle: 140° horizontal, 45° up, 55° down (typical)
• Brightness: 315 cd/m2, trans ective panel (typical)
• Brightness in high ambient light conditions: 1100 cd/m
• Contrast: >250:1 at ambient illumination level > 5 lux (typical)
• Autosync: On power-up and any change of video mode, will
automatically detect any supported video resolution and display the
image accordingly.
2
Electrical Specifi cations
• Power Input: 12 VDC nominal
• Power Input Voltage Range: 8 to 24 VDC, with transient protection
resident on the monitor
• Maximum Power: 25 W
• Typical Power: Less than 17 W
• Power Consumption in Power-Saving (standby) Mode: 1.0 W
• Speaker/Ampli er Power: 2 W per speaker
LX1200TI User’s Guide (020-0512-01A) 23
Electromagnetic Compatibility (EMC)
• ESD, 6 kV contact and 8 kV air discharge
• Emissions
• 47 CFR. Part 15, Subpart B, Class B - Conducted and Radiated Tests
• CE EMC Directive 89/336/EEC
• EN55022:1998+A1:2000+A2:2003; Class B Conducted & Radiated Test
• EN61000-3-2:2000, Class D Harmonic Current Emissions
• EN61000-3-3:1995+A1:2001 Voltage Fluctuations and Flicker
• ISO 7637-1:1990; Road Vehicles - Electrical disturbances from conduction
and coupling
Immunity Characteristics
• EN55024:1998+A1:2001
• IEC 61000-4-2:2001 Electrostatic Discharge Immunity Test
• IEC 61000-4-3:2002 Radiated Radio-Frequency Electromagnetic Field
Immunity Test
• ICE 61000-4-4:1995+A1:2000+A2:2001 Electrical Fast Transient/Burst
Immunity Test
• IEC 61000-4-5:2001 Surge Immunity Test
• IEC 61000-4-6:2001 Immunity to Conducted Disturbances, Induced by
Radio-Frequency Fields
• IEC 61000-4-8:2001 Power Frequency Magnetic Field Immunity Test
• IEC 61000-4-11:2001 Voltage Dips, Short Interruptions and Voltage
Variations Immunity Tests
Safety
• UL/CSA 60950-1
• EMARK
24 LX1200TI User’s Guide (020-0512-01A)
Environmental Specifi cations
Temperature
• Operating: -20° to 60° C
• Operating Survival: -25° to 65° C
• Storage: -20° to +70° C
Humidity
• Operating: 5 to 90% RH, 40° C, non-condensing
• Non-operating: 5 to 93% RH, non-condensing
Altitude
• Operating: 10,000 ft (IEC 60068 PT2-13, 4 hours)
• Non-operating: 15,000 ft (IEC 60068 PT2-13, 4 hours)
Vibration
• Operating (random): 10 to 500 Hz, 3.0 G rms acceleration, 3 hours per axis
Shock
• Operating/Non-operating: 50 G, 11 ms duration, 1/2 sine, 3 shocks per
axis (IEC 60068 PT2-27)
Connectors
• J1: Video Input
• 15-pin D-Sub VGA, female, Zhangjiagang SBFR15 or equivalent
• J2: Power Interrupt
• CviLux CP35 2P*H00 (black); terminal part number 43030-0007
• Mating connector is Molex Micro Fit Jr., Molex part number 43025-0200,
terminal part number 43030-0007.
• The power interrupt switch is connected to a single pole single throw
normally open push button (SPST N.O) switch. This can be connected to your
docking station or computer’s power button.
• J3: Audio Input
• 3mm jack
• J4: USB Upstream Type B
• Type B for connecting to the computer
LX1200TI User’s Guide (020-0512-01A) 25
• J5: DC Power Input
• Chassis-mounted, two-pin connector (Molex Mini Fit Jr., Header 5569 Molex
part number 39-30-0020)
• The table below lists the connector’s pin assignments, and the gure below
shows the physical layout as seen by the interface cable from the DC power
source.
PIN NUMBER SIGNAL
1 (Square) Positive input voltage (12V)
2 (D-Shape) Return (GND)
• J7, J8: USB Downstream Type A
• For connecting peripheral USB devices
Speaker Vent
Volume Dial
USB Type A
Dimming Dial
USB Type A
USB Type B Upstream
VGA
26 LX1200TI User’s Guide (020-0512-01A)
Power 12 V
Audio
Remote PC Shutdown
Addendum A
Planar Softkey Use
The Planar LX1200TI has built in programmable function buttons. This document is to guide the user on the use and installation of the softkey software.
The Function buttons are mapped out of the box as:
BUTTON INITIAL KEY
MAPPING
E F18 F11 Alt+F11
1 F13 F1 Launch Program
2 F14 F2 Ctnl+Alt+2
3 F15 F3 Past Text
4 F16 F4 Launch IE7 to an address
5 F17 F5 Open a Folder
The Planar softkey software will allow the user to remap those keys to any
other single keys, combination of keys, or launch a program from the buttons
on the front of the LX1200TI monitor.
DEFAULT SOFTKEY
MAPPING
POSSIBLE KEY
MAPPING
Softkey Install Guide
1. Install the Planar Softkey software from the CD by clicking on the Planar
Softkey Icon.
LX1200TI User’s Guide (020-0512-01A) 27
2. Agree to the software license agreement.
3. The software will install a link on your desktop, on the bottom right
Windows noti cation area, and on the start menu. The software will
install with a default con guration.
4. There is a screen keyboard that can be activated by right clicking on
the Planar Logo in the Windows information tray.
28 LX1200TI User’s Guide (020-0512-01A)
Support and Service
Planar is a US company based in Beaverton, Oregon and Espoo, Finland, with
a world-wide sales distribution network. Full application engineering support
and service are available to make the integration of Planar displays as simple
and quick as possible for our customers.
RMA Procedure: For a Returned Material Authorization number, please contact
Planar Systems, Inc. with the model number(s) and serial number(s). When
returning goods for repair, please include a brief description of the problem,
and mark the outside of the shipping container with the RMA number.
Planar Systems, Inc.
Customer Service
24x7 Online Technical Support: http://www.planar.com/support
Email: PlanarSupport@planar.com
Americas Support
1195 NW Compton Drive
Beaverton, OR 97006-1992
Tel: 1-866-PLANAR-1 (752-6271) (US only)
1-503-748-5799 (outside the US)
Hours: M-F, 8am - 8pm Eastern Time | 5am - 5pm Paci c Time
Europe and Asia-Paci c Support
Olarinluoma 9 PO Box 46
FIN-02201 Espoo, Finland
Tel: +358-9-420-01
Hours: M-F, 7am - 4pm CET
© 2007 Planar Systems, Inc. 01/07 Planar is a registered trademark of Planar Systems, Inc.
Other brands and names are the property of their respective owners.
Technical information in this document is subject to change without notice.
Document No. 020-0512-01A
Loading...
