OPERATIONS MANUAL
Invitium™Medical
Workstation
OPERATIONS MANUAL
© Copyright, 2002, Planar Systems, Inc.
Please address any questions, comments, and suggestions to:
Planar Systems, Inc.
1400 N.W. Compton Drive
Beaverton, OR 97006 USA
Phone: (866) 475-2627
(503) 748-1100
Fax: (503) 748-1493
Planar Systems, Inc.
Olarinluoma 9
P. O . B o x 46
FIN-02201 Espoo, Finland
Phone: 358 9 42001
Fax: 358 9 4200200
http://www.planar.com
The information in this document is subject to change without notice.This publication may not be reproduced, stored in a retrieval system, or
transmitted by any means without prior written permission of Planar Systems,Inc.
Invitium is a trademark and Planar is a registered trademark of Planar Systems, Inc. IBM is a registered trademark of International Business
Machines Corporation.Windows and MS-DOS are registered trademarks of Microsoft Corporation. Intel, Pentium, and Celeron are registered
trademarks of Intel Corporation. All other trademarks and trade names are the property of their respective companies.
ii Invitium
™
Medical Workstation OPERATIONS MANUAL
Invitium™Medical Workstation Operations Manual
About this manual
This manual is intended to assist you in setting up and using your new Invitium™Medical
Workstation.This information has been carefully checked for accuracy; however, no guarantee
is given to the correctness of the contents.The information in this manual is subject to change
without notice.This manual contains proprietary information protected by copyright.All rights
are reserved. No part of this manual may be reproduced by any mechanical, electronic or other
means, in any form, without prior written permission of the manufacturer.
This manual includes the following sections:
Section 1 About the Invitium Medical Workstation, explaining its features and key specifica-
tions.
Section 2 Getting Started, includes instructions on mounting the Invitium workstation and
connecting its modules, making display adjustments and calibrating the optional
touchscreen.
Section 3 Invitium System Setup, helps you define hardware and software options in the
system’s BIOS utility.
Section 4 Troubleshooting the Invitium Medical Workstation, provides guidance in
identifying potential problems you could encounter.This section also has instructions for reinstalling Windows® and several device drivers
Section 5 Invitium Medical Workstation Technical Specifications, provides extensive system
details provided for your reference.
We encourage you to look through the entire Operations Manual to familiarize yourself with
its contents before you begin to set up or use your Invitium Medical Workstation.
INTRODUCTION
Introduction iii
Regulatory Information
U.S. Federal Communications Commission (FCC) Requirements
The Planar Invitium™Medical Workstation has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.These limits are designed to
provide reasonable protection against harmful interference in a residential installation.This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures.
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment to an outlet different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
To comply with the limits for an FCC Class B computing device, always use the shielded signal
cord supplied with this unit. The Federal Communications Commission warns that changes or
modification of the unit not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
Canadian Doc Notice
For Class B Computing Devices
This digital apparatus does not exceed the Class B limits for radio noise emissions from digital
apparatus as set out in the Radio Interference Regulation of the Canadian Department of
Communications.
“Le present appareil numerique n’emer pas de bruits radioelecinques depassant les limires
applicables aux appareils numeriques de la class B prescrites dans le Reglement sure le brouiliage
radioelectrique edicte par le minstere des Communications du Canada”
Regulatory Compliance
This system has been tested and found to comply with IEC/EN 60601-1, IEC/EN 60601-1-2,
UL 2601-1 and CAN/CA C22.2 No. 601.1 medical standards by Underwriters Laboratories, Inc.
Because many medical offices are located in residential areas, the Invitium workstation, in addition to meeting medical requirements, has also been tested and found to comply with the limits
for Federal Communications Commission (FCC) Class B computing devices in a typically configured system. It is the system integrator or configurer’s responsibility to test and ensure that
the entire system complies with applicable electromagnetic compatibility (EMC) laws. Planar
Systems, Inc. has made great efforts to support the medical device industry, in particular medical
device manufacturers and medical device system integrators.We offer state-of-the-art systems
that are compliant with worldwide accepted medical device safety standards, and for the
iv Invitium
™
Medical Workstation OPERATIONS MANUAL
European market, EC-marked displays based on compliance with counsel directive 93/42/EEC
— commonly referred to as the Medical Device Directive (MDD).The following summarizes
our qualification of these displays as it relates to compliance with the MDD.
The European MDD requires that the intended use of the device be defined.The intended use
of the Invitium workstation is “to display alphanumeric, graphic, and image data as inputted
from any type of medical device.”This system does not provide a measurement function in any
way, and it is the device and systems manufacturers responsibility to verify its function in the
integrated device or system.The workstation was classified as required by the MDD according
to Annex IX of the directive and the medical device (MEDDEV) guidance available at the time
of classification.
Because the workstation uses electrical energy and has no direct patient connections and- — by
itself — no medical utility, the workstation is classified according to Rule 12 as an MDD Class I
device-component or accessory.
The MDD states that manufacturers of Class I medical devices or accessories shall satisfy the
requirements in regard to design and manufacturing controls; i.e., the applicable assessment
route to be used for CD-marking under the MDD, and it shall carry the CD-mark according to
Annex XII for the directive, with no notified body annotation.
The applicable safety standards for an MDD Class I device are IEC/EN60601-1: 1990 along
with Amendments 1 and 2.To help the medical device designer evaluate the suitability of these
workstations, Planar has also conducted EMC testing to IEC 60601-1-2 as it can be applied.
The display with its power supply alone does not represent a functional medical device. Hence,
Planar configured a minimal operating system to exercise the display.The resulting data is made
available to interested parties.
The data is informative data, not certification data. Certification data must be obtained by the
device or system integrator according to Article 12 of the MDD titled “Particular procedure for
systems and procedure packs.” Paragraph 2 clearly outlines the device or system integrator’s
responsibility in this matter.
In summary, Planar Systems, Inc. is CE-marking theses workstations under the Medical Device
Directive, which establishes compliance to the basic medical safety standards. However, EMC
compliance can only be accomplished in the configured medical device or system and is the
responsibility of the device or system manufacturer. Planar has the necessary documentation
such as IEC 60601-1 notified body and other third-party test reports and certifications, a
risk/hazard analysis, and essential requirements checklist, and Planar’s International
Electrotechnical Commission (IEC) declaration of conformity.
Planar Systems, Inc. located in Beaverton, OR, USA is the manufacturer of these workstations
in the meaning of the directive.As required by the MDD in Article 14, Planar Systems, Inc. not
residing in the European Economic Area (EEA) has a European Representative, Planar Systems,
Inc. –Espoo, Finland.
In the opinion of Planar Systems, Inc. registration required to put its device into commerce is
the responsibility of the medical device/system manufacturer, and Planar supports this requirement by providing a European Commission (EC) declaration of conformity. If Planar supplies a
workstation to an end user, rather than a device manufacturer, it is the end user’s responsibility
to ensure continued compliance with the MDD of the system in which the workstation is inte-
Introduction v
grated. For vigilance reporting as required under Article 10 of the MDD, Planar Systems, Inc.
will provide any information requested by competent authority to support any reported incident investigation by such an authority.
vi Invitium
™
Medical Workstation OPERATIONS MANUAL
GUIDANCE AND MANUFACTURER’S DECLARATION – ELECTROMAGNETIC EMISSIONS
The Invitium system is intended for use in the electromagnetic environment specified below. The
customer or the user of the Invitium System should assure that it is used in such an environment.
EMISSIONS TEST COMPLIANCE ELECTROMAGNETIC ENVIRONMENT — GUIDANCE
RF emissions The Invitium System uses RF energy only for its
CISPR 11
Group 1
internal function.Therefore, its RF emissions are very
low and are not likely to cause any interference in
nearby electronic equipment.
RF emissions
Class B
CISPR 11
Harmonic emissions
Class A
IEC 61000-3Voltage fluctuations/
Flicker emissions Complies
IEC 61000-3-3
The Invitium System is suitable for use in all establishments, including domestic establishments and those
directly connected to the public low-voltage power
supply network that supplies buildings used for
domestic purposes.
Introduction vii
GUIDANCE AND MANUFACTURER’S DECLARATION – ELECTROMAGNETIC IMMUNITY
The Invitium System is intended for use in the electromagnetic environment specified below. The
customer or the user of the Invitium System should assure that it is used in such an environment.
IMMUNITY TEST IEC 60601 COMPLIANCE ELECTROMAGNETIC
TEST LEVEL LEVEL ENVIRONMENT - GUIDANCE
Floors should be wood, concrete or
ceramic tile. If floors are covered
with synthetic material, the relative
humidity should be at least 30%.
Electrostatic
Discharge (ESD)
IEC 61000-4-2
+/- 6KV contact
+/- 8KV air
+/- 6KV contact
+/- 8KV air
Mains power quality should be that
of a typical commercial or hospital
environment.
Electrical fast
Transient/burst
IEC 61000-4-4
+/- 2KV for
power supply lines
+/- 1KV for
input/output lines
+/- 2KV
+/- 1KV
Mains power quality should be that
of a typical commercial or hospital
environment.
Surge
IEC 61000-4-5
+/- 1KV
differential mode
+/- 2KV
common mode
+/- 1KV
+/- 2KV
Mains power quality should be that
of a typical commercial or
hospital environment. If the user
of the Invitium System requires
continued operation during power
mains interruptions, it is recommended that the Invitium System
be powered from an uninterruptible
power supply or battery.
Voltage dips, short
interruptions and
voltage variations
on power supply
input lines.
IEC 61000-4-11
<5% UT
(>95% dip in UT)
for 0.5 cycle.
40% UT
(60% dip in UT)
for 5 cycles
70% UT
(30% dip in UT)
for 25 cycles
<5% UT
(>95% dip in UT)
for 5 seconds
No discernable
effect
No discernable
effect
No discernable
effect
Unit will power
down and recover
normally
Power frequency magnetic fields
should be at levels characteristic of
a typical location in a typical commercial or hospital environment.
Power frequency
(50/60 Hz) magnetic field
IEC 61000-4-8
3 A/m 3 A/m
Note: UT is the a.c. mains voltage prior to application of the test level.
viii Invitium
™
Medical Workstation OPERATIONS MANUAL
GUIDANCE AND MANUFACTURER’S DECLARATION – ELECTROMAGNETIC IMMUNITY
The Invitium System is intended for use in the electromagnetic environment specified below. The
customer or the user of the Invitium System should assure that it is used in such an environment.
IMMUNITY TEST IEC 60601 COMPLIANCE ELECTROMAGNETIC
TEST LEVEL LEVEL ENVIRONMENT - GUIDANCE
Portable and mobile RF communications equipment should be used no
closer to any part of the Invitium
System, including cables, than the recommended separation distance calculated from the equation applicable to
the frequency of the transmitter.
Recommended separation distance
d = 1.16 eP
d = 1.16 eP 80 MHz to 800 MHz
d = 2.33 eP 800 MHZ to 2.5 GHz
where P is the maximum output
power rating of the transmitter in watts
(W) according to the transmitter manufacturer and d is the recommend separation distance in meters (m).
Field strengths from fixed RF transmitters, as determined by an electromagnetic site survey,
a
should be less
than the compliance level in each frequency range.
b
Interference may occur in the
vicinity of equipment marked
with the following symbol:
Conducted RF
IEC 61000-4-6
Radiated RF
IEC 61000-4-3
3 Vrms
150 KHz to 80
MHz
3 V/m
80 MHz to 2.5
GHz
3 Vrms
3 V/m
NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic propogation is affected by absorption and reflection
from structures, objects, and people.
a
Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios,
amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy.To assess the
electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured
field strength in the location in which the Invitium System is used exceeds the applicable RF compliance level above,the
Invitium System should be observed to verify normal operation. If abnormal performance is observed, additional measures may
be necessary, such as reorienting or relocating the Invitium System.
b
Over the frequency range 150 KHz to 80 MHz, field strengths should be less than 3 V/m.
European Union Declaration of Conformity for Medical Applications
A Declaration of Conformity has been filed for this product. For additional copies of the
Declaration of Conformity document, please contact Planar Systems, Inc. and request document
number 001-0014-04 “Declaration of Conformity.”

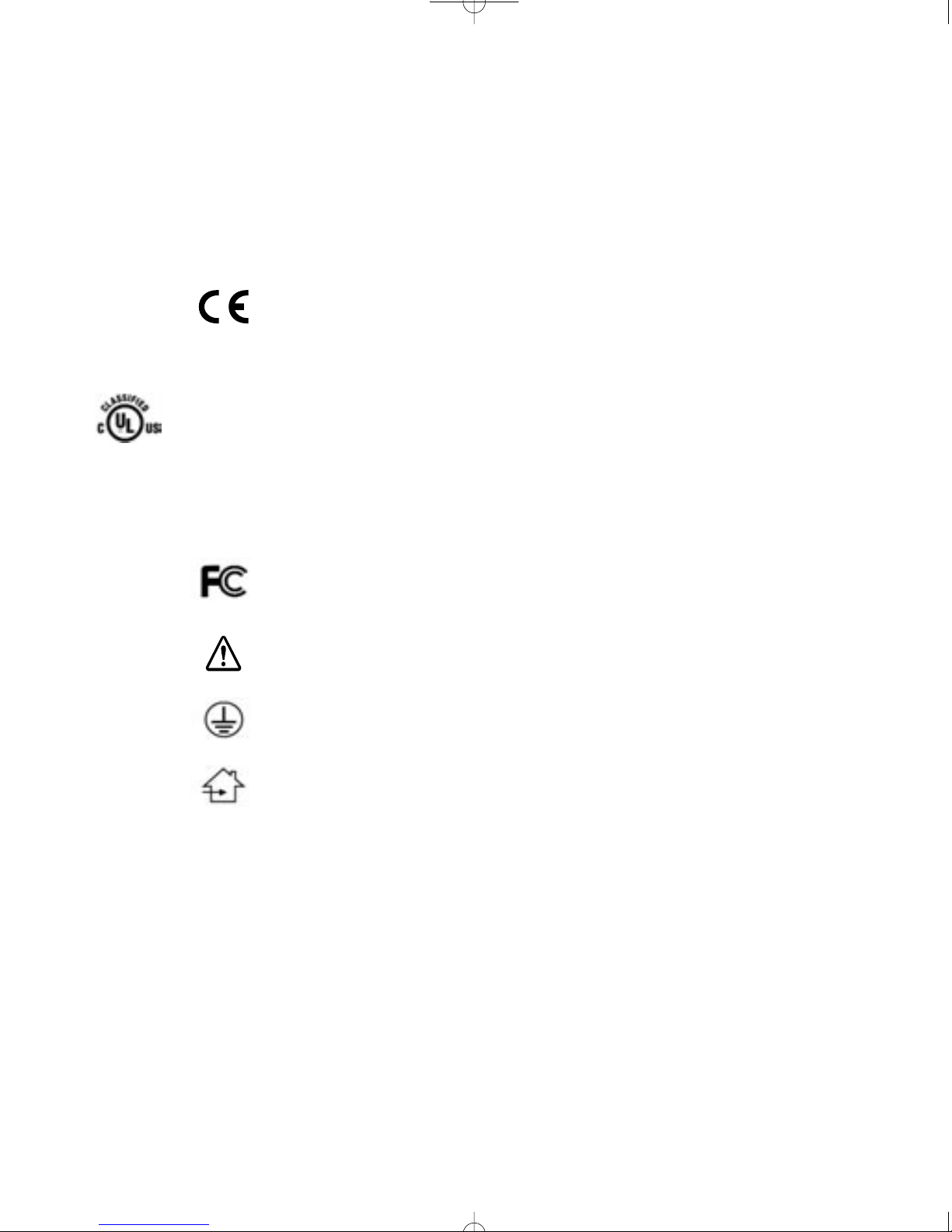

Symbol explanations
Following are explanations of the symbols found on the Invitium Medical Workstation:
Indicates proof of conformity to applicable European Economic Community
Council directives and two harmonized standards published in the official
journal of the European Communities.
Indicates that the product has been tested and certified with respect to electric
shock, fire, mechanical and other specified hazards only in accordance with US
2601-1 and CAN/CSA C22.2 No. 601.1 and IEC 60601-1 for medical equipment. If this mark appears with the indicators “C” and “US”, the product is
certified for U.S. Canadian markets, meeting the applicable U.S. and Canadian
standards.
Indicates that it has been tested to comply with FCC Class B standards.
Consult accompanying documents.
Indicates protective earth ground.
Indicates indoor use only.
Introduction ix
UL 2601-1
CAN/USA C22.2
NO.601.1
IEC 60601-1
E 226863
Warranty Information
Planar Systems, Inc. warrants that the goods sold hereunder will be free of defects in materials
and workmanship, and such goods will substantially conform to the specifications furnished by
Planar.This warranty shall be effective only if Planar receives notice of such defect or nonconformance during the period of the warranty. Planar’s sole and exclusive liability for breach of
warranty shall be, at Planar’s option, to repair or replace the Planar product(s) with refurbished
units or provide a credit to buyer in the amount of the purchase price.
Commencement of Warranty
The warranty period begins on the date of shipment.
Duration of Warranty
The goods sold hereunder are warranted for a period of one year from the date of shipment
unless otherwise agreed to by Buyer and Planar. No extension of the warranty will be given
during the time the goods are in Planar’s possession.
Place of Repair or Replacement
In order to obtain service under this warranty, Buyer must notify Planar of the defect before
expiration of the warranty period and request a “Return Material Authorization Number.” If
the configuration has been modified in any manner, the product must be returned to its original
configuration before any warranty service will be performed by Planar. No goods are to be
returned to Planar without prior authorization. Buyer will be responsible for packaging and
shipping the defective goods to the nearest Planar Service Facility located in either Beaverton,
Oregon, or in Espoo, Finland, with shipping charges prepaid.
Limitation of Warranty
The foregoing warranty shall not apply to defects resulting from (a) improper or inadequate
maintenance by Buyer; (b) unauthorized modification of the goods; (c) operation of the goods
outside of the environmental specifications of the goods; (d) neglect, misuse or abuse of the
goods; or (e) modifications or integration with other goods not covered by Planar’s warranty
when such modifications or integration increases the likelihood of damage to the goods.
THE WARRANTY IS GIVEN BY PLANAR IN LIEU OF ANY OTHER WARRANTIES, EXPRESS
OR IMPLIED. PLANAR DISCLAIMS ANY IMPLIED WARRANTIES OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE. PLANAR’S RESPONSIBILITY TO REPAIR OR
REPLACE DEFECTIVE PRODUCTS IS THE SOLE AND EXCLUSIVE REMEDY PROVIDED TO
THE BUYER FOR BREACH OF THIS WARRANTY. PLANAR WILL NOT BE LIABLE FOR
ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES IRRESPECTIVE
OF WHETHER PLANAR HAS ADVANCE NOTICE OF THE POSSIBILITY OF SUCH DAMAGES.
x Invitium
™
Medical Workstation OPERATIONS MANUAL
Technical Assistance
The warranty set forth above shall not be enlarged, diminished or affected by, and no obligation
or liability shall arise from Planar, any authorized dealer, or any other person’s rendering of
technical advice, assistance, or services in connection with the buyer’s order of the good furnished hereunder.The Buyer is not relaying on Planar’s skill or judgment to select or furnish
suitable goods.
Installation
Planar makes no warranty with respect to any installation of Planar’s product(s) by Planar, any
authorized dealer, or any other person.
Introduction xi
xii Invitium
™
Medical Workstation OPERATIONS MANUAL
Table of Contents xiii
Table of Contents
About the Invitium™Medical Workstation
Before you begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
About the Planar Invitium Medical Workstation . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
About the Invitium system power adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
About the Invitium optional battery pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Service support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Getting Started
Mounting the Invitium workstation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Mounting the Invitiumcomputer and monitor separately . . . . . . . . . . . . . . . . . . . 13
Mounting the monitor and the computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Re-attaching the monitor to the computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Starting up the Invitium workstation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Adjusting monitor controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Using a floppy drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Calibrating the Invitium Workstation Touchscreen . . . . . . . . . . . . . . . . . . . . . . . . 18
Non-touchscreen systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
System Setup
Entering system setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Using the Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Primary/Secondary submenus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
System Shadow submenu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Memory Cache submenu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Using the Advanced Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Advanced Chipset Control submenu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
PCI Configuration submenu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Keyboard Features submenu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
I/O Device Configuration submenu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Using the Security Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Using the Power Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Using the Boot Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Using the Exit Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
SECTION 3
SECTION 2
SECTION 1
Troubleshooting the Invitium™Workstation
Run anti-virus alert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Step-by-step troubleshooting procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Boot failures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Problems at initial system startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Problems after the system has been running correctly . . . . . . . . . . . . . . . . . . . . . . 38
Problems running new application software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Problems operating PC cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Problems with Ethernet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Problems and suggestions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Error and information messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Resetting the Invitium system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Reinstalling Windows and Drivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Windows 2000 installation procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Touchscreen driver installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Technical Specifications
Environmental specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Reliability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Invitium computer specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Invitium monitor specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Invitium power adapter specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Invitium battery pack specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Regulatory compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Battery pack regulatory compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
SECTION 5
SECTION 4
xiv Invitium
™
Medical Workstation OPERATIONS MANUAL
About the Invitium™Medical Workstation
Before you begin
Welcome to the Planar Invitium™Medical Workstation — the modular platform designed
specifically to provide clinical information and patient monitoring applications in the point-ofcare environment.
These items are shipped in the typical Invitium box. Please ensure that your Invitium box
contains them:
• Document package containing this Invitium Operations Manual and software CDs
•Invitium Quick Setup Guide
•Invitium computer and attached monitor
•Power supply and cable
•Keyboard and mouse (if this is not a touchscreen system)
If anything is missing from the box, please contact us in the U.S. at (866) 475-2627 or
(503) 748-1100 or in Finland at 358 9 42001. Optional equipment and parts will be shipped
separately.
1.1 — About the Planar Invitium™Medical Workstation

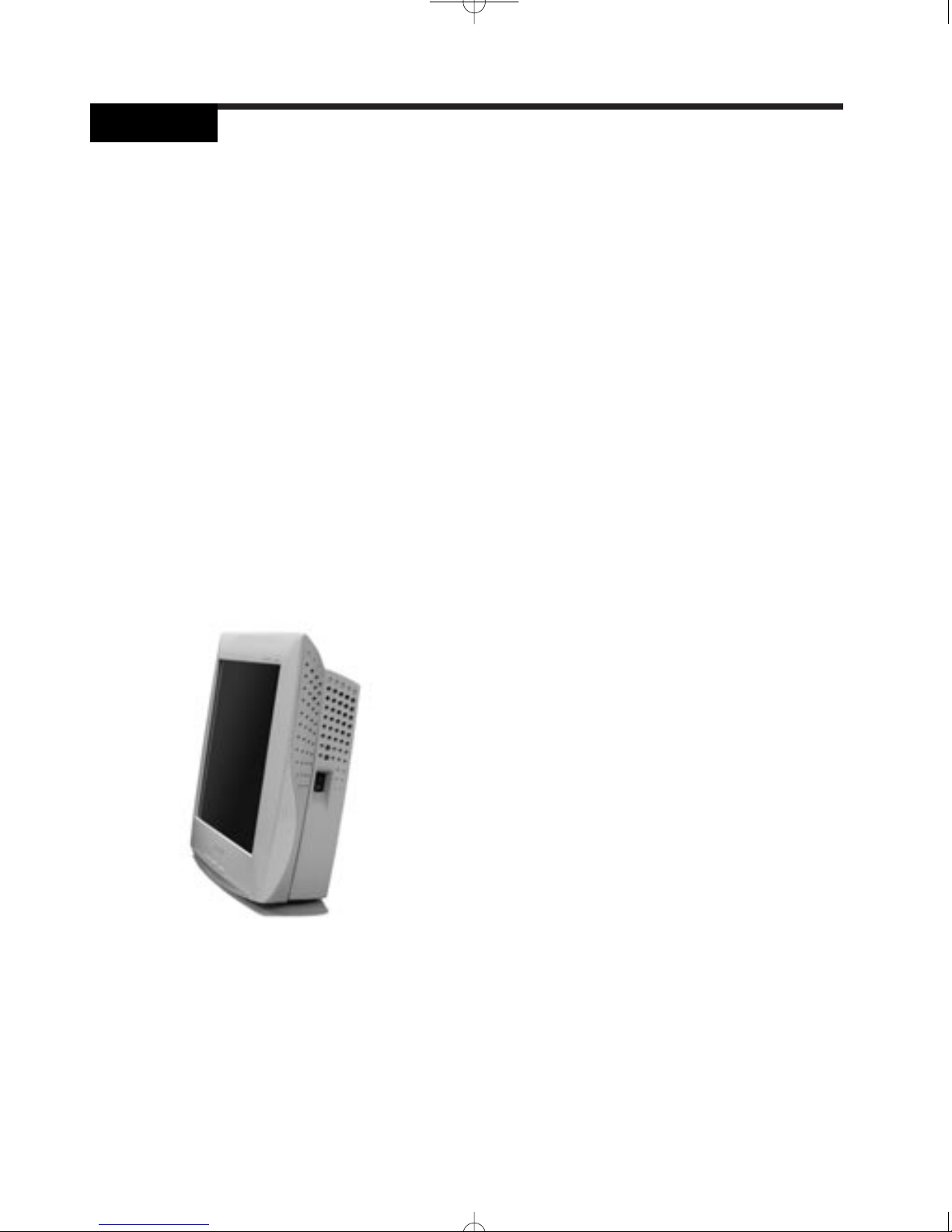

The Planar Invitium Medical Workstation is an IBM-compatible computer, based on Intel
Celeron
®
or Pentium®III processors.The basic system consists of a computer, monitor and
power supply. A separate battery pack is available as an option.
The Invitium system supports memory configurations up to 256MB 100MHz SyncDRAM
(PC-100 memory) at 3.3VDC. It supports EIDE and Ultra DMA/33 hard drives in the
3.5-inch form factor.The unit provides two USB ports, four serial ports, one PS2 keyboard
port, one PS2 mouse port, and two Type II — or one Type III — Cardbus sockets.
SECTION 1
SECTION 1: Overview 1
The Invitium system provides onboard Ethernet connectivity with either 10- or 100-base-T
support. It supports sound, with speakers and integrated power amplifiers mounted in the monitor.The unit does not have an internal floppy disk or CD-ROM drive.
You can boot the computer via the internally mounted hard drive or an external floppy disk drive
connected via USB.The computer supports the Windows®98 or 2000 operating systems.
The Invitium computer is passively cooled. No fans are used to cool the computer. Convection
cooling is the primary method of cooling, via an array of cooling vents.

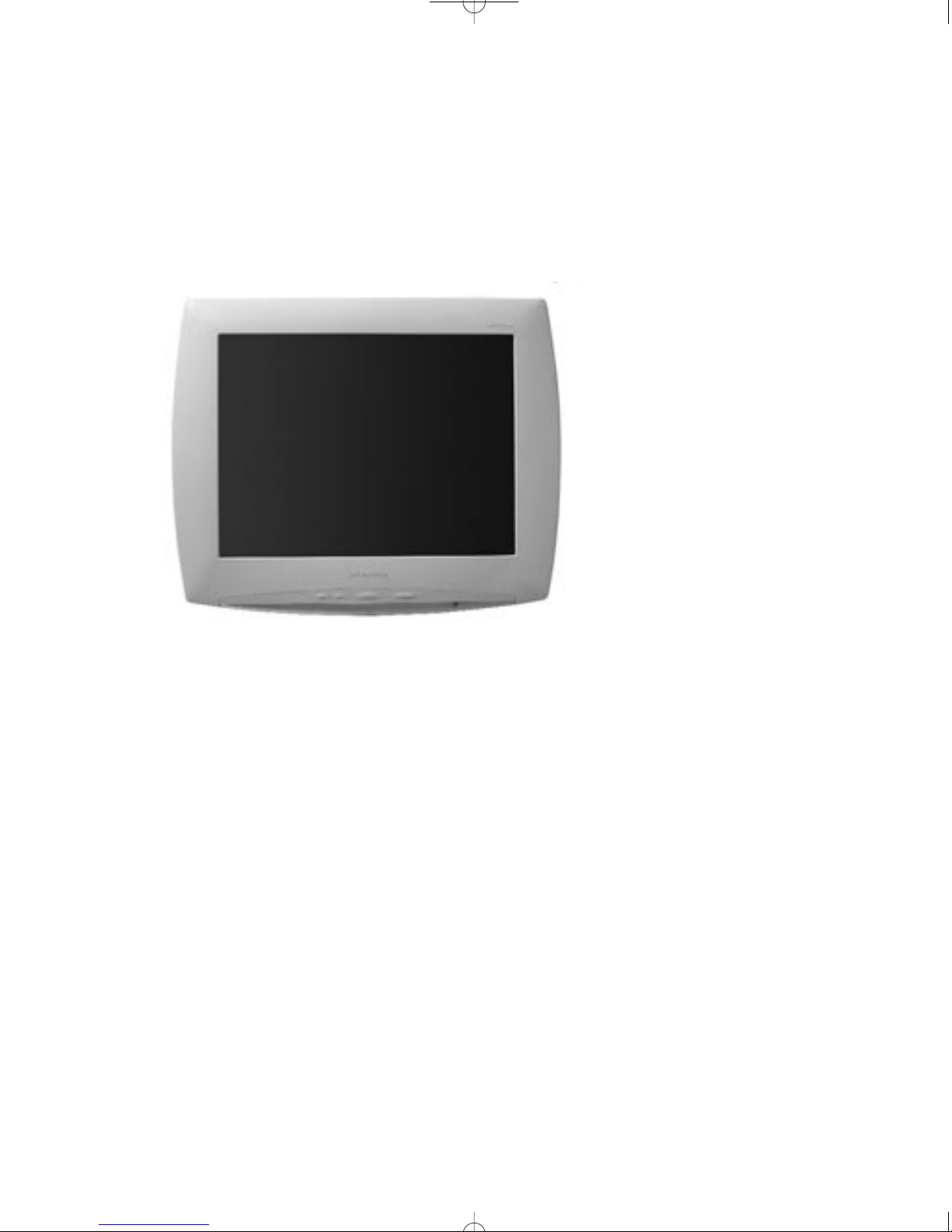

The monitor is a 15-inch AMLCD-TFT with a resolution of 1024x768 at 262,144 colors
(18 bit).A resistive touchscreen option is available.
The Invitium system is powered by a single external power supply or by an optional battery
pack. Each provides a regulated 12 volts as the main system voltage.
The computer and monitor can be mounted together to form a single integrated unit, or they
can be mounted separately with the monitor as a standalone unit.A standard VESA mounting
pattern is provided to allow use of standard mounting hardware for commercial carts, poles and
wall-mounts.
The Invitium Medical Workstation is certified:
• In accordance with IEC/EN 60601-1:1990 + A1 + A2 for sale to the medical market
• By Underwriters Laboratory to medical standards UL 2601-1 and C22.2 No. 601.1 M1990
for sale in the U.S. and Canada.
The system also carries the CE marked for sale into the European Community. Declarations of
conformity are in Section 5 of this manual.
For a full list of Invitium computer and monitor specifications, please refer to Section 5:Technical
Specifications in this manual.
2 Invitium
™
Medical Workstation OPERATIONS MANUAL

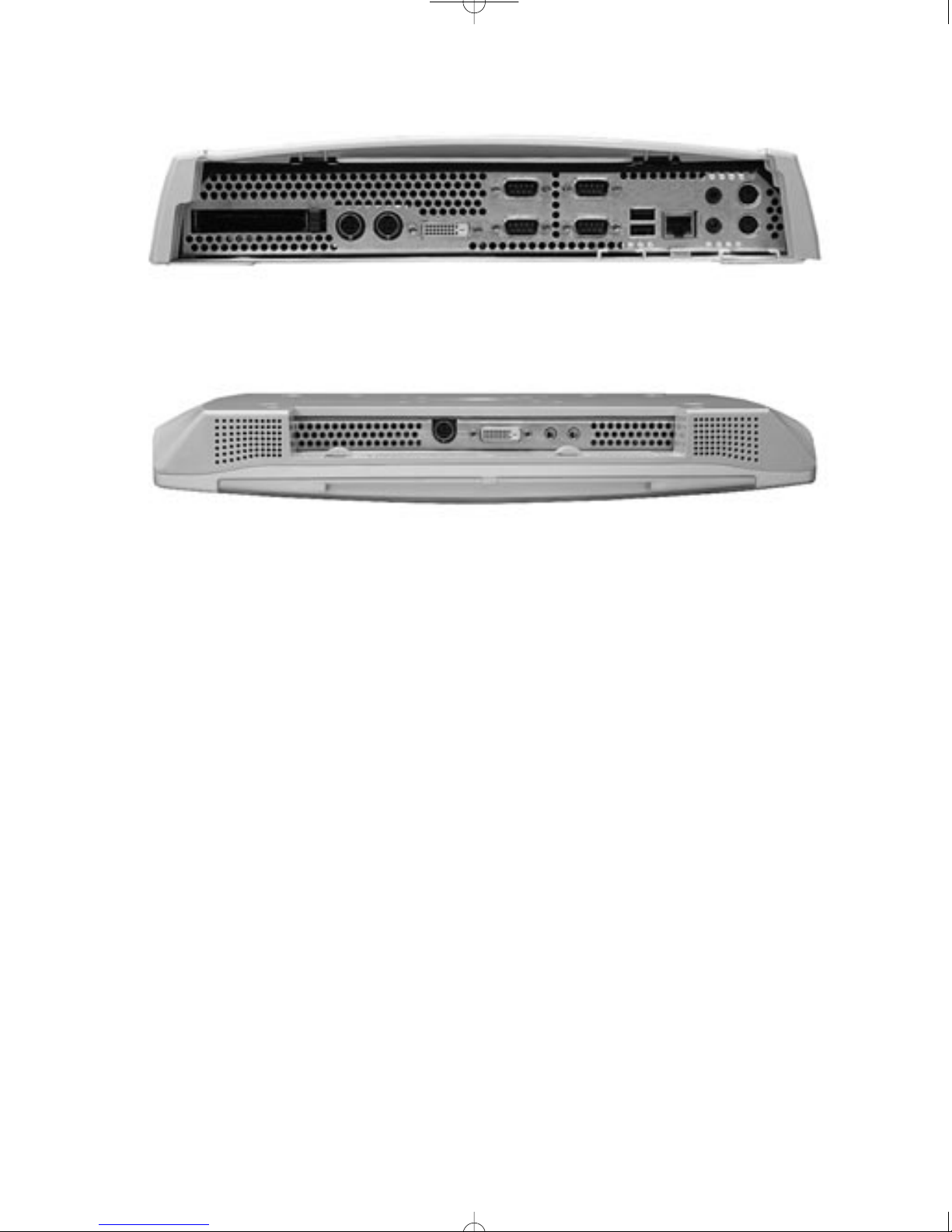

This photo shows location of the connectors and ports in the computer connector bay.
This photo shows the connectors on the bottom of the monitor enclosure.
1.2 — About the Invitium™system power adapter
The Invitium Medical Workstation has an external power adapter rated to work from 90 to
240Vac at 50 to 60Hz.This external, double-insulated power supply is equipped with an
IEC320 appliance coupler.
The power adapter includes an attached power cable that terminates in the required monitor
power connector.An LED indicates when power is applied. Adapter power is supplied via a
medical grade 3m power cable.The adapter input voltage ranges between U.S. and European
standards and comes equipped with either European or US standard medical-grade power
cables.
Please refer to Section 5:Technical Specifications of this manual for complete power adapter
specifications.
SECTION 1: Overview 3
1.3 — About the Invitium™optional battery pack
The Invitium Battery Pack is a system option that supplies a regulated +12 VDC to the
Invitium Medical Workstation.
The battery pack contains a sealed lead acid (SLA) battery, medically certified universal input
power supply, charging and monitoring electronics, and output voltage regulator. It is contained
within a plastic enclosure with all components mounted to an internal sheet metal frame to
provide mechanical strength as well as EMI/EMC protection and shielding.
The battery pack provides up to eight hours of system operation at a nominal load of 60 watts.
Recharge time is less than four hours.The charging and monitoring electronics control the
charge rate of the battery as well as the maximum discharge level.This is to ensure safe operation of the battery and to prevent damage from high charge rates and low discharge levels.
The Invitium system’s battery pack is certified by Underwriters Laboratories to medical standard UL2601-1 and C22.2 No. 601.1 M1990 for sale in the U.S. and Canada.The system is also
CE marked for use in the Europe.
For a full list of battery pack specifications, please refer to Section 5:Technical Specifications in this
manual.
The Invitium Medical Workstation is a Class I system under the MDD, intended for near-patient
proximity use. It is not intended for direct connection to the patient.
1.4 — Safety Instructions
The Invitium Medical Workstation is designed to ensure both the highest level of product quality
and safety for the user.To maintain both quality and safety, follow the instructions in this manual
and these safety guidelines.
1. Read the safety and installation guidelines carefully.
2. Keep this manual handy for future reference.
3. Install and use the Invitium system only on a sturdy surface and in stable surroundings.
4. Do not place the Invitium workstation near a window. Exposing the system to rain, water,
moisture or constant direct sunlight can severely damage it.
5. Do not place anything on top of the monitor-to-computer signal cord. Make sure the cord
is placed where it will not be stepped on.
6. Do not apply excessive pressure to the monitor screen. Excessive pressure may cause permanent damage to the display.
7. The Invitium workstation has no internal user-serviceable parts. Refer all servicing to
qualified personnel to maintain your warranty.
8. Do not cover or obstruct any venting holes on the computer or the monitor.
9. Store the Invitium system within –20 to +65 degrees Celsius. Storing the system outside
that temperature range could result in permanent damage.
10. If any cord or cable is frayed or damaged, immediately replace it with another of the same
type and rating as supplies by Planar.The safety and regulatory listing and certifications are
based on cables supplied by Planar.
4 Invitium
™
Medical Workstation OPERATIONS MANUAL
11. If the Invitium system has been exposed to liquid, has been dropped, or if its casing has
been damaged, it may pose a shock or fire hazard. Immediately unplug it and contact customer service for assistance.
12. Use only the power adapter that has been tested and approved for use with this product.
13. Use and maintain the safety ground plug set (power cord) included with the unit.
14. After you have installed the Invitium system, secure all electrical cords to prevent the unit
from being pulled off the table or other accidental damage.
15. The Invitium computer system, its power supply and its optional battery pack meet the
UL 2601 standard for cleaning in a hospital environment. Please see the upcoming section
on Cleaning for details.
16. Before cleaning, or if the unit becomes wet for any reason, it is best to disconnect the unit
from its power source.
17. Practice caution when moving the Invitium system to a different location. Use original
packaging whenever possible.
The Invitium system must be plugged into a GROUNDED power outlet.
1.5 — Cleaning
The Invitium Medical Workstation continues to operate normally while being cleaned in a
fashion normal for a hospital environment.This includes cleaning with a damp, mildly soapy
cloth. Drip protection is provided in accordance with IPX1 rating defined in the
IEC/EN60529 standard.
The Invitium system can withstand cleaning solutions used in hospitals for similar equipment.
This is typically warm water and mild detergent for all surfaces, or 70 percent IPA for the
touchscreen surface. Possible chemicals include:
• 70% isopropyl alcohol
• 1.6% aqueous ammonia
• Cidex‚ (2.4% glutaraldehyde solution)
• Sodium Hypochlorite (bleach) 10%
• “Green soap” USP
• 0.5% Chlorhexidine in 70% isopropyl alcohol
• Ovation
®
• Formula 409
®
• Fantastic
®
• WexCide
®
To clean the Invitium monitor screen, do not spray liquid cleaners directly onto it. Stand away
from the monitor and spray the cleaning solution onto a nonabrasive cloth. Clean the screen
with the slightly dampened cloth, without applying excessive pressure.
1.6 — Service support
The Invitium Medical Workstation requires no routine maintenance.There are no user-serviceable
components inside it. If repair is required, please return the unit to Planar Systems for servicing to
maintain the product warranty. See details in the Wa rr anty section in the opening pages of this
manual.
SECTION 1: Overview 5
6 Invitium
™
Medical Workstation OPERATIONS MANUAL
© 2002 Planar Systems, Inc.
Invitium is a trademark and Planar is a registered trademark of Planar Systems, Inc.
All other trademarks are the properties of their respective owners.
Planar Systems, Inc.
1400 N.W. Compton Drive
Beaverton, OR 97006 USA
Phone: (866) 475-2627
(503) 748-1100
Fax: (503) 748-1493
Planar Systems, Inc.
Olarinluoma 9
P. O . B o x 46
FIN-02201 Espoo, Finland
Phone: 358 9 42001
Fax: 358 9 4200200
http://www.planar.com
Loading...
