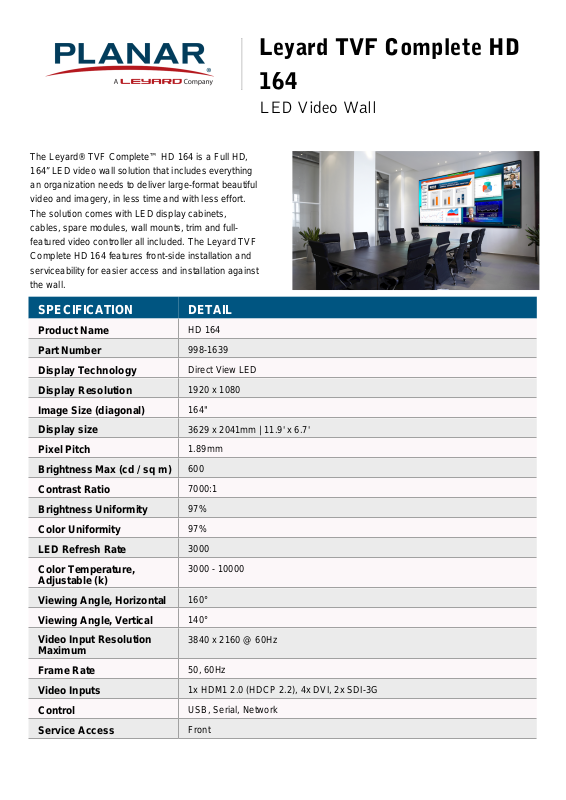

Planar HD 164 Datasheet
The Leyard® TVF Complete™ HD 164 is a Full HD,
164” LED video wall solution that includes everything
an organization needs to deliver large-format beautiful
video and imagery, in less time and with less effort.
The solution comes with LED display cabinets,
cables, spare modules, wall mounts, trim and fullfeatured video controller all included. The Leyard TVF
Complete HD 164 features front-side installation and
serviceability for easier access and installation against
the wall.
SPECIFICATION DETAIL
Leyard TVF Complete HD
164
LED Video Wall
Product Name
Part Number
Display Technology
Display Resolution
Image Size (diagonal)
Display size
Pixel Pitch
Brightness Max (cd / sq m)
Contrast Ratio
Brightness Uniformity
Color Uniformity
LED Refresh Rate
Color Temperature,
Adjustable (k)
Viewing Angle, Horizontal
HD 164
998-1639
Direct View LED
1920 x 1080
164"
3629 x 2041mm | 11.9' x 6.7'
1.89mm
600
7000:1
97%
97%
3000
3000 - 10000
160°
Viewing Angle, Vertical
Video Input Resolution
Maximum
Frame Rate
Video Inputs
Control
Service Access
140°
3840 x 2160 @ 60Hz
50, 60Hz
1x HDM1 2.0 (HDCP 2.2), 4x DVI, 2x SDI-3G
USB, Serial, Network
Front
Runtime Duty Cycle
(Hours/Day)
24 x 7
LED Lifetime, Typical
Power Supply
Line Voltage
Power Consumption,
Maximum (watts)
Power Consumption,
Typical (watts)
Display Weight
Environmental
Storage
Temperature/Humidity
(degrees F/C, relative
humidity)
Operating
Temperature/Humidity
(degrees F/C, relative
humidity)
Solution Includes
100000hrs
Redundant
100~240V AC, 50/60Hz
6480
1944
187.2kg | 412.5lbs
Indoor
-20° to 60° C | -4° to 140° F 10-85% relative humidity, non-condensing
-10° to 40° C | -14° to 104° F 10-80% relative humidity, non-condensing
Video Wall display, Video controller, signal cables, power cables, wall mount,
trim, and spare modules
For more information, please visit www.planar.com
Specifications are subject to change without notice.
Specification Report Date: 10/1/2019
© Copyright 2019 Planar Systems, Inc. All rights reserved
