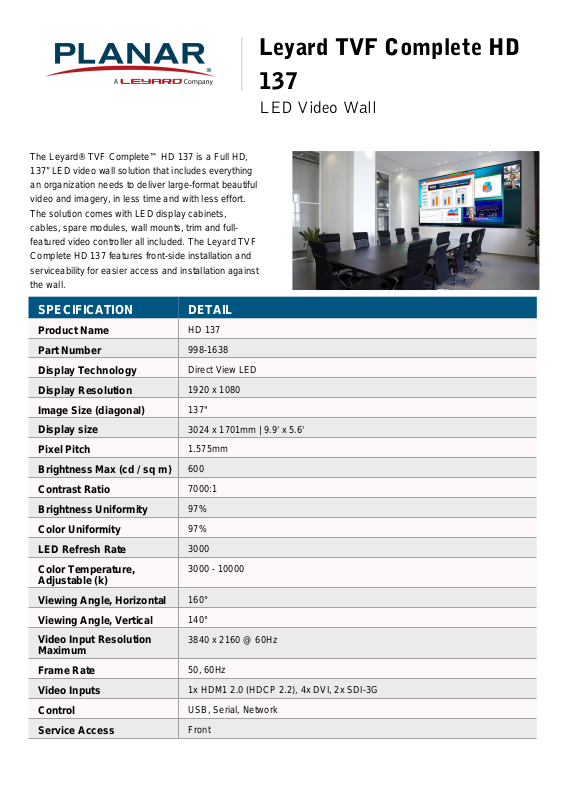

Planar HD 137 Datasheet

The Leyard® TVF Complete™ HD 137 is a Full HD, 137” LED video wall solution that includes everything an organization needs to deliver large-format beautiful video and imagery, in less time and with less effort. The solution comes with LED display cabinets, cables, spare modules, wall mounts, trim and fullfeatured video controller all included. The Leyard TVF Complete HD 137 features front-side installation and serviceability for easier access and installation against the wall.

SPECIFICATION DETAIL

Leyard TVF Complete HD 137

LED Video Wall

Product Name Part Number Display Technology Display Resolution Image Size (diagonal) Display size Pixel Pitch Brightness Max (cd / sq m) Contrast Ratio Brightness Uniformity Color Uniformity LED Refresh Rate Color Temperature,

Adjustable (k) Viewing Angle, Horizontal

HD 137 998-1638 Direct View LED 1920 x 1080 137" 3024 x 1701mm | 9.9' x 5.6'

1.575mm 600 7000:1 97% 97% 3000 3000 - 10000

160°

Viewing Angle, Vertical Video Input Resolution

Maximum Frame Rate Video Inputs Control Service Access

140° 3840 x 2160 @ 60Hz

50, 60Hz 1x HDM1 2.0 (HDCP 2.2), 4x DVI, 2x SDI-3G USB, Serial, Network Front

Runtime Duty Cycle (Hours/Day)

24 x 7

LED Lifetime, Typical Power Supply Line Voltage Power Consumption,

Maximum (watts) Power Consumption,

Typical (watts) Display Weight Environmental Storage

Temperature/Humidity (degrees F/C, relative humidity)

Operating Temperature/Humidity (degrees F/C, relative humidity)

Solution Includes

100000hrs Redundant 100~240V AC, 50/60Hz 4500

1350

130kg | 286.5lbs Indoor

-20° to 60° C | -4° to 140° F 10-85% relative humidity, non-condensing

-10° to 40° C | -14° to 104° F 10-80% relative humidity, non-condensing

Video Wall display, Video controller, signal cables, power cables, wall mount, trim, and spare modules

For more information, please visit www.planar.com
