Planar EP-Series, EP5024K, EP5024K-T, EP6524K, EP5824K User Manual

EP-Series Ultra HD LCD
Displays User Guide

Copyright © 3 Jun 2015 by Planar Systems, Inc. All rights reserved.

Contents of this publication may not be reproduced in any form without permission of Planar
Systems, Inc.

Trademark Credits

Windows™ is a trademark of Microsoft Corp.
All other companies are trademarks or registered trademarks of their respective companies.

Disclaimer

The information contained in this document is subject to change without notice. Planar
Systems, Inc. makes no warranty of any kind with regard to this material. While every
precaution has been taken in the preparation of this manual, the Company shall not be liable
for errors or omissions contained herein or for incidental or consequential damages in
connection with the furnishing, performance, or use of this material.

Warranty and Service Plans

Planar warranty and service plans will help you maximize your investment by providing great
support, display uptime, and performance optimization. From post-sale technical support to
a full suite of depot services, our services are performed by trained Planar employees. When
you purchase a Planar product, you get more than a display, you get the service and support
you need to maximize your investment. To find the latest warranty and service information
regarding your Planar product, please visit http://www.planar.com/support

RoHS Compliance Statement

The Planar EP-Series is fully RoHS compliant.

Part Number: 020-1280-00

Table of Contents

EP-Series Ultra HD LCD Displays User Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . i

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Recommended Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

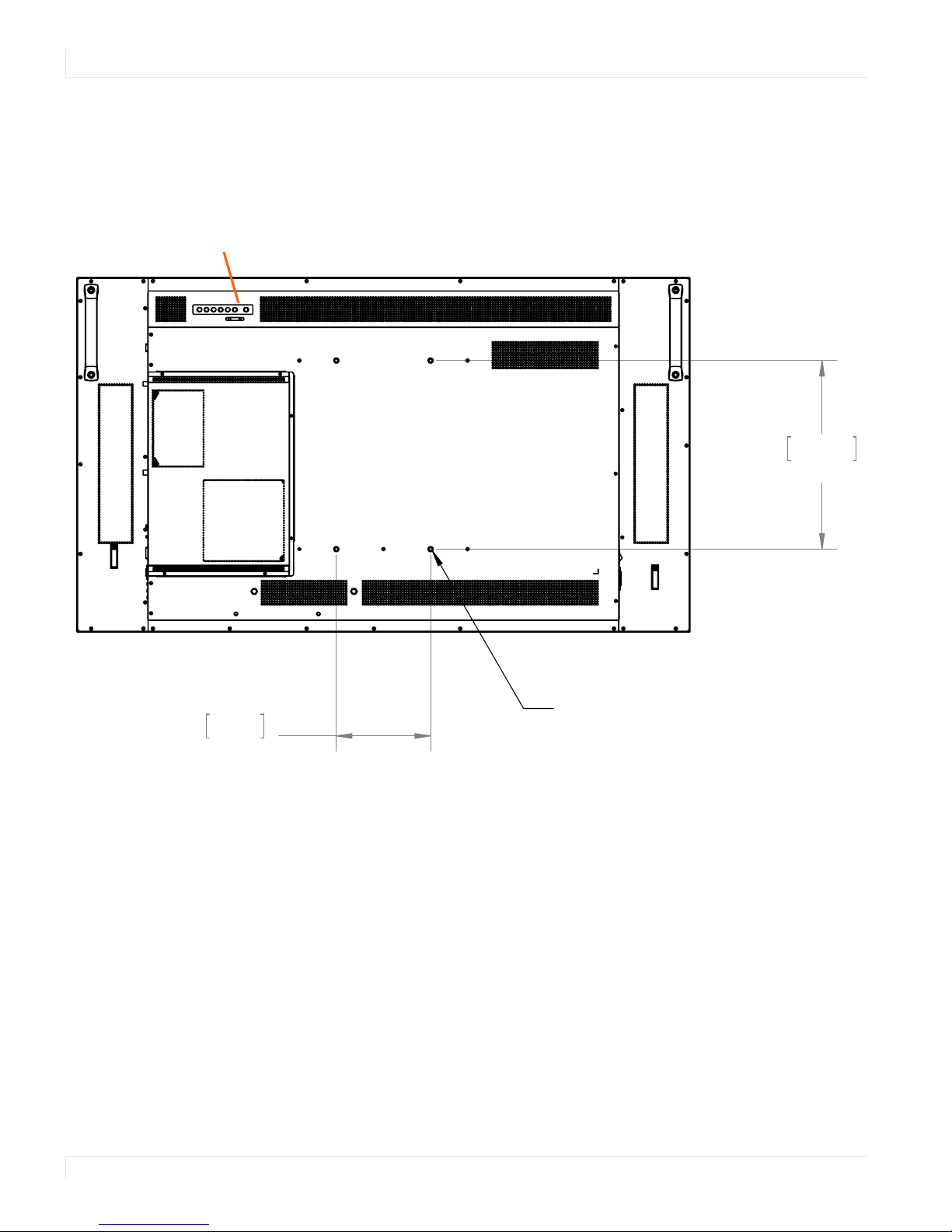

VESA Mounts, General Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Cleaning the Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Package Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Unpacking the Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Installing the Cable Clips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

EP5814K . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

EP5814K-T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Planar EP Series - Standard Inputs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Installing the Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Before You Begin. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Installing OPS Expansion (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Operating the Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

OSD Keypad. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Remote Control Receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

LED Indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Using the Display in Portrait Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

EP-Series Ultra HD LCD Displays User Guide i

Table of Contents

Using the Display in Flat or Tilted Orientation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

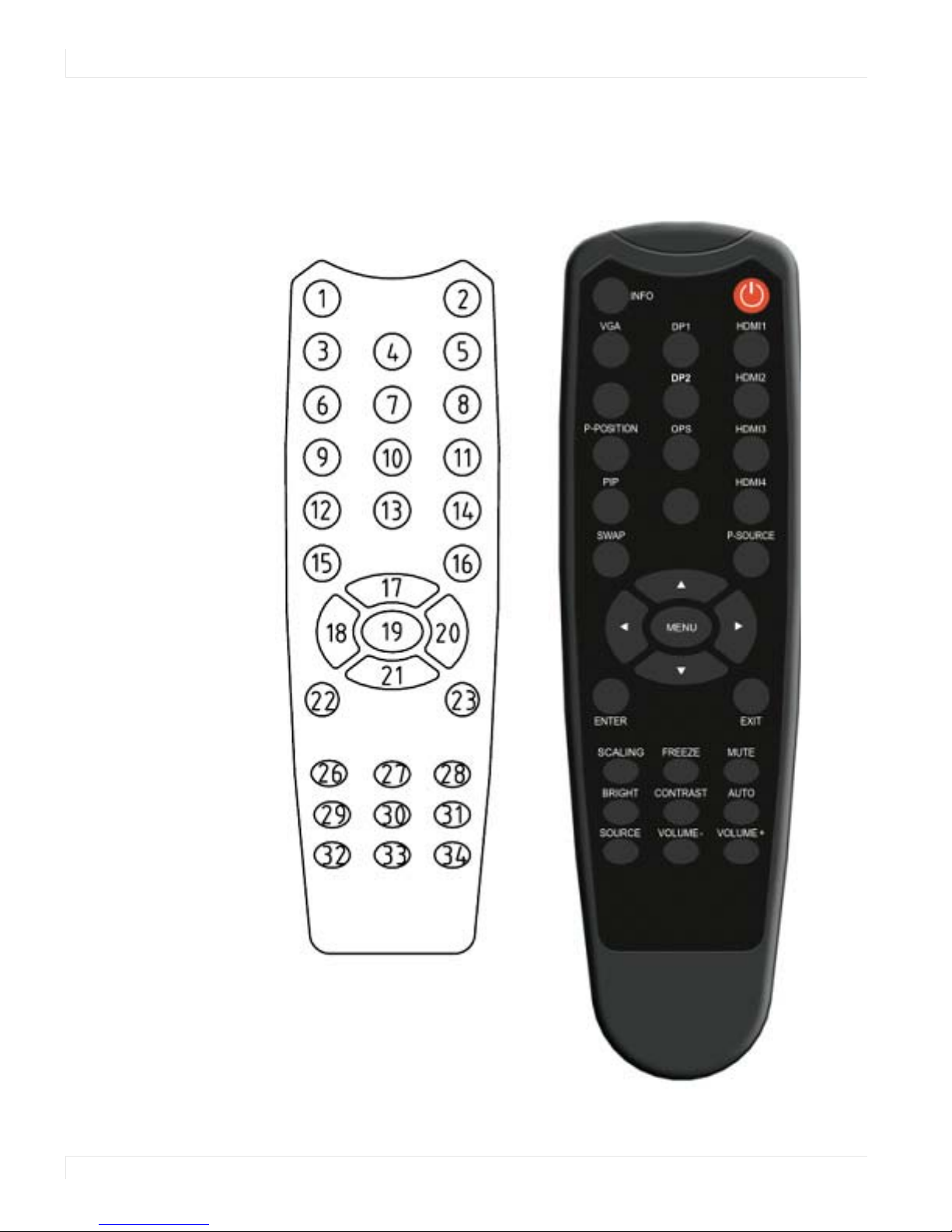

Using the Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Turning the Display On . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Turning the Display Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Adjusting the Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Selecting the Input Source. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

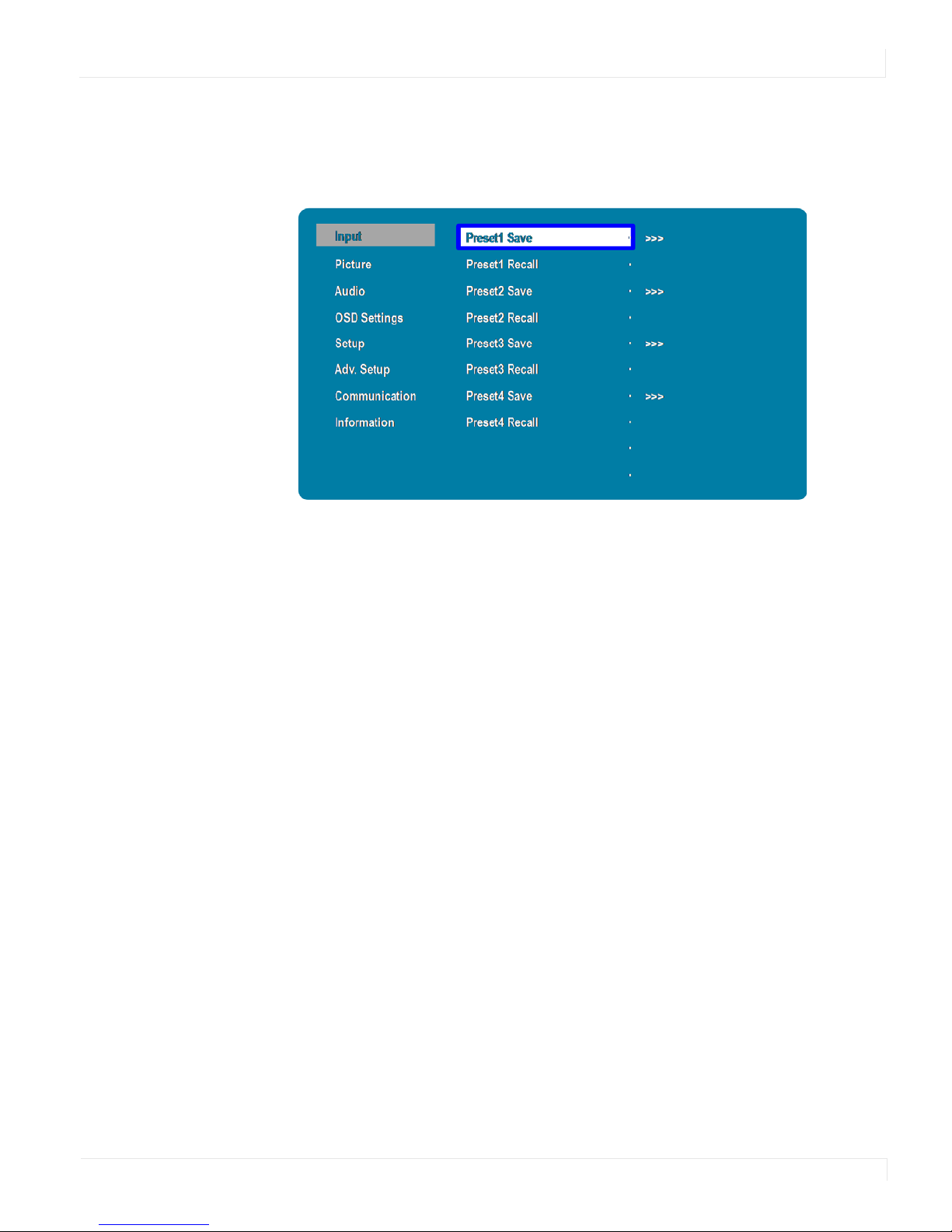

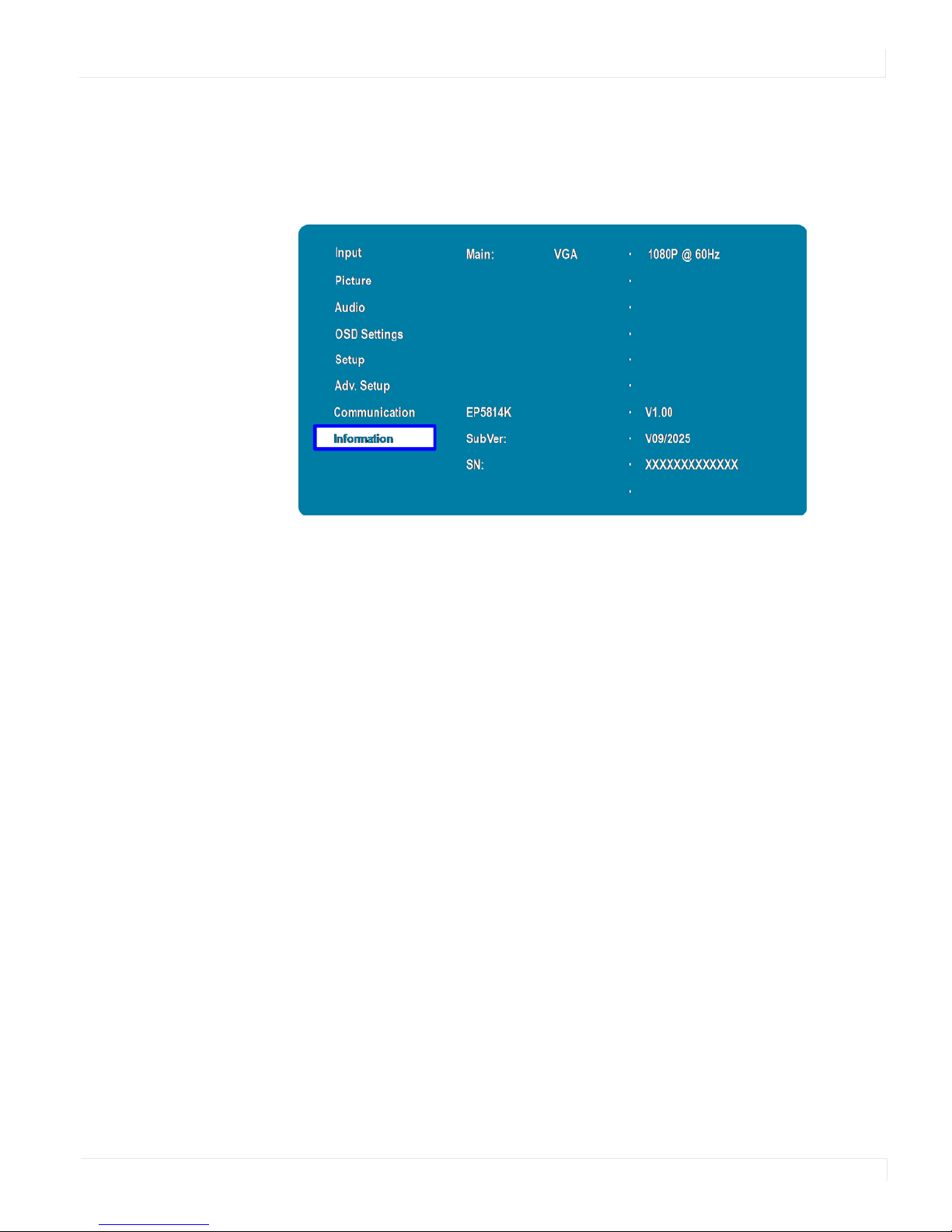

Navigating Through the Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Using the Touch Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Performing basic functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Touchscreen MultiTouch Driver Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Touchscreen (PQLabs) MultiTouch Platform Content . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Uninstalling the MultiTouch Driver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

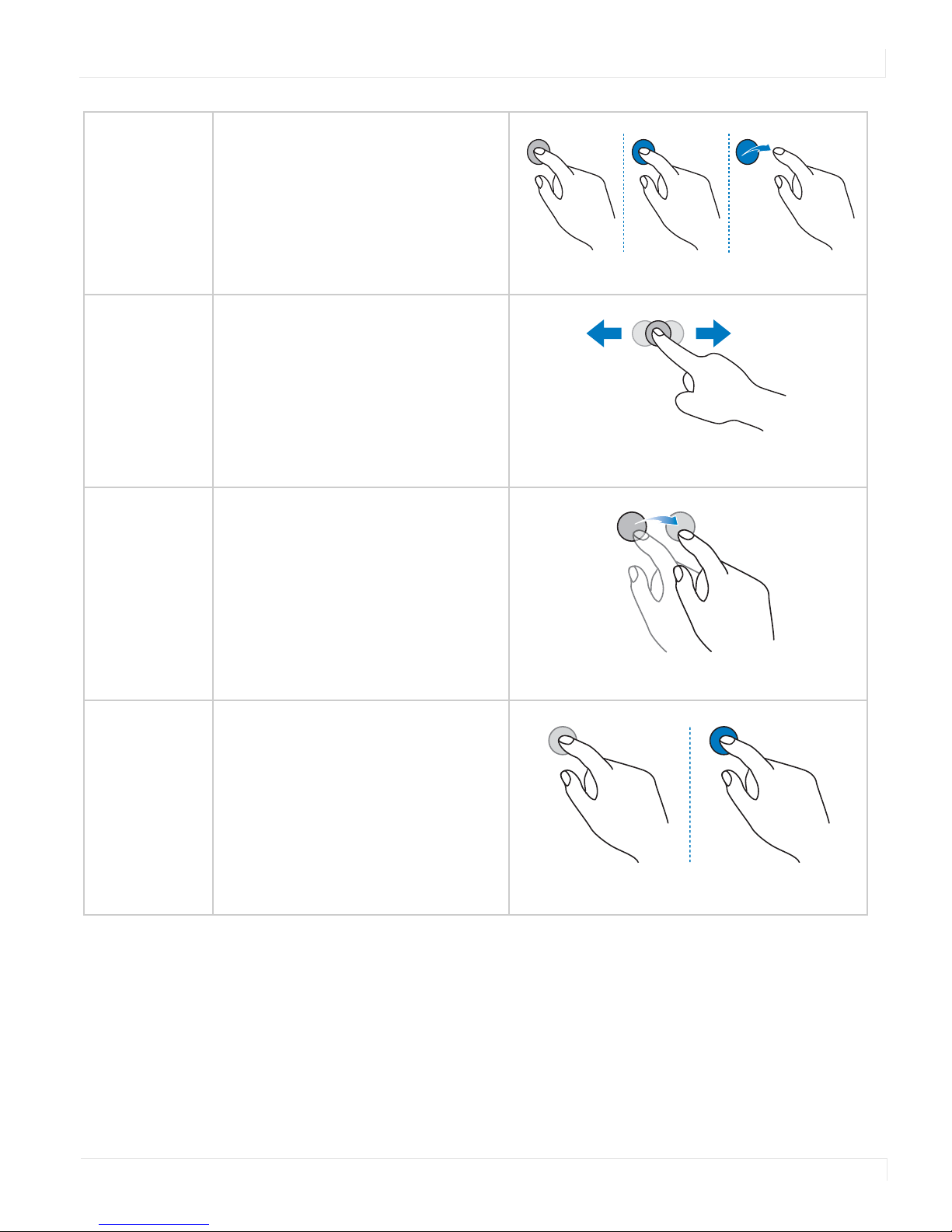

Multi-Touch Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

LAN Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Supported Operating Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

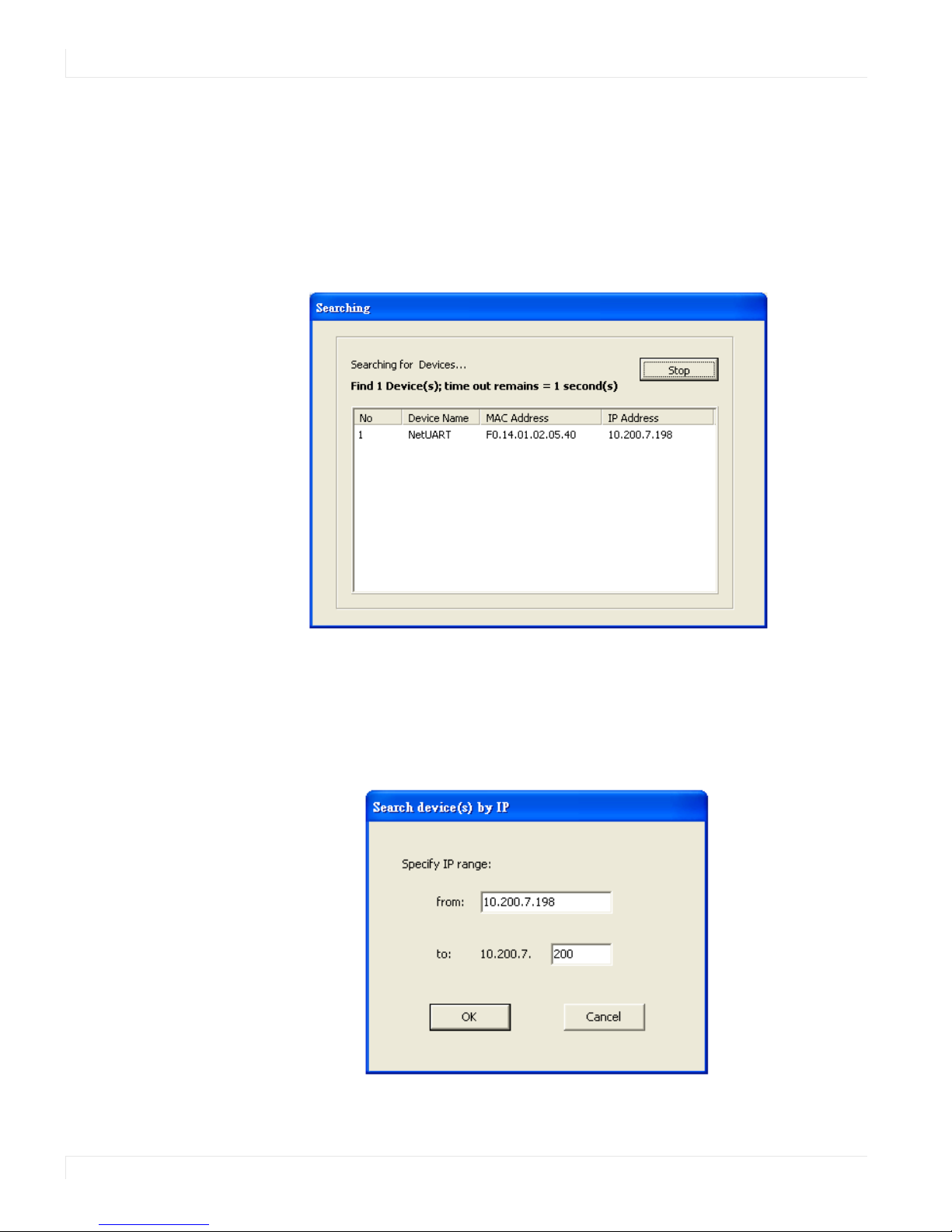

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

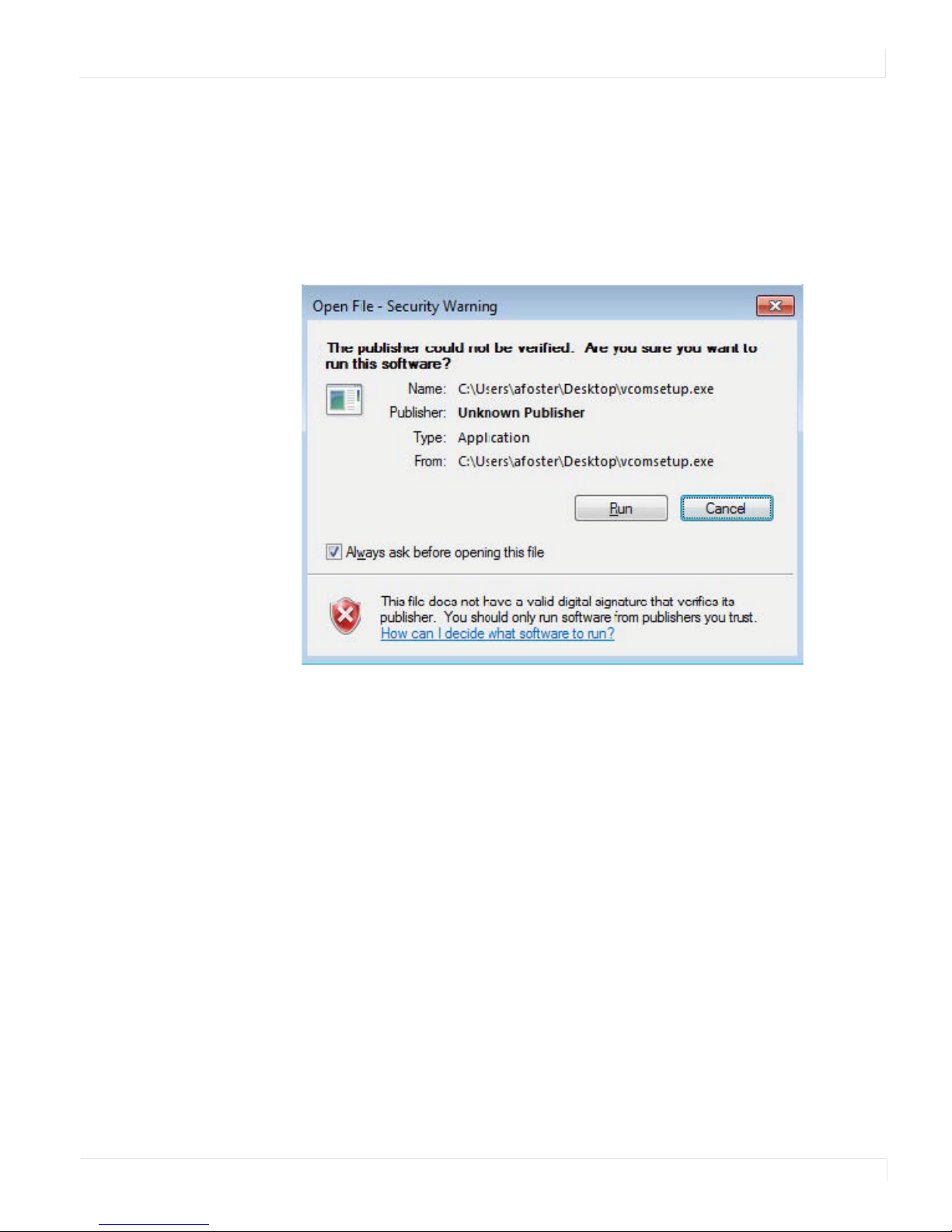

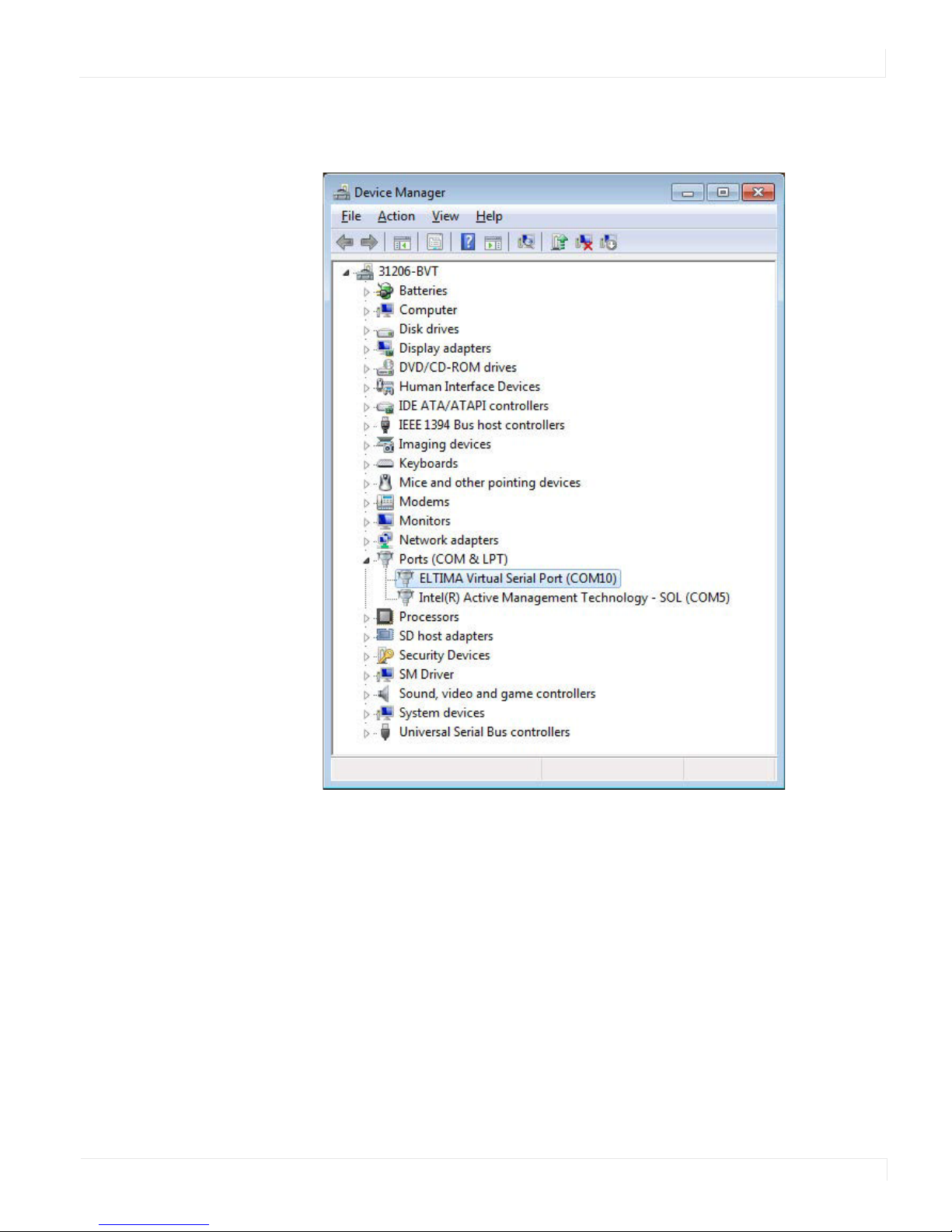

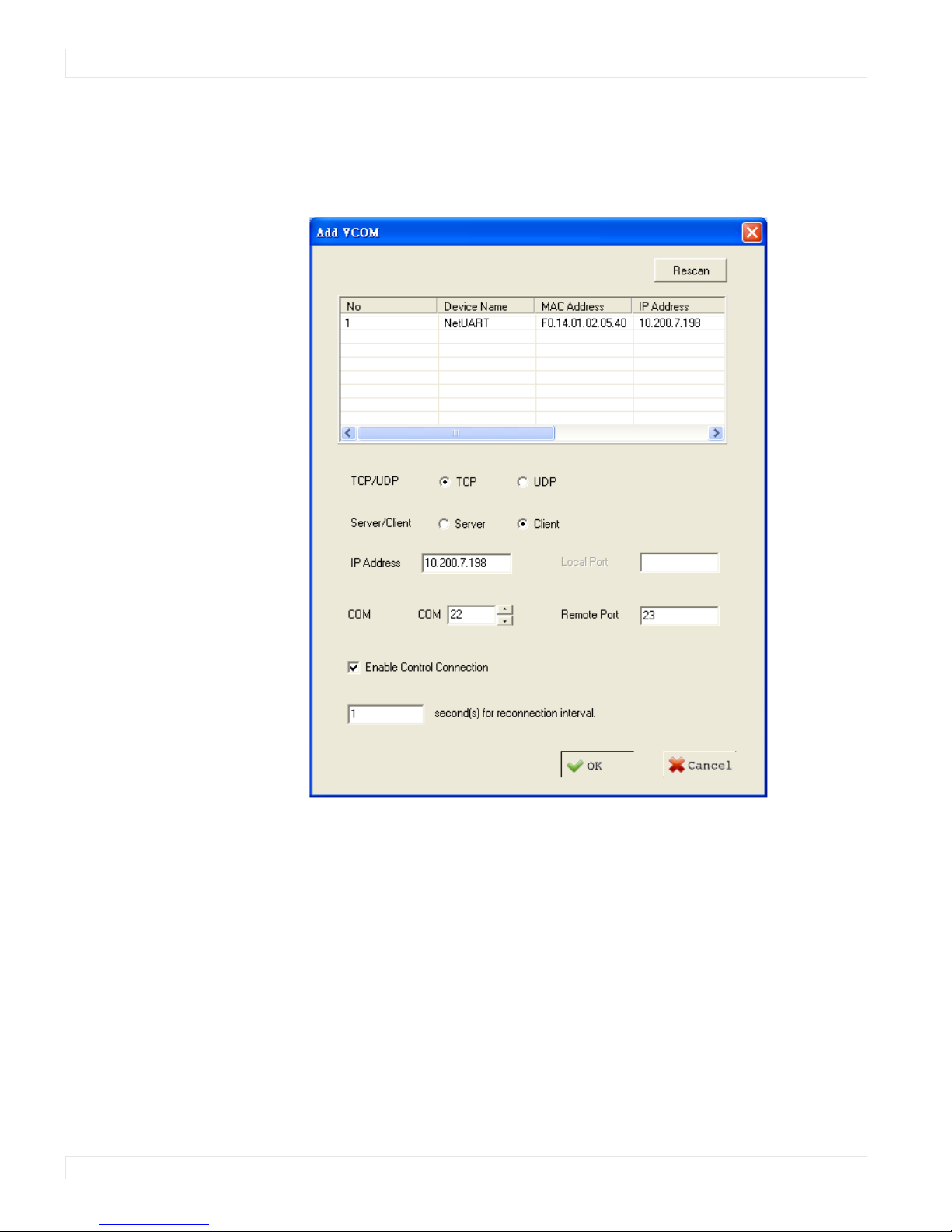

Configuring VCOM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Function Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . 58

Setting Up Email Alerts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

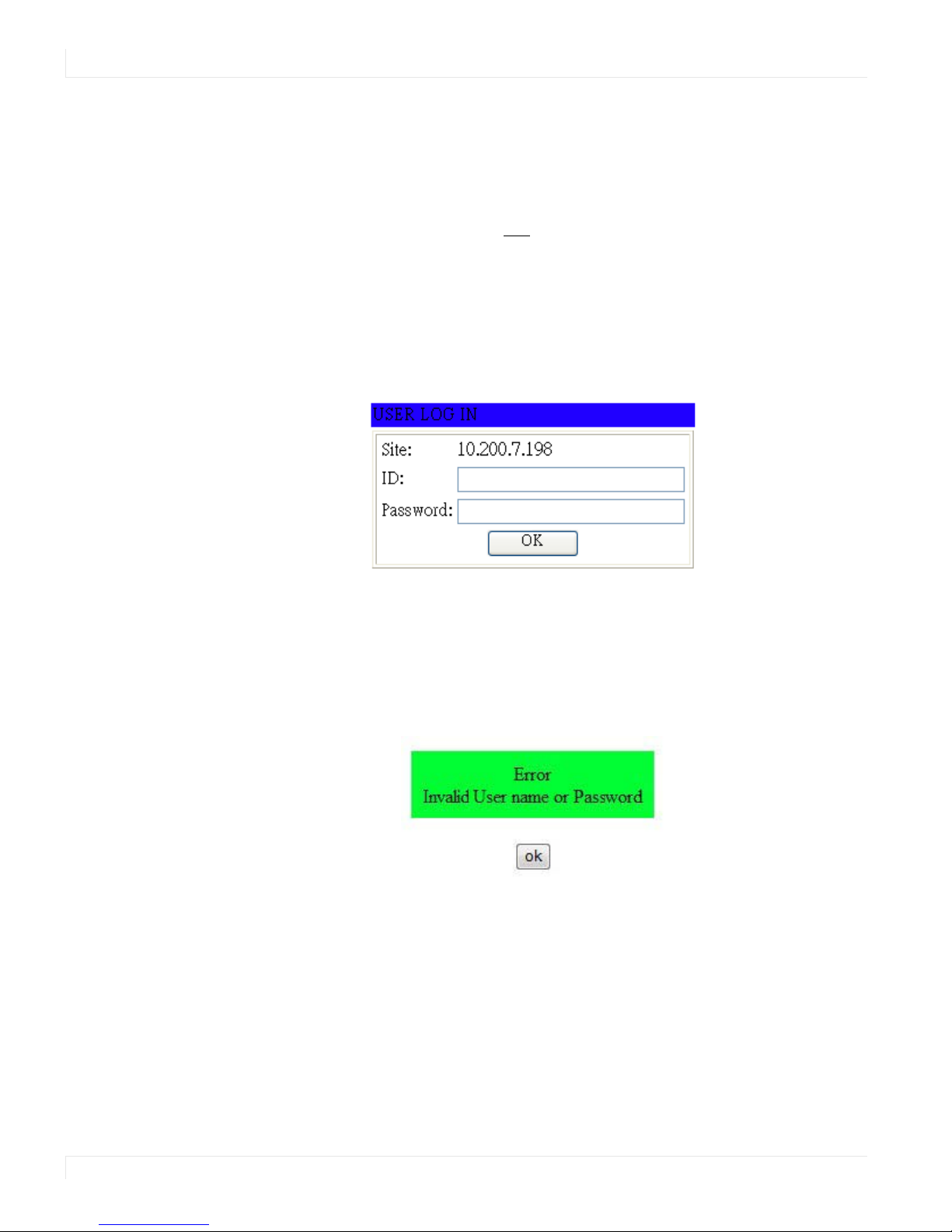

Login . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

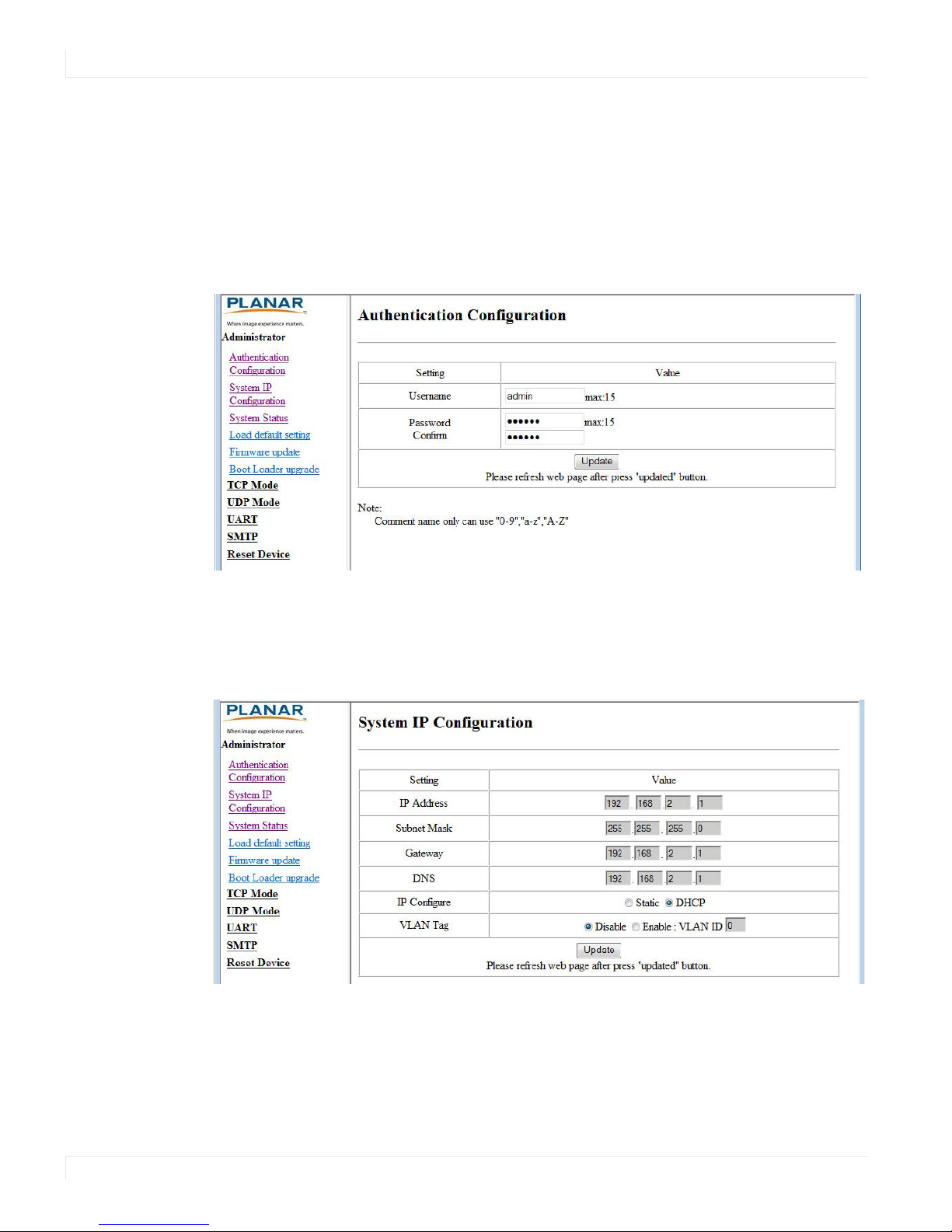

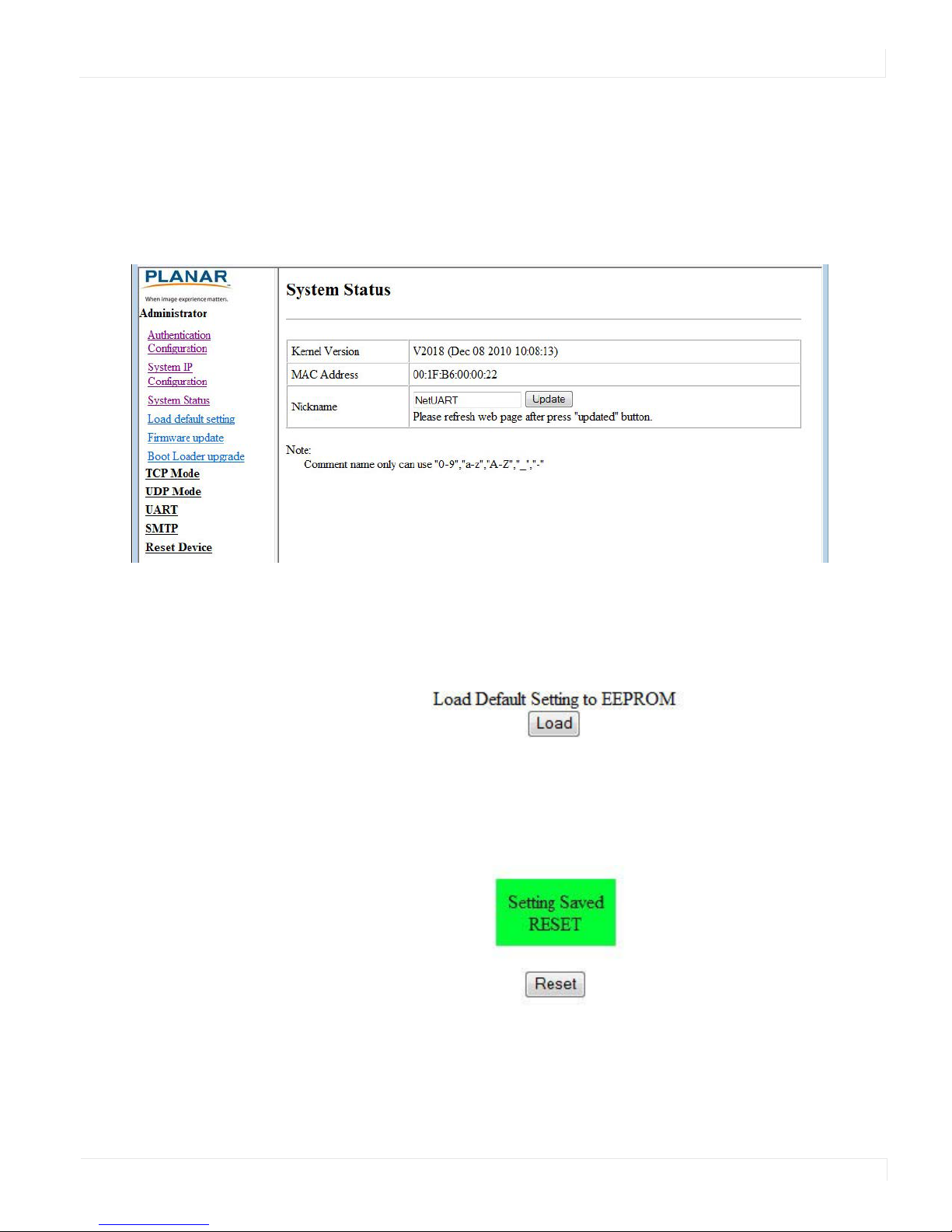

Administrator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

TCP Mode, UDP Mode and UART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

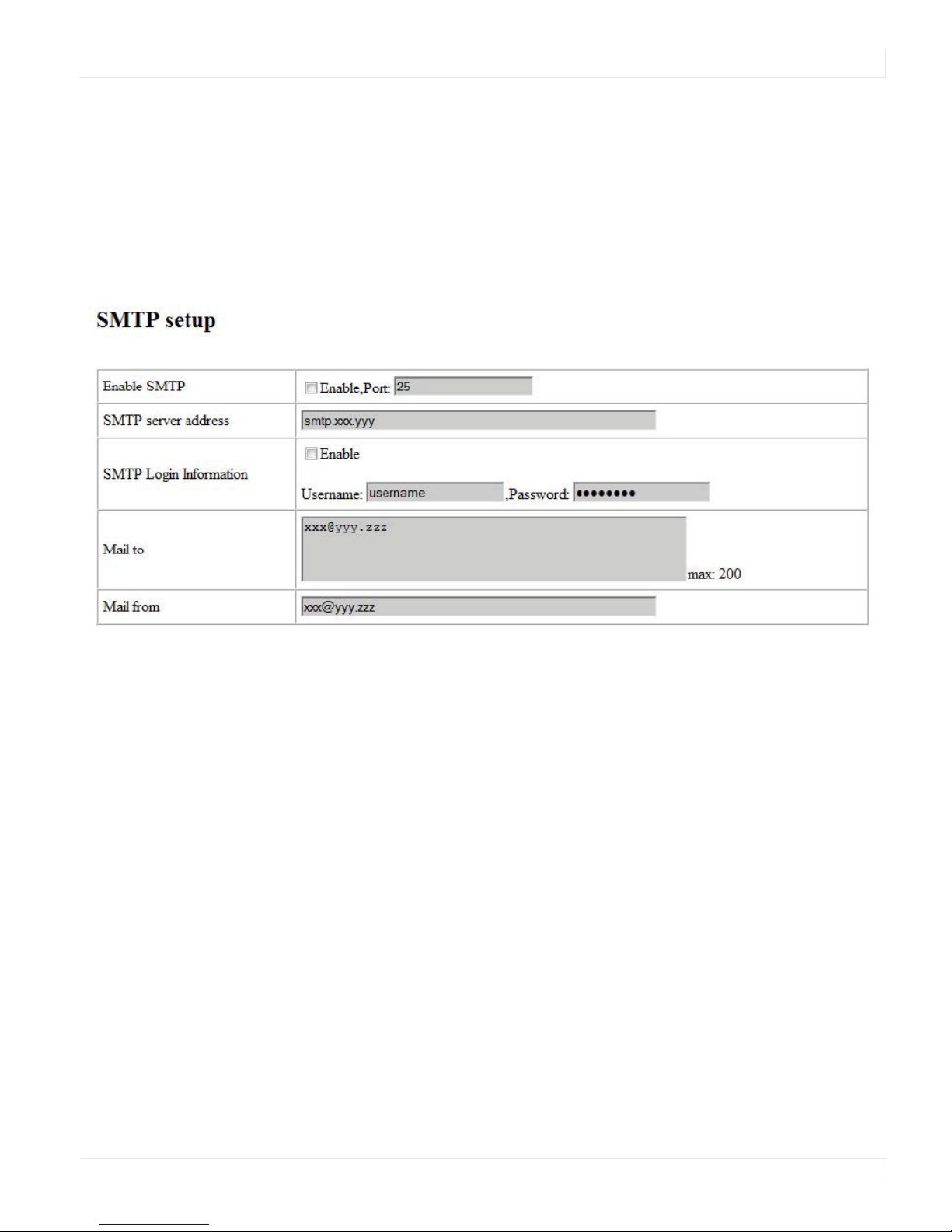

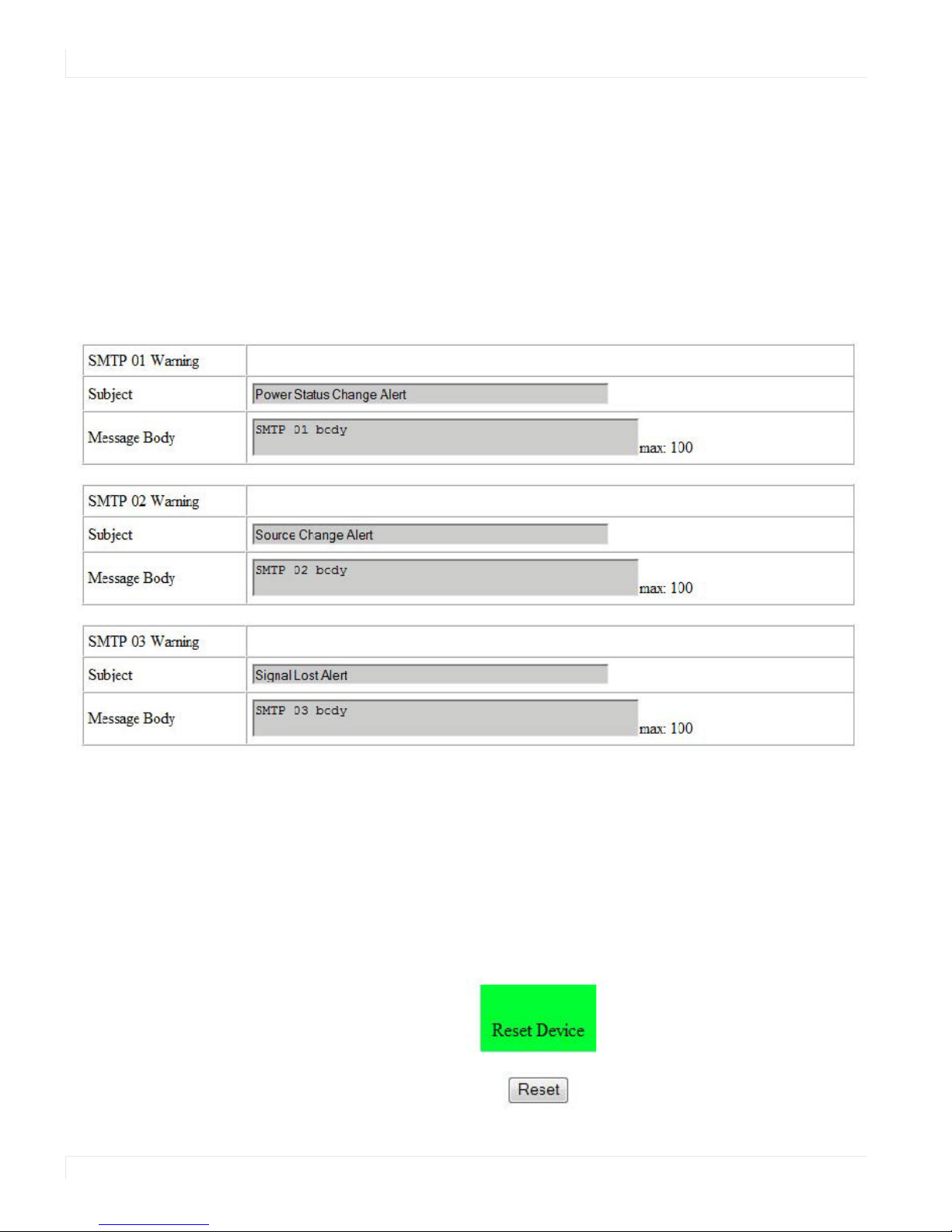

SMTP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Reset Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Signal Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

EP-Series Ultra HD LCD Displays User Guide ii

Table of Contents

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73

Accessing Planar’s Technical Support Website. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74

iii EP-Series Ultra HD LCD Displays User Guide

iv EP-Series Ultra HD LCD Displays User Guide

Introduction

The Ultra HD resolution Planar EP-Series LCD displays offer best-in-class reliability with
the stunning image quality of 4K resolution. The displays come standard with
commercial-grade features required for digital signage, corporate, and control room
environments.

Also available in touch versions, Ultra HD Planar EP-Series displays bring interactivity
to the 4K immersive experience.

Caution: This manual is intended for use by qualified service persons and end users with

experience installing LCD displays.

EP-Series Ultra HD LCD Displays User Guide 1

Safety Information

Safety Information

Before using the Planar EP-Series, please read this manual thoroughly to help protect
against damage to property, and to ensure personnel safety.

• Be sure to observe the following instructions.

• For your safety, be sure to observe ALL the warnings detailed in this manual.

• For installation or adjustment, please follow this manual’s instructions, and refer
all servicing to qualified service personnel.

Safety Precautions

• If water is spilled or objects are dropped inside the display, remove the
power plug from the outlet immediately. Failure to do so may result in fire or

electrical shock. Contact your dealer for inspection.

• If the display is dropped or the chassis is damaged, remove the power plug
from the outlet immediately. Failure to do so may result in fire or electrical
shock. Contact your dealer for inspection.

WARNING! Wall mounts must be secure.

• If the display is hung on a wall, the wall must be strong enough to hold it.
Simply mounting it to wallboard or wall paneling won’t be adequate or safe.

Caution: The screen could be damaged by heavy pressure.

• Slight pressure on the LCD will cause distortion of the image. Heavier
pressure will cause permanent damage. Displays should be mounted where
viewers cannot touch the screen or insert small objects in the openings that will
create hazards by contacting bare conductive parts.

Caution: The front polarizer is soft and subject to scratches from sharp objects.

• The polarizer is a thin sheet of film laminated to the outside layer of glass
on the LCD screen. Take care when handling items near the screen.

• If the power cord or plug is damaged or becomes hot, turn off the main
power switch of the display. Make sure the power plug has cooled down
and remove the power plug from the outlet. If the display is still used in this

condition, it may cause a fire or an electrical shock. Contact your dealer for a
replacement.

2 EP-Series Ultra HD LCD Displays User Guide

Important Safety Instructions

1 Read these instructions.

2 Keep these instructions.

3 Heed all warnings.

4 Follow all instructions.

5 Do not use the display near water.

6 Clean the LCD screens with an LCD screen cleaner or LCD wipes.

7 Do not install near any heat sources such as radiators, heat registers, stoves or

other apparatus (including amplifiers) that produce heat.

8 Do not defeat the safety purpose of the polarized or grounding type plug. A

polarized plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade or the third
prong is provided for your safety. When the provided plug does not fit into your
outlet, consult an electrician for the replacement of the obsolete outlet.

Important Safety Instructions

9 Protect the power cord from being walked on or pinched, particularly at plugs,

convenience receptacles and the point where they exit from any of the displays.

10 Only use the attachments/accessories specified by the manufacturer.

11 Unplug all displays during lightning storms or when unused for long periods of

time.

12 You must follow all National Electrical Code regulations. In addition, be aware of

local codes and ordinances when installing your system.

13 Refer all servicing to qualified service personnel. Servicing is required when any

of the displays have been damaged in any way. For example, if the AC power cord
or plug is damaged, liquid has been spilled or objects have fallen into a display,
the displays have been exposed to rain or moisture, do not operate normally or
have been dropped.

14 Keep the packing material in case the equipment should ever need to be

shipped.

15 Wall mounts must be secure. The wall must be strong enough to hold all displays,

brackets and cables.

EP-Series Ultra HD LCD Displays User Guide 3

Recommended Usage

16 Slight pressure on the LCD will cause distortion of the image. Heavier pressure

will cause permanent damage. Displays should be mounted where viewers
cannot touch the screen or insert small objects in the openings that will create
hazards by contacting bare conductive parts.

17 The front polarizer is soft and subject to scratches from sharp objects. The

polarizer is a thin sheet of film laminated to the outside layer of glass on the LCD
screen. Take care when handling items near the screen.

Recommended Usage

In order to get the most out of your LCD, use the following recommended guidelines
to optimize the display.

Burn-In Versus Temporary Image Retention

Burn-in causes the screen to retain an image essentially forever, with little or no way
to correct the problem. Under normal use, an LCD will not experience burn-in, as
plasma displays do, nor will it retain images in any way.

Normal use of an LCD is defined as displaying continuously changing video patterns
or images. However, LCDs can experience temporary image retention when
recommended usage guidelines are not followed.

What is Temporary Image Retention?

Temporary image retention (TIR) can occur when a static image is displayed
continuously for extended periods of time (12 hours or longer). An electrical charge
differential may build up between the electrodes of the liquid crystal, which causes a
negative-color video image (color-inverted and brightness-inverted version of the
previous image) to be retained when a new image is displayed. This behavior is true
for any LCD device from any LCD manufacturer.

TIR is not covered under warranty. See standard warranty terms and conditions for
details. Here are some guidelines to help you avoid TIR:

• Use the LCD to show a screen saver, moving images or still pictures that change
regularly. When using high-contrast images, reposition the images frequently.

• Turn off the LCD when it is not in use. To use your source computer’s Power
Options Properties, set up your computer to turn off the display when not in
use.

Caution:

display for six hours per day.

For optimal performance, we suggest turning off the backlight power on the

4 EP-Series Ultra HD LCD Displays User Guide

European Union Disposal Information

English

■ Disposal of old Electrical & Electronic Equipment (Applicable throughout

the European Union and other European countries with separate collection
programs)

This symbol found on your product or on its packaging, indicates that
this product should not be treated as household waste when you wish to
dispose of it. Instead, it should be handed over to an applicable collection
point for the recycling of electrical and electronic equipment. By ensuring
this product is disposed of correctly, you will help prevent potential
negative consequences to the environment and human health, which
could otherwise be caused by inappropriate disposal of this product. The
recycling of materials will help to conserve natural resources.

This symbol is only valid in the European Union.
If you wish to discard this product, please contact
your local authorities or dealer and ask for the cor­rect method of disposal.

Español

■ Deshecho de equipos eléctricos y electrónicos (aplicable a la Unión Euro-

pea y a otros países europeos con programas de reciclaje independientes)

La presencia de este símbolo en el propio producto o en su material de
embalaje, indica que no se debe tratar como residuo doméstico cuando
desee deshacerse de él. En su lugar, debe entregarlo en el punto limpio
correspondiente de reciclaje de equipos eléctricos y electrónicos. Ase­gurándose de que este producto se desecha de forma correcta, ayudará
a evitar posibles consecuencias negativas para la conservación del
medioambiente y la salud humana, consecuencias que podrían darse si
se deshace del producto de forma inadecuada. El reciclado de materiales
ayuda a conservar los recursos naturales.

Este símbolo solamente es válido en la Unión
Europea.
Si desea deshacerse de este producto, póngase
en contacto con las autoridades locales o con su
distribuidor y pida información sobre el método de
disposición adecuado.

Français

■

Mise au rebut des équipements électriques et électroniques usagés
(Valable dans l’ensemble de l’Union Européenne ainsi que dans les pays
européens disposant de programmes distincts de collecte des déchets)

Ce symbole appliqué sur votre produit ou sur son emballage indique
que ce produit ne doit pas être traité comme un déchet ménager lorsque
vous voulez le mettre au rebut. Il doit au contraire être remis à un site
de collecte agréé pour le recyclage des équipements électriques et
électroniques. En veillant à ce que ce produit soit mis au rebut de façon
adéquate, vous contribuerez à prévenir les conséquences potentiellement
négatives sur l’environnement et sur la santé humaine qui risqueraient
de se produire en cas de mise au rebut inappropriée de ce produit. Le
recyclage des matériaux contribuera également à économiser les res­sources naturelles.

Ce symbole n’est valable que dans l’Union Européenne.
Si vous souhaitez mettre ce produit au rebut, veuillez
prendre contact avec les autorités locales ou avec votre
revendeur et renseignez-vous sur la méthode de mise
au rebut correcte.

Italiano

■ Smaltimento delle attrezzature elettriche ed elettroniche usate (applicabile

in tutta la Comunità Europea ed altri Paesi Europei che applicano
programmi di raccolta differenziata)

Il simbolo trovato sul prodotto, o sulla sua confezione, indica che il
prodotto non può essere trattato come i domestici quando è il momento
di smaltirlo. Al contrario, deve essere consegnato ad un centro di raccolta
specializzato nel riciclaggio di attrezzature elettriche ed elettroniche. As­sicurando che il corretto smaltimento di questo prodotto, si aiuterà a preve­nire potenziali conseguenze negative sull’ambiente e sulla salute umana,
che possono essere provocate da uno scorretto smaltimento di questa
attrezzatura. I materiali riciclati aiuteranno a conservare le risorse naturali.

Questo simbolo è valido solo nell’Unione Europea.
Per smaltire questo prodotto, mettersi in contatto con
le autorità locali – o con il rivenditore – e chiedere
informazioni sul corretto metodo di smaltimento.

Deutsch

■ Entsorgung von elektrischen & elektronischen Altgeräten (geltend für die

europäische Gemeinschaft und andere europäische Länder mit separaten
Sammelprogrammen)

Dieses Symbol, zu finden auf Ihrem Produkt oder dessen Verpackung,
macht Sie darauf aufmerksam, dass dieses Produkt bei der Entsorgung
nicht als Hausmüll behandelt werden darf. Statt dessen sollte es an eine
Sammelstelle zum Recycling von elektrischen und elektronischen Alt­geräten gegeben werden. Helfen Sie mit, potenziell schädliche Einflüsse
auf Umwelt und Gesundheit, die durch eine unsachgemäße Entsorgung
dieses Produktes entstehen können, zu vermeiden und entsorgen Sie
dieses Produkt ordnungsgemäß. Recycling hilft, natürliche Rohstoffe
einzusparen.

Dieses Symbol ist nur innerhalb der europäischen
Gemeinschaft gültig.
Wenn Sie dieses Produkt entsorgen möchten, wenden
Sie sich bitte an Ihre örtliche Behörde und fragen Sie
nach der ordnungsgemäßen Entsorgungsmethode.

Nederlands

■ Verwijderen van oude elektrische en elektronische apparatuur (toepas-

selijk in de volledige Europese Unie en andere Europese landen met
afzonderlijke programma’s voor afvalverzameling)

Dit symbool dat op het product of zijn verpakking is aangebracht, geeft aan
dat dit product niet mag worden behandeld als huishoudelijk afval als u het
wilt wegwerpen. U moet het afgeven bij een specifiek verzamelpunt voor
de recyclage van elektrische en elektronische apparatuur. Door te garan­deren dat u dit product op de correcte manier wegwerpt, helpt u potentiële
negatieve gevolgen voor het milieu en de menselijke gezondheid, die
zouden kunnen worden veroorzaakt door een onrechtmatig wegwerpen
van het product, te voorkomen. De recyclage van materialen helpt het
behoud van natuurlijke bronnen.

Dit symbool is alleen geldig in de Europese Unie.
Als u dit product wenst weg te gooien, dient u contact op
te nemen met uw lokale instanties voor details over de
gepaste methode voor afvalverwijdering.

Português

■ Eliminação de equipamentos eléctricos e electrónicos usados (aplicável

na União Europeia e noutros países europeus com programas próprios de
recolha destes equipamentos)

Este símbolo, colocado no produto ou na respectiva embalagem, indica
que o produto não deve ser tratado como lixo doméstico aquando da sua
eliminação. Em vez disso, deve ser entregue num ponto de recolha de eq­uipamentos eléctricos e electrónicos para posterior reciclagem. Ao garantir
a correcta eliminação deste produto, estará a evitar consequências poten­cialmente negativas tanto para o ambiente como para a saúde humana. A
reciclagem de materiais ajuda a preservar os recursos naturais.

Este símbolo apenas é válido na União Europeia.
Se quiser eliminar este produto, contacte as enti­dades locais ou o seu fornecedor para ficar a saber
qual o método de eliminação correcto.

Svenska

■ Avfall av förbrukad elektrisk och elektronisk utrustning (Tillämpbart i

hela Europeiska unionen och andra europeiska länder med separata
samlingsprogram)

Den här symbolen som finns på din product eller på dess förpackning
påvisar att produkten inte ska behandlas som hushållsavfall när du vill
slänga bort den. Istället ska den lämnas över till en lämplig uppsamlings­punkt för återvinning av elektriska och elektroniska utrustningar. Genom att
tillförsäkra att den här produkten återvinns på ett riktigt sätt hjälper du till
med att förhindra möjliga negative konsekvenser för miljön och mänsklig
hälsa. Det kan annars orsakas på grund av olämplig sophantering av den
här produkten. Återvinning av material kommer att hjälpa till att bevara
naturtillgångar.

Den här symbolen är endast giltig inom den
Europeiska unionen.
Om du vill slänga bort den här produkten ska du
kontakta lokala myndigheter eller återförsäljar, och

fråga efter lämplig avfallsmetod.

Polski

■ Usuwanie zużytego sprzętu elektrycznego i elektronicznego (Dotyczy

krajów Unii Europejskiej i innych krajów europejskich z oddzielnymi
programami zbiórki odpadów)

Obecność tego symbolu na produkcie lub na opakowaniu z produktem
oznacza, że tego produktu nie można wyrzucać razem z odpadkami
domowymi. Należy go przekazać do punktu zbiórki w celu poddania
recyklingowi podzespołów elektrycznych i elektronicznych. Usunięcie tego
produktu w prawidłowy sposób, pomoże w zabezpieczeniu przed negaty­wnym wpływem odpadów na środowisko i zdrowie ludzi, powodowanym
przez niewłaściwe usuwanie produktu. Przetwarzanie materiałów pomaga
w zachowaniu zasobów naturalnych.

Ten symbol obowiązuje wyłącznie w krajach Unii
Europejskiej.
Informacje dotyczące prawidłowej metody usunięcia
tego produktu, można uzyskać u władz lokalnych lub
u dostawcy.

Suomi

■ Vanhojen sähkö- ja elektroniikkalaitteiden hävittäminen (Soveltuva kaik-

kialla Euroopan unionin alueella, sekä muissa Euroopan maissa, joilla on
erilliset keräysohjelmat)

Jos tuotteessa tai sen pakkauksessa on tämä symboli, sitä ei pidä
hävitettäessä käsitellä tavallisena kotitalousjätteenä, vaan se kuuluu toimit­taa sähkö- ja elektroniikkalaitteiden kierrätyspisteeseen. Varmistamalla,
että tämä tuote hävitetään asiaankuuluvalla tavalla autat estämään mah­dollisia ympäristölle ja ihmisille koituvia negatiivisia seuraamuksia, joita
sen vääränlainen hävittäminen voi aiheuttaa. Materiaalien kierrättäminen
auttaa säilyttämään luonnonvaroja.

Tämä symboli on voimassa ainoastaan Euroopan
unionin alueella.
Jos haluat hävittää tämän tuotteen, ota yhteyttä
paikallisiin viranomaisiin tai jälleenmyyjään ja tiedustele
asiaankuuluvia hävittämistoimenpiteitä.

WasteElectricalandElectronicEquipment(WEEE)Directive
IntheEuropeanUnion,thislabelindicatesthatthisproduct
shouldnotbedisposedofwithhouseholdwaste.Itshould
bedepositedatanappropriatefacilitytoenablerecovery
andrecycling.EEEcomplieswithDirective‘Regulationon
theRestrictionoftheUseofCertain

HazardousSubstances

inElectricalandElectronicEquipment’

WasteElectricalandElectronicEquipment
(WEEE)DirectiveIntheEuropeanUnion,this

labelindicatesthatthisproductshouldnotbe
disposedofwithhouseholdwaste.Itshouldbe
depositedatanappropriatefacilitytoenable
recoveryandrecycling.EEEcomplieswith
Directive‘RegulationontheRestrictionofthe
UseofCertain

HazardousSubstancesinElectrical

andElectronicEquipment’

WasteElectricalandElectronicEquipment(WEEE)
YönergeleriAvrupaBirliği'ndebuetiket,ürününev
elektroniğialetleriatıklarıileimhaedilemeyeceğinigösterir.
Kurtarmakvegeridönüşümünüsağlamakiçinuygun
şartlardasaklanmasıgerekir.EEEYönetmeliğineUygundur
VeElektronikEşyalardaBaziZararliMaddelerinKullaniminin
Sinirlandirilmasina

DairYönetmelik.

Waste Electrical and Electronic Equipment
(WEEE) Yönergeleri Avrupa Birliği'nde bu etiket,

ürünün ev elektroniği aletleri atıkları ile imha
edilemeyeceğini gösterir. Kurtarmak ve geri
dönüşümünü sağlamak için uygun şartlarda
saklanması gerekir. EEE Yönetmeliğine
Uygundur Ve Elektronik Eşyalarda Bazi Zararli
Maddelerin Kullaniminin Sinirlandirilmasina Dair
Yön et me li k.

European Union Disposal Information

EP-Series Ultra HD LCD Displays User Guide 5

Normal Usage Guidelines

Normal Usage Guidelines

Normal use of the LCD is defined as operating in the open air to prevent heat
buildup, and without direct or indirect heat sources such as lighting fixtures, heating
ducts, or direct sunlight that can cause the modules to experience high operating
temperatures. For all modules, do not block fans or ventilation openings. If the LCD
module will be installed in a recessed area with an LCD surround or enclosure, ensure
adequate openings are applied for proper air flow and ventilation.

At 3000 meters or below, the maximum ambient operating temperature for the LCD
module cannot be above 40º C nor below the minimum ambient operating
temperature of 0º C. If one of these conditions exists, it is up to the installer to ensure
that module placement is changed, thermal shielding is provided and/or additional
ventilation is provided to keep the display within its nominal operating parameters.

Cooling Requirements

For optimal performance, active cooling by the installer should be planned for when
the ambient temperature at the top of the wall is predicted to be above the specified
ambient temperature for the panel. Cooling may be done behind the displays and
depending on the wall configuration, it may be helpful to place air ducts (AC) at
every third display tall.

VESA Mounts, General Description

VESA mounts are used to secure the Planar EP-Series for display. The display can be
installed using a variety of VESA mounts available through Planar. If you do not have
a VESA mount and would like to purchase one, contact Planar.

If you purchased a VESA mount, you should have a received a separate box with
mounting supplies and an Installation manual. Follow these instructions carefully.

Keep in mind the following general installation guidelines:

• Screw length is crucial and will vary depending on the type of mount you use.
Total screw length will include the penetration length plus the length required
by the type of VESA mount in use.

• Mount spacers may be required to accommodate the protruding back panel of
the OPS slot.

Caution:

could puncture parts inside the display.

• Prior to installation, make sure you know where all of the mounting points are

• Follow all safety precautions outlined in the VESA Installation manual.

• Verify the parts received with the list shown in the VESA Installation manual.

Shorter screws will result in insufficient mounting strength and longer screws

located.

6 EP-Series Ultra HD LCD Displays User Guide

Cleaning the Display

If dust has collected on the power plug, remove the plug from the outlet and clean
off the dust. Dust build-up may cause a fire.

Remove the power plug before cleaning. Failure to do so may result in electrical
shock or damage.

Keep the following points in mind when cleaning the surface of the display:

• When the surface of the display becomes dirty, wipe the surface lightly with a
soft clean cloth.

• If the surface requires additional cleaning, use LCD screen cleaner or LCD wipes,
which are available at most electronics stores.

• Do not let cleaner seep into the display, as it may cause electrical shock or
damage.

Cleaning the Display

EP-Series Ultra HD LCD Displays User Guide 7

Package Contents

Package Contents

Unpacking the Display

The display is packed in a cardboard box using foam to protect it during shipping.

Before unpacking the display, prepare a stable, level and clean surface near a wall
outlet.

1 Place the LCD panel box in an upright position and remove the carton locks from

the bottom first.

2 Remove the entire top of the box and the top shipping foam.

3 Remove the accessory bag and packing list.

8 EP-Series Ultra HD LCD Displays User Guide

Unpacking the Display

Item Description Quantity

1LCD panel 1

2Carton 1

3 Foam Cushion Top 1

4 Foam Cushion Bottom 1

5 Polyurethane Bag 1

6 Accessory Bag 1

7Carton Lock 6

EP-Series Ultra HD LCD Displays User Guide 9

Contents of the Accessory Kit

Contents of the Accessory Kit

Part Picture Quantity

HDMI Cable 1

USB Drive 1

USB Cable
(For Touch version)

Power cord 1

IR extender cable 1

1

10 EP-Series Ultra HD LCD Displays User Guide

Contents of the Accessory Kit

Part Picture Quantity

Cable Clips 2

OSD Remote (AAA
batteries included)

1

EP-Series Ultra HD LCD Displays User Guide 11

Installing the Cable Clips

Installing the Cable Clips

The cable clips included in the Accessory Kit are used to assist with cable
management. These clips snap into place as shown in the image below.

12 EP-Series Ultra HD LCD Displays User Guide

Dimensions

EP5814K

Dimensions

EP-Series Ultra HD LCD Displays User Guide 13

EP5814K-T

EP5814K-T

14 EP-Series Ultra HD LCD Displays User Guide

Planar EP Series - Standard Inputs

























Planar EP Series - Standard Inputs

1RS-232 8VGA

2LAN 9PC Audio In

3 HDMI 1 10 IR Extender

4HDMI 2 11PC Audio Out

5HDMI 3 12S/PDIF Out

6 HDMI 4 13 Touch USB (for Touch version)

7DisplayPort

EP-Series Ultra HD LCD Displays User Guide 15

Installing the Display

Installing the Display

This section explains how to install your display. We suggest that you read the entire
section before you attempt to install the unit.

Before You Begin

Make sure you have all the items in these lists before you begin unpacking and
installing your display(s).

Tools/Equipment List

Depending on your installation, you may need one or more of the following items:

• String/string level

• Digital/laser level

• Ladders/lift

• Back brace

• Stud finder (if hanging display on a wall)

Other Things You May Need

• LCD screen cleaner or LCD wipes - available at most electronics stores

• At least two very strong people to help lift units into place

Plan Your Installation

You should have a detailed plan of how the units are to be configured. The plan
should include calculations for the following:

• Power (maximum of five units per 20A circuit for 115V operation)

• Cable runs

• Ventilation and cooling requirements

• If hanging display on a wall, location of studs in the wall

Prepare Your Installation Location

You should have prepared the area where you will install the unit. If custom
enclosures are part of the installation, they must be fully designed to accommodate
the installation of the displays, as well as the installed unit and ventilation and
cooling requirements.

If your installation included a lot of construction or dust, it is highly recommended
that you clean all of the screens after the wall installation and configuration are
complete.

16 EP-Series Ultra HD LCD Displays User Guide

Cable Length Recommendations

Cable length performance may vary between different cables and sources. The
recommended maximum DisplayPort length is 3m for DisplayPort 1.2 and 5m for
DisplayPort 1.1. HDMI cable length is recommended for up to 15m.

Cable Length Recommendations

EP-Series Ultra HD LCD Displays User Guide 17

Installing OPS Expansion (Optional)

Installing OPS Expansion (Optional)

The Planar EP-Series displays are equipped with an expansion slot that supports the
Intel® Open-Pluggable Specification (OPS). The slot will support OPS devices such as
PC’s, SDI modules, HDBaseT receivers, etc.

To install an OPS device, remove the protective cover on the display and slide the
device firmly into position. When installed, the OPS device will be connected
internally to the display. No external video or power cables are required.

For convenience, two Type-A USB 2.0 ports and one Type-A USB 3.0 port are provided
on the rear cover of the display. When an OPS device is installed, these USB ports can
be used for a keyboard, webcam, USB drive, or other peripherals.

18 EP-Series Ultra HD LCD Displays User Guide

Operating the Display

7.9in

200mm

15.7in

400mm

4X M8 VESA
MOUNTING HOLES

OSD Keypad

The OSD keypad is located on the rear of the display.

Operating the Display

Power Power on/Power off

Source Source selection (toggle)

 Menu Right/Increase value

 Menu Left/Decrease value

 Menu Up

 Menu Down

Menu/Exit Menu/Exit

OSD Keypad Buttons

Key Descriptions

EP-Series Ultra HD LCD Displays User Guide 19

Remote Control Receiver

7.9in

200mm

15.7in

400mm

4X M8 VESA
MOUNTING HOLES

Power ON standby indicator,
Remote control receiver

Remote Control Receiver

The remote control receiver is located near the keypad on the rear of the display. Use
the IR extender cable for operating the remote from the front of the display.

20 EP-Series Ultra HD LCD Displays User Guide

LED Indicators

The LED indicator light is located on the rear of the display near the keypad. The
following table explains what the different colors and blink patterns mean.

Power Status Condition

Green Power on

Blinking Orange No signal

Orange Power saving mode

Off AC off

Off Power off

Using the Display in Portrait Mode

LED Indicators

LED On

When using the display in the portrait position and looking at the rear of the display,
it should be rotated according to the arrow stickers on the back of the display. This
will allow for proper ventilation. Then select the OSD rotation of landscape or portrait
on the OSD menu (MAIN MENU > OSD SETTINGS > OSD ROTATION).

Caution: Improper ventilation may shorten the life of the display.

Using the Display in Flat or Tilted Orientation

The display is not recommended for use in flat orientation for tabletop, floor, or
ceiling installations. LCD panels of this size are at risk of panel deflection, which can
cause cosmetic sagging, brightness uniformity issues, a shortened life span, and
malfunction of optional touch sensors. Installations where the display is tilted
downward or upward at an angle may also be prone to these issues and are not
recommended.

EP-Series Ultra HD LCD Displays User Guide 21

Using the Remote Control

Using the Remote Control

Below is a picture of the remote control and its corresponding Hex codes. See the
following page for button descriptions and Hex codes.

22 EP-Series Ultra HD LCD Displays User Guide

Using the Remote Control

Num Function

INFO

1

2

VGA

3

DP1

4

HDMI1

5

6

7

HDMI2

8

P-position

9

10

OPS

Customer

Code

40AF

Hex Code Description

04FB Provides source and resolution

information

40AF 1CE3 Turns the display on and off

40AF 07F8 Selects the PC’s VGA source

40AF 08F7 Selects the DisplayPort 1 source

40AF 09F6 Selects the HDMI source 1

Not used

Not used

40AF 0CF3 Selects the HDMI source 2

40AF 1AE5 Selects the PiP (Picture-in-Picture)

position

40AF 15EA Selects the OPS source

11

12

13

14

15

16

17

18

19

HDMI3

PIP

HDMI4

SWAP

P-SOURCE





MENU

40AF 10EF Selects the HDMI source 3

40AF 11EE Selects the Multi-Source View

Not used

40AF 16E9 Selects the HDMI source 4

40AF 06F9 Swaps the main input source with

source 2

40AF 13EC Selects the PiP (Picture-in-Picture)

source

40AF 02FD Navigates up through submenus and

settings

40AF 01FE Navigates back through submenus and

settings

40AF 0EF1 Opens the display’s on-screen menu

system. When the menu system is
already open, pressing this button will
select the previous submenu.

20



40AF 03FC Navigates forward through submenus

and settings

EP-Series Ultra HD LCD Displays User Guide 23

Locking/Unlocking the OSD Menus

Num Function

21

22

23



ENTER

EXIT

SCALING

26

27

28

29

30

31

FREEZE

MUTE

BRIGHT

CONTRAST

AUTO

Customer

Code

40AF 19E6 Navigates down through submenus

Hex Code Description

and settings

40AF 12ED Selects highlighted menu choices

40AF 05FA Closes the menu system

40AF 14EB Toggles between different aspect ratios

(Auto, Native, 4 x 3, 16 x 9, 16 x 10 and
Letterbox)

40AF 43BC Freezes the current source image

40AF 00FF Turns off the sound

40AF 17E8 Adjusts the brightness

40AF 18E7 Adjusts the contrast

40AF 1EE1 Synchronizes the display to the source

32

33

34

SOURCE

VOLUME -

VOLUME +

Locking/Unlocking the OSD Menus

You can lock or unlock the OSD menus by pressing a series of key commands on the
remote control. To lock the menu, press the following keys on the remote in the
order listed:
same sequence.

Depending on whether you locked or unlocked the menu, you will see one of the
following messages on the screen.

ENTER, ENTER, EXIT, EXIT, ENTER and EXIT. To unlock it, simply follow the

40AF 0FF0 Allows selection of the different

sources

40AF 1BE4 Decreases the sound volume

40AF 1DE2 Increases the sound volume

24 EP-Series Ultra HD LCD Displays User Guide

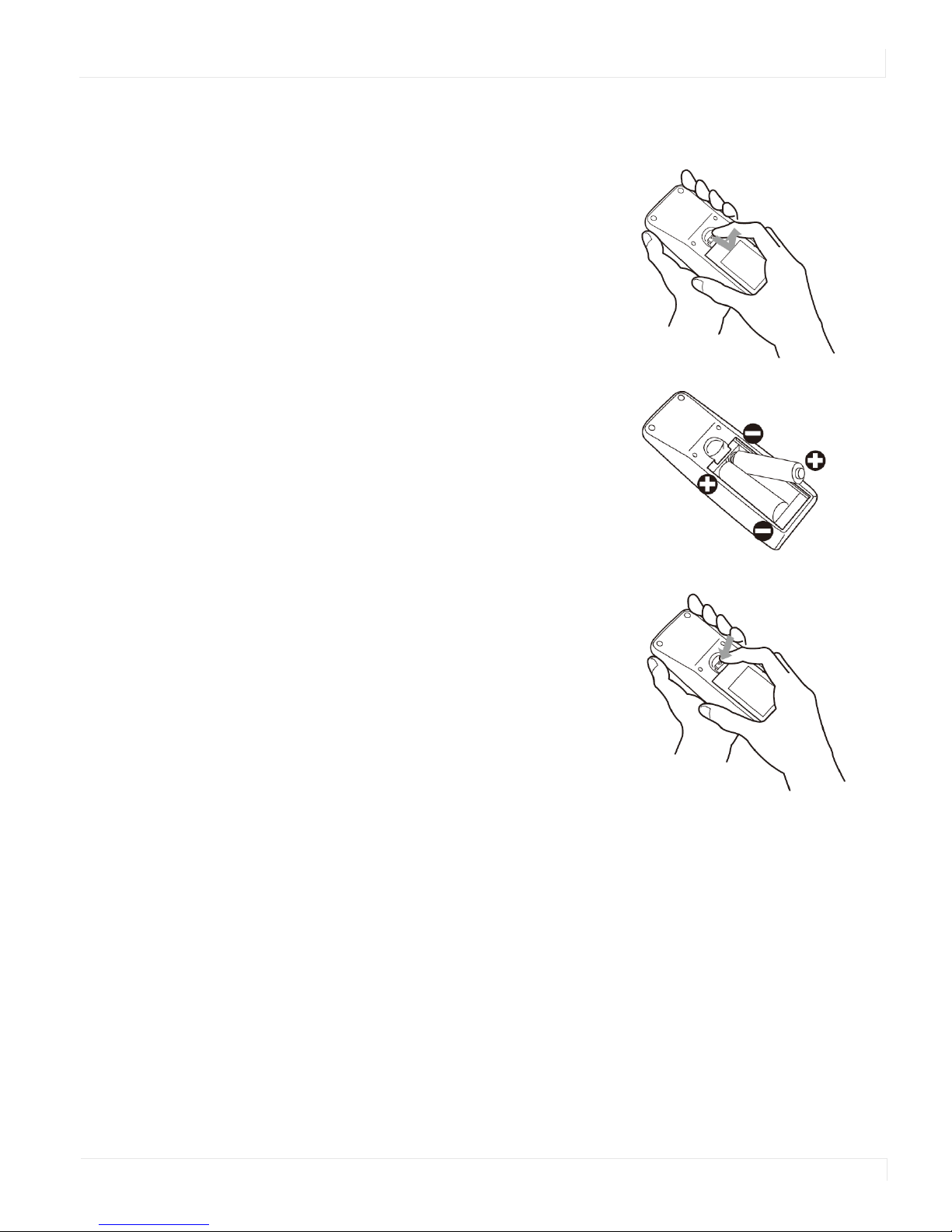

Changing the Remote Control Battery

Remove the battery cover.

1

Slide back and remove the battery cover in the
direction of the arrow.

2 Insert the batteries.

Align and insert two AAA batteries according
to their plus and minus ports (as indicated in
the remote control).

Changing the Remote Control Battery

3 Close the battery cover.

Replace the battery cover in the direction of
the arrow and snap it back into place.

Turning the Display On

1 Insert the power cord into the display and into the power outlet.

2 Ensure the AC switch is set to “—“.

3 Press the power button on the remote or side control panel.

EP-Series Ultra HD LCD Displays User Guide 25

Turning the Display Off

Turning the Display Off

With the power on, press the power button on the remote or side control panel to
put the LCD panel in a standby mode. To turn off power completely, turn the AC
switch to “O” or disconnect the AC power cord from the power outlet.

Note: If there is no signal for a certain period of time, the LCD panel will automatically go into

standby mode.

Adjusting the Volume

1 Using the remote, press the VOLUME - or VOLUME + to increase or decrease the

volume.

2 Press the MUTE button to temporarily turn off all sound. To restore the sound,

press the MUTE button again.

Note: The analog audio out is variable. S/PDIF is fixed.

Selecting the Input Source

Do one of the following:

• Using the remote, press the desired source button (DP1, HDMI1, HDMI2, HDMI3,

HDMI4, VGA).

• Press the source button on the display’s keypad. Use the arrow buttons ( )

to select one of the following input sources and press ENTER: DISPLAYPORT1,

HDMI1, HDMI2, HDMI3, HDMI4, VGA.

Note: When the display cannot find a source, a “No signal” message will appear.

Navigating Through the Menus

1 With the power on, press MENU. The INPUT menu appears.

2 Within the menu, use

adjust options.

3 Press

MENU to return to the previous menu. To exit the menu system, press EXIT.

, , ,  and ENTER to navigate through the menus and

26 EP-Series Ultra HD LCD Displays User Guide

Input Menu

Input Menu

This menu is used for selecting the input sources. Up to four sources can be displayed
at the same time.

Main Input

Auto Scan

Multi-Source Views

Source 2

Select the Main Input source
Options: DisplayPort1, HDMI1, HDMI2, HDMI3, HDMI4, VGA, OPS

Select whether the display will automatically scan for a Main Input source
Options: On, Off; Default: Off

Select the Multi-Source View mode

Options: Off, PiP, Dual View, Dual View Portrait, Triple View, Quad View
Default: Off

Select the second source
Options: DisplayPort1, HDMI1, HDMI2, HDMI3, HDMI4, VGA, OPS

Note: This function is only available when Multi-Source Views is set to PiP, Dual View,
Dual View Portrait, Triple View or Quad View. If HDMI1 was selected as another source,
OPS cannot be selected. If OPS was selected as another source, HDMI1 cannot be
selected.

EP-Series Ultra HD LCD Displays User Guide 27

Input Menu

Source 3

Source 4

PIP Size

Select the third source
Options: DisplayPort1, HDMI1, HDMI2, HDMI3, HDMI4, VGA, OPS

Note: This function is only available when Multi-Source Views is set to Triple View or
Quad View. If HDMI1 was selected as another source, OPS cannot be selected. If OPS was
selected as another source, HDMI1 cannot be selected.

Select the fourth source
Options: DisplayPort1, HDMI1, HDMI2, HDMI3, HDMI4, VGA, OPS

Note: This function is only available when Multi-Source Views is set to Quad View. If
HDMI1 was selected as another source, OPS cannot be selected. If OPS was selected as
another source, HDMI1 cannot be selected.

Select the size of the PiP (Picture-in-Picture)

Options: Small, Mid, Large

PIP Position

Swap

Multi-Source Presets

Note: This function is only available when Multi-Source Views is set to PiP

Set the position of the PiP (Picture-in-Picture)
Options: TopR ( Top Right), To p L ( Top Left), B o tR (Bottom Right), BotL (Bottom Left)

Note: This function is only available when Multi-Source Views is set to PiP

Swap the Main Input source with Source 2

Note: This function is only available when Multi-Source Views is set to PiP, Dual View, or
Dual View Portrait

Save or Recall Multi-Source Preset1, Preset2, Preset3 or Preset4

Note: See page 29 for more information.

28 EP-Series Ultra HD LCD Displays User Guide

Multi-Source Presets Submenu

Save and recall up to four configurations of single or multi-source layouts. Source
selection and location are saved within each preset.

Multi-Source Presets Submenu

Saving Configurations

1 Set up the single or multi-source layout as desired.

2 Select PRESET1 SAVE, PRESET2 SAVE, PRESET3 SAVE, or PRESET4 SAVE to

assign the configuration to one of the preset slots.

Recalling Stored Configurations

1 Select PRESET1 RECALL, PRESET2 RECALL, PRESET3 RECALL, or PRESET4

RECALL in the on screen menu to recall the desired saved configuration. Presets

can be also be recalled from RS-232.

Note: Presets can be overridden but cannot be deleted.

EP-Series Ultra HD LCD Displays User Guide 29

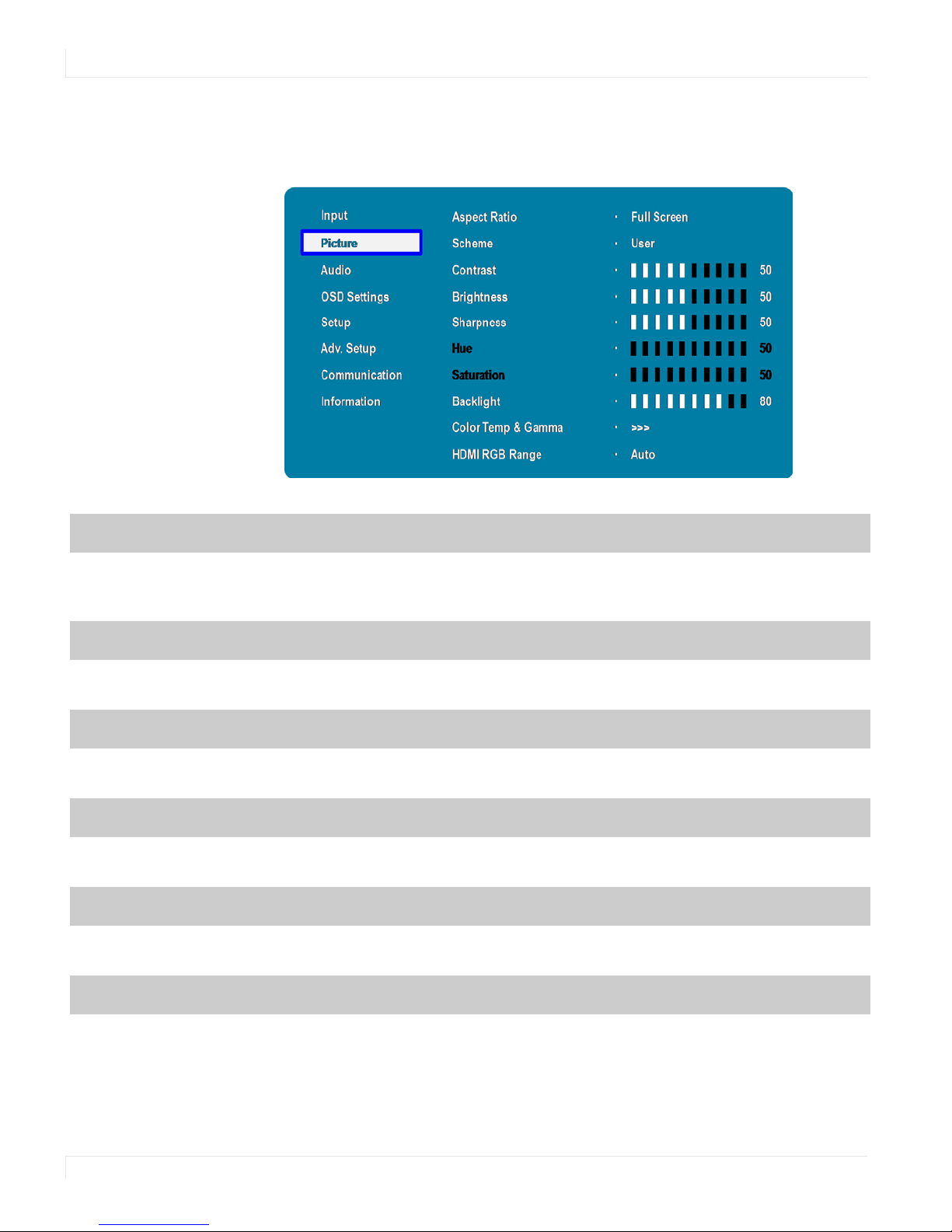

Picture Menu

Picture Menu

This menu is used for making common image adjustments.

Aspect Ratio

Scheme

Contrast

Brightness

Sharpness

Adjust the aspect ratio of the screen. The first selection is for the main source, and the
second selection is for sources 2-4.
Options: Full Screen, Letterbox, 4:3, 1:1; Default: Full Screen

Press  or  to select one of the following:
Options: User, Vivid, Cinema, Game, Sport;

Increase or decrease the contrast of picture. Press  or  to select the desired level.

Range: 0~100; Default: 50

Increase or decrease the brightness of picture. Press  or  to select the desired level.
Range: 0~100; Default: 50

Adjust the definition of picture. Press  or  to select the desired level.
Range: 0~100; Default: 50

Default: User

Hue

Increase or decrease the green hue. Press  or  to select the desired level.
Range: 0~100; Default: 50

Note: This function is not available when displaying PC or graphics sources

30 EP-Series Ultra HD LCD Displays User Guide

Saturation

Backlight

Color Temp and Gamma

Picture Menu

Adjust the brilliance and brightness. Press  or  to select the desired level.
Range: 0~100; Default: 50

Note: This function is not available when displaying PC or graphics sources

Increase or decrease the intensity of the LCD backlight. Press  or  to select the
desired level.
Range: 0~100; Default: 80

Select gamma

Options: Off, 1.85, 1.9, 1.95, 2.0, 2.05, 2.10, 2.15, 2.2, 2.25, 2.3, 2.35, 2.4, 2.45, 2.5, 2.55, 2.6
Default: 2.2

Select color temperature

Options: User, 3200K, 5000K, 6500K, 7500K, 9300K; Default: 9300K

HDMI RGB Range

Select RGB range for HDMI sources
Options: Auto, Full, Limited; Default: Auto

EP-Series Ultra HD LCD Displays User Guide 31

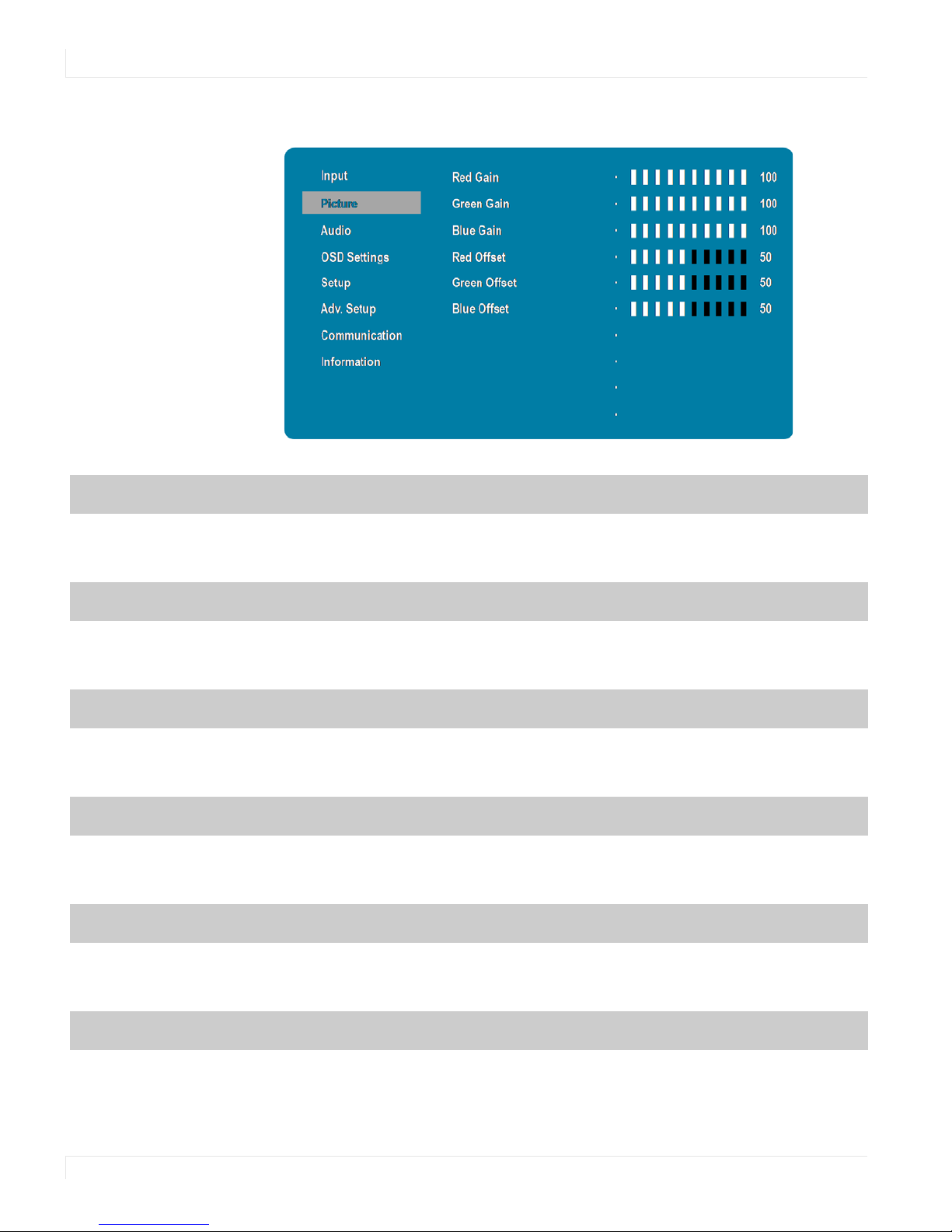

Picture Menu – RGB Adjust Submenu (Color Temp = User)

Picture Menu – RGB Adjust Submenu (Color Temp = User)

Red Gain

Green Gain

Blue Gain

Red Offset

Green Offset

Set Color Temperature to “User” in order to adjust this setting.

Range: 0~100
Default: 100

Set Color Temperature to “User” in order to adjust this setting.

Range: 0~100
Default: 100

Set Color Temperature to “User” in order to adjust this setting.

Range: 0~100
Default: 100

Set Color Temperature to “User” in order to adjust this setting.

Range: 0~100
Default: 50

Set Color Temperature to “User” in order to adjust this setting.

Range: 0~100
Default: 50

Blue Offset

Set Color Temperature to “User” in order to adjust this setting.

Range: 0~100
Default: 50

32 EP-Series Ultra HD LCD Displays User Guide

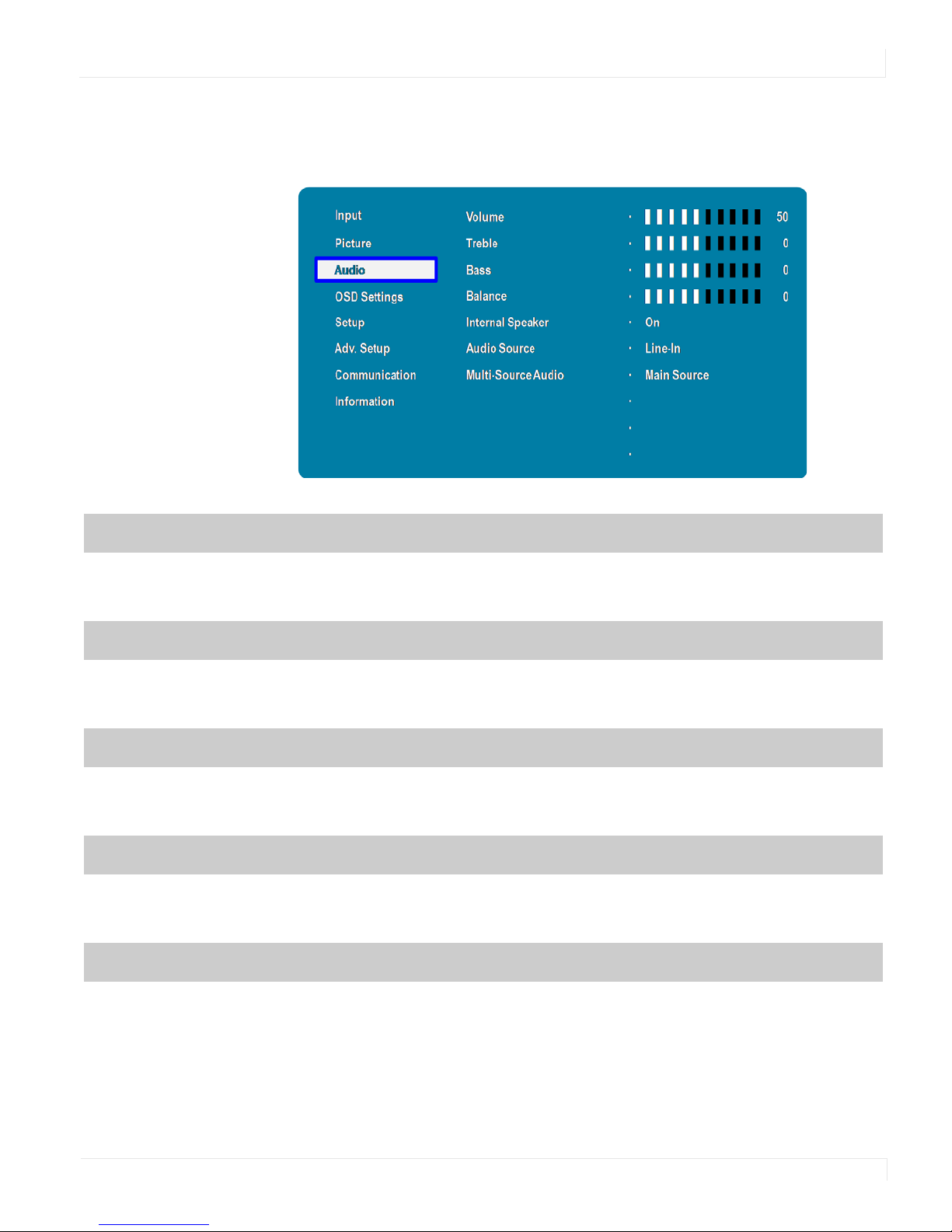

Audio Menu

Audio Menu

This menu is used for adjusting audio settings.

Volume

Tre ble

Bass

Balance

Internal Speaker

Adjust the sound. Press  or  to select the desired level.

Range: 0~100
Default: 50

Adjust the sound in high tones (treble). Press  or  to select the desired level.

Range: -6~+6
Default: 0

Adjust the sound in low tones (bass). Press  or  to select the desired level.

Range: -6~+6
Default: 0

Adjust the balance of the left and right speakers. Press  or  to select the desired level.

Range: -6~+6
Default: 0

Turn the internal speaker on or off
Default: On

EP-Series Ultra HD LCD Displays User Guide 33

Audio Menu

Audio Source

Multi-Source Audio

Select the audio source for the Main input
Options: DisplayPort1, HDMI1, HDMI2, HDMI3, HDMI4, Line-In

Select the audio source that is played through the display’s internal speakers, audio out
and digital audio out

Options: Main Source, Source 2, Source 3, Source 4
Default: Main Source

Note: Adjustments to the Audio Source setting will override selections made to Multi­Source Audio. Do not change the Audio Source setting if you plan to make audio source
selections in Multi-Source Audio.

Off-screen audio sources can be selected from Audio Source.

34 EP-Series Ultra HD LCD Displays User Guide

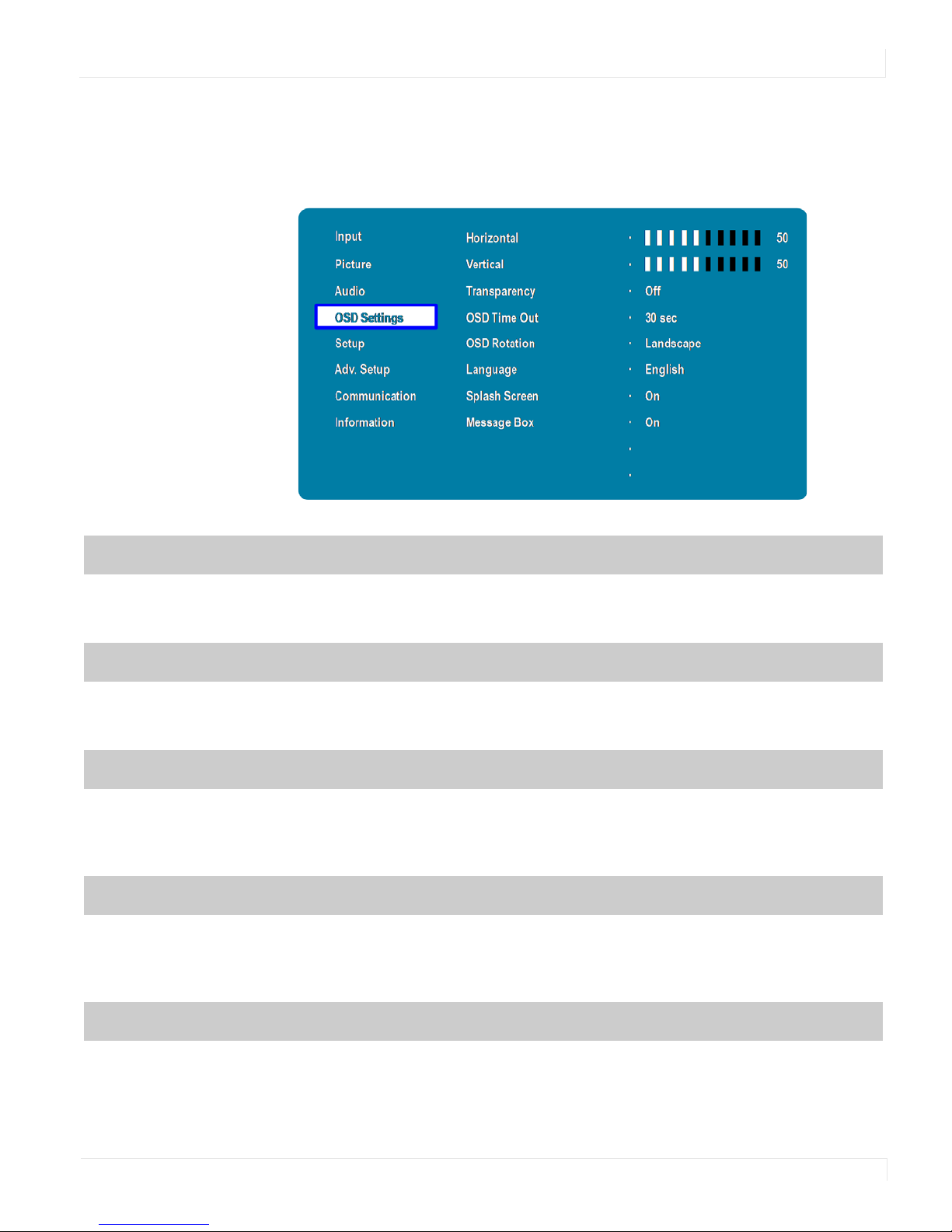

OSD Settings Menu

This menu is used to make initial setup adjustments to the OSD (On-Screen Display)
menu and other on-screen messages.

OSD Settings Menu

Horizontal

Ver tical

Transparency

OSD Timeout

Adjust the horizontal position of the OSD menu. Press  or  to select the desired level.

Range: 0~100
Default: 50

Adjust the vertical position of the OSD menu. Press  or  to select the desired level.

Range: 0~100
Default: 50

Submenu to adjust the transparency of the OSD menu. Press  or  to select the desired

level.

Options: Off, 1, 2, 3, 4
Default: Off

Submenu to adjust the time in seconds before the OSD menu disappears. Press  or 

to select the desired level.

Options: 5 sec, 10 sec, 20 sec, 30 sec, 60 sec
Default: 30 sec

OSD Rotation

Select the OSD Rotation. Press  to select the rotation.

Options: Landscape, Portrait
Default: Landscape

EP-Series Ultra HD LCD Displays User Guide 35

OSD Settings Menu

Language

Splash Screen

Message Box

Select the OSD language

Select whether a splash screen appears when the monitor is powered up

Options: On, Off
Default: On

Select whether a message box is displayed on screen

Options: On, Off
Default: On

36 EP-Series Ultra HD LCD Displays User Guide

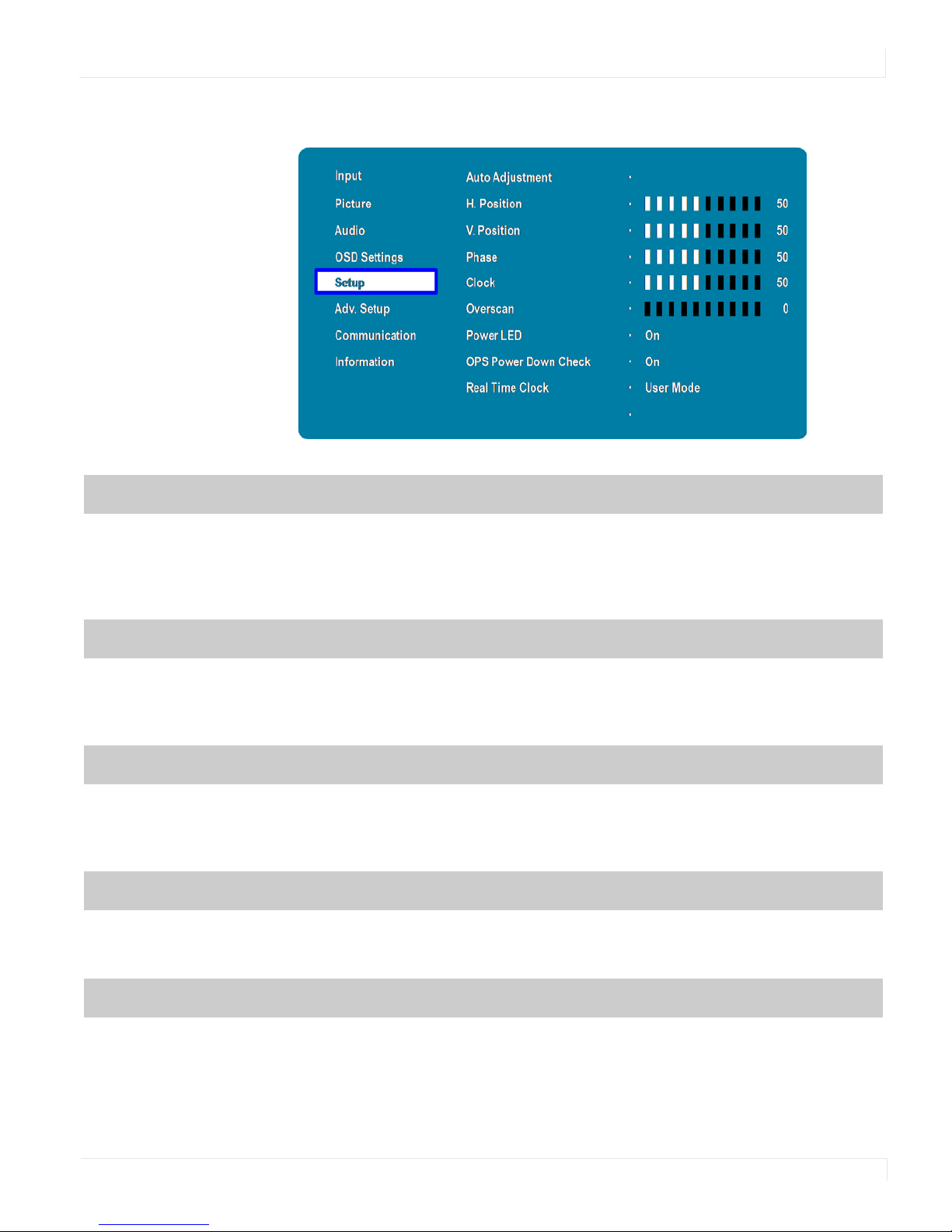

Setup Menu

Auto Adjustment

Setup Menu

H. Position

V. Pos i tion

Phase

Force the display to reacquire and lock to the input signal (VGA source only). This is useful
when the signal quality is marginal. Note: This feature does not continually reacquire the
signal.

Options: No, Yes
Default: No

Adjust the horizontal position of the image (VGA source only). Press  or  to select the
desired level.

Range: 0~100
Default: 50

Adjust the vertical position of the image (VGA source only). Press  or  to select the
desired level.

Range: 0~100
Default: 50

Adjust the phase of the displayed signal (VGA source only). Press  or  to select the
desired level.

Range: 0~100

Clock

Adjust the clock of the displayed signal (VGA source only). Press  or  to select the
desired level.
Range: 0~100

EP-Series Ultra HD LCD Displays User Guide 37

Setup Menu

Overscan

Power LED

OPS Power Down Check

Real Time Clock

Adjust the zoom (overscan) of the image
Default: 0

Enable or disable the status LED

Options: On, Off
Default: On

Allow the display to skip waiting for the OPS module to power down when the display is
powering down
Default: On

See details on next page

38 EP-Series Ultra HD LCD Displays User Guide

Real Time Clock Submenu

This menu is used to set the internal clock of the display, and to power on and power
off the display at preset times if desired.

Real Time Clock Submenu

Current Time

Set the year, month, day, and time of day
Options: User Mode, Workday Mode, Everyday Mode

EP-Series Ultra HD LCD Displays User Guide 39

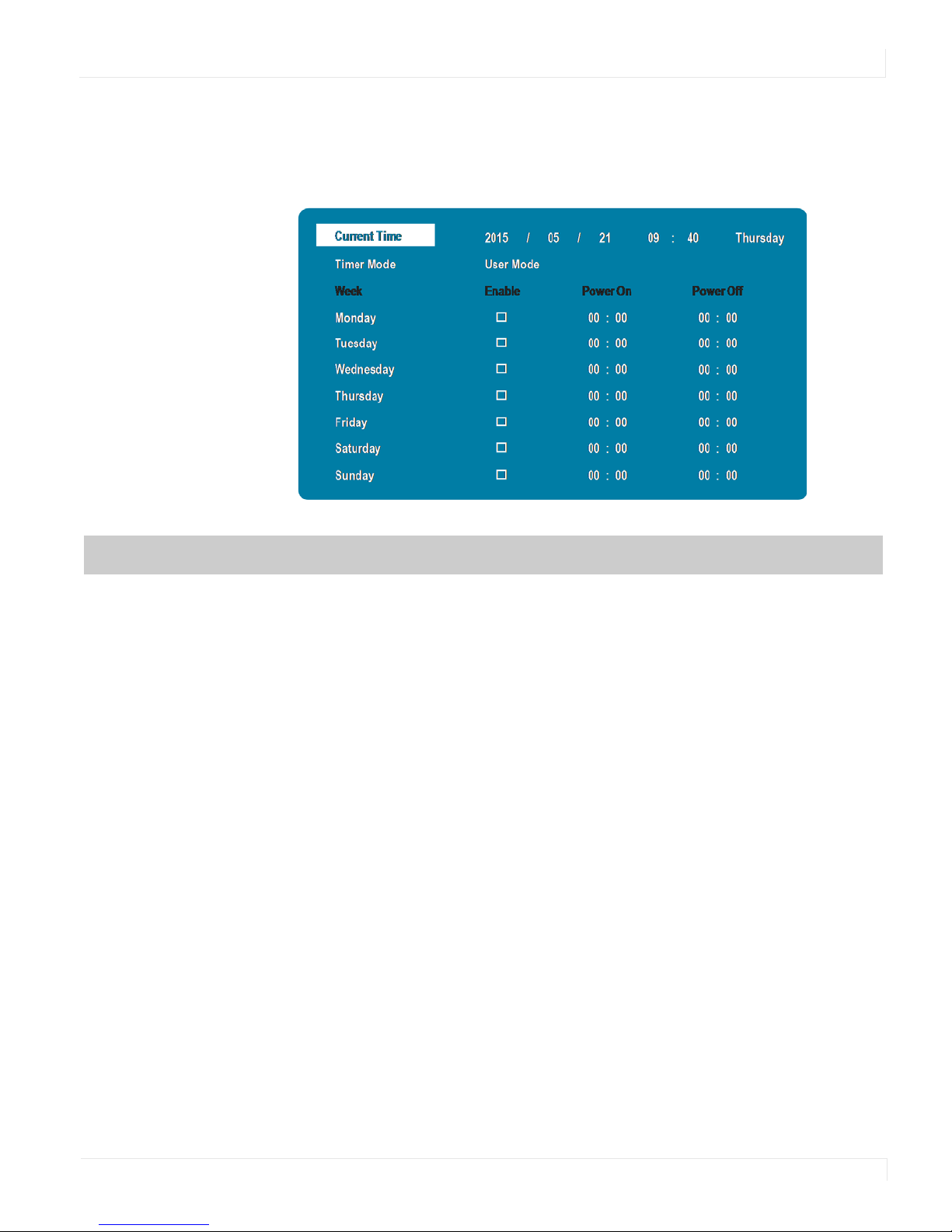

Real Time Clock – User Mode

Real Time Clock – User Mode

User Mode

Select the power on/off time for each day of the week
Options: Disable, Enable

Use the arrow keys to specify the on and off times.

40 EP-Series Ultra HD LCD Displays User Guide

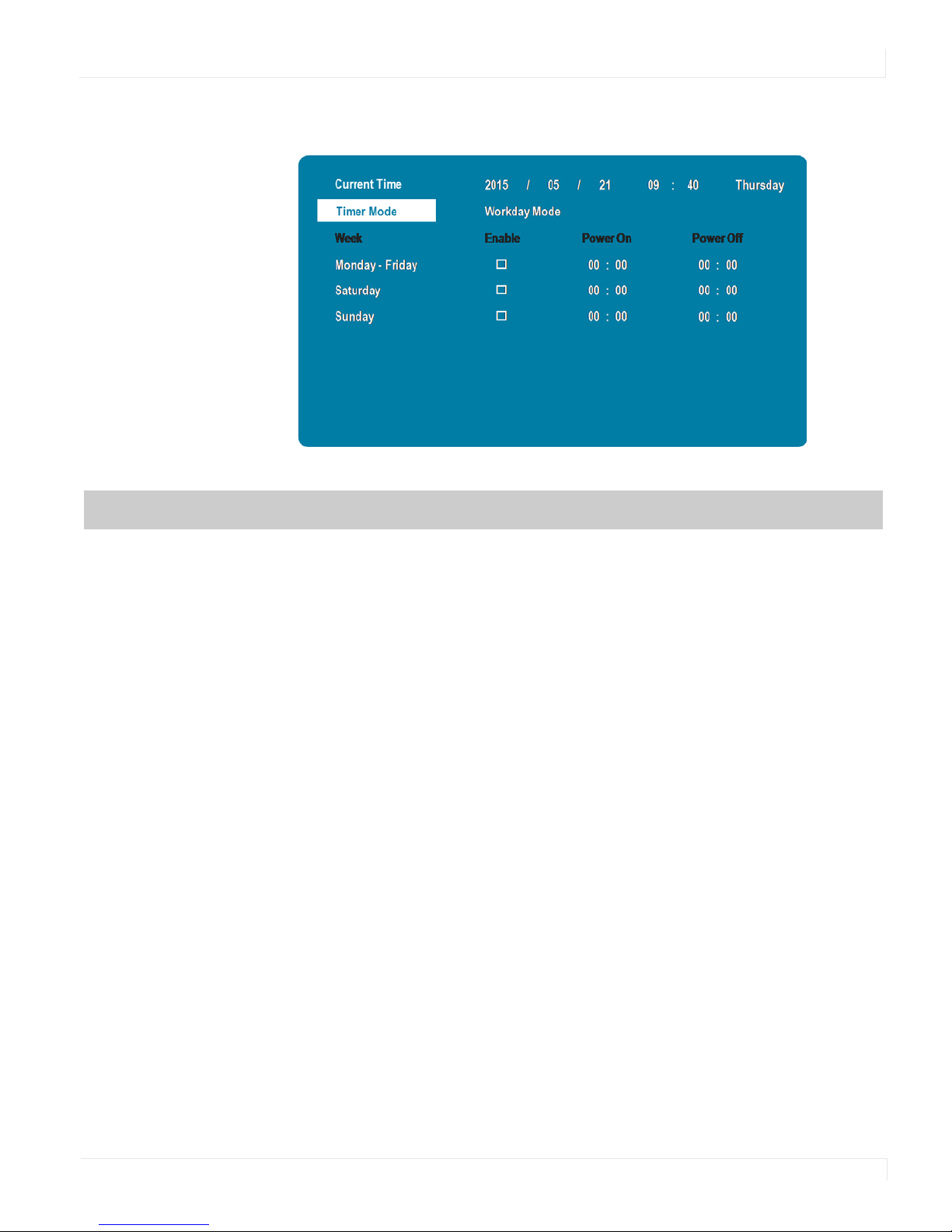

Real Time Clock – Workday Mode

Workday Mode

Real Time Clock – Workday Mode

Select the power on/off time for Monday–Friday, Saturday, and Sunday
Options: Disable, Enable

Use the arrow keys to specify the on and off times.

EP-Series Ultra HD LCD Displays User Guide 41

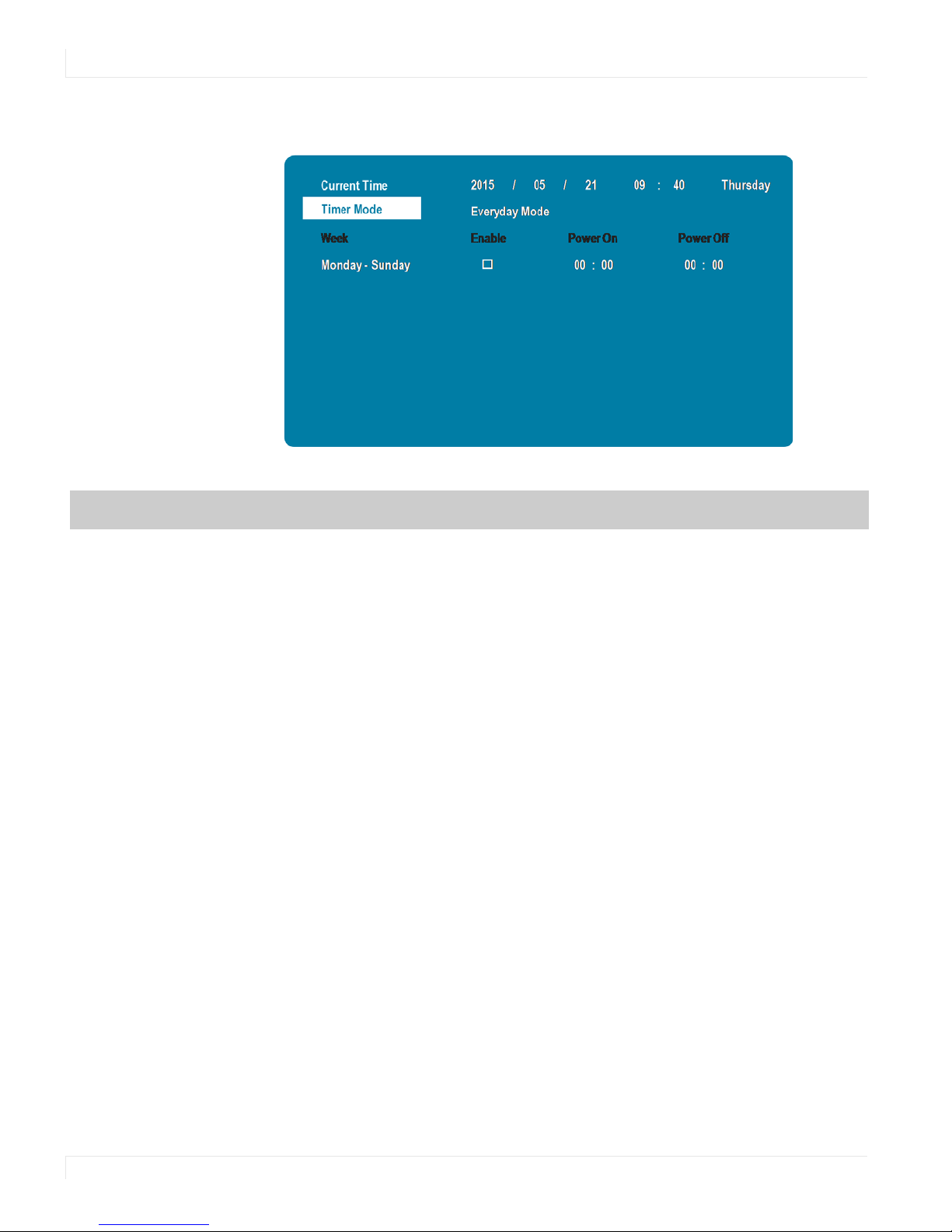

Real Time Clock – Everyday Mode

Real Time Clock – Everyday Mode

Everyday Mode

Select the power on/off time for all days of the week
Options: Disable, Enable

Use the arrow keys to specify the on and off times.

42 EP-Series Ultra HD LCD Displays User Guide

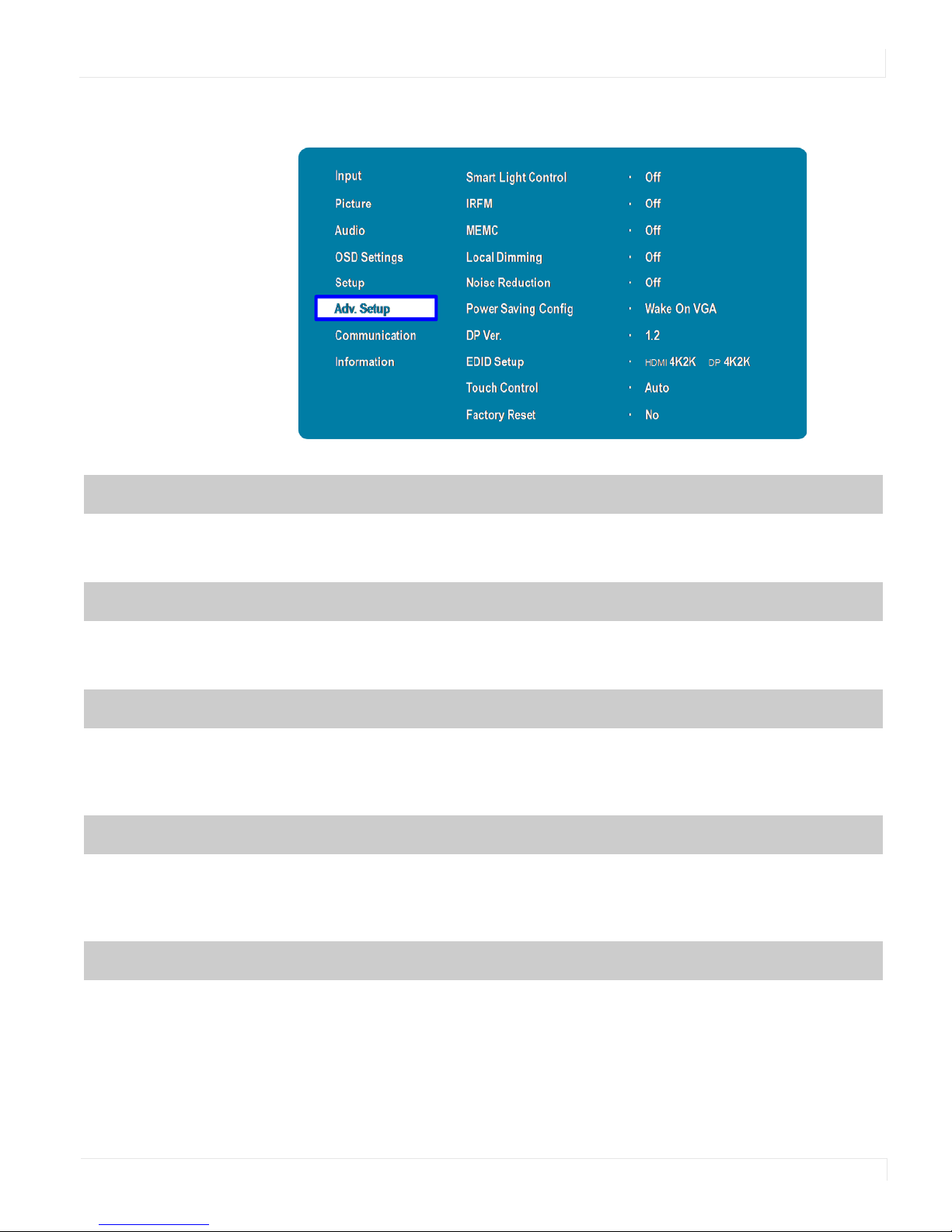

Advanced Setup Menu

Smart Light Control

Advanced Setup Menu

IRFM

MEMC

Local Dimming

Noise Reduction

Enable dynamic contrast (DCR) or ambient light sensor

Options: Off, DCR, Light Sensor
Default: Off

Create slight frame motion to help avoid image retention

Options: On, Off
Default: Off

Enable motion estimation motion compensation (frame interpolation). This improves
smoothness for fast motion video content.

Options: Off, Low, Medium, High
Default: Off

Enable local dimming of the LCD backlight. This improves black levels and contrast;
however for some content it may introduce artifacts.

Options: On, Off
Default: Off

Reduce random noise in the video content

Options: Off, Low, Medium, High
Default: Off

EP-Series Ultra HD LCD Displays User Guide 43

Advanced Setup Menu

Power Saving Config

DP Ver.

EDID Setup

Options: Wake on VGA, Wake on All, Always On
Default: Wake on VGA

Note: For Wake on VGA and Wake on All, the display will enter power saving mode if no
signal is received for 5 minutes.

Select DisplayPort version of the DisplayPort inputs

Options: 1.1, 1.2
Default: 1.2

Note: DisplayPort 1.2 is the more modern standard and supports 3840x2160 @ 60 Hz
resolution. However, sometimes DisplayPort 1.1 is needed for compatibility with older
graphics cards.

Select EDID (Extended Display Identification Data) of the HDMI and DisplayPort inputs

Options: 4K2K, 1080p
Default: 4K2K

Touc h Co nt ro l

Factory Reset

Note: Use the 1080p setting for the broadest support of lower resolution sources. Use the
4K2K setting to support high resolution sources such as 3840x2160.

Select whether the touchscreen controls the internal OPS PC, or controls an external PC
via the Touch USB connector

Options: Auto, OPS, External
Default: Auto

Restore all settings to their default

Options: No, Yes
Default: No

44 EP-Series Ultra HD LCD Displays User Guide

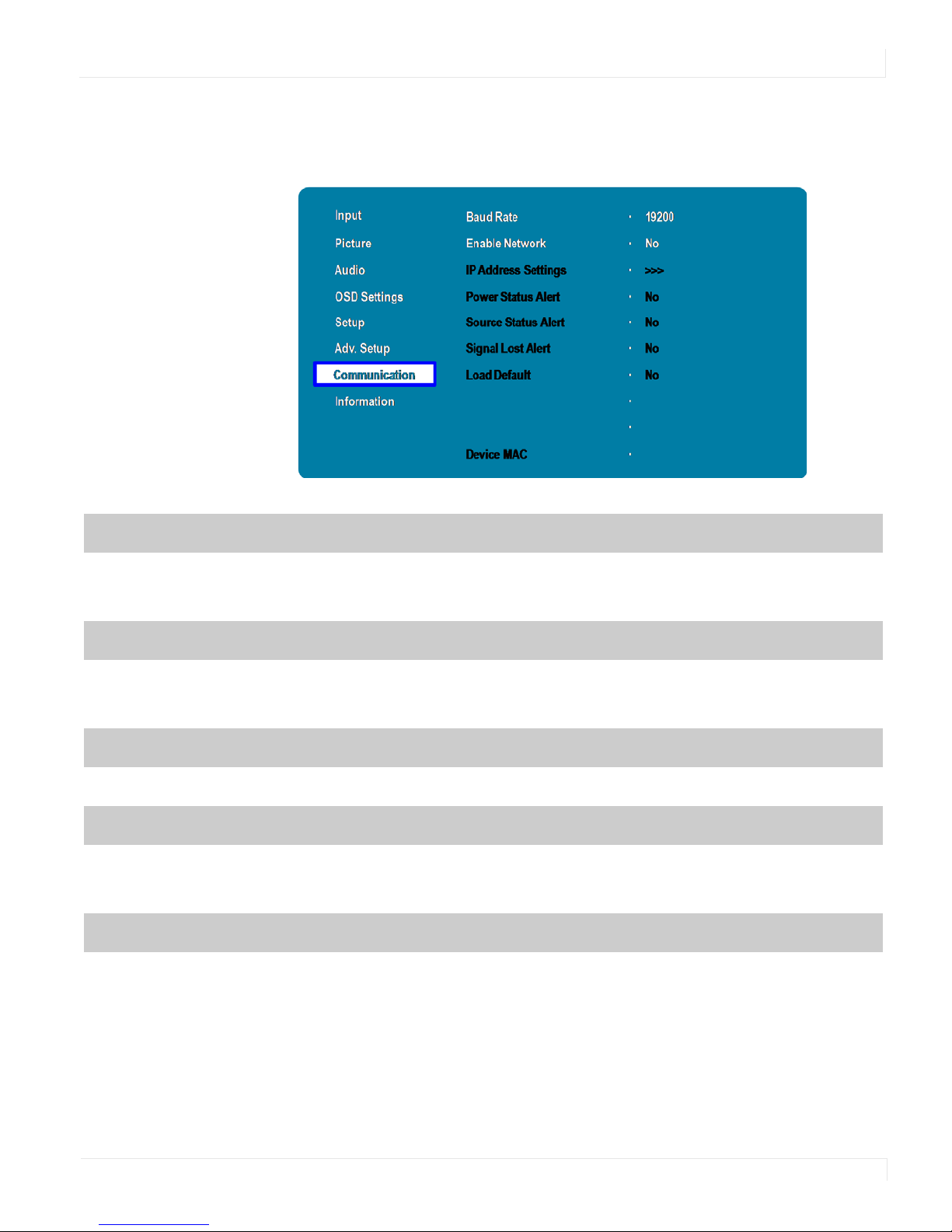

Communication Menu

This menu configures the display’s RS-232 and Ethernet communication ports.

Communication Menu

Baudrate

Enable Network

IP Address Settings

Power Status Alert

Source Status Alert

Select the baud rate of the display’s RS-232 port

Options: 115200, 38400, 19200, 9600
Default: 19200

Enable the display’s built-in Ethernet port

Options: No, Yes
Default: No

Enable Dynamic IP mode or set the static IP address of the display’s Ethernet port

Enable an automatic alert when the display is powered down

Options: No, Yes
Default: No

Enable an automatic alert when the source is changed

Options: No, Yes
Default: No

EP-Series Ultra HD LCD Displays User Guide 45

Communication Menu

Signal Lost Alert

Load Default

Device MAC

Enable an automatic alert when the video signal is lost

Options: No, Yes
Default: No

Load default communication settings

Options: No, Yes
Default: No

Shows the MAC address of the display

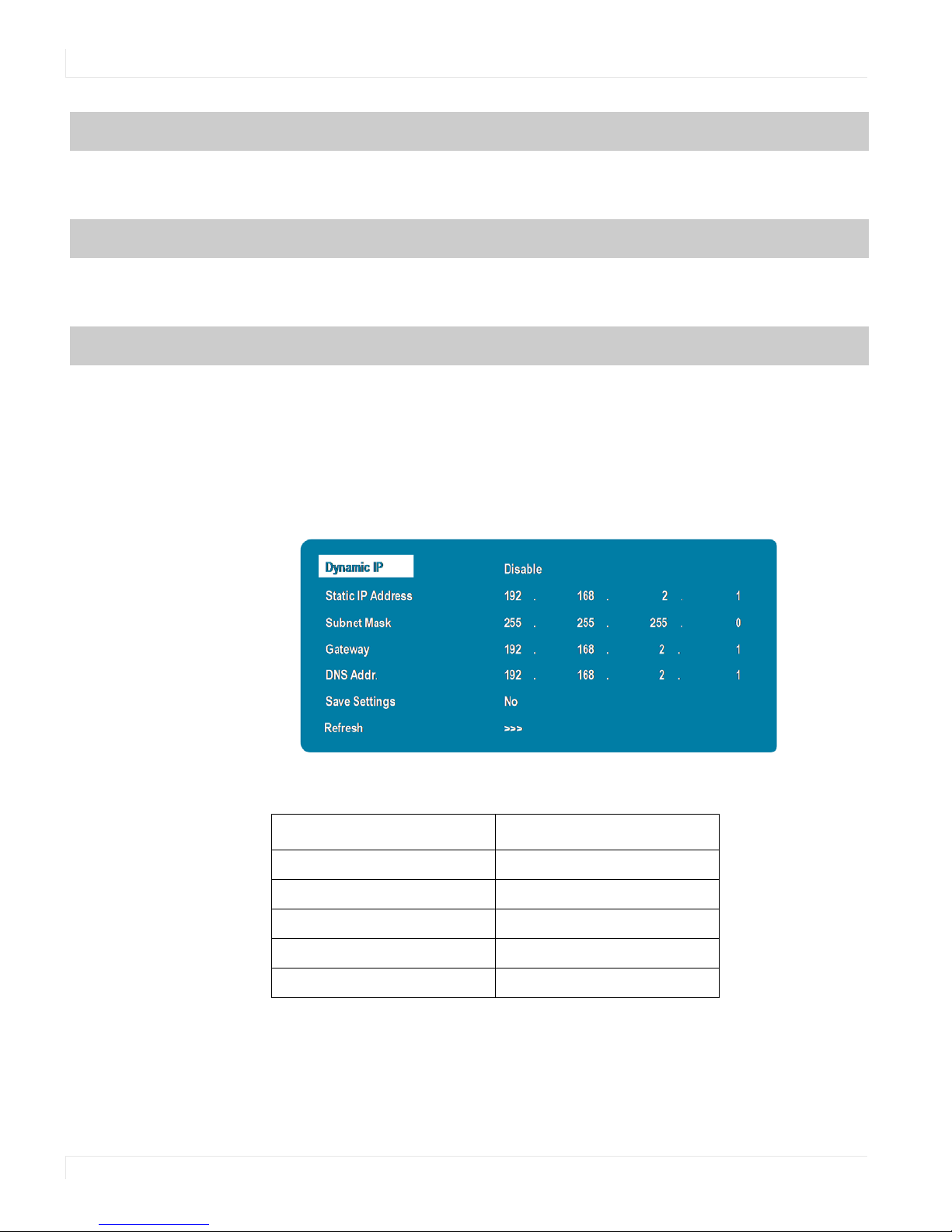

Assigning an IP Address to the Display

To assign an IP address to your display, access the IP Address Settings Menu in the
Communication menu. Consult your system administrator if you do not know how
to configure the parameters shown in the menu.

The default settings are shown below.

Dynamic IP Disable

Static IP Address 192.168.2.1

Subnet Mask 255.155.155.0

Gateway 192.168.2.1

DNS Addr. 192.168.2.1

46 EP-Series Ultra HD LCD Displays User Guide

Item Setting

Information Menu

This read-only menu provides information on the active sources and the latest
firmware version.

Information Menu

EP-Series Ultra HD LCD Displays User Guide 47

Using the Touch Screen

Using the Touch Screen

You can use the touch screen to control your operating system. The touch screen can
emulate basic mouse functions and supports multi-touch functions for Windows 7*
and Windows 8*. The following table shows a list of functions you can use on the
touch screen.

Note: *Ensure that you have installed the USB cable on the display to a computer.

Note: If an OPS PC is installed in the OPS slot, the OPS PC will automatically be connected

internally to the touch system. The touch functionality is configurable via the Touch Control
setting.

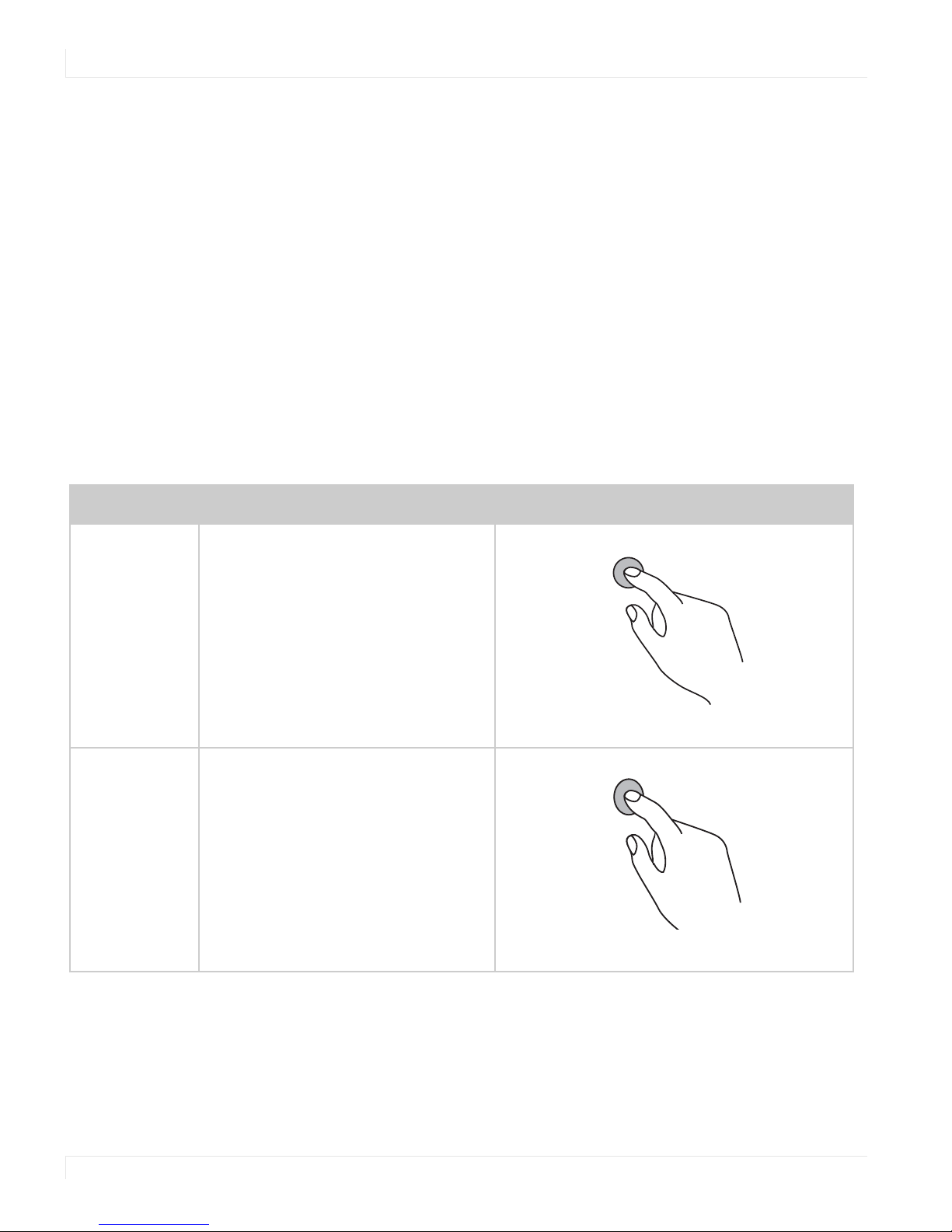

Performing basic functions

The following table shows how to perform basic tasks using the touch screen for
Windows 8, Windows 7, Vista, XP, Mac OSX, and Linux.

Function Action

Click Tap the screen once.

Double-Click Tap the screen twice.

48 EP-Series Ultra HD LCD Displays User Guide

Right-click Press on the target. Hold and wait for a

blue ring to appear. Release your
finger.

Drag or select Drag one finger left or right.

Performing basic functions

Pan up/down
/back/forward

Wake up from
Windows sleep
mode (S3)

Quickly drag your finger (flick) in a
desired direction.

Press and hold for four seconds.

EP-Series Ultra HD LCD Displays User Guide 49

Touchscreen MultiTouch Driver Installation

Touchscreen MultiTouch Driver Installation

1 With the PC on, plug in the USB memory stick to the USB drive.

2 Locate and open the USB drive.

3 Double-click on the “mt_driver_kit [xxxxxx].exe” to install the driver.

4 Follow installation prompts until driver installation is complete.

Once driver installation is complete, the touchscreen is ready for use.

Touchscreen (PQLabs) MultiTouch Platform Content

The PQLabs Software is used for troubleshooting and calibration. The different
menus are described below.

1 On the PC, select the Start menu, All Programs and then PQLabs Software.

2 Click on “MultiTouch Platform” to open the PQLabs MultiTouch Platform window.

Touchscreen Information

• Serial Number – Displays the serial number of the connected touchscreen.

• Firmware Version – Displays the firmware version of the touchscreen selected
under the “Serial Number” dropdown menu.

• Touch Points – Displays the number of touch points for which the touchscreen
is capable.

• Status – Displays the current status of the touchscreen.

Calibration

• Calibration – Starts a 4-point calibration of the touchscreen. Perform the
programmed touchscreen calibration process. At the conclusion of the
calibration routine your touchscreen device is ready to use and will perform
with accurately positioned touch points.

• Reset Calibration – Resets calibration to factory default settings.

Utility

• Diagnose – Starts the “MultiTouchDoctor” program. This can be used to
troubleshoot issues with the touchscreen.

Options

• Default settings on options have the following programs enabled:
Tuio Support, Flash Tuio Support, Handwriting Optimization, Enable Windows
Native Touch, Enable Mouse/Keyboard Simulation, and Launch When Windows
Starts Up.

• Flexible Scan Rate is at a default setting.

50 EP-Series Ultra HD LCD Displays User Guide

Uninstalling the MultiTouch Driver

or

1 On the PC, select the Start menu, All Programs and the PQLabs Software

2 Click on the MultiTouch Driver.

3 Select the Uninstall option.

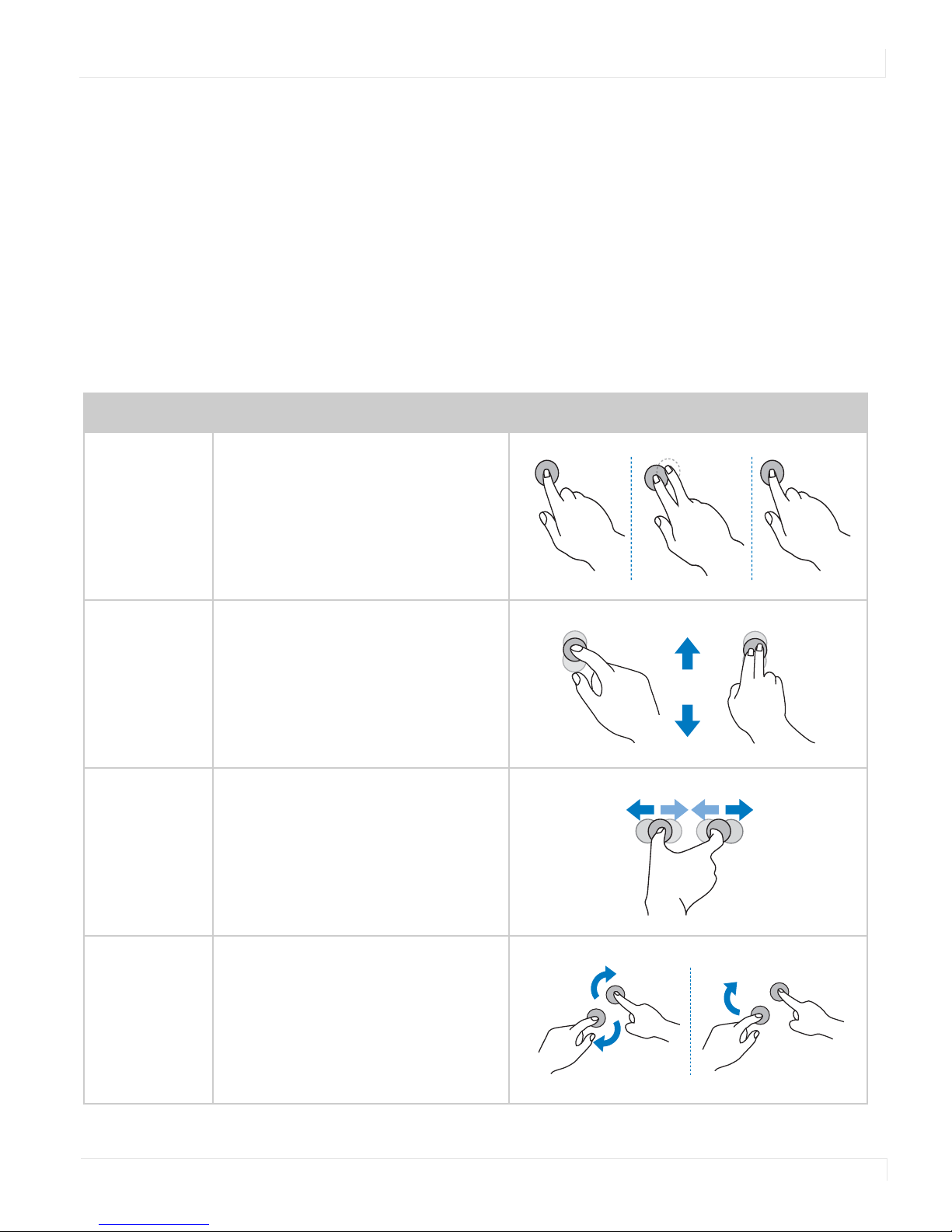

Multi-Touch Functions

The following table shows how to perform multi-touch tasks using the touch screen
for Windows 7 - Home Premium, Professional, Enterprise and Ultimate versions.

Function Action

Right-click Press on the target. Tap the screen with

another finger. Release the second
finger.

Uninstalling the MultiTouch Driver

Scrolling Drag one or two fingers up or down.

Zoom Move two fingers apart or toward each

other.

Rotate • Move two fingers in opposing

directions

• Use one finger to pivot around the
other.

EP-Series Ultra HD LCD Displays User Guide 51

LAN Control

LAN Control

The Planar EP-Series supports extending access to the RS232 commands over a
network connection using a virtual COM port (VCOM). The VCOM driver installer is
included on the USB drive that came with your display.

Note: RS232 commands over LAN can be achieved by opening a TCP connection to Port 23

to the display. The LAN control functionality is most frequently used by control systems, and
they won’t be able to use the VCOM drivers

Supported Operating Systems

The utility supports the following operating systems:

• Windows XP

• Windows Vista

• Windows 7

• Windows 8 and 8.1

52 EP-Series Ultra HD LCD Displays User Guide

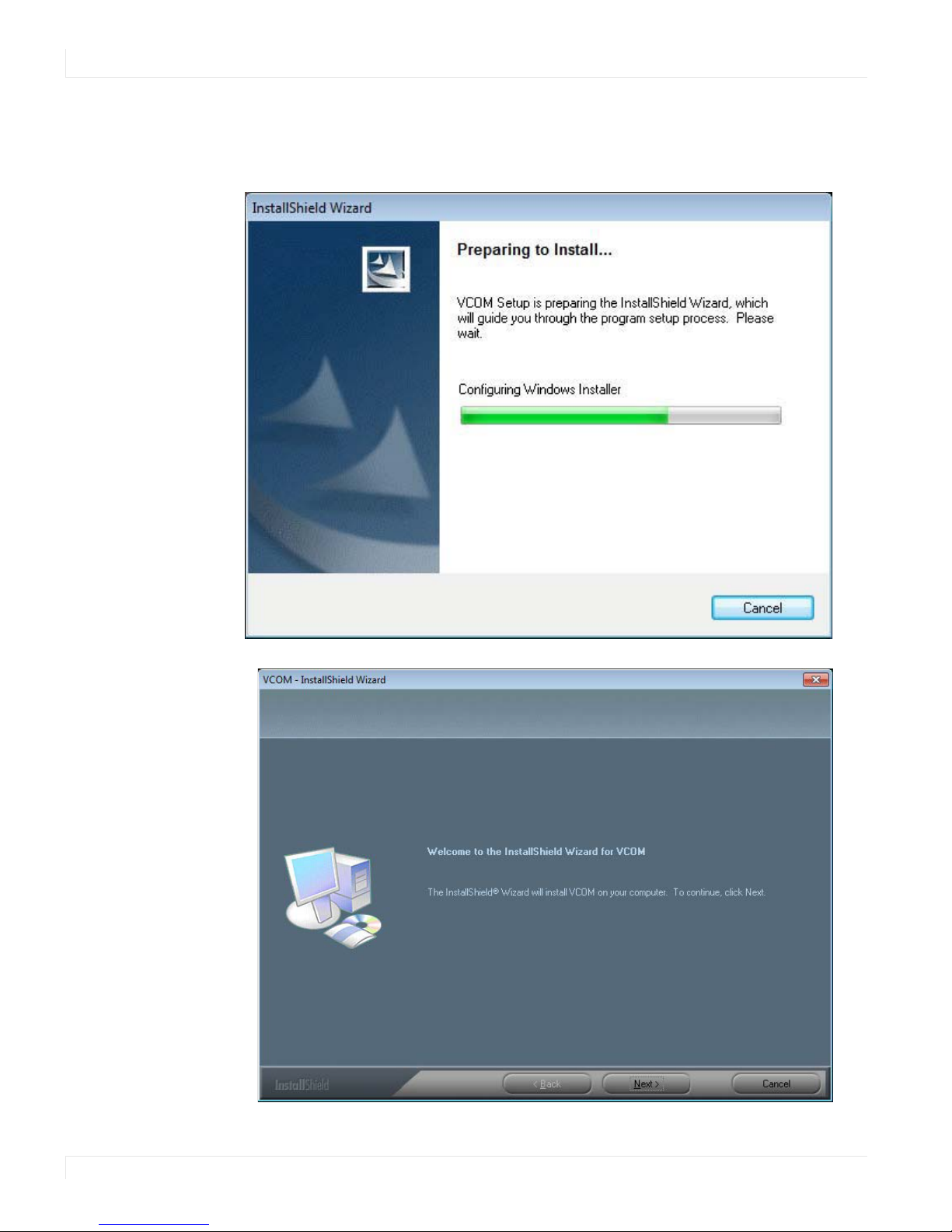

Installation

Installation

Use the following instructions to install the VCOM driver.

1 Launch the vcomsetup.exe file.

2 You may see a security warning similar to the following example. Click Run to

continue.

EP-Series Ultra HD LCD Displays User Guide 53

Installation

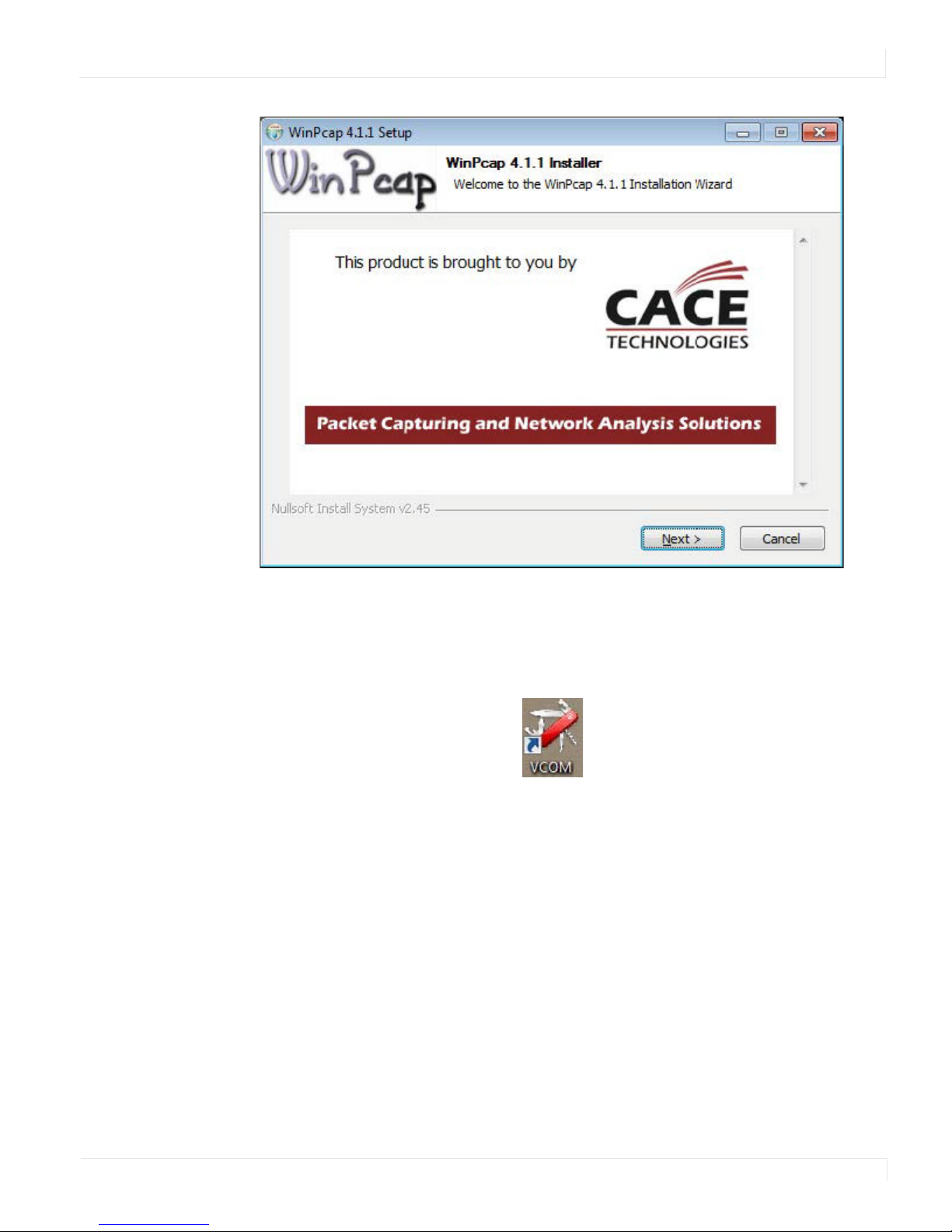

3 The vcomsetup.exe installer installs both the VCOM virtual serial port and also a

utility (WinPcap) for finding your displays on the network. Follow the steps in the
two installers, accepting defaults and license agreements as needed.

54 EP-Series Ultra HD LCD Displays User Guide

Installation

4 When the installers are finished, you will see a VCOM icon on your desktop and

you find two new folders in your start menu: IC Plus corp (with VCOM sub folder)
and WinPcap. If you need to uninstall the software, there are shortcuts to uninstall
from these menus.

EP-Series Ultra HD LCD Displays User Guide 55

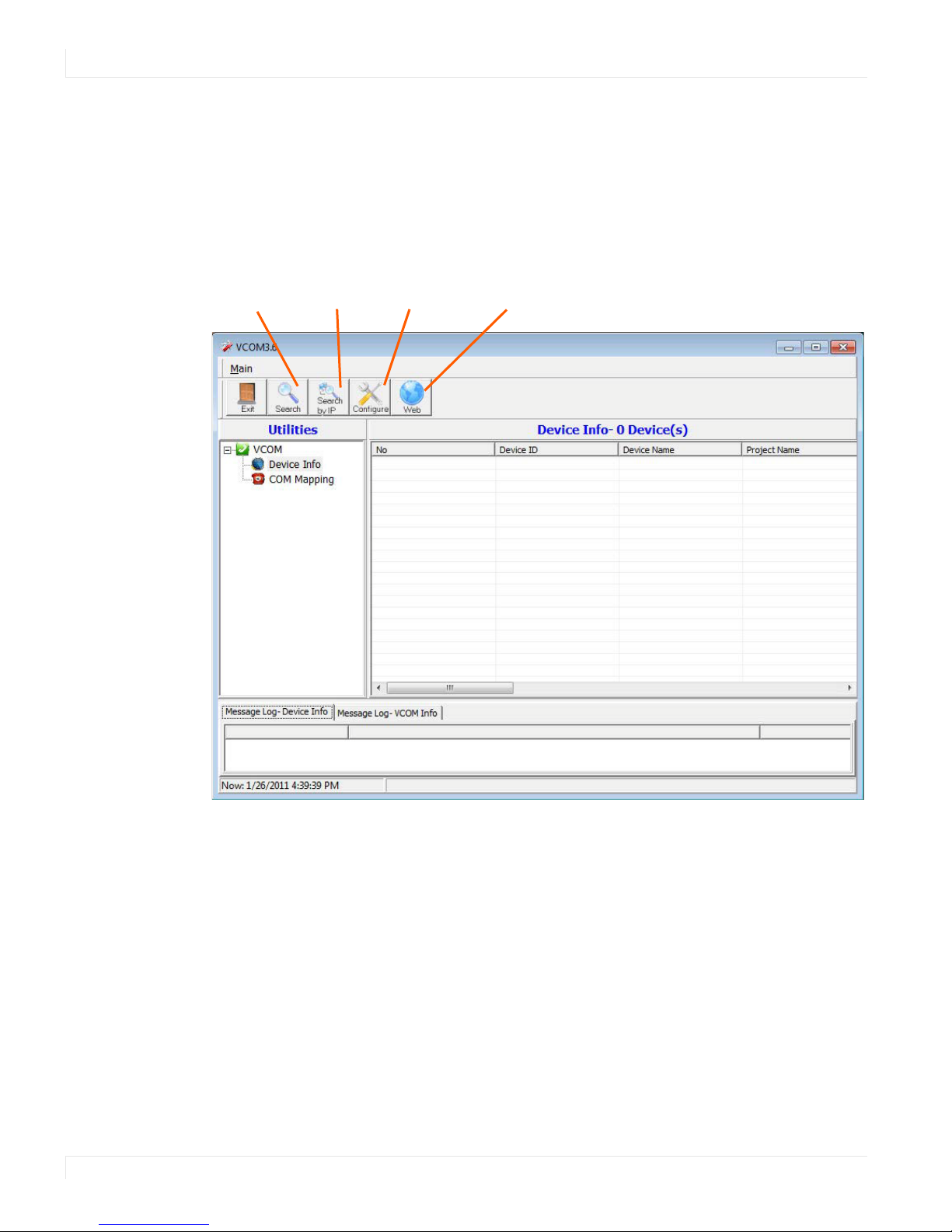

Configuring VCOM

Open a browser
and link to the
display’s web
service

Configure the
display’s IP
address

Search by
IP address

Search for the
display’s in same
domain

Configuring VCOM

Use the VCOM shortcut to launch the VCOM setup utility. The utility starts up on the
Device Info page, shown below. The controls on this page allow you to find and
configure each display that you want to access via virtual COM ports.

56 EP-Series Ultra HD LCD Displays User Guide

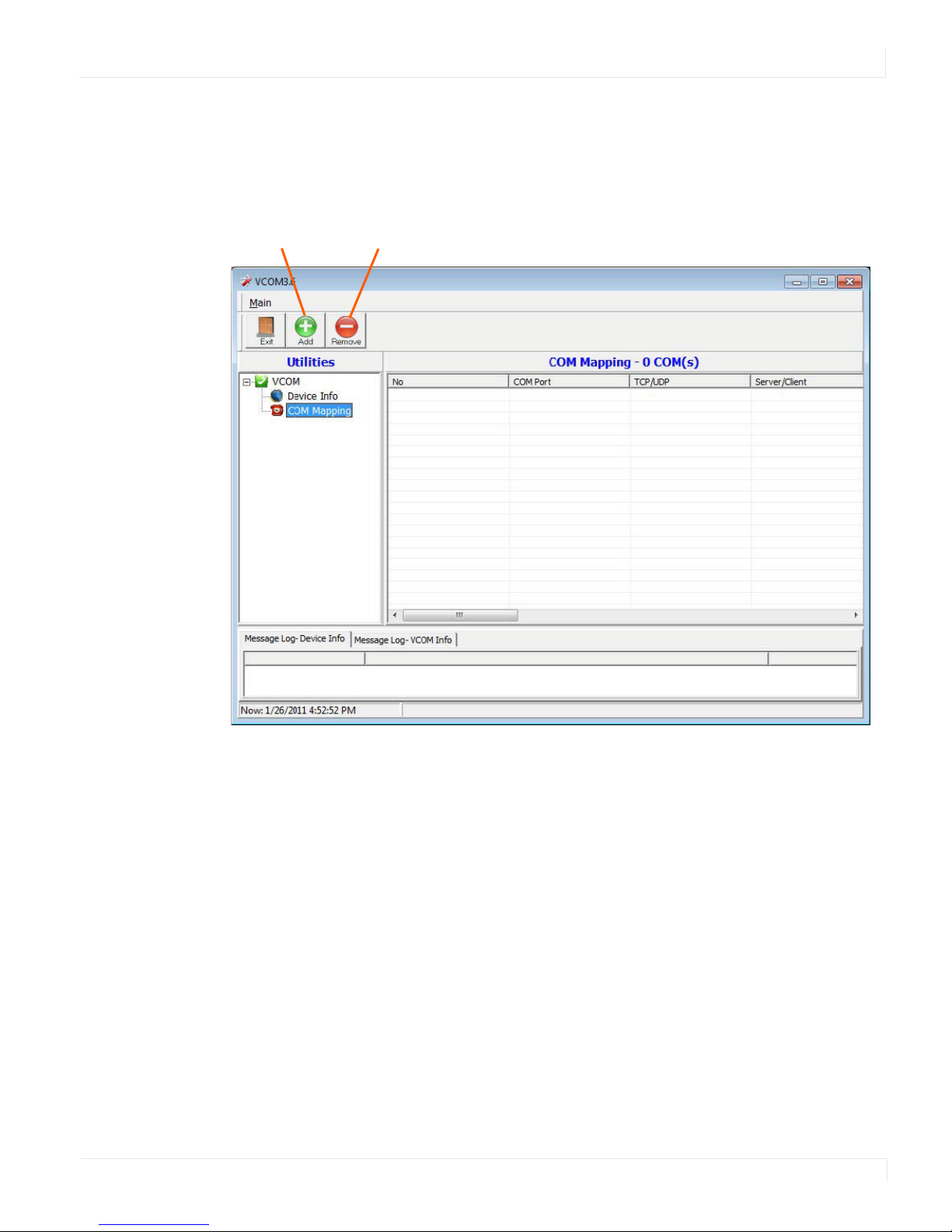

Configuring VCOM

Create a
virtual
COM port

Remove an
existing virtual
COM port

Click on COM Mapping to display the COM Mapping page, shown below. The
controls on this page allow you to make virtual COM ports and select the display to
which you want to map each virtual COM port.

EP-Series Ultra HD LCD Displays User Guide 57

Function Descriptions

Function Descriptions

Search

In the Device Info page, click the Search icon. This function searches for any devices
that are connected to the same network segment (maximum of 254 devices) as your
PC. Any devices found will be listed in the Device Info table.

Search By IP

On the Device Info page, click the Search by IP icon. This function searches for any
devices in the given IP address range. Any devices found will be listed in the Device
Info table.

58 EP-Series Ultra HD LCD Displays User Guide

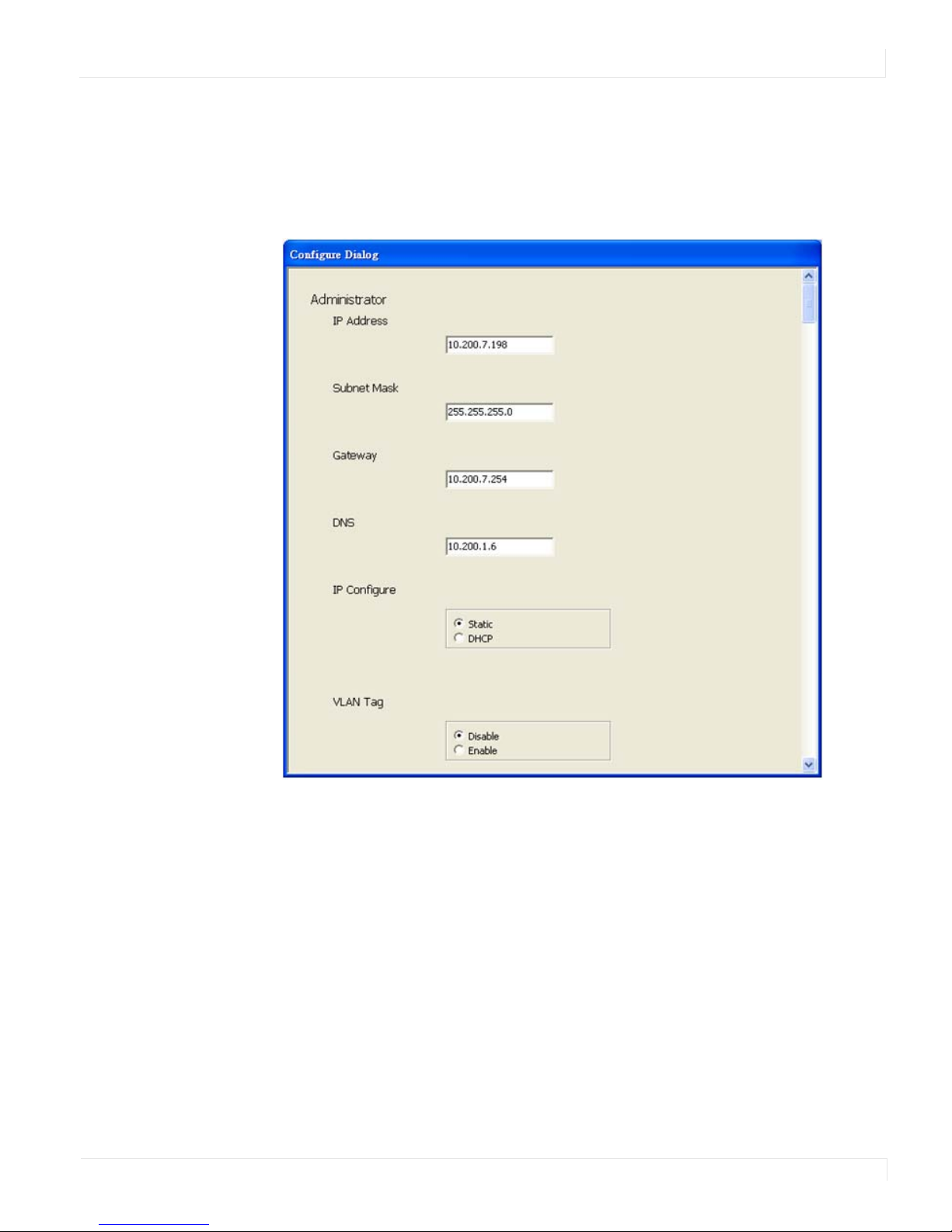

Configure IP Address

This function allows you to configure the network settings of the selected device. We
recommend using the on-screen menus or the web interface described in the User
Guide instead of this function.

Configure IP Address

Note: To cancel this function, scroll to the bottom and click the Cancel button.

Web

Click the Web icon to launch your default browser and link it to the display’s web
service.

EP-Series Ultra HD LCD Displays User Guide 59

Adding a Virtual COM Port

Adding a Virtual COM Port

To add a virtual COM port, click the Add icon on the COM Mapping page to open the
following dialog window.

Select the display you want to control from the table and accept defaults, as shown.
Make a note of the COM number assigned to the new VCOM port. Click OK to create
the new port. The new port appears in the COM Mapping table.

60 EP-Series Ultra HD LCD Displays User Guide

Removing a COM Port

You can view details for the virtual COM port device using Device Manager, shown
below.

Removing a COM Port

On the COM Mapping page, select the COM port you want to delete and click the

REMOVE button.

EP-Series Ultra HD LCD Displays User Guide 61

Setting Up Email Alerts

Setting Up Email Alerts

The web service allows you to configure the settings required to send email alerts. If
you are not using email alerts, you do not need to use the web service and can skip
this section.

Login

When you direct your browser to the network IP address of the display, you are
prompted to login as shown here.

The default ID is admin and the default password is system.

Note: Cookies and JavaScript must be enabled in your browser.

Note: If your session times out or if you enter an incorrect ID or password, you will see the

following message.

62 EP-Series Ultra HD LCD Displays User Guide

When you first login, you will see the System Status page, as shown here.

Login

EP-Series Ultra HD LCD Displays User Guide 63

Administrator

Administrator

Click on the word Administrator under the Planar logo to show/hide these menu
items.

Authentication Configuration

Set user ID and password for login to the web service.

System IP Configuration

You can view and/or change the network settings here. However, for best results, we
recommend that you use the on-screen display menus.

If your network requires a VLAN tag, your network administrator will give you a
number from 1 to 4094 to enter here.

64 EP-Series Ultra HD LCD Displays User Guide

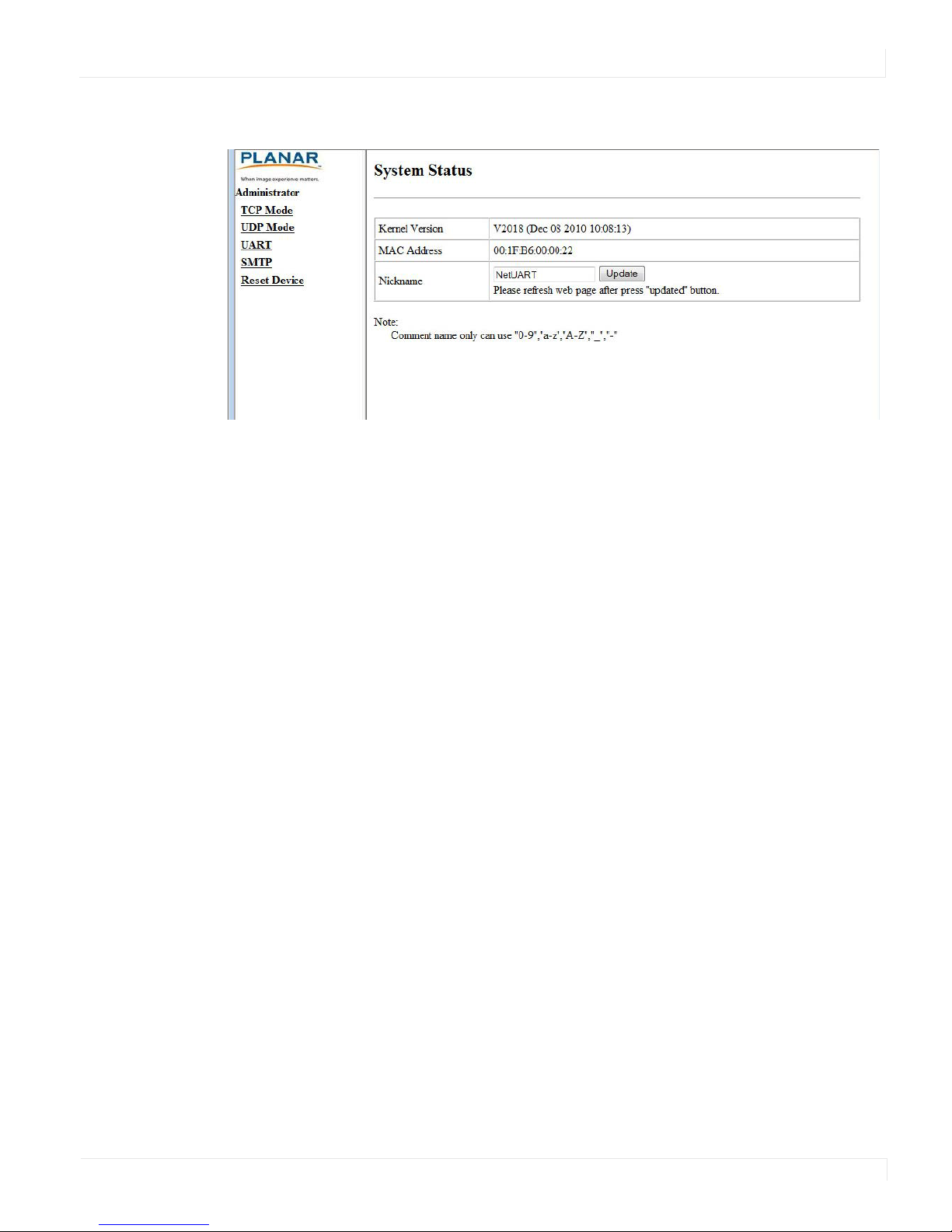

System Status

System Status

• Kernel version - Shows the firmware version for the network interface.

• MAC Address - Shows the unique address assigned to the network interface.

• Nickname - Enter a device tag, up to 12 characters. This tag will appear in email

alerts, which help you identify the source of the alert.

Load Default Setting

1 Click the LOAD button to return the network interface to default settings.

2 After a few seconds, you will see a green box with the message “Setting Saved

RESET.” Click the

RESET button to restart the network interface.

EP-Series Ultra HD LCD Displays User Guide 65

Firmware Update and Boot Loader Upgrade

3 Make sure the IP address in your browser is correct and then click OK.

4 When the process is complete, you should see the login page again.

Firmware Update and Boot Loader Upgrade

In most cases, you will not need to update firmware for the network interface. If you
do, contact Planar’s Technical Support Department. See "Accessing Planar’s Technical
Support Website" on page 74 for more information.

WARNING! Do not use the controls in these two sections unless you have received a specific

procedure and firmware from Planar. Following improper procedures can disable the net­work interface and require factory repair service.

66 EP-Series Ultra HD LCD Displays User Guide

TCP Mode, UDP Mode and UART

For normal operation, you will not need to change any settings on these pages. If you
do need to change information, Planar’s Technical Support Department will provide
you with more information.

SMTP

TCP Mode, UDP Mode and UART

EP-Series Ultra HD LCD Displays User Guide 67

Reset Device

Your network administrator must provide information for the following fields:

• Enable SMTP - Make sure this checkbox is checked. Port 25 is the default.

• SMTP Server Address - Name or IP address of the mail server.

• SMTP Login Information - If required, check the ENABLE box and enter a
username and password.

• Mail to - Enter the destination email addresses. Separate multiple addresses
with a semi-colon.

• Mail from - Enter the email address from which you want to send alerts.

You can edit the subject and body of the email warnings, which are sent when there
is a power status change, source change and signal lost. The SMTP 04 and 05
warnings are not used.

Reset Device

Click the RESET button to reboot the network interface. Note that the current
settings are not changed.

68 EP-Series Ultra HD LCD Displays User Guide

Signal Compatibility

Signal Compatibility

Signal

Typ e

PC 640x48060 31.46925.175xxxVESA DMT, CEA-861-E Format 1

Resolution

640x48072 37.86131.500xxxVESA DMT

640x48074.9937.50031.500xxxVESA DMT

640x48085 43.26936.000xxxVESA DMT

800x60056.2535.15636.000xxxVESA DMT

800x60060.3237.89040.000xxxVESA DMT

800x60072 48.07750.000xxxVESA DMT

800x60075 46.87549.500xxxVESA DMT

800x60085.0653.67456.250xxxVESA DMT

1024x76860 48.36365.000xxxVESA DMT

1024x76870 56.47675.000xxxVESA DMT

1024x76875.0360.02378.750xxxVESA DMT

1024x76885.0368.67794.500xxxVESA DMT

1152x86475 67.500108.000xxxVESA DMT

1280x72059.9844.44464.000xxxVESA CVT-R

(Hz)

Frame rate

Line Rate

(kHz)

(MHz)

Pixel Rate

RGB

HDMI -

RGB

RGB

VGA -

DisplayPort -

References

1280x72059.8644.77274.500xxxVESA CVT

1280x72074.7856.45695.750xxxVESA CVT

1280x76860 47.468.250xxxVESA DMT

1280x76860 47.77679.500xxxVESA CVT

1280x80059.9149.30671.000xxxVESA CVT-R

1280x80059.8149.70283.000xxxVESA CVT

1280x102460.0263.981108.000xxxVESA DMT

1280x102475.0279.976135.000xxxVESA DMT

1280x102485.0291.146157.500xxxVESA DMT

1360x76860 47.71285.500xxxVESA DMT

1400x105060 64.7101.000xxxVESA CVT-R

1400x105060 65.317121.750xxxVESA CVT

1440x90059.90155.46988.750xxxVESA CVT-R

1440x90059.8855.935106.500xxxVESA CVT

1600x120060 75.000162.000xxxVESA DMT

EP-Series Ultra HD LCD Displays User Guide 69

Signal Compatibility

Signal

Typ e

PC 1680x105059.88355.469119.000xxxVESA CVT-R

EDTV 480p 60 31.469 27.000 x x ITU-R BT.1358, CEA-861-E Format 17

HDTV 1080i 50 28.125 74.500 x x SMPTE 274M, CEA-861-E Format 20

Resolution

1680x105059.95465.290146.250xxxVESA CVT

1920x108060 66.587138.500xxxVESA CVT-R

2560x1440 59.951 88.787 241.500 x x VESA CVT-R

2560x1600 59.972 98.713 268.500 x x VESA CVT-R

3840x2160 24 52.438 209.750 x x VESA CVT-R

3840x2160 30 65.688 262.750 x x VESA CVT-R

3840x2160 50 110.500 442.000 x VESA CVT-R

3840x2160 60 133.313 533.250 x VESA CVT-R

576p 50 31.250 27.000 x x SMPTE 125M, CEA-861-E Format 6 &

1080i 60 33.750 74.250 x x SMPTE 274M, CEA-861-E Format 5

Frame rate

(Hz)

Line Rate

(kHz)

(MHz)

Pixel Rate

RGB

HDMI -

RGB

DisplayPort -

RGB

VGA -

& 18

7

References

720p 50 37.500 74.250 x x SMPTE 296M, CEA-861-E Format 19

720p 60 45.000 74.250 x x SMPTE 296M, CEA-861-E Format 4

1080p 24 27.000 74.250 x x SMPTE 274M, CEA-861-E Format 32

1080p 25 28.125 74.250 x x SMPTE 274M, CEA-861-E Format 33

1080p 30 33.750 74.250 x x SMPTE 274M, CEA-861-E Format 34

1080p 50 56.250 148.500 x x SMPTE 274M, CEA-861-E Format 31

1080p 60 67.500 148.500 x x SMPTE 274M, CEA-861-E Format 16

UHDTV 3840x2160 24 54.000 297.000 x x SMPTE ST 2036-1:2009, HDMI 1.4b

VIC 1

3840x2160 25 56.250 297.000 x x SMPTE ST 2036-1:2009, HDMI 1.4b

VIC 2

3840x2160 30 67.500 297.000 x x SMPTE ST 2036-1:2009, HDMI 1.4b

VIC 3

3840x2160 50 112.500 594.000 x CEA-861-F Format 96

3840x2160 60 135.000 594.000 x CEA-861-F Format 97

70 EP-Series Ultra HD LCD Displays User Guide

Specifications

Item Model Specification

LCD panel Resolution 3840 x 2160

Aspect Ratio 16:9

Screen Size 58”

Orientation Landscape/Portrait

Specifications

Brightness (typ.)

Contrast Ratio 3000:1

Viewing Angle (Typ.) 178°

Response Time 6.5 ms

Color Gamut 72% NTSC

Display Color 1.07G colors

Pixel Pitch 0.334(H) x 0.334(V)

Auto Brightness

Control

Features OPS Slot, On/Off Scheduling, TAA Compliant

Touch Touch Technology EP5814K-T 6 pt IR

Supporting OS EP5814K-T Windows 8, 7, Vista, XP, Mac OSX, and Linux

Connectivity Standard Inputs HDMI x 4 / DisplayPort / VGA / IR

Audio Input PC Audio In (Jack)

450 cd/m

Ambient Light Sensor

2

Audio Output R/L Line Out (Jack)

Control and

Monitoring

LAN RJ45, RS232 In, IR, Keypad (lockable)

EP-Series Ultra HD LCD Displays User Guide 71

Specifications

Mechanical Display Weight EP5814K Display Weight: 84 lbs (36 kg);

Shipping Weight: 97 lbs (44 kg)

EP5814K-T Display Weight: 112 lbs (51 kg);

Shipping Weight: 130 lbs (59 kg)

Mounting VESA 400 mm x 200 mm

Display Dimensions EP5814K 51.2” x 29.6” x 3.2” (1300.7 mm x 752.1 mm x 80.1 mm)

EP5814K-T 51.8” x 30.1” x 3.8” (1315.0 mm x 764.2 mm x 96.2 mm)

Bezel Width EP5814K 0.6” (14.0 mm)

EP5814K-T 0.7” (19.3 mm)

Enclosure Metal, Industrial

Fanless Yes

Speakers 10W x 2 Built-In

Usage Recommended Usage Up to 24x7 Operation

Backlight E-LED

Backlight Life 30,000 Hours Min

Power

Source

Input Voltage/

Frequency

Environment Storage Temperature

Operating

Tem pe rat ure

Humidity 20~90% RH

Approvals FCC Class A, UL, CE

AC 100V~240V; 50-60 Hz

Min -4°F ~ Max

140° F (-20°C ~ Max 60°C)

Min 32°F ~ 104°F (0°C ~ Max 40°C)

10,000 ft (3000 m) altitude

72 EP-Series Ultra HD LCD Displays User Guide

Troubleshooting

Before calling service personnel, please check the following table for a possible cause
of the problem you are experiencing. Please note the following:

• Perform the adjustments according to "Operating the Display" on page 19.

• If the problem you have experienced isn’t described below or you can’t correct
the problem, stop using the display and contact Planar’s Technical Support
Department. (See "Accessing Planar’s Technical Support Website" on page 74)

Issue Check for the following

No image is displayed Make sure the correct source is selected.

Make sure the main power switch is turned ON.

Check that the source equipment is operating correctly.

Troubleshooting

Make sure the input signal is compatible with this display.

The image is not centered Make sure the input signal is compatible with this display.

The remote control doesn’t
work

The picture color looks poor Check the picture settings.

Make sure the batteries are new and are installed correctly.
Ensure the remote is aimed at the IR sensor.

Make sure the remote control sensor is plugged in
correctly.

Make sure the remote is aimed towards the back of the
display, where the sensor is located.

Reset the display.

If you are using YUV terminals, make sure cables are
correctly connected.

Check ADC calibration.

EP-Series Ultra HD LCD Displays User Guide 73

Accessing Planar’s Technical Support Website

Accessing Planar’s
Technical Support
Website

Go to http://www.planar.com/support to locate the following support documents
and resources:

• User Guide

• RS232 User Manual

• Touchscreen drivers

• Standard warranties

• Planar support hotline number and email

74 EP-Series Ultra HD LCD Displays User Guide

Index

A

accessory kit, 10
adjusting volume, 26
administrator in web service, 64
audio settings menu, 27
authentication configuration page, 64
avoiding temporary image retention, 4

B

basic settings menu, 27
batteries

changing in the remote, 25

C

cable clamps

installation, 12
cleaning the display, 7
Connecting the Touchscreen, 48
cooling requirements, 6

D

default setting

loading in web service, 65
dimensions, 13
display settings menu, 27

E

exemptions for product use, 8

I

image settings menu, 27
input source

selecting, 26

installation, 16

cable clamps, 12
HD-SDI board, 19
OPS expansion slot, 18

safety precautions, 3
introduction, 1
ip system configuration, 64

L

LAN control, 52
locking, 24

M

menus

audio settings, 27

basic settings, 27

display settings, 27

image settings menu, 27

using, 26

N

navigating, 26
navigating menus, 26
network interface

resetting, 68
normal usage guidelines, 6

H

HD-SDI board

installing, 19

O

OPS expansion slot

installation, 18
osd menus, 24, 26

unlocking, 24

EP-Series Ultra HD LCD Displays User Guide i

Index

P

package contents, 8
product usage

exemptions, 8

R

recommended usage, 4
remote control

changing the batteries, 25

using, 22
resetting the network interface, 68
RS232 network connection, 52

S

safety

during installation, 3

information, 2

precautions, 2

precautions during use, 4
selecting input source, 26
service plans, ii
signal compatibility, 69
signal source input, 18
SMTP setup page, 67
specifications, 71
supported timings, 69
system ip configuration page, 64
system status page, 63, 65

U

unpacking the displays, 8
using the remote, 22

V

VCOM

configuration, 56

driver installation, 53
vesa mounts, 6
volume, 26

W

warranty

exemptions, 8

information, ii
web service, 62

administrator, 64

authentication configuration, 64

loading default setting, 65

reset device, 68

SMTP setup page, 67

system ip configuration, 64

system status, 63

system status page, 65

T

temporary image retention

avoiding, 4

definition, 4
timings, 69
TIR

see temporary image retention

touchscreen

using the touchscreen, 48
troubleshooting, 73
turning off the displays, 26
turning on the displays, 25

ii EP-Series Ultra HD LCD Displays User Guide
