Planar EL640.480-AM User Manual

EL640.480-AM Series ICEBrite™ EL VGA Displays

USER’S MANUAL

www.planar.com

Contents

AM Series 10.4" VGA Flat Panel Displays ...........................................................................................................3

Features.................................................................................................................................................................... 3

Options .....................................................................................................................................................................4

Installation and Handling........................................................................................................................................4

Mounting .................................................................................................................................................................4

Cable Length...........................................................................................................................................................5

Cleaning ...................................................................................................................................................................5

Avoiding Burn-In ...................................................................................................................................................5

Specifications ..............................................................................................................................................................6

Power.........................................................................................................................................................................6

Input Voltage Selection .................................................................................................................................

Connectors ..............................................................................................................................................................7

AM1 Data and Power Connector................................................................................................................7

AM8 Data and Power Connector................................................................................................................

Locking Power and Data Connector .........................................................................................................9

Dimming Connector J2..................................................................................................................................

Interfacing ...............................................................................................................................................................9

Video Input Signals........................................................................................................................................10

Self-Test Mode......................................................................................................................................................12

Optical Performance..........................................................................................................................................13

Dimming ...........................................................................................................................................................13

Grayscale...........................................................................................................................................................

Reliability................................................................................................................................................................14

Safety and EMI......................................................................................................................................................14

Environmental......................................................................................................................................................15

Mechanical Characteristics..............................................................................................................................15

Component Envelope .......................................................................................................................................16

Description of Warranty ........................................................................................................................................17

Ordering Information.............................................................................................................................................18

Support and Service................................................................................................................................................18

Figures

Figure 1. AM1 Data/Power Connector...........................................................................................................7

Figure 2. AM8 Connector Locations............................................................................................................... 8

Figure 3. Video Input Timing Diagram........................................................................................................10

Figure 4. Setup and Hold Timing Diagram. ...............................................................................................11

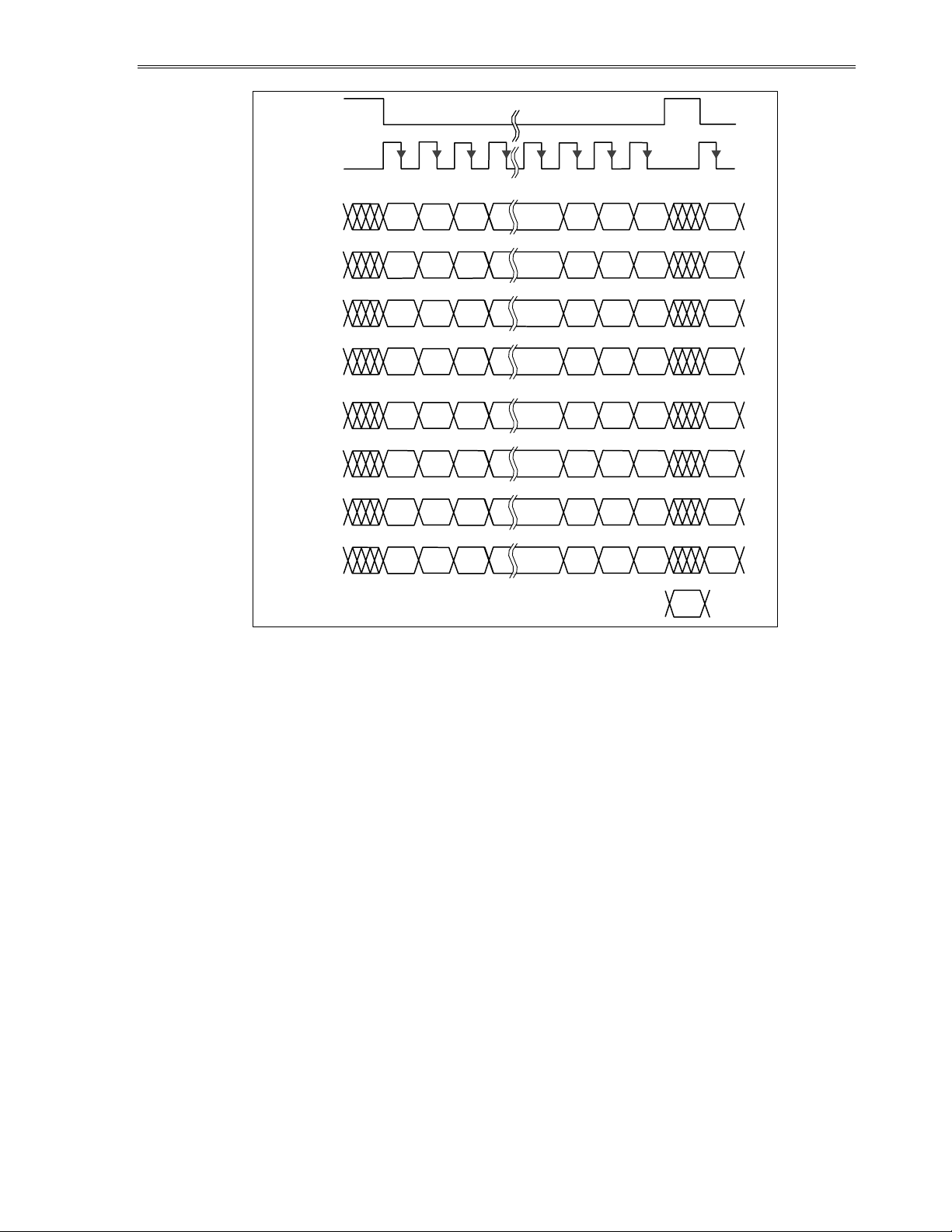

Figure 5. Data Format........................................................................................................................................12

Figure 6. AM Series Dimensions.....................................................................................................................16

Tables

Table 1. DC Input Voltage Requirements. ....................................................................................................6

Table 2. Video Input Requirements. ...............................................................................................................6

Table 3. J1 Connector Pinouts.......................................................................................................................... 8

Table 4. Video Input Timing. ...........................................................................................................................10

Table 5. Setup and Hold Timing.....................................................................................................................11

Table 6. Optical Characteristics......................................................................................................................13

Table 7. Environmental Characteristics.......................................................................................................15

Table 8. Dimensions and Weight...................................................................................................................15

AM Series 10.4” VGA Flat Panel Displays

This manual supports these Planar ICEBrite displays:

• EL640.480-AM1

• EL640.480-AM1 AG

• EL640.480-AM8 IN (Industrial version)

• EL640.480-AM8 ET (Extended Temperature version)

• EL640.480-AM8 ET CC (ET with conformally coated board)

• EL640.480-AM8 ETL (Extended Low Temperature version)

• EL640.480-AM8 ETL CC (ETL with conformally coated board)

The AM series of 10.4" diagonal VGA products offers designers an affordable and easily-implemented path to incorporate flat panel solutions to meet display requirements.

Utilizing Planar’s proprietary ICEBrite technology (Integrated Contrast and Brightness Enhancement), these displays excel in ambient light environments ranging from dark rooms to nearly sunlight. This proprietary technology achieves very high contrast and exceptionally clear images. These displays are easy to integrate, enabling the quick replacement of existing LCDs. This family utilizes a common 8-bit FPD-type interface compatible with most LCD video controller chips. Up to five distinct gray levels are enabled by frame rate modulation algorithms generated by the controller chips.

Features

Through simple design and advanced manufacturing technologies, Planar’s new VGA displays bring the visual performance and image quality of electroluminescence (EL), long life, and ruggedness into cost-sensitive

applications.

• Excellent viewing characteristics

• High brightness and contrast

• Wide viewing angle

• Long life

• Extreme ruggedness

• Designed for low EMI

• Fast response time

• Lower power

EL640.480-AM Operations Manual (020-0351-00C)

Options

Anti-glare and conformal coating options are available on this display.

The anti-glare option adds an anti-glare film to the front of the display to reduce specular reflections (see Application Note 135 for more information).

The conformal coating option adds a protective layer to the display for applications in which the display may be subjected to high humidity, dust, or salt mist (see Application Note 122 for more information).

Installation and Handling

The mechanical package consists of the display panel and electronic circuit board bonded together, plus a protective cover carrying the display mounting ears. The display is made of glass material and must be handled with care.

CAUTION: The display uses CMOS and power MOSFET devices. These components are electrostatic sensitive. Unpack, assemble, and examine this assembly in a static-controlled area only. When shipping, use packing materials designed for protection of electrostatic-sensitive components.

Do not drop, bend, or flex the display. Do not allow objects to strike the surface of the display.

Mounting EL Displays

The EL640.480 AM displays were designed to facilitate the mounting of optical treatments and touchscreens on the viewing side of the display. To this end, the glass extends in front of the mounting bezel by approximately 0.5 mm (0.02 in.). It is imperative that any mounting scheme apply uniform pressure at all times across the glass. Pressure applied to the corners or edge of the glass is likely to cause breakage.

Mounting should be done using the mounting ears only. Use either metric M3 screws torqued to 350 Ncm maximum, or unified #4 screws torqued to 4.7 in/lb maximum.

CAUTION: Properly mounted, this display can withstand high shock loads and severe vibration in aggressive environments. However, the glass panel used in this display will break when subjected to bending stresses, high impact, or excessive loads.

To prevent injury in the event of glass breakage, a protective overlay should be used on the viewer side of the display.

WARNING: These products generate voltages capable of causing personal injury (high voltage up to 200 Vac ). Do not touch the display electronics during operation.

EL640.480-AM Operations Manual (020-0351-00C)

Cable Length

The maximum recommended cable length is 600 mm (24 in.). Longer cables may cause data transfer problems between the data transmitted and the display input connector. Excessive cable lengths can pick up and source unwanted EMI. There are third party products which allow this maximum cable length to be exceeded. Contact Planar Application Engineering for more information.

Cleaning

As with any glass or coated surface, care should be taken to minimize scratching. Clean the display glass with mild, water-based detergents only. Apply the cleaner sparingly to a soft cloth, then wipe the display. Disposable cleaning cloths are recommended to minimize the risk of inadvertently scratching the display with particles embedded in a re-used cloth. Particular care should be taken when cleaning displays with anti-glare and anti-reflective films.

The TAB (tape-automated bonding) leads between the electronics and the display glass are very sensitive to handling. When cleaning the edges of the display glass, special care should be taken not to damage the leads.

Avoiding Burn-In

As with other light emitting displays, displaying fixed patterns on the screen can cause burn-in, where luminance variations can be noticed. Use a screen saver or image inversion to avoid causing burn-in on the display.

EL640.480-AM Operations Manual (020-0351-00C)
