Planar E2c Display User Manual

Dome E2c Display

User’s Guide

© 2006 Planar Systems, Inc. All rights reserved.

Information in this document has been carefully checked for accuracy; however, no
guarantee is given to the correctness of the contents. This document is subject to
change without notice. Planar provides this information as reference only. Reference
to other vendors’ product does not imply any recommendation or endorsement.

This document contains proprietary information protected by copyright. No part of
this manual may be reproduced by any mechanical, electronic, or other means, in
any form, without prior written permission of the manufacturer.

Planar, Dome, Dome E2c, Dome CXtra, RightLight are either registered trademark or
trademarks of Planar Systems, Inc. All other trademarks are the property of their
respective owners.

020-0459-00A

Contents

Product Information iv

About the Display 1

Installing the Display 5

Appendix 10

Index 19

Regulatory Compliance 20

Standard Warranty 25

iii

Product Information

The design of the Dome E2c digital display takes into account every
known measure to ensure your personal safety. Improper use of
the display can result in electric shock, fire, or damage to the display.
Read all instructions before setting up the display.

Classification:

Shock Protection: Class I.

Degree of Protection Against Electric Shock: No applied part.

Degree of Protection Against Harmful Ingress of Water:
Ordinary equipment (IPX0).

Degree of Safety in the Presence of Flammable Anaesthetic
Mixture with Air or with Oxygen or Nitrous Oxide:
Not suitable for use in the presence of a flammable
anaesthetic mixture with air or with oxygen or nitrous oxide.

Mode of Operation: Continuous.

Important recycle instruction:

LCD lamp(s) inside this product contain mercury. This
product may contain other electronic waste that can be
hazardous if not disposed of properly. Recycle or dispose
in accordance with local, state, or federal laws. For more
information, contact the Electronic Industries Alliance at

WWW.EIAE.ORG. For lamp-specific disposal information, check
WWW.LAMPRECYCLE.ORG.

iv | Dome E2c Display

Symbol explanations

DISPOSAL. Do not use household or municipal waste

collection services for disposal of electrical and
electronic equipment. EU countries require the
use of separate recycling collection services.

CAUTION. Read the accompanying text carefully, for

proper operation and maintenance of the display
system.

DANGEROUS VOLTAGE. Important precautions about

electric shock. Read the accompanying text carefully,
to prevent damage to components of the display
system and for your safety.

DIRECT CURRENT.

BAROMETRIC PRESSURE.

Transport and storage 12,000 m

(39,400 ft), maximum in unpressurized container.

RELATIVE HUMIDITY. Transport and storage <70%

(non-condensing).

TEMPERATURE. Transport and storage –20° to 60° C.

Intended use

The Dome E2c display is an AMLCD display designed for viewing
medical X-ray images. This unit should not be used near patients and
should be kept outside of 1.83 m perimeter and 2.29 m vertical.

This device must not be used in primary image diagnosis in
mammography.

CAUTION: Federal law restricts this device to sale by or on the order of

a medical practitioner.

Product Information | v

Safety precautions

External equipment intended for connection to signal input, signal
output, or other connectors, must comply with the relevant IEC standard
(EN/IEC 60601-1 series for medical electrical equipment). In addition, all
such combinations (systems) must comply with the standard IEC 60601-1-1,
Safety requirements for medical electrical systems.

Equipment not complying to IEC 60601 must be kept outside the patient
environment, as defined in the standard as at least 1.5 meters from the
patient or the patient support.

Any person who connects external equipment to signal input, signal output,
or other connectors has formed a system and is therefore responsible for the
system to comply with the requirements of IEC 60601-1-1. If in doubt, speak

with a qualified technician.

Safety tips

• Never open the display case, even when the power is off. Dangerous
voltage inside may cause electric shock or death.

• To avoid damage to the display, use the grounded power supply and
video cable supplied by Planar, or use certified replacements.

• Be sure the display is electrically grounded. You must connect the third
grounding pin on the US power cord to a grounded outlet. The European
power cord does not have a third grounding pin, but it must be plugged
into a grounded outlet.

• If you cannot insert the plug into the outlet you plan to use, have a
licensed electrician replace the outlet with a properly grounded outlet.
If the power cord connects directly into the computer, make sure the
computer is grounded.

• Keep the display dry if it is part of a surgical system. The display lacks
protection against liquids or spills.

• In locations where 240V outlets are used, connect the Dome E2c
display only to a center-tapped, 240V, single-phase supply (only for
Canada and the United States).

GROUNDING RELIABILITY CAN ONLY BE ACHIEVED WHEN EQUIPMENT IS
CONNECTED TO AN EQUIVALENT RECEPTABLE MARKED “HOSPITAL ONLY” OR
“HOSPITAL GRADE.”

vi | Dome E2c Display

Unpacking and handling tips

The Dome E2c display is a precision instrument that requires proper care to
maintain product operation and adherence to specification. Unpack the
display and components carefully, then set up and handle the unit properly
to avoid damage to the LCD panel.

• Use both hands to grasp the display case when lifting it from the shipping
carton, but avoid touching the screen.

• Do not apply pressure to the screen or touch the screen with bare fingers
or objects. Pressure can affect image quality. Cosmetics and oils on the skin
are both detrimental to the screen and difficult to remove.

• Allow the display to warm up to room temperature before turning it on.
Avoid sudden temperature changes in the environment, as this may cause
condensation, which damages the display.

• Secure the display properly onto a standard VESA 100-mm mounting unit if
you elect not to use the desk stand.

• Do not set up the display near strong light or heat sources.

• Do not block the vents on the back of the display or install the display in
a built-in enclosure. Blocked vents cause excessive heat to build up inside
the display, increasing risk of fire.

• When installing components, turn off your computer, but leave it plugged
into a grounded outlet.

• Do not remove the back cover or disassemble the display. There are
no user-serviceable parts inside.

Preventing fire and injury

• Replace the power supply or cables if damaged.

• Use only the power source indicated in this guide or listed on the display.

• Do not plug the power supply into an overloaded AC outlet or extension
cord. Overloaded AC outlets and cords can result in electric shock or fire.

• Do not drop or push objects into the display case. Internal components
contain high voltage.

• Unplug the power cord from the wall outlet during thunderstorms.

• Do not place magnetic devices, such as motors, near the display.

Product Information | vii

Cleaning the display

Observe the following guidelines to maintain the display and the LCD screen.

• Use a clean, lint-free, absorbent cotton cloth to clear off any residual glue
from removal of the protective film or to remove surface dust. Apply light
pressure to remove the dust.

• Dampen a clean cloth with a small amount of isopropyl alcohol to remove
glue or dust if the screen is still not clean. Do not saturate the cloth;
otherwise, alcohol may seep into the display case and collect in the
enclosure. Use a clean, dry cloth to completely remove the alcohol residue.

• Do not use chemically treated dust cloths, acetone, toluene, or harsh
solvents on the display case or the screen. They can damage the polarizer
and the display case.

• Do not expose the display to water or excessive moisture. Do not allow
water or other stains to stand on the unit. Wipe liquids off immediately to

prevent damage to the display case and the screen.

WARNING

DISCONNECT SUPPLY BEFORE SERVICING

AVERTISSEMENT

COUPER L’ALIMENTATION AVANT L’ENTRETIEN ET LE DEPANNAGE

viii | Dome E2c Display

Shipping/storing the display

Keep the display in its shipping container until installation. Return the display
to its original container whenever you need to store the unit, move it to
another location, or return it for repair. The packaging supplied by the
manufacturer protects the display while it is in transit. See environment
specifications for more information.

Before returning the display to the container, do the following:

1 Swivel the display panel in landscape mode.
2 Push the panel down to the lowest position.
3 Use the stand lock to anchor the panel.

Disposal information

Follow your local governing ordinance and recycling policy for
proper disposal or recycling of display components.

Product Information | ix

AMLCD panel mounted on desk stand

Display controller

DVI cable

Also included: Composite video, S-video, and VGA cables

DC power adapter Power cords

Display driver and

Quick reference

calibration software

About the Display

The Dome E2c display system offers a 541-mm (21.3-in) color
UXGA 1200x1600 AMLCD unit with a luminance output of 500 nits
minimum. The display connects directly to a controller board via a
Digital Visual Interface 1.0 interface. With AMLCD modules delivering
2-megapixel resolutions, the display’s thin film transistors operate in
a transmissive-type display using an integrated cold cathode
fluorescent tube (CCFT) high-bright backlight system.

This display is designed for medical imaging in diagnostic settings, in
portrait or landscape orientation. The unit produces 24-bit data per
pixels and comes fully tuned with gamma correction that complies
with the DICOM Part 14 Standard.

Bundled with the display system, the Dome CXtra software enhances
the functionality of the Dome E2c display with a range of value-added
services, such as DICOM calibration, error reporting, and backlight
saver. Network management of Dome displays running the Dome
CXtra software requires the Enterprise Management Service for
Dome CXtra. For more information, refer to Dome CXtra User’s Guide.

System Requirements

• Intel Pentium 4/Xeon; AMD Athlon 64/K7/XP or compatible

• PCI Express x16 lane slot

• 50 MB hard disk space

•256 MB RAM

•CD-ROM drive

• Power supply, 350 watts or greater

• Windows XP or Windows 2000 with Service Pack 4 or higher

Display Components

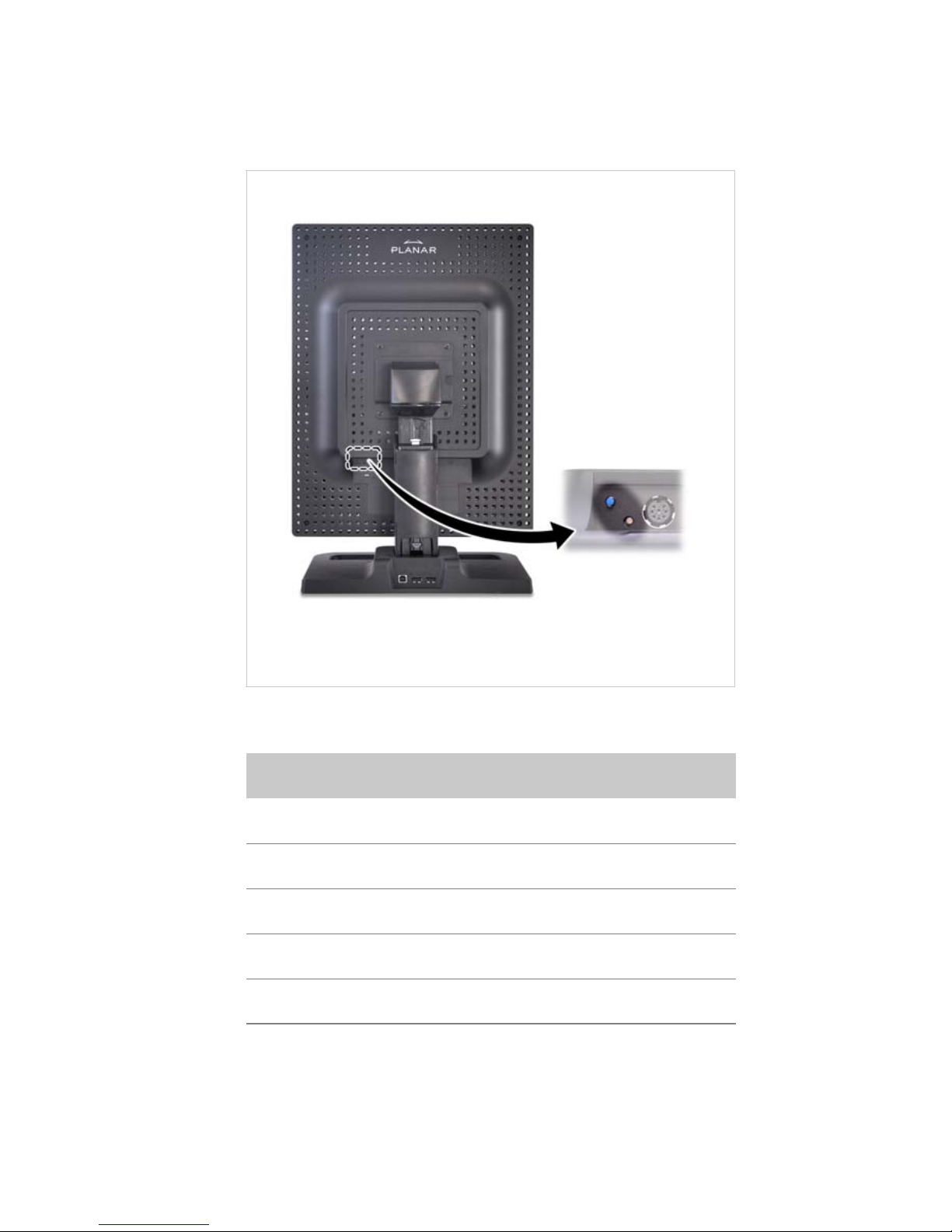

Review this illustration of the back panel to identify controls and
ports on the display unit.

2 | Dome E2c Display

143

2

5

6

7

Legend

1 Reset. Restores the display configuration to default.
2 LED. Shows display status.
3 DIN 8-pin connector. Drives power to the display.
4 S-Video, separate video analog input port. Requires a 4-pin

mini-DIN connector.

5 C-Video, composite video analog input port. Requires an RCA or

phono connector.

6 DVI. DVI-I video input port. Supports DVI-D digital or VDVI-A analog

video. Requires DVI connector.

7 VGA. VGA video analog inputport. Requires an HD15 D-Sub or

VGA connector.

Display Positions

You can adjust the tilt, height, viewing angle, and orientation of the
display to maintain an ergonomic and comfortable viewing position.
Make sure that your eyes are level with the top of the display cabinet
so that you look downward to read the screen contents. Select a
suitable workspace for the display. You need a stable, level, and
clean surface near a wall outlet.

Tilt range Height range

Adjust the tilt angle of the
display so that the screen faces
slightly down-ward from your
angle of view.

Unfasten the stand lock at the
top of the desk stand (slide it to
the left) then raise or lower the
panel to adjust the height.

Viewing angle Orientation mode

Swivel the display panel from
side to side to adjust the
viewing angle.

Use both hands to turn the
display 90 degrees counter­clockwise to move from
portrait to landscape modes.

About the Display | 3

Desk Stand Features

Unfasten the stand lock to adjust display height. Remove the stand
cover to thread the power cord and DVI cable connections to the
display. To activate the USB hub function, the display must be
connected to a USB-compliant computer or another hub with a USB
cable. Even if the display is in power-saving mode, the USB devices

function when connected to the USB ports of the display.

Stand height lock

Move the stand lock lever to
the left to adjust the height of
the display.

Stand cable cover

USB hub

Press the PUSH button at the
bottom of the desk stand and
pull the stand cable cover
down and out to remove it.

Use the integrated, bus­powered USB hub to attach
USB devices to the display
rather than to the computer.

4 | Dome E2c Display

Installing the Display

Before you install the display controller, remove any existing graphics
card and its driver from your system. Also disable any onboard
graphics capability on the motherboard.

Warning

• In locations where 240V outlets are used, connect the Dome E2c
display only to a center-tapped, 240V, single-phase supply (only for
Canada and the United States).

• Turn off the computer before installations. If you leave the computer on,
you could suffer electric shock or cause damage to system components.

• Remove the display controller slowly from its package and static-shielding
bag to prevent electrostatic discharge.

• Static electricity can damage the controller. When touching the board or
parts of the motherboard, take these precautions:

- Wear an antistatic wrist strap.

- Discharge your body’s static electricity repeatedly by touching the
power supply or the metal surface of the computer chassis.

Tips

• Access to ports. For displays mounted on a desk stand, rotate the LCD
panel from portrait to landscape for access to the ports.

• Threading cables. Remove the stand cover and thread the DVI cable and
power cord through the stand column. Make sure the cable and cord run
inside the notches. To reattach the cover, align the hooks with the slots on
the stand. Press the cover into place. A click sound signals a secure
connection.

• Multiple displays. Connect the first display of a two-headed system, or the
only display of a one-headed system, to the Video 1 port. Connect all
displays to the controller before you turn on the computer and install the
driver. Use two displays to view two images simultaneously or one image
across both displays.

Installing the Display | 5

Install the Display Controller

Before you install the AX1 display controller, make sure your display
system will be set up in a well-ventilated location with an adequate
amount of space. Excessive heat cannot dissipate when display vents
are blocked.

Turn off your computer and peripherals. Disconnect all the cables.
Leave the power cord plugged into the grounded outlet.

If you are installing multiple display controllers, install all boards
before you install the display driver.

To install the display controller

1 Remove the computer cover and then the blank bracket from

the available PCI Express slot.

2 Insert the display controller into the slot, align the connector pins,

and press the board down until it is firmly seated.

3 Secure the mounting bracket, and reattach the computer cover and

the peripherals.

Note

Diagnosis requiring DICOM calibration with the Dome CXtra
software can only be supported on the DVI-D interface.

6 | Dome E2c Display

Connect the Video and Power Cables

Use only the power adapter (Ault MW122KA1223F52), power cord,
and the video cable shipped with the Dome E2c display.

To connect the cables

1 Plug one end of the DVI cable into the DVI port on the connector

plate. Secure the connection.

2 Plug the power cord into the power input port on the plate.

3 Plug the other end of the DVI cable into the video port on the

installed display controller. Secure the connection. (Use Video 1
port for the first display of a dual setup or for a single display.)

4 Plug the other end of the power cord into the power adapter, and

then connect the power adapter to a grounded AC outlet.

5 Repeat steps 1 to 4 to connect a second display to the controller.

6 Power on the display first, then the computer.

Installing the Display | 7

Install the Display Driver

Upon restarting your computer system, you must log on with
administrator privileges. On Windows 2000 systems, Service Pack 4 or
higher must be installed.

To install the driver

1 Start the system. Click Cancel on the Found New Hardware Wizard.

Click No when the system prompts you restart the computer.

2 Insert the driver installation CD and run setup.exe.

3Click Next.

4 Click Yes to the license agreement. The installation starts.

5 Follow the onscreen instructions to complete the installation.

Planar recommends that you select the Express installation option.

6 When the Setup Complete message appears, select Yes, I want to

restart my computer now, and click Finish.

To configure the display

1 Right-click the desktop and select Properties > Settings.

2 Use the native resolution of the display.

3 Click OK until you return to the desktop.

8 | Dome E2c Display

Adjust Display Properties

Use the Display Properties dialog to make changes to the video
settings or to set up a dual-display configuration.

To set the display orientation

1 Right-click the desktop and select Properties > Settings.

2 Select the monitor that you want to change. Then click Advanced.

3 Click the Monitor tab. Make sure that the check box for Hide modes

that this monitor cannot display is empty (unchecked).

4 Click the Rotation tab.

> Check Standard landscape for landscape mode.
> Check Rotate 90 Left or Right for portrait mode.

5 Click Yes to save the setting. Then click OK until you return to

the desktop.

To use a dual-display configuration

1 Right-click the desktop and select Properties > Settings.

2 Click the monitor icon 2. Then select Extend my Windows desktop

onto this monitor.

3 Set the resolution and color quality for the second display.

4Click Apply or OK.

To set brightness

You can change the brightness of the Dome E2c display using the
Display Properties dialog of the Windows operating system. However,
when DICOM auto-calibration is running, you must control display
brightness via the Dome CXtra software.

Installing the Display | 9

Appendix

Troubleshooting

Dome E2c Specification

Video Modes

Video Timing

Connector Ports

LED Status Lights

Component Removal

Power Management

10 | Dome E2c Display

Troubleshooting

Problem Possible Cause Solution

No image appears on
the screen

Conflict with driver
version

Computer is not
powered on.

Power cord is not
securely connected.

Video cable
connected incorrectly.

A previous version of
the display driver is
still installed on the
computer system.

The installation CD
contains a file older
than the one currently
on your system.

Turn on computer.

Tighten power cord connection and turn
on computer.

Make sure the first display of a dual­headed system or the only display of a
single-headed system is connected to the
Video 1 port on the display controller.

Remove any existing display driver before
you install a more recent version.

The Confirm File Replace dialog box
appears if the installation CD contains
a file older than the one currently on
your system. Click No to the question
Overwrite the newer file? or click No to All.

Troubleshooting | 11

Dome E2c Specification

In locations where 240V outlets are used, connect the Dome E2c display only to a center­tapped, 240V, single-phase supply (only for Canada and the United States).

Category Characteristic Item Specification

Screen Screen size diagonal 541 mm (21.3 in.)

Native resolution 1200 x 1600 pixels (portrait & landscape)

Colors supported 16M colors, 24 bit

Refresh rate 60 Hz

Contrast ratio 900:1 (typical)

2

Brightness 500 cd/m

Viewing angle 178° (± 89°) horizontal/vertical

Interface Digital Video In DVI-D Rev. 1.0 single-channel connector

Analog Video In DVI-A or VGA; S-Video, Composite Video

Display control, brightness/contrast DDC2B+

minimum

Display identification EDID 1.3 read using DDC2B+

USB hub Universal Serial Bus (USB) Rev. 1.1:

1 uplink B port; 2 downlink A ports

Display status Bicolor LED on connector plate

Input Formats Landscape orientation 1600 x 1200

Portrait orientation 1200 x 1600

VGA/SVGA/XGA/SXGA 640 x 480 to 1280 x 1024 displayed in both

landscape and portrait rotations

S-Video & Composite modes NTSC, PAL, SOG

Screen type AMLCD (active matrix liquid crystal display)

Physical Display size (without stand) 483 mm x 375 mm x 112 mm

(19.0 in. x 14.8 in. x 4.4 in.)

Display weight (without stand) 5.44 kg (12 lb)

Mounting options Desktop stand with integrated USB hub (standard);

100-mm VESA mounting (optional)

Power
Requirements

12 | Dome E2c Display

Input voltage +12 V ±5%

Power consumption 120 Watts maximum

Power Supply

CAUTION: Use only the power adapter supplied with the Dome E2c display unit;
Ault MW122KA1223F52.

Category Characteristic Item Specification

Power input
requirements

Power output
requirements

Physical Size 228.6 mm x 76.2 mm x 50.8 mm

Voltage selection Auto-ranging

Voltage 100 – 240V AC

Current 2.0 A

Frequency 50 to 60 Hz

Voltage 12 V DC

Current 10.0 A (120 W)

(9 in x 3 in x 2 in)

Weight 1.3 kg (2.75 lb)

±5%

Reliability

Characteristic item Specification

Display MTBF >50,000 hours

Backlight MTBF >40,000 hours

Environment

Characteristic item Specification

EMI shielding No emission of low-level radiation

Temperature operating 5° C to 40° C

storage –20° to 60° C

Humidity operating 20% to 90% Relative Humidity

(non-condensing)

storage <70% Relative Humidity (non-condensing)

Dome E2c Specification | 13

Video Modes

Resolutions expressed in pixels (W x H). Single desktop requires dual displays.

Display Resolution Orientation Palette Bits per pixel

Dome E2c 1200 x 1600

1600 x 1200

Portrait
Landscape

True color 32

Video Timing

Standard Resolution Vertical Refresh (Hz) Horizontal Scan (Khz)

IBM VGA
IBM VGA
IBM VGA

VESA VGA
VESA VGA
VESA VGA

VESA SVGA
VESA SVGA
VESA SVGA
VESA SVGA
VESA SVGA

VESA XGA
VESA XGA
VESA XGA
VESA XGA

640x350
640x480
720x400

640x480
640x480
640x480

800x600
800x600
800x600
800x600
800x600

1024x768
1024x768
1024x768
1024x768

70
60
70

72
75
85

56
60
72
75
85

60
70
75
85

31.5

31.5

31.5

37.9

37.5

43.3

35.1

37.9

48.1

46.9

53.7

48.4

56.5

60.0

68.7

VESA 1152x864 75 67.5

VESA SXGA
VESA SXGA
VESA SXGA

VESA UXGA 1600x1200 60 75.0

Apple Mac LC
Apple Mac II
Apple Mac
Apple Mac

Sun Micro
Sun Micro

14 | Dome E2c Display

1280x1024
1280x1024
1280x1024

640x480
640x480
832x624
1024x768

1152x900
1152x900

60
75
85

67
67
75
75

66
76

64.0

80.0

91.1

34.9

35.0

49.7

60.2

61.8

71.1

Connector Ports

The video signal connector is a standard DVI connector, driving data
to the display. Diagnosis requiring DICOM calibration with the
Dome CXtra software can only be supported on the DVI-D interface.

The Dome E2c display use an 8-pin DIN connector. The power input is
12V ±5% (120 W). See below for details of the DIN connector.

Input power port on connector plate

VCC 8

VCC 7

VCC 6

VCC 5 3 GND

4 GND

Assignments on 8-pin DIN connector

1 GND

2 GND

Connector Ports | 15

LED Indication Lights

The LED indicator on the connector plate provides information on
the display status.

Reset (left) and LED on connector plate

LED Indication Description

Solid green Operating with signals

Flashing green Operating without signals

Solid yellow Fault condition

Flashing yellow Testing/Loading

Dark OFF/No power

16 | Dome E2c Display

Display Driver Removal

Follow the appropriate procedure below to remove the AX1 driver
from your system.

To remove the AX1 driver

1 Close all applications that are running.

2 Navigate to the Control Panel and select Add/Remove Programs.

3 Select your current graphics card drivers and select Add/Remove.

Follow the wizard to remove your current display drivers.

4 Restart your system.

Display Driver Removal | 17

Power Management

You have two ways to lower energy usage when the Dome E2c
display is idle:

• Dome CXtra Backlight Saver service (preferred)

• Screen Saver (set via Windows operating system)

Activate the power saver when you anticipate periods of inactivity,
such as at the end of the work day. Once activated, Backlight Saver (or
Screen Saver) automatically turns the backlight off during the period
of inactivity. Backlight Saver and Screen Saver both extend the life of
the backlight and reduce burn-in of images.

Do not use the Backlight Saver and Screen Saver concurrently.

18 | Dome E2c Display

Index

B

brightness, display 9

C

cleaning viii
configuration, dual setup 9
connecting

DVI cable

power cord 7
connector port 15
contents, package x

7

D

desk stand 4
DIN connector 15
display

1

about

brightness 9

components 2

controller, installing 6

install 5

orientation 9

positions 3

properties, changing 9
disposal ix
driver

installing

removing 17
dual configuration 9
DVI cable, connecting 7

8

I

information

product

technical 12
installing

display controller

display driver 8

iv

6

L

LED status lights 16

M

managing power usage 18

O

orientation, display 9

P

package contents x
power cord, connecting 7
power management 18
precautions vi
preventive measures vii
product care vii
product information iv

R

removing display driver 17

S

safety precautions vi
shipping/storing ix
specification 12
symbols, explained v
system requirements 1

T

tips

installation
safety vi

troubleshooting 11

5

U

use, intended v

V

video modes 14

19

Regulatory Compliance

Canada, European Union, United States

This display has been tested and found to comply
with IEC/EN 60601-1 and IEC/EN 60601-1-2
standards, and is certified to meet medical
standard C22.2 No. 601.1-M1990 (C US Mark).

The medical display, in addition to meeting medical
requirements, has been tested and found to comply with the limits for
Federal Communications Commission (FCC) Class B computing devices in a
typically configured system since many medical offices are located in
residential areas. It is the system integrator’s responsibility to test and ensure
that the entire system complies with applicable electromagnetic
compatibility (EMC) laws.

Planar Systems, Inc. has made great efforts to support the medical device
industry, in particular, medical device manufacturers and medical device
system integrators. We offer state-of-the-art color displays that are compliant
with worldwide accepted medical device safety standards, and for the
European market, CE-marked displays based on compliance with counsel
directive 93/42/EEC—commonly referred to as the Medical Device Directive
(MDD). The following summarizes our qualification of these displays as it
relates to compliance with the MDD.

The European Medical Device Directive requires that the intended use of
the device be defined. The intended use of these displays is “to display
alphanumeric, graphic, and image data as inputted from any type of medical
device.” These displays do not provide a measurement function in any way,
and it is the device and systems manufacturer’s responsibility to verify its
function in the integrated device or system.

The display was classified as required by the MDD according to Annex IX of
the directive and the medical device (MEDDEV) guidance available at the time
of classification. Because the display uses electrical energy and has no direct
patient connections and—by itself—no medical utility, the display is
classified according to Rule 12 as an MDD Class I device, component, or
accessory. The MDD states that manufacturers of Class I medical devices
or accessories shall satisfy the requirements in regard to design and
manufacturing controls, that is, the applicable assessment route to be used
for CE-marking under the MDD, and it shall carry the CE mark according to
Annex XII of the directive, with no notified body annotation.

The applicable safety standards for an MDD Class I display are IEC/EN
60601-1:1990 along with Amendments 1 and 2. To help the medical device
designer evaluate the suitability of these displays, Planar has also conducted
EMC testing to IEC 60601-1-2 as it can be applied. The display with its power
supply alone does not represent a functional medical device. Hence, Planar
configured a minimal operating system to exercise the display. The resulting
data are made available to interested parties.

This is informative data, not certification data. Certification data must be
obtained by the device or system integrator according to Article 12 of
the MDD titled “Particular procedure for systems and procedure packs.”
Paragraph 2 clearly outlines the device or system integrator’s responsibility
in this matter.

In summary, Planar Systems, Inc. is CE-marking these displays under the
Medical Device Directive, which establishes compliance to the basic medical
safety standards. However, EMC compliance can only be accomplished in the
configured medical device or system and is the responsibility of the device or
system manufacturer. Planar has the necessary documentation such as IEC
60601-1 notified body and other third-party test reports and certifications,
a risk/hazard analysis, an essential requirements checklist, and the Planar
International Electrotechnical Commission (IEC) declaration of conformity.

Planar Systems, Inc., located in Beaverton, Oregon, USA, is the manufacturer
of these displays in the meaning of the directive. As required by the MDD in
Article 14, Planar Systems, Inc., not residing in the European Economic Area
(EEA), has a European representative, Planar Systems, Inc.—Olarinluoma 9,
P. O. Box 46, FIN-02201 Espoo, Finland (phone + 358 9 420 01;
fax + 358 9 420 0200).

In the opinion of Planar Systems, Inc. registration required to put this
device into commerce is the responsibility of the medical device/system
manufacturer, and Planar supports this requirement by providing a European
Commission (EC) declaration of conformity. If Planar supplies a display to an
end user, rather than a device manufacturer, it is the end user’s responsibility
to ensure continued compliance with the MDD of the system in which the
display is integrated.

The supplier will make available on request, circuit diagrams, component part
lists, etc.

For vigilance reporting as required under Article 10 of the MDD, Planar
Systems, Inc. will provide any information requested by competent authority
to support any reported incident investigation by such an authority.

EU Declaration of Conformity for Medical Application

A Declaration of Conformity has been filed for this product. For additional
copies of the Declaration of Conformity document, contact Planar Systems.

The Dome EX digital flat-panel display meets the essential health and safety
requirements, is in conformity with, and the CE marking has been applied
according to the relevant EU Directives listed below, using the relevant
section of the following EU standards and other normative documents;

EU EMC Directive 89/336/EEC

EU Electromagnetic Compatibility Directive

EN 60601-1-2 (2001)
Medical Electrical

Section 1.2. Collateral standard electromagnetic
compatibility requirements

Equipment

EN 55011 (Class B) Limits and methods of measurements for radio

interference characteristics of industrial,
scientific, and medical equipment

IEC 1000-3-2 Harmonic emissions

IEC 1000-3-3 Voltage fluctuations/flicker emissions

IEC 1000-4-2 Electrostatic discharge requirements for

industrial process measurement and control
equipment

IEC 1000-4-3 Radiated electromagnetic field requirements for

industrial process measurement and control
equipment

IEC 1000-4-4 Electrically fast transients for industrial process

measurement and control equipment

IEC 1000-4-5 Surge requirements

IEC 1000-4-11 Voltage variations/dips/interrupts

IEC 1000-4-6 Conducted immunity

IEC 1000-4-8 Magnetic field immunity

EN 60601-1 Medical
Electrical Equipment

Conformance to the Medical Device Directive
93/42/EEC

Part 1: General requirements for safety

U.S. FCC Compliance Statement

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must

accept any interference received, including interference that may cause
undesired operation.

NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the
instruction, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

• Consult the dealer or an experienced radio/TV technical for help.

CAUTION: Changes or modifications to this equipment not expressly
approved by the party responsible for compliance could void the user’s
authority to operate the equipment.

Australian

C-Tick Australian Communications Authority regulating

product EMC compliance.

China

CCC China Compulsory Certification regulating safety

and EMC.

GB4943-2001

GB9254-1998 (Class A)

CB17625.1-2003

Japan

VCCI Voluntary Control Council for Interference by

information technology equipment sold in Japan.

Korea

MIC Mark Ministry of Information and Communications.

Standard Warranty

Summary

• Standard 1-year “repair and return” warranty

• A 2-year backlight warranty on color displays

• Typical repair turnaround time of 10 business days

Standard Warranty Return Procedure

As a Planar Standard Warranty customer, you must follow the procedure
below if you have a non-functioning Dome EX display. The Planar customer
service staff will attempt to correct any minor issues that may be causing the
problem. Once Planar has determined that you have a non-functioning
product, Planar will arrange for return and repair of the non-functioning
product.

*

1 Contact Planar via the web at http://www.planar.com/support. In North

America, call (866) PLANAR1 (866.752.6271). In Europe, call [phone]
or send your info by fax to [phone]. Have the model number, serial
number, and proof-of-purchase available.

2 Planar customer service staff will attempt to correct any minor issues that

may be causing the problem. If we are unable to correct the problem to
your satisfaction, we will issue a Return Material Authorization (RMA).

3 You must return the product, as specified, to Planar Systems. Planar will

validate the defect, repair the unit, and return the unit to you. The typical
turnaround time is 10 business days.

* If, within 2 years of initial purchase, the maximum output of the Dome E2c

display is determined by Planar Systems to be less than 250 cd/m
repair or replace the display at the its sole discretion.

2

, Planar will

Summary Limitations and Exclusions of Dome Displays

1 Customer must provide original proof of purchase of the display system.
2 Warranty is void on any product with a defaced, modified, or removed

serial number.

3 Warranty is void on any product with damage, deterioration, or

malfunction resulting from the following:
a) Accident, misuse, neglect, fire, water, lightning, or other acts of nature,

unauthorized product modification, or failure to follow instructions

supplied with the product.

b) Repair or attempted repair by anyone not authorized by Planar.
c) Any damage of the product due to shipment.
d) Removal or installation of the product.
e) Causes external to the product, such as electric power fluctuations or

failure.

f) Use of supplies or parts not meeting Planar's specifications.
g) Normal wear and tear.
h) Any other cause, which does not relate to a product defect.

4 Warranty excludes removal, installation, and setup service charges.

Limitation of Implied Warranties

THERE ARE NO WARRANTIES, EXPRESS OR IMPLIED, WHICH EXTEND BEYOND
THE DESCRIPTION CONTAINED HEREIN INCLUDING THE IMPLIED WARRANTY
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

Exclusion of Damages

THE LIABILITY OF PLANAR IS LIMITED TO THE COST OF REPAIR OR
REPLACEMENT OF THE PRODUCT. PLANAR SHALL NOT BE LIABLE FOR
THE FOLLOWING:

1 DAMAGE TO OTHER PROPERTY CAUSED BY ANY DEFECTS IN THE

PRODUCT, DAMAGES BASED UPON INCONVENIENCE, LOSS OF USE OF
THE PRODUCT, LOSS OF TIME, LOSS OF PROFITS, LOSS OF BUSINESS
OPPORTUNITY, LOSS OF GOODWILL, INTERFERENCE WITH BUSINESS
RELATIONSHIPS, OR OTHER COMMERCIAL LOSS, EVEN IF ADVISED OF THEIR
POSSIBILITY OF SUCH DAMAGES.

2 ANY OTHER DAMAGES, WHETHER INCIDENTAL, INDIRECT, CONSEQUENTIAL

OR OTHERWISE.

3 ANY CLAIM AGAINST THE CUSTOMER BY ANY OTHER PARTY.

Effect of Local Law

This warranty gives you specific legal rights, and you may have other rights,
which vary from locality to locality. Some localities do not allow limitations on
implied warranties and/or do not allow the exclusion of incidental or
consequential damages, so the above limitations and exclusions may not
apply to you.

America Sales
Planar Systems, Inc.
1195 NW Compton Drive
Beaverton, OR 97006-1992 USA
[phone] phone
[phone] fax

Medical Sales
Planar Systems, Inc.
400 Fifth Avenue
Waltham, MA 02451-8738 USA
[phone] phone
[phone] fax

[e-mail]
[e-mail]
www.planar.com

Europe Sales
European Representative
Planar Systems, Inc.
Olarinluoma 9, P. O. Box 46
FIN-02201 Espoo, Finland
+ 358 9 420 01 phone
+ 358 9 420 0200 fax

[e-mail]
[e-mail]
www.planar.com

Asia-Pacific Sales
Planar Systems, Inc.
388 Nan Jing West Road, Suite 3905
Shanghai Peoples Republic of China
+ 86 21 6334 5050 phone
+ 86 21 6334 6339 fax

sales @planar.com.cn
[e-mail]
www.planar.com.cn
