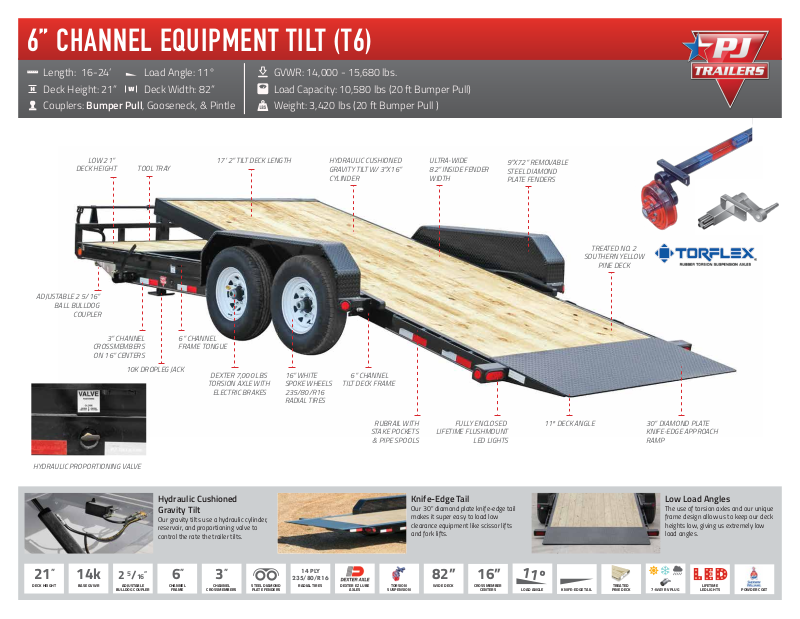

6” CHANNEL EQUIPMENT TILT (T6)
Length: 16-24’
Deck Height: 21”
Load Angle: 11°
Deck Width: 82”
Couplers: Bumper Pull, Gooseneck, & Pintle
LOW 21”
DECK HEIGHT
ADJUSTABLE 2 5/16”
BALL BULLDOG
COUPLER
3” CHANNEL
CROSSMEMBERS
ON 16” CENTERS
TOOL TRAY
10K DROPLEG JACK
6” CHANNEL
FRAME TONGUE
DEXTER 7,000 LBS
TORSION AXLE WITH
ELECTRIC BRAKES
GVWR: 14,000 - 15,680 lbs.
Load Capacity: 10,580 lbs (20 ft Bumper Pull)
Weight: 3,420 lbs (20 ft Bumper Pull )
17’ 2” TILT DECK LENGTH
16” WHITE
SPOKE WHEELS
235/80/R16
RADIAL TIRES
HYDRAULIC CUSHIONED
GRAVITY TILT W/ 3”X16”
CYLINDER
6” CHANNEL
TILT DECK FRAME
ULTRA-WIDE
82” INSIDE FENDER
WIDTH
9”X72” REMOVABLE
STEEL DIAMOND
PLATE FENDERS
TREATED NO. 2
SOUTHERN YELLOW
PINE DECK
HYDRAULIC PROPORTIONING VALVE
21
DECK HEIGHT
”
14k 2
BASE GVWR
5
/16
ADJUSTABLE
BULLDOG COUPLER
Hydraulic Cushioned
Gravity Tilt
Our gravity tilts use a hydraulic cylinder,
reservoir, and proportioning valve to
control the rate the trailer tilts.
6
CHANNEL
FRAME
”
”
”
3
CHANNEL
CROSSMEMBERS
STEEL DIAMOND
PLATE FENDERS
14 PLY
235/80/R16
RADIAL TIRES
DEXTER EZ LUBE
AXLES
RUBRAIL WITH
STAKE POCKETS
& PIPE SPOOLS
TORSION
SUSPENSION
FULLY ENCLOSED
LIFETIME FLUSHMOUNT
LED LIGHTS
Knife-Edge Tail
Our 30” diamond plate knife-edge tail
makes it super easy to load low
clearance equipment like scissor lifts
and fork lifts.
82”
WIDE DECK
16”
CROSSMEMBER
CENTERS
11º
LOAD ANGLE
11º DECK ANGLE
KNIFE-EDGE TAIL
TREATED
PINE DECK
30” DIAMOND PLATE
KNIFE-EDGE APPROACH
RAMP
Low Load Angles
The use of torsion axles and our unique
frame design allow us to keep our deck
heights low, giving us extremely low
load angles.
☼
LIFETIME
7-WAY RV PLUG
LED LIGHTS
POWDER COAT
