PJLink CP-X5022WN, CP-WX4022WN User Manual

Page 1

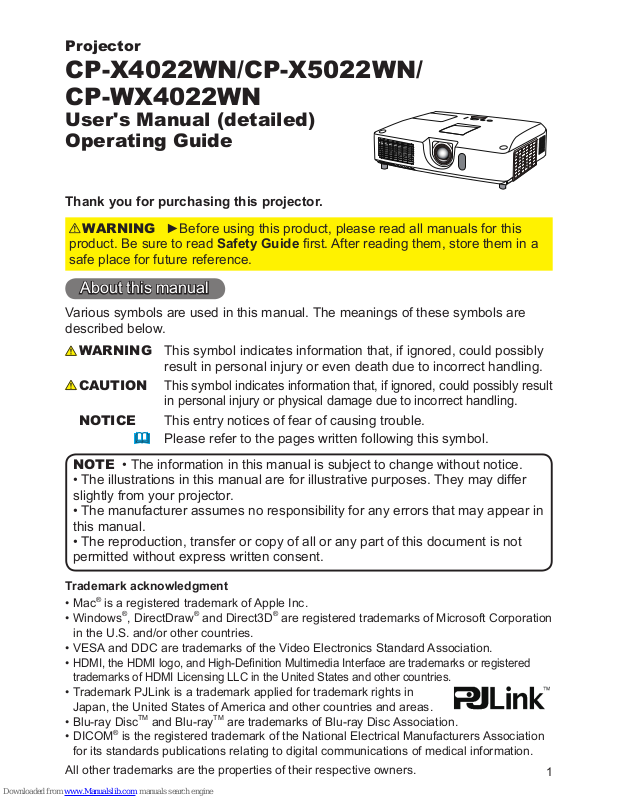

Projector

CP-X4022WN/CP-X5022WN/ CP-WX4022WN

User's Manual (detailed) Operating Guide

Thank you for purchasing this projector.

►Before using this product, please read all manuals for this product. Be sure to read Safety Guide rst. After reading them, store them in a safe place for future reference.

WARNING

• The information in this manual is subject to change without notice.

• The illustrations in this manual are for illustrative purposes. They may differ slightly from your projector.

• The manufacturer assumes no responsibility for any errors that may appear in this manual.

• The reproduction, transfer or copy of all or any part of this document is not permitted without express written consent.

NOTE

Trademark acknowledgment

Various symbols are used in this manual. The meanings of these symbols are described below.

About this manual

WARNING

CAUTION

This symbol indicates information that, if ignored, could possibly result in personal injury or even death due to incorrect handling.

This symbol indicates information that, if ignored, could possibly result in personal injury or physical damage due to incorrect handling.

Please refer to the pages written following this symbol.



• Mac® is a registered trademark of Apple Inc.

• Windows

, DirectDraw® and Direct3D® are registered trademarks of Microsoft Corporation

in the U.S. and/or other countries.

• VESA and DDC are trademarks of the Video Electronics Standard Association.

•

HDMI, the HDMI logo, and High-Denition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

• Trademark PJLink is a trademark applied for trademark rights in Japan, the United States of America and other countries and areas.

• Blu-ray Disc

and Blu-rayTM are trademarks of Blu-ray Disc Association.

• DICOM

is the registered trademark of the National Electrical Manufacturers Association

for its standards publications relating to digital communications of medical information.

All other trademarks are the properties of their respective owners.

NOTICE This entry notices of fear of causing trouble.

Page 2

Contents

Introduction . . . . . . . . . . . . . . . 3

Features . . . . . . . . . . . . . . . . . . . . . . 3

Checking the contents of package

...3

Part names . . . . . . . . . . . . . . . . . . . . 4

Setting up . . . . . . . . . . . . . . . . . 7

Arrangement ...................7

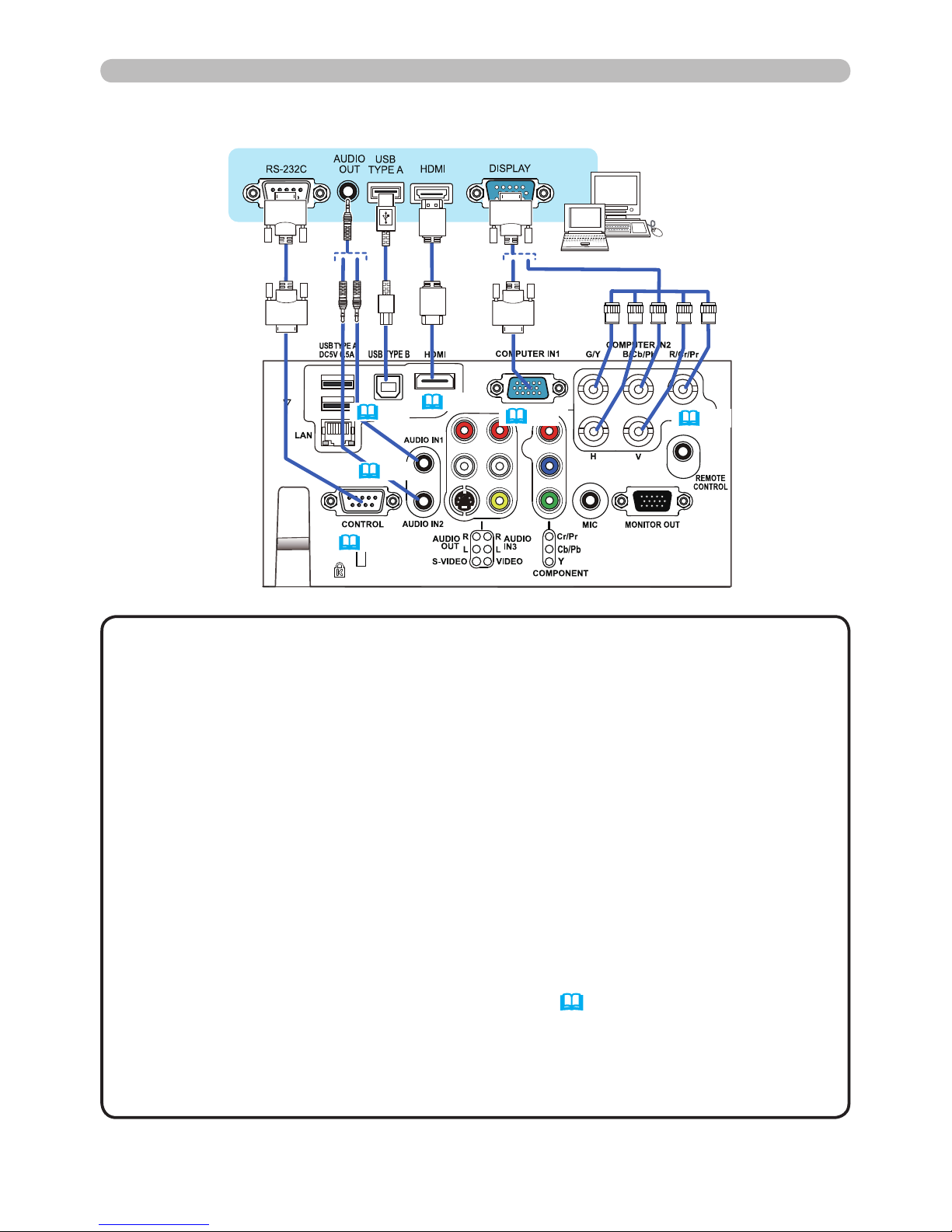

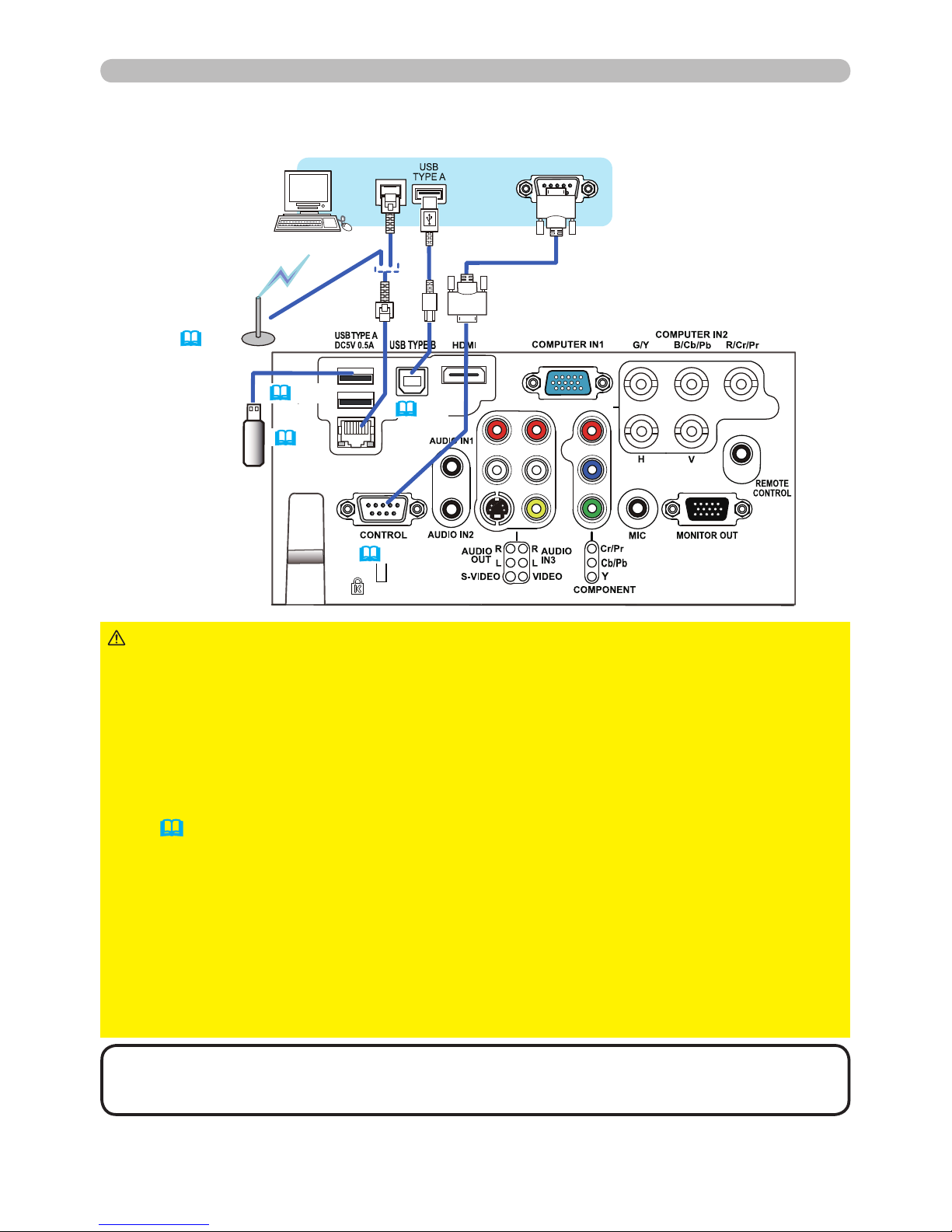

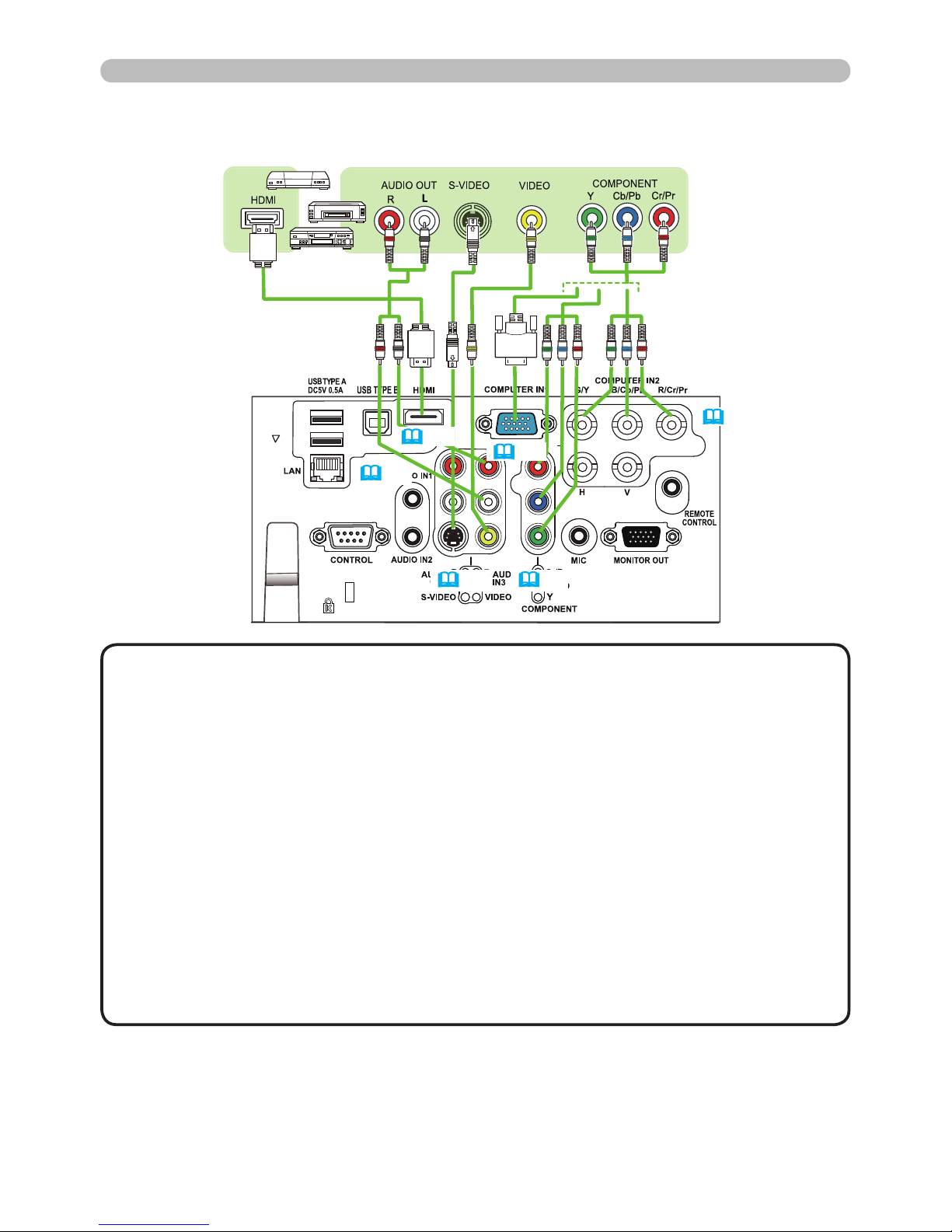

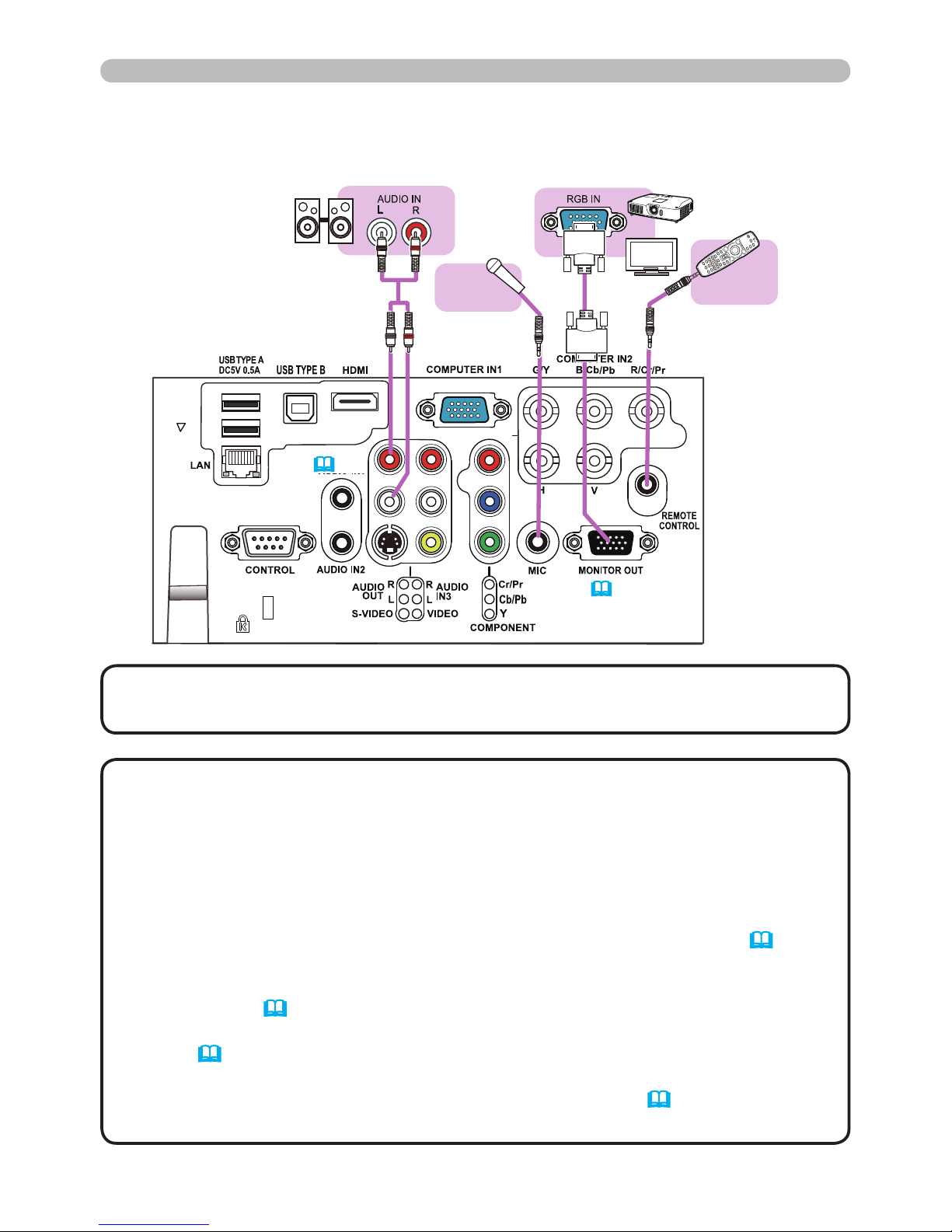

Connecting with your devices

.....10

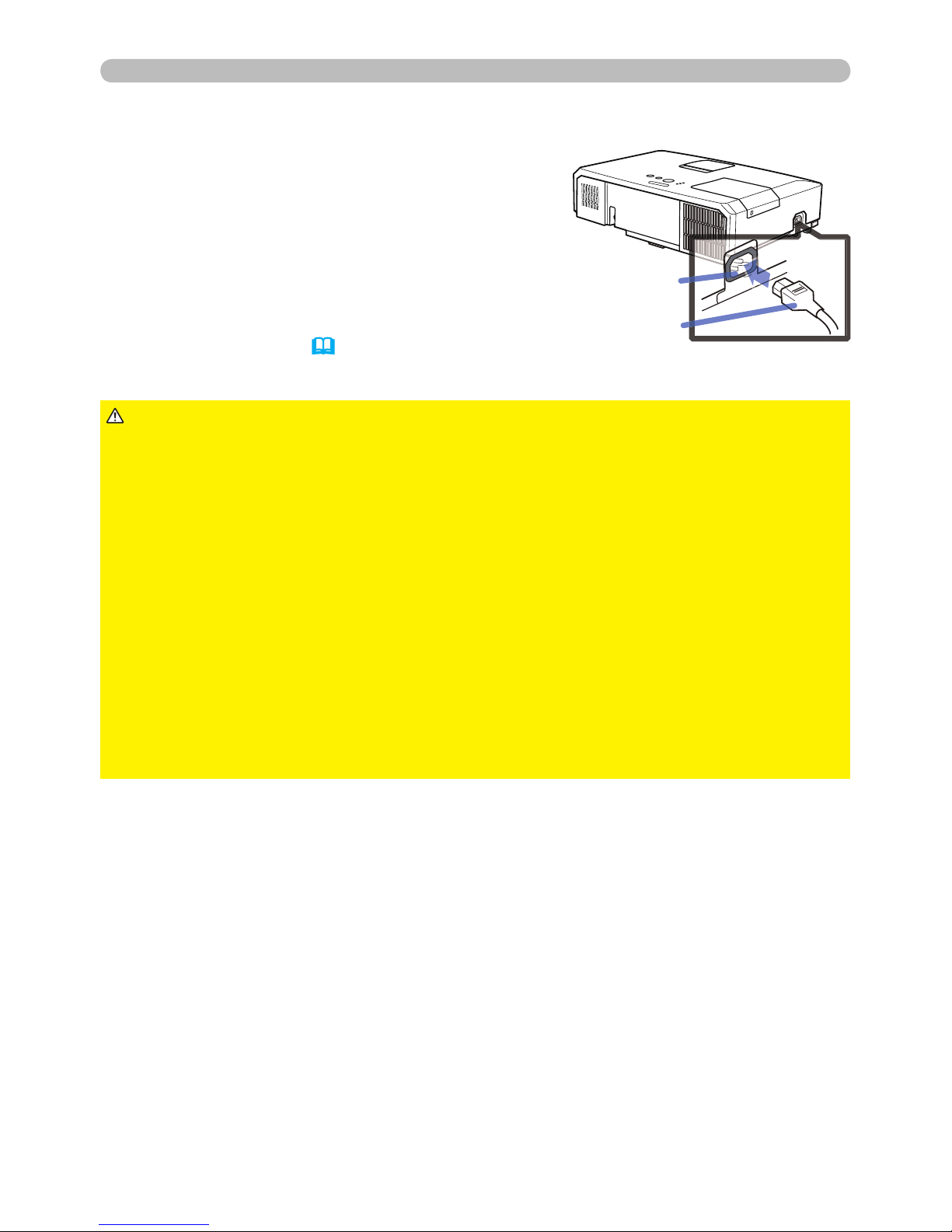

Connecting to a power supply

.....15

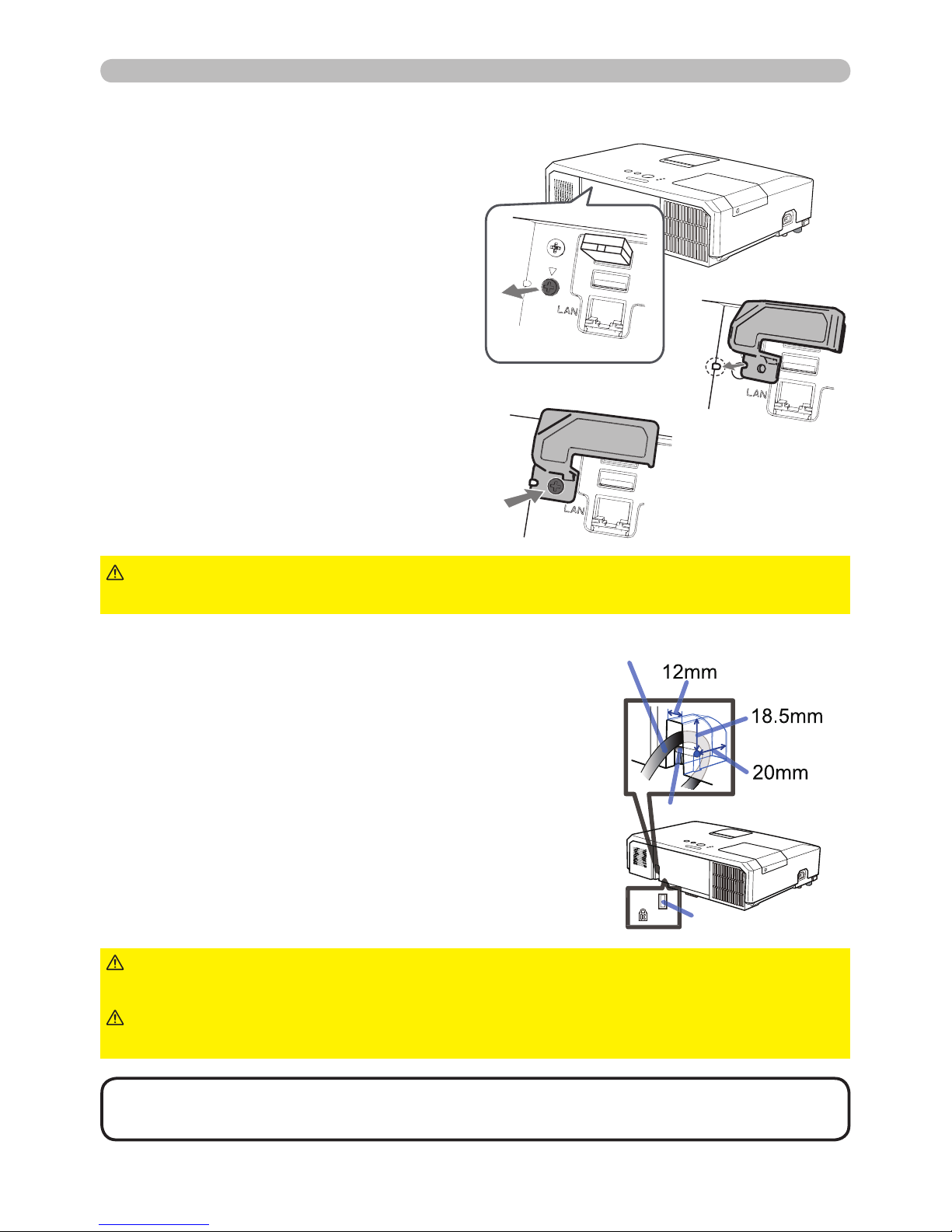

Fastening the adapter cover ......

Using the security bar and slot . . . . 16

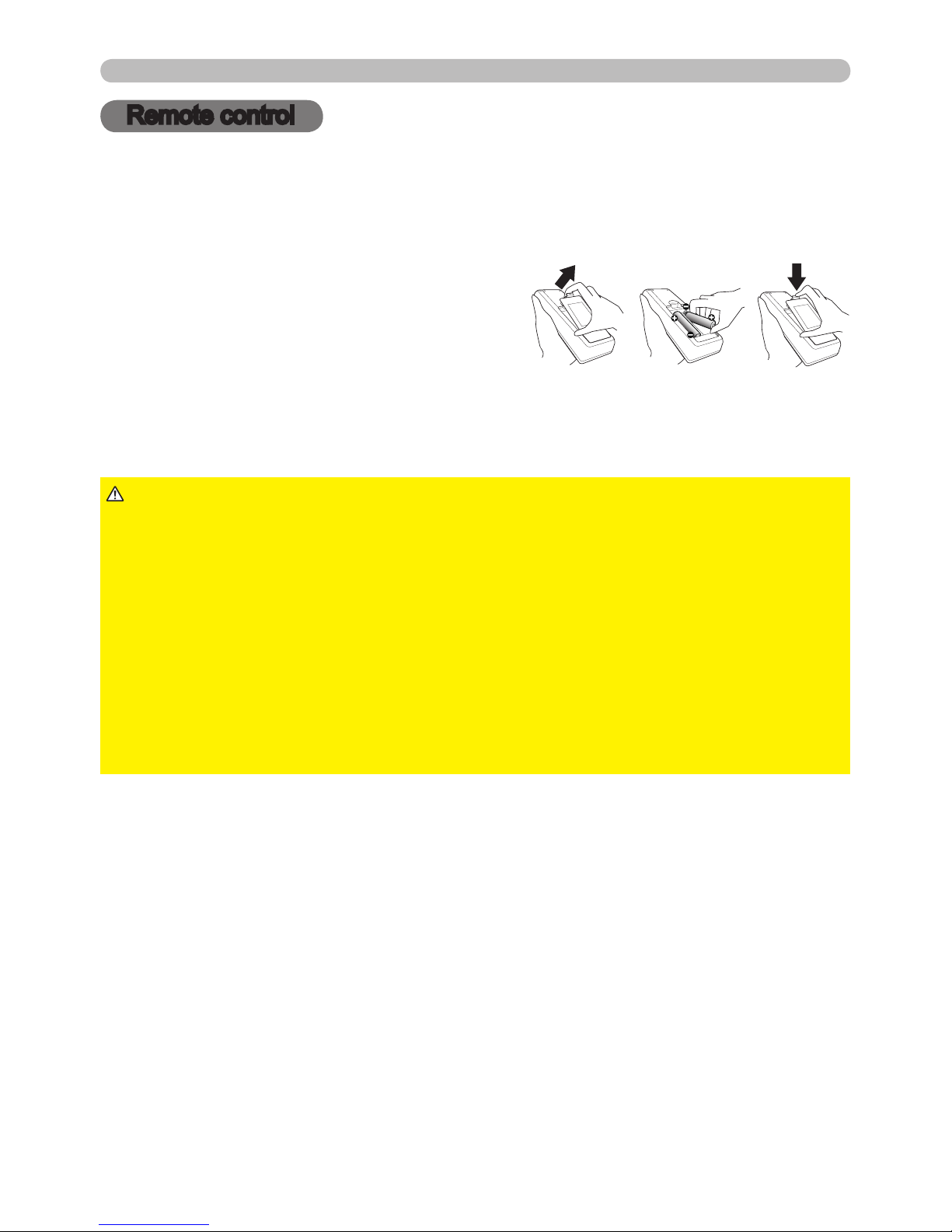

Remote control ............17

Installing the batteries ...........17

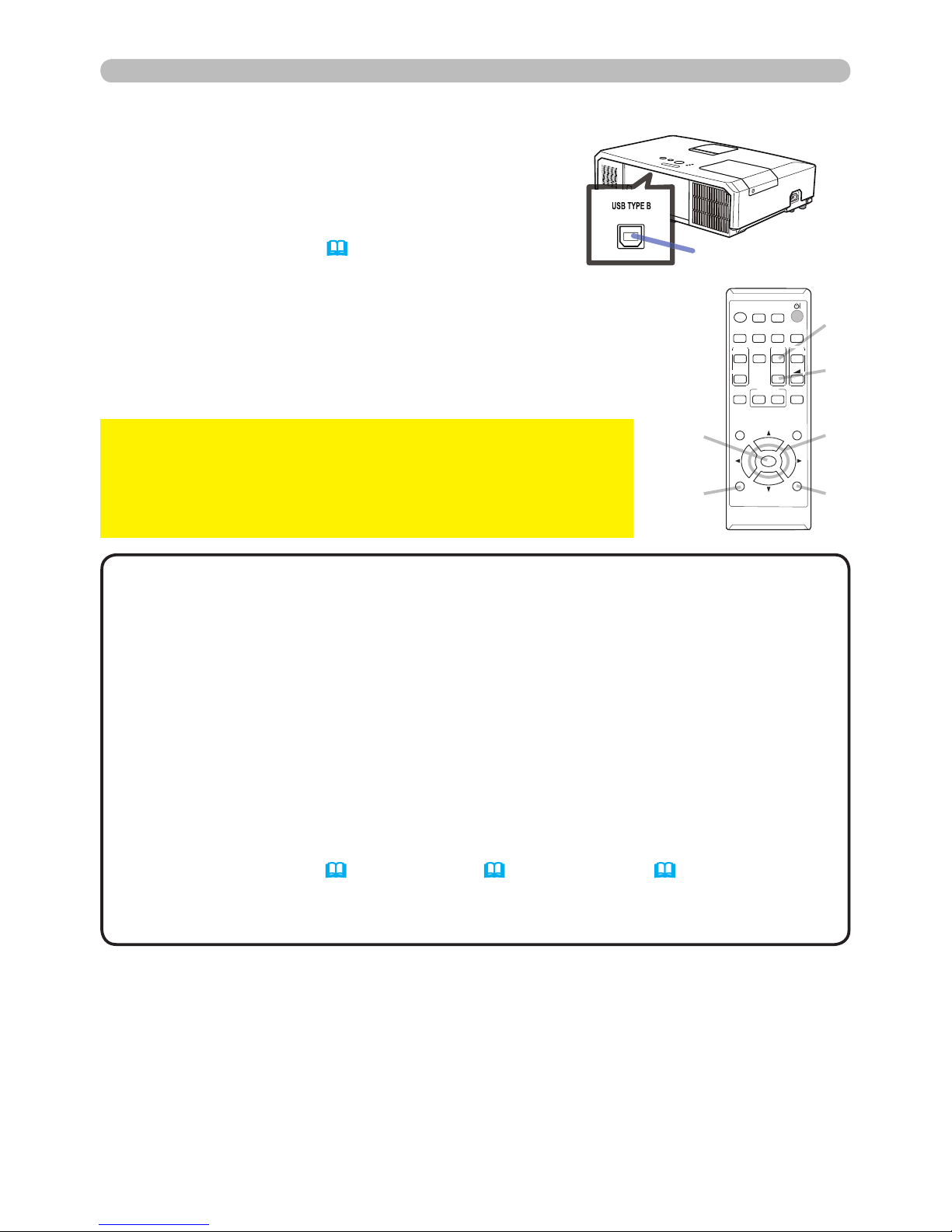

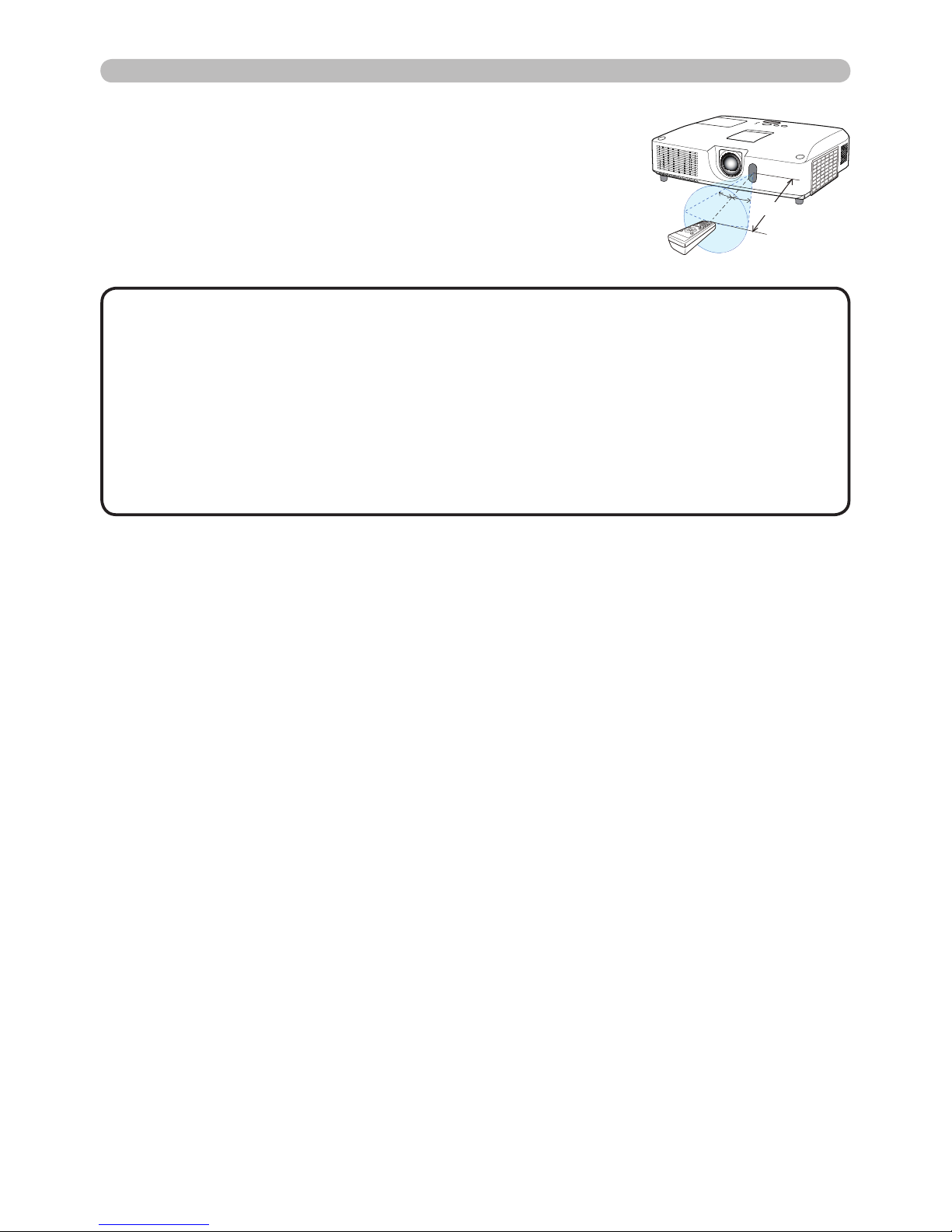

About the remote control signal . . . 18 Using as a simple PC mouse & keyboard

. . 19

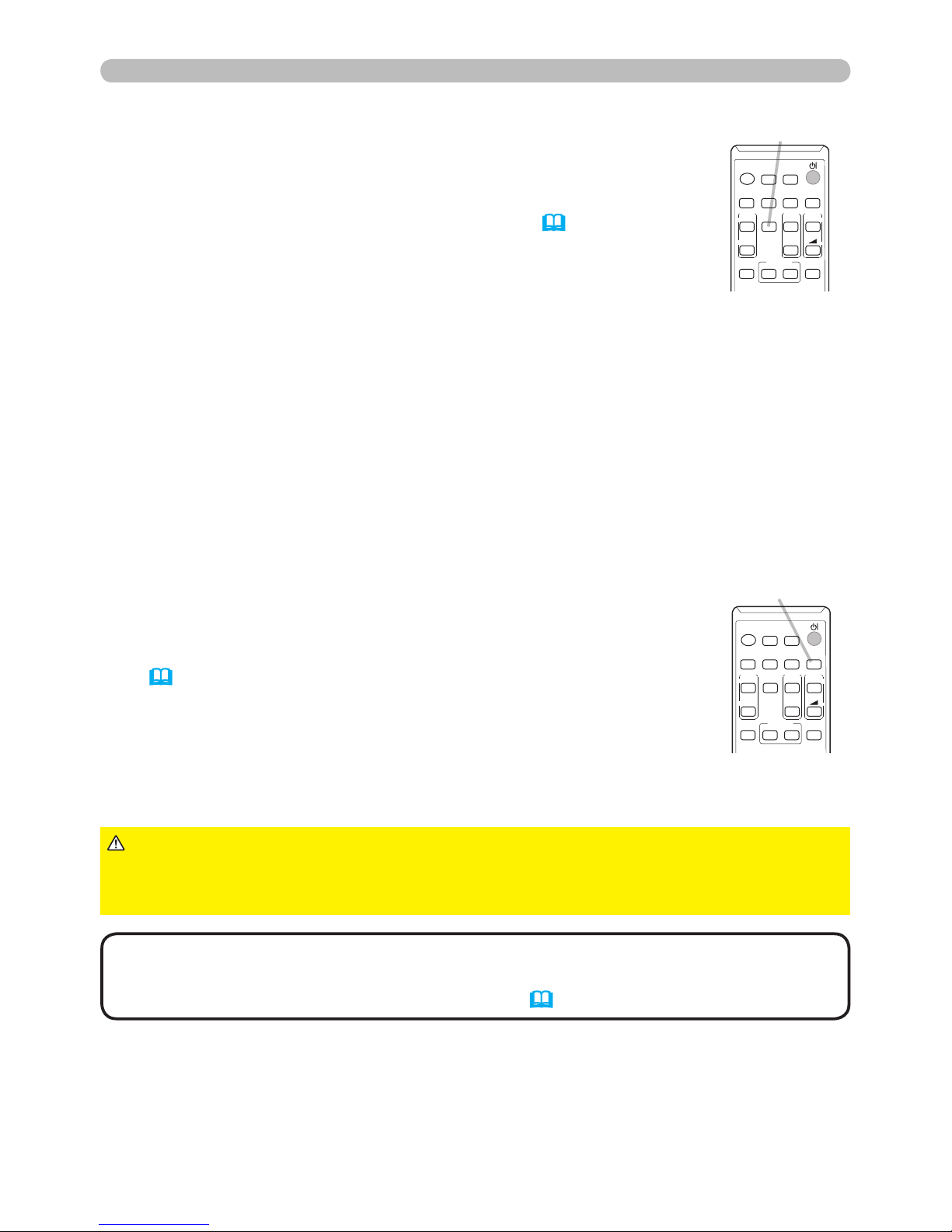

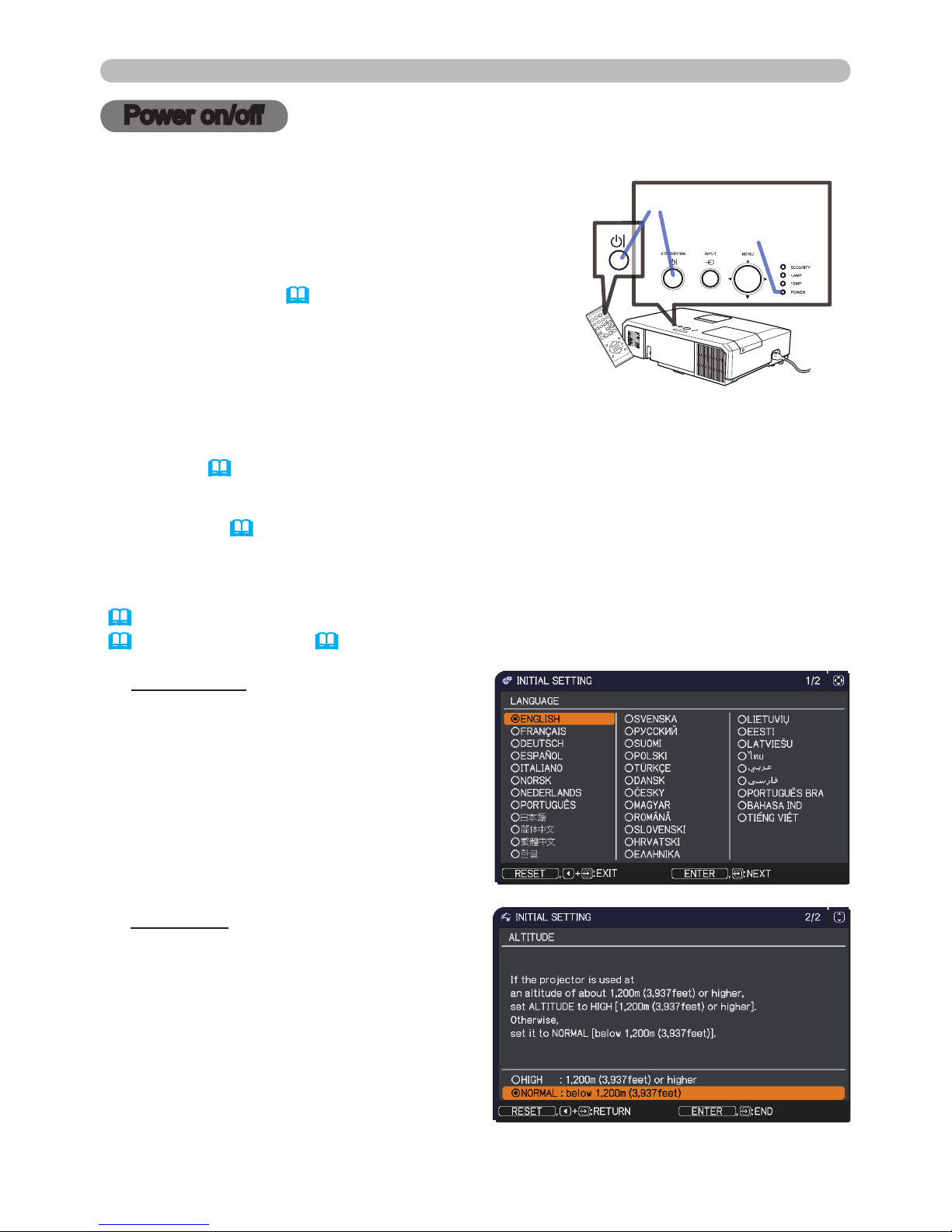

Power on/off . . . . . . . . . . . . . . 20

Turning on the power . . . . . . . . . . . 20

Turning off the power . . . . . . . . . . . 21

Operating . . . . . . . . . . . . . . . . 22

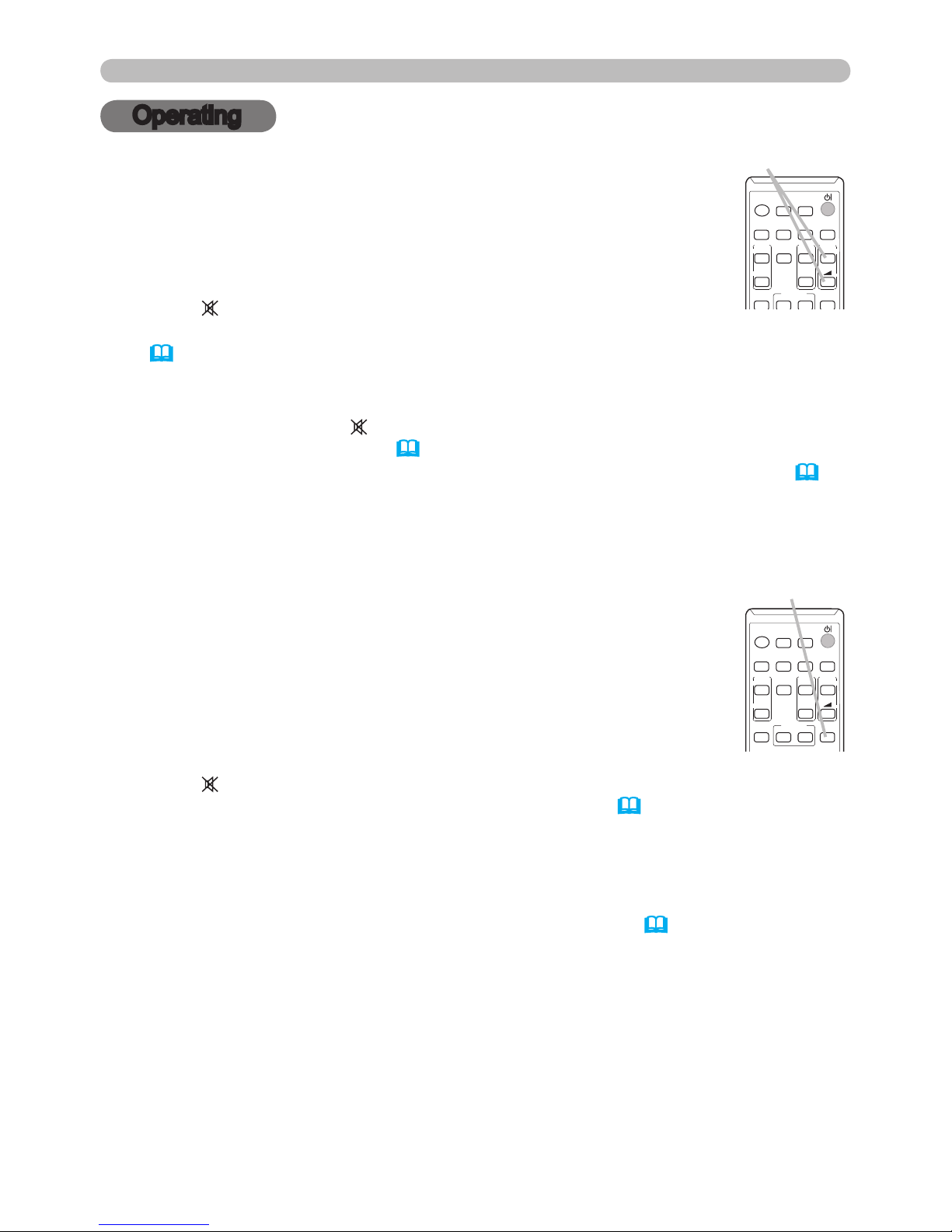

Adjusting the volume ............22

Temporarily muting the sound .....22

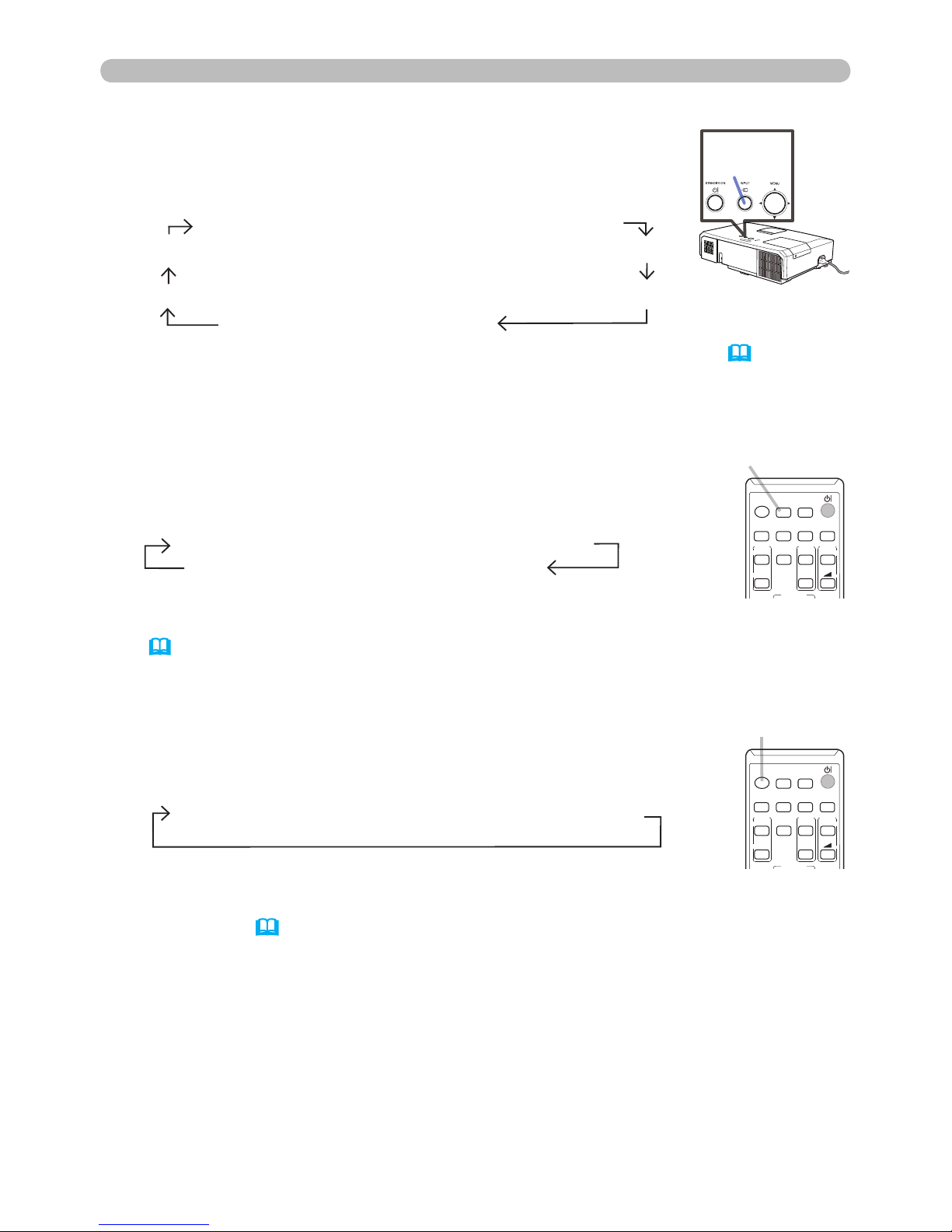

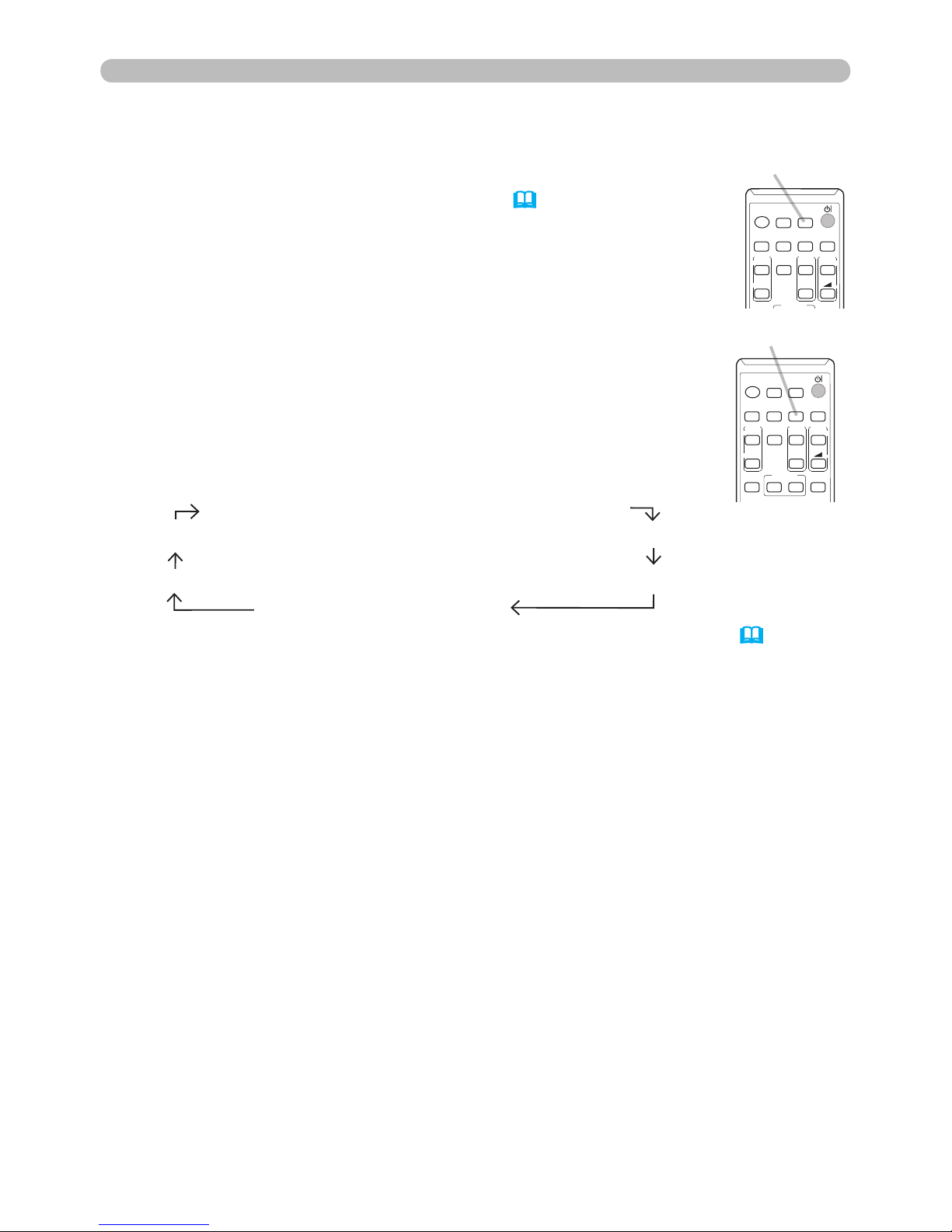

Selecting an input signal .........23

Searching an input signal . . . . . . . . 24

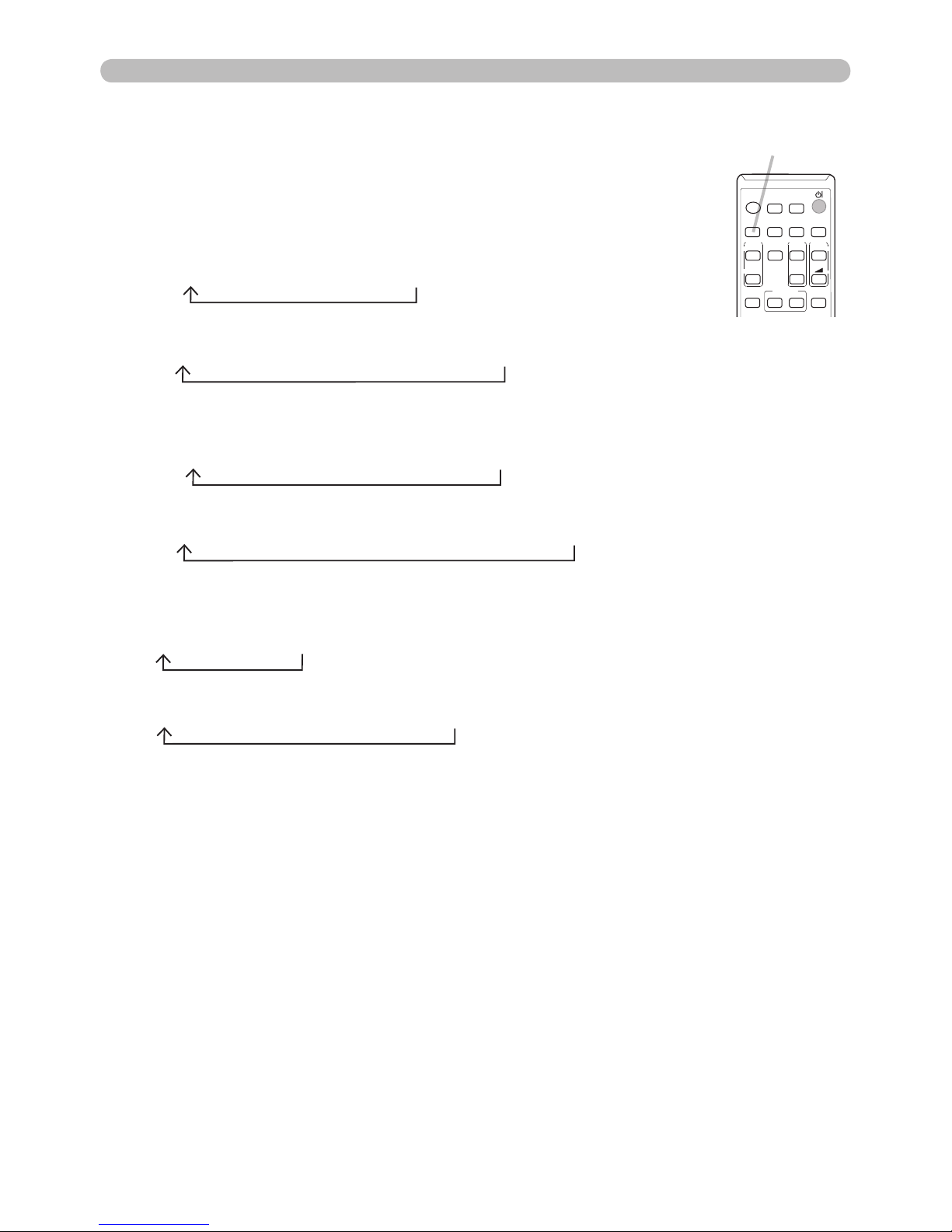

Selecting an aspect ratio .........25

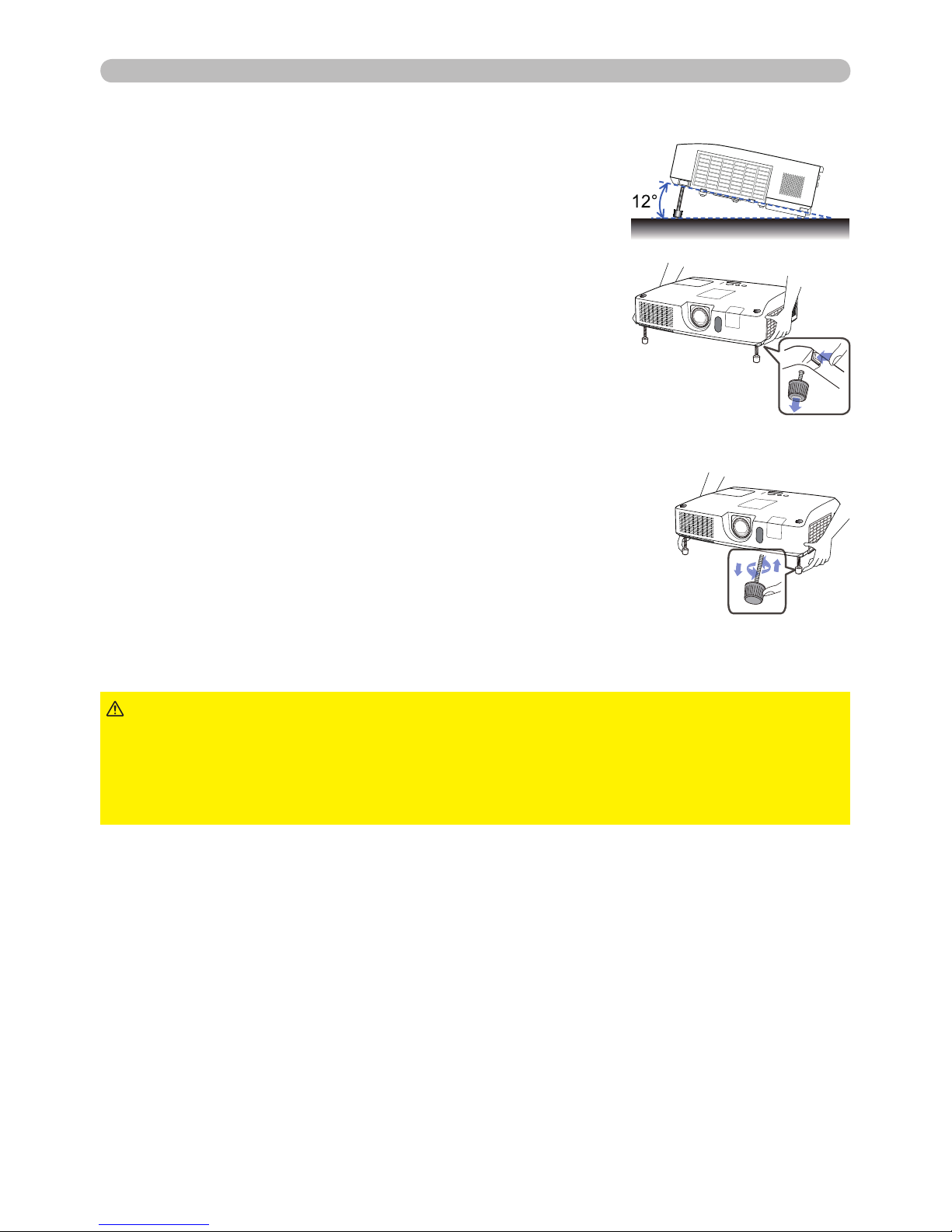

Adjusting the projector's elevator . . 26

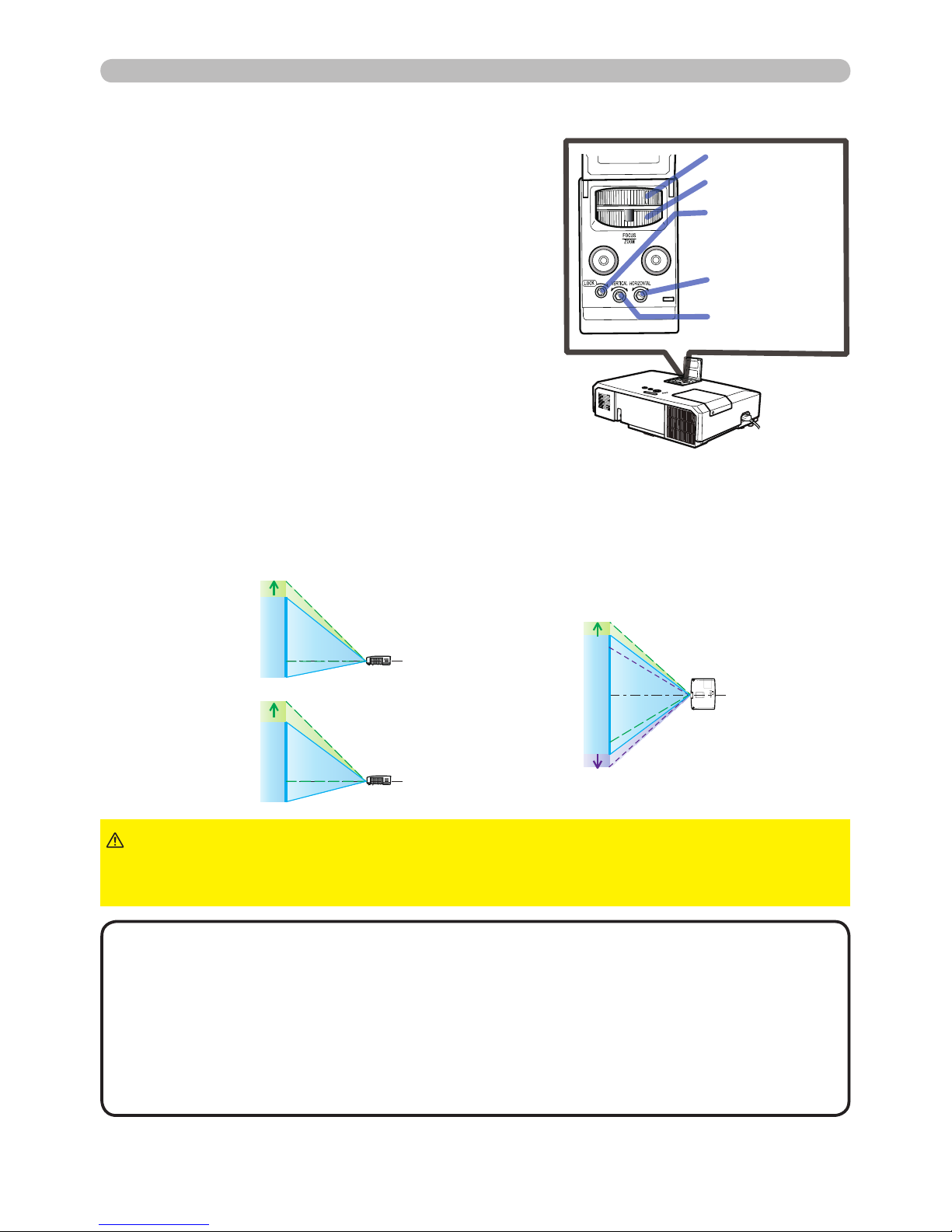

Adjusting the lens . . . . . . . . . . . . . . 27

Using the automatic adjustment feature

...28

Adjusting the position . . . . . . . . . . . 28

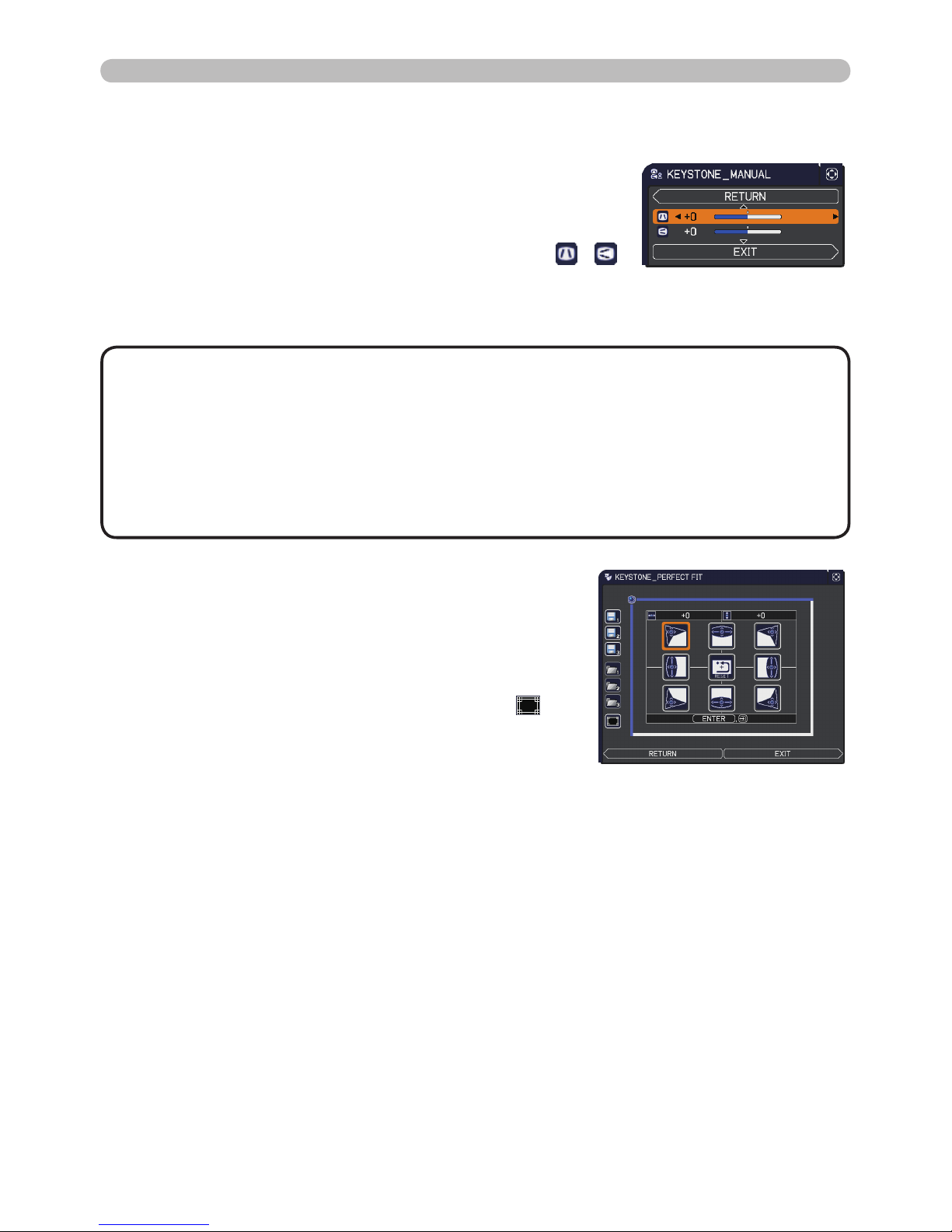

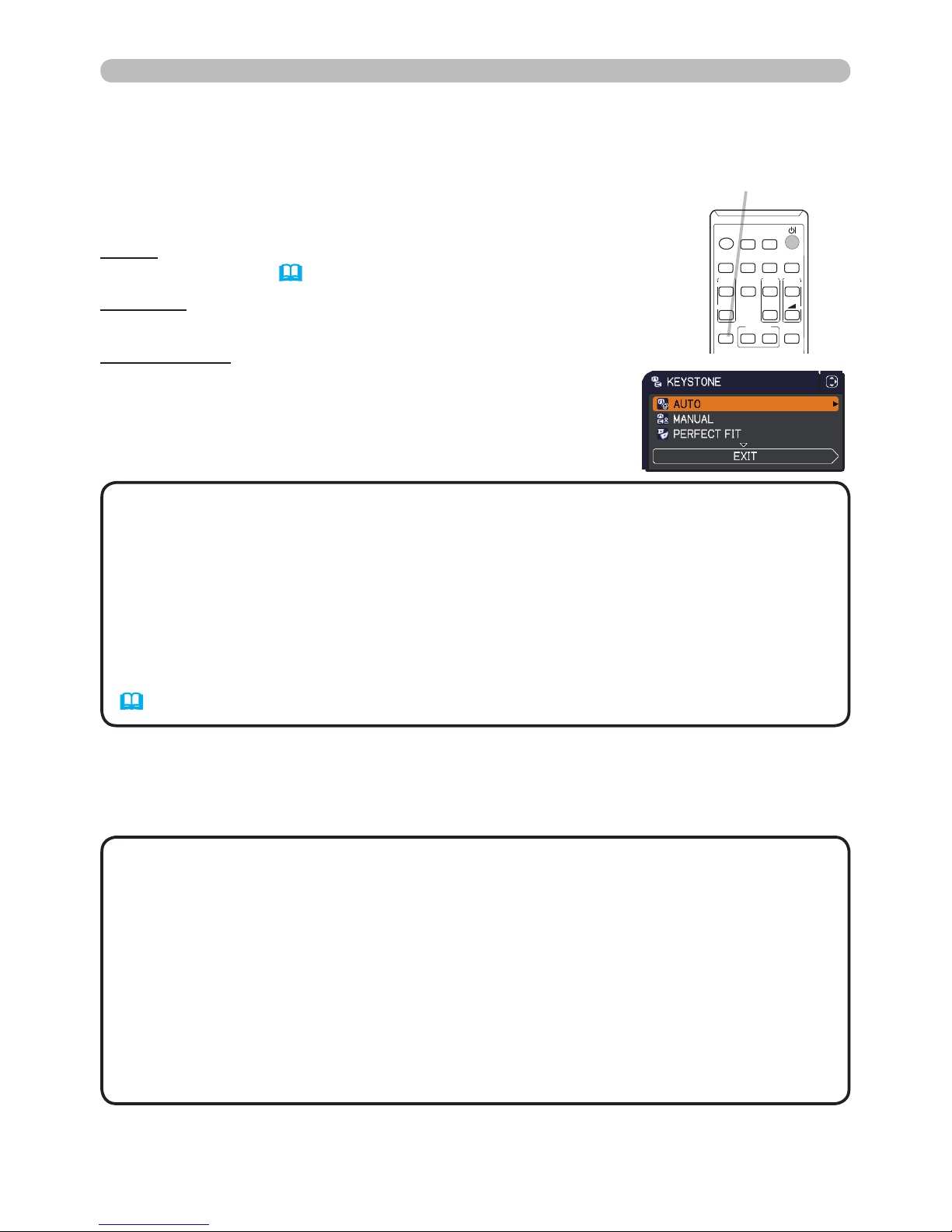

Correcting the distortion

..........29

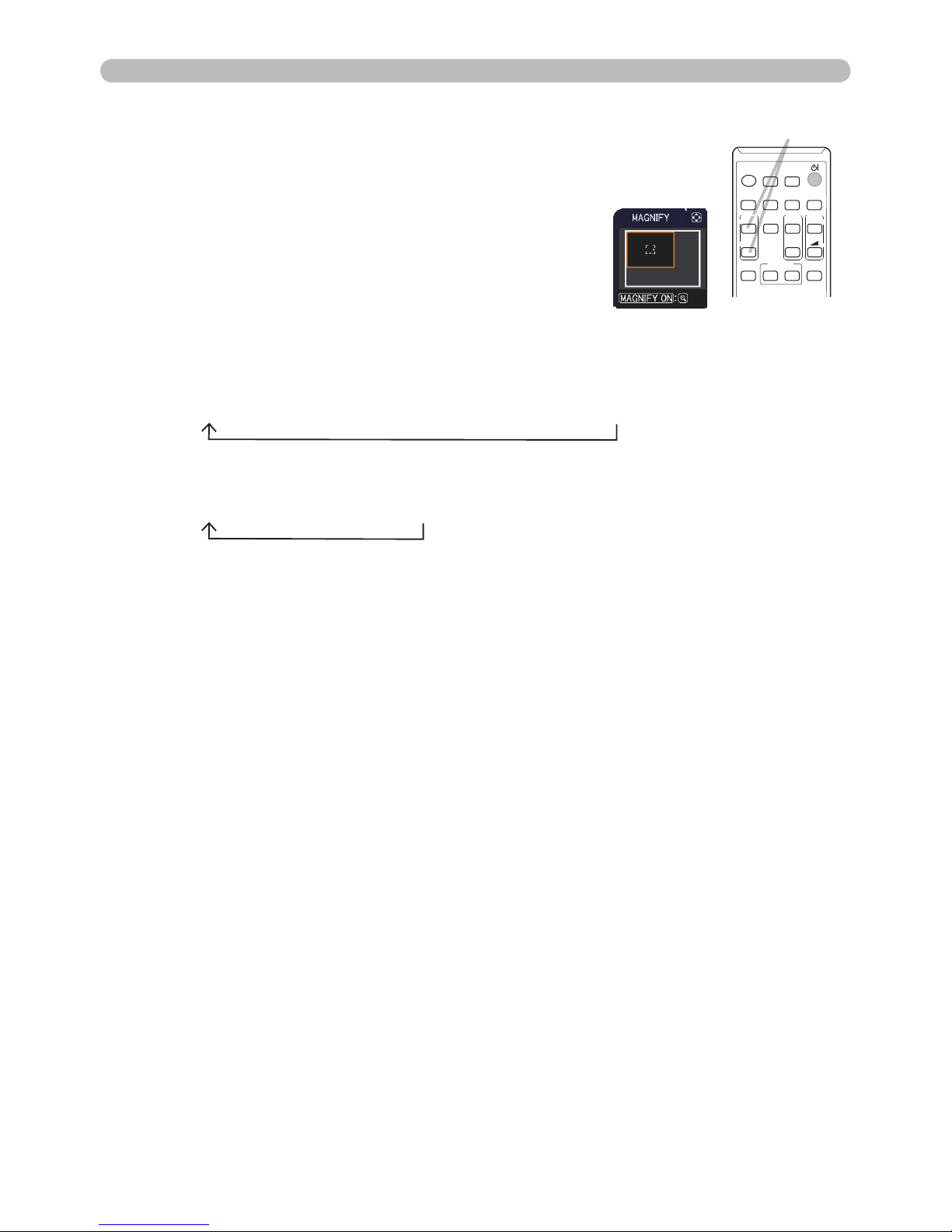

Using the magnify feature ........32

Temporarily freezing the screen . . . 33 Temporarily blanking the screen . . 33

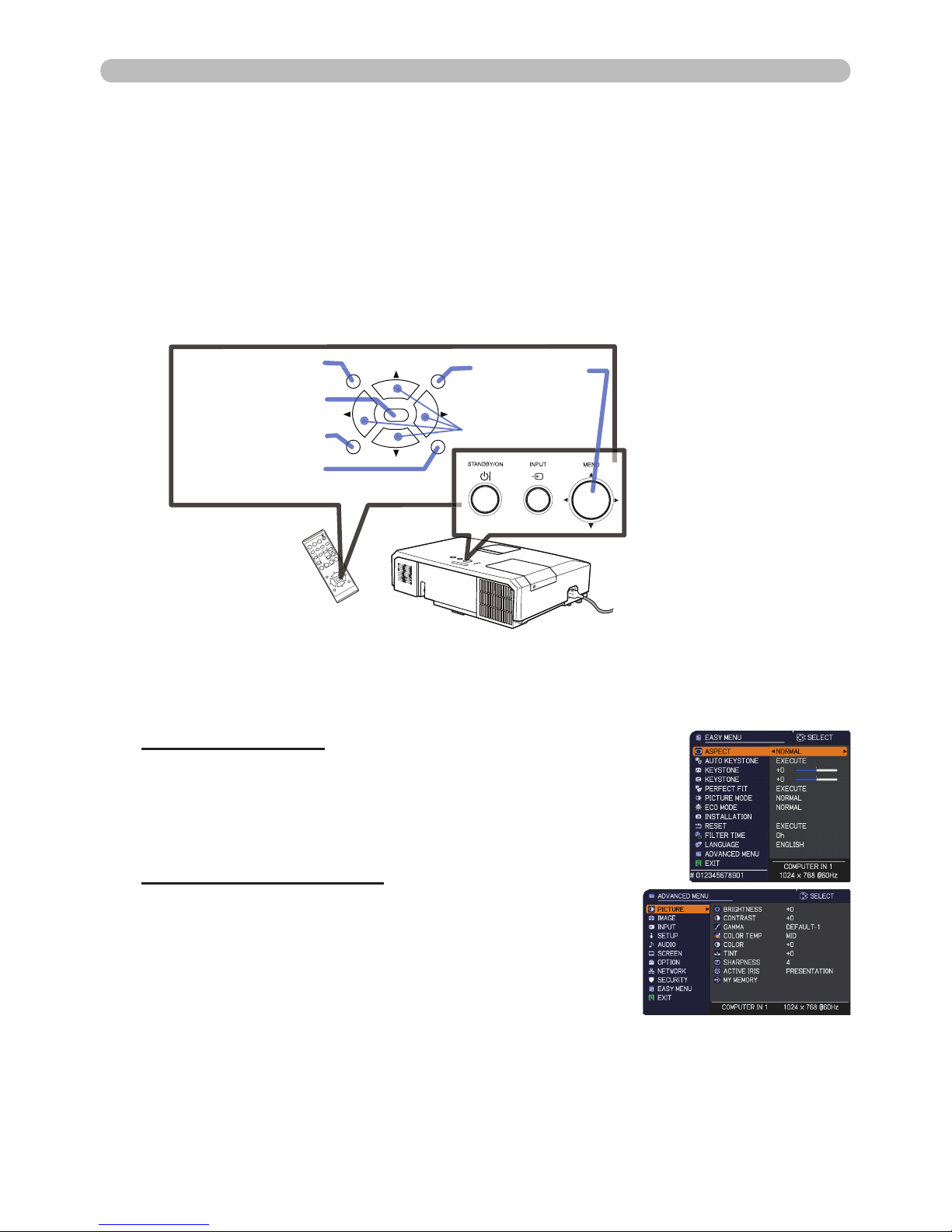

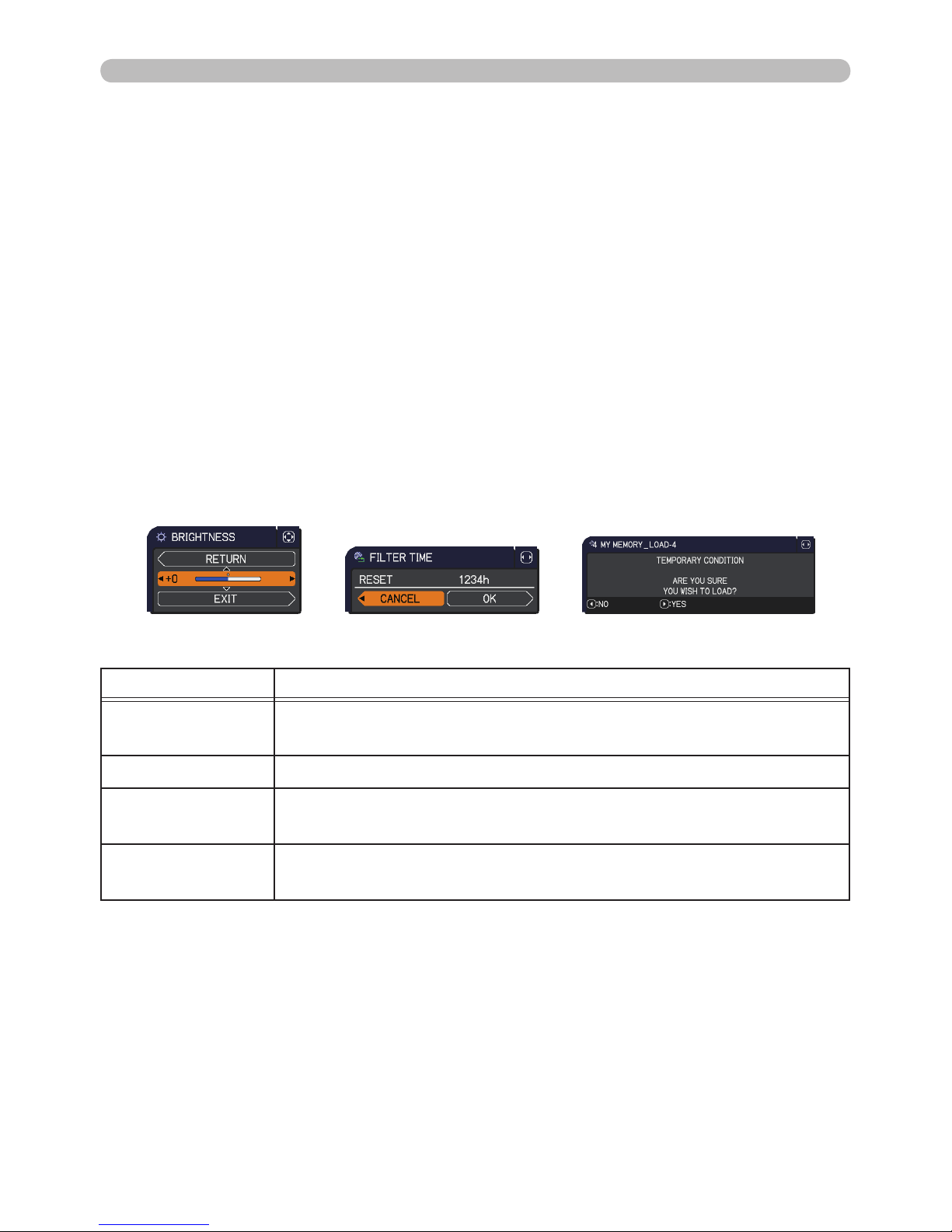

Using the menu function . . . . . . . . 34

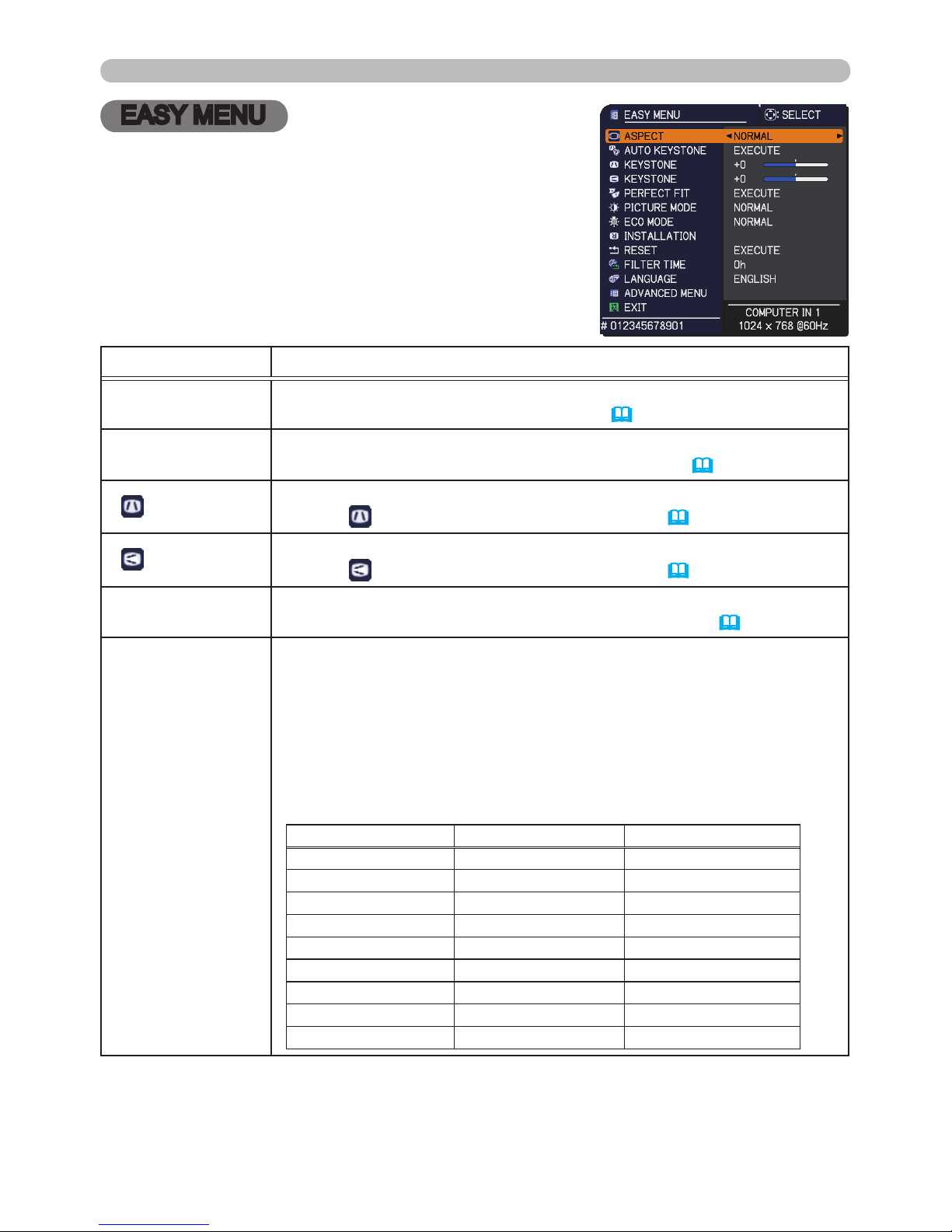

EASY MENU. . . . . . . . . . . . . . . 36

As p e c t , Au t o k e y s t o n e , k

e y s t o n e

ke y s t o n e , pe r f e c t f i t ,

pi c t u r e m o d e , ec o m o d e , in s t A l l A t i o n , re s e t , fi l t e r t i m e , l

A n g u A g e , Ad v A n c e d m e n u , ex i t

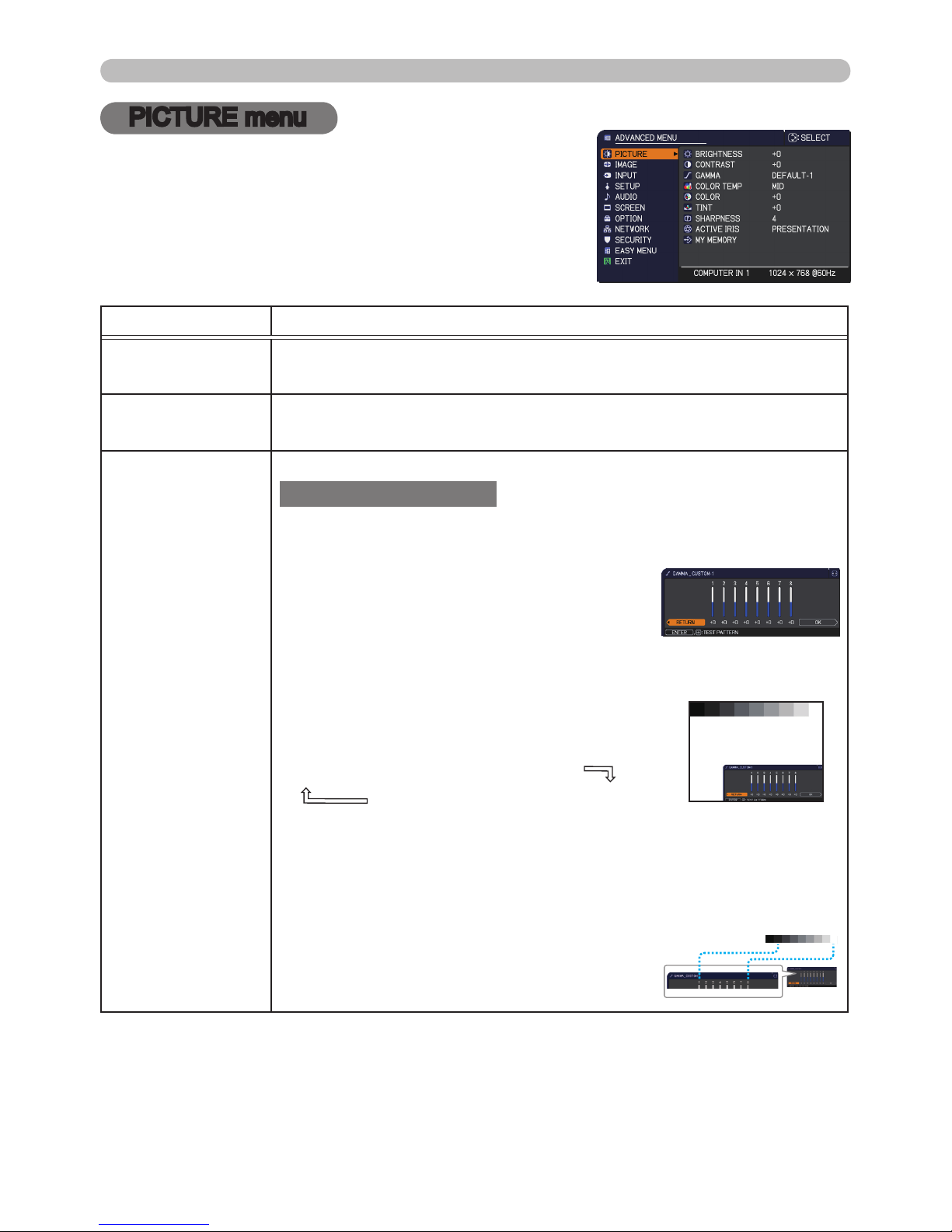

PICTURE menu . . . . . . . . . . . . 38

Br i g h t n e s s , co n t r A s t , gA m m A , co l o r t e m p , co l o r , ti n t , sh A r p n e s s , Ac t i v e i r i s , my m e m o r y

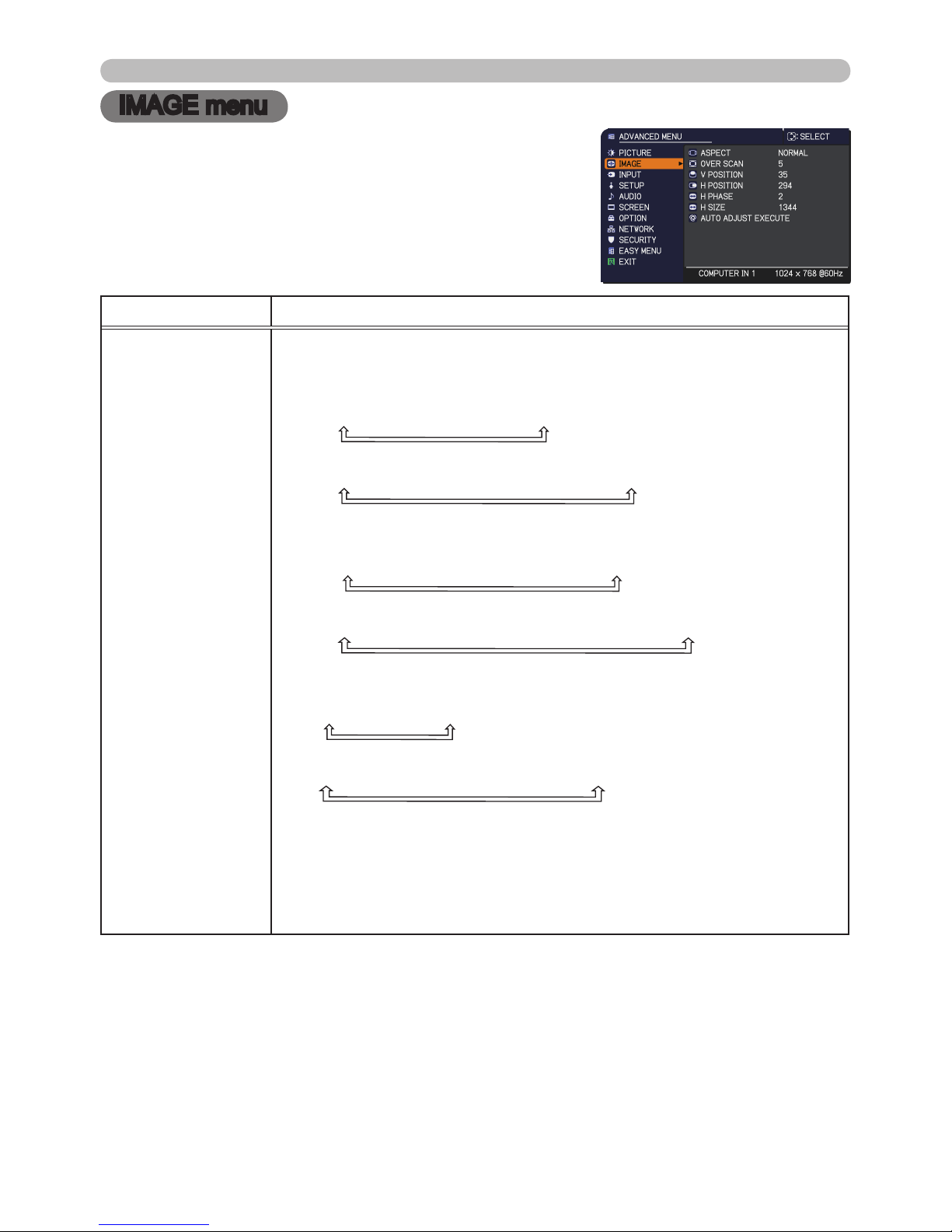

IMAGE menu . . . . . . . . . . . . . . 41

As p e c t , ov e r s c A n , v p o s i t i o n , h p o s i t i o n , h

p h A s e , h s i z e , Au t o A d j u s t e x e c u t e

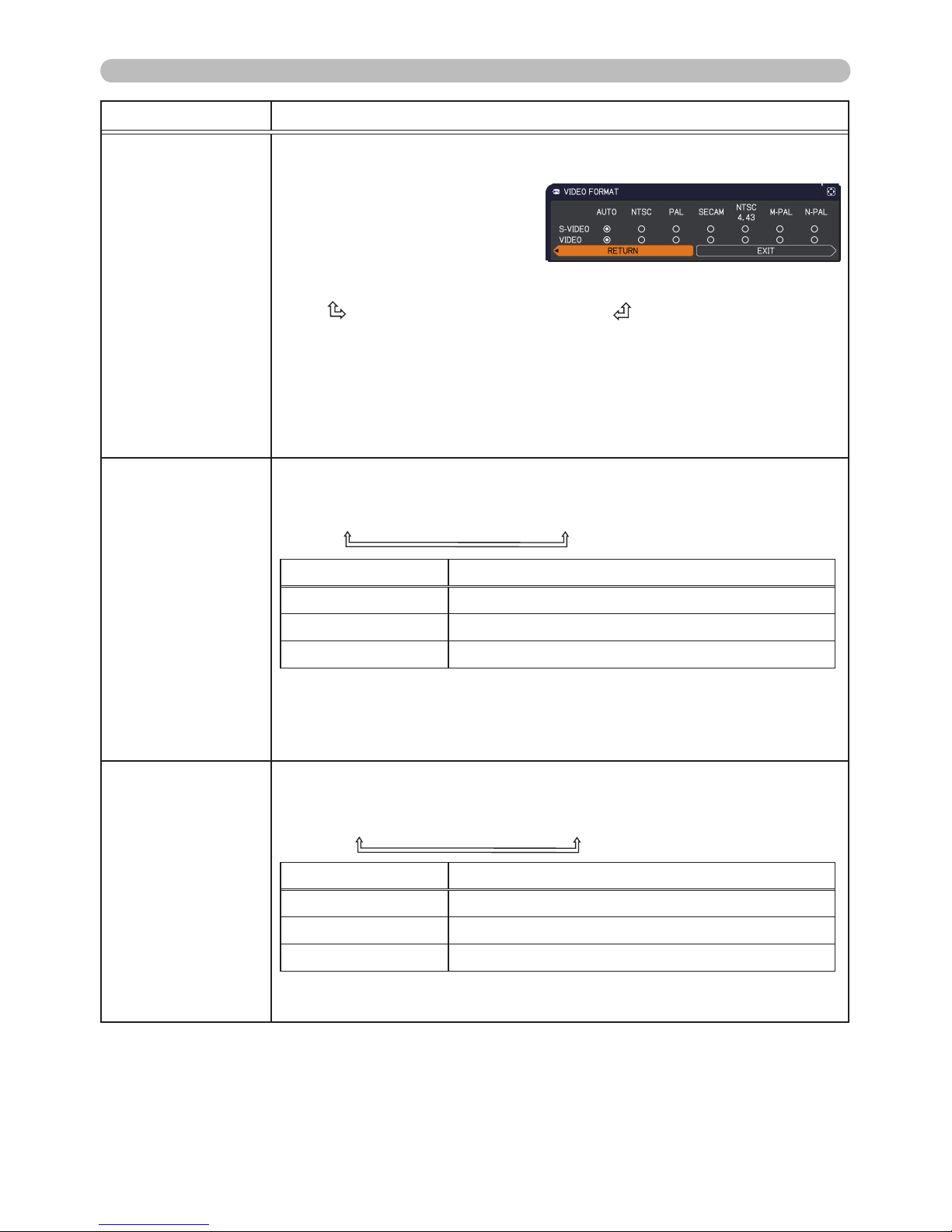

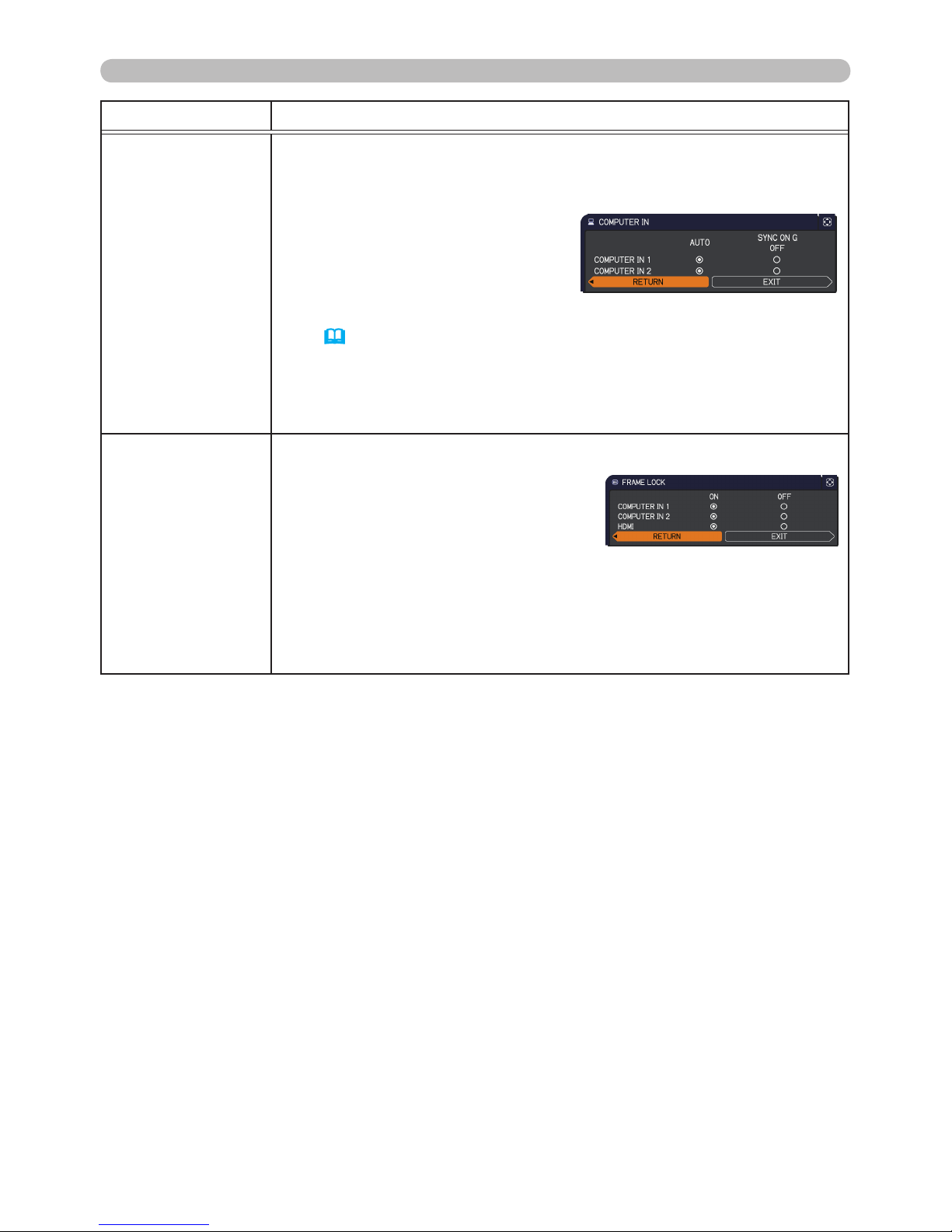

INPUT menu . . . . . . . . . . . . . . 44

pr o g r e s s i v e , vi d e o n r , co l o r s p A c e , c

o m p o n e n t , vi d e o f o r m A t , hd m i f o r m A t ,

hd m i r A n g e , co m p u t e r i n , fr A m e l o c k , r

e s o l u t i o n



SETUP menu ..............48

Au t o k e y s t o n e ,

e y s t o n e ,

ke y s t o n e ,

e r f e c t f i t , Au t o e c o m o d e , ec o m o d e ,

in s t A l l A t i o n , st A n d B y m o d e , mo n i t o r o u t

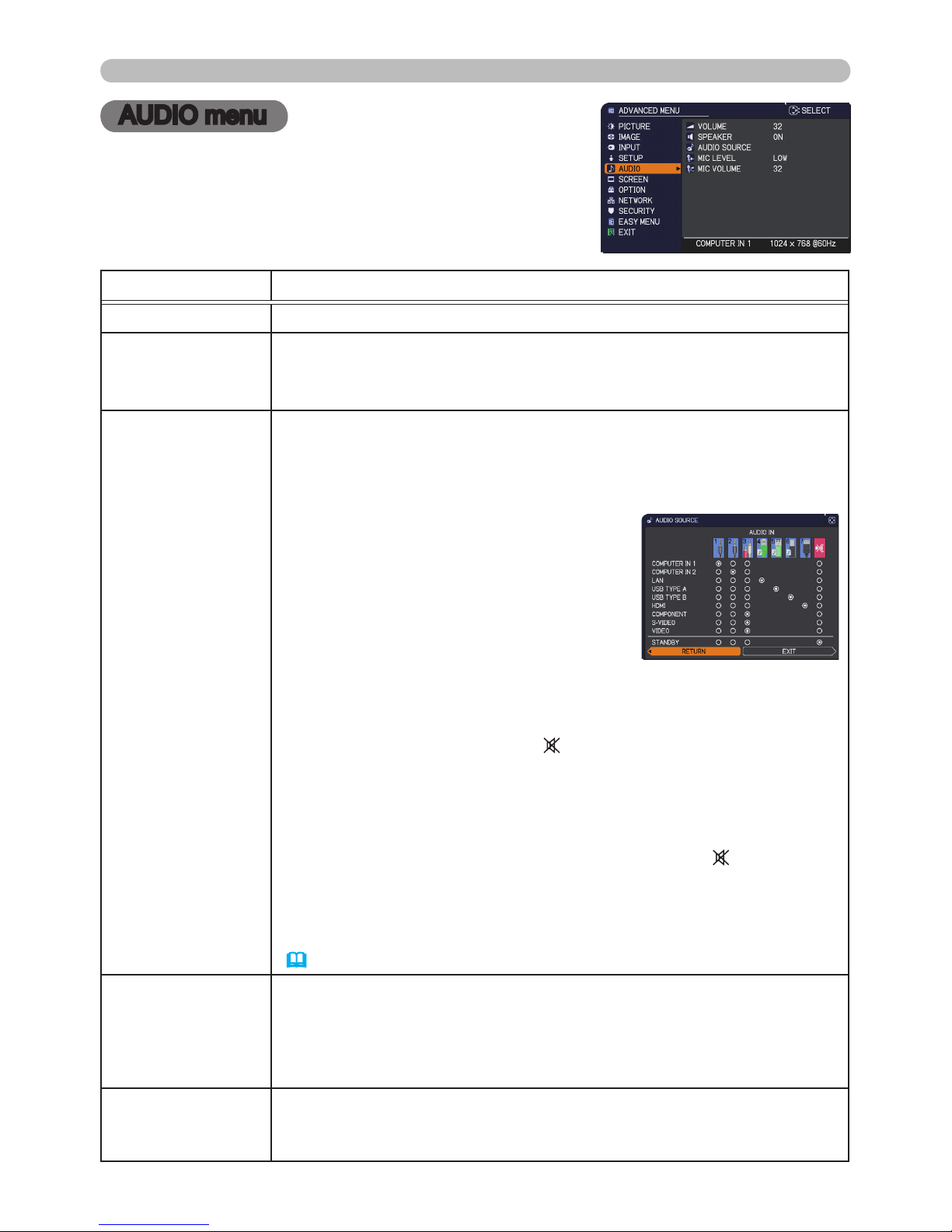

AUDIO menu . . . . . . . . . . . . . . 52

vo l u m e , sp e A k e r , Au d i o s o u r c e , m

i c l e v e l , mi c v o l u m e

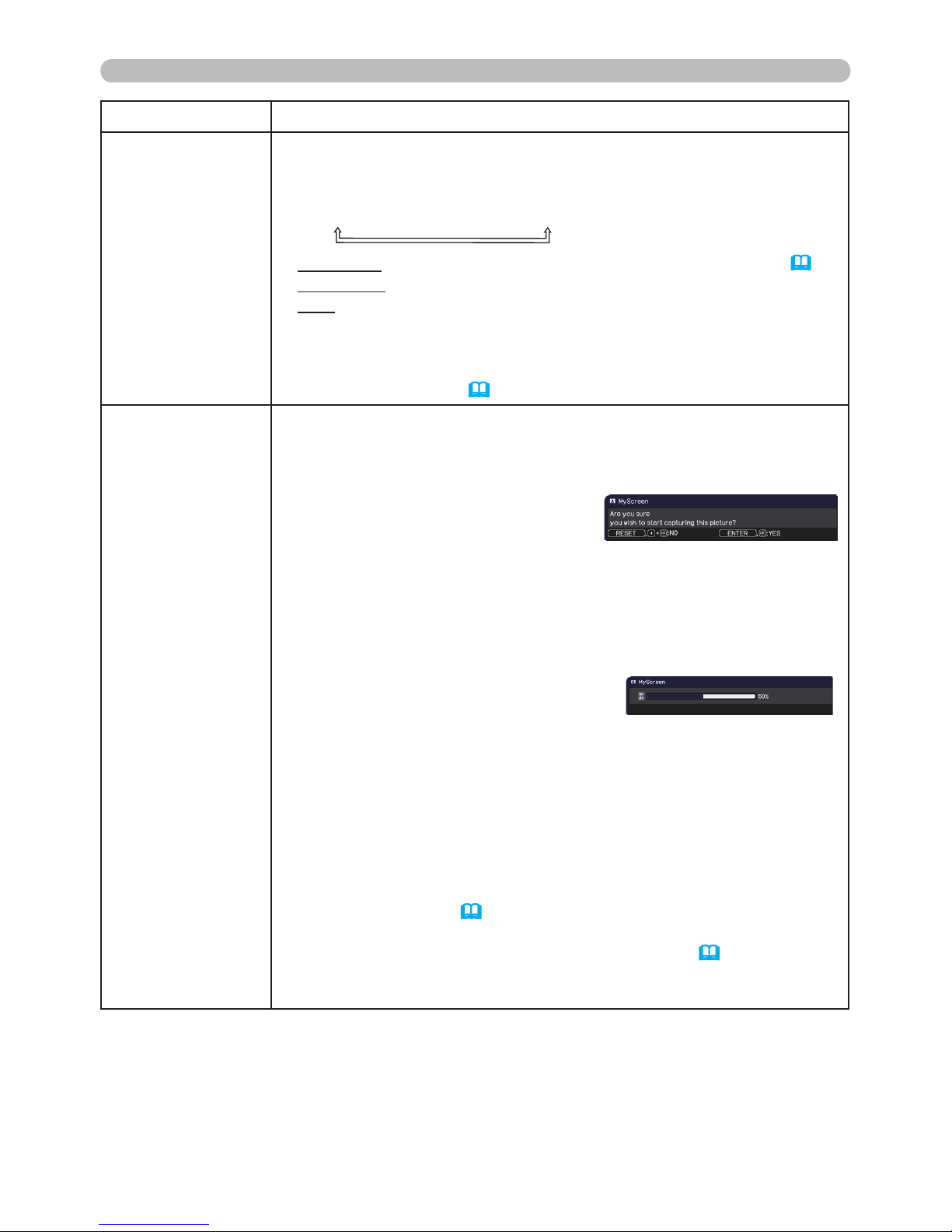

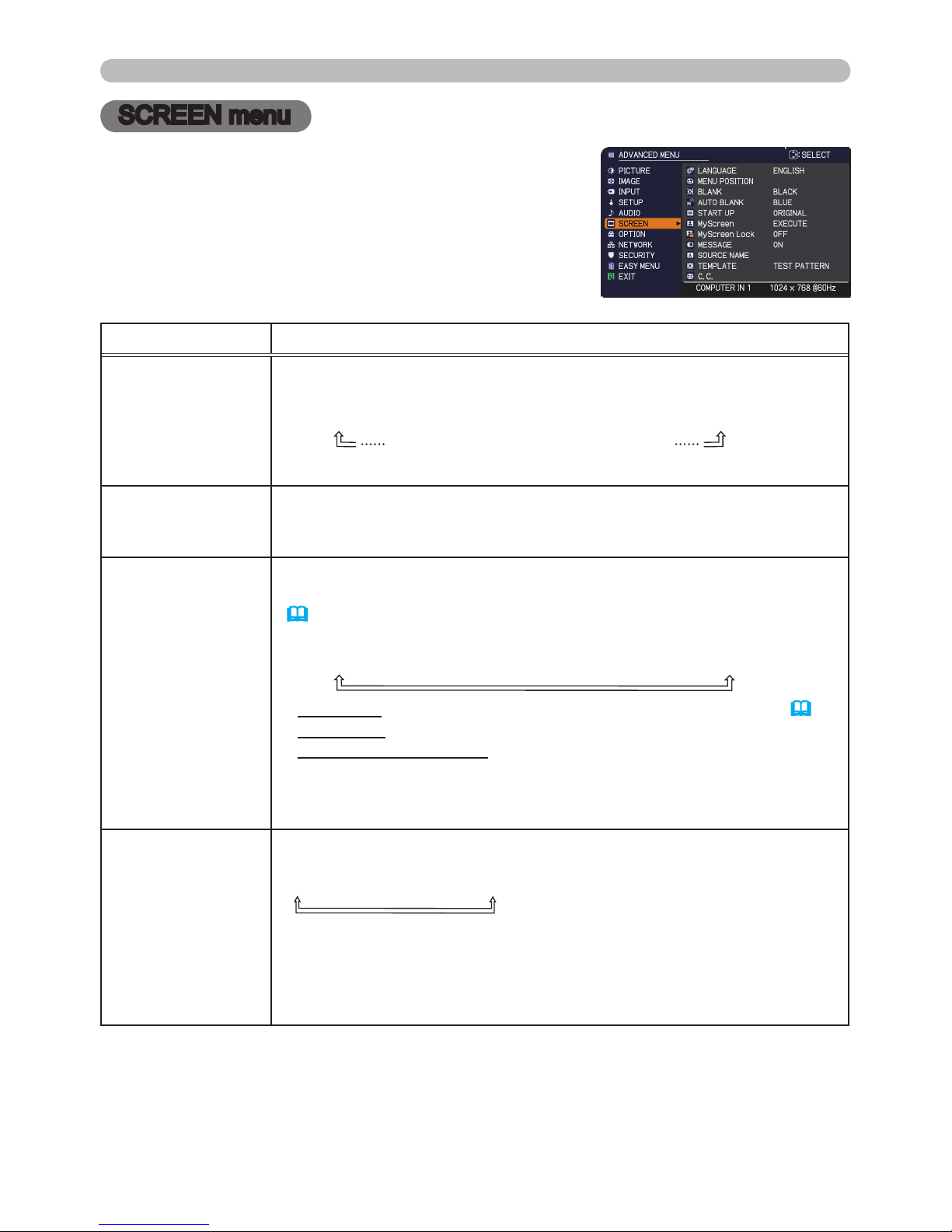

SCREEN menu .............53

lA n g u A g e , me n u p o s i t i o n , Bl A n k , A

u t o B l A n k , st A r t u p ,

yScreen

yScreen Lock

, me s s A g e , so u r c e n A m e ,

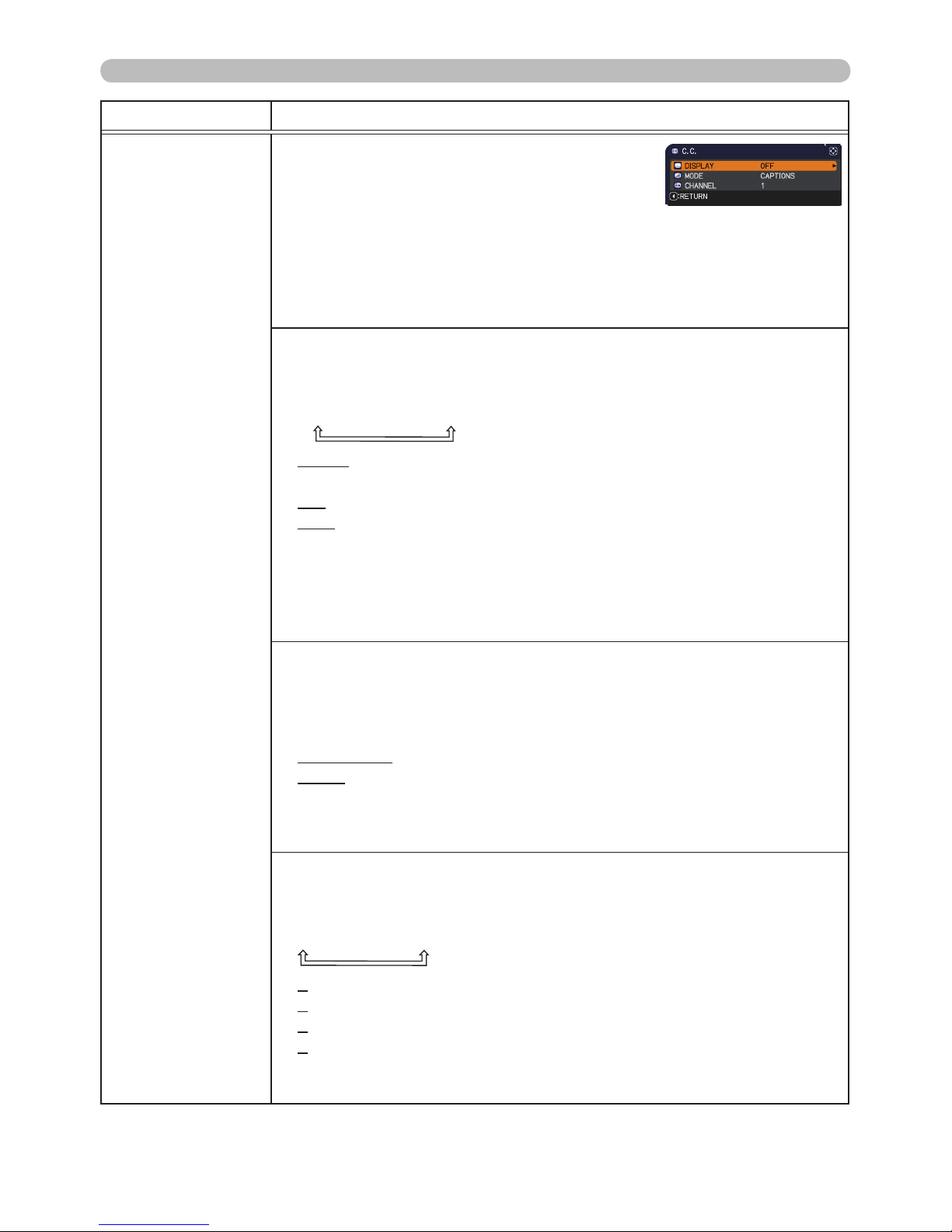

e m p l A t e , c.c.

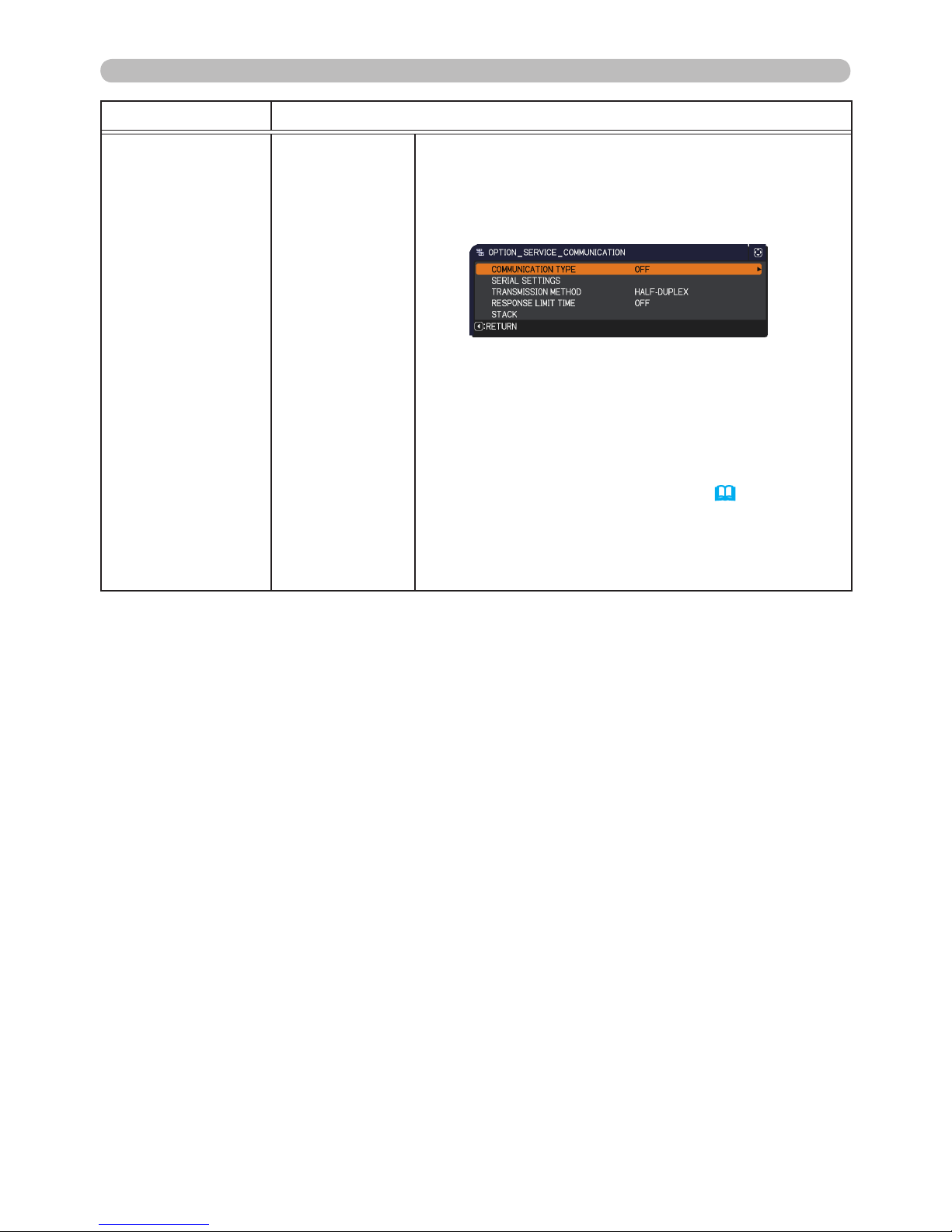

OPTION menu . . . . . . . . . . . . . 59

Au t o s e A r c h , Au t o k e y s t o n e , d

i r e c t p o w e r o n , Au t o p o w e r o f f ,

s B t y p e B, lA m p t i m e , fi l t e r t i m e ,

y B u t t o n , my s o u r c e , se r v i c e

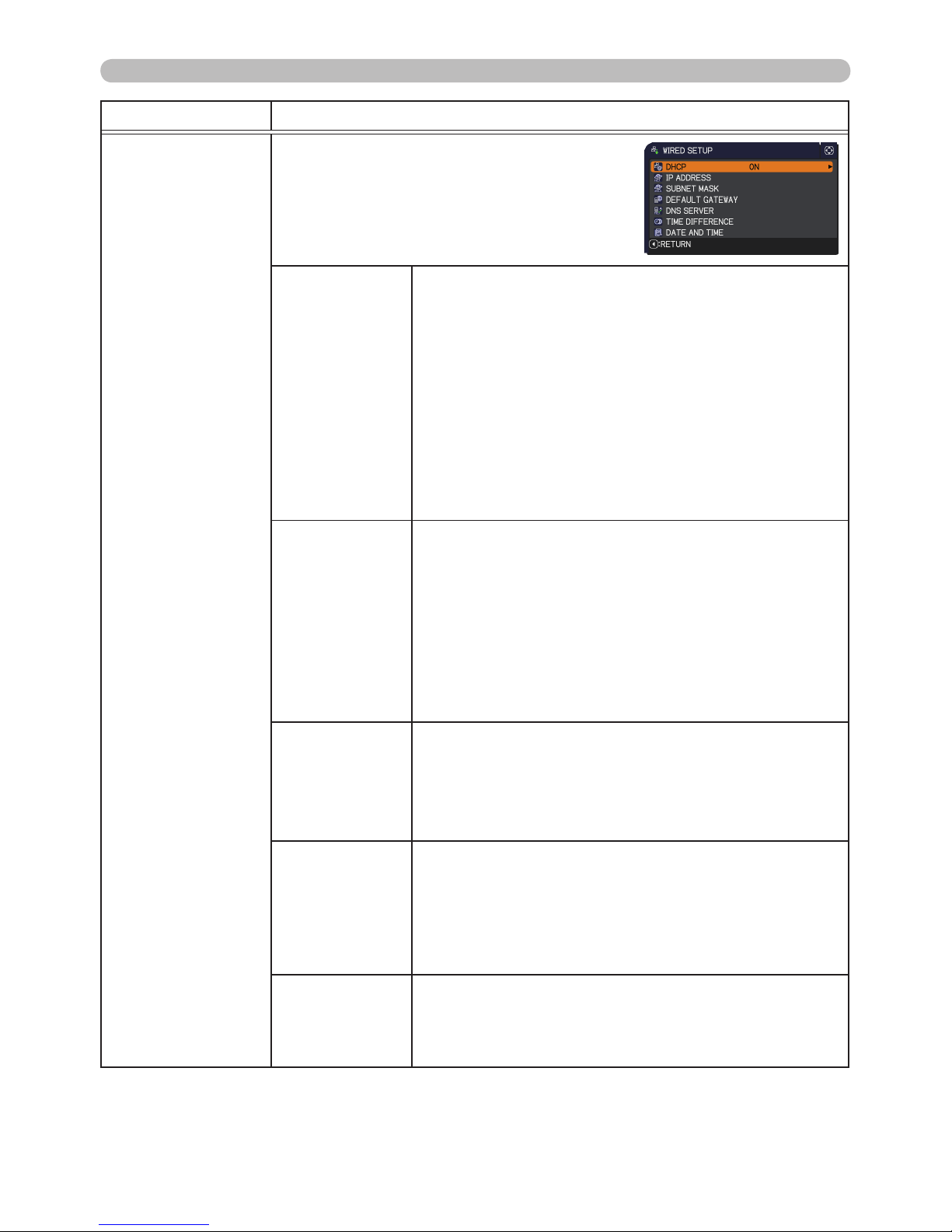

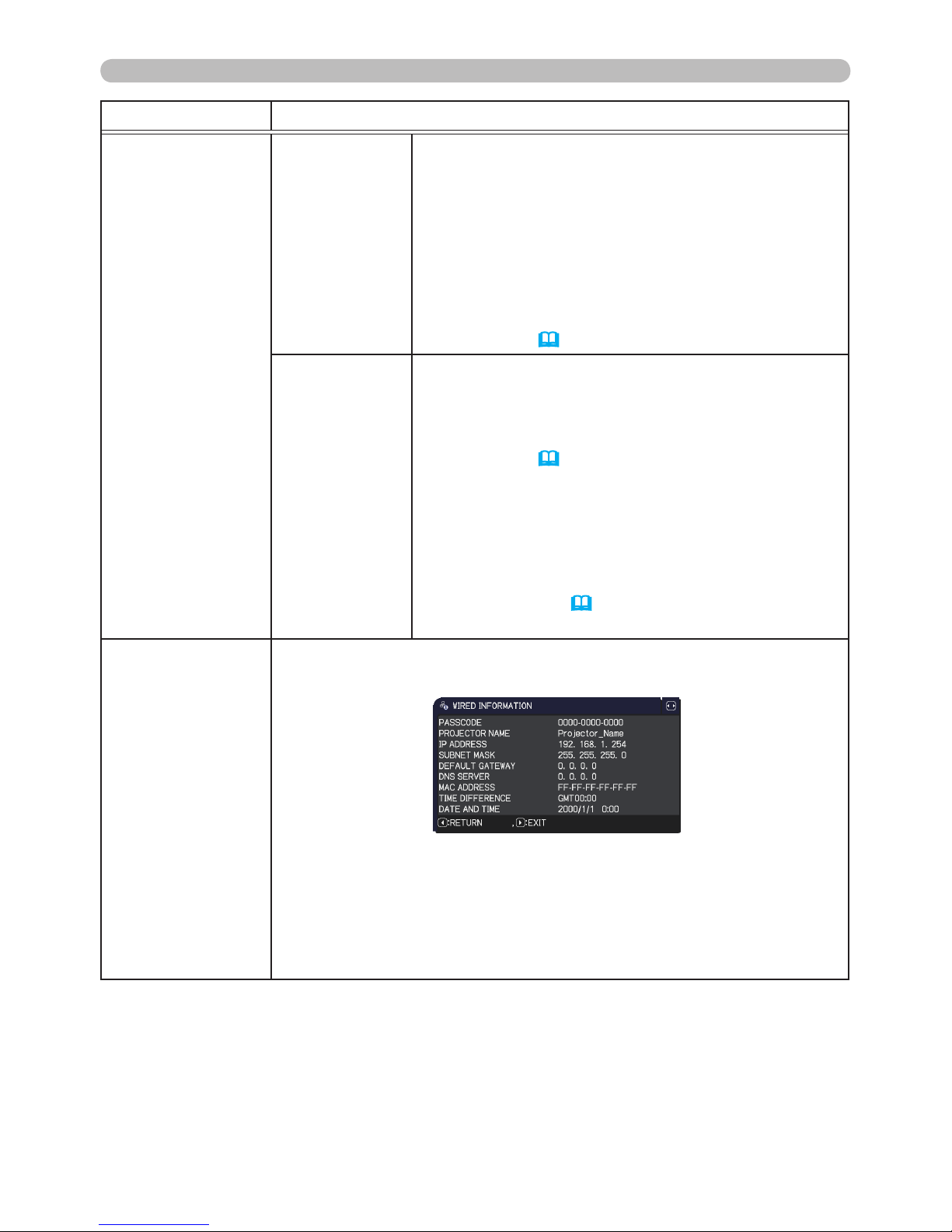

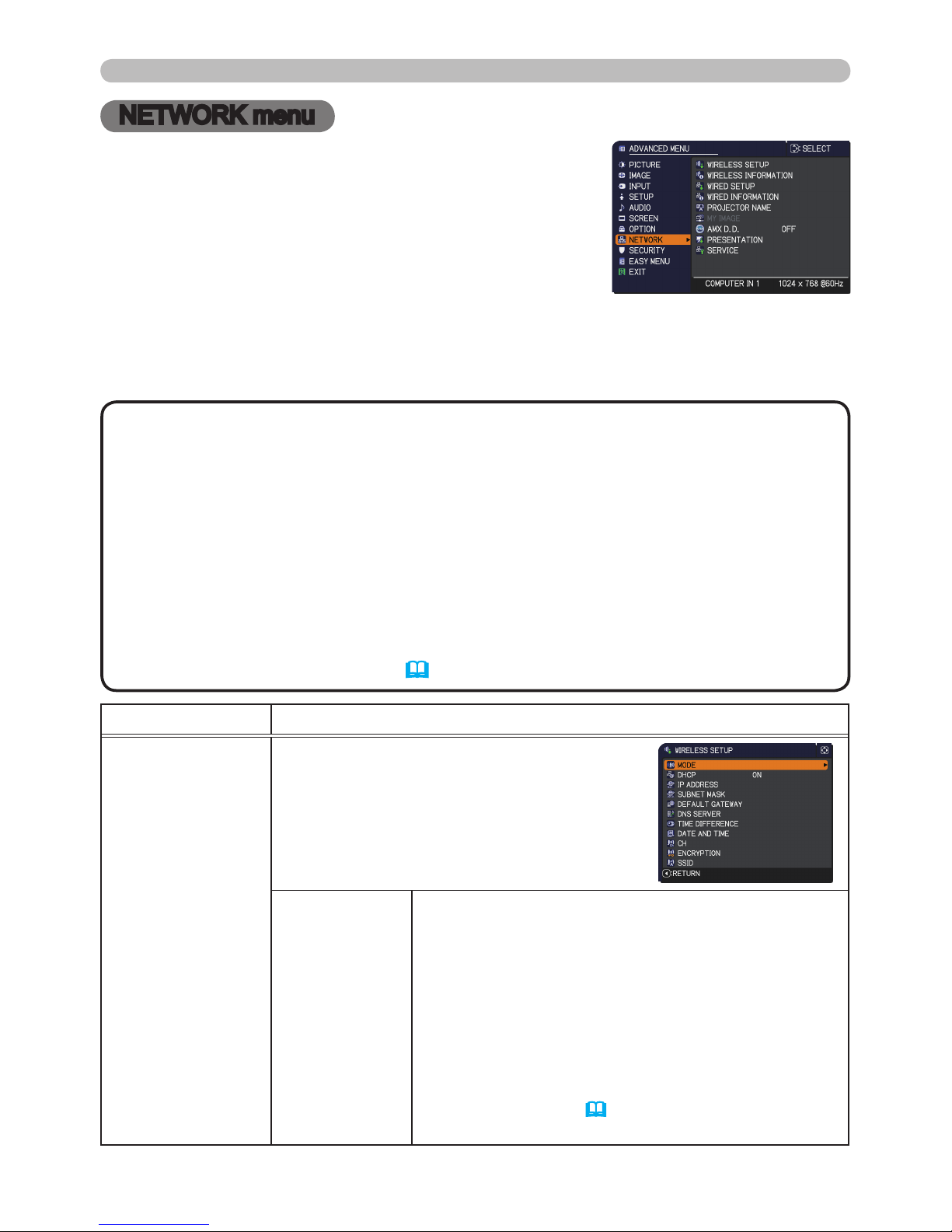

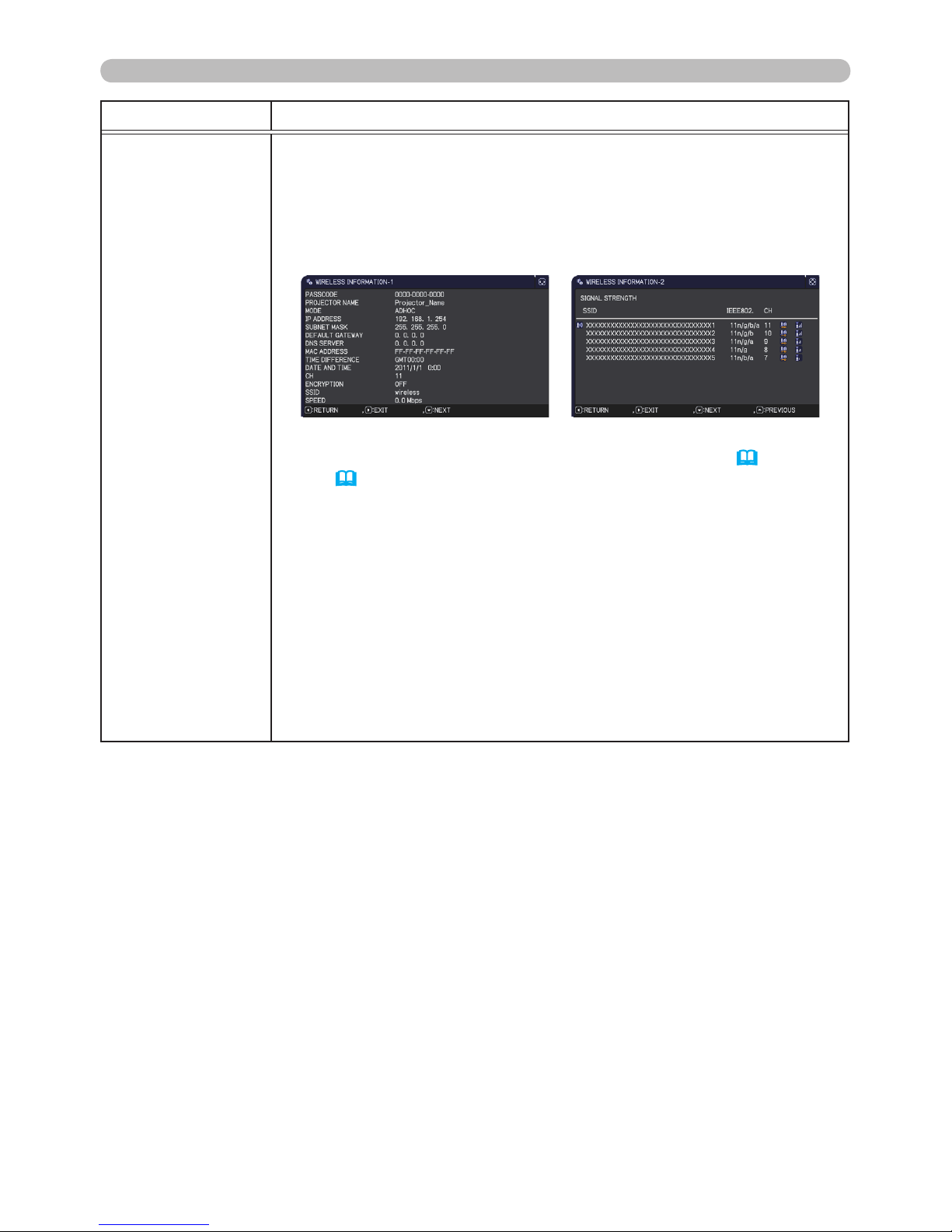

NETWORK menu ...........71

wi r e l e s s s e t u p , wi r e l e s s i n f o r m A t i o n , w

i r e d s e t u p , wi r e d i n f o r m A t i o n ,

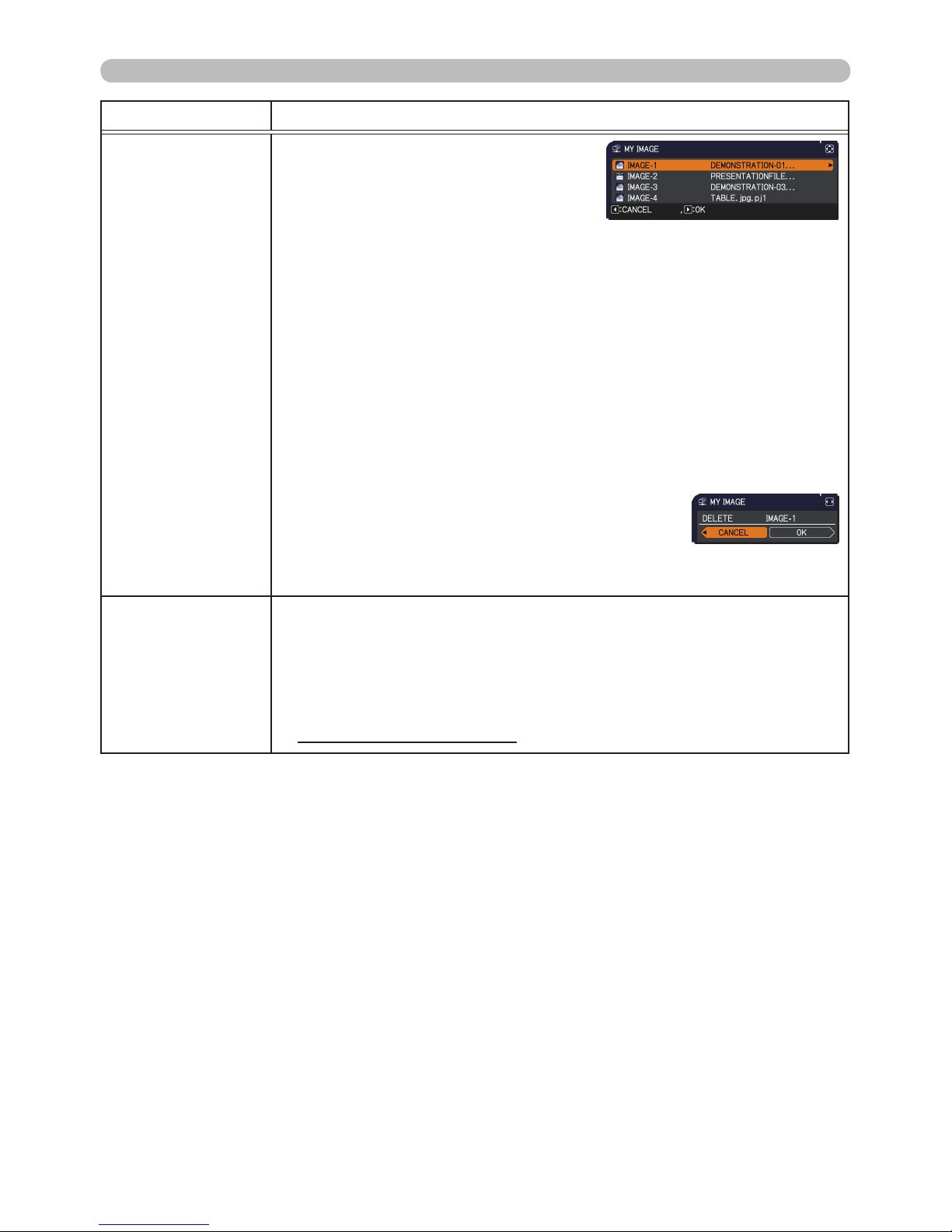

r o j e c t o r n A m e , my i m A g e , Am x d.d.,

r e s e n t A t i o n , se r v i c e

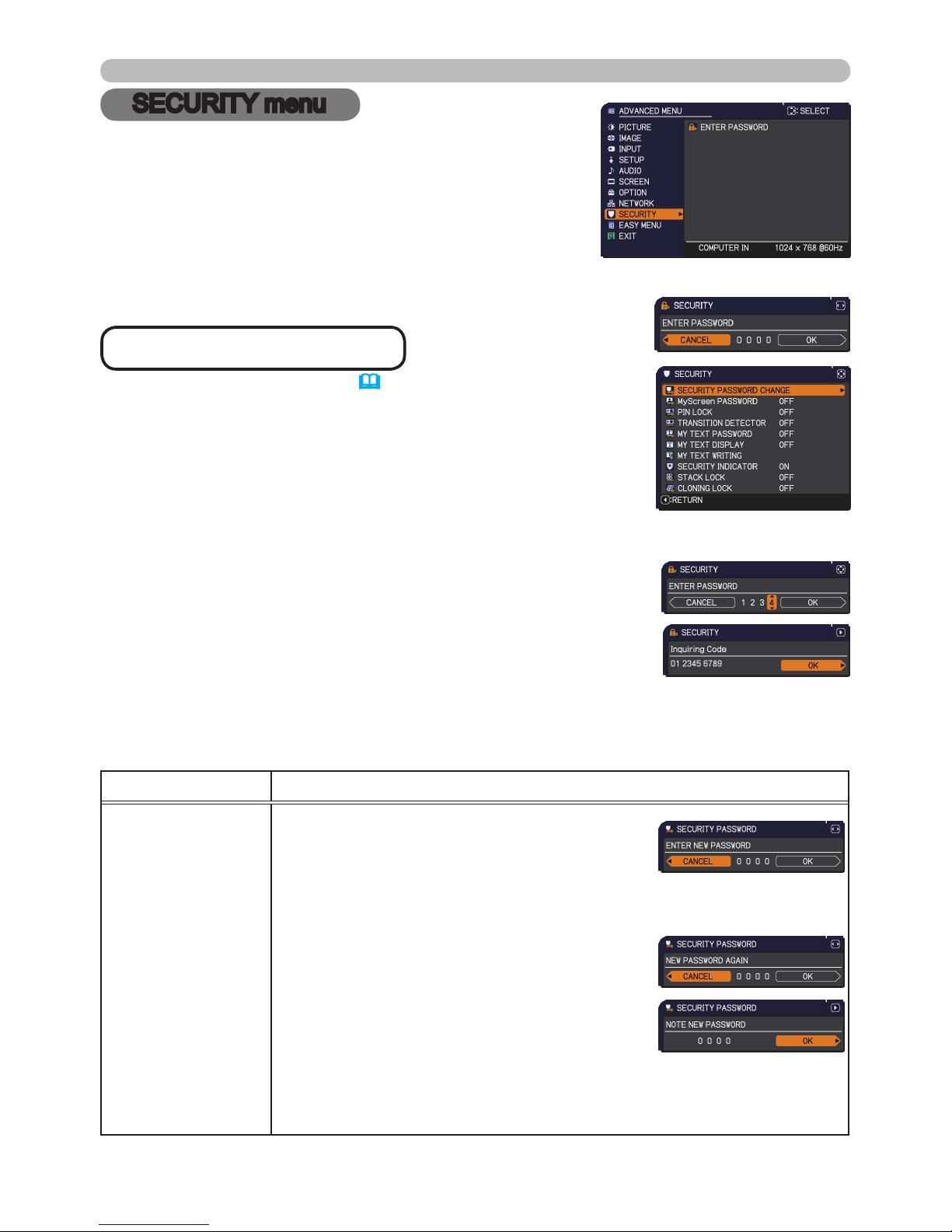

SECURITY menu ...........82

se c u r i t y p A s s w o r d c h A n g e ,

yScreen

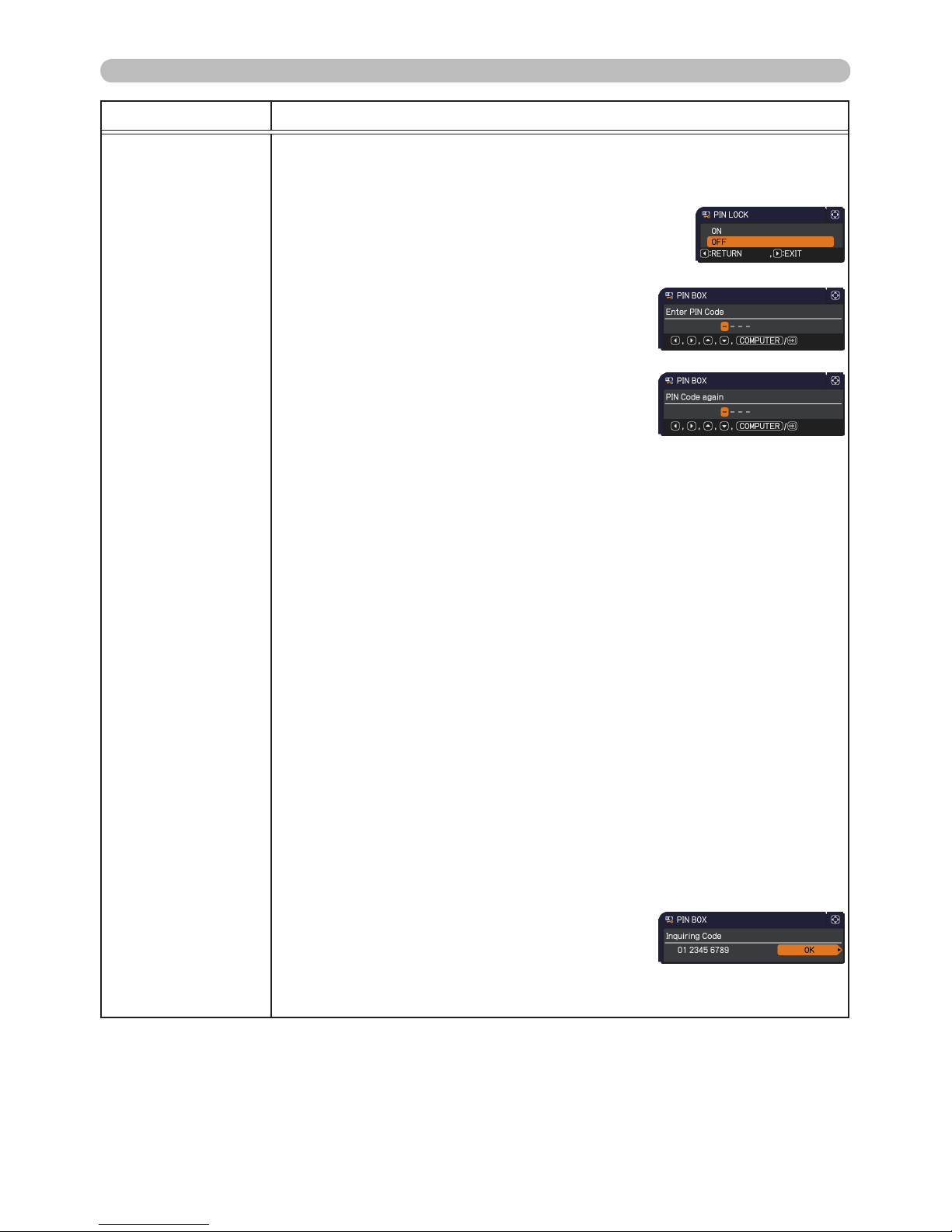

p A s s w o r d , pi n l o c k ,

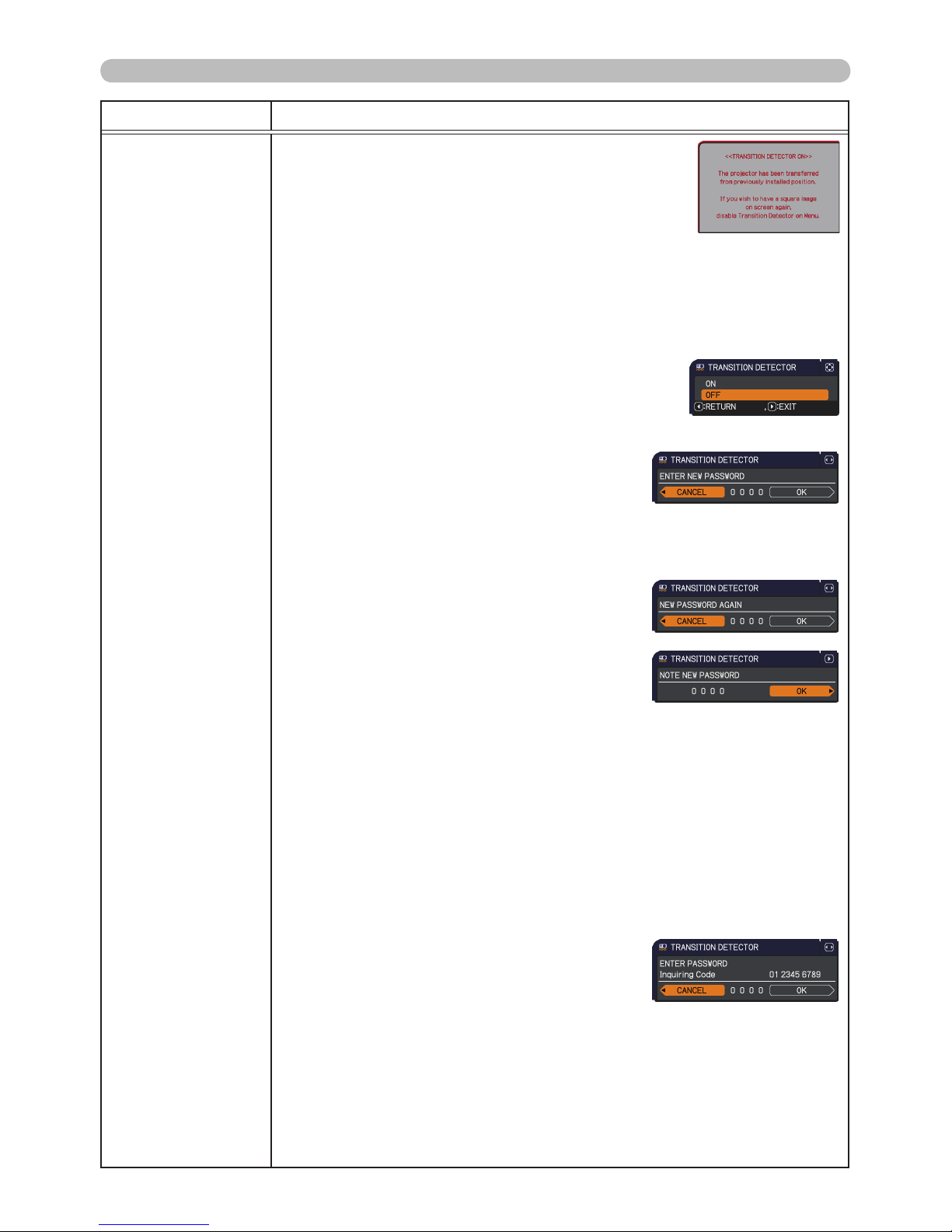

r A n s i t i o n d e t e c t o r , my t e x t p A s s w o r d ,

y t e x t d i s p l A y , my t e x t w r i t i n g ,

se c u r i t y i n d i c A t o r , st A c k l o c k , cl o n i n g l o c k

Presentation tools . . . . . . . . . 89

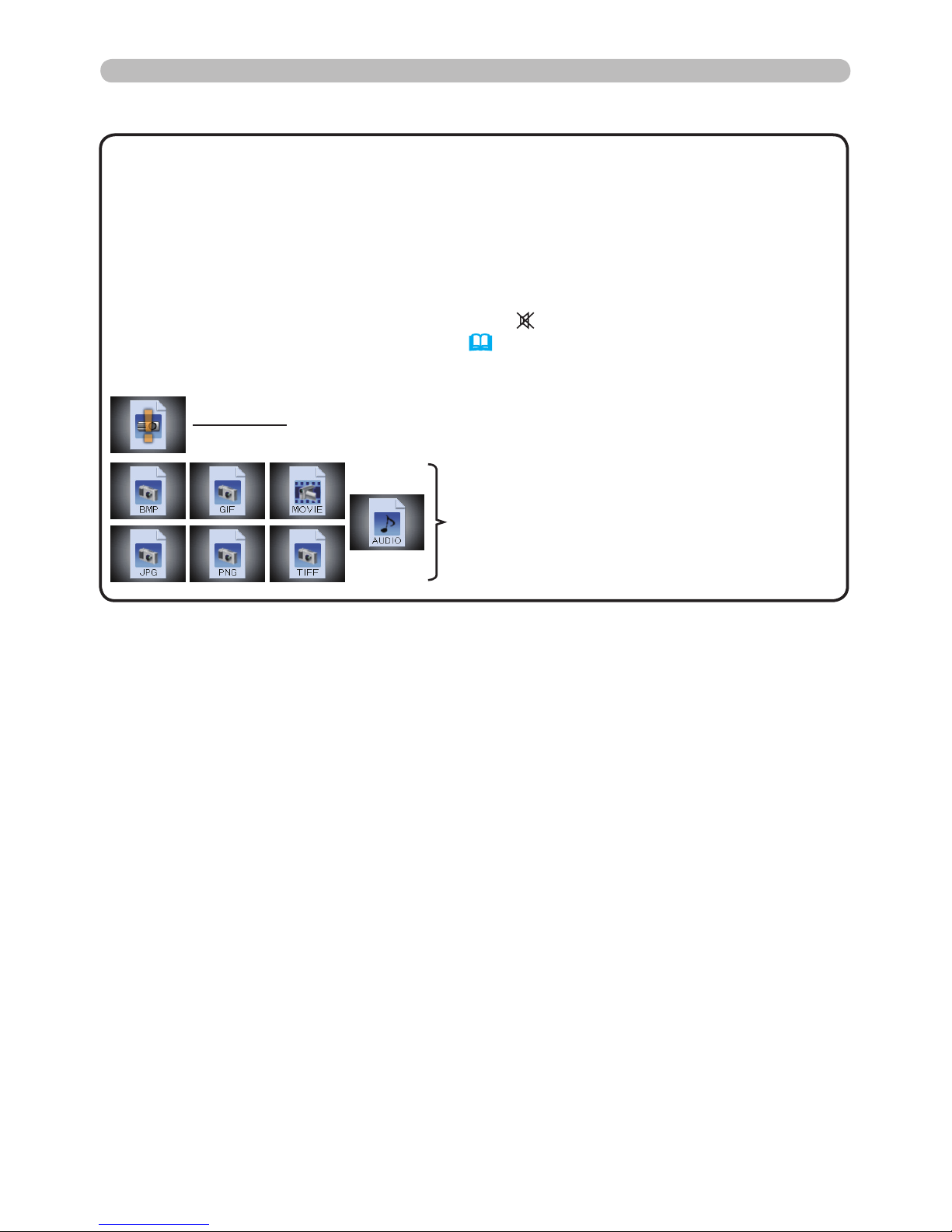

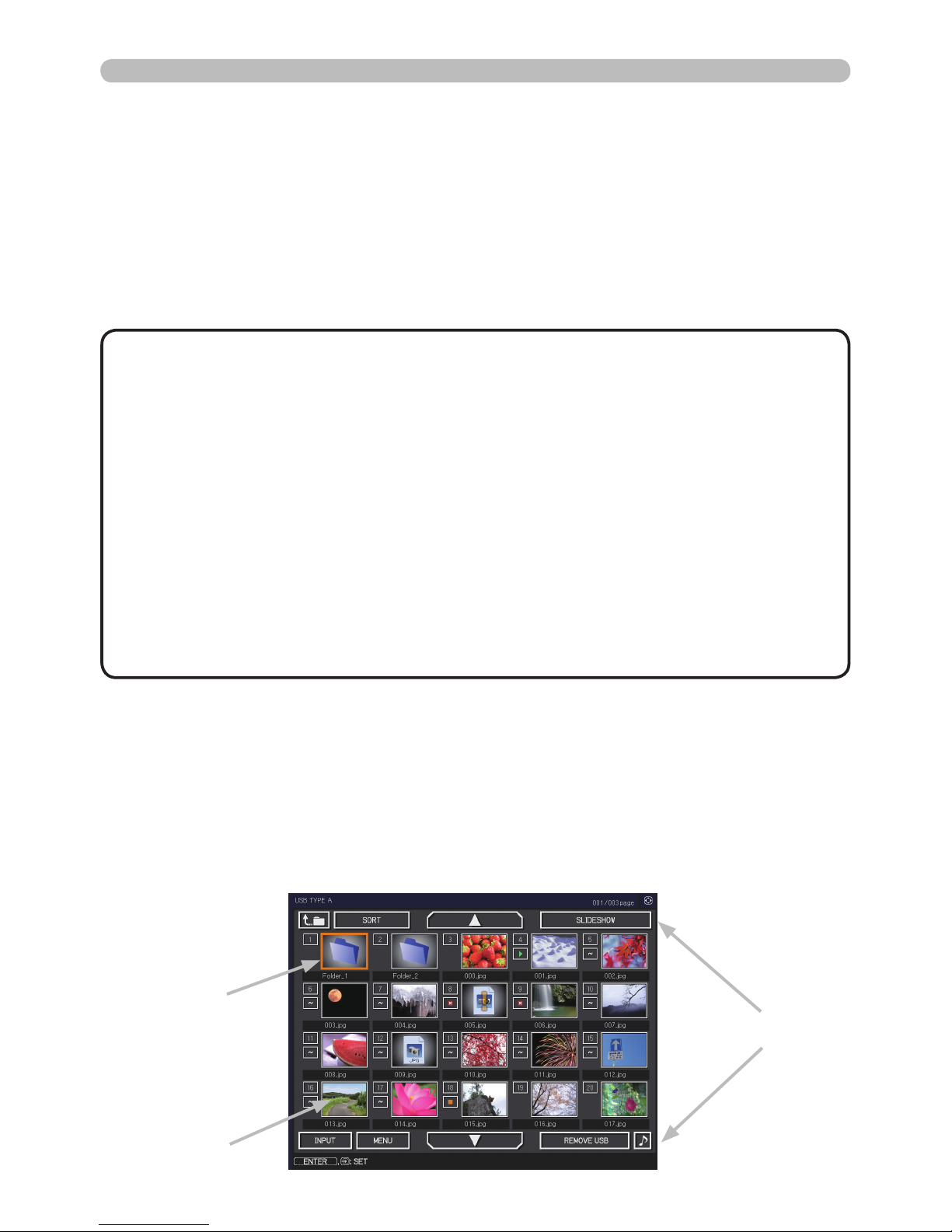

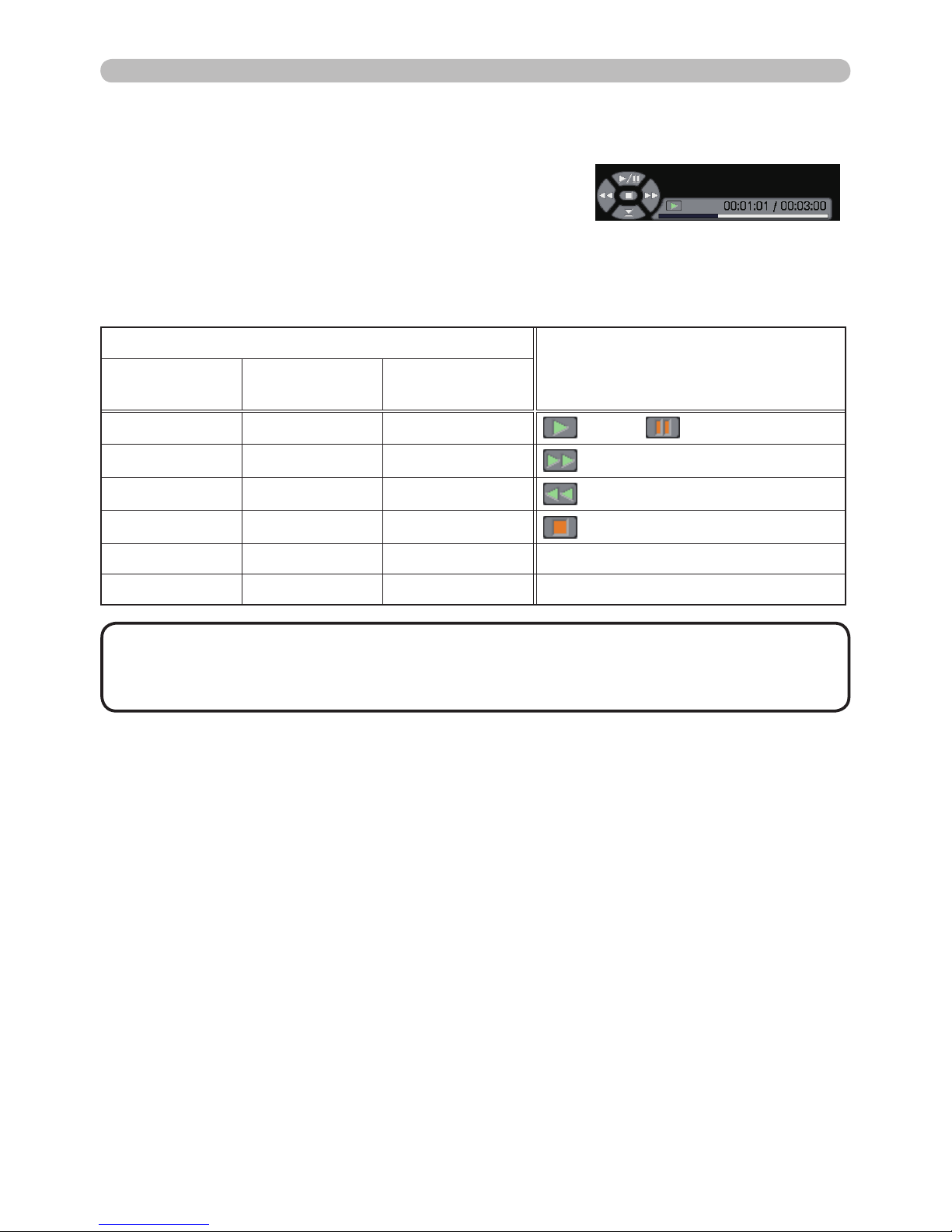

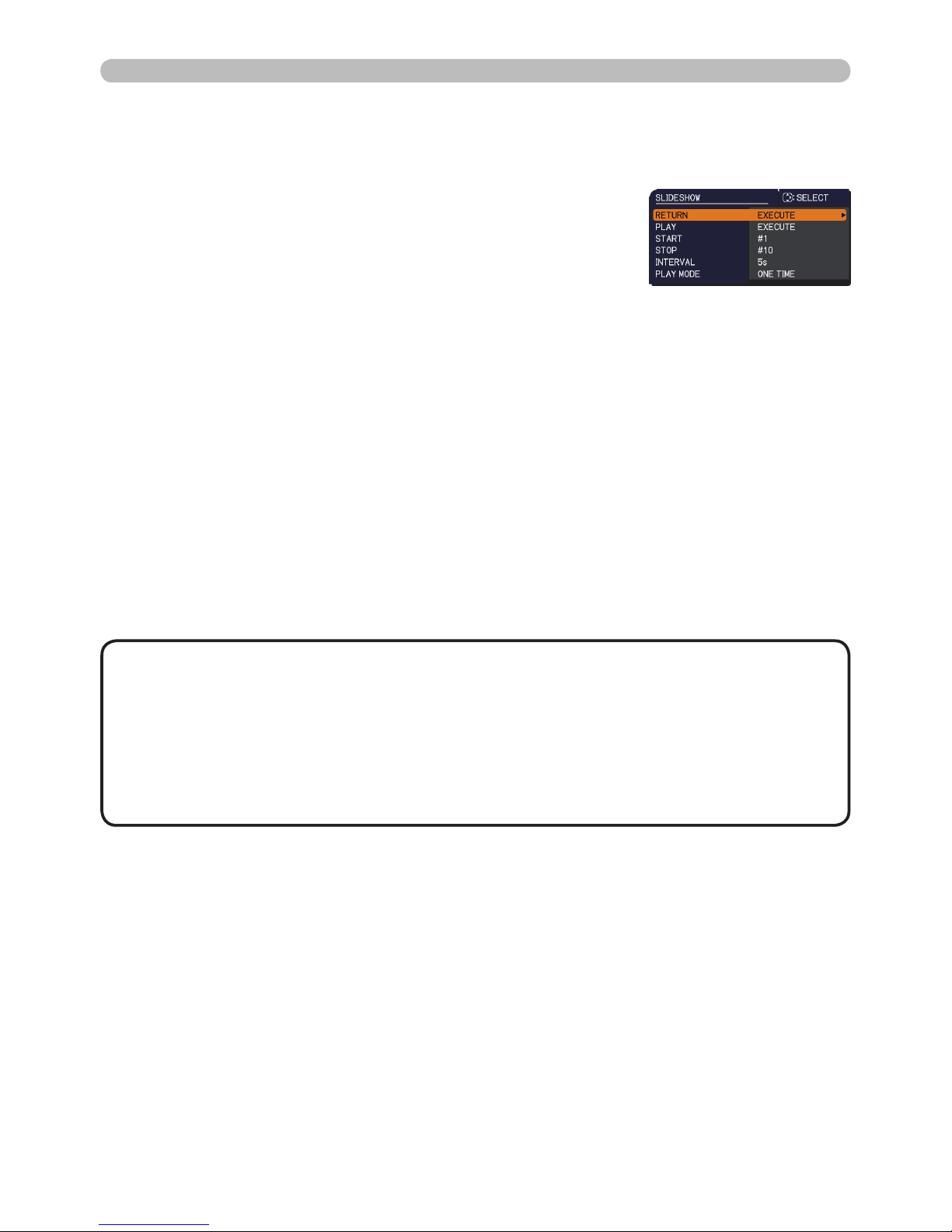

PC-LESS Presentation

...........89

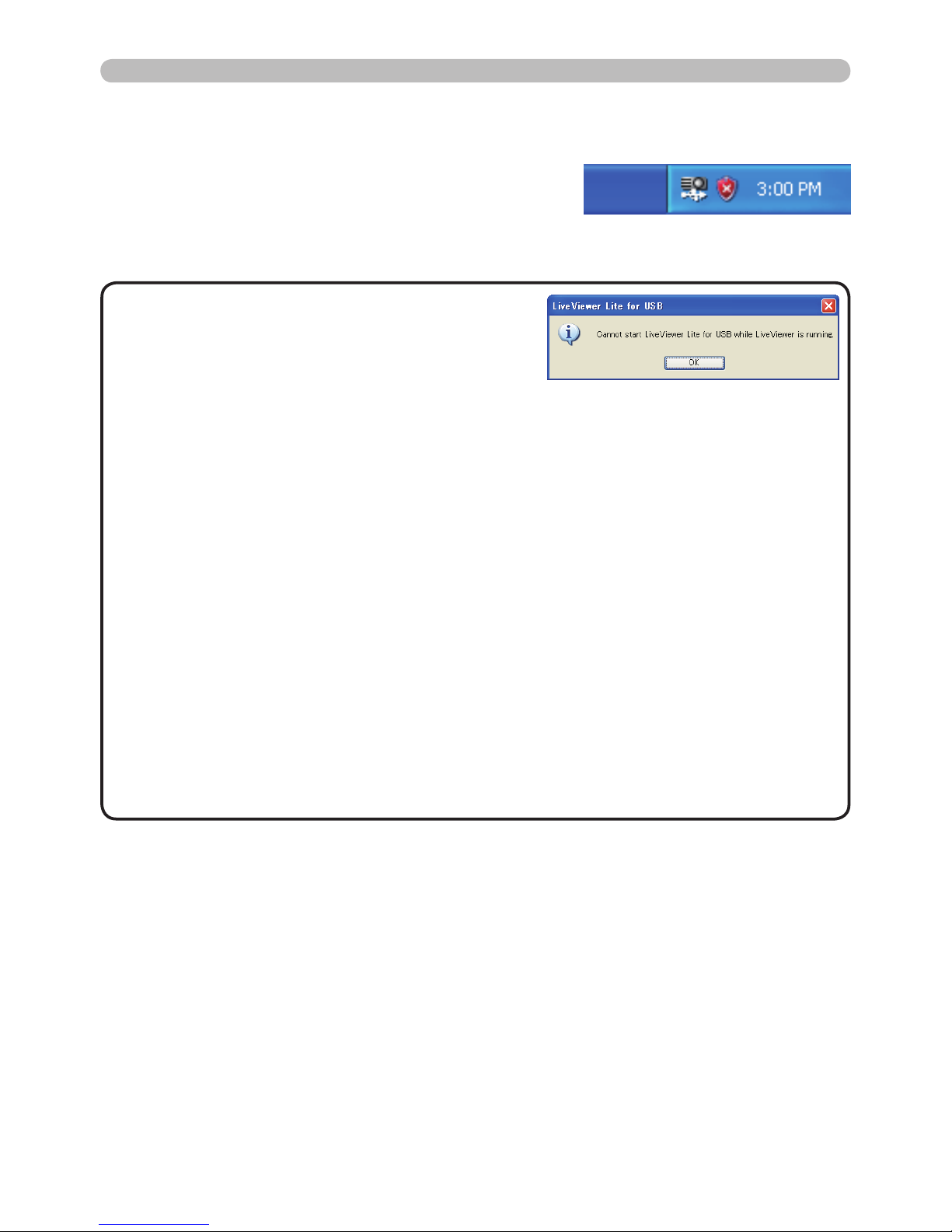

USB Display

(Windows computer)

. . . . . .

USB Display

(Mac computer)

.......

103

Maintenance .............107

Replacing the lamp ............107

Cleaning and replacing the air lter . 109

Other care ................... 111

Troubleshooting . . . . . . . . . . 112

Related messages . . . . . . . . . . . . 112

Regarding the indicator lamps . . . 114

Resetting all settings ...........117

Phenomena that may be easy to be mistaken for machine defects

. . 117

Specications ............122



Page 3

Introduction

• Keep the original packing materials, for future reshipment. Be sure to use the original packing materials when moving the projector. Use special caution for the lens.

• The projector may make a rattling sound when tilted, moved or shaken, since a ap to control the air ow inside of the projector has moved. Be aware that this is not a failure or malfunction.

Features

The projector provides you with the broad use by the following features. ü This projector has a variety of I/O ports that supposedly cover for any

business scene. The HDMI port can support various image equipment which have digital interface to get clearer pictures on a screen.

ü If you insert a USB storage device, such as a USB memory, into the USB

TYPE A port and select the port as the input source, you can view images

stored in the device.

ü This projector can be controlled and monitored via LAN connection.

Furthermore, you can use the designated USB wireless adapter (optional) to establish wireless LAN connection.

ü This projector has a 1.7 times optical zoom, horizontal and vertical manual

lens shift, allowing exible installation.

ü The double layer lter system is expected to function longer and offers you

less maintenance frequency.

ü The built-in 16W speaker can deliver sufcient sound volume in a large space

like a classroom without external speakers.

Checking the contents of package

Please see the Contents of package section in the User’s Manual (concise) which is a book. Your projector should come with the items shown there. Require of your dealer immediately if any items are missing.

►Keep small parts away from children and pets. Take care

not to put in the mouth. If swallowed, consult a physician immediately for emergency treatment.

WARNING

NOTE

Page 4

Introduction

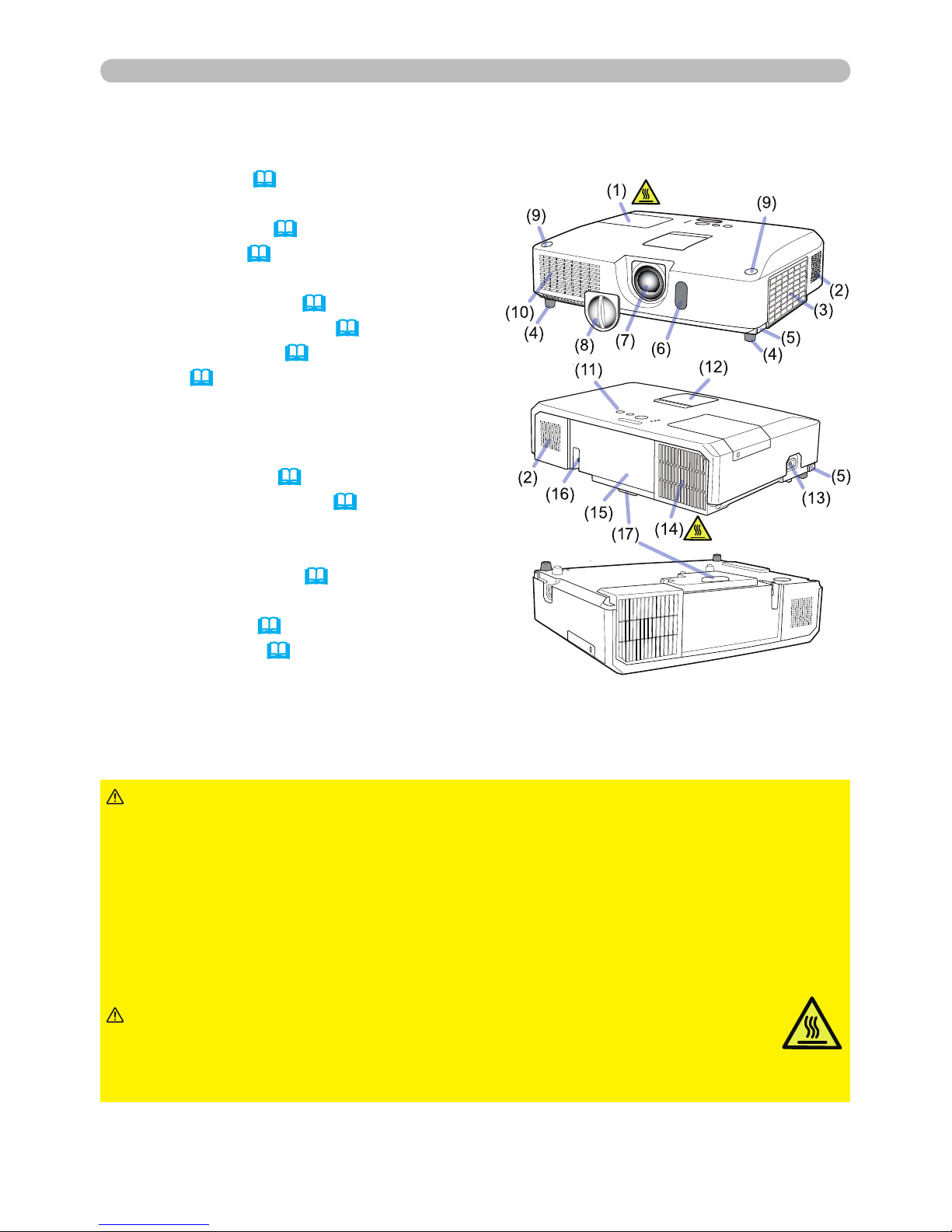

Part names

Projector

(1) Lamp cover (107)

The lamp unit is inside. (2) Speakers (x2) (22, 52) (3) Filter cover (109)

The air  lter and intake vent are inside. (4) Elevator feet (x2) (26) (5) Elevator buttons (x2) (26) (6) Remote sensor (18) (7) Lens (111) (8) Lens cover (9) Pocket caps (10) Intake vents (11) Control panel (5) (12) Lens adjuster door (5)

The adjusters for the lens are behind

the door. (13) AC IN (AC inlet) (15) (14) Exhaust vent (15) Rear panel (5) (16) Security bar (16) (17) Heel

►Do not open or remove any portion of the product, unless the manuals direct it. ►Do not subject the projector to unstable conditions. ►Do not apply a shock or pressure to this product. ►Do not look into the lens and the openings on the projector while the lamp is on. ►Keep the pocket caps away from children and pets. Make sure they do not swallow the caps. If swallowed consult a physician immediately for emergency treatment.

WARNING

►Do not touch around the lamp cover and the exhaust vents during use or just after use, since it is too hot. ►Do not attach anything onto the lens except the lens cover of this projector because it could damage the lens, such as melting the lens.

CAUTION

(continued on next page)

Page 5

Introduction

Part names (continued)

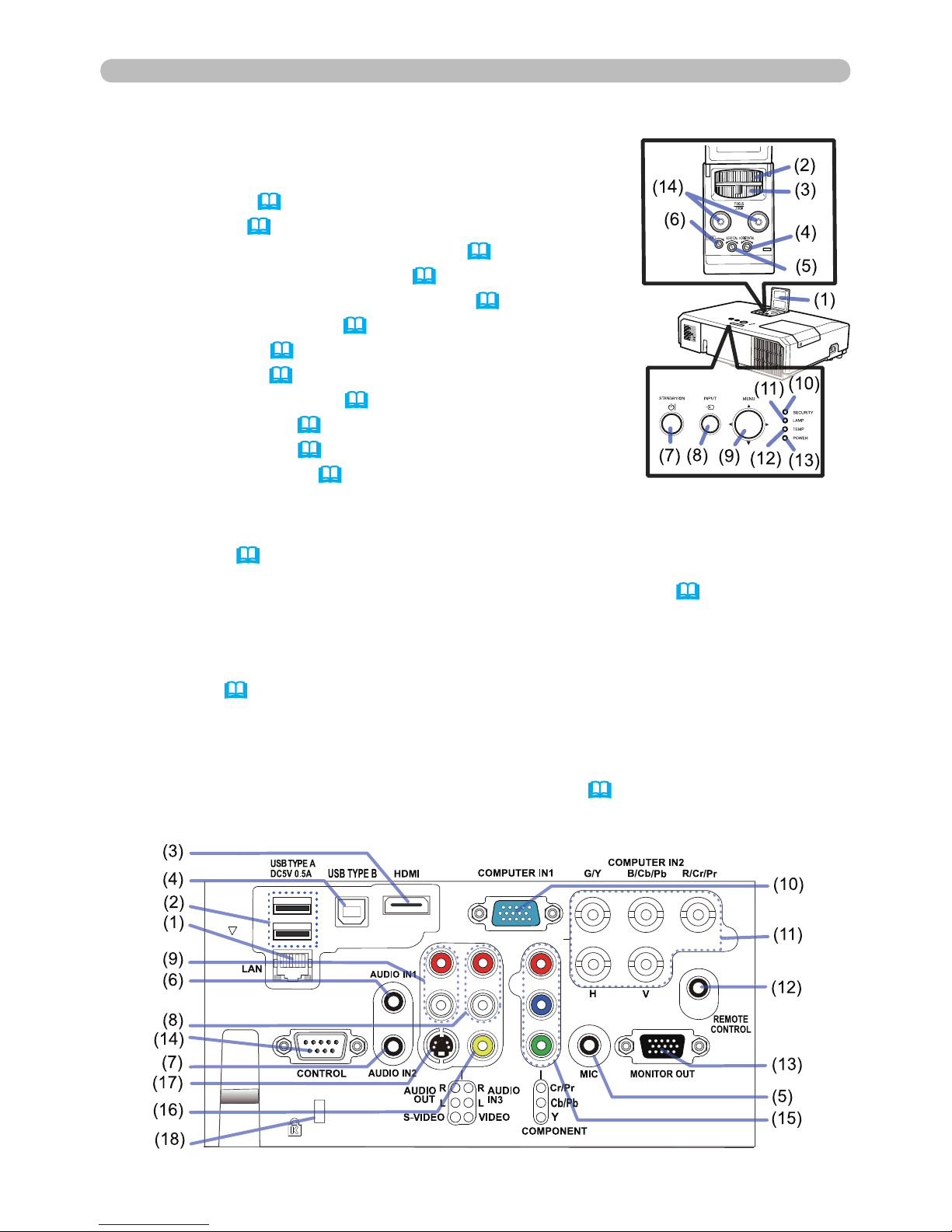

Control panel and Lens adjusters

LOCK

(1) Lens adjuster door (2) FOCUS ring (27) (3) ZOOM ring (27) (4) HORIZONTAL (horizontal) adjuster (27) (5) VERTICAL (vertical) adjuster (27) (6) LOCK (horizontal lens position lock) (27) (7) STANDBY/ON button (20) (8) INPUT button (23) (9) MENU button (34) (10) SECURITY indicator (88) (11) LAMP indicator (114) (12) TEMP indicator (114) (13) POWER indicator (114) (14) Cap storage pockets

Rear panel (

10 ~ 14)

(1) LAN port (2) USB TYPE A port (x2) (3) HDMI port (4) USB TYPE B port (5) MIC port (

14) (6) AUDIO IN1 port (7) AUDIO IN2 port (8) AUDIO IN3 (R,L) ports (9) AUDIO OUT (R,L) ports (10) COMPUTER IN1 port

(11) COMPUTER IN2 ports (

11)

(G/Y, B/Cb/Pb, R/Cr/Pr, H, V) (12) REMOTE CONTROL port (13) MONITOR OUT port (14) CONTROL port (15) COMPONENT ports (Y,Cb/Pb, Cr/Pr) (16) VIDEO port (17) S-VIDEO ports (18) Security slot (16)

(continued on next page)

Page 6

Introduction

Part names (continued)

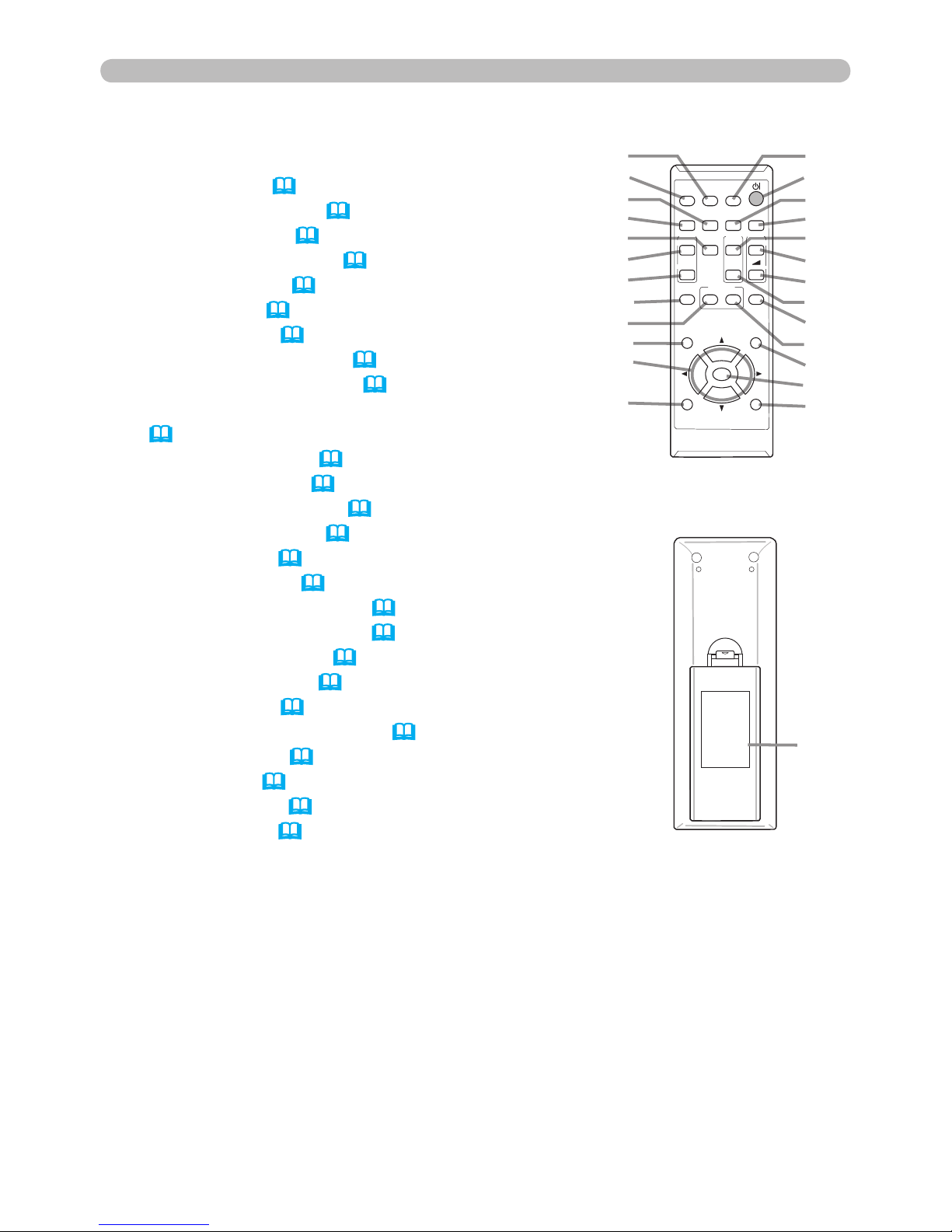

Remote control

(1) VIDEO button (

23) (2) COMPUTER button (23) (3) SEARCH button (24) (4) STANDBY/ON button (20) (5) ASPECT button (25) (6) AUTO button (28) (7) BLANK button (33) (8) MAGNIFY - ON button (32) (9) MAGNIFY - OFF button (32) (10) MY SOURCE/DOC.CAMERA button

(24, 63) (11) VOLUME - button (22) (12) PAGE UP button (19) (13) PAGE DOWN button (19) (14) VOLUME + button (22) (15) MUTE button (22) (16) FREEZE button (33) (17) MY BUTTON - 1 button (62, 63) (18) MY BUTTON - 2 button (62, 63) (19) KEYSTONE button (29) (20) POSITION button (28, 34) (21) MENU button (34) (22) ▲/▼/◄/► cursor buttons (34) (23) ENTER button (34) (24) ESC button (34) (25) RESET button (34) (26) Battery cover (17)

Back of

the remote control

(2) (1) (6) (5) (16) (8) (9) (19) (17) (20) (22)

(24)

(10) (4) (3) (7) (12) (14) (11) (13) (15) (18) (21) (23) (25)

(26)

VIDEO

DOC.CAMERA

KEYSTONE

ASPECT

BLANK

MUTE

MY BUTTON

POSITION

ESC

RESET

COMPUTER

MY SOURCE/

AUTO

MAGNIFY

PAGE

DOWN

OFF

FREEZE

࡯

㧗

VOLUME





ENTER

Page 7

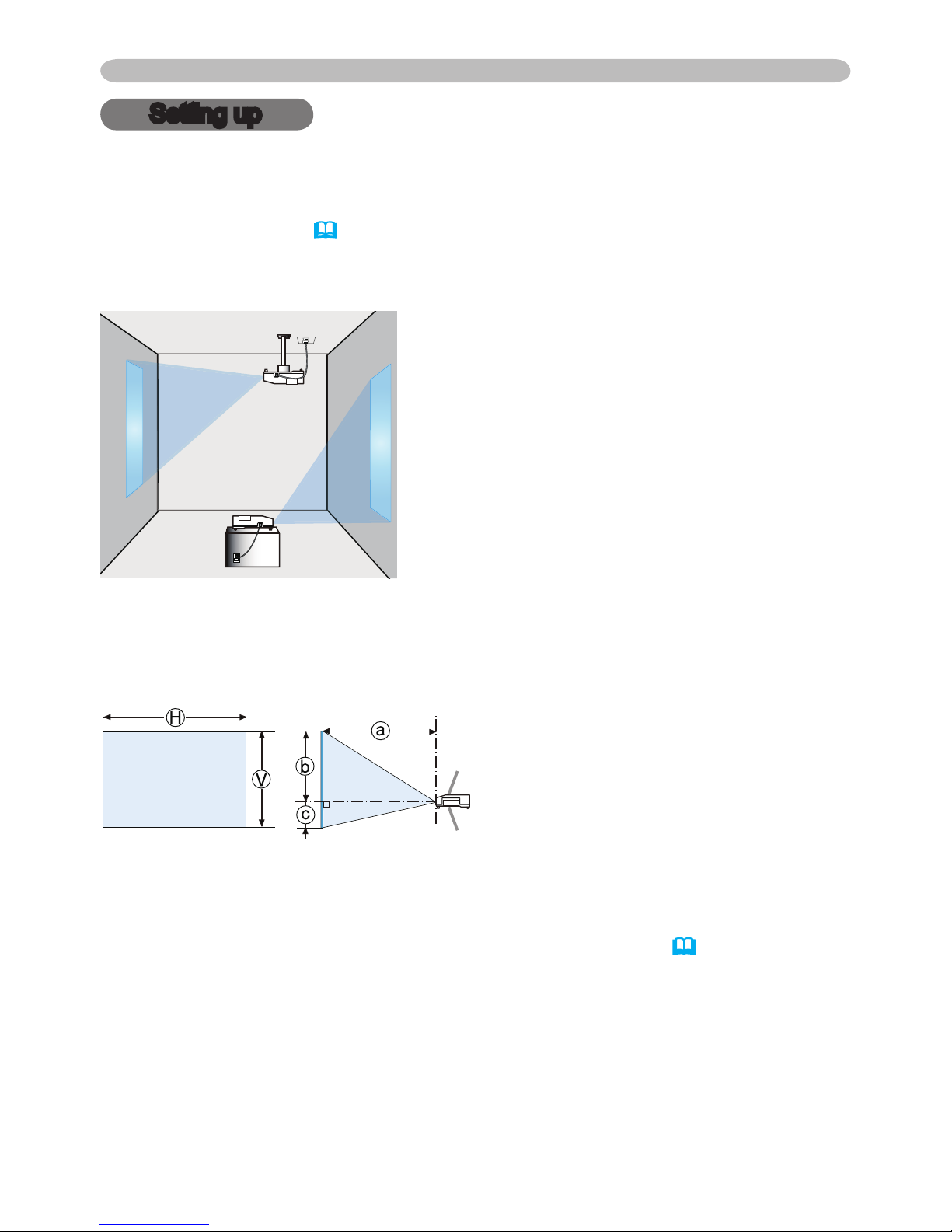

Setting up

Install the projector according to the environment and manner the projector will be used in.

For the case of installation in a special state such as ceiling mount, the speci ed mounting accessories (

Speci cations in the User’s Manual (concise)) and service may be required. Before installing the projector, consult your dealer about your installation.

Arrangement

Refer to tables T-1 and T-2 at the back of User's Manual (concise) as well as the following to determine the screen size and projection distance.

Ⓗ×Ⓥ :

Screen size

ⓐ :

Projection distance

(from the projector's end)

ⓑ,ⓒ

: Screen height, when the vertical lens shift is set full upward.

(27)

(continued on next page)

Projector top

Projector bottom

Page 8

Setting up

Arrangement (continued)

WARNING

(continued on next page)

►Install the projector where you can access the power outlet easily. If an abnormality should occur, unplug the projector urgently. Otherwise it could cause a re or electric shock. ►Do not subject the projector to unstable conditions. If the projector falls or topples over, it could result in injury or damage to the projector and the surrounding things. Using a damaged projector could result in a re and an electric shock.

• Do not place the projector in unstable places, such as an inclined surface,

places subject to vibration, on top of a wobbly table or cart, or a surface that is smaller than the projector.

• Do not put the projector on its side, front or rear position.

• Do not attach nor place anything on the projector unless otherwise specied in

the manual.

• Do not use any mounting accessories except the accessories specied by the

manufacturer. Read and keep the manuals of the accessories used.

• For special installation such as ceiling mounting, be sure to consult your dealer

beforehand.

►

Do not install the projector near thermally conductive or ammable

things. Such things when heated by the projector could result in a re and burns.

• Do not place the projector on a metal stand. ►Do not place the projector where any oils, such as cooking or machine oil, are used. Oil may harm the product, resulting in malfunction, or falling from the mounted position. ►Do not place the projector in a place where it may get wet. Getting the projector wet or inserting liquid into the projector could cause a re and an electric shock, and damage the projector.

• Do not place the projector near water, such as in a bathroom, kitchen, or

poolside.

• Do not place the projector outdoors or by the window.

• Do not place anything containing liquid near the projector.

Page 9

Setting up

Arrangement (continued)

►Place the projector in a cool place with sufcient ventilation. The projector may shutdown automatically or may malfunction if its internal temperature is too high. Using a damaged projector could result in a re and an electric shock.

• Do not place the projector in direct sunlight or near hot objects such as heaters.

• Do not place the projector where the air from an air conditioner or similar unit

will blow on it directly.

• Keep a space of 30 cm or more between a side of the projector and other

objects such as walls.

• Do not place the projector on carpet, cushions or bedding.

• Do not stop up, block nor cover the projector's vent holes. Do not place

anything around the projector that could be sucked in or stuck to the projector's intake vents.

• Do not place the projector at places that are exposed to magnetic elds, doing

so can cause the cooling fans inside the projector to malfunction. ►Avoid placing the projector in smoky, humid or dusty place. Placing the projector in such places could cause a re, an electric shock and malfunction of the projector.

• Do not place the projector near humidiers. Especially for an ultrasonic

humidier, chlorine and minerals contained in tap water are atomized and could

be deposited in the projector causing image degradation or other problems.

• Do not place the projector in a smoking area, kitchen, passageway or by the

window.

• Position the projector to prevent light from directly hitting the

projector's remote sensor.

• Do not place the product in a place where radio interference may be caused.

• Check and correct the setting for ALTITUDE of SERVICE in the OPTION menu according to the usage environment (

63). If the projector is used with a wrong

setting, it may cause damage to the projector itself or the parts inside.

• Keep heat-sensitive things away from the projector. Otherwise, they may be damaged by the heat from the projector.

CAUTION

NOTICE

• When the ambient temperature is high, the rotational speed of the cooling fan may increase automatically. In that case, the fan may be noisier without failure or malfunction.

NOTE

Page 10

Setting up

Connecting with your devices

Before connecting the projector to a device, consult the manual of the device to conrm that the device is suitable for connecting with this projector and prepare the required accessories, such as a cable in accord with the signal of the device. Consult your dealer when the required accessory did not come with the product or the accessory is damaged. After making sure that the projector and the devices are turned off, perform the connection, according to the following instructions. Refer to the gures in subsequent pages. Before connecting the projector to a network system, be sure to read Network Guide too.

►Use only the appropriate accessories. Otherwise it could

cause a re or damage the projector and devices.

• Use only the accessories specied or recommended by the projector’s manufacturer. It may be regulated under some standard.

• Neither disassemble nor modify the projector and the accessories.

• Do not use the damaged accessory. Be careful not to damage the accessories. Route a cable so that it is neither stepped on nor pinched out.

WARNING

►For a cable with a core at only one end, connect the end

with the core to the projector. That may be required by EMI regulations.

CAUTION

• Plug-and-Play is a system composed of a computer, its operating system and peripheral equipment (i.e. display devices). This projector is VESA DDC 2B compatible. Plug-and-Play can be used by connecting this projector to a computer that is VESA DDC (display data channel) compatible.

- Take advantage of this feature by connecting a computer cable to the COMPUTER IN1 port (DDC 2B compatible). Plug-and-Play may not work properly if any other type of connection is attempted.

- Please use the standard drivers in your computer as this projector is a Plugand-Play monitor.

• Do not turn on or off the projector while connected to a device in operation, unless that is directed in the manual of the device. Otherwise it may cause malfunction in the device or projector.

• The function of some input ports can be selected according to your usage requirements. Check the reference page indicated beside each port in the following illustration.

• Be careful not to mistakenly connect a connector to a wrong port. Otherwise it may cause malfunction in the device or projector.

- When connecting a connector to a port, make sure that the shape of the

connector ts the port.

- Tighten the screws to connect a connector equipped with screws to a port.

- Use the cables with straight plugs, not L-shaped ones, as the input ports of

the projector are recessed.

About Plug-and-Play capability

NOTE

(continued on next page)

Page 11

Setting up

Connecting with your devices (continued)

• Before connecting the projector to a computer, consult the computer’s manual and check the compatibility of the signal level, the synchronization methods and the display resolution output to the projector.

- Some signal may need an adapter to input this projector.

- Some computers have multiple screen display modes that may include some

signals which are not supported by this projector.

- Although the projector can display signals with resolution up to UXGA

(1600X1200), the signal will be converted to the projector’s panel resolution before being displayed. The best display performance will be achieved if the resolutions of the input signal and the projector panel are identical.

• If you connect this projector and a notebook computer, you need output the display to an external monitor, or output simultaneously to the internal display and an external monitor. Consult the computer's manual for the setting.

• Depending on the input signal, the automatic adjustment function of this projector may take some time and not function correctly.

- Note that a composite sync signal or sync-on-green signal may confuse the

automatic adjustment function of this projector (46).

- If the automatic adjustment function does not work correctly, you may not see

the dialog to set the display resolution. In such a case, use an external display device. You may be able to see the dialog and set an appropriate display resolution.

NOTE

(continued on next page)

Computer

(45)

(60)

(52)

(66)

(46)

Page 12

Setting up

Connecting with your devices (continued)

(continued on next page)

• If an oversized USB storage device blocks the LAN port, use a USB extension cable to connect the USB storage device.

NOTE

► Before connecting the projector to a network system be sure

to obtain the consent of the administrator of the network. ►Do not connect the LAN port to any network that might have the excessive voltage. ►The designated USB wireless adapter that is sold as an option is required to use the wireless network function of this projector. ►Before removing the USB storage device from the port of the projector, be sure to use the REMOVE USB function on the thumbnail screen to secure your data (92). ►Do not use any extension cable or device when connecting the adapter to the projector. Before you insert or pull out the USB wireless adapter from the projector, turn off the power of the projector and pull out the power cord’s plug from the outlet. Do not touch the USB wireless adapter while the projector is receiving AC power. ►To connect both the LAN cable and USB device to the projector, use a LAN cable that is  at on the side where the plug’s wire is visible. Otherwise, both of them cannot be connected correctly, or the wire may break (malfunction).

CAUTION

(66)

Computer

Access point

(

71)

USB storage device

(90)

(71)

(60)

Page 13

Setting up

• The HDMI port of this model is compatible with HDCP (High-bandwidth Digital Content Protection) and therefore capable of displaying a video signal from HDCP compatible DVD players or the like.

- The HDMI supports the following video signals:

Video signal : 480i@60, 480p@60, 576i@50, 576p@50, 720p@50/60,

1080i@50/60, 1080p@50/60

Audio signal : Format Linear PCM

Sampling frequency 48kHz / 44.1kHz / 32kHz

- This projector can be connected with another equipment that has HDMITM

connector, but with some equipment the projector may not work properly, something like no video.

- Be sure to use an HDMITM cable that has the HDMITM logo.

- Use a Category 2-certi ed HDMITM cable to input 1080p@50/60 signal to the

projector.

- When the projector is connected with a device having DVI connector, use a

DVI to HDMITM cable to connect with the HDMI input.

NOTE

Connecting with your devices (continued)

(continued on next page)

VCR/DVD/Blu-ray Disc player

Digital video device

(45)

(52)

(45)

(46)

(44)

(46)

Page 14

Setting up

Connecting with your devices (continued)

• If a loud feedback noise is produced from the speaker, move the microphone away from the speaker.

NOTE

•

You can connect a dynamic microphone to the MIC port with a 3.5 mm mini-plug. In that case, the built-in speaker outputs the sound from the microphone, even while the sound from the projector is output. You can input line level signal to the MIC port from equipment such as wireless microphone. Select HIGH in the MIC LEVEL item of the AUDIO menu when you input line level audio signal to the MIC port. In the normal mode, the volume of the microphone can be adjusted separately from the volume of the projector using the menu (52). In the standby mode, the volume of the microphone is adjustable with the VOLUME +/- buttons on the remote control, in synchronization with the volume of the projector (22). Even when the sound of projector is set to mute mode by the AUDIO SOURCE function (52), the volume of the microphone is adjustable. In both modes (standby or normal), the MUTE button on the remote control works on the sounds of the microphone and the projector (22).

• This projector doesn't support plug-in power for the microphone.

Microphone function

Speakers

(with an ampli er)

Wired remote control

(optional)

Monitor

Microphone

system

(51)

(52)

Page 15

Connecting to a power supply

Put the connector of the power cord into the AC IN (AC inlet) of the projector.

Firmly plug the power cord’s plug into the outlet. In a couple of seconds after the power supply connection, the POWER indicator will light up in steady orange.

►Please use extra caution when connecting the power cord, as

incorrect or faulty connections may result in  re and/or electrical shock.

• Do not touch the power cord with a wet hand.

• Only use the power cord that came with the projector. If it is damaged, consult your dealer to get a new one. Never modify the power cord.

• Only plug the power cord into an outlet whose voltage is matched to the power cord. The power outlet should be close to the projector and easily accessible. Remove the power cord for complete separation.

• Do not distribute the power supply to multiple devices. Doing so may overload the outlet and connectors, loosen the connection, or result in  re, electric shock or other accidents.

• Connect the ground terminal for the AC inlet of this unit to the ground terminal of the building using an appropriate power cord (bundled).

WARNING

Please remember that when the DIRECT POWER ON function activated (59), the connection of the power supply make the projector turn on.

Setting up

►This product is also designed for IT power systems with a phase-to-

phase voltage of 220 to 240 V.

NOTICE

AC IN

Power cord

Page 16

Use the supplied adapter cover to prevent the USB wireless adapter from coming off easily.

Refer to the following  gures to fasten the adapter cover.

Using the security bar and slot

A commercially available anti-theft chain or wire can be attached to the security bar on the projector. Refer to the  gure to choose an anti-theft chain or wire. Also this product has the security slot for the Kensington lock. For details, see the manual of the security tool.

►Do not use the security bar and slot to prevent the projector

from falling down, since it is not designed for it.

WARNING

►Do not place anti-theft chain or wire near the exhaust vents.

It may become too hot.

CAUTION

• The security bar and slot is not comprehensive theft prevention

measures. It is intended to be used as supplemental theft prevention measure.

NOTE

Setting up

Fastening the adapter cover

►Keep small parts away from children and pets. Take care not

to put in the mouth.

WARNING

Security slot

Anti-theft chain or wire

security bar

Page 17

Remote control

Installing the batteries

Please insert the batteries into the remote control before using it. If the remote control starts to malfunction, try to replace the batteries. If you will not use the remote control for long period, remove the batteries from the remote control and store them in a safe place.

Holding the hook part of the battery cover, remove it.

Align and insert the two AA batteries

(HITACHI MAXELL ENERGY, Part No.LR6 or R6P)

according to their plus and minus

terminals as indicated in the remote control.

Replace the battery cover in the direction of the arrow and snap it back into place.

►Always handle the batteries with care and use them only as directed. Improper use may result in battery explosion, cracking or leakage, which could result in re, injury and/or pollution of the surrounding environment.

• Be sure to use only the batteries specied. Do not use batteries of different

types at the same time. Do not mix a new battery with used one.

•

Make sure the plus and minus terminals are correctly aligned when loading a battery.

• Keep a battery away from children and pets.

• Do not recharge, short circuit, solder or disassemble a battery.

•

Do not place a battery in a re or water. Keep batteries in a dark, cool and dry place.

•

If you observe battery leakage, wipe out the leakage and then replace a battery. If the leakage adheres to your body or clothes, rinse well with water immediately.

• Obey the local laws on disposing the battery.

WARNING

Remote control

21 3

Page 18

(approx.)

About the remote control signal

The remote control works with the projector’s remote sensor. This projector has a remote sensor on the front. The sensor senses the signal within the following range when the sensor is active:

60 degrees (30 degrees to the left and right of the sensor) within 3 meters about.

•

The remote control signal re ected in the screen or the like may be available.

If it is dif cult to send the signal to the sensor directly, attempt to make the signal re ect.

• The remote control uses infrared light to send signals to the projector (Class 1 LED), so be sure to use the remote control in an area free from obstacles that could block the remote control’s signal to the projector.

•

The remote control may not work correctly if strong light (such as direct sun light) or light from an extremely close range (such as from an inverter  uorescent lamp) shines on the remote sensor of the projector. Adjust the position of projector avoiding those lights.

NOTE

30°

Remote control

Page 19

When the simple mouse & keyboard function of this product does not work

correctly, please check the following.

• When a USB cable connects this projector with a computer having a built-in pointing device (e.g. track ball) like a laptop computer, open BIOS setup menu, then select the external mouse and disable the built-in pointing device, because the built-in pointing device may have priority to this function.

•

Windows XP SP3 or higher is required for this function. And also this function may not work depending on the computer’s con gurations and mouse drivers. This function can work with the computer which can operate general USB mouse or keyboard.

• You cannot do things like press two buttons at once (for instance, pressing two buttons at the same time to move the mouse pointer diagonally).

•

This function is activated only when the projector is working properly. This function is not available in any of the following cases:

- While the lamp is warming up. (The POWER indicator blinks in green.)

- When either USB TYPE A or USB TYPE B port is selected.

- While displaying BLANK

(53)

, TEMPLATE

(57)

or MY IMAGE

(79)

screen.

- When any menu is displayed on the screen.

While using the cursor buttons to operate the sound or screen functions such as adjusting the

sound volume, correcting the keystone, correcting the picture position and magnifying the screen.

NOTE

Remote control

Using as a simple PC mouse & keyboard

The accessory remote control works as a simple mouse and keyboard of the computer, when the projector’s USB TYPE B port and the computer’s type A USB port are connected and MOUSE is selected for the USB TYPE B item in the OPTION menu (

60).

(1)

(3)

(5)

(2)

(4)

(6)

VIDEO

DOC.CAMERA

KEYSTONE

ASPECT

BLANK

MUTE

MY BUTTON

POSITION

ESC

RESET

COMPUTER

MY SOURCE/

AUTO

MAGNIFY

PAGE

DOWN

OFF

FREEZE

ー

＋

VOLUME

ENTER

(1) PAGE UP key: Press PAGE UP button. (2) PAGE DOWN key: Press PAGE DOWN button. (3) Mouse left button: Press ENTER button. (4) Move pointer: Use the cursor buttons ▲, ▼, ◄ and ►. (5) ESC key: Press ESC button. (6) Mouse right button: Press RESET button.

►Improper use of the simple mouse & keyboard function could damage your equipment. While using this function, please connect this product only to a computer. Be sure to check your computer’s manuals before connecting this product to the computer.

NOTICE

USB TYPE B port

Page 20

Make sure that the power cord is  rmly and correctly connected to the projector and the outlet.

Turning on the power

Make sure that the POWER indicator is steady orange (114). Then remove the lens cover.

Press STANDBY/ON button on the projector or the remote control. The projection lamp will light up and POWER indicator will begin blinking in green. When the power is completely on, the indicator will stop blinking and light in steady green (114).

Power on/off

To display the picture, select an input signal according to the section Selecting an input signal (24).

Power on/off

The INITIAL SETTING Menu will be displayed by factory default upon startup. Once the INITIAL SETTING Menu is set, it will not appear until FACTORY RESET

(70) is executed. If you wish to change the settings, refer to the LANGUAGE (53) and ALTITUDE (63) menu.

(1) LANGUAGE: Use the ▲/▼/◄/►

buttons to select the desired language and press the ENTER button of the remote control or the INPUT button of the projector to execute.

(2) ALTITUDE: Use the ▲/▼ buttons to

select NORMAL for altitude below 1200 m (3937 feet), otherwise select HIGH and press the ENTER button of the remote control or the INPUT button of the projector to execute.

VIDEO

DOC.CAMERA

KEYSTONE

ASPECT

BLANK

MUTE

MY BUTTON

POSITION

ESC

RESET

COMPUTER

MY SOURCE/

AUTO

MAGNIFY

PAGE

DOWN

OFF

FREEZE

ー

＋

VOLUME

ENTER

STANDBY/ON button

POWER indicator

Page 21

Power on/off

►A strong light is emitted when the projector’s power is on. Do not look into the lens of the projector or look inside of the projector through any of the projector’s openings. ►Do not touch around the lamp cover and the exhaust vents during use or just after use, since it is too hot.

WARNING

Press the STANDBY/ON button on the projector or the remote control. The message “Power off?” will appear on the screen for about 5 seconds.

Turning off the power

Press the STANDBY/ON button again while the message appears. The projector lamp will go off, and the POWER indicator will begin blinking in orange. Then POWER indicator will stop blinking and light in steady orange when the lamp cooling is complete (114).

Attach the lens cover, after the POWER indicator turns in steady orange.

Do not turn the projector on for about 10 minutes or more after turning it off. Also, do not turn the projector off shortly after turning it on. Such operations might cause the lamp to malfunction or shorten the lifetime of some parts including the lamp.

• Turn the power on/off in right order. Please power on the projector

prior to the connected devices.

• This projector has the function that can make the projector automatically turn on/off. Please refer to the DIRECT POWER ON (59) and AUTO POWER OFF (60) items of the OPTION menu.

NOTE

Page 22

Operating

Adjusting the volume

Use the VOLUME +/VOLUME - buttons to adjust the volume. A dialog will appear on the screen to aid you in adjusting the volume. If you do not do anything, the dialog will automatically disappear after a few seconds.

● When

is selected for current picture input port, the volume adjustment is disabled. Please see AUDIO SOURCE item of AUDIO menu (52).

● Even if the projector is in the standby mode, the volume is adjustable when both of the following conditions are true:

- An option other than is selected for STANDBY in the AUDIO SOURCE item of the AUDIO menu (52).

NORMAL is selected in the STANDBY MODE item of the SETUP menu

(50).

● In the standby mode, the volume of the microphone is adjustable with the VOLUME +/- buttons on the remote control, in synchronization with the volume of the projector.

Press MUTE button on the remote control. A dialog will appear on the screen indicating that you have muted the sound. To restore the sound, press the MUTE, VOLUME + or VOLUME - button. Even if you do not do anything, the dialog will automatically disappear after a few seconds.

Temporarily muting the sound

● When is selected for current picture input port, the sound is always muted. Please see AUDIO SOURCE item of AUDIO menu (52).

● C.C. (Closed Caption) is automatically activated when sound is muted and an input signal containing C.C. is received. This function is available only when the signal is NTSC for VIDEO or S-VIDEO, or 480i@60 for COMPONENT, COMPUTER IN1 or COMPUTER IN2, and when AUTO is selected for DISPLAY in the C.C. menu under the SCREEN menu (58).

VOLUME +/- button

MUTE button

VIDEO

DOC.CAMERA

KEYSTONE

ASPECT

BLANK

MUTE

MY BUTTON

COMPUTER

MY SOURCE/

AUTO

MAGNIFY

PAGE

DOWN

OFF

FREEZE

ー

＋

VOLUME

VIDEO

DOC.CAMERA

KEYSTONE

ASPECT

BLANK

MUTE

MY BUTTON

COMPUTER

MY SOURCE/

AUTO

MAGNIFY

PAGE

DOWN

OFF

FREEZE

ー

＋

VOLUME

Operating

Page 23

Press INPUT button on the projector. Each time you press the button, the projector switches its input port from the current port as below.

Selecting an input signal

● While ON is selected for AUTO SEARCH item in OPTION menu (59), the projector will keep checking the ports in above order repeatedly till an input signal is detected.

● It may take several seconds to project the images from the USB TYPE B port.

COMPUTER IN1  COMPUTER IN2  LAN

VIDEO USB TYPE A

S-VIDEO USB TYPE B

COMPONENT  HDMI

Press VIDEO button on the remote control. Each time you press the button, the projector switches its input port from the current port as below.

● While ON is selected for AUTO SEARCH item in OPTION menu, the projector will keep checking every port sequentially till an input signal is detected (

59). If VIDEO button is pressed when COMPUTER IN1, COMPUTER IN2, LAN, USB TYPE A or USB TYPE B port is selected, the projector will check HDMI port  rst.

VIDEO button

VIDEO

DOC.CAMERA

ASPECT

BLANK

MY BUTTON

COMPUTER

MY SOURCE/

AUTO

MAGNIFY

PAGE

DOWN

OFF

FREEZE

ー

＋

VOLUME

Press COMPUTER button on the remote control. Each time you press the button, the projector switches its input port from the current port as below.

●

While ON is selected for AUTO SEARCH item in OPTION menu, the projector will keep checking every port sequentially till an input signal is detected (59). If COMPUTER button is pressed when VIDEO, S-VIDEO, COMPONENT or HDMI port is selected, the projector will check COMPUTER IN1 port  rst.

●

It may take several seconds to project the images from the USB TYPE B port.

COMPUTER button

VIDEO

DOC.CAMERA

ASPECT

BLANK

MY BUTTON

COMPUTER

MY SOURCE/

AUTO

MAGNIFY

PAGE

DOWN

OFF

FREEZE

ー

＋

VOLUME

COMPUTER IN1  COMPUTER IN2  LAN USB TYPE B  USB TYPE A

HDMI  COMPONENT  S-VIDEO  VIDEO

Operating

INPUT button

Page 24

VIDEO

DOC.CAMERA

ASPECT

BLANK

MY BUTTON

COMPUTER

MY SOURCE/

AUTO

MAGNIFY

PAGE

DOWN

OFF

FREEZE

ー

＋

VOLUME

MY SOURCE / DOC. CAMERA button

Press the MY SOURCE / DOC. CAMERA button on the remote control. The input signal will be changed into the signal you set as MY SOURCE (63).

● This function also can use for document camera. Select the input port that connected the document camera.

Operating

Press SEARCH button on the remote control. The projector will start to check its input ports as below in order to  nd any input signals. When input signal is detected, the projector will stop searching and display the image. If no signal is found, the projector will return to the state selected before the operation.

Searching an input signal

● While ON is selected for AUTO SEARCH item in OPTION menu (59), the projector will keep checking the ports in above order repeatedly till an input signal is detected.

●

It may take several seconds to project the images from the USB TYPE B port.

SEARCH button

VIDEO

DOC.CAMERA

KEYSTONE

ASPECT

BLANK

MUTE

MY BUTTON

COMPUTER

MY SOURCE/

AUTO

MAGNIFY

PAGE

DOWN

OFF

FREEZE

ー

＋

VOLUME

COMPUTER IN1  COMPUTER IN2  LAN

VIDEO USB TYPE A

S-VIDEO USB TYPE B

COMPONENT  HDMI

Selecting an input signal(continued)

Page 25

Operating

Selecting an aspect ratio

● ASPECT button does not work when no proper signal is inputted.

● NORMAL mode keeps the original aspect ratio setting.

● The display will be dark for a split second while switching the Aspect, but this is not a malfunction.

 For a computer signal

CP-X4022WN/CP-X5022WN: NORMAL  4:3  16:9  16:10

CP-WX4022WN: NORMAL  4:3  16:9  16:10  NATIVE

 For a video signal, s-video signal or component video signal

CP-X4022WN/CP-X5022WN:

4:3  16:9  14:9

CP-WX4022WN: 4:3  16:9  16:10  14:9  NATIVE

 For an input signal from the LAN, USB TYPE A or USB TYPE B port, or

if there is no signal

CP-X4022WN/CP-X5022WN: 4:3 ( xed) CP-WX4022WN: 16:10 ( xed)

Press ASPECT button on the remote control. Each time you press the button, the projector switches the mode for aspect ratio in turn.

ASPECT button

 For an HDMITM signal

CP-X4022WN/CP-X5022WN: NORMAL  4:3  16:9  16:10  14:9

CP-WX4022WN: NORMAL  4:3  16:9  16:10  14:9  NATIVE

VIDEO

DOC.CAMERA

KEYSTONE

ASPECT

BLANK

MUTE

MY BUTTON

COMPUTER

MY SOURCE/

AUTO

MAGNIFY

PAGE

DOWN

OFF

FREEZE

ー

＋

VOLUME

Page 26

Operating

Adjusting the projector’s elevator

When the place to put the projector is slightly uneven to the left or right, use the elevator feet to place the projector horizontally. Using the feet can also tilt the projector in order to project at a suitable angle to the screen, elevating the front side of the projector within 12 degrees. This projector has 2 elevator feet and 2 elevator buttons. An elevator foot is adjustable while pushing the elevator button on the same side as it.

To loose an elevator foot, push the elevator button on the same side as it.

To  nely adjust, twist the foot.

Holding the projector, push the elevator buttons to loose the elevator feet.

Position the front side of the projector to the desired height.

Release the elevator buttons in order to lock the elevator feet.

After making sure that the elevator feet are locked, put the projector down gently.

If necessary, the elevator feet can be manually twisted to make more precise adjustments. Hold the

projector when twisting the feet.

►Do not handle the elevator buttons without holding the projector, since the projector may drop down. ►Do not tilt the projector other than elevating its front within 12 degrees using the adjuster feet. A tilt of the projector exceeding the restriction could cause malfunction or shortening the lifetime of consumables, or the projector itself.

CAUTION

Page 27

Operating

NOTE

Adjusting the lens

Use the ZOOM ring to adjust the screen size.

Use the FOCUS ring to focus the picture.

Turn the VERTICAL adjuster fully counter clockwise. Then turn it clockwise and adjust

the vertical lens position upward.

Turn the LOCK counter clockwise to loosen the lock of the HORIZONTAL adjuster.

Turn the HORIZONTAL adjuster clockwise or counter clockwise to adjust the horizontal

lens position.

LOCK

FOCUS ring ZOOM ring

LOCK

(Horizontal adjuster lock) HORIZONTAL

adjuster VERTICAL

adjuster

Turn the LOCK fully clockwise to tighten it and lock the horizontal lens position.

Use the FOCUS ring to focus the picture.

►Operate the lens adjusters gently as the lens may malfunction when subjected to shocks. It may need more strength to turn the adjusters near the adjustment limits. Be careful not to apply too much strength.

CAUTION

• Use a hexagon wrench to turn the VERTICAL, HORIZONTAL adjusters and LOCK. If you do not have a hexagon wrench, you can use a  athead screwdriver with more careful handling.

• Use the LOCK so that the lens does not shift from the adjusted horizontal lens position. Adjusting the vertical lens position may shift the horizontal lens position. This projector is not equipped with a lock for vertical lens position.

• When the vertical lens shift is adjusted, it is recommended to shift the picture upward.

VERTICAL CP-WX4022WN

VERTICAL CP-X4022WN

CP-X5022WN

HORIZONTAL

/10

Page 28

Operating

Press POSITION button on the remote control when no menu is indicated. The “POSITION” indication will appear on the screen.

Adjusting the position

Use the ▲/▼/◄/► cursor buttons to adjust the picture position. When you want to reset the operation, press RESET button on the remote control during the operation. To complete this operation, press POSITION button again. Even if you do not do anything, the dialog will automatically disappear after a few seconds.

●

When this function is performed on a video signal or an s-video signal, some image such as an extra-line may appear at outside of the picture.

● When this function is performed on a video signal or s-video signal, the range of this adjustment depends on OVER SCAN in IMAGE menu (

42) setting. It is not

possible to adjust when OVER SCAN is set to 10.

● If POSITION button is pressed when a menu is indicated on screen, the displayed picture does not move its position but the menu does.

● This function is unavailable for a signal from the LAN, USB TYPE A, USB TYPE B

or HDMI port.

Press AUTO button on the remote control. Pressing this button performs the following.

Using the automatic adjustment feature

 For a computer signal

The vertical position, the horizontal position and the horizontal phase will be automatically adjusted. Make sure that the application window is set to its maximum size prior to attempting to use this feature. A dark picture may still be incorrectly adjusted. Use a bright picture when adjusting.

 For a video signal and s-video signal

The video format best suited for the respective input signal will be selected automatically. This function is available only when the AUTO is selected for the VIDEO FORMAT item in the INPUT menu (

45).

The vertical position and

horizontal position will be automatically set to the default.

● The automatic adjustment operation requires approx. 10 seconds. Also please

note that it may not function correctly with some input.

● When this function is performed for a video signal, a certain extra such as a line

may appear outside a picture.

● When this function is performed for a computer signal, a black frame may be

displayed on the edge of the screen, depending on the computer model.

●

The items adjusted by this function may vary when the FINE or DISABLE is selected for the AUTO ADJUST item of the SERVICE item in the OPTION menu (

64).

POSITION button

VIDEO

DOC.CAMERA

KEYSTONE

ASPECT

BLANK

MUTE

MY BUTTON

POSITION

ESC

RESET

COMPUTER

MY SOURCE/

AUTO

MAGNIFY

PAGE

DOWN

OFF

FREEZE

ー

＋

VOLUME

ENTER

AUTO button

 For a component video signal

The vertical position and horizontal position will be automatically set to the default. The horizontal phase will be automatically adjusted.

VIDEO

DOC.CAMERA

KEYSTONE

ASPECT

BLANK

MUTE

MY BUTTON

COMPUTER

MY SOURCE/

AUTO

MAGNIFY

PAGE

DOWN

OFF

FREEZE

ー

＋

VOLUME

Page 29

AUTO: performs the automatic vertical keystone

correction. (48)

MANUAL: allows you to adjust the vertical and horizontal

keystone.

PERFECT FIT:

allows you to adjust each of the screen corners and sides to correct the distortion.

• The menu or dialog will automatically disappear after several seconds of inactivity. Press the KEYSTONE button again, or point the cursor at EXIT in the dialog and press the ►or ENTER button to end the operation and close the menu or dialog.

• When the screen is adjusted by PERFECT FIT, neither AUTO nor MANUAL is selectable. If you wish to use these functions, refer to step 3 in the PERFECT FIT item to initialize the adjustment of PERFECT FIT.

• When TRANSITION DETECTOR is ON, these functions are not available (85).

NOTE

• When the projector is in one of the following conditions, the automatic vertical keystone correction feature may not work correctly or at all.

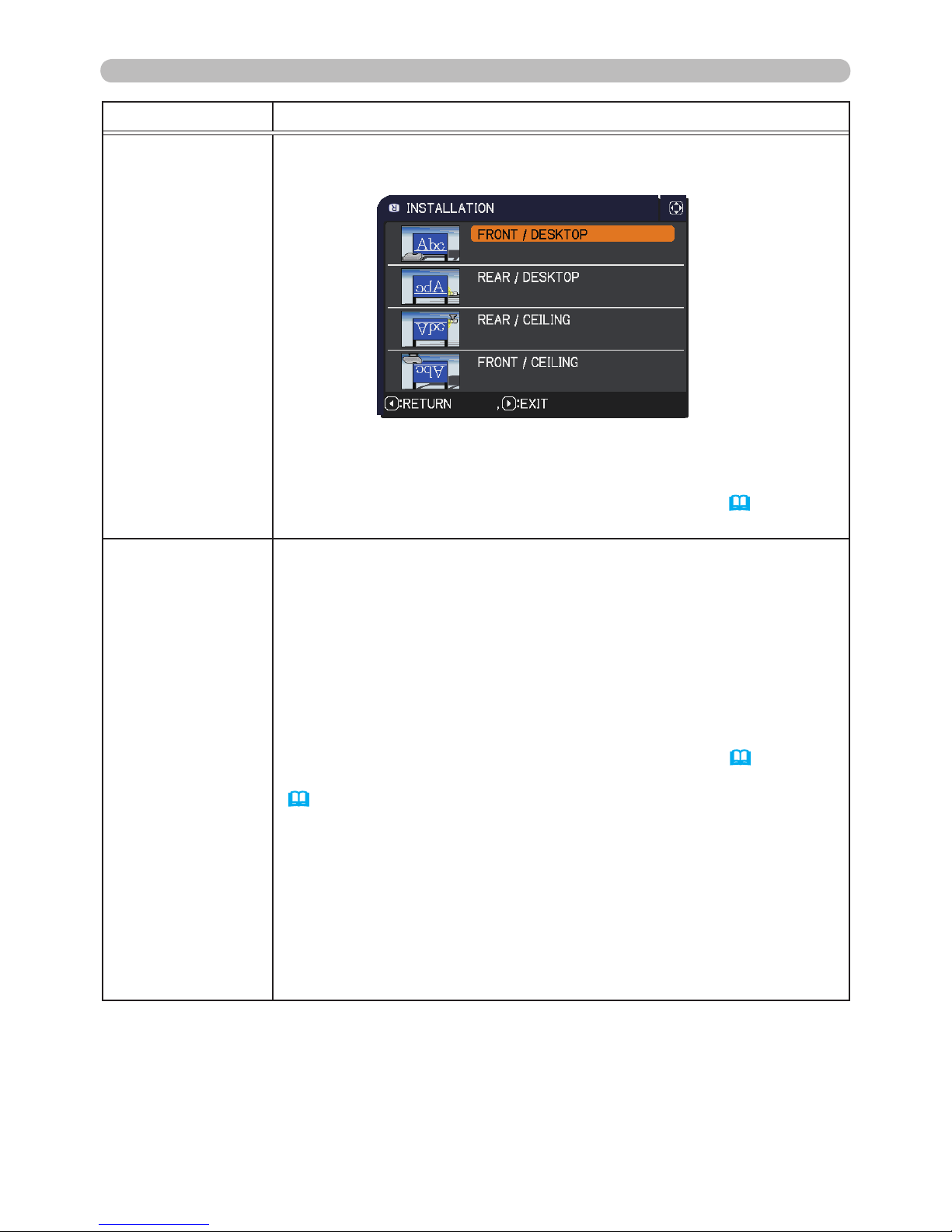

- REAR / CEILING or FRONT / CEILING is selected for the INSTALLATION

item in the SETUP menu, and the projector screen is slanted or tilted downwards.

- The ZOOM adjustment is not set to the full WIDE (wide-angle focus).

- The projector is nearly horizontal (about ±4°).

- The projector is inclined at about ±40 degrees or over.

• When the horizontal lens shift is not set to the center, this function may not work well.

NOTE

To correct the distortion of projected screen, you can select one of three options, AUTO, MANUAL and PERFECT FIT. First press the KEYSTONE button to display the KEYSTONE menu, and point at one of items with the ▲/▼ buttons.

Correcting the distortion

Then follow the procedure shown below for the item you selected.



AUTO: When AUTO is pointed at, pressing the ► or ENTER button performs automatic vertical keystone correction.

Operating

KEYSTONE button

VIDEO

DOC.CAMERA

KEYSTONE

ASPECT

BLANK

MUTE

MY BUTTON

COMPUTER

MY SOURCE/

AUTO

MAGNIFY

PAGE

DOWN

OFF

FREEZE

ー

＋

VOLUME

Page 30



PERFECT FIT: When PERFECT FIT is pointed at, pressing the ► or ENTER button displays the KEYSTONE_

PERFECT FIT dialog. This projector is equipped with a test pattern for PERFECT FIT. Select the test pattern icon shown in the lower left of the dialog with the ◄/▼ buttons. When you press the ENTER or INPUT button, the test pattern appears or disappears.

If it is necessary to initialize the current

adjustment, point at RESET in the dialog with the RESET button, and press the ENTER or INPUT button.

Select one of the corners or sides to be

adjusted with the ▲/▼/◄/► buttons and press the ENTER or INPUT button.



MANUAL: When MANUAL is pointed at, pressing the ► or ENTER button displays the KEYSTONE_MANUAL dialog.

Select the vertical or horizontal keystone ( / ) with the ▲/▼ buttons.

Use the ◄/► buttons to adjust the keystone distortion.

Correcting the distortion (continued)

(continued on next page)

• When the zoom adjustment is set to the TELE (telephoto focus), this function may be excessive. This function should be used when the zoom adjustment is set to the full WIDE (wide-angle focus) whenever possible.

• When the horizontal lens shift is not set to the center, this function may not work well.

• Point at RETURN in the dialog with the ▲/▼ buttons and press ◄ or ENTER button to return to the KEYSTONE menu.

NOTE

Operating

Page 31

Correcting the distortion (continued)

This projector is equipped with a memory feature for PERFECT FIT

adjustment. Up to 3 sets of adjustments can be stored.

● SAVE:

To store the current PERFECT FIT adjustment, select one of the SAVE icons

numbered 1 to 3 (number of the memory) with the ◄ /▲/▼ buttons and press the ENTER or INPUT button. Remember that the current data being stored of a memory will be lost by saving new data into the memory.

● LOAD:

To recall stored adjustments, select one of the LOAD icons

numbered 1 to 3 (number of the memory) with the ◄ /▲/▼ buttons and press the ENTER or INPUT button. Remember that the current adjusted condition will be lost by loading data. If you want to keep the current adjustment, please save it before performing a LOAD function.

• Each corner and side can be adjusted individually but in some cases it may be adjusted in conjunction with another corner or side. This is due to control restrictions and not a malfunction.

• The LOAD functions whose linked memory has no data are skipped.

• There may be some noise and the screen may icker for a moment when loading data. This is not malfunction.

• Point at RETURN in the dialog with the ▲/▼ buttons and press the ◄ or ENTER button to return to the KEYSTONE menu.

NOTE

Adjust the selected part as below.

● For adjusting a corner, use the ▲/▼/◄/► buttons to adjust the position of the corner.

● For adjusting the upper or lower side, use the ◄/► buttons to select any one point on the side, and use the ▲/▼ buttons to adjust the distortion of the side.

●

For adjusting the left or right side, use the ▲/▼ buttons to select any one point on the side, and use the ◄/► buttons to adjust the distortion of the side.

● To adjust another corner or side, press the ENTER or INPUT button and follow the procedure from step 2.

Operating

Page 32

Operating

Using the magnify feature

MAGNIFY ON/OFF button

VIDEO

DOC.CAMERA

KEYSTONE

ASPECT

BLANK

MUTE

MY BUTTON

COMPUTER

MY SOURCE/

AUTO

MAGNIFY

PAGE

DOWN

OFF

FREEZE

ー

＋

VOLUME

Press the MAGNIFY ON button on the remote control. The picture will be magni ed, and the MAGNIFY dialog will appear on the screen. When the MAGNIFY ON button is pressed for the  rst time after the projector is turned on, the picture will be zoomed by 1.5 times. On the dialog, triangle marks to show each direction will be displayed.

The display magni cation of the projector switches in order with every press of the MAGNIFY ON button.

 For computer signals or HDMI

(RGB) signals

1.5 times  2 times  3 times  4 times  1 time

 For video signals, s-video signals, component video signals or

HDMI

(Component) signals

1.5 times  2 times  1 time

While the triangles are displayed on the dialog, use the ▲/▼/◄/► cursor buttons to shift the magnifying area.

Press the MAGNIFY OFF button on the remote control to exit magni cation.

● The MAGNIFY dialog will automatically disappear in several seconds with no operation. The dialog will appear again if the MAGNIFY ON button is pressed when the dialog has automatically disappeared.

● The magni cation is automatically disabled when the displaying signal or its display condition is changed.

● While the magni cation is active, the keystone distortion condition may vary. It will be restored when the magni cation is disabled.

● Some horizontal stripes might be visible on the image while magni cation is active.

● This function is not available in the following cases:

- A sync signal in the range not supported is input.

- There is no input signal.

Page 33

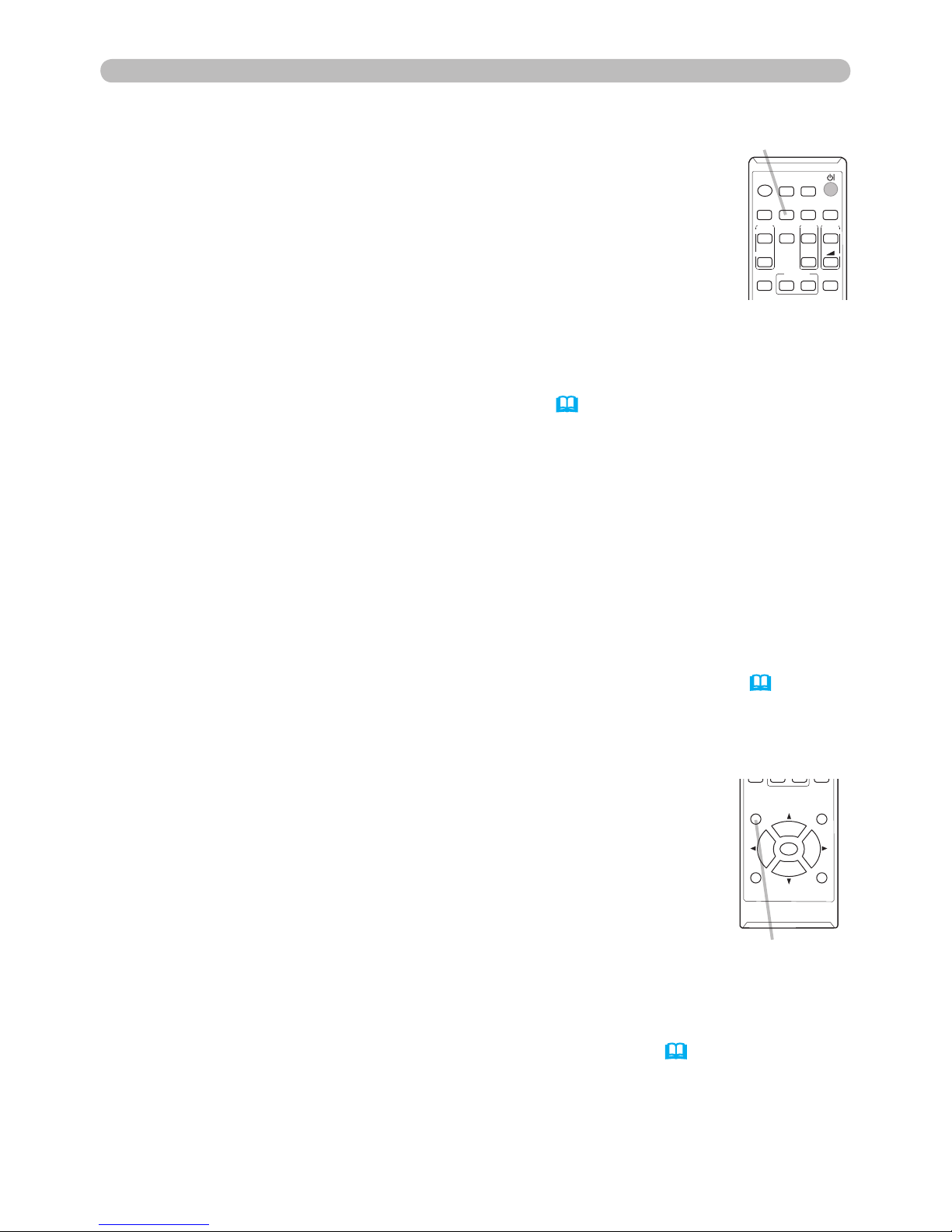

Press BLANK button on the remote control. The BLANK screen will be displayed instead of the screen of input signal. Please refer to BLANK item in SCREEN menu (53). To exit from the BLANK screen and return to the input signal screen, press BLANK button again.

Temporarily blanking the screen

● The projector automatically exits from the

BLANK

mode when

some control buttons are pressed.

•

The sound is not connected with the BLANK screen function. If necessary, set the volume or mute rst. To display the BLANK screen and mute the sound at one time, use AV MUTE function

(63).

NOTE

Press the FREEZE button on the remote control. The “FREEZE” indication will appear on the screen (however, the indication will not appear when the OFF is selected for the MESSAGE item in the SCREEN menu (55)), and the projector will go into the FREEZE mode, which the picture is frozen. To exit the FREEZE mode and restore the screen to normal, press the FREEZE button again.

Temporarily freezing the screen

● The projector automatically exits from the FREEZE mode when some control buttons are pressed.

● If the projector continues projecting a still image for a long time, the LCD

panel might possibly be burned in. Do not leave the projector in the FREEZE mode for too long.

● Images might appear degraded when this function is operated, but it is not a

malfunction.

FREEZE button

VIDEO

DOC.CAMERA

KEYSTONE

ASPECT

BLANK

MUTE

MY BUTTON

COMPUTER

MY SOURCE/

AUTO

MAGNIFY

PAGE

DOWN

OFF

FREEZE

࡯

㧗

VOLUME





BLANK button

VIDEO

DOC.CAMERA

KEYSTONE

ASPECT

BLANK

MUTE

MY BUTTON

COMPUTER

MY SOURCE/

AUTO

MAGNIFY

PAGE

DOWN

OFF

FREEZE

࡯

㧗

VOLUME





►If you wish to have a blank screen while the projector's lamp is on, use the BLANK function above. Taking any other action may cause the damage on the projector.

CAUTION

Operating

Page 34

Operating

To start the MENU, press the MENU button. The MENU you last used (EASY or ADVANCED) will appear. EASY MENU has priority to appear just after powered on.

Using the menu function

(1) Use the ▲/▼ cursor buttons to select an item to

operate. If you want to change it to the ADVANCED MENU, select the ADVANCED MENU.

(2) Use the ◄/► cursor buttons to operate the item.

This projector has the following menus: PICTURE, IMAGE, INPUT, SETUP, AUDIO, SCREEN, OPTION, NETWORK, SECURITY and EASY MENU. EASY MENU consists of functions often used, and the other menus are classi ed into each purpose and brought together as the ADVANCED MENU. Each of these menus is operated using the same methods. While the projector is displaying any menu, the MENU button on the projector works as the cursor buttons. The basic operations of these menus are as follows.

In the EASY MENU

(continued on next page)

(1) Use the ▲/▼ cursor buttons to select a menu.

If you want to change it to the EASY MENU, select the EASY MENU. The items in the menu appear on the right side.

(2) Press the ► cursor button or ENTER button to

move the cursor to the right side. Then use the ▲/▼ cursor buttons to select an item to operate and press the ► cursor button or ENTER button to progress. The operation menu or dialog of the selected item will appear.

(3) Use the buttons as instructed in the OSD to operate the item.

In the ADVANCED MENU

VIDEO

DOC.CAMERA

KEYSTONE

ASPECT

BLANK

MUTE

MY BUTTON

POSITION

ESC

RESET

COMPUTER

MY SOURCE/

AUTO

MAGNIFY

PAGE

DOWN

OFF

FREEZE

ー

＋

VOLUME

ENTER

POSITION

ESC

ENTER

RESET

MENU button (Cursor buttons)

RESET button

ENTER button

Cursor buttons

ESC button

POSITION button

Page 35

Using the menu function (continued)

To close the MENU, press the MENU button again or select EXIT and press the ◄ cursor button or ENTER button. Even if you do not do anything, the dialog will automatically disappear after about 30 seconds.

●

If you want to move the menu position, use the cursor buttons after pressing the POSITION button.

● Some functions cannot be performed when a certain input port is selected, or when a certain input signal is displayed.

● When you want to reset the operation, press RESET button on the remote control during the operation. Note that some items (ex. LANGUAGE, VOLUME) cannot be reset.

● In the ADVANCED MENU, when you want to return to the previous display, press the ◄ cursor button or ESC button on the remote control.

Indication in OSD (On Screen Display)

The meanings of the general words on the OSD are as follows.

Indication Meaning

EXIT

Selecting this word nishes the OSD menu. It's the same as pressing the MENU button.

RETURN Selecting this word returns the menu to the previous menu.

CANCEL or NO

Selecting this word cancels the operation in the present menu and returns to the previous menu.

OK or YES

Selecting this word executes the prepared function or shifts the menu to the next menu.

Operating

Page 36

EASY MENU

From the EASY MENU, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons. Then perform it according to the following table.

(continued on next page)

Item Description

ASPECT

Using the ◄/► buttons switches the mode for aspect ratio. See the ASPECT item in IMAGE menu (



41).

AUTO KEYSTONE

Using the ► button executes the auto keystone function. See the AUTO KEYSTONE item in SETUP menu (



48).

KEYSTONE

Using the ◄/► buttons corrects the vertical keystone distortion. See the

KEYSTONE item in SETUP menu (



48).

KEYSTONE

Using the ◄/► buttons corrects the horizontal keystone distortion. See the

KEYSTONE item in SETUP menu (



49).

PERFECTFIT

Pressing the ► button displays the KEYSTONE_PERFECT FIT dialog. See the PERFECT FIT item in SETUP menu (



49).

PICTURE MODE

Using the ◄/► buttons switches the picture mode. The picture modes are combinations of GAMMA and COLOR TEMP settings. Choose a suitable mode according to the projected source.

NORMAL ó CINEMA ó DYNAMIC ó BOARD(BLACK)



DICOM SIM.



PHOTOó DAYTIME ó WHITEBOARD ó BOARD(GREEN)

GAMMA COLOR TEMP NORMAL 1 DEFAULT 2 MID CINEMA 2 DEFAULT 3 LOW DYNAMIC 3 DEFAULT 1 HIGH BOARD(BLACK) 4 DEFAULT 4 Hi-BRIGHT-1 BOARD(GREEN) 4 DEFAULT 5 Hi-BRIGHT-2 WHITEBOARD 5 DEFAULT 2 MID DAYTIME 6 DEFAULT 6 Hi-BRIGHT-3 PHOTO 7 DEFAULT 7 Hi-BRIGHT-4 DICOM SIM. 8 DEFAULT 2 MID

Page 37

EASY MENU

Item Description

PICTURE MODE

(Continued)

• When the combination of GAMMA and COLOR TEMP differs from pre-assigned modes above, the display on the menu for the PICTURE MODE is “CUSTOM”. Please refer to the GAMMA and COLOR TEMP (



38, 39) items in PICTURE menu.

• Lines or other noise might appear on the screen when this function is operated, but it is not a malfunction.

• DICOM SIM. is the projector's DICOM

("Digital Imaging and Communication in Medicine") simulation mode. This mode simulates the DICOM standard, which is a standard applicable to digital communications in medicine, and can be useful for displaying medical images, such as X-rays photos. This projector is not a medical device and is not compliant to the DICOM standard, and neither the projector nor the DICOM SIM. mode should be used for medical diagnosis.

ECO MODE

Using the ◄/► buttons switches the ECO MODE. See the ECO MODE item in SETUP menu (



49).

INSTALLATION

Pressing the ► button displays the INSTALLATION dialog. See the

INSTALLATION

item in SETUP menu (



50).

RESET

Performing this item resets all of the EASY MENU items except the FILTER TIME and LANGUAGE. A dialog is displayed for conrmation. Selecting the OK using the ► button performs resetting.

FILTER TIME

The usage time of the air lter is shown in the menu. Performing this item resets the lter time which counts usage time of the air lter. A dialog is displayed for conrmation. Selecting the OK using the ► button performs resetting. See the FILTER TIME item in OPTION menu (



61).

LANGUAGE

Using the ◄/► buttons changes the display language. See the LANGUAGE item in SCREEN menu (



53).

ADVANCED MENU

Press the ► or ENTER button to use the menu of PICTURE, IMAGE, INPUT, SETUP, AUDIO, SCREEN, OPTION, NETWORK or SECURITY.

EXIT Press the ◄ or ENTER button to nish the OSD menu.

Page 38

PICTURE menu

From the PICTURE menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table.

(continued on next page)

Item Description

BRIGHTNESS

Using the

◄/►

buttons adjusts the brightness.

Dark ó Light

CONTRAST

Using the

◄/►

buttons adjusts the contrast.

Weak ó Strong

GAMMA

Using the ▲/▼ buttons switches the gamma mode.

To adjust CUSTOM

Selecting a mode whose name includes CUSTOM and then pressing the ► button or the ENTER button displays a dialog to aid you in adjusting the mode. This function is useful when you want to change the brightness of particular tones.

Choose an item using the ◄/► buttons, and adjust the level using the ▲/▼ buttons.

You can display a test pattern for checking the effect of your adjustment by pressing the ENTER button. Each time you press the ENTER button, the pattern changes as below.

No pattern ð Gray scale of 9 steps Ramp  Gray scale of 15 steps

The eight equalizing bars correspond to eight tone levels of the test pattern (Gray scale of 9 steps) except the darkest in the left end. If you want to adjust the 2nd tone from left end on the test pattern, use the equalizing adjustment bar “1”. The darkest tone at the left end of the test pattern cannot be controlled with any of equalizing adjustment bar.

• Lines or other noise might appear on the screen when this function is operated, but it is not a malfunction.

Page 39

PICTURE menu

(continued on next page)

Item Description

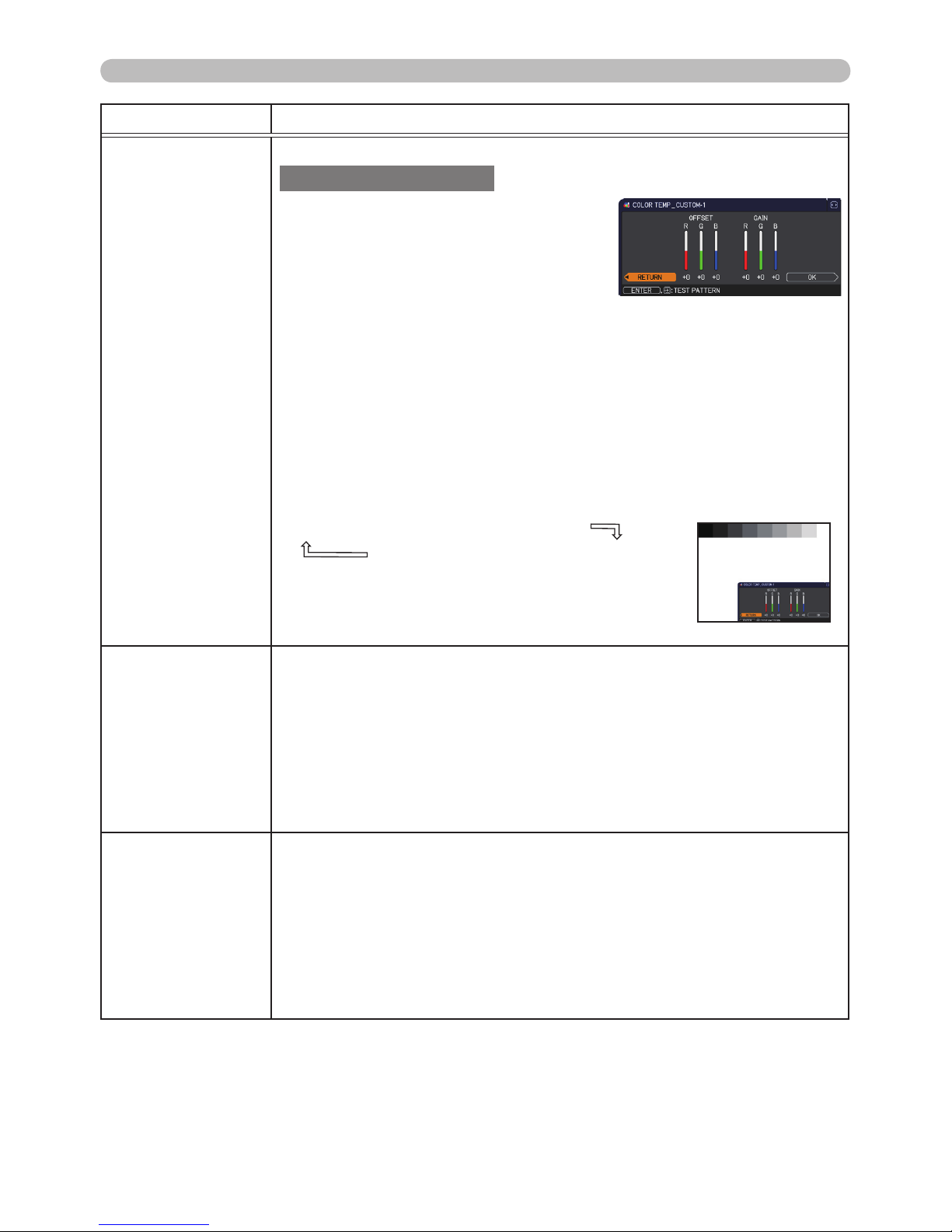

COLOR TEMP

Using the ▲/▼ buttons switches the color temperature mode.

To adjust CUSTOM

Selecting a mode whose name includes CUSTOM and then pressing the ► button or the ENTER button displays a dialog to aid you in adjusting the OFFSET and GAIN of the selected mode.

OFFSET adjustments change the color intensity on the whole tones of the test pattern.

GAIN adjustments mainly affect color intensity on the brighter tones of the test pattern.

Choose an item using the ◄/► buttons, and adjust the level using the ▲/▼ buttons.

You can display a test pattern for checking the effect of your adjustment by pressing the ENTER button. Each time you press the ENTER button, the pattern changes as below.

No pattern ð Gray scale of 9 steps

Ramp  Gray scale of 15 steps

• Lines or other noise might appear on the screen when this function is operated, but it is not a malfunction.

COLOR

Using the ◄/► buttons adjusts the strength of whole color.

Weak ó Strong

• This item can be selected only for a video, s-video and component video signal.

•

For an HDMITM signal, this item can also be selected if either (1) or (2) applies. (1) HDMI FORMAT item in the INPUT menu is set to VIDEO. (2) HDMI FORMAT item in the INPUT menu is set to AUTO, and the

projector recognizes that it receives video signals.

TINT

Using the ◄/► buttons adjusts the tint.

Reddish ó Greenish

• This item can be selected only for a video, s-video and component video signal.

•

projector recognizes that it receives video signals.

Page 40

PICTURE menu

Item Description

SHARPNESS

Using the ◄/► buttons adjusts the sharpness.

Weak ó Strong

• There may be some noise and/or the screen may icker for a moment when an adjustment is made. This is not a malfunction.

ACTIVE IRIS

Using the ▲/▼ cursor buttons changes the active iris control mode.

PRESENTATION ó THEATER ó OFF

PRESENTATION : The active iris displays the best presentation

image for both bright and dark scenes.

THEATER : The active iris displays the best theater image for

both bright and dark scenes.

OFF : The active iris is always open.

• The screen may icker when the PRESENTATION or THEATER modes are selected. If this occurs select OFF.

MY MEMORY

This projector has 4 memories for adjustment data (for all the items of the PICTURE menu). Selecting a function using the ▲/▼ buttons and pressing the ► or ENTER button performs each function.

SAVE-1 ó SAVE-2 ó SAVE-3 ó SAVE-4 LOAD-4 óLOAD-3 ó LOAD-2 ó LOAD-1

SAVE-1, SAVE-2, SAVE-3, SAVE-4 Performing a SAVE function saves the current adjustment data into the memory linked in the number included in the function’s name.

• Remember that the current data being stored of a memory will be lost by saving new data into the memory.

LOAD-1, LOAD-2, LOAD-3, LOAD-4 Performing a LOAD function loads the data from the memory linked in the number included in the function’s name, and adjusts the picture automatically depending on the data.

• The LOAD functions whose linked memory has no data are skipped.

• Remember that the current adjusted condition will be lost by loading data. If you want to keep the current adjustment, please save it before performing a LOAD function.

• There may be some noise and the screen may icker for a moment when loading data. This is not malfunction.

• You can perform the LOAD function using MY BUTTON. Please see MY BUTTON item in OPTION menu (



62, 63).

Page 41

IMAGE menu

From the IMAGE menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table.

Item Description

ASPECT

Using the ▲/▼ buttons switches the mode for aspect ratio.

For a computer signal

CP-X4022WN/CP-X5022WN: NORMAL ó 4:3 ó 16:9 ó 16:10

CP-WX4022WN: NORMAL ó 4:3 ó 16:9 ó 16:10 ó NATIVE

For an HDMITM signal

CP-X4022WN/CP-X5022WN: NORMAL ó 4:3 ó 16:9 ó 16:10 ó 14:9

CP-WX4022WN: NORMAL ó 4:3 ó 16:9 ó 16:10 ó 14:9 ó NATIVE

For a video signal, s-video signal or component video signal

CP-X4022WN/CP-X5022WN: 4:3 ó 16:9 ó 14:9

CP-WX4022WN: 4:3 ó 16:9 ó 16:10 ó 14:9 ó NATIVE

For an input signal from the LAN, USB TYPE A or USB TYPE B port, or if there is no signal

CP-X4022WN/CP-X5022WN: 4:3 (xed) CP-WX4022WN: 16:10 (xed)

• The NORMAL mode keeps the original aspect ratio of the signal.

(continued on next page)

Page 42

IMAGE menu

Item Description

OVER SCAN

Using the ◄/► buttons adjusts the over-scan ratio.

Small (It magnies picture) ó Large (It reduces picture)

• This item can be selected only for a video, s-video and component video signal.

• For an HDMI

signal, this item can also be selected if either (1) or (2) applies. (1) HDMI FORMAT item in the INPUT menu is set to VIDEO. (2) HDMI FORMAT item in the INPUT menu is set to AUTO, and the

projector recognizes that it receives video signals.

V POSITION

Using the ◄/► buttons adjusts the vertical position.

Down ó Up

• Over-adjusting the vertical position may cause noise to appear on the screen. If this occurs, please reset the vertical position to the default setting. Pressing the RESET button when the V POSITION is selected will reset the V POSITION to the default setting.

• When this function is performed on a video signal or an s-video signal, the range of this adjustment depends on OVER SCAN (



42)

setting. It is not possible to adjust when OVER SCAN is set to 10.

•

This function is unavailable for a signal from the LAN, USB TYPE A,

USB TYPE B or HDMI port.

H POSITION

Using the ◄/► buttons adjusts the horizontal position.

Right ó Left

•

Over-adjusting the horizontal position may cause noise to appear on the screen. If this occurs, please reset the horizontal position to the default setting. Pressing the RESET button when the H POSITION is selected will reset the H POSITION to the default setting.

• When this function is performed on a video signal or an s-video signal, the range of this adjustment depends on OVER SCAN (



42)

setting. It is not possible to adjust when OVER SCAN is set to 10.

•

This function is unavailable for a signal from the LAN, USB TYPE A, USB TYPE B or HDMI por

(continued on next page)

Page 43

IMAGE menu

Item Description

H PHASE

Using the

◄/►

buttons adjusts the horizontal phase to eliminate icker.

Right ó Left

• This item can be selected only for a computer signal or a component video signal. This function is unavailable for a signal from the LAN, USB TYPE A, USB TYPE B or HDMI port.

H SIZE

Using the ◄/► buttons adjusts the horizontal size.

Small ó Large

• This item can be selected only for a computer signal. This function is unavailable for a signal from the LAN, USB TYPE A, USB TYPE B or HDMI port.

• When this adjustment is excessive, the picture may not be displayed correctly. In such a case, please reset the adjustment by pressing the RESET button on the remote control during this operation.

• Images might appear degraded when this function is operated, but it is not a malfunction.

AUTO ADJUST

EXECUTE

Selecting this item performs the automatic adjustment feature.

For a computer signal

For a video signal and s-video signal

The video format best suited for the respective input signal will be selected automatically. This function is available only when the AUTO is selected for the VIDEO FORMAT item in the INPUT menu (



45).

The vertical position and horizontal position will be

automatically set to the default.

For a component video signal

The vertical position and horizontal position will be automatically set to the default. The horizontal phase will be automatically adjusted.

• The automatic adjustment operation requires approx. 10 seconds. Also please note that it may not function correctly with some input.

• When this function is performed for a video signal, a certain extra such as a line may appear outside a picture.

• When this function is performed for a computer signal, a black frame may be displayed on the edge of the screen, depending on the computer model.

• The items adjusted by this function may vary when the FINE or DISABLE is selected for the AUTO ADJUST item of the SERVICE item in the OPTION menu (



64).

Page 44

INPUT menu

From the INPUT menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table.

Item Description

PROGRESSIVE

Using the ▲/▼ buttons switches the progress mode.

TV ó FILM ó OFF

•

This function works only for a video signal, s-video signal, component video signal (of 480i@60 or 576i@50 or 1080i@50/60) and an HDMI

signal (of 480i@60 or 576i@50 or 1080i@50/60)

• When TV or FILM is selected, the screen image will be sharp. FILM adapts to the 2-3 Pull-Down conversion system. But these may cause a certain defect (for example, jagged line) of the picture for a quick moving object. In such a case, please select OFF, even though the screen image may lose sharpness.

VIDEO NR

Using the ▲/▼ buttons switches the noise reduction mode.

HIGH ó MID ó LOW

• This function works only for a video signal, s-video signal, component video signal (of 480i@60 or 576i@50 or 1080i@50/60) and an HDMI

signal (of 480i@60 or 576i@50 or 1080i@50/60).

COLOR SPACE

Using the ▲/▼ buttons switches the mode for color space.

AUTO ó RGB ó SMPTE240 ó REC709 ó REC601

• This item can be selected only for a computer signal (except for signals from the LAN, USB TYPE A and USB TYPE B ports) or a component video signal (except SCART RGB).

• The AUTO mode automatically selects the optimum mode.

• The AUTO operation may not work well at some signals. In such a case, it might be good to select a suitable mode except AUTO.

COMPONENT

Using the ▲/▼ buttons switches the function of the COMPONENT ports.

COMPONENT ó SCART RGB

When the SCART RGB is selected, the COMPONENT (Y, Cb/ Pb, Cr/Pr) and VIDEO ports will function as a SCART RGB port. A SCART adapter or SCART cable is required for a SCART RGB input to the projector. For details, contact your dealer.

(continued on next page)

Page 45

INPUT menu

Item Description

VIDEO FORMAT

The video format for S-VIDEO port and VIDEO port can be set. (1) Use the ▲/▼ buttons to

select the input port.

(2) Using the ◄/► buttons

switches the mode for video format.

AUTO ó NTSC ó PAL ó SECAM N-PAL ó M-PAL ó NTSC4.43

• This item is performed only for a video signal from the VIDEO port or the S-VIDEO port.

• The AUTO mode automatically selects the optimum mode.

• The AUTO operation may not work well for some signals. If the picture becomes unstable (e.g. an irregular picture, lack of color), please select the mode according to the input signal.

HDMI FORMAT

Using the ▲/▼ cursor buttons switches the video format for an input from the HDMI port.

AUTO ó VIDEO ó COMPUTER

Feature AUTO automatically sets the optimum mode. VIDEO sets the suitable mode for DVD signals. COMPUTER sets the suitable mode for computer signals.

• When the COMPUTER is selected, or when the AUTO is selected and the projector recognizes that it receives computer signals, the functions COLOR (PICTURE menu), TINT (PICTURE menu) and OVER SCAN (IMAGE menu) are unavailable.

HDMI RANGE

Using the ▲/▼ cursor buttons changes the digital range for input from the HDMI port.

AUTO ó NORMAL ó ENHANCED

Feature AUTO automatically sets the optimum mode. NORMAL s

ets the suitable mode for DVD signals. (16-

235)

ENHANCED

sets the suitable mode for computer signals. (0-255)

• If the contrast of the screen image is too strong or too weak, try nding a more suitable mode.

(continued on next page)

Page 46

INPUT menu

Item Description

COMPUTER IN

The computer input signal type for COMPUTER IN1 and IN2 ports can be set.

(1)

Use the ▲/▼ buttons to select the COMPUTER IN port to be set.

(2) Use the ◄/► buttons to select

the computer input signal type.

AUTO ó SYNC ON G OFF

• Selecting the AUTO mode allows you to input a sync on G signal or component video signal from the port (



11).

• In the AUTO mode, the picture may be distorted with certain input signals. In such a case, remove the signal connector so that no signal is received and select the SYNC ON G OFF, and then reconnect the signal.

FRAME LOCK

Set the frame lock function on/off for each port. (1) Use the ▲/▼ buttons to select

the input ports.

(2) Use the ◄/► buttons to turn the

frame lock function on/off .

ON ó OFF

• This item can be performed only on a signal with a vertical frequency of 49 to 51Hz, 59 to 61 Hz.

• When ON is selected, moving pictures are displayed more smoothly.

(continued on next page)

Page 47

INPUT menu

Item Description

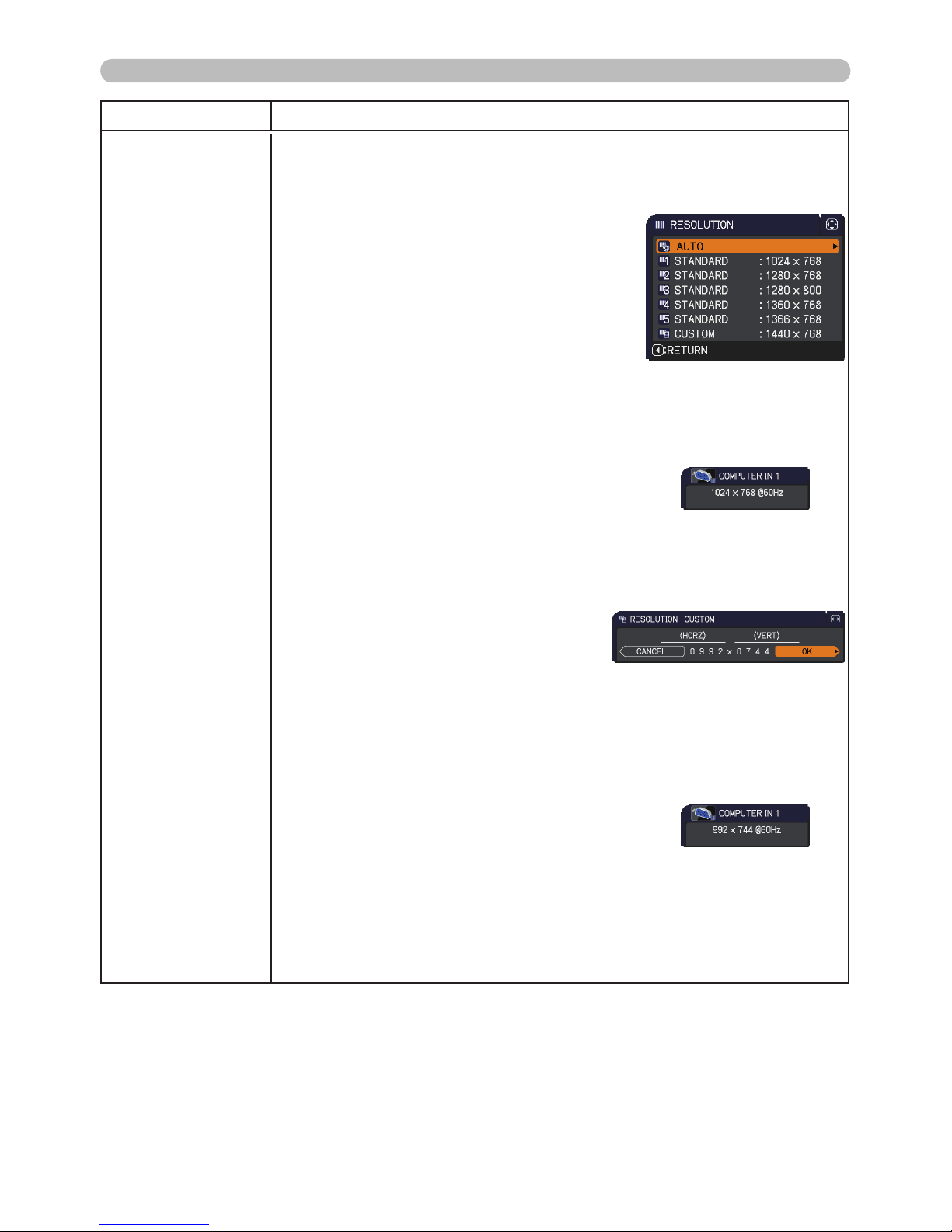

RESOLUTION

The resolution for the COMPUTER IN1 and COMPUTER IN2 input signals can be set on this projector.

(1) In the INPUT menu select the RESOLUTION using the ▲/▼

buttons and press the ► button. The RESOLUTION menu will be displayed.

(2) In the RESOLUTION menu select the

resolution you wish to display using the ▲/▼ buttons. Selecting AUTO will set a resolution appropriate to the input signal.

(3) Pressing the ► or ENTER button when

selecting a STANDARD resolution will automatically adjust the horizontal and vertical positions, clock phase and

horizontal size. The INPUT_INFORMATION dialog will be displayed.

(4) To set a custom resolution use the ▲/▼ buttons to select

the CUSTOM and the RESOLUTION_CUSTOM box will be

displayed. Set the horizontal (HORZ) and vertical (VERT) resolutions using the ▲/▼/◄/► buttons. This function may not support all resolutions.

(5) Move the cursor to OK on screen and press the ► or ENTER

button. The message "ARE YOU SURE YOU WISH TO

CHANGE RESOLUTION?" appears. To save the setting, press

the ► button.

The horizontal and vertical positions, clock phase and horizontal

size will be automatically adjusted. The INPUT_INFORMATION dialog will be displayed.

(6) To revert back to the previous resolution without saving changes,

move the cursor to CANCEL on screen and press the ◄ or

ENTER button.

The screen will then return to the RESOLUTION menu

displaying the previous resolution.

• For some pictures, this function may not work well.

STANDARD

↓

CUSTOM

↓

Page 48

SETUP menu

From the SETUP menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table.

Item Description

AUTO KEYSTONE

Selecting this item performs the Automatic keystone distortion correction. Projector automatically corrects vertical keystone distortion due to the (forward/backward) setup angle by itself. This function will be executed only once when selected in the menu. When the slant of the projector is changed, execute this function again.

• The adjustable range of this function will vary among inputs. For some input, this function may not work well.

• When REAR / CEILING or FRONT / CEILING is selected for the INSTALLATION item in the SETUP menu, this function may not work correctly if the projector screen is slanted or tilted downwards.

• When the projector is placed on the level (about ±4°), this function may not work.

• When the projector is inclined to near ±40 degree or over, this function may not work well.

•

This function will be unavailable when the TRANSITION DETECTOR

is on

(



85) .

KEYSTONE

Using the ◄/► buttons corrects the vertical keystone distortion.

Shrink the bottom of the image ó Shrink the top of the image

• The adjustable range of this function will vary among inputs. For some input, this function may not work well.

•

This function will be unavailable when the TRANSITION DETECTOR

is on

(85).

(continued on next page)

Page 49

SETUP menu

Item Description

KEYSTONE

Using the ◄/► buttons corrects the horizontal keystone distortion.

Shrink the right of the image ó Shrink the left of the image

• The adjustable range of this function will vary among inputs. For some input, this function may not work well.

• When the horizontal lens shift is not set to the center, this function may not work well.

•

This function is unavailable when the TRANSITION DETECTOR

(



85) is ON or the screen is adjusted by PERFECT FIT (30, 31).

PERFECT FIT

Selecting this item displays the KEYSTONE_PERFECT FIT dialog.For details, see PERFECT FIT in Correcting the distortion

(



30, 31).

• This is unavailable when the TRANSITION DETECTOR is ON

(



85).

AUTO ECO MODE

Using the ▲/▼ buttons turns on/off the AUTO ECO MODE.

ON ó OFF

• When ON is selected, the projector will always be set to Eco mode at start-up regardless of the ECO MODE (



below) setting. An OSD message “AUTO ECO MODE” will be displayed for a while when the projector starts with this function activated.

ECO MODE

Using the ◄/► buttons switches the ECO MODE.

NORMAL ó ECO ó INTELLIGENT ECOó SAVER

• When the ECO is selected, acoustic noise and screen brightness are reduced.

• When INTELLIGENT ECO is selected, the brightness of the lamp changes according to the level of the input signal. The lamp becomes brighter when the input signal level is high and darker when the level is low. If dark images are projected continuously, the brightness of the lamp may increase to maintain its performance.

• When SAVER is selected, you can select the time within 1 to 30 min. for SAVER MODE using the ► button. If the image signal level doesn’t change more than the period set, the lamp brightness is reduced and electric power consumption decreased. If the image signal level changes or any buttons are operated, the lamp will brighten again. If dark images are projected continuously, the brightness of the lamp may increase to maintain its performance.

• When AUTO ECO MODE (



above) is set to ON, the projector will

always be set to Eco mode at start-up regardless this setting.

(continued on next page)

Page 50

SETUP menu

Item Description

INSTALLATION

Pressing the ►button displays the dialog for changing the INSTALLATION setting.

Use the ▲/▼ buttons to select the desired setting on the INSTALLATION dialog. If TRANSITION DETECTOR is ON and the INSTALLATION status is changed, the TRANSITION DETECTOR ON alarm (



85) will be

displayed when the projector is restarted.

STANDBY MODE

Using ▲/▼ buttons switches the standby mode setting between NORMAL and SAVING.

NORMAL ó SAVING

When SAVING is selected, the power consumption in the standby mode is lowered with some functional restriction as below:

• When SAVING is selected, the RS-232C communication control except to turn the projector on and the network function are disabled while the projector is in the standby mode. If the COMMUNICATION TYPE in the COMMUNICATION menu is set to NETWORK BRIDGE, all of the RS-232C commands are disabled (



66).

• When SAVING is selected, STANDBY setting of AUDIO SOURCE

(



52) is invalid, and no signal is output from AUDIO OUT port in

the standby mode.

• When SAVING is selected, STANDBY setting of MONITOR OUT is invalid, and no signal is output from MONITOR OUT port in the standby mode.

• The USB connection is disabled while the projector is in standby mode if the STANDBY MODE item in the SETUP menu of the projector is set to SAVING.

• When SAVING is selected, CLONING load function is invalid while in STANDBY MODE.

(continued on next page)

Page 51

Item Description

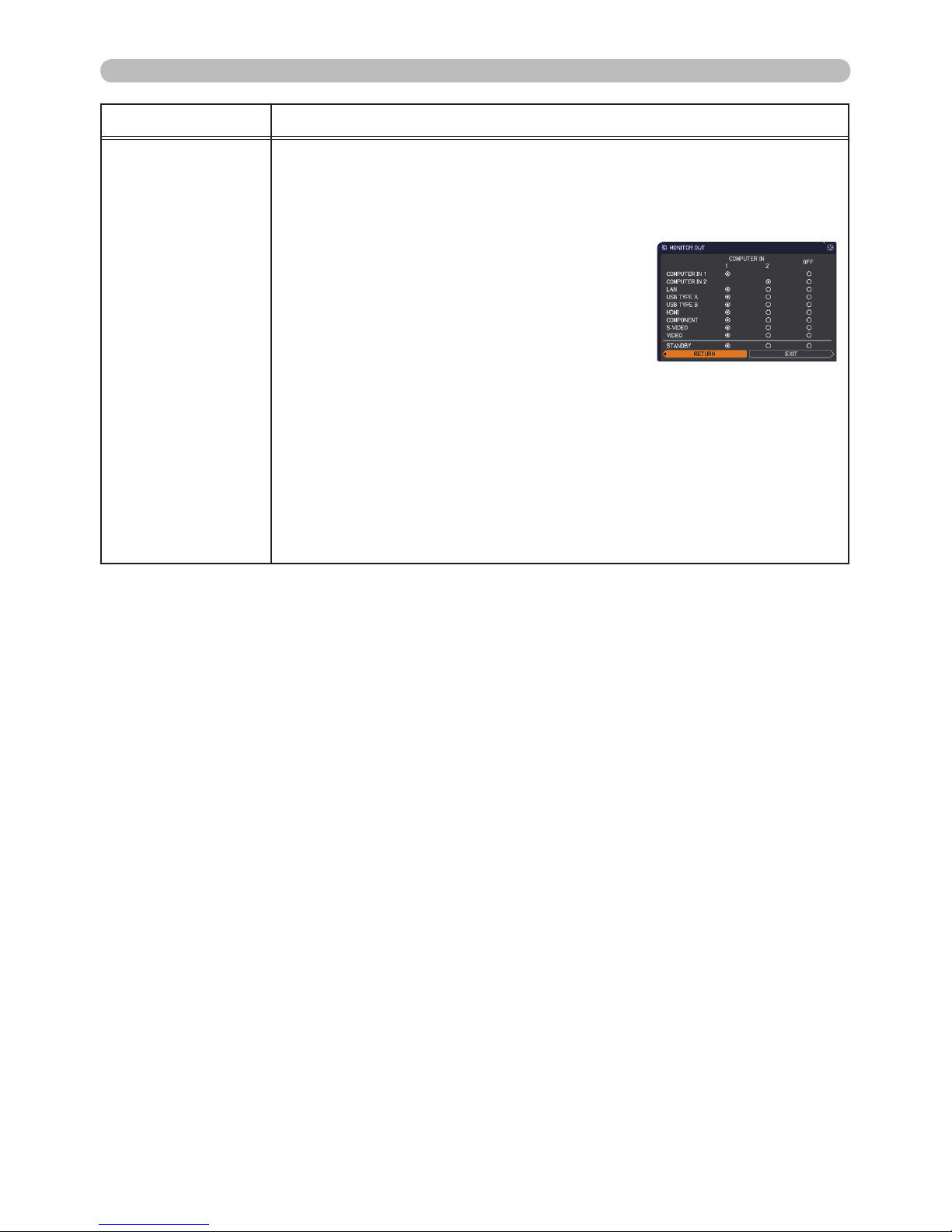

MONITOR OUT

While the image signal from the input port chosen in step (1) is projected, the image signal from the input port selected in step (2) is output to MONITOR OUT port.

(1) Choose a picture input port using ▲/▼ buttons.

Choose STANDBY to select the picture output in the standby mode.

(2) Select one of the COMPUTER IN ports

using ◄/► buttons. Select OFF to disable the MONITOR OUT port for the input port or standby mode chosen in the step (1).

• You cannot select COMPUTER IN2 for COMPUTER IN1, and vice versa.

• If you have changed the setting of STANDBY, it applies only to the current standby mode, NORMAL or SAVING, selected under STANDBY MODE, without changing the setting of the other mode. The factory settings are as follows:

- COMPUTER IN1 for the NORMAL mode of STANDBY MODE

- OFF for the SAVING mode of STANDBY MODE

SETUP menu

Page 52

AUDIO menu

From the AUDIO menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or the ENTER button to execute the item. Then perform it according to the following table.

Item Description

VOLUME Using the ◄/► buttons adjusts the volume. Low ó High

SPEAKER

Using the ▲/▼ buttons turns on/off the built-in speaker.

ON ó OFF

When OFF is selected, the built-in speaker does not work.

AUDIO SOURCE

While the image signal from the input port chosen in step (1) is projected, the audio signal from the input port selected in step (2) is output to both the AUDIO OUT port and built-in speaker of this projector. However, the built-in speaker does not work when SPEAKER is set to OFF.

(1) Choose a picture input port using the

▲/▼ buttons. Choose STANDBY to select the sound output in the standby mode.

(2) Select an audio input port or the mute

icon using the ◄/► buttons.

The icons indicate the following;

No.1: AUDIO IN1 port No.2: AUDIO IN2 port No.3: AUDIO IN3 port No.4: LAN port No.5: USB TYPE A port No.6: USB TYPE B port No.7: HDMI port

: mutes the sound

• Audio input from port nos 4 to 7 can only be selected by each of the picture input ports.

• Even if the projector is in the standby mode, cooling fans may work and make noises when the built-in speaker is in operation.

•

C.C. (Closed Caption) is automatically activated when is selected and an input signal containing C.C. is received. This function is available only when the signal is NTSC for VIDEO or S-VIDEO, or 480i@60 for COMPONENT, COMPUTER IN1 or COMPUTER IN2, and when AUTO is selected for DISPLAY in the C.C. menu under the SCREEN menu

(



58).

MIC LEVEL

Using the ▲/▼ buttons switches the input level to match that of the microphone connected to the MIC port.

HIGH: for a microphone with an amplier. LOW: for a microphone without an amplier.

MIC VOLUME

Using the ◄/► buttons adjusts the volume of the microphone connected to the MIC port.

Low ó High

HIGH ó LOW

Page 53

SCREEN menu

From the SCREEN menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table.

Item Description

LANGUAGE

Using the ▲/▼/◄/► buttons switches the OSD (On Screen Display) language.

ENGLISH ó FRANÇAIS ó DEUTSCH ó ESPAÑOL

(shown in the LANGUAGE dialog)

Press the ENTER or INPUT button to save the language setting.

MENU POSITION

Using the ▲/▼/◄/► buttons adjusts the menu position. To quit the operation, press the MENU button on the remote control or keep no operation for about 10 seconds.

BLANK

Using the ▲/▼ buttons switches the mode for the blank screen. The blank screen is a screen for the temporarily blanking feature

(



33). It is displayed by pressing the BLANK button on the remote

control.

MyScreen ó ORIGINAL ó BLUE ó WHITE ó BLACK

MyScreen :

Screen can be registered by the MyScreen item (



54). ORIGINAL : Screen preset as the standard screen. BLUE, WHITE, BLACK : Plain screens in each color.

• To avoid remaining as an afterimage, the MyScreen or ORIGINAL screen will change to the AUTO BLANK screen after several minutes.

AUTO BLANK

Using the ▲/▼ buttons switches the mode for the AUTO BLANK screen. BLUE ó WHITE ó BLACK

• To avoid remaining as an afterimage, displayed image will change to the designated blank color screen by AUTO BLANK after several minutes at the following conditions.

- When MyScreen or ORIGINAL is displayed as BLANK screen.

- When start-up screen is displayed.

(continued on next page)

Page 54

SCREEN menu

Item Description

START UP

Using the ▲/▼ buttons switches the mode for the start-up screen. The start-up screen is a screen displayed when no signal or an unsuitable signal is detected.

MyScreen ó ORIGINAL ó OFF

MyScreen :

Screen can be registered by the MyScreen item (



54). ORIGINAL : Screen preset as the standard screen. OFF : Plain black screen.

• To avoid remaining as an afterimage, the START UP screen will change to the AUTO BLANK screen after several minutes.

• When the ON is selected to the MyScreen PASSWORD item in the SECURITY menu (



83), the START UP is fixed to MyScreen.

MyScreen

This item allows you to capture an image for use as a MyScreen image which can be used as the BLANK screen and START UP screen. Display the image you want to capture before executing the following procedure.

Selecting this item displays a dialog titled “MyScreen”. It will ask you if you start capturing an image from the current screen. Please wait for the target image to be displayed, and press the ENTER or INPUT button to start registration.

To restore the screen and return to the previous dialog, press the RESET button on the remote control. Registration may take several minutes. When the registration is completed, the registered screen and the following message is displayed for several seconds:

“MyScreen registration is nished.”

If the registration failed, the following message is displayed:

“A capturing error has occurred. Please try again.”

• This function cannot be selected when the ON is selected to the MyScreen Lock item (



55).

• This function cannot be selected when the ON is selected to the MyScreen PASSWORD item in SECURITY menu (



83).

•

This function is unavailable for a signal from the LAN, USB TYPE A,

USB TYPE B or HDMI port.

(continued on next page)

Page 55

SCREEN menu

Item Description

MyScreen Lock

Using the ▲/▼ buttons turns on/off the MyScreen lock function.

ON ó OFF

When the ON is selected, the item MyScreen is locked. Use this function for protecting the current MyScreen.

• This function cannot be selected when the ON is selected to the MyScreen PASSWORD item in SECURITY menu (



83).

MESSAGE

Using the ▲/▼ buttons turns on/off the message function.

ON ó OFF

When the ON is selected, the following message function works.

“AUTO IN PROGRESS” while automatically adjusting “NO INPUT IS DETECTED” “SYNC IS OUT OF RANGE” “INVALID SCAN FREQ.” “NOT AVAILABLE.” “Searching….” while searching for the input “Detecting….” while an input signal is detected “AUTO ECO MODE” while starting up with AUTO ECO MODE The indication of the input signal displayed by changing The indication of the aspect ratio displayed by changing The indication of the PICTURE MODE displayed by changing The indication of the ACTIVE IRIS displayed by changing The indication of the MY MEMORY displayed by changing The indication of “FREEZE” and “II” while freezing the screen by pressing the FREEZE button. The indication of the TEMPLATE displayed by changing. The indication of the ECO MODE displayed by changing.

• When the OFF is selected, please remember if the picture is frozen. Do not mistake freezing for a malfunction (



33).

(continued on next page)

Page 56

SCREEN menu

Item Description

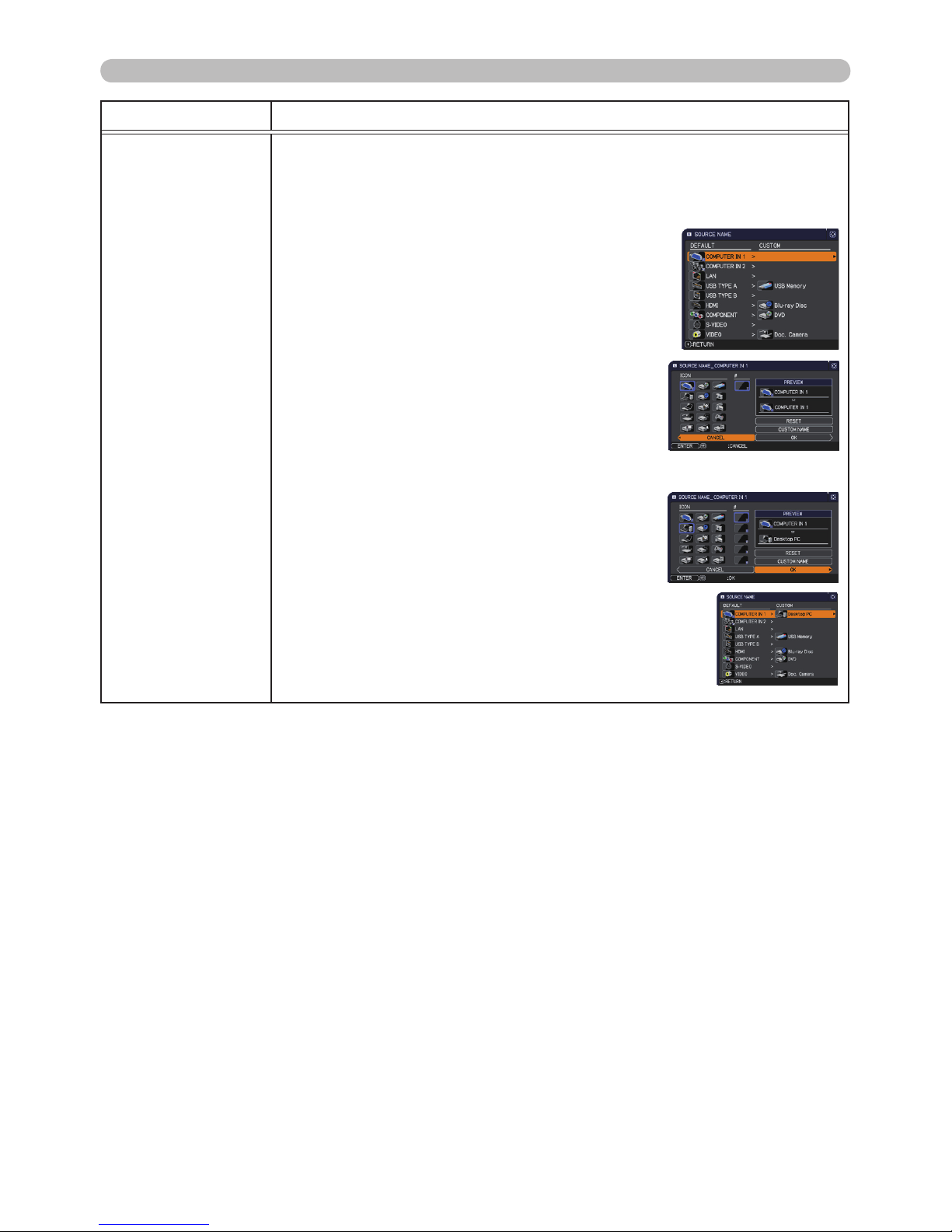

SOURCE NAME

Each input port for this projector can have a name applied to it. (1) Use the ▲/▼ buttons on the SCREEN menu to select SOURCE

NAME and press the ► or ENTER button. The SOURCE NAME menu will be displayed.

(2) Use the ▲/▼ buttons on the SOURCE

NAME menu to select the port to be named and press the ► button. The SOURCE NAME dialog will be displayed. Right side of the menu is blank until a name is specied.

(3) Select an icon you would like to assign to

the port in the SOURCE NAME dialog. The name assigned to the port will also be automatically switched according to your icon selection. Press the ENTER or INPUT button to determine your icon selection.

(4) Select a number you would like to assign

to the port along with the icon. You can select the number either from blank (no number assigned), 1, 2, 3, or 4. Then press the ENTER or INPUT button.

(5) If you would like to modify the name assigned

to the port, select CUSTOM NAME and press the ENTER or INPUT button.

(continued on next page)

Page 57

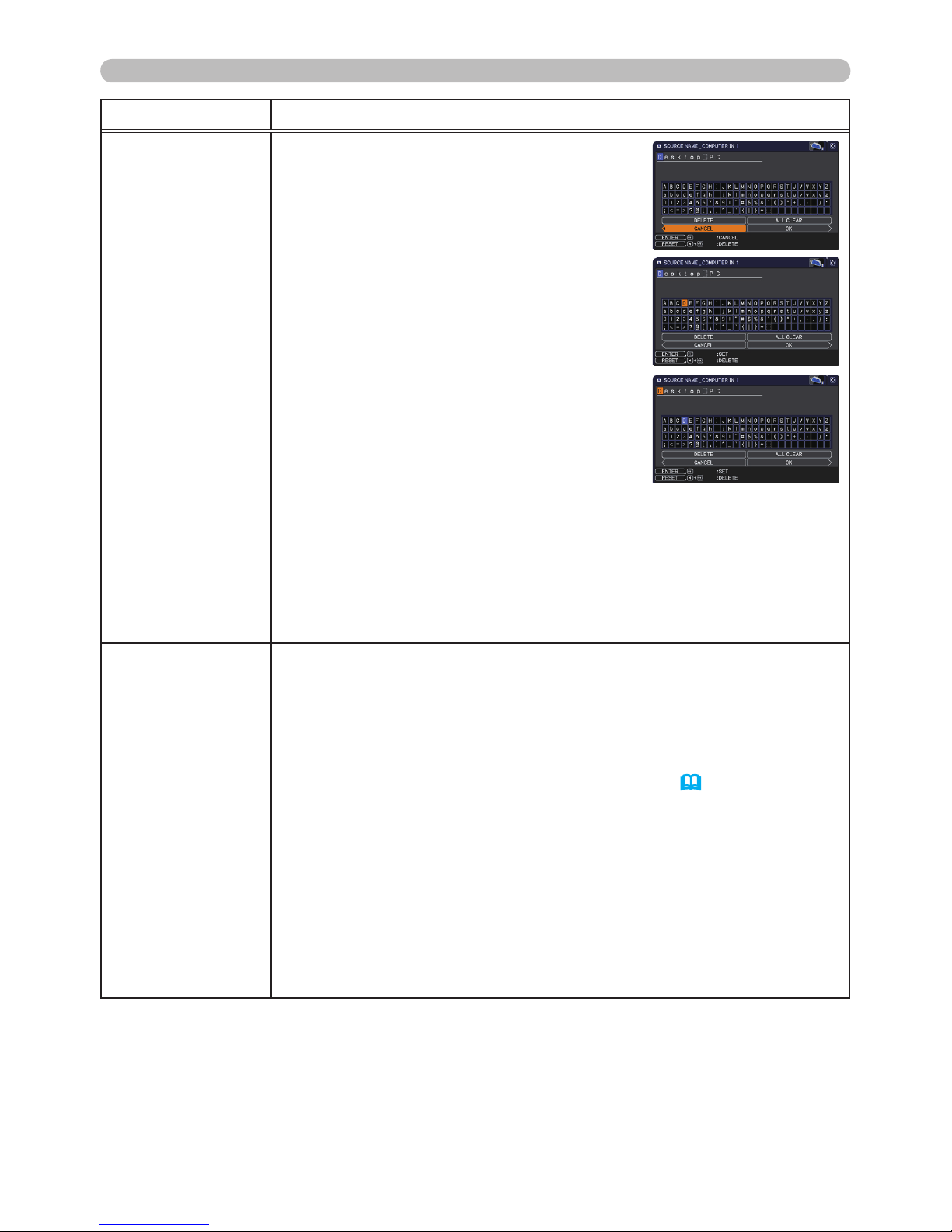

SCREEN menu

Item Description

SOURCE NAME

(continued)

(6) The current name will be displayed on

the rst line. Use the ▲/▼/◄/► buttons and the ENTER or INPUT button to select and enter characters. To erase 1 character at one time, press the RESET button or press the ◄ and INPUT button at the same time. Also if you move the cursor to DELETE or ALL CLEAR on screen and press the ENTER or INPUT button, 1 character or all characters will be erased. The name can be a maximum of 16 characters.

(7) To change an already inserted character,

press the ▲ button to move the cursor to the rst line, and use the ◄/► buttons to move the cursor on the character to be

changed. After pressing the ENTER or INPUT button, the character is selected. Then, follow the same procedure as described at the item (6) above.

(8) To nish entering text, move the cursor to the OK on screen and

press the ►, ENTER or INPUT button. To revert to the previous

name without saving changes, move the cursor to the CANCEL

on screen and press the ◄, ENTER or INPUT button.

TEMPLATE

Using the ▲/▼ cursor buttons switches the mode for the template screen. Press the ► cursor (or the ENTER) button to display the selected template, and press the ◄ cursor button to close the displayed screen. The last selected template is displayed when the MY BUTTON allocated to the TEMPLATE function is pressed (



63).

TEST PATTERN ó DOT-LINE1 ó DOT-LINE2 ó DOT-LINE3  STACK



MAP2 ó MAP1 ó CIRCLE2 ó CIRCLE1 ó DOT-LINE4

You can turn a map upside down and scroll it horizontally when MAP1 or MAP2 is selected. To invert or scroll the map, display the guidance by pressing the RESET button on the remote three seconds or more when MAP1 or MAP2 appears.

(continued on next page)

Page 58

SCREEN menu

Item Description

C.C.

(Closed Caption)

The C.C. is the function that displays a transcript or dialog of the audio portion of a video, les or other presentation or other relevant sounds. It is required to have NTSC format video or 480i@60 format component video source supporting C.C. feature to utilize this function. It may not work properly, depending on equipment or signal source. In this case, please turn off the Closed Caption.

DISPLAY

Select Closed Caption DISPLAY setting from following options using ▲/▼ buttons.

AUTO ó ON ó OFF

AUTO : Closed Caption automatically displays when the volume

is muted. ON : Closed Caption is on. OFF : Closed Caption is off.

• The caption is not displayed when the OSD menu is active.

• The Closed Caption is the function to display the dialogue, narration, and / or sound effects of a television program or other video sources. The Closed Caption availability is depending upon broadcaster and/or content.

MODE

Select Closed Caption MODE setting from following options using ▲/▼ buttons.

CAPTIONS ó TEXT CAPTIONS : Display Closed Caption.

TEXT : Display Text data, which is for additional information such

as news reports or a TV program guide. The information covers the entire screen. Not all of the C.C. program has Text information.

CHANNEL

Select Closed Caption CHANNEL from following options using ▲/▼ buttons.

1 ó 2 ó 3 ó 4

1: Channel 1, primary channel / language 2: Channel 2

3: Channel 3 4: Channel 4

The channel data may vary, depending on the content. Some channel might be used for secondary language or empty.

Page 59

OPTION menu

From the OPTION menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item, except for the items LAMP TIME and FILTER TIME. Then perform it according to the following table.

Item Description

AUTO SEARCH

Using the ▲/▼ buttons turns on/off the automatic signal search function.

ON ó OFF

When the ON is selected, detecting no signal automatically cycles through input ports in the following order. The search is started from the current port. Then when an input is found, the projector will stop searching and display the image.

COMPUTER IN1 ð COMPUTER IN2 ð LAN ð USB TYPE A

VIDEO  S-VIDEO  COMPONENT  HDMI USB TYPE B

• It may take several seconds to project the images from the

USB TYPE B port.

AUTO

KEYSTONE

Using the ▲/▼ buttons turns on/off the automatic keystone function.

ON ó OFF ON : Automatic keystone distortion correction will be executed

whenever changing the slant of the projector.

OFF : This function is disabled. Please execute the AUTO

KEYSTONE (EXECUTE) in the SETUP menu for automatic keystone distortion correction.

• When the projector is suspended from the ceiling this feature will not function properly so select the OFF.

•

This function will be unavailable when the TRANSITION DETECTOR

is on

(



85)

DIRECT POWER

Using the ▲/▼ buttons turns on/off the DIRECT POWER ON function.

ON ó OFF

When set to the ON, the lamp in projector will be automatically turned on without the usual procedure (



20), only when the projector is

supplied with the power after the power was cut while the lamp was on.

• This function does not work as long as the power has been supplied to the projector while the lamp is off.

•

After turning the lamp on by the DIRECT

POWER

ON function, if neither input nor operation is detected for about 30 minutes, the projector is turned off, even though the AUTO

POWER

OFF function

(



60) is disabled.

(continued on next page)

Page 60

OPTION menu

Item Description

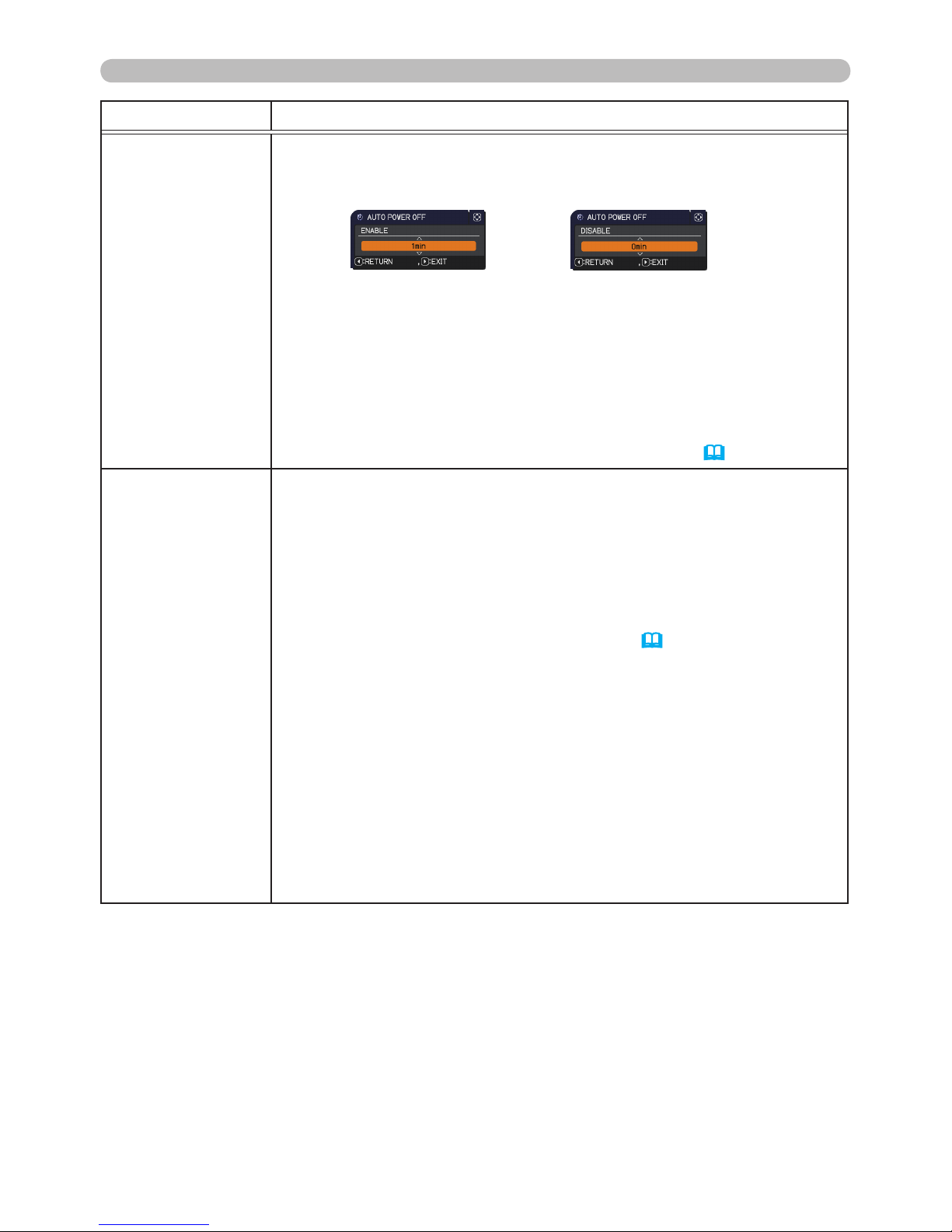

AUTO POWER

OFF

Using the ▲/▼ buttons adjusts the time to count down to automatically turn the projector off.

Long (max. 99 minutes) ó Short (min. 0 minute = DISABLE)

When the time is set to 0, the projector is not turned off automatically. When the time is set to 1 to 99, and when the passed time with no-signal or an unsuitable signal reaches at the set time, the projector lamp will be turned off. If one of the projector's buttons or the remote control buttons is pressed or one of the commands (except get commands) is transmitted to the CONTROL port during the corresponding time, projector will not be turned off. Please refer to the section Turning off the power

(



21).

USB TYPE B

Using the ▲/▼ buttons selects the function of USB TYPE B port. To use this function, you need to connect the USB TYPE B port of the projector and the type A USB port of a computer.

MOUSE ó USB DISPLAY

MOUSE : The accessory remote control works as the simple mouse

and keyboard of the computer.

USB DISPLAY : The port works as an input port that receives image

signals from the computer (



99, 103).

• It may take several seconds to project the images from the USB TYPE B port.

• In the following cases, a message to notify you that USB TYPE B port is not available for picture input appears together with the USB TYPE B dialog:

- This setting is switched to MOUSE while a picture input from the USB TYPE B port is projected.

- The USB TYPE B port is selected as the picture input source while this setting is set to MOUSE. Select USB DISPLAY in the dialog to project the picture input to the USB TYPE B port. In this case, you cannot use the simple mouse and keyboard function. Otherwise select other port for picture input.

(continued on next page)

Page 61

OPTION menu

Item Description

LAMP TIME

The lamp time is the usage time of the lamp, counted after the last resetting. It is shown in the OPTION menu. Pressing the RESET button on the remote control or the ► button of the projector displays a dialog. To reset the lamp time, select the OK using the ► button.

CANCEL

• Please reset the lamp time only when you have replaced the lamp,

for a suitable indication about the lamp.

•

For the lamp replacement, see the section Replacing the lamp

(



107).

FILTER TIME

The lter time is the usage time of the air lter, counted after the last resetting. It is shown in the OPTION menu. Pressing the RESET button on the remote control or the ► button of the projector displays a dialog. To reset the lter time, select the OK using the ► button.

CANCEL

•

Please reset the lter time only when you have cleaned or replaced

the air lter, for a suitable indication about the air lter.

• For the air lter cleaning, see the section Cleaning and replacing

the air lter (



109).

(continued on next page)

Page 62

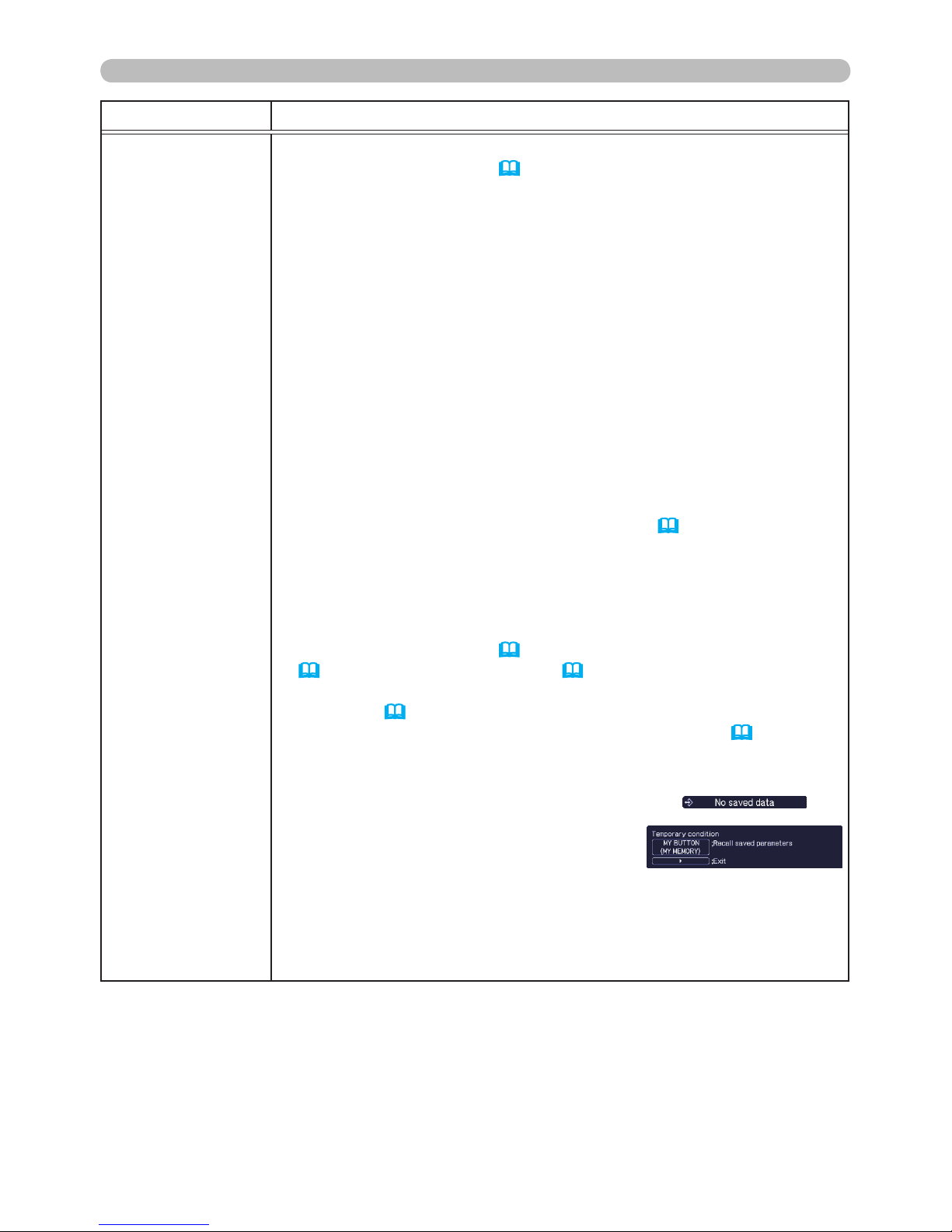

OPTION menu

Item Description

MY BUTTON

This item is to assign one of the following functions to MY BUTTON 1/2 on the remote control (



6).

(1) Use the ▲/▼ buttons on the MY BUTTON menu to select a MY

BUTTON - (1/2) and press the ► or ENTER button to display the MY BUTTON setup dialog.

(2) Then using the ▲/▼/◄/► buttons sets one of the following

functions to the chosen button. Press the ENTER or INPUT button to save the setting.

• COMPUTER IN1: Selects the input from COMPUTER IN1 port.

• COMPUTER IN2: Selects the input from COMPUTER IN2 port.

• LAN: Selects input from LAN port.

• USB TYPE A: Selects input from USB TYPE A port.

• USB TYPE B: Selects input from USB TYPE B port.

• HDMI: Selects input from HDMI port.

• COMPONENT: Selects the input from COMPONENT ports.

• S-VIDEO: Selects the input from S-VIDEO port.

• VIDEO: Selects the input from VIDEO port.

•

SLIDESHOW: Selects the input from USB TYPE A, and starts a Slideshow.

• MY IMAGE: Displays the MY IMAGE menu (



79).

• MESSENGER:

Turns the messenger text displayed on the screen on/off (Messenger Function in the Network Guide). When there is no transferred text data to display, the message ”NO MESSENGER DATA" appears.

• INFORMATION: Displays SYSTEM_INFORMATION, INPUT_INFORMATION (



70), WIRELESS INFORMATION

(



75), WIRED INFORMATION (77) or nothing.

• AUTO KEYSTONE : Performs automatic keystone distortion correction (



48).

• MY MEMORY: Loads one of adjustment data stored (



40). When more than one data are saved, the adjustment changes every time the MY BUTTON is pressed. When no data is saved in memory, the dialog "No saved data" appears. When the current adjustment is not saved to memory, the dialog as shown in the right appears. If you want to keep the current adjustment, please press the ► button to exit. Otherwise loading a data will overwrite the current adjusted condition.

(continued on next page)

Page 63

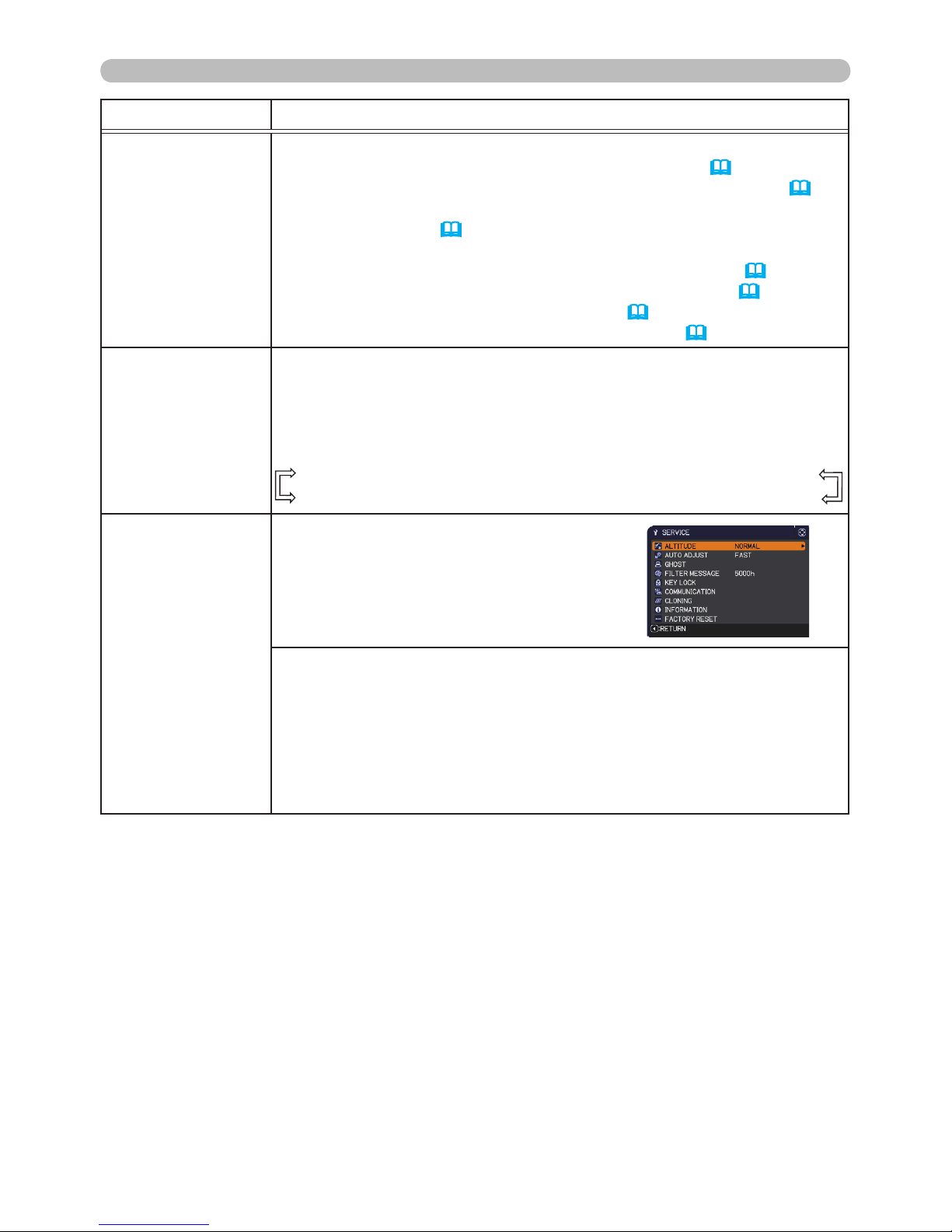

OPTION menu

Item Description

MY BUTTON

(continued)

• ACTIVE IRIS: Changes the active iris mode.

• PICTURE MODE: Changes the PICTURE MODE (



36).

•

FILTER RESET: Displays the lter time reset conrmation dialogue

(



61).

• TEMPLATE: Makes the template pattern selected to the TEMPLATE item (



57) appear or disappear.

• AV MUTE: Turns the picture and audio on/off.

• RESOLUTION: Turns on/off the RESOLUTION dialog (



47).

• MIC VOLUME: Turns on/off the MIC VOLUME dialog (



52).

• ECO MODE: Changes the ECO MODE (



49).

•

SAVER MODE:

Turns on/off the SAVER MODE

(



49 ECO MODE).

MY SOURCE

Using ▲/▼ buttons selects the picture input port to be selected with pressing the MY SOURCE/DOC.CAMERA button on the remote control. You can use this function not only for document cameras but also computers and other equipment.

COMPUTER IN1 ó COMPUTER IN2 ó LAN ó USB TYPE A VIDEOóS-VIDEO ó COMPONENT ó HDMI ó USB TYPE B

SERVICE

Selecting this item displays the SERVICE menu. Select an item using the ▲/▼ buttons, and press the ► button or the ENTER button on the remote control to execute the item.

ALTITUDE

Using the ▲/▼ buttons switches the rotation speed of the cooling fans. The HIGH is the mode for use at highlands etc. If the projector is used

at an altitude of about 1200 m (3937 feet) or higher, select HIGH. Otherwise, select NORMAL. Note that the projector is noisier when the HIGH is selected.

HIGH ó NORMAL

(continued on next page)

Page 64

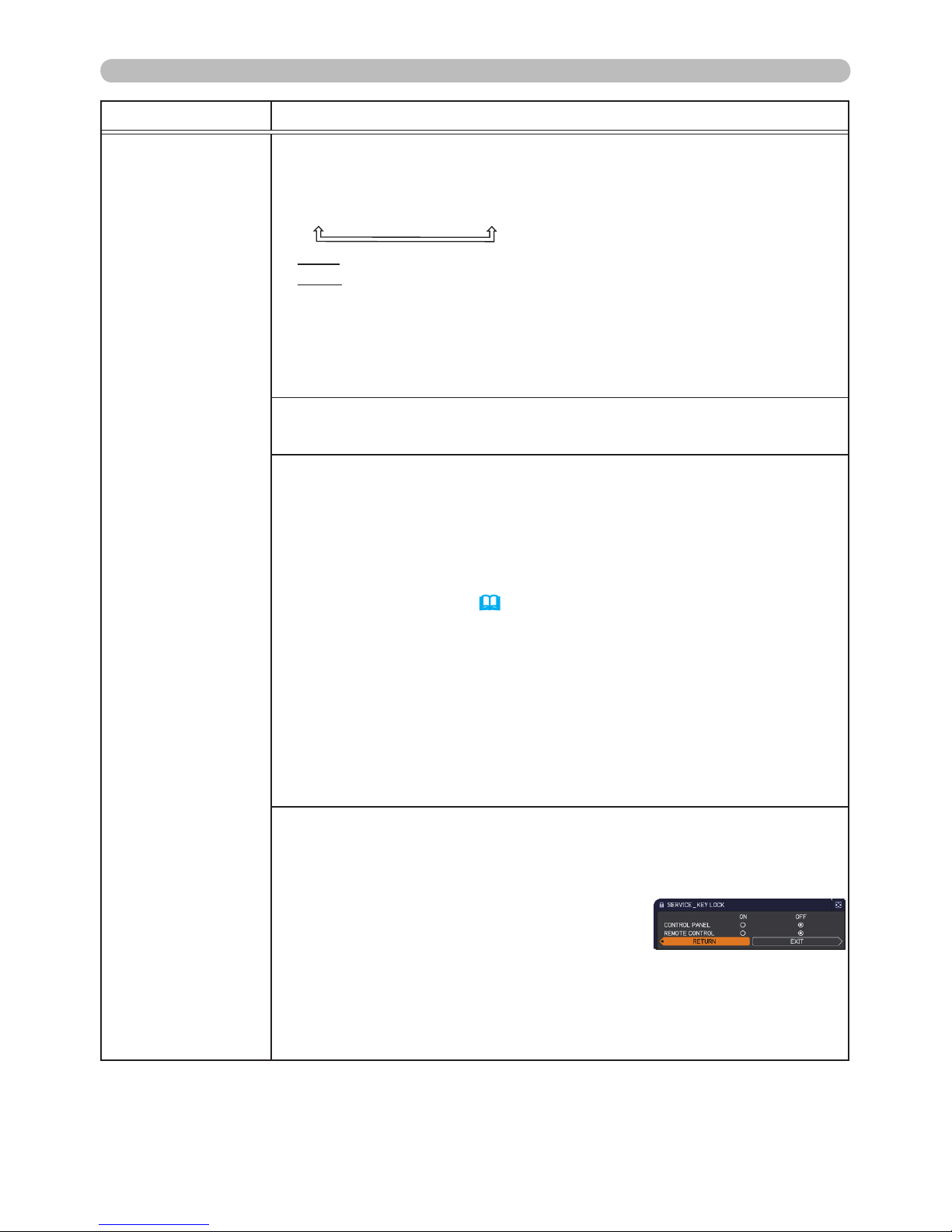

OPTION menu

Item Description

SERVICE

(continued)

AUTO ADJUST

Using the ▲/▼ buttons to select one of the mode. When the DISABLE is selected, the automatic adjustment feature is disabled.

FINE ó FAST ó DISABLE

FINE: Finer tuning including H.SIZE adjustment. FAST: Faster tuning, setting H.SIZE to prearranged data for the

input signal.

•

Depending on conditions, such as input image, signal cable to the

projector, environment around the projector, etc., the automatic adjustment may not work correctly. In such a case, please choose DISABLE to disable the automatic adjustment, and make adjustment manually.

GHOST

Adjust the settings using the ▲/▼ buttons to eliminate ghosting.

FILTER MESSAGE

Use the ▲/▼ button to set the timer for notifying by the message when to replace the lter unit

100h ó ········· ó 5000h ó OFF

After choosing an item except OFF, the message “REMINDER ***

HRS PASSED ....” will appear after the timer reaches the interval

time set by this feature (



113). When the OFF is chosen, the message will not appear. Utilize this feature to keep the air lter clean, setting the suitable time according to your environment of this projector.

• Please take care of the lter unit periodically, even if there is no message. If the air lter becomes to be blocked by dust or other matter, the internal temperature will rise, which could cause malfunction, or reduce the lifetime of the projector.

• Please be careful with the operating environment of the projector and the condition of the lter unit.

KEY LOCK

(1) Use the ▲/▼ buttons to choose the operations control.

CONTROL PANEL ó REMOTE CONTROL

(2)

Use the ◄/► buttons to select ON or OFF.

ON ó OFF

Selecting ON in Step 2 locks the buttons except STANDBY/ON on the operations control selected in Step 1. Selecting OFF releases the locked buttons on the operations control selected in Step 1.

• Please use this function to prevent tampering or accidental operation.

(continued on next page)

Page 65

OPTION menu

Item Description

SERVICE

(continued)

COMMUNICATION

Selecting this item displays COMMUNICATION menu. In this menu, you can congure the serial communication settings of the projector using the CONTROL port.

• Select an item using the cursor buttons ▲/▼. Then pressing the ► button opens the submenu for the setting item you selected. Or, pressing the ◄ button instead of the ► button makes the menu back to the previous one without changing the setup. Each submenu can be operated as described above.

• When COMMUNICATION TYPE (



66) is set to OFF, the other items in COMMUNICATION menu are invalid.

• For the function of serial communication, refer to the Network Guide.

(continued on next page)

Page 66

OPTION menu

Item Description

SERVICE

(continued)

COMMUNICATION

(continued)

COMMUNICATION TYPE

Select the communication type for transmission via the CONTROL port. NETWORK BRIDGE: Select this type, if it is

required to control an external device as a network terminal, via this projector from the computer. The CONTROL port doesn't accept RS-232C commands (Network Bridge Function in the Network Guide)

OFF: Select this mode to receive RS-232C

commands using the CONTROL port.

• OFF is selected as the default setting.

• When you select the NETWORK BRIDGE, check the item, TRANSMISSION METHOD (



below)

SERIAL SETTINGS

Select the serial communication condition for the

CONTROL port.

BAUD RATE

4800bps ó 9600bps ó 19200bps ó 38400bps

PARITY

NONE ó ODD ó EVEN

• The BAUD RATE is xed to 19200bps and PARITY is xed NONE when the COMMUNICATION TYPE is set to OFF (



above).

TRANSMISSION METHOD

Select the transmission method for communication by the NETWORK BRIDGE from the CONTROL port.

HALF-DUPLEX ó FULL-DUPLEX

HALF-DUPLEX: This method lets the projector

make two way communication, but only one direction, either transmitting or receiving data, is allowed at a time.

FULL-DUPLEX: This method lets the projector

make two way communication, transmitting and receiving data at the same time.

• HALF-DUPLEX is selected as the default setting.

• If you select HALF-DUPLEX, check the setting of the item RESPONSE LIMIT TIME (



67).

(continued on next page)

Page 67

OPTION menu

Item Description

SERVICE

(continued)

COMMUNICATION

(continued)

RESPONSE LIMIT TIME

Select the time period to wait for receiving response data from other device communicating by the NETWORK BRIDGE and the HALF-DUPLEX through the CONTROL port.

OFF ó 1s ó 2s ó 3s

OFF: Select this mode if it is not required to check

the responses from the device that the projector sends data to. In this mode, the projector can send out data from the computer continuously.

1s /2s /3s: Select the time period to keep the

projector waiting for response from the device that the projector sends data to. While waiting the response, the projector does not send out any data from the CONTROL port.

• This menu is available only when the NETWORK BRIDGE is selected for the COMMUNICATION TYPE and the HALF-DUPLEX is selected for the TRANSMISSION METHOD (



66).

• OFF is selected as the default setting.

STACK

Selecting this item displays the STACK menu. For more information, please see Instant Stack

Guide.

CLONING

The setttings of the projector can be coppied via USB memory.

SAVE:

Saves each settings of the projector to USB memory.

LOAD:

Loads each settings of the projector from USB memory. Message will be displayed after loading, and power will turn off after ve min. or by pressing ► button. (A message is displayed for a few seconds if loading fails.)

After saving / loading, you can remove the USB storage device.

(continued on next page)

Page 68

OPTION menu

Item Description

SERVICE

(continued)

CLONING

(continued)

The following items are exempted. OPTION: LAMP TIME, FILTER TIME,

SERVICE(GHOST, COMMUNICATION(STACK))

NETWORK: WIRELESS AND WIRED SETUP

(IP ADDRESS, SUBNET MASK, DEFAULT GATEWAY, DATE AND TIME), MY IMAGE, PRESENTATION

SECURITY: MY TEXT DISPLAY, STACK LOCK

• Operation is not available if SECURITY_ CLONNING LOCK is turned ON.

• The Screen_MyScreen can only be loaded.

CLONING load function on STANDBY MODE

• While the projector is in STANDBY MODE, push the INPUT button of control panel together with ► button, and then press ▲ button to start operating the CLONING load function.

• During loading process, the three indicators of control panel (POWER (orange), TEMP, LAMP) will remain on.

• After the loading process, the three indicators (POWER (orange), TEMP, LAMP) will turn off. Then, you can remove the USB storage device.

• If the loading fails, the three indicators (POWER

(orange), TEMP, LAMP) will blink at the same time.

• CLONING is invalid with the following conditions.

- CLONING LOCK is turned ON.

With this condition, the three indicators (POWER

(orange), TEMP, LAMP) will blink at approximately three seconds intervals.

- If the STANDBY MODE is set to SAVING.

- If there is no USB memory inserted into USB

TYPE A port.

- If PIN LOCK or lock of TRANSITION DETECTOR

is not being released.

- If a system error occurs.

- If STACK MODE is not set to OFF.

• Please operate one of the following after loading.

- Press INPUT button and

◄

button of the control

panel at the same time.

- Wait at least ve min. after loading.

- Restart the projector after re-plugging the AC

cable.

(continued on next page)

Page 69

OPTION menu

Item Description

SERVICE

(continued)

CLONING

(continued)

Load MyScreen data

• Please save the image data as "pj_logo.bmp" or "pj_logo.gif" into USB memory.

• Please note that the only compatible formats are as follows.

-File format

Windows BMP bit/pixel: 4/8/16/24/32bit Compression format : Without compression/RLE GIF

-Image size: more than 36x36, less than 1280x800

• If two kinds of le format are saved, "pj_logo. bmp" will be registered into MyScreen data.

• If MyScreen LOCK or MyScreen PASSWORD is turned ON, the data of MyScreen cannot be loaded.

Setting the data

• Operating the SAVE function under CLONING will name the le as "pj_data.bin" into the USB memory. Please do not attempt to change the le name or the folder structure.

• If a le with the same name already exists, it will be overwritten by operating the SAVE function.

Loading function

• Please note that saved data from other model cannot be loaded.

• Please note that, if any of the following functions: MyScreen PASSWORD, PIN LOCK, TRANSITION DETECTOR, MY TEXT PASSWORD under SECURITY menu or MyScreen Lock under SCREEN menu is ON, the respective saved data cannot be loaded.

• Please note that the saved settings of KEYSTONE (SETUP menu) and PERFECT FIT (SETUP menu) and AUTO KEYSTONE (OPTION menu) cannot be loaded when TRANSITION DETECTOR (SECURITY menu) is ON.

• Please note that the saved data of START UP and MyScreen Lock under SCREEN menu cannot be loaded if MyScreen PASSWORD under SECURITY menu is ON.

• Please note that the saved data of MY TEXT WRITING cannot be loaded if MY TEXT PASSWORD under SECURITY menu is ON.

(continued on next page)

Page 70

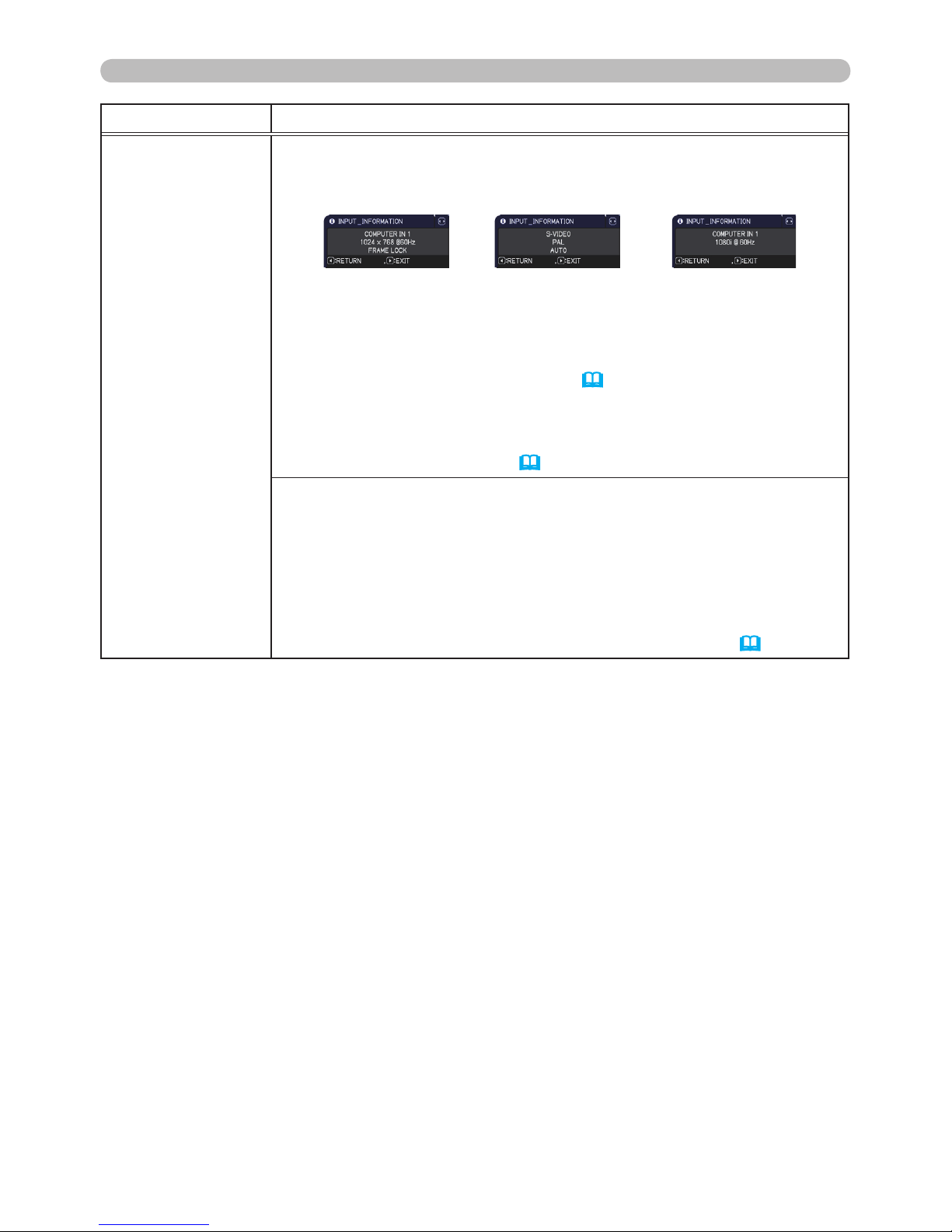

OPTION menu

Item Description

SERVICE

(continued)

INFORMATION

Selecting this item displays a dialog titled “INPUT_INFORMATION”. It shows the information about the current input.

• The “FRAME LOCK” message on the dialog means the frame lock function is working.

• The “SCART RGB” message means the COMPONENT ports is working as a SCART RGB input port. Please refer to the COMPONENT item in INPUT menu (



44).

• This item can't be selected for no signal and sync out.

• When the MY TEXT DISPLAY is set to ON, the MY TEXT is displayed together with the input information in the INPUT_INFORMATION box (



87).

FACTORY RESET

Selecting OK using the ► button performs this function. By this function, all the items in all of menus will collectively return to the initial setting. Note that the items LAMP TIME, FILTER TIME, LANGUAGE, FILTER MESSAGE, NETWORK and SECURITY settings are not reset.

CANCEL ð OK

Be sure to set ALTITUDE after resetting all the settings (



63).

Page 71

NETWORK menu

Remember that incorrect network settings on this projector may cause trouble on the network. Be sure to consult with your network administrator before connecting to an existing access point on your network. Select “NETWORK” from the main menu to access the following functions. Select an item using the ▲/▼ cursor buttons on the projector or remote control, and press the ► cursor button on the projector or remote control, or ENTER button on the remote control to execute the item. Then perform it according to the following table. See the Network Guide for details of NETWORK operation.

NETWORK menu

• To use the wireless network function of this projector, the designated USB wireless adapter that is sold as an option is required. Do not use

any extension cable or device when connecting the adapter to the projector.

•

The projector does not allow both wireless and wired LAN to be connected to

the same network.

• Do not set the same network address for both wireless and wired LAN.

• If you are not utilizing SNTP (Date/Time Settings in the Network Guide), then you must set the DATE AND TIME during the initial installation.

• The network communication control is disabled while the projector is in standby mode if the STANDBY MODE item of SETUP menu is set to SAVING. Please connect the network communication to the projector after setting the STANDBY MODE to NORMAL (50).

NOTE

Item Description

WIRELESS

SETUP

Selecting this item displays the WIRELESS SETUP menu for the wireless LAN. Use the ▲/▼ buttons to select an item, and the ► or ENTER button on the remote control to perform the item.

MODE

Use the ▲/▼ buttons to select the mode of the network communication system. Select according to the settings of your computer.

AD HOC ó INFRASTRUCTURE

To save the setting, press the ► button.

• When ADHOC is selected, IEEE802.11 n cannot be used.

• If ADHOC is set to MODE while one of WPAPSK or WPA2-PSK is selected in ENCRYPTION, the ENCRYPTION (



73) setting switches to OFF

automatically.

(continued on next page)

Page 72

NETWORK menu

Item Description

WIRELESS

SETUP

(continued)

DHCP

(Dynamic Host

Conguration

Protocol)

Use the ▲/▼ buttons to turn DHCP on/off.

ON ó OFF

Select OFF when the network does not have DHCP enabled. To save the setting, press the ► button.

• When the “DHCP” setting changes to “ON”, it takes a little time to obtain IP address from DHCP server.

• Auto IP function will be assigned an IP address if the projector could not obtain an IP address from server even if DHCP is “ON”

IP ADDRESS

Use the ▲/▼/◄/► buttons to enter the IP ADDRESS. This function can only be used when DHCP is set to OFF.

• The IP ADDRESS is the number that identies this projector on the network. You cannot have two devices with the same IP ADDRESS on the same network.

• The IP ADDRESS “0.0.0.0” is prohibited.

SUBNET

MASK

Use the ▲/▼/◄/► buttons to enter the same SUBNET MASK used by your computer. This function can only be used when DHCP is set to OFF.

• The SUBNET MASK “0.0.0.0” is prohibited.

DEFAULT

GATEWAY

Use the ▲/▼/◄/► buttons to enter the DEFAULT GATEWAY (a node on a computer network that serves as an access point to another network) address. This function can only be used when DHCP is set to OFF.

DNS SERVER

Use the ▲/▼/◄/► buttons to input the DNS server address. The DNS server is a system to control domain names and IP addresses on the Network.

TIME

DIFFERENCE

Use the ▲/▼ buttons to enter the TIME DIFFERENCE. Set the same TIME DIFFERENCE as the one set on your computer. If unsure, consult your IT manager. Use the ► button to return to the menu after setting the TIME DIFFERENCE.

• When this item is set, the same item in the WIRED SETUP menu is overwritten with the same setting (



77).

(continued on next page)

Page 73

NETWORK menu

Item Description

WIRELESS

SETUP

(continued)

DATE AND

TIME

Use the ▲/▼/◄/► buttons to enter the Year (last two digits), Month, Date, Hour and Minute.

• When this item is set, the same item in the WIRED SETUP menu is overwritten with the same setting (



77).

• The projector will override this setting and retrieve DATE AND TIME information from the Time server when SNTP is enabled. (Date/Time Settings in the Network Guide)

• This setting will be reset if the projector is turned off while STANDBY MODE in the SETUP menu is set to SAVING (



50), or when the AC power is

turned off.

Use the ▲/▼ buttons to select the channel of the wireless LAN to be used while MODE (



71) is set to ADHOC. Select according to the settings of your computer. The channels 1 to 11 are available. To save the setting, press the ► button.

• The available channels would be various depending on a country. In addition, wireless network card might be required due to the standard.

• This item can only be selected when MODE is set to ADHOC. When MODE is set to INFRASTRUCTURE, the channel is automatically selected.

ENCRYPTION

Use the ▲/▼ buttons to select the encryption method to be used.

WPA2-PSK(AES) ó WPA2-PSK(TKIP)   OFF WPA-PSK(AES)   WEP 64bitóWEP 128bitóWPA-PSK(TKIP)

To save the setting, press the ► button.

• When MODE (



71) is set to ADHOC, either

WPA-PSK and WPA2-PSK cannot be selected.

• If IEEE802.11 n is used while MODE is set to INFRASTRUCTURE, TKIP and WEP are disabled.

• If OFF or AES is not selected, communication will switch automatically to IEEE802.11 b/g.

(continued on next page)

Page 74

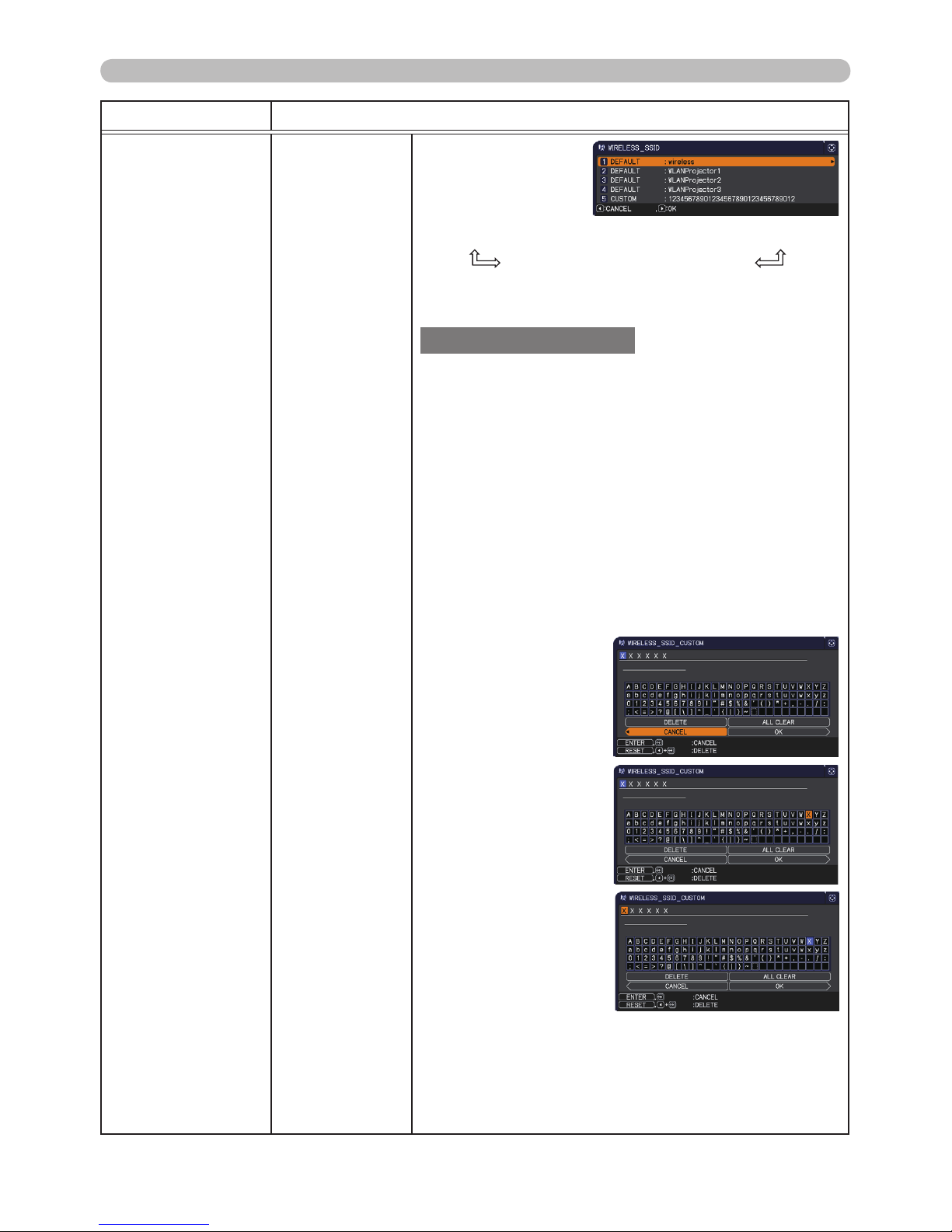

NETWORK menu

Item Description

WIRELESS

SETUP

(continued)

SSID

Use the ▲/▼ buttons to select the SSID to display the SSID menu.

#1 DEFAULT ó #2 DEFAULT ó #3 DEFAULT

#5 CUSTOM ó #4 DEFAULT

Select one of the DEFAULT (#1~#4) and press ► or ENTER button.

To adjust CUSTOM

Press the ► or ENTER button when the # 5 CUSTOM is selected. The SSID #5 CUSTOM menu will be appeared.

(1)

The current SSID will be displayed on the rst line. If not yet written, the line will be blank. Use the ▲/▼/◄/► buttons and the ENTER or INPUT button to select and enter characters. To erase 1 character at one time, press the RESET button or press the ◄ and INPUT button at the same time. Also if you move the cursor to DELETE or ALL CLEAR on screen and press the ENTER or INPUT button, 1 character or all characters will be erased. The SSID can be input up to 32 characters.

(2)

To change an already inserted character, press the ▲/▼ button to move the cursor to one of the rst 2 lines, and use the ◄/► buttons to move the cursor on the character to be changed. After pressing the ENTER or INPUT button, the character is selected. Then, follow the same procedure as described at the item (1) above.

(3)

To nish entering text, move the cursor to the OK on screen and press the ►, ENTER or INPUT button. To revert to the previous name without saving changes, move the cursor to the CANCEL on screen and press the ◄, ENTER or INPUT button.

(continued on next page)

Page 75

NETWORK menu

Item Description

WIRELESS

INFORMATION

"Selecting this item displays the WIRELESS_INFORMATION dialog for viewing the wireless LAN settings." Use the ▲/▼ buttons to switch the page. The rst page shows the wireless LAN settings. The second and subsequent pages display the signal information of wireless LAN connection devices.

• For details of PASSCODE, refer to the manual for “LiveViewer”.

• Nothing (blank) is shown in the PROJECTOR NAME (



78) and

SSID (



74) field until you setup those items. Only the first 16

characters of the PROJECTOR NAME.

• IP ADDRESS, SUBNET MASK and DEFAULT GATEWAY indicate “0.0.0.0” in the following condition. (1) The USB wireless adapter is not inserted into the projector. (2) DHCP is ON and the projector does not get address from DHCP server.

• Nothing (blank) is shown in the CH and SPEED elds if the USB wireless adapter is not inserted.

• The actual performance and setting will be shown in the CH eld, instead of the setting value in the WIRELESS SETUP menu.

• An icon is displayed to the left of the SSID of the device connected to the projector.

(continued on next page)

Page 76

NETWORK menu

Item Description

WIRED SETUP

Selecting this item displays the WIRED SETUP menu for the wired LAN. Use the ▲/▼ buttons to select an item, and the ► or ENTER button on the remote control to perform the item.

DHCP

(Dynamic Host

Conguration

Protocol)

Use the ▲/▼ buttons to turn DHCP on/off.

ON ó OFF

Select OFF when the network does not have DHCP enabled. To save the setting, press the ► button.

• When the “DHCP” setting changes to “ON”, it takes a little time to obtain IP address from DHCP server.

• Auto IP function will be assigned an IP address if the projector could not obtain an IP address from server even if DHCP is “ON”.

IP ADDRESS

Use the ▲/▼/◄/► buttons to enter the IP ADDRESS. This function can only be used when DHCP is set to OFF.

• The IP ADDRESS is the number that identies this projector on the network. You cannot have two devices with the same IP ADDRESS on the same network.

• The IP ADDRESS “0.0.0.0” is prohibited.

SUBNET

MASK

Use the ▲/▼/◄/► buttons to enter the same SUBNET MASK used by your computer. This function can only be used when DHCP is set to OFF.

• The SUBNET MASK “0.0.0.0” is prohibited.

DEFAULT

GATEWAY

DNS SERVER

Use the ▲/▼/◄/► buttons to input the DNS server address. The DNS server is a system to control domain names and IP addresses on the Network.

(continued on next page)

Page 77

NETWORK menu

Item Description

WIRED SETUP

(continued)

TIME

DIFFERENCE

• When this item is set, the same item in the WIRELESS SETUP menu is overwritten with the same setting (



72).

DATE AND

TIME

Use the ▲/▼/◄/► buttons to enter the Year (last two digits), Month, Date, Hour and Minute.

• When this item is set, the same item in the WIRELESS SETUP menu is overwritten with the same setting (



73).

• The projector will override this setting and retrieve DATE AND TIME information from the Time server when SNTP is enabled. (Date/Time Settings in the Network Guide)

• This setting will be reset if the projector is turned off while STANDBY MODE in the SETUP menu is set to SAVING (



50), or when the AC power is

turned off.

WIRED

INFORMATION

Selecting this item displays the WIRED INFORMATION dialog for viewing the wired LAN settings.

• For details of PASSCODE, refer to the manual for “LiveViewer”.

• Only the first 16 characters of the PROJECTOR NAME are displayed.

• IP ADDRESS, SUBNET MASK and DEFAULT GATEWAY indicate “0.0.0.0” when DHCP is ON and the projector has not gotten address from DHCP server.

(continued on next page)

Page 78

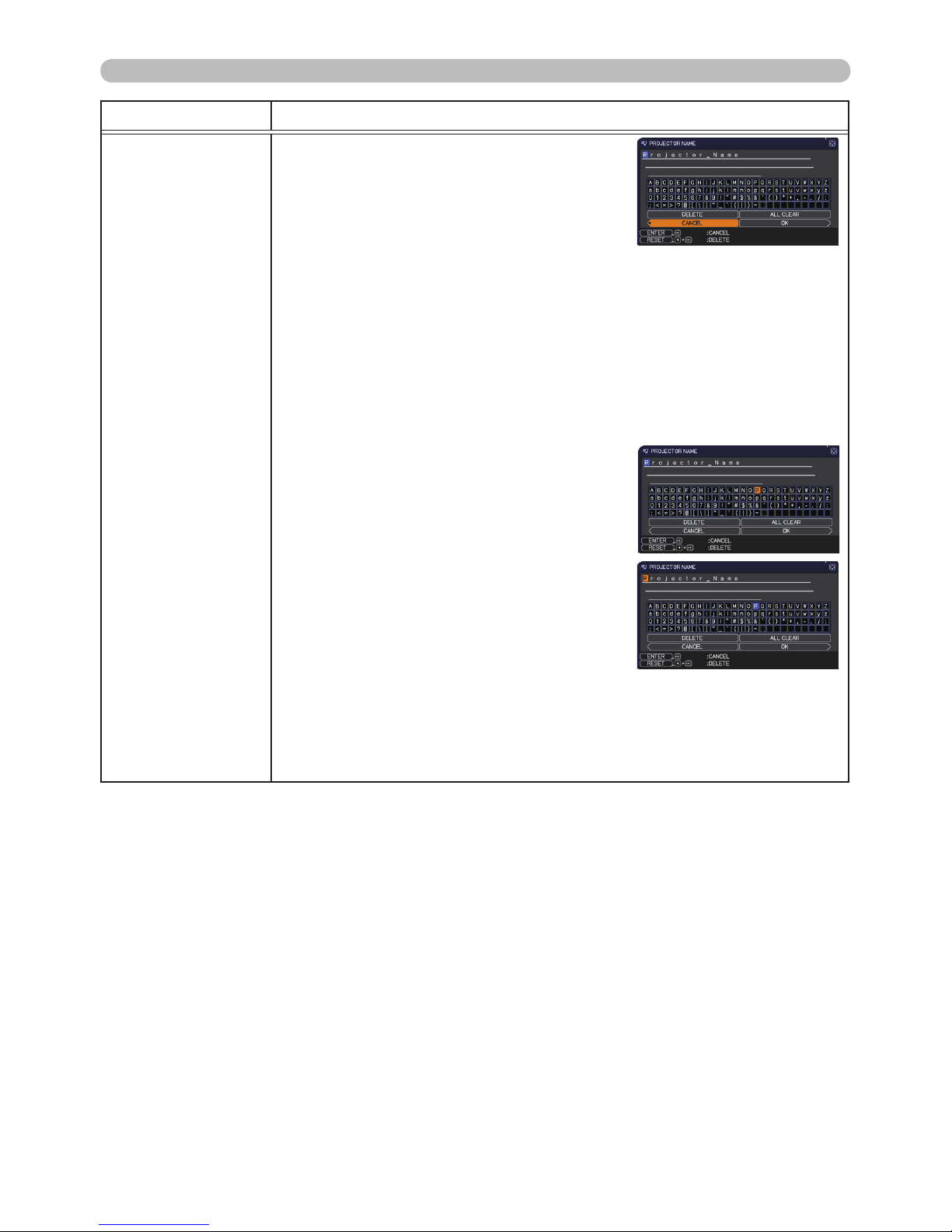

NETWORK menu

Item Description

PROJECTOR

NAME

(1) Use the ▲/▼ buttons on the

NETWORK menu to select the PROJECTOR NAME and press the ► button. The PROJECTOR NAME dialog will be displayed.

(2) The current PROJECTOR NAME will be displayed on the rst 3

lines. Particular projector name is pre-assigned by default.

Use the ▲/▼/◄/► buttons and the ENTER or INPUT button to select and enter characters. To erase 1 character at one time, press the RESET button or press the ◄ and INPUT button at the same time. Also if you move the cursor to DELETE or ALL CLEAR on screen and push the ENTER or INPUT button, 1 character or all characters will be erased.The PROJECTOR NAME can be input up to 64 characters.

(3) To change an already inserted

character, press the ▲/▼ button to move the cursor to one of the rst 3 lines, and use the ◄/► buttons to move the cursor on the character to be changed. After pressing the ENTER or INPUT button, the character is selected. Then, follow the same procedure as described at the item (2) above.

(4) To nish entering text, move the cursor to the OK on screen and

press the ►, ENTER or INPUT button. To revert to the previous PROJECTOR NAME without saving changes, move the cursor to the CANCEL on screen and press the ◄, ENTER or INPUT button.

(continued on next page)

Page 79

NETWORK menu

Item Description

MY IMAGE

Selecting this item displays the MY IMAGE menu. Use the application to transfer the image data. It can be downloaded from the our web site. Use the ▲/▼ buttons to select an item which is a still image by the MY IMAGE (My Image Function in the Network Guide) and the ► or ENTER button to display the image.

• The item without image stored cannot be selected.

• The image names are each displayed in 16 characters or less.

To switch the image displayed

Use the ▲/▼ buttons.

To return to the menu

Press the ◄ button on the remote control.

To erase the image displayed and its source le in the projector.

(1) Press the RESET button on the remote

control while displaying an image to display the MY IMAGE DELETE menu.

(2) Press the ► button to perform to erase.

To stop erasing, press the ◄ button.

AMX D.D.

(AMX Device

Discovery)

Use the ▲/▼ buttons to turn the AMX Device Discovery on/off.

ON ó OFF

When ON is selected, the projector can be detected by controllers of AMX connected to the same network. For the details of AMX Device Discovery, visit the AMX web site.

URL: http://www.amx.com/

(continued on next page)

Page 80

NETWORK menu

Item Description

PRESENTATION

Selecting this item displays the PRESENTATION menu. Use ▲/▼ buttons to select one of the following items, then press ► or ENTER button to use the function.

• To use Network Presentation, an exclusive application, "LiveViewer" is required. It can be installed from the bundled application CD. You can also download the latest version and relevant information from the Hitachi website (http://www.hitachi-america.us/digitalmedia or http://www.hitachidigitalmedia.com).For details of Network Presentation and instructions to install the "LiveViewer", refer to the manual for "LiveViewer".

QUIT

PRESENTER

MODE

If you set a computer to the Presenter mode while its image is projected, the projector is occupied by the computer and access from any other computer is blocked. Use this function to quit the Presenter mode and allow other computers to access the projector. Select this item to display a dialog. Press ► button to choose OK in the dialog. The Presenter mode is cancelled and a message is displayed indicating the result.

• To make Presenter mode setting, use “LiveViewer”. For details, refer to the manual for "LiveViewer".

MULTI PC

MODE

If you set one or more computers to the Multi PC mode on “LiveViewer” and send their images to the projector, you can select the display mode on the projector from two options below.

- Single PC mode: displays the image of the selected computer on full screen.

- Multi PC mode: displays the images sent from up to four computers on screen that is divided into quarter sections.

Select this item to display a dialog. Use the dialog to change the display mode as explained below.

• To change from Multi PC mode to Single PC mode,

select one of computers in the dialog using the ▲/▼/◄/► buttons and press the ENTER or INPUT button. Press the ► button to choose OK, and then press ENTER or INPUT again. The image for the selected computer is displayed on full screen.

(continued on next page)

Page 81

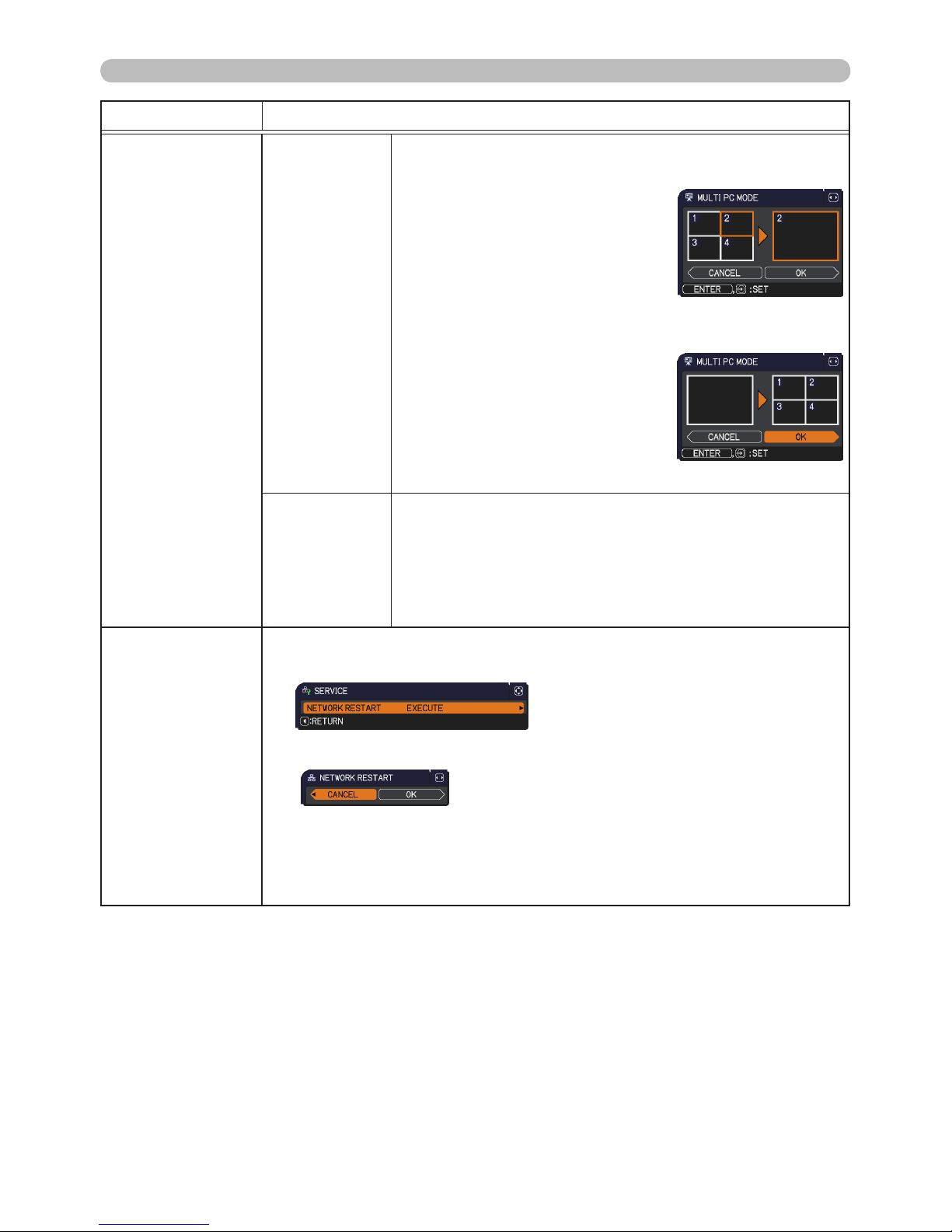

NETWORK menu

Item Description

PRESENTATION

(continued)

MULTI PC

MODE

(continued)

• To change from Single PC mode to Multi PC mode,

press ► button to choose OK in the dialog and press the ENTER or INPUT button. The display mode is changed.

•

For details on how to switch the

display mode to Multi PC mode on your computer, refer to the manual for

“LiveViewer”

• The Presenter mode setting of the selected

computer becomes valid when the display mode is changed to Single PC mode. Also, the Presenter mode setting becomes invalid when the display mode is changed to Multi PC mode, regardless the setting on the computers. For details, refer to the manual for “LiveViewer”.

DISPLAY

USER NAME

Selecting this item displays the user name. This function helps you identify from which computer the current image is sent.

• You can set user names for each computer on

“LiveViewer”. For details, refer to the manual for “LiveViewer”.

SERVICE

Executing this item restarts and initializes the network functions. Choose the NETWORK RESTART EXECUTE using the button ►.

Then use the button ► to execute.

Network will be once cut off when choose restart. If DHCP is selected on, IP address may be changed. After selecting NETWORK RESTART EXECUTE, NETWORK menu may not be controlled approx. 30 seconds.

Page 82

SECURITY menu

(continued on next page)

This projector is equipped with security functions. From the SECURITY menu, items shown in the table below can be performed. To use SECURITY menu: User registration is required before using the security functions.

Enter to the SECURITY menu

1. Press the ► button. The ENTER PASSWORD box will be displayed.

2. Use the ▲/▼/◄/► buttons to enter the registered password. The factory default password is as follows.

This password can be changed

(



below)

. Move the cursor to the right side of the ENTER PASSWORD box and press the ► button to display the SECURITY menu.

• It is strongly recommended the factory default password to be changed as soon as possible.

• If an incorrect password is input, the ENTER PASSWORD box will be displayed again. If incorrect password is input 3 times, the projector will turn off. Afterwards the projector will turn off every time an incorrect password is input.

3. Items shown in the table below can be performed.

If you have forgotten your password

(1) While the ENTER PASSWORD box is displayed, press and hold the

RESET button on the remote control for about 3 seconds or press and hold the INPUT button for 3 seconds while pressing the ► button on the projector.

(2) The 10 digit Inquiring Code will be displayed. Contact your dealer

with the 10 digit Inquiring Code. Your password will be sent after your user registration information is conrmed.

• If there is no key input for about 55 seconds while the Inquiring Code is displayed, the menu will close. If necessary, repeat the process from (1).

Item Description

SECURITY

PASSWORD

CHANGE

(1) Use the ▲/▼ buttons on the SECURITY menu

to select SECURITY PASSWORD CHANGE and press the ► button to display the ENTER

NEW PASSWORD box. (2) Use the ▲/▼/◄/► buttons to enter the new password. (3) Move the cursor to the right side of the

ENTER NEW PASSWORD box and press the

► button to display the NEW PASSWORD

AGAIN box, enter the same password again. (4)

Move the cursor to the right side of the NEW

PASSWORD AGAIN box and press the ►

button and the NOTE NEW PASSWORD box

will be displayed for about 30 seconds, please

make note of the password during this time.

Pressing the ENTER button on the remote control or ► button on the

projector will close the NOTE NEW PASSWORD box.

• Please do not forget your password.

SECURITY menu

CP-X4022WN/CP-X5022WN: 1900 CP-WX4022WN: 0300

Page 83

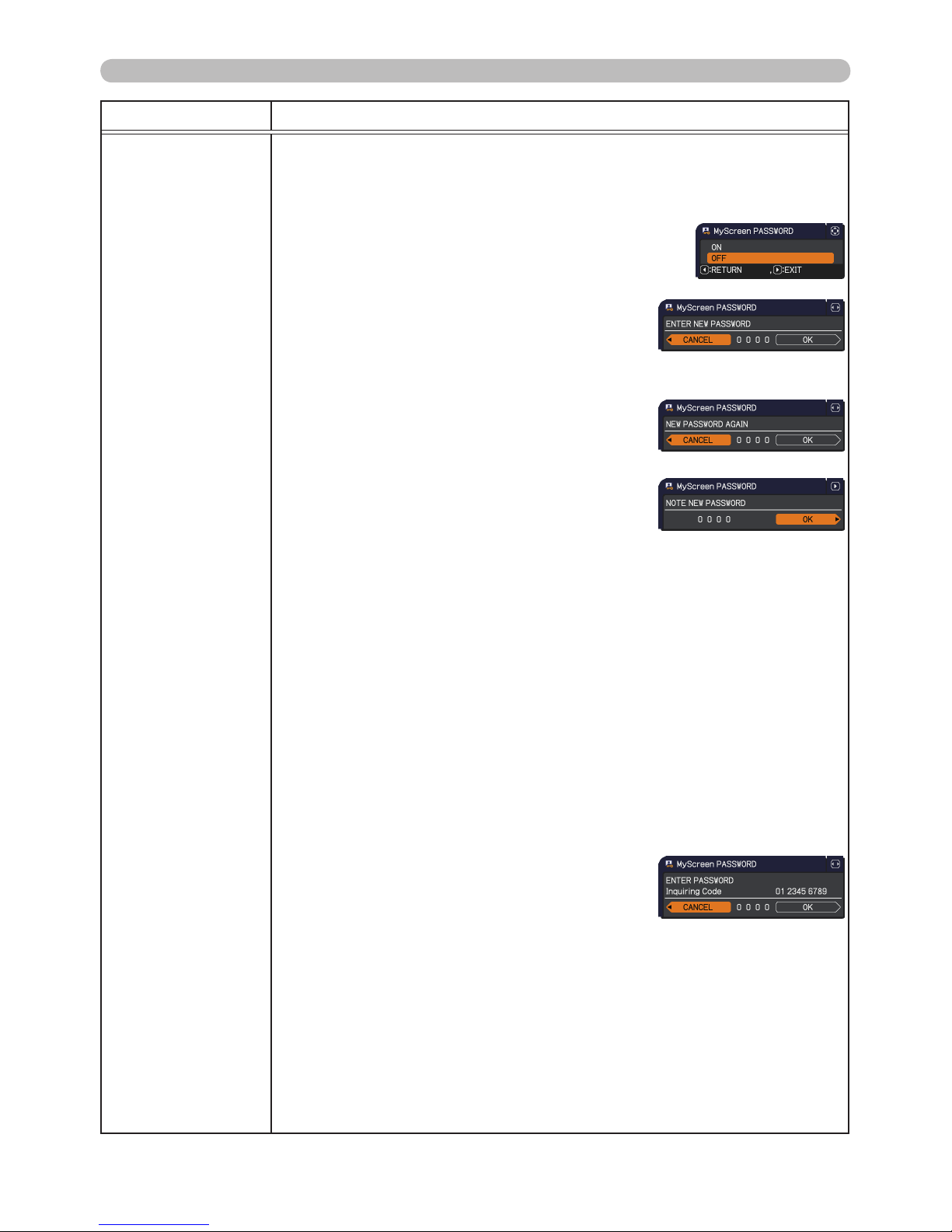

SECURITY menu

Item Description

MyScreen

PASSWORD

The MyScreen PASSWORD function can be used to prohibit access to the MyScreen function and prevent the currently registered MyScreen image from being overwritten.

1 Turning on the MyScreen PASSWORD

1-1 Use the ▲/▼ buttons on the SECURITY menu to

select MyScreen PASSWORD and press the ► button to display the MyScreen PASSWORD on/ off menu.

1-2 Use the ▲/▼ buttons on the MyScreen

PASSWORD on/off menu to select ON. The ENTER NEW PASSWORD box (small) will be displayed.

1-3 Use the ▲/▼/◄/► buttons to enter the

password. Move the cursor to the right side of the ENTER NEW PASSWORD box (small) and press the ► button to display the NEW PASSWORD AGAIN box, enter the same PASSWORD again.

1-4 Move the cursor to the right side of the

NEW PASSWORD AGAIN box and press the ► button to display the NOTE NEW PASSWORD box for about 30 seconds, please make note of the password during

this time. Pressing the ENTER button on the remote control or ► button on the projector will return to MyScreen PASSWORD on/off menu.

When a password is set for MyScreen:

•

The MyScreen registration function (and menu) will be unavailable.

•

The MyScreen Lock menu will be unavailable.

•

The START UP setting will be locked on MyScreen (and the menu will be unavailable). Turning the MyScreen PASSWORD off will allow normal operation of these functions.

•

Please do not forget your MyScreen PASSWORD.

2 Turning off the MyScreen PASSWORD

2-1 Follow the procedure in 1-1 to display the MyScreen PASSWORD on/off

menu.

2-2

Select OFF to display the ENTER PASSWORD box (large). Enter the registered password and the screen will return to the MyScreen PASSWORD on/off menu.

If an incorrect PASSWORD is input, the menu will close. If necessary, repeat the process from 2-1.

3 If you have forgotten your password

3-1 Follow the procedure in 1-1 to display the MyScreen PASSWORD on/off

menu.

3-2 Select OFF to display the ENTER PASSWORD box (large). The 10 digit

Inquiring Code will be displayed inside the box.

3-3 Contact your dealer with the 10 digit Inquiring Code. Your password will

be sent after your user registration information is conrmed.

(continued on next page)

ENTER NEW PASSWORD

box (small)

ENTER PASSWORD box

(large)

Page 84

SECURITY menu

Item Description

PIN LOCK

PIN LOCK is a function which prevents the projector from being used unless a registered Code is input.

1 Turning on the PIN LOCK

1-1 Use the ▲/▼ buttons on the SECURITY menu to

select PIN LOCK and press the ► button or the ENTER button to display the PIN LOCK on/off menu.

1-2 Use the ▲/▼ buttons on the PIN LOCK on/

off menu to select ON and the Enter PIN Code box will be displayed.

1-3 Input a 4 part PIN code using the ▲/▼/◄/►,

COMPUTER or INPUT button. The PIN Code again box will appear. Reenter the same PIN code. This will complete the PIN code registration.

•

If there is no key input for about 55 seconds while the Enter PIN Code box or the PIN Code again box is displayed, the menu will close. If necessary, repeat the process from 1-1.

Afterwards, anytime the projector is restarted after AC power is turned off the Enter PIN Code box will be displayed. Enter the registered PIN code. The projector can be used after entering the registered PIN code. If an incorrect PIN code is input, the Enter PIN code box will be displayed again. If an incorrect PIN code is input 3 times, the projector will turn off. Afterwards the projector will turn off every time an incorrect PIN code is input. The projector will also turn off if there is no key input for about 5 minutes while the Enter PIN code box is displayed. This function will activate only when the projector is started after AC power is turned off.

•

Please do not forget your PIN code.

2 Turning off the PIN LOCK

2-1 Follow the procedure in 1-1 to display the PIN LOCK on/off menu. 2-2 Use the ▲/▼ buttons to select OFF and the Enter PIN Code box will be

displayed. Enter the registered PIN code to turn the PIN LOCK function off.

If an incorrect PIN code is input 3 times, the projector will turn off.

3 If you have forgotten your PIN code

3-1 While the Enter PIN code box is displayed, press and hold the RESET

button for three seconds or press and hold the INPUT button for 3 seconds while pressing the ► button on the projector. The 10 digit Inquiring Code will be displayed.

•

If there is no key input for about 5 minutes while the Inquiring Code is displayed, the projector will turn off.

3-2 Contact your dealer with the 10 digit Inquiring Code. Your PIN code will

be sent after your user registration information is conrmed.

(continued on next page)

Page 85

SECURITY menu

Item Description

TRANSITION

DETECTOR

If this function is set to ON and the vertical angle of the projector or the INSTALLATION setting is different from the previous recorded setting, the TRANSITION DETECTOR ON alarm will be displayed and the input signal will not be displayed.

• To display the signal again, set this function OFF.

• After about 5 minutes of displaying the TRANSITION DETECTOR ON alarm, the lamp will turn off.

• Keystone adjustment feature has been prohibited as long as the TRANSITION DETECTOR function is on.

1 Turning on the TRANSITION DETECTOR

1-1 Use the ▲/▼ buttons on the SECURITY menu

to select TRANSITION DETECTOR and press the ► or the ENTER button to display the TRANSITION DETECTOR on/off menu.

1-2

Use the ▲/▼ buttons on the TRANSITION DETECTOR on/off menu to select ON. Selecting ON will save the setting of the current angle and the INSTALLATION setting. The ENTER NEW PASSWORD box (small) will be displayed.

1-3 Use the ▲/▼/◄/► buttons to enter a

password. Move the cursor to the right side of the ENTER NEW PASSWORD box (small) and press the ► button to display the NEW PASSWORD AGAIN box, enter the same password again.

1-4 Move the cursor to the right side of the

NEW PASSWORD AGAIN box and press the ► button to display the NOTE NEW PASSWORD box for about 30 seconds,

please make note of the password during this time. Pressing the ENTER button on the remote control or the ► button on the projector will return to the TRANSITION DETECTOR on/off menu.

• Please do not forget your TRANSITION DETECTOR password.

• This function will activate only when the projector is started after turning off the AC power.

• This feature may not function properly if the projector is not in a stable position when ON is selected.

2 Turning off the TRANSITION DETECTOR

2-1

Follow the procedure in 1-1 to display the TRANSITION DETECTOR on/off menu.

2-2

Select OFF to display the ENTER

PASSWORD box (large). Enter the registered

password and the screen will return to the

TRANSITION DETECTOR on/off menu.

If an incorrect password is input, the menu will close. If necessary, repeat the process from 2-1.

3 If you have forgotten your password

3-1

Follow the procedure in 1-1 to display the TRANSITION DETECTOR on/off menu.

3-2 Select OFF to display the ENTER PASSWORD box (large). The 10 digit

Inquiring Code will be displayed inside the box.

3-3 Contact your dealer with the 10 digit Inquiring Code. Your password will

be sent after your user registration information is conrmed.

(continued on next page)

ENTER NEW PASSWORD

box (small)

ENTER PASSWORD box

(large)

Page 86

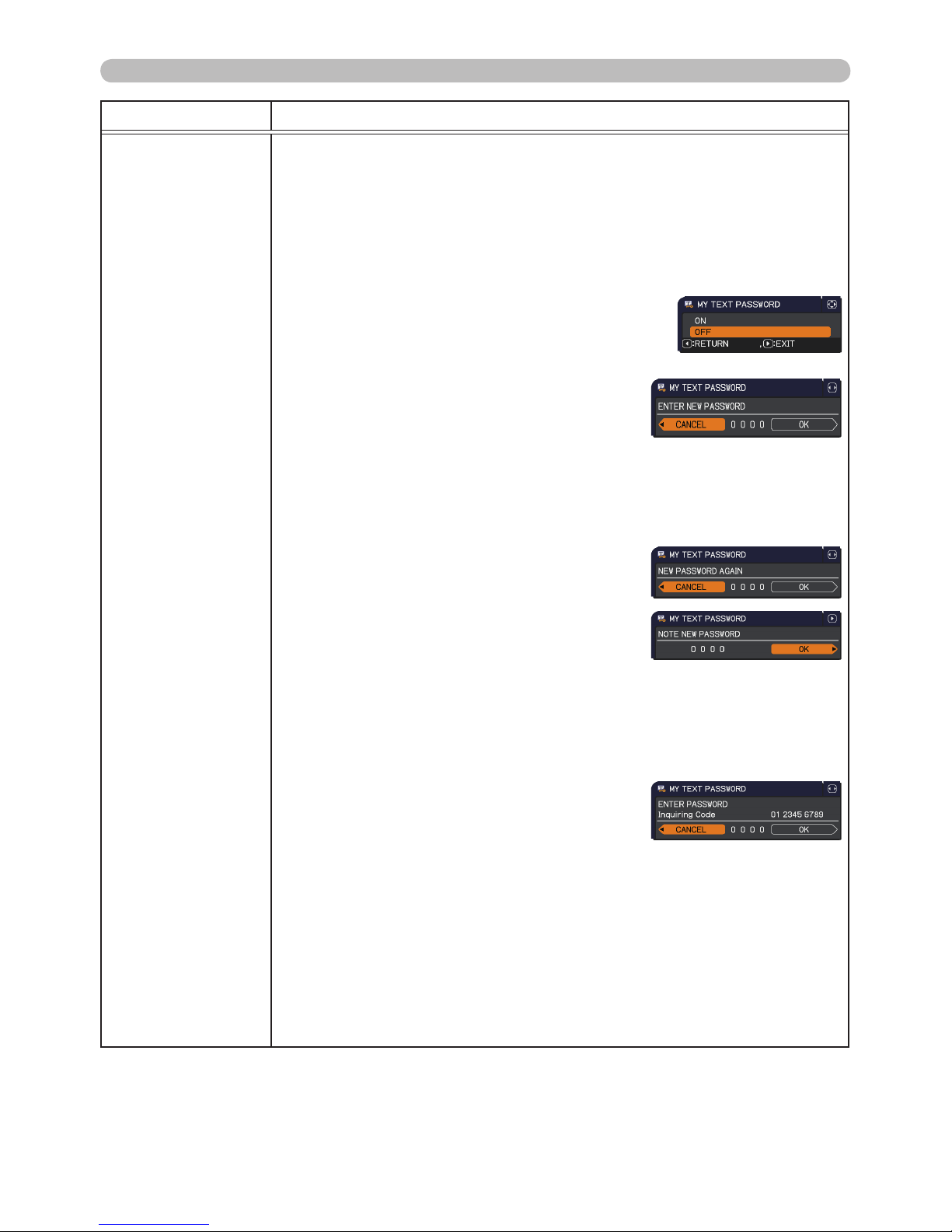

SECURITY menu

Item Description

MY TEXT

PASSWORD

The MY TEXT PASSWORD function can prevent the MY TEXT from being overwritten. When the password is set for the MY TEXT;

• The MY TEXT DISPLAY menu will be unavailable, which can prohibit changing the DISPLAY setting.

• The MY TEXT WRITING menu will be unavailable, which can prevent the MY TEXT from being overwritten.

1 Turning on the MY TEXT PASSWORD

1-1 Use the ▲/▼ buttons on the SECURITY menu to

select the MY TEXT PASSWORD and press the

► button to display the MY TEXT PASSWORD

on/off menu.

1-2 Use the ▲/▼ buttons on the MY TEXT

PASSWORD on/off menu to select ON. The

ENTER NEW PASSWORD box (small) will

be displayed.

1-3 Use the ▲/▼/◄/► buttons to enter the

password. Move the cursor to the right side

of the ENTER NEW PASSWORD box (small)

and press the ► button to display the NEW

PASSWORD AGAIN box, and then enter the

same password again.

1-4 Move the cursor to the right side of the

NEW PASSWORD AGAIN box and press

► button to display the NOTE NEW

PASSWORD box for about 30 seconds, then

please make note of the password during

this time.

Pressing the ENTER button on the remote control or ► button on the projector will return to the MY TEXT PASSWORD on/off menu.

2 Turning off the MY TEXT PASSWORD

2-1 Follow the procedure in 1-1 to display the MY TEXT PASSWORD on/off

menu.

2-2 Select OFF to display the ENTER

PASSWORD box (large). Enter the

registered password and the screen will

return to the MY TEXT PASSWORD on/off

menu.

If an incorrect password is input, the menu will close. If necessary, repeat the process from 2-1

3 If you have forgotten your password

3-1 Follow the procedure in 1-1 to display the MY TEXT PASSWORD on/off

menu.

3-2 Select OFF to display the ENTER PASSWORD box (large). The 10 digit

inquiring code will be displayed inside the box.

3-3 Contact your dealer with the 10 digit inquiring code. Your password will

be sent after your user registration information is conrmed.

(continued on next page)

ENTER NEW PASSWORD

box (small)

ENTER PASSWORD box

(large)

Page 87

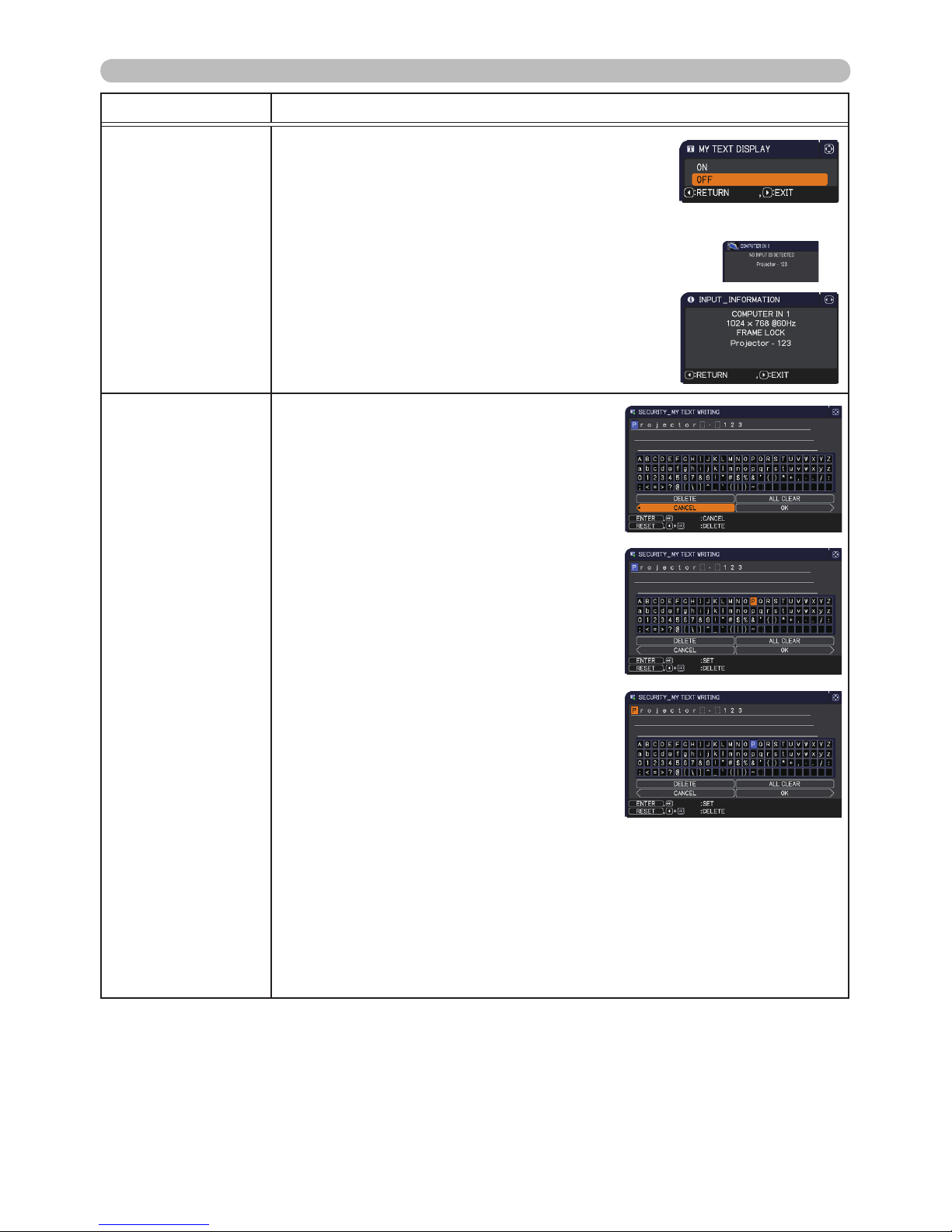

SECURITY menu

Item Description

MY TEXT

DISPLAY

(1) Use the ▲/▼ buttons on the SECURITY menu to

select the MY TEXT DISPLAY and press the ► or ENTER button to display the MY TEXT DISPLAY on/off menu.

(2) Use the ▲/▼ buttons on the MY TEXT DISPLAY on/off menu to select

on or off.

ON ó OFF

When it is set ON, the MY TEXT will be displayed on the START UP screen and the INPUT_ INFORMATION when the INFORMATION on the SERVICE menu is chosen.

• This function is available only when the MY TEXT PASSWORD function is set to the OFF.

MY TEXT WRITING

(1) Use the ▲/▼ buttons on the

SECURITY menu to select the MY TEXT WRITING and press the ► button. The MY TEXT WRITING dialog will be displayed.

(2) The current MY TEXT will be displayed

on the rst 3 lines. If not yet written, the lines will be blank. Use the ▲/▼/◄/► buttons and the ENTER or INPUT button to select and enter characters. To erase 1 character at one time, press the RESET button or press the ◄ and INPUT button at the same time. Also if you move the cursor to DELETE or ALL CLEAR on screen and press the ENTER or INPUT button, 1 character or all characters will be erased. The MY TEXT can be input up to 24 characters on each line.

(3)

To change an already inserted character, press the ▲/▼ button to move the cursor to one of the rst 3 lines, and use the ◄/► buttons to move the cursor on the character to be changed. After pressing the ENTER or INPUT button, the character is selected. Then, follow the same procedure as described at the item (2) above.

(4) To nish entering text, move the cursor to the OK on screen and press

the ►, ENTER or INPUT button. To revert to the previous MY TEXT without saving changes, move the cursor to the CANCEL on screen and press the ◄, ENTER or INPUT button.

•

The MY TEXT WRITING function is available only when the MY TEXT

PASSWORD function is set to OFF.

(continued on next page)

Page 88

SECURITY menu

Item Description

SECURITY

INDICATOR

Selecting this item displays the SECURITY INDICATOR dialog. Use the ▲/▼ buttons to select ON or OFF.

ON ó OFF

When ON is selected while PIN LOCK or TRANSITION DETECTOR is ON, the SECURITY indicator blinks in the standby state (



84, 85).

STACK LOCK

Selecting this item displays the STACK LOCK dialog. For more information, please see Instant Stack Guide.

CLONING LOCK

The CLONING operation under OPTION _SERVICE menu is not available if ON is selected.

Page 89

Presentation tools

The PC-LESS Presentation reads image and audio data from the storage media inserted into the USB TYPE A port and displays the image in the following modes. The PC-LESS Presentation can be started by selecting the USB TYPE A port as the input source. This feature allows you to make your presentations without using your computer.

PC-LESS Presentation

- Thumbnail mode (90)

- Full Screen mode (94)

- Slideshow mode (96)

[Supported storage media]

• USB memory (USB memory type, USB hard disk and USB card reader type)

• USB readers (adapters) that have more than one USB slot may not

work (if the adapter is acknowledged as multiple devices connected).

• USB devices with security software may not work.

• Be careful when inserting or removing a USB device. (12, 92)

NOTE

• NTFS is not supported.NOTE

[Supported format]

• FAT12, FAT16 and FAT32

The projector has the following convenient tools that enable on-screen presentations easily and quickly:

- PC-LESS Presentation (

below)

- Drawing function Drawing function enables you to draw on the projector’s screen with USB

mouse or tablets connected to the USB TYPE A ports. For details, refer to the manual for peripheral equipment.

- USB Display (99)

Page 90

Presentation tools

• Files with a resolution larger than the following are not supported.

CP-X4022WN/CP-X5022WN: 1024 x 768 (Still)， 768 x 576 (Movie) CP-WX4022WN: 1280 x 800 (Still)， 768 x 576 (Movie) (* Some computers may not support 1280 x 800.)

• Files with a resolution smaller than 36 x 36 are not supported.

• Files with a resolution smaller than 100 x 100 may not be displayed.

• Movie images with a frame rate higher than 15 fps cannot be displayed.

• Movie images with a bit rate higher than 20 Mbps cannot be displayed.

• Some supported les may not be displayed.

• Only a frame appears when the content of image data cannot be displayed in the Thumbnail mode.

• Even with the le format and audio format combinations described above, playback of some les may fail.

NOTE

[Supported le format and its extension]

• JPEG (.jpeg, .jpg) * Progressive is not supported.

• Bitmap (.bmp) * 16bit mode and compressed bitmap is not supported.

• PNG (.png) * Interlace PNG is not supported.

• GIF (.gif)

• Movie (.avi, .mov) *

Supported video format: Motion-JPEG Supported audio format:

WAV (Linear PCM, Stereo 16bit),

IMA-ADPCM

Thumbnail mode

PC-LESS Presentation (continued)

The Thumbnail mode displays the images stored in a USB storage device on the Thumbnail screen. Maximum 20 images are displayed in a screen. If you wish, you can jump into the Full Screen mode or Slideshow mode, after you select some images in the Thumbnail mode. The Thumbnail mode will be started as the primary function of the PC-LESS Presentation after selecting the USB TYPE A port as the input source.

Thumbnail menu

Selected image

Thumbnail images

Page 91

Presentation tools

PC-LESS Presentation (continued)

The SETUP menu for the selected image

Item Functions

SETUP

Use the ◄/► cursor buttons to switch each setting or use the ► cursor button to execute the functions as follows.

RETURN Press the ► cursor button or ENTER to return to the Thumbnail screen.

START

Switch to ON to set the selected image as the rst image in the Slideshow. This setting information will be saved in the “playlist.txt” le

(

98).

STOP

Switch to ON to set the selected image as the last image in the Slideshow. This setting information will be saved in the “playlist.txt” le

(

98).

SKIP

Switch to ON to skip the selected image in the Slideshow. This setting information will be saved in the “playlist.txt” le (

98).

ROTATE

Press the ► cursor or ENTER button to rotate the selected still image 90 degrees clockwise. This setting information will be saved in the “playlist.txt” le (

98).

You can control the images on the Thumbnail screen with the remote control, control panel or Web Remote Control. The following functions can be supported while the Thumbnail is displayed.

Operating by buttons or keys

Button operation

Functions

The remote control

Control panel

Web Remote Control

▲/▼/◄/► ▲/▼/◄/► [▲]/[▼]/[◄]/[►] Move cursor

PAGE UP PAGE DOWN

[PAGE UP] [PAGE DOWN]

Switches pages

ENTER INPUT [ENTER]

• Displays the selected image on the Full Screen mode when a cursor is on a thumbnail image.

• Displays the SETUP menu

(



below) for the selected image

when a cursor is on a thumbnail image number.

Page 92

Presentation tools

You can also control the images by using the menu on the Thumbnail screen.

PC-LESS Presentation (continued)

Operating by the menu on the Thumbnail screen

Item Functions

Moves to an upper folder.

SORT Allows you to sort les and folders as following.

RETURN

Press the ► cursor button or ENTER to return to the Thumbnail

screen. NAME UP Sorts in ascending order by le name. NAME DOWN Sorts in descending order by le name. DATE UP Sorts in ascending order by le date. DATE DOWN Sorts in descending order.by le date.

▲/▼ Go to previous / next page. SLIDESHOW Congures and starts the Slideshow (



96).

RETURN

Press the ► cursor button or ENTER to return to the Thumbnail

screen. PLAY Press the ► cursor button or ENTER to start the Slideshow. START Sets the beginning number of the Slideshow. STOP Sets the end number of the Slideshow.

INTERVAL

Sets the interval time for displaying still images during the

Slideshow. PLAY MODE Selects the Slideshow mode.

INPUT Switches the input port. MENU Displays the menu.

REMOVE USB

Be sure to use this function before removing USB storage device

from the projector. After that, the projector will not recognize a

USB storage device until you insert it again into the USB TYPE A

input port.

Turns the sound on/off for les that contain audio data.

Page 93

Presentation tools

PC-LESS Presentation (continued)

•

These operations are not accessible while the projector OSD is displayed.

• The Thumbnail mode is able to display up to 20 les in one page.

• It is not possible to change the input port by using the INPUT button when the Thumbnail screen, Slideshow, or Full Screen is displayed.

• The image quality may deteriorate when playing back audio data included in a movie. If you want to give priority to the image quality, turn off the sound by setting ♪ to off.

• If one of the AUDIO IN ports is selected or is selected for USB TYPE A in AUDIO SOURCE of the AUDIO menu (52), ♪ cannot be operated.

• Some error icons will be displayed in the Thumbnail.

NOTE

This le seems to be broken or not supported format.

A le that cannot be displayed on the thumbnail screen is indicated by a le format icon.

Page 94

Presentation tools

PC-LESS Presentation (continued)

The Full Screen mode shows a full display image. To display in Full Screen mode, select an image in the Thumbnail screen. Then press the ENTER button on the remote control, the INPUT button on the control panel or click [ENTER] on the Web Remote Control.

Full Screen Mode

Button operation

Functions

The remote control

Control panel

Web Remote Control

▼ ► or

PAGE DOWN

▼ or ►

[▼] [►] or [PAGE DOWN]

Shows the next le.

▲ ◄ or

PAGE UP

▲ or ◄

[▲] [◄] or [PAGE UP]

Shows the previous le.

ENTER INPUT [ENTER] Displays Thumbnail.

The following operations are enabled in the Full Screen mode while a still image is displayed.

Full screen display

Operations for still images

Page 95

Presentation tools

PC-LESS Presentation (continued)

Button operation

Functions

The remote control

Control panel

Web Remote Control

▲ ▲ [▲]

(Play) /

(Pause) toggle

► ► [►]

(FF) Fast-forward

◄ ◄ [◄]

(REW) Fast-rewind

ENTER INPUT [ENTER] (Stop), Displays Thumbnail. PAGE DOWN – [PAGE DOWN]

Shows the next le.

PAGE UP – [PAGE UP]

Shows the previous le.

•

These operations are not accessible while the projector OSD is displayed.

• It is not possible to change the input port by using the INPUT button when the Thumbnail screen, Slideshow, or Full Screen is displayed.

NOTE

A remote control icon and a progress bar are displayed when one of the cursor buttons, ENTER button or INPUT button on the remote control, control panel or Web Remote Control is pressed or clicked while a movie is playing in the Full Screen mode. The following operations are enabled while the remote control icon and progress bar are displayed.

Operations for movie

Page 96

Presentation tools

PC-LESS Presentation (continued)

Slideshow mode

While the Slideshow is displayed, the following button operations are enabled when still images are displayed, and the same button operations in the Full Screen mode are enabled when movies are displayed.

• These operations are not accessible while the projector OSD is

displayed.

• It is not possible to change the input port by using the INPUT button when the Thumbnail screen, Slideshow, or Full Screen is displayed.

• When the Slideshow mode is set to ONE TIME and the last le is a still image, the last slide of the presentation will remain displayed until the ENTER button on the remote control or Web Remote Control, or the INPUT button on the control panel is pressed.

NOTE

You can start this function from the Slideshow menu. To display the Slideshow menu, select the SLIDESHOW button in the Thumbnail mode and press the

ENTER button on the remote control, INPUT button on the control panel, or click [ENTER] on the Web Remote Control.

Button operation

Functions

The remote control

Control panel

Web Remote Control

ENTER INPUT [ENTER] Displays thumbnail

The Slideshow mode displays images in full screen and switches the images at intervals set in INTERVAL on the Thumbnail screen menu (92).

Page 97

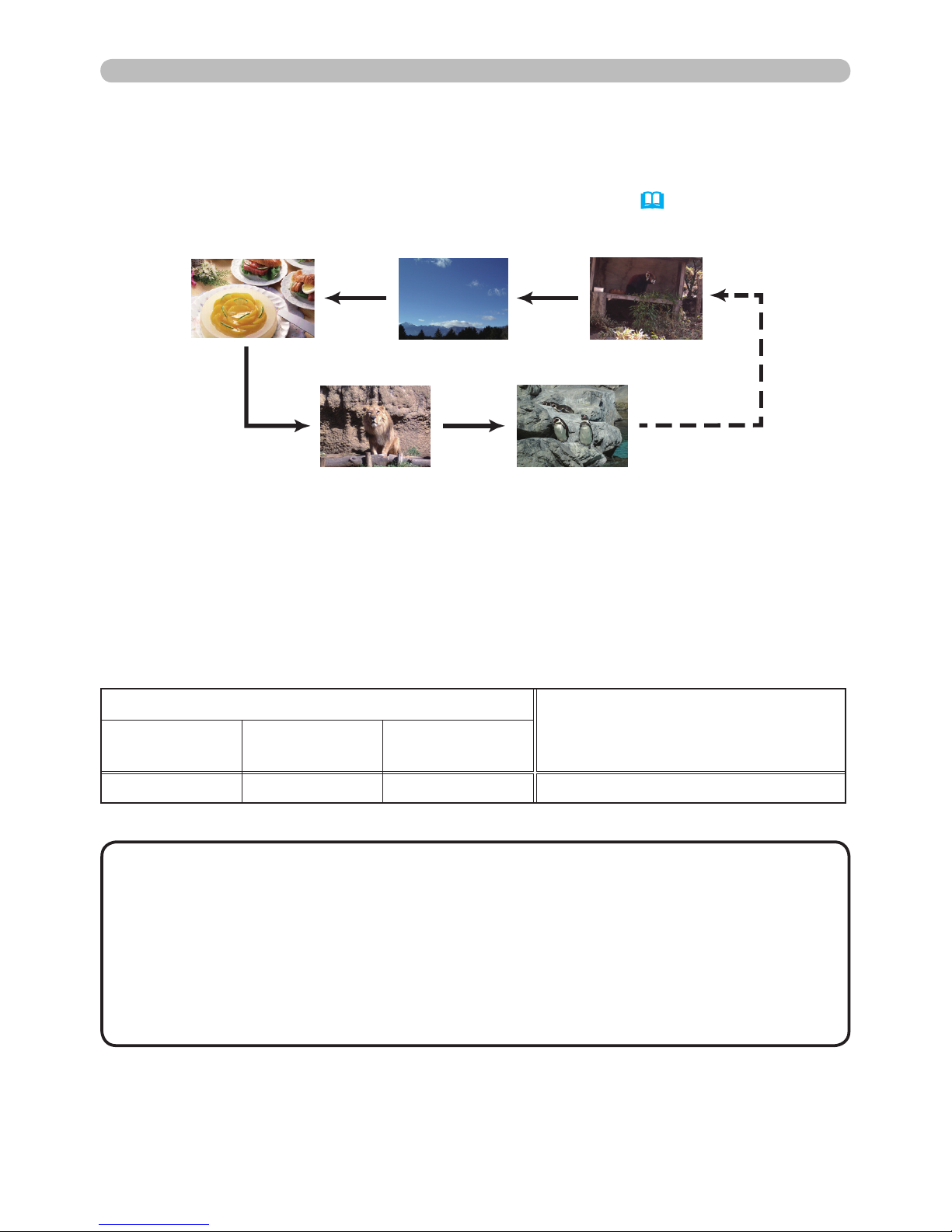

Presentation tools

PC-LESS Presentation (continued)

You can play the Slideshow at your desired conguration. Congure the Slideshow items in the Thumbnail.

1) RETURN :

Returns to the thumbnail mode.

2) PLAY : Play the Slideshow.

3) START :

Set the beginning number of the Slideshow.

4) STOP : Set the end number of the Slideshow.

5) INTERVAL : Sets the interval time for displaying still images during the Slideshow. It is not recommend to set the interval time very short something like several seconds, because it may take more than several seconds to read and display an image le if it is stored in very deep layer directory or if so many les are stored in the same directory.

6) PLAY MODE : Select the Slideshow mode. ONE TIME : Play the Slideshow one time. ENDLESS : Play the Slideshow endless.

• The settings of the Slideshow are saved to the “playlist.txt” le that is stored in the storage media. If the le is not existed, it is generated automatically.

• The settings for the START, STOP, INTERVAL, and PLAY MODE are saved to the Playlist.

• If the storage media is under the write protection or the “playlist.txt” is the read only type le, it is impossible to change the settings of the Slideshow.

NOTE

Page 98

Presentation tools

PC-LESS Presentation (continued)

Playlist

The Playlist is a DOS format text le, which decides the order of displayed still image les in the Thumbnail or Slideshow. The playlist le name is “playlist.txt” and it can be edited on a computer. It is created in the folder that contains the selected image les when the PC-LESS Presentation is started or the Slideshow is congured.

[Example of “playlist.txt” les] START setting : STOP setting : INTERVAL setting : PLAY MODE setting : img001.jpg: : : : img002.jpg:600: : : img003.jpg:700:rot1: : img004.jpg: : :SKIP: img005.jpg:1000:rot2:SKIP:

The “playlist.txt” le contains the following information. Each piece of information requires to be separated by “:”, and “:” at the end of each line. 1st line: START, STOP, INTERVAL and PLAY MODE settings (97). 2nd line and after: le name, interval time, rotation setting and skip setting.

interval time:

It can be set from 0 to 999900 (ms) with an increment of 100 (ms).

rotation setting

: “rot1” means a rotation at 90 degrees clockwise; “rot2” and

“rot3” increase another 90 degrees in order.

skip setting: “SKIP” means that the image will not be displayed in the

Slideshow.

•

The maximum length in a line on the "playlist.txt" le is 255 characters

including linefeed. If any line exceeds the limit, the "playlist.txt" le becomes invalid.

•

Up to 999 les can be registered to the Playlist. However, if some folders exist in the same directory the limit number is decreased by the number of folders. Any les over the limit will not be shown in the Slideshow.

•

If the storage device is protected or does not have sufcient space, the “playlist.txt” le cannot be created.

• For the Slideshow settings, refer to the section Slideshow mode (96).

NOTE

Page 99

USB Display(Windows computer)

The projector can display images transferred from a computer via an USB cable (11).

Select the USB DISPLAY for the USB TYPE B item in the OPTION menu. When you connect your computer to the USB TYPE B port on the projector using a USB cable, the projector will be recognized as a CD-ROM drive on your computer. Then, the software in the projector, “LiveViewerLiteForUSB.exe”, will run automatically and the application, “LiveViewer Lite for USB”, will be ready on your computer for the USB Display. The application, “LiveViewer Lite for USB”, will close automatically when the USB cable is unplugged. However, it may remain displayed at times.

• If the software does not start automatically (this is typically because CD-ROM autorun is disabled on your OS), follow the instructions below. (1) Click on the [Start] button on the toolbar and select the “Run” (2) Enter F:\LiveViewerLiteForUSB.exe and then press the [OK]

• CD-ROM autorun is disabled while the screen saver is running.

• The image transmission from the computer is suspended while the passwordprotected screen saver is running. To resume the transmission, exit the screen saver.

•

If "Waiting for connection." remains displayed while the USB cable is connected,

remove the USB cable and reconnect after a while.

• Check our web site for the latest version of the software and its manual. (User's Manual (concise))

Follow the instructions that can be obtained at the site for updating.

NOTE

If your CD-ROM drive is not drive F on your computer, you will need to replace F with the correct drive letter assigned to your CD-ROM drive.

Hardware and software requirement for computer

• OS: One of the following. (32 bit version only) Windows ® XP Home Edition /Professional Edition Windows Vista ® Home Basic /Home Premium /Business /Ultimate /Enterprise Windows® 7 Starter /Home Basic /Home Premium /Professional / Ultimate / Enterprise

• CPU: Pentium 4 (2.8 GHz or higher)

• Graphic card: 16 bit, XGA or higher

• Memory: 512 MB or higher

• Hard disk space: 30 MB or higher

• USB Port

• USB cable : 1 piece

Starting USB Display

(continued on next page)

Presentation tools

Page 100

100

Presentation tools

This application will appear in the Windows notication area once it starts. You can quit the application from your computer by selecting “Quit” on the menu.

• The “LiveViewer” (refer to the Network Guide) and this application cannot be used at the same time. If you connect your computer to the projector by using a USB cable while the “LiveViewer” is running, the following message will be displayed.

• Depending on the software installed on your computer, images on your computer cannot be transferred using “LiveViewer Lite for USB”.

• If any application software having the rewall function is installed into your computer, make the rwall function invalid with following the user's manual.

• Some security software may block image transmission. Please change the security software setting to allow the use of "LiveViewer Lite for USB".

• When the audio input from USB TYPE B is selected, if the sound level is still low even after raising the volume level in the projector to the maximum, check whether your computer outputs audio and raise the volume level accordingly.

• If the computer in use is equipped with HDMI port, the audio setting will be changed and sound interruption or noise may occur when the HDMI cable is connected or disconnected during USB Display. Restart USB Display for this case.

• Image distortion or sound interruption may occur when “LiveViewer” is connected to LAN (wireless or wired) during USB Display. The above decline in performance is noticeable especially when multiple computers are connected to “LiveViewer”.

NOTE

USB Display(Windows computer) (continued)
