Instruction for installation, operation and maintenance
Counter Top Ovens
PM 351ED |
PM 401ED |
PM 351ED-1 |
PM 401ED-1 |
PM 352ED |
PM 402ED |
PM 352ED-1 |
PM 402ED-1 |
PM 352ED-2 |
PM 402ED-2 |
PM 451ED PM 451ED-1 PM 452ED PM 452ED-1 PM 452ED-2
PM 351ED-DW |
PM 401ED-DW |
PM 451ED-DW |
PM 351ED-1DW |
PM 401ED-1DW |
PM 451ED-1DW |
PM 352ED-DW |
PM 402ED-DW |
PM 452ED-DW |
PM 352ED-1DW |
PM 402ED-1DW |
PM 452ED-1DW |
PM 352ED-2DW |
PM 402ED-2DW |
PM 452ED-2DW |
Svenska BakePartner AB |
Model - Type |
|
|
|
|
|
|
Odegardsgatan 5 |
|
|
|
504 94 Boras, Sweden |
|
|
|
Phone +4633 230 025 |
Serial No. |
|
|
|
|
|
|
www.bakepartner.com |
|
|
|
Power supply |
Power / deck |
Power total |
IP |
Electrical connection must be carried out by an authorized electrician |
|||
|
|
9006-0121 R1A |
|
Warranty and service
Quality tastes better.
PizzaMaster® ovens are designed and built by Svenska BakePartner AB
We thank you for your trust and congratulate you on the purchase of your new PizzaMaster® oven. Our goal has always been to build the best pizza ovens in the world.
Right from the start, we knew this could be achieved only by specializing in the pizza industry and making bake-quality our top priority. PizzaMaster® ovens are therefore made exclusively for the pizza industry to meet the demands of all businesses that depend on quality pizza.
2-year manufacturer’s warranty
All PizzaMaster® Counter Top ovens come with a 2-year limited warranty that covers the purchaser against any defect in material or workmanship. For further details about this important cover, please consult your BakePartner representative.
Special expertise
PizzaMaster® service technicians are trained specialists. They are equipped with all instruments and tools needed to make the correct diagnosis and perform service work quickly and efficiently. Our technicians travel the world continuously, training local technicians to uphold the BakePartner standard.
Genuine parts
Your PizzaMaster® oven consists of over 1000 quality parts with long service life. Should it become necessary to replace a part, it is most important to replace it with a genuine PizzaMaster® part. This ensures not only optimum function but also continued safety in the workplace.
When contacting BakePartner or your local PizzaMaster® distributor for assistance, please remember to quote the model designation and serial number of your oven. This will help us to help you more quickly.
Svenska BakePartner AB
Odegaerdsgatan 5
SE-504 94 Boras
Sweden
Tel: |
+46(0)33-230 025 |
Fax: |
+46(0)33-248 140 |
Internet: www.pizzamaster.com www.bakepartner.com
E-mail: info@bakepartner.com
2 |
PizzaMaster® |
Index
Index |
Page |
Serial No / Oven rating plate...................................................... |
1 |
Warranty and service................................................................. |
2 |
Index.......................................................................................... |
3 |
Technical data......................................................................... |
4-5 |
Electrical connection.................................................................. |
6 |
Positioning the oven................................................................... |
7 |
First-time start-up of oven.......................................................... |
7 |
Installation – Assembly UBC................................................... |
8-9 |

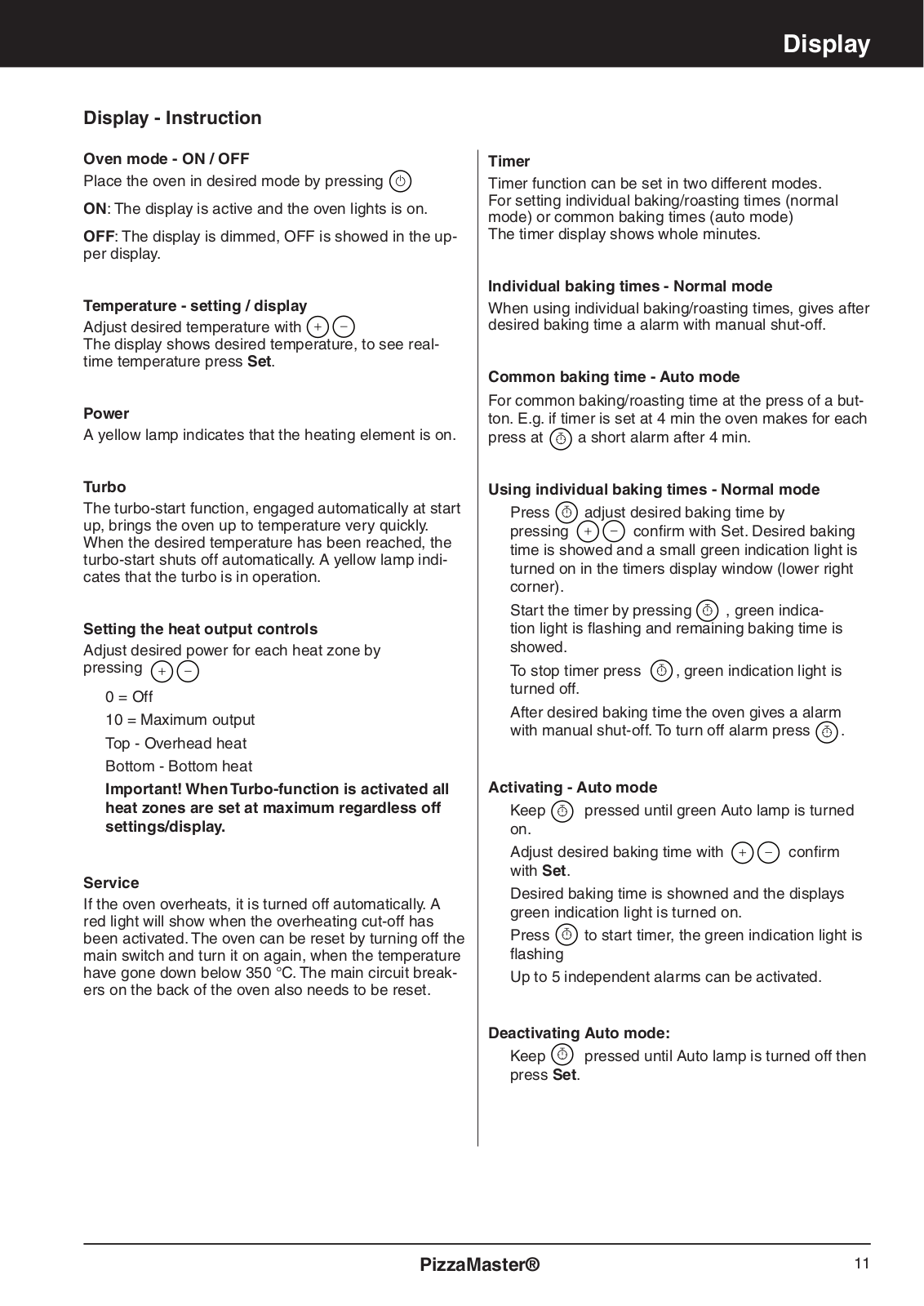

Display................................................................................ |
10-11 |
Changing of oven lamps / Maintenance................................... |
12 |

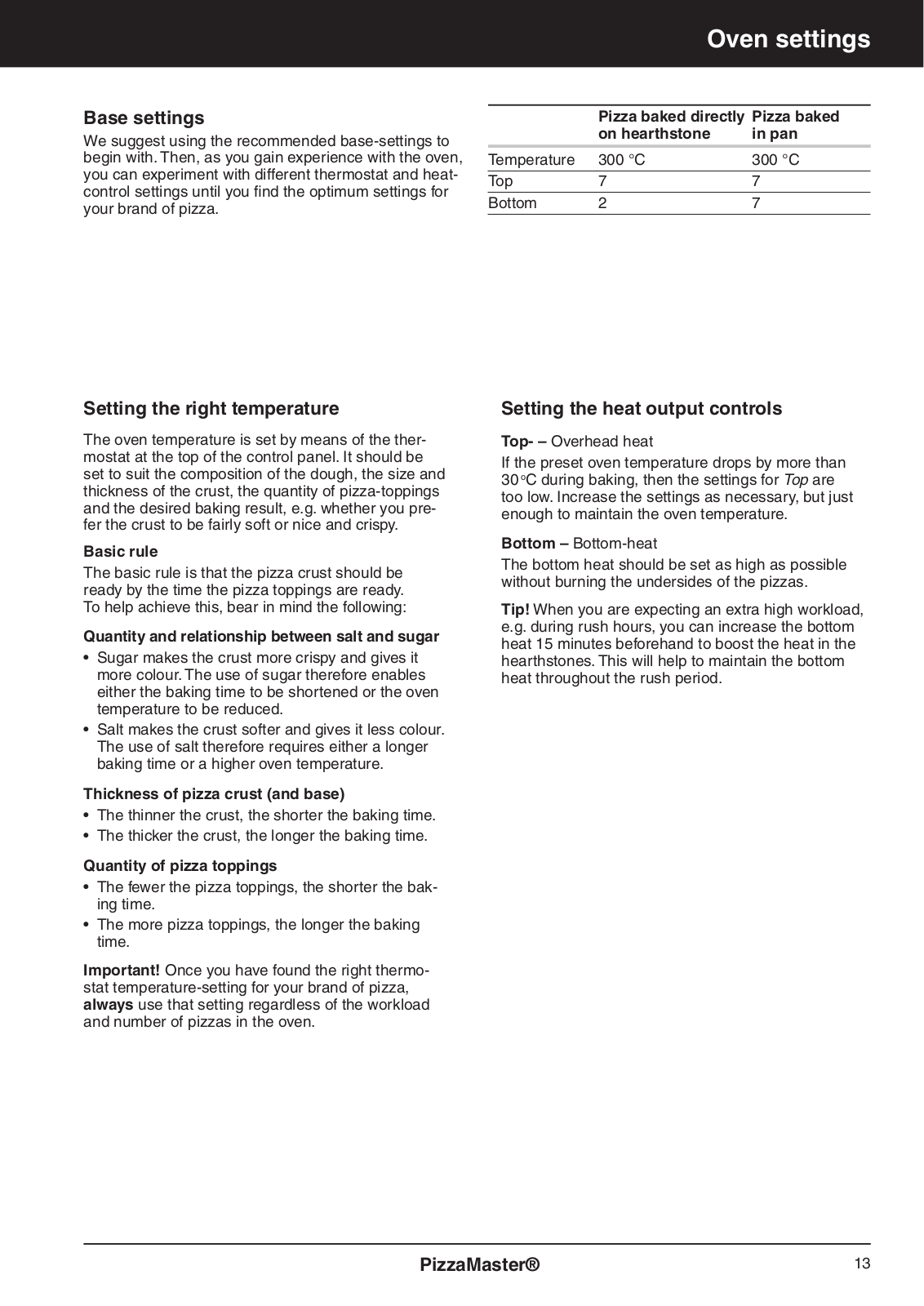

Oven settings........................................................................... |
13 |

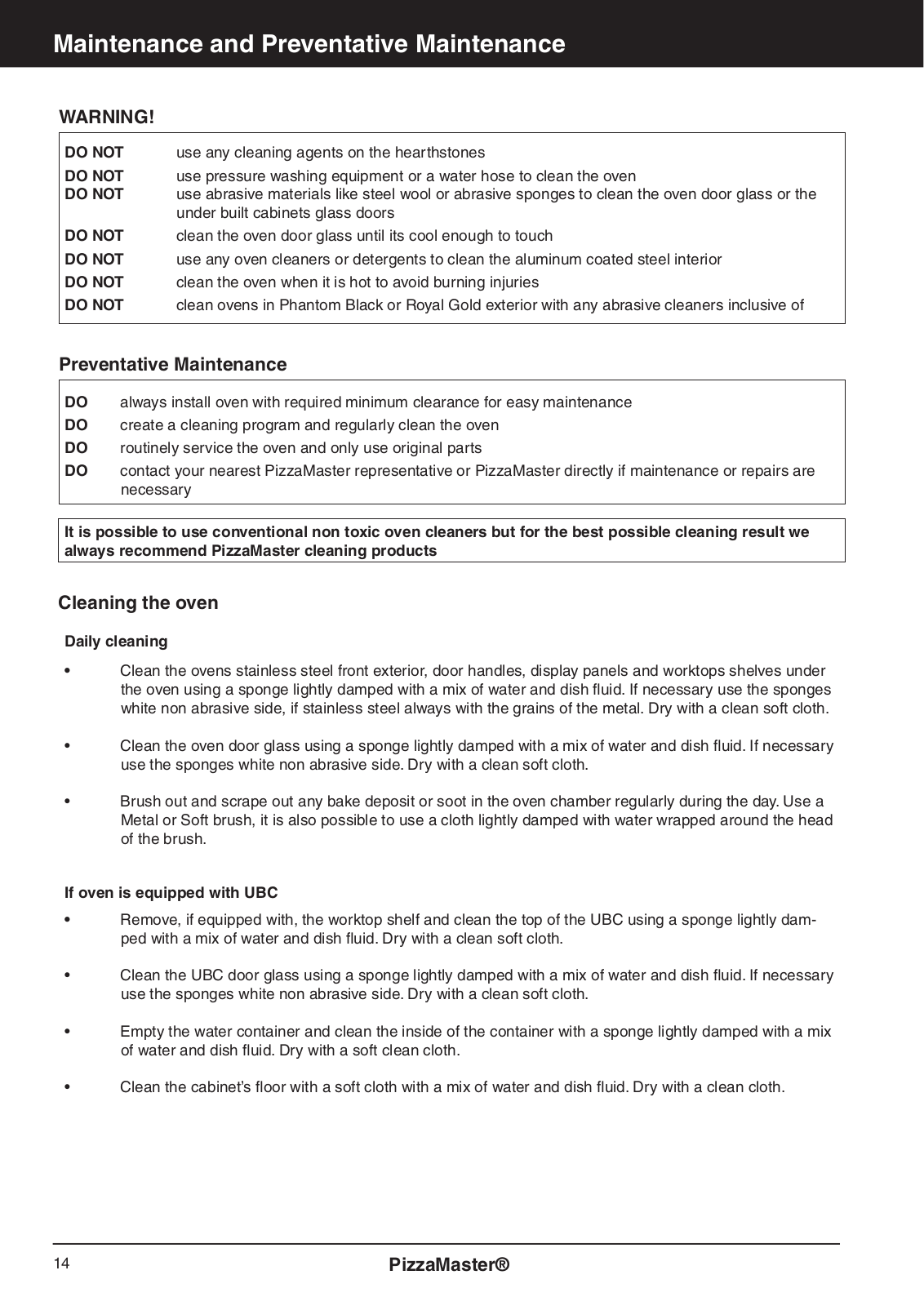

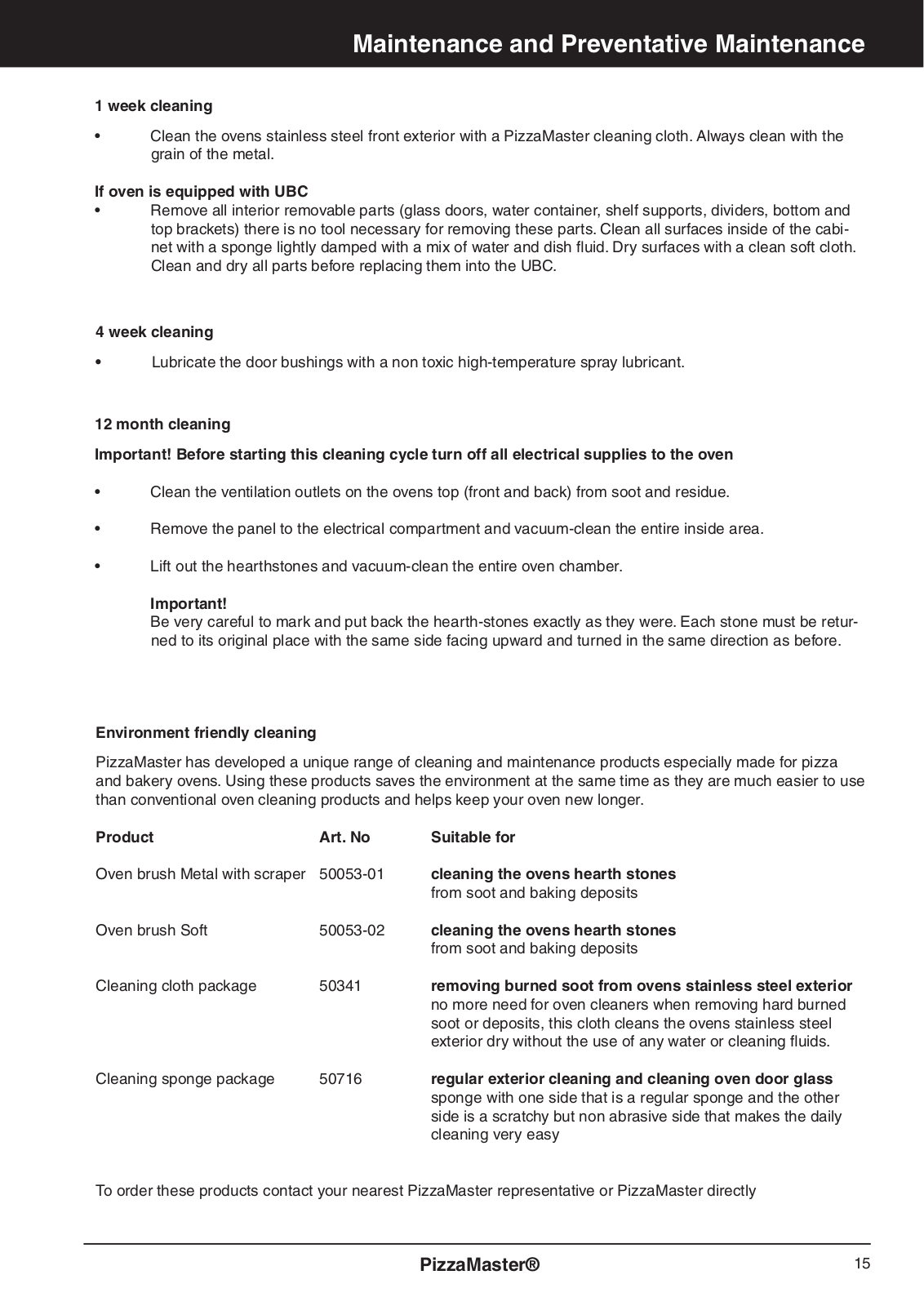

Maintenance and Preventative Maintenance...................... |
14-15 |
Trouble shooting....................................................................... |
16 |

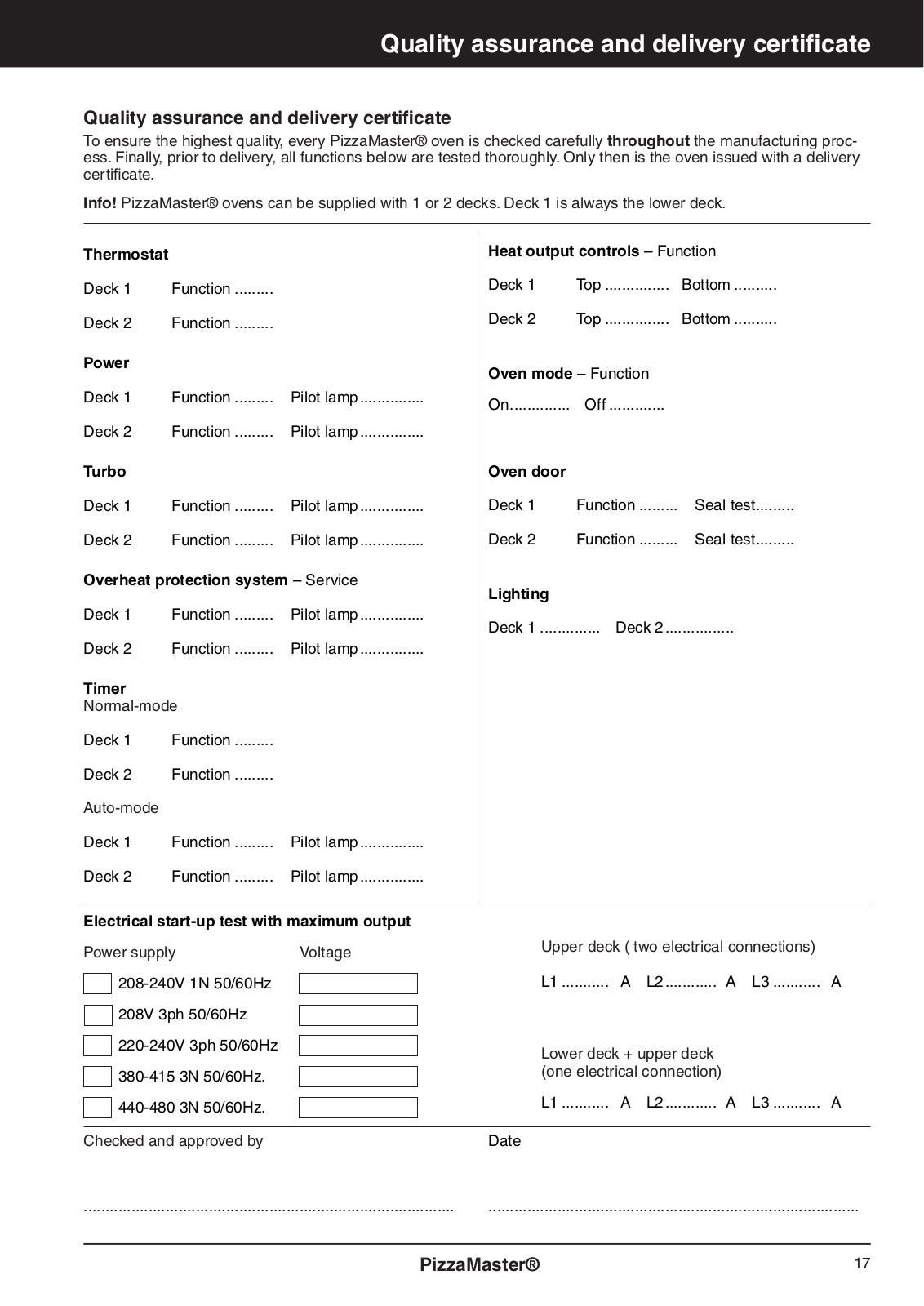

Quality assurance and delivery certificate............................... |
17 |

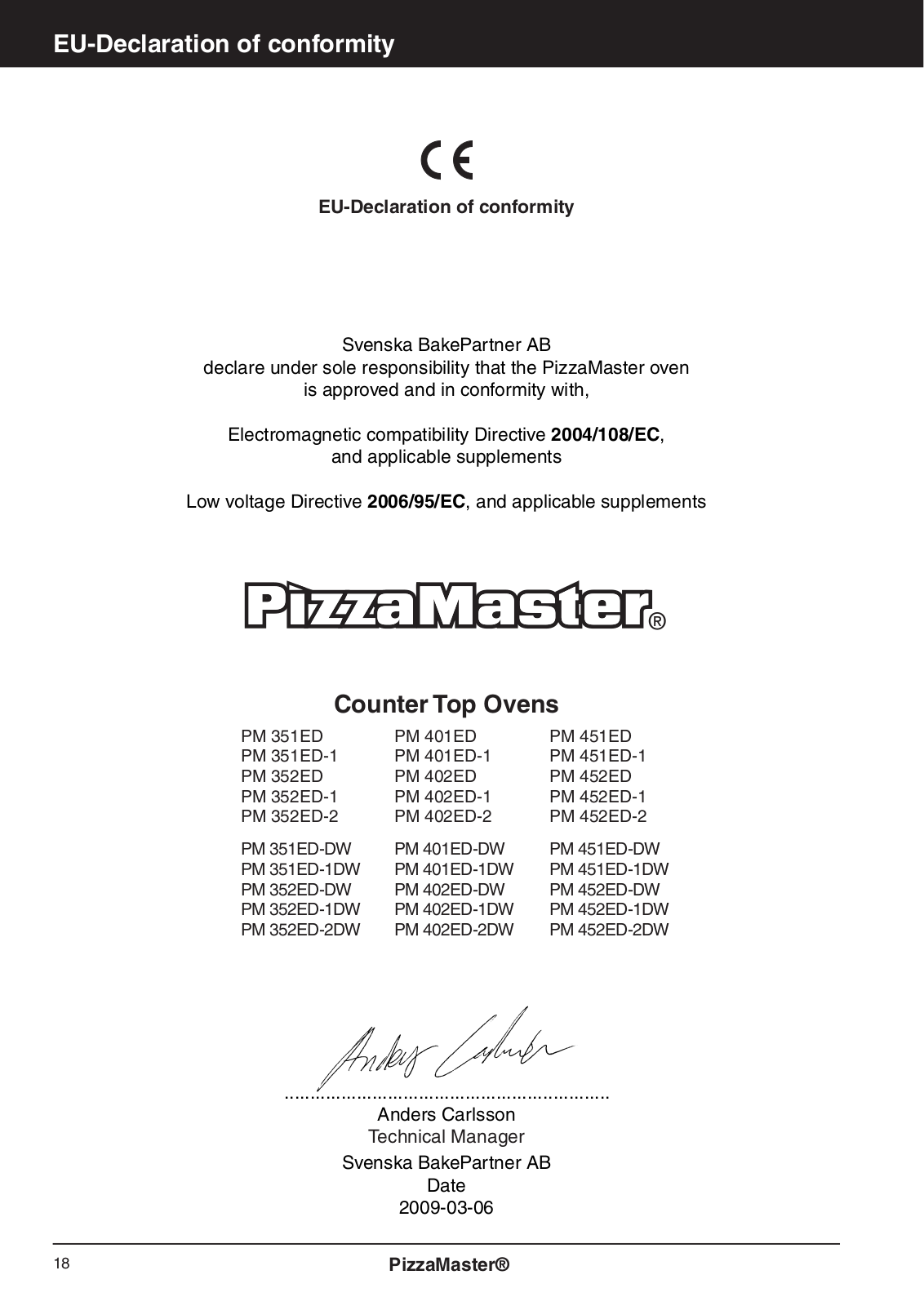

EU-Declaration of conformity................................................... |
18 |
Notes........................................................................................ |
19 |
Attachment : |
|
Electrical diagram |
|
Parts list - Electrical components |
|
PizzaMaster® |
3 |

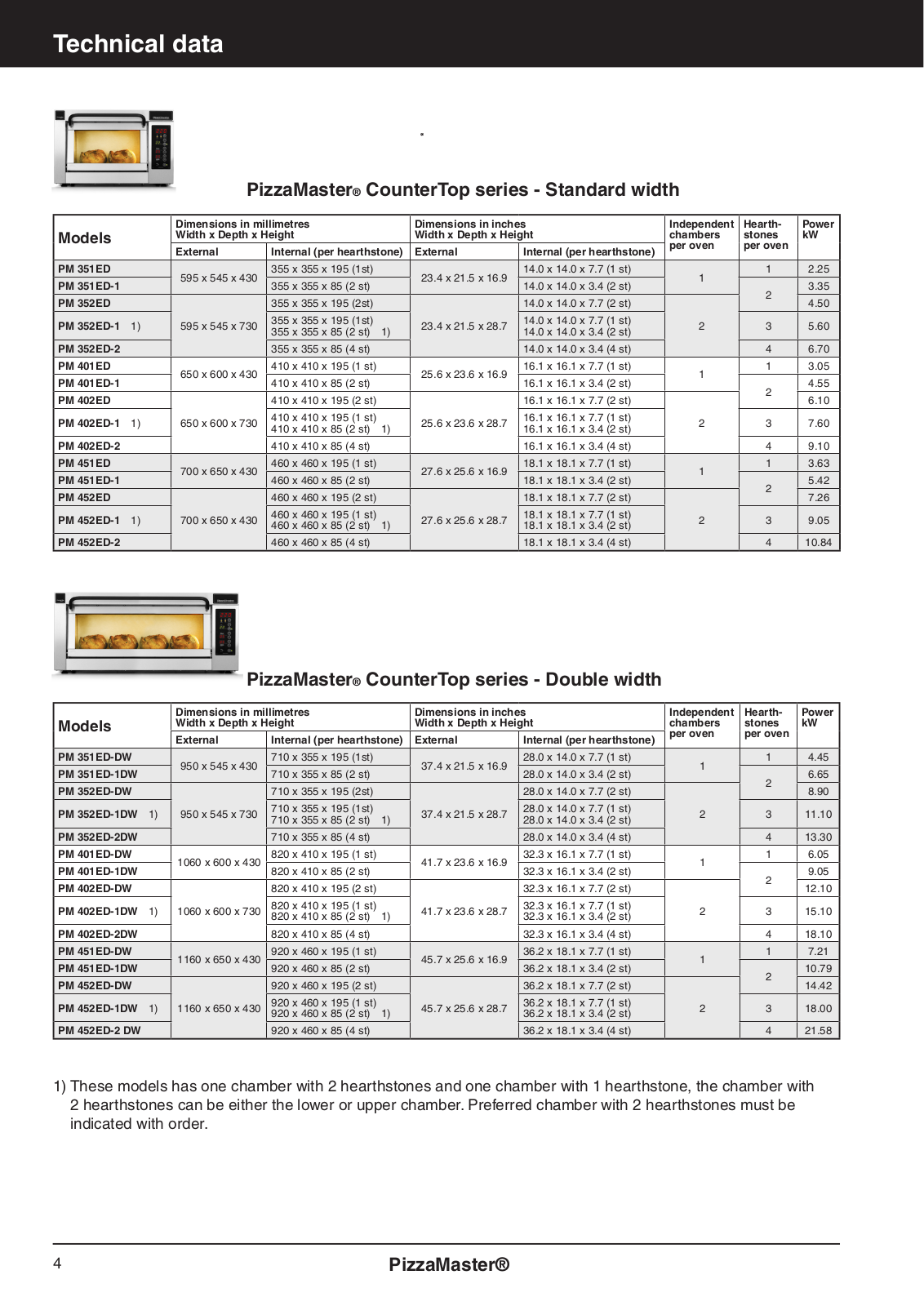

Technical data
PizzaMaster® CounterTop series - Standard width
|
|
Dimensions in millimetres |
|
Dimensions in inches |
Independent |
Hearth- |
Power |
|||
Models |
|
Width x Depth x Height |
|
Width x Depth x Height |
chambers |
stones |
kW |
|||
|
|
External |
Internal (per hearthstone) |
External |
Internal (per hearthstone) |
per oven |
per oven |
|
||
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
PM 351ED |
|
595 x 545 x 430 |
355 x 355 x 195 (1st) |
|
23.4 x 21.5 x 16.9 |
14.0 x 14.0 x 7.7 (1 st) |
1 |
1 |
2.25 |
|
PM 351ED-1 |
|
355 x 355 x 85 (2 st) |
|
14.0 x 14.0 x 3.4 (2 st) |
2 |
3.35 |
||||
|
|
|
|
|
||||||
PM 352ED |
|
|
355 x 355 x 195 (2st) |
|
|
14.0 x 14.0 x 7.7 (2 st) |
|
4.50 |
||
|
|
|
|
|
|
|||||
PM 352ED-1 |
1) |
595 x 545 x 730 |
355 x 355 x 195 (1st) |
|
23.4 x 21.5 x 28.7 |
14.0 x 14.0 x 7.7 (1 st) |
2 |
3 |
5.60 |
|
355 x 355 x 85 (2 st) |
1) |
14.0 x 14.0 x 3.4 (2 st) |
||||||||
|
|
|
|
|
|
|
||||
PM 352ED-2 |
|
|
355 x 355 x 85 (4 st) |
|
|
14.0 x 14.0 x 3.4 (4 st) |
|
4 |
6.70 |
|
|
|
|
|
|
|
|
|
|
|
|
PM 401ED |
|
650 x 600 x 430 |
410 x 410 x 195 (1 st) |
|
25.6 x 23.6 x 16.9 |
16.1 x 16.1 x 7.7 (1 st) |
1 |
1 |
3.05 |
|
|
|
|
|
|
|
|
||||
PM 401ED-1 |
|
410 x 410 x 85 (2 st) |
|
16.1 x 16.1 x 3.4 (2 st) |
2 |
4.55 |
||||
|
|
|
|
|
||||||
PM 402ED |
|
|
410 x 410 x 195 (2 st) |
|
|
16.1 x 16.1 x 7.7 (2 st) |
|
6.10 |
||
|
|
|
|
|
|
|||||
PM 402ED-1 |
1) |
650 x 600 x 730 |
410 x 410 x 195 (1 st) |
|
25.6 x 23.6 x 28.7 |
16.1 x 16.1 x 7.7 (1 st) |
2 |
3 |
7.60 |
|
410 x 410 x 85 (2 st) |
1) |
16.1 x 16.1 x 3.4 (2 st) |
||||||||
|
|
|
|
|
|
|
||||
PM 402ED-2 |
|
|
410 x 410 x 85 (4 st) |
|
|
16.1 x 16.1 x 3.4 (4 st) |
|
4 |
9.10 |
|
PM 451ED |
|
700 x 650 x 430 |
460 x 460 x 195 (1 st) |
|
27.6 x 25.6 x 16.9 |
18.1 x 18.1 x 7.7 (1 st) |
1 |
1 |
3.63 |
|
PM 451ED-1 |
|
460 x 460 x 85 (2 st) |
|
18.1 x 18.1 x 3.4 (2 st) |
2 |
5.42 |
||||
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
||
PM 452ED |
|
|
460 x 460 x 195 (2 st) |
|
|
18.1 x 18.1 x 7.7 (2 st) |
|
7.26 |
||
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
PM 452ED-1 |
1) |
700 x 650 x 430 |
460 x 460 x 195 (1 st) |
|
27.6 x 25.6 x 28.7 |
18.1 x 18.1 x 7.7 (1 st) |
2 |
3 |
9.05 |
|
460 x 460 x 85 (2 st) |
1) |
18.1 x 18.1 x 3.4 (2 st) |
||||||||
|
|
|
|
|
|
|
||||
PM 452ED-2 |
|
|
460 x 460 x 85 (4 st) |
|
|
18.1 x 18.1 x 3.4 (4 st) |
|
4 |
10.84 |
|
PizzaMaster® CounterTop series - Double width
|
|
Dimensions in millimetres |
|
Dimensions in inches |
Independent |
Hearth- |
Power |
|||
Models |
|
Width x Depth x Height |
|
Width x Depth x Height |
chambers |
stones |
kW |
|||
|
|
External |
Internal (per hearthstone) |
External |
Internal (per hearthstone) |
per oven |
per oven |
|
||
|
|
|
|
|
||||||
PM 351ED-DW |
|
950 x 545 x 430 |
710 x 355 x 195 (1st) |
|
37.4 x 21.5 x 16.9 |
28.0 x 14.0 x 7.7 (1 st) |
1 |
1 |
4.45 |
|
|
|
|
|
|
|
|
||||
PM 351ED-1DW |
|
710 x 355 x 85 (2 st) |
|
28.0 x 14.0 x 3.4 (2 st) |
2 |
6.65 |
||||
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
||
PM 352ED-DW |
|
|
710 x 355 x 195 (2st) |
|
|
28.0 x 14.0 x 7.7 (2 st) |
|
8.90 |
||
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
PM 352ED-1DW |
1) |
950 x 545 x 730 |
710 x 355 x 195 (1st) |
|
37.4 x 21.5 x 28.7 |
28.0 x 14.0 x 7.7 (1 st) |
2 |
3 |
11.10 |
|
710 x 355 x 85 (2 st) |
1) |
28.0 x 14.0 x 3.4 (2 st) |
||||||||
|
|
|
|
|
|
|
||||
PM 352ED-2DW |
|
|
710 x 355 x 85 (4 st) |
|
|
28.0 x 14.0 x 3.4 (4 st) |
|
4 |
13.30 |
|
PM 401ED-DW |
|
1060 x 600 x 430 |
820 x 410 x 195 (1 st) |
|
41.7 x 23.6 x 16.9 |
32.3 x 16.1 x 7.7 (1 st) |
1 |
1 |
6.05 |
|
PM 401ED-1DW |
|
820 x 410 x 85 (2 st) |
|
32.3 x 16.1 x 3.4 (2 st) |
2 |
9.05 |
||||
PM 402ED-DW |
|
|
820 x 410 x 195 (2 st) |
|
|
32.3 x 16.1 x 7.7 (2 st) |
|
12.10 |
||
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
PM 402ED-1DW |
1) |
1060 x 600 x 730 |
820 x 410 x 195 (1 st) |
1) |
41.7 x 23.6 x 28.7 |
32.3 x 16.1 x 7.7 (1 st) |
2 |
3 |
15.10 |
|
|
|
|
820 x 410 x 85 (2 st) |
|
32.3 x 16.1 x 3.4 (2 st) |
|
|
|
||
PM 402ED-2DW |
|
|
820 x 410 x 85 (4 st) |
|
|
32.3 x 16.1 x 3.4 (4 st) |
|
4 |
18.10 |
|
|
|
|
|
|
|
|
|
|
|
|
PM 451ED-DW |
|
1160 x 650 x 430 |
920 x 460 x 195 (1 st) |
|
45.7 x 25.6 x 16.9 |
36.2 x 18.1 x 7.7 (1 st) |
1 |
1 |
7.21 |
|
|
|
|
|
|
|
|
||||
PM 451ED-1DW |
|
920 x 460 x 85 (2 st) |
|
36.2 x 18.1 x 3.4 (2 st) |
2 |
10.79 |
||||
PM 452ED-DW |
|
|
920 x 460 x 195 (2 st) |
|
|
36.2 x 18.1 x 7.7 (2 st) |
|
14.42 |
||
|
|
|
|
|
|
|||||
PM 452ED-1DW |
1) |
1160 x 650 x 430 |
920 x 460 x 195 (1 st) |
1) |
45.7 x 25.6 x 28.7 |
36.2 x 18.1 x 7.7 (1 st) |
2 |
3 |
18.00 |
|
|
|
|
920 x 460 x 85 (2 st) |
|
36.2 x 18.1 x 3.4 (2 st) |
|
|
|
||
PM 452ED-2 DW |
|
|
920 x 460 x 85 (4 st) |
|
|
36.2 x 18.1 x 3.4 (4 st) |
|
4 |
21.58 |
|
1)These models has one chamber with 2 hearthstones and one chamber with 1 hearthstone, the chamber with 2 hearthstones can be either the lower or upper chamber. Preferred chamber with 2 hearthstones must be indicated with order.
4 |
PizzaMaster® |

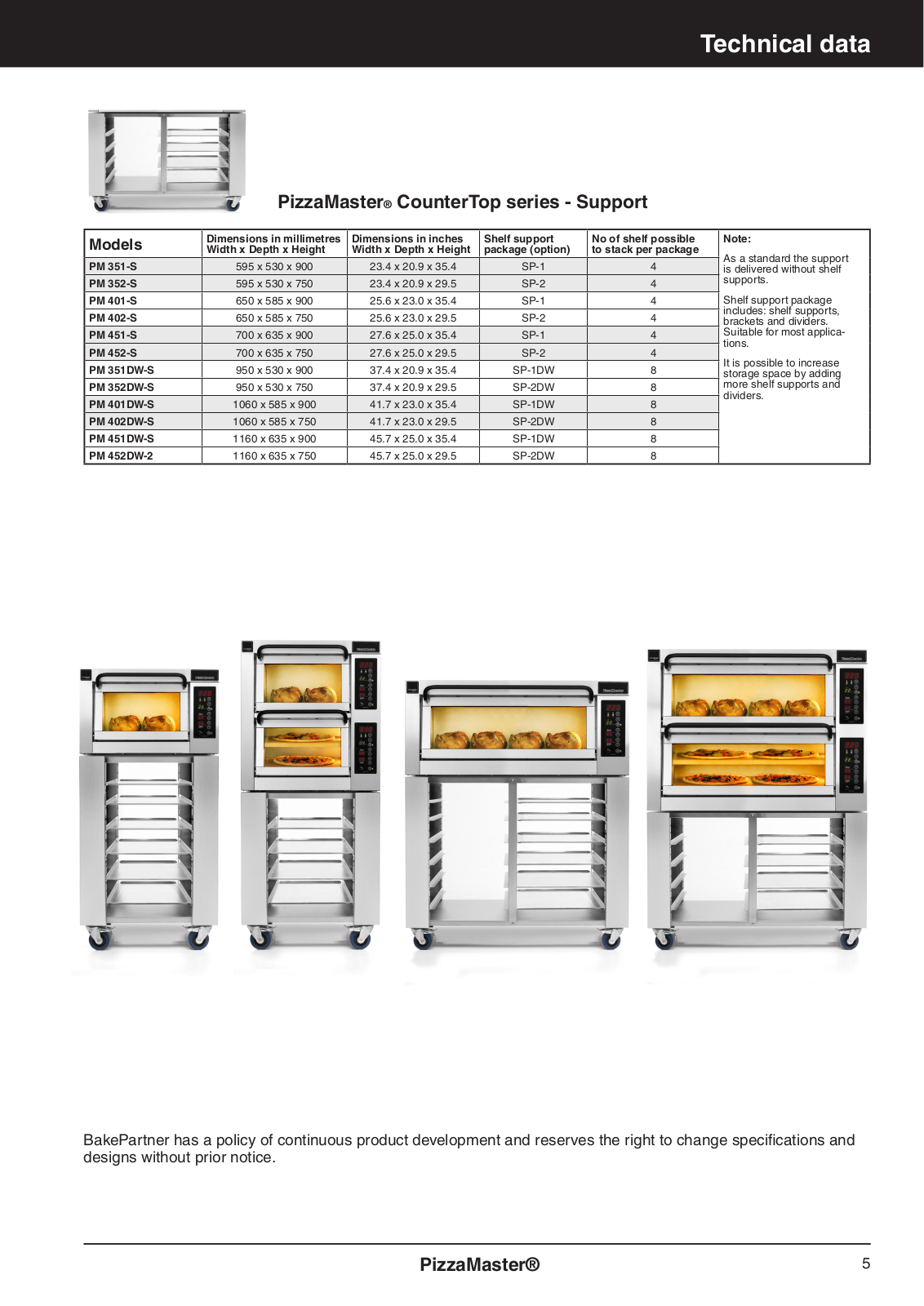

Technical data
PizzaMaster® CounterTop series - Support
Models |
Dimensions in millimetres |
Dimensions in inches |
Shelf support |
No of shelf possible |
Width x Depth x Height |
Width x Depth x Height |
package (option) |
to stack per package |
|
PM 351-S |
595 x 530 x 900 |
23.4 x 20.9 x 35.4 |
SP-1 |
4 |
PM 352-S |
595 x 530 x 750 |
23.4 x 20.9 x 29.5 |
SP-2 |
4 |
PM 401-S |
650 x 585 x 900 |
25.6 x 23.0 x 35.4 |
SP-1 |
4 |
|
|
|
|
|
PM 402-S |
650 x 585 x 750 |
25.6 x 23.0 x 29.5 |
SP-2 |
4 |
|
|
|
|
|
PM 451-S |
700 x 635 x 900 |
27.6 x 25.0 x 35.4 |
SP-1 |
4 |
PM 452-S |
700 x 635 x 750 |
27.6 x 25.0 x 29.5 |
SP-2 |
4 |
PM 351DW-S |
950 x 530 x 900 |
37.4 x 20.9 x 35.4 |
SP-1DW |
8 |
PM 352DW-S |
950 x 530 x 750 |
37.4 x 20.9 x 29.5 |
SP-2DW |
8 |
|
|
|
|
|
PM 401DW-S |
1060 x 585 x 900 |
41.7 x 23.0 x 35.4 |
SP-1DW |
8 |
|
|
|
|
|
PM 402DW-S |
1060 x 585 x 750 |
41.7 x 23.0 x 29.5 |
SP-2DW |
8 |
PM 451DW-S |
1160 x 635 x 900 |
45.7 x 25.0 x 35.4 |
SP-1DW |
8 |
PM 452DW-2 |
1160 x 635 x 750 |
45.7 x 25.0 x 29.5 |
SP-2DW |
8 |
|
|
|
|
|
Note:
As a standard the support is delivered without shelf supports.
Shelf support package includes: shelf supports, brackets and dividers. Suitable for most applications.
It is possible to increase storage space by adding more shelf supports and dividers.
BakePartner has a policy of continuous product development and reserves the right to change specifications and designs without prior notice.
PizzaMaster® |
5 |
Electrical connection
Important!
For reasons of safety and the validity of the warranty, all electrical work must be carried out by a qualified electrician.
The oven must be connected via an external main switch with min. 3 mm gape of at least 3 mm for each power supply cable.
•Before connecting the oven see the ovens rating plate and attached electrical diagram
•The oven has to be connected with the attached power supply cable (1.5 m)
•The earth potential equalizer screw has to be installed . The earth potential screw is located on the backside next to the connecting cable.
Electrical connection - Standard width
Power and fuse ratings per oven
|
Model |
|
400V 3N |
230V 1N |
230V 3AC |
208V 1AC |
208V 3AC |
240V 1AC |
240V 3AC |
480V 3N |
|
|
PM 351ED |
|
3/5A |
10A |
3/9A* |
11A* |
3/10A* |
10A* |
3/8A* |
3/5A |
|
|
PM 351ED-1 |
|
3/5A |
15A |
3/9A* |
17A* |
3/10A* |
14A* |
3/9A* |
3/5A |
|
|
PM 352ED |
|
3/10A |
20A* |
3/14A* |
22A* |
3/15A* |
19A* |
3/13A* |
3/9A |
|
|
PM 352ED-1 |
|
3/10A |
25A* |
3/17A* |
27A* |
3/19A* |
24A* |
3/16A* |
3/9A |
|
|
PM 352ED-2 |
|
3/10A |
30A* |
3/17A* |
33A* |
3/19A* |
28A* |
3/17A* |
3/9A |
|
|
PM 401ED |
|
3/7A |
14A |
3/12A* |
15A* |
3/13A* |
13A* |
3/11A* |
3/6A |
|
|
PM 401ED-1 |
|
3/7A |
20A* |
3/12A* |
22A* |
3/13A* |
19A* |
3/11A* |
3/6A |
|
|
PM 402ED |
|
3/14A |
27A* |
3/17A* |
30A* |
3/20A* |
26A* |
3/17A* |
3/12A |
|
|
PM 402ED-1 |
|
3/14A |
33A* |
3/23A* |
37A* |
3/25A* |
32A* |
3/22A* |
3/12A |
|
|
PM 402ED-2 |
|
3/14A |
40A* |
3/23A* |
44A* |
3/26A* |
38A* |
3/22A* |
3/12A |
|
|
PM 451ED |
|
3/8A |
16A |
3/14A* |
18A* |
3/15A* |
16A* |
3/13A* |
3/7A |
|
|
PM 451ED-1 |
|
3/8A |
24A* |
3/14A* |
27A* |
3/16A* |
23A* |
3/14A* |
3/7A |
|
|
PM 452ED |
|
3/16A |
32A* |
3/21A* |
35A* |
3/24A* |
31A* |
3/20A* |
3/14A |
|
|
PM 452ED-1 |
|
3/16A |
40A* |
3/28A* |
44A** |
3/30A* |
38A* |
3/26A* |
3/14A |
|
|
PM 452ED-2 |
|
3/16A |
- |
3/28A* |
53A** |
3/31A* |
46A* |
3/27A* |
3/14A |
|
|
PM 551ED |
|
3/10A |
20A* |
3/17A* |
22A* |
3/19A* |
19A* |
3/16A* |
3/9A |
|
|
PM 551ED-1 |
|
3/10A |
29A* |
3/17A* |
32A* |
3/19A* |
28A* |
3/16A* |
3/9A |
|
|
PM 552ED |
|
3/20A |
39A* |
3/26A* |
43A** |
3/29A* |
37A* |
3/25A* |
3/17A |
|
|
PM 552ED-1 |
|
3/20A |
- |
3/34A* |
53A** |
3/37A* |
46A* |
3/32A* |
3/17A |
|
|
PM 552ED-2 |
|
3/20A |
- |
3/34A* |
64A** |
3/37A* |
55A* |
3/32A* |
3/17A |
|
Electrical connection - Double width
Power and fuse ratings per oven
Model |
400V 3N |
230V 1N |
230V 3AC |
208V 1AC |
208V 3AC |
240V 1N |
240V 3AC |
480V 3N |
PM 351ED-DW |
3/10A |
20A* |
3/13A* |
22A* |
3/15A* |
19A* |
3/13A* |
3/8A |
PM 351ED-1DW |
3/10A |
29A* |
3/17A* |
32A* |
3/19A* |
28A* |
3/17A* |
3/9A |
PM 352ED-DW |
3/15A* |
20A** |
3/13A** |
43A* |
3/29A** |
38A* |
3/25A* |
3/16A* |
PM 352ED-1DW |
3/20A* |
29A** |
3/17A** |
54A* |
3/37A** |
47A* |
3/32A* |
3/16A* |
PM 352ED-2DW |
3/20A* |
29A** |
3/17A** |
64A* |
3/37A** |
56A* |
3/32A* |
3/16A* |
PM 401ED-DW |
3/14A |
27A* |
3/18A* |
29A* |
3/20A* |
26A* |
3/17A* |
3/11A |
PM 401ED-1DW |
3/14A |
40A* |
3/23A* |
44A* |
3/26A* |
38A* |
3/22A* |
3/11A |
PM 402ED-DW |
3/20A* |
27A** |
3/18A** |
59A* |
3/39A** |
51A* |
3/34A* |
3/22A* |
PM 402ED-1DW |
3/27A* |
40A** |
3/23A** |
73A* |
3/50A** |
63A* |
3/44A* |
3/22A* |
PM 402ED-2DW |
3/27A* |
40A** |
3/23A** |
87A* |
3/51A** |
76A* |
3/44A* |
3/22A* |
PM 451ED-DW |
3/16A |
32A* |
3/21A* |
35A* |
3/23A* |
31A* |
3/20A* |
3/13A |
PM 451ED-1DW |
3/16A |
- |
3/27A* |
52A* |
3/30A* |
45A* |
3/26A* |
3/14A |
PM 452ED-DW |
3/24A* |
32A** |
3/21A** |
70A* |
3/46A** |
61A* |
3/40A* |
3/26A* |
PM 452ED-1DW |
3/32A* |
- |
3/27A** |
87A* |
3/60A** |
75A* |
3/52A* |
3/27A* |
PM 452ED-2DW |
3/32A* |
- |
3/27A** |
104A* |
3/60A** |
90A* |
3/52A* |
3/27A* |
*Model not provided with a power supply cable.
**This model requires 2 separately electrical connections each protected with indicated fuse. Model not provided with a power supply cable.
***Models possible to connect both to 230V 3~ and 400V 3N is not provided with a power supply cable.
On request ovens can be delivered with different Voltage than above.
6 |
PizzaMaster® |
Loading...
