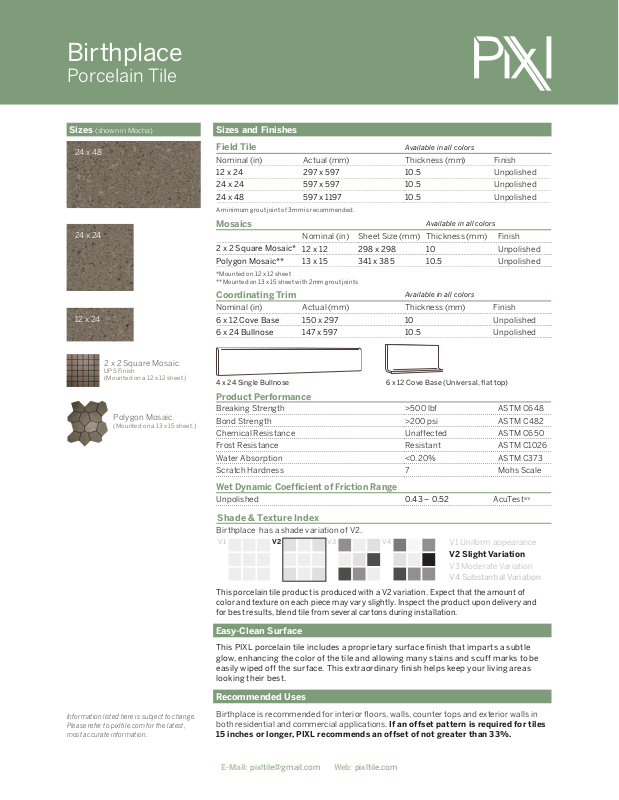

Page 1
Birthplace
Porcelain Tile
Sizes (shown in Mocha) Sizes and Finishes
24 x 48
24 x 24
12 x 24
Field Tile
Nominal (in) Actual (mm) Thickness (mm) Finish
12 x 24 297 x 597 10.5 Unpolished
24 x 24 597 x 597 10.5 Unpolished
24 x 48 597 x 1197 10.5 Unpolished
A minimum grout j oint of 3mm is reco mmended.
Mosaics
2 x 2 Square Mosaic*
Polygon Mosaic** 13 x 15 341 x 385 10.5
*Moun ted on 12 x 12 shee t
**Mounted on 1 3 x 15 sheet with 2 mm grout joint s
Coordinating Trim
Nominal (in) Actual (mm) Thickness (mm) Finish
6 x 12 Cove Base
6 x 24 Bullnose 147 x 597 10.5
Available in all colors
Available in all colors
Nominal (in) Sheet Size (mm) Thickness (mm) Finish
12 x 12 298 x 298 10 Unpolished
Unpolished
Available in all colors
150 x 297 10 Unpolished
Unpolished
2 x 2 Square Mosaic
UPS Fin ish
(Mounted on a 12 x 1 2 sheet.)
Polygon Mosaic
(Mounted on a 13 x 1 5 sheet.)
4 x 24 Single Bullnose 6 x 12 Cove Base (Universal, flat top)
Product Performance
Breaking Strength >500 lbf ASTM C648
Bond Strength >200 psi ASTM C482
Chemical Resistance Unaffected ASTM C650
Frost Resistance Resistant ASTM C1026
Water Absorption <0.20% ASTM C373
Scratch Hardness 7 Mohs Scale
Wet Dynamic Coefficient of Friction Range
Unpolished 0.43 – 0.52 Ac uTest
sm
Shade & Texture Index
Birthplace has a shade variation of V2.
V2 V3 V4V1
This porcelain tile product is produced with a V2 variation. Expect that the amount of
color and texture on each piece may vary slightly. Inspect the product upon delivery and
for best results, blend tile from several cartons during installation.
V1 Uniform appearance
V2 Slight Variation
V3 Moderate Variation
V4 Substantial Variation
Easy-Clean Surface
This PIXL porcelain tile includes a proprietary sur face finish that imparts a subtle
glow, enhancing the color of the tile and allowing many stains and scuff marks to be
easily wiped off the surface. This extraordinary finish helps keep your living areas
looking their best.
Information listed here is subject to change.
Please refer to pixltile.com for the latest,
most accurate information.
Recommended Uses
Birthplace is recommended for interior floors, walls, counter tops and exterior walls in
both residential and commercial applications. If an offset pattern is required for tiles
15 inches or longer, PIXL recommends an offset of not greater than 33%.
E-Mail: [email protected] Web: pixltile.com
Page 2
Birthplace
Porcelain Tile
Available Colors
LinenFrost
Cloud Pewter
Mocha
Paying to tribute to the ancient art
of marble remnant reuse, terrazzo
is reborn in Birthplace. These
subtle, nature-inspired, tone on
tone visuals renders a modern
terrazzo look allowing you to create
an uninhibited design. As light
passes across the tiles, catch a
glimpse of shine. The dual finish
process makes this interpretation
an elegant and timeless visual.
Features and Benefits
• Available in 5 colors with a
modern Terrazzo design.
• Incorporates a single finish
that combines matte and shine
for a shimmering aesthetic
reminiscent of the natural
terrazzo from ancient Italy.
• Cove base and bullnose trim
allow for fully finished looks.
• Coordinating 2x2 and unique
12-piece polygon mosaic
• Made in the USA
E-Mail: [email protected] Web: pixltile.com
Floor: Cloud 24 x 48 Unpolished
