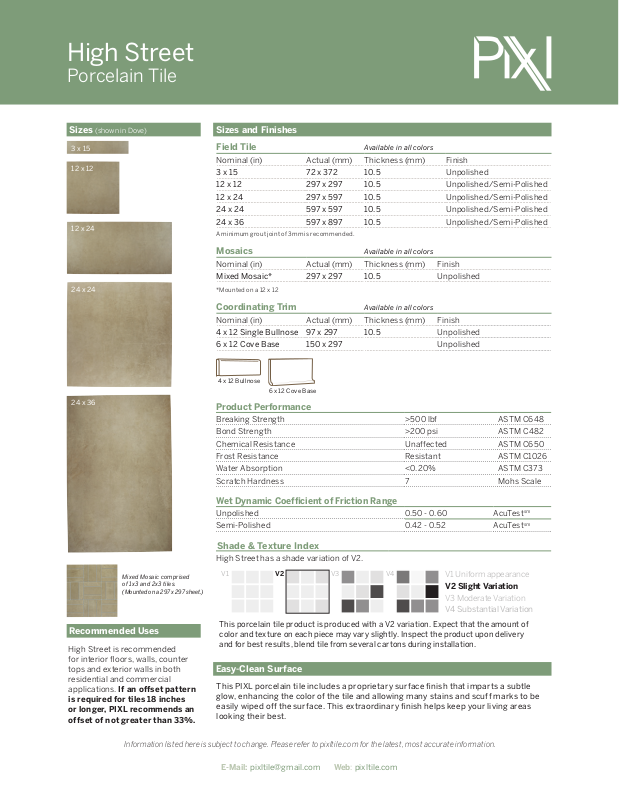

Page 1
High Street
Porcelain Tile
Sizes (shown in Dove) Sizes and Finishes
3 x 15
12 x 12
12 x 24
Field Tile
Nominal (in) Actual (mm) Thickness (mm) Finish
3 x 15 72 x 372 10.5 Unpolished
12 x 12 297 x 297 10.5 Unpolished/Semi-Polished
12 x 24 297 x 597 10.5 Unpolished/Semi-Polished
24 x 24 597 x 597 10.5 Unpolished/Semi-Polished
24 x 36 597 x 897 10.5 Unpolished/Semi-Polished
A minimum grout j oint of 3mm is reco mmended.
Available in all colors
24 x 24
24 x 36
Mosaics
Nominal (in) Actual (mm) Thickness (mm) Finish
Mixed Mosaic* 297 x 297 10.5 Unpolished
*Moun ted on a 12 x 12
Coordinating Trim
Nominal (in) Actual (mm) Thickness (mm)
4 x 12 Single Bullnose 97 x 297 10.5 Unpolished
6 x 12 Cove Base 150 x 297 Unpolished
4 x 1 2 Bullnose
6 x 12 Cove Base
Available in all colors
Available in all colors
Finish
Product Performance
Breaking Strength >500 lbf ASTM C64 8
Bond Strength >200 psi ASTM C482
Chemical Resistance Unaffected ASTM C650
Frost Resistance Resistant ASTM C1026
Water Absorption <0.20% ASTM C373
Scratch Hardness 7 Mohs Scale
Wet Dynamic Coefficient of Friction Range
Unpolished
Semi-Polished
0.50 - 0.60 Ac uTest
0.42 - 0.52 Ac uTest
sm
sm
Mixed Mosaic comprised
of 1x3 and 2x3 tiles.
(Mounted on a 297 x 297 sheet.)
Recommended Uses
High Street is recommended
for interior floors, walls, counter
tops and exterior walls in both
residential and commercial
applications. If an offset pattern
is required for tiles 18 inches
or longer, PIXL recommends an
offset of not greater than 33%.
Information listed here is subject to change. Please refer to pixltile.com for the latest, most accurate information.
Shade & Texture Index
High Street has a shade variation of V2.
V2 V3 V4V1
V1 Uniform appearance
V2 Slight Variation
V3 Moderate Variation
V4 Substantial Variation
This porcelain tile product is produced with a V2 variation. Expect that the amount of
color and texture on each piece may vary slightly. Inspect the product upon delivery
and for best results, blend tile from several cartons during installation.
Easy-Clean Surface
This PIXL porcelain tile includes a proprietary sur face finish that imparts a subtle
glow, enhancing the color of the tile and allowing many stains and scuff marks to be
easily wiped off the surface. This extraordinary finish helps keep your living areas
looking their best.
E-Mail: [email protected] Web: pixltile.com
Page 2
High Street
Porcelain Tile
Available Colors
Cotton
Dove
Steel
Champagne
Taupe
Strut your stuff on the main street of town with High
Street. Based on today’s concrete trim, with none of
the staining or maintenance, this look is nothing but
high style.
Features and Benefits
• Take the city by storm with distinct concrete visuals that
deliver urban sophistication with a level of endurance
true concrete can’t offer
• From modular sizing, mosaics, and brick plank looks,
High Street lets you design a space with your own
uptown flair
• Complete trim package with bullnose and cove base and
including mosaics suitable for shower floors
• For even more design flexibilty, High Street blends
perfectly with PIXL’s Harmony Grove wood-look
porcelain tile
• Made in the USA
Charcoal
E-Mail: [email protected] Web: pixltile.com
