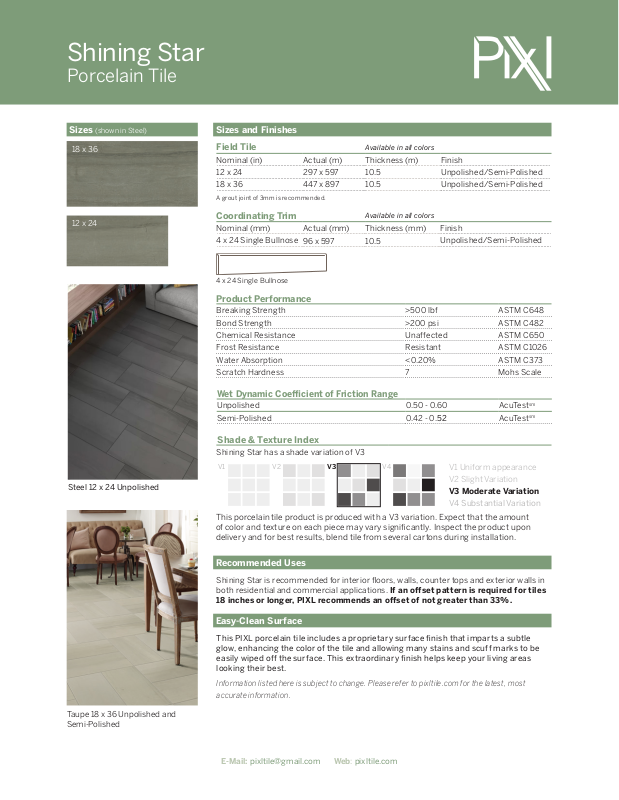

Page 1
Shining Star
Porcelain Tile
Sizes (shown in Steel) Sizes and Finishes
18 x 36
Field Tile
Nominal (in) Actual (m)
12 x 24 297 x 597 10.5 Unpolished/Semi-Polished
18 x 36 447 x 897 10.5 Unpolished/Semi-Polished
A grout jo int of 3mm is recom mended.
Available in all colors
Thickness (m)
Finish
12 x 24
Steel 12 x 24 Unpolished
Coordinating Trim
Nominal (mm) Actual (mm) Thickness (mm)
4 x 24 Single Bullnose
4 x 24 Single Bullnose
96 x 597 10.5
Available in all colors
Finish
Unpolished/Semi-Polished
Product Performance
Breaking Strength >500 lbf ASTM C64 8
Bond Strength >200 psi ASTM C482
Chemical Resistance Unaffected ASTM C650
Frost Resistance Resistant ASTM C1026
Water Absorption <0.20% ASTM C373
Scratch Hardness 7 Mohs Scale
Wet Dynamic Coefficient of Friction Range
Unpolished 0.50 - 0.60 A cuTest
Semi-Polished 0.42 - 0.52 Ac uTest
sm
sm
Shade & Texture Index
Shining Star has a shade variation of V3
V2 V3 V4V1
This porcelain tile product is produced with a V3 variation. Expect that the amount
of color and texture on each piece may vary significantly. Inspect the product upon
delivery and for best results, blend tile from several cartons during installation.
V1 Uniform appearance
V2 Slight Variation
V3 Moderate Variation
V4 Substantial Variation
Taupe 18 x 36 Unpolished and
Semi-Polished
Recommended Uses
Shining Star is recommended for interior floors, walls, counter tops and exterior walls in
both residential and commercial applications. If an offset pattern is required for tiles
18 inches or longer, PIXL recommends an offset of not greater than 33%.
Easy-Clean Surface
This PIXL porcelain tile includes a proprietary sur face finish that imparts a subtle
glow, enhancing the color of the tile and allowing many stains and scuff marks to be
easily wiped off the surface. This extraordinary finish helps keep your living areas
looking their best.
Information listed here is subject to change. Please refer to pixltile.com for the latest, most
accurate information.
E-Mail: [email protected] Web: pixltile.com
Page 2
Shining Star
Porcelain Tile
Available Colors
Cotton Unpolished Cotton Semi-Polished Taupe Unpolished Taupe Semi-Polished
Pewter Unpolished Pewter Semi-Polished Steel Semi-PolishedSteel Unpolished
Shining Star takes its inspiration from the lunar
landscapes in our solar system. The result is soft,
direction, tone on tone veining for a décor that is out of
this world
Features and Benefits
• Celestial beauty meets earthly sensibility in this
domestically produced, rectified tile
• Available in both unpolished and semi-polished
finishes, unique and open veining provides a graceful,
organic counterpoint to a classic background of warm
and cool neutrals
Champagne Unpolished Champagne Semi-Polished
E-Mail: [email protected] Web: pixltile.com
• Made in the USA
