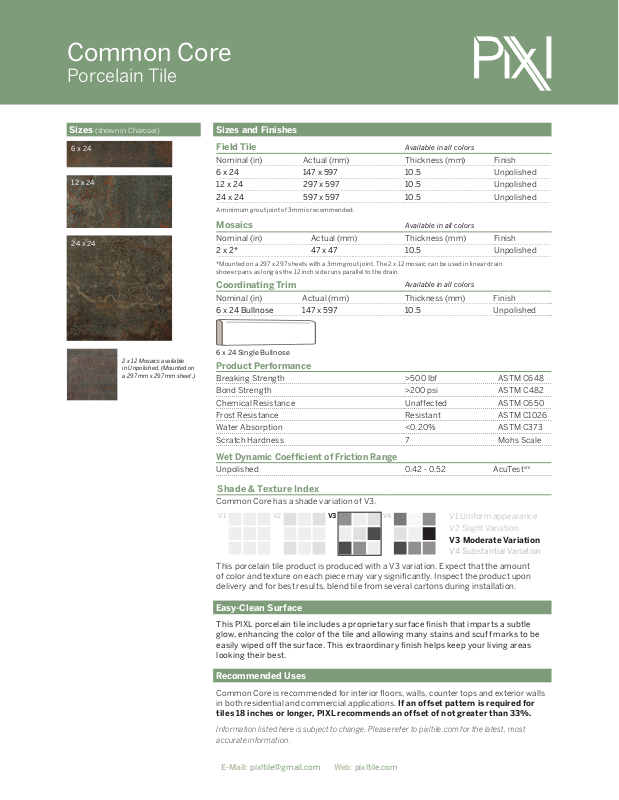

Page 1
Common Core
Availabl e in all colors
Availabl e in all colors
2 x 12 Mosaics available
in UPS. (Mounted on a
297 mm x 297 mm sheet.)
Sizes & Finishes
Field Tile
Available in all colors
Nominal (in) Actual (mm) Thickness (mm) Finish
6 x 24 147 x 597 10.5 UPS
12 x 24 297 x 597 10.5 UPS
24 x 24 597 x 597 10.5 UPS
Wet Dynamic Coefficient of Friction Range
UPS 0.42 - 0.52 AcuTest
sm
Note: All field tile is rectified and modular with a minimum 3mm grout joint.
Actual measurements stated in inches indicate tile is calibrated (non-rectified).
Actual measurements stated in mm indicated tile is rectified.
Please Note: Tile is directional. Please install accordingly.
Coordinating Trim
Available in all colors
Nominal (in) Actual (mm) Thickness (mm) Finish
6 x 24 Single Bullnose 147 x 597 10.5 UPS
6 x 24 Single Bullnose
Mosaics
Available in all colors
Nominal (in) Actual (mm) Thickness (mm) Finish
2 x 12* 47 x 297 10.5 UPS
* Sheet mounted on 297 x 297 with 3mm grout joint.
24 x 24
12 x 24
6 x 24
Porcelain Tile
Sizes (shown in Charcoal) Sizes and Finishes
6 x 24
12 x 24
24 x 24
Field Tile
Nominal (in) Actual (mm) Thickness (mm) Finish
6 x 24 147 x 597 10.5 Unpolished
12 x 24 297 x 597 10.5 Unpolished
24 x 24 597 x 597 10.5 Unpolished
A minimum grout j oint of 3mm is reco mmended.
Mosaics
Nominal (in) Actual (mm) Thickness (mm) Finish
2 x 2* 47 x 47 10.5 Unpolished
*Moun ted on a 297 x 297 sheet s with a 3mm grou t joint. The 2 x 12 m osaic can be us ed in linear dra in
shower p ans as long as the 1 2 inch side run s parallel to the d rain.
Coordinating Trim
Nominal (in) Actual (mm) Thickness (mm)
6 x 24 Bullnose 147 x 597 10.5 Unpolished
Available in all colors
Available in all colors
Available in all colors
Finish
2 x 12 Mosaics available
in Unpolished. (Mounted on
a 297 mm x 297 mm sheet.)
6 x 24 Single Bullnose
Product Performance
Breaking Strength >500 lbf ASTM C648
Bond Strength >200 psi ASTM C482
Chemical Resistance Unaffected ASTM C650
Frost Resistance Resistant ASTM C1026
Water Absorption <0.20% ASTM C373
Scratch Hardness 7 Mohs Scale
Wet Dynamic Coefficient of Friction Range
Unpolished 0.42 - 0.52 Ac uTest
sm
Shade & Texture Index
Common Core has a shade variation of V3.
V2 V3 V4V1
V1 Uniform appearance
V2 Slight Variation
V3 Moderate Variation
V4 Substantial Variation
This porcelain tile product is produced with a V3 variation. Expect that the amount
of color and texture on each piece may vary significantly. Inspect the product upon
delivery and for best results, blend tile from several cartons during installation.
Easy-Clean Surface
This PIXL porcelain tile includes a proprietary sur face finish that imparts a subtle
glow, enhancing the color of the tile and allowing many stains and scuff marks to be
easily wiped off the surface. This extraordinary finish helps keep your living areas
looking their best.
Recommended Uses
Common Core is recommended for interior floors, walls, counter tops and exterior walls
in both residential and commercial applications. If an offset pattern is required for
tiles 18 inches or longer, PIXL recommends an offset of not greater than 33%.
Information listed here is subject to change. Please refer to pixltile.com for the latest, most
accurate information.
E-Mail: [email protected] Web: pixltile.com
Page 2
Common Core
Porcelain Tile
Available Colors
Chalk Pewter Steel
The beauty of elemental metals
are at the core of this anything but
common porcelain collection.
Features and Benefits
• Artfully mimicking the beauty of
iron, Common core melds strength
and style beautifully in Pixl’s newest
metallurgic look
• Achieve the look of priceless
materials enriched by the passage
of time, in precisely crafted,
porcelain tile
CharcoalCopper
• Made in the USA
E-Mail: [email protected] Web: pixltile.com
Copper 6 x 24 and 24 x 24Steel 24 x 24
