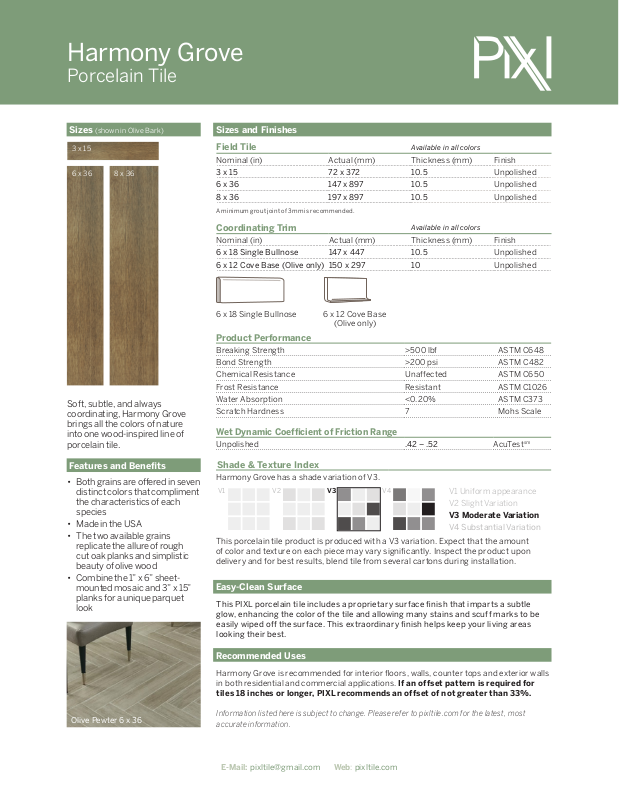

Page 1
Harmony Grove
Porcelain Tile
Sizes (shown in Olive Bark) Sizes and Finishes
3 x 15
6 x 36 8 x 36
Field Tile
Nominal (in) Actual (mm)
3 x 15 72 x 372 10.5 Unpolished
6 x 36 147 x 897 10.5 Unpolished
8 x 36 197 x 897
A minimum grout j oint of 3mm is reco mmended.
Available in all colors
Thickness (mm) Finish
10.5 Unpolished
Soft, subtle, and always
coordinating, Harmony Grove
brings all the colors of nature
into one wood-inspired line of
porcelain tile.
Features and Benefits
• Both grains are offered in seven
distinct colors that compliment
the characteristics of each
species
• Made in the USA
• The two available grains
replicate the allure of rough
cut oak planks and simplistic
beauty of olive wood
• Combine the 1” x 6” sheetmounted mosaic and 3” x 15”
planks for a unique parquet
look
Coordinating Trim
Nominal (in) Actual (mm) Thickness (mm)
6 x 18 Single Bullnose 147 x 447 10.5
6 x 12 Cove Base (Olive only) 150 x 297 10
6 x 18 Single Bullnose 6 x 12 Cove Base
(Olive only)
Available in all colors
Finish
Unpolished
Unpolished
Product Performance
Breaking Strength >500 lbf ASTM C64 8
Bond Strength >200 psi ASTM C482
Chemical Resistance Unaffected ASTM C650
Frost Resistance Resistant ASTM C1026
Water Absorption <0.20% ASTM C373
Scratch Hardness 7 Mohs Scale
Wet Dynamic Coefficient of Friction Range
Unpolished .42 – .52 Ac uTest
sm
Shade & Texture Index
Harmony Grove has a shade variation of V3.
V2 V3 V4V1
This porcelain tile product is produced with a V3 variation. Expect that the amount
of color and texture on each piece may vary significantly. Inspect the product upon
delivery and for best results, blend tile from several cartons during installation.
V1 Uniform appearance
V2 Slight Variation
V3 Moderate Variation
V4 Substantial Variation
Easy-Clean Surface
This PIXL porcelain tile includes a proprietary sur face finish that imparts a subtle
glow, enhancing the color of the tile and allowing many stains and scuff marks to be
easily wiped off the surface. This extraordinary finish helps keep your living areas
looking their best.
Olive Pewter 6 x
36
Recommended Uses
Harmony Grove is recommended for interior floors, walls, counter tops and exterior walls
in both residential and commercial applications. If an offset pattern is required for
tiles 18 inches or longer, PIXL recommends an offset of not greater than 33%.
Information listed here is subject to change. Please refer to pixltile.com for the latest, most
accurate information.
E-Mail: [email protected] Web: pixltile.com
Page 2
Harmony Grove
Porcelain Tile
Available Colors
Olive Cotton
Olive Bark
Olive Champagne
Olive Greige
Olive Pewter
Features and Benefits
Olive Chocolate
Olive Charcoal
E-Mail: [email protected] Web: pixltile.com
Page 3
Harmony Grove
Porcelain Tile
Available Colors
Oak Cotton
Oak Bark
Oak Champagne
Oak Greige
Oak Pewter
Oak Chocolate
Oak Charcoal
E-Mail: [email protected] Web: pixltile.com
Page 4
Harmony Grove
Porcelain Tile
Available Colors

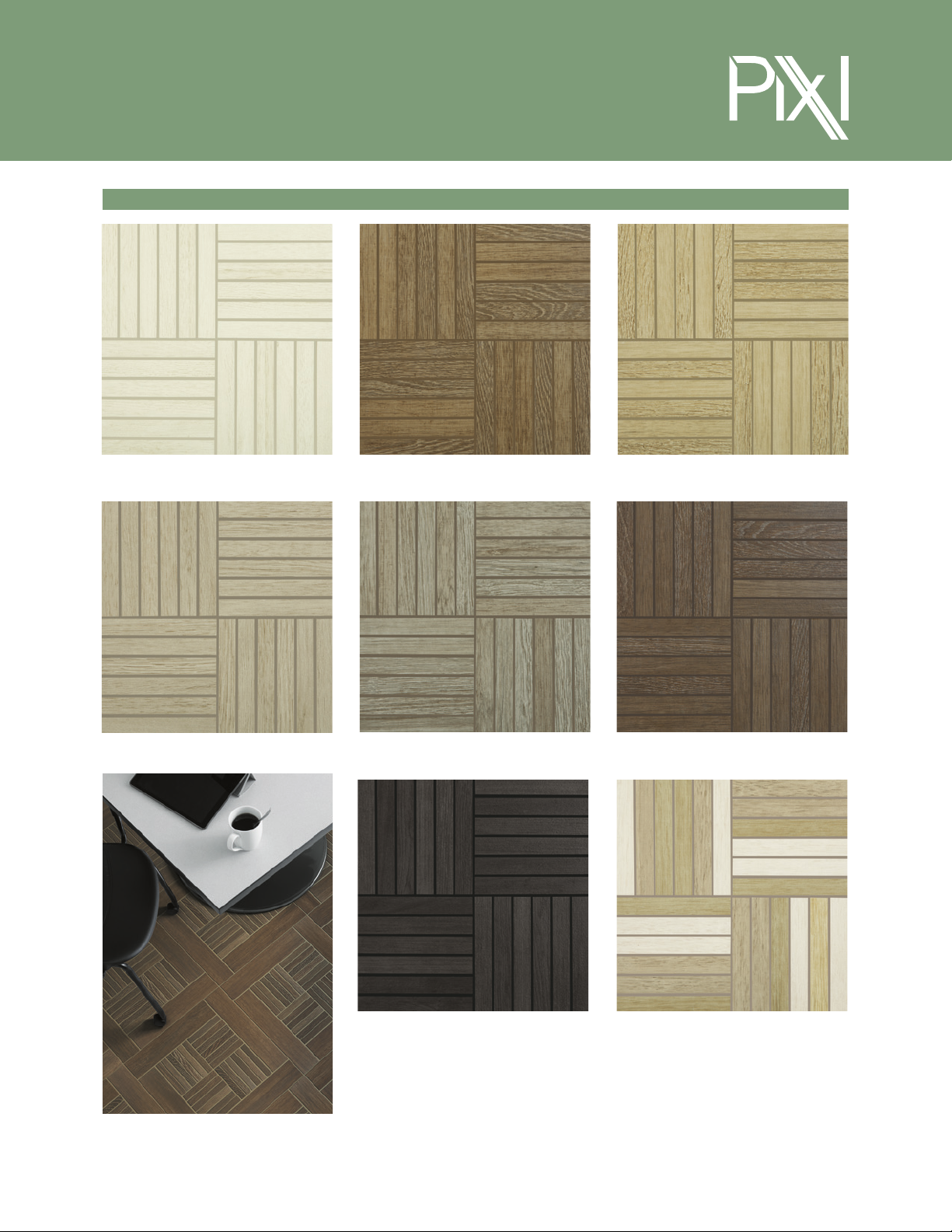

Cotton in Oak and Olive MIX 1 x 6 Mosaics
Greige in Oak and Olive Mix 1 x 6 Mosaics
Bark in Oak and Olive Mix 1 x 6 Mosaics
Pewter in Oak and Olive Mix 1 x 6 Mosaics
Champagne in Oak and Olive Mix 1 x 6
Mosaics
Chocolate in Oak and Olive Mix 1 x 6 Mosaics
Chocolate in Oak and Olive Mix 1 x 6 Mosaics
Charcoal in Oak and Olive Mix 1 x 6 Mosaics
E-Mail: [email protected] Web: pixltile.com
Cotton, Blissful, and
1 x 6 Mosaics
Champagne
in Olive Mix
