Pixio PX347C User Manual

Download

Page 1

Page 2

Page 3

I. Safety Prevention Measures

Please always place this device on a stable surface; otherwise, it may fall and be damaged.

When cleaning the device, be sure to remove the powerplug , use a piece of soft cloth rather than industrial chemical to clean the device, be sure not to let water enter the device.

The altitude and the tropical environment the adapter fits depend on which adapter is used for the device. The rating plate on the back of the device with the above warning sign indicates that this productis applicable for the safe use of the region with altitude of 2,000m and below.

Do not disassemble this device without permission. In case of failure, be sure to contact a profesional servicing person to fix it. The authorized disassembly of this device may result in electric shock or fire.

Do not hold the plug with wethand ; otherwise, electric shock may occur. Make sure the plug has a good touch because poor touch may cause fire.

In case of rare smell or noise out of this device, be sure to immediately cut off the power supply and ask a professional servicing person to fix the problem.

Do not use a broken power plug nor keep a power cord near heat source; otherwise, electric shock or fire may occur.

When this device is idle for long time, be sure to power it off; otherwise, electric shock or fire may occur.

Note: The device with AC switch may use such AC switch as cut-off component. The device without AC switch may use power plug or coupler as cut-off component. In case of the normal use of the equipment, make sure the cut-off component can be accessed easily.

All specifications and informations are subject to change without notice.

-1-

Page 4

II. Installation Instructions

1. Accessories

Power cord

Base/Stand

Warranty card and

Signal cable

User manual

(The above pictures are for illustration only and the physical accessories shall govern.)

2. Angle Adjustment

2.1 The screen can be adjusted by inclining forward and backward; however, the specific adjustment depends on the specific model of the device. Generally, it may be inclined 5±2° forward and 15±2° backward.

certificate of conformity

2.2 When adjusting the angle of the monitor, be sure not to touch or press the area of the screen.

(The above pictures are for illustration only and the physical accessories shall govern.)

All specifications and informations are subject to change without notice.

-2-

Page 5

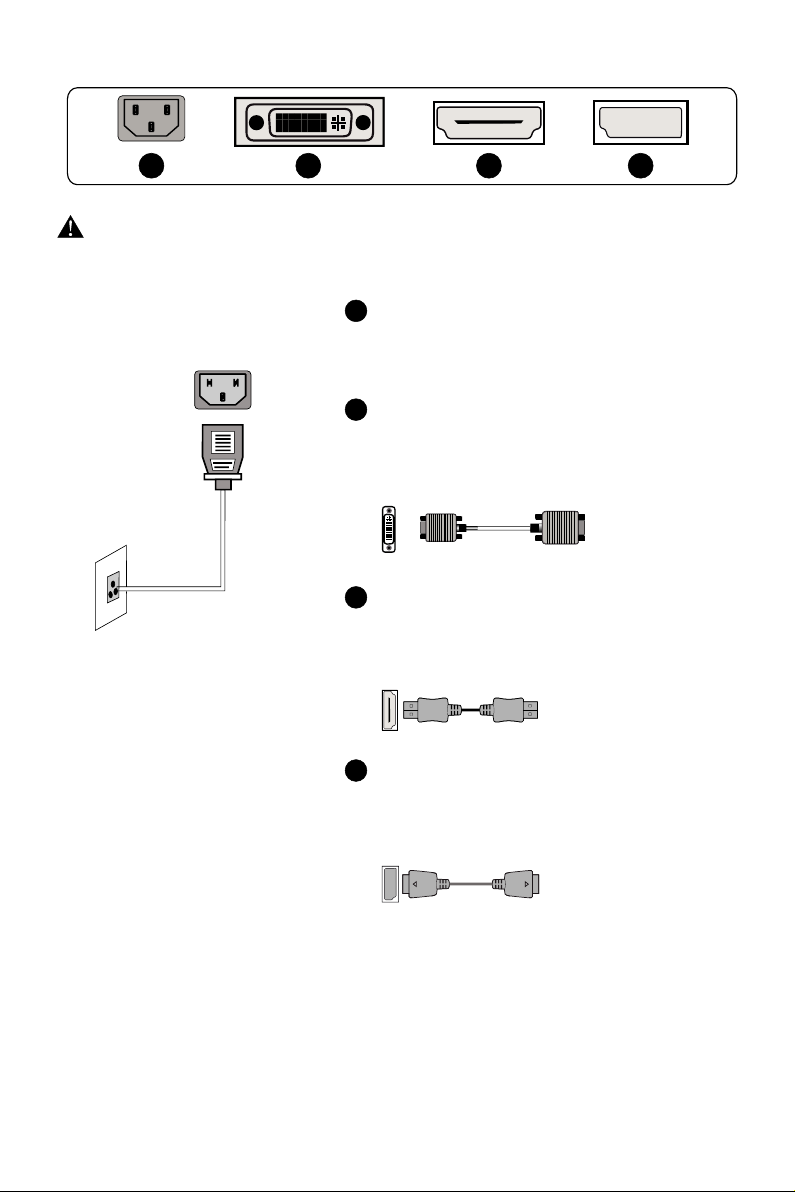

III. Connect the Monitor to PC

Before connecting the LCD monitor to PC, please power the PC and the monitor

Power Plug Connect the power cord of the monitor into the POWER port in the back of the monitor.

DVI Port Connect the DVI cable into the DVI IN port in the back of the monitor (this needs the support of the monitor).

HDMI Port Connect the HDMI cable into the HDMI IN port into the back of the monitor (this needs

Model with inbuilt power supply

* Warning: Always use the power cord of standard configuration.

the support of the monitor).

DP Port Connect the DP cable into the DP IN port of the monitor (this needs the support of the monitor).

(The above pictures are for illustration only and the physical accessories shall govern.)

All specifications and informations are subject to change without notice.

-3-

Page 6

IV. User Setup

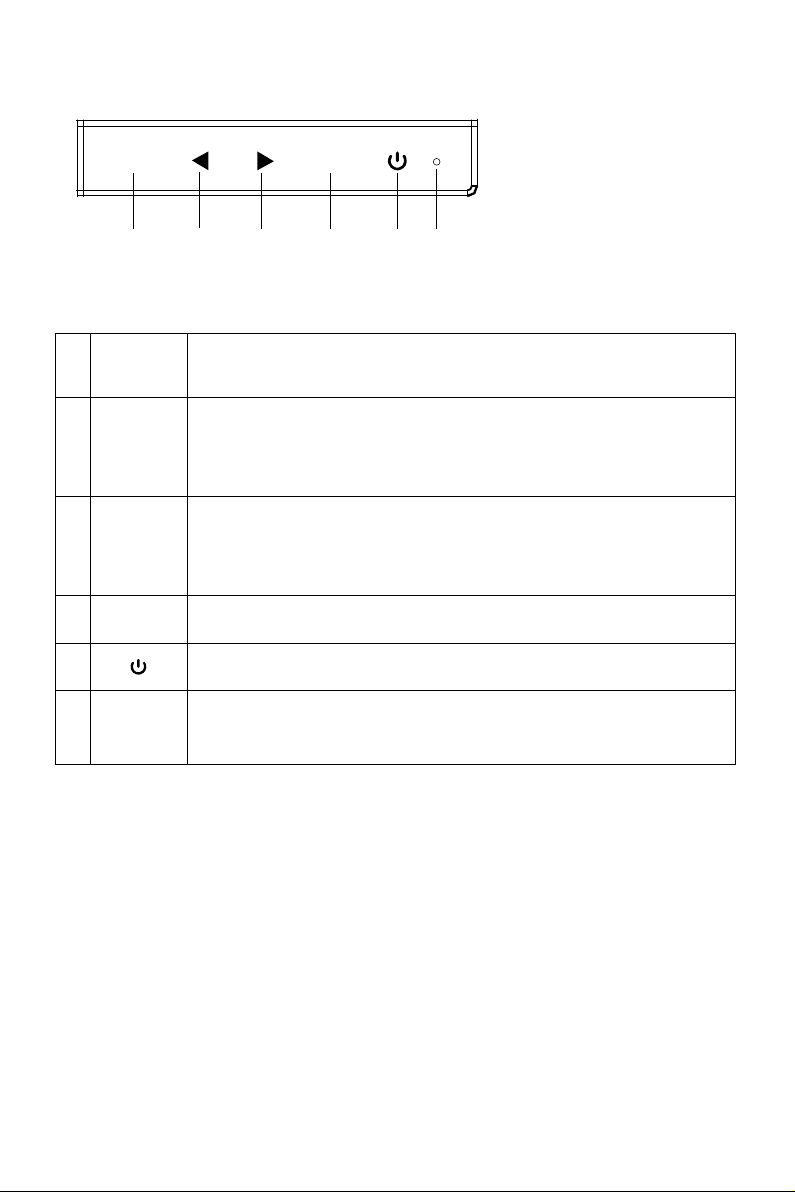

1. Schematic Diagram of Keys

1 2 3 4 5 6

2. Description of Keys' Functions

▲

LE D indicator light

Pops up the menu/Ba cks to the prev ious me nu ( in case o f ma in me nu, exits from the whole me n u) .

▲

Whe n the menu is a ctiva ted, u s e d as the left fun ction se l e ction ke y, an d decrea ses progr ess ive ly the val ue of the pr ogre s s ba r.

Wh en the me nu is a ctiv ated, use d as the r ight function se lection ke y, an d increas es progre ssi vel y the value of th e pr ogres s ba r; when the me n u i s inactiva te d, u s e d as t he spe cifi e d shor tcu t m ode h ot ke y ( F P S/RTS mode) .

If th e men u is activa te d, chooses the corre s pondi ng fun

Powe r switch: P owers on/off the moni tor.

Blue: in normal swi tch-on state; flicke ring in blue : in power-saving state .

ction.

Note: The physical keys of the specific model shall govern.

All specifications and informations are subject to change without notice.

-4-

Page 7

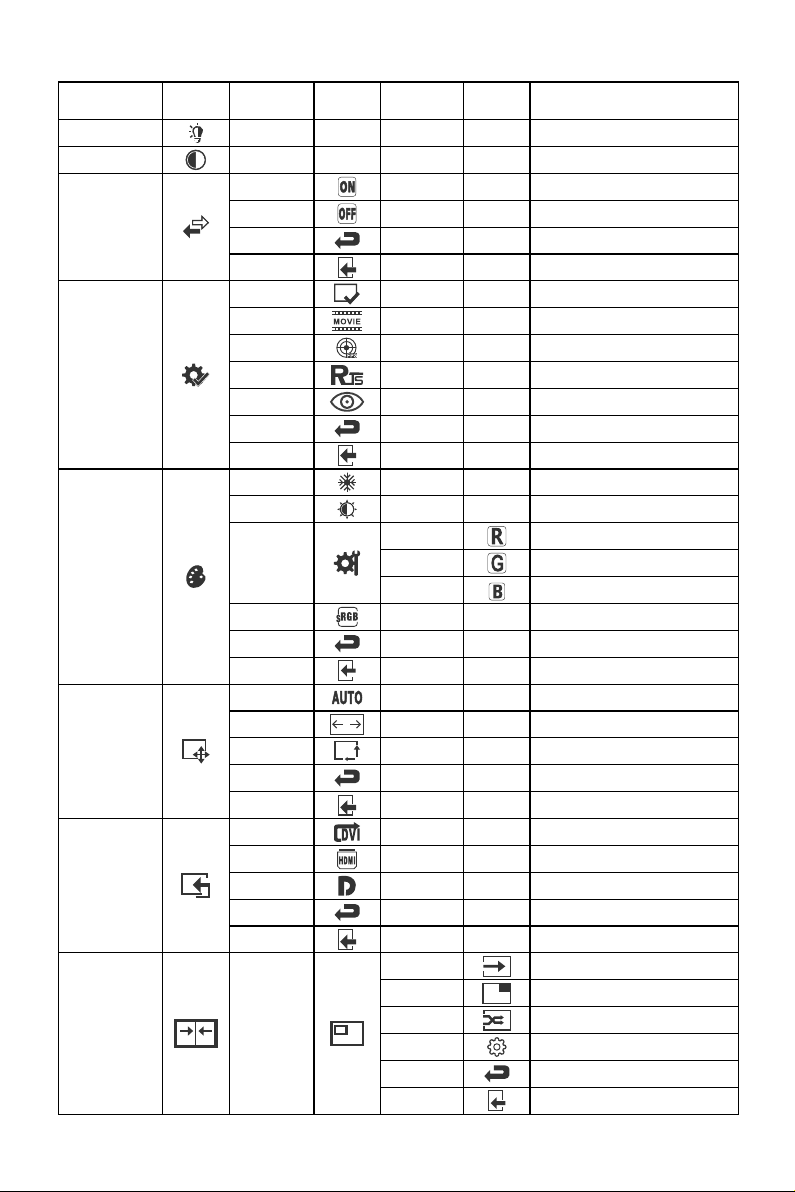

V. Operation Menu (OSD) Function Descriptions

Mai n Men u

It em

Brightness

Contrast

DCR

Mode

Color Temp.

Aspect

Input

MultiWindow

Main Men u

Ic o n

PIP PBP

Su bme n u

NONE

Return

Standard

Movie

EyeSa ver

Return

Warm

SRGB

Return

It em

Off

Exit

FPS

RTS

Exit

Cool

User

Exit

Auto

21:9

4:3

Exit

DVI

HDMI

Exit

PIP

Main Men u

Ic o n

NONE

Su bme n u

Op ti on s

NONE

Red

Green

Blue

NONE

SwapInput

WindowSwap

PIPPOS

Reset

Return

Exit

Main Men u

NONE

De s cr ipti on

Ic o n

Adj us t displa y bri gh tne ss

Adjust display contrast

Activate dynamic contrast

Inactive dynamic contrast

Return to the previous menu

Exit from the whole menu

Normal work mode

Movie mode

FPS game mode

RTS game mode

Eye protection ray filter application mode

Return to the previous menu

Exit from the whole menu

Set as cold color temperature

Set as warm color temperature

Fine tuning of red color temperature

Fine tuning of green color temperature

Fine tuning of blue color temperatur

SET TO SRGB

Return to the previous menu

Exit from the whole menu

Automatically adjust picture aspect ratio

Picture in 21:9 mode

Picture in 4:3 mode

Return to the previous menu

Exit from the whole menu

DVI (digital) signal input

HDMI (digital) signal input

Display port (digital) signal input

Return to the previous menu

Exit from the whole menu

Switching signal source

Change the picture in picture display position

Home screen and the picture in picture singnal source interchange

Reset the window display

Return to the previous menu

Exit from the whole menu

All specifications and informations are subject to change without notice.

-5-

Page 8

Mai n Men u

It em

Main Men u

Ic o n

Su bme n u

PBP2WIN

MultiWindow

PIP

PBP

Language

Power Off

Other

Over driver

FreeSync

Gamma

Return

Exit

Note: The functions may be adjusted due to specific model or the upgrade of software version. The physical model shall govern.

NONE

All specifications and informations are subject to change without notice.

It em

Reset

Return

Exit

Reset

Exit

Main Men u

Ic o n

NONE

Su bme n u

Op ti on s

Win1Input

Win2Input

Reset

Return

Exit

NONE

English

Française

Deutsch

Italiano

Español

한국어

Return

Exit

Off

Return

Exit

YES

Return

Exit

Off

Return

Exit

Off

Return

Exit

Gamma1

Gamma2

Return

Exit

NONE

Main Men u

Ic o n

NONE

English

Française

Deutsch

Italiano

Español

한국어

NONE

De s cr ipti on

Switch split screen 1 signal source

Switch split screen 2 signal source

Reset the window display

Return to the previous menu

Exit from the whole menu

Reset the window display

Return to the previous menu

Exit from the whole menu

English

Française

Deutsch

Italiano

Español

한국어

Return to the previous menu

Exit from the whole menu

Automatically turn off after saving power for 1s

Inactivate the function of timed switch-off

Return to the previous menu

Exit from the whole menu

Reset to factory setup

Exit from this function

Return to the previous menu

Exit from the whole menu

Activate OD function (this needs the support of the monitor)

Inactivate OD function (this needs the support of the monitor)

Return to the previous menu

Exit from the whole menu

Activate FreeSync function (this needs the support of the monitor)

Inactivate FreeSync function (this needs the support of the monitor)

Return to the previous menu

Exit from the whole menu

Adjust color tone brightness grey1

Adjust color tone brightness grey2

Return to the previous menu

Exit from the whole menu

Return to the previous menu

Exit from the whole menu

-6-

Page 9

1. PIP (Picture in Picture) Input Information

Picture in Picture

Main screen input source

HDMI

Additional Input S ource

DP HDMI DVI

Window

Swap


mode

DV I

Note:"O" means this feature is supported while "X" means it is not supported.

The above information is related to input options and the monitor's OSD Menu. For more information on these, refer to the "Basic Setup" and "OSD Menu" sections of the manual.

2. PBP (Picture by Picture) Resolution Information

When using the PBP function, certain resolution settings are recommended in order to prevent image deformation or other undesired visual effects. 1680x1050p is the recommended resolution setting for each window.

1680x1050p 1680x1050p

All specifications and informations are subject to change without notice.

-7-

1680x1050p

Page 10

VI. FAQ

Faults occurring

The power indicator light is not on

Impossible plug-and-play

Dimming picture

Flickering picture or picture with ripples

The power indicator light is on (flickering), but the monitor has no pictures.

Possible solutions

◆

Check if the power is on.

◆

Check if the power cord is connected.

◆

Check if the function of plug-and-play of the device is compatible with PC.

◆

Check if the display card is compatible with the plug-and-play function.

◆

Adjust brightness and contrast.

◆

There may be electrical appliances or equipment with electronic disturbance.

◆

Check if the PC power is on.

◆

Check if the PC display card is inserted properly.

◆

Check if the signal cable of the monitor is correctly connected with the PC.

◆

Check the signal cable plug of the monitor and make sure every pin has no bending.

◆

Observe the indicator light by pressing the Caps Lock key on the PC keyboard and check if the PC is working.

Color shortage (red, green and blue)

Picture with color difference (white looks not white)

All specifications and informations are subject to change without notice.

◆

Check the signal cable of the monitor and make sure every pin has no bending.

◆

Adjust RGB color or reselect color temperature.

-8-

Page 11

VII. Product Specifications

Diagonal dimensions

34"(86.36cm)

Ambient temperature

Humidity

Picture aspect ratio

21:09

Storage temperature

Working temperature

RH for operation

Picture dimensions (mm)

797.22*333.72

-20

℃ to 45℃

0℃ to 40℃

10% to 85%

Dot distance (mm)

0.07725*0.23175

Optimal resolution

3440*1440@60Hz

NNote: The actual application of the above parameters shall be subject to the specific model.

VIII. Table of Product Preset Modes

Display

dimensions

34"(WQHD)

Remark: When the resolution are 2560*1440@60Hz/3440*1440@60Hz/ 1920*1080@144Hz/2560*1440@144Hz/3840*2160@30Hz connection via DVI port, pls choose 24+1 pin double - channel DVI cables.

Aspect ratio

21:9

640x480

(60Hz)

800x600

(60Hz)

Pre set resolution/Refresh ra te

1680x1050

1024x768

(60Hz)

1280x1024

(60Hz)

1440x900

(60Hz)

1920x1080

(60Hz)

2560x1080

(60Hz)

3440x1440

(60Hz)

IX. System Requirements

Below are the minimum system requirements for your monitor. The requirements are recommended in order to properly use all of the monitor's features and ensure high-quality picture.

Minimum Requirements

Operating System: Windows® 7 / Windows® 8 / Windows® 10 64-bit (latest service pack) or higher Processor (CPU): Intel® Core™ i5 or AMD Phenom™ II X3 or higher Graphics Card: NVIDIA® GeForce® GTX 950 or AMD Radeon™ R9 380 or higher Memory: 6 GB RAM

*All trademarks and registered trade names are the property of their respective owners.

All specifications and informations are subject to change without notice.

-9-
