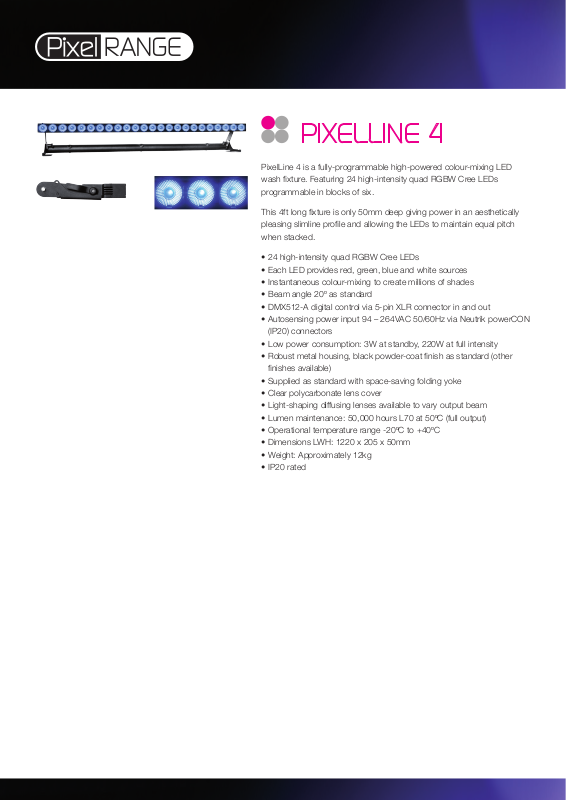

PixelLine 4 is a fully-programmable high-powered colour-mixing LED
wash xture. Featuring 24 high-intensity quad RGBW Cree LEDs
programmable in blocks of six.
This 4ft long xture is only 50mm deep giving power in an aesthetically
pleasing slimline prole and allowing the LEDs to maintain equal pitch
when stacked.
• 24 high-intensity quad RGBW Cree LEDs
• Each LED provides red, green, blue and white sources
• Instantaneous colour-mixing to create millions of shades
• Beam angle 20º as standard
• DMX512-A digital control via 5-pin XLR connector in and out
• Autosensing power input 94 – 264VAC 50/60Hz via Neutrik powerCON
(IP20) connectors
• Low power consumption: 3W at standby, 220W at full intensity
• Robust metal housing, black powder-coat nish as standard (other
nishes available)
• Supplied as standard with space-saving folding yoke
• Clear polycarbonate lens cover
• Light-shaping diffusing lenses available to vary output beam
• Lumen maintenance: 50,000 hours L70 at 50ºC (full output)
• Operational temperature range -20ºC to +40ºC
• Dimensions LWH: 1220 x 205 x 50mm
• Weight: Approximately 12kg
• IP20 rated
