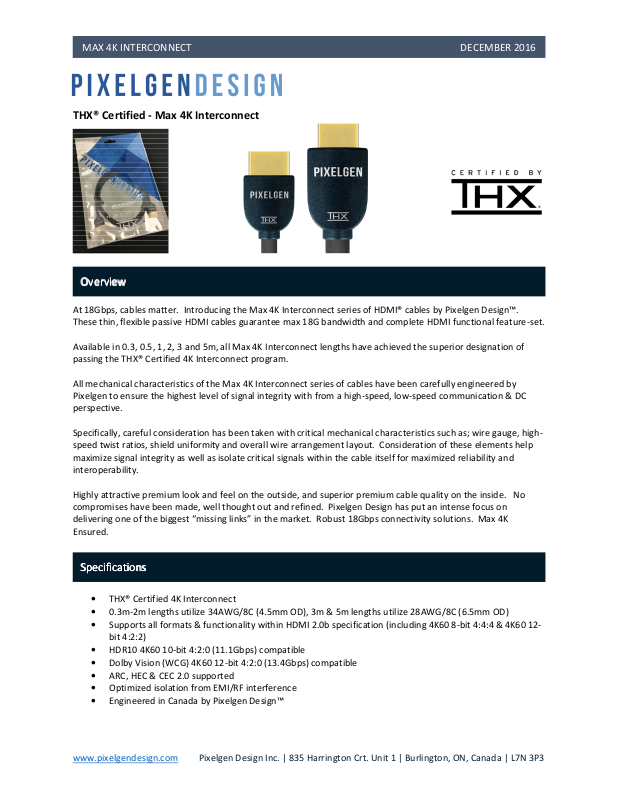

Page 1
MAX 4K INTERCONNECT
DECEMBER 201
6
THX® Certified - Max 4K Interconnect
Overview
Overview
OverviewOverview
At 18Gbps, cables matter. Introducing the Max 4K Interconnect series of HDMI® cables by Pixelgen Design™.
These thin, flexible passive HDMI cables guarantee max 18G bandwidth and complete HDMI functional feature-set.
Available in 0.3, 0.5, 1, 2, 3 and 5m, all Max 4K Interconnect lengths have achieved the superior designation of
passing the THX® Certified 4K Interconnect program.
All mechanical characteristics of the Max 4K Interconnect series of cables have been carefully engineered by
Pixelgen to ensure the highest level of signal integrity with from a high-speed, low-speed communication & DC
perspective.
Specifically, careful consideration has been taken with critical mechanical characteristics such as; wire gauge, highspeed twist ratios, shield uniformity and overall wire arrangement layout. Consideration of these elements help
maximize signal integrity as well as isolate critical signals within the cable itself for maximized reliability and
interoperability.
Highly attractive premium look and feel on the outside, and superior premium cable quality on the inside. No
compromises have been made, well thought out and refined. Pixelgen Design has put an intense focus on
delivering one of the biggest “missing links” in the market. Robust 18Gbps connectivity solutions. Max 4K
Ensured.
Specification
Specificationssss
SpecificationSpecification
• THX® Certified 4K Interconnect
• 0.3m-2m lengths utilize 34AWG/8C (4.5mm OD), 3m & 5m lengths utilize 28AWG/8C (6.5mm OD)
• Supports all formats & functionality within HDMI 2.0b specification (including 4K60 8-bit 4:4:4 & 4K60 12-
bit 4:2:2)
• HDR10 4K60 10-bit 4:2:0 (11.1Gbps) compatible
• Dolby Vision (WCG) 4K60 12-bit 4:2:0 (13.4Gbps) compatible
• ARC, HEC & CEC 2.0 supported
• Optimized isolation from EMI/RF interference
• Engineered in Canada by Pixelgen Design™
www.pixelgendesign.com Pixelgen Design Inc. | 835 Harrington Crt. Unit 1 | Burlington, ON, Canada | L7N 3P3
Page 2
MAX 4K INTERCONNECT
DECEMBER 201
6
THX
THX®®®® Certified 4K Interconnect Advantage
Certified 4K Interconnect Advantage
THXTHX
Pixelgen Design, a Canadian-based engineering-first organization was founded in February, 2015 when
Jack MacDougall set out on his own after 15 years in the industry. Pixelgen Design promises—and
delivers—pure 18G uncompressed UHD signal extension products. Designed in-house from the ground
up, our family of HDMI extension methods are guaranteed to support all A/V formats and functionality
currently supported by the latest HDMI 2.0b specification.
Certified 4K Interconnect AdvantageCertified 4K Interconnect Advantage
• Assured true uncompressed HDMI transport up to 18Gbps (4K60 8-bit 4:4:4 & 4K60 12-bit 4:2:2)
• Specialized tests catering to passive HDMI cable needs (Jitter, Insertion Loss etc.)
• Guaranteed functionality of complete HDMI feature-set including HDCP 2.2, ARC, HEC and CEC 2.0
• Stringent fitness-to-application testing (power sequencing, hot-plugging) to ensure highest level of in-field
reliability.
Certification,
Certification, Environmental & Regulatory
Certification, Certification,
• THX® Certified 4K Interconnect
• CE Rated
• RoHS Compliant
• CMG Rated (3m to 5m only)
Ordering Information
Ordering Information
Ordering InformationOrdering Information
• PXL-CBH03: 0.3m Max 4K Interconnect (Cable)
• PXL-CBH05: 0.5m Max 4K Interconnect (Cable)
• PXL-CBH1: 1m Max 4K Interconnect (Cable)
• PXL-CBH2: 2m Max 4K Interconnect (Cable)
• PXL-CBH3: 3m Max 4K Interconnect (Cable)
• PXL-CBH5: 5m Max 4K Interconnect (Cable)
• PXL-CBH10 1: 10m Max 4K Interconnect (Cable)
• PXL-CBH151: 15m Max 4K Interconnect (Cable)
Note1: Max 4K Interconnect System (Pixelgen™ Max 4K Interconnect cable + PXLDRIVE) available to
achieve 10 & 15m lengths up to 18Gbps. See pixelgendesign.com/products/pxldrive for more details.
About Pixelgen Design
About Pixelgen Design
About Pixelgen DesignAbout Pixelgen Design
Environmental & Regulatory
Environmental & RegulatoryEnvironmental & Regulatory
www.pixelgendesign.com Pixelgen Design Inc. | 835 Harrington Crt. Unit 1 | Burlington, ON, Canada | L7N 3P3
THX and the THX logo are trademarks of THX Ltd., registered in the United States and other countries.
HDMI is a registered trademark of HDMI® Licensing LLC in the United States and other countries.
